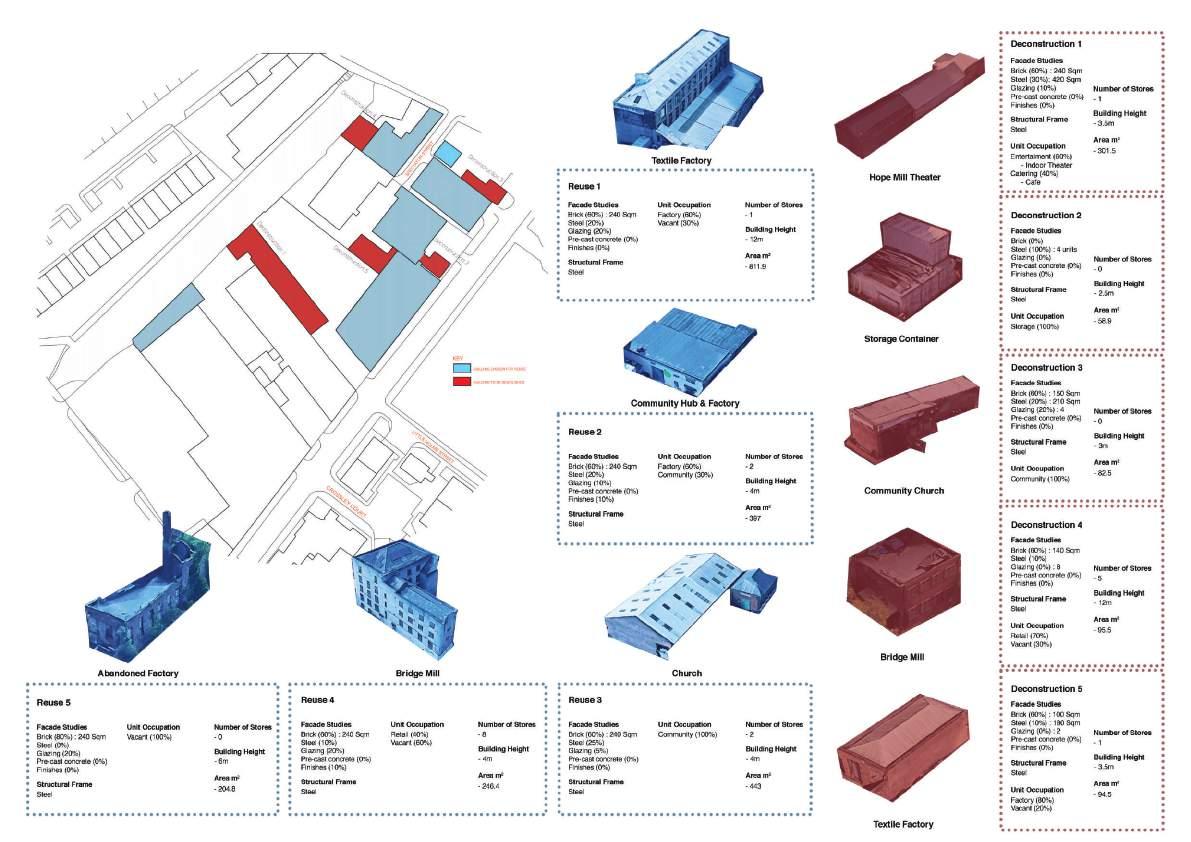

DECONSTRUCTION STUDIES

10

MASTERPLAN CONCEPT

11

MASTERPLAN PRECEDENT STUDIES

12

SITE SECTION

13

MASTERPLAN DECONSTRUCTION PHASE

14

PROPOSED MASTERPLAN

15

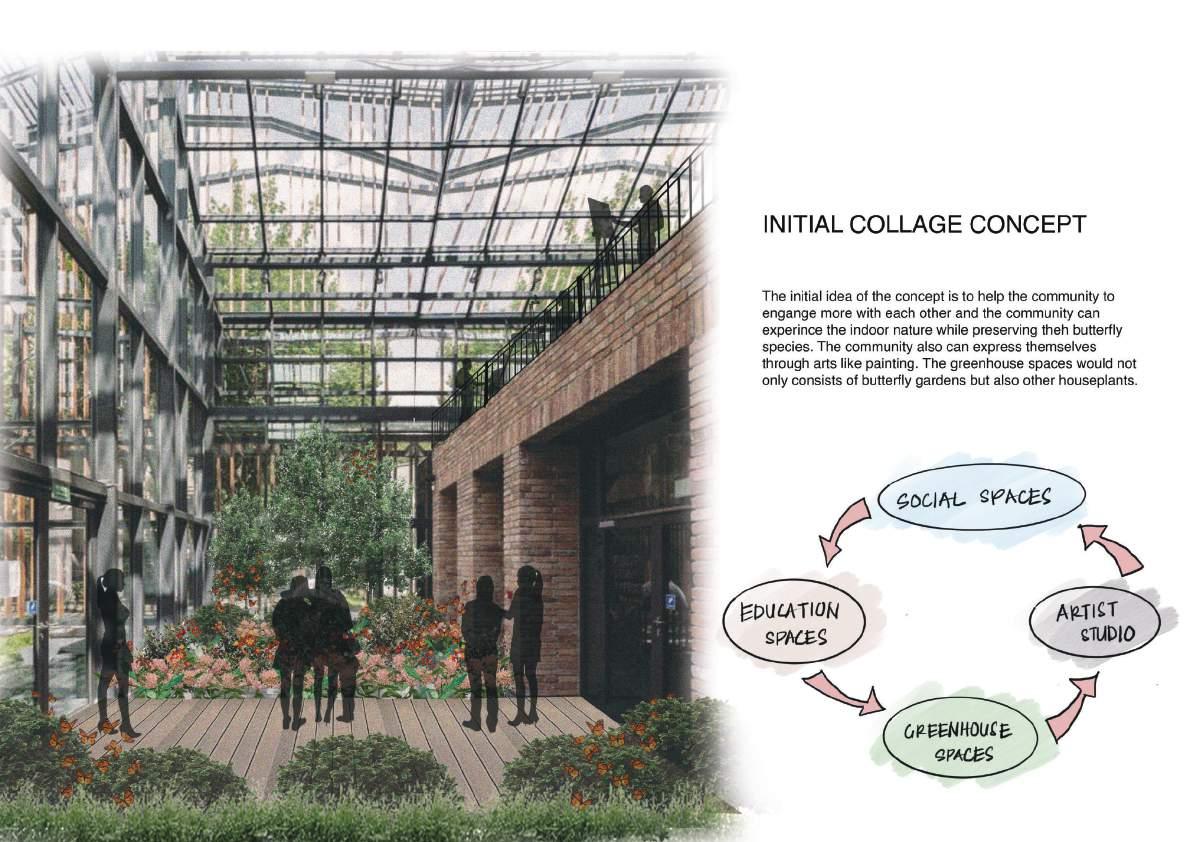

INDIVIDUAL : GREENHOUSE ART COMMUNITY CENTRE INITIAL COLLAGE

17

SITE LOCATION & ANALYSIS

18

EXISTING BUILDING ANALYSIS

19

THE BRIEF & CLIENT

20

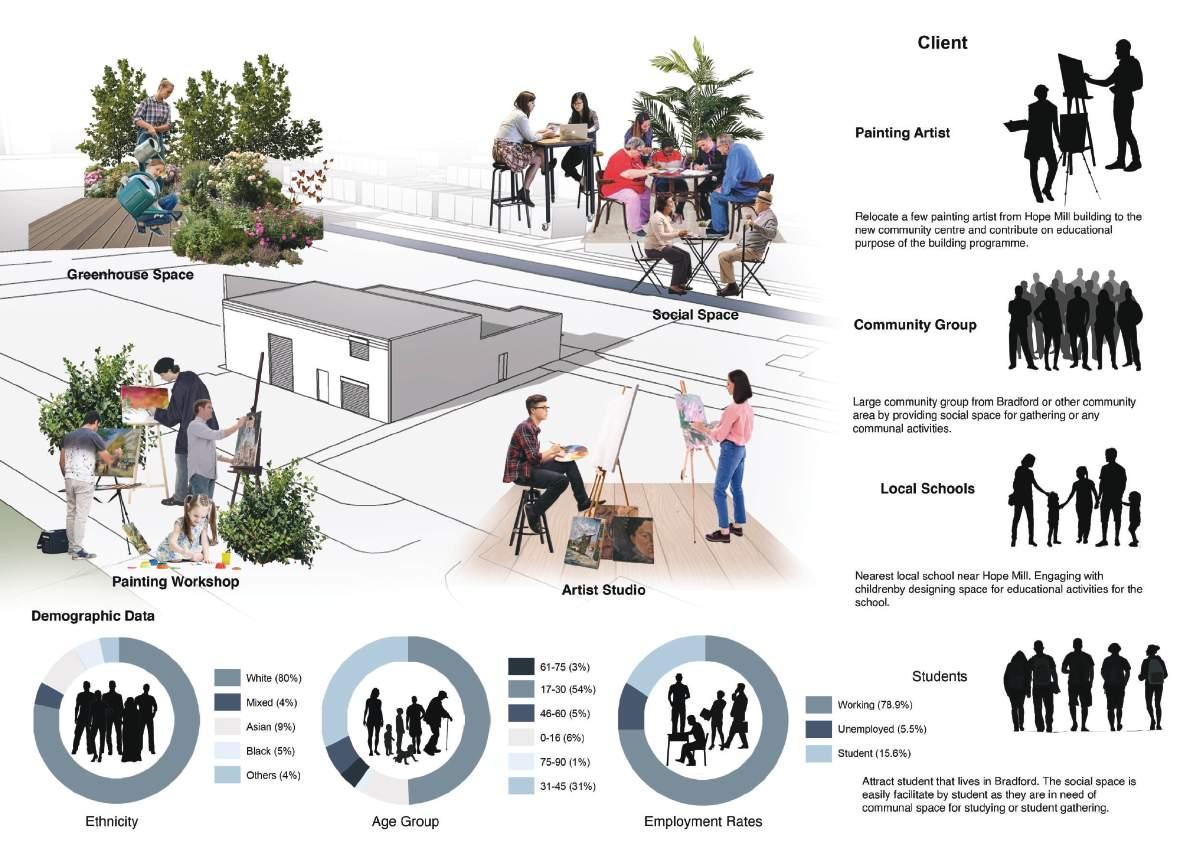

NON-HUMAN CLIENT

21

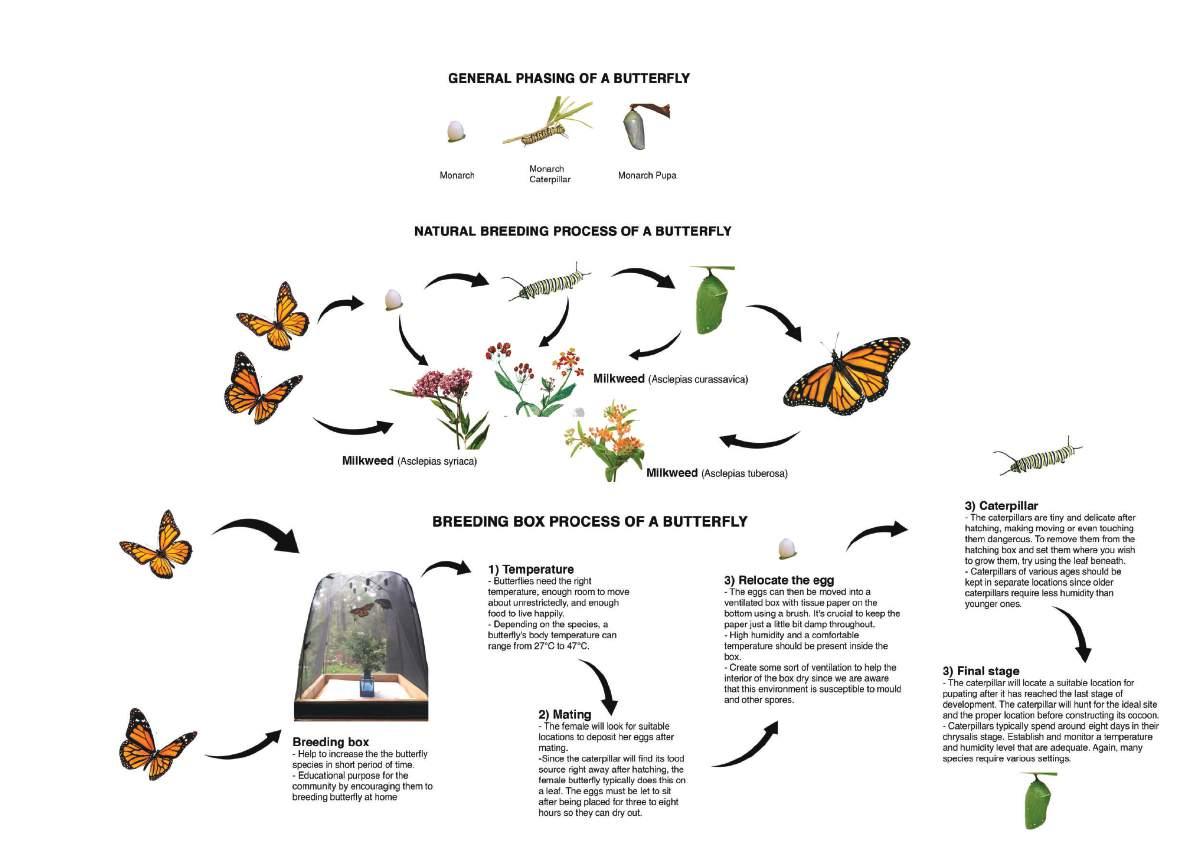

BUTTERFLY BREEDING PROGRAMME

22

BUILDING PROGRAMME

23

CONCEPT & DESIGN STRATEGY

24

INITIAL SITE APPROACH

25

PRECEDENT STUDIES

26

MATERIALITY

27

BIODIVERSITY SCHEME

28

FACADE DESIGN

29

BUILDING ITERATION

30

SITE PLAN

31

FLOOR PLAN

32

SECTIONAL PERSPECTIVE

34

ELEVATIONS

35

CONSTRUCTION DETAILS

36

EXISTING & PROPOSED PLAN

37

M&E AND ENVIRONMENTAL STRATEGY

38

CONSTRUCTION SEQUENCE

39

RIBA PLAN OF WORK

40

VISUALISATION OF THE FUTURE

41

PERSPECTIVE VIEWS

42

REFLECTION

44

BIBLIOGRAPHY

45

3

SITE INTRODUCTION

4

SITE ANALYSIS

5

STREET ELEVATION

6

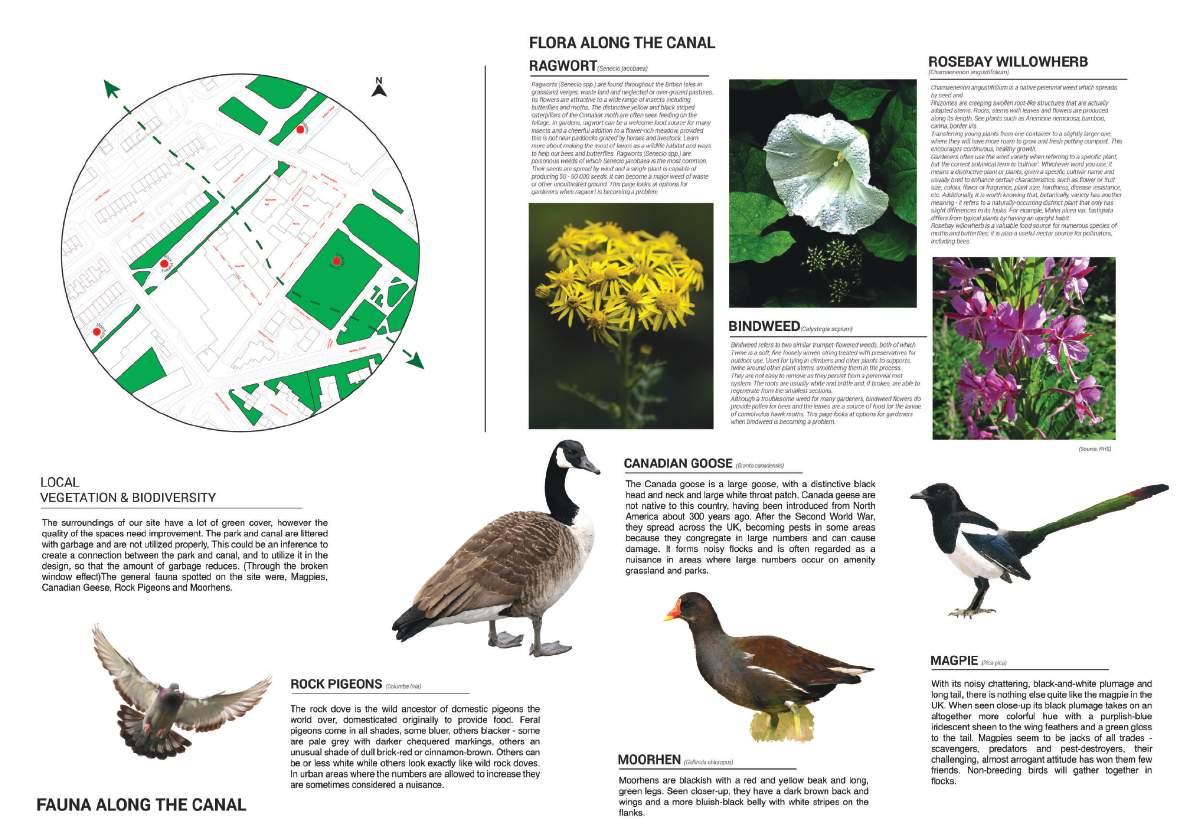

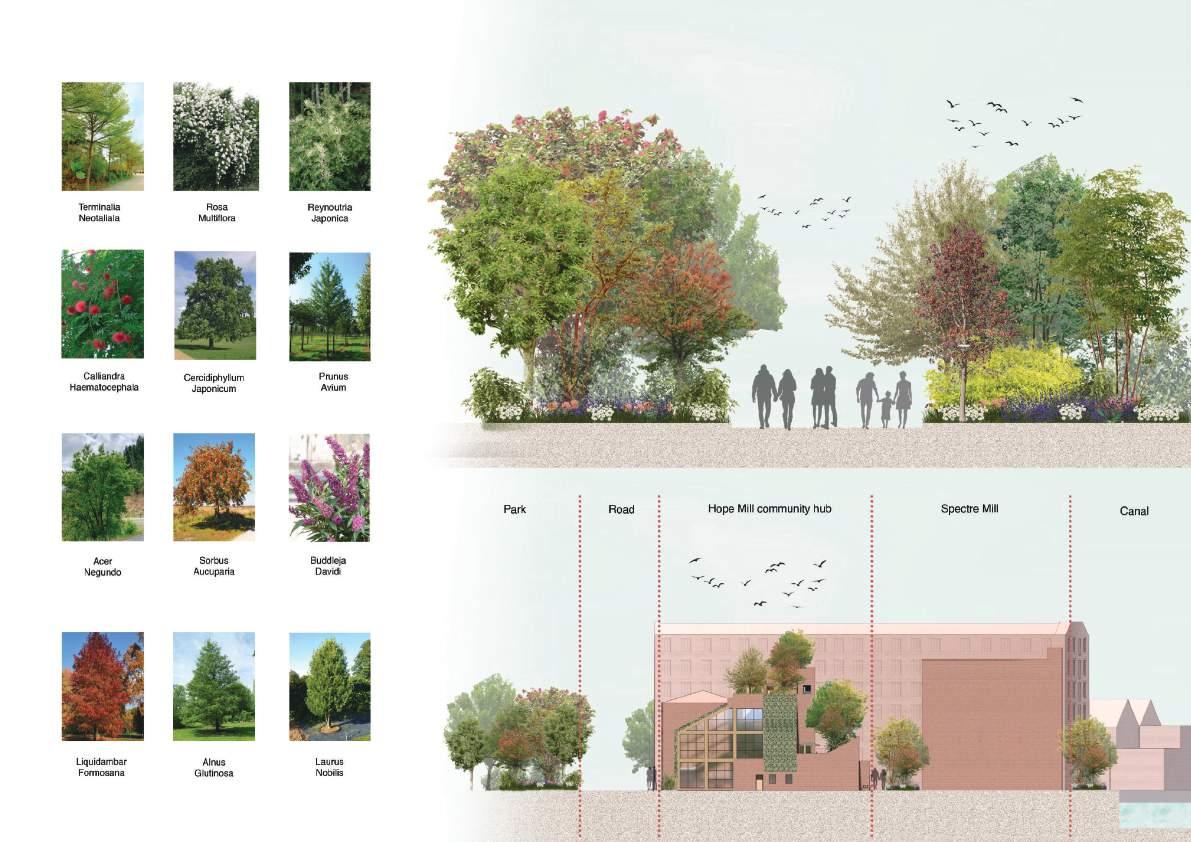

VEGETATION & BIODIVERSITY

7

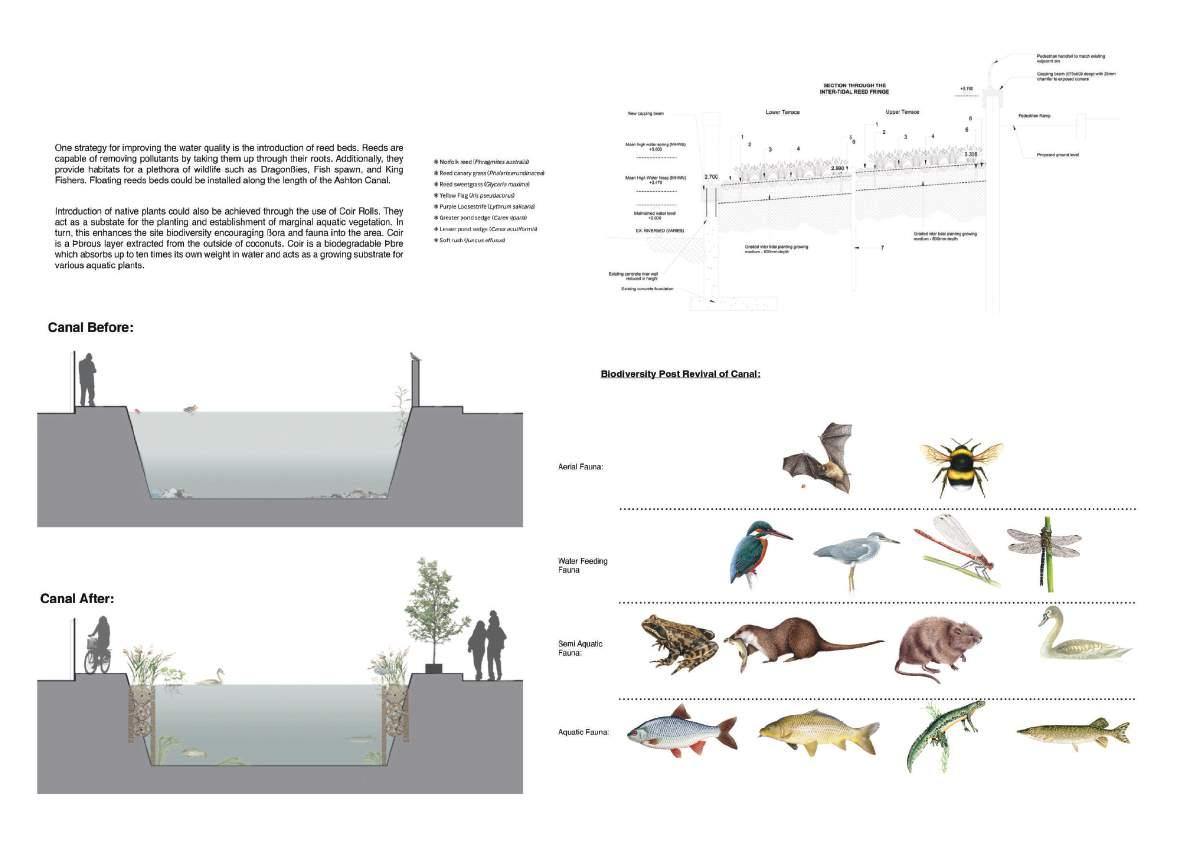

REVIVAL OF CANAL

8

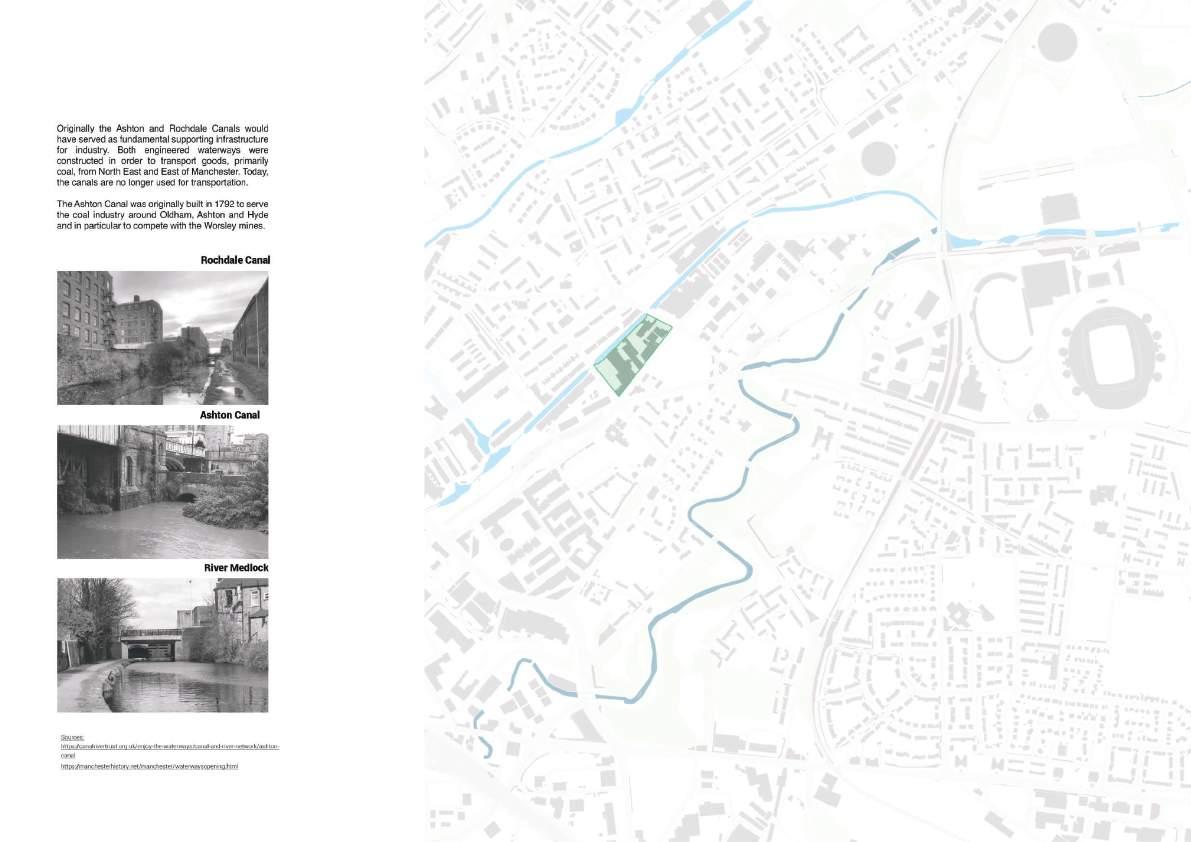

WATERWAYS

9

DECONSTRUCTION STUDIES

10

MASTERPLAN CONCEPT

11

MASTERPLAN PRECEDENT STUDIES

12

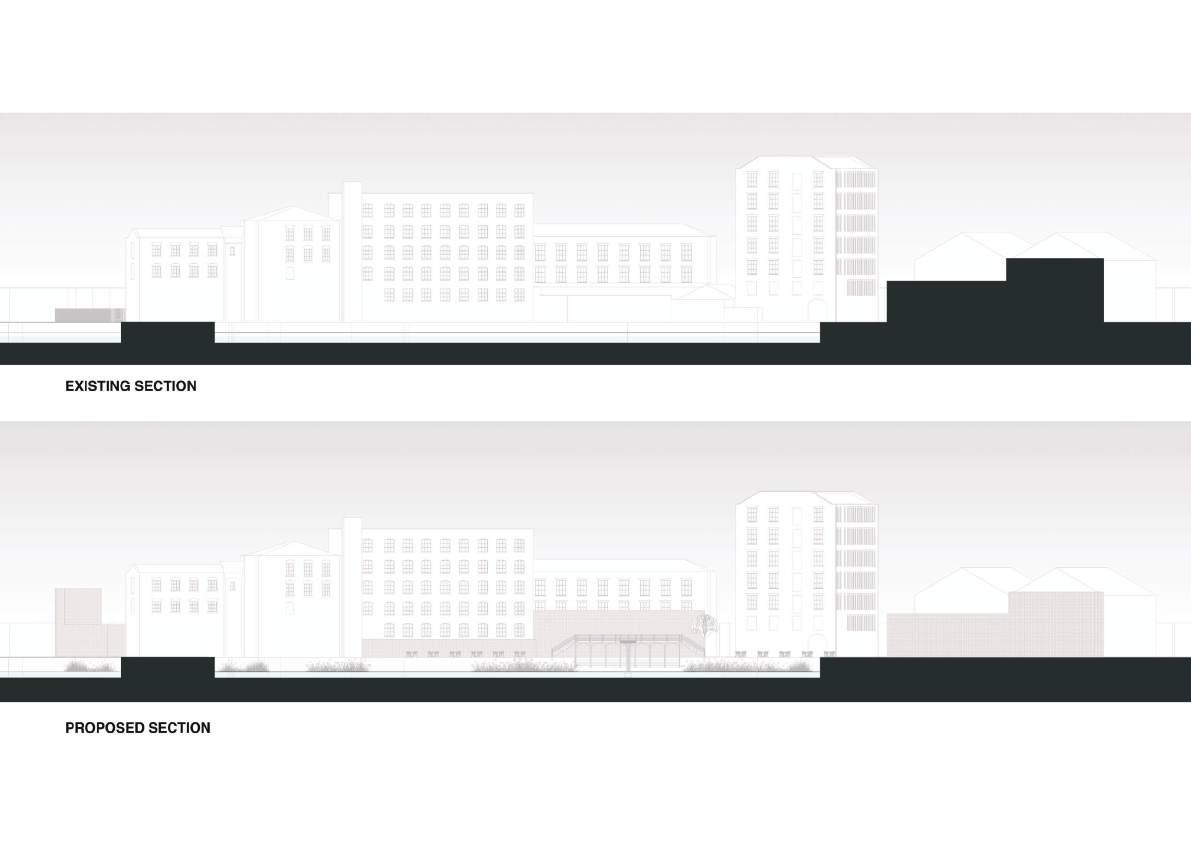

SITE SECTION

13

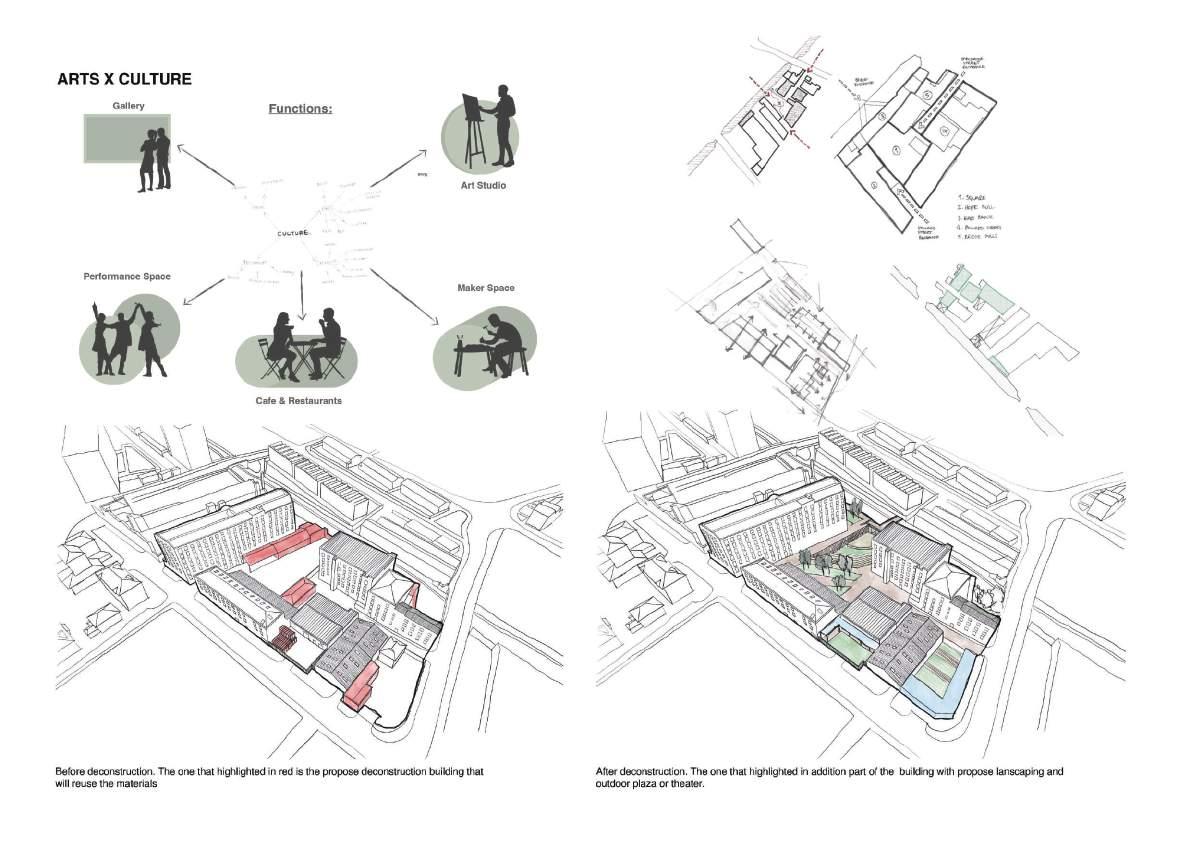

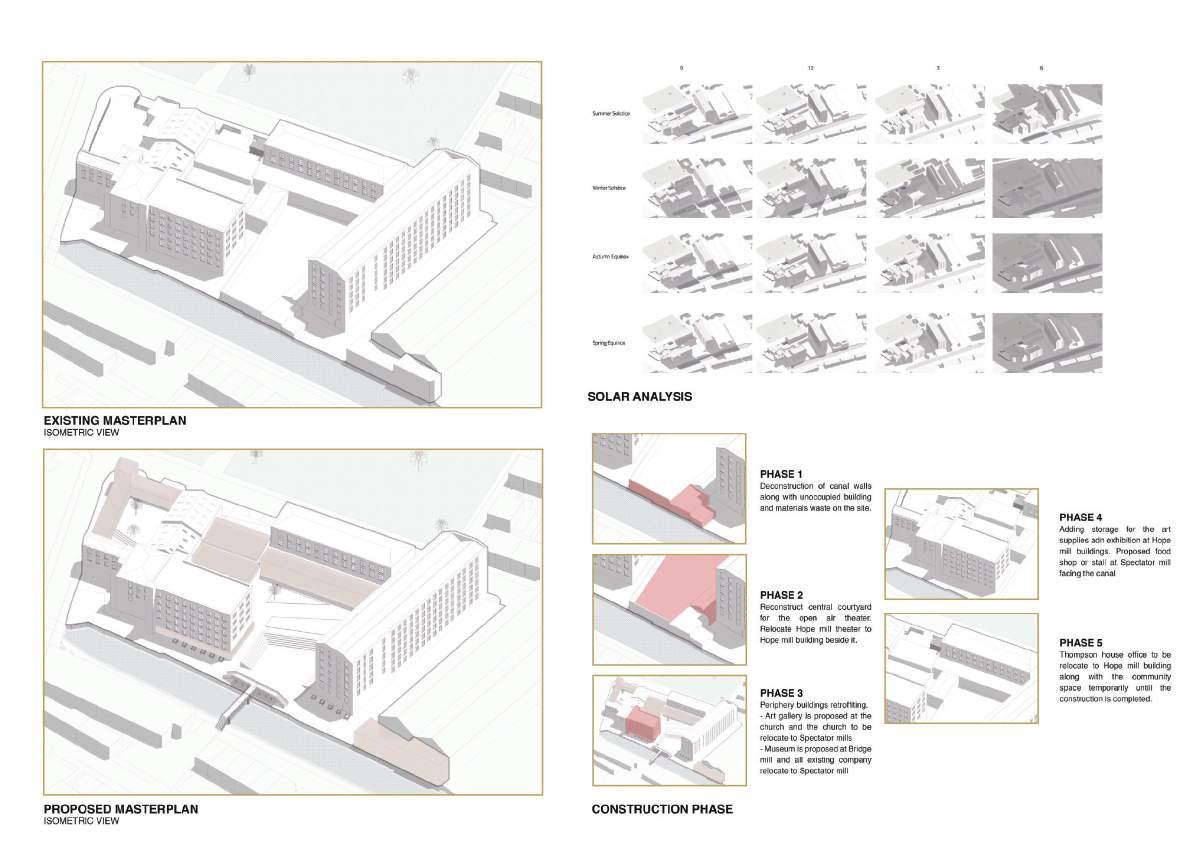

MASTERPLAN DECONSTRUCTION PHASE

14

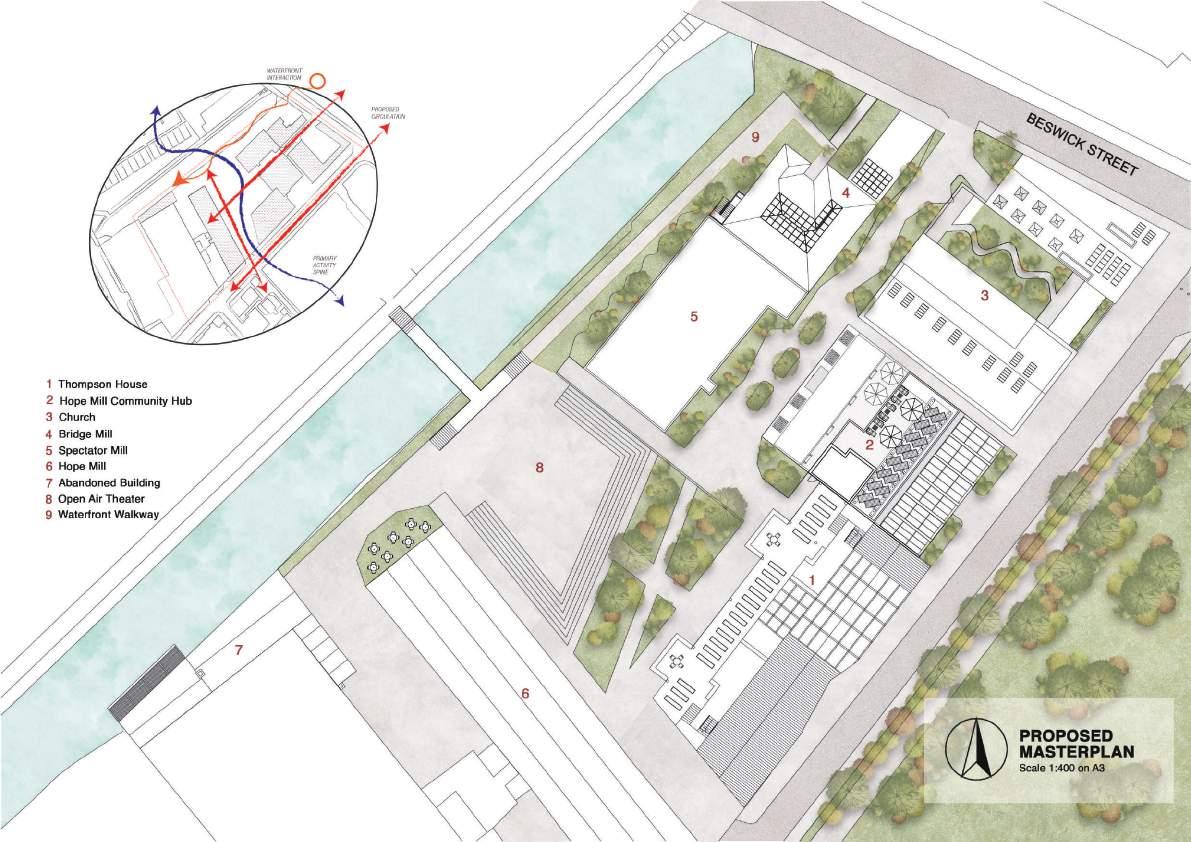

PROPOSED MASTERPLAN

15

16

17

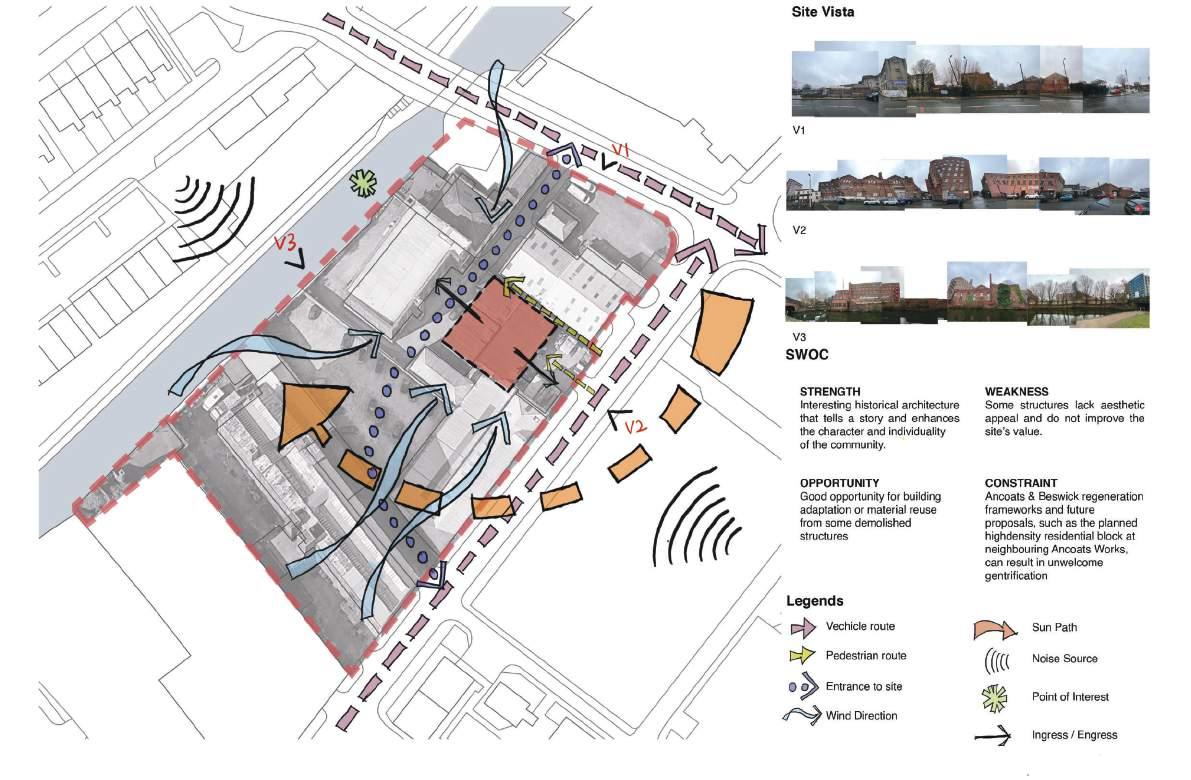

SITE LOCATION & ANALYSIS

18

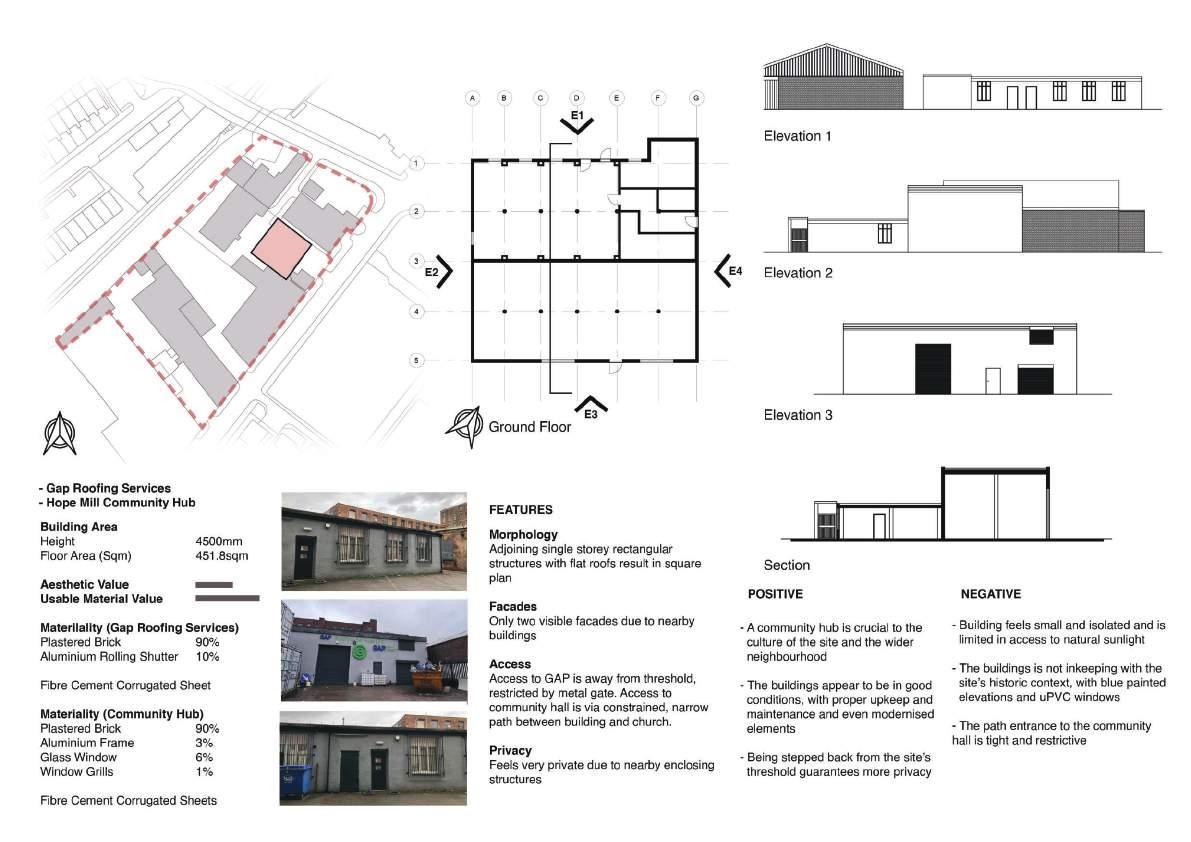

EXISTING BUILDING ANALYSIS

19

THE BRIEF & CLIENT

20

NON-HUMAN CLIENT

21

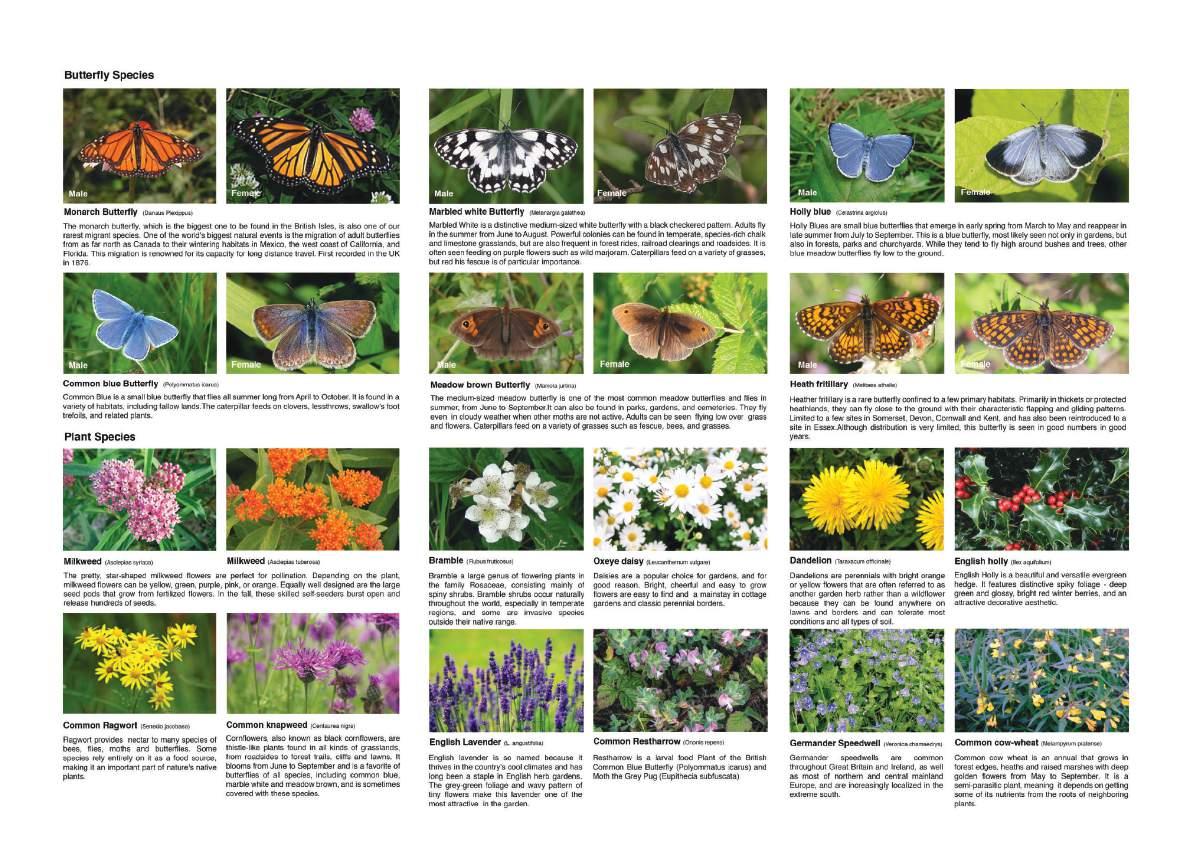

BUTTERFLY BREEDING PROGRAMME

22

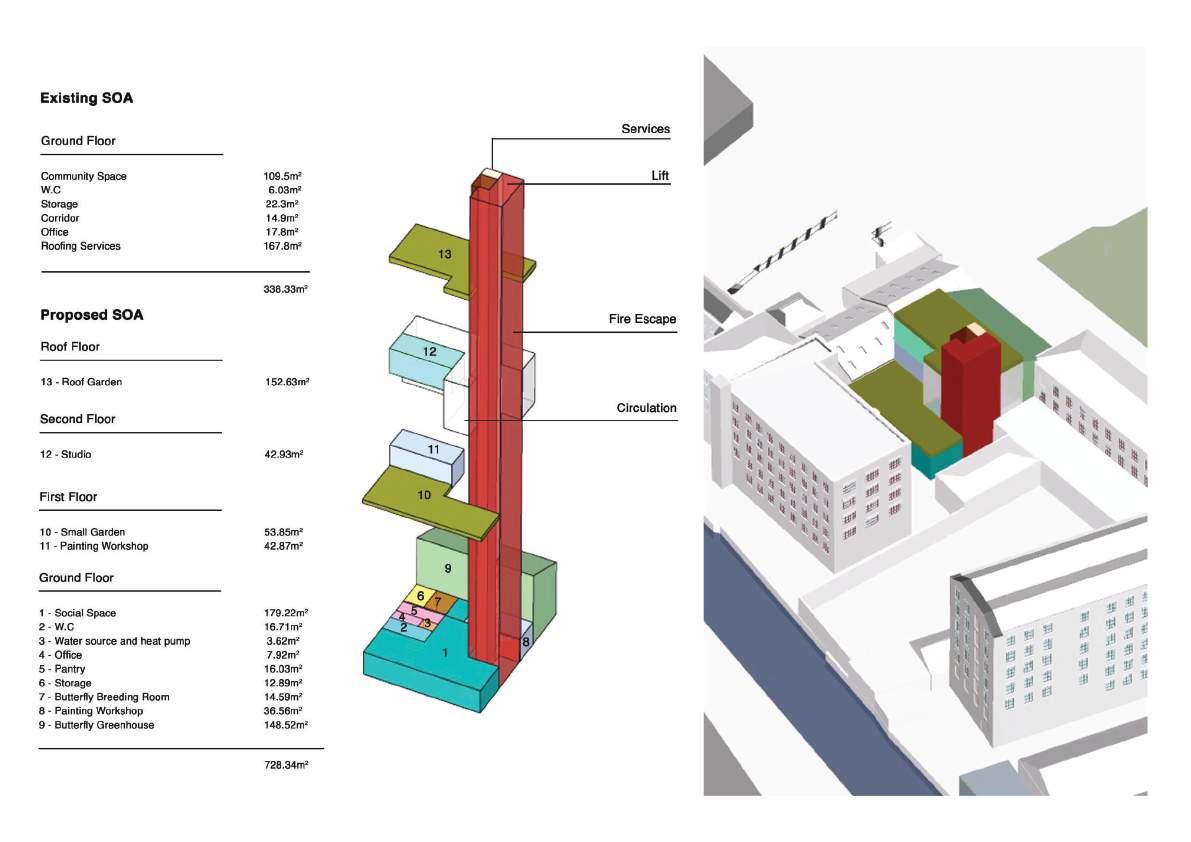

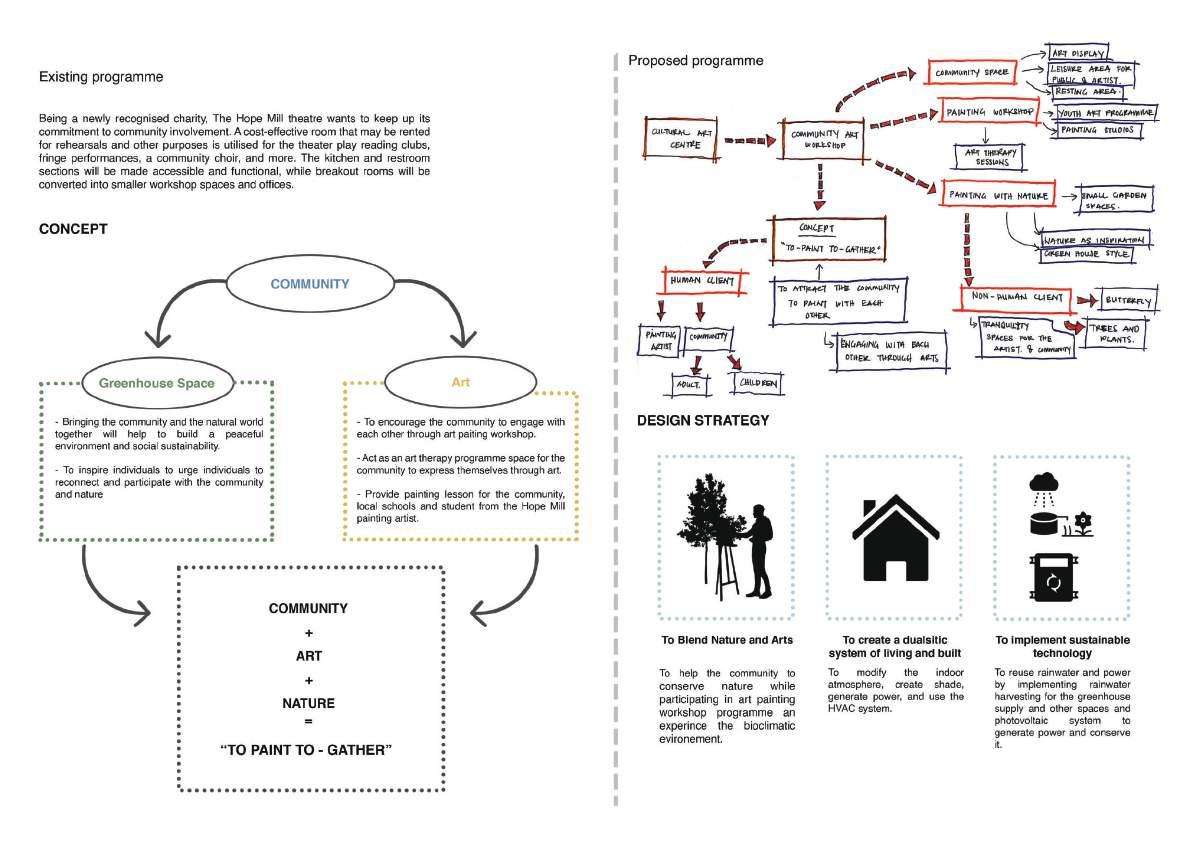

BUILDING PROGRAMME

23

CONCEPT & DESIGN STRATEGY

24

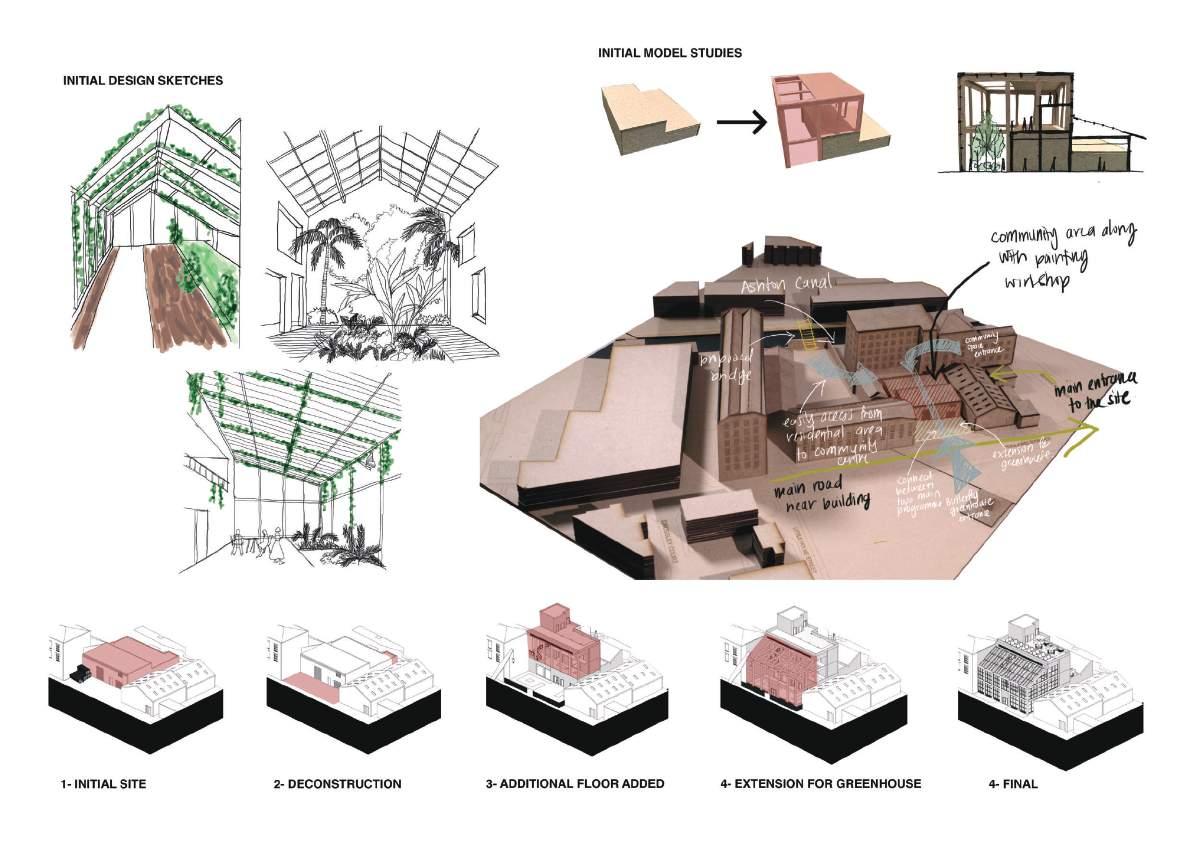

INITIAL SITE APPROACH

25

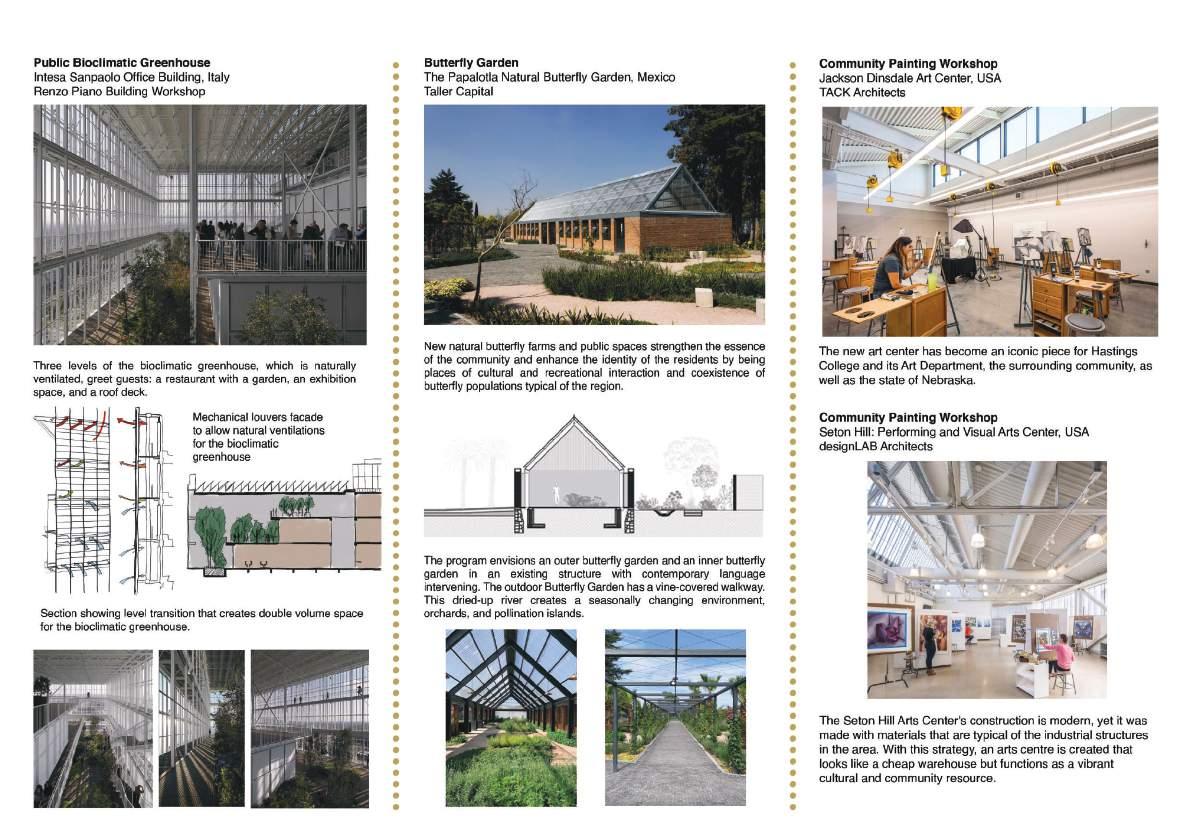

PRECEDENT STUDIES

26

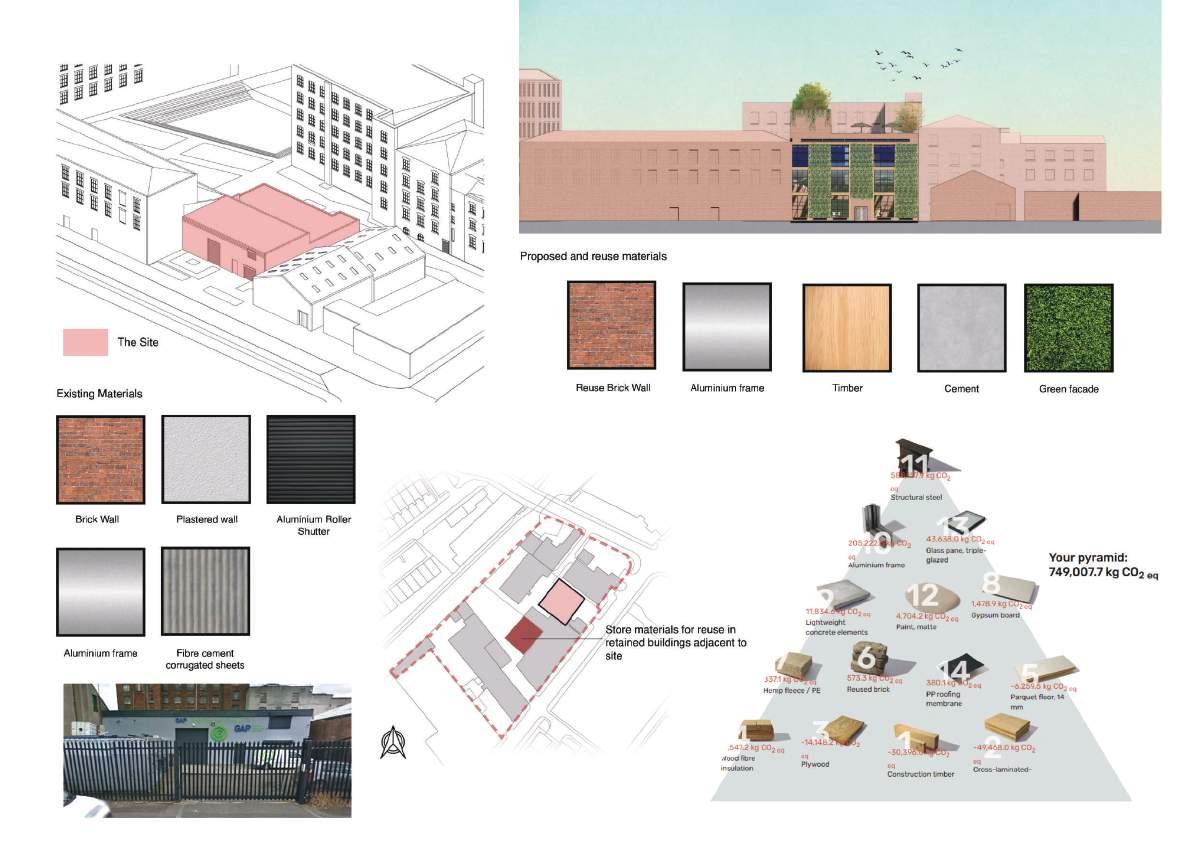

MATERIALITY

27

BIODIVERSITY SCHEME

28

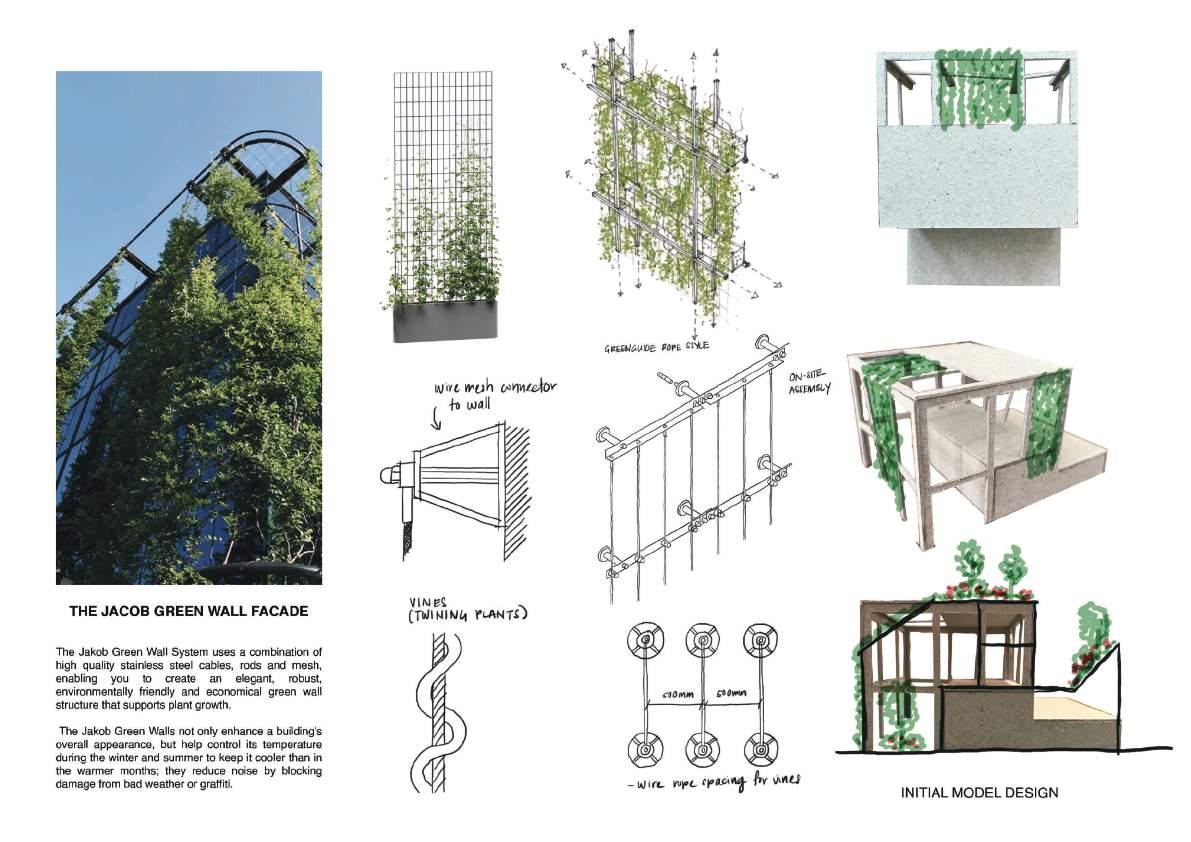

FACADE DESIGN

29

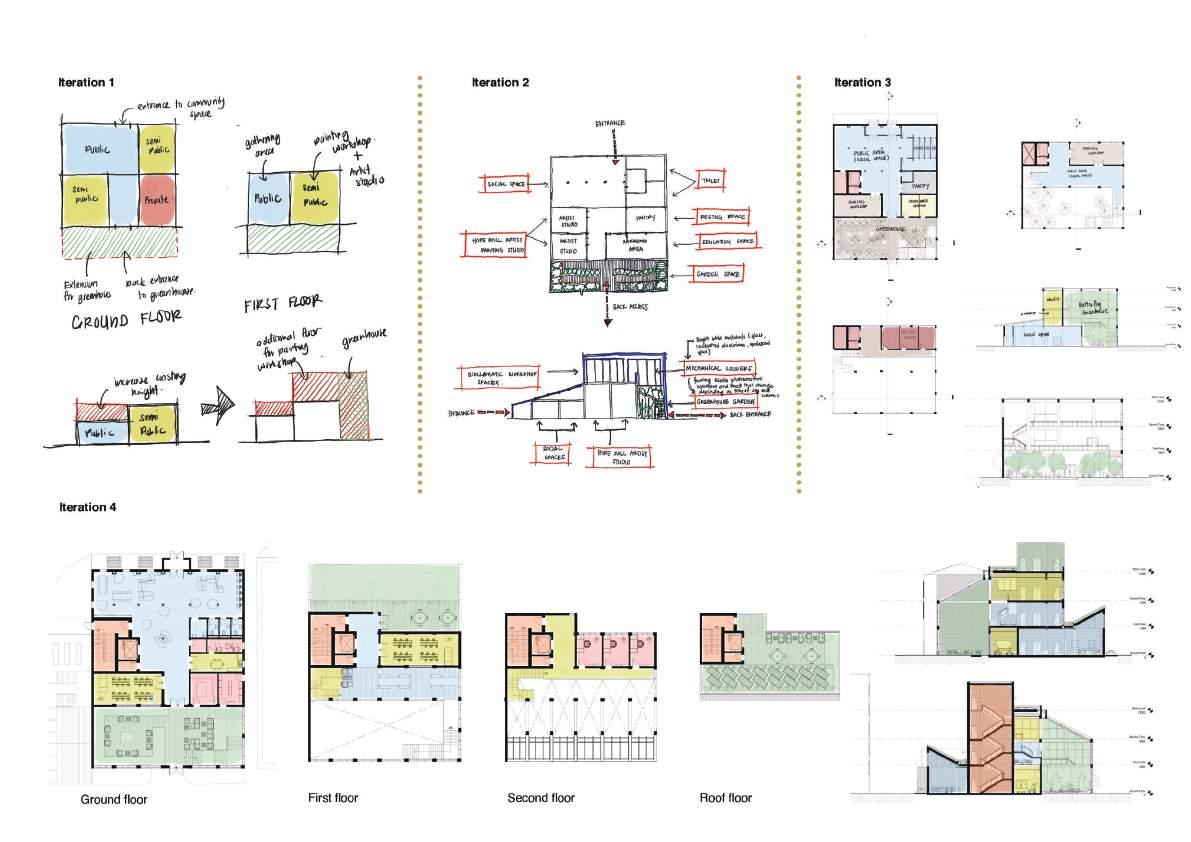

BUILDING ITERATIONS

30

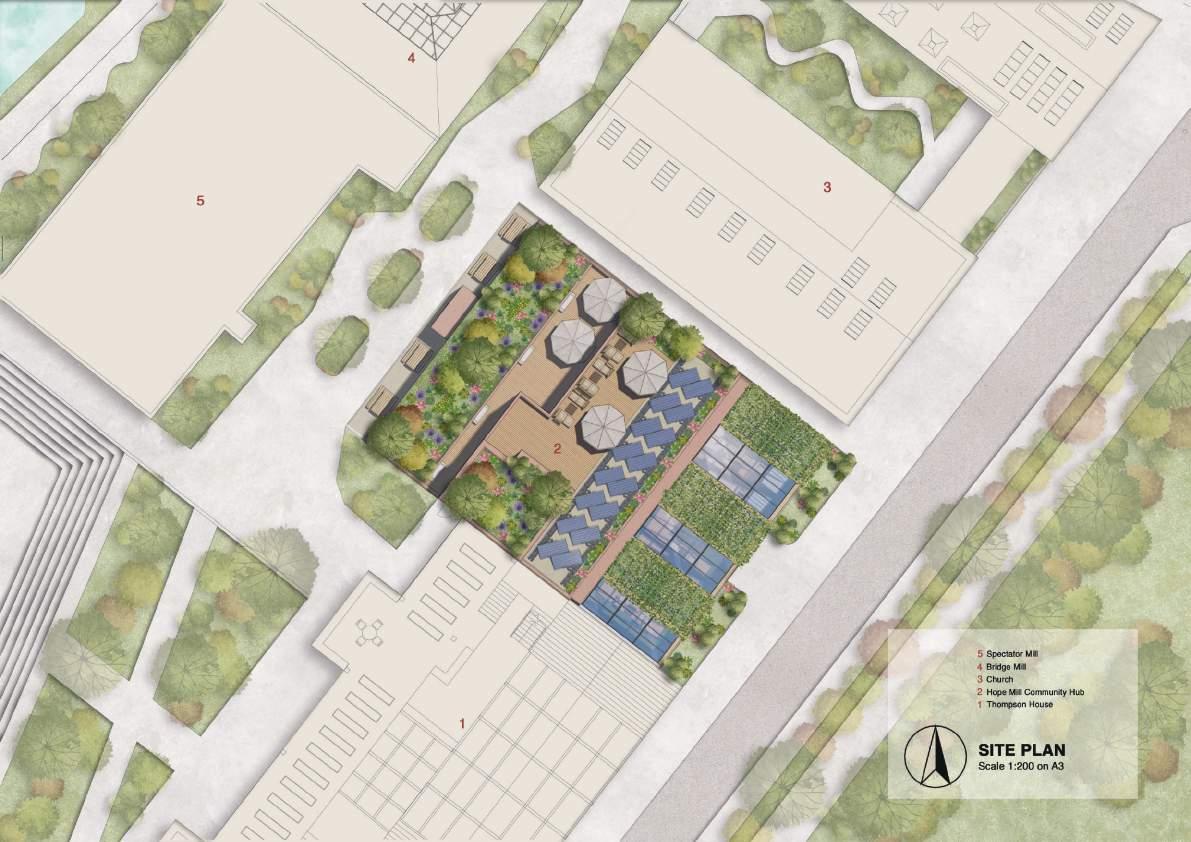

SITE PLAN

31

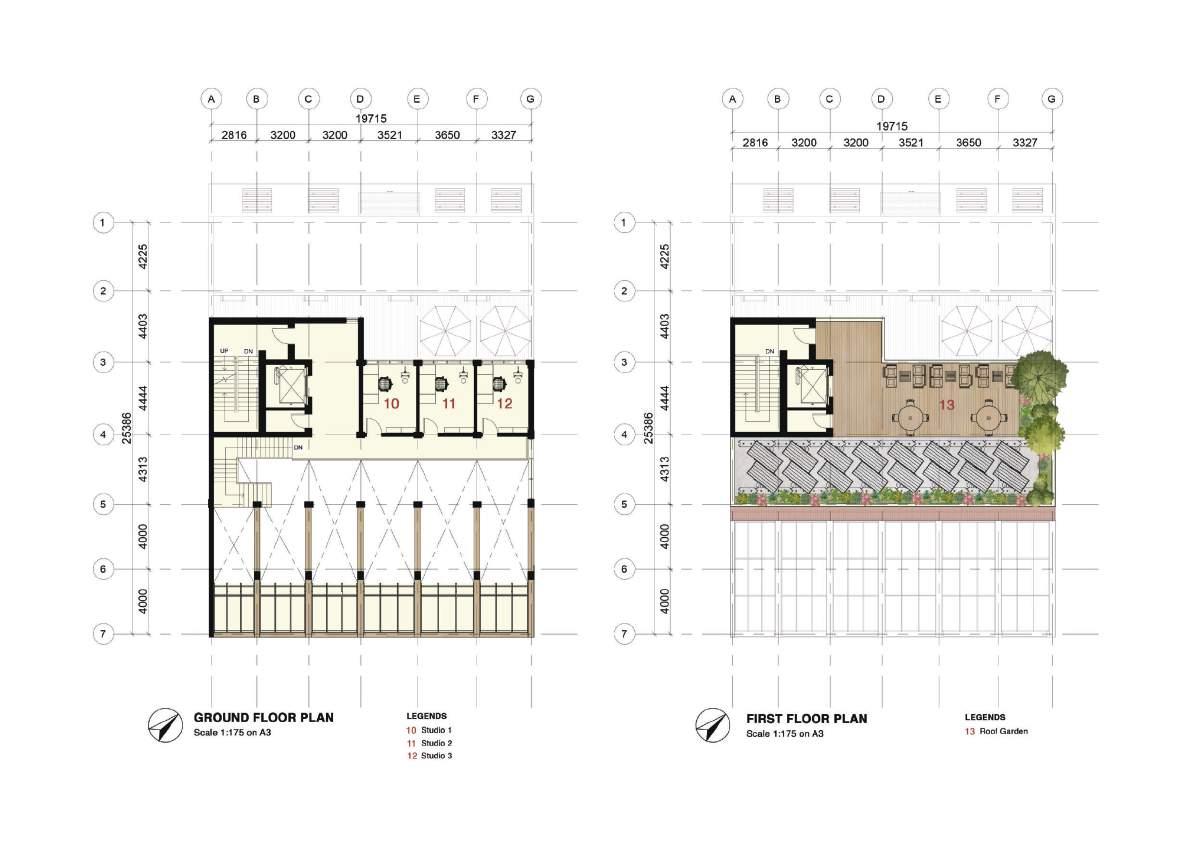

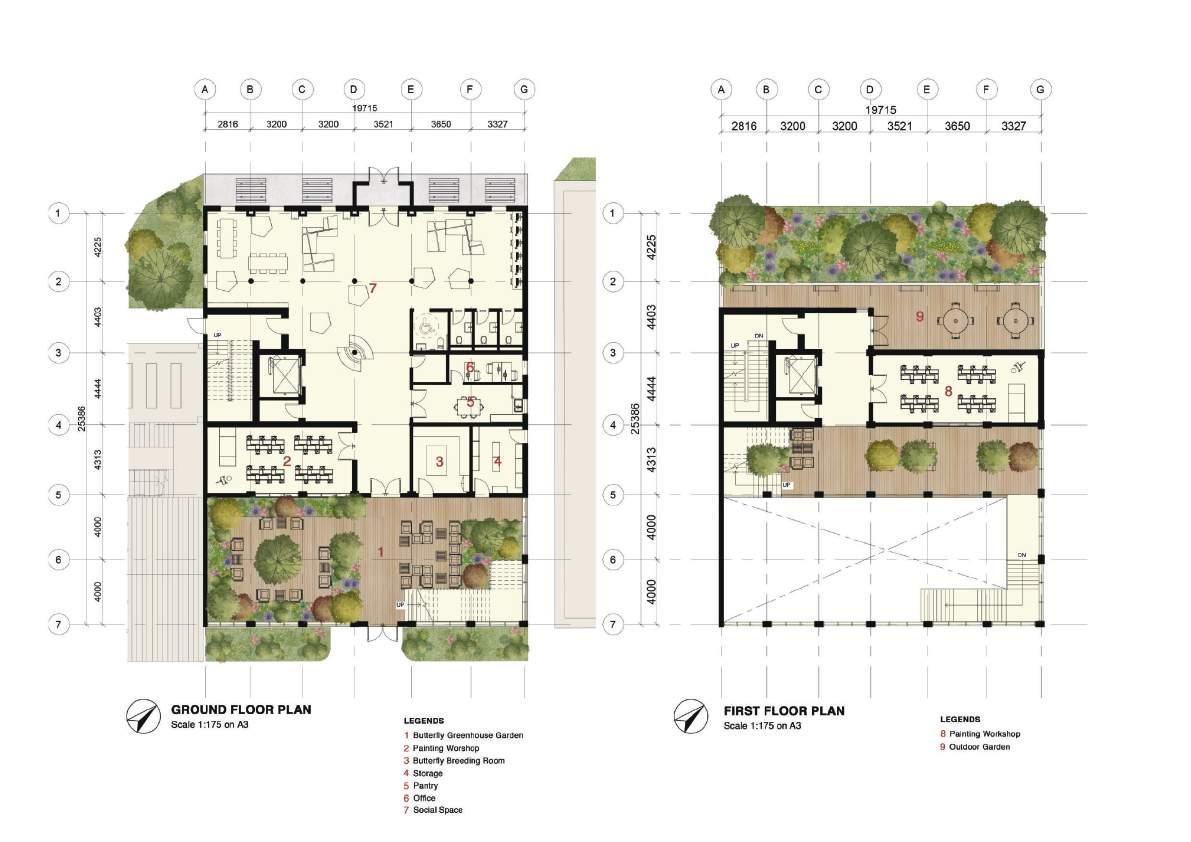

FLOOR PLANS

32

FLOOR PLANS

33

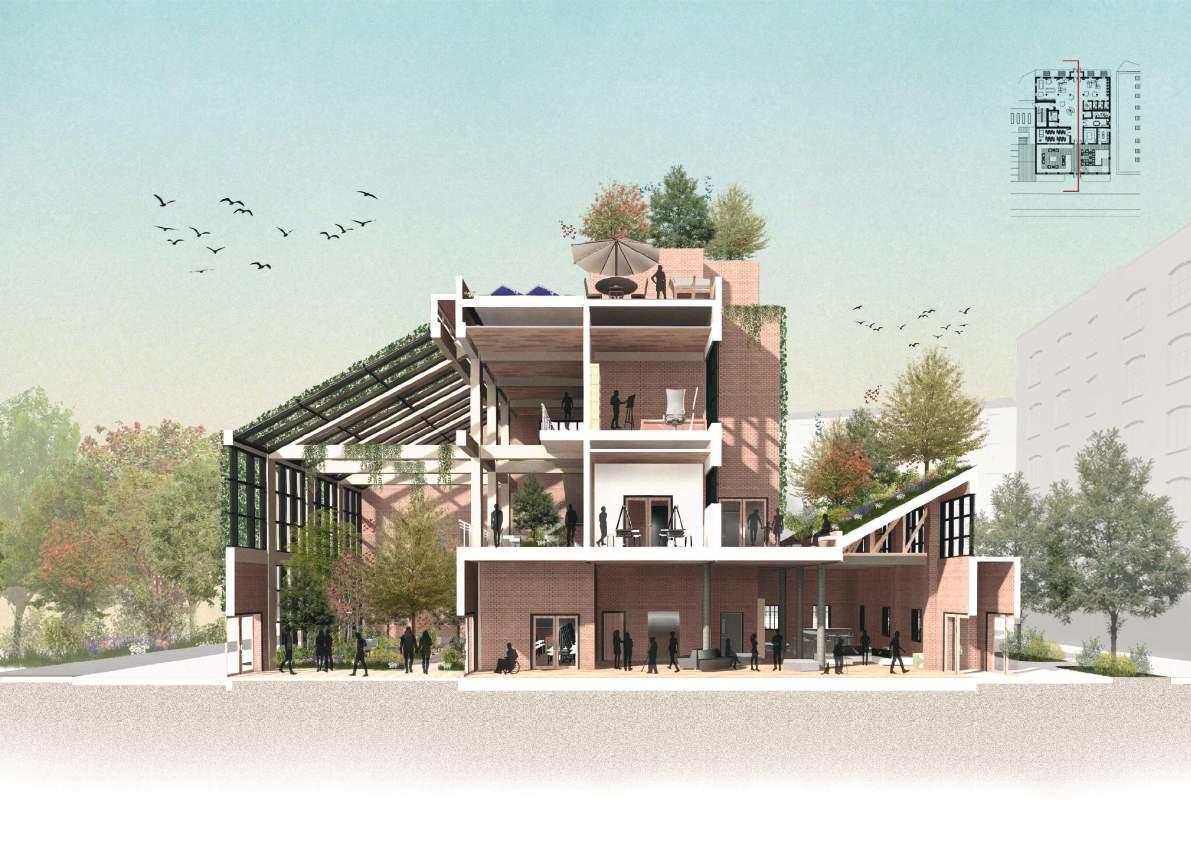

SECTIONAL PERSPECTIVE

34

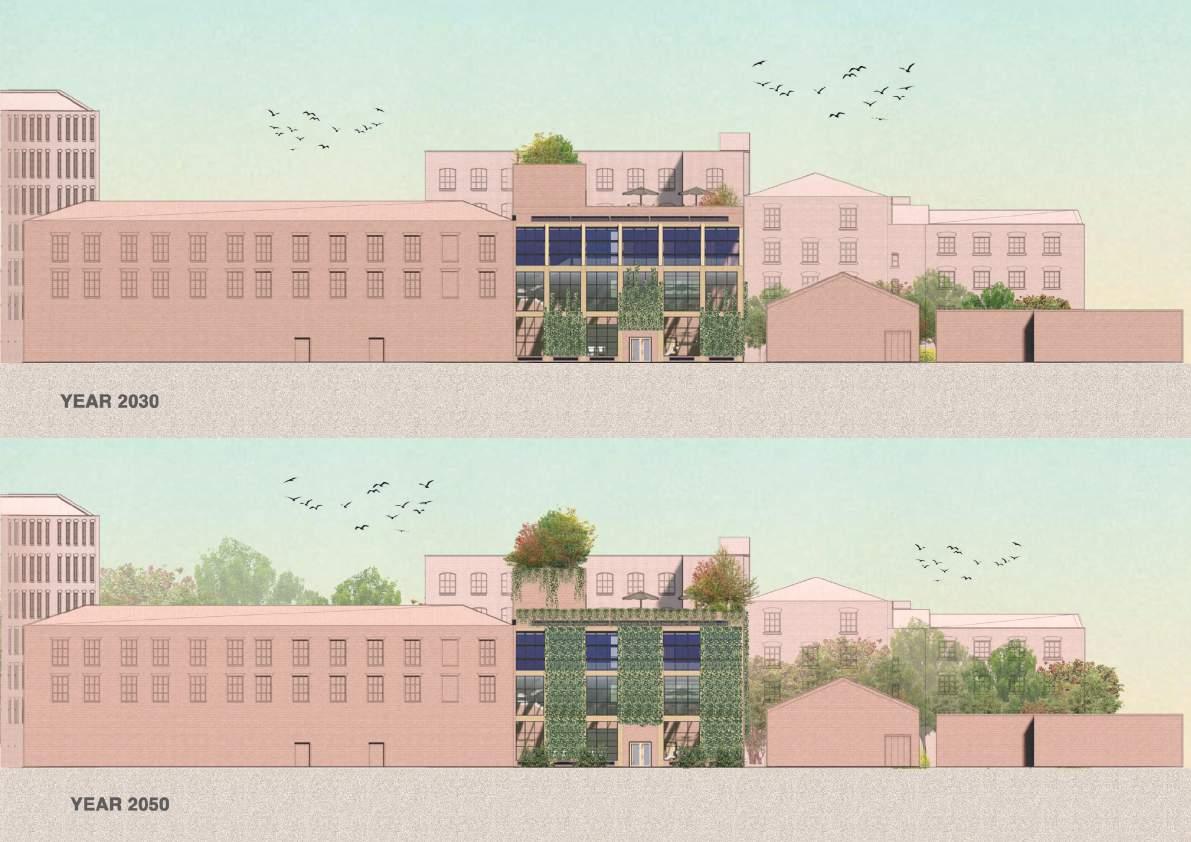

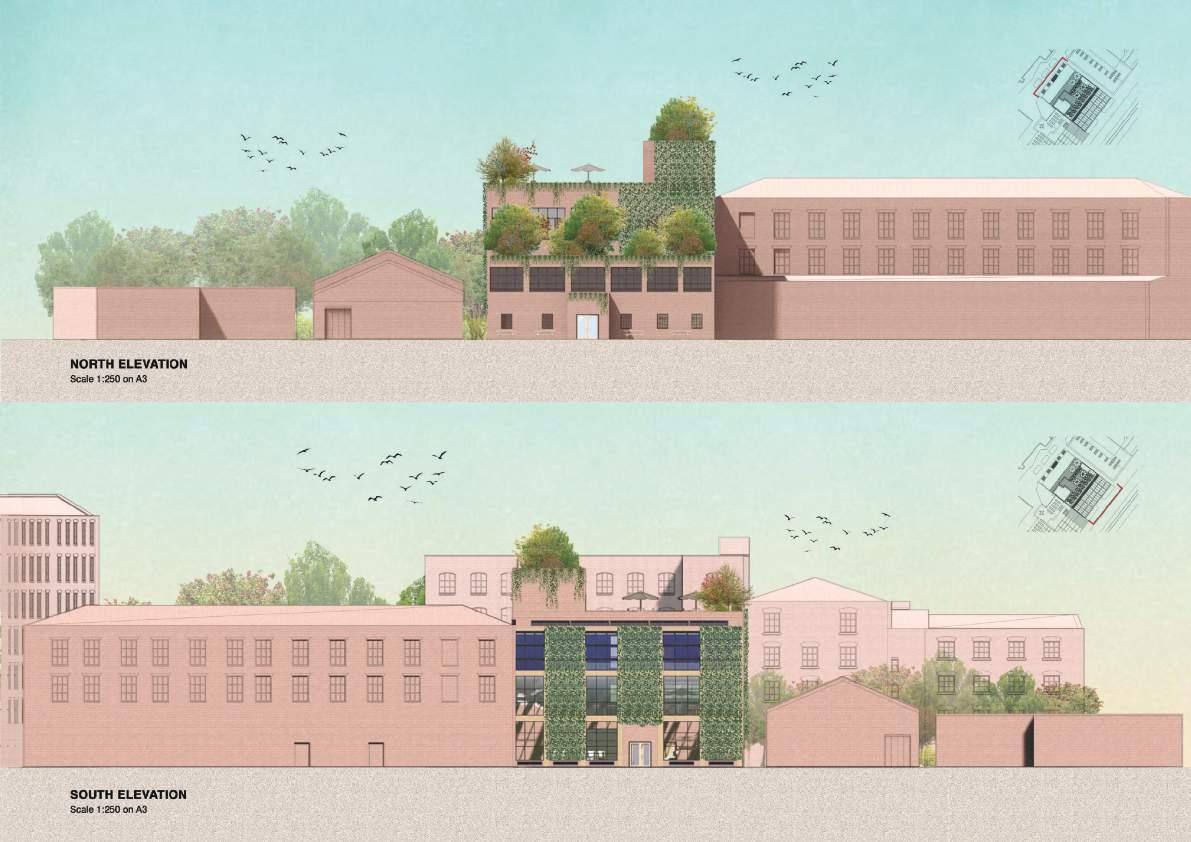

ELEVATIONS

35

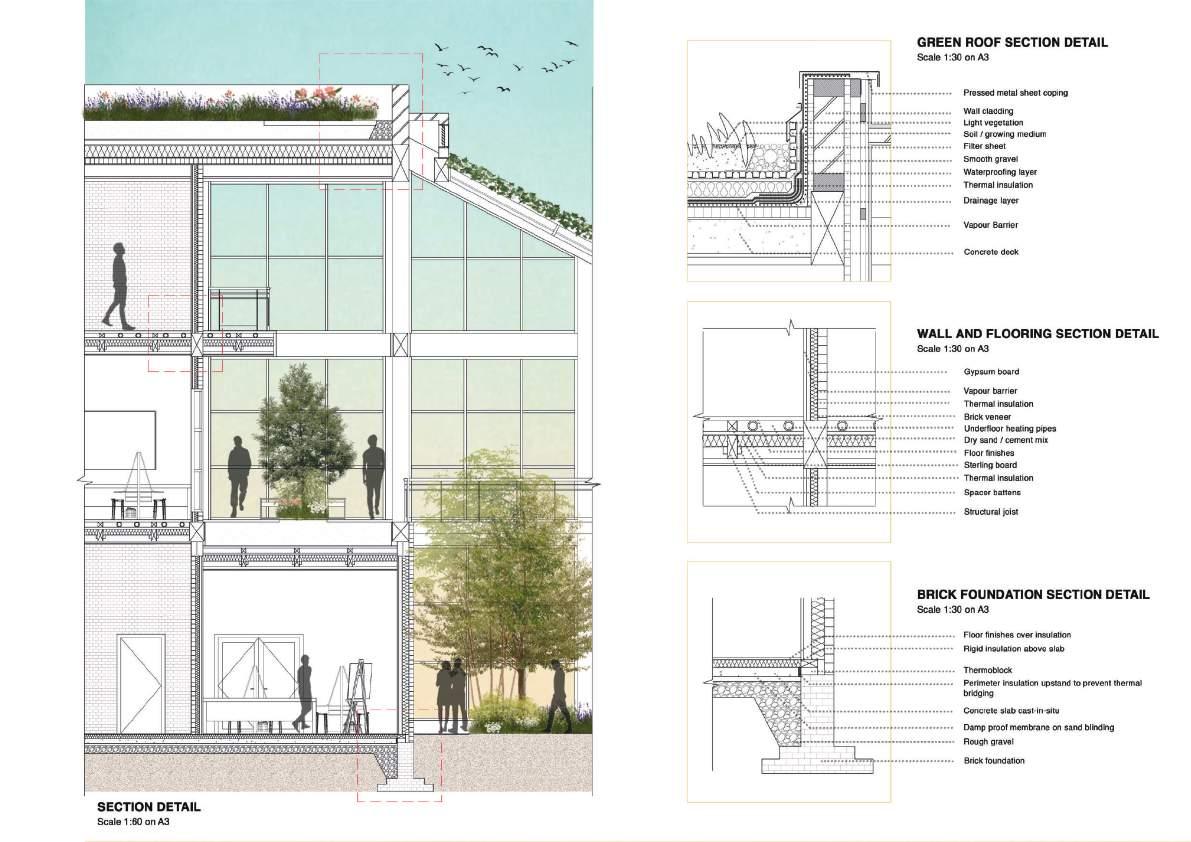

CONSTRUCTION DETAILS

36

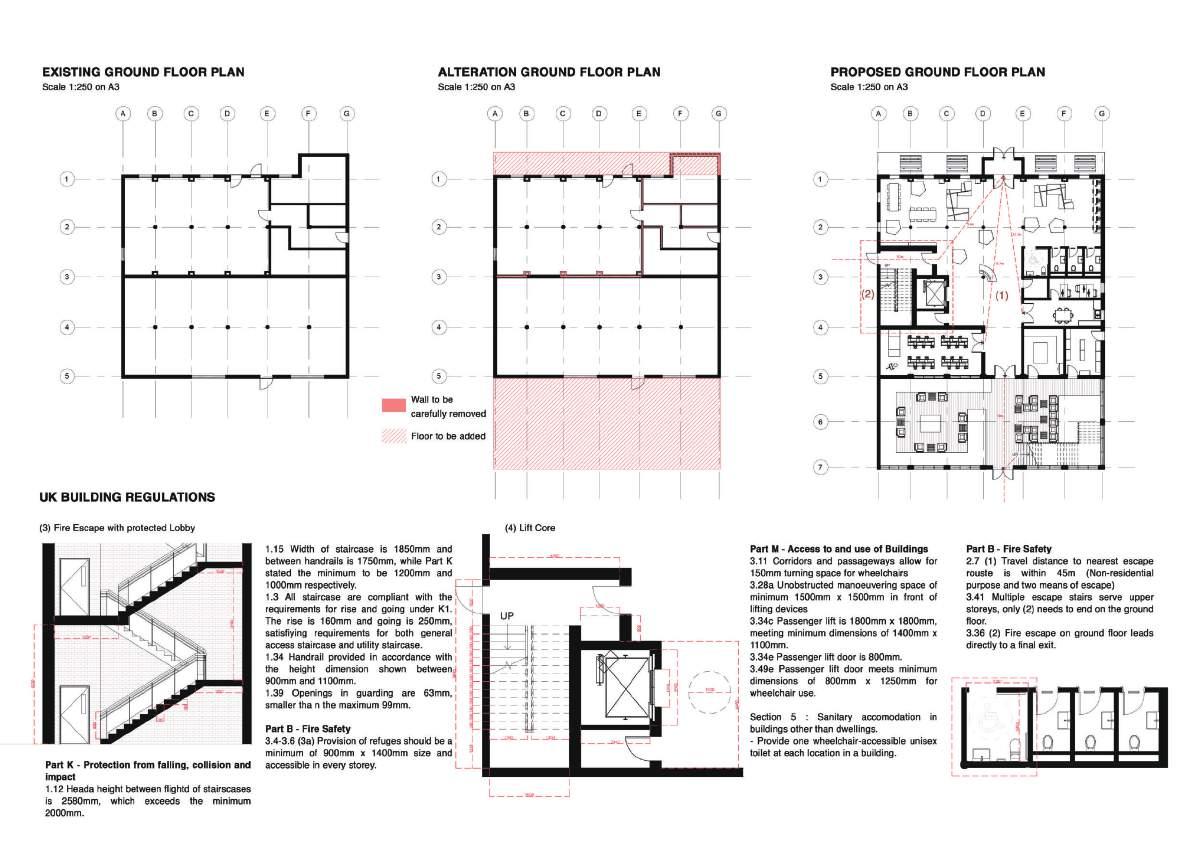

EXISTING & PROPOSED PLAN

37

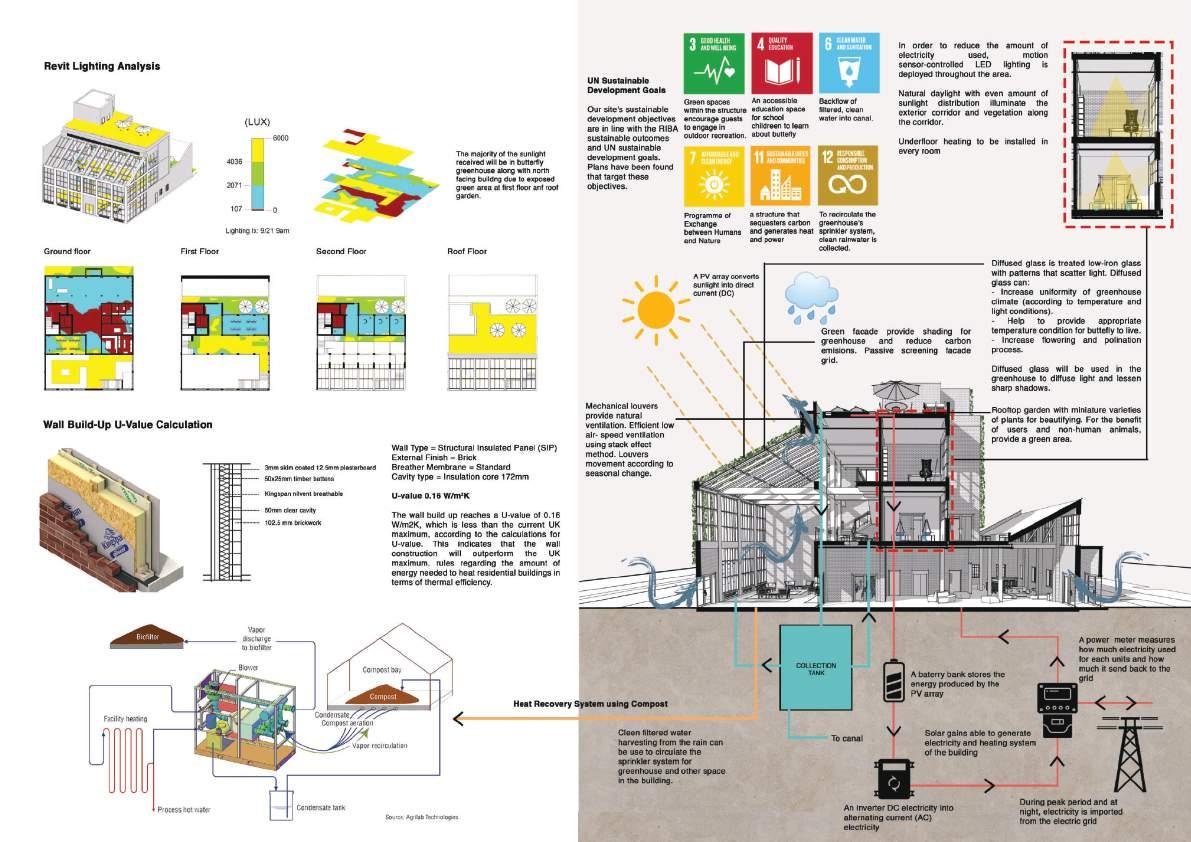

M&E AND ENVIRONMENTAL STRATEGY

38

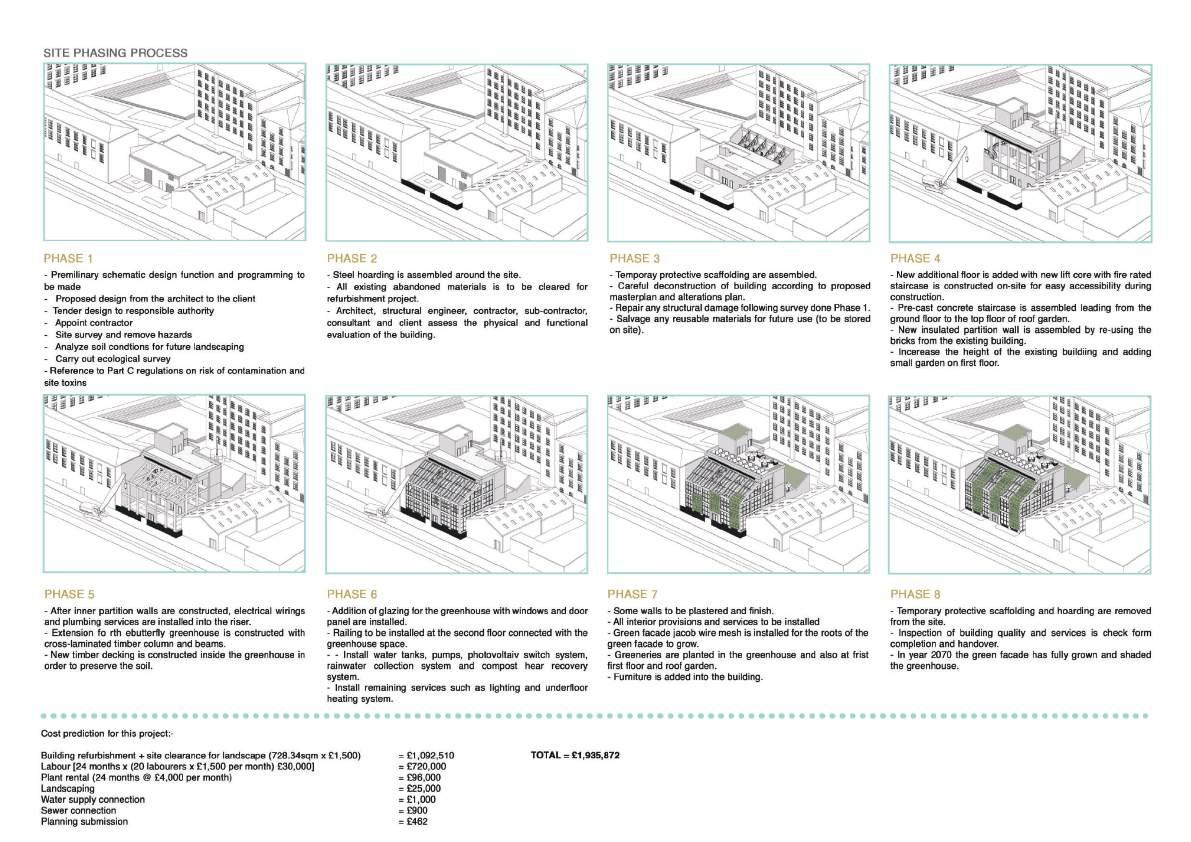

CONSTRUCTION SEQUENCE

39

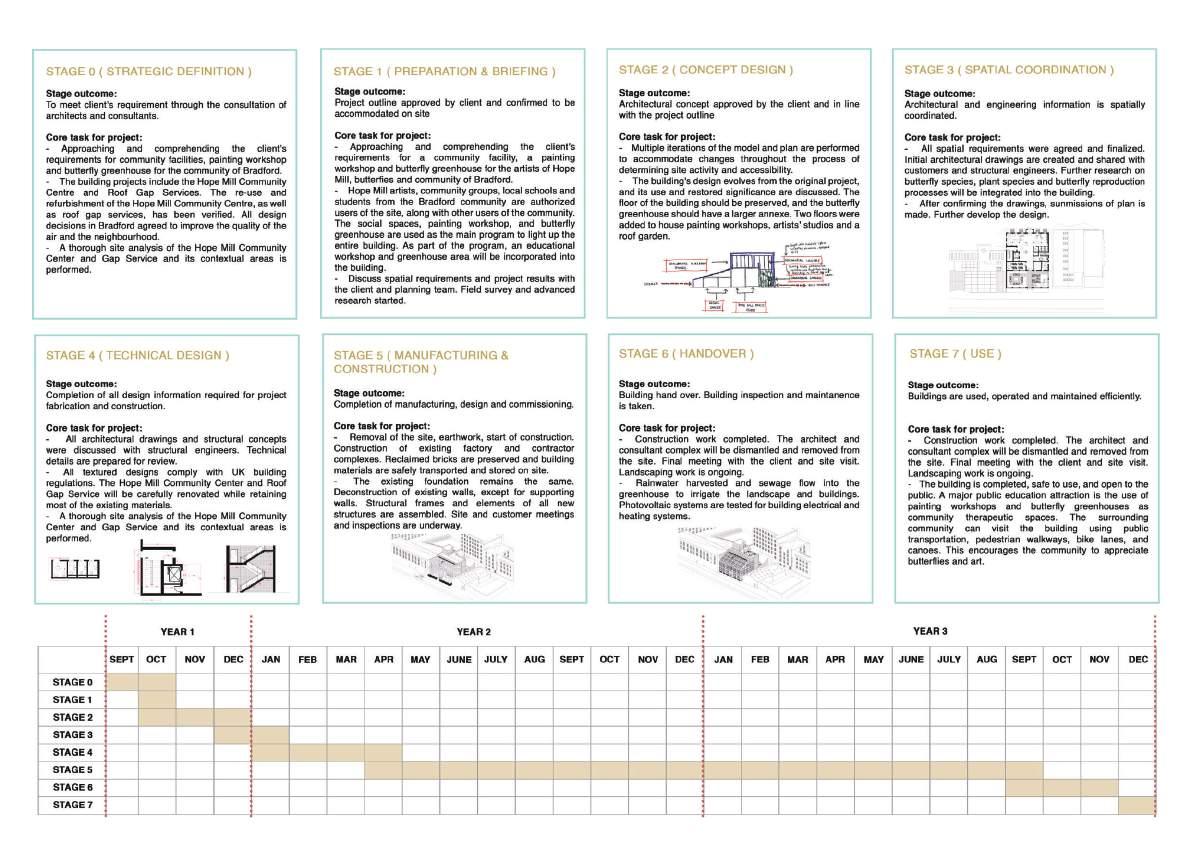

RIBA PLAN OF WORK & PROJECT SCHEDULE

40

41

PERSPECTIVE / View From Greenhouse Entrance

42

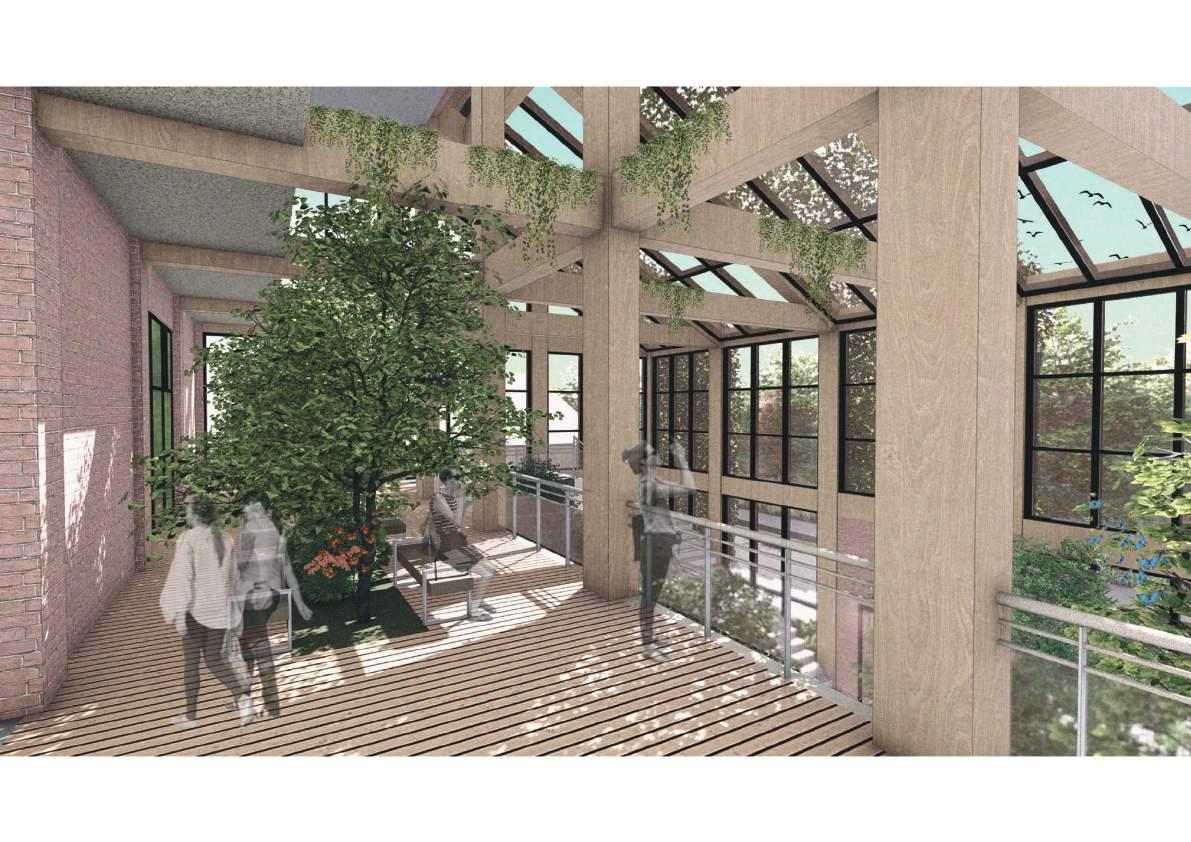

PERSPECTIVE / View From Inside The Greenhouse

43

REFLECTION

For this project the location of the site itself i find it interesting to work on as we need to reuse the building. The aim of this project is to re-imagine the Hope Mill as all the building in site connect with each other by creating culture through masterplanning in group. The suggested concept takes existing green areas and canal into account and calls for the cautious dismantling of the existing.
