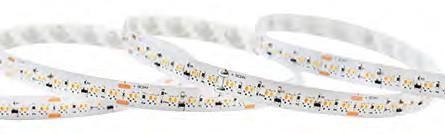

LED Strip Lighting

Introducing our extensive range of versatile LED strip lighting options for the professional commercial lighting specifier. Our range offers solutions for all lighting and architectural applications and represent the cutting edge in LED strip lighting technology

STATIC COLOUR RANGE - Speciality

LEDS1STEP

1Step MacAdam Ellipse

High quality colour consistency and accuracy across all LED chips resulting in modules operating within a one MacAdam ellipse.

LEDS180LM

180 lumens per watt

Bright light from a 5630 chip

LEDS2W

Dim to Warm

Colour temperature and brightness may be adjusted simultaneously; from 1800K - 3000K and from 0%-100% brightness.

LEDSCCTA

Changeable Colour Temperature

Colour temperature may be varied from 2500K to 6000K and any increments in between. With a simple turn of a dial on a wall mounted or remote touch pad controller, you can adjust the colour temperature to suit your particular mood

LEDSCOB

Chip On Board

Dotless, single chip, strip lighting, providing a continous, unbroken source of light. Ideal for architectural lighting, channel letter lighting and interior walkways

LEDSHCR

Full Spectrum, High colour Rendering

A range of SMD LEDs for general lighting applications with ahigh colour rendering index (CRI 95).

Conventional multi-chip LED strip

Single chip dotless COB strip

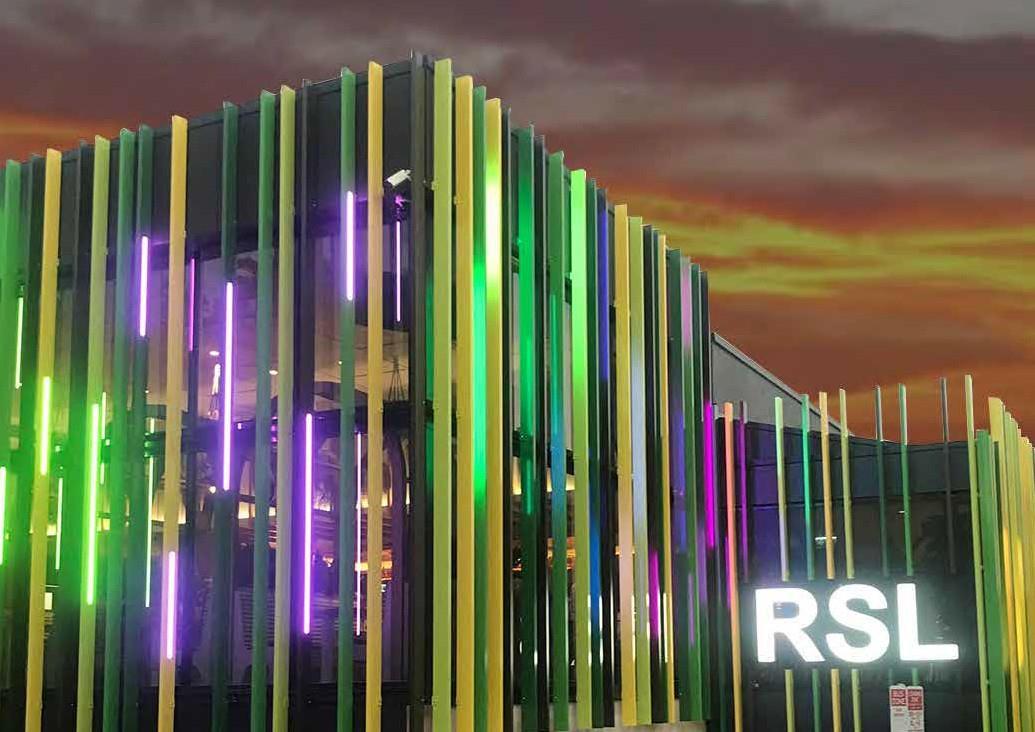

CHANGEABLE COLOUR RANGE

RGB/RGBHP

TEC-Led’s RGB strip lighting allows for colourful and impactful effects across the RGB colour spectrum. Colour hue is changed via a controller, allowing you to generate over 16,000,000 colours.

LEDSRGBW/LEDSRGBWW/LEDSWRGBW

With the addition of a white or warm white chip to the RGB spectrum, softer, pastel colours can be generated to suit a particular mood.

INSTALLATION OPTIONS

Our range of LED strip lighting may be installed by a number of methods, depending on the desired lighting effect. Talk to our technical staff who will be most willing to assist you

Mounted on 3mm flat bar to prolong chip life

Sealed for waterproofing

Mounted inside one of our many profiles

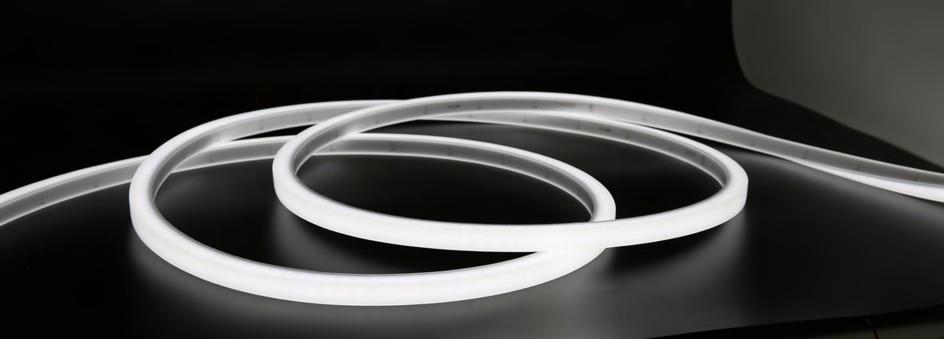

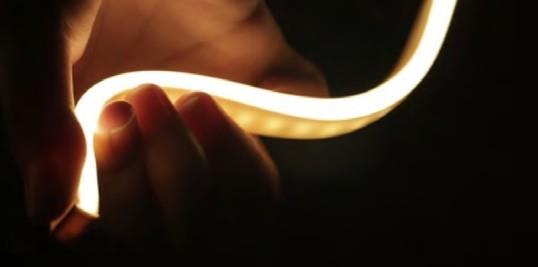

LED Dot-less COB Flexi strip

Superior in every respect, TECLED’s COB dot-less LED flexi strip provides the solution where both uniform lighting AND bendability is required.

Available in a range of widths, power outputs and colour temperatures, this range heralds the future of flexible LED lighting.

The LED strip lighting preferred by lighting professionals

A complete portfolio of best-of-breed flexible linear solutions that enable uniform lighting designs with options that match the distinguished Xicato color point the market craves Unlike other linear products, XFL offers in multitude of profiles, densities and color; meeting the most stringent requirements of architects, lighting designers and specifiers. Perfect companion to TecLeds suite of profile extrusions

• Unmatched performance for CRI (95+), R9, Fidelity and Gamut

• Superior binning - <2 SDCM colour consistency

• Superior build quality using 3oz. copper PCB

• 5 year warranty

• Wide range of colour temperatures

• High density LED spacing - 240 L p/m

• IP22 Rated

SUPERIOR FIDELITY

Unlike CRI, which only samples 8 colour test samples, Fidelity index (Rf) samples 99 individual colours. Xicato returns an extremely high Fidelity Index across all its products (see charts below).

CONSISTENT GAMUT

Xicato returns high average Gamut indecis (Rg), highlighting that the LEDs do not increase or

in colour saturation (see charts below)

Static White

Ultra Slim

High Density

• 700 LEDS p/m

EVOLVO. The dawn of a new era in LED strip lighting. High output.

Low energy consumption

To comply with the stringent new ERP Energy Standards, we introduce the EVOLVO.

Superior performance is achieved via the combination of a few salient factors: Intematix Phosphor powder:

Most reputable in the market for phosphor production.

Exclusive rights on the new phosphor mix that produces high CRI / high efficacy levels

Inside of the LED:

Heraeus Gold wire used to stitch the LED chip to the frame. 99.9% purity, improving heat management and strength of the structure.

Resulting in:

• Higher lumen output

• Lower power usage with significant energy savings - less watts per meter resulting in higher efficacy

• Tight LED spacing with more LEDs per meter - more consistent light output

• High CRI of 97

• Ideal for mini profiles

• EPISTAR chip with high grade Intermatix phosphers

• Reliable LED lifetime of more than 50,000 hours A minimum 50% increase in lumen efficiency compared to existing LED strips

The numbers speak for themselves

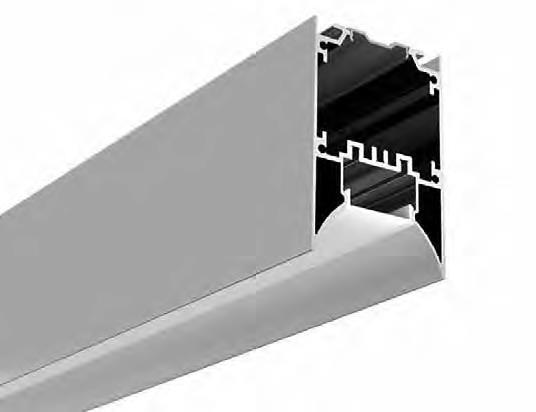

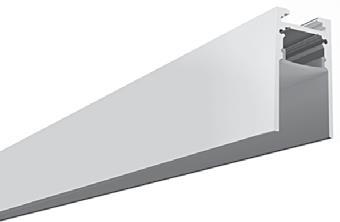

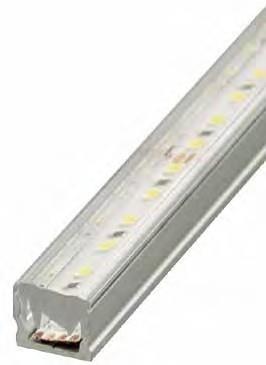

2022 LED Aluminium Profiles Aluminium Profiles

TECLED’S range of aluminium LED housing extrusion profiles cater for all concievable lighting installations and effects.

Our technical staff can advise and assist in selecting the appropriate fitting to suit your particular specifications and thus give effect to your creative vision.

If required, we provide site installation and supervision for all our solutions.

Our profiles are categorised according to their method of installation.

PROFILES SNAPSHOT

Ø40.2

TOOB40

TOOB60

MARINER P. 32

RAFTER P. 32

KONTIKI P. 32

PILMET P. 33

TUNNEL PROTUNNEL

LED aluminium profile, pmma opal or semi-clear matte diffuser.

14.4W p/m, 19.2W p/m

Mounting: Suspended

PC=powder coated, AD=anodised, EP= electro-plated

MINI PENDANT

MINI PENDANT PROMINIPENDANT

LED aluminium profile, pmma opal or semi-clear matte diffuser.

2 x 14.4w p/m or 2 x 19.2w (up and down)

Mounting: Suspended

PC=powder coated, AD=anodised, EP= electro-plated

Hanging clips

Black (PC)

White (PC)

Choc souffle (PC)

Silver (AD)

Antique Brass (EP)

Light Brown Bronze (EP)

Satin Bronze (EP)

Dark Brown (EP)

Medium Bronze (EP)

Black (PC)

White (PC)

Choc souffle (PC)

Silver (AD)

Antique Brass (EP)

Light Brown Bronze (EP)

Satin Bronze (EP)

Dark Brown (EP)

Medium Bronze (EP)

LED aluminium profile, pmma opal or semi-clear matte diffuser.

9.6W p/m, 14.4W p/m

Mounting: Suspended

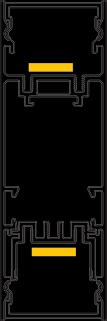

LIFTUPDOWN PROLIFTUPDOWN

LED aluminium profile, pmma opal or semi-clear matte diffuser.

2 x 14.4W / 2 x 19.2w p/m

Mounting: Suspended

LED aluminium profile, pmma opal or semi-clear matte diffuser.

40W p/m.

Supplied with end caps

Mounting: Suspended, surface

LED aluminium profile, pmma opal or semi-clear matte diffuser.

30W/40W p/m. Supplied with end caps

Mounting: Supended, surface CORONA PROCOR

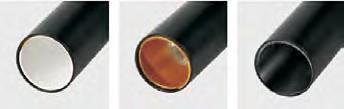

TOOB40

PROTOOB40

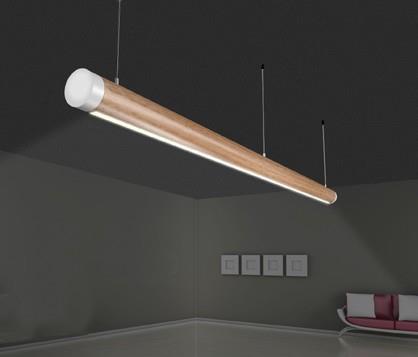

LED aluminium profile, round opal diffuser. 0.5 - 3m lengths

14.4W p/m. Supplied with end caps

Mounting: Supended

TOOB100

PROTOOB100

Circular profile with opal diffuser

0.5 - 3m lengths

19.2W p/m.. Supplied with end caps

Mounting: Supended

BEEM PROBEEM

TOOB60 PROTOOB60

LED aluminium profile, round opal diffuser. 0.5 - 3m lengths

19.2W p/m. Supplied with end caps

Mounting: Supended

SABRE PROSABRE

LED aluminium rectanguar profile, pmma opal or semi-clear matte diffuser. Down: 40W p/m. Up: 10W p/m

Supplied with end caps

Mounting: Supended

Circular opal diffuser with internal pentagon profile

0.5 - 3m lengths

5x5W p/m. Supplied with end caps

Mounting: Supended

LED aluminium rectanguar profile, pmma opal or semi-clear matte diffuser. 30W p/m

Supplied with end caps

Mounting: Supended

EAGLE

PROEAGLES

LED Square aluminium profile, Acrylic opal matte diffuser

30W p/m Commercial/Domestic Mounting:

Surface, Recessed, Suspended Colours: Anodise, custom powdercoat

PROFALCONS

Large LED aluminium profile.

Acrylic opal matte diffuser

19.2W p/m Commercial/domestic

Mounting: Suspended

Colours: Black, white, anodised

PHOENIX PROPHOENIXS

Large LED aluminium profile.

Acrylic opal matte diffuser

40W p/m Commercial/domestic

Optional internal driver Mounting: Suspended Colours: Black, white, anodised

KESTREL

PROKESTREL K, PROKESTREL P

LED aluminium profile, acrylic opal matte diffuser.

14.4W p/m Room lighting

Mounting: Suspended

PROOSPREY

Medium LED aluminium profile.

Acrylic opal matte diffuser

30W p/m Commercial/domestic

Mounting: Suspended, Surface

UP/DOWN

PROUPDO115

Surface mount LED aluminium profile. Light shines out of top and bottom

14.4W p/m(x2) Room lighting

Mounting: Surface, Suspended

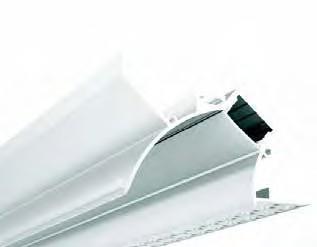

Archiline

Archiline is a ceiling mounted, recessed wall washer casting precise light over a feature area. Available in lengths up to 2m, the Archiline module may be fitted to any cavity ceiling. The diffused LED strip light is critically angled to throw the beam against and down the nearest wall.

ARCHLINE PROARCHLINE

Recessed LED aluminium profile.

Acrylic opal matte diffuser

14.4W / 19.2W p/m

Mounting: Suspended, Surface

Archiline

LINEOUT PROLINEOUT

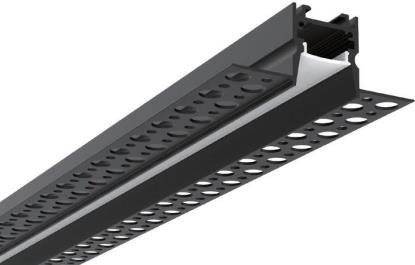

Recessed profile

Acrylic

9.6W per metre / 14.4W per metre

ASHIELD PROASHIELD

LED aluminium profile.

Acrylic opal matte diffuser

9.6W p/m, 14.4W p/m

Mounting: Recessed

MINICOVER PROMINICO

LED aluminium profile.

Acrylic opal matte diffuser

9.6W p/m, 14.4W p/m

Mounting: Recessed

MINICOVER

IP40

WASHER PROWASH

LED aluminium profile.

Acrylic opal matte diffuser

14.4W p/m Mounting: Recessed

MICRO WINGED PROMICRO

LED aluminium profile. Acrylic opal matte diffuser

9.6W p/m

Mounting: Recessed

LUXXO PROLUXXO LUXXOWINGS PROLUXXOWINGS

LED ceiling profile, pmma opal or clear diffuser.

Insert with or without wings 14.4W p/m.

Supplied with end caps

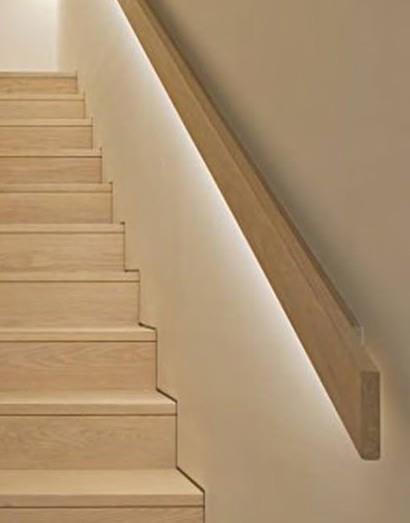

Stairs, kitchens, cabinet lighting

Mounting:Recessed or Surface (gluefix)

Extra long standard length of 2500mm

LEL16

PROLEL16

LED slim aluminium profile, pmma opal or clear matte diffuser.

14.4W p/m

Supplied with mounting clips and end caps

Stairs, kitchens, cabinet lighting

Mounting: Recessed or Surface

POWERLINE 20 PROPOW20

Small LED recessed aluminium profile, pmma opal or clear matte diffuser.

14.4W p/m. Supplied with mounting clips and end caps

Cabinet, wall lighting

Mounting: Recessed into joinery

POWERLINE 35 PROPOW35

Recessed aluminium profile, pmma opal or clear matte diffuser.

30W p/m. Supplied with mounting clips and end caps

Recessed into ceilings, walls

Mounting: Recessed

POWERLINE 50 PROPOW50

Recessed aluminium profile, pmma opal matte diffuser.

30W p/m. Supplied with mounting clips and end caps

Recessed into ceilings, walls

Mounting: Recessed 50

POWERLINE 75 PROPOW75

Recessed aluminium profile, pmma opal matte diffuser.

30W p/m. Supplied with mounting clips and end caps

Recessed into ceilings, walls

Mounting: Recessed

MICRO PROMICRO8X9

Ultra slim aluminium profile, pmma opal matte diffuser

9.6W or 14.4Wp/m.

Supplied with mounting clips and end caps

Wall or ceiling lighting

Mounting: Recessed or Surface DEEP

MACRO PROMACRO

LED slim aluminium profile, pmma opal matte diffuser.

9.6W or 14.4Wp/m

Supplied with end caps

Wall or ceiling lighting

Mounting: Recessed or Surface

IP40

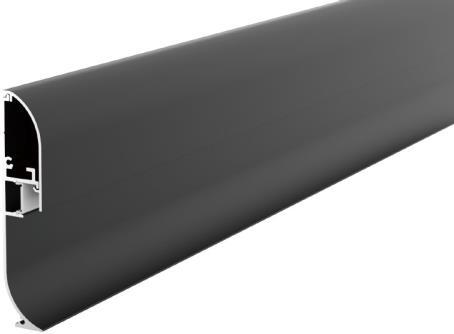

CURVED SKIRT

PROCURVEDSK

LED aluminium profile.

Acrylic opal matte diffuser

9.6W p/m

Mounting: Surface

FLAT SKIRT

PROFLATSK

LED aluminium profile.

Acrylic opal matte diffuser

9.6W p/m

Mounting: Surface

CORVSKIRT

PROCORVSK

LED aluminium profile.

Acrylic opal matte diffuser

9.6W

Surface

IP40

SURFACE

RAIL PRORAIL

LED aluminium profile. Acrylic opal matte diffuser 14.4W p/m, 19.2W p/m Mounting: Surface

2 x 14.4w p/m

2 x 19.2w p/m

NINETY MEDIUM

PROSTC001

LED square aluminium profile, pmma opal matte diffuser.

14.4W p/m. Supplied with mounting clips and end caps

Cabinets, wardrobes

Mounting: Surface

NINETY SQUARE

PROSTC30X30SQ

LED square aluminium profile, pmma opal diffuser.

20W p/m. Supplied with mounting clips and end caps

Cornice lighting

Mounting: Surface

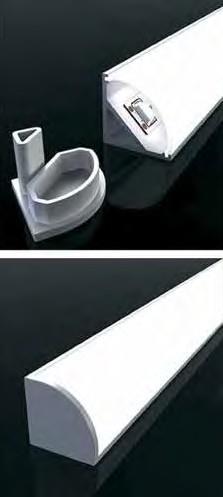

ROUND CORNER

PROSTC002

LED corner aluminium profile, pmma opal or semi-clear matte diffuser.

14.4W p/m. Supplied with mounting clips and end caps

Cabinets, wardrobes

Mounting: Surface

NINETY SEMI

PROSTC30X30RO

LED round aluminium profile, pmma opal or semi-clear matte diffuser. 20W p/m. Supplied with mounting clips and end caps

Cornice lighting

Mounting: Surface

UP LIGHT PROUPL43S

LED square aluminium profile, pmma opal or clear matte diffuser.

30W p/m. Supplied with side rail and end caps

Wall or ceiling lighting

Mounting: Surface

SIDE LIGHT PROSIDEL43D

LED square aluminium profile, pmma opal or clear matte diffuser. Up or down lighting. 30W p/m. Supplied with back rail and end caps

Ceiling lighting

Mounting: Surface

LED ceiling profile, pmma opal matte, clear or frosted diffuser

14.4W p/m. Supplied with mounting clips and end caps

General lighting

Mounting: Suspended or Surface

LED slim aluminium profile, pmma opal or clear matte diffuser.

14.4W p/m, 20W p/m Supplied with mounting clips and end caps

Stairs, kitchens, cabinet lighting

Mounting: Recessed or Surface

PROLEN22

PROLEN14W

MIRROR LIGHT PROMIRROR

LED square aluminium profile, pmma opal or clear matte diffuser.

20W p/m. Supplied with end caps

Diffused lighting ideal for mirror illumination.

Mounting: Surface, Suspended

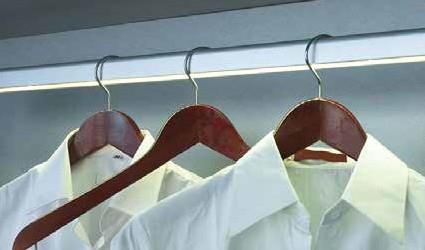

IN-WARDROBE LED EXTRUSION PROWARD

Max. Length: 2m

LED slimline rounded aluminium profile. Anodised or powder coated finish. Pmma opal or semi-clear matte diffuser. Dotfree illumination.

9.6W p/m. , 14.4W p/m.

Supplied with mounting end caps. Sturdy profile for hanging garments.

Mounting: Surface

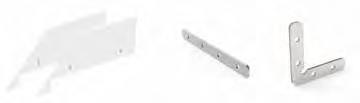

Midde bracket helps support weight End mounting bracket

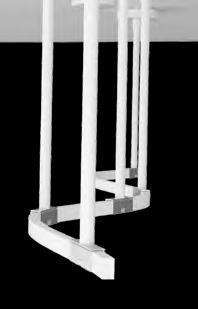

FALCON

90mm radius

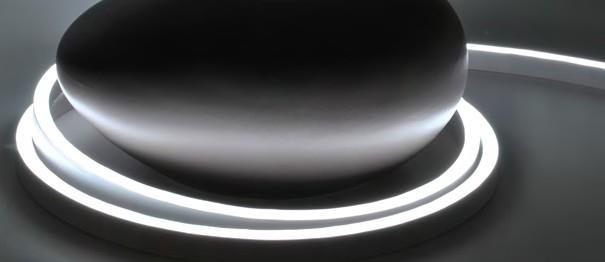

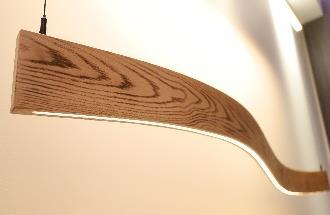

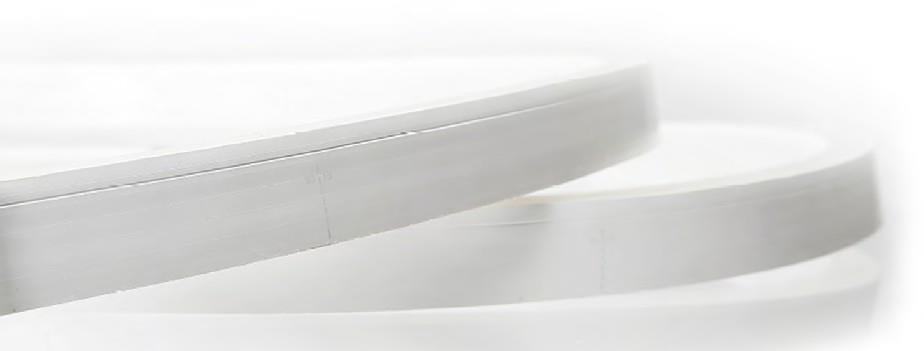

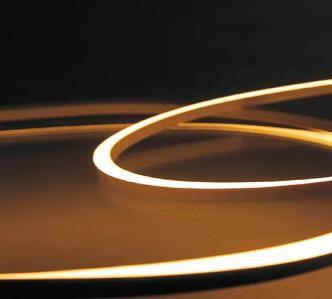

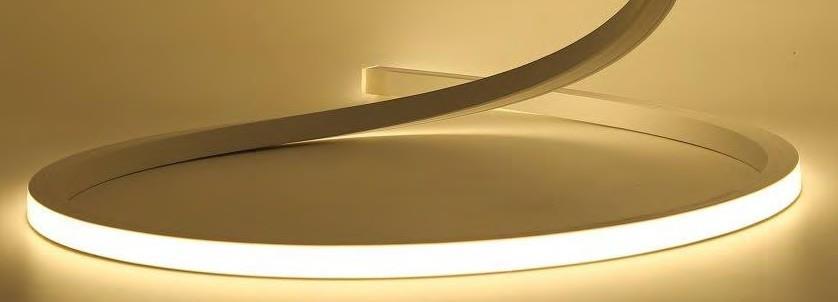

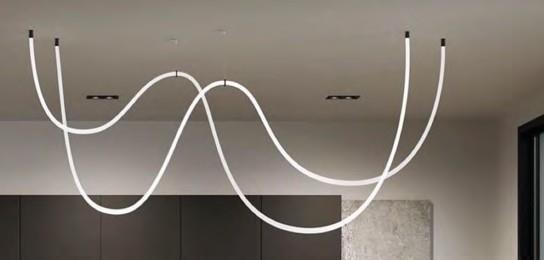

BENDABLE, ‘DOTLESS LED STRIP LIGHTING PROBENDI

FEATURES:

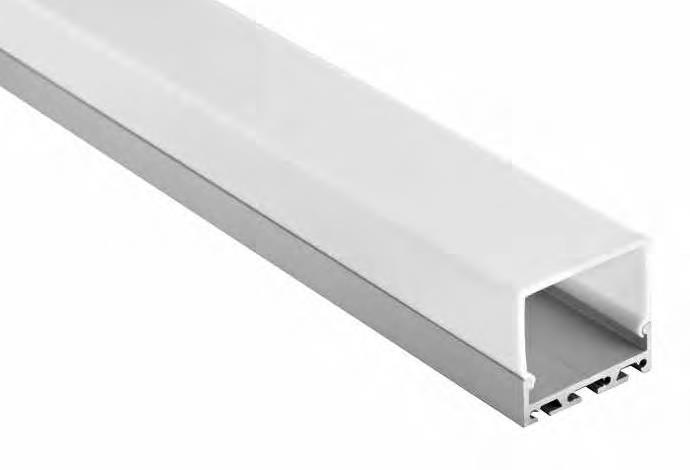

• High concentration of mini LED chips provide seam-free, ‘dotless’ illumination

• Supple aluminium profile allows for tight bends - down to 90mm radii

• Ultra slim aluminium profile allows installation to almost any space

• Simple installation and extendable length

• 9.6W p/m, 14.4W p/m,

• Available in lengths up to 2000mm

• Opal acrylic diffuser sheds soft, even lighting

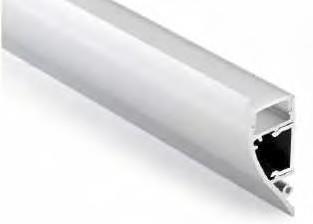

STANDARD ASYMMETRICAL LENS EXTRUSION

PROASYML

19.2W p/m, 22W p/m

The Asymmetrical lens profile provides the perfect remedy for those attempting to achieve a more even light dispersion. Through manipulation of the traditional symmetrical beam, the Asymmetrical lens provides an ideal wall washing effect as it evenly grazes the entirety of the wall face.

VERSATILE ASYMMETRICAL LENS EXTRUSION

PROVASYML

14.4W p/m, 19.2W p/m

IP40

Our plasterboard range is designed for recessing into plasterboard linings with a set plaster topping to conceal all fixing wings. All supplied with PC diffused cover.

All supplied with end caps

Lengths up to 3000mm

MUSTANG PROMUSTANG

9.6W p/m, 14.4W p/m

SPITFIRE PROSPITFIRE 14.4W p/m, 19.2W p/m

TYPHOON PROTYPHOON 9.6W p/m, 14.4W p/m

19.2W / 22W p/m

PLASTERBOARD

NIMITZ PRONIMITZ

20W p/m, 30W p/m

HERCULES PROHERCULES 19.2W p/m

OFFSET PROOFFSET

9.6W p/m, 14.4W p/m

MINISKOOP PROMINISKOOP

9.6W p/m, 14.4W p/m

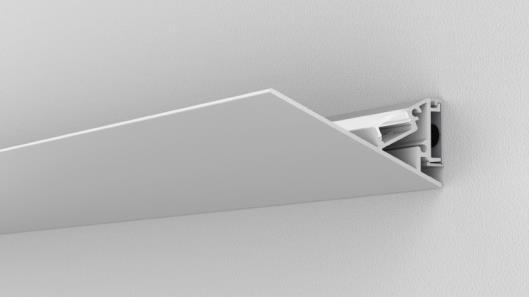

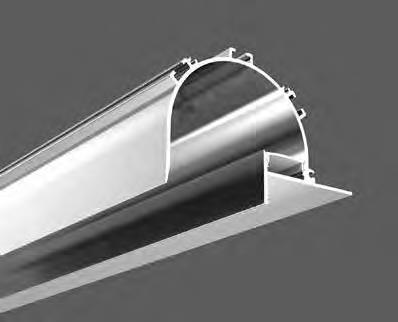

COVE1 PROCOVE1

LED round aluminium profile, pmma opal diffuser.

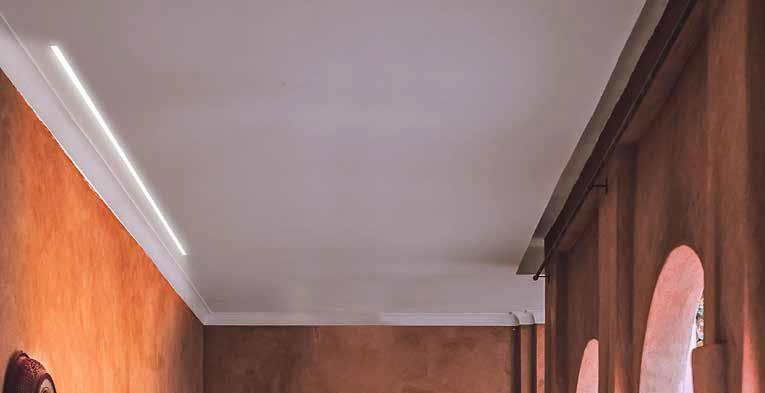

Recessed into ceiling and providing continous reflected illuminated cove 14.4W / 19.2W p/m

Mounting: Recessed

Colours: White, anodised

ANGLECOVE1 PROANGLECOVE1

LED round aluminium profile, pmma opal diffuser.

Recessed into ceiling and providing continous reflected illuminated cove 14.4W / 19.2W p/m

Mounting: Recessed Colours: White

COFFEX PROCOFFEX

Wall / coffer mounted providing diffused light via 10mm LED strip light

Lengths up to 4m and easily mitred to negotiate corners

14.4W / 19.2W p/m

Mounting: Surface

Colours: Custom colours available

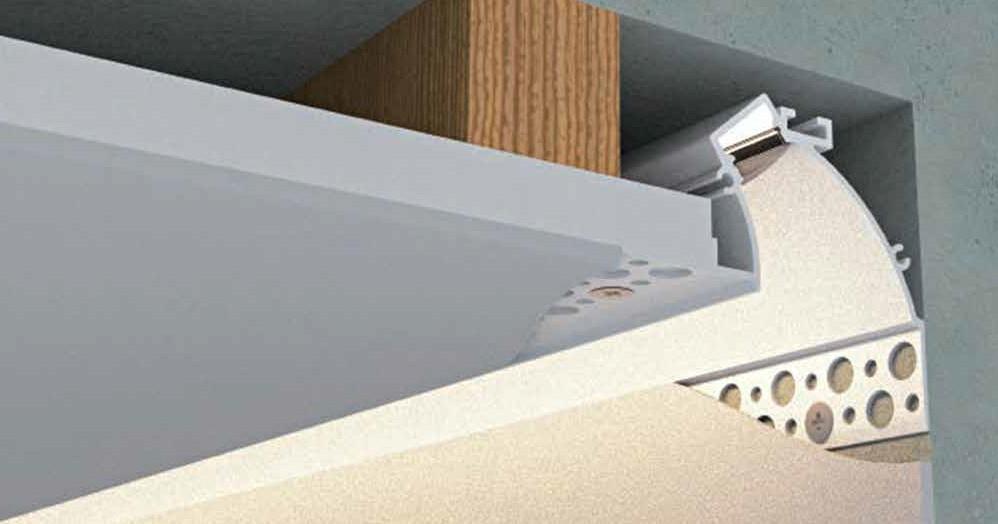

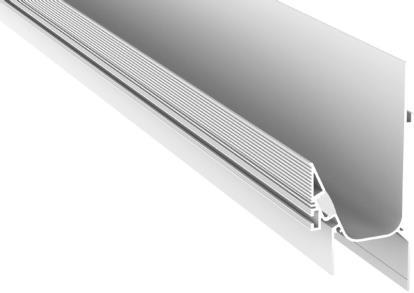

LOWCOVE PROLOWCOVE

LED sunken aluminium profile, pmma opal diffuser.

Recessed into ceiling and providing continous set back illuminated cove 19.2W p/m

Mounting: Recessed

Colours: White, anodised

MARINER PROMARINER

14.4W p/m, 19.2W p/m

RAFTER PRORAFTER

14.4W p/m, 19.2W p/m

KONTIKI PROKONTIKI

19.2W / 22W p/m

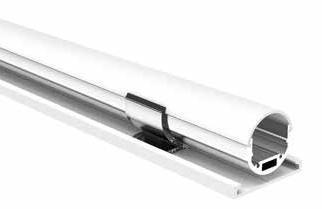

LED round aluminium profile, pmma opal diffuser. Spring clips supplied Recessed into ceiling and providing continous reflected illuminated cove 14.4W / 19.2W p/m Mounting: Recessed Colours: White, anodised

x 14W p/m

9.6W/14.4W p/m

End caps

2023 Profile Releases

SIRRIUS

BERLINA

HADRIAN

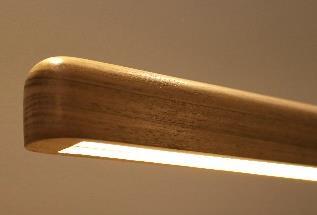

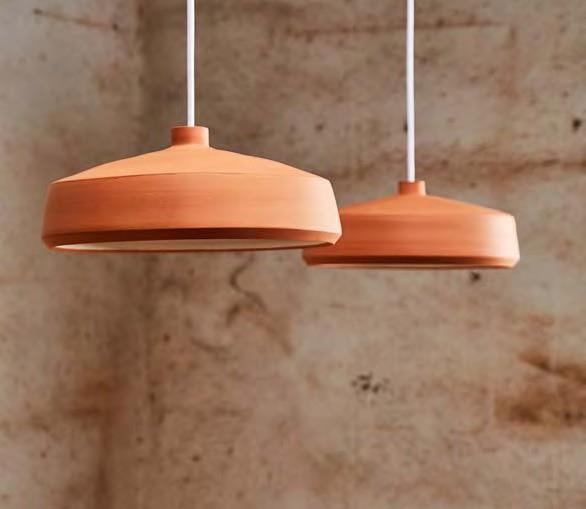

LED Wooden Pendants

TASSIE ROUND

TASSIE FLAT

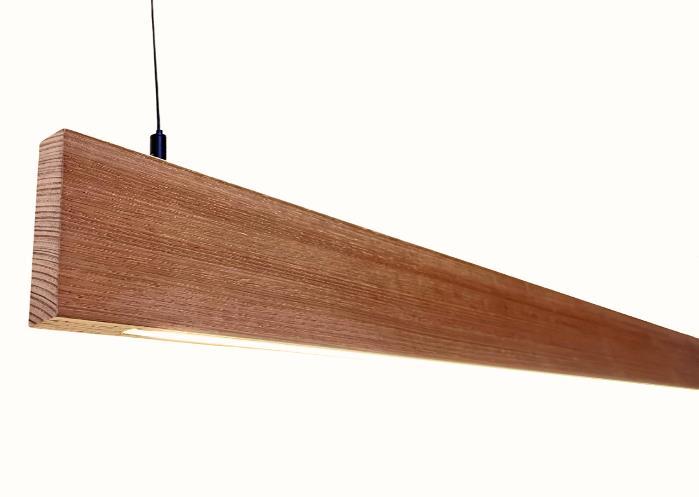

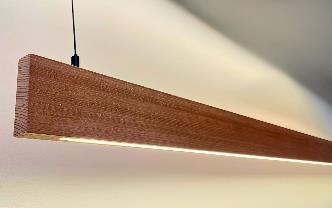

FRANKLIN

Wooden Pendant Releases

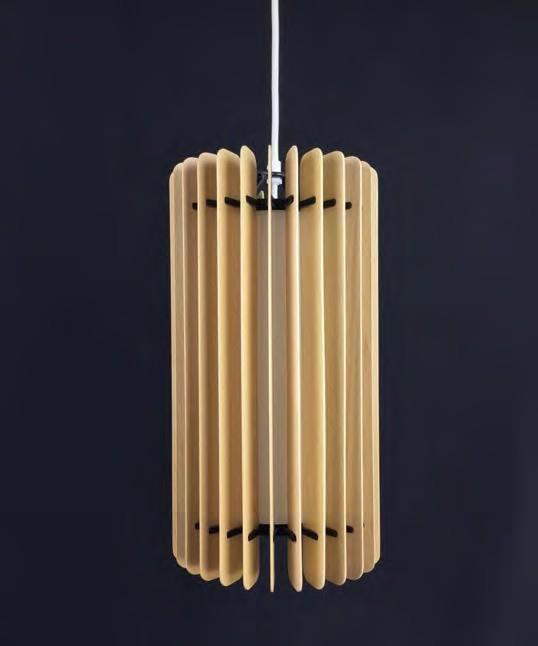

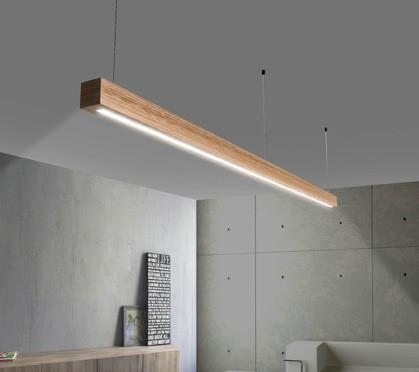

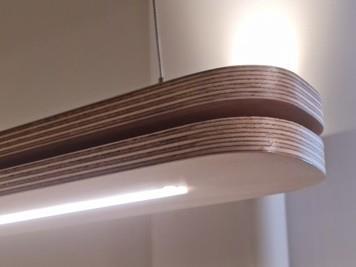

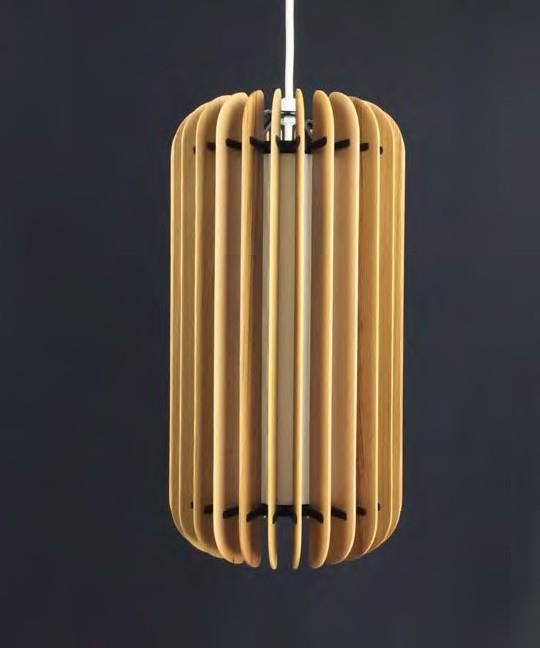

Crafted from the finest Birch Plywood, these pendants add a unique natural feel while emitting the sleek and uniform lighting of LED strip lighting and downlights.

Uniquely constructed from Tasmanian Oak, the Franklin adds high-end design to a functional lighting solution.

PLYDOPIO

PLYDOTTI

JUMBO FRANKLIN-Round Edges

MINI FRANKLIN-Round Edges

Edges

The Ocean Drift is constructed from American Oak, sourced from ASH (Australian Sustainable Hardwoods). Organically shaped and evoking the raw beauty of natural timber.

OCEAN DRIFT

OCEAN DRIFT SPECIFICATIONS

MINI TASSIE FLAT-Square Edges

GORDON-Round

Customizable Choices for Wooden Pendant

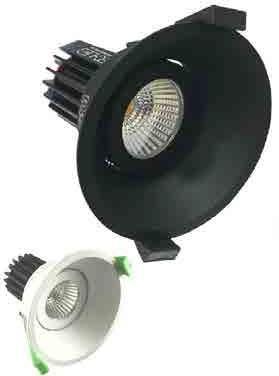

LED Downlights

LED Downlights Collection

Lightingdesign byWildly Illuminating

DLZFIXED -Fixed

4.3W/6.4W/9.4W

DLZTILTZ - Adjustable 4.3W/7.7W/11W

DLZFIXED -Fixed(withhoneycomb)

DLZDTILTZ - DeepAdjustable 4.3W/7.7W/9.4W/13W

DLZDFIXED - DeepFixed

4.3W/7.7W/11W

DLZODTILTZ- Offset Adjustable 4.3W/7.7W/9.4W/13W

Lens Options: Clear, Prismatic, Lensed, Honeycomb (30�& 40�only) Fire rated option available

*Some beam anlges not available with some wattages

ZELA Decor - fixed

TrimOptions

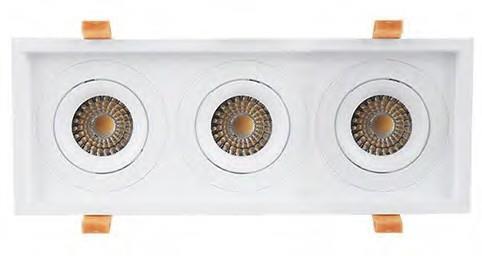

Double and triple adaptor plates available

DLCOLT13W - Colt fixed

DLPIRA13W - Piranha 13W

DLCARIBA9W - Cariba fixed 9W

DLPIRA17W - Piranha 17W

Dimmable

(optional)

DLALICEF - Alice Fixed

DLALICEF - Alice Adjustable

DLPINCIR - Pinhole Circle

DLPINOV - Pinhole Oval

DLPANDA - Panda

DLBOOM5W/10W/15W

CODE WATTS

• High Luminous efficacy, Low Glare

• Narrow trim

• Parallel deep baffle

• Colour options: Matt white, Black with white trim, Matt black

White Black/White Black

DLBOOM5W 5W 15�,24�38� <90 Ø61 x 85

DLBOOM10W 10W 15�,24�38� <90 Ø61x 100 1000-1100 Ø55 2700K, 3000K, 4000K, 5000K

DLBOOM15W 15W 15�,24�38� <90 Ø81 x 135 1500-1600 Ø75 2700K, 3000K, 4000K, 5000K

Ø55 2700K, 3000K, 4000K, 5000K TRIAC or DALI 0-10v

Lightingdesign byFPOV

Deep baffle delivers low glare

DLSNOOT-

DLSNOOT2X10W-

MINI RECESSED FIXED OUTDOOR

LMRSM1W Minispring mount

Springmount Marine Grade LMRF01W Markerfriction mount LMRSM01W Markerspringmount

LMRF1W Mini friction mount

Grade Trim options

3WDimmable

9W optional cone and honeycomb filter

DLFLUTE

DLBLADE

HOTEL Downlight Series

TECLED’s Hotel Series ushers in a new level of flexibility, adaptability and modular ‘mix-n-match’. The range boasts a wide choice and variety for virtually all components, offering endless possibilities and variants in an aluminium alloy costruction

• 360�Rotatable, fixed, 30�adjustable, recessed or trimless

• Three optical lens choices

• Six baffle colour options

• 4 frame options

SPECIFICATIONS

Baffle

BeamAngle

Lightingdesign byMalayaBlonde

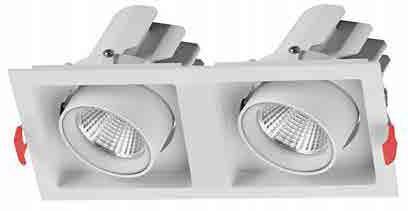

DLPSQ2

DLPSQ3

SNOOT LED RECESSED DOWNLIGHTS

TECLED presents its new generation SNOOT range of recessed downlights, offering a broad range of solutions for space and feature lighting Available in single or double luminaires and in a selection of power outputs, this range delivers both functional and aesthetic lighting options

Lens and baffle produces soft, anti-glare light

Energy saving: 1kw hours=7 days

High quality LED chip Fully adjustable

colour rendering (CRI>90)

50,000 hours long life

High

ALICESPECIFICATIONS

LACE SPECIFICATIONS

MARY SPECIFICATIONS

Surface Mounted

Recessed

Baffle options (all models)

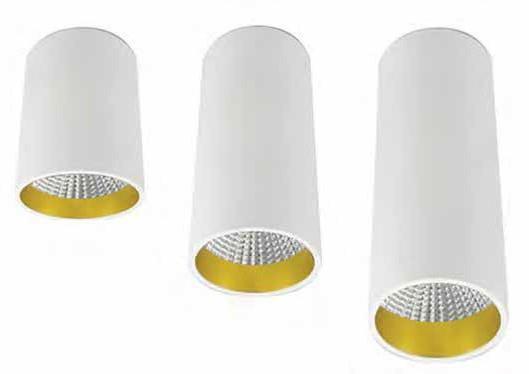

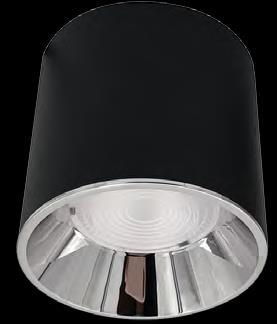

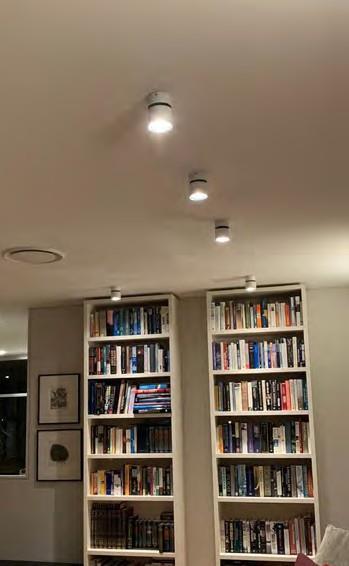

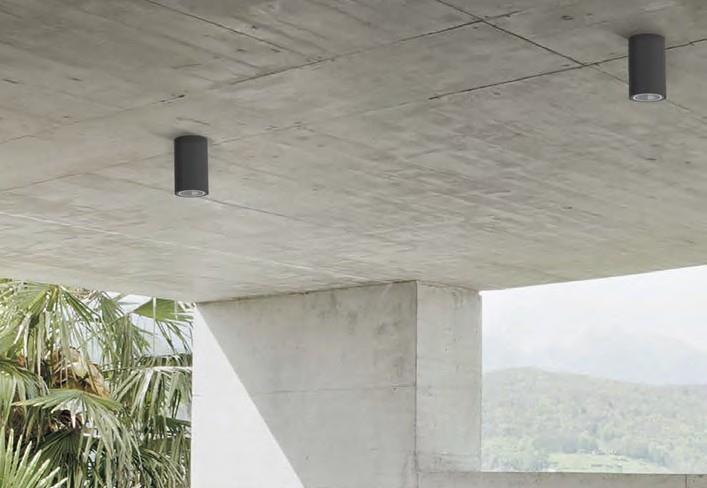

CAN Lights

TORO CAN LIGHT RANGE

• Aluminium body (Black or White)

• Trim options- white or black

• Triac dimming

• COB

• IP44 rating

COLOUR OPTIONS White body White body Black body Black body White trim Black trim White trim Black trim

CLTORO12W

CLTORO20W

ROSSO ROUND CAN LIGHT RANGE

• Aluminium body (Black or White)

• Trim options- white, black or chrome

• Triac dimming

• COB

• IP44 rating

CLROSSO15W

CLROSSO10W

CLROSSO15W

Shown with Chrome trim

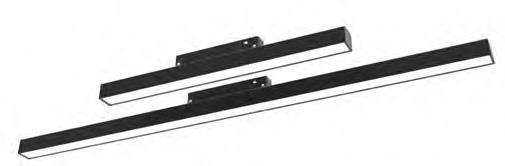

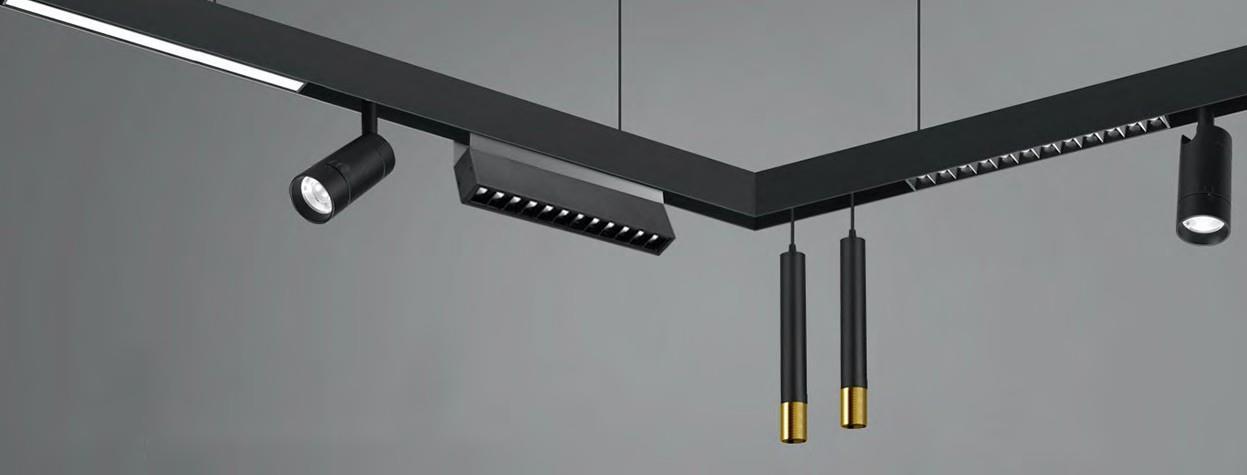

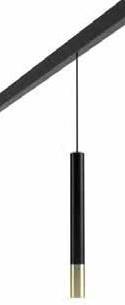

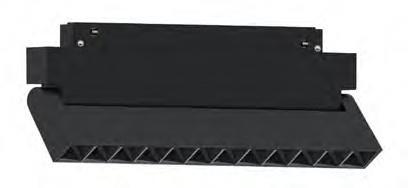

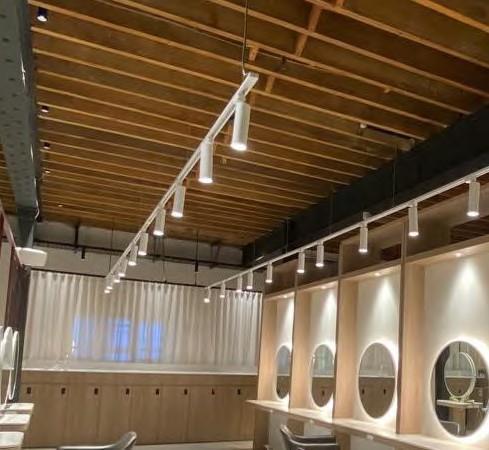

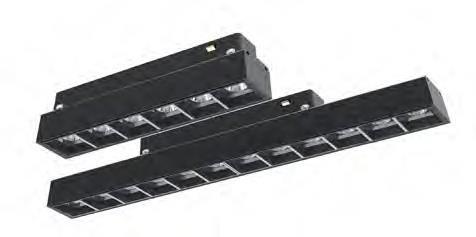

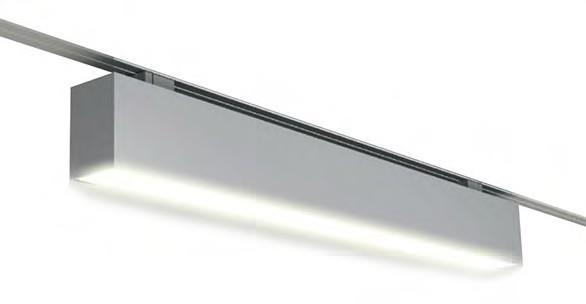

LED Magnetic Track Light System

TECLED’s state-of-the-art LED magnetic track light system offers the very best in aesthetics, flexibility, style and illumination. Luminaires attach firmly to the track via strong magnets and can be moved, repositioned, added to or changed at will and with no tools required.

Available in a variety of track and lighting options, this system is ideal for office, showroom and reception areas or simply as a feature in hallways or lobbies.

THE TRACK

• Powder coated aluminium

• Lengths of up to 2000mm

• Continous copper power connection points

• Joiners, end caps and brackets to suit

Surface/Suspended installation

• Track mounted, swivel head • Flicker-free • Triac and DALI dimmable • 240V input

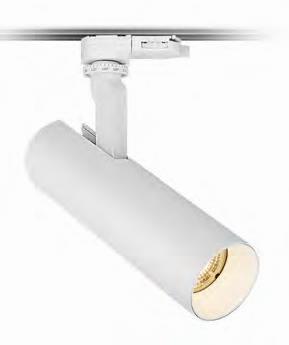

LED Single/3 Circuit Track Lights

DELLA10W

DELLA15W

TWISTY SPECIFICATIONS

Baffle colour range (both models)

White Gold

TECH319

TECH328

SPECIFICATIONS

TRACKS DALI

FALCTRACK

Single Circuit Track Components Black White

3 Circuit Track Components Black White

CREATIVO

Code WLCREATIVO

Watts 1.5W COB

CCT 2700K

CRI >95

Lumens (lm) 201

Beam angle (deg) N/A

Dimensions (mm) Ø120, Ø150

Colour/Finish Amber/Steel

Rating IP44

Dimmable Triac or Dali

Voltage 12VDC

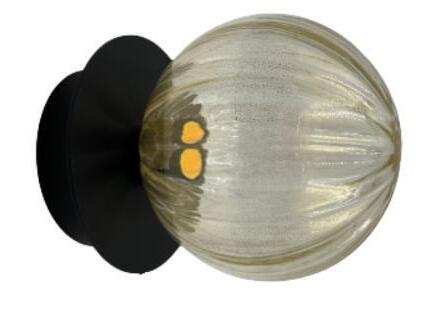

MURANO ICE

Code WLMURANO-I

Watts 1.5W COB

CCT 2700K

CRI >95

Lumens (lm) 201

Beam angle (deg) N/A

Dimensions (mm) 135mm x 145mm

Colour/Finish Hand blown glass

Rating IP40

Dimmable Triac or Dali

Voltage 12VDC

MURANO CLEAR

Code WLMURANO-C

Watts 1.5W COB

CCT 2700K

CRI >95

Lumens (lm) 201

Beam angle (deg) N/A

Dimensions (mm) 135mm x 145mm

Colour/Finish Hand blown glass

Rating IP40

Dimmable Triac or Dali

Voltage 12VDC

Code WLMURANO-B

Watts 1.5W COB 2700K >95

Lumens (lm) 201

Beam angle (deg) N/A

Dimensions (mm) 135mm x 145mm

Colour/Finish Hand blown glass

Rating IP40

Dimmable Triac or Dali

Voltage 12VDC

MURANO BLAST

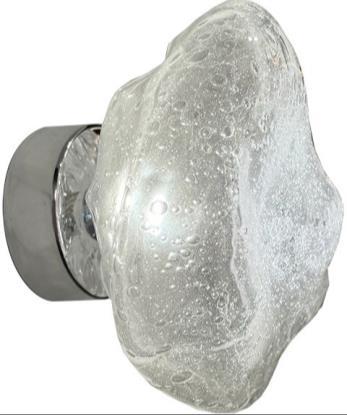

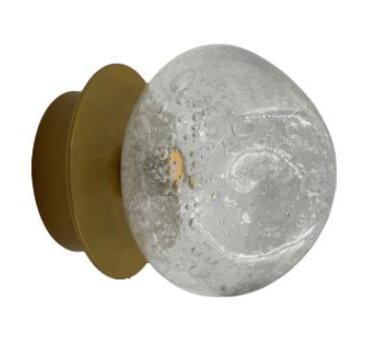

PULEGOSO CLEAR

Code WLPULCL

Watts 1.5W COB

CCT 2700K

CRI >95

Lumens (lm) 201

Beam angle (deg) N/A

Dimensions (mm) Ø110mm

Colour/Finish Hand Blown Glass

Rating IP40

Dimmable Triac or Dali

Voltage 12VDC

SAFFIATO CLEAR

Code WLSAFCL

Watts 1.5W COB

CCT 2700K

CRI >95

Lumens (lm) 201

Beam angle (deg) N/A

Dimensions (mm) Ø100mm

Colour/Finish Hand blown glass

Rating IP40

Dimmable Triac or Dali

Voltage 12VDC

SAFFIATO GOLD

Code WLSAFGO

Watts 1.5W COB

CCT 2700K

CRI >95

Lumens (lm) 201

Beam angle (deg) N/A

Dimensions (mm) Ø100mm

Colour/Finish Hand blown glass

Rating IP40

Dimmable Triac or Dali

Voltage 12VDC

BONNIE

Code WLBONNIE

Watts 7W

CCT 2700K, 3000K

CRI >90

Lumens (lm) 550

Beam angle (deg) N/A

Dimensions (mm) Ø230 x 105mm

Colour/Finish Glass

Rating IP44

Dimmable Triac

Voltage 240V

CLYDE

Code WLCLYDE

Watts 7W

CCT 2700K, 3000K

CRI >90

Lumens (lm) 700

Beam angle (deg) N/A

Dimensions (mm) Ø146 x 50mm

Colour/Finish Glass

Rating IP44

Dimmable Triac

Voltage 240V

AMOEBA

Code WLAMOEBA

Watts 10W

CCT 2700K, 3000K

CRI >90

Lumens (lm) 1000

Beam angle (deg) N/A

Dimensions (mm) Ø300mm

Colour/Finish Glass

Rating IP20

Dimmable Triac

Voltage 240V KRINKL

Code WLKRINKL

Watts 7W

CCT 2700K, 4000K, 5500K

CRI >90

Lumens (lm) 429,470,471

Beam angle (deg) 120

Dimensions (mm) Ø137 x 88mm

Colour/Finish Glass, Aluminium

Rating IP65

Dimmable Non-dimmable

Voltage 240V

PILLBOX

Code WLPILLBOX

Watts 7W

CCT 2700K, 4000K, 5500K

CRI >90

Lumens (lm) 429,470,471

Beam angle (deg) 120

Dimensions (mm) Ø137 x 88mm

Colour/Finish Glass, Aluminium

Rating IP65

Dimmable Non-dimmable

Voltage 240V

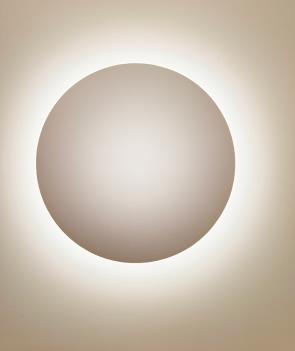

MOONGLOW

Code WLMOONGLOW

Watts 12W

CCT 3000K

CRI >90

Lumens (lm) 695

Beam angle (deg) N/A

Dimensions (mm) Ø300 x 33mm

Colour/Finish Satin Brass

Rating IP20

Dimmable Triac

Voltage 240V

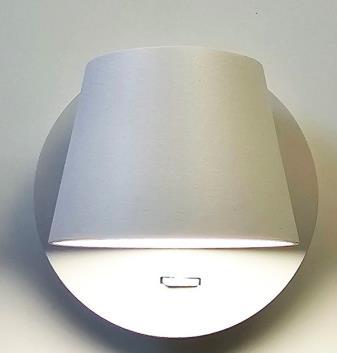

HOODIE (Adjustable to 325⁰)

Code WLHOODIE

Watts 6W

CCT 2700K, 3000K

CRI >80

Lumens (lm) 480

Beam angle (deg) 160

Dimensions (mm)

Base: 120 x 120mm

Lamp: 90 x 70mm

Colour/Finish Aluminium – white, black

Rating IP20

Dimmable Non-dimmable

Voltage 240V

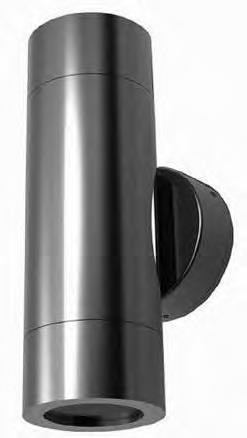

BONUCCI

Code WLBONUCCI

Watts 2 x 5W

CCT 2700K, 3000K

CRI >80

Lumens (lm) 750

Beam angle (deg) 36

Dimensions (mm) Ø60 x 230mm

Colour/Finish Aluminium – white, black

Rating IP20

Dimmable Triac

Voltage 240V

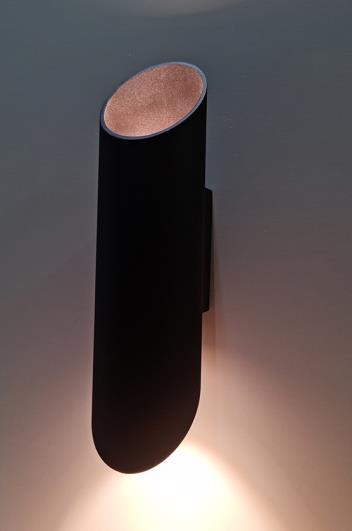

ELETRA

Code WLELETRA

Watts 2 x 3W

CCT 2700K, 3000K

CRI >90

Lumens (lm) 530

Beam angle (deg) 36

Dimensions (mm) Ø106 x 240mm

Colour/Finish Aluminium – white, black

Rating IP54

Dimmable Triac

Voltage 240V

HALO

Code WLHALO

Watts 7W, 12W

CCT 2700K, 3000K

CRI >80

Lumens (lm) 560, 960

Beam angle (deg) N/A

Dimensions (mm) Ø160/Ø260 x 40mm

Colour/Finish Aluminium

Rating IP44

Dimmable Triac

Voltage 240V

BAGUETTE

Code WLBAGUETTE

Watts 2 x 14.4W

CCT 2200K – 6500K, Sunset dimming, Tunable white

CRI >80

Lumens (lm) 1200/m

Beam angle (deg) 325

Dimensions (mm) Ø39 x 450/650 (custom lengths available)

Colour/Finish Acrylic & Aluminium

Rating IP54

Dimmable Triac or Dali

Voltage 12VDC

DIMPLEX

Code WLDIMPLEX

Watts 6W – G9 bulb

CCT 2700K, 3000K

CRI N/A

Lumens (lm) 480

Beam angle (deg) N/A

Dimensions (mm) Ø130 x 133mm

Colour/Finish Glass & Metal

Rating IP44

Dimmable Triac

Voltage 240V

ORIGI

Code WLORIGI

Watts 4W, 6W – G9 bulb

CCT 2700K

CRI N/A

Lumens (lm) 360, 480

Beam angle (deg) N/A

Dimensions (mm) Ø110 x 105, Ø150 x 139

Colour/Finish Opal glass diffuser

Rating IP44

Dimmable Triac

Voltage 240V

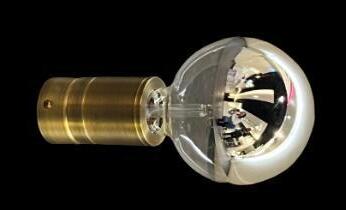

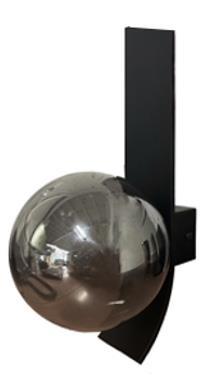

Shown with G125 mirror bulb (supplied) and Brushed brass disc

Disc sold separately

LILI

Code WLLILI

Watts 6W – E27 bulb

CCT 2200K, 2700K, 3000K

CRI N/A

Lumens (lm) 600

Beam angle (deg) N/A

Dimensions (mm) Ø60 x 103mm (lamp holder)

Colour/Finish See disc options

Rating IP44

Dimmable Triac

Voltage 240V

MOUNTING DISC FOR ORIGI & LILI

Code WDISC

Watts N/A

CCT N/A

CRI N/A

Lumens (lm) N/A

Beam angle (deg) N/A

Dimensions (mm) Ø200 x 1mm / Ø300 x 1.2mm

Colour/Finish Matt white, Matt black, Brushed brass

Rating N/A

Dimmable N/A

OLE

Code WLOLE

Watts 6W – G9 bulb

CCT 2700K, 4000K

CRI N/A

Lumens (lm) 640

Beam angle (deg) N/A

Dimensions (mm) Ø200 x 215(h)mm, Ø300 x 415(h)mm

Colour/Finish Antique brass

Rating IP20

Dimmable Triac

Voltage 240V

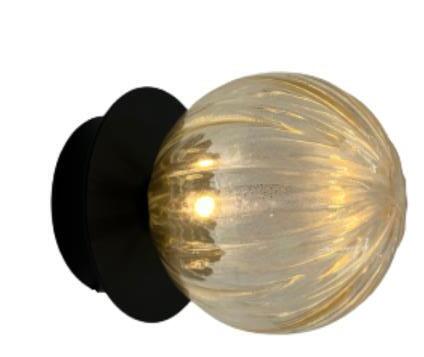

ORBALL

Code WLORBALL

Watts 4W, 6W – G9 bulb

CCT 2700K, 4000K

CRI N/A

Lumens (lm) 360/480

Beam angle (deg) N/A

Dimensions (mm) Ball: Ø130, Ø150

Backplate: 310 x 130

Colour/Finish Aluminium p/coated

Rating IP44

Dimmable Triac

Voltage 240V

BELGRAVE SINGLE

Code

WLBELGRAVE-S

Watts 6W – G9 bulb

CCT 2700K, 4000K

CRI N/A

Lumens (lm) 640

Beam angle (deg) N/A

Dimensions (mm) Ø130 x 280mm

Colour/Finish Black, Antique brass

Rating IP20

Dimmable Triac

Voltage 240V

BELGRAVE DOUBLE

Code

WLBELGRAVE-D

Watts 2 x 6W – G9 bulb

CCT 2700K, 4000K

CRI N/A

Lumens (lm) 640 x 2

Beam angle (deg) N/A

Dimensions (mm) Ø130 x 595mm

Colour/Finish Antique brass

Rating IP20

Dimmable Triac

Voltage 240V

CIRRO

Code

WLCIRRO

Watts 13W

CCT 2400K, 2700K, 3000K, 4000K, Sunset dimming, Tunable white

CRI 90

Lumens (lm) 760

Beam angle (deg) Wide

Dimensions (mm) 105(l) x 45(h) x 100(w)

Colour/Finish Aluminium textured.

Rating IP40

Dimmable Triac or Dali

Power Input 260mA / 300mA (remote driver)

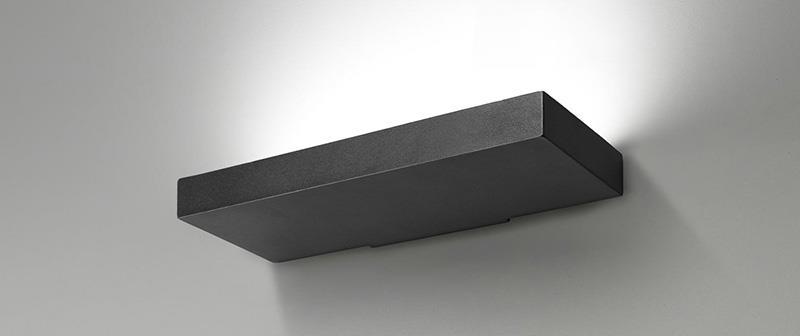

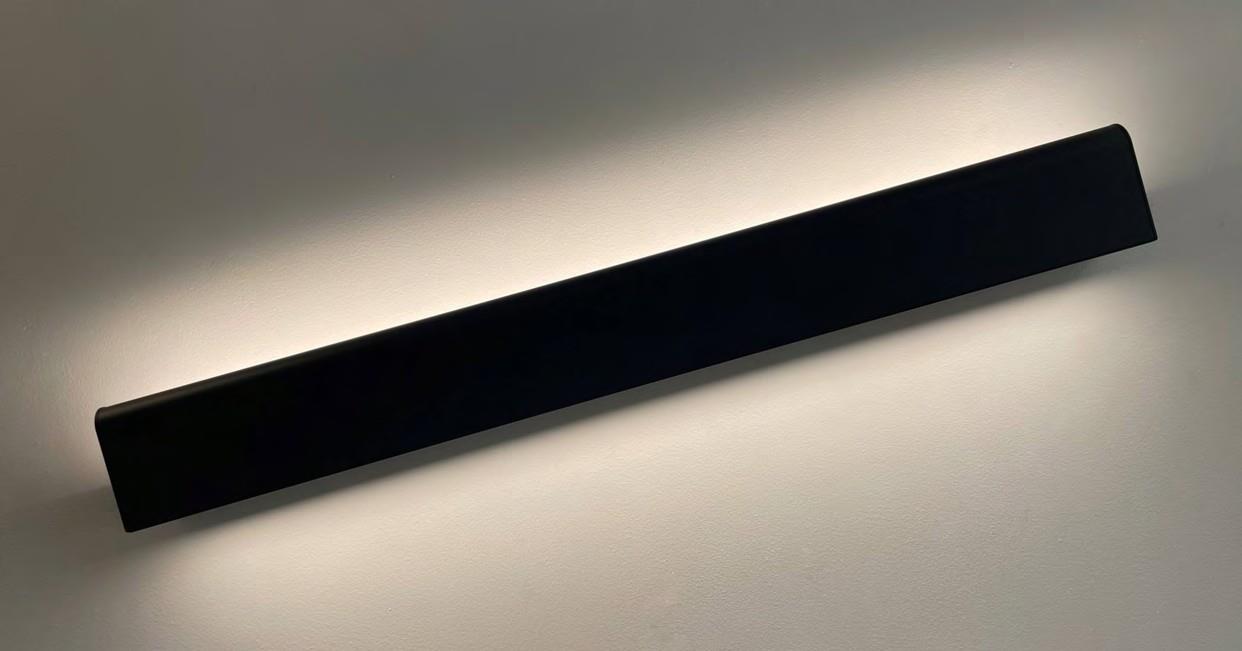

TILE

Code

WLTILE20W

Watts 20W

CCT 2700K, 3000K, 4000K

CRI 90

Lumens (lm) 1600 - 1885

Beam angle (deg) Wide

Dimensions (mm) 200(l) x 21(h) x 80(w)

Colour/Finish Aluminium powder coated

Rating IP20

Dimmable Triac

Voltage 240V

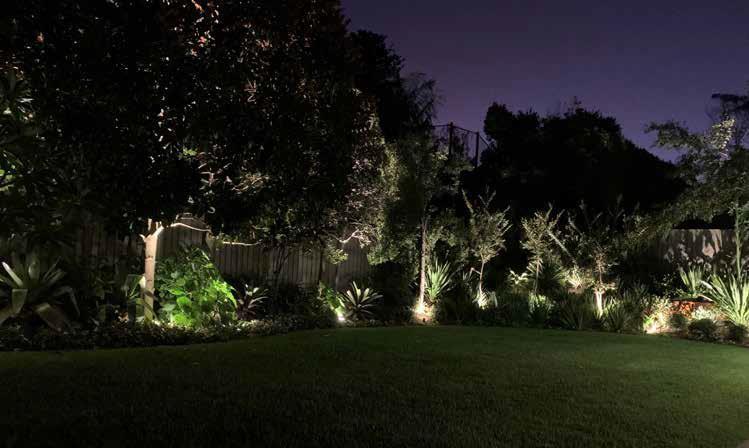

LED Outdoor Lights

Darcy Arms designed

LED Recessed Inground, Outdoor Lights

• Stainless steel

• Fixed and adjustable

• Tempered glass lens withstands impact

• IP67 Rating

• 24VDC

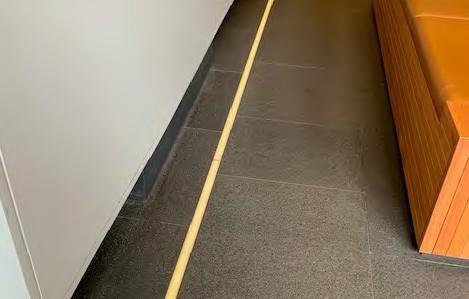

LED In Ground Rigid lights

A range of continous strip lighting for indoor or outdoor, emitting soft, diffused dot-free light. All models:

Rating: IP67; Colour Temperature: 2700K and 3000K; CRI: >90 Available in lengths of 500mm and 1000mm and can be ‘ganged up’ for longer runs.

LED Mini Recessed lights

A discrete marker light for driveways, pathways, retaining walls or borders of patios and decks. Improves safety and security, and their soft red, green, blue or white glow enhance landscape environments.

LIGRB15W LIGRA15W

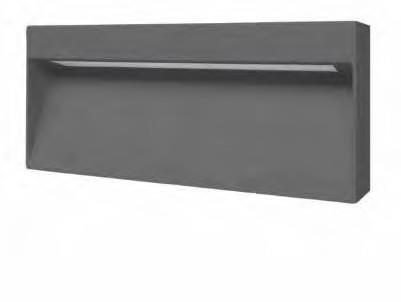

LED Foot Lights

LED Foot Lights - High Efficiency

LED Above Ground Outdoor Lights -12vDC

LED Above Ground Outdoor Lights -24VDC

GLST3W(CCT)HIP65

GLST3W(CCT)IP65

GLST5W(CCT)HIP65

GLST5W(CCT)IP65

GLST9W(CCT)HIP65

GLST9W(CCT)IP65

GLST15W(CCT)IP65 GLST15W(CCT)HIP65

LED Garden Spot Lights - Plate Mounted - 24VDC

GLS3W(CCT)IP65

GLS5W(CCT)IP65

GLS9W(CCT)IP65

GLS5W(CCT)HIP65

GLS9W(CCT)HIP65

GLS3W(CCT)HIP65 GLS15W(CCT)HIP65

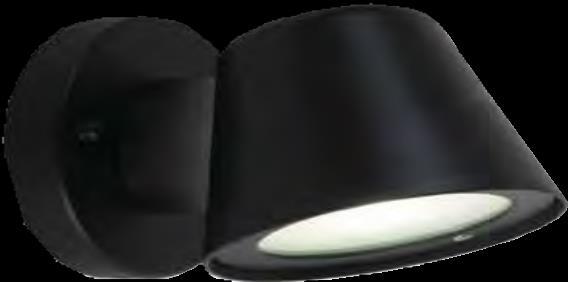

LED On Wall Outdoor Lights

WLGAR2X6WIP54 (GARDA) Surface mounted Fixed

Tubular surface mounted Up/Down

Surface mounted Fixed

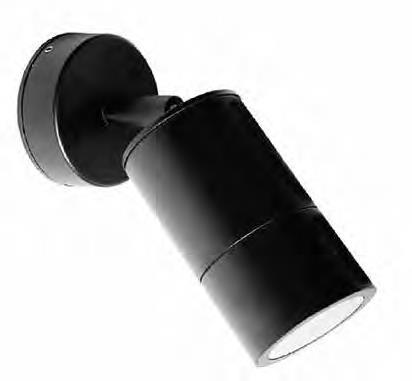

Tubular surface mounted Single adjustable

Tubular surface mounted Double adjustable

LOWLD1X8W

LOWLDA2X8W

LOWLUD2X8W

LOWLDF8W

LED On Wall Outdoor Lights

OWELETRA

OWBONUCCI

WLGENISIS

WLMICHIGAN

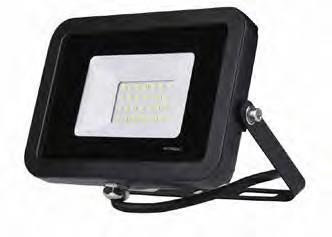

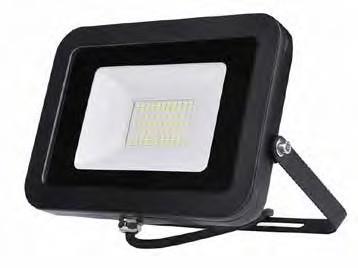

LED FLOOD LIGHTS

• Waterproof, warm white floodlight

• Supplied with 1m flexible cable - Simple ‘‘plug and play

• IP65 rated

FLHYUN20W

FLHYUN50W

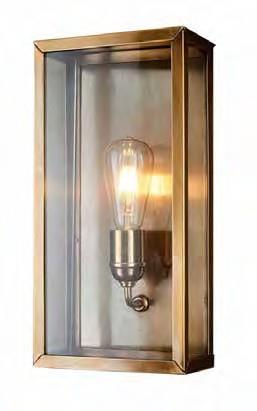

LED ANTIQUE FINISH OUTDOOR LIGHTING

NAUTILUS

COACHMAN

BUNKAR

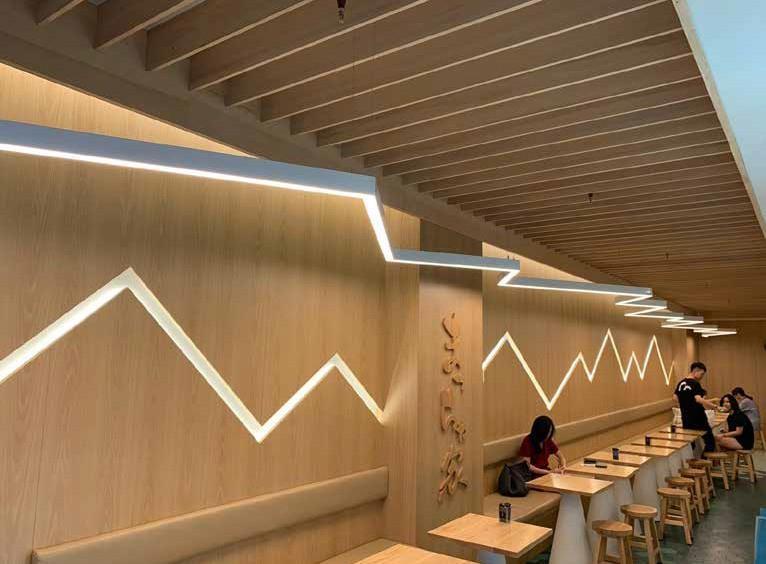

2022 FLEXIBLE SNAKELIGHT RANGE FLEXIBLE SNAKELIGHT RANGE

SnakeLight Range Summary

Mounting Options

KING COBRA

SAUNA SNAKE

CABLE ENTRY OPTIONS (all models)

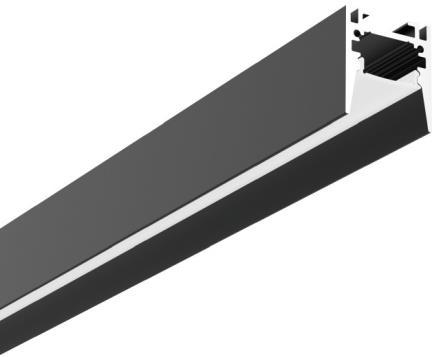

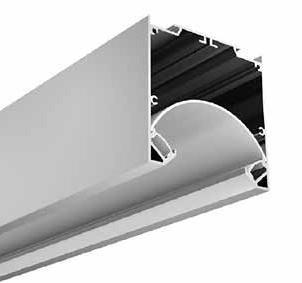

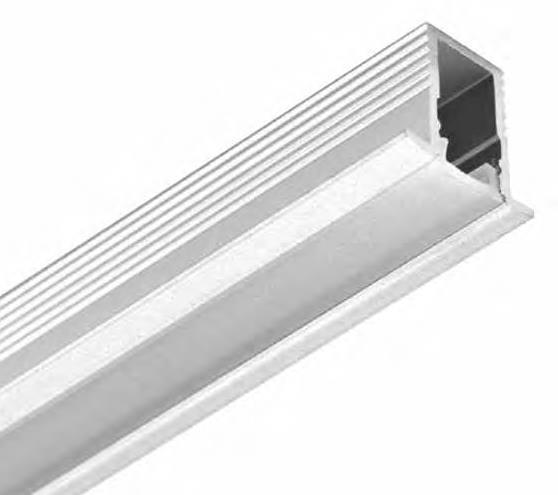

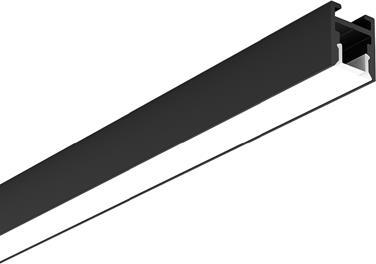

SNAKELIGHT EXTRUSION MOUNTING OPTIONS

Suspended Mounting Rod and Clip

(K)

COBRA 2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K 5W

2200K, 2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K, 5700K, 6500K, RGB, RGBWW CCT Dim to Warm (DTW)

2500K, 2700K, 3000K, 3500K, 4000K, 4500K, 5000K 5W / 9W* *9W

SNAKE 360° 2700K, 3000K, 3500K, 4000K, 6000K, RGB, RGB White, RGBWW CCT Adjustable

2400K, 2700K, 3000K, 3800K, 4200K, 5500K, 6500K, *CTAdj.,

SNAKELIGHT SPECIFICATIONS

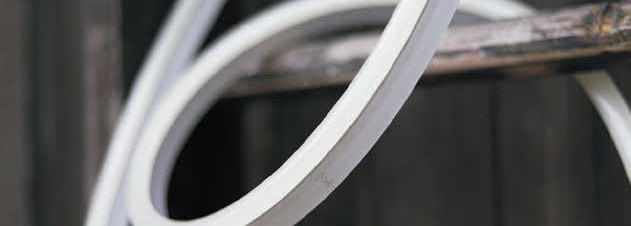

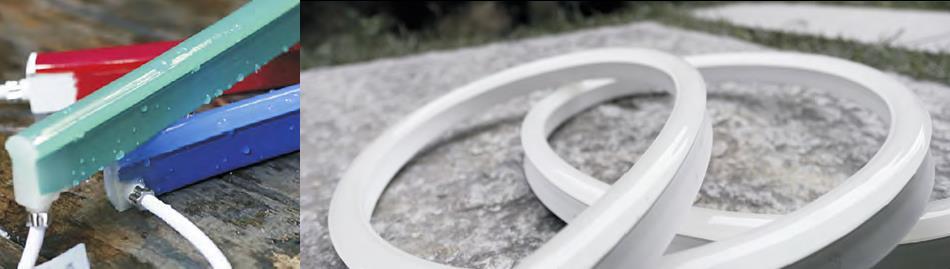

LED “COYL”

Flexible Wall Washer

TecLed’s COYL flexible wall washer introduces a new dimension to lighting of curved areas. With increased brightness and ‘throw, COYL offers superior flexibility, with both horizontal and vertical bending.

• Lensed for brighter illumination

• Horizontal and vertical bending ability

• IP65 rated for outdoor use

• Resistant silicone casing

• LUMILED chip

• Available in 5m reels

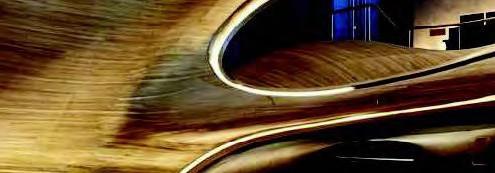

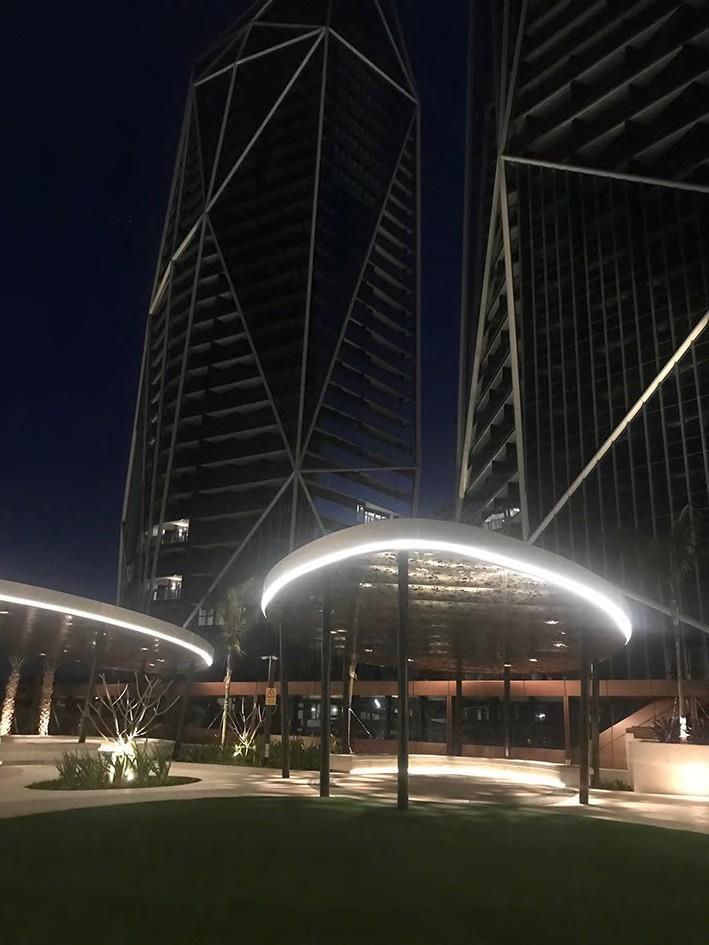

Lighting design by FPOV

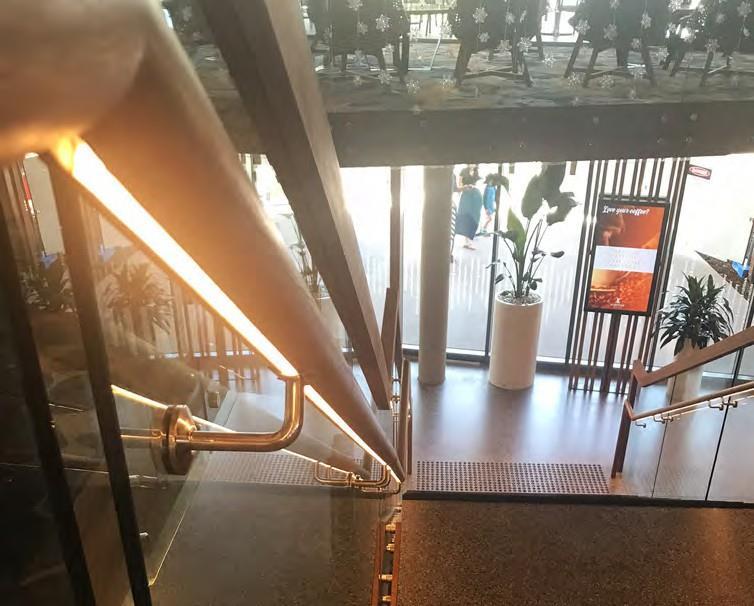

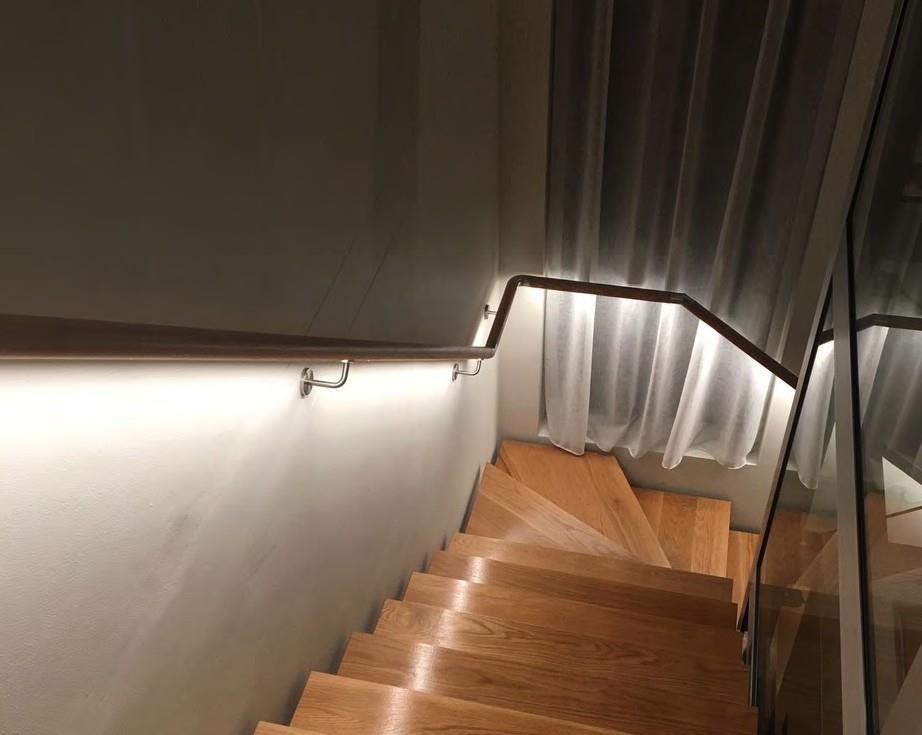

LED Illuminated Handrails

LED Illuminated Handrail

ROUND Wooden Handrail

TecLed’s LED Illuminated Handrail system provides unobtrusive, continuous lighting to areas where light is needed most - passages, staircases and access ramps.

The handrails are crafted from fine Tasmanian Oak and other species and is available in a range of colours.

43mm diameter handrail lengths available up to 4000mm but can be joined with standard straight joiners, or snaked around corners with 45º or 90º elbow joiners.

LED strip light illumination:

• Remote driver

• Optional dimming

BRACKET COLOUR OPTIONS FOR ROUND HANDRAIL (Brackets can be supplied without a lacquer, achieving a beautiful patina effect)

Matt Copper Satin Brass Aged Copper Medium Brown Bronze Black Powder Coat Other bespoke colours available

Satin Stainless Steel

ROUND HANDRAIL TIMBER OPTIONS

Tasmanian Oak

American Oak ROUND HANDRAIL COLOUR STAIN OPTIONS

Black Japan stained Walnut Clear

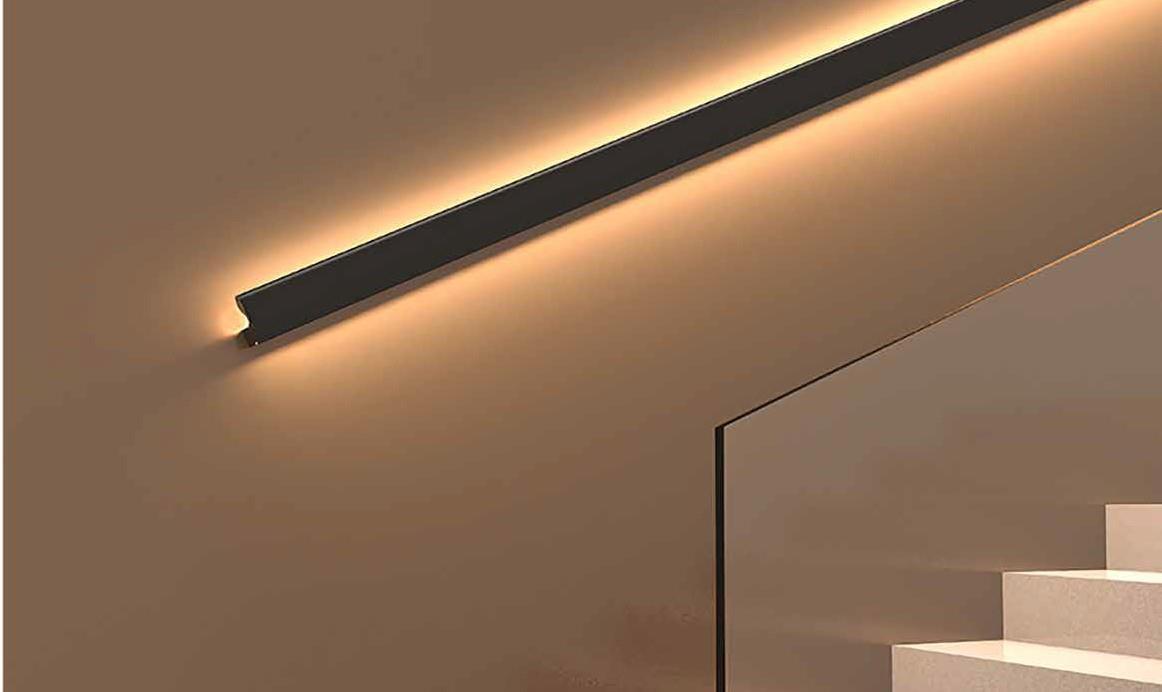

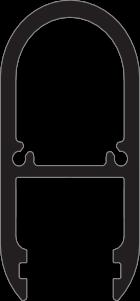

ALLYRAIL Illuminated Aluminium Handrail

TECLED’s extruded aluminium illuminated handrail offers a sleek and robust option for stirwell safety and illumination. Two rows of diffused LED strip lighting casts light both up and down and the smooth, rounded handrail grip provides safe and secure assistance.

Maximum length of single unit: 3000mm
