ITALIAN WALL WASHER AND WALL GRAZING COLLECTION
INFINITY
• LINEAR SYSTEM: with modules from 100 cm and angle at 90°
• BODY in extruded aluminum profile
• FINISHING in white, black, RAL
• MOUNTING hanging with steel cables l.210 cm, ceiling with screws and magnets

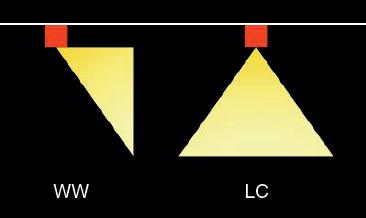

• OPTIC symmetrical Low-Contrast, asymmetrical Wall Washer and Ceiling Washer in aluminum with pure silver deposition with reflection >98%; roto-symmetric High Contrast
• COLOR TEMPERATURE 2700K, 3000K, 4000K, Tunable White 2700K/5000K
• CRI >90 / IP40
• DRIVER remote driver 24Vdc
• OPTIONS WINGLETS light refractor and anti-glare distribution in; SPOT Micro25 and Micro40 placeable on low voltage electrified track
Adjustable steel suspension cable lighting system for flexible and easy mounting from a minimum of 15cm to a maximum of 200cm from the
Optional track light on top
• LINEAR SYSTEM: with modules from 100cm
• BODY galvanized steel back case, aluminum optic
• FINISHING in white, black, RAL
• MOUNTING of the counter box to plasterboard with crews, of the optic to counter box with magnets. The standard structural C-elements of plasterboard and the fixing brackets are high 2.7 cm
• OPTIC symmetrical Low Contrast; Asymmetrical Wall Washer in aluminum with pure silver deposition with reflection >98%; Ceiling Washer
• COLOR TEMPERATURE 2700K, 3000K, 4000K
• CRI >90 / IP40
LOW CONTRAST VERSION
WASHER VERSION
WALL
Grazing IP65
Flue IP65
GRAZING
• GRAZING LINEAR SYSTEM: from 85 cm and 42.5 cm
• BODY in painted steel, rotatable 360° on the longitudinal axis
• FINISHING black
• MOUNTING ceiling, supporting and appliques for outdoor, with magnets and/or screws
• OPTIC asymmetrical Wall Grazing in PMMA; Ceiling Grazing in PMMA
• COLOR TEMPERATURE 2700K, 3000K, 4000K
• CRI >90 / IP40 (*IP65 available)
• DRIVER remote driver 24Vdc

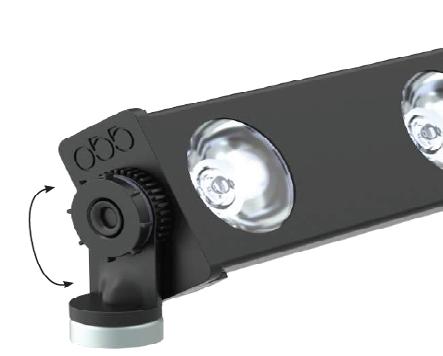

Rotatable 360°
• LINEAR SYSTEM: of 108 cm
• BODY in extruded aluminum profile with transparent polycarbonate screen, rotatable 360° on the longitudinal axis
• FINISHING in white, black, RAL
• MOUNTING ceiling and/or supporting and/or applique with magnets or screws
• OPTIC symmetrical Low Contrast; asymmetrical Wall Washer in aluminum with pure silver deposition with reflection >98%
• COLOR TEMPERATURE 2700K, 3000K, 4000K, Tunable White 2700K/5000K
• CRI >90 / IP40
• DRIVER remote driver 24Vdc
DIRECT CEILING LIGHT
FLUE IP65
• LINEAR SYSTEM: IP65 degree of protection against the penetration of dust, solid objects and liquids
• BODY in extruded transparent polycarbonate profile (Ø 4cm), rotatable 360° on the longitudinal axis
• FINISHING in white, black, RAL
• MOUNTING ceiling and/or supporting and/or applique with magnets or screws
• OPTIC symmetrical Low Contrast; asymmetrical Wall Washer; Ceiling Shaper in aluminum with pure silver deposition with reflection >98%
• COLOR TEMPERATURE 2700K, 3000K, 4000K, Tunable White 2700K/5000K
• CRI >90 / IP65
