PROJECT 2: TOWN OF BROOKHAVEN VEHICLE CONTROL
550 N OCEAN AVE, PATCHOGUE, NY 11772
TAX MAP# 0200-953.00-01.00-019.003
LOT SIZE 5.7 ACRES LAND USE CODE
431 OWNER TOWN OF BROOKHAVEN
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
CONSTRUCTION DESIGN (ARC 310)
SPRING 2023
PROFESSOR LOPICCOLO
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA

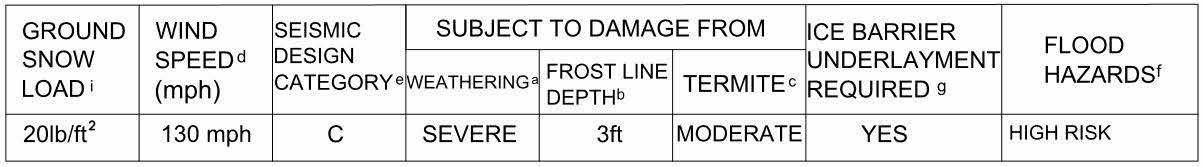

TITLE SHEET
A0
FARMINGDALE STATE COLLEGE Scale Date
5/17/2023 11:02:53 AM
Issue Date
No. Description Date
INDEX
A00 - INDEX
A0 - TITLE SHEET
A1 - SITE
A2.1 - FOUNDATION WAREHOUSE
A3 - LEVEL 1 OFFICES
A3.1 - LEVEL 1 WAREHOUSE
A4 - LEVEL 2
A5 - ROOF PLAN OFFICES
A6 - LEVEL 1 ELECTRIC PLAN OFFICES
A6.1 - LEVEL 1 ELECTRIC PLAN WAREHOUSE
A7 - LEVEL 2 ELECTRIC PLAN
A8 - ELEVATION SOUTH
A9 - ELEVATION NORH
A10 - ELEVATIONS EAST & WEST
A11 - SECTIONS
A12 - DETAILS
A13 - SITE PHOTOS
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
FARMINGDALE STATE COLLEGE Scale Date
5/17/2023 11:02:53 AM A00 INDEX
Issue Date No. Description Date
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
FARMINGDALE STATE COLLEGE Scale
Date
1" = 20'-0" 5/17/2023 11:02:53 AM A1 SITE
Issue Date SITE NTS No. Description Date
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
3 A11 16' 10" 52' 10" 62' 9" 83' 4" 96' 2" 36' 10" 3' 11" 3'11" 36' 10"
STATE COLLEGE Scale Date
FARMINGDALE
1/8" = 1'-0" 5/17/2023 11:02:54 AM A2
FOUNDATION OFFICES
Issue Date 1/8" = 1'-0" 1 FOUNDATION - OFFICES No. Description Date
1 A11 83' 4" FARMINGDALE STATE COLLEGE Scale Date EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772 CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD. TOWN OF BROOKHAVEN VEHICLE CONTROL TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA 1/8" = 1'-0" 5/17/2023 11:02:54 AM A2.1 FOUNDATION WAREHOUSE PROJECT 2 - FINAL Issue Date 1/8" = 1'-0" 1 FOUNDATION WAREHOUSE No. Description Date
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
UP 24' 10" 49' 10" 19' 8" 3' 10" 25' 1" 23' 10" 29' 0" 4" 10' 8" 49' 7" 14' 0" 4'6" 16' 4" 41' 7" 10'1" 4'2" 19' 8" 4' 6" 28' 5" 28' 10" 5' 0" 18' 6" 15' 3" 16' 9" 8' 11" 23' 7" 50' 7" 5' 1" 24' 3" 9' 2" 3' 1" 13' 4" 10' 8" 19'1" 6' 2" 13' 2" 8' 1" 44'10" 13' 1" 7' 8" 27' 9" 24' 2" 23' 10" 20' 1" 4' 4" 4' 8" 5' 0" 6' 4" 15' 9" 13' 6" 5' 3" 7' 2" 36' 10" 4' 11" 19' 5" 5'4" 3' 11" 25' 1" 14' 1" 8' 1" 22' 1" 53' 7" 27' 11" 33' 0" 41' 4" 20' 6" 5' 0" 6' 3" 3' 7" 4' 0" 6' 7" 5' 10" 6' 8" 15' 2" 4' 5" 33' 0" 38' 2" 3' 7" 8' 6" 6' 6" 3'6" 6' 3" 31' 10" 8' 8" 28' 2" 9' 9" 8' 9" 18'7" 31' 1" 23' 2" 24'7" 93' 10" 101'1" 14' 6" 55' 2" 60' 5" 5' 6" 8' 8" 0' 8" 8' 11" 4'0" 4' 0" 4' 0" 4' 0" 4' 0" 4'0" 4' 0" 4'0" 3' 6" 4' 2" 2' 10" 4'1" 3' 6" 4' 0" 4' 0" 4' 0" 4'0" 4' 0" 4'0" 4' 0" 4' 0" 4'1" 4' 10" 60' 0" 34'10" 45' 7" 3 A11 41' 10" 8' 0" 13' 5" 24' 0" 6" 7" 3' 4" 0' 3" 0" 0' 3" 3' 4" 26' 6" 6" 0' 1" 0' 8" 4" 0' 3" 6' 0" 0' 3" 3' 4" 0' 8" 1" 3' 6" 4' 4" 3' 4" 3' 4" 3' 4" 3' 4" 29' 11" 3' 0" 1' 0" 10' 4" 3' 4" 3' 4" 3' 4" 9' 6" 24' 0" 6' 7" 18' 6" 2" 10" 41' 11" 4' 10" 36' 9" 3' 6" 11'1" 3' 6" 36' 9" 4' 10" 2 A11 GARAGE 249 SF 24'-0" C.H. LOCKED RM. 78 SF STORAGE 102 SF 8'-0" C.H STORAGE 80 SF 8'-0" C.H STORAGE 104 SF 8'-0" C.H HALLWAY GARAGE 456 SF 20'-0" C.H GARAGE 3670 SF 20'-0" C.H MEETING RM. 706 SF 8'-0" C.H. MEETING RM. 910 SF 8'-0" C.H MEETING RM. 1003 SF 8'-0" C.H. CL. BATH ROOM 291 SF BATH ROOM 291 SF OFFICE 368 SF 8'-0" C.H. MECH. ROOM 291 SF HALLWAY LOCKED RM. 158 SF BREAK RM. 527 SF 20'-0" C.H. OFFICE 675 SF 8'-0" C.H OFFICE 596 SF 8'-0" C.H. OFFICE 291 SF 8'-0" C.H. BREEZEWAY 291 SF OFFICE 106 SF 8'-0" C.H BATHROOM 64 SF 8'-0" C.H BATH ROOM 30 SF BATHROOM 140 SF 8'-0" C.H CL. STORAGE 720 SF 8'-0" C.H CL. MECH. ROOM 239 SF OPEN ABOVE FARMINGDALE STATE COLLEGE Scale Date
EXISTING CONDITIONS
1/8" = 1'-0" 5/17/2023 11:02:55 AM A3
LEVEL 1 OFFICES
FINAL Issue Date 1/8" = 1'-0" 1 LEVEL 1 - OFFICES No. Description Date
PROJECT 2 -
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
LEVEL 1
WAREHOUSE
79' 4" 1 A11 2' 6" 18' 6" 0' 8" 2' 10" 4' 2" 18' 6" 5' 0" 18' 6" 0' 10" 2' 10" 4' 0" 18' 6" 6' 10" 18' 6" 4' 4" 2' 10" 0' 8" 18' 6" 2' 6" 18' 6" 0' 10" 10" 4' 0" 18' 6" 5' 0" 18' 6" 0' 10" 2' 10" 4' 0" 18' 6" 6' 10" 18' 6" 4' 4" 2' 10" 0' 8" 18' 6" WAREHOUSE GARAGE 11950 SF 24'-2" C.H. FARMINGDALE STATE COLLEGE Scale Date
1/8" = 1'-0" 5/17/2023 11:02:55 AM
A3.1
Issue Date 1/8" = 1'-0" 1 LEVEL 1 - WAREHOUSE No. Description Date
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
DN DN DN 5" 1" 9' 1" 4'-0" 20' 3" 9' 9" 9' 9" 5' 4" 49' 10" 21' 0" 3' 1" 66' 5" 26' 0" 22' 2" 26' 9" 11' 7" 40' 5" 3'11" 20' 1" 24' 10" 49' 10" 19' 8" 3' 10" 18'8" 58' 2" 21' 5" 12' 3" 5' 4" 7' 3" 16' 9" 14' 7" 15' 3" 0' 8" 20' 5" 4' 0" 16'0" 16' 8" 26' 7" 7" CHAINLINK FENCE 4' 8" 30' 10" A11 3 A11 57' 8" 67' 4" 26' 9" 151' 9" 86' 1" 81'0" 77' 9" 4" 4" 3' 4" 3' 4" 33' 11" 10' 4" 3' 4" 3' 4" 4" 6' 5" 29' 7" 5' 8" 50' 10" 151' 9" 15' 3" 10" 0' 6" 3' 10" 128' 4" SERVER RM. SERVER RM. MECH. ROOM BREAK ROOM FENCED STORAGE FENCED STORAGE FENCED STORAGE FENCED STORAGE FARMINGDALE STATE COLLEGE Scale Date
1/8" = 1'-0" 5/17/2023 11:02:55 AM A4 LEVEL 2
2 - FINAL Issue Date 1/8" = 1'-0" 1 LEVEL 2 No. Description Date
PROJECT
ROOF ACCESS SKYLIGHT TYP FARMINGDALE STATE COLLEGE Scale Date EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772 CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD. TOWN OF BROOKHAVEN VEHICLE CONTROL TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA 1/8" = 1'-0" 5/17/2023 11:02:55 AM A5 ROOF PLAN OFFICES PROJECT 2 - FINAL Issue Date 1/8" = 1'-0" 1 ROOF OFFICES No. Description Date
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
ROOF PLAN WAREHOUSE
FARMINGDALE STATE COLLEGE Scale Date
1/8" = 1'-0" 5/17/2023 11:02:56 AM
A5.1
Issue Date 1/8" = 1'-0" 1 ROOF - WAREHOUSE No. Description Date SKYLIGHT TYP PLUMBNING VENT TYP
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
GFI GFI GFI GFI GFI GFI GFI GFI GFI GFI 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 A11 2 A11 FARMINGDALE STATE COLLEGE Scale Date
1/8" = 1'-0" 5/17/2023 11:02:56 AM A6
ELECTRICAL
LEVEL 1
OFFICES
Issue Date 1/8" = 1'-0" 1 LEVEL 1 ELECTRICAL OFFICES No. Description Date
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
LEVEL 1
ELECTRICAL WAREHOUSE
A6.1
GFI GFI GFI GFI GFI GFI GFI GFI GFI GFI GFI GFI GFI GFI 1 A11 FARMINGDALE STATE COLLEGE Scale Date
1/8" = 1'-0" 5/17/2023 11:02:56 AM
Issue Date 1/8" = 1'-0" 1 LEVEL 1 ELECTRICAL WAREHOUSE No. Description Date
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
DN DN DN 3 3 3 3 1 A11 3 A11 FARMINGDALE STATE COLLEGE Scale Date
1/8" = 1'-0" 5/17/2023 11:02:56 AM A7
LEVEL 2 ELECTRICAL
Issue Date 1/8" = 1'-0" 1 LEVEL 2 ELECTRICAL No. Description Date
TOWN OF BROOKHAVEN VEHICLE CONTROL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
LEVEL 1 0' - 0" LEVEL 2 12' - 4" ROOF 26' - 8" FOUNDATION -3' - 4" LEVEL 1 0' 0" LEVEL 2 12' 4" ROOF 26' 8" FOUNDATION -3' - 4" FARMINGDALE STATE COLLEGE Scale Date
EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
1/8" = 1'-0" 5/17/2023 11:02:57 AM A8
SOUTH
Issue Date 1/8" = 1'-0" 1 SOUTH OFFICES 1/8" = 1'-0" 2 SOUTH WAREHOUSE No. Description Date
ELEVATIONS -
PROJECT 2 - FINAL
CONTRACTOR
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
LEVEL 1 0' 0" LEVEL 2 12' 4" ROOF 26' 8" FOUNDATION -3' - 4" LEVEL 1 0' - 0" LEVEL 2 12' - 4" ROOF 26' - 8" FOUNDATION -3' - 4" FARMINGDALE STATE COLLEGE Scale Date
CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772
EXISTING
TO
ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
VERIFY
TOWN OF BROOKHAVEN VEHICLE CONTROL
1/8" = 1'-0" 5/17/2023 11:02:57 AM A9
NORTH
2 - FINAL Issue Date 1/8" = 1'-0" 1 NORTH - OFFICES 1/8" = 1'-0" 2 NORTH - WAREHOUSE No. Description Date
ELEVATIONS
PROJECT
CONTRACTOR
TOWN OF BROOKHAVEN VEHICLE CONTROL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
ELEVATIONS
LEVEL 1 0' 0" LEVEL 2 12' 4" ROOF 26' 8" FOUNDATION -3' - 4" LEVEL 1 0' 0" LEVEL 2 12' 4" ROOF 26' 8" FOUNDATION -3' - 4" FARMINGDALE STATE COLLEGE Scale Date
550 N OCEAN
EXISTING CONDITIONS
AVE, PATCHOGUE, NY 11772
TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
1/8" = 1'-0" 5/17/2023 11:02:58 AM A10
WEST
- EAST &
Issue Date 1/8" = 1'-0" 1 EAST 1/8" = 1'-0" 2 WEST No. Description Date
PROJECT 2 - FINAL
TYRONE
LEVEL 1 0' - 0" LEVEL 2 12' - 4" ROOF 26' - 8" FOUNDATION -3' - 4" WAREHOUSE GARAGE LEVEL 1 0' 0" LEVEL 2 12' 4" ROOF 26' 8" FOUNDATION -3' - 4" 3 A11 GARAGE FENCED STORAGES HALL GARAGE LOCKED RM. STORAGE MEETING RM. MEETING RM. STOR AGE LEVEL 1 0' - 0" LEVEL 2 12' - 4" ROOF 26' - 8" FOUNDATION -3' - 4" 1 A11 GARAGE CL. MECH. ROOM OFFICE FENCED STORAGE HALL HALL B R K. R M. FARMINGDALE STATE COLLEGE Scale Date EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772
IN THE FIELD.
OF BROOKHAVEN VEHICLE CONTROL
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS
TOWN
CLARKE,
1/8" = 1'-0" 5/17/2023 11:02:58 AM A11
2 - FINAL Issue Date 1/8" = 1'-0" 1 LONGITUDINAL SECTION - WAREHOUSE 1/8" = 1'-0" 2 LONGITUDINAL SECTION - OFFICES 1/8" = 1'-0" 3 CROSS SECTION No. Description Date
KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA
SECTIONS PROJECT
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS 550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
A12 No. Description Date
DETAILS
FARMINGDALE STATE COLLEGE Scale Date
5/17/2023 11:03:01 AM
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA Issue Date
PROJECT 2 - FINAL
CONTRACTOR TO VERIFY ALL DIMENSIONS AND CONDITIONS IN THE FIELD.
EXISTING CONDITIONS
550 N OCEAN AVE, PATCHOGUE, NY 11772
TOWN OF BROOKHAVEN VEHICLE CONTROL
PROJECT 2 - FINAL
TYRONE CLARKE, KEVIN GOMES, BRENDAN DIXSON, YAHYA ESSA

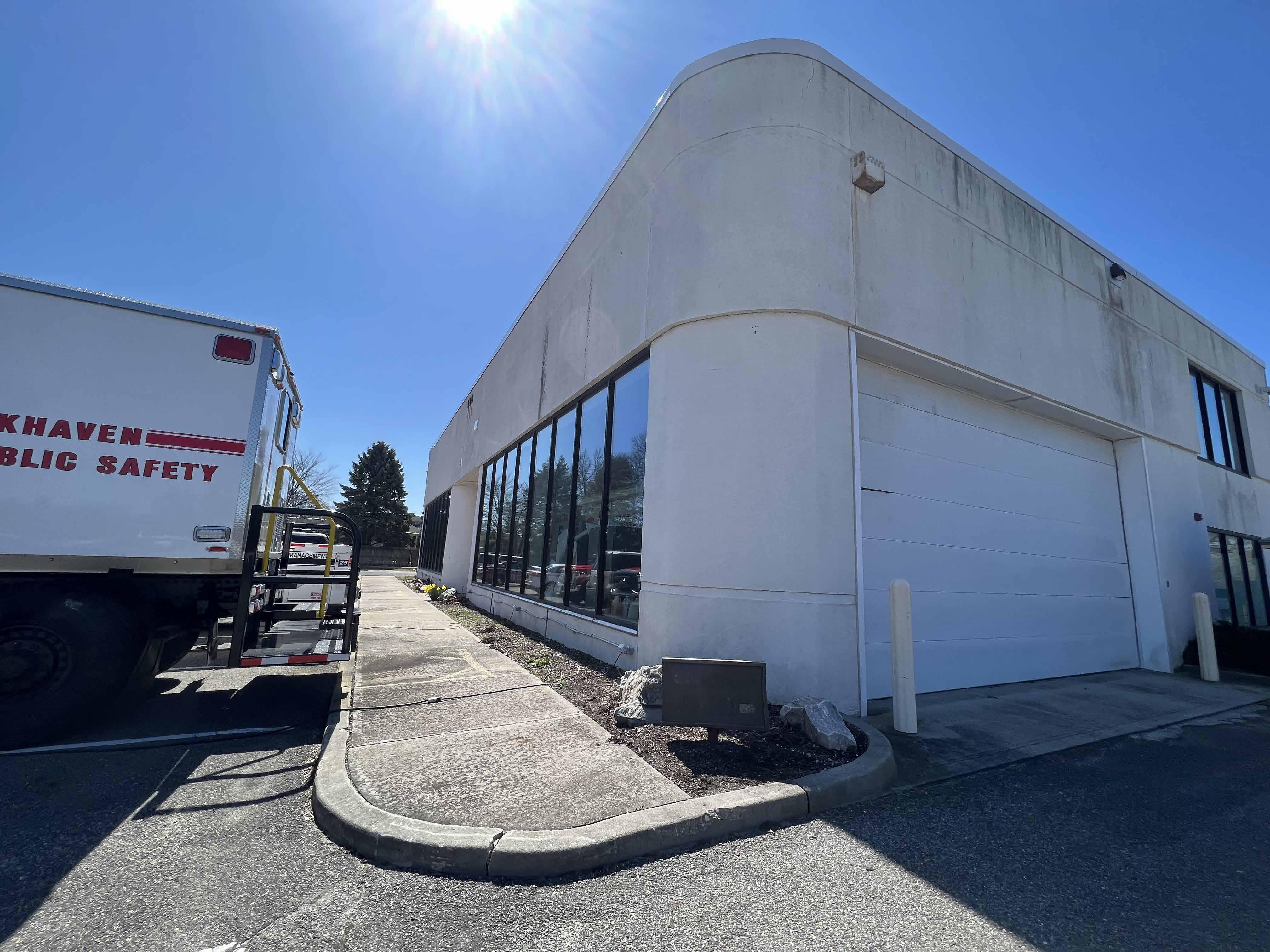

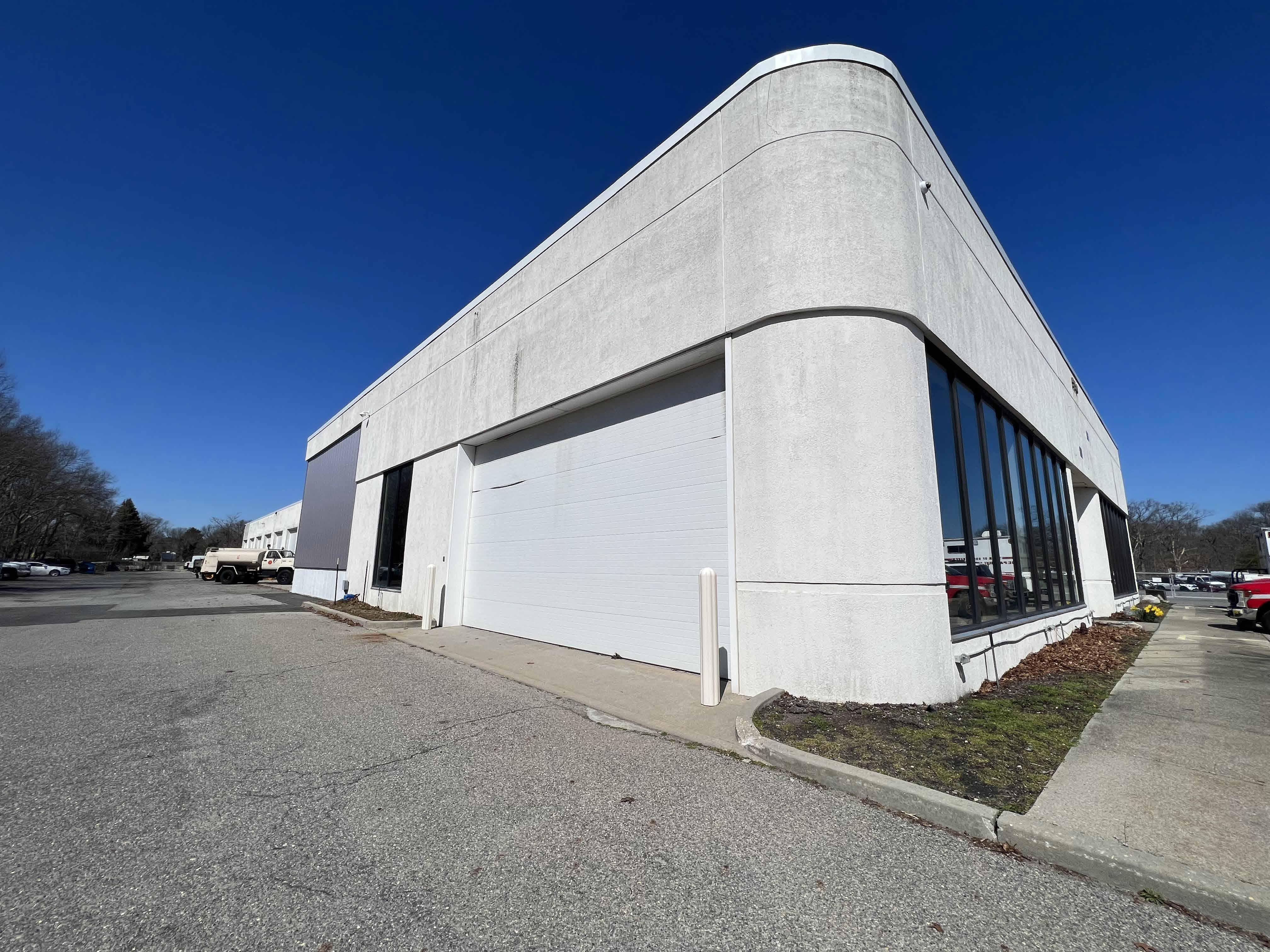

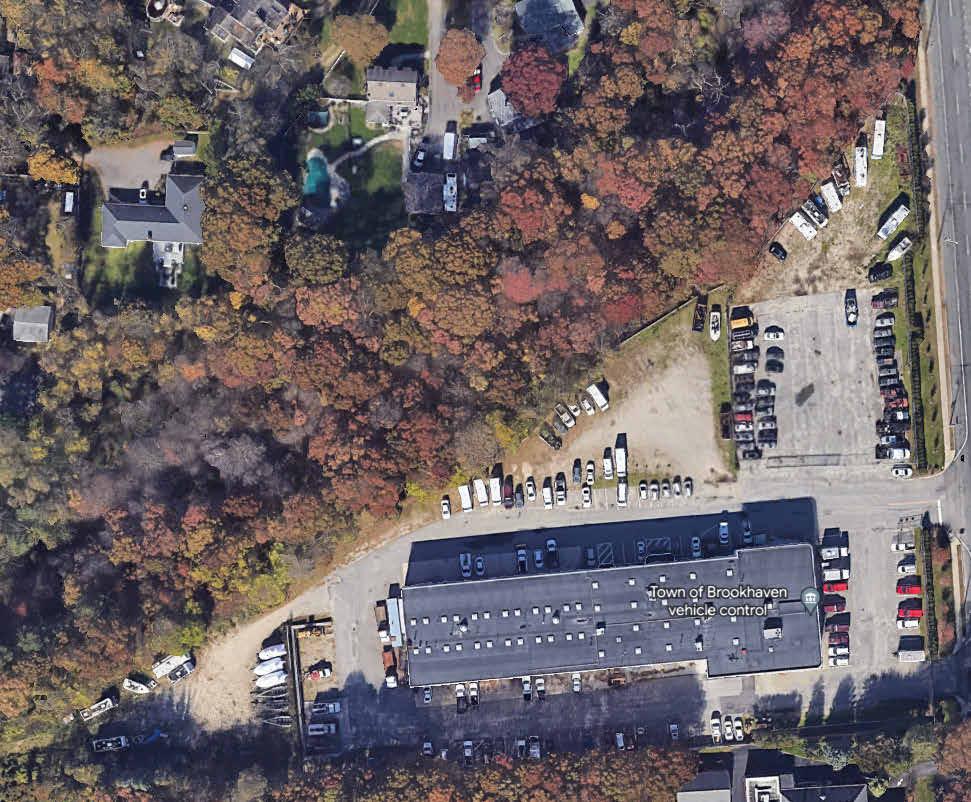

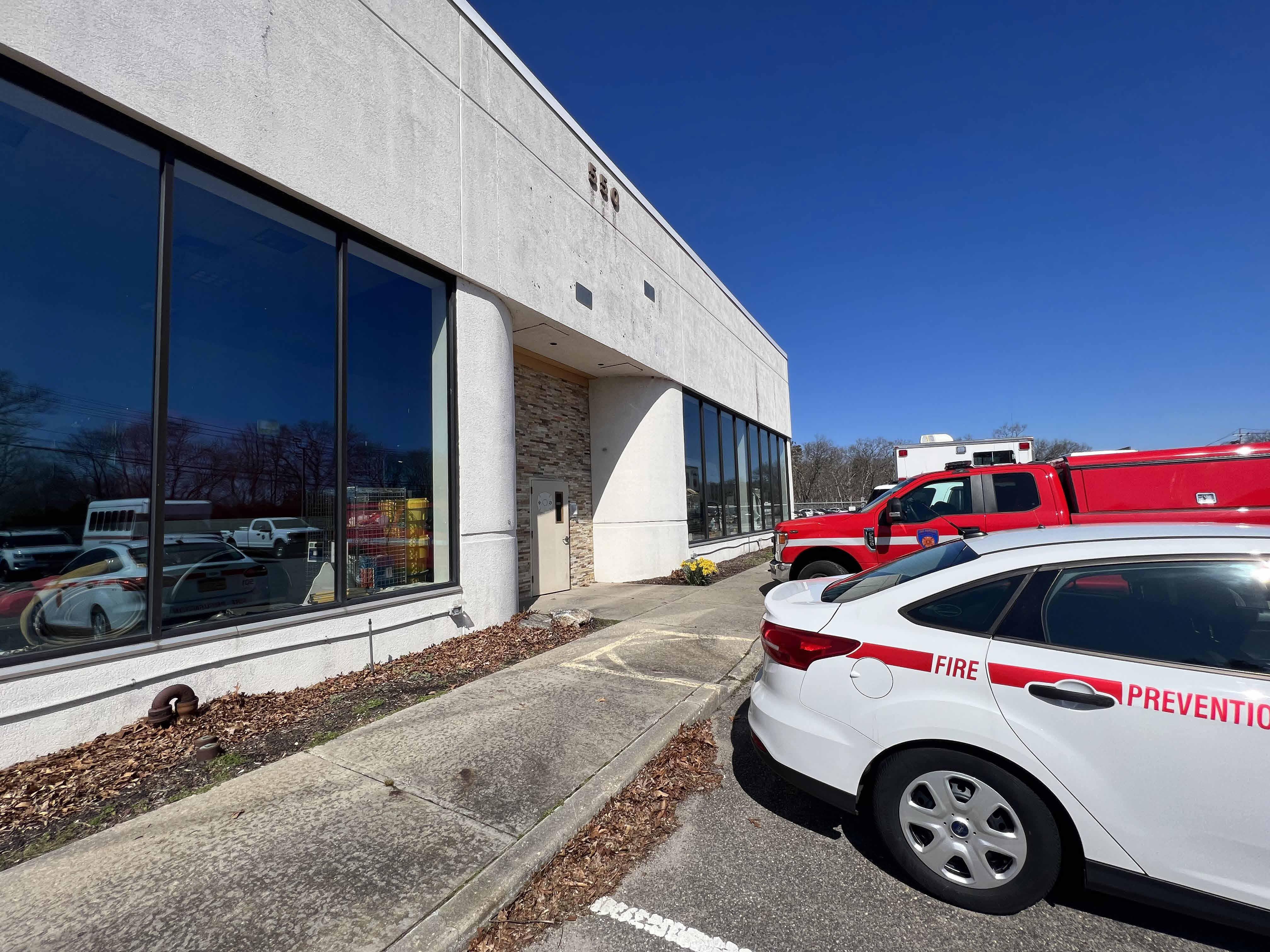

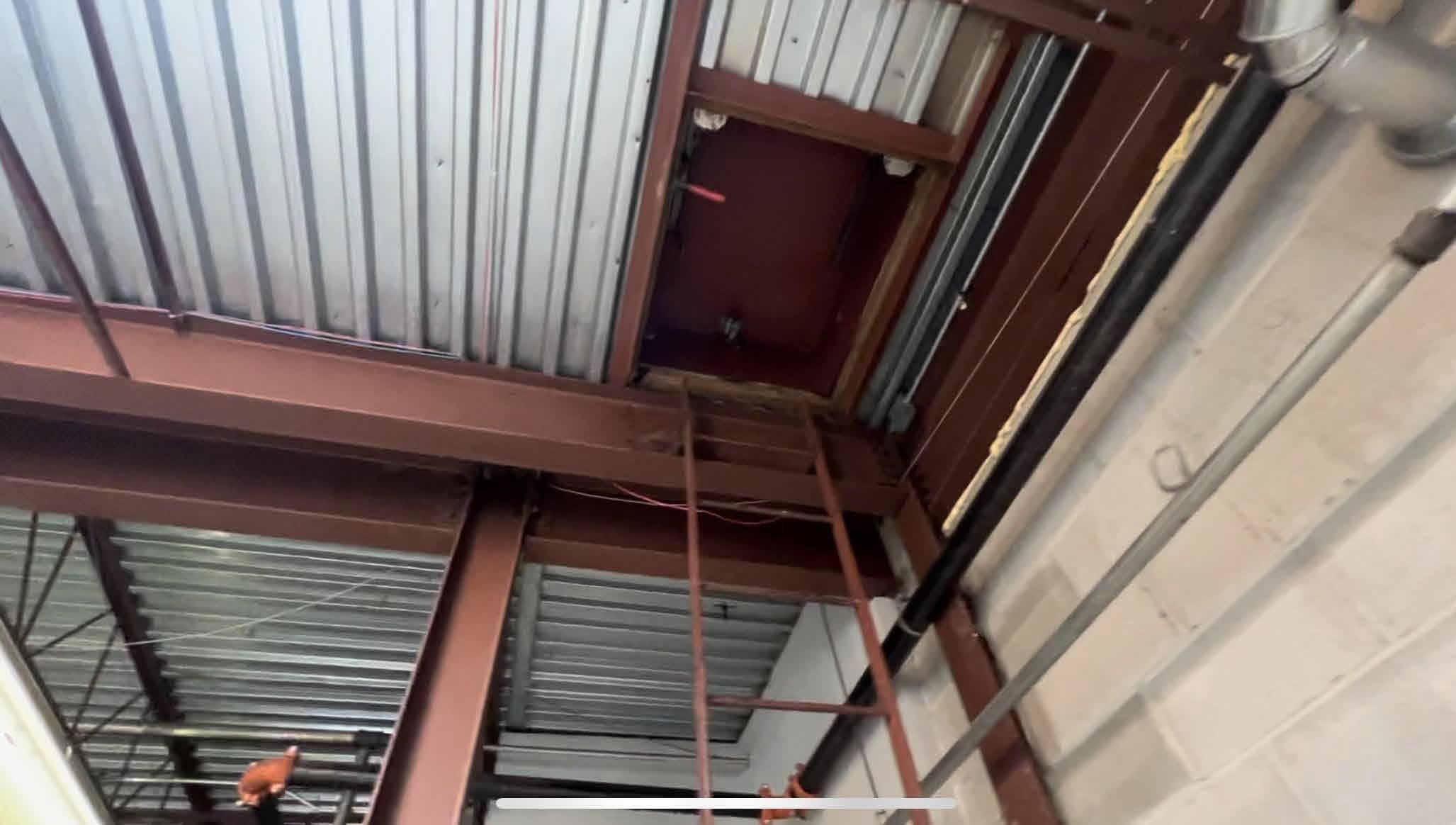

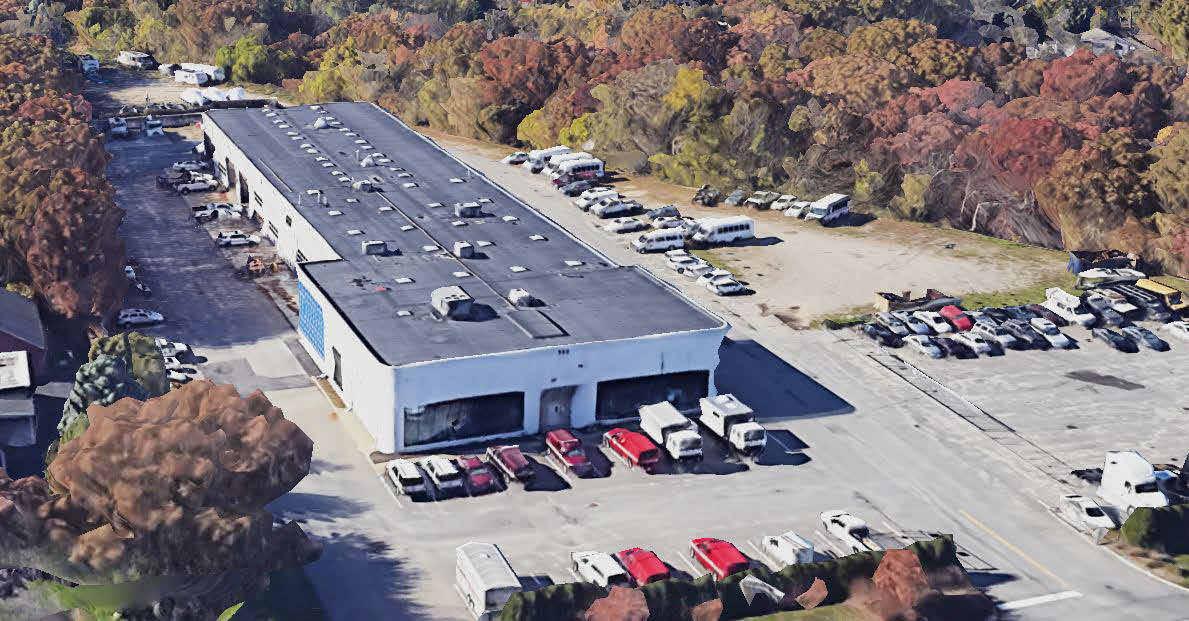

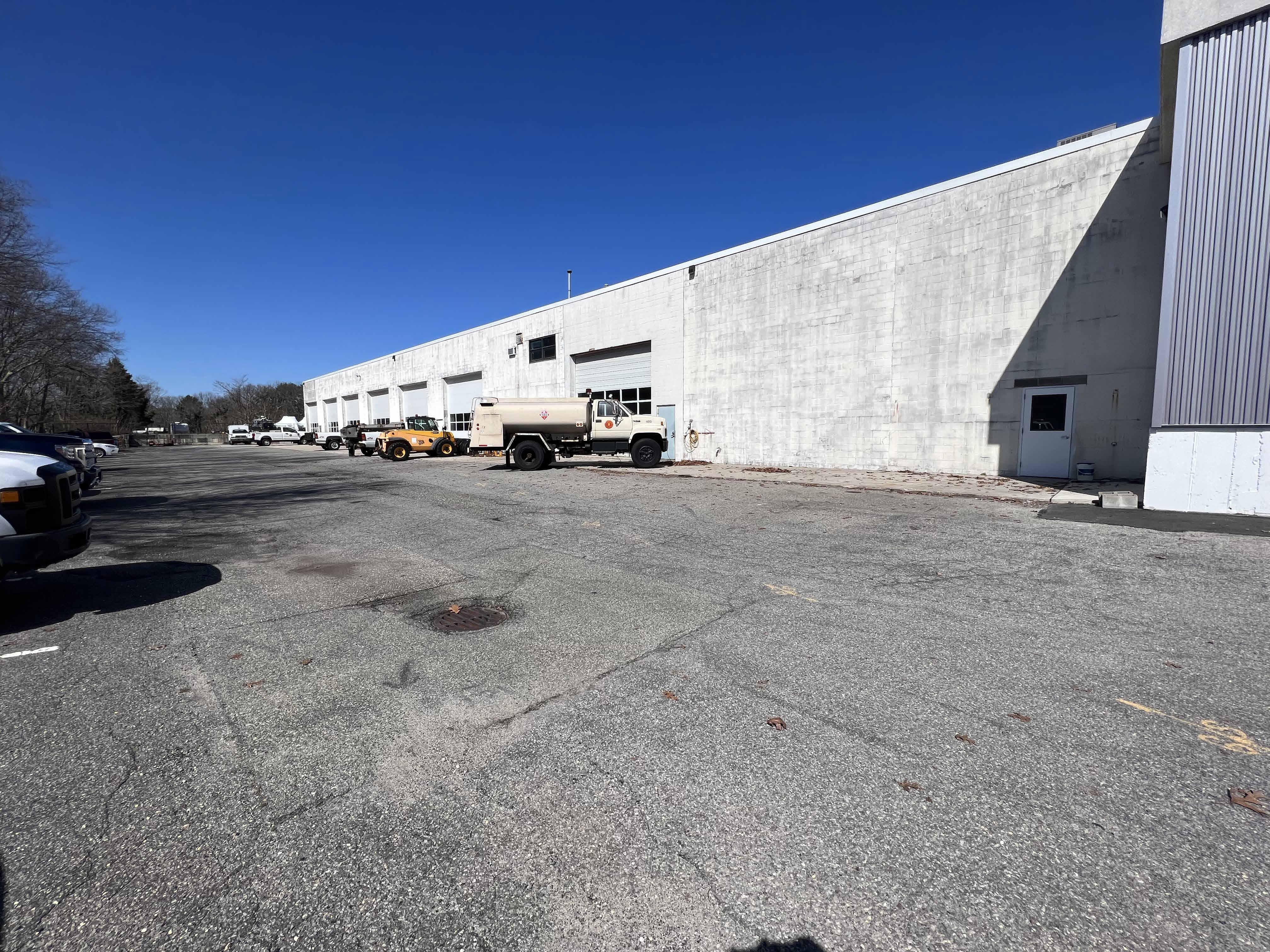

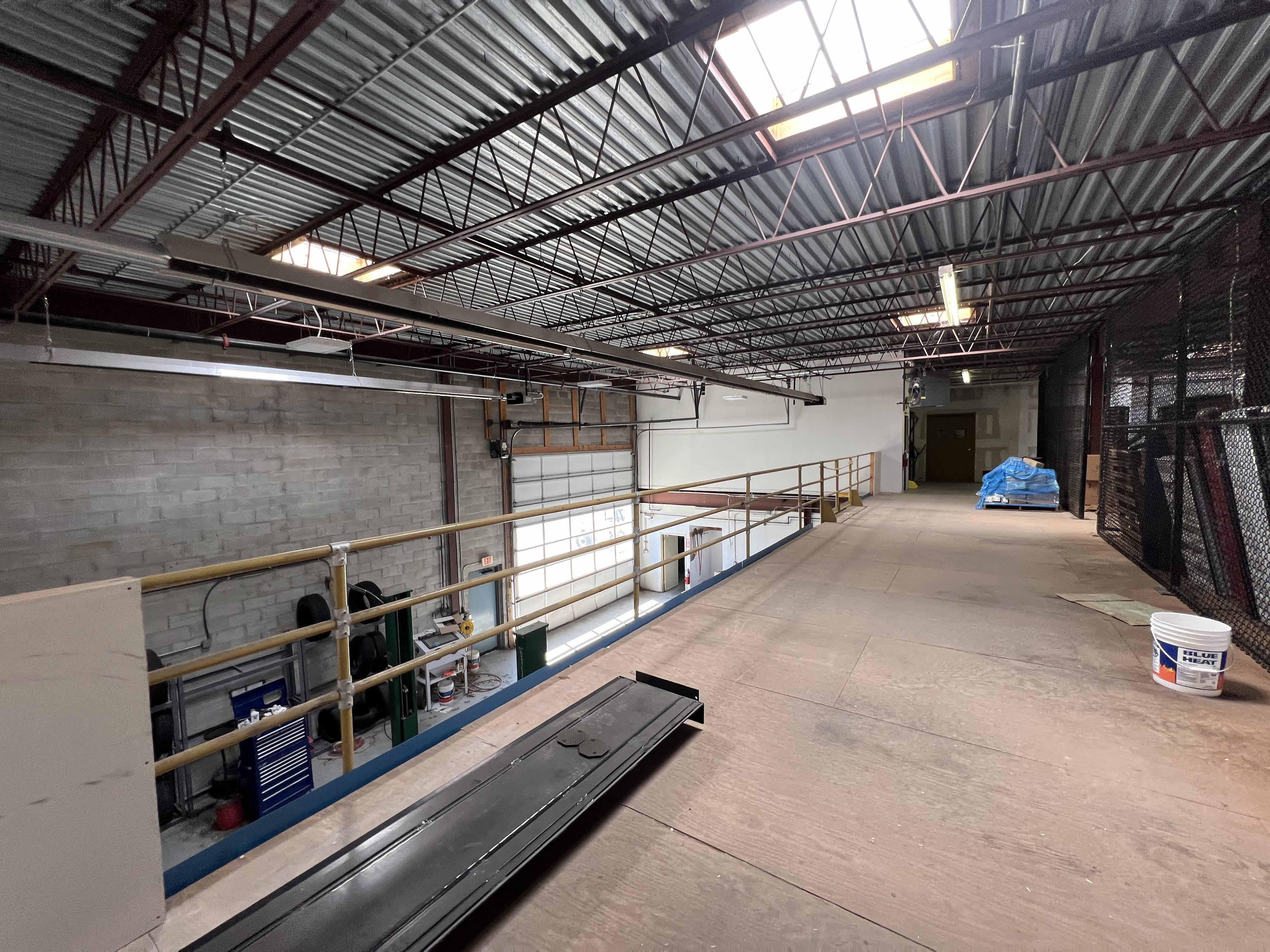

SITE PHOTOS
A13
FARMINGDALE STATE COLLEGE Scale Date
5/17/2023 11:03:03 AM
Issue Date No. Description Date
