01 PORTUGESE CONSULATE ARCHITECTURAL DESIGN SEMESTER 6 GUIDE- AR.KARAN DANDA SITE- PATTO ROAD , GOA

6

- ARCHITECTURAL DESIGN -

The design is of the portugal consulate in goa. It holds various functions for the local public, the offices and facilities for the staff working. This design of consulate is inspired by the portugese culture which contains a variety of music and dance forms .The portugese embassy here is a symbol of unity as the form appears to be a whole unified mass with voids to create a intresting form. The rhythm that people of portugese experience while in their culture is something i wanted to encorporate in my form.These functions are laid out in the form of a grid format which is formed according to site conditions and the climatic factors. The grid is placed in a way that it creates several offsets and these offsets make exterior pockets of different scale and size.

7

Site analysis with reference to context around the site ,climate and vegetation in and around the site

SITE ANALYSIS

8

Form development according to wind direction,site edges and fucntional placement

Site surveying with respect to existing landscape conditions and site views

Form analysis consisting of movement lines , conception after entering the site

Finalized form embracing horizontal and vertical interaction and punctures for green spaces

FORM DEVELOPMENT-

- ARCHITECTURAL DESIGN -

EXPLODED ISOMETRIC-

9

CENTRAL COURTYARD VIEW-

SECTION AA’-

10

- ARCHITECTURAL DESIGN -

FIRST FLOOR VIEW-

11

02 A CO-LIVING & AUDITIONING FACILITY FOR ACTORS ARCHITECTURAL DESIGN SEMESTER 4 GUIDE- AR.AMEY GHOSLKAR SITE- SV ROAD ,GOREGAON

12

- ARCHITECTURAL DESIGN -

Project aims to design a facility that will help aspiring actors pursue their dreams for success & stardom – that offers them shelter, convenience & opportunity: a transitional facility which provides short-term co-living. The place has been treated as minimum build and maximum green reflecting the emotions and experience that a normal person as an actor must deserve apart from his professional life. Bodies get linked to different emotions while moving through spaces . Hence the culture that site creates will evoke different emotions individually through past.

13

Appropriate massing according to site edges

Adding to smaller blocks for additional suitable Functions

Funtions placed according to intimacy of users

FORM DEVELOPMENT14

Mass cut on main two off proportion axis to create green pockets and active edges

Maximising greens and minimum built up on site

Green pockets on site created such that from every point you over look a green spaces

- ARCHITECTURAL DESIGN -

GROUND FLOOR PLAN-

FIRST FLOOR PLAN15

FIRST FLOOR

COLIVING

AUD

COLIVING

GROUND FLOOR

EXPLODED ISOMETRIC16

- ARCHITECTURAL DESIGN -

SEATING

DITORIUM

AMPHI

PARKING ENTRY

17

SECTION AA’

SECTION BB’ 18

- ARCHITECTURAL DESIGN -

DETAIL 1

DETAIL 2

ROOF DETAILS WELD PLATES

CONCRETE PRECAST PANEL CONCRETE PRECAST PANEL

PRECAST PANEL

STRUCTURAL STUD

PANEL JOINERY

PIN TO HOLD ANGLE FRAME PIN WELDED TO FRAME

CONCRETE PRECAST PANEL

CSEB BLOCK

STEEL PLATE

BOTTOM ANGLE FRAME

CSEB JALI

OTHER DETAILS

ANCHOR

PANEL TO SLAB JOINT

SLAB

19

AMPHITHEATRE VIEW

BACK SITE VIEW 20

- ARCHITECTURAL DESIGN -

VIEW FROM PLAYGROUND

CO LIVING AMPHITHEATRE

21

03 THE PARADOX TOWER ARCHITECTURAL DESIGN SEMESTER 7 GUIDE- AR.MANISH RANGNEKAR SITE- JERBAI WADAI RD , LOWER PAREL

22

- ARCHITECTURAL DESIGN -

The porject was intended to design a mised use hight structure catering to mulitple functions like residential and commercial containing offices, dorms,patient rooms,daycare,laundry. These functions were included because of context study which includes major hospitals along with Tata .wadia and based on user analysis done on site.Hence it was important to maintain privacy for all users right from patients to people having flats in the structure.it was important to maintain a connect of public functions across levels and hence this my attempt includes a major play of mass and void.

23

GROUND FLOOR PLAN -

24

- ARCHITECTURAL DESIGN -

ISOMETRIC VIEW-

25

SECTIONAL PERSPECTIVE26

- ARCHITECTURAL DESIGN -

VIEW FROM 1ST FLOOR AMPHITHEATRE -

6TH FLOOR ARIAL VIEW-

27

04 CRECHE INTERIOR DESIGN ARCHITECTURAL DESIGN SEMESTER 7 GUIDE- AR.KETAKI GUPTE SITE- BORIVLI GROUP WORK

‘Spending the day in solace of nature’ is the theme taken up for this interior design project of a Creche. The design considers children of age group 0-5 years. The design has various elements taken from the nature like forests, vegetation, caves, mounds, day and night ,etc. All these elements are translated into design using play equipments, ceiling planters, wall papers, seating, etc. The design connects a younger one to nature and the individual feels like spending the day in outdoors even in such a compact space. The Creche Area designed caters to various functions like waiting area for parents, reception desk, storage spaces, play areas, compact sleeping modules, pantry space, washroom, etc.

PLANTERS HANGING FROM CEILING

CAVES MOUNTAINS TUNNEL VEGETATION ELEMENTS INSPIRED FROM NATURE

28

SECTIONAL VIEW 1

- INTERIOR DESIGN -

STORAGE CUM SEATING

SEATING CORNER

PLAN PLAY CORNER

SECTIONAL VIEW 2

29

INTERIOR VIEW 1 - PLAY AREA

INTERIOR VIEW 3 PANTRY,STORAGE 30

- INTERIOR DESIGN -

INTERIOR VIEW 2- STORAGE UNIT,RECEPTION

INTERIOR VIEW 4 - LOBBY 31

05 WORKING DRAWINGS ARCHITECTURAL REPRESENTATION DETAILING SEM VI GUIDE- AR.SULAKSHANA BHANUSHALI SITE-BATTERY PARK,NYC

32

- WORKING DRAWING -

33

06 PUBLIC REALM PARK

ALLIED DESIGN SEM VI GUIDE- AR.SHRUTI BARVE SITE-VEER MATA JIJABAI BHOSALE UDYAN, BYCULLA

34

- LANDSCAPE DESIGN -

35

07 STAGGERED ALLIED DESIGN SEMESTER 5 GUIDE- AR.JUHI PRASAD SITE- RACHNA SANSAD BUILDING ,PRABHADEVI

36

- LANDSCAPE DESIGN -

37

08 COMPETITIONS 1.RESCHOOL - VOLUME ZERO I TOP 50 2-MASTERPEACE - ARCHMELLO 3.CAFE INTERIORS - ARCHDAIS GROUP WORK

38

- COMPETITION -

39

(RESCHOOL)

40

- COMPETITION -

41

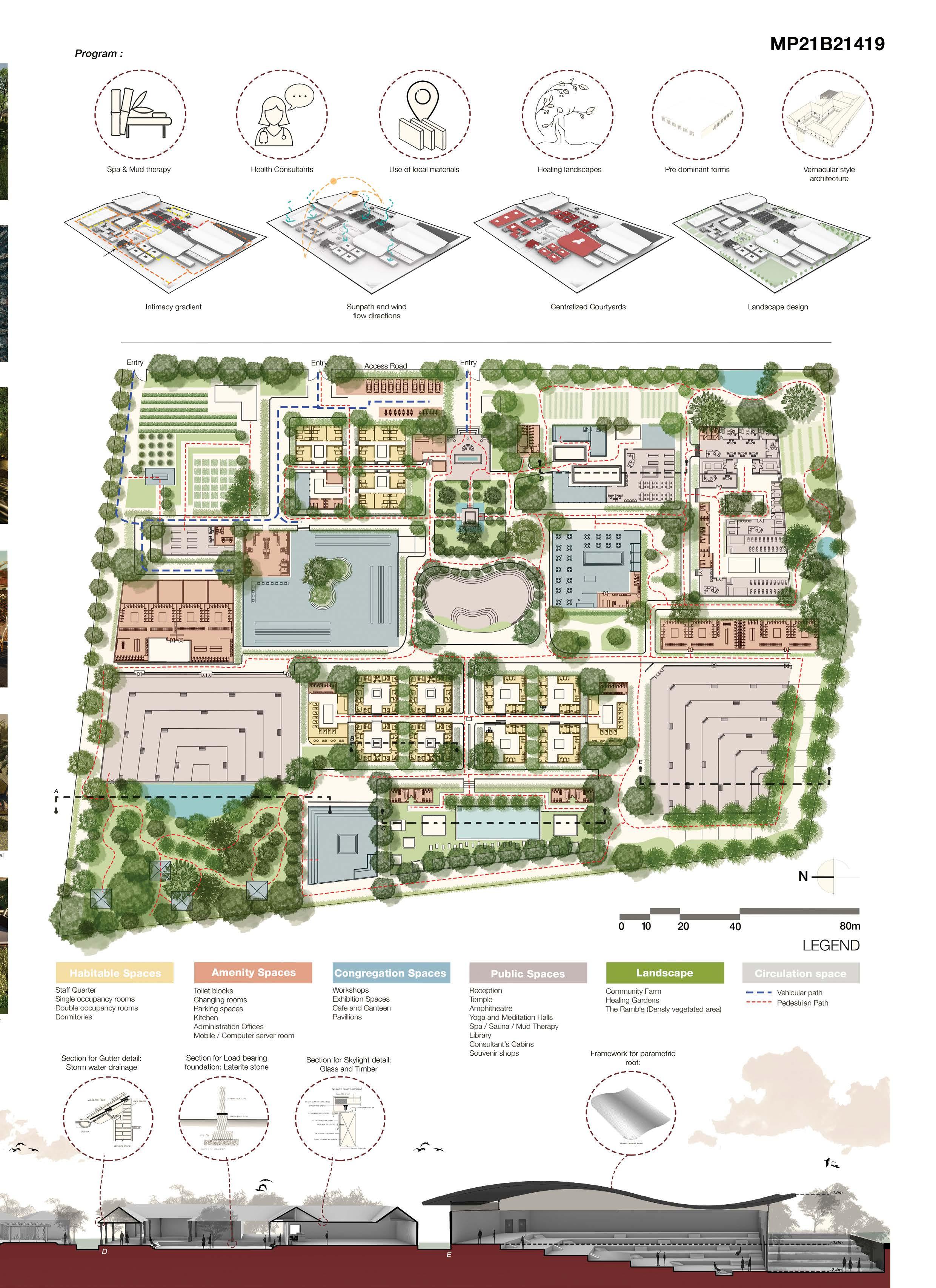

(MASTERPEACE)

42

- COMPETITION -

43

(CAFE INTERIOR)

44

- COMPETITION -

45

09 DOCUMENTATION URU SHIP - BIGGEST HANDICRAFT IN INDIA BEYPORE, KERELA GUIDES- AR.JUHI PRASAD, AR.JOEL,AR.AMEY

46

- DOCUMENTATION -

Uru, one of the largest Handicraft in the world. The entire Ship including it’s inner Ribs and outer covering is made and placed by Human hands. The wooden dhows that sail the oceans near the UAE and Qatar are a sight of magnificence.

Known as the Fat boat’ in the local language, these ships are sold for a price of 10 to 12 crores. Built out of timber, these ships take about 2 to 3 years to build and about a year to get licensed by the Government. This art of ship making is passed down from generation to generation. Built by around 25 to 40 men these ships sail the waters of Arabian sea since the long lost time and have been used by Arabs as trading ships in the past. of documented plans or technical drawings, Here is an attempt of capturing the beauty and complexity of the ship.
