Montel Lockers One Pager — Tech Sheet

Montel Lockers One Platform. Multiple Uses.

Personal

Gear

Athletic

Heavy-Gauge Steel Construction

Reinforced Door with Continuous Piano Hinge Multiple Locking Options Modular Interior with SmartShelf® Hook System

Ventilated Design Optional Interlock Bottom Drawer & Integrated Bench Anti-Tip Wall Anchoring & Leveling Base Clean, High-End Powder-Coated Finish (Inside & Out)

Public Safety

Sports

Military

Healthcare

Industrial

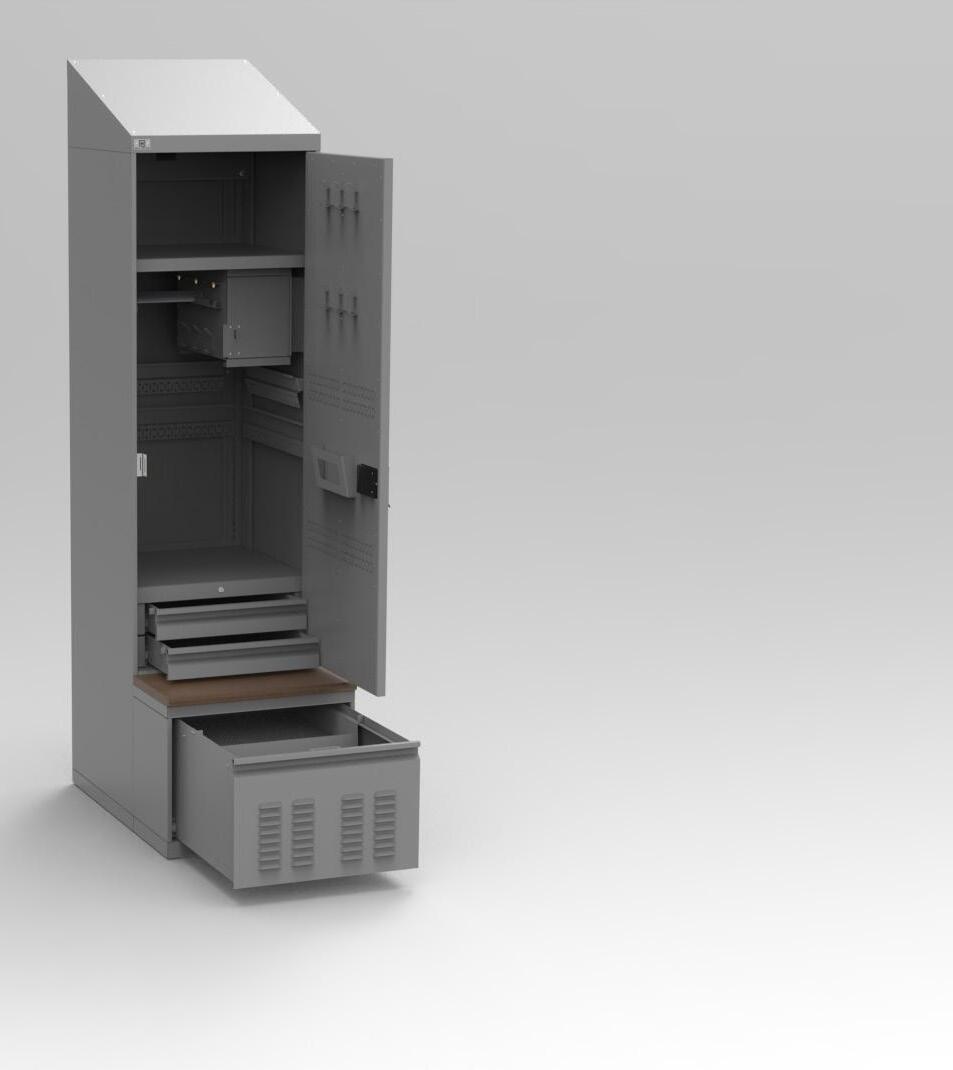

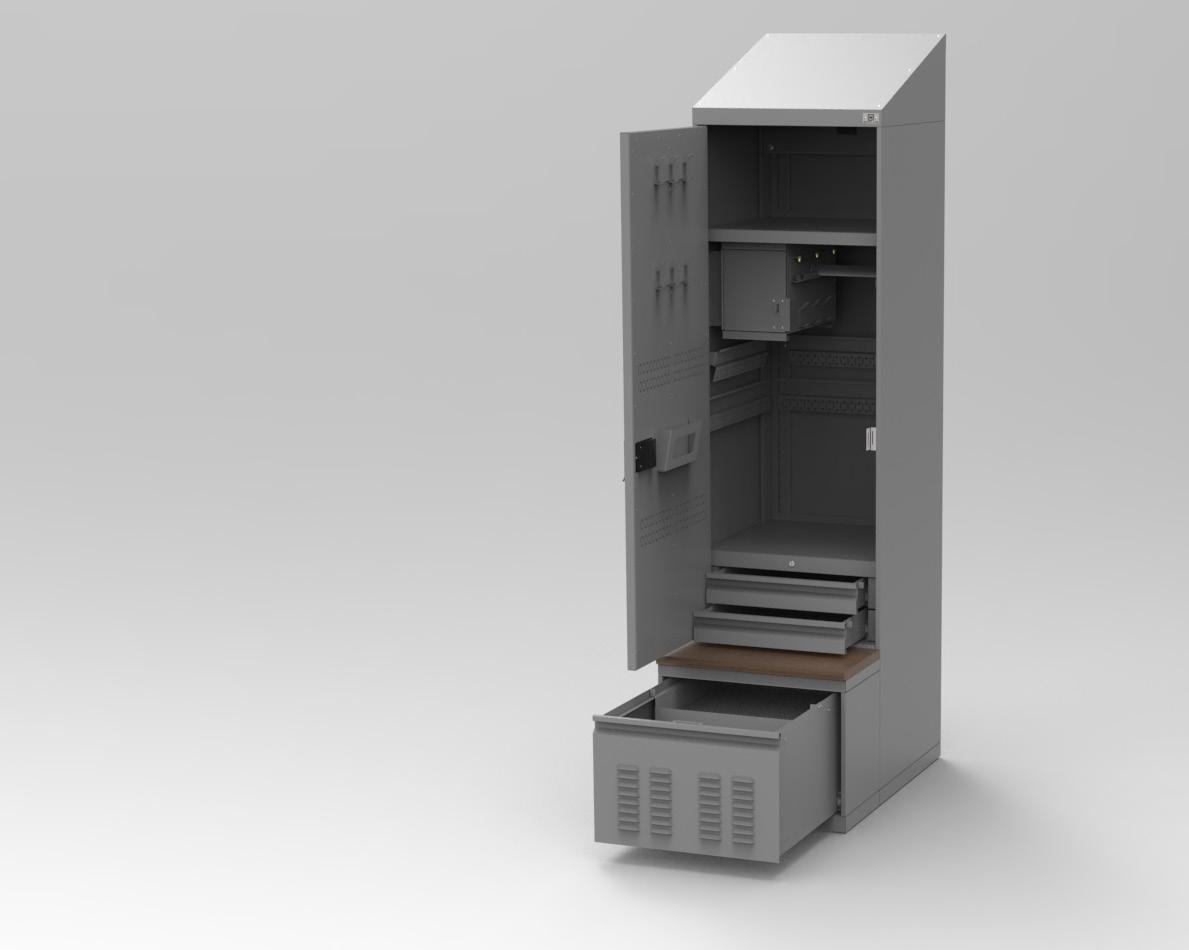

Designed with SmartShelf® perforation for modular shelves and accessories, Montel’s Locker is ventilation-ready and offers customizable options including a bottom drawer, an integrated bench, and daisy-chain power outlets.

Heavy-Gauge Steel Construction Solid steel body with reinforced door and clean exterior, no visible holes, eliminating the needs for end row cover panel.

Smooth Weld-Free Finish Smooth painted exterior with no visible spot welds for a high-end appearance.

Continuous Piano Hinge Ensures long-term durability and smooth door operation.

Concealed Riveted Construction Non-visible, non-accessible fasteners deliver a clean aesthetic and enhanced security.

SmartShelf® Hook System Allows adjustable interior accessories to be positioned every inch.

Anti-Tip Wall Anchoring Back panel allows secure wall anchoring from within the locker, ensuring flexible positioning and safe installation.

Multiple Locking Options Supports keyed, combination, or electronic locking mechanisms

Sloped Top Optional, excluded from overall locker height.

Power Outlet Optional outlet for powering and charging devices within the locker.

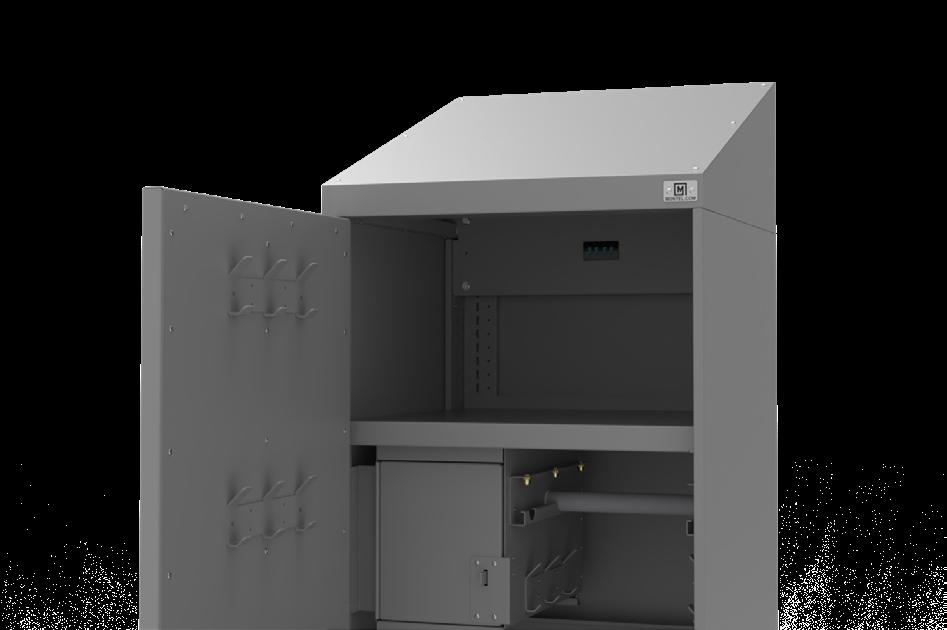

Interior Slot & Pegboard Door Allows easy addition of customizable hooks and organizers.

Ventilated Design Louvered doors and drawers enable consistent airflow throughout the unit.

Adjustable Leveling Base Sturdy base with levelers ensures proper alignment on uneven floor surfaces.

Powder-Coated Finish To allow for full coverage and superior protection before assembly.

Interlock Bottom Drawer Optional bottom drawer featuring a safety interlock system, available either with or without an integrated bench.

• Bottom: Cabinet bottom are made of 14-gauge steel and formed 2" high. Corners are welded.

• Sides: Side Walls are made of 18-gauge steel and formed 5/8" thick. No holes are visible on the outside surface.

• Top: Tops are made of 14-gauge steel and formed 2" high. Corners are welded. Slope 18ga.

• Door: Reinforced, plated inside, pegboard, 16ga, 1-1/8” formed high.

• Locking Mechanism: Lockers are equipped with either keylock, combination lock, or OJMAR smart lock • Interlock: Between bottom drawer and door.

• Door swing: Right or left-hand.

• Accessory Compatibility: Compatible with a wide range of modular locker accessories.

Design and Capabilities

with bottom drawer

Width

15", 18", 24" (38cm, 46cm, 61cm)

12", 15", 18", 24" (30cm,38cm, 46cm, 61cm)

Depth

18", 24" (46cm, 61cm)

14001:2015

without bottom drawers 18", 24" (46cm, 61cm)

72", 78", 84" (183cm, 198cm, 213cm)

877-935-0236

9001:2015

Fully Ventilated Lateral Panels Optional panels designed to maximize airflow and visibility

Standard Locker Dimensions

Height

with bench and drawer

Integrated Bench Optional integrated bench with wood top

sales@montel.com montel.com
