Mounting Clips
Installation guidelines
Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.
Please check all parts and tools are included before installation. Ensure the parts and tools are suitable for the product’s weight and size. Ensure the mounting surface is suitable for the product’s weight and size.
Installation should be carried out by quali ed personnel only. If you are not con dent with any part of the installation process, please contact a professional installer for assistance.
The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.
Required Tools
Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.
These instructions are provided as a guide only. Actual installation may vary depending on speci c circumstances and site conditions.
• Drill With Drill Bit
• Wall Plugs With Matching Screws
• Bubble Level
• Screwdriver Drill
• Pencil
• Hammer
• Masking Tape
E-mail: support@signage-group.com
Phone: +49 (0)30 863280590
Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr
O ce address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany
Step 1
Step 4
Step 2

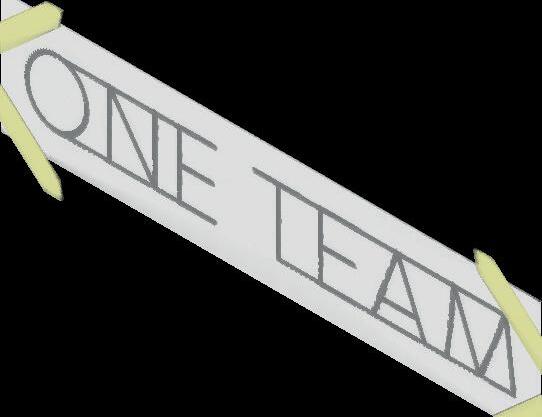

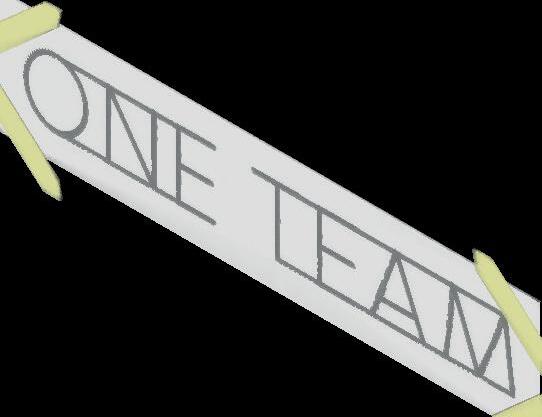

Attach the mounting template to the wall using masking tape. Use a bubble level to make sure it is properly aligned.
Remove the mounting template and Insert wall plugs into the holes using a hammer.
Step 5
Step 3

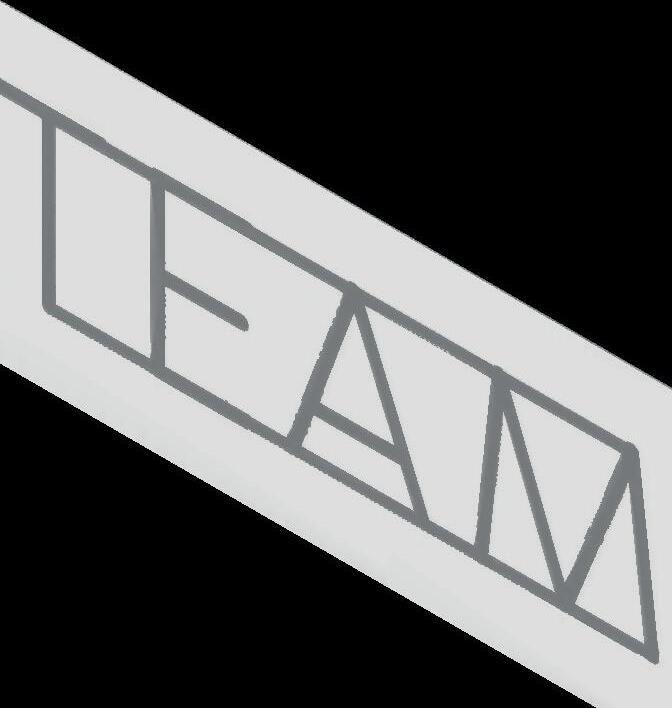

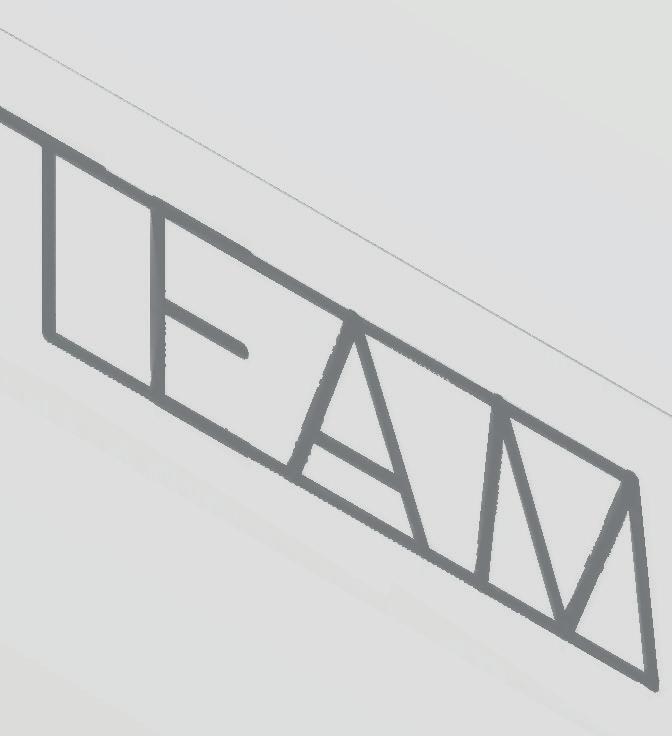

On the template, use a pencil to mark the appropriate positions for the clips. Choose locations where the design runs horizontally and where there is more space. Try to align the marks with the center of the LED lines shown on the template.
Drill holes at the marked positions.
Step 6

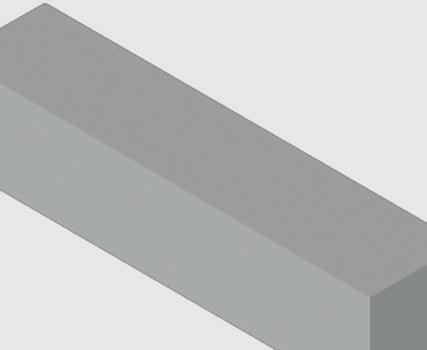

Place clip against the wall plug and x it by screwing in a screw using a screwdriver drill. Repeat this for all clips.

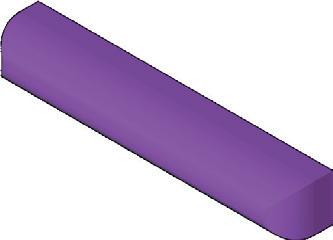

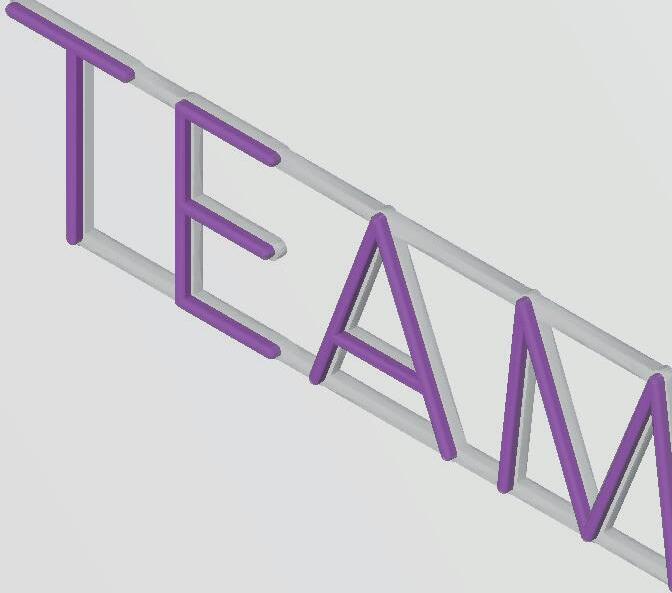

Carefully insert the LED element into the mounted clips.
