Installation guidelines
Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.
Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.
The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.
Please check all parts and tools are included before installation. Ensure the parts and tools are suitable for the product’s weight and size. Ensure the mounting surface is suitable for the product’s weight and size.
Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.
These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.
Required Tools
• Drill With Drill Bit
• Wall Plugs With Matching Screws
• Bubble Level
• Screwdriver Drill
• Pencil
• Hammer
• Measuring Tape
• Masking Tape
E-mail: support@signage-group.com
Phone: +49 (0)30 863280590
Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr
Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany
Step 1
Carefully turn the product over to access the back. Choose one of the following positioning methods:
Step 4
Drill holes at the marked points using a drill with a drill bit.
Step 2

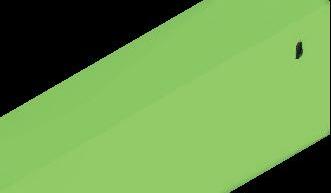

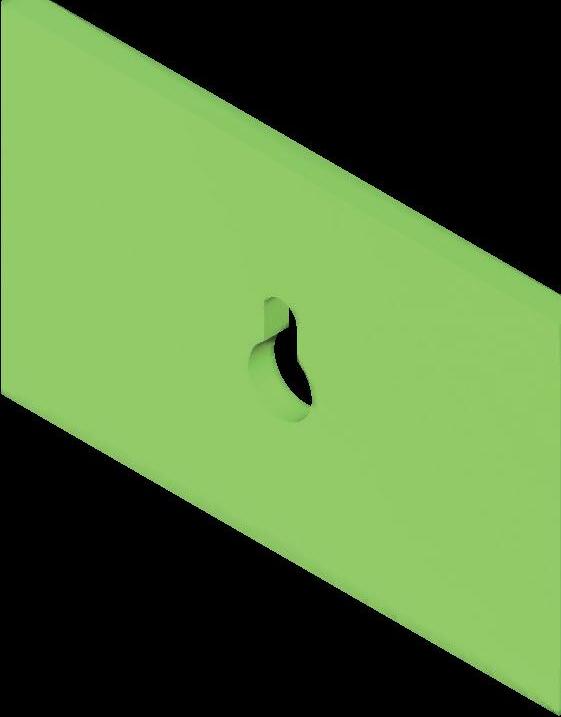

Measure the distance between the keyhole openings on the product. Transfer these measurements to the wall, making sure to use a bubble level to align them properly. Mark the mounting points with a pencil.
Step 3

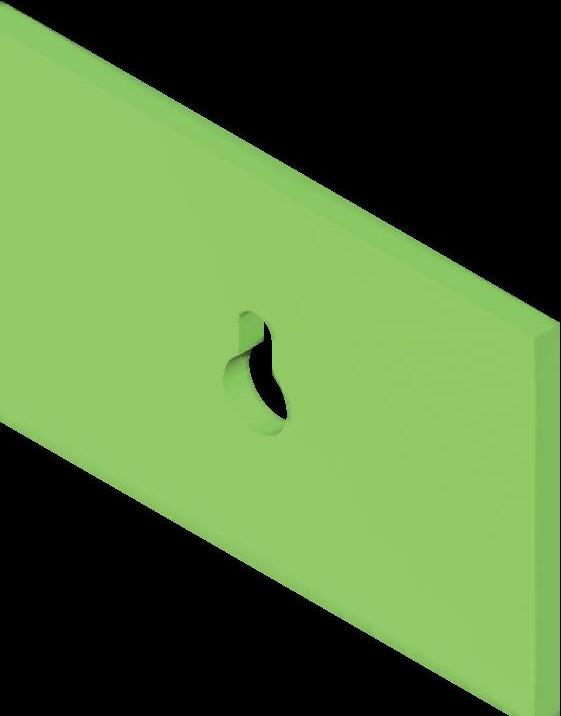

Apply masking tape over the keyhole openings on the back of the product. Pierce through the keyhole positions with a pencil to mark the holes. Carefully remove the tape and place it on the wall, flipped horizontally to avoid mirrored positioning. Use a bubble level to align it and mark the mounting points with a pencil.
Step 5
Insert wall plugs into the holes using a hammer.
Step 6
Using a screwdriver drill, screw the screws into the wall plugs, leaving them slightly protruding from the wall.
Step 7

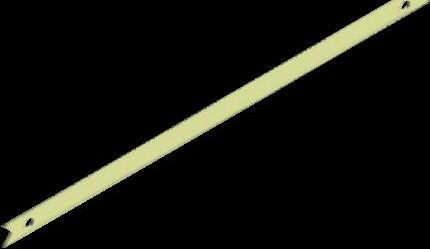

Hang the product onto the screws using the mounting slots.
