Frame Holes [Hanging]
Installation guidelines
Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.
Please check all parts and tools are included before installation. Ensure the parts and tools are suitable for the product’s weight and size. Ensure the mounting surface is suitable for the product’s weight and size.
Installation should be carried out by quali ed personnel only. If you are not con dent with any part of the installation process, please contact a professional installer for assistance.
The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.
Required Tools
Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.
These instructions are provided as a guide only. Actual installation may vary depending on speci c circumstances and site conditions.
• Drill With Drill Bit
• Wall Plugs With Matching Screws
• Bubble Level
• Screwdriver Drill
• Pencil
• Hammer
• Masking Tape
• Measuring Tape
E-mail: support@signage-group.com
Phone: +49 (0)30 863280590
Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr
O ce address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany
Step 1
Step 4
Mark the mounting points on the wall. Use one of the following methods:
Step 2
Method 3: Stick masking tape on the back of the cassette, and punch holes at the mounting points. Remove the tape from the product and attach it to the wall with the opposite side facing the wall (to avoid mirrored hole markings). Use the bubble level. Mark the mounting points with a pencil.
Step 5
Step 3
Method 1: If a mounting template is included, attach it to the wall and align it using a bubble level. Mark the holes with a pencil.
Method 2: Alternatively, take the measuring tape and measure the distance between the holes on the product. Use the bubble level and measuring tape to transfer these distances to the wall.
Step 6
Note that some cassettes may have holes on both the top and bottom. Be sure to mark the correct number of holes.
Drill holes at the marked points.
Step 7
Step 8
Step 9
Insert wall plugs into the drilled holes using a hammer. Screw the screws into the wall plugs, leaving them slightly protruding from the wall (make sure to use screws of the correct length, ensuring they are not too short).

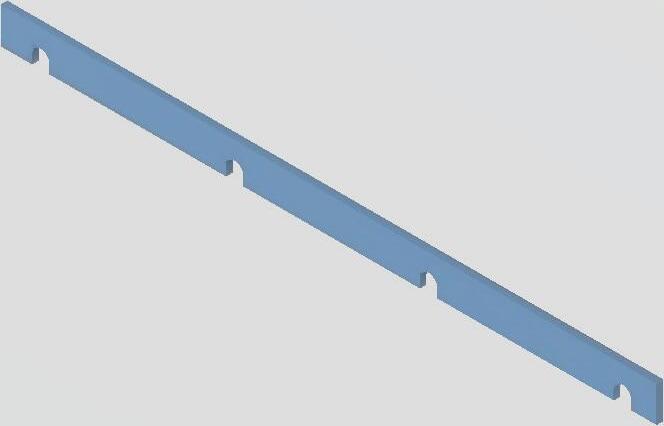

Hang the cassette on the screws using the keyhole slots.
