Frame [Detachable] Rev 4 Eng

Frame [Detachable] Installation guidelines

©2025 All rights reserved

Eng

Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.

Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.

The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.

Please check all parts and tools are included before installation.

Ensure the parts and tools are suitable for the product’s weight and size.

Ensure the mounting surface is suitable for the product’s weight and size.

Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.

These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.

Required Tools • • • • • •

Drill With Drill Bit Wall Plugs With Matching Screws Bubble Level Screwdriver Drill Pencil Hammer

E-mail: support@signage-group.com Phone: +49 (0)30 863280590 Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany

2

Step 1

Step 2

Step 3

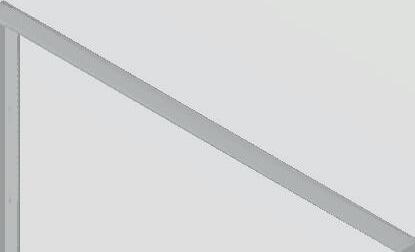

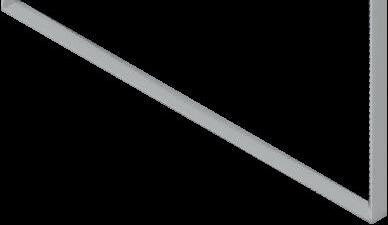

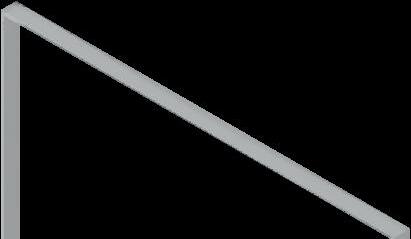

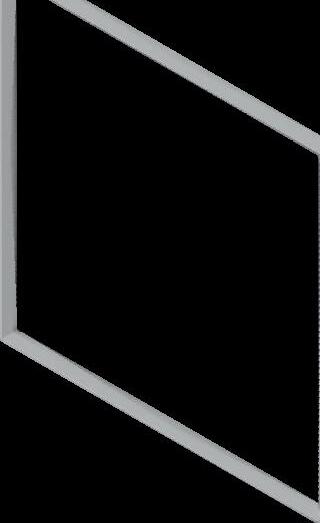

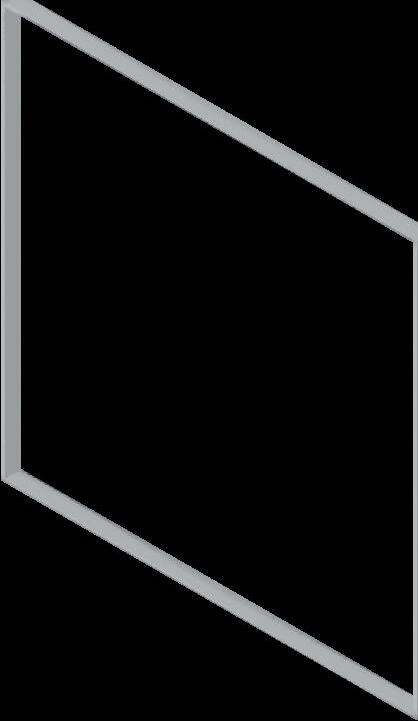

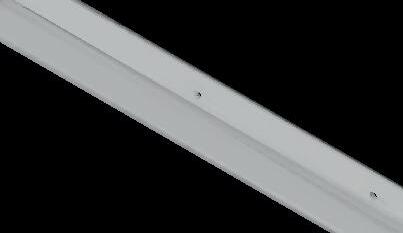

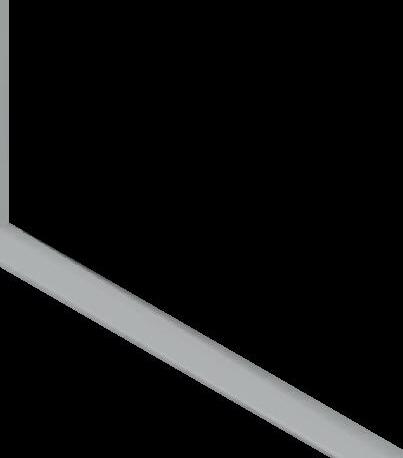

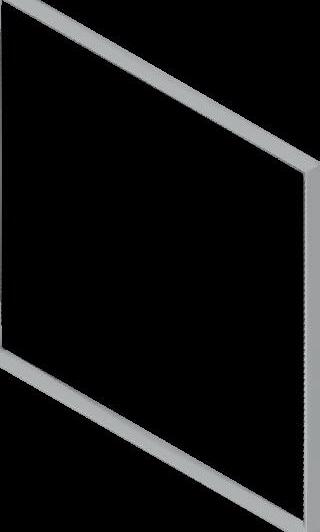

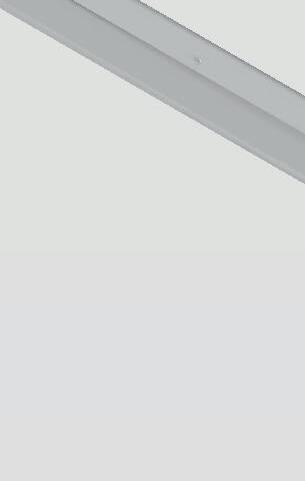

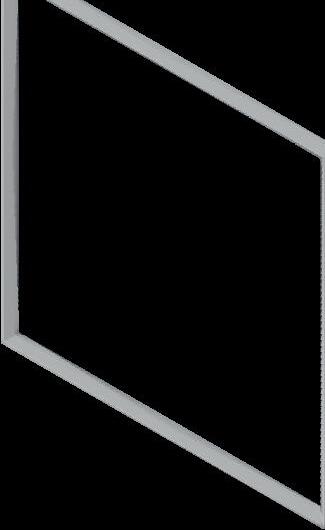

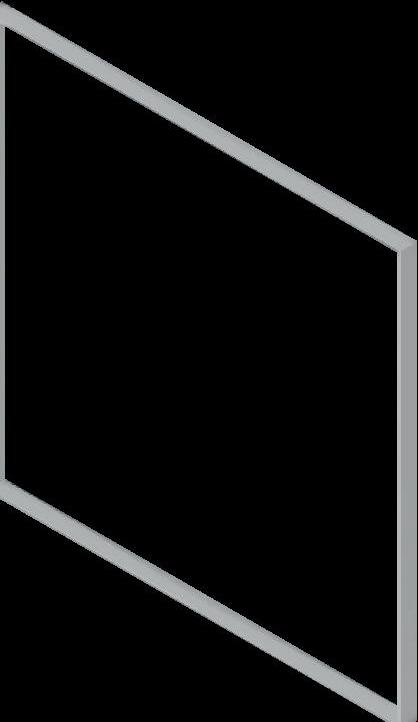

Unscrew the back frame from the cassette by removing the side screws.

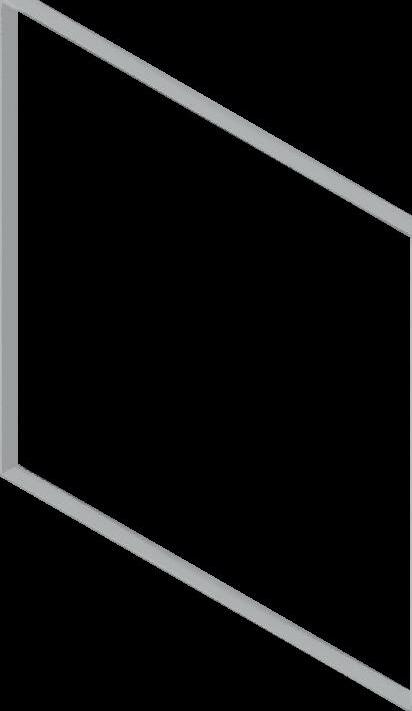

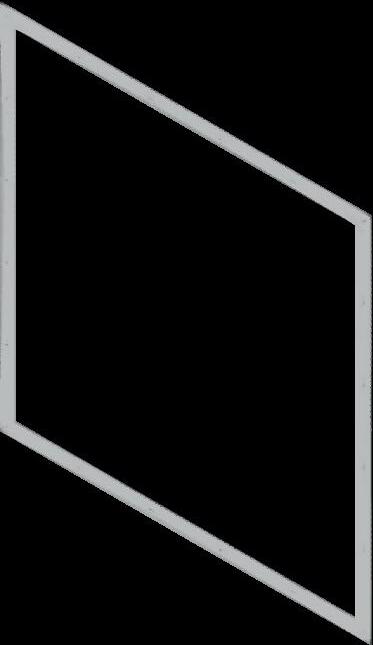

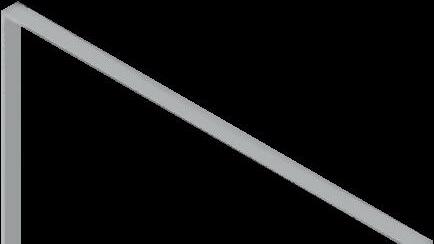

Remember to do the electrical connection before installing the Frame. The connection of the power supply can be found in a separate document.Place the back frame against the wall and align it using a bubble level.

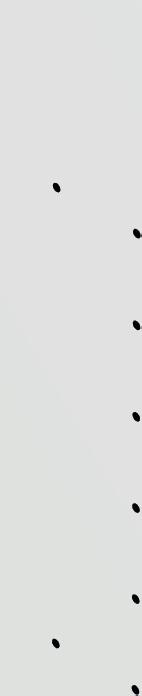

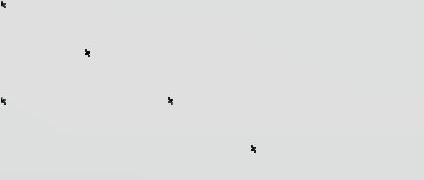

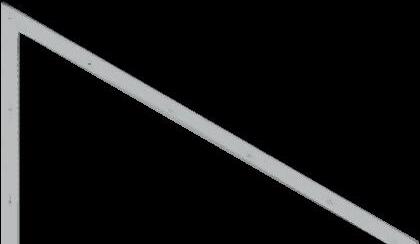

Mark the mounting points on the wall with a pencil, using the holes in the frame as a guide.

Step 4

Step 5

Step 6

Remove the frame and drill the marked holes.

Insert the wall plugs into the drilled holes using a hammer.

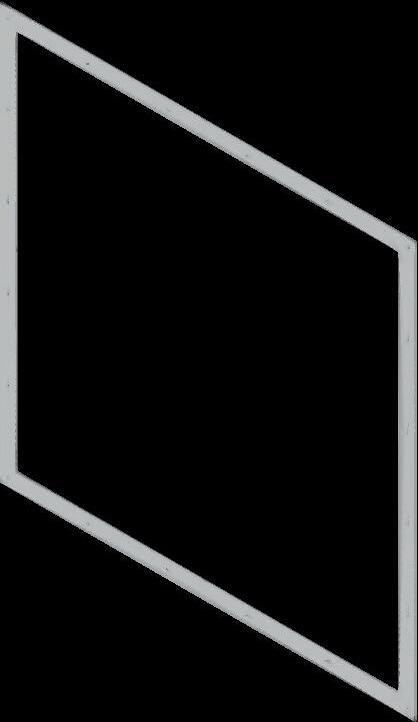

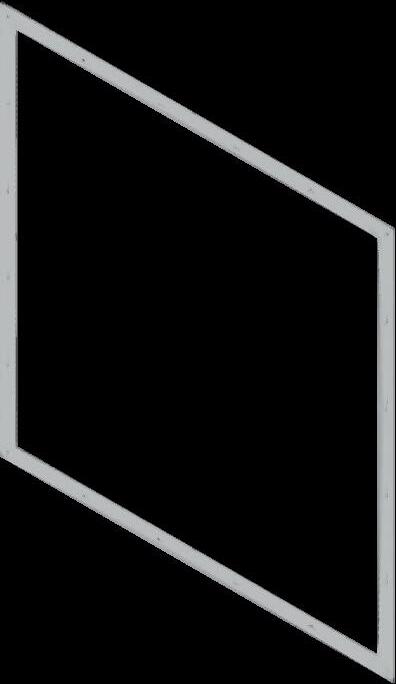

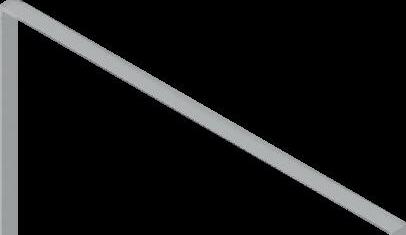

Place the back frame back onto the wall, aligning it with the drilled holes.

3

Step 7

Step 8

Secure the back frame to the wall by screwing the screws into the wall plugs. Check level with bubble level befor fully screewign the frame

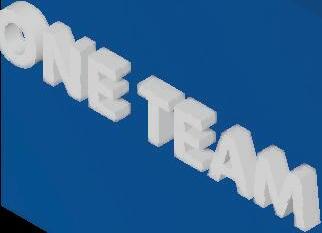

Reattach the front panel of the cassette to the mounted back frame and secure it with screws.
