Cable Suspension Kit Rev 3 Eng

Cable Suspension Kit Installation guidelines

©2025 All rights reserved

Eng

Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.

Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.

The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.

Please check all parts and tools are included before installation.

Ensure the parts and tools are suitable for the product’s weight and size.

Ensure the mounting surface is suitable for the product’s weight and size.

Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.

These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.

Required Tools • • • • • • •

Drill With Drill Bit Wall Plugs With Matching Screws Bubble Level Screwdriver Drill Pencil Hammer Measuring Tape

E-mail: support@signage-group.com Phone: +49 (0)30 863280590 Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany

2

Top

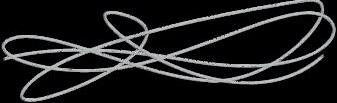

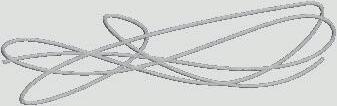

Steel cable

Bottom

Step 1

Step 2

Step 3

The suspension kit consists of three elements: Top Cable Holder, Steel Cable, and Bottom Cable Holder. The design of the suspention kit may vary depending on the project.

Measure the distance between the mounting holes on the product using the measuring tape.

On the ceiling, mark the first mounting point and then the second one at the previously measured distance.

Step 4

Step 5

Step 6

Drill holes at the marked points using the drill.

Take the Bottom Cable Holder and unscrew it. Identify the mounting holes on the plate and secure bottom cable holder into the hole.

Insert wall plugs into the holes using a hammer. Ensure the wall plugs are suitable for the weight of the product.

3

Step 7

Step 8

Take the Top Cable Holder and screw it to mounted wall plugs.

Thread the steel cable through the both mounted elements. Ensure that product is leveled with bubble level.

4
