Backplate [Drilling] Rev 4 Eng

Backplate [Drilling] Installation guidelines

©2025 All rights reserved

Eng

Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.

Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.

The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.

Please check all parts and tools are included before installation.

Ensure the parts and tools are suitable for the product’s weight and size.

Ensure the mounting surface is suitable for the product’s weight and size.

Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.

These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.

Required Tools • • • • • • •

Drill With Drill Bit Bubble Level Pencil Wall Plugs With Matching Screws Screwdriver Drill Hammer Hot Glue Gun

E-mail: support@signage-group.com Phone: +49 (0)30 863280590 Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany

2

1

?

Step 1

Step 2

Step 3

Check if the number of moss panels is correct. If there is more than one panel, a numbered layout drawing should be included, showing the correct position of each panel, as some edges may not be fully covered.

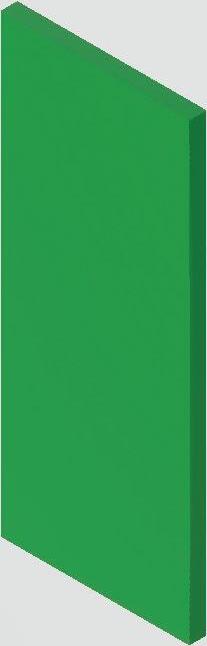

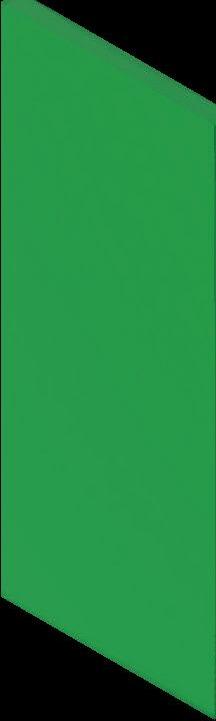

Place the first panel against the wall. Use a bubble level to align it properly.

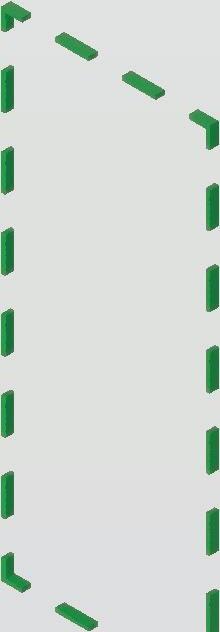

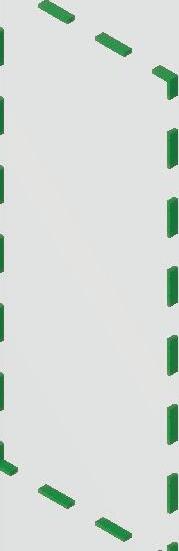

Mark the position of the panel on the wall using a pencil.

Step 4

Step 5

Step 6

Remove the panel from the wall. Gently move the moss aside at the corner areas. Drill through the panel at each corner.

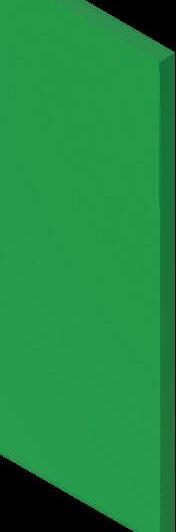

Place the panel back onto the wall, aligning it with the pencil marks.

Mark the holes of the panel on the wall using a pencil.

3

Step 7

Step 8

Step 9

Remove the panel from the wall. Drill holes in the marked spots.

Insert wall plugs into the drilled holes using a hammer.

Place the panel back onto the wall, aligning it with the drilled holes.

Step 10

Step 11

Step 12

Fasten the panel to the wall by driving screws through the panel into the wall plugs using a screwdriver drill.

If there are multiple panels, repeat the process for each one.

After installation, use a hot glue gun and moss from the repair kit to cover the visible screw heads.
