Back Plate [Detachable] LIGHTBOX Rev 4 Eng

Back Plate [Detachable] LIGHTBOX Installation guidelines

©2025 All rights reserved

Eng

Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.

Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.

The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.

Please check all parts and tools are included before installation.

Ensure the parts and tools are suitable for the product’s weight and size.

Ensure the mounting surface is suitable for the product’s weight and size.

Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.

These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.

Required Tools • • • • • • •

Drill With Drill Bit Bubble Level Masking Tape Hammer Wall Plugs With Matching Screws Screwdriver Drill Pencil

E-mail: support@signage-group.com Phone: +49 (0)30 863280590 Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany

2

Step 1

Step 2

Step 3

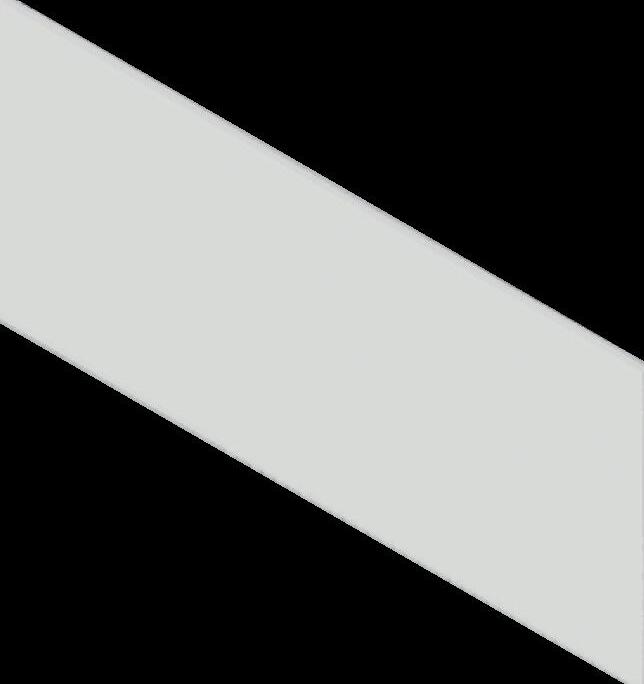

Unscrew the screws on the sides of the lightbox and remove the front panel.

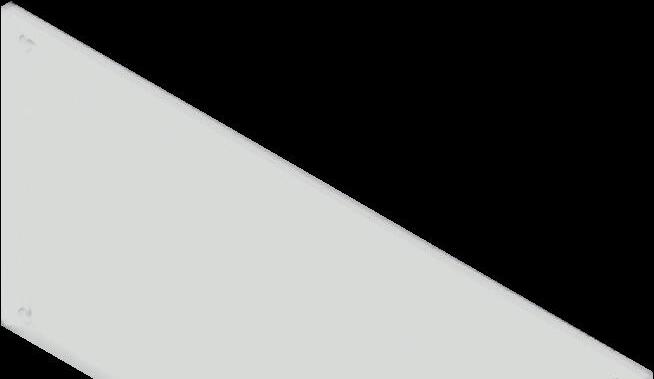

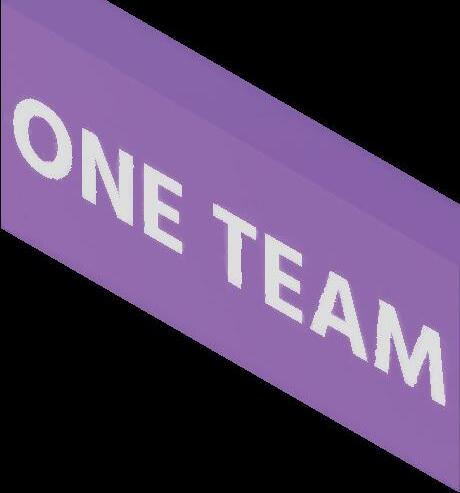

Place the back panel of the lightbox onto the wall and align it using a bubble level.

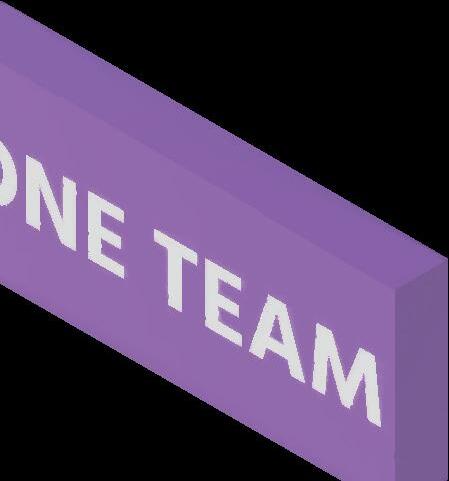

Mark the mounting position of the lightbox with a pencil.

Step 4

Step 5

Step 6

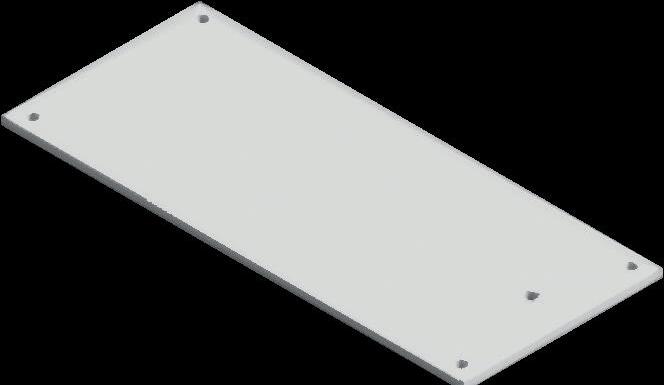

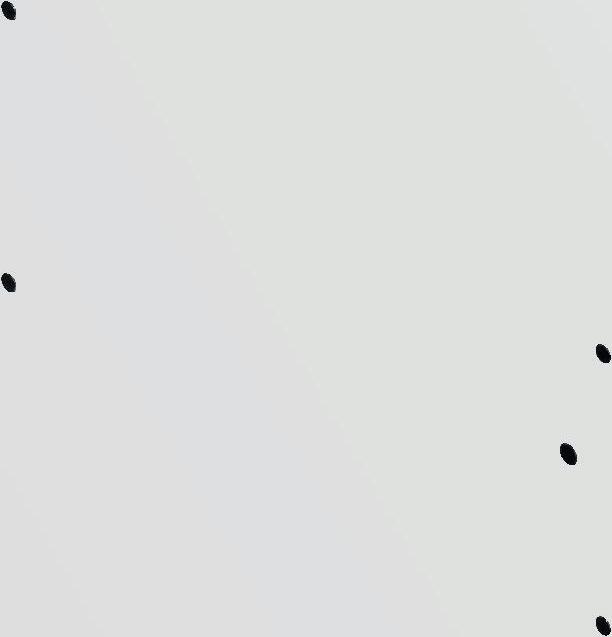

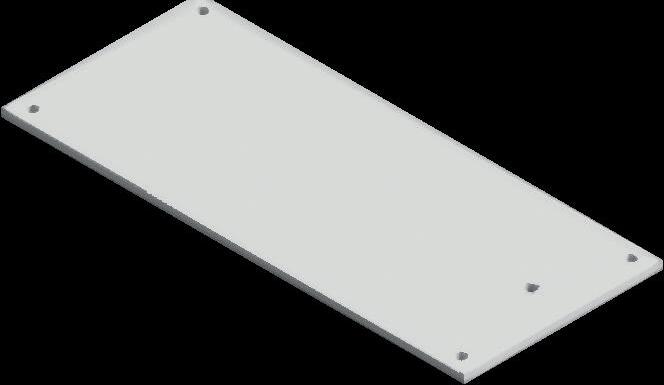

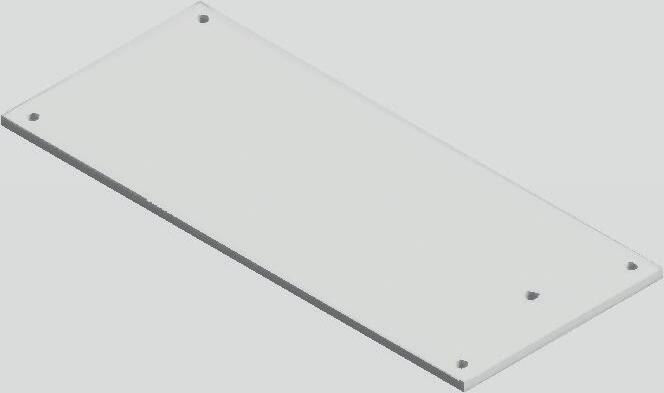

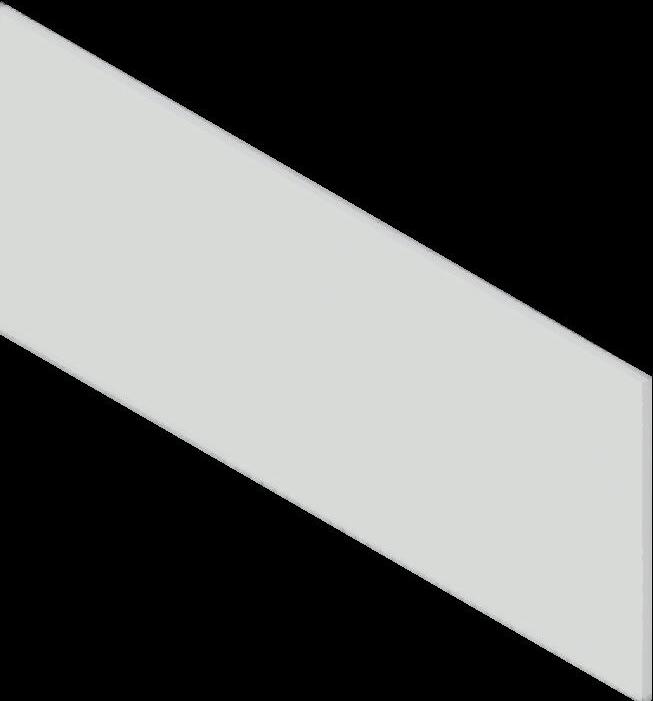

Remove the back panel from the wall. Drill a hole, into each corner of the plate. Drill extra hole each 50cm. Remember to make an additional hole for the power cable.

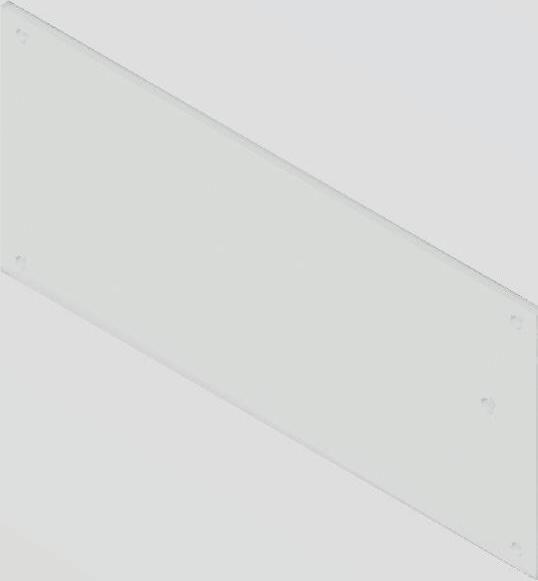

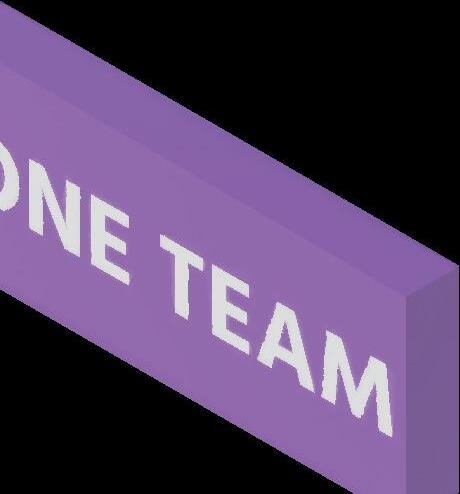

Place the plate in the correct position on the wall. Mark drilling holes on the wall with pencil.

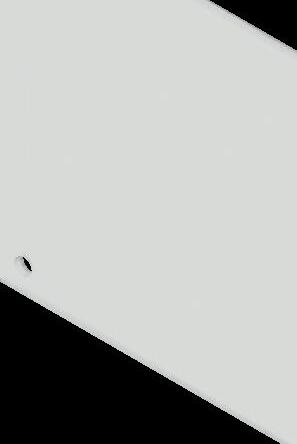

Remove the back panel from the wall. Drill holes at the marked points. Remember to drill an hole for the power cable.

3

Step 7

Step 8

Step 9

Insert the wall plugs into the drilled holes using a hammer.

Place the back panel of the lightbox back onto the wall, aligning it with the drilled holes. Feed the power cable through the previously drilled hole. Connect cables to a power supply inside lightbox and protect it for the moisture. The connection of the power supply can be found in a separate document.

Secure the back panel to the wall by screwing the screws into the wall plugs.

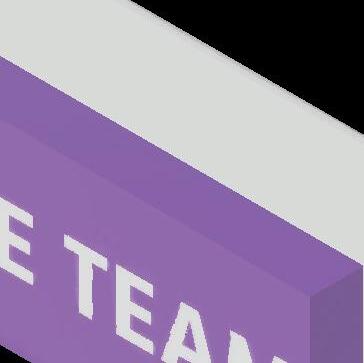

Step 10 Reattach the front panel of the lightbox to the back panel and screw it in with the previously removed screws.

4
