Back Plate [Detachable] LETTERS Rev 4 Eng

Back Plate [Detachable] LETTERS Installation guidelines

©2025 All rights reserved

Eng

Please read these instructions carefully before starting installation. Failure to follow these instructions may result in damage to the product or property.

Installation should be carried out by qualified personnel only. If you are not confident with any part of the installation process, please contact a professional installer for assistance.

The manufacturer is not responsible for any damage caused by incorrect installation or misuse of the product.

Please check all parts and tools are included before installation.

Ensure the parts and tools are suitable for the product’s weight and size.

Ensure the mounting surface is suitable for the product’s weight and size.

Always use appropriate safety equipment and take necessary precautions when working with tools and electricity.

These instructions are provided as a guide only. Actual installation may vary depending on specific circumstances and site conditions.

Required Tools • • • • • • •

Drill With Drill Bit Bubble Level Masking Tape Hammer Wall Plugs With Matching Screws Screwdriver Drill Pencil

E-mail: support@signage-group.com Phone: +49 (0)30 863280590 Opening hours: Mon. - Fri., 9:00 - 17:00 Uhr Office address:Bogen 45, Holzmarktstr. 15-18 10179 Berlin Germany

2

Step 1

Step 2

Step 3

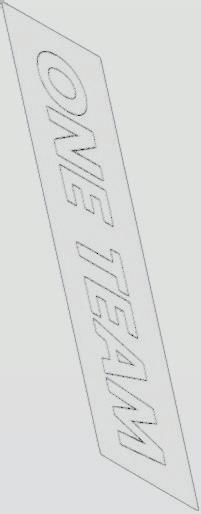

Attach the mounting template to the wall. Use a bubble level to align it properly, and secure it with masking tape.

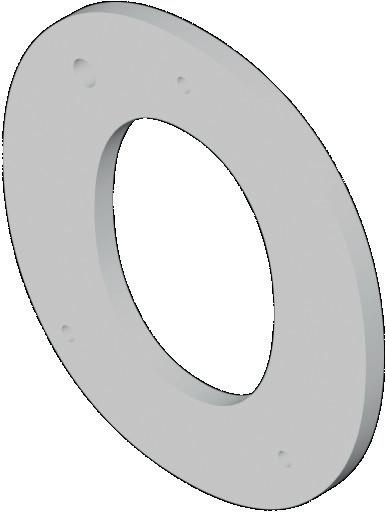

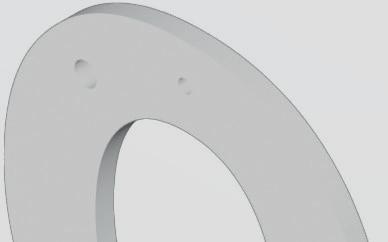

Locate the screws on the sides of each letter. Use a screwdriver drill to unscrew and remove the front of the letter, leaving only the back plate.

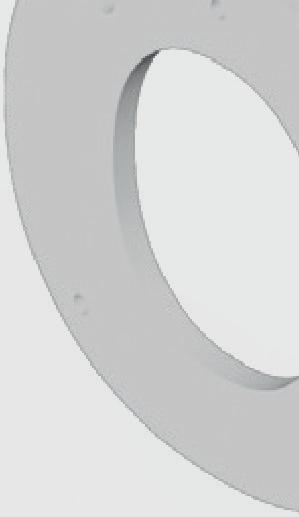

Drill 2-3 mounting holes in the backplate, and 1 holes for power cable of the letters.

Step 4

Step 5

Step 6

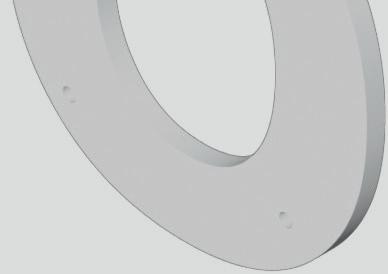

Place the back plate of the letter in the correct position on the mounting template. Mark drilling holes on the template with pencil.

Repeat the process for each letter.

Drill holes at the marked points. Remember to drill an hole for the power cable.

3

Step 7

Step 8

Step 9

Remove the mounting template from the wall.

Insert wall plugs into the drilled holes using a hammer.

Place the back plate of the letter back onto the wall, aligning it with the holes. Remember to feed the power cable through the drilled cable hole. The connection of the letters to the power supply can be found in a separate document.

Step 10

Step 11

Secure the back plate to the wall using screws and a screwdriver drill.

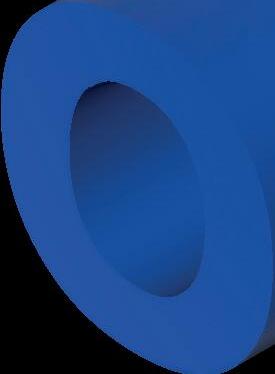

Reattach the front of the letter to the mounted back plate by screwing it back in using the previously removed screws.
