DIA20003 FINAL FOLIO
by Khanhh Quan Nguyen
Replicate Drawings of Precedent
Albertslund, Denmark
Dorte Mandrup
Khanh Quan Nguyen
Dorte Mandrup
Multipurpose space
Original drawings
Previous have been improved on
_Lineweight of clumbing details
_Size of the tittle block
_Datum level
_Groundline thickness adjustment
Dorte Mandrup

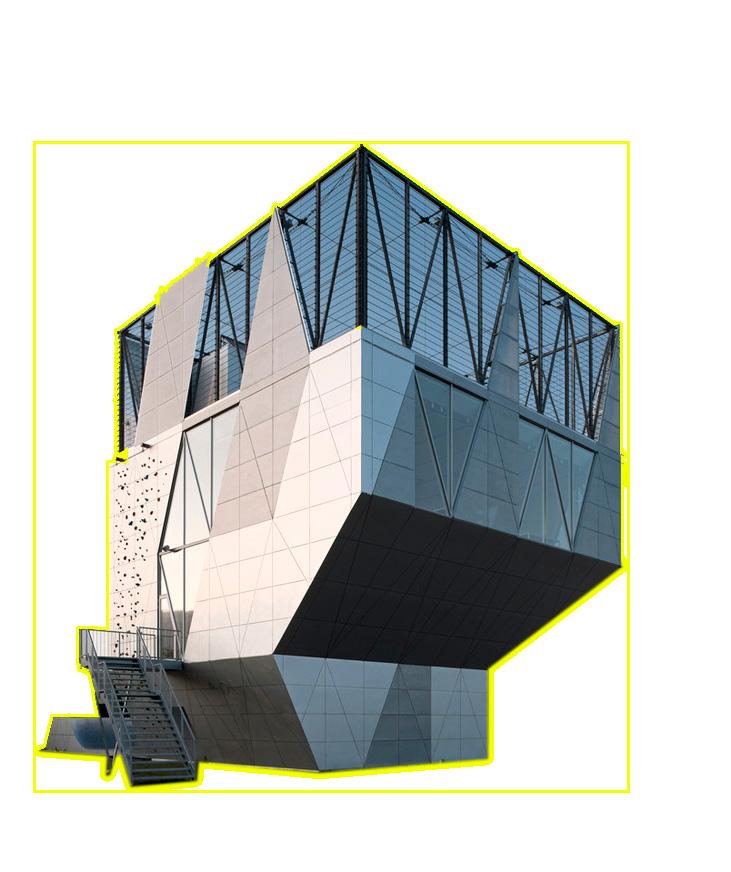

Dorte Mandrup Community centre Herstedlund
Albertslund, Denmark
Selected geometry
TASK 2 Building Design and Documentation
I started the design process by experimenting with a range of shape that was suggested in the book “Siteless” provided. My goal was to pick out the one shape that could be potentially be a functional building but it has to look interesting and challenging for practicing my modelling skill. Through out this task, I was testing different scale as well as figuring a massing model for my building design. Drawings that I have put in this final folio is the improved drawings from the original progress

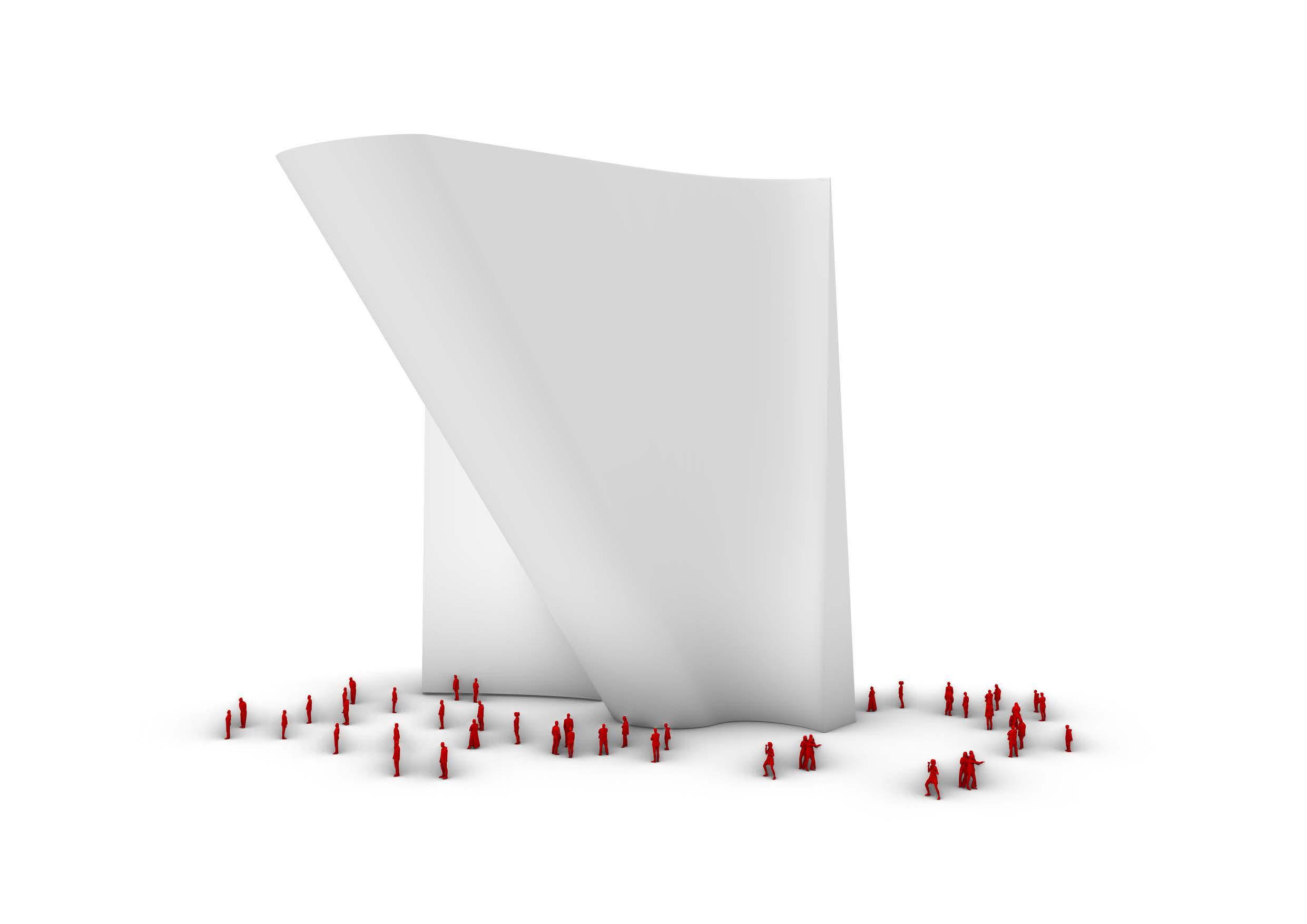

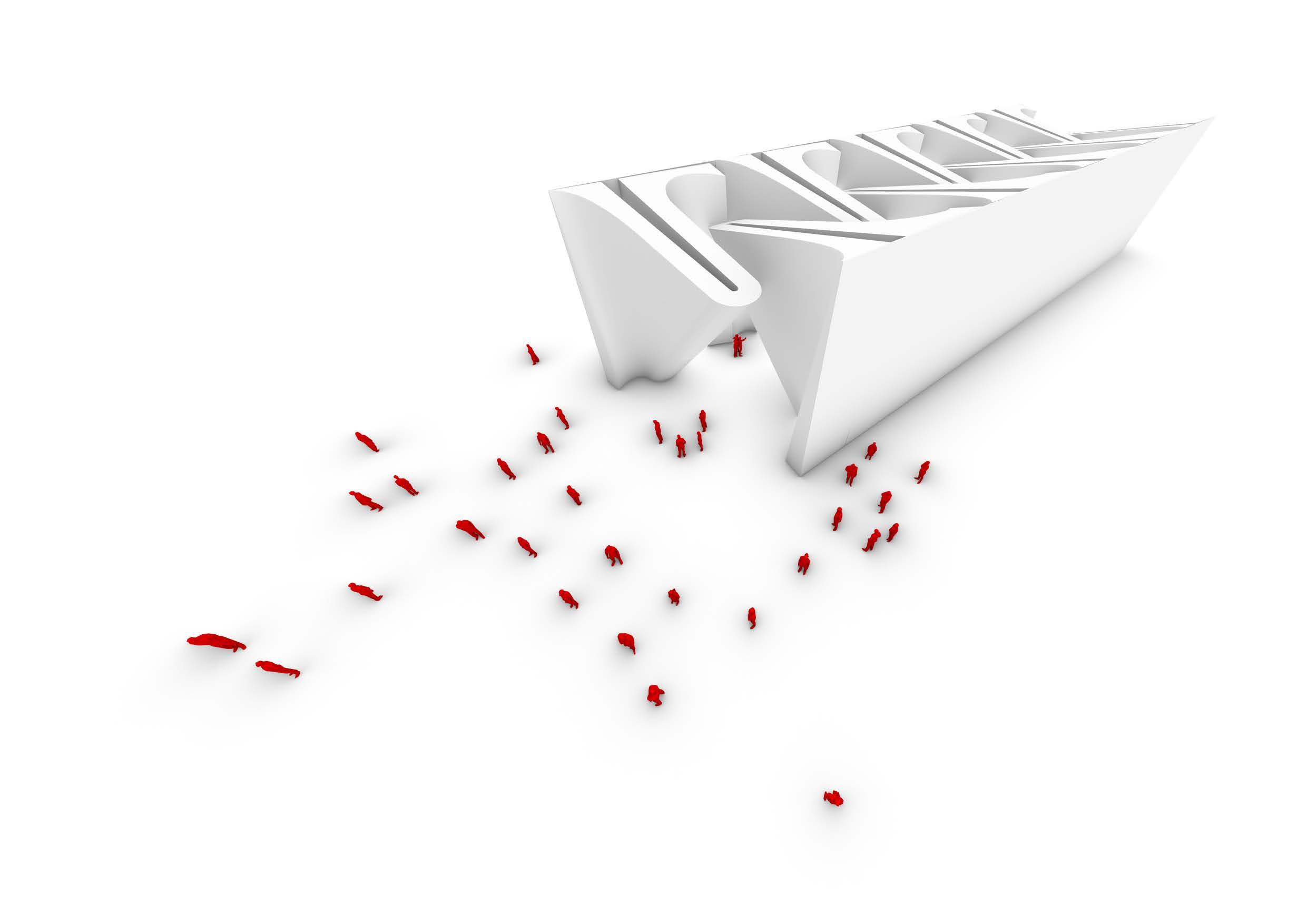

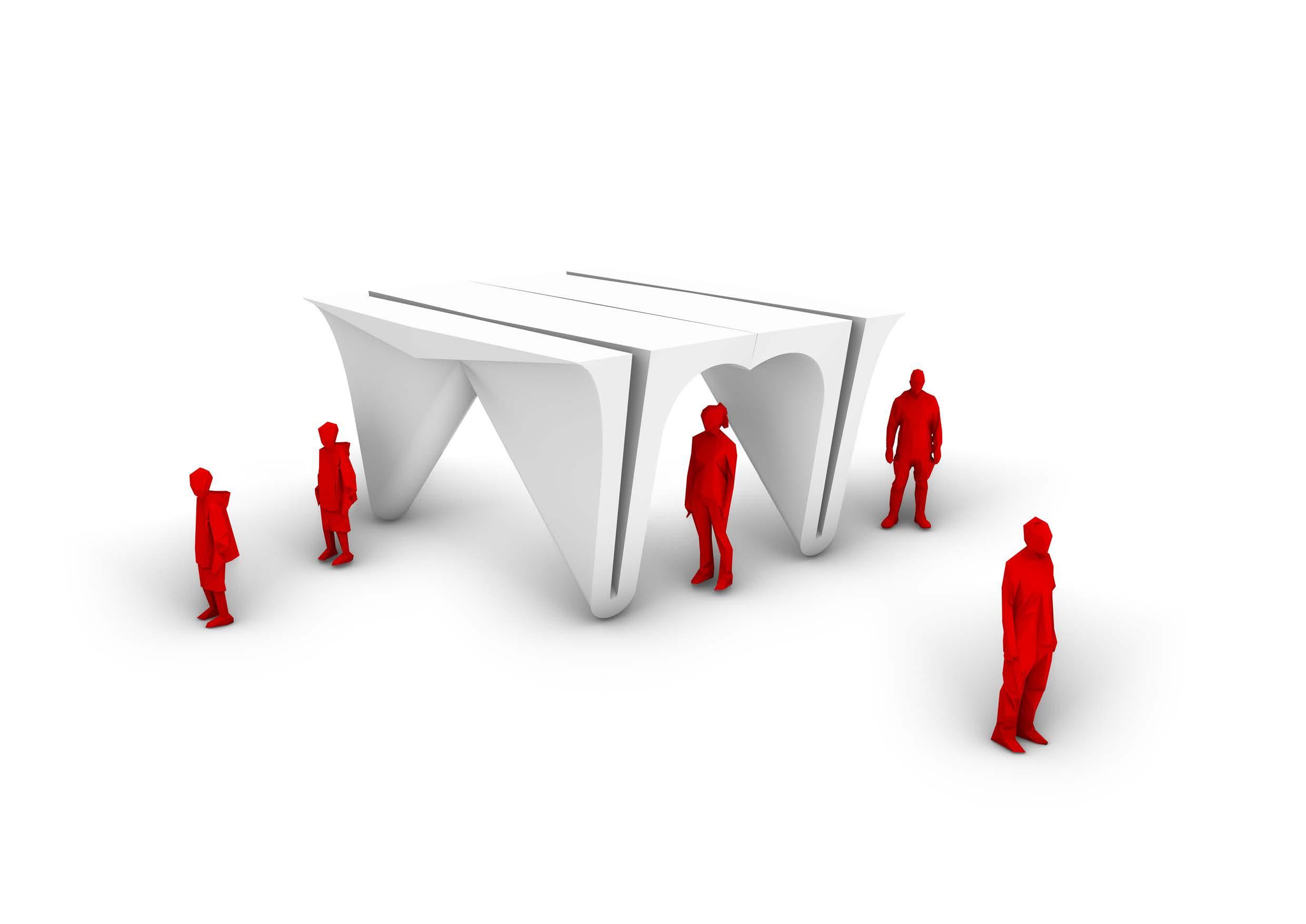

Digital Sketches

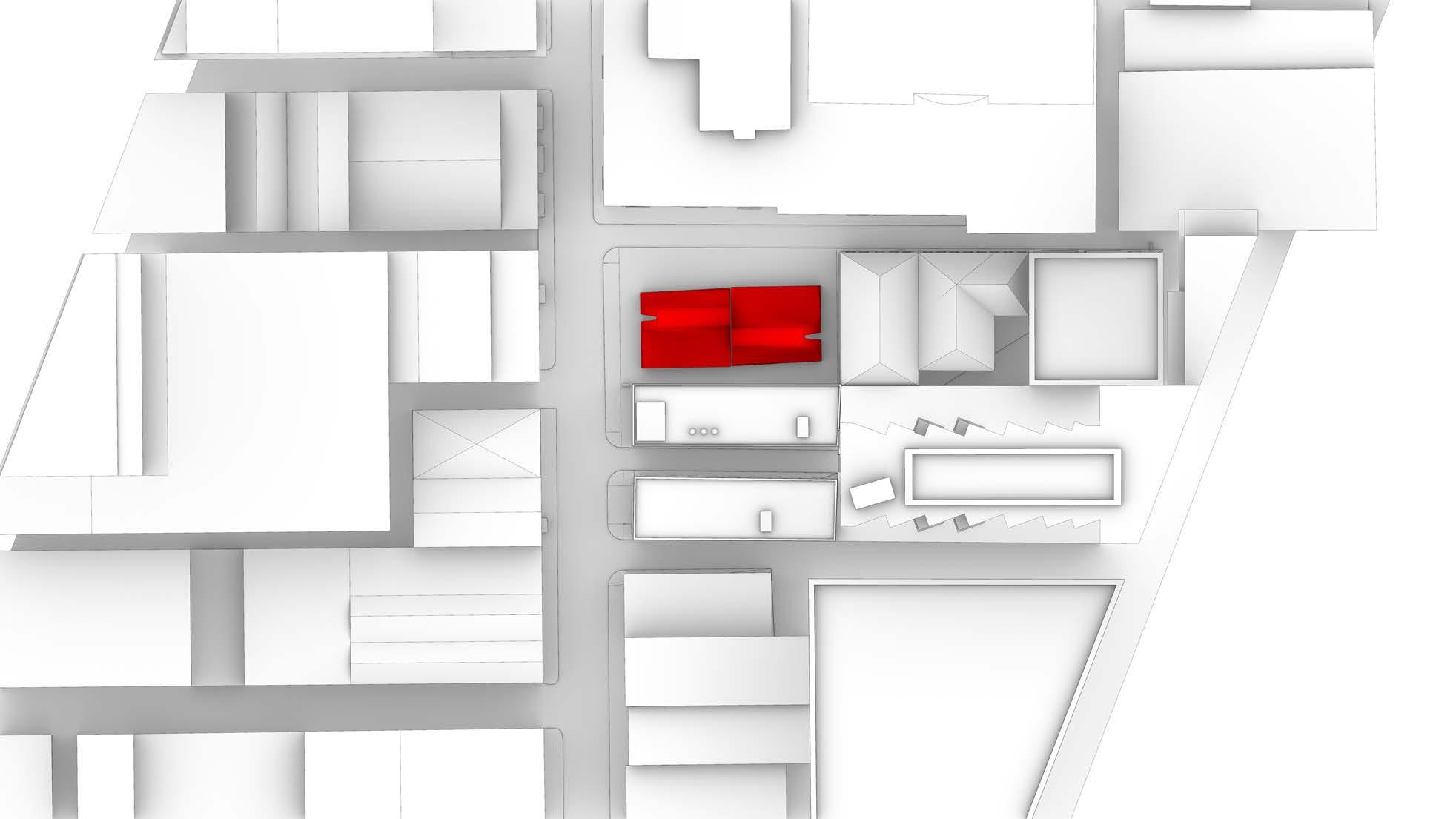

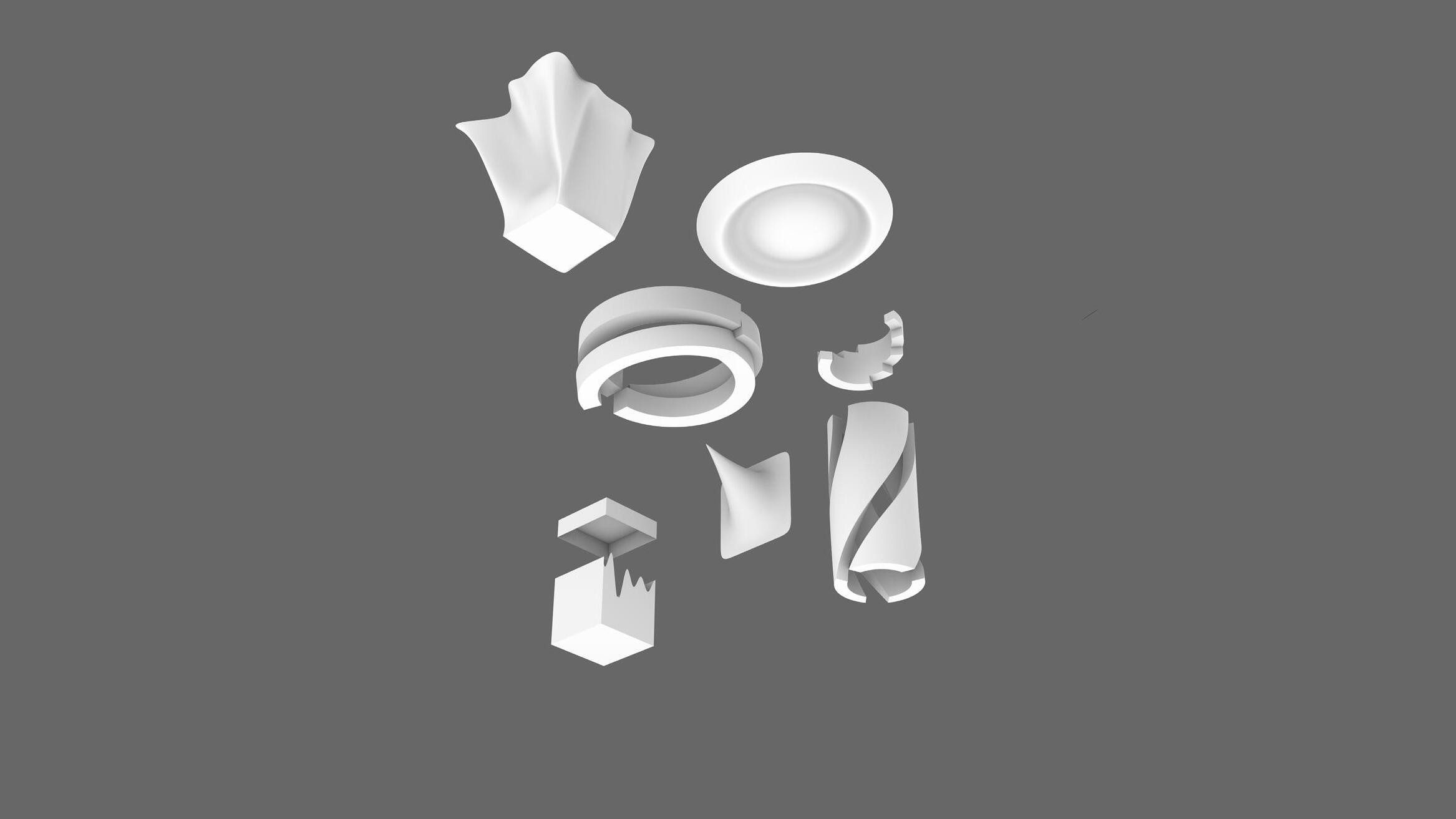

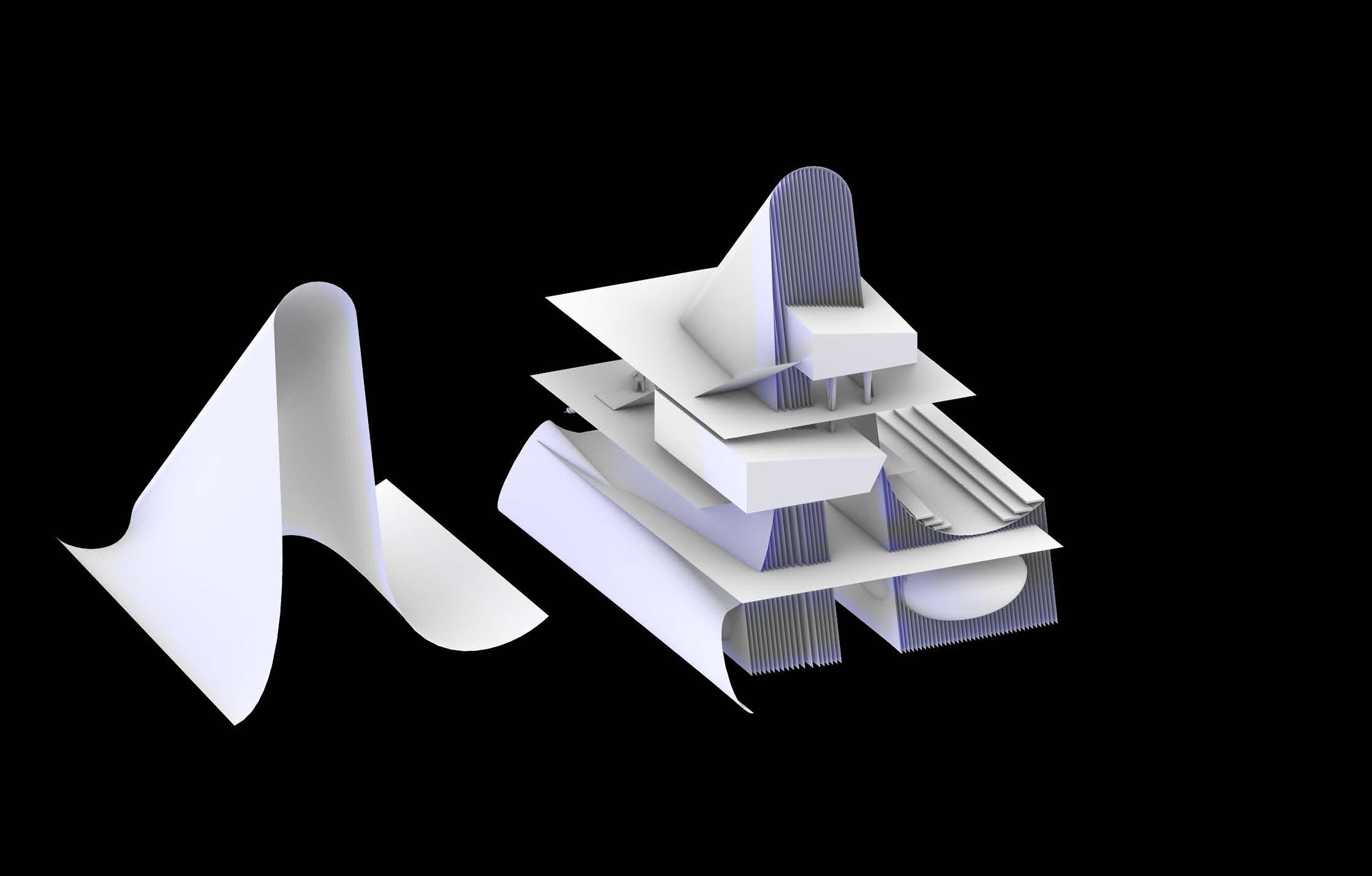

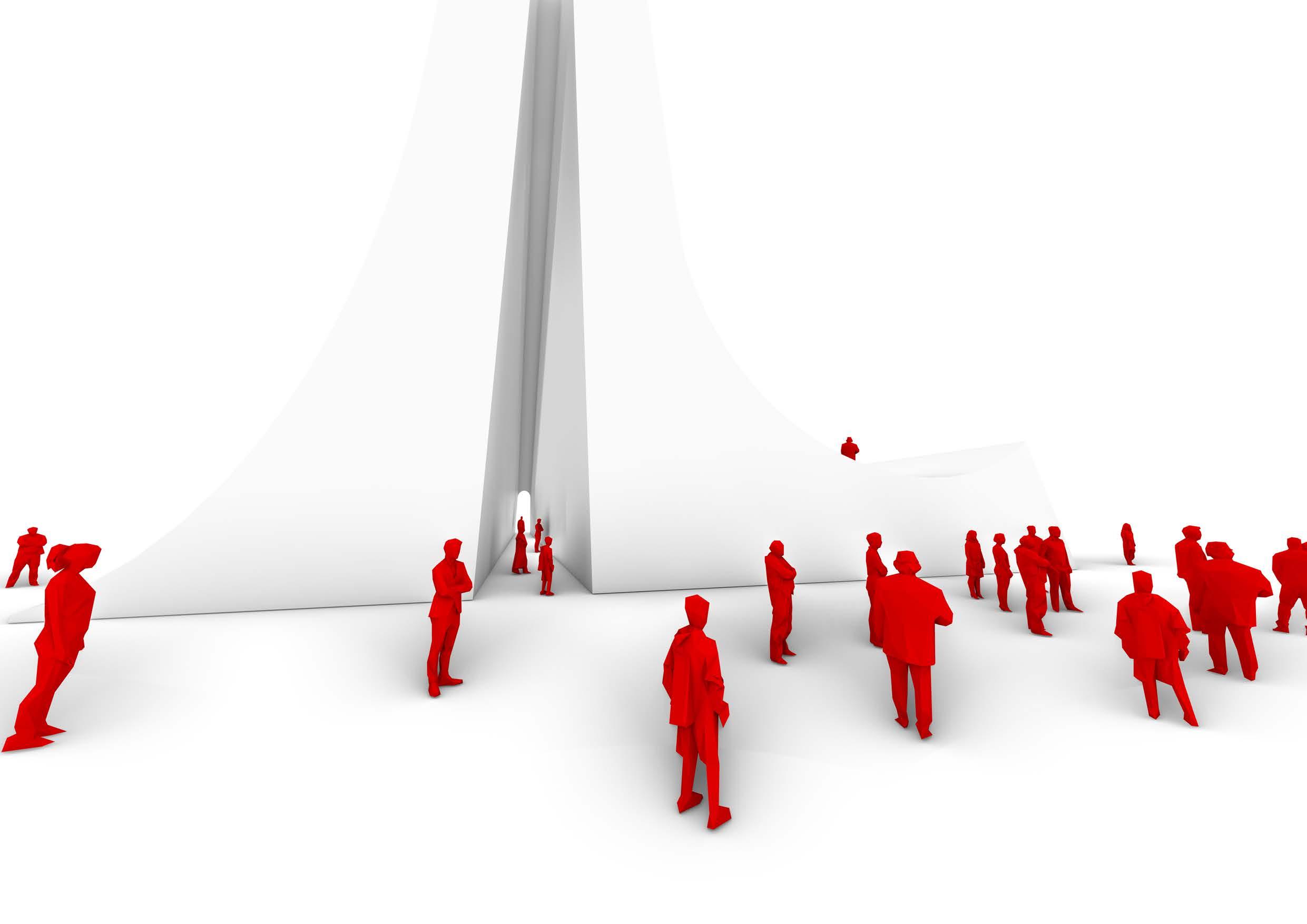

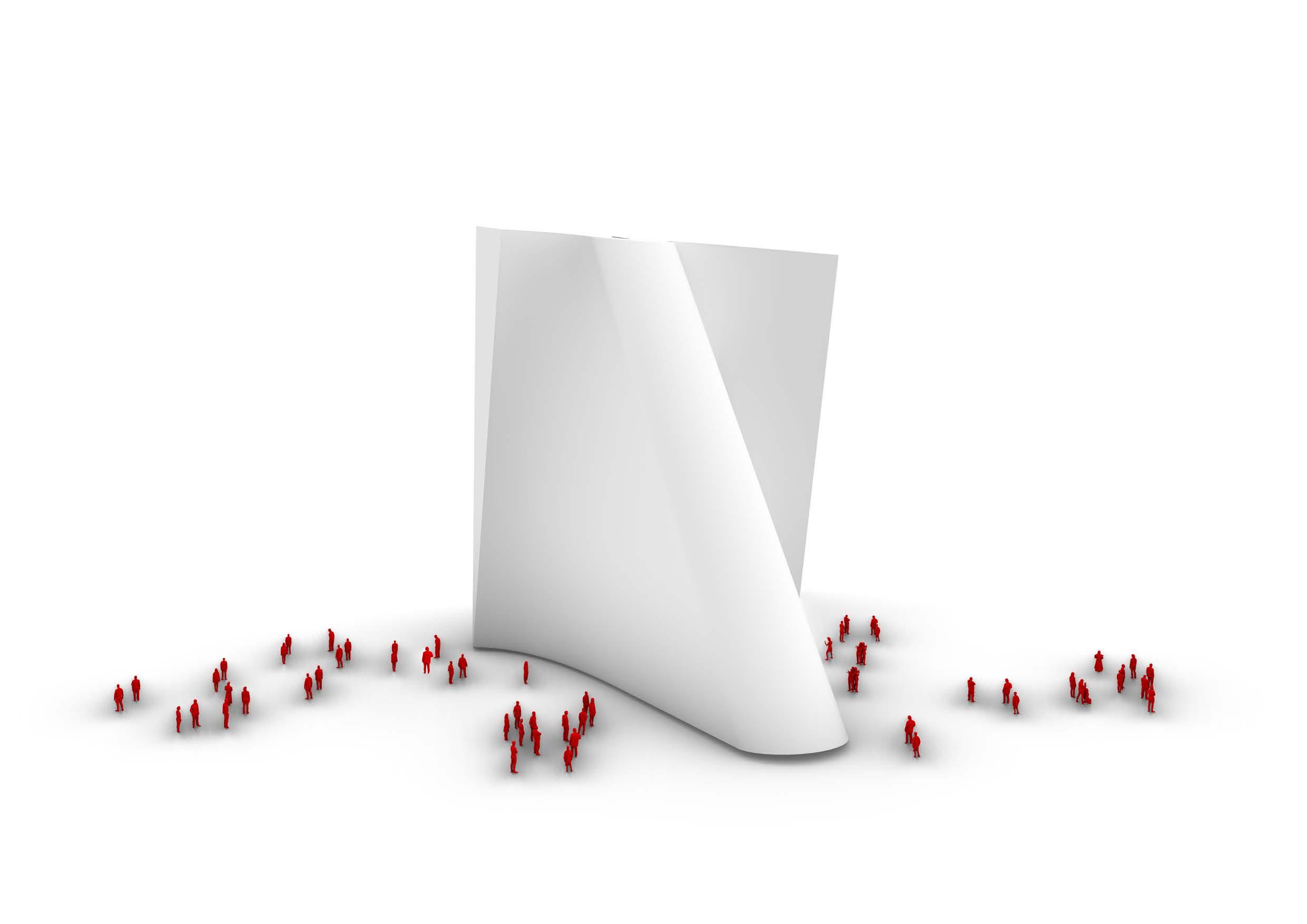

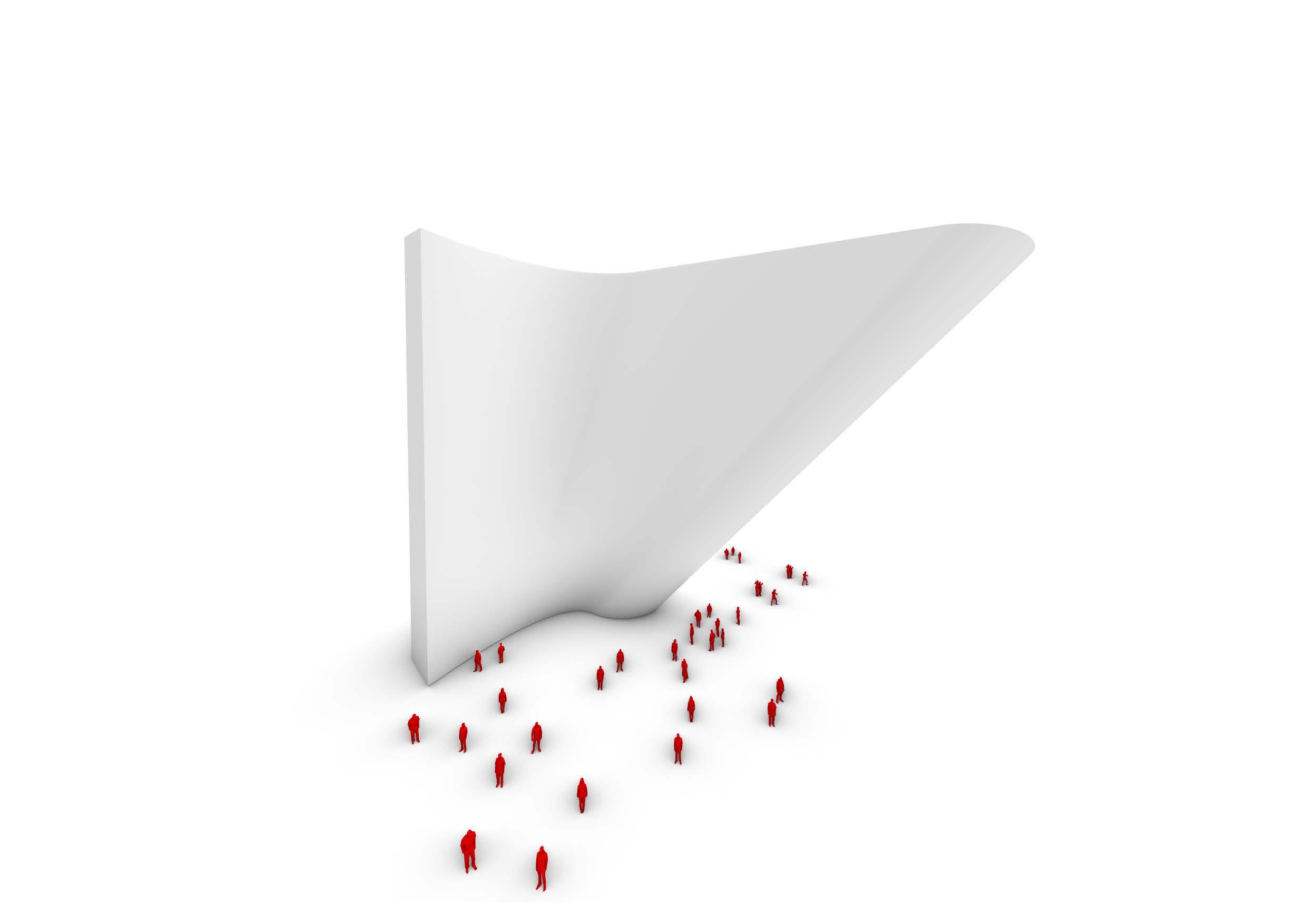

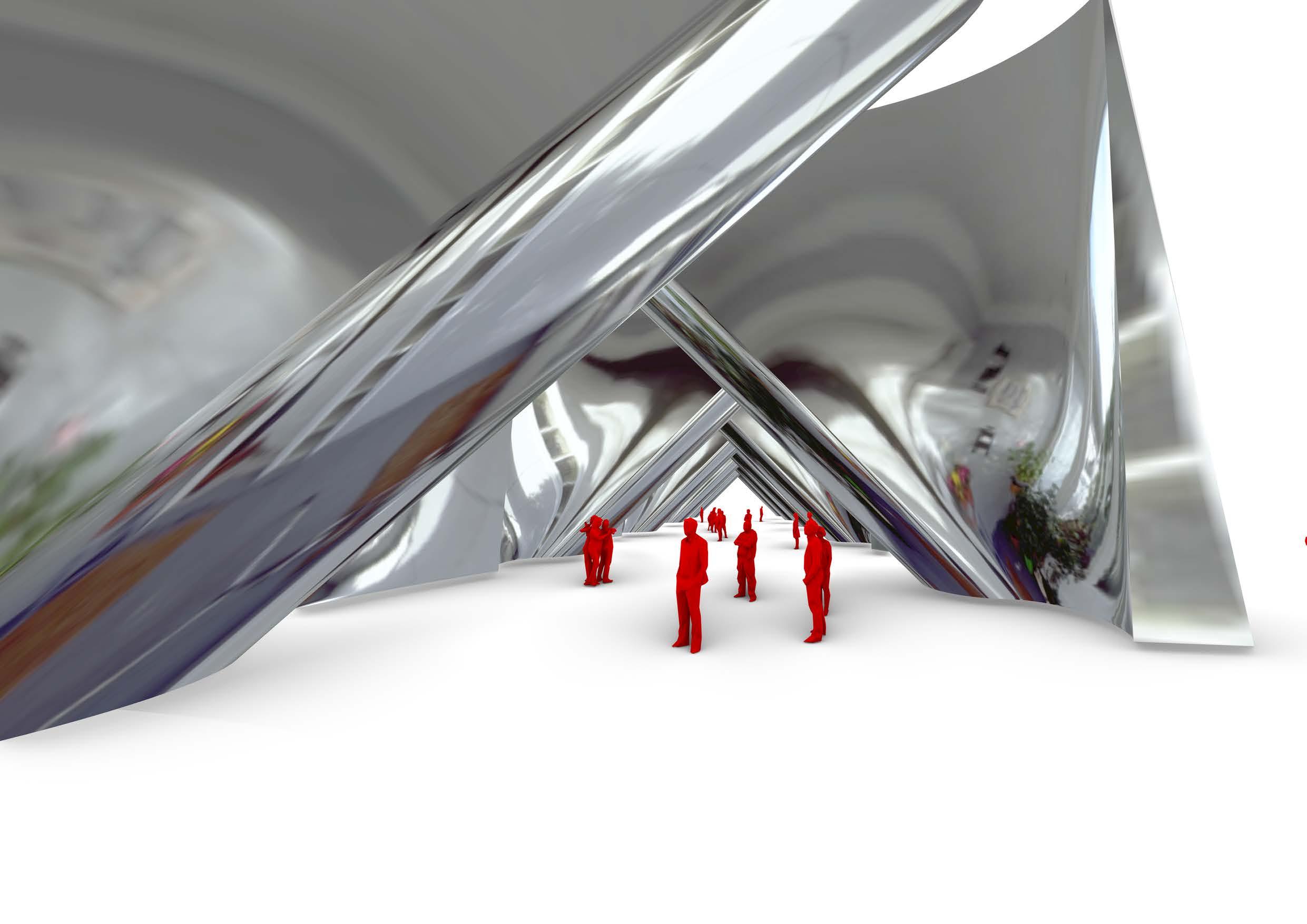

Geometry digital sketches with Emap applied

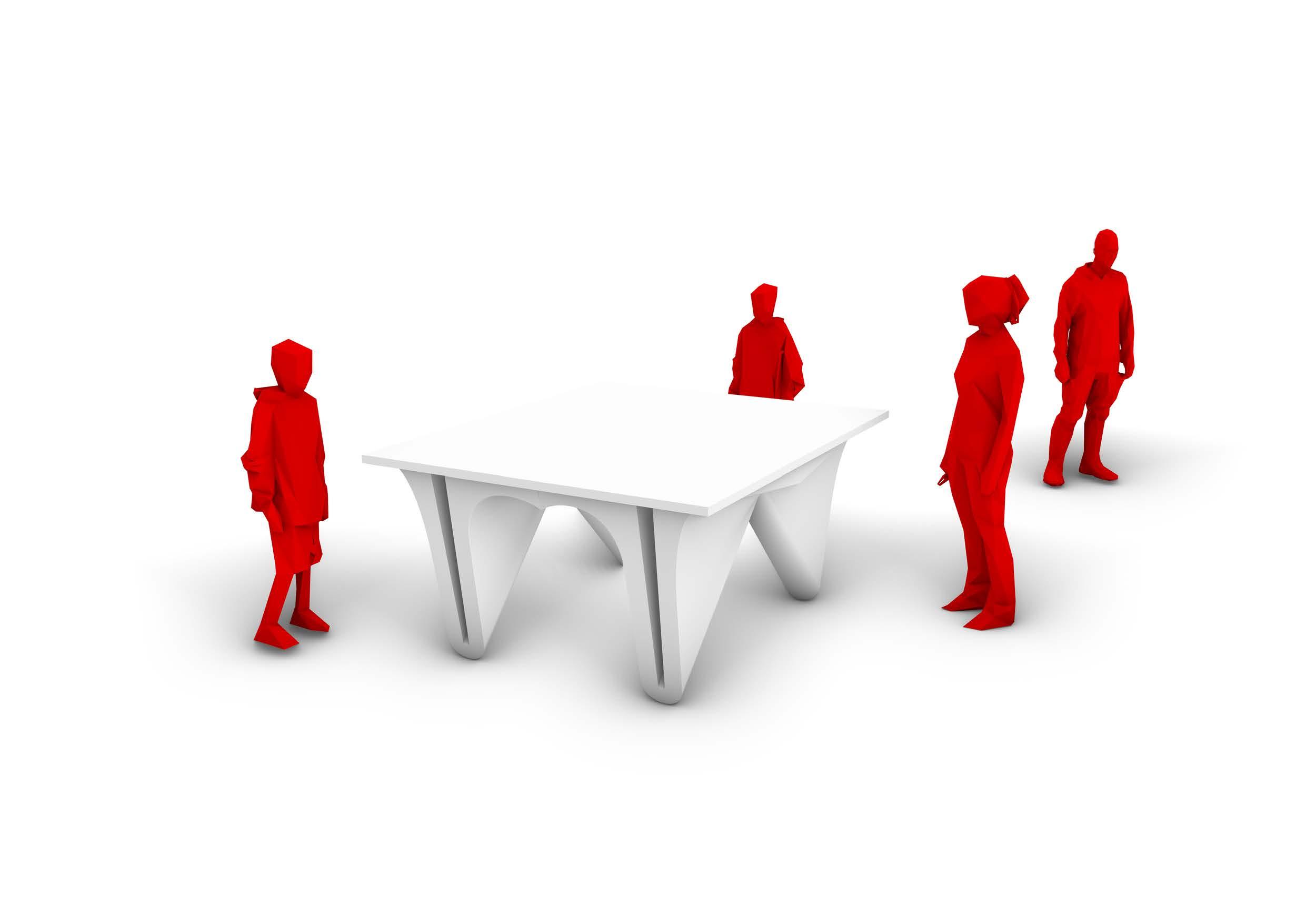

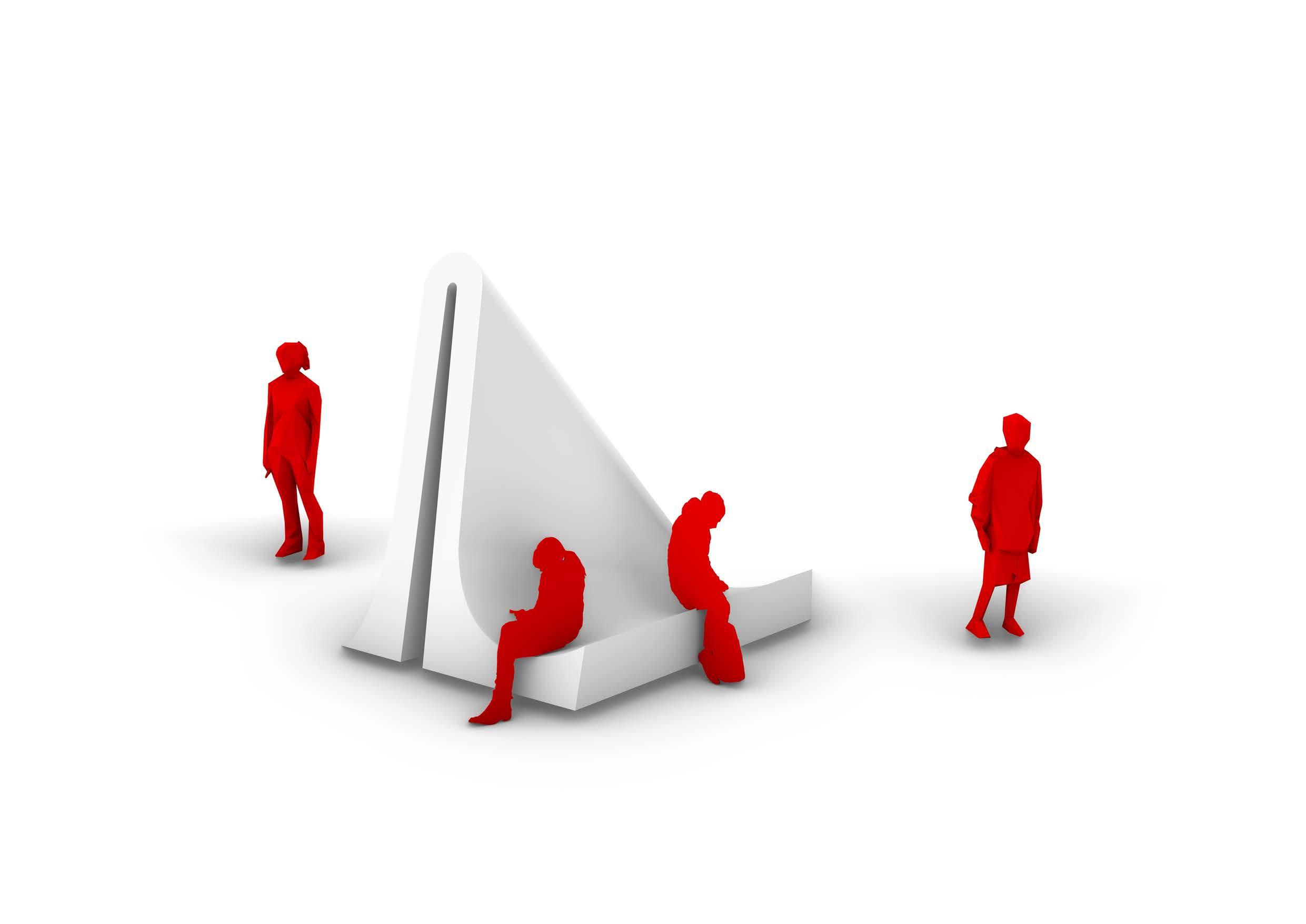

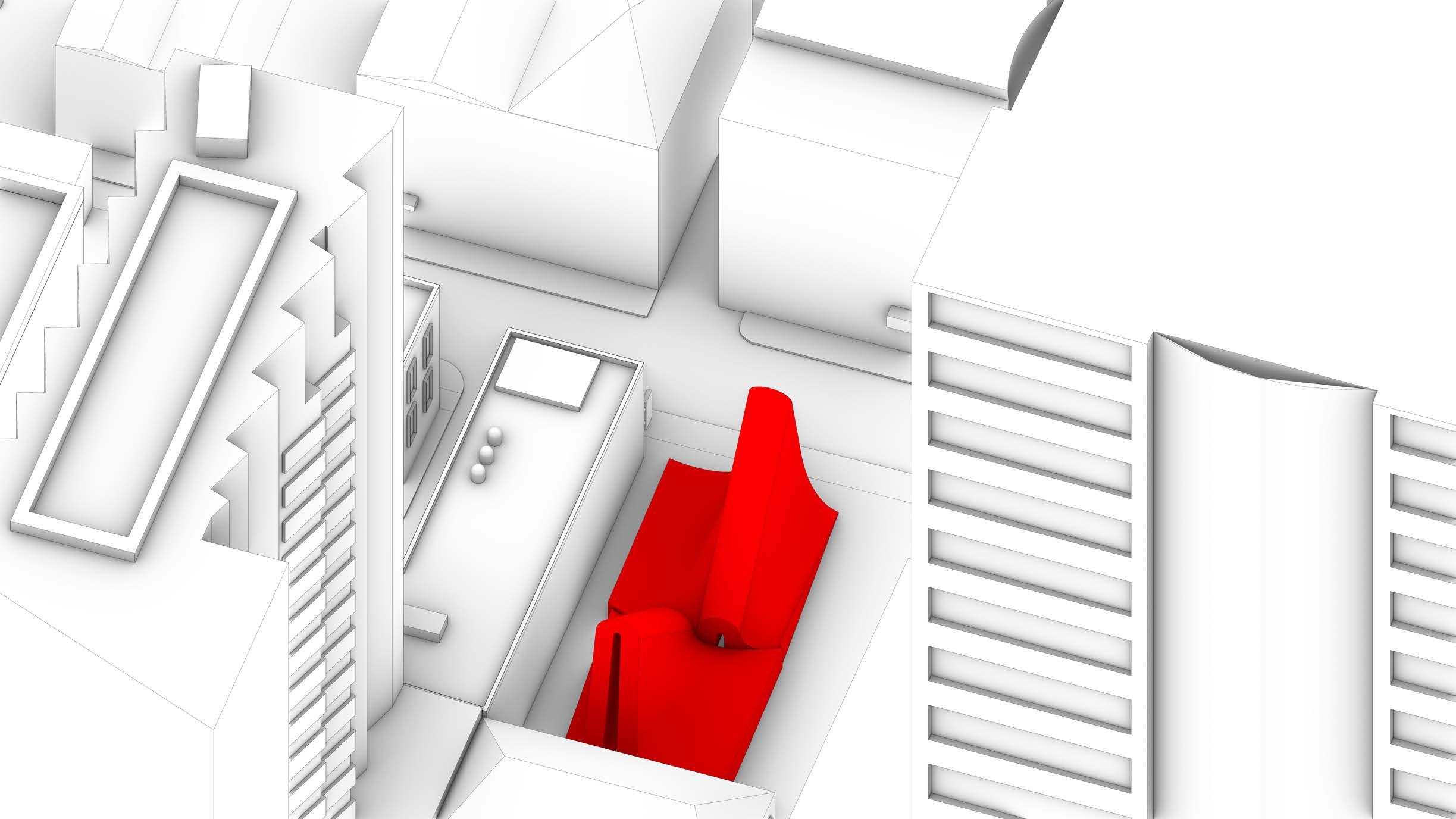

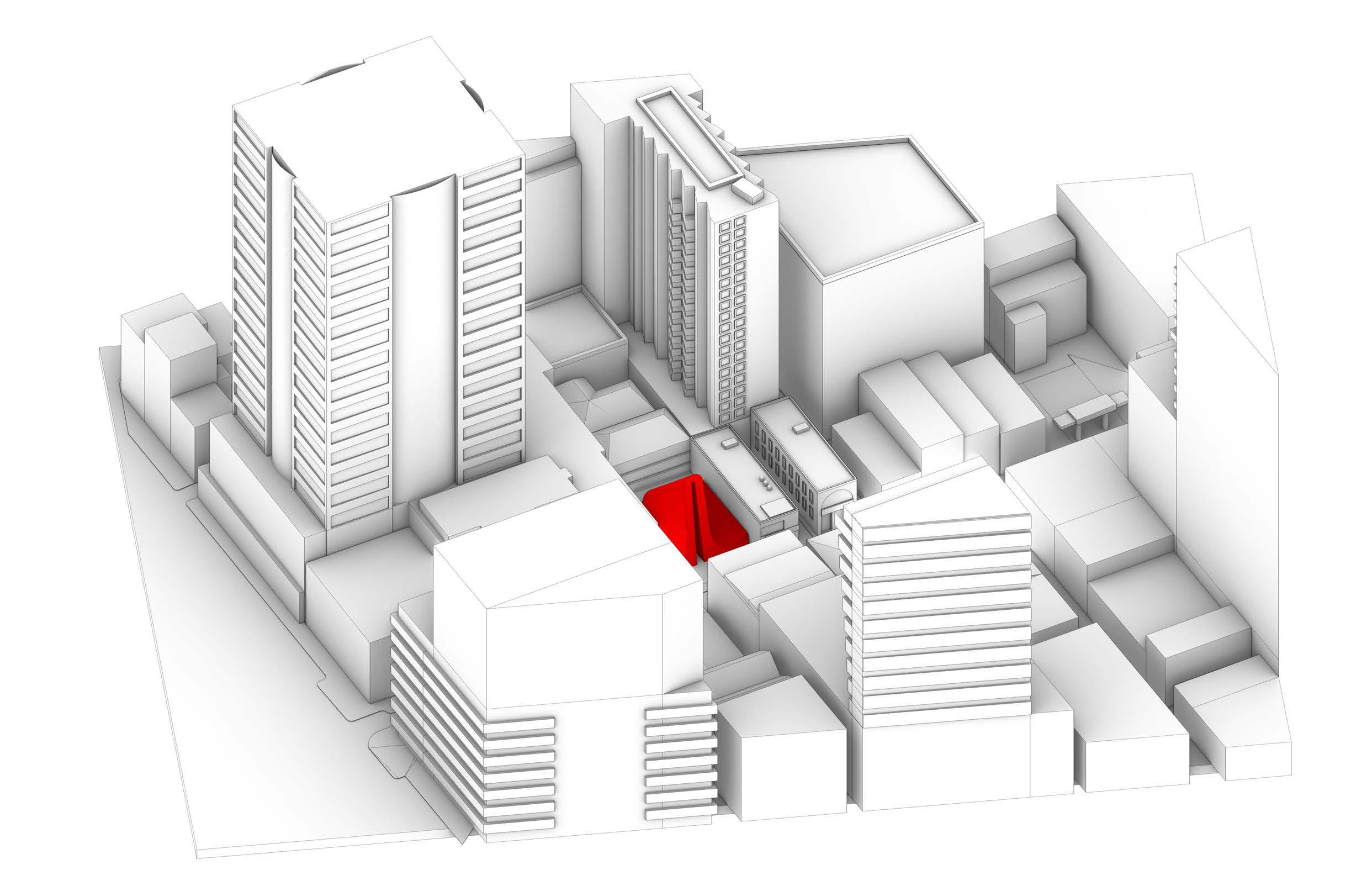

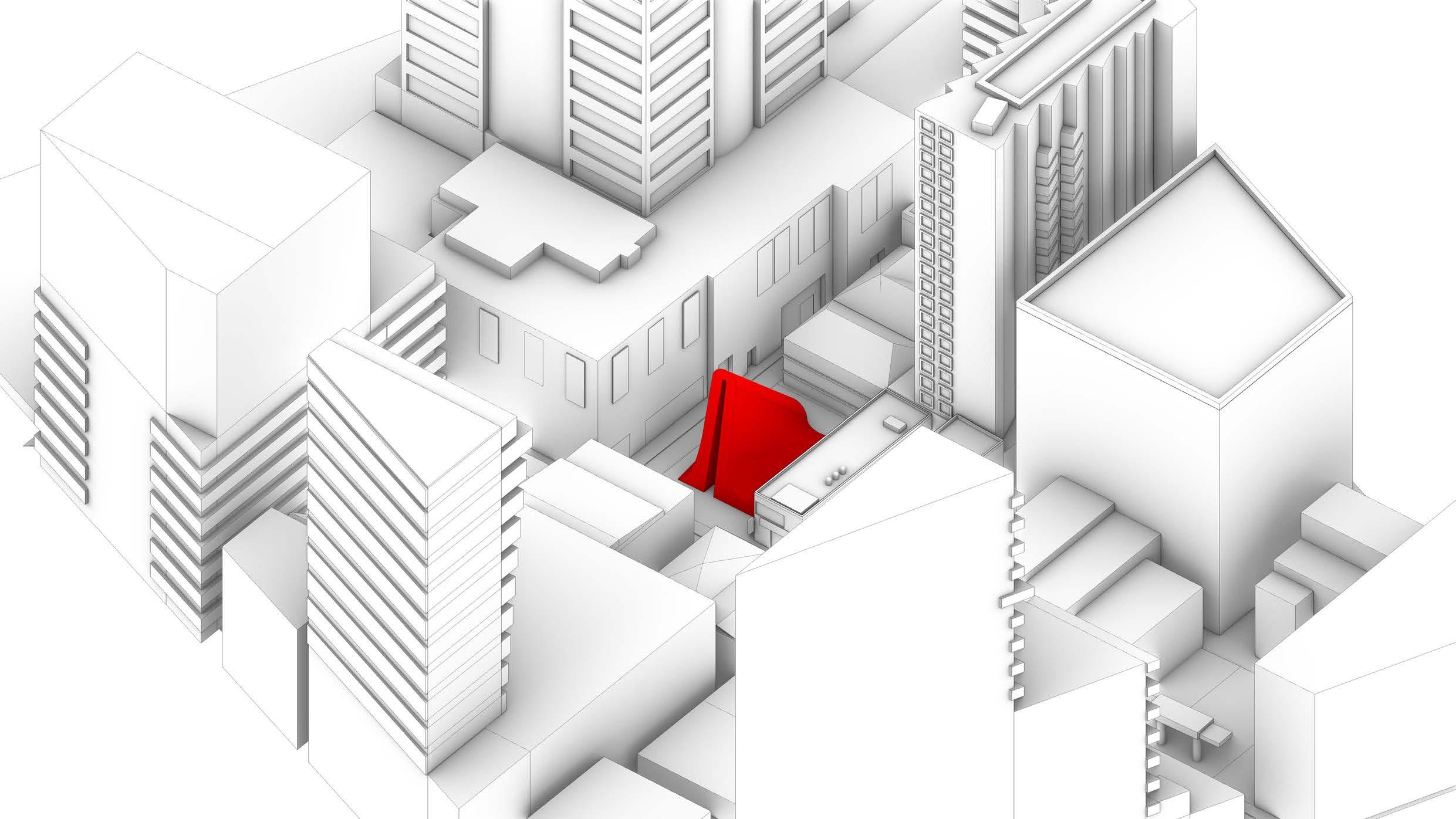

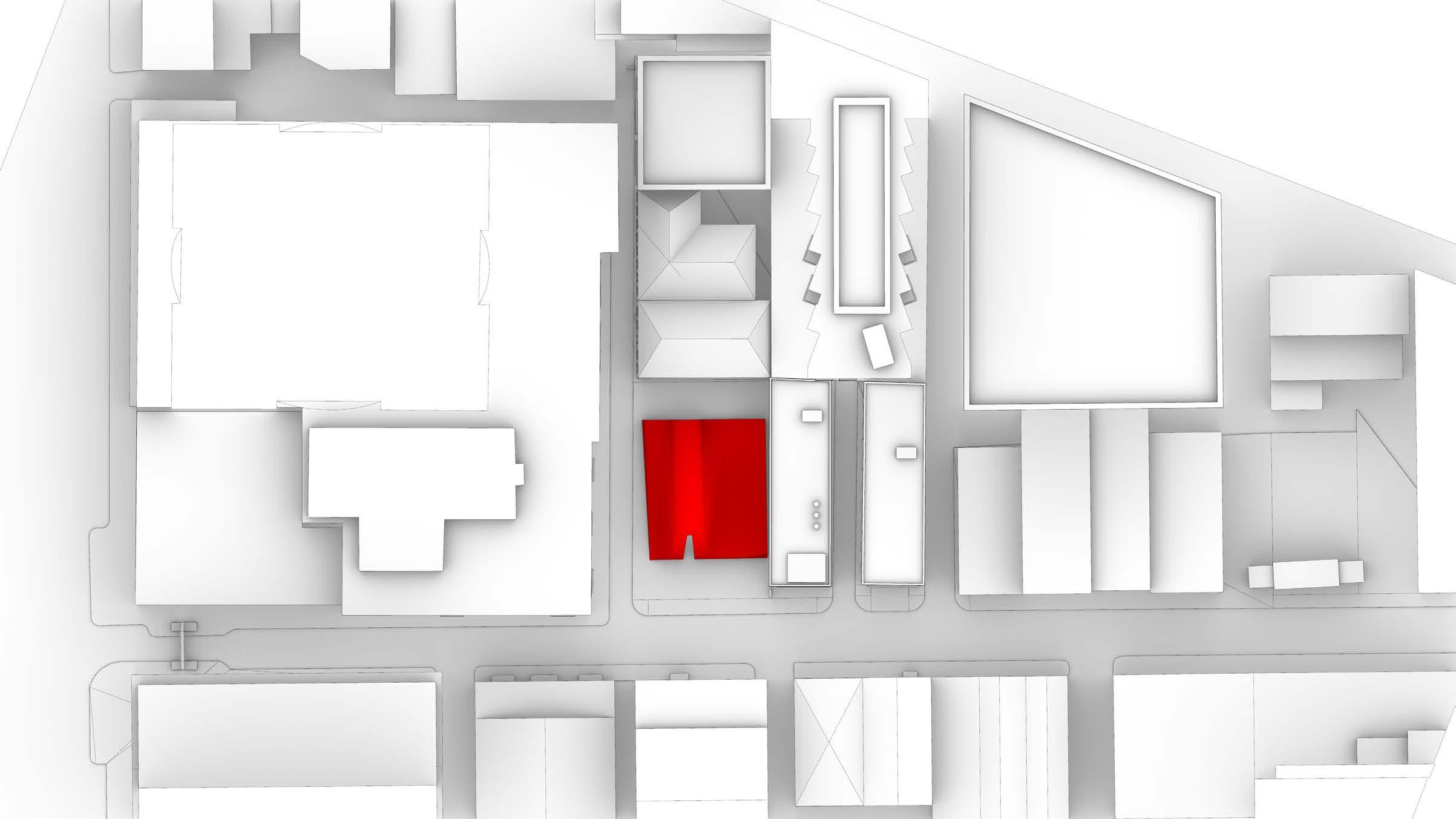

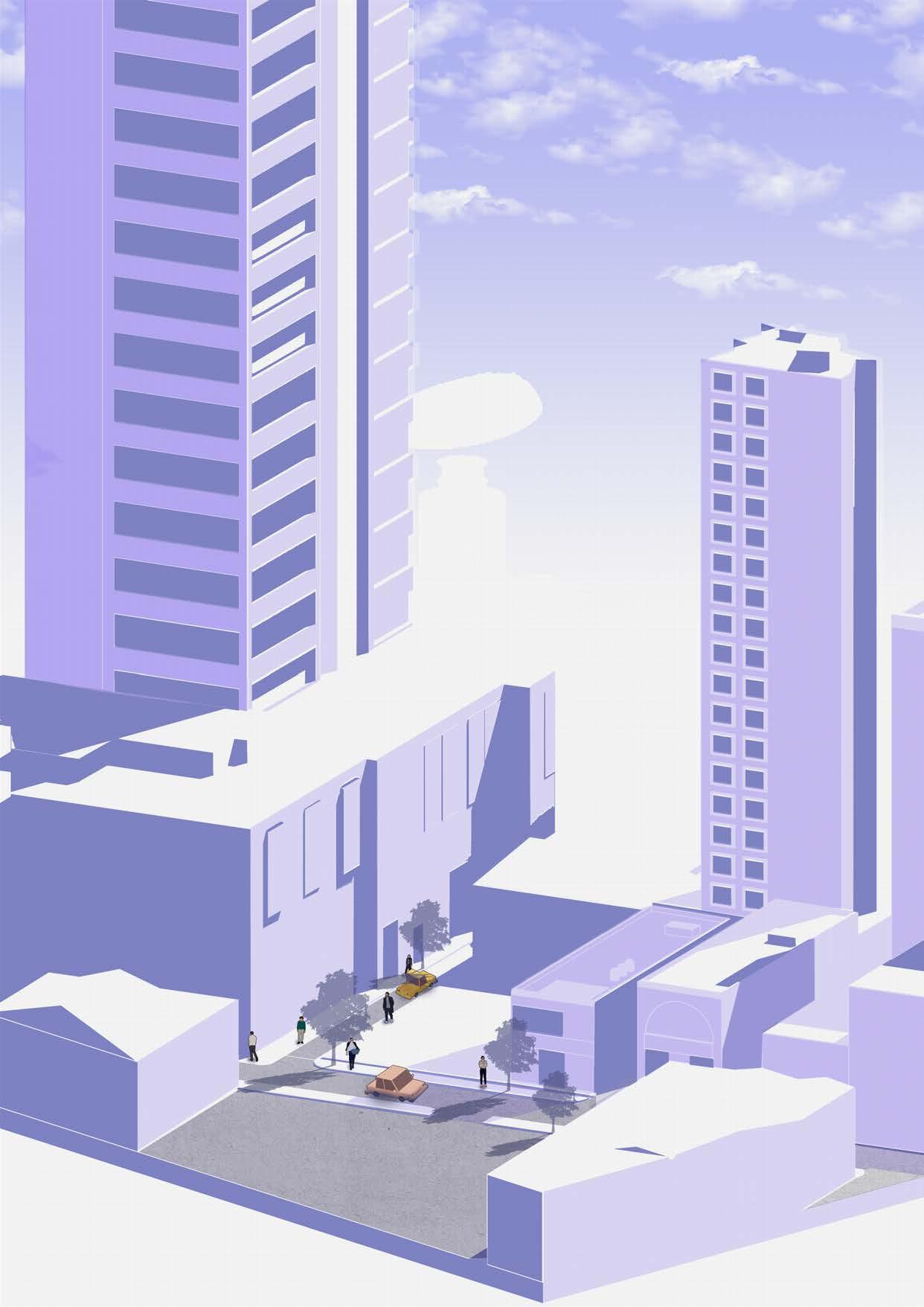

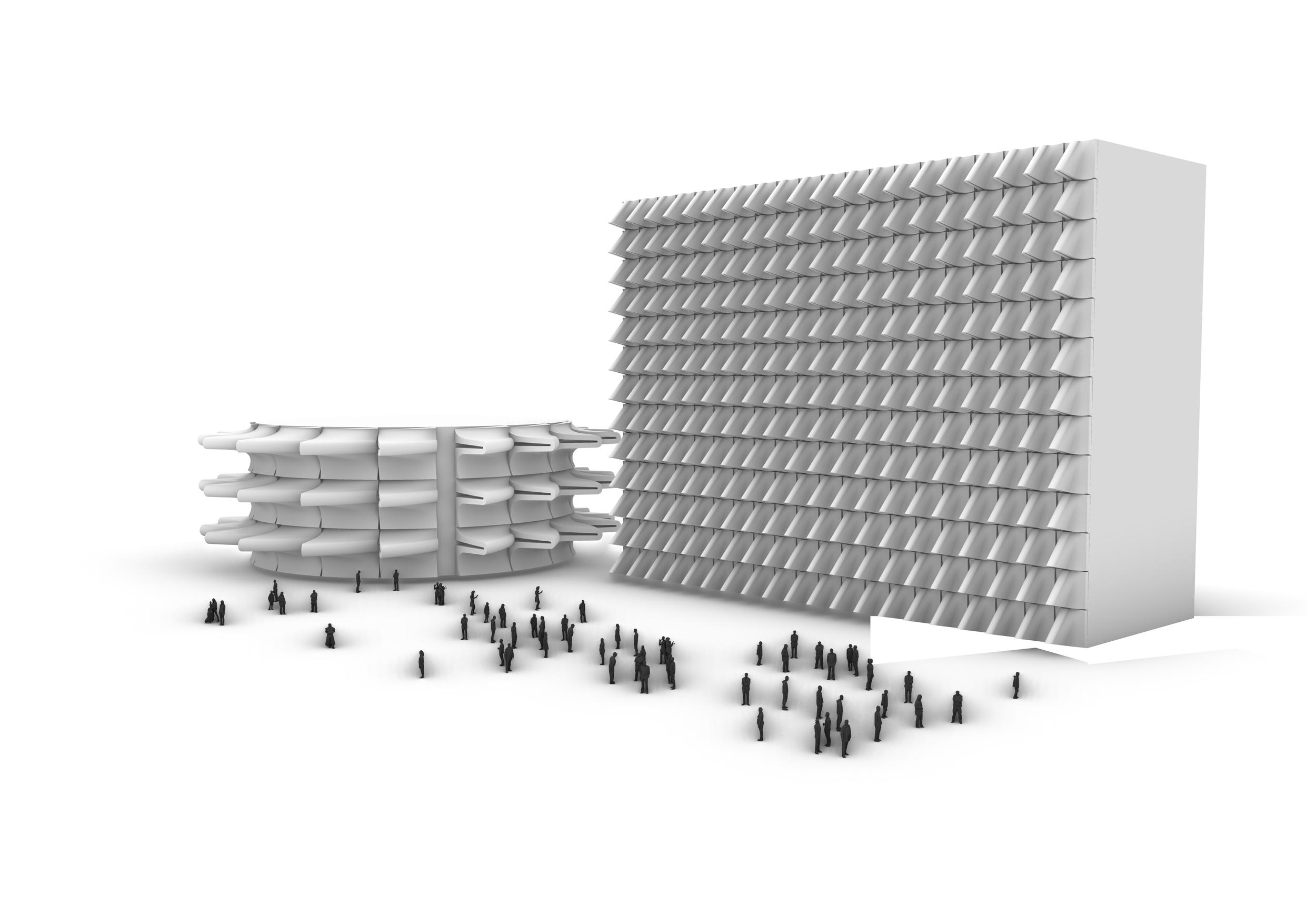

In this task, I was experimenting with how the shape could occupied the site in both double modular design and also singular building mass.

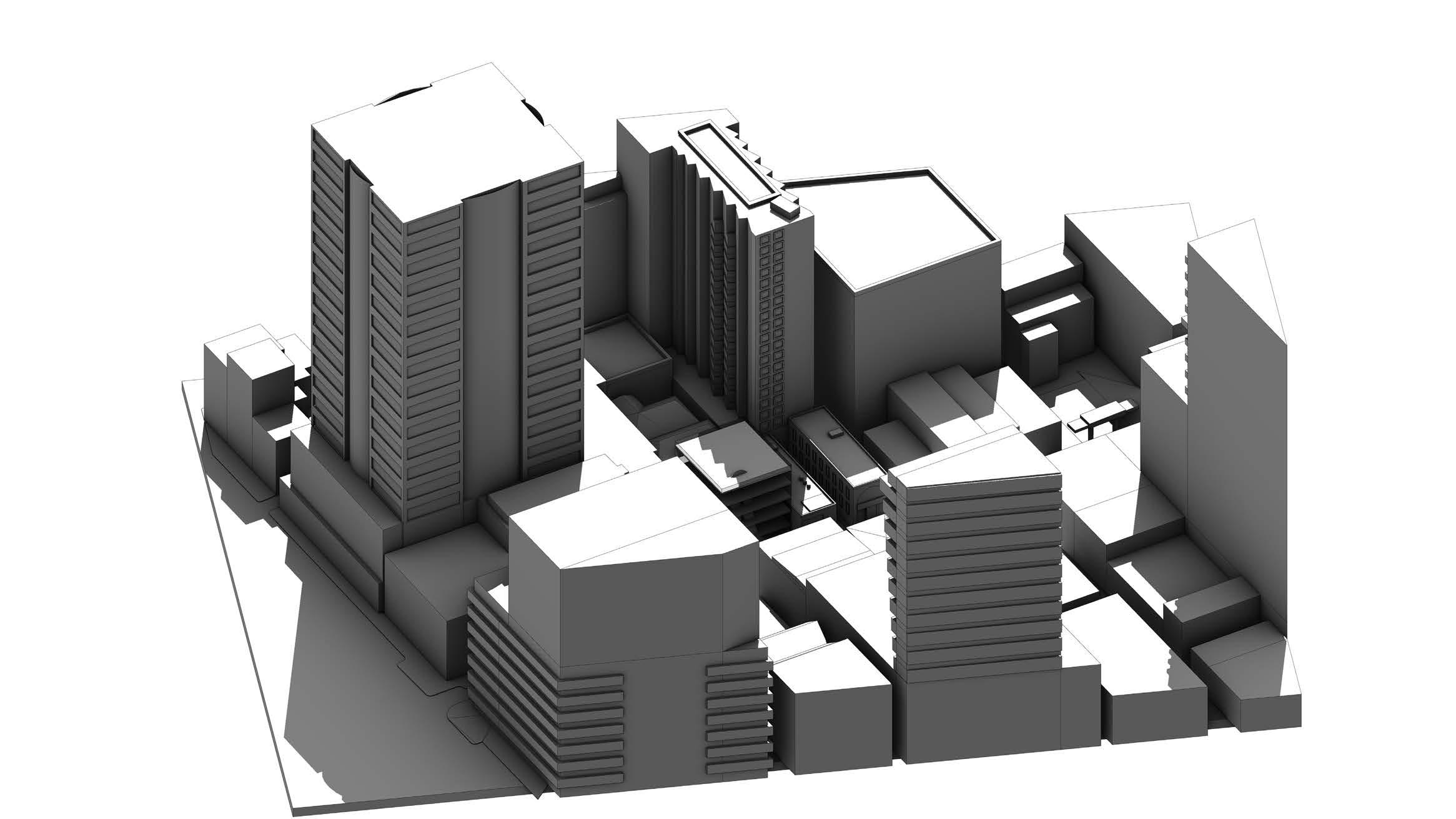

Shadow Diagram

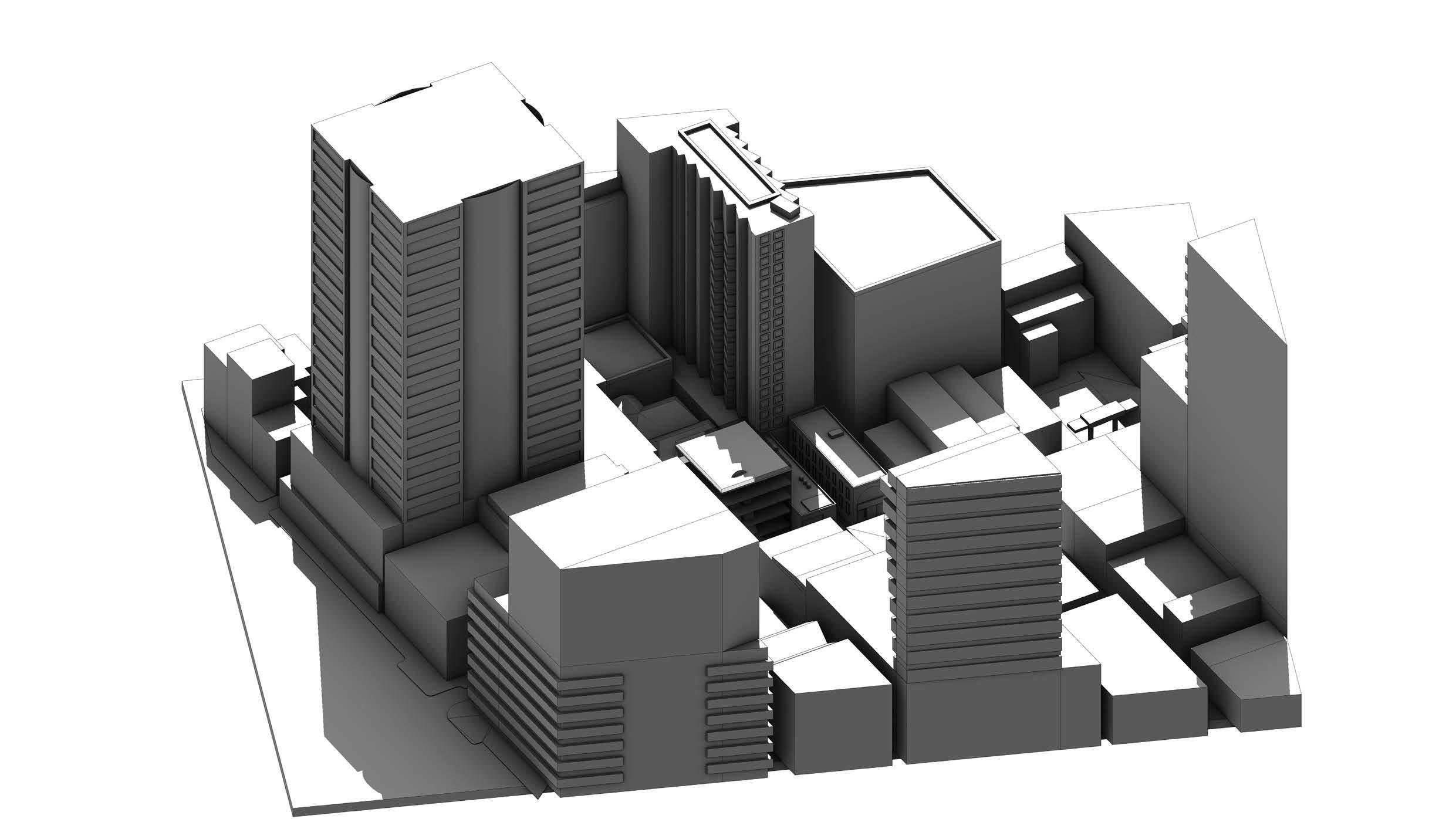

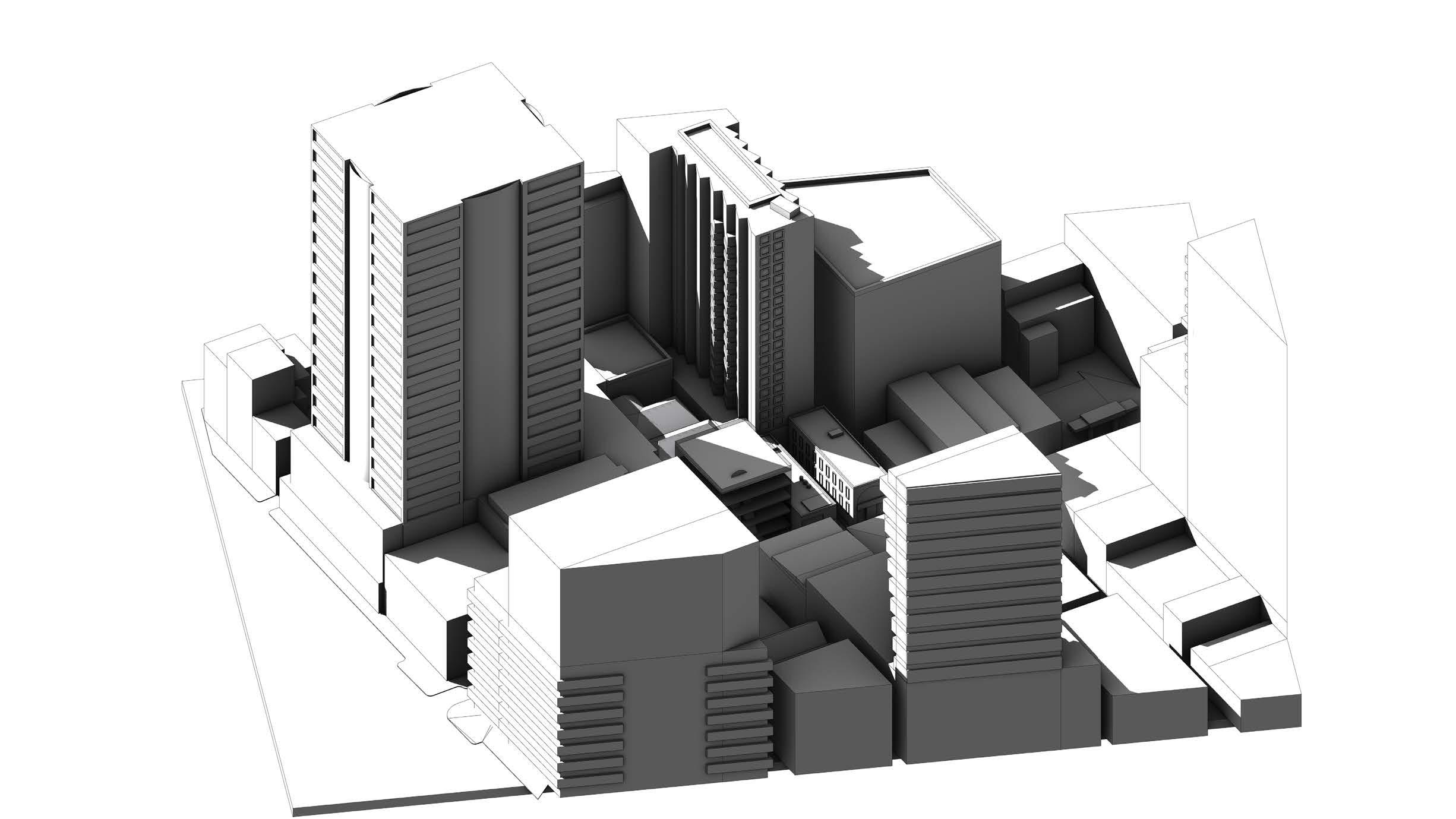

March Equinox - 9am

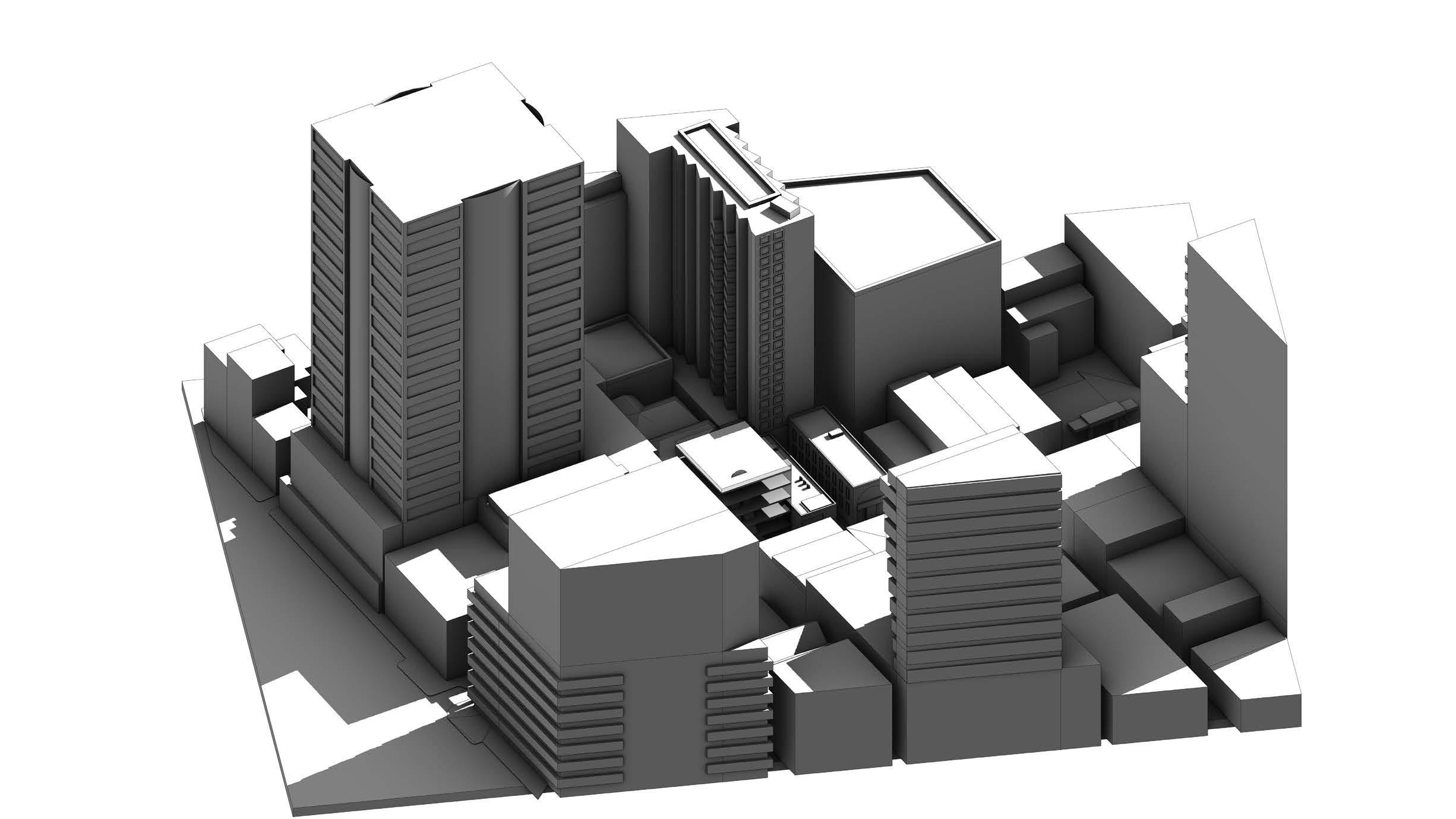

March Equinox - 12 pm
Equinox - 3 pm

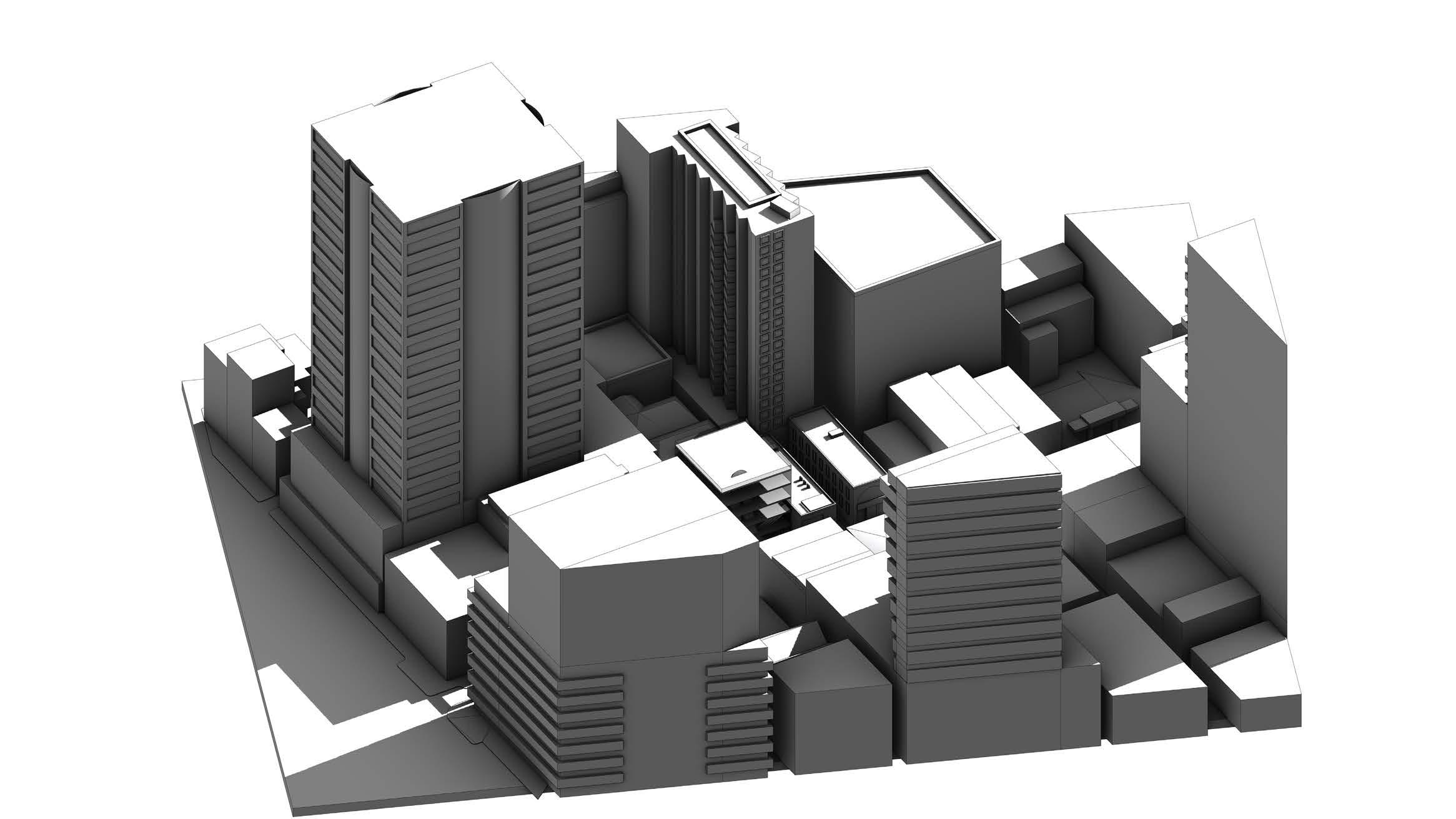

Spring Equinox - 9 am
Spring Equinox - 12 pm
Spring Equinox - 3 pm

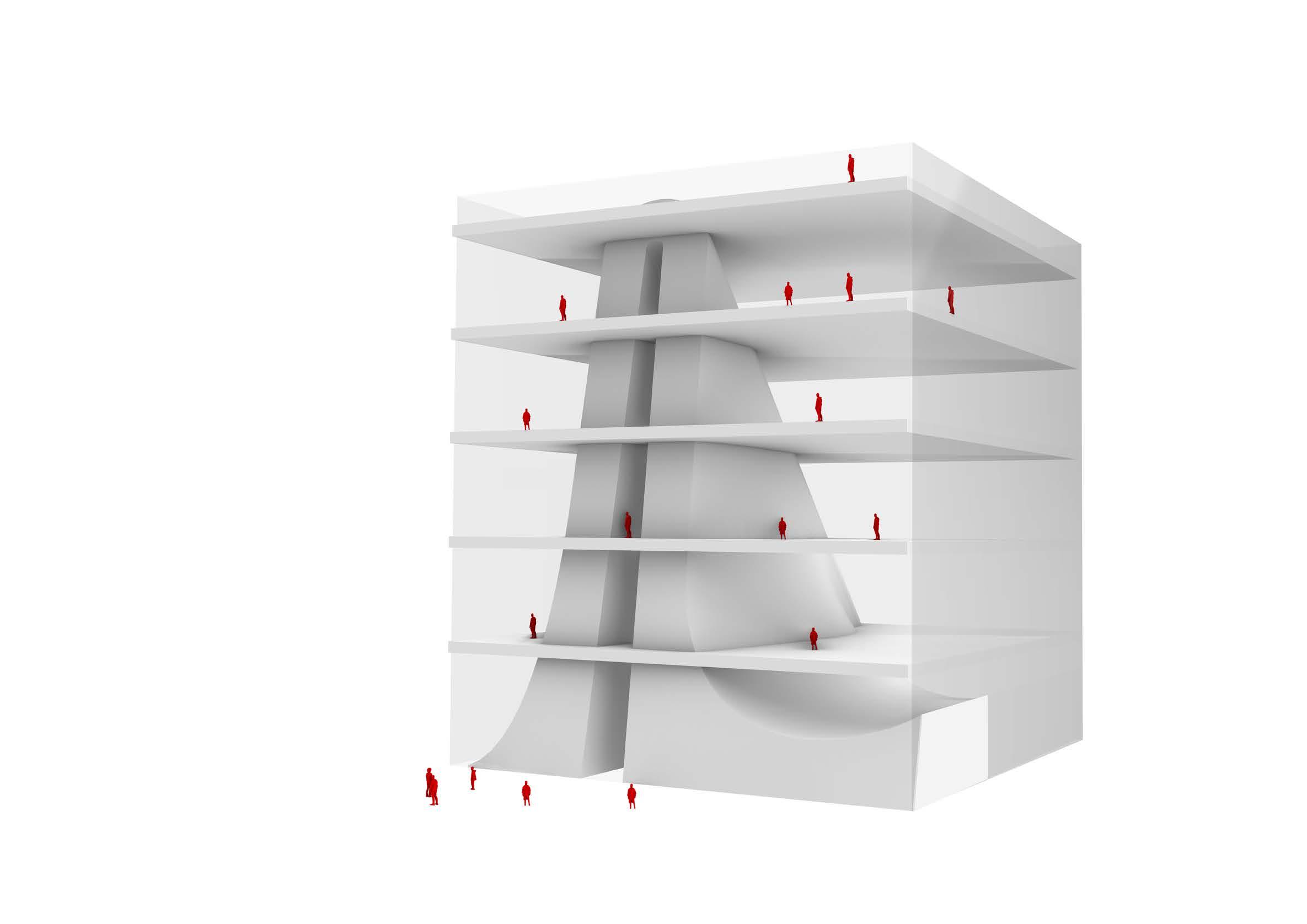

Initial design proposal
For my first attempt, I was going for a quite rational and simple idea of slicing my shape with floors and the abstract form become a space and a circulation medium. But after getting feedback, I was encouraged to developed with something much more interesting and more intricate.
Second design proposal
My second attempt has gone quite far and I was quite unthoughtful about my design and the overall planning, circulation and function.
Final design proposal
With my final design, I was quite proud with how the design turned out as I got the inspiration from my digital sketches which I used a series of flowing abstract form along a main building geometry. Although it is quite an interesting design in my opinion, this building has created an unexpected numerous of challenges for my following tasks: techinical and textured drawings in term of lineweight, refinement, material and manymore.. Though I managed to accomplish them with effort.
Task 3
Drawings and Renders
The big idea that drive the design is the idea of the eye. The building is named the VSION library without one “I” because the “I” is the eye of the building. With the “pupil” is made by the book shelf tower in the middle of the library which is the core of a library means knowledge is consumed and recognized via the pupil (where light comes in and to the brain). The flowing abstract forms is orders along the whole building as light beacons that bring in light for the studying and reading space.
Woking

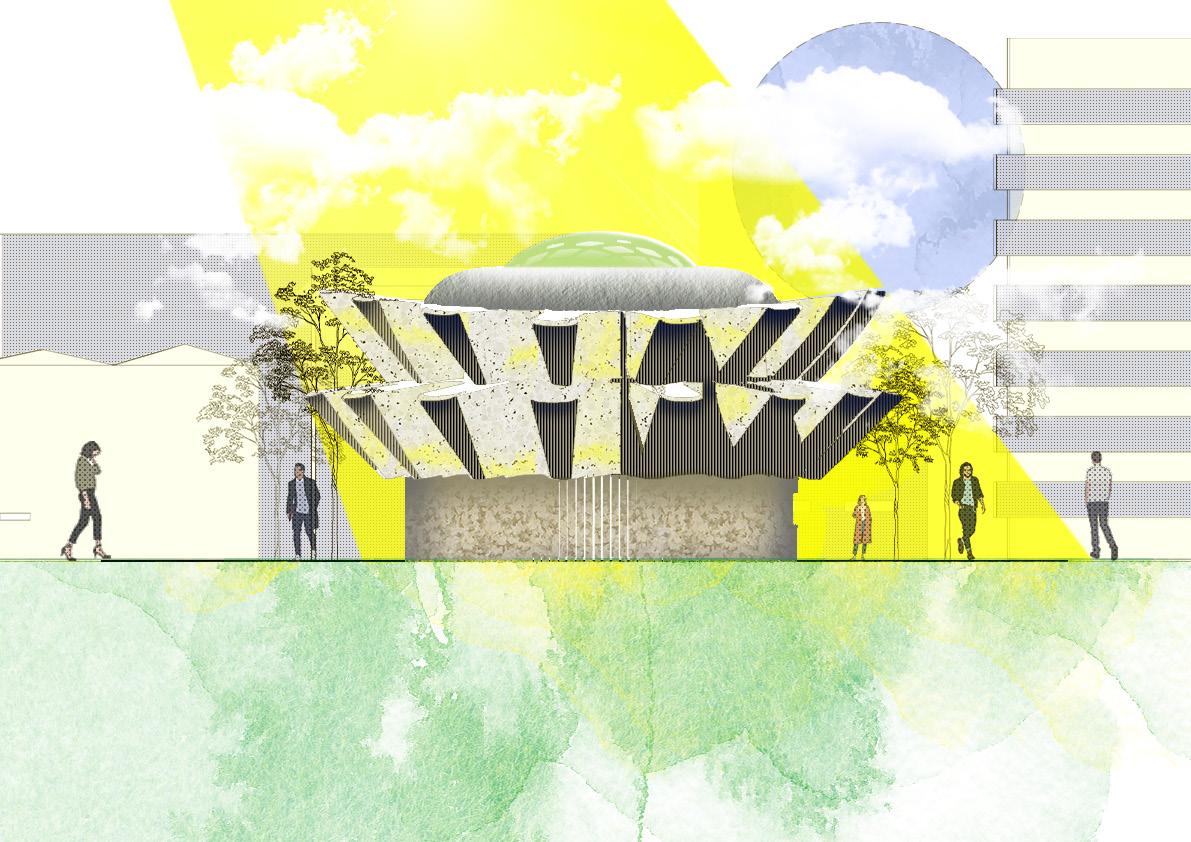

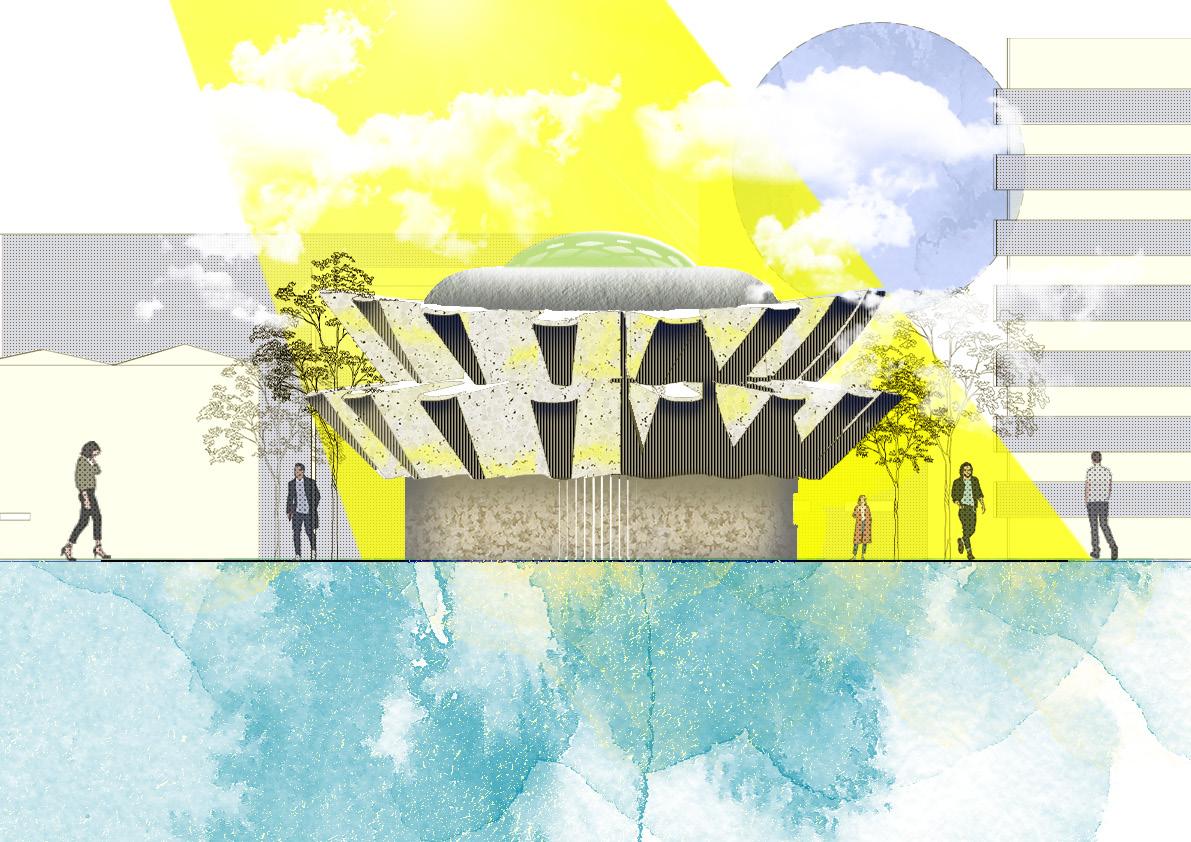

Original drawings
Previous have been improved on
_Lineweight of clumbing details and complicated elements
_Adjusting groundline thickness
_Uniform scale on some drawings
Quan Nguyen

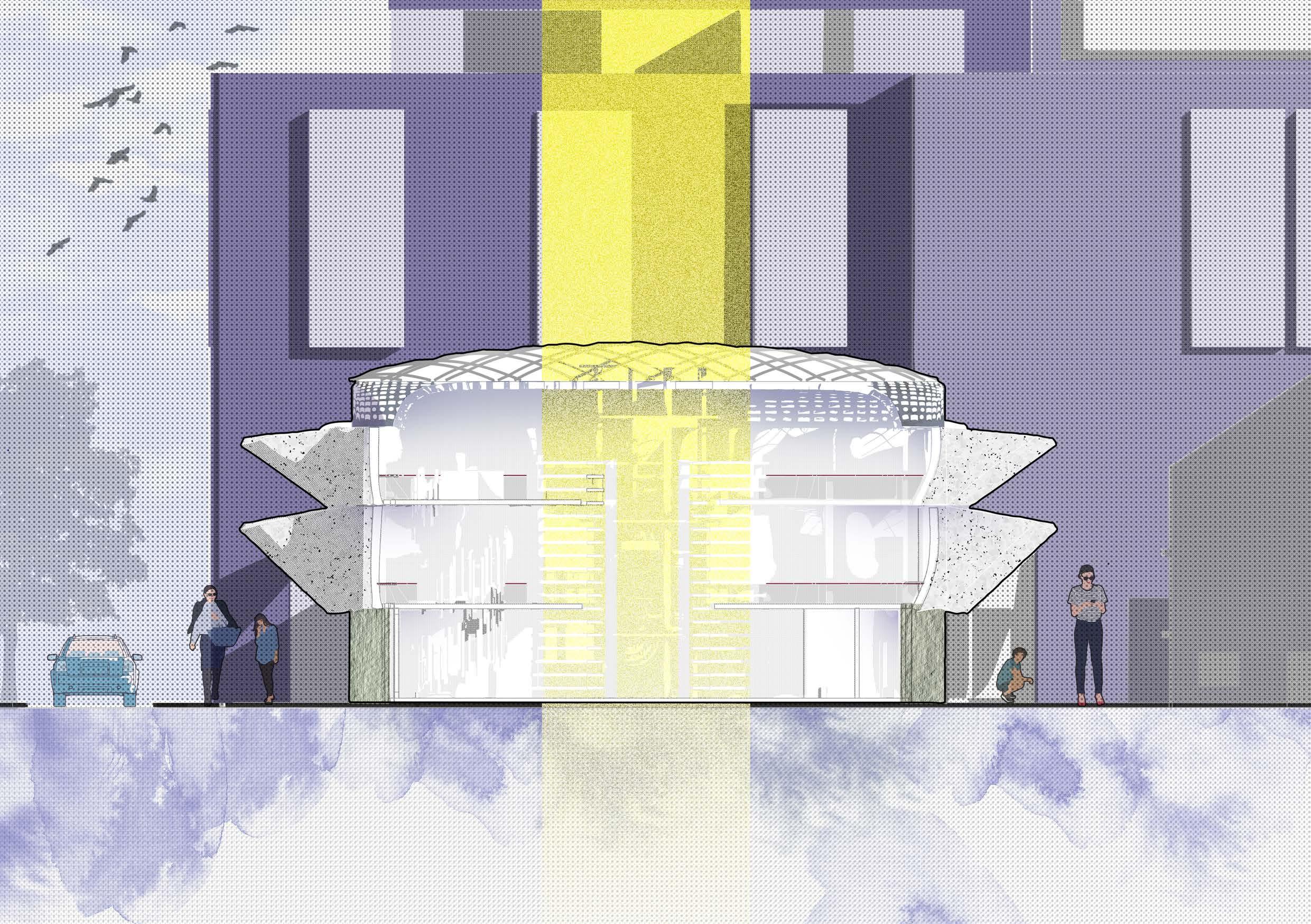

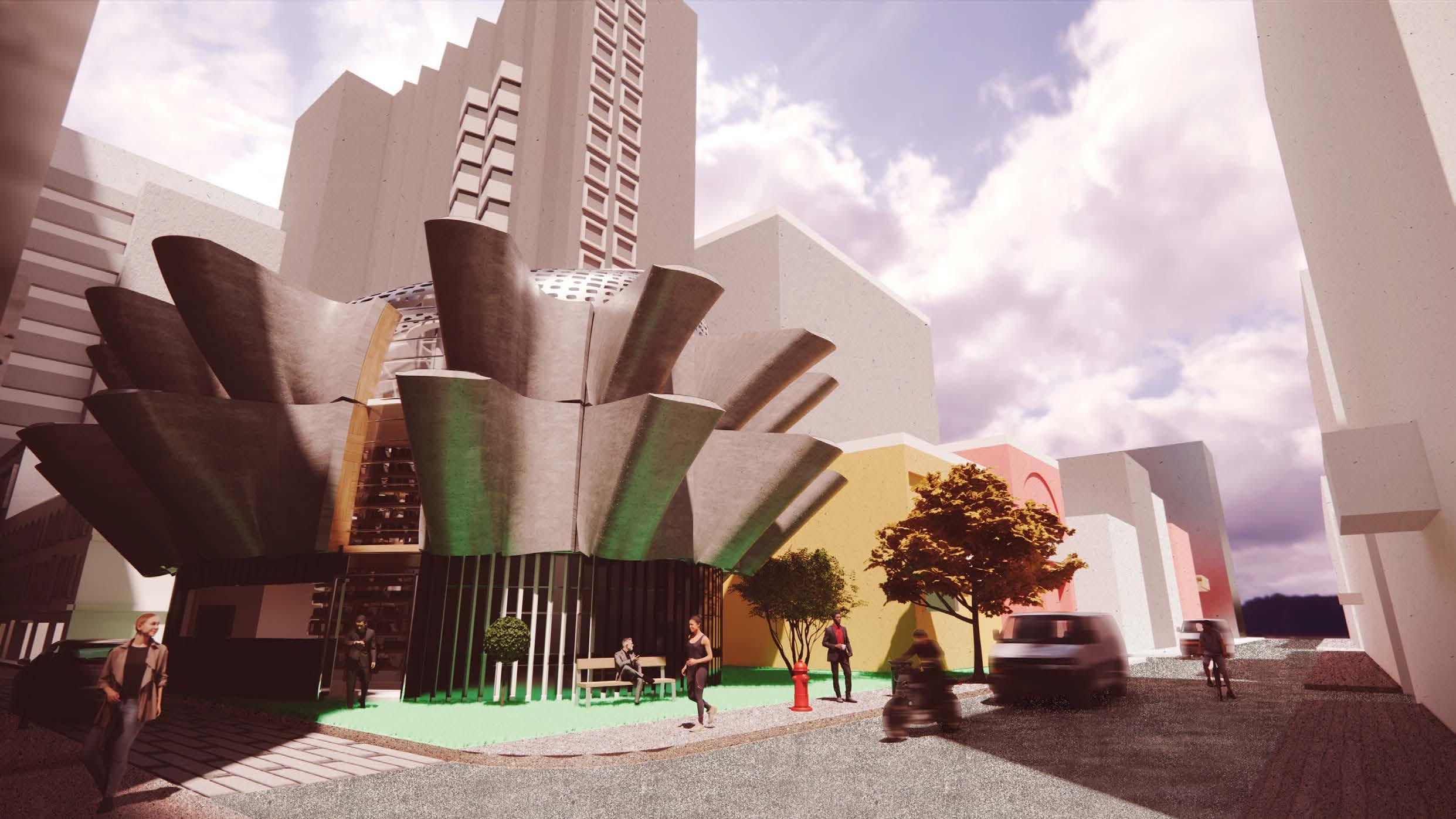

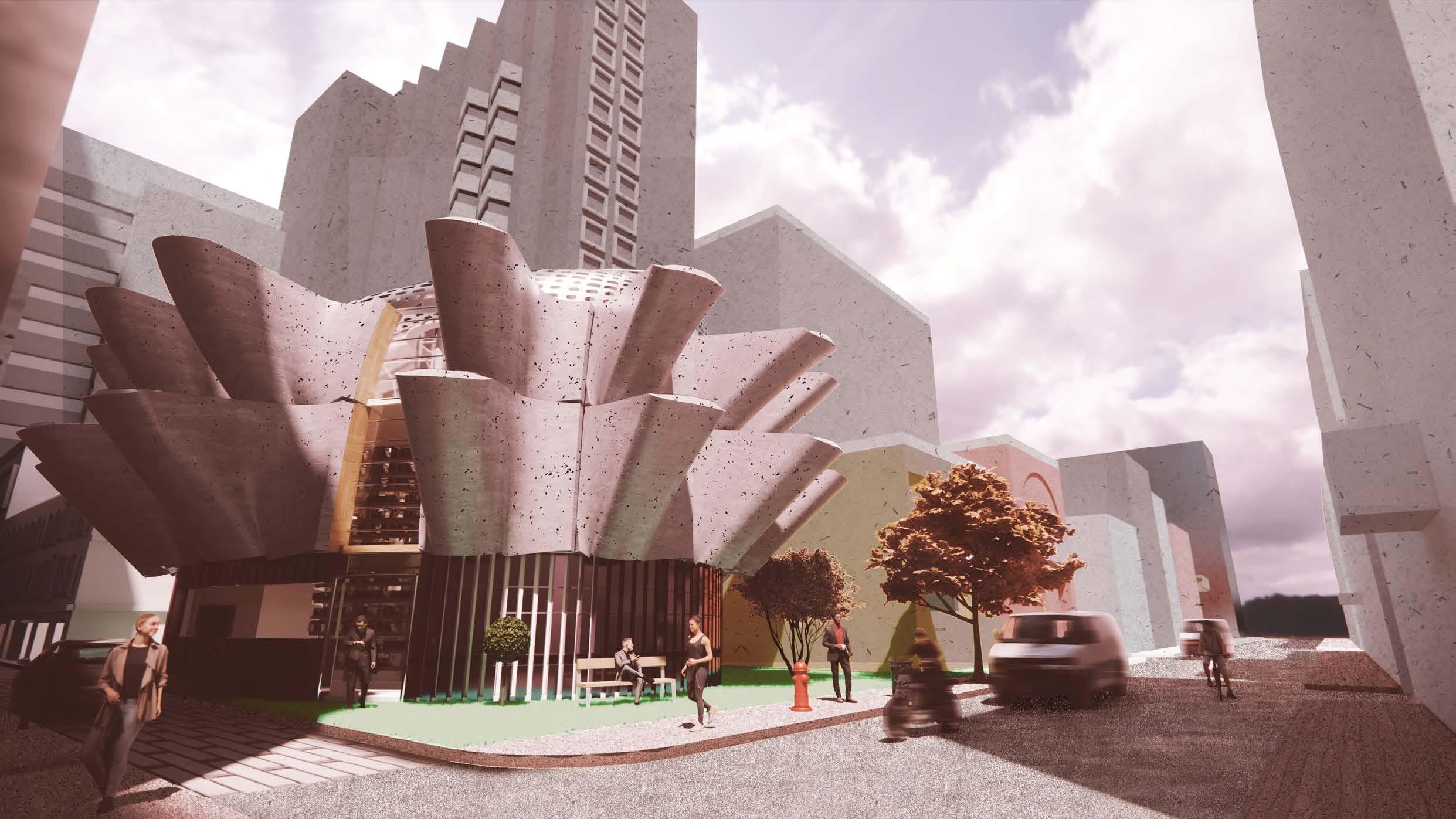

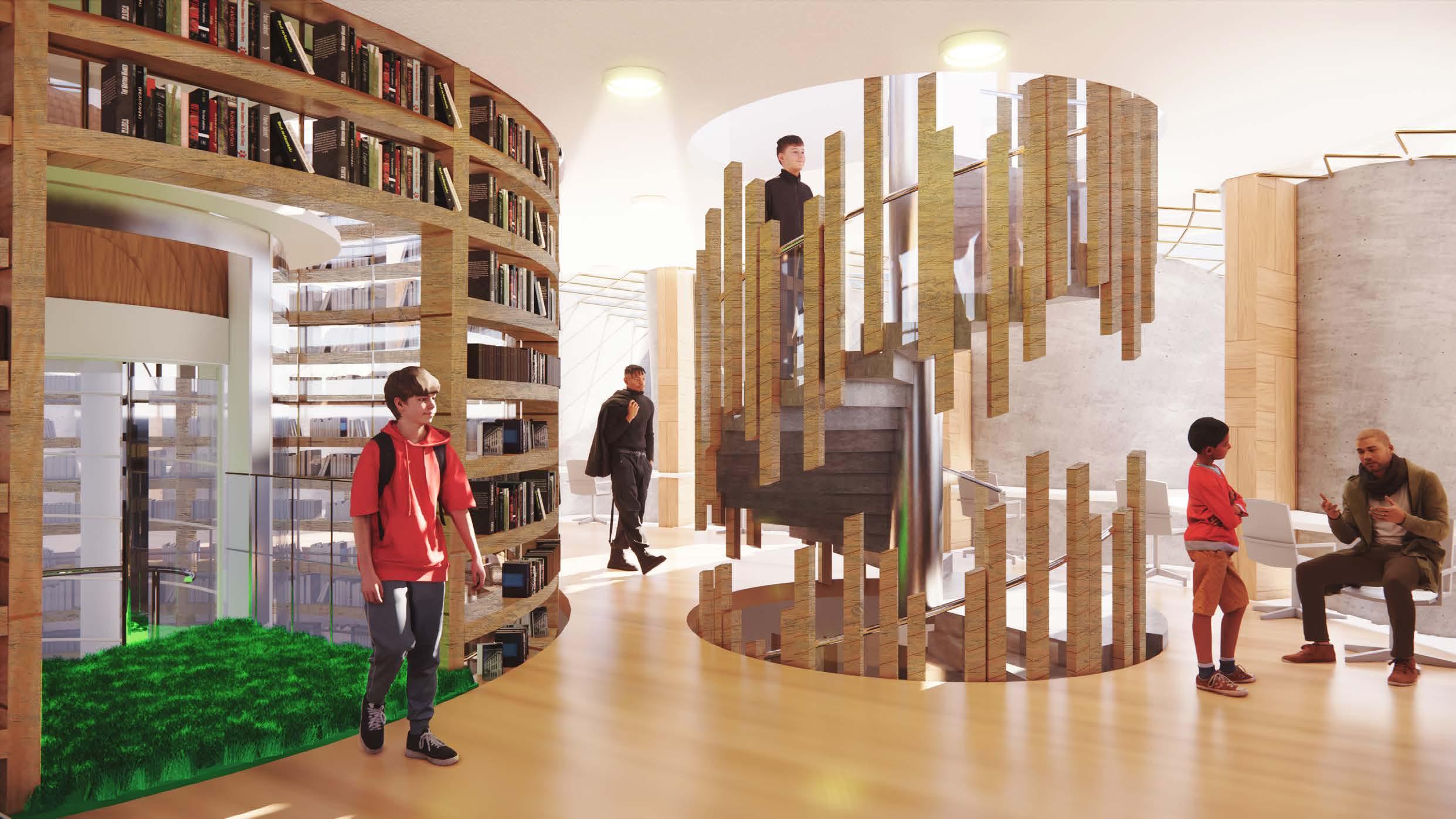

Exterior render
Original renders
Previous have beern improved on
_Color balance of the render photos
_Seperation between pavement and asphalt

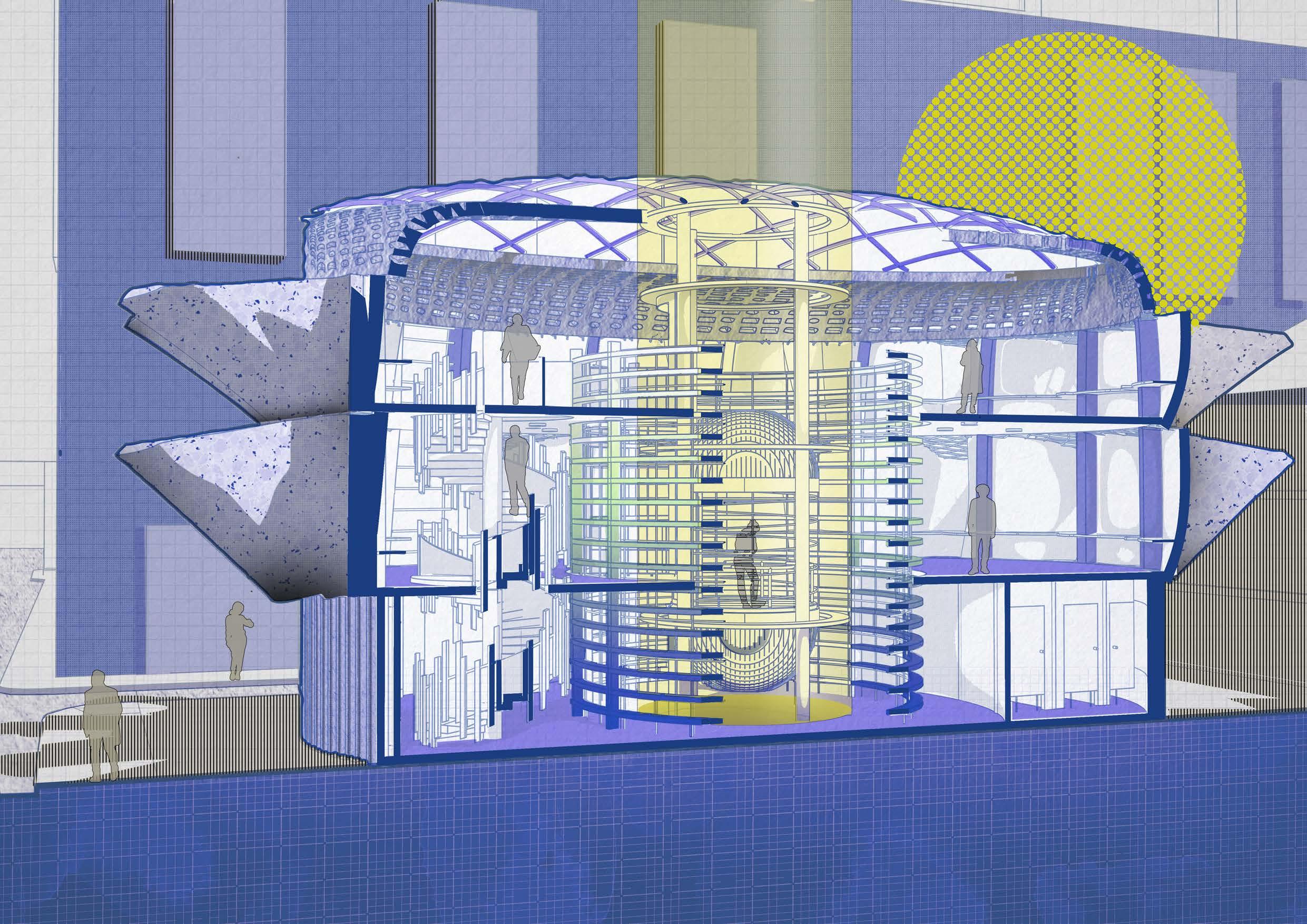

Textured Sectional Perspective

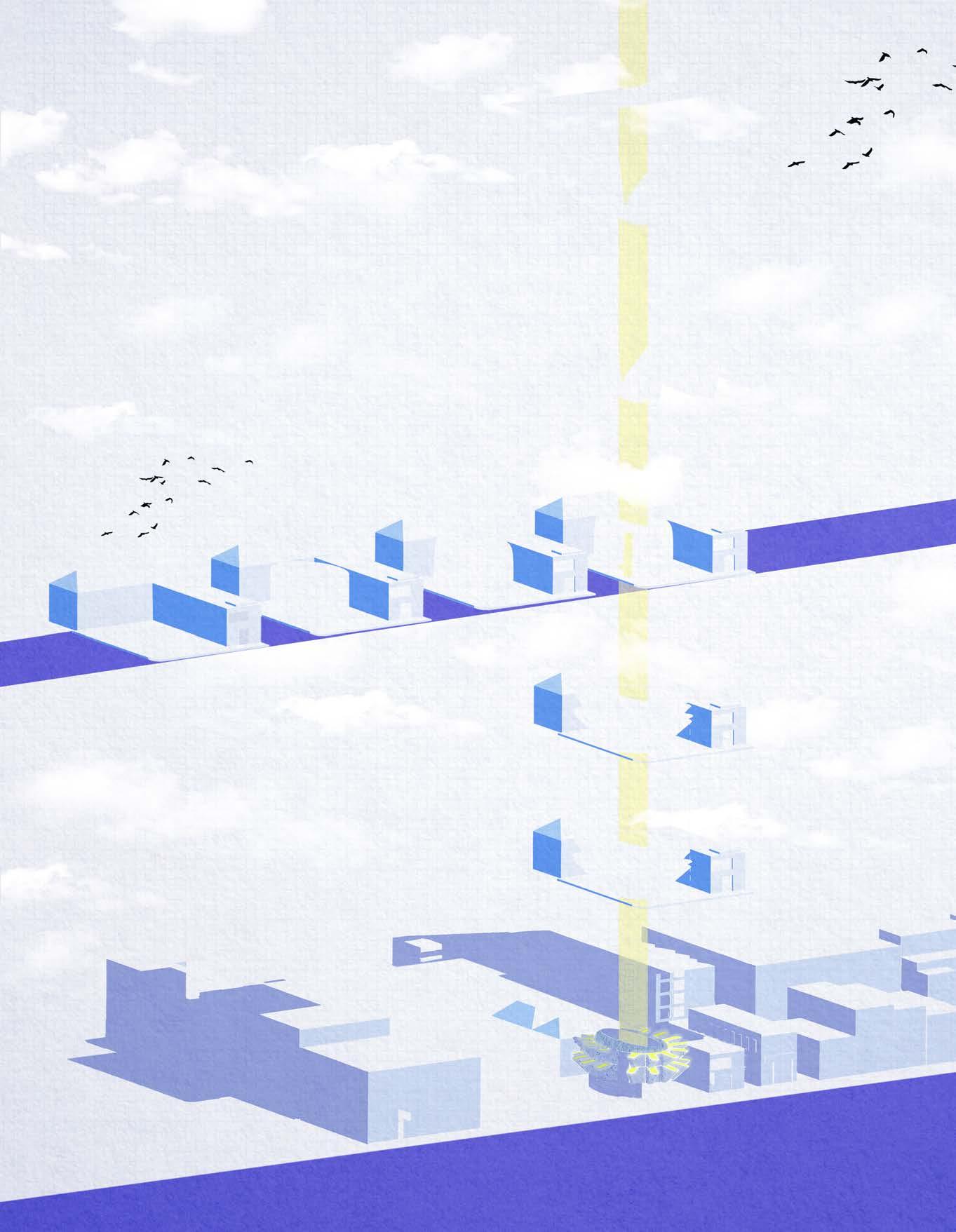

Parti Diagram

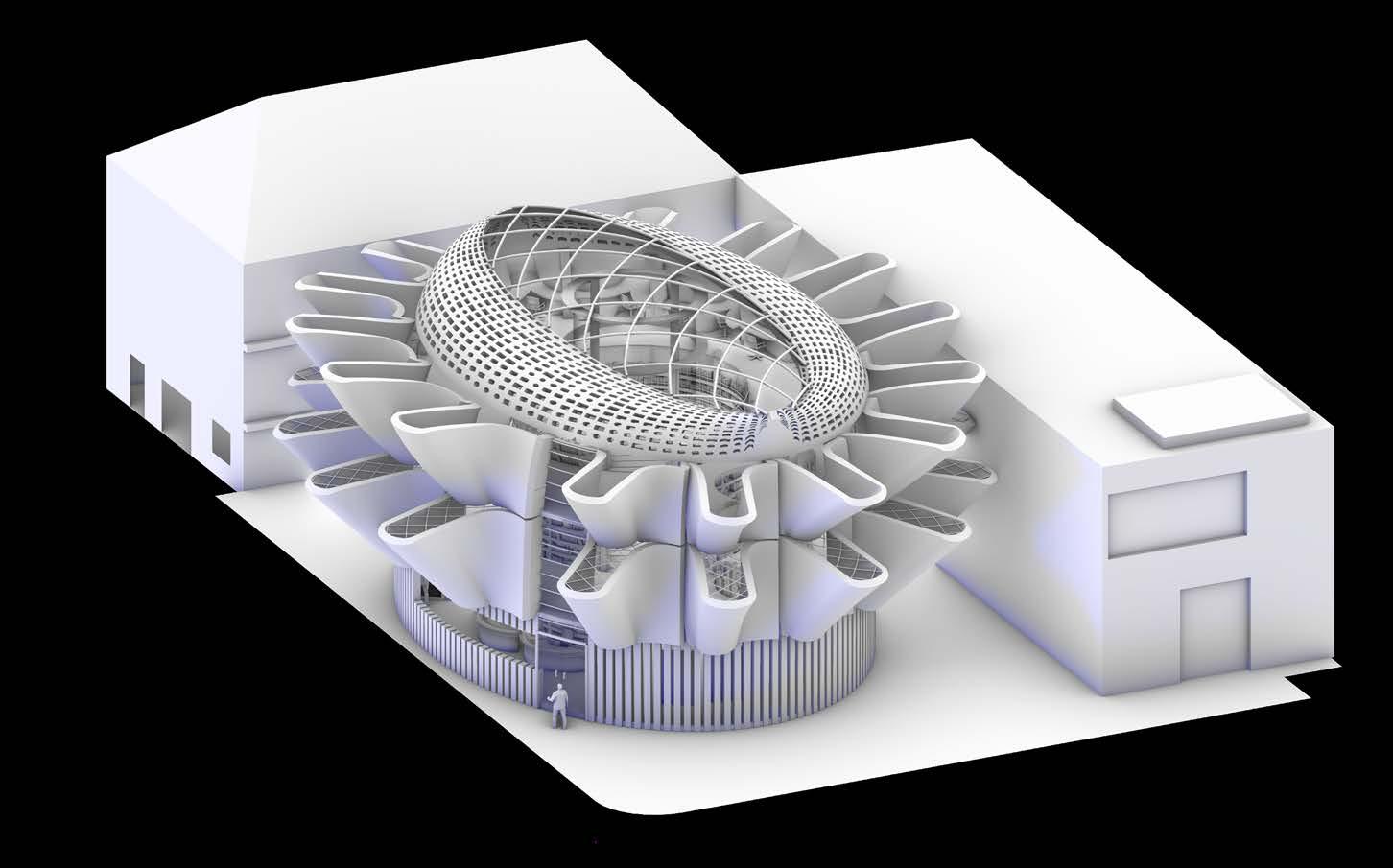

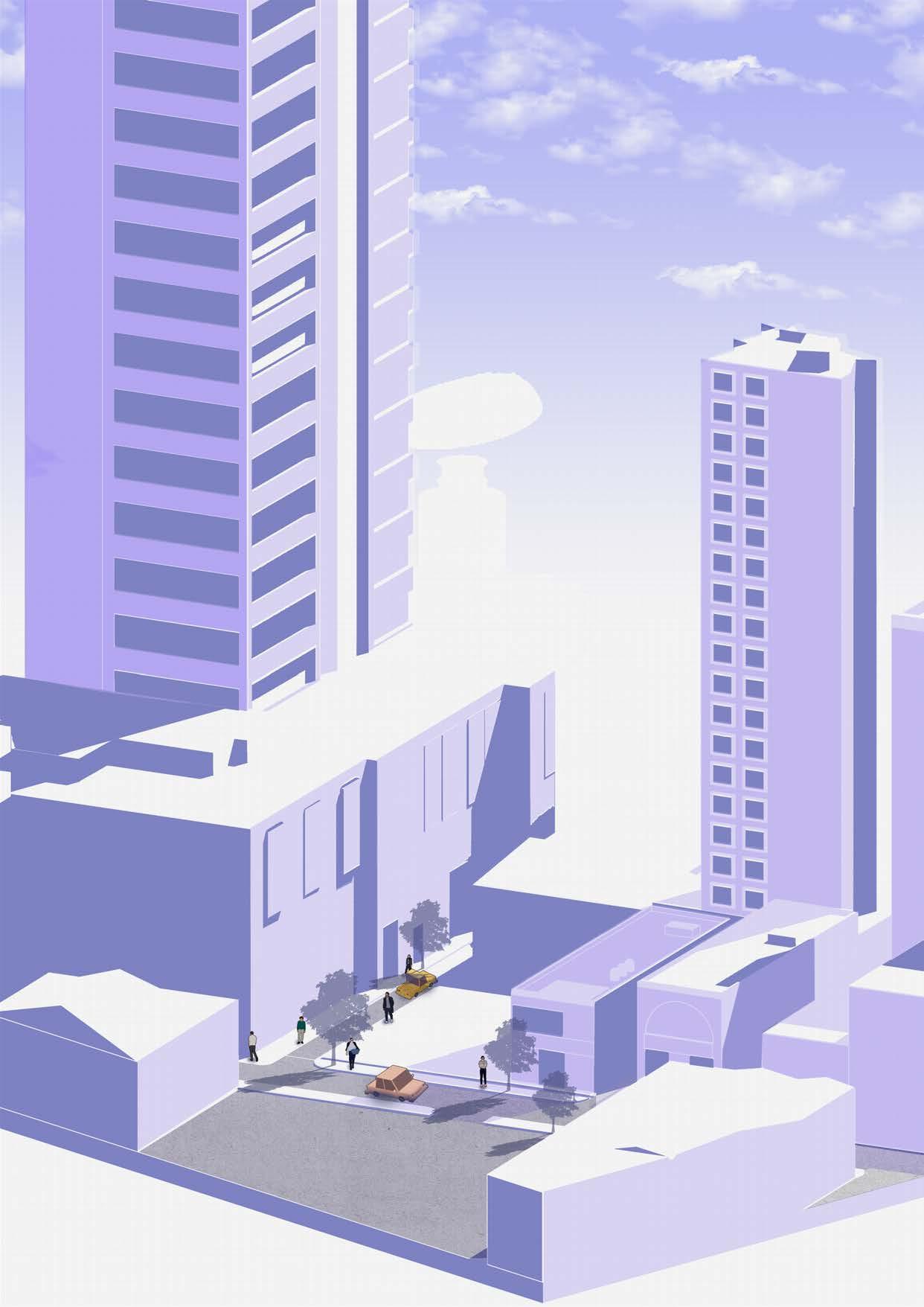

Axonometric
Original renders
Previous have beern improved on

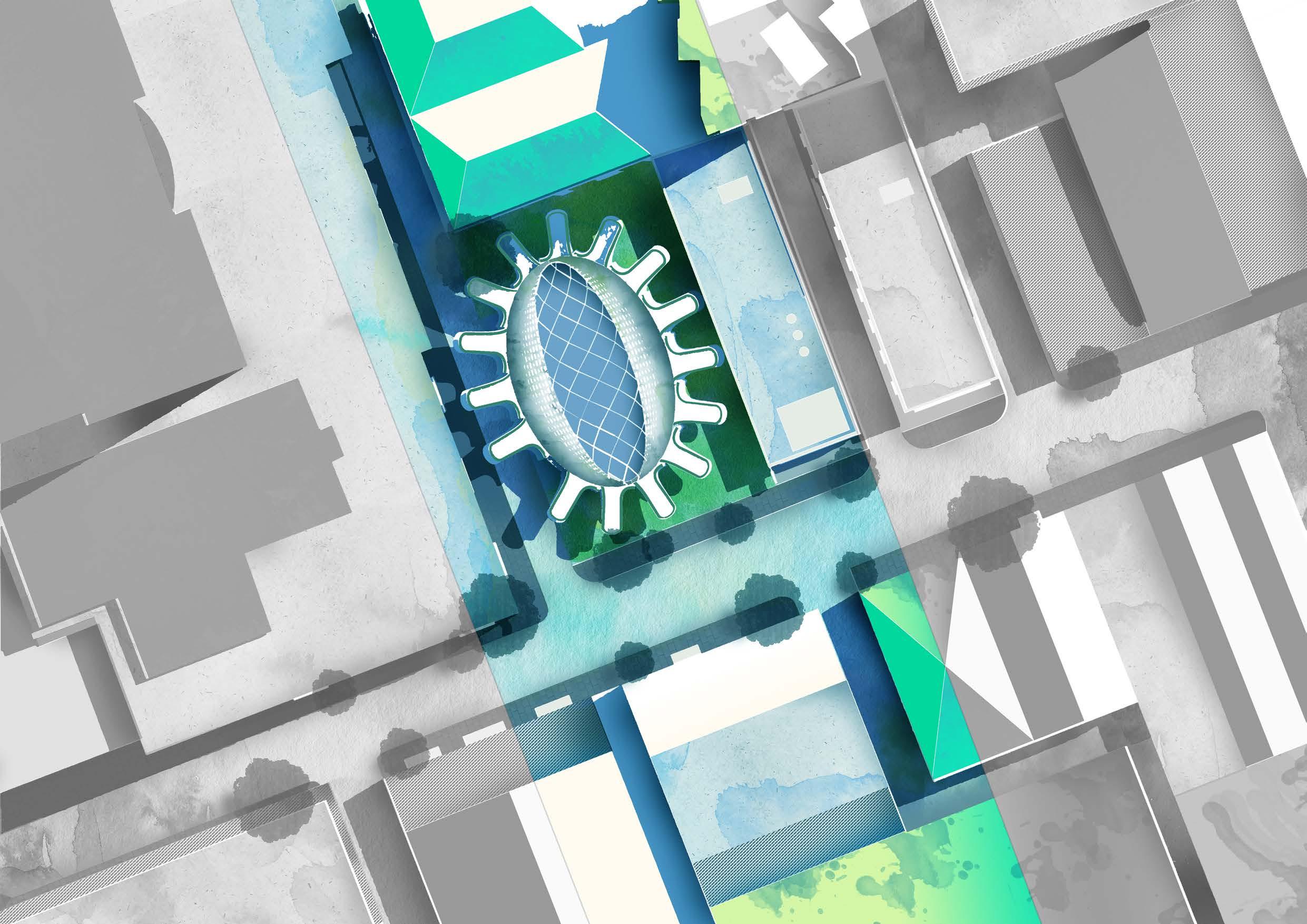

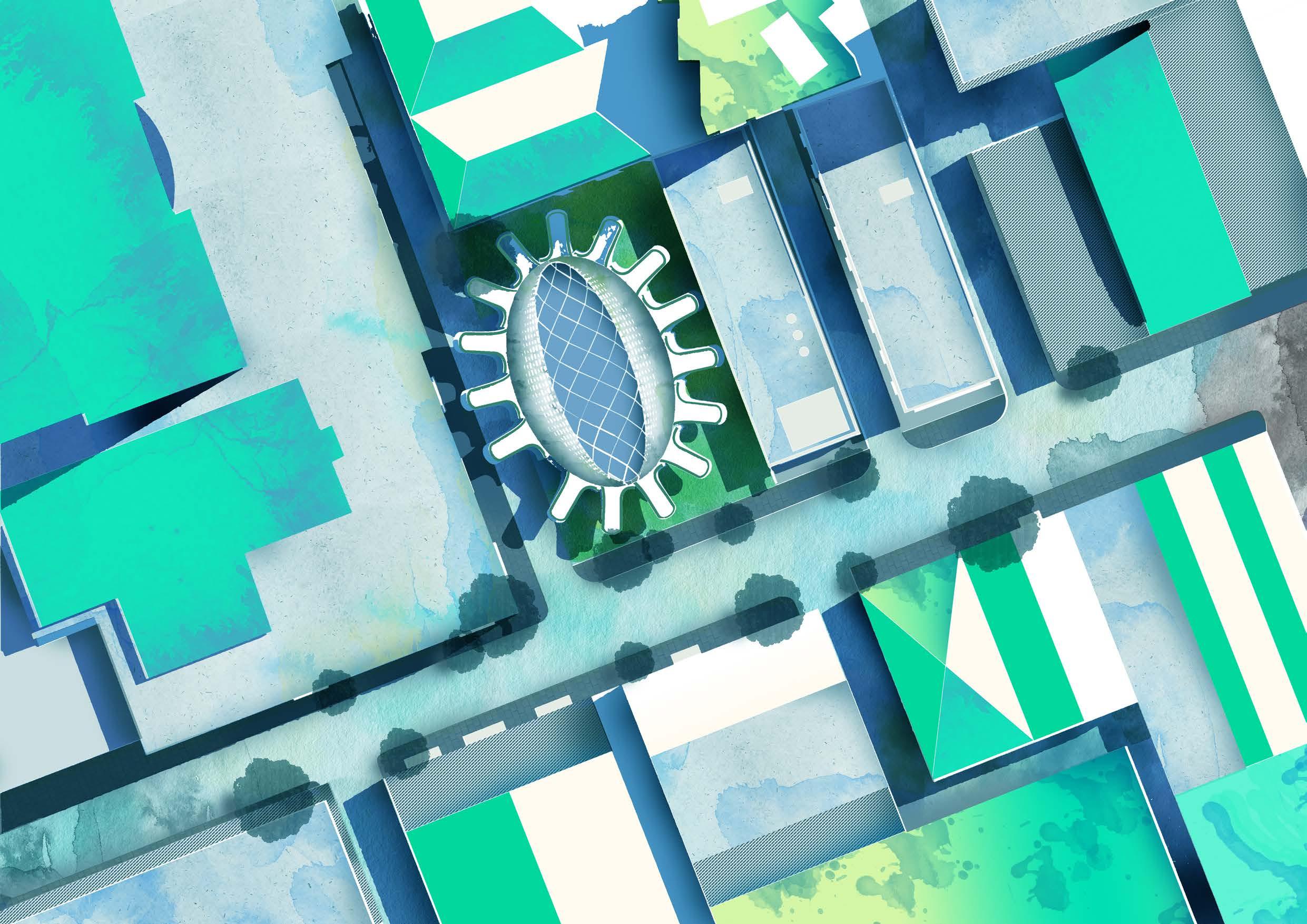

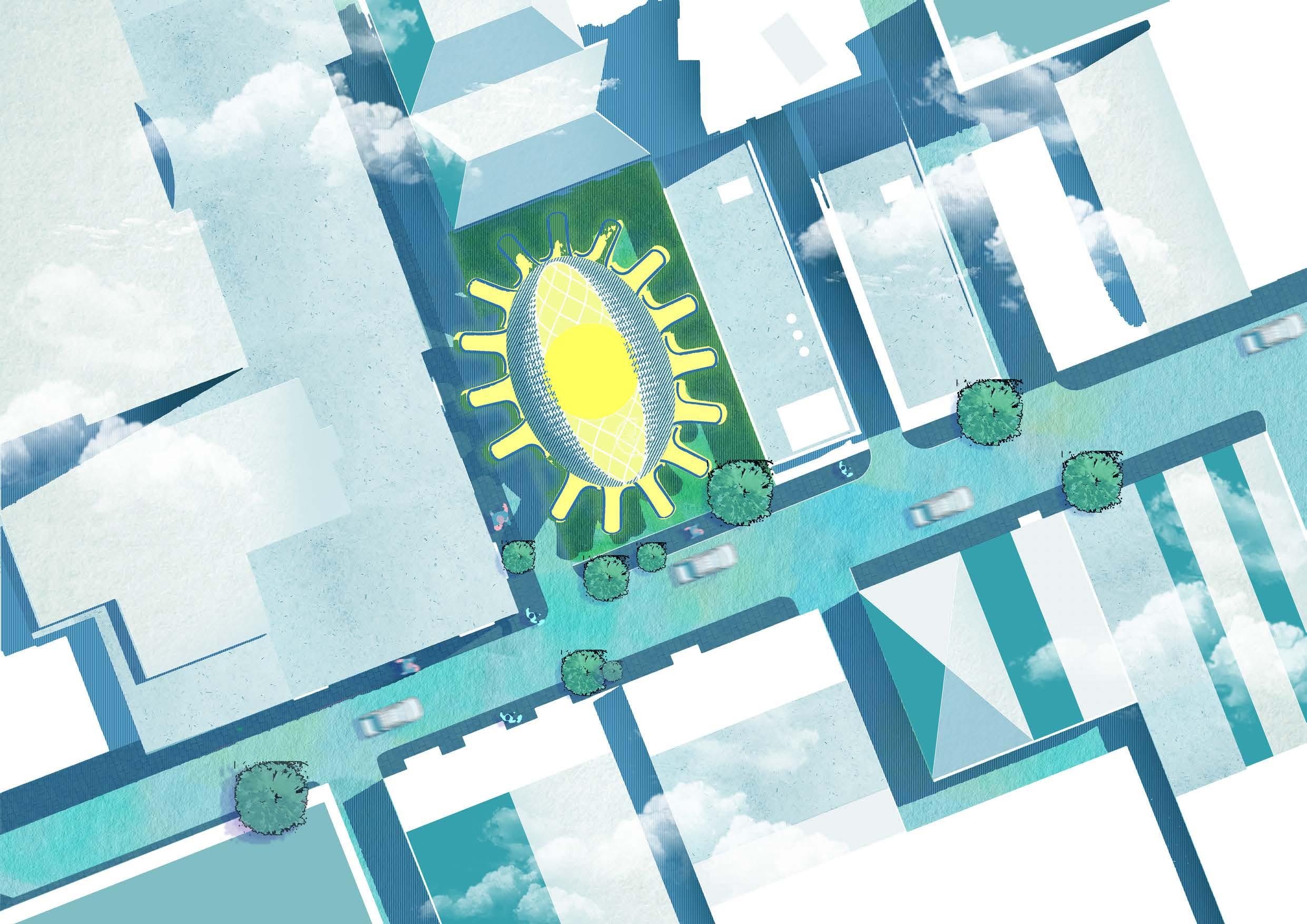

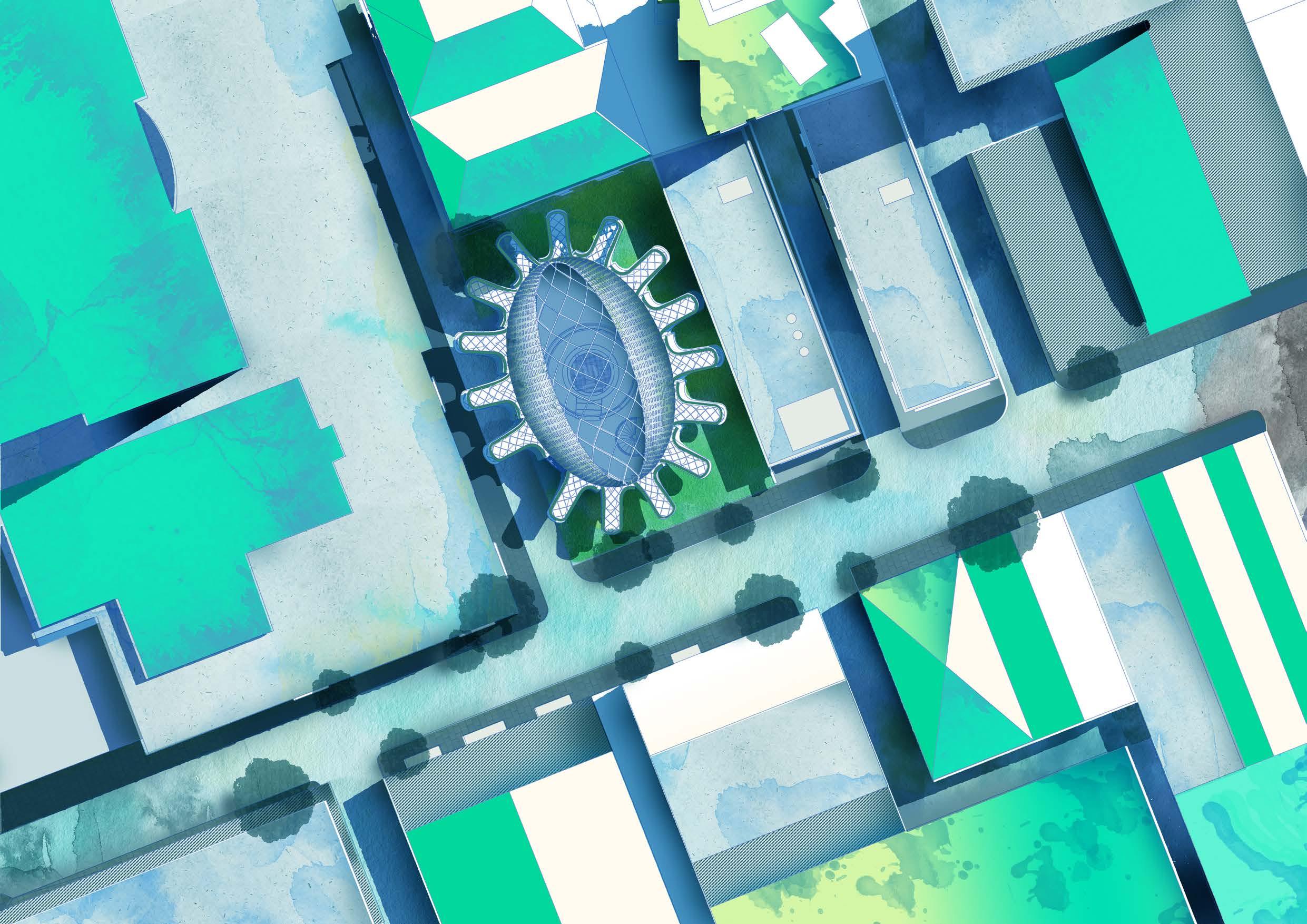

_Re-texture, desaturate site plan
_ Lineweight adjustment on detailed clumbing line
_Color adjustment to match the blue pallete
_Minor line fixes and texture adjustment on the axonometric
Although having a such complicated design, it was opportunity of learning and drawing experience for my future study
