Swampfox Optics 2024 Catalog

2024 PRODUCT CATALOG

34 SCREW PACK

34 IRONSIDES SHIELD

34 PICATINNY MOUNT

35 REBEL RISER

35 REBEL OFFSET

35 OUTLAW MOUNT

36 INDEPENDENCE MOUNT

36 FREEDOM MOUNT

36 HOSTILE ENGAGEMENT MOUNT

37 FREEDOM RINGS II

37 SUNSHADE

37 HONEYCOMB

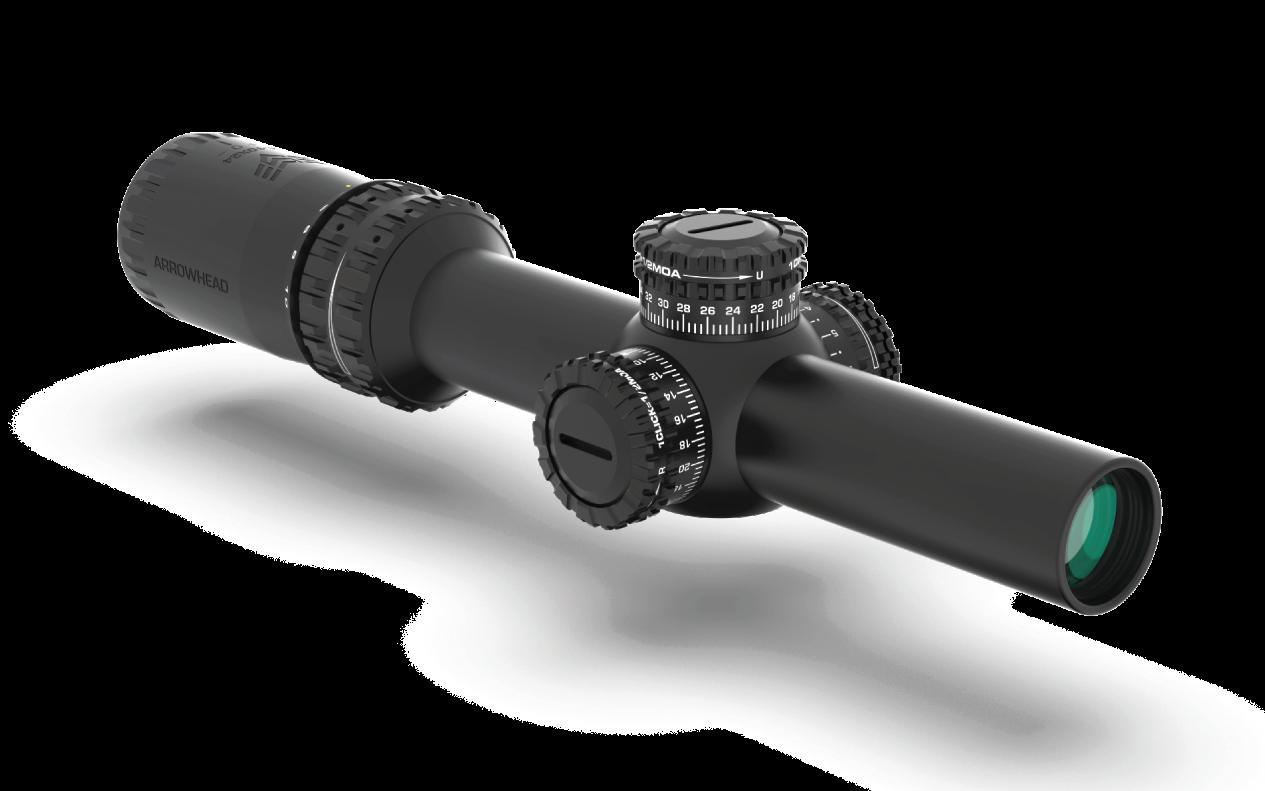

LOW POWER VARIABLE OPTICS

Combining speed and precision with variable medium range magnification, LPVOs are the foundation of Swampfox Optics. Reflecting demands of modern riflemen, new Tomahawk II has sharpened its feature set with a push/pull locking elevation turret, capped windage turret, and second focal plane Bright Fiber Optic (BFO) reticle. The first of our premier FFP series, new Warhorse 1-6x delivers ultimate performance with edge-to-edge clarity and rapid target acquisition across magnification.

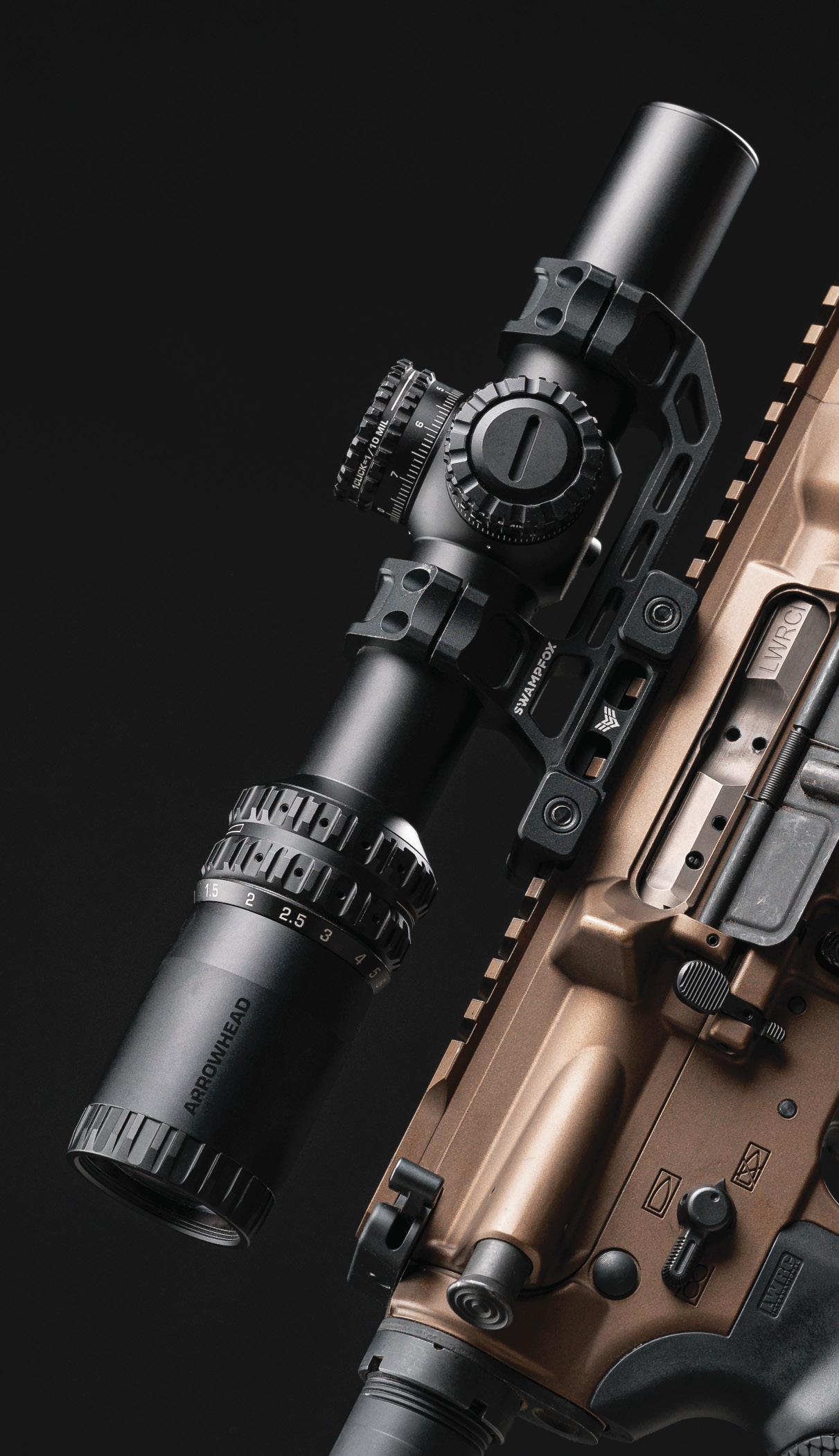

ARROWHEAD | SFP

Excellent in all applications, every quiver should include an Arrowhead LPVO. Push/pull locking turrets protect against unintentional adjustment while its 30mm tube and 24mm objective lens offers a wide field of view and sharp resolution. Arrowhead is available in three SFP reticles, each with 12 red or green illumination settings suitable for engagements in any light.

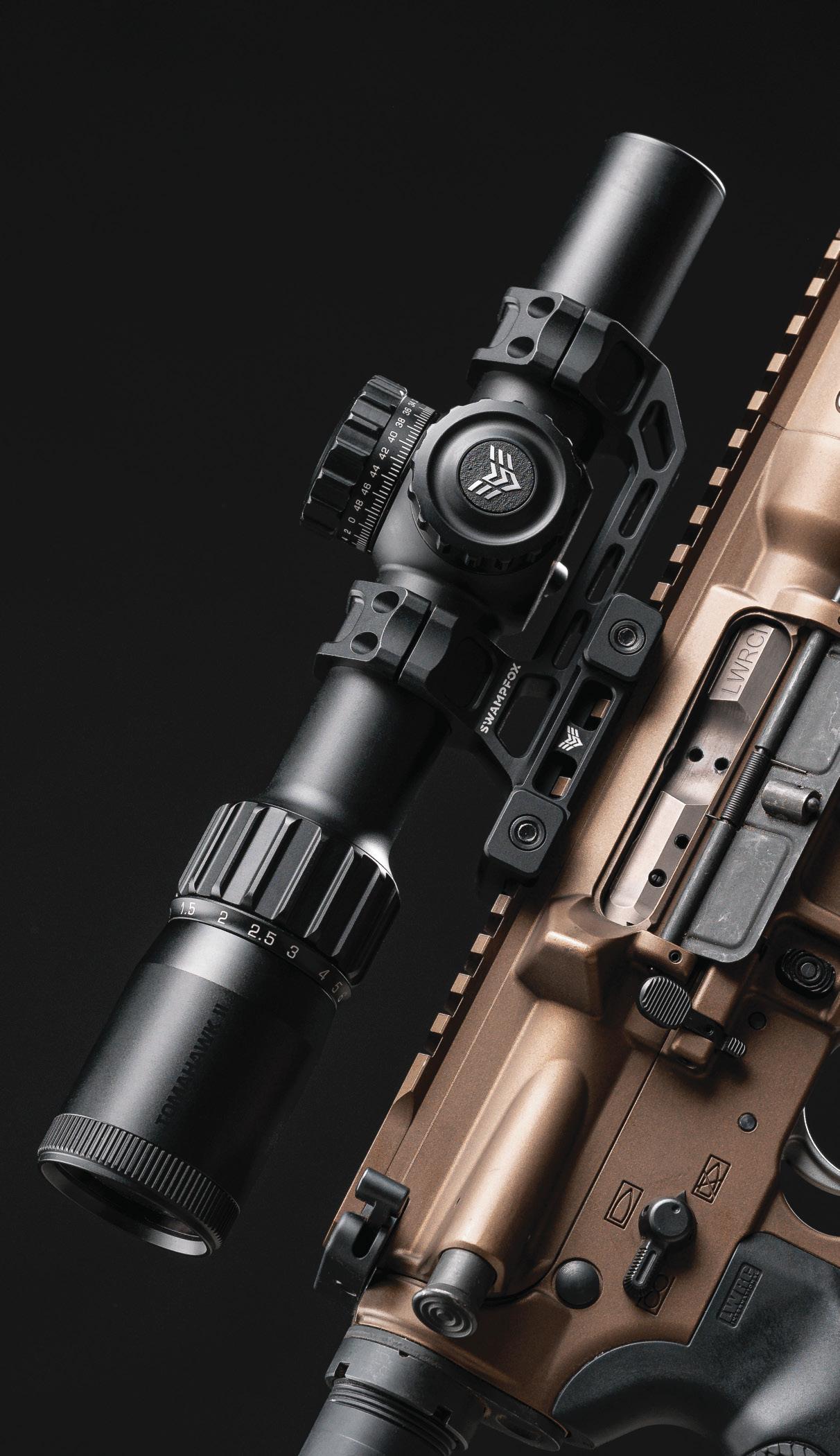

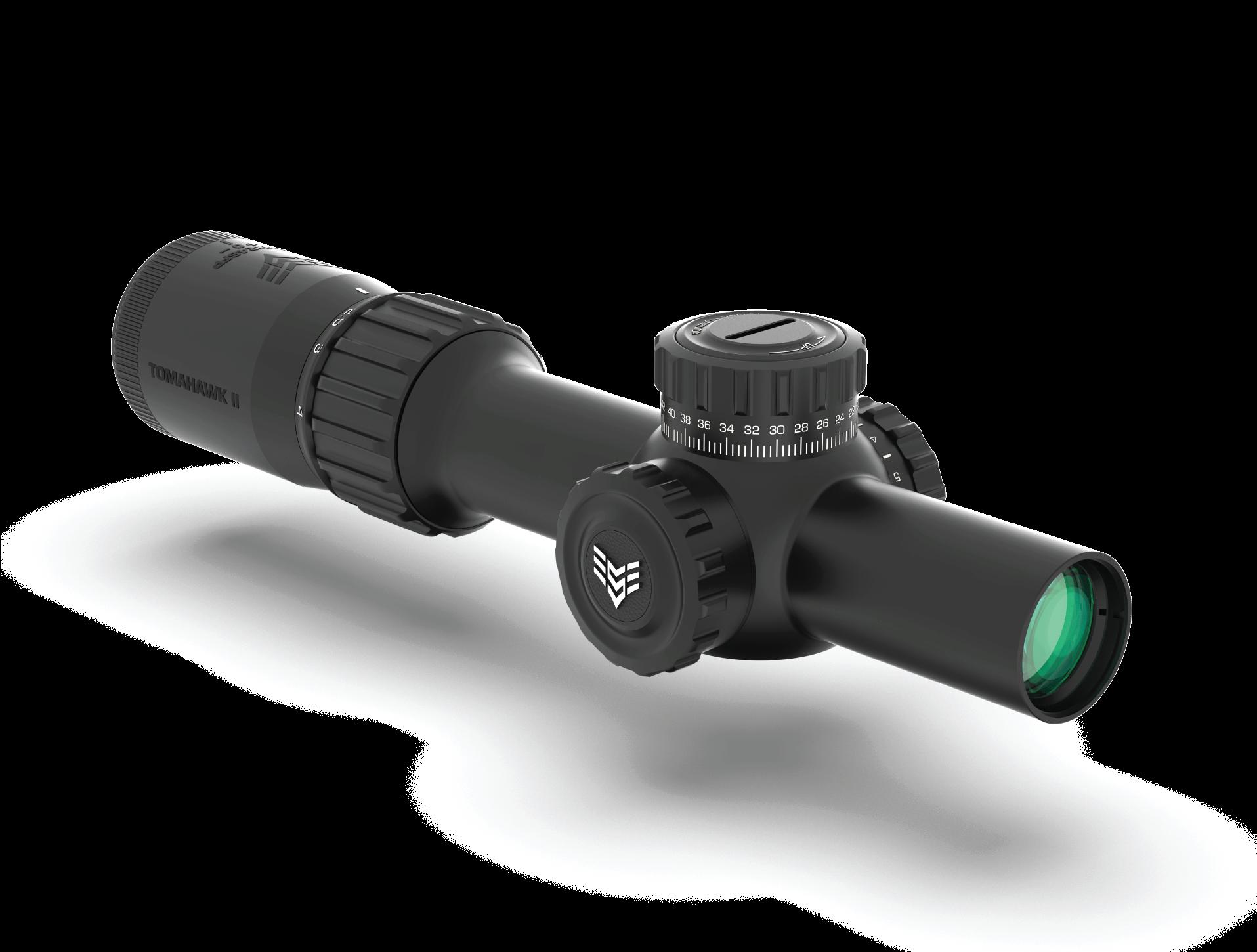

TOMAHAWK II | SFP

Built on the foundation of our original LPVO, Tomahawk II embodies user feedback with enhanced features, now offered in 1-4x24 and 1-6x24 and equipped with a Second Focal Plane (SFP) BDC or new fiber optic BFO reticle. Housed in a 30mm tube, Tomahawk II reflects the evolved preferences and needs of real-world shooters, marking a significant stride in our LPVO lineup.

1-6x24

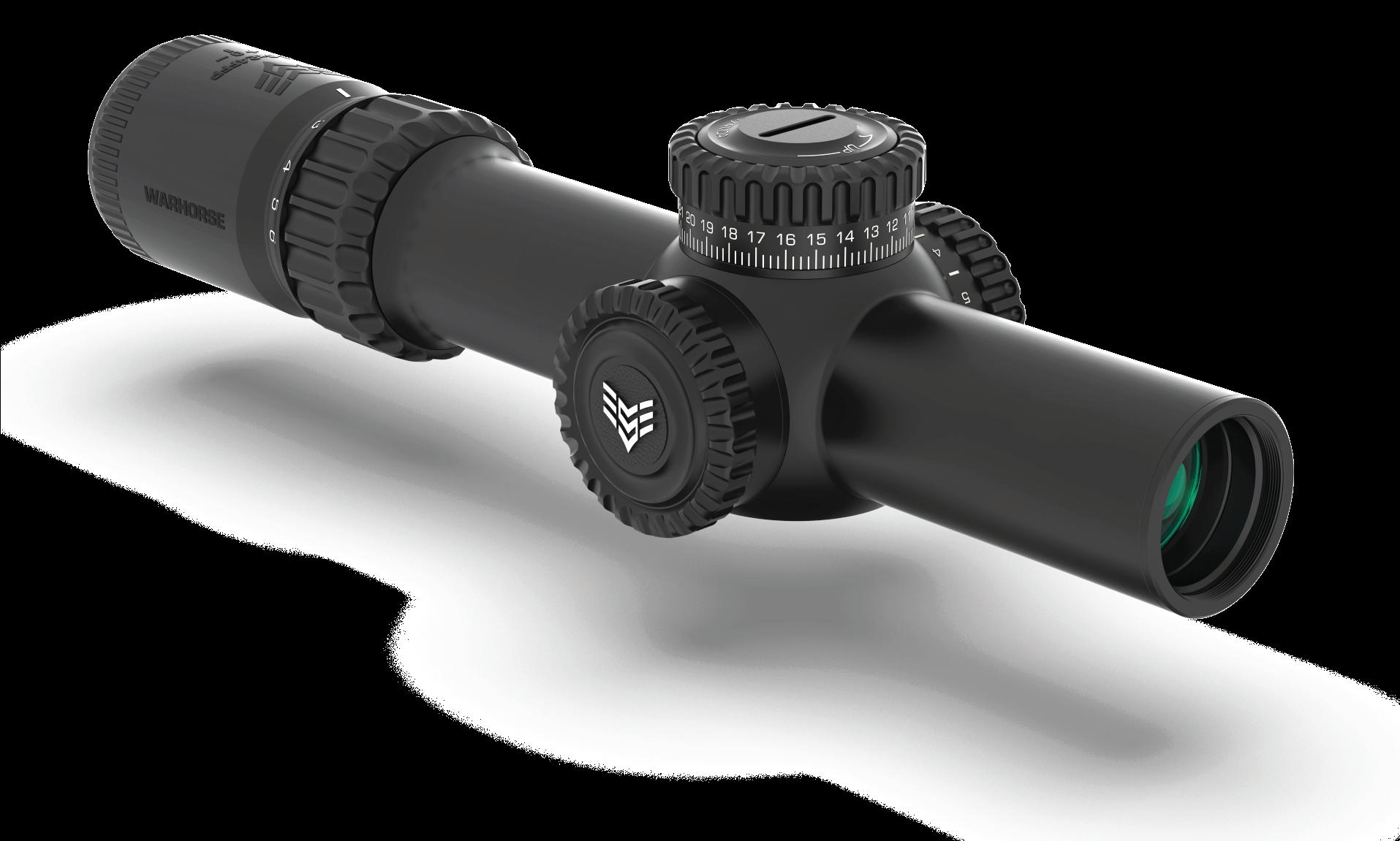

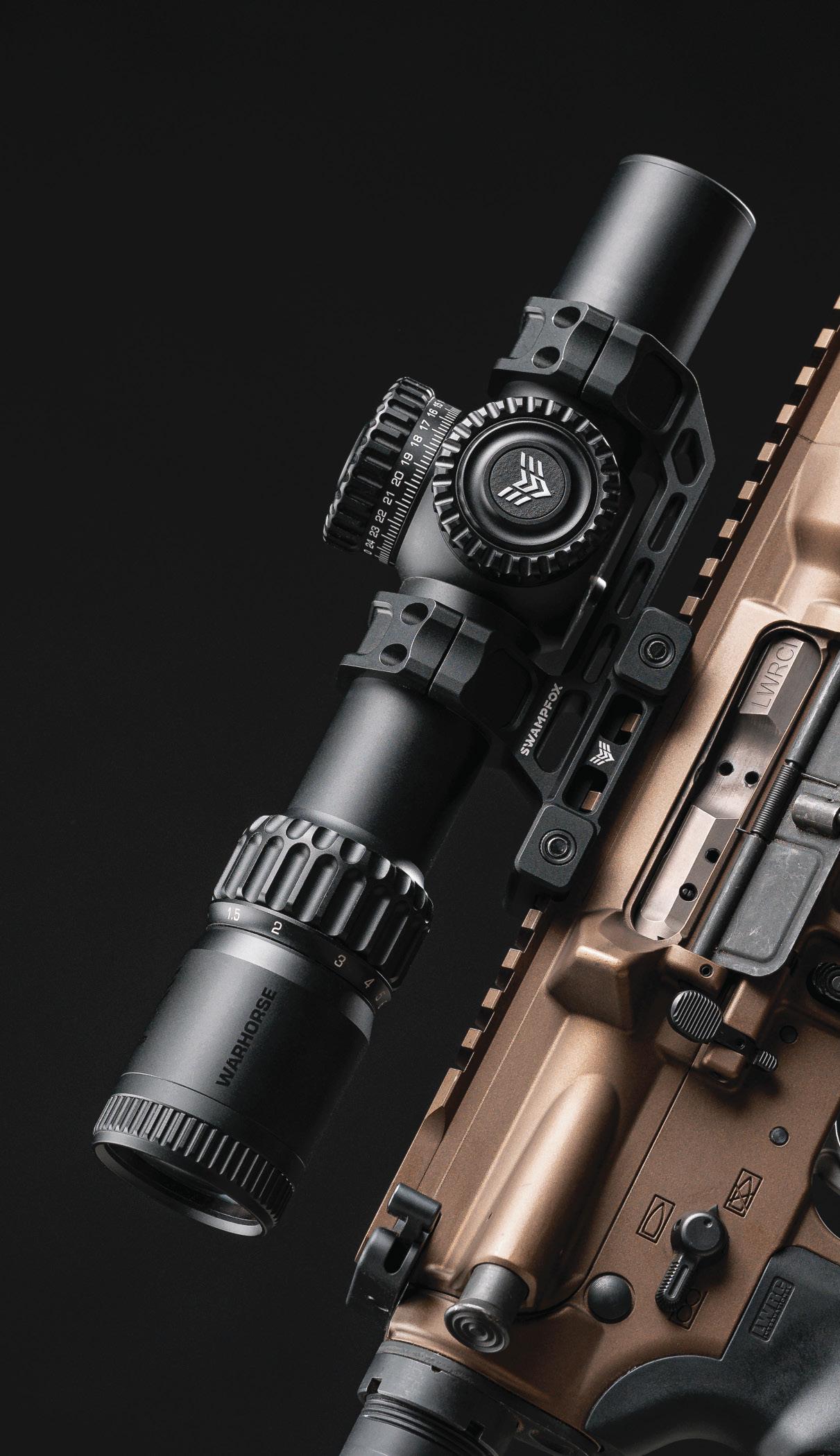

WARHORSE | FFP

The first of our premier first focal plane (FFP) LPVO series, Warhorse 1-6x combines speed and precision for any shooting scenario. Built on a 34mm tube with etched MOA or MIL reticle, Warhorse features a push/pull locking elevation turret, new capped windage turret, and 12-position illumination turret with intermittent off. Saddle up with the next evolution of Swampfox riflescopes.

DRAGOON MOA DRAGOON MIL

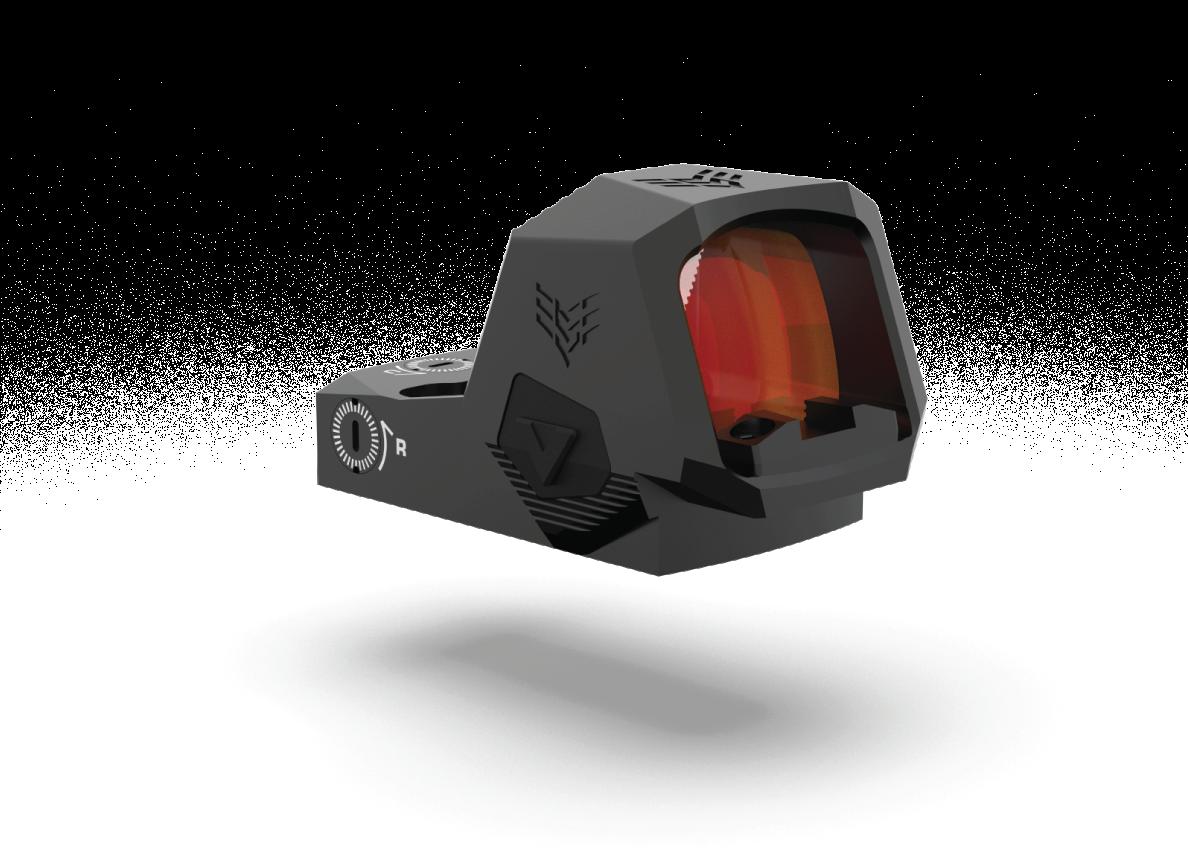

DOT SIGHTS

Meet the second generation of Swampfox dot sights designed for the next generation of shooters. New Sentinel II, Liberty II, and Justice II have been redesigned with larger windows, reinforced durability, brighter LED emitters, and patented features optimized for everyday carry and all-purpose, cross-platform versatility. We’ve also introduced our first red illumination multi-reticle, expanding functionality of Liberator II and others with four distinct reticles for personalized precision.

1x20 DOT SIGHT

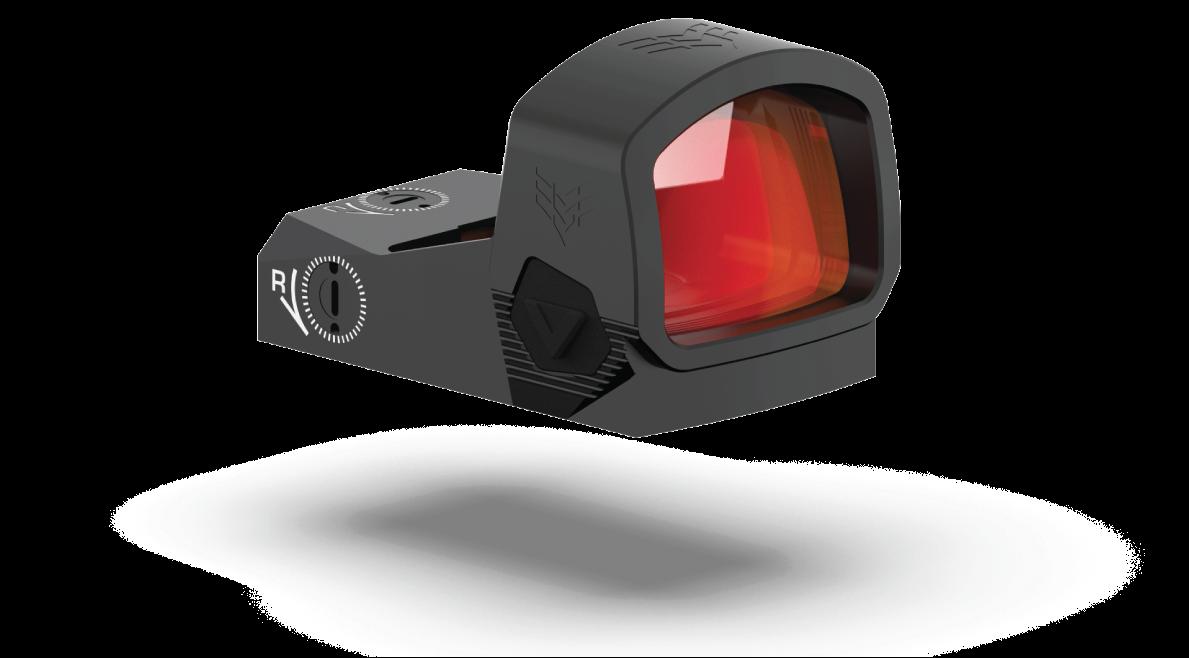

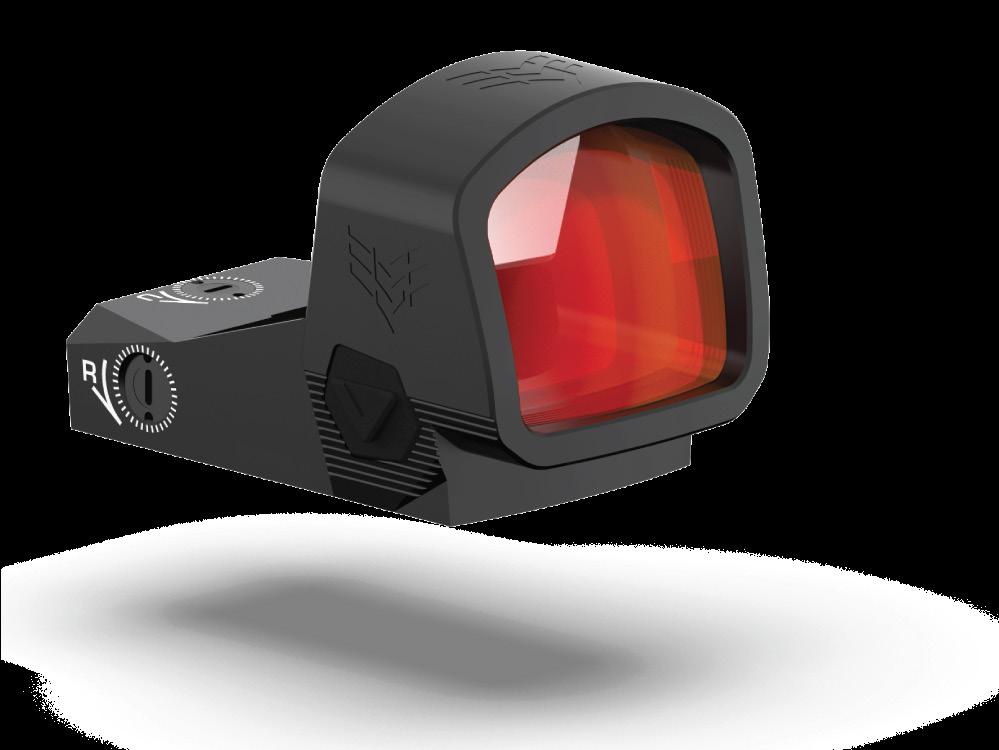

SENTINEL II

RMSc

UP TO 50,000 HOURS BATTERY LIFE

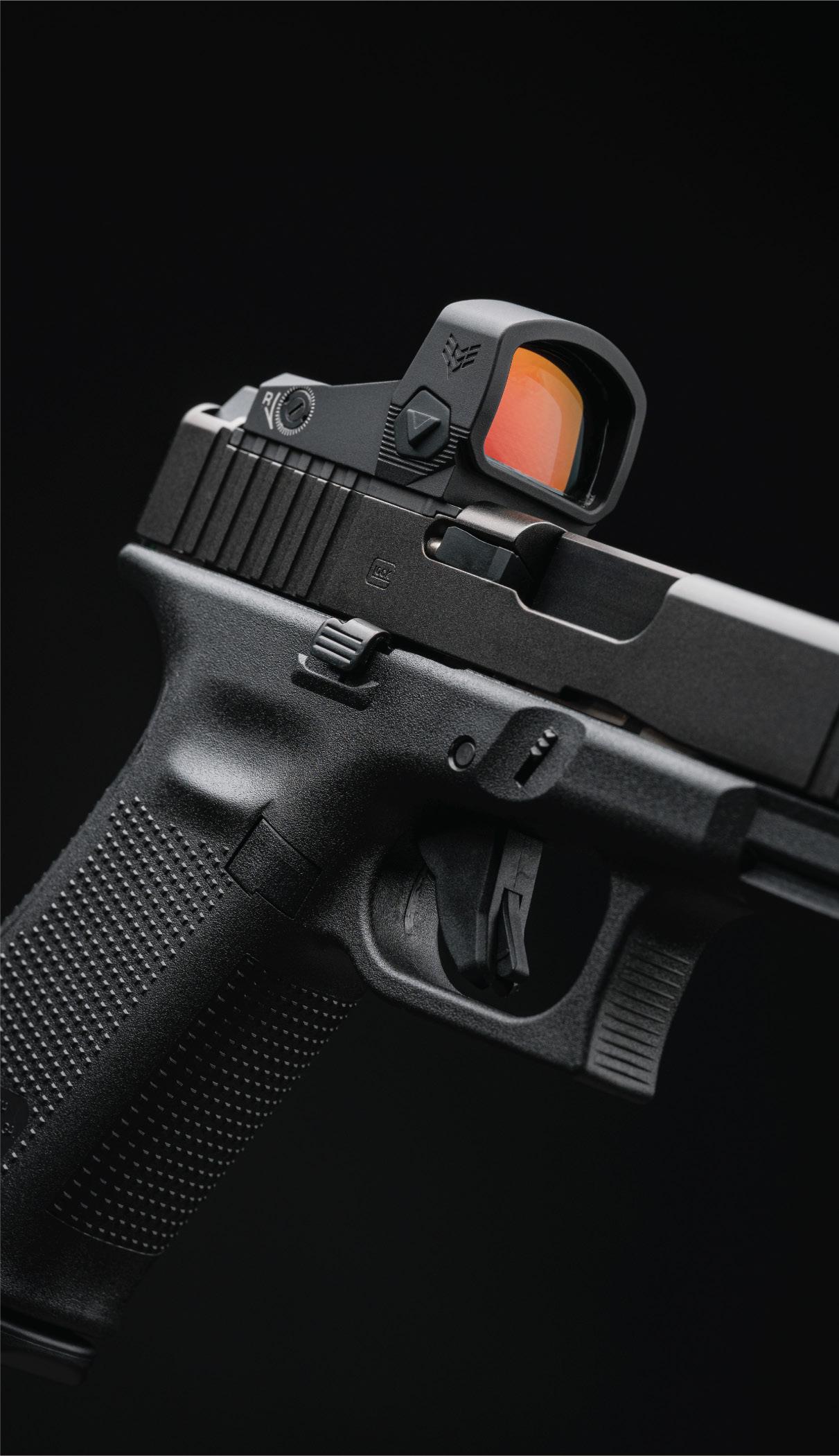

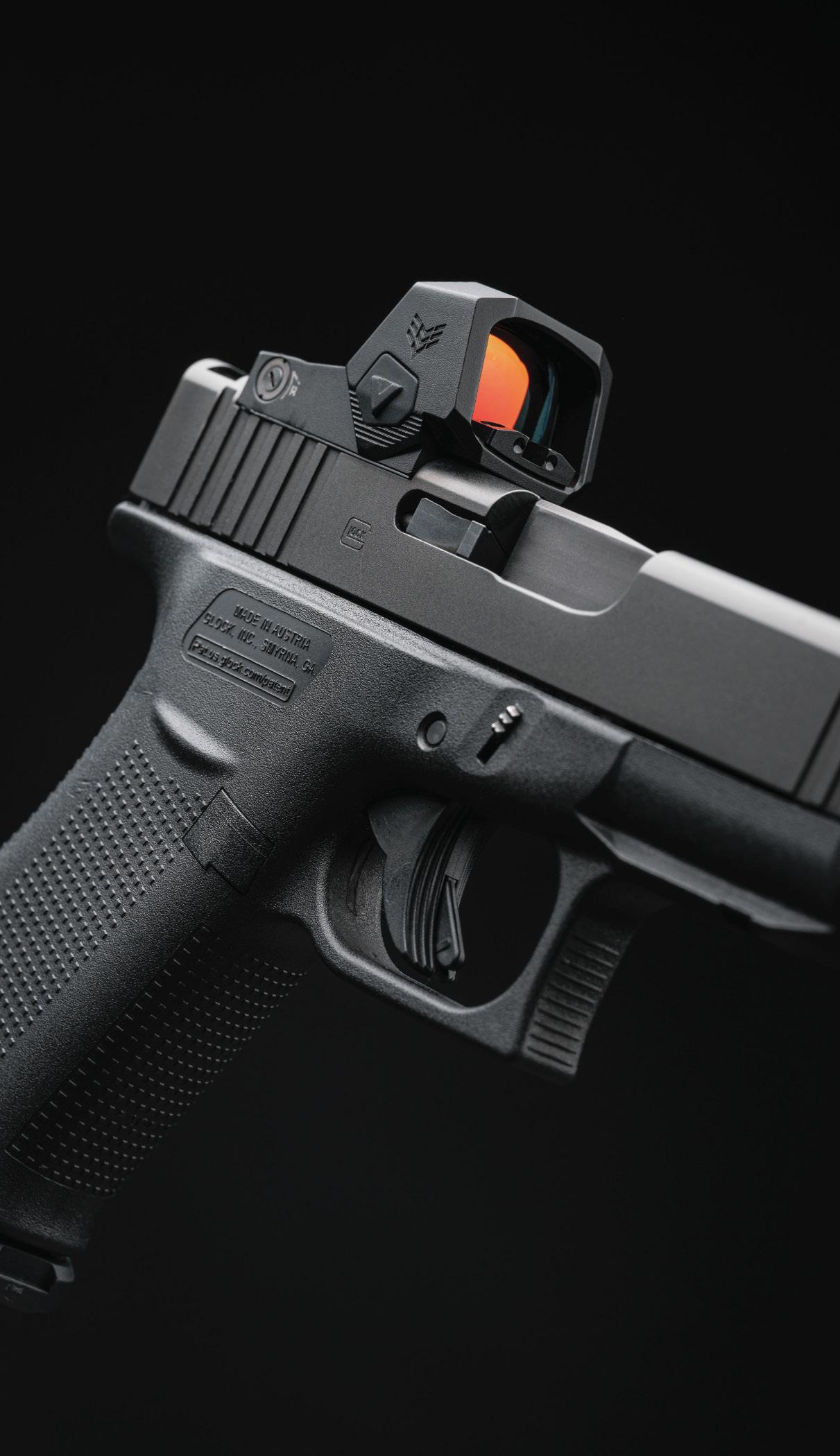

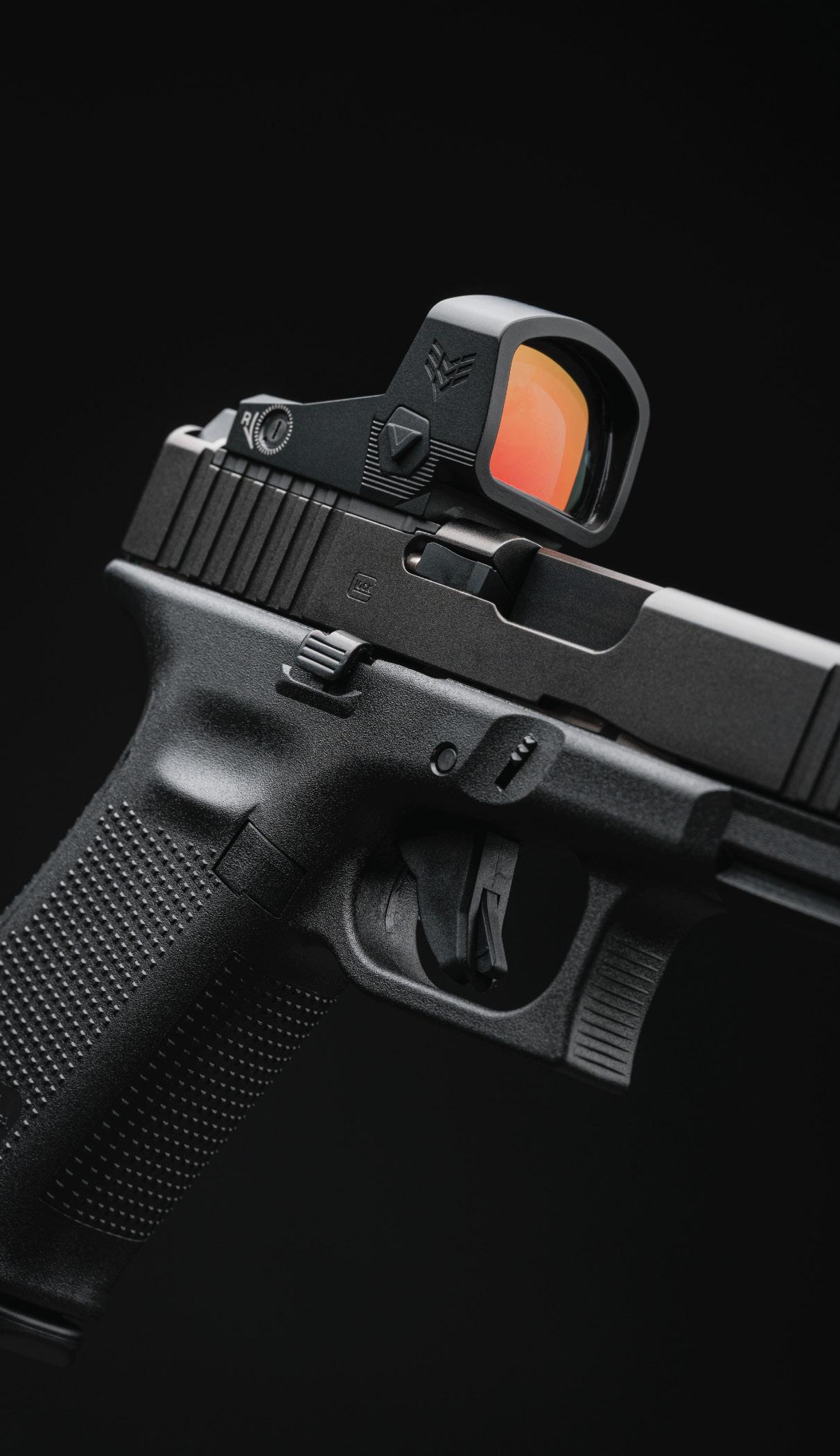

Engineered for carry, Sentinel II is a slimline micro dot built on an RMSc footprint. It maintains a 3 MOA dot in red or green illumination on a larger 20mm window for increased visibility and features a patented removable rear sight guide for pistols lacking rear irons. A recessed hood and Shake N’ Wake auto on/off ensure everyday durability and grab-and-go readiness.

1x30 DOT SIGHT RMR

JUSTICE II

Ready to compete, Justice II boasts a massive 30mm window and 6 MOA red or green dot or new multi-reticle to maximize speed and precision. Its standard RMR footprint optimizes platform compatibility while 10 brightness settings complement reticle clarity indoors and outside. Crafted from 7075-T6 aluminum, Justice II is built to win against any competition.

LIBERTY II

1x24 DOT SIGHT RMR

Bigger and better, Liberty II features a larger 24mm window with red and green 3 MOA dot or new multi-reticle option. Ten illumination settings cater to any lighting condition while Shake 'N Wake auto on/off ensures anytime readiness. Its 7075-T6 aluminum construction and universal RMR footprint make Liberty II a rugged optic adaptable to platforms beyond pistols.

3 MOA

1x16 DOT SIGHT

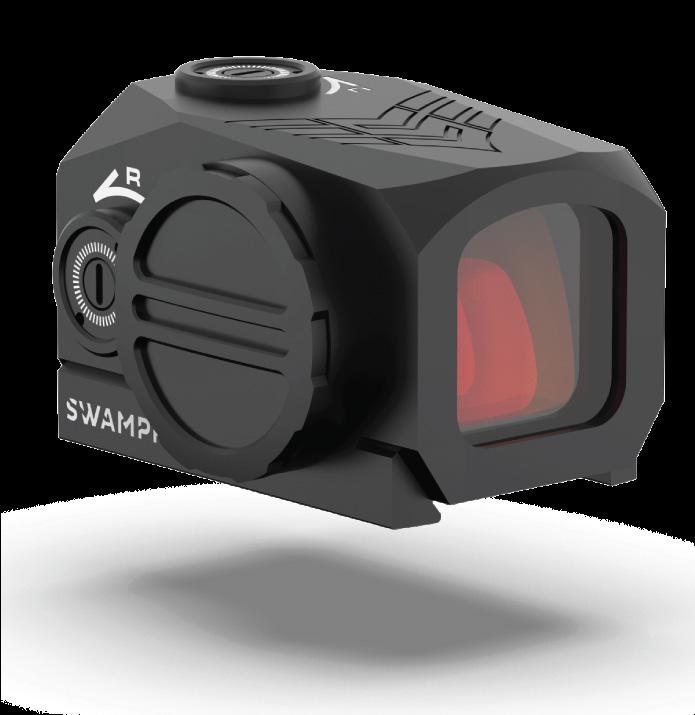

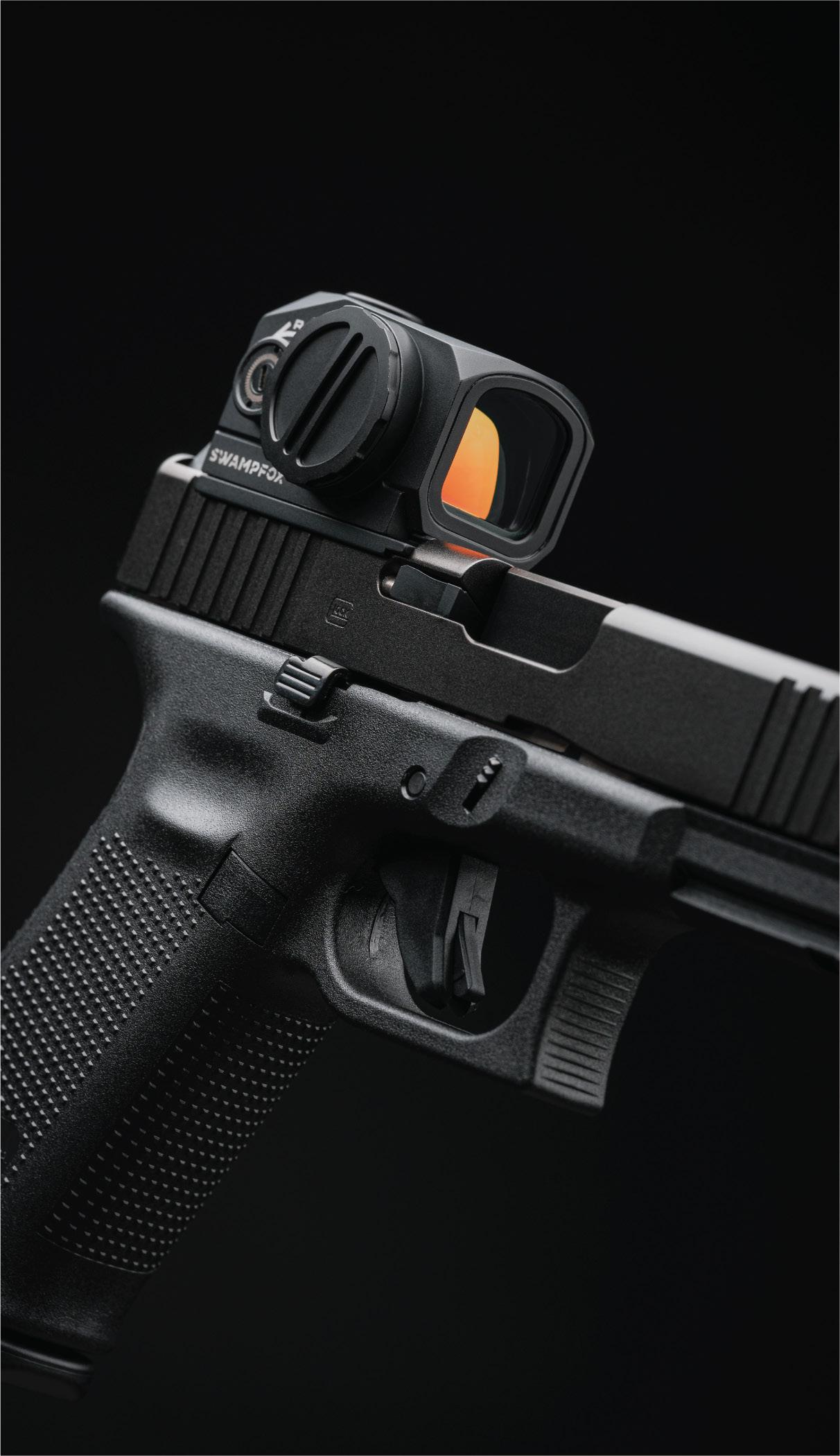

KRAKEN

A closed emitter dot sight with independent inner tube and 7075 aircraft-grade aluminum body, Kraken is a beast to be reckoned with. Provided RMR and MOS adapter plates allow for versatile, multi-platform mounting as a primary or backup optic while its 3 MOA red or green illuminated dot and 10 anytime brightness settings make it a reliable choice for legendary use.

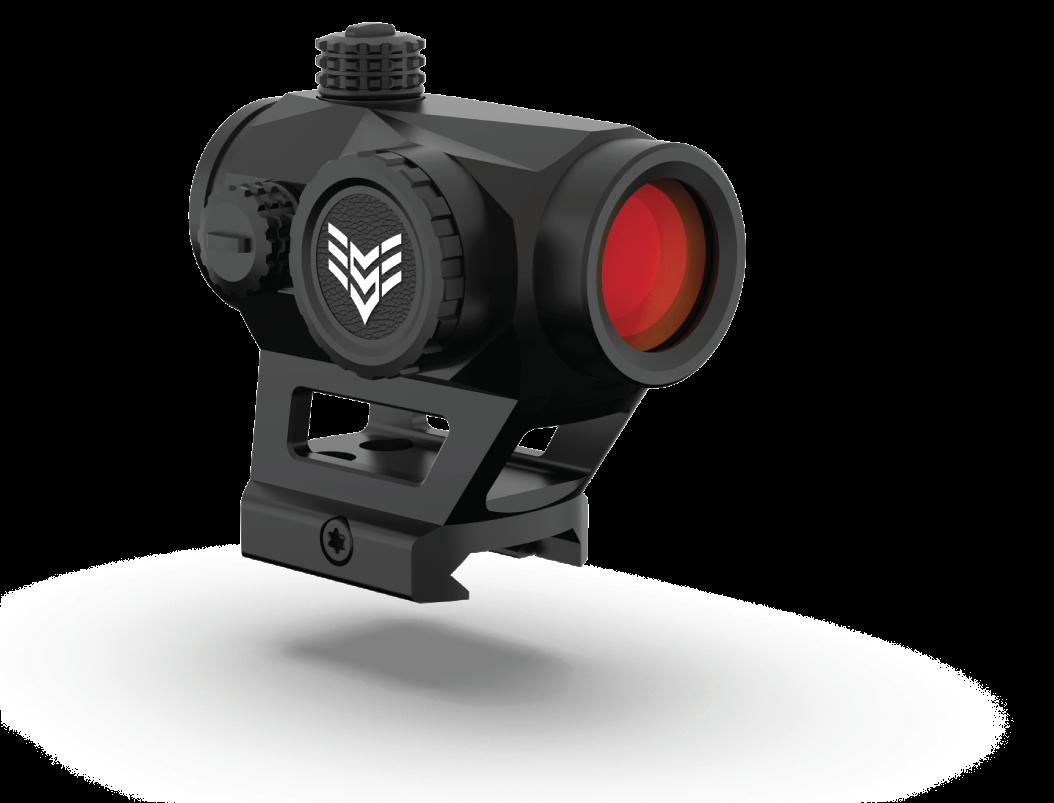

1x22 DOT SIGHT

LIBERATOR II

Liberator II is equipped with Shake N' Wake auto on/off and choice of 2 MOA red or green dot or new multi-reticle with 10 brightness settings. Featuring a 6061 aluminum housing with fully multi-coated lenses, shoot in adverse conditions with confidence. Included in the box are low-profile and absolute cowitness height T-2 footprint mounts for standard Picatinny receivers.

DOT

3 MOA

PRISMS

Don’t let astigmatism get in the way of shooting. Swampfox prisms feature precision glass-etched, illuminated reticles without distracting starbursts and streaking of traditional reflex sights. New Raider 1x micro prism joins our popular and proven lineup of Blade 1x, Trihawk 3x, and Saber 5x optics as a versatile solution for AR platforms and pistol caliber carbines. Compact and lightweight without sacrificing durability, Raider is a first look at the future of Swampfox prism optics.

1x20 MICRO PRISM

RAIDER

Optimized for close range, Raider 1x packs expansive eye relief in a micro package. Offered with Bullet Rise Compensation (BRC) and 6 MOA dot reticles, shoot with red or green illumination or its glass etched black reticle when off. Featuring a die-cast zinc alloy body and T-2 footprint, Raider includes mounts for flexible use on large frame pistols, rifles, and shotguns.

1x25 PRISM

BLADE

Mission specific for close quarters engagements, Blade 1x addresses height over bore challenges of AR platforms with dedicated holds for 5, 10, and 15 yards. Its etched and red, green, or amber illuminated BRC reticle aids those with astigmatism needing to move and shoot fast while Shake N’ Wake auto on/off maximizes battery life of 10 brightness settings.

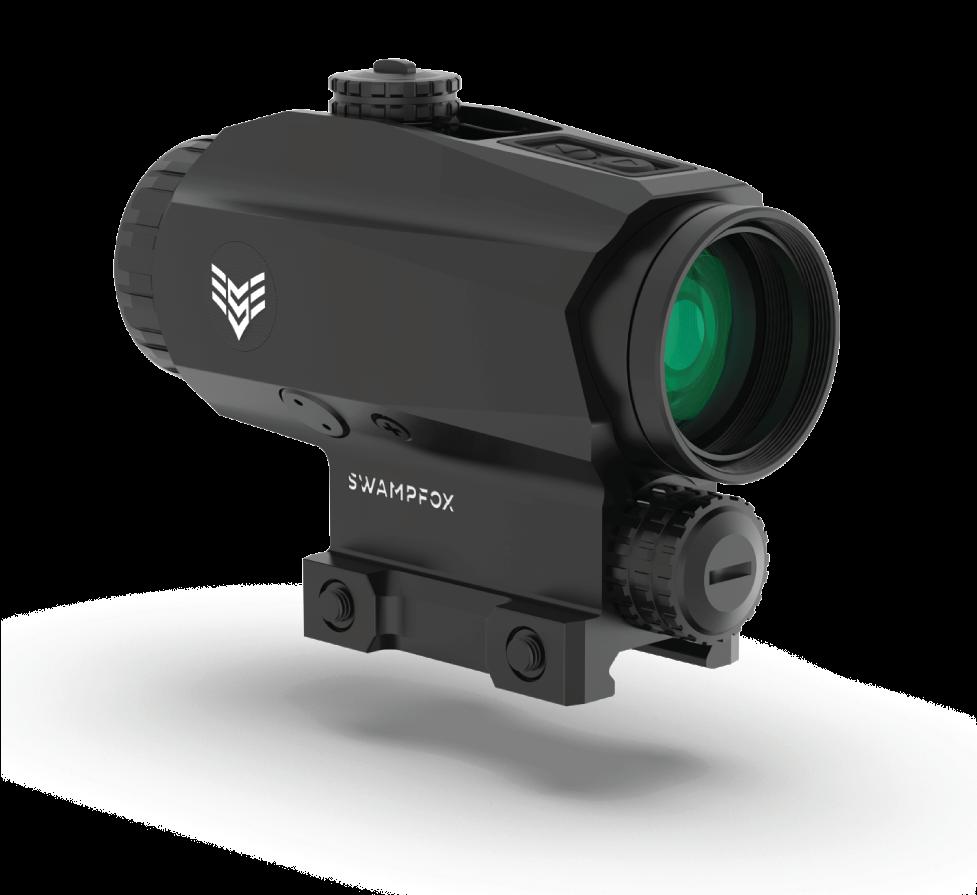

3x30 PRISM

TRIHAWK

Tailored for quick target acquisition and comfortable eye relief, the compact Trihawk

3x offers a wide 52’ field of view at 100 yards. Offered in red or green illumination, its Trident reticle is adaptable for close/medium range shooting with a 5.56/.308 BDC or MOA ladder. Constructed for durability with Shake N’ Wake auto on/off, Trihawk is suited for demanding conditions.

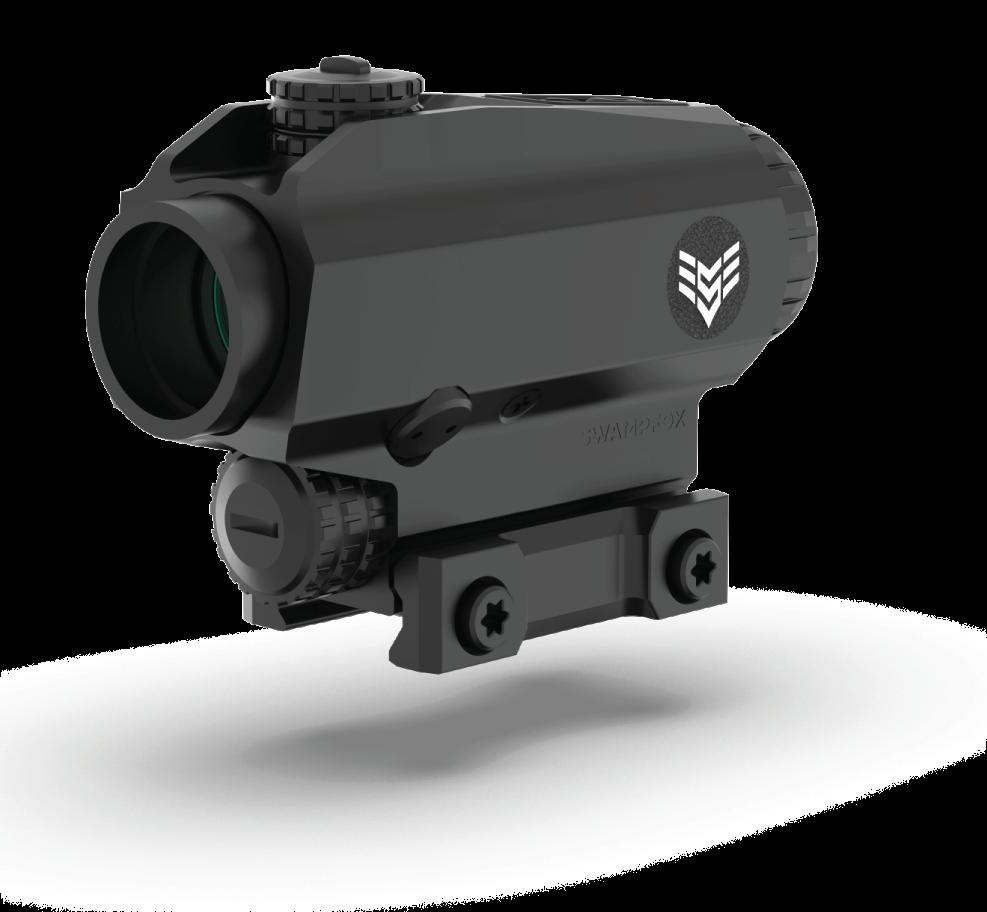

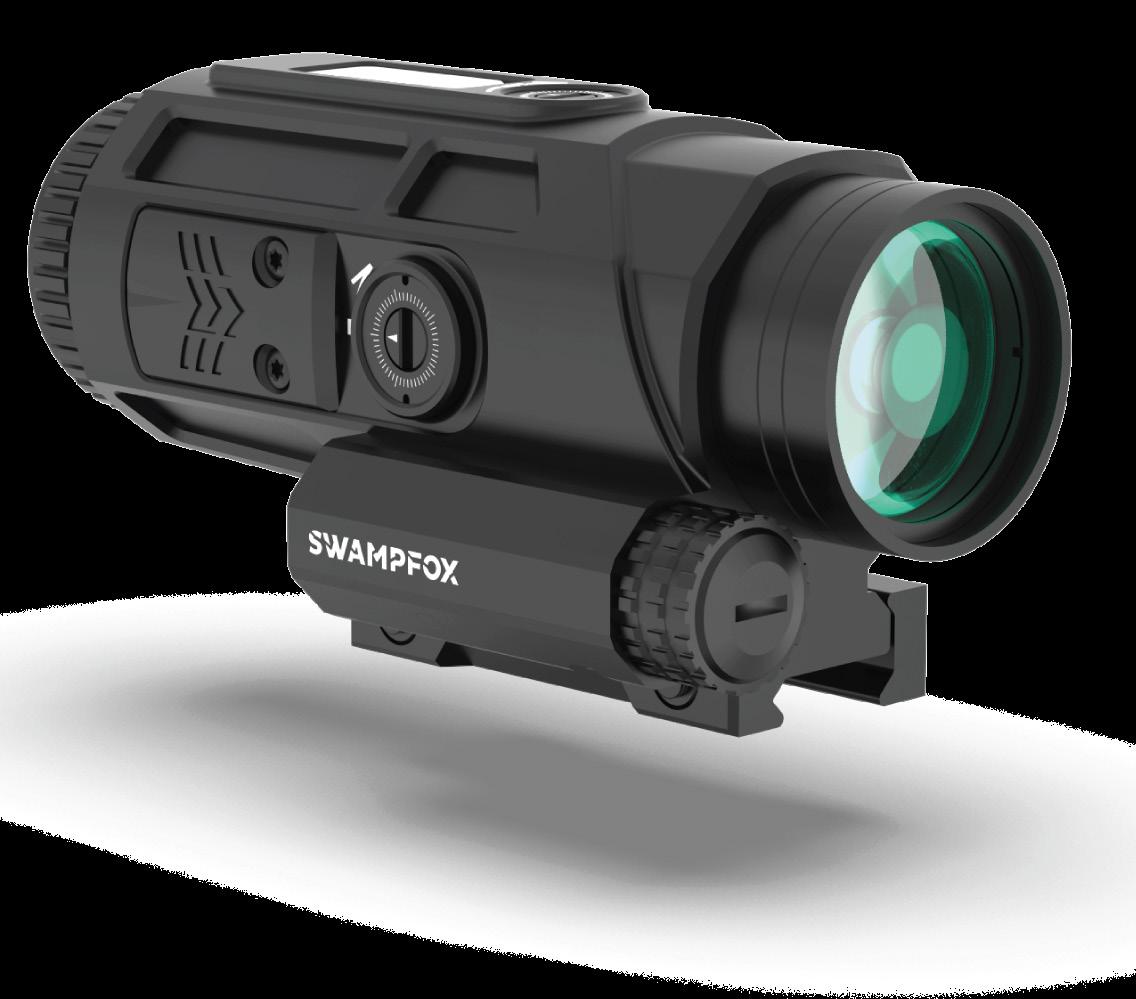

5x36 PRISM

SABER

Saber features dual 90° RMSc footprint red dot mounts for quick transitions between its fixed 5x magnification and 1x. Built like a tank, the prism scope is equipped with Shake N' Wake auto on/off technology and a non-caliber specific Strike MOA reticle, available in red or green illumination, with true 10° field of view for class-leading durability, reliability, and performance.

GREEN STRIKE MOA

RED STRIKE MOA

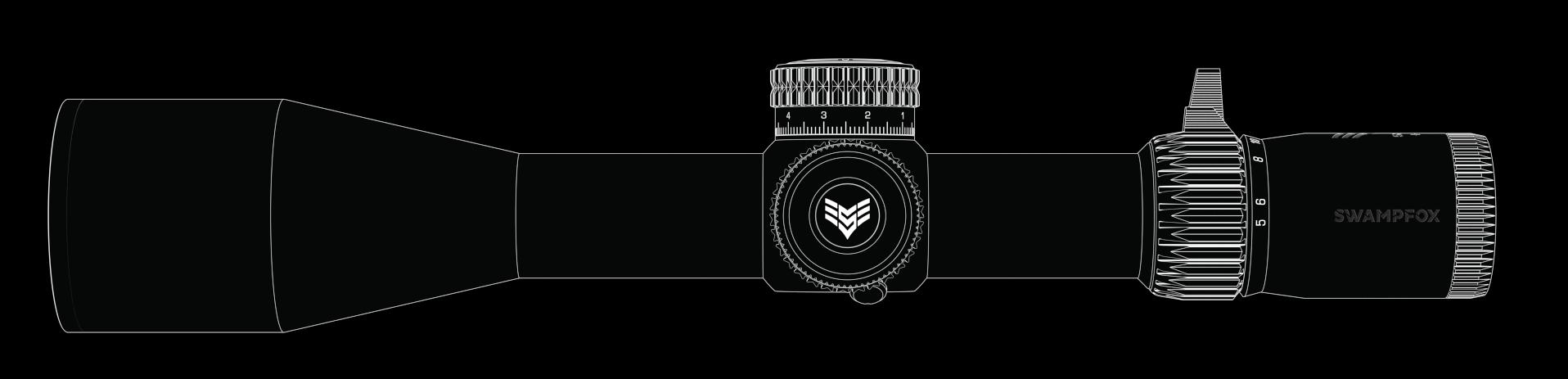

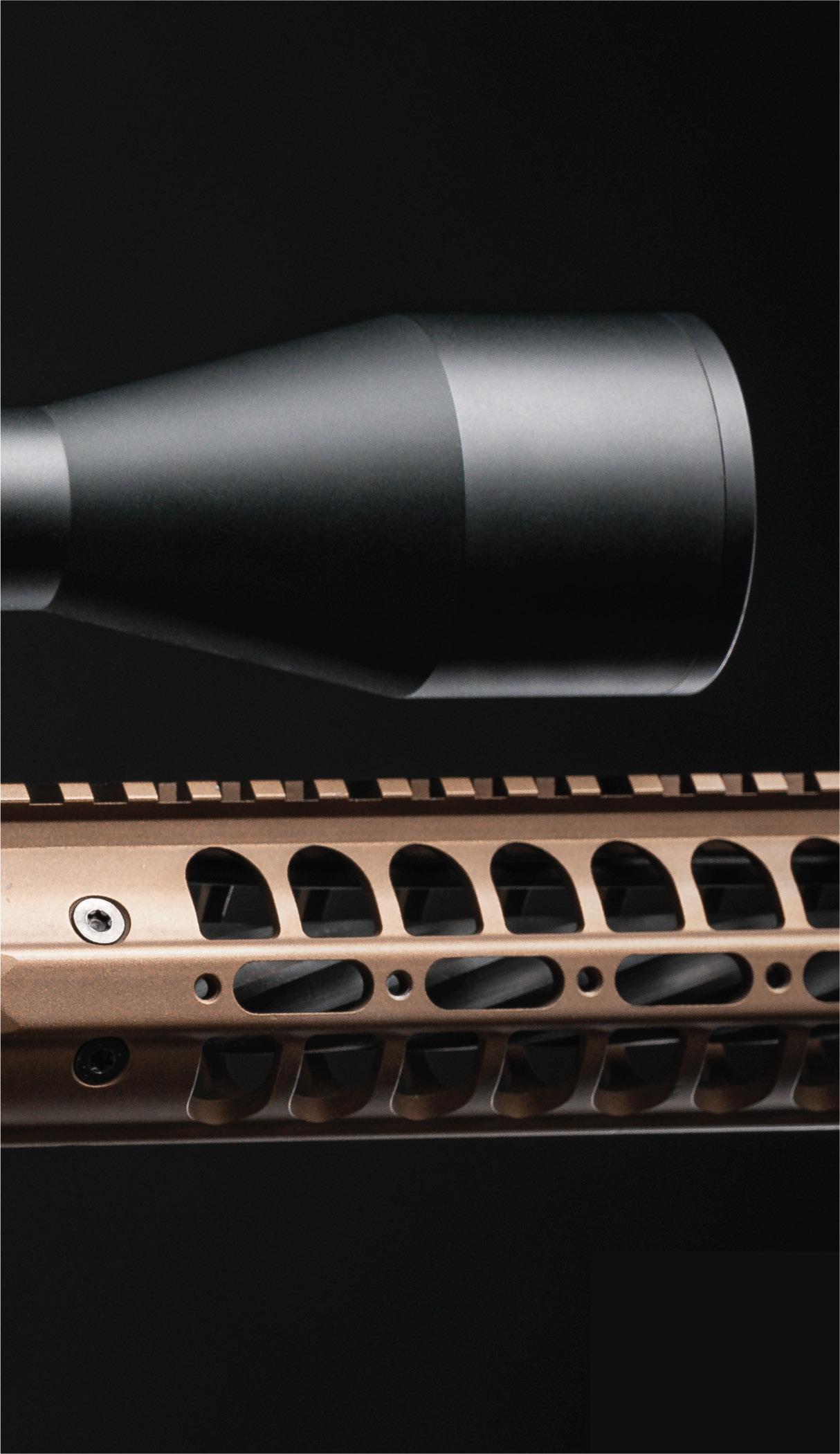

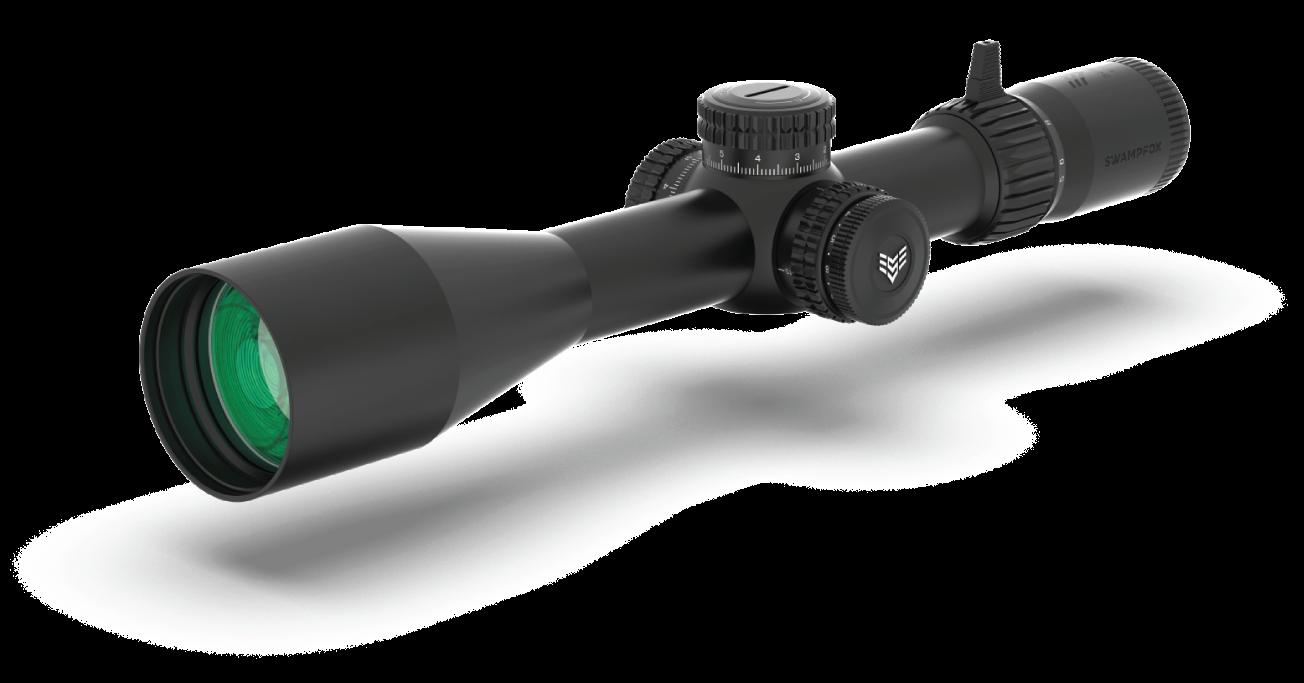

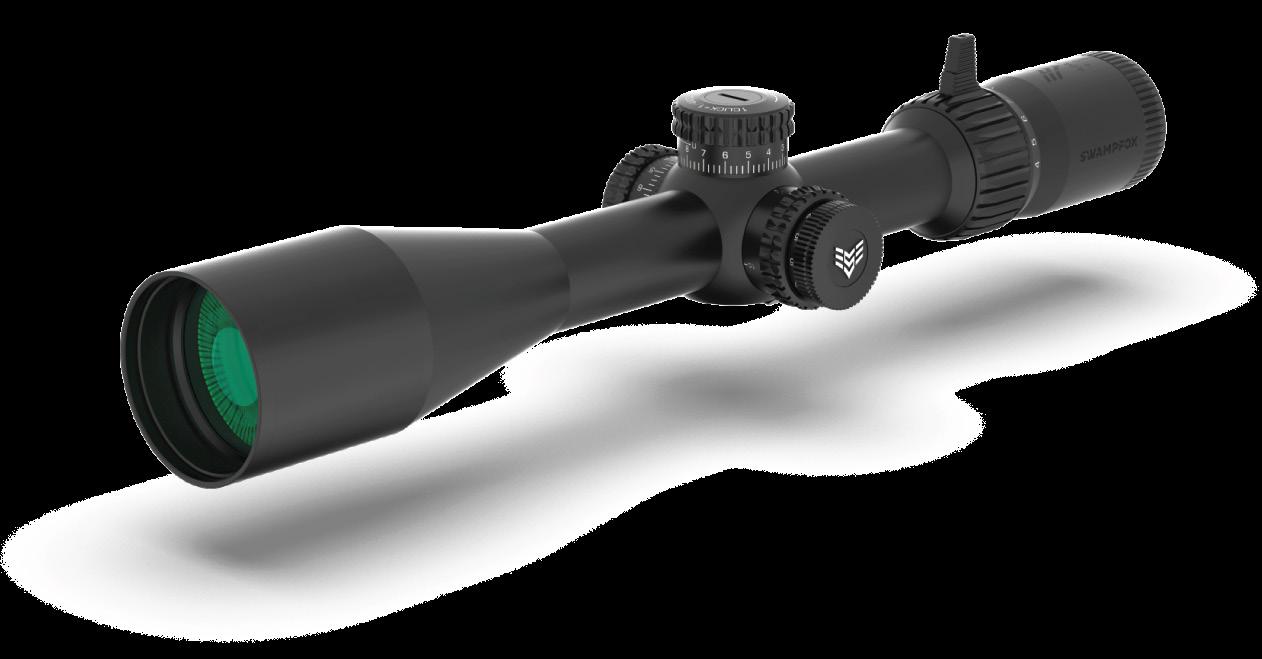

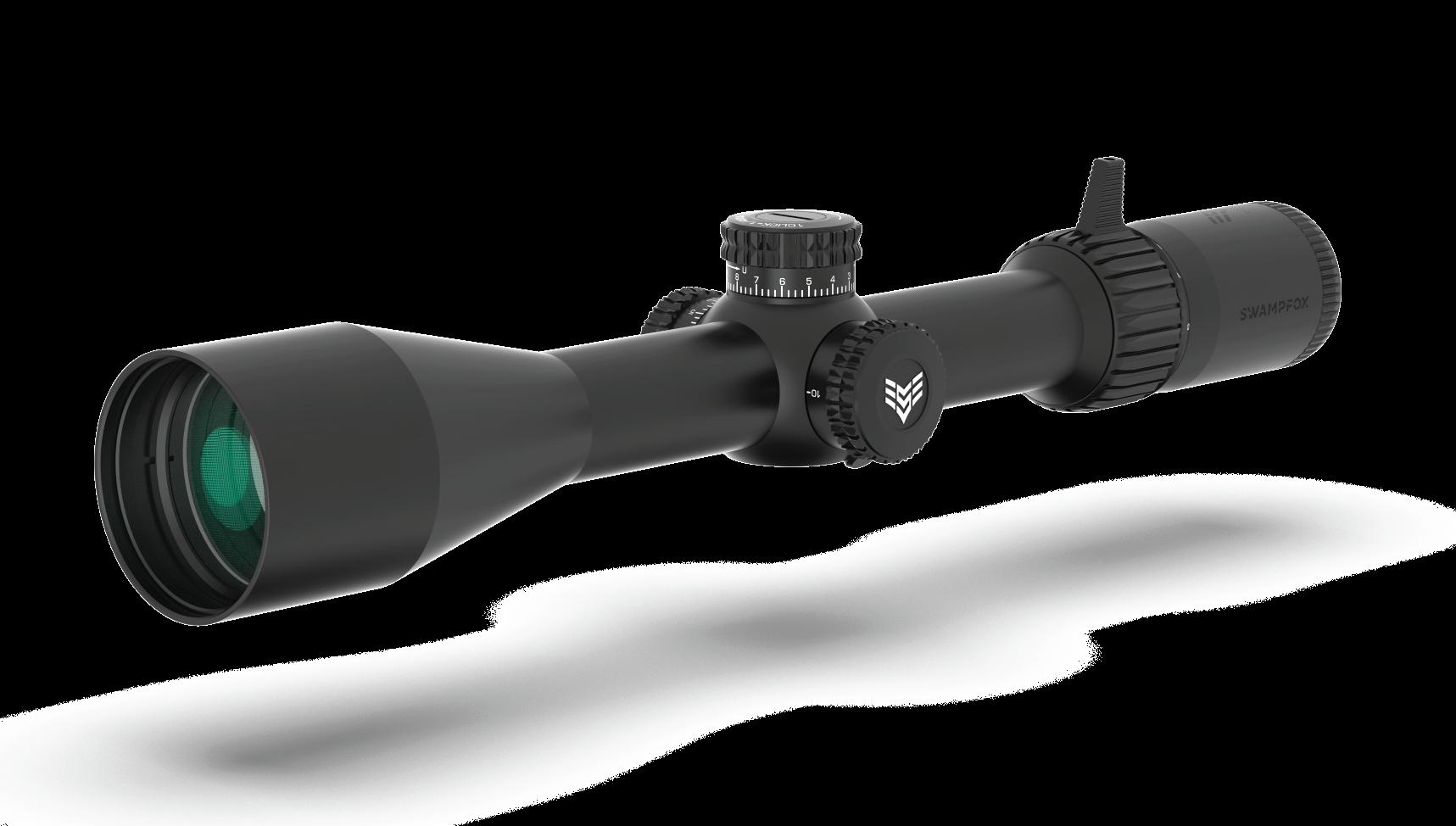

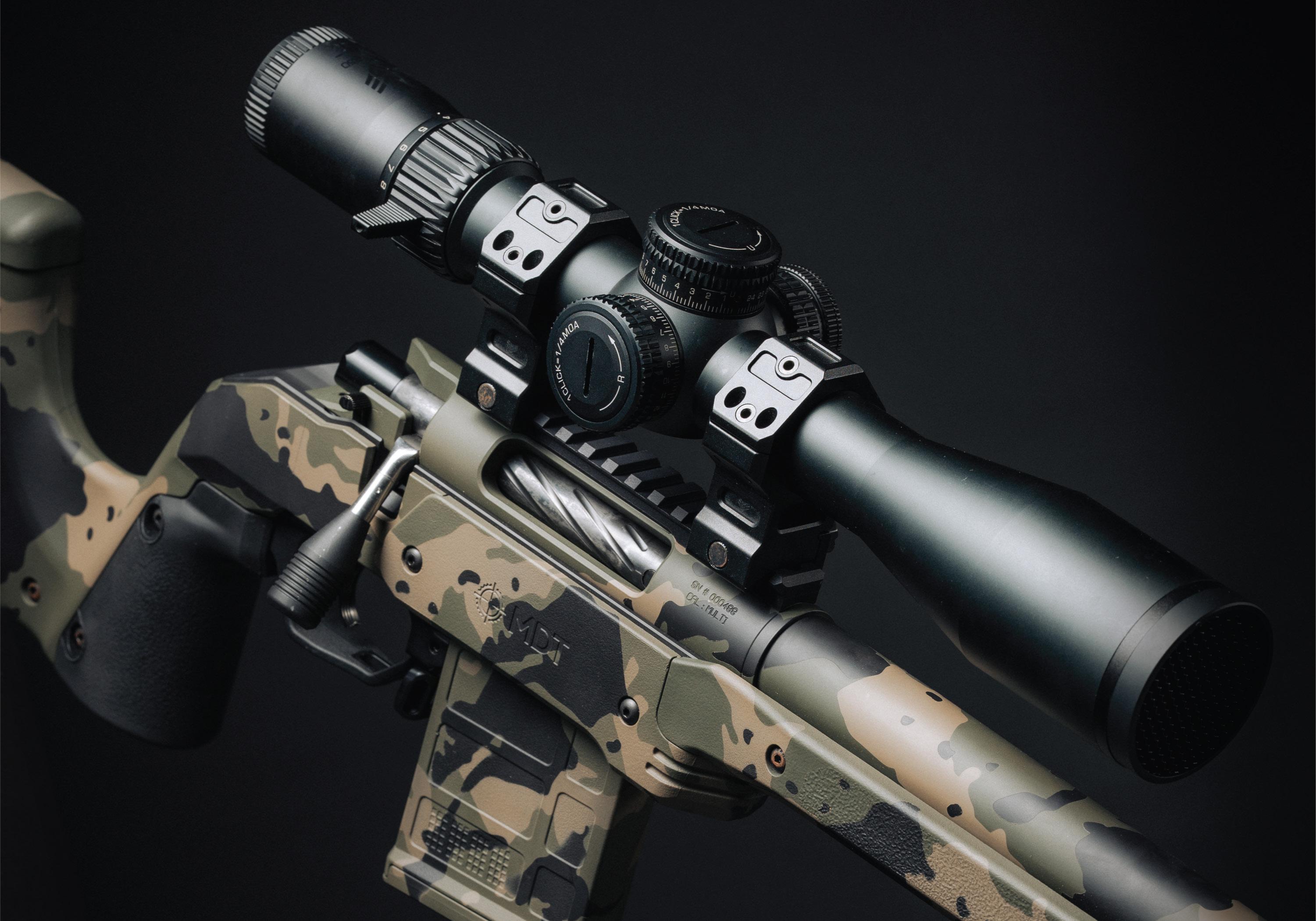

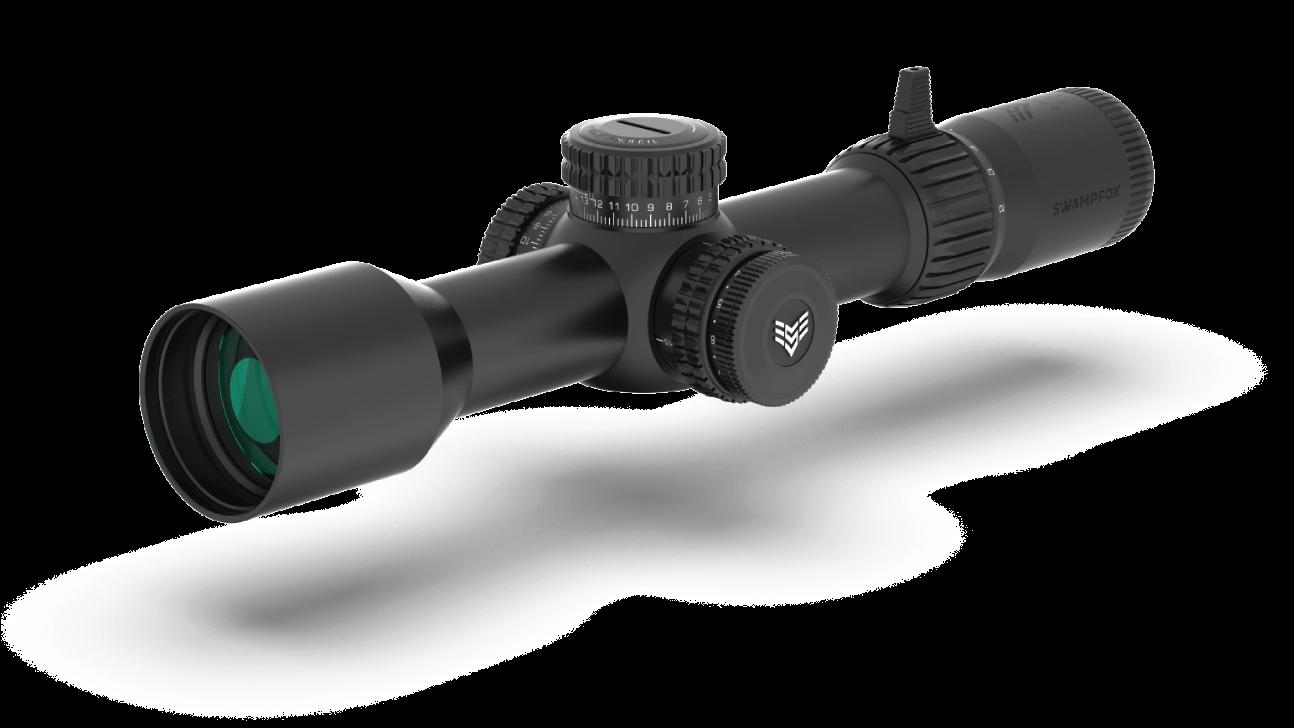

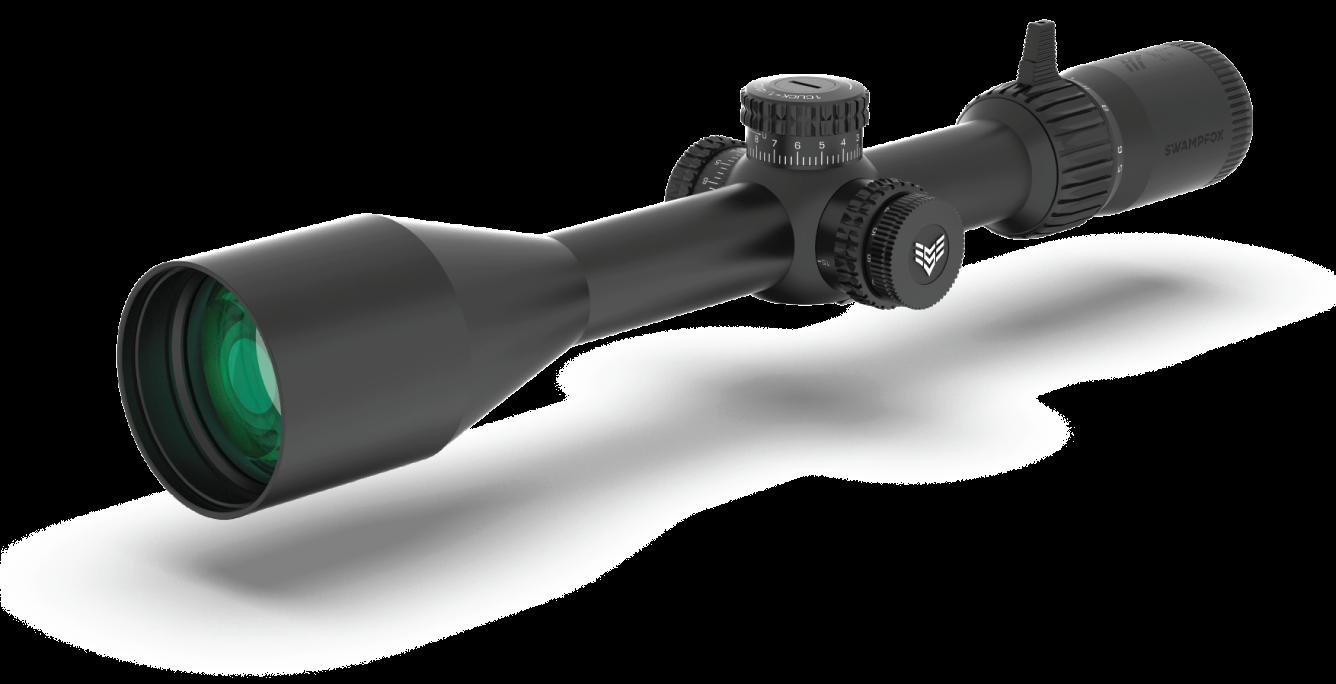

PRECISION RIFLESCOPES

Shooting small targets over extreme distances leaves no margin for error. The difference between tagging out and packing out empty, Swampfox Precision riflescopes offer greater magnification for long-range hunting, competition, and tactical performance. Large objective lenses complement superior glass clarity to maximize light transmission and sight picture in any light condition. Go long with illuminated first focal plane (FFP) MOA/MIL reticles or our battery-free Patriot series.

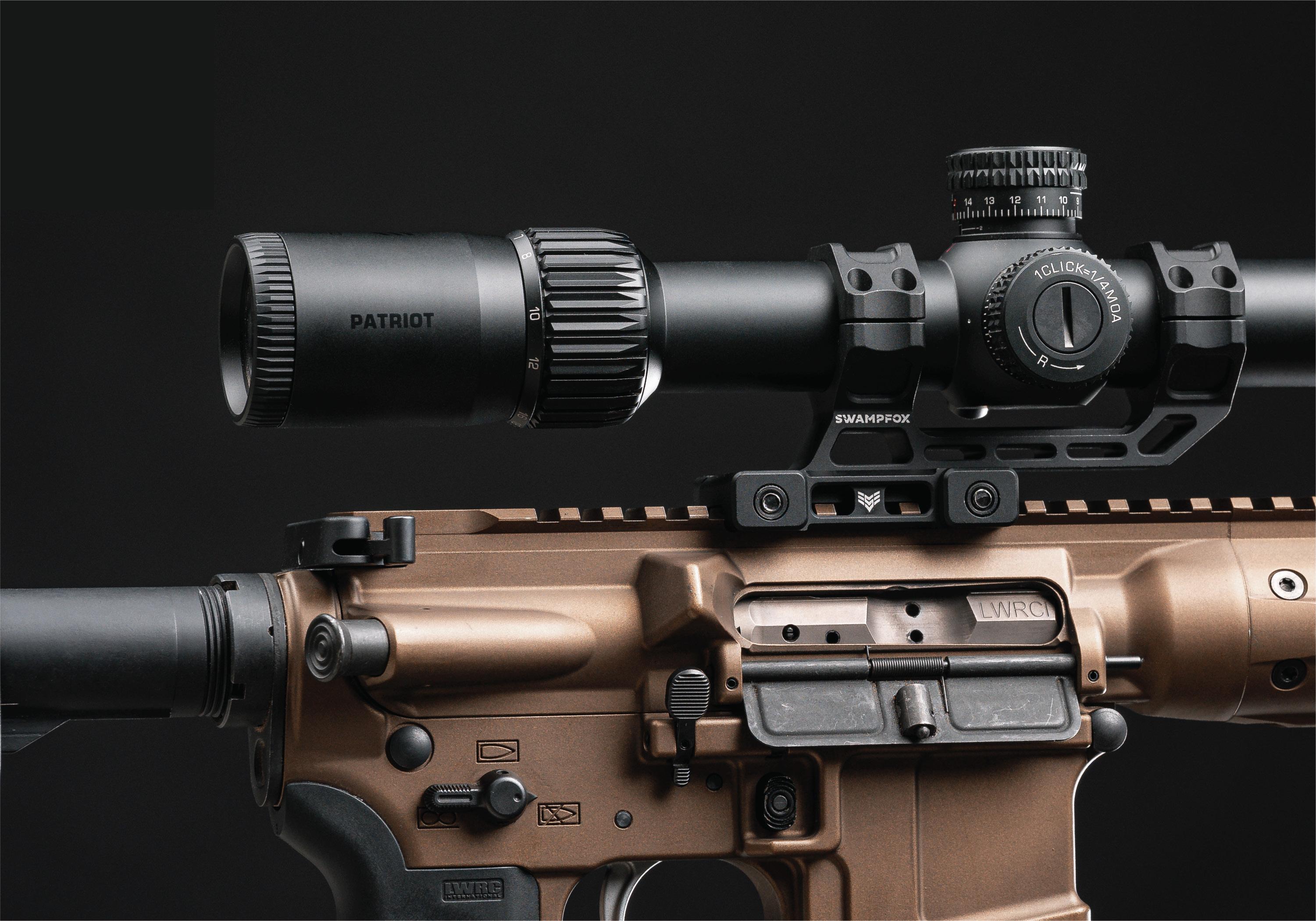

PATRIOT | FFP

4-16x44 30 mm LENGTH 14.13” ELEVATION TURRET TACTICAL, ZERO RESET 24.16 oz. / 25.08 oz. WEIGHT TACTICAL, ZERO RESET WINDAGE TURRET

2-12x44 | 3-18x50

KENTUCKY LONG | FFP

Built on a 30mm tube, the 2-12x and 3-18x are the lowest magnification range of the Kentucky Long riflescope series. Featuring 44mm and 50mm objective lenses, respectively, with edge-to-edge clarity, glass-etched, illuminated MOA and MIL reticles, and push/pull locking turrets with zero reset, go long on the range and in the field with reliable Kentucky precision.

4-24x50 KENTUCKY LONG | FFP

ELEVATION TURRET PUSH/PULL LOCKING, ZERO RESET PUSH/PULL LOCKING, ZERO RESET WINDAGE TURRET

Ideal for mid-range to long-range engagements, the Kentucky Long 4-24x offers versatile precision for hunters, competitors, and professionals alike. A 30mm tube and large 50mm objective lens complement its FFP construction and illuminated Sharpshooter MOA or MIL reticle. Make fine 0.25 MOA/0.10 MIL adjustments with push/pull locking turrets with zero reset.

5-30x56 FFP

KENTUCKY LONG | FFP

ELEVATION TURRET PUSH/PULL LOCKING, ZERO RESET

PUSH/PULL LOCKING, ZERO RESET WINDAGE TURRET

Extend your precision on the range, in competition, or in the field with the Kentucky Long 5-30x. Its 56mm objective lens maximizes light transmission and clarity of its etched Sharpshooter MOA or MIL reticle, illuminated by 11 brightness settings. Always stay on target with push/pull locking turrets with zero reset and magnification fins for quick ranging from 5x to 30x power.

2-10x44 | 3-15x50

WARHAWK | FFP

The lowest magnification range of the Warhawk FFP Series, 2-10x44 and 3-15x50 models provide similar performance to an LPVO. Ideal for hunting, competition, and tactical shooting, the 34mm tube scopes are offered with red Sharpshooter MOA or

RECCE MIL reticles and are paired with push/pull locking turrets with zero reset for medium range performance.

4-20x50 WARHAWK | FFP

34

LENGTH 14.72” 33.79

PUSH/PULL LOCKING, ZERO RESET WINDAGE TURRET

5-25x56 WARHAWK | FFP

34 mm LENGTH 15.23” 38.48 oz. WEIGHT

ELEVATION TURRET PUSH/PULL LOCKING, ZERO RESET

PUSH/PULL LOCKING, ZERO RESET WINDAGE TURRET

ACCESSORIES

Accuracy starts with a stable base. Swampfox offers a wide variety of accessories for dot sights, prisms, LPVOs, and precision riflescopes to further enhance performance and precision, including risers, offsets, scope rings, and multiple cantilever mounts. Our Ironside Shields protect Swampfox dots from use and abuse. We also offer the industry’s only Ultimate Red Dot Screw Pack, providing DIY hardware for mounting reflex sights to popular handguns and adapter plates.

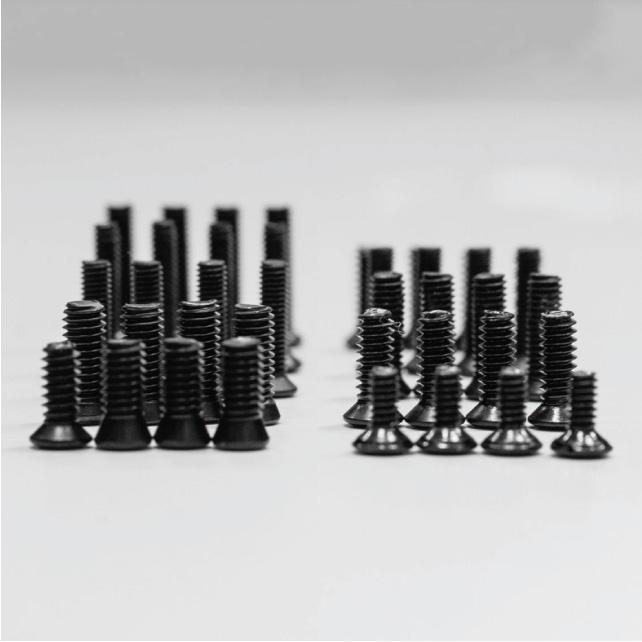

SCREW PACK

SCREWS: 16 sets, 4 each (64 total)

The Ultimate Red Dot Screw Pack is the only all-in-one pistol dot mounting solution. Included are 16 sets of the most used metric and imperial screws of various sizes, thread pitches, and lengths, intending DIY hardware deliberately left long and trimmed to fit. Not just for Swampfox optics, the pack can be used to easily mount any dot sight to a handgun, riser, or offset mount.

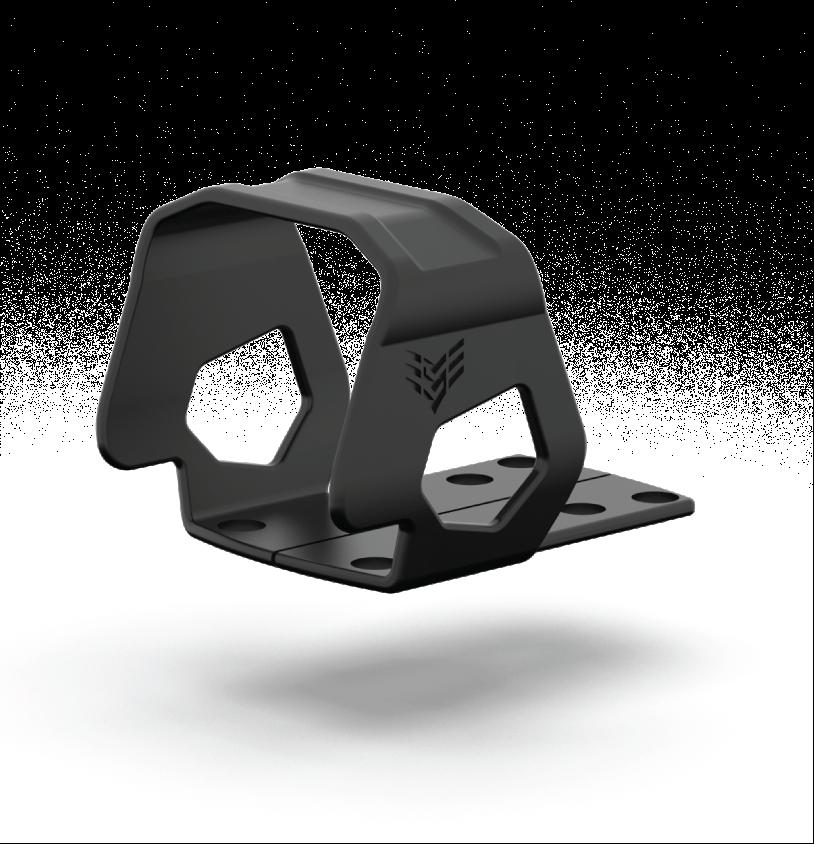

IRONSIDES SHIELD

OPTICS: Sentinel II / Liberty II / Justice II

Ironsides Shields are designed to add an extra layer of protection for your pistol dots. Manufactured from SUS304 blackened stainless steel with a matte black PVD coating, shields offers greater defense against drops, bumps, optic surface racking, and everyday abuse. Ironsides Shields mount in between the slide and optic and surround the optic hood and body.

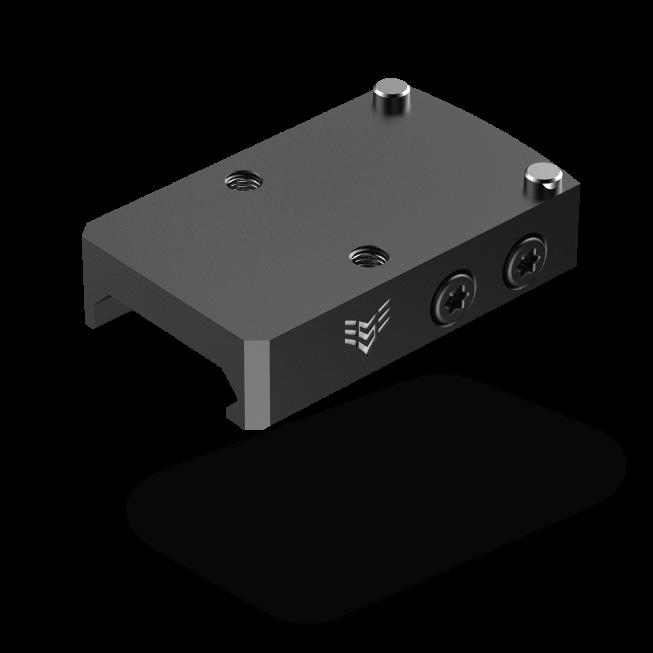

PICATINNY MOUNT

WEIGHT: 0.90 oz.

Securely mount RMR footprint dot sights to pistol caliber carbines, AK-style pistols or rifles, shotguns, and sporting long guns with this low-profile Picatinny Mount. Machined from lightweight and durable 6061-T5 aluminum, pair it with our Liberty II, Justice II, or another optic for a secure mount on the range, in the field, at home, or in competition.

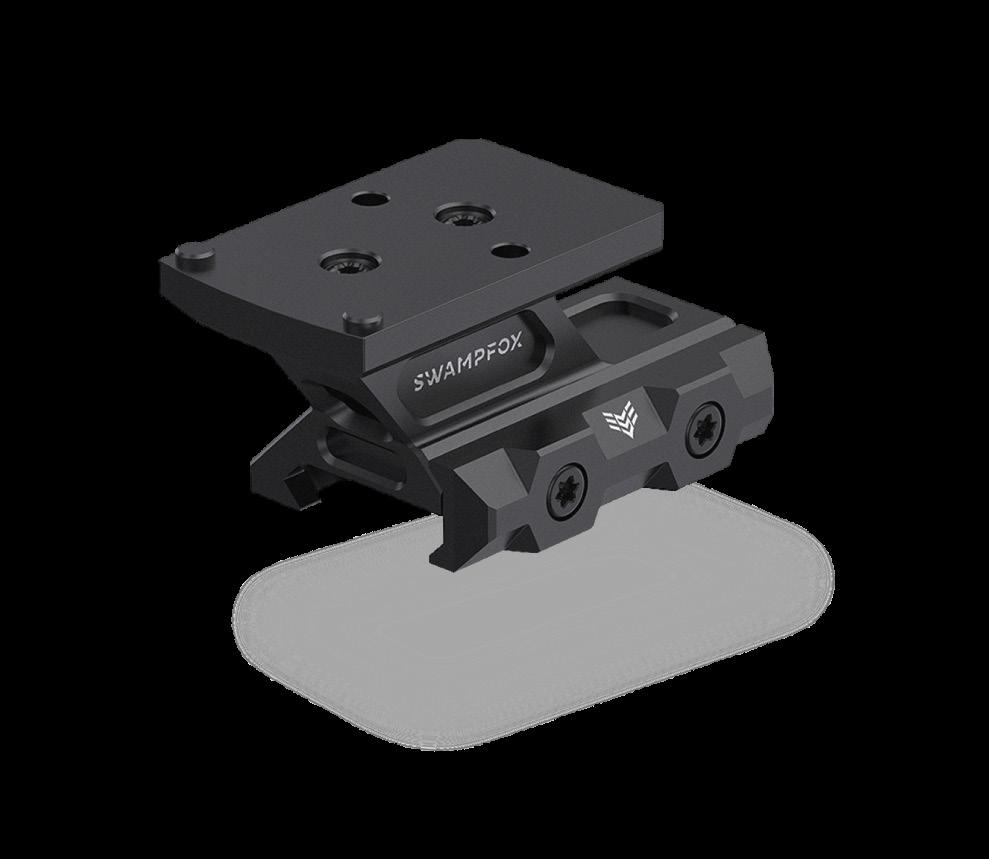

REBEL RISER

WEIGHT: 1.78 oz.

The Rebel Riser elevates the shooting experience of any RMR footprint dot sight, like our Justice II. Interfacing with a standard Picatinny rail, the skeletonized riser mounts optics at either 1.60” lower 1/3 cowitness height or 1.40” absolute cowitness. Manufactured from 6061 aluminum, the Rebel Riser is built to take abuse from heavy recoiling rifles and shotguns.

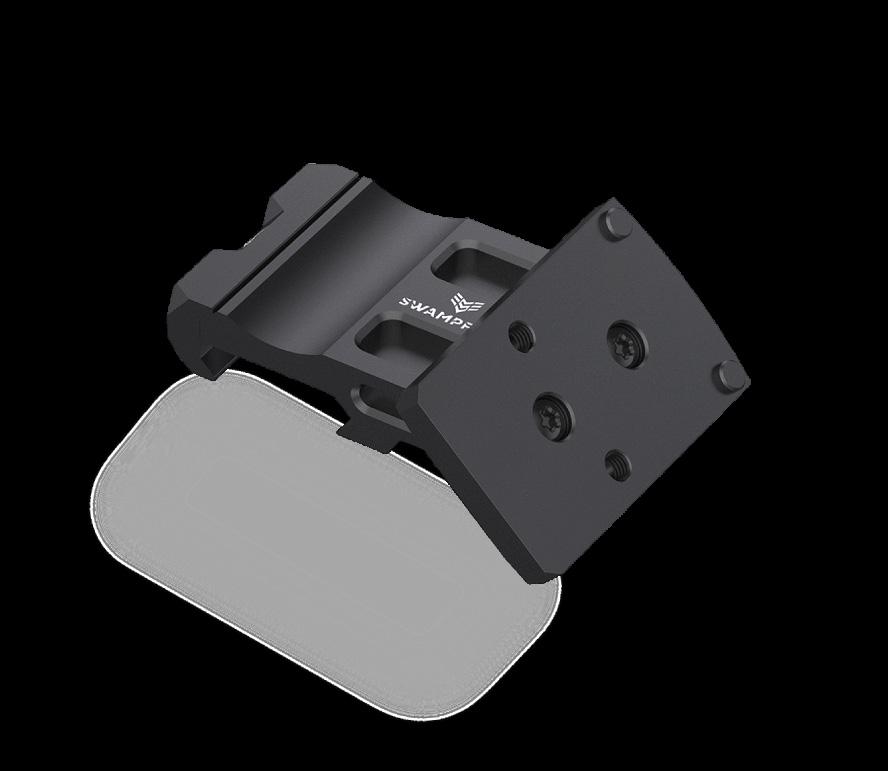

REBEL OFFSET

WEIGHT: 1.67 oz.

Lightweight and versatile, the Rebel Offset offers ambidextrous 450 mounting of RMR footprint dot sights, like our Liberty II, with a reversible mounting plate. When paired with an LPVO or precision riflescope, the Rebel Offset provides mounting of a secondary optic for close range engagement. Manufactured from 6061 aluminum, the offset mounts directly to Picatinny rails.

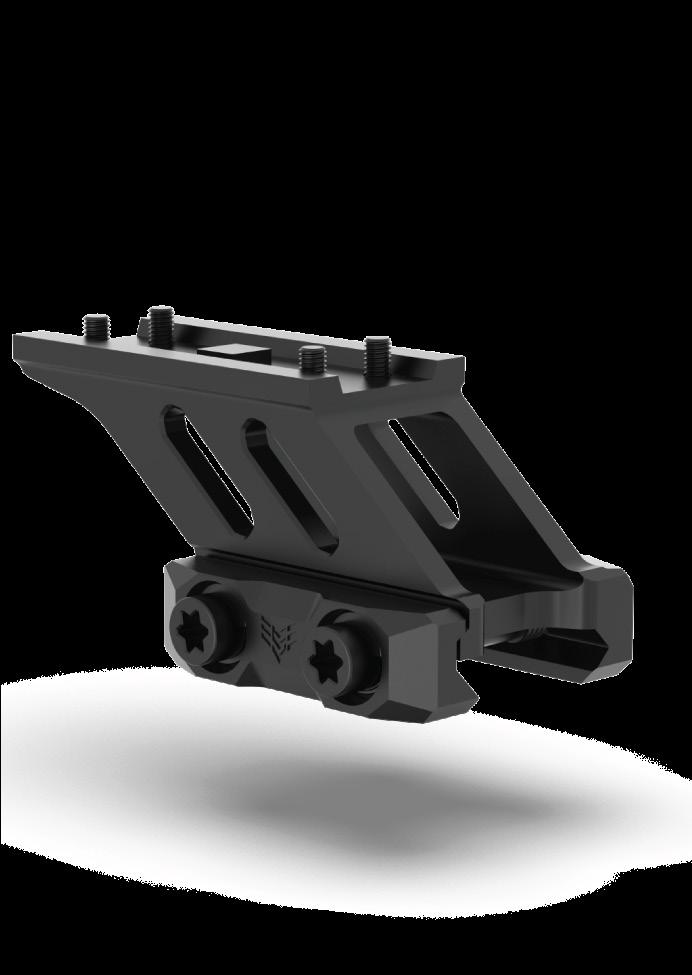

OUTLAW MOUNT

WEIGHT: 1.25 oz. | 1.55 oz. | 1.84 oz.

Designed and optimized for our Raider 1x micro prism, Outlaw Mounts utilize the popularized T-2 footprint and interface with standard Picatinny rails. Offered in 1.10" low profile, 1.60" lower 1/3 cowitness, and 1.93" tall (pictured) heights, the skeletonized mounts are machined from lightweight 6061-T6 aluminum. Mount up and shoot fast with our most-wanted optic risers.

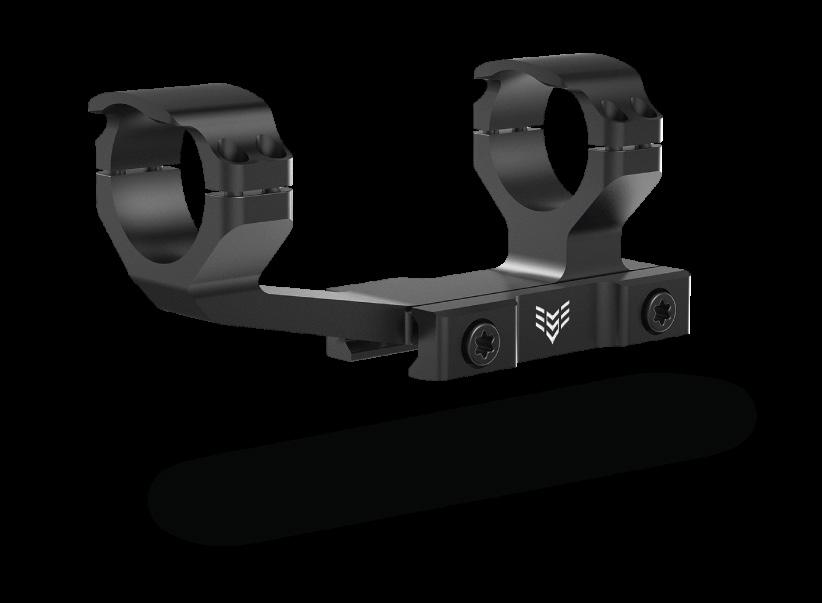

INDEPENDENCE MOUNT

WEIGHT: 6.50 oz.

Designed for rifles with flat top Picatinny or Weaver rails, the Independence Mount is a secure cantilever ring mount for 30mm tube riflescopes. Allowing forward mounting of optics, the cantilever enhances head position and eye relief on AR-style platforms. Machined from a single piece of 6061 aluminum, Independence places the scope's centerline 1.50" above the receiver.

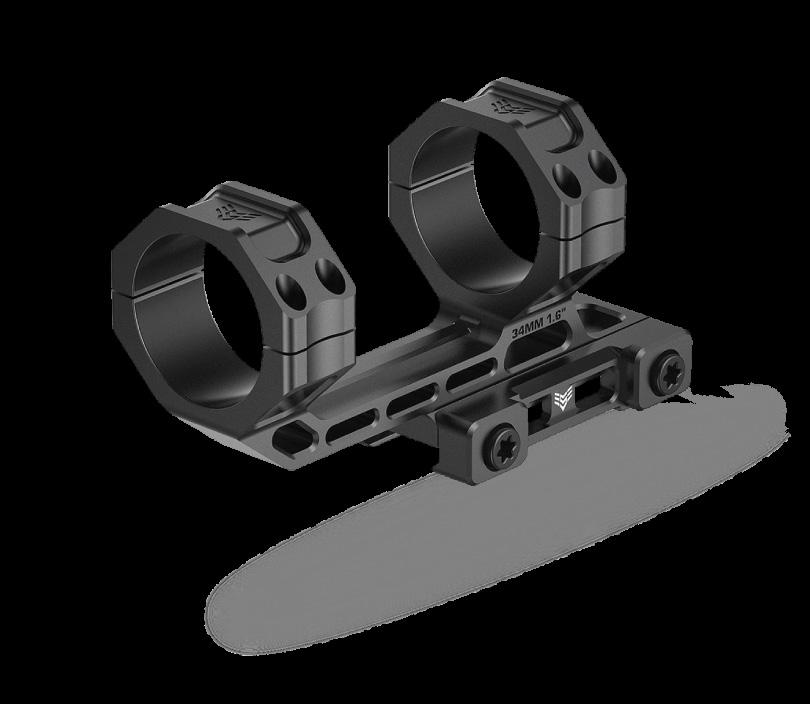

FREEDOM MOUNT

WEIGHT: 5.28 oz. | 5.51 oz.

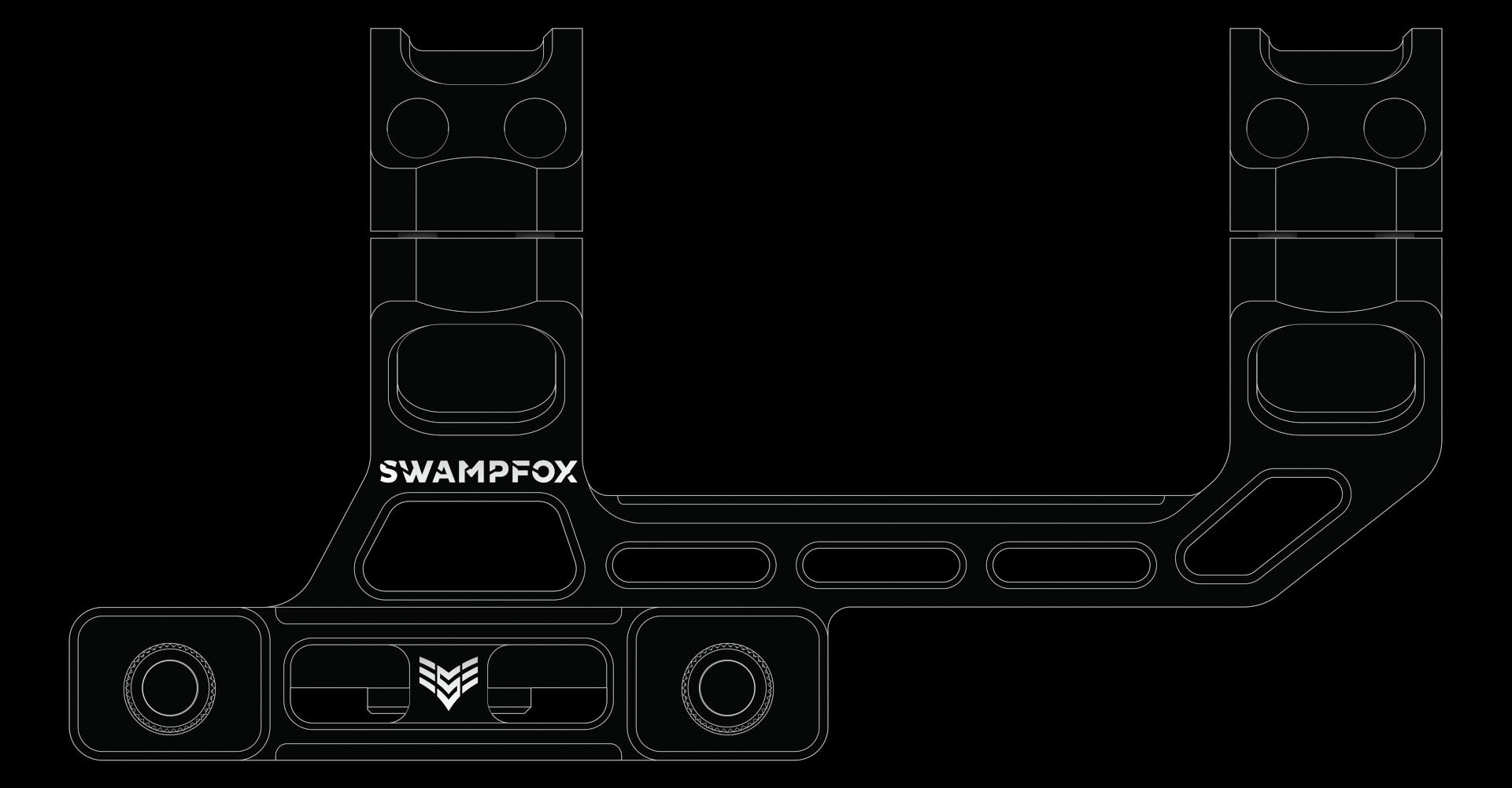

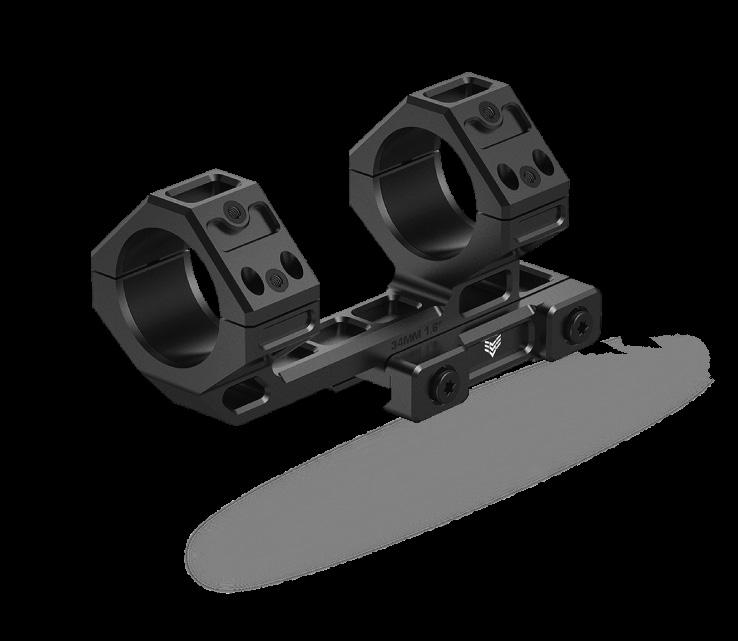

Constructed from 7075 aluminum, our Freedom Mount offers durability and skeletonized weight savings. Its cantilever design extends the forward ring's center 2.0” past the front of the Picatinny mounting surface, offering generous eye relief of 30mm or 34mm tube LPVOs. Seize your freedom with the looks, ergonomics, and performance your rifle build deserves.

HOSTILE ENGAGEMENT MOUNT

WEIGHT: 7.65 oz. | 8.09 oz.

The Hostile Engagement Mount features a one-piece cantilever design with ambidextrous 450 RMR footprint mounts (4 total) for offset dot sights like Kraken, Liberty II, and Justice II. Made from 7075-T6 aluminum, its durable design extends the forward ring's center 2.0” inches past the Picatinny surface for stable and comfortable shooting with 30mm and 34mm tube LPVOs

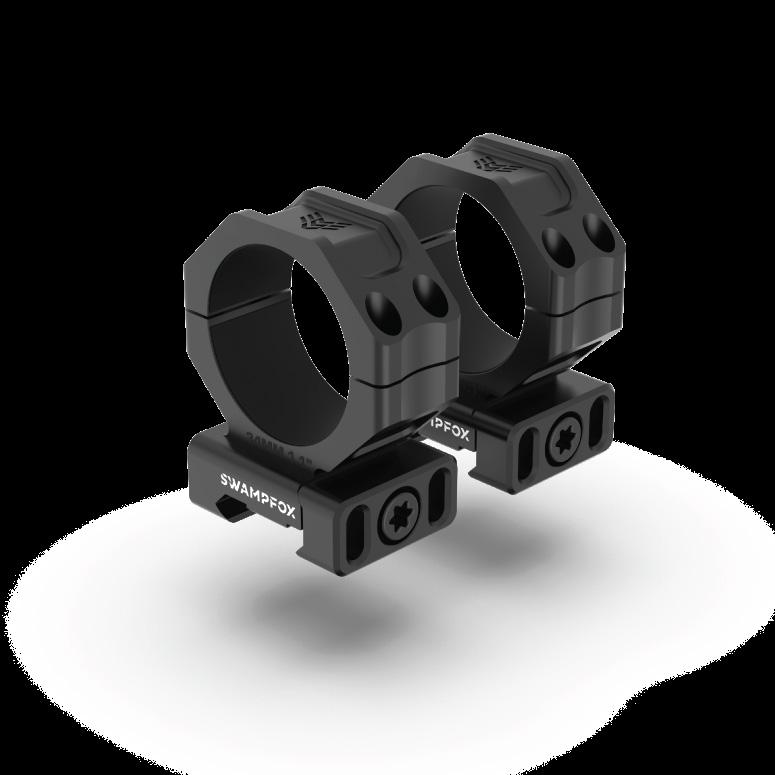

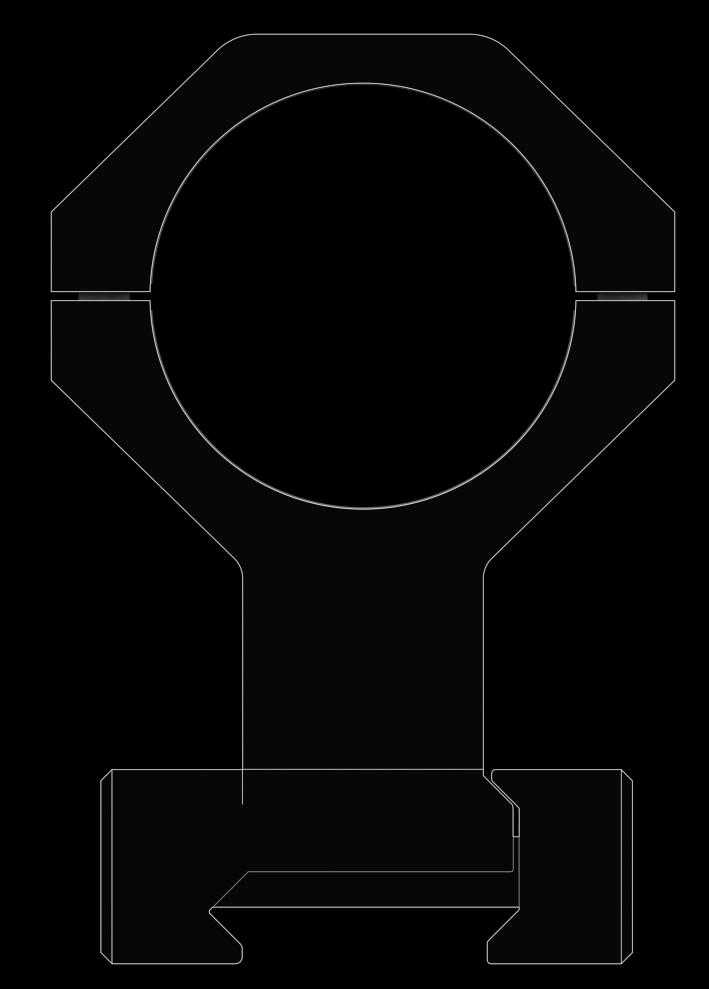

FREEDOM RINGS II

WEIGHT: 2.22 OZ. | 2.35 OZ. (EACH)

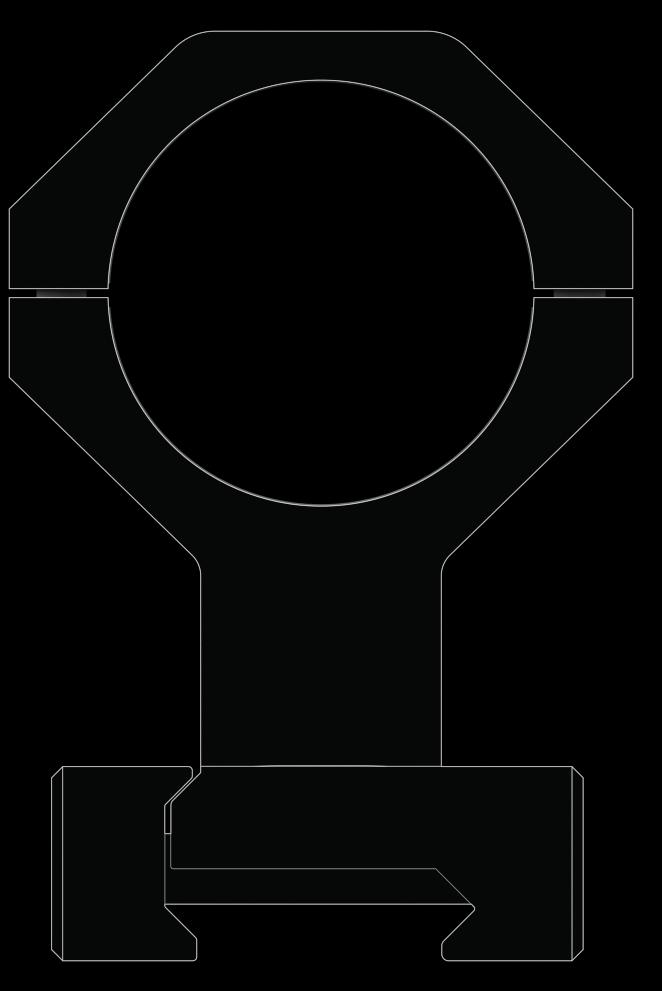

Milled from 7075-T6 aluminum with a scratch-resistant finish, Freedom Rings II are light, but durable. Available in low 1.10” and tall 1.60” heights for 30mm tube riflescopes, the second-generation rings don't require lapping and are lined with a no-slip grip material for secure leveling. Freedom Rings II offer a perfect blend of strength, weight, and simplistic styling for LPVOs and Precision optics.

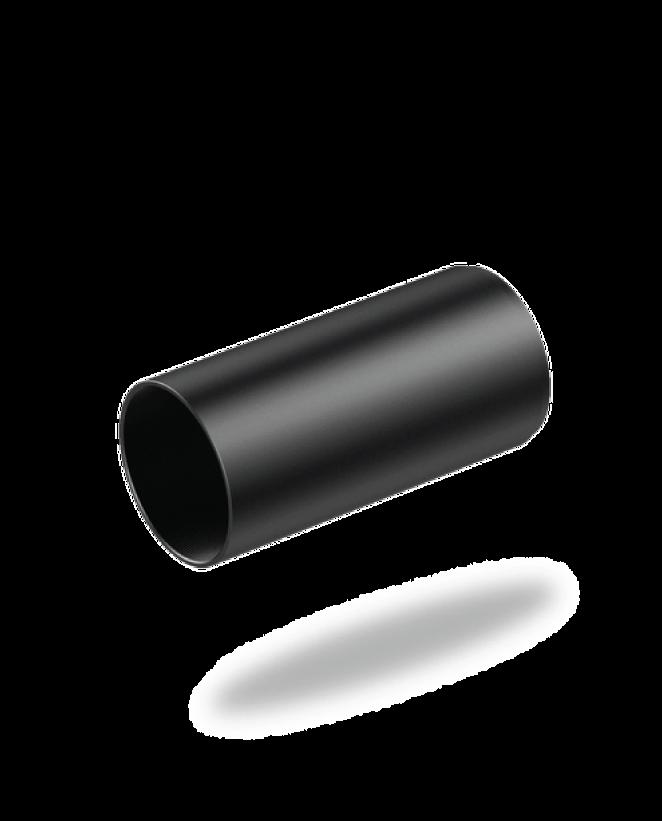

SUNSHADE

DIAMETER: 44mm | 50mm | 56mm

Shield your vision from the sun and further reduce glare with our 4.0” Scope Sunshade. Easily threaded into the objective lens of our precision riflescopes, the lightweight sunshades can be quickly added on the range or in the field to combat direct light. Available in 44mm, 50mm, and 56mm diameters, the Sunshade is compatible with Kentucky Long, Patriot, and Warhawk optics.

ONLY GUARANTEED TO FIT SWAMPFOX OPTICS

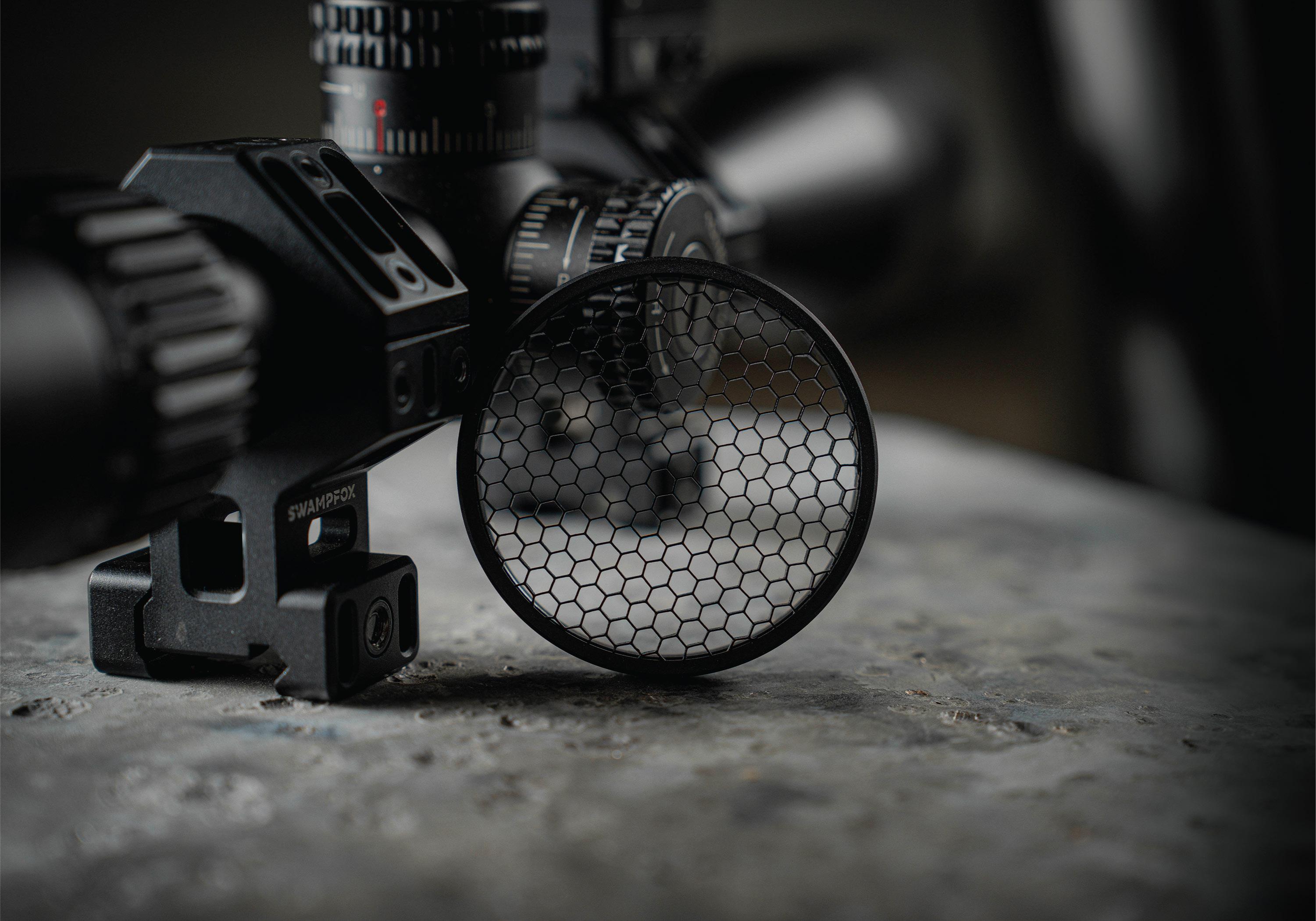

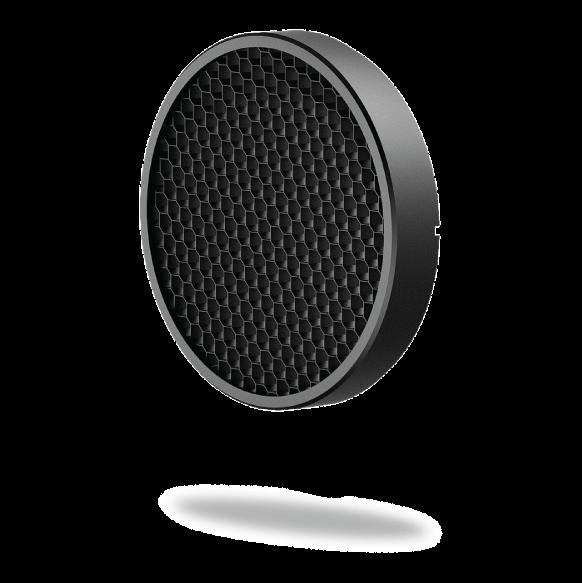

HONEYCOMB

DIAMETER: 44mm | 50mm | 56mm

Reduce glare and enhance your concealment with our Honeycomb anti-reflection shade. Made from 6063 aluminum and installed tool-free into the objective lens of our precision optics, the grid design is nearly invisible to the shooter’s eye. Available in 44mm, 50mm, and 56mm sizes, the Honeycomb is compatible with our Kentucky Long, Patriot, and Warhawk riflescopes.

ONLY GUARANTEED TO FIT SWAMPFOX OPTICS

WARRANTY

NO COMPROMISE

At Swampfox Optics, our commitment to excellence, craftsmanship, and customer satisfaction is included with every product we manufacture and sell. As a testament to our confidence in the quality of our products, we back them with a robust warranty policy. We believe in standing by what we sell and assure you that our customer support team is always available to help if any issues arise. This is more than a policy — it's our promise to you.

30 DAY MONEY-BACK SATISFACTION

GUARANTEE

From the moment you receive your Swampfox product, you have a full 30 days to inspect it and make sure you are happy with it prior to putting it through extensive use. If you're not entirely satisfied with the quality or features within this period, and are having some buyer’s remorse, we welcome your return for a full refund or an exchange for a product of equal value. Any returns or exchanges beyond this window apply strictly to defective products. If you purchase your optic from an alternative seller, we will not be able to provide a direct refund, but can provide an exchange for a product of equal value or provide a credit for use on our website, so long as the proof of purchase is provided.

LIMITED LIFETIME WARRANTY

Your Swampfox product carries a lifetime warranty against manufacturing defects and material flaws, covering structural housing and glass- everything but the illumination/electronic system. The illumination/electronic system of your Swampfox product is warrantied for 10 years from the manufacturing date. If it suffers damage under normal use that hampers its performance, we commit to repair or replace it.

Should you have any questions or require additional information, please visit our knowledge base and support desk at support.swampfoxoptics.com
