ROUTER BITS
This comprehensive range of routers bits has been formulated specifically for the local market and includes a wide variety of bits for almost any application.
EVACUT routers have been manufactured overseas from high quality tungsten carbide of a grade which has been specifically formulated to withstand the wide ranging performance demands of a diverse range of wood substrates including MDF through to hard native timbers.
Evacut routers feature an Anti Kick back design and high quality brazing of the tungsten carbide tips to ensure safety and reliability at speeds up to 25,000 rpm. Extensive testing has been carried out in Europe and the United States in to meet features and specifications in accordance with DIN EN847-1 and German BG-TEST 202-001 and 202-002. Each EVACUT router is mounted and packaged in a hard wearing clear plastic box that ensures safe storage and ease of identification.
Whether you are a professional or DIY user EVACUT routers deliver quality, safety and reliability.
Over 40 years of manufacturing focus with an ongoing commitment to introducing new technology.
Carbitool has a long standing reputation for excellence in the manufacture of carbide tools for the woodworking, cabinetry, joinery, furniture, timber and panel industries. Using the latest CNC (computerised numerical controlled) technology, Carbitool is committed to ongoing product development and quality improvement.
With a comprehensive range of woodworking tools including; Router Bits, Saw Blades, Planer Blades, Drills, Countersinks and much more. There would not be many woodwork shops in Australia that don’t contain router and drill bits and many other forms of tooling created by Carbitool.
Serving industry, trades, hobbyists and the specialist retailers world wide.
Carbitool – The Woodworking Masters
ROUTER BITS
Evacut Router Bits Index
89
Router Bits Ball Nose Bits, 2 Flute
91 Router Bits Chamfering Bits
90
88
Router Bits Classic Bits
Router Bits Classic Coving Bits, 2 Flute
89 Router Bits Core Box Bits
88
91
87
92
Router Bits Double Coving Bits, 2 Flute
Router Bits Dove Tail Bit
Router Bits Flush Trim Panel Bits
Router Bits Keyhole Bit
90 Router Bits Ogee Bits, 2 Flute 92 Router Bits Rebating Bits
90 Router Bits Roman Ogee Bits
87
Rounding Over Bits, 2 Flute 92 Router Bits Slotting Cutters, 2 Flute
86 Router Bits Straight Bits
86 Router Bits Straight Bits, Solid Tungsten Carbide
88 Router Bits Triple Coving Bits, 2 Flute 91 Router Bits Vee Grooving Cutters
Carbitool Router Bits Index
102
Assembly Tool
Ball Bearings
Beading Bits
Chamfering Bits
Router Bits Core Box Bits
Router Bits Drip Seal Groover
Router Bits Flush Trim Bits 96 Router Bits Flush Trim Bits, Combination
Router Bits Flush Trim Bits, Inverted
Router Bits Ogee Bits 100 Router Bits Rebating Bits
102 Router Bits Rebating Bits
Router Bits Roman Ogee Bits
Router Bits Slotting Cutters
Router Bits Straight Bits
Straight Bits, Solid Carbide
V-Groove Bits
Veining Bits
Straight Bits, Solid Tungsten Carbide
Router Bits Rounding Over Bits, 2 Flute
Router Bits Triple Coving Bits, 2 Flute

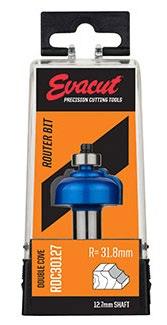

Router Bits Double Coving Bits, 2 Flute
Router Bits Core Box Bits
Router Bits Ogee Bits, 2 Flute
Router Bits
Classic Bits
Router Bits Vee Grooving Cutters
Router Bits Dove Tail Bit
Router Bits Rebating Bits
Router Bits Slotting Cutters, 2 Flute
Straight Bits, Solid Carbide
Single Flute - Straight Flute - Solid Carbide
• For general purpose routing and grooving
• E xcellent chip clearance
Suitable for a wide range of materials, hardwood, softwood, acrylic sheet, etc
Single Flute - Straight Flute - Solid Carbide - Long Series For maximum rigidity use the standard length bits (above) where possible
• Suitable for a wide range of materials, hardwood, softwood, acrylic sheet, etc.

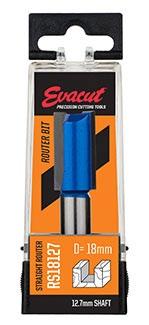

2 Flute - Straight Flute - Solid Carbide For all general purpose routing, grooving, rebating
• For longer life in routing abrasive type materials
2 Flute - Carbide Tipped
• For all general purpose routing, grooving, rebating
2 Flute - Carbide Tipped
• For all general purpose routing, grooving, rebating. For longer life in routing abrasive type materials
2 & 3 Flute - Compression Bit - For Mortising - Short Up Cut
• Advanced tool geometry to achieve higher feed rates
• G eometry minimises chipping and furring on the top and bottom surfaces Ideal for cutting double sided laminates and natural timbers.

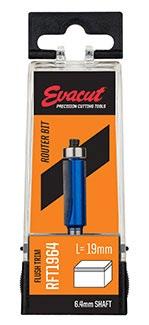

2 Flute - Flush Trimming Bit with Ball Bearing Guide - Carbide Tipped
• Fast, smooth and accurate trimming cuts for laminates and template work
2 Flute - Flush Trimming Bit with Double Ball Bearing Guide - Carbide Tipped For template work in softer timbers.
Double the surface area to ensure template surface is not damaged.
2 Flute - Flush Trimming Bit - Dual Bearing - Carbide Tipped
• Designed for trimming and template work
• Top and bottom bearings can be used for a variety of trimming applications.
Can utilise top bearing, bottom bearing or both
Router Bits Flush Trim Bits, Inverted
2 Flute - Inverted Flush Trimming Bit with Ball Bearing Guide - Carbide Tipped
• For copy work where the template is between the work piece and the router
Inverted Flush Trimming Bit with Down Shear - Carbide Tipped
Downward cutting action helps prevent delamination of veneers, laminates etc.
Useful when cutting soft, splintery timbers
C ost effective alternative to down cut spirals
Router Bits Flush Trim Bits, Combination
Single Flute - Combination Flush & 22° Bevel Trimming Bit - Solid Carbide
• Provides 22° bevel or 0° square cut on the edge of plastic laminated surfaces
2 Flute - Combination Flush & 22° Bevel Trimming Bit - Carbide Tipped Provides a 22° or 0 ° straight cut on the edge of plastic or laminates surfaces

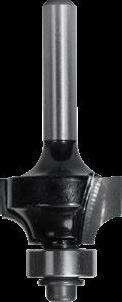

2 Flute - Rounding Over Bit with Ball Bearing Guide - Carbide Tipped
G ives extra smooth chatter free cuts due to precise tool geometry
• Can be converted to a beading bit by using bearing TB9
Router Bits Beading Bits
2 Flute - Beading Bit with Ball Bearing Guide - Carbide Tipped
Smaller TB9 bearing leaves a 1/16" edge bead
Can be converted to rounding over bit by using bearing TB11
Bearing exposes bottom corner of cutter allowing it to cut the bottom bead
• Use machines height adjustment to drop top corner of cutter into the workpiece to create top bead

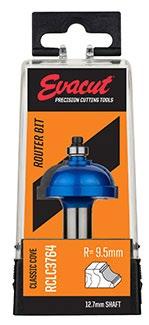

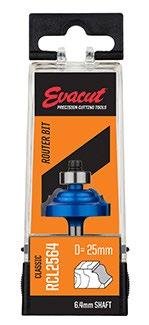

2 Flute - Classical Bit with Ball Bearing Guide - Carbide Tipped
• Versatile decorative moulding for furniture and building applications
• Use as a combination bit by only including part profile

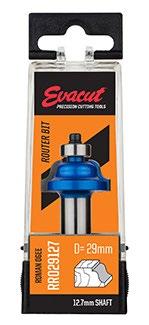

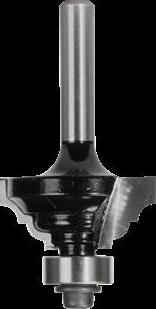

2 Flute - Roman Ogee Bit with Ball Bearing Guide - Carbide Tipped
• A decorative edge bit for early American furniture making
• Reverse profile to Ogee bit
2 Flute - Roman Ogee Bit with Ball Bearing Guide - Carbide Tipped
• A decorative edge bit for early American furniture making
• Reverse profile to Ogee bit
Router Bits Ogee Bits

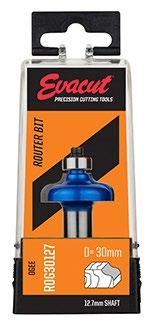

2 Flute - Ogee Bit with Ball Bearing Guide - Carbide Tipped
• Produces a decorative form used widely on table and mantle edges
Can be used as a combination bit
Use machine height adjustment to include or exclude top bead
By fitting the optional TB9 ball bearing, a 1/16" edge bead can be produced as illustrated
2 Flute - Ogee Bit with Ball Bearing Guide - Carbide Tipped
• Produces a decorative form used widely on table and mantle edges
• Can be used as a combination bit
• Use machine height adjustment to include or exclude top bead
By fitting

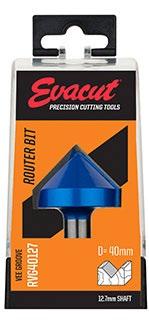

2 Flute - 90° Vee Groove Bit - Carbide Tipped
• 90° included angle
• A versatile bit for decorative vee grooves and chamfering Used for sign and lettering work
Router Bits Core Box Bits

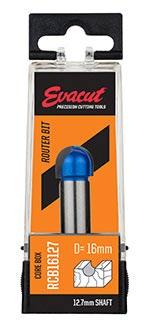

2 Flute - Core Box Bit - Carbide Tipped For use in fluting flat surfaces such as mantles and facades Use for signage lettering
Router Bits Veining Bits
Single Flute - Veining Bit - Solid Carbide For grooving and scoring panel designs in wood surfaces

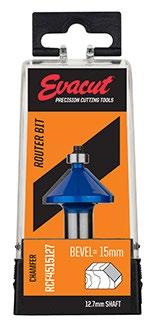

2 Flute - Chamfering Bit with Pilot - Carbide Tipped
• Helpful in making almost invisible joints
• 45° chamfer
2 Flute - Chamfering Bit with Ball Bearing Guide - Carbide Tipped - 45° Angle
W ide range of angles available
Most can be modified to achieve custom angles
Router Bits Rebating Bits

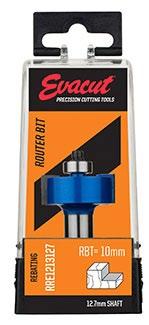

2 Flute - Rebating Bit with Pilot with Ball Bearing Guide - Carbide Tipped
• Has ball baring guide for mar-free finish
• By substituting TB9 bearing, the depth of the rebate will be increased by 1/16" (1.6mm)
Drip Seal Groover
• Cuts 2.5mm wide & 8mm deep grooves
• For fitting drip, dust & smoke seals to window frames A countersunk screw securing the cutter allows for a flush cut
Router Bits Slotting Cutters
2 Flute - Assemblies with Ball Bearing Guide - Carbide Tipped
• Ball bearing guide eliminates time consuming set up of router machine guides
2 Flute - Slotting Cutter Only - Carbide Tipped Replacement and additional cutters can be purchased to fit an existing arbor
4 Flute - Slotting Cutter Only - Carbide Tipped
• For extra smooth cutting and finishes with longer tool life between sharpening
Router Bits Ball Bearings
Ball Bearings
• Note: All bearings should be kept free of dust and dirt. They should be cleaned in glue solvent and lightly oiled after each use.
Router Bits Assembly Tool
Router Bit Assembly Tool
Ergonomic design fits comfortably in your hand.
Increased safety by reducing the risk of cuts from holding bits in-hand.
• Prevents scoring of router bit shanks caused by holding bits with pliers.
• Precision needle bearings hold bit shanks securely.
• Black anodised for corrosion prevention.
Magnets on base for secure mounting to bench top.
Router Bits Rebating Bits
2 Flute - Rebating Bit with Pilot with Ball Bearing Guide - Carbide Tipped
• Suits all timbers
• Popular for timber "slab milling"
Ideal for levelling wasteboard or sacrificial board on CNC router beds
