Established in 1917, Sutton Tools is the only production manufacturer specialist and supplier of globally competitive, quality cutting tools in Australia. Throughout the company’s lifetime, Sutton Tools have strived to be an innovative leader within the machining industry and have grown to become a globally recognised cutting tool brand.
Alongside current manufacture and distributing operations, Fenn Tool are the sole UK-based distributor of Sutton Tools’ quality cutting tools.
Email Fenn Tool via sales@fenntool.com to request your Sutton Tools catalogue or head over to https://suttontools.com/eu/ to view their products online.
Fenn Tool are proud to be a part of the Sutton Tools group.
Providing Complete Tooling Solutions
Fenn Tool is one of the UK’s largest independent cutting tool distributors and is located in Braintree, Essex. We provide the highest quality of service to our customers, supplying market leading tooling for any application, fully integrated tool management systems, inventory control systems, pre-setting systems, heat-shrink and balancing systems.
Our reputation within the industry is underpinned by our continued development and growth, which enables us to push production to the next level. Our philosophy of continued improvement has enabled us to strike solid relationships with suppliers and allows us to deliver the most competitive range of products available on the market today.
Our ever-expanding team of field Technical Sales Engineers are dedicated to providing support that really matters and are always focused on improving your productivity. With full UK and Ireland coverage, our Engineers, backed by our internal Customer Service and Technical Department, offer a service which you can really rely on.
Our Product Ranges
■ Milling
■ Threading
■ Holemaking
■ Grooving & Parting-Off
■ Turning
■ Boring
■ Tool Holding
■ Heat-Shrinking
■ Balancing
■ Measuring & Pre-Setting

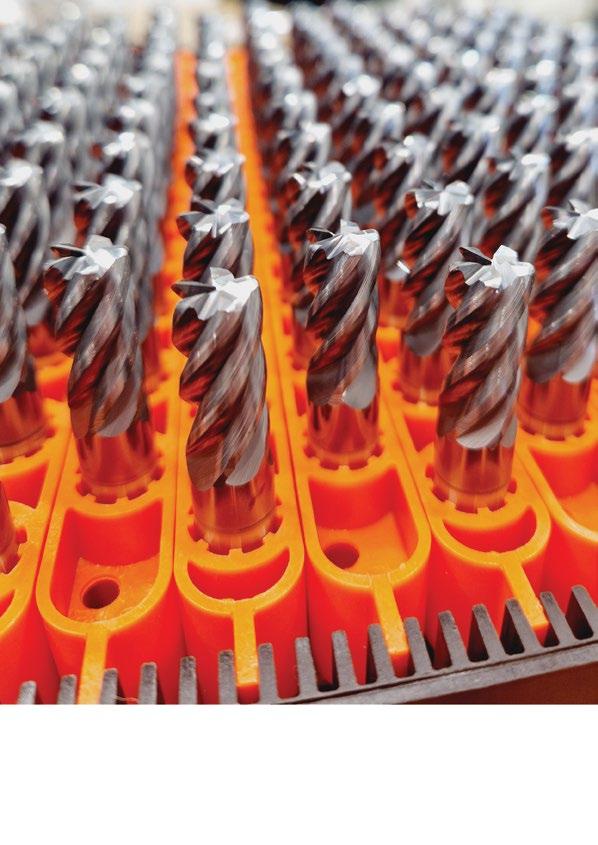

Solid Carbide End Mills

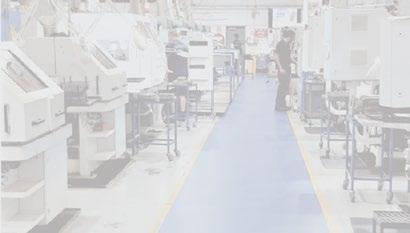

Manufacturing
In an industry that demands accuracy, repeatability, and efficiency, Fenn Tool will deliver quality tooling and engineering solutions time and time again to enable you to produce your components faster. As one of the UK’s leading manufacturers of high-performance solid carbide cutting tools, we are able to offer an innovative and diverse product range to suit all applications.
The skill and dedication of our manufacturing team is proven with Fenn Tool’s FETOGA carbide milling range. With specially designed geometries
As an ISO 9001 Certified company, we dedicate ourselves towards continuous development and quality management. We believe this is testament to our passion and commitment to manufacturing, and ultimately our customers.
Custom Tooling
Fenn Tool’s Custom Tool Division is dedicated to the design and manufacture of special tooling for the more unique applications our customers encounter. Our team of Technical Engineers and Manufacturing Operatives, with a wealth of experience in manufacturing special products, work with customers to create quality, bespoke solutions to suit each individual application, whatever your requirements.

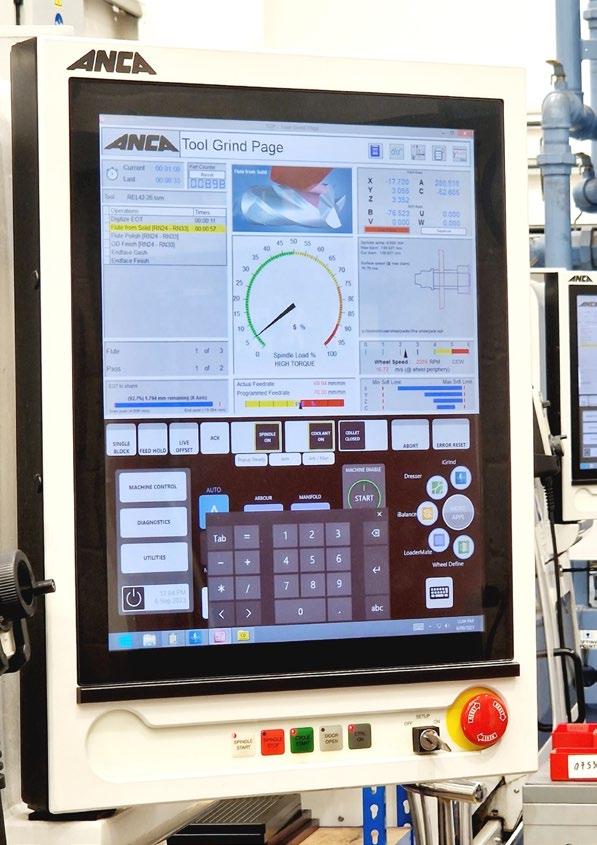

With a range of high-spec ANCA CNC machinery coupled with state-of-the-art inspection equipment, Fenn Tool is able to produce the highest quality specialist tooling. From one-off specials to multi-year supply contracts, we have the experience and reputation that you can rely on. for milling virtually any material and a selection of high-performance coating options, we can assure you we will always find a suitable cutter to meet your requirements. You will find the FETOGA range will last significantly longer and as a result, will minimise downtime and maximise productivity.
Solid Carbide End Mills
Solid Carbide End Mills
Solid Carbide End Mills
Mini-series, 2 flute solid carbide end mill, designed for machining a variety of applications and materials from general Steels to Titanium Alloys. Designed with centre cutting geometry and improved ground flutes to enable better surface finish and longer tool life. Available uncoated or with AITiN coating for increased cutter performance.
100 Solid Carbide 2 Flute Mini End Mill
30˚
101 Solid Carbide 2 Flute Mini End Mill
Solid Carbide End Mills
Mini-series, 4 flute solid carbide end mill, designed for machining a variety of applications and materials from general Steels to Titanium Alloys. Designed with centre cutting geometry and improved ground flutes to enable better surface finish and longer tool life. Available uncoated or with AITiN coating for increased cutter performance.
102
Solid Carbide 4 Flute Mini End Mill
103 Solid Carbide 4 Flute Mini End Mill
Solid Carbide End Mills
Mini-series, 2 flute ball nosed solid carbide end mill, designed for machining a variety of applications and materials from general Steels to Titanium Alloys. Designed with centre cutting geometry and improved ground flutes to enable better surface finish and longer tool life. Available uncoated or with AITiN coating for increased cutter performance.
104
Solid Carbide 2 Flute Mini Ball Nosed End Mill
105 Solid Carbide 2 Flute Mini Ball Nosed End Mill
30˚
Solid Carbide End Mills
Universal, 2 and 3 flute stub series solid carbide end mill manufactured to high standards and tolerances. Designed for cutting a wide range of materials from Steels to Titanium alloys. Specially enhanced geometry gives better surface finish and longer tool life.
106
Solid Carbide 2 Flute Stub Series End Mill
107
Solid Carbide 3 Flute Stub Series End Mill
Solid Carbide End Mills
Universal, 4 flute stub series solid carbide end mill, manufactured to high standards and tolerances. Designed for cutting a wide range of materials from Steels to Titanium alloys. Specially enhanced geometry gives better surface finish and longer tool life.
108 Solid Carbide 4 Flute Stub Series End Mill
Solid Carbide End Mills
Universal, 2 flute solid carbide end mill manufactured to high standards and tolerances. Suitable for cutting a wide range of materials from Steels to Titanium alloys. Designed with specially enhanced geometry to give better surface finish and longer tool life. Available uncoated or with AITiN coating for increased cutter performance.
111 Solid Carbide 2 Flute End Mill
30˚ Helix, 2 Flute, Centre Cutting, Bright Finish. Product Group FC
114 Solid Carbide 2 Flute End Mill
Solid Carbide End Mills
Universal, 3 flute solid carbide end mill manufactured to high standards and tolerances. Suitable for cutting a wide range of materials from Steels to Titanium alloys. Designed with specially enhanced geometry to give better surface finish and longer tool life. Available uncoated or with AITiN coating for increased cutter performance.
112 Solid Carbide 3 Flute End Mill
115 Solid Carbide 3 Flute End Mill
Solid Carbide End Mills
Universal, 4 flute solid carbide end mill manufactured to high standards and tolerances. Suitable for cutting a wide range of materials from Steels to Titanium alloys. Designed with specially enhanced geometry to give better surface finish and longer tool life. Available uncoated or with AITiN coating for increased cutter performance.
113 Solid Carbide 4 Flute End Mill
30˚
116 Solid Carbide 4 Flute End Mill
Solid Carbide End Mills
Universal, 2 flute ball nosed solid carbide end mill, designed for machining a variety of applications and materials from general Steels to Titanium alloys. Ideal for profiling due to uniform helix and centre cutting geometry. Available uncoated or with AITiN coating for increased cutter performance and tool life.
124
Solid Carbide 2 Flute Ball Nosed End Mill
30˚ Helix, 2 Flute, Centre Cutting, Bright Finish. Product Group FD
127 Solid Carbide 2 Flute Ball Nosed End Mill
30˚ Helix, 2 Flute, Centre Cutting, AITiN Coated. Product Group FD
Solid Carbide End Mills
Universal, 3 flute ball nosed solid carbide end mill, designed for machining a variety of applications and materials from general Steels to Titanium alloys. Ideal for profiling due to uniform helix and centre cutting geometry. Available uncoated or with AITiN coating for increased cutter performance and tool life.
125 Solid Carbide 3 Flute Ball Nosed End Mill
30˚ Helix, 3 Flute, Centre Cutting, Bright Finish. Product Group FD
128 Solid Carbide 3 Flute Ball Nosed End Mill
30˚ Helix, 3 Flute, Centre Cutting, AITiN Coated. Product Group FD
Solid Carbide End Mills
Universal, 4 flute ball nosed solid carbide end mill, designed for machining a variety of applications and materials from general Steels to Titanium alloys. Ideal for profiling due to uniform helix and centre cutting geometry. Available uncoated or with AITiN coating for increased cutter performance and tool life.
126
Solid Carbide 4 Flute Ball Nosed End Mill
30˚ Helix, 4 Flute, Centre Cutting, Bright Finish. Product Group FD
129 Solid Carbide 4 Flute Ball Nosed End Mill
30˚ Helix, 4 Flute, Centre Cutting, AITiN Coated. Product Group FD
Solid Carbide End Mills
High performance, 4 flute solid carbide variable helix cutter, designed for fine finishing, finishing, rough finishing and roughing. Ideal for a wide range of materials including Free Cutting Steels, Tool Steels, Nitriding Steels and Steels up to 50HRC. Variable helix angles and unequal index for effective smooth, vibrationless running and excellent surface finish. Exceptional tool life with Stygian G coating offers both excellent wear resistance and eliminates surface pick up.
157 Solid Carbide 4 Flute Variable Helix
Variable Helix, Unequal Index, Centre Cutting, Stygian G Coated, 15˚ Rake Angle, Trochoidal Milling. Product Group FE
158 Solid Carbide 4 Flute Variable Helix
Variable
Unequal
Solid Carbide End Mills
Universal, 4-5 flute 90° chamfer mill. Especially suited for chamfering, deburring, and countering. Capable of machining a variety of materials and is available in bright finish and AlTin coated.
160 Solid Carbide 90˚ Chamfer Mill
161 Solid Carbide 90˚ Chamfer Mill
Solid Carbide End Mills
Universal, 2 and 3 flute, long series solid carbide end mill. Manufactured to high standards and tolerances. Designed for cutting a wide range of materials from Steels to Titanium Alloys. AlTiN coating and enhanced geometry enables a better surface finish and gives a longer tool life.
134 Solid Carbide 2 Flute Long Series End Mill
30˚
135 Solid Carbide 3 Flute Long Series End Mill
Solid Carbide End Mills
Universal, 4 flute, long series solid carbide end mill. Manufactured to high standards and tolerances. Designed for cutting a wide range of materials from Steels to Titanium Alloys. AlTiN coating and enhanced geometry enable a better surface finish and gives a longer tool life.
136 Solid Carbide 4 Flute Long Series End Mill
Solid Carbide End Mills
Universal, long series, 2 flute ball nosed solid carbide cutter, designed for machining a variety of materials from general Steels to Titanium Alloys. Ideal for profiling due to uniform helix and centre cutting geometry. AlTiN coated for increased cutter performance.
130 Solid Carbide 2 Flute Long Series Ball Nosed End Mill
30˚ Helix, 2 Flute, Centre Cutting, AITiN Coated. Product Group FB
High performance, 4 flute solid carbide variable index cutter, designed for fine finishing, finishing and rough finishing with the same tool. Ideal for a wide range of materials including Free Cutting Steels, Tool Steels, Nitriding Steels and Steels up to 50HRC.
159 Solid Carbide 4 Flute Long Series Variable Index
Solid Carbide End Mills
Universal, 2 and 4 flute extra long series end mills, designed for machining a variety of materials from general Steels to Titanium Alloys.
152 Solid Carbide 2 Flute Extra Long Series
30°
153 Solid Carbide 4 Flute Extra Long Series
Solid Carbide End Mills
Universal, 2 and 4 flute extra long series ball nosed end mills, designed for machining a variety of materials from general Steels to Titanium Alloys. Designed with a specially enhanced geometry and AlTiN coating to give a better surface finish and increased tool life.
154 Solid Carbide 2 Flute Extra Long Series Ball Nosed
30°
155
Solid Carbide 4 Flute Extra Long Series Ball Nosed
Solid Carbide End Mills
Solid Carbide End Mills
Solid Carbide End Mills
High performance, 2 flute solid carbide end mill, designed for cutting Aluminium and Aluminium Alloys. Uniquely designed flute geometry, with high helix angle, gives improved surface finishes at higher feed rates.
201 Solid Carbide 2 Flute End Mill
High performance, 2 flute ball nosed solid carbide end mill, designed for cutting Aluminium and Aluminium Alloys. The uniquely designed flute geometry, with high helix angle, gives improved surface finishes at higher feed rates, especially when copy milling.
203 Solid Carbide 2 Flute Ball Nosed End Mill
Solid Carbide End Mills
High performance, 3 flute, through coolant solid carbide ripper, especially designed with 3 teeth to centre to create a balanced tool and a unique sinusoidal form that is ideal for cutting Aluminium. Enhanced with through coolant and wide gullets for maximum swarf removal, this cutter will perform at high feed rates at less power.
702 Solid Carbide 3 Flute Through Coolant Ripper
3 Teeth to Centre, Wide Gullets, Through Coolant, Max Swarf Removal, Sinusoidal Form, Bright Finish. Product Group FC
Solid Carbide End Mills
High performance, 3 flute solid carbide end mill, especially designed with 3 teeth to centre to create a balanced tool, with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed ASX coating for Aluminium. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish, and provides longer tool life.
204 Solid Carbide 3 Flute End Mill
40° Helix, 3 Teeth to Centre, Deep Gullets, Balanced Tool, ASX Coating, HSM. Product Group FC
205 Solid Carbide 3 Flute End Mill with Rads
40° Helix, 3 Teeth to Centre, Deep Gullets, Balanced Tool, ASX Coating, HSM. Product Group FC
Solid Carbide End Mills
High performance, 3 flute solid carbide end mill with rads, especially designed with 3 teeth to centre to create a balanced tool, with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed ASX coating for Aluminium. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish, and provides longer tool life.
205 Solid Carbide 3 Flute End Mill with Rads
Solid Carbide End Mills
High performance, 3 flute solid carbide end mill, especially designed with 3 teeth to centre to create a balanced tool, with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed polished flute geometry to enhance tool life and surface finish.
223 Solid Carbide 3 Flute End Mill
40° Helix, 3 Teeth to Centre, Deep Gullets, HCR Coating, Balanced Tool, HSM. Product Group FC
High performance, 3 flute solid carbide end mill, especially designed with 3 teeth to centre to create a balanced tool, with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed ASX coating for Aluminium. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish, and provides longer tool life.
224 Solid Carbide 3 Flute End Mill
40° Helix, 3 Teeth to Centre, Deep Gullets, Balanced Tool, ASX Coating, Extended Reach, HSM. Product Group FC
Solid Carbide End Mills
High performance, 3 flute solid carbide rougher, special NR geometry allows for heavier cuts on lower powered machines. For soft non-ferrous aluminium alloys. The tool consists of a high rake angle for long chipping materials, complemented with a Variable Helix / Variable Index, Polished Fluting, and HCR Coating. Excellent performance in Trochoidal milling applications.
231 Solid Carbide 3 Flute Rougher
High performance, 3 flute solid carbide, long series rougher, special NR geometry allows for heavier cuts on lower powered machines. For soft non-ferrous aluminium alloys. The tool consists of a high rake angle for long chipping materials, complemented with a Variable Helix / Variable Index, Polished Fluting, and HCR Coating. Excellent performance in Trochoidal milling applications.
232 Solid Carbide 3 Flute Long Series Rougher
Solid Carbide End Mills
High performance, 3 flute long series solid carbide end mill, designed for cutting Aluminium and Aluminium Alloys. Unique flute geometry offers excellent ramping capabilities, with high helix angle and 3 teeth to centre to give improved surface finish at higher feed rates.
207 Solid Carbide 3 Flute Long Series End Mill
High performance, 2 flute long series ball nosed, solid carbide end mill, designed for cutting Aluminium and Aluminium Alloys. Unique flute geometry offers excellent copy milling capabilities, with high helix and short flutes to give improved surface finishes at higher
215 Solid Carbide 2 Flute Long Series Ball Nosed End Mill
Solid Carbide End Mills
High performance, 3 flute solid carbide end mill, especially designed with 3 teeth to centre to create a balanced tool, extra reach and with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed HCR coating for Aluminium. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish, and provides longer tool life.
227 Solid Carbide 3 Flute Long Reach End Mill
40° Helix, 3 Teeth to Centre, Deep Gullets, Balanced Tool, HCR Coating, Extended Reach, HSM. Product Group FC
Solid Carbide End Mills
High performance, 4 flute solid carbide end mill with extended flute length. This tool is excellent for trochoidal milling and its wide gullets, polished flute design, and HCR coating enable excellent feed rates to be achieved.
225 Solid Carbide 4 Flute Long Edge Finishing Cutter
45°
229 Solid Carbide 4 Flute Long Edge Finishing Cutter
Solid Carbide End Mills
High performance, 4 flute solid carbide end mill with extended flute length and added chip breakers for a more aggressive cut. This tool is excellent for trochoidal milling and its wide gullets, polished flute design, and HCR coating enable excellent feed rates to be achieved.
226 Solid Carbide 4 Flute Long Edge Semi Roughing Cutter
45° Helix, 4 Flute, Centre Cutting, With Chip Breakers, Polished Flutes, HCR Coating. Product Group FC
230 Solid Carbide 4 Flute Long Edge Semi Roughing Cutter
Solid Carbide End Mills
High performance, 4 flute solid carbide end mill with extended flute length and corner rads. This tool is excellent for trochoidal milling and its wide gullets, polished flute design, and HCR coating enable excellent feed rates to be achieved.
228 Solid Carbide 4 Flute Long Edge Finishing Cutter with Rads
45° Helix, 4 Flute, Centre Cutting, Polished Flutes, HCR Coating, Corner Rads. Product Group FC
Solid Carbide End Mills
High performance, 3 flute solid carbide end mill, with reach. Specially designed with 3 teeth to centre to create a balanced tool, with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed ASX coating for Aluminium. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish, and provides longer tool life. A versatile cutter for long reach applications.
216 Solid Carbide 3 Flute End Mill
40° Helix, 3 Teeth to Centre, HSM, Balanced Tool, ASX Coating, Waterline Machining. Product Group FC
High performance, 2 flute standard series, solid carbide end mill, designed for cutting Aluminium and Aluminium Alloys. Unique flute geometry offers excellent copy milling capabilities, with high helix angle and short flutes to give improved surface finish at higher feed rates.
219 Solid Carbide 2 Flute End Mill
Solid Carbide End Mills
High performance, 2 flute long or extra long series, solid carbide end mill, designed for cutting Aluminium and Aluminium Alloys. Unique flute geometry offers excellent copy milling capabilities, with high helix angle and short flutes to give improved surface finish.
208 Solid Carbide 2 Flute Long Series End Mill
209 Solid Carbide 2 Flute Extra Long Series End Mill
55° Helix, 2 Flute, Centre Cutting, Bright Finish, HSM, Waterline Machining. Product Group
Solid Carbide End Mills
High performance, 2 flute long series, solid carbide end mill with rads, designed for cutting Aluminium and Aluminium Alloys. Unique flute geometry offers excellent copy milling capabilities, with high helix angle and short flutes to give improved surface finish.
210 Solid Carbide 2 Flute Long Series End Mill with Rads
55° Helix, 2 Flute, Centre Cutting, Bright Finish, Various Rads, HSM, Waterline Machining. Product Group FC
Solid Carbide End Mills
High performance, 3 flute long series solid carbide end mill with reach. Specially designed with 3 teeth to centre to create a balanced tool, with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed ASX coating for Aluminium which allows for roughing and finishing, enables higher productivity, gives excellent surface finish, and provides longer tool life. A versatile cutter for long reach applications.
217 Solid Carbide 3 Flute Long Series End Mill
40° Helix, 3 Teeth to Centre, HSM, Balanced Tool, ASX Coating, Waterline Machining. Product Group FC
Solid Carbide End Mills
High performance, 3 flute long series, solid carbide end mill with rads. Especially designed with 3 teeth to centre to create a balanced tool, with wide gullets to enable the cutter to plunge, ramp and run at higher feed rates. Featuring a specifically designed ASX coating for Aluminium which allows for roughing and finishing, enables higher productivity, gives excellent surface finish, and provides longer tool life. A versatile cutter for long reach applications.
218 Solid Carbide 3 Flute Long Series End Mill with Rads
40° Helix, 3 Teeth to Centre, HSM, Balanced Tool, ASX Coating, Waterline Machining. Product Group FC
Solid Carbide End Mills
Solid Carbide End Mills
Solid Carbide End Mills
High performance, 3 flute solid carbide variable index cutter, designed for fine finishing, finishing and rough finishing with the same tool. Ideal for a wide range of materials including Free Cutting Steels, Tool Steels, Nitriding Steels and Steels up to 50HRC. Variable index for effective, smooth, vibrationless running and excellent surface finish.
162 Solid Carbide 3 Flute Variable Index
163 Solid Carbide 3 Flute Variable Index
Solid Carbide End Mills
High performance, 5 flute solid carbide end mill offering exceptional finishes while tackling heavy milling applications. Uniquely designed geometries give higher performance, heavier chip loads and increased chatter suppression through the variable helix and index geometry. The penta mill is specifically designed for Steels, Stainless Steels, Super Alloys and Titanium, can run at higher feed rates, and with ALCrN Ceramic Tool Coating will have increased tool life.
312 Solid Carbide 5 Flute Variable Helix
Variable Flute/Index, Centre Cutting, ALCrN Coating, Chatter Suppression, Trochoidal Milling. Product Group FE
Solid Carbide End Mills
High performance, 4 flute solid carbide cutter, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels, stainless steels and exotic alloys. Variable helix and unequal index enables effective, smooth vibrationless running and gives an excellent surface finish.
323 Solid Carbide 4 Flute Variable Helix with Rads
Solid Carbide End Mills
High performance, 4 flute solid carbide cutter, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels, stainless steels and exotic alloys. Variable helix and unequal index enables effective, smooth vibrationless running and gives an excellent surface finish.
Solid Carbide End Mills
High performance, 5 flute solid carbide cutter, offering exceptional finishes while tackling heavy milling applications. Uniquely designed geometries give higher performance, heavier chip loads and increased chatter suppression through the variable helix and index geometry. The penta mill is specifically designed for Steels, Stainless Steels, Super Alloys and Titanium, can run at higher feed rates, and with ALCrN Ceramic Tool Coating will have increased tool life.
324 Solid Carbide 5 Flute Variable Helix with Rads
Variable Flute/Index, Centre Cutting, ALCrN Coating, Chatter Suppression, Trochoidal Milling, Corner Rads. Product Group
Solid Carbide End Mills
High performance, 4 flute solid carbide cutter, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels and stainless steels. Variable helix and unequal index enables effective, smooth, vibrationless running and gives an excellent surface finish.
Solid Carbide 4
Solid Carbide End Mills
High performance, 4 flute solid carbide end mill, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels, stainless steels and exotic alloys. Variable helix and unequal index enables effective, smooth, vibrationless running and gives an excellent
finish.
314 Solid Carbide 4 Flute Variable Helix
Variable Index, Variable Helix, Centre Cutting, HPH Coated. Product Group FE
326 Solid Carbide 4 Flute Variable Helix
Solid Carbide End Mills
High performance, 5-6 flute solid carbide ripper, designed for a wide range of materials including Stainless Steel, Steels 500N/mm2 to 1400 N/mm2, Cast Iron and Titanium. Enhanced geometry offers high cutting performance, with less power.
403 Solid Carbide High Performance 5-6 Flute Ripper
45˚Helix, Enhanced Geometry, Centre Cutting, Small Corner Break, Stygian Coating.
High performance, multi flute, solid carbide end mill, designed for machining materials up to 45 HRC and ideal for Stainless Steel. Stygian coating enables considerably higher cutting speeds and longer tool life. Enhanced flute geometry makes this cutter ideal for profile milling when a high surface finish is required.
407 Solid Carbide Multi Flute End Mill
Solid Carbide End Mills
High performance, 4 flute solid carbide end mill, ideal for cutting exotic alloys such as Inconel, Nimonic and Titanium. The newly designed flute geometry, with variable index and specially developed coating, provides exceptional results when machining the most difficult of materials.
409 Solid Carbide 4 Flute Variable
High performance, 4 flute ball nosed, solid carbide end mill, specifically designed with variable helix to eliminate vibration. This versatile solid carbide tool is capable of high speed machining. Featuring HPN1 coating specifically designed for machining hardened and high tensile steels. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish, and provides longer tool life.
High performance, 2 flute ball nosed, solid carbide cutter. This versatile solid carbide tool is capable of high speed machining. Featuring HPN1 Coating specifically designed for machining hardened and high tensile steels. The coating allows for roughing and finishing using the same tool, enables higher productivity, gives excellent surface finish, and provides longer tool life.
315 Solid Carbide 2 Flute Ball Nosed
30˚ Helix, Improved Geometry, HPN1 Coating, Long Series, Ball Nosed. Product Group FA
High performance, 4 flute solid carbide end mill, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels, stainless steels and exotic alloys. Variable helix and unequal index enables effective, smooth, vibrationless running and gives an excellent surface finish.
317 Solid Carbide 4 Flute Variable Helix
Solid Carbide End Mills
High performance, 4 flute solid carbide end mill, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels, stainless steels and exotic alloys. Variable helix and unequal index enables effective, smooth, vibrationless running and gives an excellent surface finish.
318 Solid Carbide 4 Flute Variable Helix Cutter with Rads
Solid Carbide End Mills
High performance, 5 flute solid carbide end mill, offering exceptional finishes while tackling heavy milling applications. Uniquely designed geometries give higher performance, heavier chip loads and increased chatter suppression through the variable helix and index geometry. The penta mill is specifically designed for Steels, Stainless Steels, Super Alloys and Titanium, can run at higher feed rates, and with ALCrN Ceramic Tool Coating will have increased tool life.
319 Solid Carbide 5 Flute Variable Helix
Variable Flute/Index, Centre Cutting, ALCrN Coating, Long Reach, Chatter Suppression, Trochoidal Milling. Product Group FE
Solid Carbide End Mills
High performance, 5 flute solid carbide end mill, offering exceptional finishes while tackling heavy milling applications. Uniquely designed geometries give higher performance, heavier chip loads and increased chatter suppression through the variable helix and index geometry. The penta mill is specifically designed for Steels, Stainless Steels, Super Alloys and Titanium, can run at higher feed rates, and with ALCrN Ceramic Tool Coating will have increased tool life.
320 Solid Carbide 5 Flute Variable Helix Cutter with Rads
Variable Flute/Index, Centre Cutting, ALCrN Coating, Long Reach, Corner Rads, Chatter Suppression, Trochoidal Milling. Product Group FE
Solid Carbide End Mills
High performance, long reach 4 flute solid carbide end mill, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels, stainless steels and exotic alloys. Variable helix and unequal index enables effective, smooth, vibrationless running and gives an excellent surface finish.
321
Solid Carbide 4 Flute Variable Helix
Variable Index, Variable Helix, HPH Coated, Extra Long Reach. Product Group FE
High performance, long reach 4 flute ball nosed solid carbide end mill, designed for fine finishing, finishing, rough finishing and roughing with the same tool. Ideal for a wide range of materials including free cutting steels, tool steels, stainless steels and exotic alloys. Variable
Variable Index, Variable Helix, HPH Coated, Extra Long Reach, Ball Nosed. Product Group FE
Solid Carbide End Mills
High performance, 7 flute solid carbide end mill, which offers exceptional finishes when tackling heavy milling operations up to 3 x D. This unique geometry is designed to offer peak performance and can take higher than normal chip loads due to its variable helix and index. The latest tool coating also offers extended tool life and the chip splitters also limit issues with swarf build up.
328 Solid Carbide 7 Flute Variable Helix
329 Solid Carbide 7 Flute Variable Helix
Solid Carbide End Mills
High performance, 7 flute solid carbide end mill, which offers exceptional finishes when tackling heavy milling operations up to 5 x D. This unique geometry is designed to offer peak performance and can take higher than normal chip loads due to its variable helix and index. The latest tool coating also offers extended tool life and the chip splitters also limit issues with swarf build up.
330 Solid Carbide 7 Flute Variable Helix
Variable Flute/Index, HPH Coating, Chip Splitters, 5 x D Length. Product Group FC
331 Solid Carbide 7 Flute Variable Helix
Solid Carbide End Mills
Please note the below cutting data supplied is for guidance purposes only.
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Pocketing / Profile Milling
Slotting / Side Finishing / Pocketing / Profile Milling
P3
P5
U-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Side Roughing / Pocketing
P3
Slotting / Side Finishing / Side Roughing / Pocketing
U-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Pocketing / 3D Milling / Profile Milling
P3 Vc
N5 Vc FZ
Data applicable to 124, 125, 126
Slotting / Side Finishing / Pocketing / 3D Milling / Profile Milling
P3
P5 Vc FZ
U-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Side Roughing / Pocketing
P3
Slotting / Side Finishing / Side Roughing / Pocketing
P3
P4
U-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Chamfering
Chamfering
P1
U-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Side Roughing / Pocketing
M1
Slotting / Side Cutting / Pocketing / 3D Milling / Profile Milling
P3 Vc FZ
P4
A-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Pocketing
Slotting / Side Finishing / Pocketing / 3D Milling / Profile Milling
Data applicable to 203, 210, 215
Slotting / Side Finishing / Side Roughing / Pocketing
Slotting / Side Finishing / Side Roughing / Pocketing
Data applicable to 207
A-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Side Roughing
Vc = Surface Speed (m/min) Fz = Feed per Tooth (mm/t) ae = 1.0 x d1 (width of cut) ap = 1.0 x d1 (depth of cut) Ømm
N1 Vc FZ up to 2500 0.070 - 0.080 up to 2500 0.090 - 0.100 up to 2500 0.060 - 0.080 up to 2500 0.140 - 0.170
N2 Vc FZ up to 2500 0.070 - 0.080 up to 2500 0.090 - 0.110 up to 2500 0.120 - 0.140 up to 2500 0.140 - 0.160 N3 Vc FZ up to 2500 0.070 - 0.080 up to 2500 0.090 - 0.110 up
- 0.180
Data applicable to 231, 232, 702
Trochoidal Milling
Trochoidal Milling is a milling strategy enabled by the use of new CAM programming systems and control cycles, which maintains a constant tool circumferential contact and consistent average chip thickness, ensuring an optimum and efficient machining process. This data can be utilised with the use of all square end and radius tools within this catalogue with a maximum 60% of angle engagement. The feed per tooth is used with the step over of either 0.1, 0.2 or 0.4 (40%) of the cutter diameter. Ømm
I-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Pocketing / Profile Milling
Slotting / Side Finishing / Side Roughing / Pocketing
P3
P4
P5
M3
S2
Data applicable to 162, 163
I-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Slotting / Side Finishing / Side Roughing / Pocketing
P5
M1
S1
Slotting / Side Finishing / Side Roughing / Pocketing
P3
P4
P5
M2
M3
S2
Data
to 314, 317, 318, 321, 323, 325
I-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Side Finishing / 3D Milling
Data applicable to 315, 322, 411
Side Finishing / Profile Milling
P4
P5
M1
S1
S2
I-Line Technical Data
Please note the below cutting data supplied is for guidance purposes only.
Trochoidal Milling
Trochoidal Milling is a milling strategy enabled by the use of new CAM programming systems and control cycles, which maintains a constant tool circumferential contact and consistent average chip thickness, ensuring an optimum and efficient machining process. This data can be utilised with the use of all variable helix tools within this catalogue with a maximum 40% of angle engagement.
Data applicable to 328, 329, 330, 331
P4
P5
M2
S1
Troubleshooting - End Mills

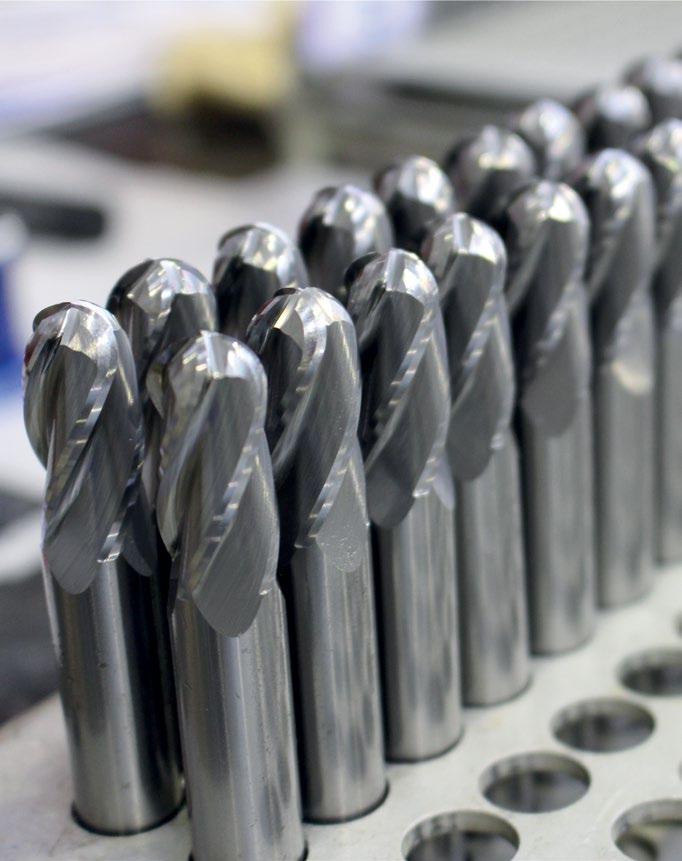

Manufacturing
Since 2000, Fenn Tool have been manufacturing our own ‘Fetoga’ range of solid carbide end mills and throughout the years, we have heavily invested into the manufacturing side of our business to bring you cutting tools you can rely on.
In 2018, Fenn Tool invested in a further two Seven Axis CNC machines to complement the already impressive array of machine tools and has since maintained a technologically advanced factory.
We manufacture...

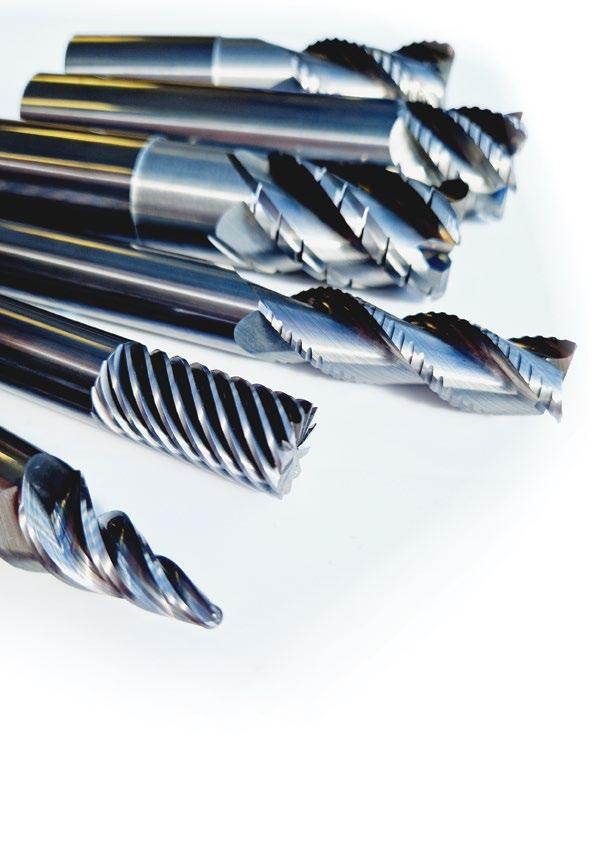

Customer Specials
As part of Fenn Tool’s mission to provide the best tooling solutions in the machining industry, we manufacture service-on-design customer specials.
If you can’t find what you’re looking for in our Fetoga range, our technical department can help with bespoke cutting tools
The cutting tools within this catalogue have been ground to the highest tolerance on the latest machine tools with linear scales for increased accuracy.
We also have in place a robot pallet system which allows for quicker production times, enabling us to offer competitive pricing for top quality items.
Measurements are made on the latest CNC measuring equipment to enable exact tolerances to be met and maintained from the first tool to the last.
Call +44 (0)1376 347566 to speak to one of Fenn Tool’s technical engineers about how we can help you!
Tool Regrinding Service
Fenn Tool provide a tool regrind service as part of our 'complete' cutting tool portfolio of products and services. Our regrinding service allows us to return your cutting tools to an 'as new' state.
Our highly experienced machinists use the advanced technology of our CNC grinding machines to guarantee high quality results. Our highly experienced personnel offer a full regrind service where HSS and carbide tooling can be reconditioned with high quality, reproducible results every time.
We regrind HSS Powdered Metallurgy and grades of Solid Carbide, complemented by fifth generation thin film coatings.
Recoating Service
Coatings that make use of world-leading technology are available to solve a wide range of problems relating to friction and wear, therefore increasing tool life and improving tool performance up to 300-1000% compared to uncoated.
Sending Your Tools
Fenn Tool can provide you with our re-sharpening boxes to ensure safe shipment of your tools.
Contact sales@fenntool.com to get started today to reduce your production costs.

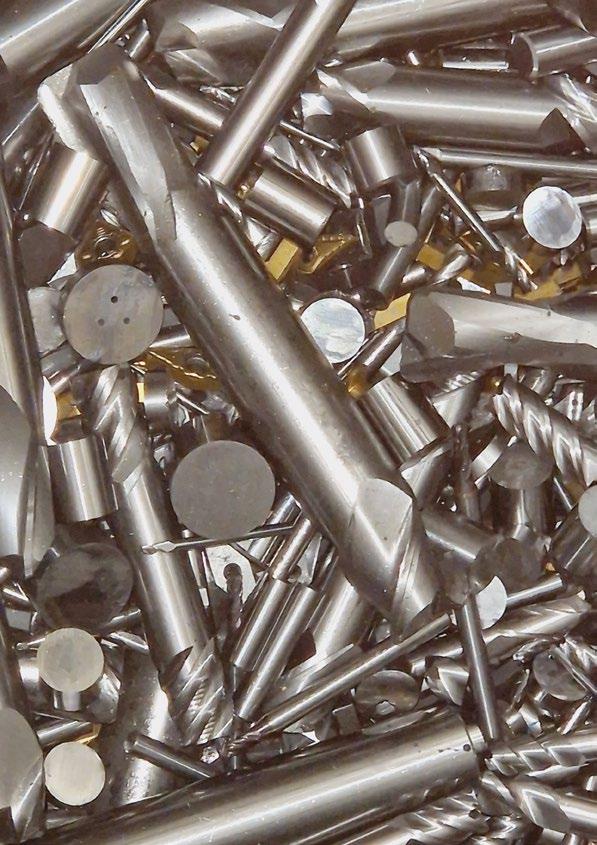

We Want To Buy Your Used Carbide!
At Fenn Tool, we are dedicated to creating a more sustainable manufacturing industry by reducing waste, and we need your help.
All you have to do is let us purchase your used carbide inserts and round tools... it’s as easy as that!
1 Fill The Boxes
We provide boxes for you to fill with your carbide recyclables.
2
3
Ship The Boxes
Send the packed boxes to Fenn Tool’s Braintree facility.
Get Credited
We will email you to confirm the credited amount to be reflected on your next invoice.
For more information on how to become a part of Fenn Tool’s sustainability initiative, contact our sales team via email: sales@fenntool.com
