AIR EQUIPMENT & FASTENING

Air Equipment Tyre Inflation

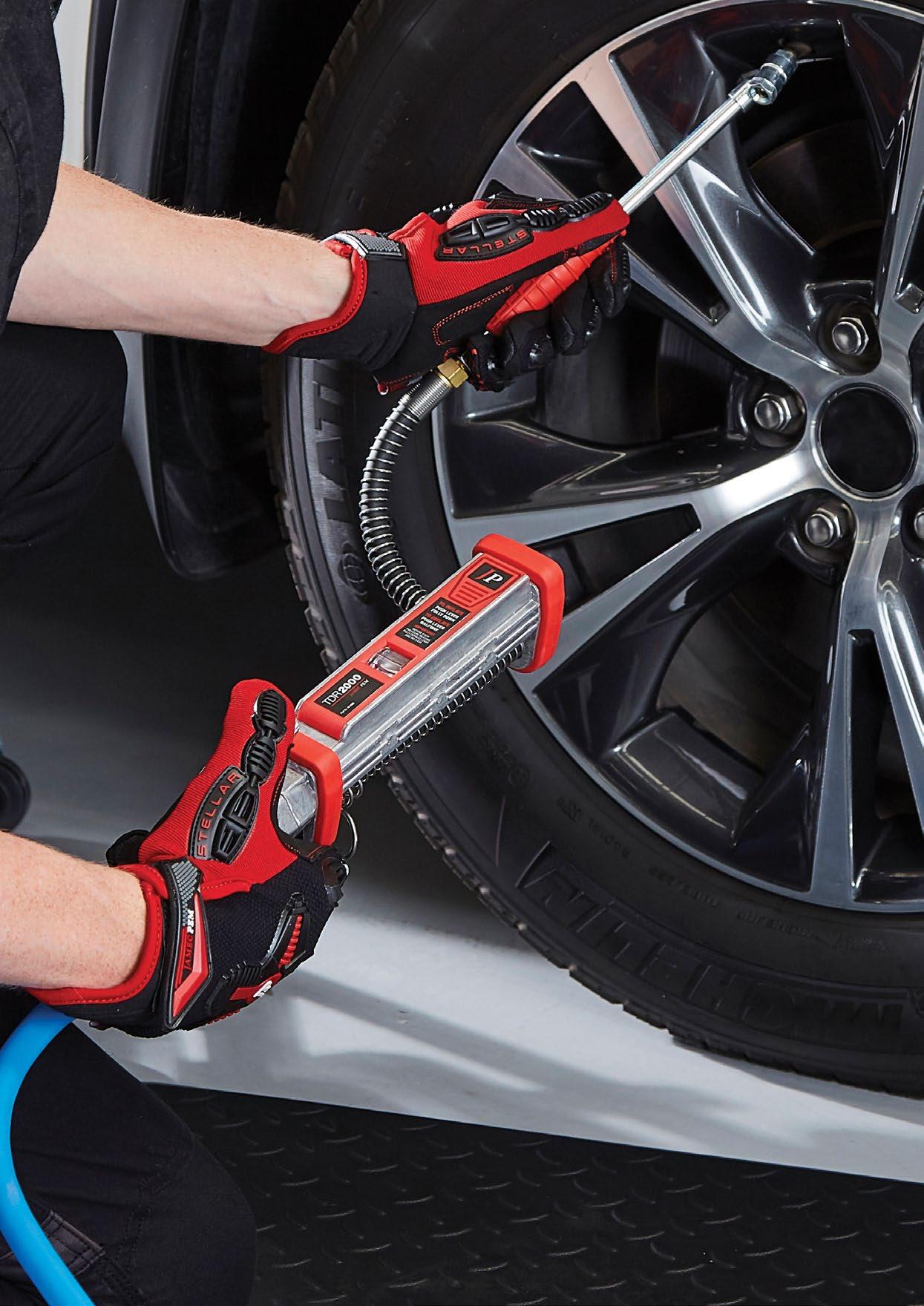

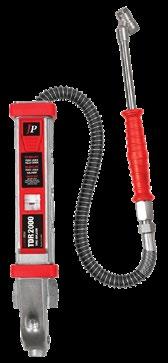

TDR 2000 Tyre Inflator

Features:

Die cast aluminium body with steel operating lever and impact absorbing bumper

Supplied with official calibration certificate

L aser etched serial number for individual I.D.

C olour coordinated bumper and face plate

Ideal for service station forecourts

• Wire sheathed hose eliminates kinking

Accuracy exceeds EC Standards

• Rubber grip on chuck

Specifications:

• Operation: Inflate, Deflate, Measure

Advised Application: Industrial, Workshops

• Reader Unit: Linear with magnifying glass

Scale: 0-138 psi, 0-960 kpa

• Accuracy: ± 2 psi @ 25-75psi

Inflation Volume: 500 L/min @ 188psi

Dimensions: 365L x 70Wmm

ACS1500 Tyre Inflator

Features:

Tough, lightweight diecast aluminium internal body with composite outer casing

• High contrast, large VA black LCD screen with white font for easy reading

Lightweight and robust

• IP rated

Includes Certificate of calibration

• Now Includes Ceramic Sensor

Not affected by temperature

• Protected against thermal expansion and contraction

Highly accurate: Display accuracy ±0.1 psi

Reading accuracy ±1.0 psi

Specifications:

Operation: Inflate / deflate / measure

• Max. inflation: 174 psi

Scale: psi, kPa, bar, kgF

• Inlet size: 1/4" BSP

Display accuracy: ± 0.1 psi @ 25–75 psi

• Power source: 1200 mAh lithium-ion phosphate battery, rechargeable USB-C

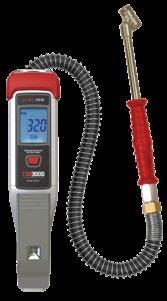

TDR 3000 Tyre Inflator

Features:

Includes certificate of calibration

Multi scale gauge

L arge backlit digital display

• Accuracy exceeds EC Standards

Auto ON upon pressure sensing

• Auto OFF after 9 seconds

Tough die cast aluminium housing

• Wire sheathed hose eliminates kinking

Impact absorbing bumpers

• C omfortable rubber grip on chuck handle

Specifications:

• Operation: Inflate / Deflate / Measure

Scale: psi, kPa, bar

Max Inflation: 174 psi

Inlet Size: 1/4" BSP

Accuracy: ± 2 psi @ 25 - 75 psi

• Application: Industrial, Workshop

JP11.0545

Tyre Inflator 50mm Chick Clip

Features:

This compact inflator uses full metal body with a rubber boot protected diaphragm gauge to make it extremely robust in tough environments.

Specifications:

• Operation: Inflate / Deflate / Measure

Max Inflation: 145 psi

Scale: psi, kPa

Inlet Size: 1/4" BSP

Accuracy: ± 2 psi @ 25 - 75 psi

Digital Automatic Tyre Inflator

Features:

This robust aluminium housed digital auto inflator is easy to use with plug and play design once connected to an air source, all you need to do is pre-set the required pressure, place the chuck on the tyre valve and the built-in auto start inflates/deflates the tyre to the specified pressure

Specifications:

• Operation: Auto Inflate / Deflate / Measure

Max Inflation: 174 psi

• Scale: psi, kPa, bar

Inlet Size: 1/4" BSP

• Supply Pressure Max: 182 psi

Power Source: 240V AC

JP10.3012

JP02.0135

Air Equipment Tyre Gauges

JP05.2875

JP32.2556

Tyre Gauges

Tractor Tyre

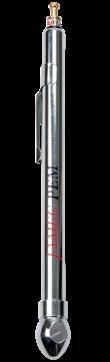

Tractor Tyre Gauge

Features:

• Ideal for tyre fitters and heavy trade

S tainless steel spring with aluminium read bar

• Pocket clip

Can be used with water filled tyres

• Operation: Hold on/read

Advised Application: Industrial, tractor, home

• Scale: 0 - 50psi, 0 - 350 kPa

Accuracy: ± 2psi @ 25 - 75psi

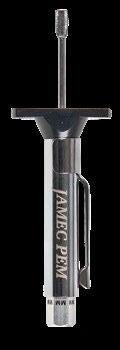

Tyre Tread Depth Gauge

Features:

Metric: 0 - 25 mm

• 1.6mm mark

Air Equipment Accessories

Tank Valve

Features:

Short 1/8" BSP

Pack lots of 5

Straight Large Bore C lip On Chuck

Features:

L arge bore head suitable for earth moving equipment

• Non-sealing

Pneumatic Air Tool Oil

Jamec Pem oils are quality, mineral based oils designed to suit specific applications. All oils meet ISO standards.

Features:

• Ideal for pneumatic air tools, check owners manual for recommended oil grade

A high performance antiwear hydraulic oil formulated for use with most pumps, valves and seal material used in hydraulic systems

Provides excellent wear and corrosion protection

• Enhanced air release and anti-foam properties prevent cavitation

• E xcellent filterability prevents filter blockages

G ood demulsibility ensures hydraulic system performance is maintained with small amounts of water

Dual Angle Hold on Chuck - Non-Sealing

Features:

• Use in conjunction with non-gauged inflators

S teel body and head

• Hold on dual angle chuck

Soft grip rubber handle

• Non-Sealing

Dual Angle Hold on Chuck - Sealing

Features:

Use in conjunction with non-gauged inflators

• S teel body and head

Hold on dual angle chuck

• Soft grip rubber handle

Sealing

Air Equipment Filters & Regulators

Jamec Pem airline regulators and filters provide precise control of your compressor airflow and protection of your valuable airline equipment from dirty air and water damaging your air tools. Available in a range of sizes and configurations there is a Jamec Pem filter or regulator to suit your compressor. These are an essential component of any compressed air system.

Filter - Compressed Air

Features:

1/4" BSP female inlet/ outlet

• Polycarbonate bowl with metal bowl guard

G eneral purpose filter for water and particle

Filter Regulator / Lubricator

Compressed Air

Features:

• 1/4" BSP female inlet/ outlet Polycarbonate bowl with metal guard

• High visibility for lubricant dispensing

Includes mounting bracket

Filter Regulator - Mini Compressed Air

Features:

1/4" BSP female inlet/outlet

• Polycarbonate bowl

Compact size for confined space

• Includes mounting bracket

Regulator - Compressed Air

Features:

1/4" BSP female inlet / outlet

• Locking pressure and adjustment knob

C ompact and light weight

Provides a constant outlet pressure

Filter RegulatorCompressed Air

Features:

1/4" BSP female inlet/outlet

• Polycarbonate bowl with metal bowl guard

Robust metal construction

• Includes mounting bracket

Lubricator - Compressed Air

Features:

• 1/4" BSP female inlet / outlet

Polycarbonate bowl with metal bowl guard

Oil needle for easy adjustment

• Accurate lubrication of downstream equipment

JP06.2454

JP06.2410

JP06.2426

JP06.2445

JP06.2461

JP06.2473

Air Equipment Blow Guns

Air Blow Guns

Features:

All metal construction

• Squeeze style trigger mechanism

Interchangeable nozzle

• Ideal for cleaning work areas & equipment

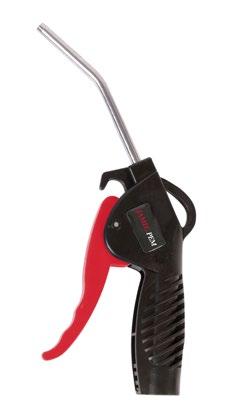

El Blow Guns

Features:

• Variable air flow trigger Tough, durable construction made from ABS

• Ideal for cleaning work areas and equipment

Designed for DIY

Hose Reels

Air Master Blow Guns

Features:

Variable air flow trigger

• Robust POM handle

Hi flow interchangeable nozzles

• Handle with integrated hanging hook

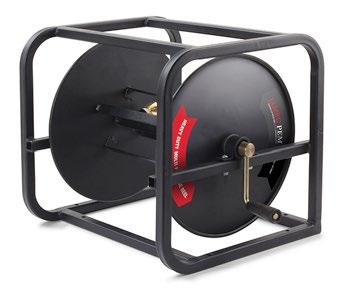

Multi-Purpose Heavy Duty Metal Hose Reel

Features:

Ideal for air or water hose, chain or electrical leads

• For fixed or portable applications

Can carry up to 70m of PVC 10mm (3/8”) air hose

or up to 60m of 12mm (1/2”) water hose

• Swivel air hose input

Heavy duty box steel construction

• Folding handle

Pre-drilled mounting points

• Fitting Inlet: 1/2" BSP swivel with 10mm (3/8") barbed end

Fitting Outlet: 1/2" BSP male to 10mm (3/8") barbed end

• Reel Type: Manual wind metal open

Air Equipment Hi Vis PU Coil Hose

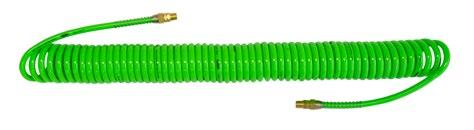

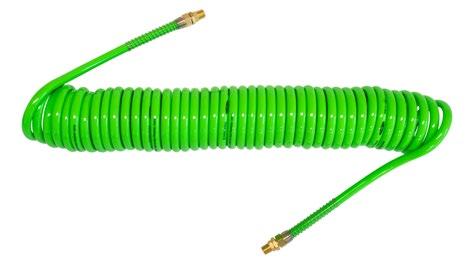

Hi Vis PU Coil Hose

Features:

• Unmatched All-Weather Performance: Work with confidence in extreme temperatures, from a frigid -45°C to a scorching 65°C. Effortless Manoeuvrability: The hose extends up to 90% of its maximum length for exceptional reach, without sacrificing its ability to neatly recoil.

Built to last: Say goodbye to brittle nylon. Our premium polyurethane construction offers superior flexibility, abrasion resistance, and oil resistance, ensuring long-lasting performance.

• Tame the Tangle: The wire sheath eliminates kinks and frustrations, keeping your workspace organised and efficient.

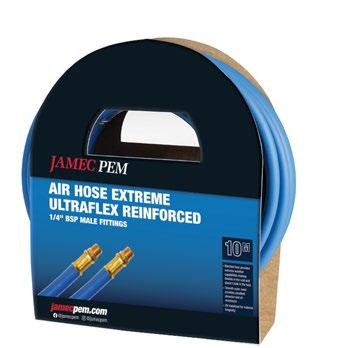

Extreme Ultraflex Reinforced Hose

Features:

• Blended hose provides extreme weather capabilities making flexible in the cold and doesn’t kink in the heat

Smooth outer cover provides excellent abrasion and oil resistance

• UV stabilized for material longevity

Kink resistant

• C ompressed air applications with a working pressure <= 300 psi

Hose Material: Reinforced braided Extreme Ultraflex

Max Working Pressure: 300 psi, 2068 kPa

• Fitting Size: 1/4" BSP Male fittings

Fitting material: Brass

• Application: Air

Air Equipment Retractable Hose Reels

The improved Pro Series range features the unique Helix Ultra-Coil hose layering system and the innovative additional safety feature of controlled return. This allows for a smooth and controlled hose retraction, reducing the risk of a dangerous whipping hose.

Improved safety feature; controlled hose return

Hose layering system

Auto lock / auto rewind

Solid brass internal spindle

• Adjustable hose stop

Wall mount with 180° pivot

• Weather resistant UV stabilised polypropylene case 2 m leader hose with brass fittings

• Reel/Case Type: Retractable / Polypropylene

Auto Lock: Yes

• Bracket: 180° pivot

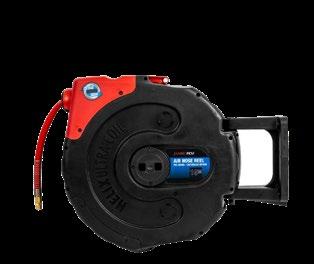

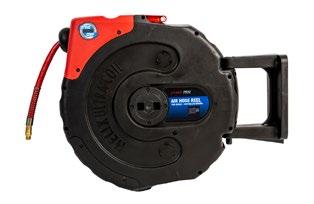

Pro Series Air 15 Metres - Controlled Return

• Includes Reinforced PVC Braided Hose

High volume air flow

• Hose Length: 15 m

Hose I.D: 12.5 mm (1/2")

• Hose O.D: 18.5 mm (3/4")

Leader Hose Length: 2 m with 3/8" male fittings

Pro Series Air 20 Metres - Controlled Return

• Hose Length: 20 m

Hose I.D: 9.5 mm (3/8")

• Hose O.D: 16 mm (5/8")

Leader Hose Length: 2 m with 1/4" male fittings

Hose Material: Reinforced PVC braided

Pro Series Air 32 Metres - Controlled Return

• Long reach application

Hose Length: 32 m

• Hose I.D: 8 mm (5/16")

Hose O.D: 12 mm (1/2")

• Leader Hose Length: 2 m with 1/4" male fittings

Hose Material: Reinforced PVC braided

Pro Series Water 20 Metres - Controlled Return

• Includes water trigger gun

Hose Length: 20 m

Hose I.D: 11.5 mm (1/2")

Hose O.D: 16 mm (5/8")

Leader Hose Length: 2 m with brass tap female fitting

• Hose Material: Reinforced PVC braided

Air Equipment Retractable Hose Reels

EXTREME ULTRAFLEX REINFORCED HOSE is a special blend of hose that has been developed for today’s demanding conditions, it stays FLEXIBLE in the cold and doesn’t KINK in the heat, allowing full flow in all-weather conditions. It’s a tough hose for tough conditions.

Fully enclosed, high impact, weather resistant polypropylene outer case protects hose and drum against dirt and contaminants

• Unique Pro X hose layering system provides tangle free use

Precision machined solid brass internal spindle for strength and reliability

• 2m leader hose with quality brass fittings

• Auto lock / auto rewind

S top anywhere function

• C ontrolled hose return

Adjustable tension control

• Adjustable hose stop Internal brass fittings

• Replaceable hose

Heavy duty mounting bracket with the 180° swivel

Pro Series Extreme Air Hose Reels

Features:

• Max. Working Pressure: 300psi 1/4" BSP Male Fitting

• 20 Metres - Case Dimensions: 510L x 280W x 430Hmm

30 Metres - Case Dimensions: 540L x 290W x 450Hmm

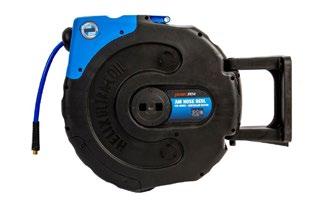

Pro Series Extreme Air Hose Reel

8 Metres

Features:

Hose layering system

• Auto lock/Auto rewind

No tools required adjustable hose stop

• Wall mount with 180° degree pivot

Weather resistant UV stabilised polypropylene case

• Leader hose 1m with brass fittings

Includes Jamec Pem Extreme Ultraflex Hose

Pro Series Extreme Water Hose Reels

Features:

• Max. Working Pressure: 150psi 12mm brass fittings

20 Metres - Case Dimensions: 510L x 280W x 430Hmm

30 Metres - Case Dimensions: 540L x 290W x 450Hmm

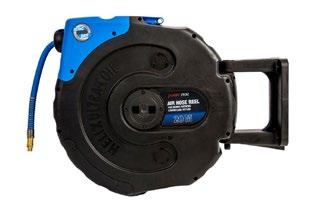

Pro Series Extreme Air Hose Reel 20 Metres - Controlled Return

Features:

Improved safety feature; controlled hose return

• Includes Extreme Ultraflex Reinforced Hose

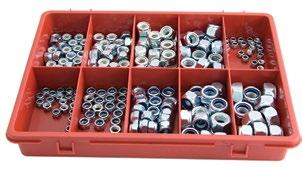

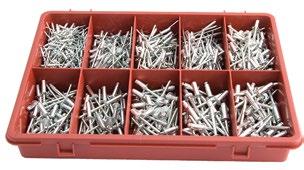

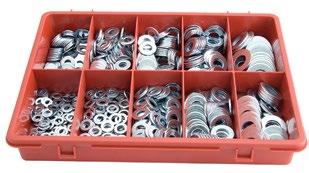

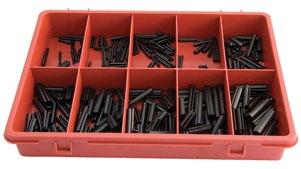

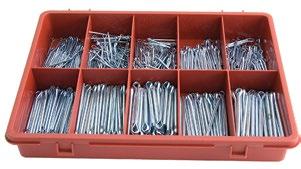

Assortment Kits Master Packs

The Jamec Pem Assortment Kits include a wide variety of the most popular sizes designed for the automotive, hardware, marine and industrial markets, all conveniently packaged in larger Master or Trade Packs.
