ADAPTORS & ATTACHMENTS
• Extension Shanks • Adaptors • Chucks • Attachments
ADAPTORS & ATTACHMENTS
Adaptors & Attachments Index
107 Adaptors 1/4" to 7/16" Hex
107 Adaptors Quickbits® - Socket
111 Attachments Quickbits ® - Nibbler
110 Attachments Quickbits® - Quick-Cut, Shear

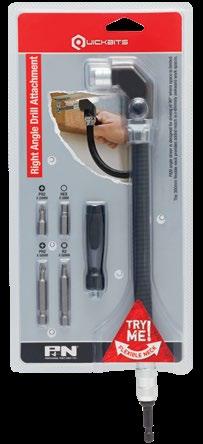

109 Attachments Quickbits ® - Right Angle
108 Chuck 4 Way Key
Chuck Keyless Drill, SDS Plus Adaptor
Chuck Quickbits ® - Mini

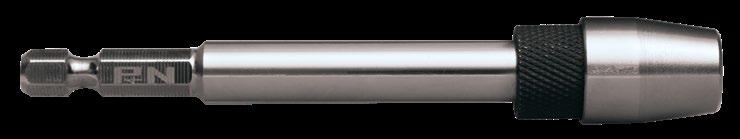

Extension Shanks Quickbits®
Extension Shanks Quickbits®
Adaptors and extension bars fit all 1/4" bits. Extension bars are inter-mate-able providing extra long reach.
Shank 1/4" hex shank suits quick change adaptors
Quick Change Spring-Loaded Sleeve Recessed sleeve prevents accidental release
107QBE600
Tapered Head Design Guides the extension through the hole
Slim Diameter Passes through 11/16" hole

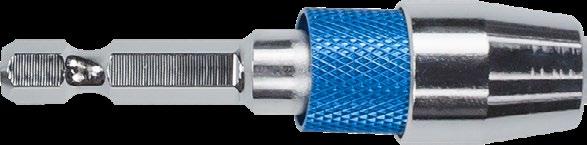

Adaptors 1/4" to 7/16" Hex
Adapts 1/4" hex to 7/16" hex. The recessed quick-change spring-loaded sleeve prevents accidental release.

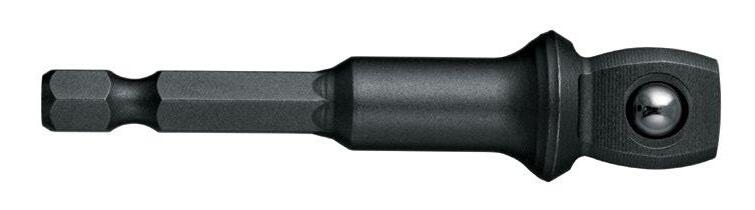

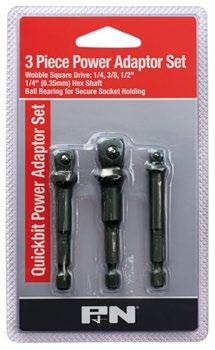

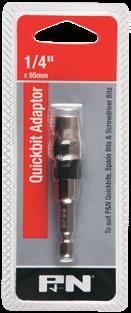

Adaptors Quickbits® - Socket
For use with 1/4, 3/8 or 1/2" square drive sockets. The ‘wobble’ square drive gives additional access in confined areas with 15° angle rotation.
Wobble

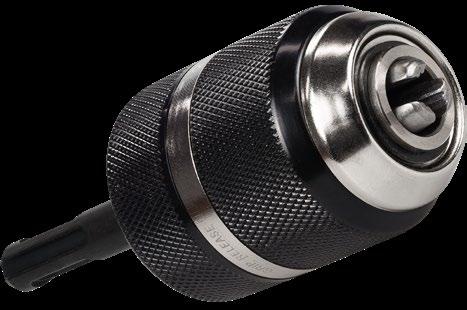

Chuck Keyless Drill, SDS Plus Adaptor

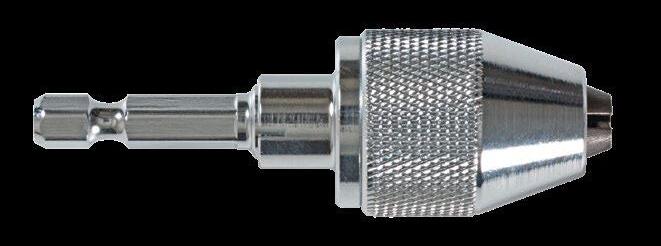

Chuck Quickbits ® - Mini
Extends the capacity of your power drill, allowing smaller drill sizes – down to 0.5mm.

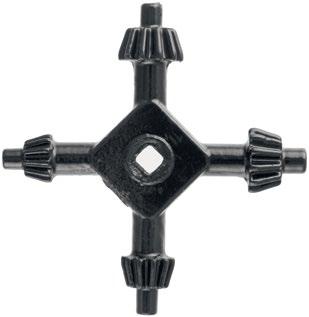

Chuck 4 Way Key
Converts
Unibody

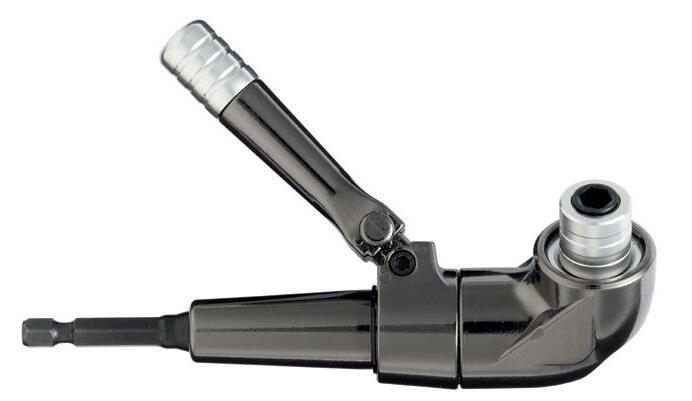

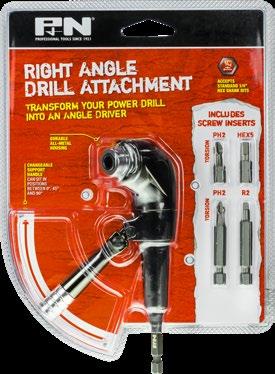

Attachments Quickbits

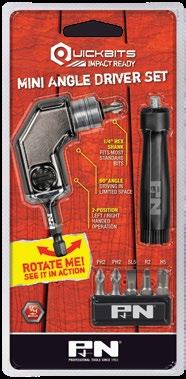

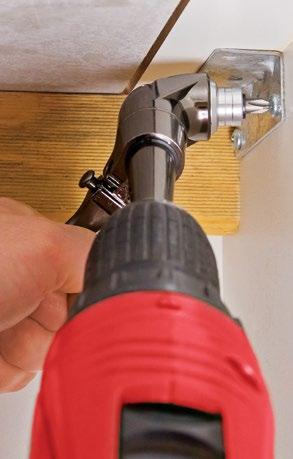

P&N Angle Driver is designed for power drills, for driving at 90° or where space is limited. Ideal for 2.4 Volt to 18 Volt cordless drills. It has all-metal housing and steel gears with ball bearing construction for durability.
5

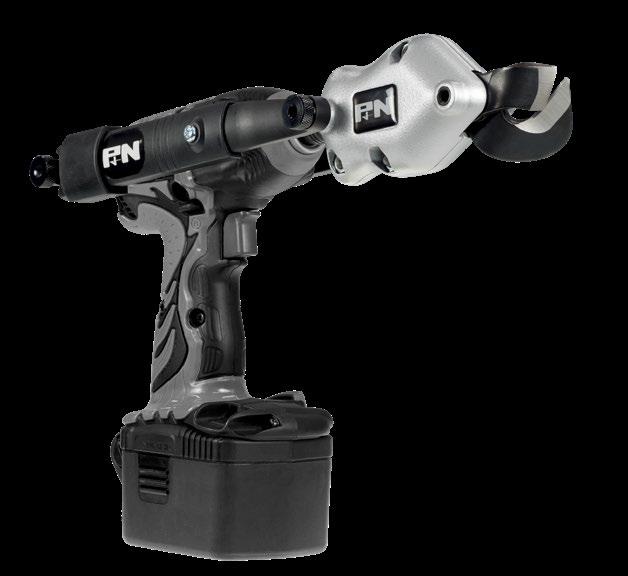

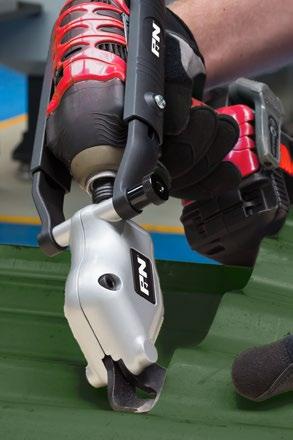

Attachments Quickbits® - Quick-Cut, Shear
P&N Quick-Cut Heavy Duty Shear Attachment transforms your power drill into a mighty sheet metal cutting shear. Lightweight aluminium housing provides portability and ease-of-handling to make fast straight, curved or square cuts.
Suitable for use in HVACR applications and in materials such as 18 gauge galvanised steel, corrugated sheets and 20 gauge spiral duct.

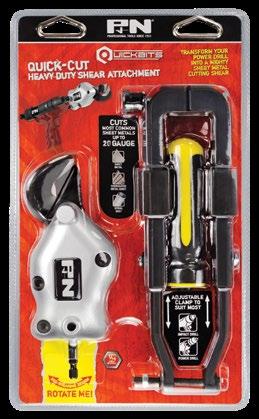

Heavy Duty Shear Attachment

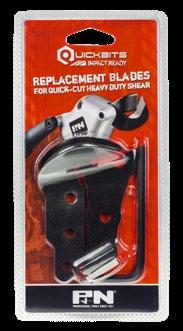

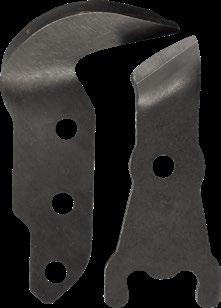

Blades for Heavy Duty Shear
Adjustable Clamping Device Made from high impact plastic and fits most cordless or corded impact and power drills
Switchable Support Handle For both right and left-handed operation 1/4" Hex Shank Fits most power and impact drills
Use clamp attachment when you need to support workpiece with other hand while operating Use handle attachment when workpiece can be secured

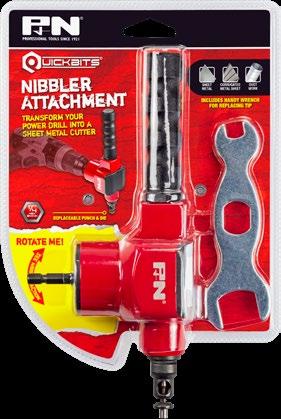

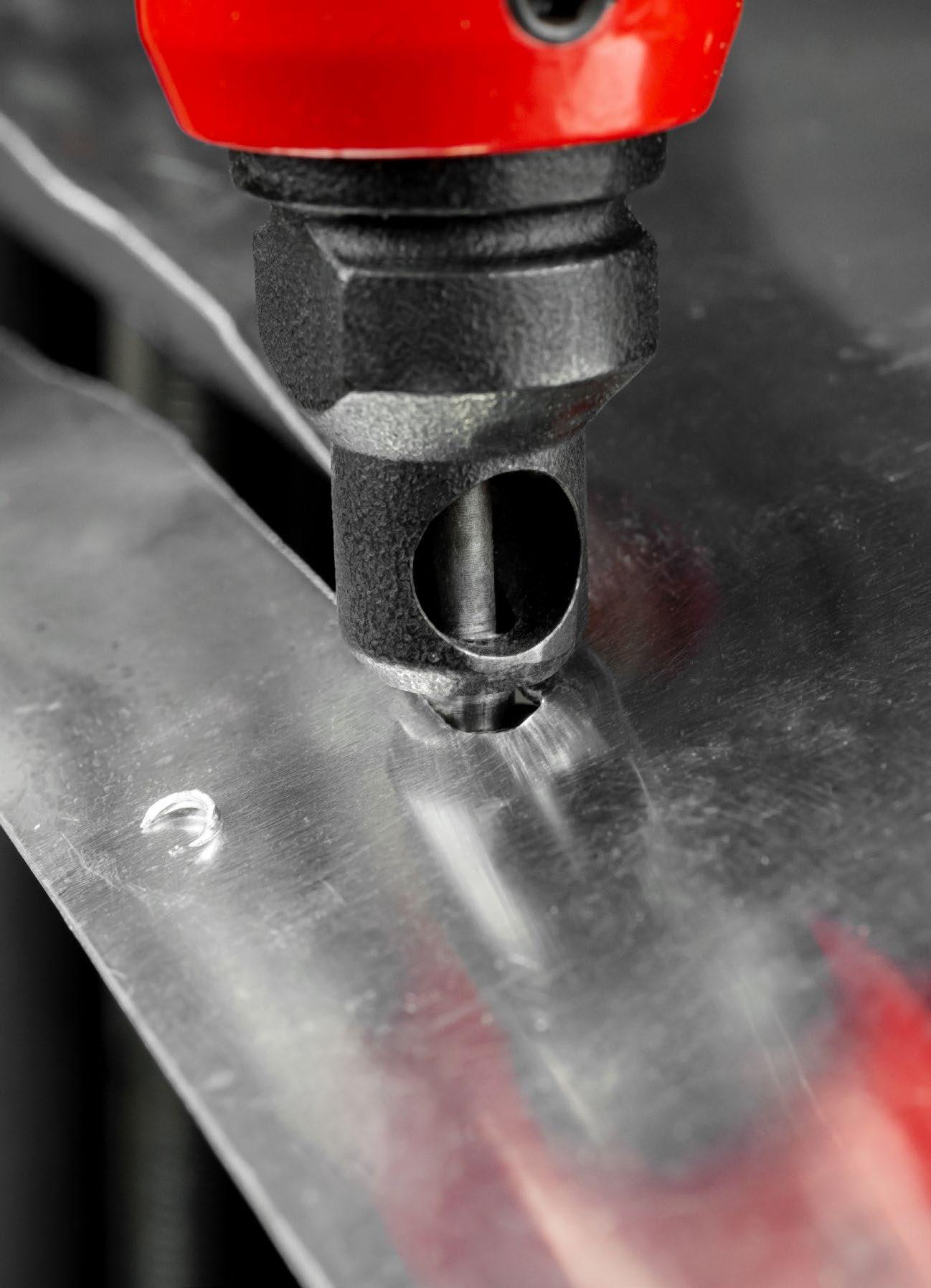

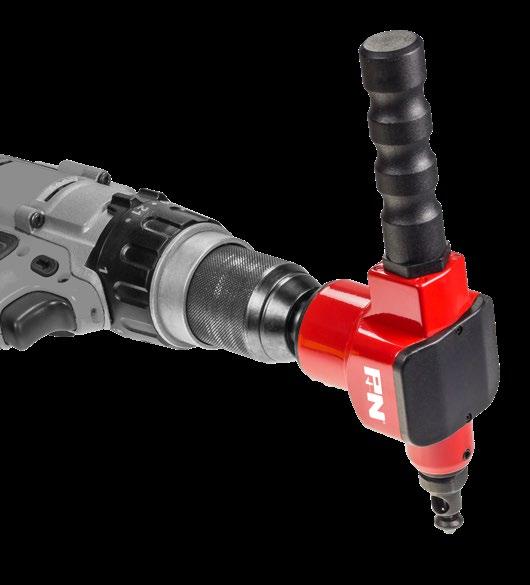

Attachments Quickbits ® - Nibbler
P&N Quickbits ® Nibbler Attachment transforms your power drill into an easy to use straight or curve cutter for sheet metals, corrugated sheets, duct work, plastic sheets or laminate, (up to 2.0mm thick).
Helpful Hints
Pre-drill a 12mm hole before starting Attach the Nibbler Attachment to a drill and tighten the chuck
Set drill to the recommended speed between 1500–3000RPM
Secure the workpiece with at least a 15mm clearance underneath the area of material to be cut
Carefully move the nibbler attachment towards the starting point of the desired cut and engage nibbler head with the material, start to cut into the material
• C ontinue cutting through the material while keeping the nibbler attachment at a right angle to the material

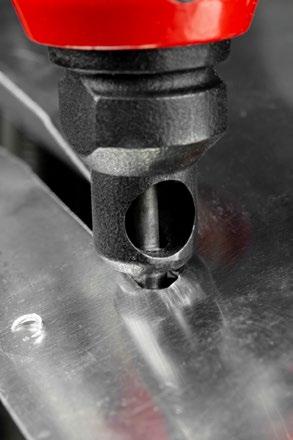

Fast and clean, straight or curve cutting Cuts across corrugated metal sheets
Fast and Clean Cutting Straight or curve cutting of sheet materials
1/4" Hex Shank Fits most power drills
