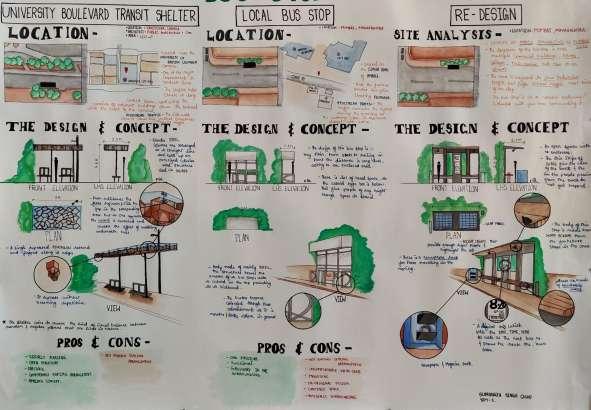

TRANSIT SHELTER
SEM 2
CAFE
SEM 1
ARCHIVE GALLERY
SEM 1

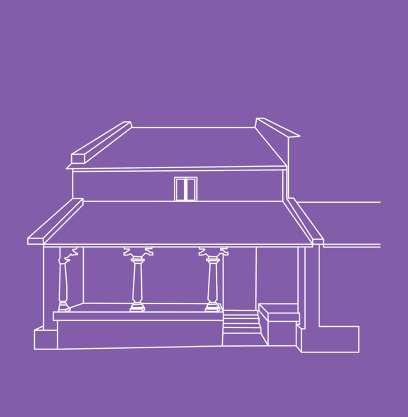

BUNGLOW
SEM 1
TRAINING CENTRE
SEM 1
CUMMUNITY BUILDING
SEM 1
CLUSTER HOUSING
SKILLS
ANDHERI, MAHARASHTRA
KLS GOGTE COLLEGE
CAMPUS, KARNATAKA
CAPITOL COMPLEX, CHANDIGARH
SABARMATI RIVERFRONT, GUJARAT
ADANI ELECTRICITY, MAHARASHTRA
NATRAJAR TEMPLE, TAMIL NADU
NANDA NAGAR, MADHYA PRADESH
DRAFTING
Autodesk AutoCAD
ArchiCAD (basics)
Autodesk Revit
RENDERING
Adobe Photoshop
Adobe Illustrator
V-Ray
Lumion (basics)
3D MODELING
Sketchup
ELECTIVE & EXHIBITIONS
UNDERSTANDING FILM AND MUSIC
- AVIJIT MUKUL | FILM DIRECTOR POP CULTURE
- MONOJ PARMAR | DEAN of KRVIA | ARCHITECT
HISTORY OF MOBILITIES
- SUDHIR BADAMI | BOMBAY TRANSPORT ANALYST
HYSTERIA | FEMINISM
- SONAL SUNDARARAJAN | ARCHITECT
CHIDAMBARAM
THE MAKE OF A SOUTH INDIAN TEMPLE
Rhinoceros 3D
PHYSICAL WORK
Hand drafting
Hand rendering
Model making
ALLIED
Microsoft Office
QGIS (basics)
Adobe InDesign
2
MUMBAI,
EMAIL: suprangya.singh@krvia.ac.in CONTACT: +91 8291979520
MAHARASHTRA
WORK
MAY
EXPERIENCE NANDAPURKAR & ASSOCIATES, GOREGAON,MAHARASHTRA (11th
- 24th JUNE)
3 CONTENTS 01. BUDDHIST CAFE 02. EMBROIDERY WORKSHOP 03. DEVANGNA (DEVADASIS TEMPLE) 04. CHIDAMBARAM 05. CLUSTER HOUSING 06. LANDSCAPE 07. MISCELLANEOUS 08. MODEL MAKING 09. PHOTOGRAPHY 5 11 15 19 25 31 34 40 41
4

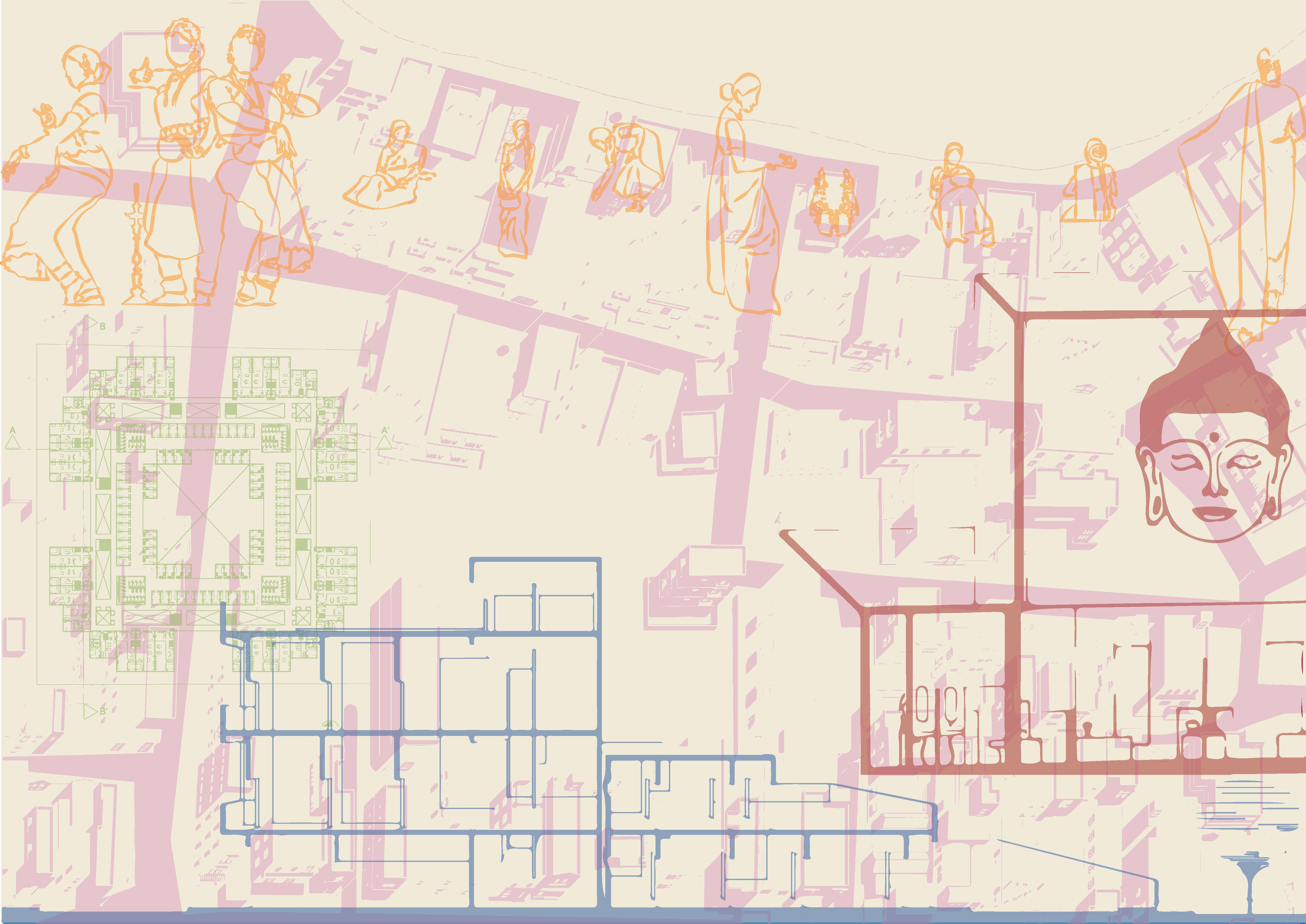

01. BUDDHIST CAFE
LOCATION: KLS GOGTE COLLEGE
CAMPUS, KARNATAKA.
AREA: 900 sq.m
PROJECT DURATION: SEM- 2
GUIDE: AR. SACHIN PATIL, AR. SAMREEN KHAN

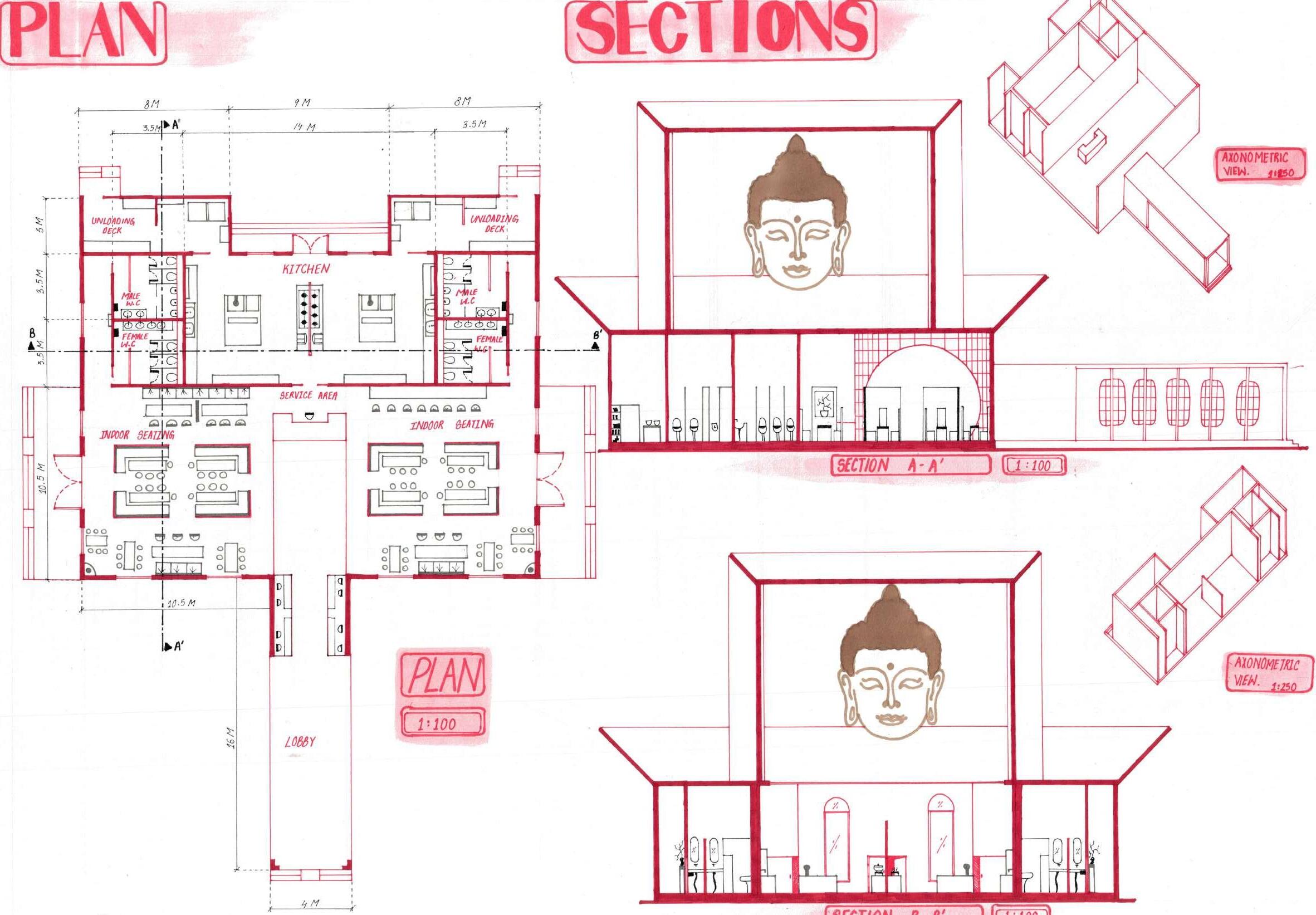

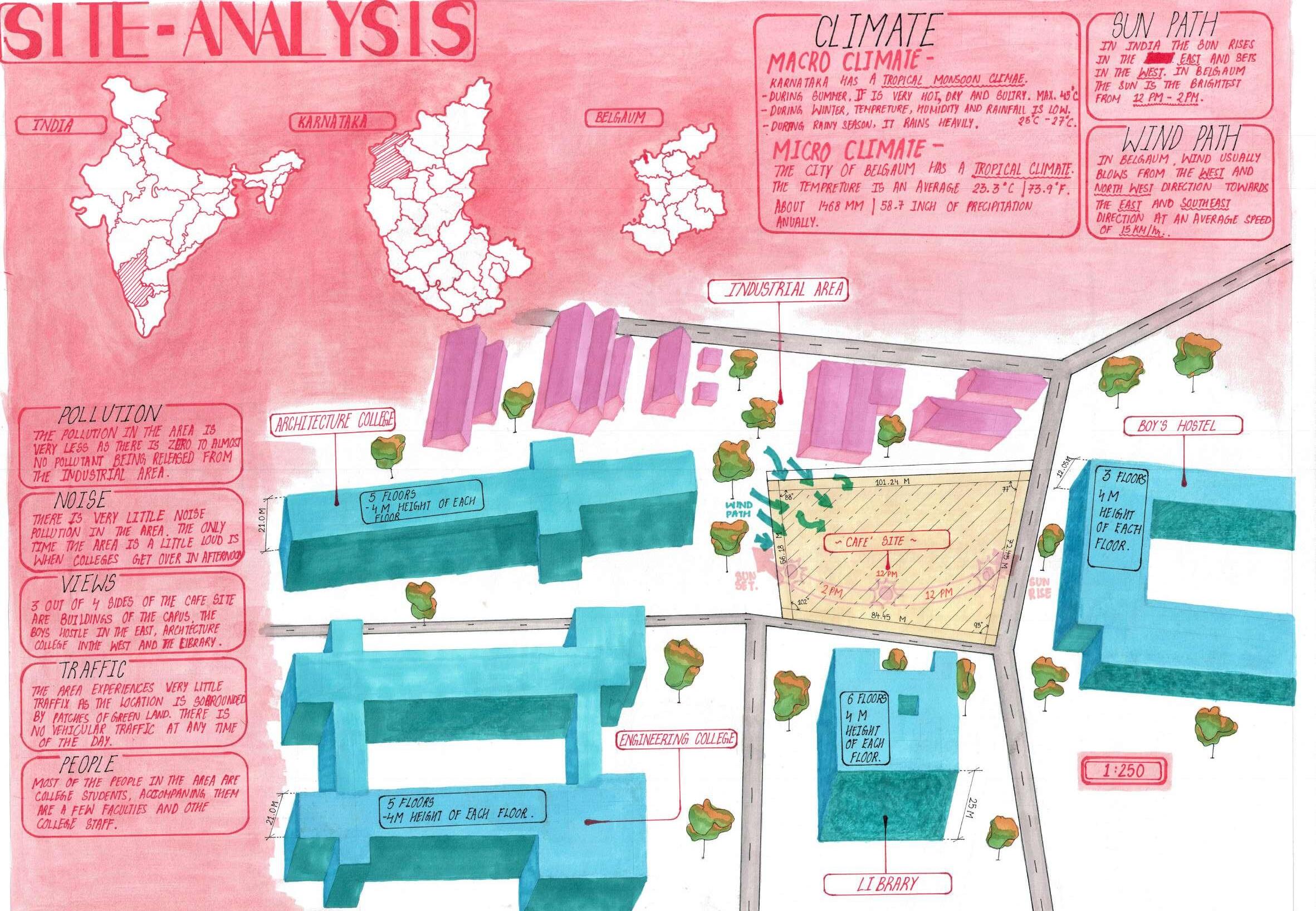

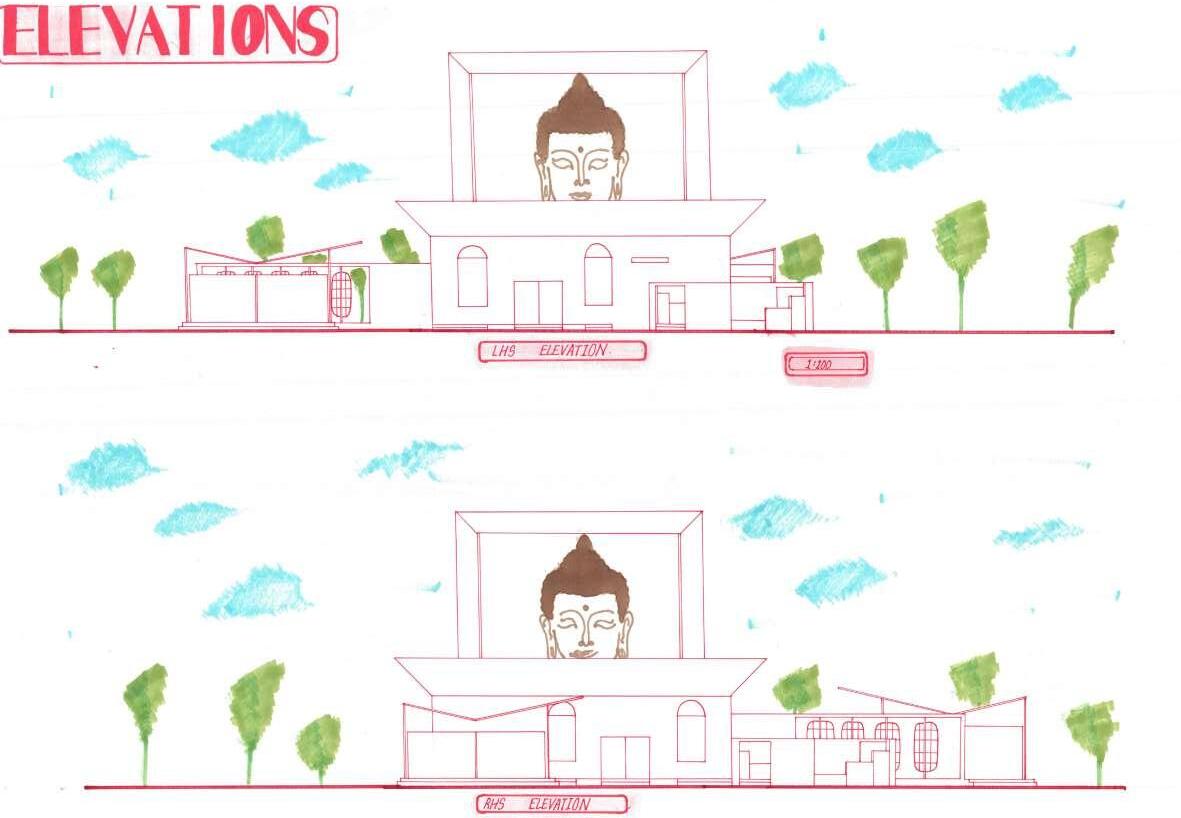

The site holds the engineering college, college of architecture, institute of management, library building, boys hostel, and girls hostel. The need arise of developing a new cafe for whole big college campus.
The designs aim is to promote the cafe not only as a place for food and relaxation but also as an educational and cultural space. Host workshops, talks, or events related to culture, meditation, or mindfulness to further engage the college community.
The design incorporates a style found furthur north of the site, inviting an introverted architecture into the perspective of the student, faculty and outside bodies.

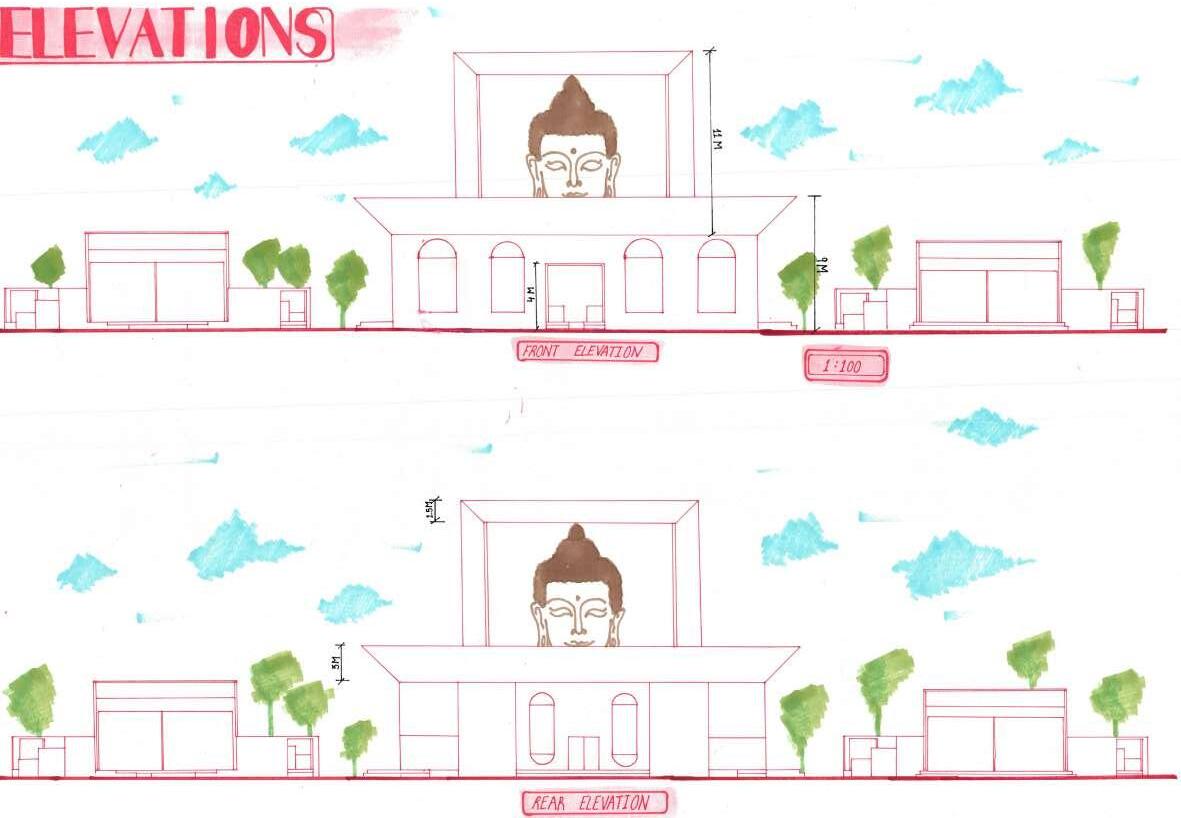

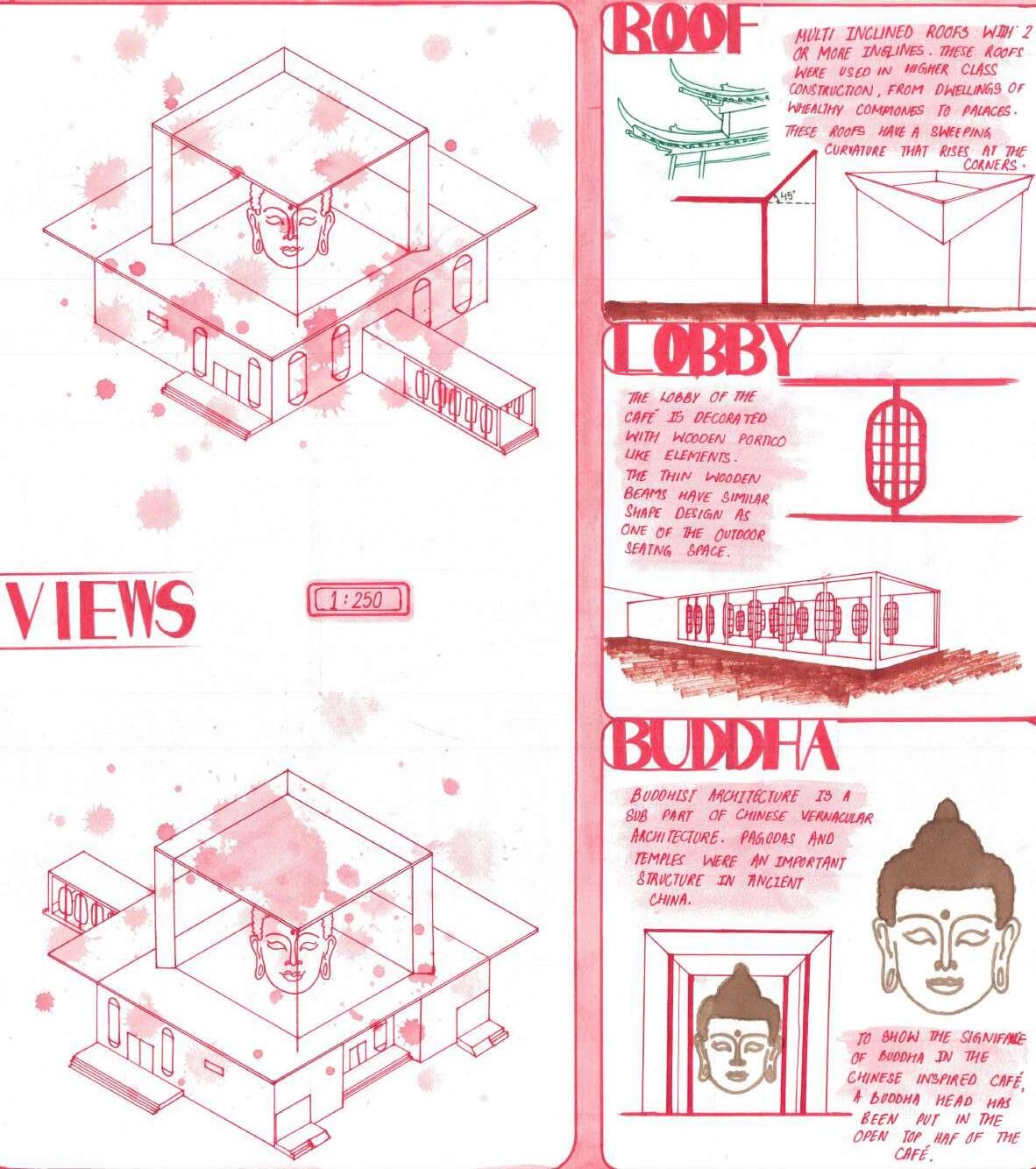

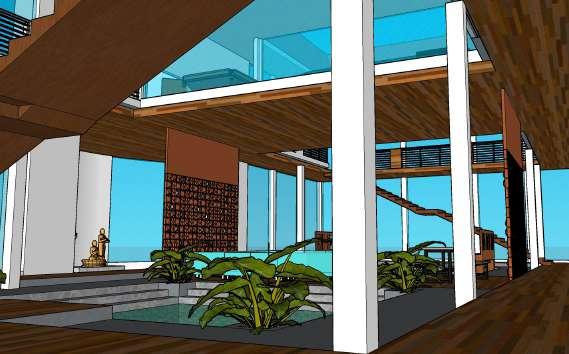

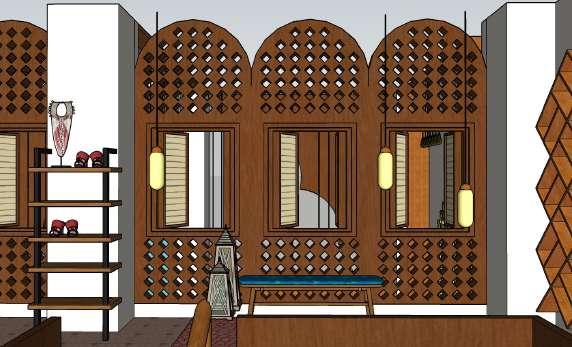

Incorporating elements of Buddhist architecture such as sloping roofs, intricate woodwork, stone carvings, and peaceful color schemes like soft earthy tones. Including features like Zen gardens or a small meditation area within or near the café to create a calming atmosphere.
5
6
7
8
9
10

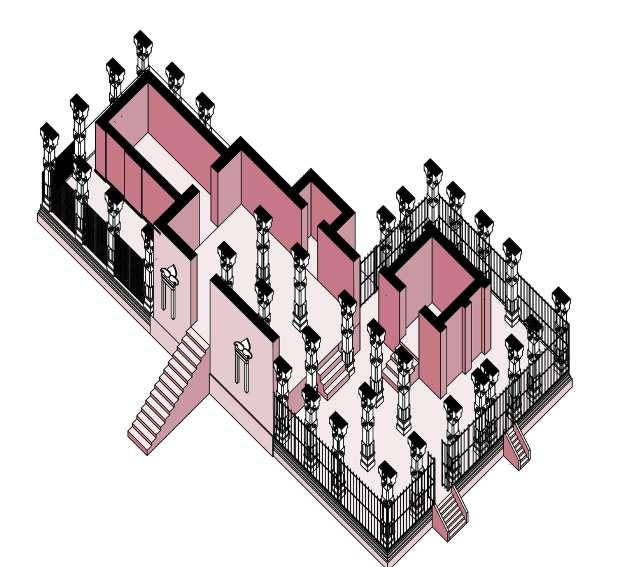

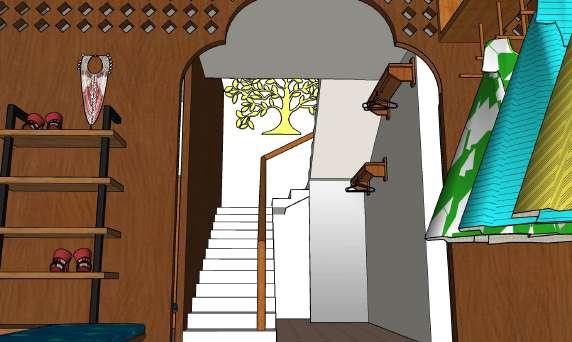

EMBROIDERY WORKSHOP
LOCATION: GOVANDI, MAHARASHTRA AREA: 3000 sq.m
PROJECT DURATION: SEM- 5
GUIDE: AR. AR. SWATI SESHADRI, AR. VINIT NANIVADEKAR

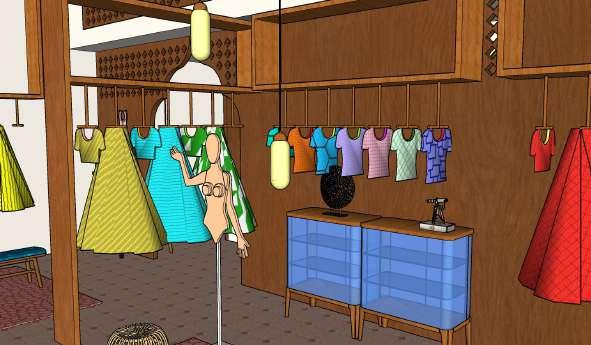

Embraced within the threads of the delicate fabric of Govandi, women and men stand in stance to uplift the heritage of Indian art ihn soft fabric form. A space to connect like the yarns, forming a pattern like the fabrics is this workshop at the edge of the dated dumping ground. The workshop tries to embrace the non-working sector of govandi into thier passion, documented during an interactive, warm and informative interview of the mothers, daughters and the teenage males.
An exhibition, workshop and educational area for the outside interests all within one fabric box.
11
02.
NOTE:
1) ALL DIMENSIONSARE IN MILLIMETERS
2) DO NOT SCALE THE DRAWINGS
3) FOLLOW WRITTEN DIMENSIONS ONLY
4)THIS DRAWING IS THE PROPERTY OF THE ARCHITECT AND SHOULD NOT BE COPIED WITHOUT HIS PERMISSION.THIS DRAWING IS THE COPYRIGHT PROPERTY OF THE ARCHITECT.
5)ALL STRUCTURAL DIMENSIONS ARE TO BE REFERRED FROM THE STRUCTURAL ENGINEER'S DRAWING.
6)ALL SERVICES TO BE REFERRED FROM THE SERVICES CONSULTANT DRAWINGS.
7)FOR ALL OTHER DETAILS REFER TO OTHER RELEVANT DRAWINGS.
8)ANY DISCREPANCIES TO BE BROUGHT TO THE NOTICE FOR THE ARCHITECT BEFORE THE COMMENCEMENT OF THE WORK.
9) ALL DIMENSIONS AND LEVELS IN DRAWING ARE OF UNFINCONDITION.
UP UP
PLOT
FOOTPRINT: SITE: ADANI KAMLA RAHEJA VIDYANIDHI INSTITUE FOR ARCHITECTURE NAME: SUPRANGYA SINGH YEAR: 3RD YEAR ROLL NO.: 2091 SCALE: SHEET NO.: 10 N SECTION A A' 500 1000 1500 MAHADA Colony Adani Electricity Mumbai DOOR SCHEDULE SR.NO. TYPE SINGLE LEAF DOOR DOUBLE LEAF DOOR POCKET DOOR ROUNDED POCKET DOOR 1. 2. 3. 4. NAME D1 D2 D3 D4 PLAN ELEVATION (Not To Scale) QUANTITY 11 4 2 1 WINDOW SCHEDULE SR.NO. TYPE AWENING WINDOW FIXED WINDOW 1. 2. NAME W1 W2 PLAN ELEVATION (Not To Scale) F QUANTITY 30 6 SIGN: A B C D E F G H 5770 3900 8470 10140 3365 7755 8235 A B C D E F G H 5770 3900 8470 10140 3365 7755 8235 +13000 MM +4000 MM +450 MM +12500 MM +8000 MM +00 MM EXHIBITION ROOM WEAVING WORKSHOP COURTYARD MACHINE AND HAND EMBROIDERY KITCHEN 25 MM MORTAR MM LAYER MM DPC 0.15 MM PAINT 250 MM PCC BED MM TILE 230 MM BBC MM DPC MM PLASTER 1 : 100 - M A A' KEY PLAN C25, C26 C20, C21, C22, C23, C24 C18, C19 C10, C12 C11, C13, C14, C15, C16, C17 C2, C3, C4, C5 SR. NO DESCRIPTION WF1 WF2 WF3 DIMMENSIONS THICKNESS WALL FINISH SCHEDULE 15 MM FINISHED WALL PLASTER WITH ASIAN PAINTS ROYAL EMULSION SR. NO DESCRIPTION S1 S2 S3 HEIGHT 120 MM THICKNESS SKIRTING SCHEDULE SR. NO C1 C2 DIMMENSIONS THICKNESS SR. NO F1 F2 F3 DIMMENSIONS THICKNESS 550 MM 550 MM EXTERNAL BRICK WALLS FINISHED WITH WALL PLASTER, PRIMER EXTERIOR ASIAN PAINTS ROYAL EMULSION EXPOSED CONCRETE KAJARIA FLUSH CERAMIC TILE SKIRTING KOTA TILE SKIRTING 20 MM15MM 120 MM 12 MM PUTTY TOPPED WITH CEILING CEILING SCHEDULE 15MM 12 MM SIMPOLO VETRIFIED SCREED ANTI- SKID TILES KOTA STONE LEATHER FINISH TILES 600 MM 600 MM TILE SCHEDULE MM TILE MM SAND SCREED MM DPC 15 MM PLASTER MM TILE MM DPC 15 MM PLASTER 0.15 MM PAINT MM TILE MM MORTAR MM LAYER MM DPC 150 MM SLAB 3MM LEAR 0.15 MM PAINT 2MM FLASHING DETAIL AT A WAFFLE SLAB SECTION 1 : 50 MESH, MM DIA MIDDLE TORTION BAR BOTTOM BAR16 MM DIA 150 MM SLAB 15 MM PLASTER DETAIL AT 1 30 A ALUMINIUM FRAME BLINDS TRACK ALUMINIUM SETTING ALUMINIUM SETTING LECTURE HALL NOTE: 1) ALL DIMENSIONSARE MILLIMETERS 2) DO NOT SCALE THE DRAWINGS 3) FOLLOW WRITTEN DIMENSIONS ONLY 4)THIS DRAWING THE PROPERTY OF THE ARCHITECT AND SHOULD NOT BE COPIED WITHOUT HIS PERMISSION.THIS DRAWING THE COPYRIGHT PROPERTY OF THE ARCHITECT. 5)ALL STRUCTURAL DIMENSIONS ARE TO BE REFERRED FROM THE STRUCTURAL 6)ALL SERVICES TO BE REFERRED FROM THE SERVICES CONSULTANT DRAWINGS. 7)FOR ALL OTHER DETAILS REFER TO OTHER RELEVANT DRAWINGS. 8)ANY DISCREPANCIES TO BE BROUGHT TO THE NOTICE FOR THE ARCHITECT BEFORE THE COMMENCEMENT OF THE WORK. 9) ALL DIMENSIONS AND LEVELS IN DRAWING ARE OF UNFINCONDITION. REVISION: PLOT AREA: FOOTPRINT: SITE: ADANI KAMLA RAHEJA VIDYANIDHI INSTITUE FOR ARCHITECTURE NAME: SUPRANGYA SINGH DATE: ROLL NO.: 2091 SCALE: SIGN: SHEET NO.: 12 N WAFFLE SLAB STRIP SECTION 20 MM TILE MM DPC 150 MM RCC SLAB 15 MM PLASTER 25 MM MORTAR MM DPC 70 MM INSULATION 15 MM PLASTER 0.15 MM PAINT 20 MM TILE MM LAYER MM DPC 70 MM INSULATION RAMMED EARTH 3MM LEAR 0.15 MM PAINT 2MM FLASHING DETAIL AT A WAFFLE SLAB SECTION 1 : 50 VOIDS VOIDS SLAB REINFORCEMENT MESH, MM DIA TOP BAR 16 MM DIA MIDDLE TORTION BAR 15 MM PLASTER 0.15 MM PAINT DETAIL AT B C 1 : 30 1 50 PLAN A A' DETAIL AT C 1 : 20 FABRIC PANEL ALUMINIUM FRAME BLINDS TRACK BLOCKS ALUMINIUM SETTING AWENING WINDOW 6MM THK GLASS LECTURE HALL +0.45 M C18 A 20 MM TILE 50 MM SAND SCREED 230 MM BBC 4 MM DPC 150 MM RCC SLAB 15 MM PLASTER 0.15 MM PAINT 20 MM TILE 25 MM MORTAR 2 MM LAYER 4 MM DPC 70 MM INSULATION 150 MM SLAB 15 MM PLASTER 0.15 MM PAINT 20 MM TILE 25 MM MORTAR 2 MM LAYER 4 MM DPC 70 MM INSULATION 150 MM SLAB 250 MM PCC BED RAMMED EARTH SSTL BOX GUTTER 3MM LEAR 4MM DPC 15 MM PLASTER 0.15 MM PAINT 2MM FLASHING DETAIL AT A
SLAB SECTION 1 :
WAFFLE SLAB VOIDS WAFFLE SLAB VOIDS SLAB REINFORCEMENT MESH, 8 MM DIA TOP BAR 16 MM DIA MIDDLE TORTION BAR BOTTOM BAR16 MM DIA 150 MM SLAB 4 MM DPC 15 MM PLASTER 0.15 MM PAINT DETAIL AT B B C
A FABRIC ALUMINIUM BLINDS ALUMINIUM BLOCKS 6MM THK ALUMINIUM BLOCKS AWENING WINDOW 6MM THK LECTURE HALL 12
REVISION:
AREA:
WAFFLE
50
1 : 30

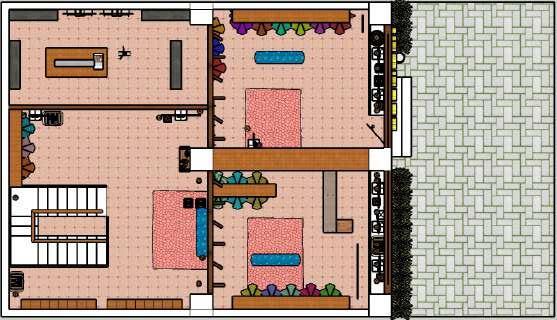

GROUND FLOOR PLAN
- M
+0.45 M C8 C9 C17 C19 SECTION A SECTION DETAIL AT DETAIL AT (carried out factory) (Anti-corrosive) (connecting with slab) (junction between slab and CONNECTION AT GROUND FLOOR LEVEL CONNECTION AT 1ST FLOOR LEVEL STEEL CHANNEL BROKEN BACK STAIR STRINGER BROKEN BACK STRINGER BEAM AND TIMBER A' B' NOTE: ALL DIMENSIONSARE MILLIMETERS 2) DO NOT SCALE THE DRAWINGS 3) FOLLOW WRITTEN DIMENSIONS 4)THIS DRAWING THE PROPERTY OF THE ARCHITECT AND SHOULD NOT BE COPIED WITHOUT HIS PERMISSION.THIS DRAWING ARCHITECT. 5)ALL STRUCTURAL DIMENSIONS ARE TO BE REFERRED FROM THE STRUCTURAL 6)ALL SERVICES TO REFERRED FROM THE SERVICES CONSULTANT DRAWINGS. 7)FOR ALL OTHER DETAILS REFER TO OTHER 8)ANY DISCREPANCIES TO BE BROUGHT TO THE NOTICE FOR THE ARCHITECT BEFORE THE COMMENCEMENT OF THE WORK. 9) ALL DIMENSIONS AND LEVELS DRAWING REVISION: FOOTPRINT: SITE: ADANI KAMLA RAHEJA VIDYANIDHI INSTITUE FOR ARCHITECTURE NAME: SUPRANGYA SINGH YEAR: 3RD YEAR DATE: SCALE: SHEET NO.: 14 N STAIRCASE DETAIL 50 1 20 1 10 1 10 1 10 1 10 1 5 STEEL PLATE OUT IN PLAN DOWN DOWN
NOTE: 1) ALL DIMENSIONSARE IN MILLIMETERS 2) DO NOT SCALE THE DRAWINGS 3) FOLLOW WRITTEN DIMENSIONS ONLY 4)THIS DRAWING IS THE PROPERTY OF THE ARCHITECT AND SHOULD NOT BE COPIED WITHOUT HIS PERMISSION.THIS DRAWING IS THE COPYRIGHT PROPERTY OF THE ARCHITECT. 5)ALL STRUCTURAL DIMENSIONS ARE TO BE REFERRED FROM THE STRUCTURAL ENGINEER'S DRAWING. 6)ALL SERVICES TO BE REFERRED FROM THE SERVICES CONSULTANT DRAWINGS. 7)FOR ALL OTHER DETAILS REFER TO OTHER RELEVANT DRAWINGS. 8)ANY DISCREPANCIES TO BE BROUGHT TO THE NOTICE FOR THE ARCHITECT BEFORE THE COMMENCEMENT OF THE WORK. 9) ALL DIMENSIONS AND LEVELS IN DRAWING ARE OF UNFINCONDITION. REVISION:
SITE: ADANI KAMLA RAHEJA VIDYANIDHI INSTITUE FOR ARCHITECTURE NAME: SUPRANGYA SINGH YEAR: 3RD YEAR ROLL NO.: 2091 SCALE: SHEET NO.: 11 N SECTION B B' MAHADA Adani Electricity Mumbai DOOR SCHEDULE SR.NO. TYPE SINGLE LEAF DOOR DOUBLE LEAF DOOR POCKET DOOR ROUNDED POCKET DOOR 1. 2. 3. 4. NAME D1 D2 D3 D4 PLAN ELEVATION (Not To Scale) QUANTITY 11 4 2 1 WINDOW SCHEDULE SR.NO. TYPE AWENING WINDOW FIXED WINDOW 1. 2. NAME W1 W2 PLAN ELEVATION (Not To Scale) QUANTITY 30 6 SIGN: +13000 MM +12500 MM +8000 MM +4000 MM +10500 MM +8000 MM +4000 MM 20 MM TILE 25 MM MORTAR MM LAYER MM INSULATION 150 MM SLAB 15 MM PLASTER 0.15 MM PAINT 20 MM TILE MM LAYER MM DPC 70 MM INSULATION 250 MM PCC BED RAMMED EARTH A A' 1 : 100 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 KEY PLAN C54, C63 C36 C4, C12, C22, C29, C43, C57 C21, C28 C3 C56 C2, C11 C1, C10, C20, C27, C35, C42, C48, C55 SR. NO DESCRIPTION WF1 WF2 DIMMENSIONS THICKNESS WALL FINISH SCHEDULE 15 MM INTERNAL BRICK WALLS WITH ASIAN PAINTS ROYAL EMULSION SR. NO DESCRIPTION S1 S2 HEIGHT 120 MM THICKNESS SKIRTING SCHEDULE SR. NO C1 C2 DIMMENSIONS THICKNESS SR. NO F1 F2 DIMMENSIONS THICKNESS EXTERNAL BRICK WALLS FINISHED WITH WALL PLASTER, PRIMER EXTERIOR ASIAN PAINTS ROYAL EMULSION EXPOSED CONCRETE FINISH GRANITE SKIRTING 20 MM15MM 120 MM 12 MM PUTTY TOPPED WITH COATS OF PAINT GYPSUM BOARD FALSE CEILING CEILING SCHEDULE 15MM 12 MM SIMPOLO VETRIFIED FLOORING TILE LAID 25MM SCREED ANTI- SKID TILES KOTA STONE LEATHER FINISH TILES 600 MM 600 MM TILE SCHEDULE 3790 4370 3615 6225 3615 2155 5730 3790 4370 3615 6225 3615 2155 5730 CURTAIN WALL STRIP SECTION D A MM TILE 230 MM BBC MM DPC 15 MM PLASTER MM TILE 25 MM MORTAR MM DPC MM INSULATION 150 MM SLAB MM PLASTER MM TILE MM LAYER MM DPC MM INSULATION 250 MM PCC BED RAMMED EARTH 0.15 MM PAINT 1 : 50 1 3MM LEAR 4MM DPC 15 MM PLASTER 0.15 MM PAINT 2MM FLASHING CURTAIN WALL STRIP SECTION DETAIL AT A DETAIL AT B DETAIL AT C NOTE: ALL DIMENSIONSARE DO NOT SCALE THE DRAWINGS FOLLOW WRITTEN DIMENSIONS ONLY 4)THIS DRAWING THE ARCHITECT AND SHOULD WITHOUT HIS PERMISSION.THIS ARCHITECT. 5)ALL STRUCTURAL DIMENSIONS ENGINEER'S DRAWING. 6)ALL SERVICES TO BE REFERRED 7)FOR ALL OTHER DETAILS 8)ANY DISCREPANCIES THE NOTICE FOR THE ARCHITECT ALL DIMENSIONS AND ARE OF UNFINCONDITION. REVISION: SITE: ADANI KAMLA RAHEJA VIDYANIDHI DATE: SCALE: CURTAIN WALL DETAIL AT D 1 50 20 1 20 10 NOTE: 1) ALL DIMENSIONSARE 2) DO NOT SCALE 3) FOLLOW WRITTEN ONLY 4)THIS DRAWING ARCHITECT AND WITHOUT HIS THE COPYRIGHT ARCHITECT. 5)ALL STRUCTURAL REFERRED FROM ENGINEER'S DRAWING. 6)ALL SERVICES SERVICES CONSULTANT 7)FOR ALL OTHER RELEVANT DRAWINGS. 8)ANY DISCREPANCIES THE NOTICE FOR THE COMMENCEMENT 9) ALL DIMENSIONS ARE OF UNFINCONDITION. REVISION: PLOT AREA: 3311 FOOTPRINT: 8MM GLAZED TILES 8MM MIRROR 40 MM DIA WATER PVC PIPE HINDWARE FAUCET IVORY HINDWARE BASIN 25 MM GRANITE TOP CHROME PLATED WASTE OUTLET 40 MM WASTE PIPE BOTTLE TRAP 20 MM ACRYLIC PANELS 20 MM TILE SKIRTING GRATING NANHI FLOOR TRAP SECTION THROUGH WASH BASIN 1:20 OHT BAFFLE WALL RCC WALL SUMP WATER TANK (RESTING ON 150MM THK RCC SLAB) DOMESTIC WATER SUPPLY 350 MM DEEP RCC BEAM PLASTER AND PAINT PLASTER 300 300MM ANTI SKID VITRIFIED TILES 700 X 700 MM LOUVERED WINDOW 25 MM THK TILE 120 MM DIA NANHI TRAP 250 THK BBC LAYER 300 X 450MM THK PLINTH BEAM RUBBLE SOLING RAMMED EARTH FLUSHING WATER SUPPLY SECTION A A' 1:50 D3 13 UP +0.45 M C1 C10 C2 C3 C4 C5 C11 C12 C13 C18 NOTE: 1) ALL DIMENSIONSARE 2) DO NOT SCALE THE 3) FOLLOW WRITTEN ONLY 4)THIS DRAWING IS THE ARCHITECT AND SHOULD WITHOUT HIS PERMISSION.THIS THE COPYRIGHT PROPERTY ARCHITECT. 5)ALL STRUCTURAL DIMENSIONS REFERRED FROM THE ENGINEER'S DRAWING. 6)ALL SERVICES TO BE SERVICES CONSULTANT 7)FOR ALL OTHER DETAILS RELEVANT DRAWINGS. 8)ANY DISCREPANCIES THE NOTICE FOR THE THE COMMENCEMENT 9) ALL DIMENSIONS AND ARE OF UNFINCONDITION. REVISION: PLOT AREA: FOOTPRINT: SITE: ADANI KAMLA RAHEJA VIDYANIDHI NAME: SUPRANGYA SINGH YEAR: 3RD YEAR DATE: SCALE: SIGN: WAFFLE SLAB A 20 MM TILE 50 MM SAND SCREED 230 MM BBC 4 MM DPC 150 MM RCC SLAB 15 MM PLASTER 0.15 MM PAINT 20 MM TILE 25 MM MORTAR MM LAYER 4 MM DPC 70 MM INSULATION 150 MM SLAB 15 MM PLASTER 0.15 MM PAINT 20 MM TILE 25 MM MORTAR 2 MM LAYER 4 MM DPC 70 MM INSULATION 150 MM SLAB 250 MM PCC BED RAMMED EARTH SSTL BOX GUTTER 3MM LEAR 4MM DPC 15 MM PLASTER 0.15 MM PAINT 2MM FLASHING DETAIL AT A WAFFLE SLAB SECTION 1 : 50 WAFFLE SLAB VOIDS WAFFLE SLAB VOIDS SLAB REINFORCEMENT MESH, MM DIA TOP BAR 16 MM DIA MIDDLE TORTION BAR BOTTOM BAR16 MM DIA 150 MM SLAB 4 MM DPC 15 MM PLASTER 0.15 MM PAINT DETAIL AT B B C 1 : 30 1 : 50 PLAN A A' DETAIL AT C 1 : 20 FABRIC PANEL ALUMINIUM FRAME BLINDS TRACK ALUMINIUM SETTING BLOCKS 6MM THK GLASS ALUMINIUM SETTING BLOCKS AWENING WINDOW 6MM THK GLASS MAHADA Colony LECTURE HALL FIRST FLOOR PLAN
PLOT AREA: FOOTPRINT:
14

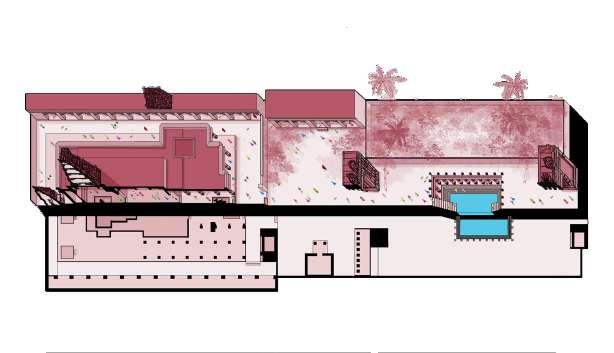

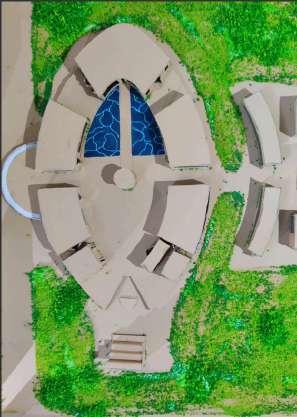

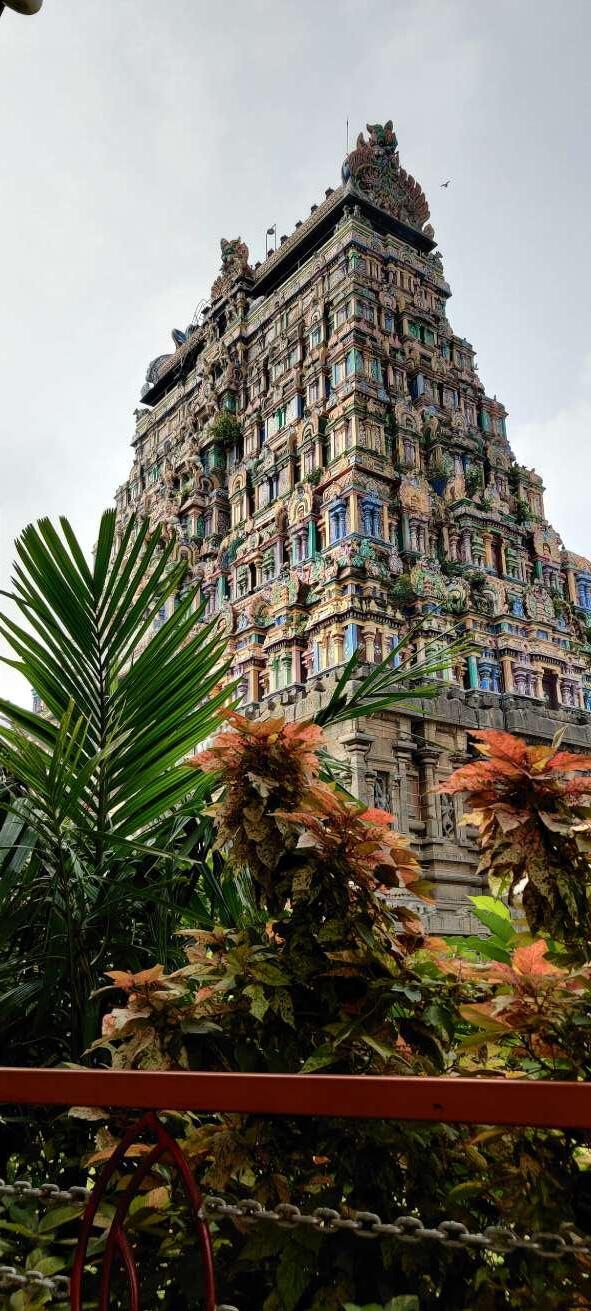

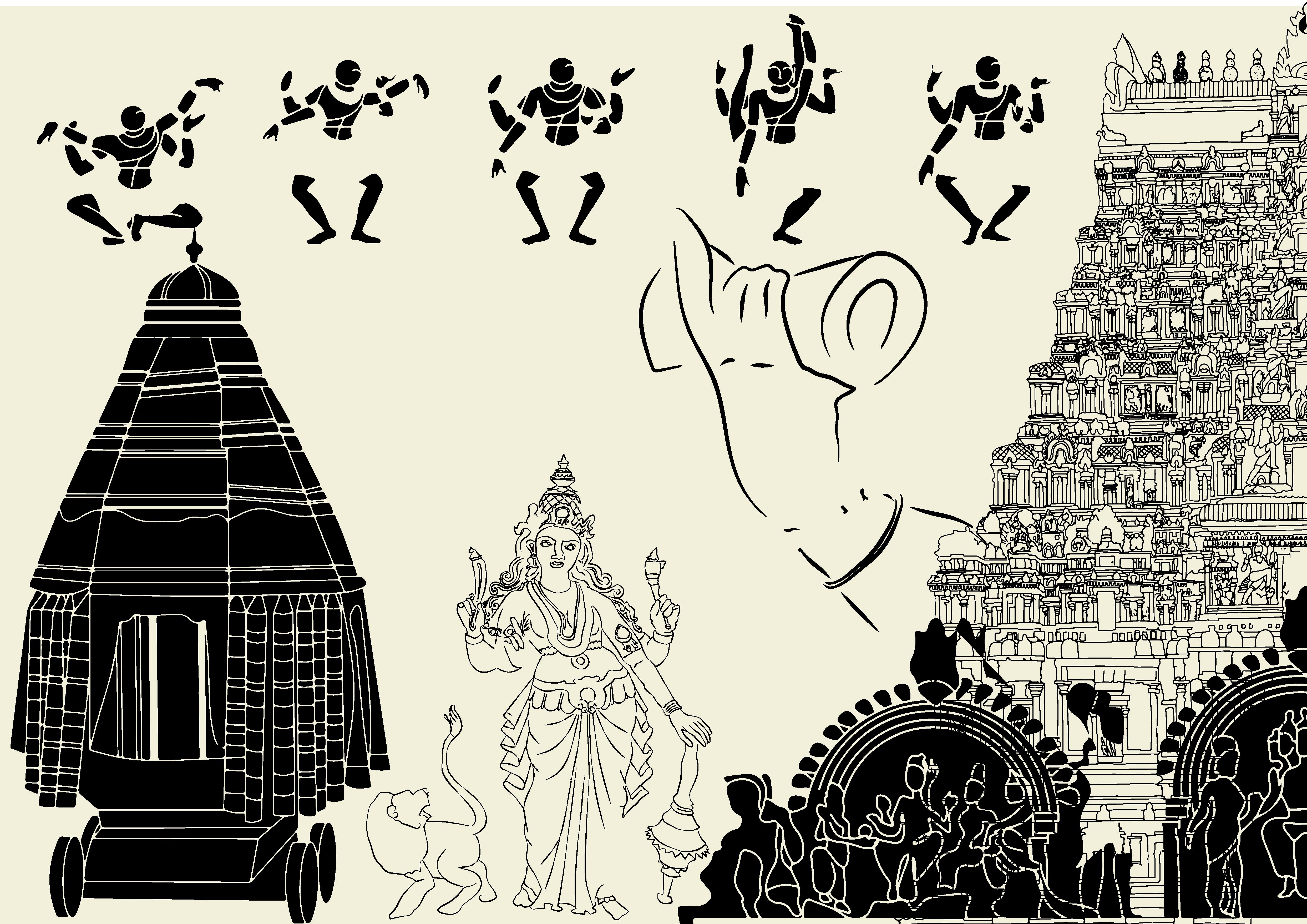

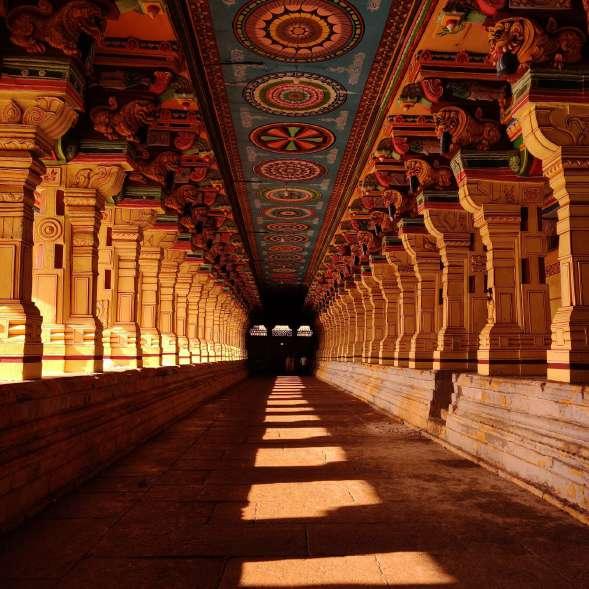

03. DEVANGNA (DEVADASIS TEMPLE)
LOCATION: THILLAI NATRAJAR
TEMPLE, CHIDAMBARAM
AREA: 3200 sq.m
PROJECT DURATION: SEM- 6
GUIDE: AR. SHAIL BAJARIA, AR. VANDANA RANJITGINH

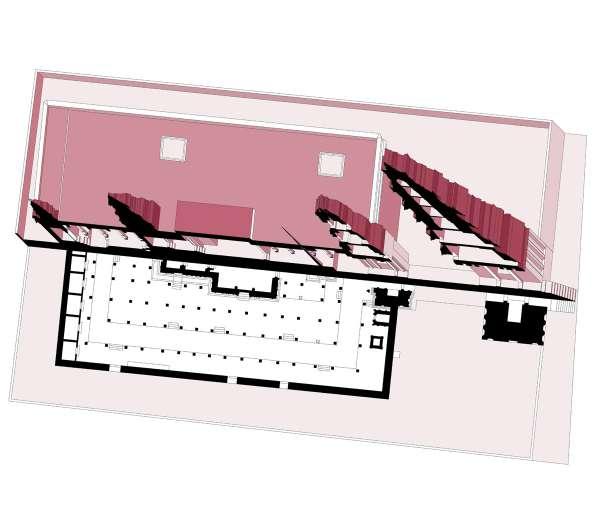

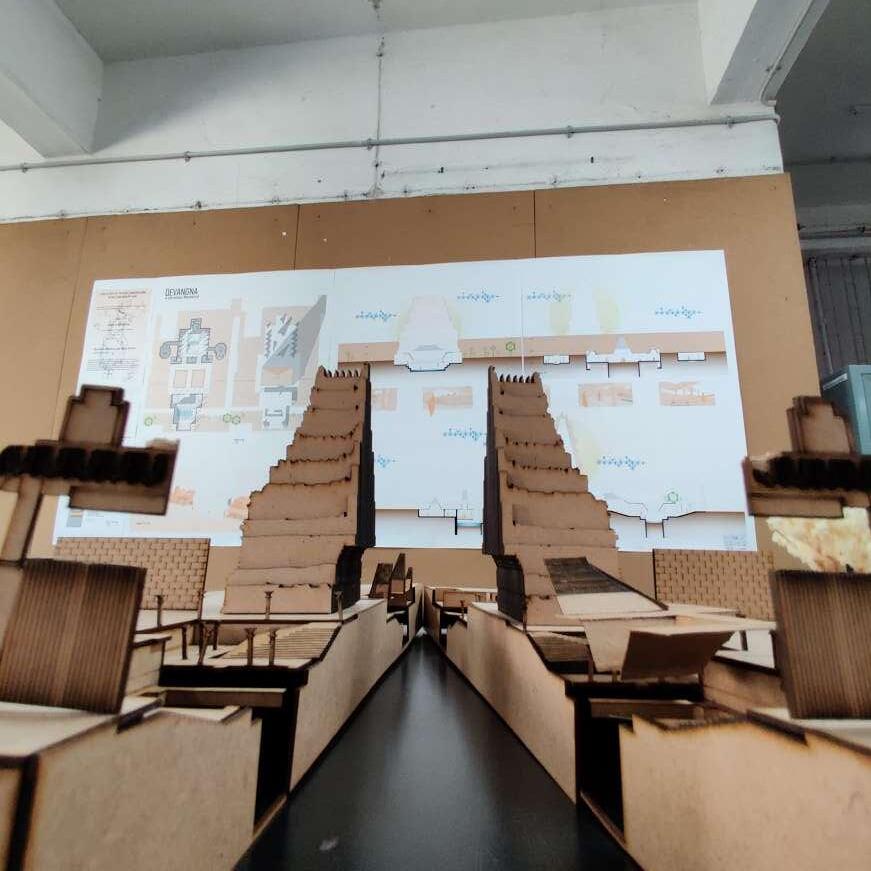

The programme focusses on the forgotten lives of the gods daughters, who once roamed the halls of the temple praying in the form of dance embellished with live music.
The dynasties and biases took the dance and dancers culture out of the temple. The devadasis were amputated from the god and made to live a destroyed life away from the purity.
DEVANGNA takes you down to the truth, ripping earth to cast light on the lives of these goddesses and puts them on a pedestal.
The design incorporates every detail of the story of the devadasis, their changing room, halls, water features, enterances and live orchestra.
FOR THE DEV KI DASIS.
15
17

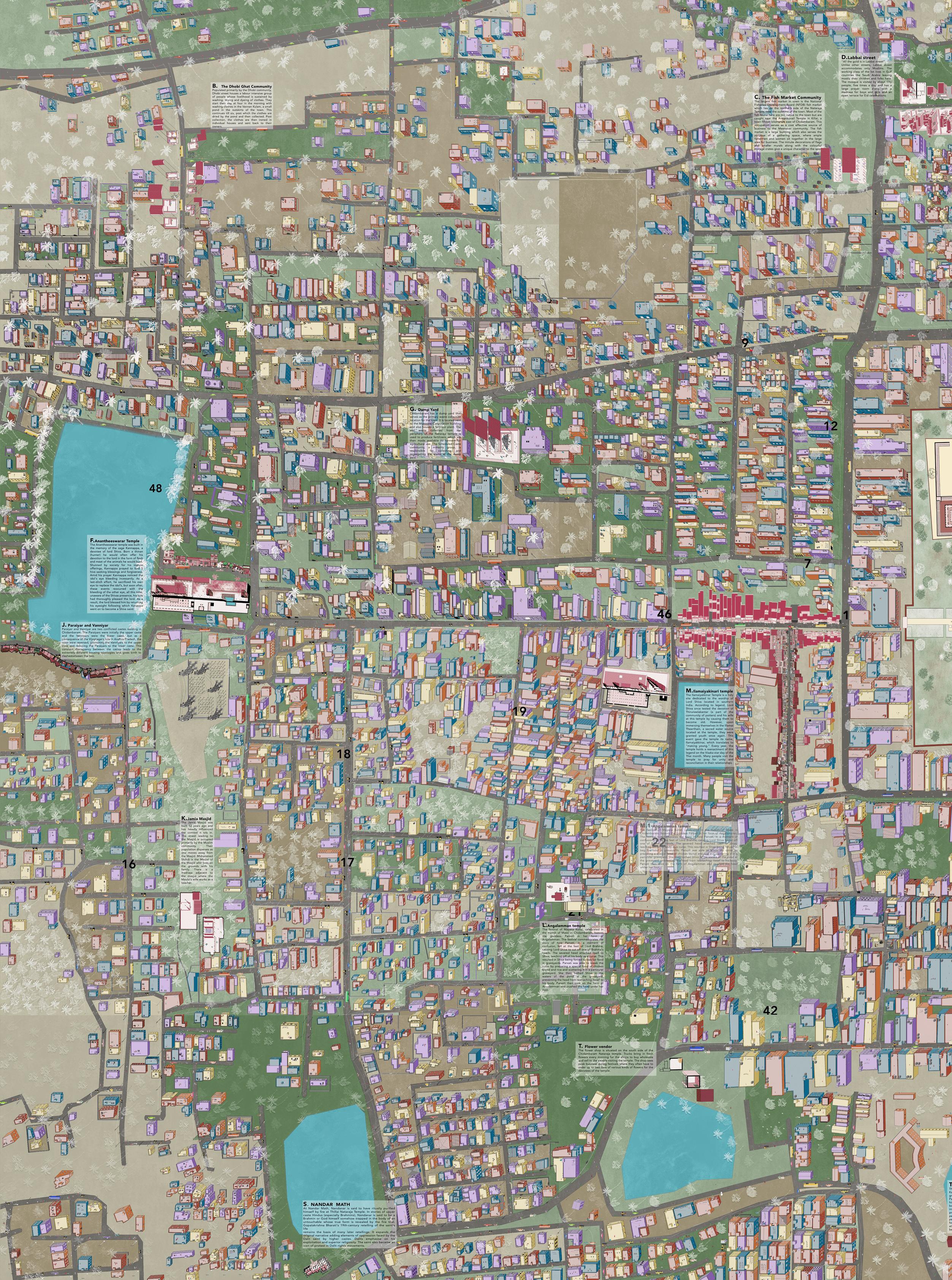

The fabric of the town attempts to simulate the essence of the temple by means of its colour.
The colour chosen to render the town emanates from the colours of the Gopuram. Additionally, the variation within the different colours of the built form of the town also influence the palette chosen for representation. The colour helps give character to the town by amalgamating the temple, its details, its people, and the fabric that they sit in.

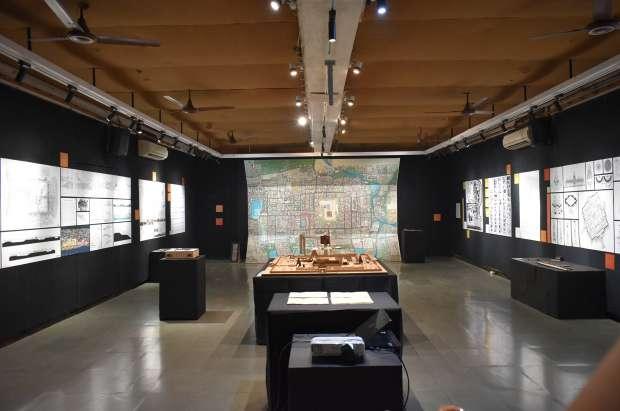

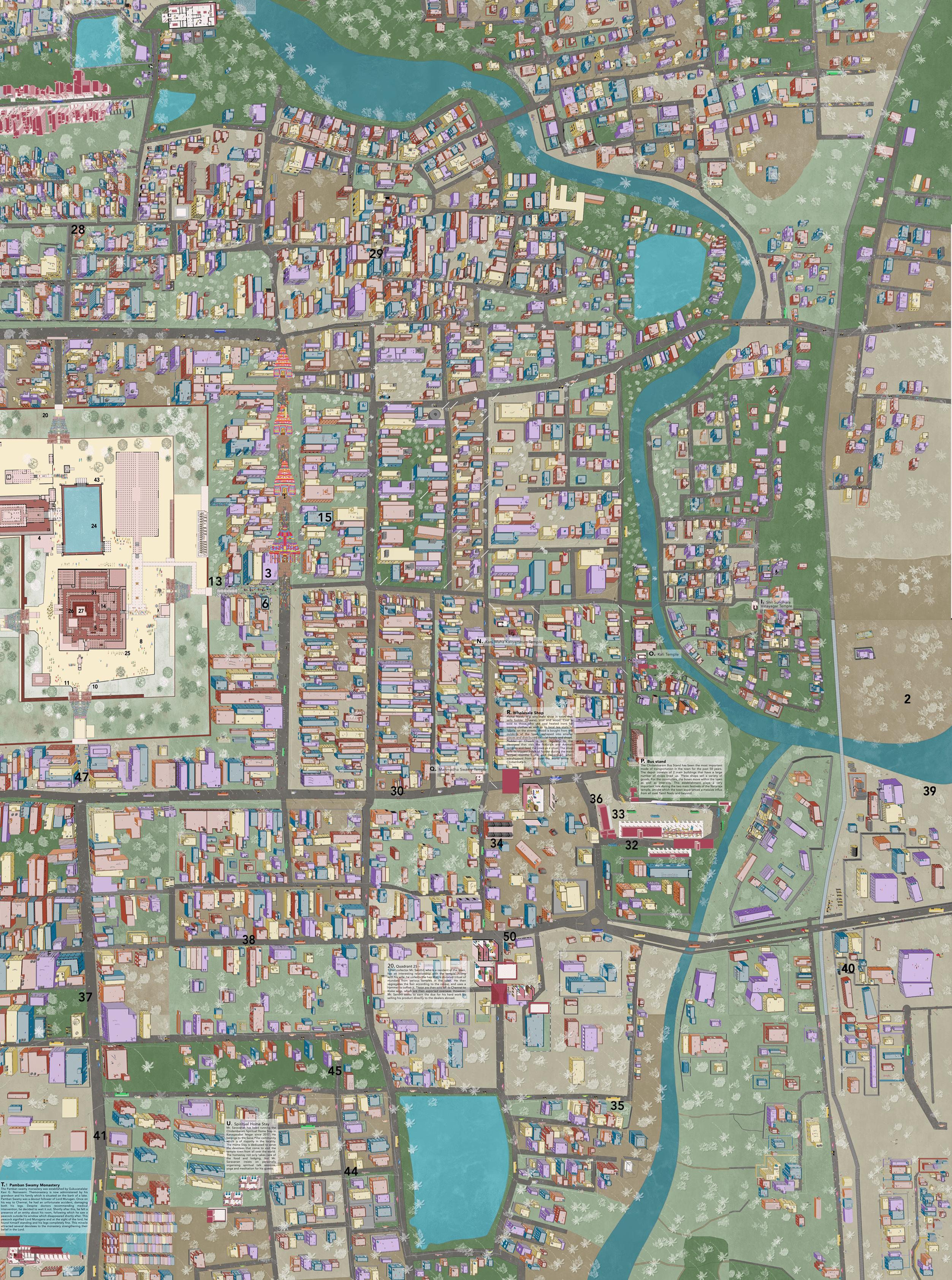

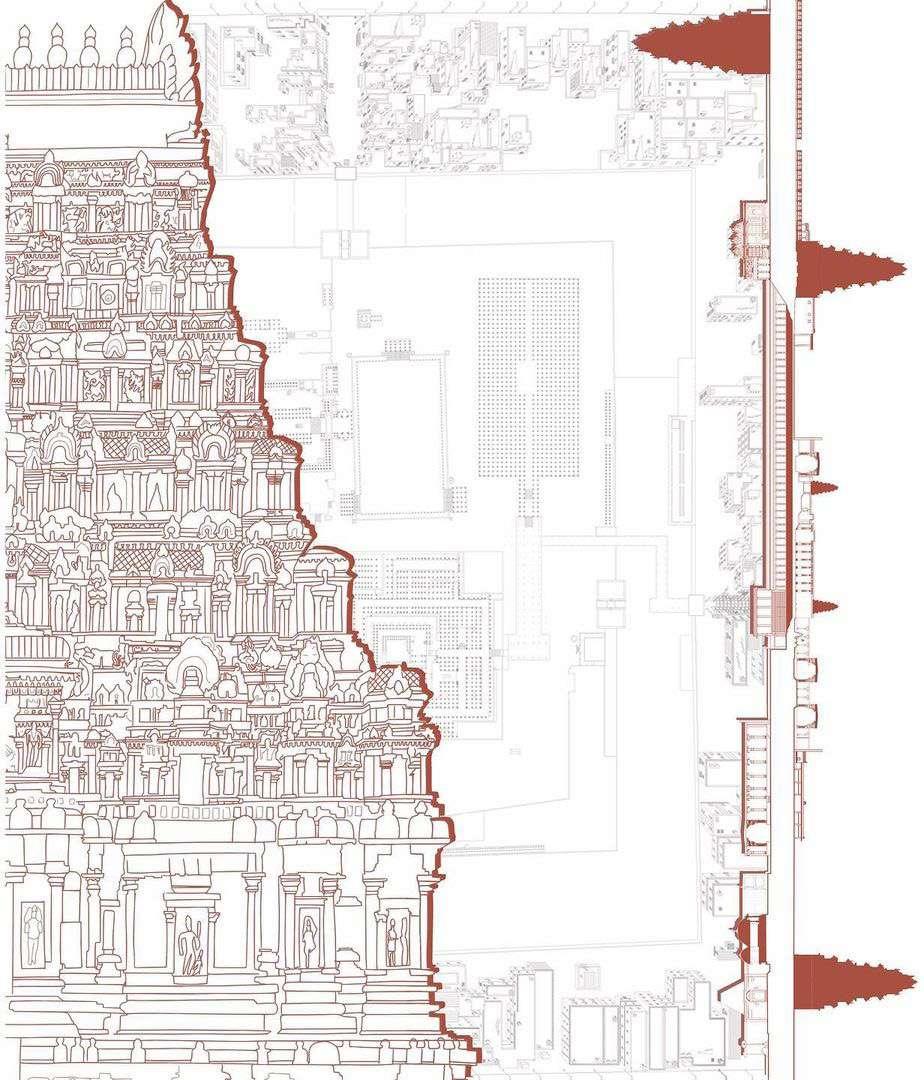

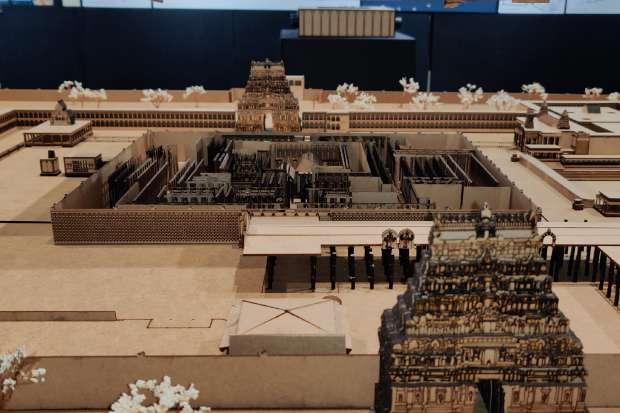

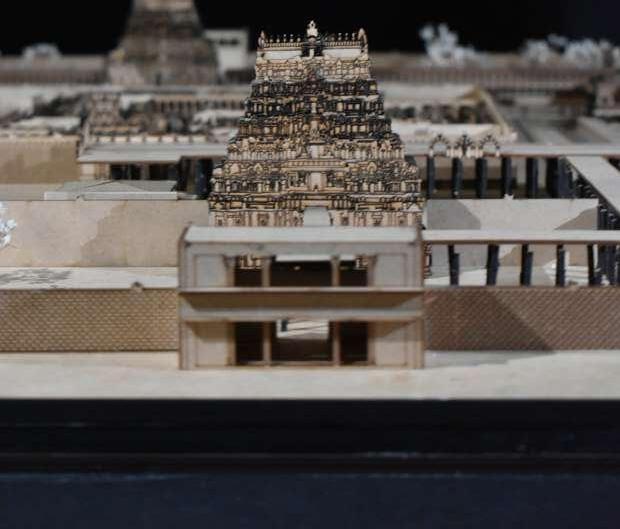

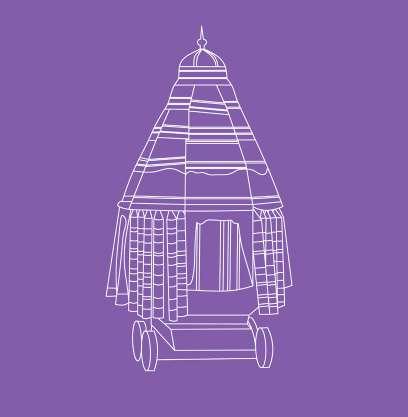

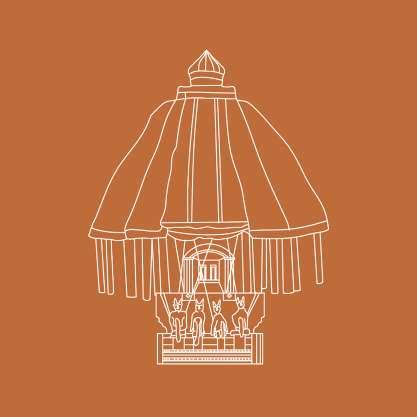

The adopted mode of representation of the exhibition is through the creation of a fabric. An elaborate composition of the setting of the town is generated through the stitching of small details of the built form of the city, thus revealing a distorted God’s eye view of a South Indian temple town. The fabric helps locate the people and stories of the town therefore bringing out its identity.
19 04 . EXHIBITION
STORIES OF CHIDAMBARAM
23
24
05. CLUSTER HOUSING
Indore documentation on an architectural and urban level introduced a group of us to one of the oldest ‘Mill worker colonies’ also called NANDA NAGAR.
LOCATION: NANDA NAGAR, INDORE, MADHYA PRADESH
AREA: 16000 sq.m
An interactive, warm and informative interview with the veterans or their second gen family let to the intensive redevelopment project of one of thge blocks.
The block incorporates the current residents as well as dorms for students from the neighbouring site.
The super block thus created incapsulates amenities for all ages, genders and personalities.
PROJECT DURATION: SEM- 7
GUIDE: AR. SHANTANU POREDI
25
27

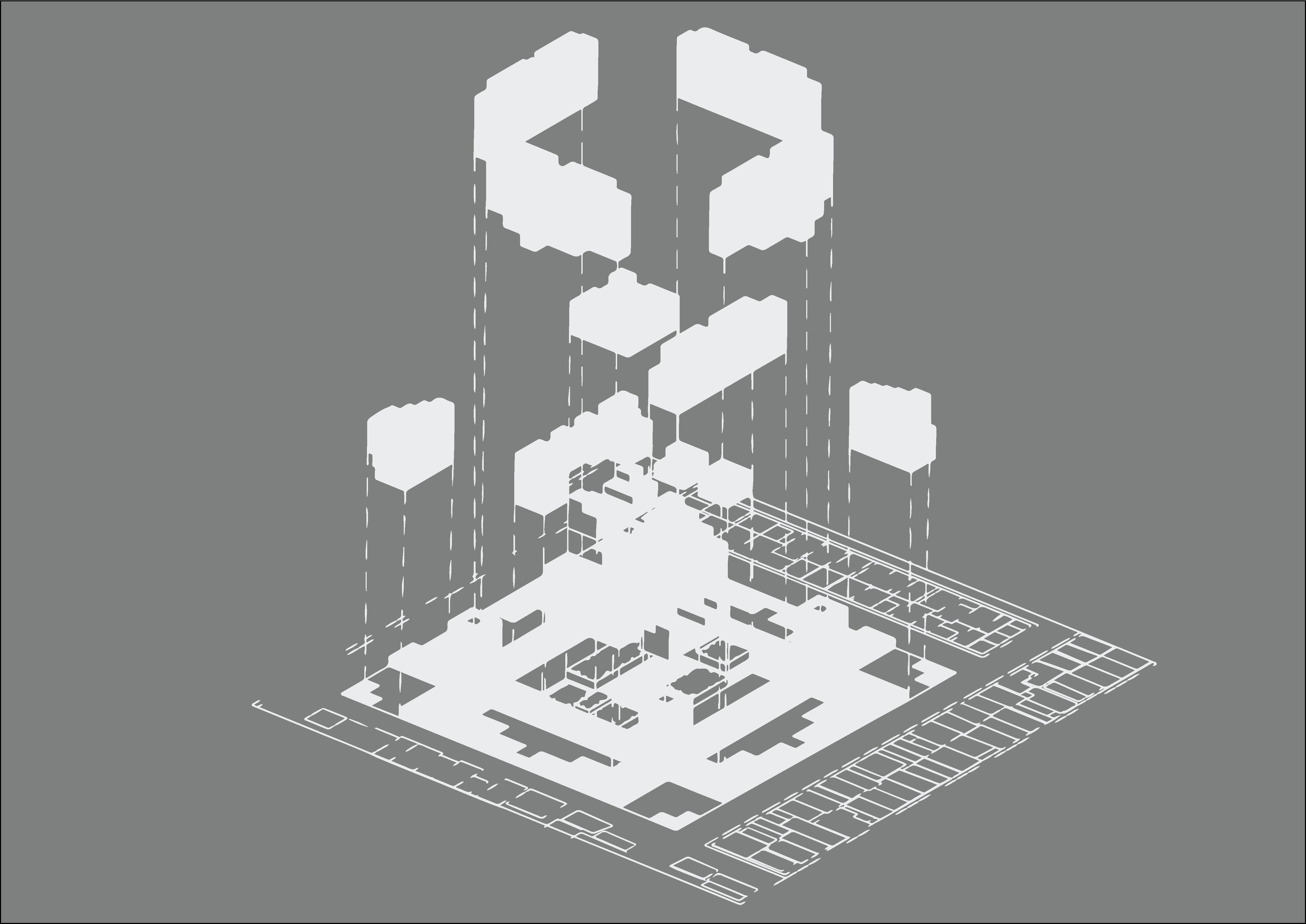

B B' A A' B B' A A' B B' A A' B B' A A' B B' A A' B B' A A' SECOND FLOOR PLAN SECOND FLOOR MEZZANINE PLAN FIRST FLOOR PLAN FIRST FLOOR MEZZANINE PLAN GROUND FLOOR PLAN GROUND FLOOR MEZZANINE PLAN 1 500 1 500 1 500 1 500 1 500 1 500 PRIMARY HEALTHCARE, DAYCARE & MICRO-FINANCING UNIT PLAN 1 100 SUPERMARKET PLAN 100 COMMON TOILET PLAN 1 100 TRIPLE SHARING STUDENT UNIT 100 4 BHK UNIT TYPE-B 1 100 DOUBLE SHARING STUDENT UNIT 100 4 BHK UNIT TYPE-A 1 100 N N N N N N 0 10 20 30 40 50 B B' A A' BASEMENT PARKING PLAN SITE PLAN 1 500 1 250 MESS HALL PLAN GYM PLAN 1 100 100 N
ELEVATION ISOMETRIC VIEW SECTION A-A' SECTION B-B' 1 200 1 200 1 200 1 200 B B' A A' B B' A A' B B' A A' B B' A A' B B' A A' B B' A A' THIRD FLOOR PLAN THIRD FLOOR MEZZANINE PLAN FOURTH FLOOR PLAN FOURTY FLOOR MEZZANINE PLAN FIFTH & SIXTH FLOOR PLAN FIFTH & SIXTH FLOOR MEZZANINE PLAN 1 500 1 500 1 500 1 500 1 500 1 500 1 BHK UNIT 100 2 BHK UNIT TYPE-B 1 100 2 BHK UNIT TYPE-A 1 100 3 BHK UNIT TYPE-B 1 100 3 BHK UNIT TYPE-A 100 N N N N N N 29
30

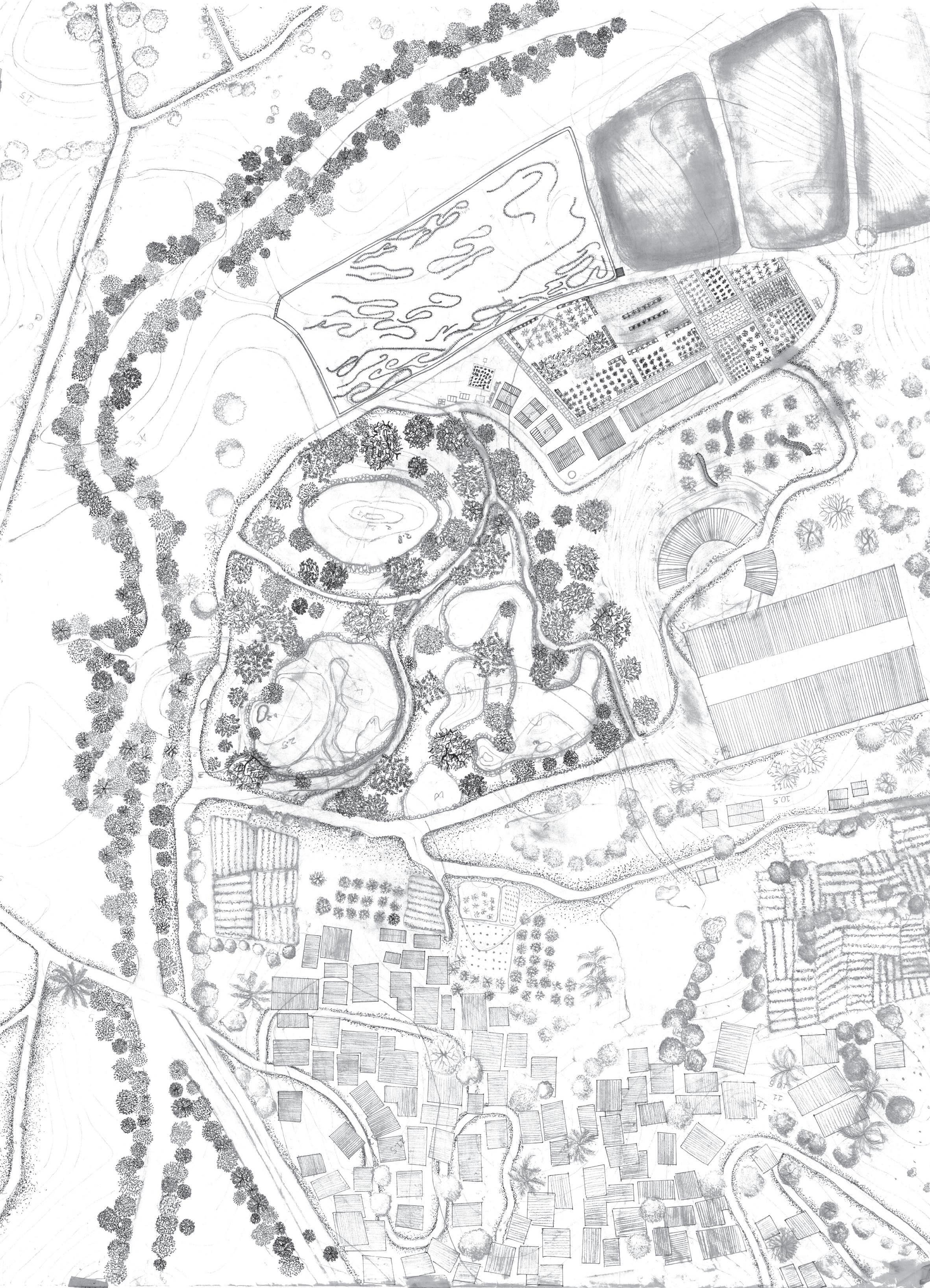

06. LANDSCAPE

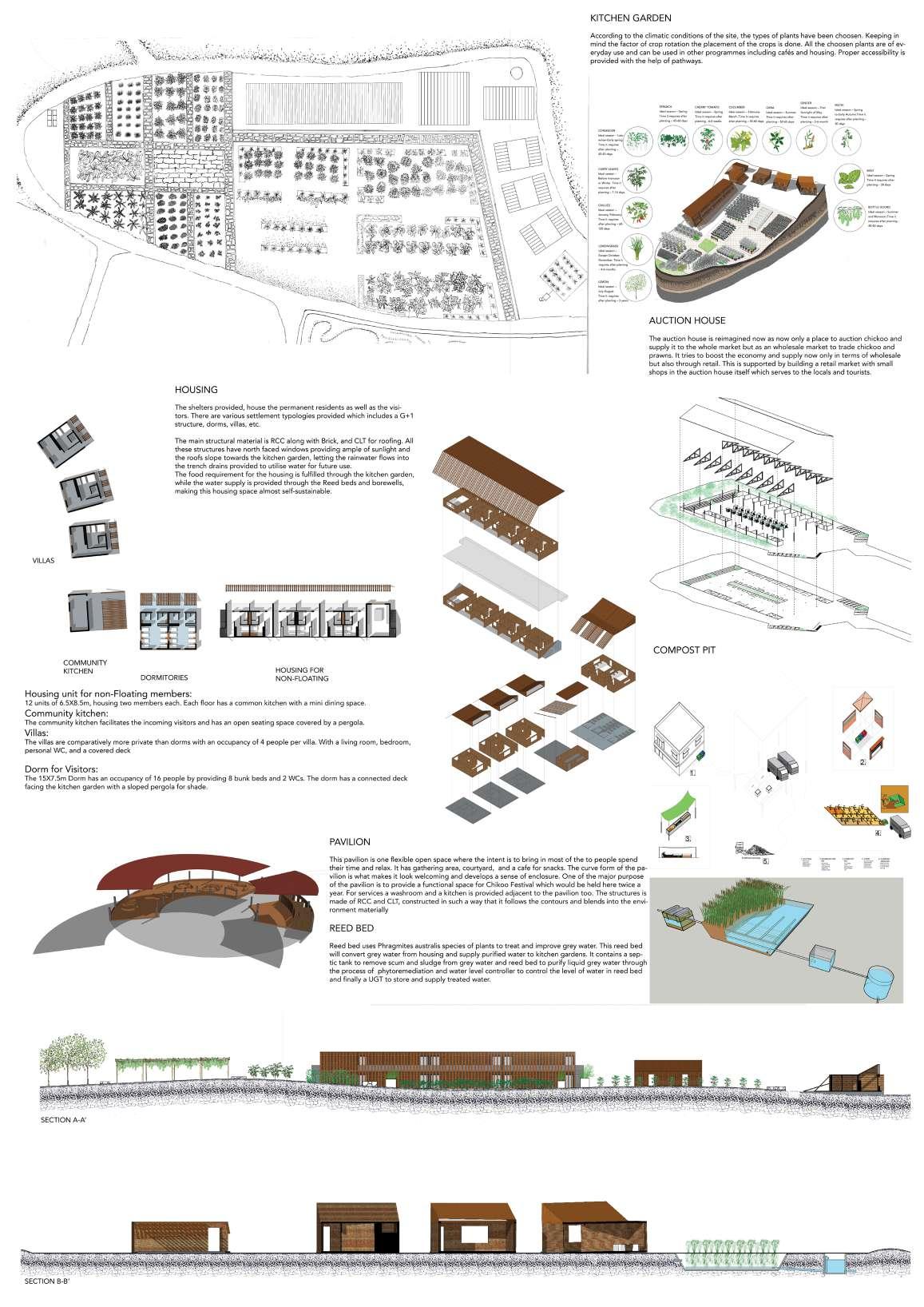

LOCATION: DAHANU
AREA: 1,00,000 sq.m
PROJECT DURATION: SEM- 6

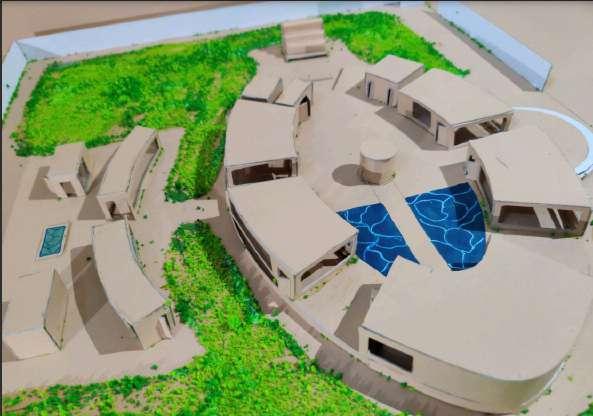

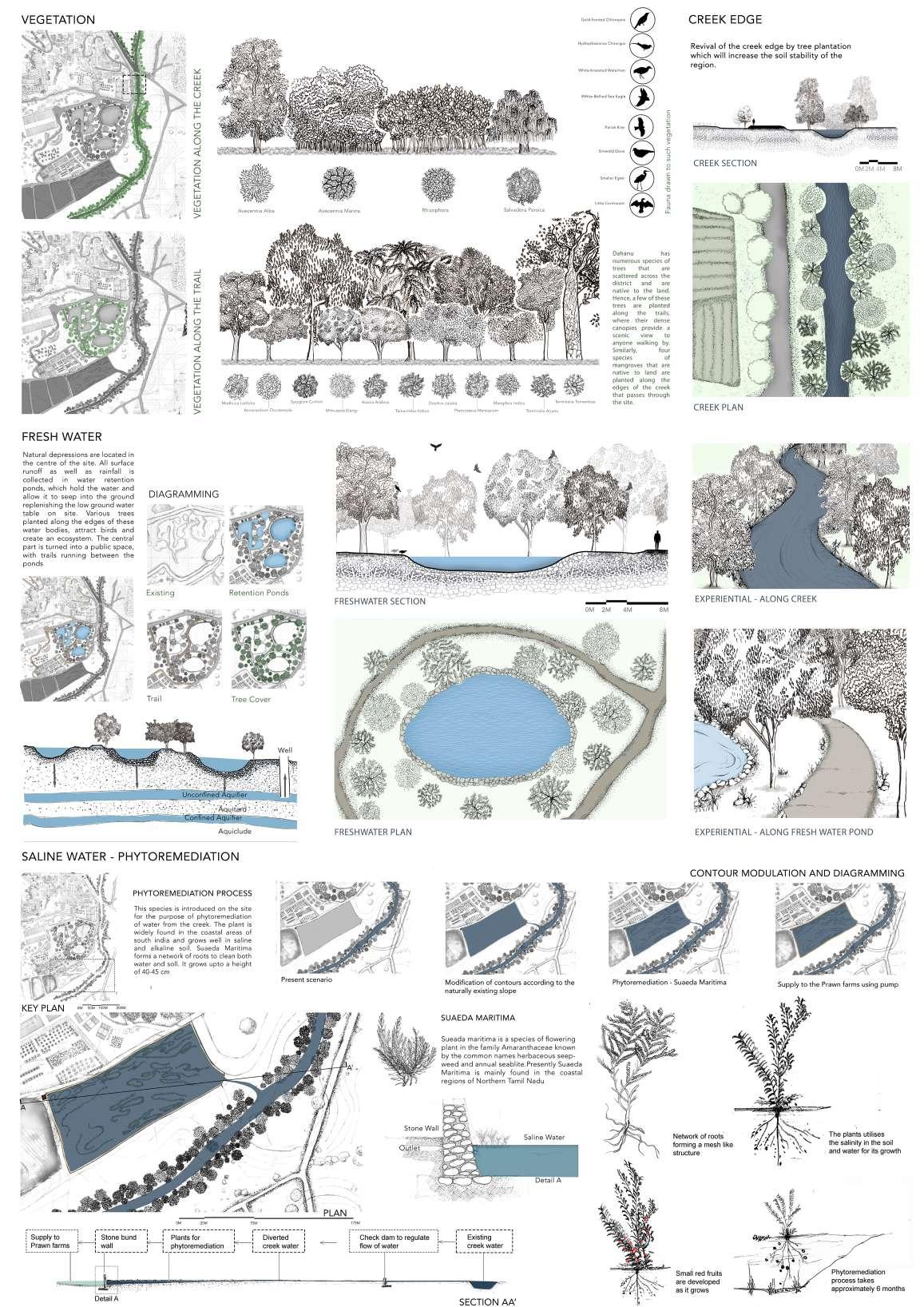

Dahanu has a varied ecosystem and thus exists as one of the few eco sensitive zones. The intervention for a commune aims to respond to the various resources available in relation with the existing activities around them.
Systems that have been incorporated include plantation of specific species of trees along the edge of the creek, collection of rainwater, allowing the engagement of tourists with the landscape.
Provision of villas for tourists and dorms for the community including kitchen garden which enable self sustenance.
Collection and segregation of waste, treatment of grey water.
31
32
33

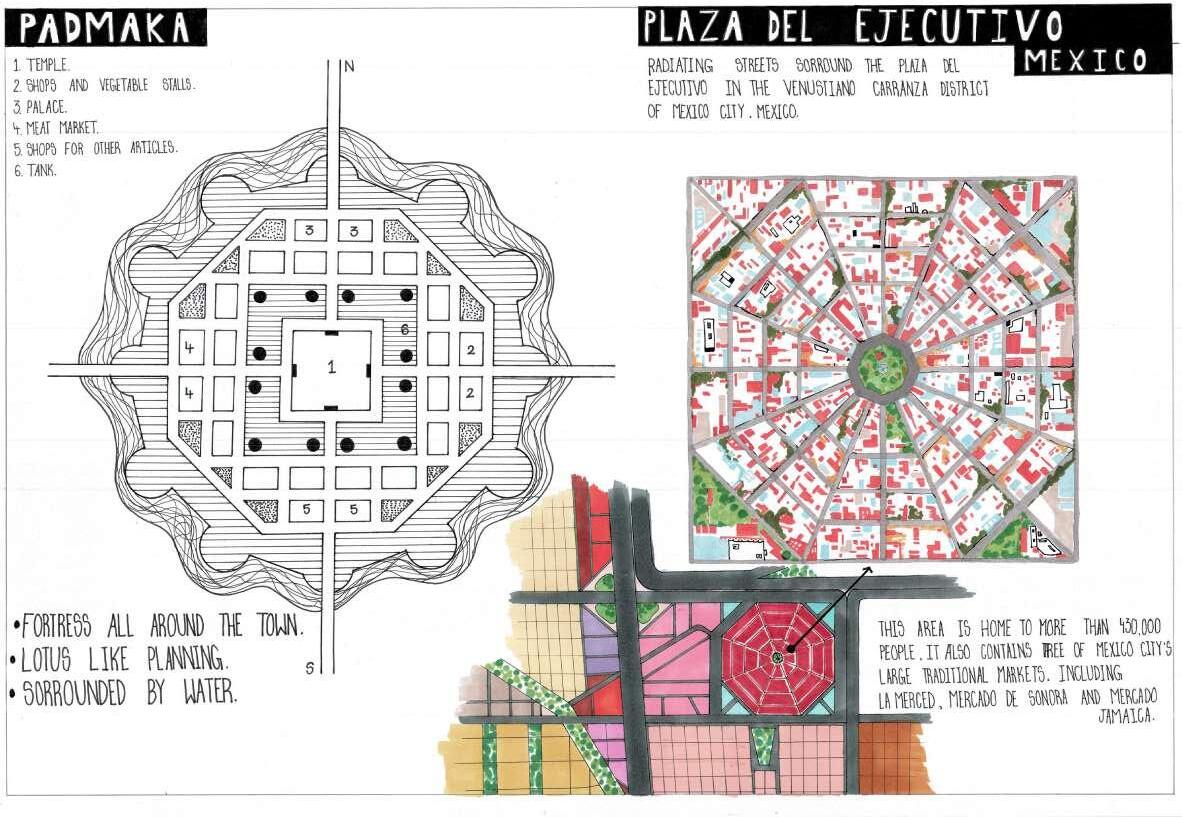

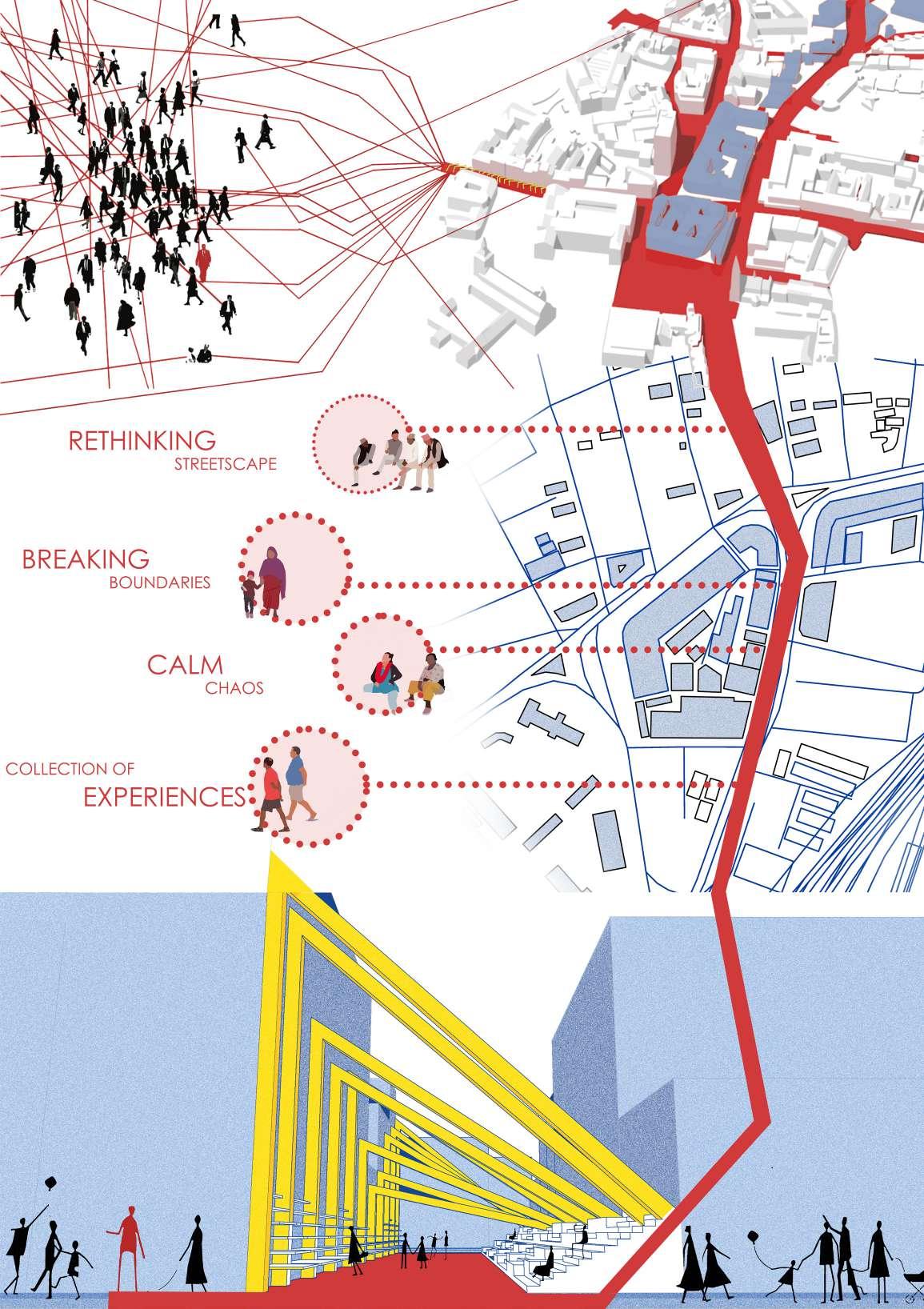

PROJECTS: SICK ARCHITECTURE POSTER
ESQUISSE COMPETETION

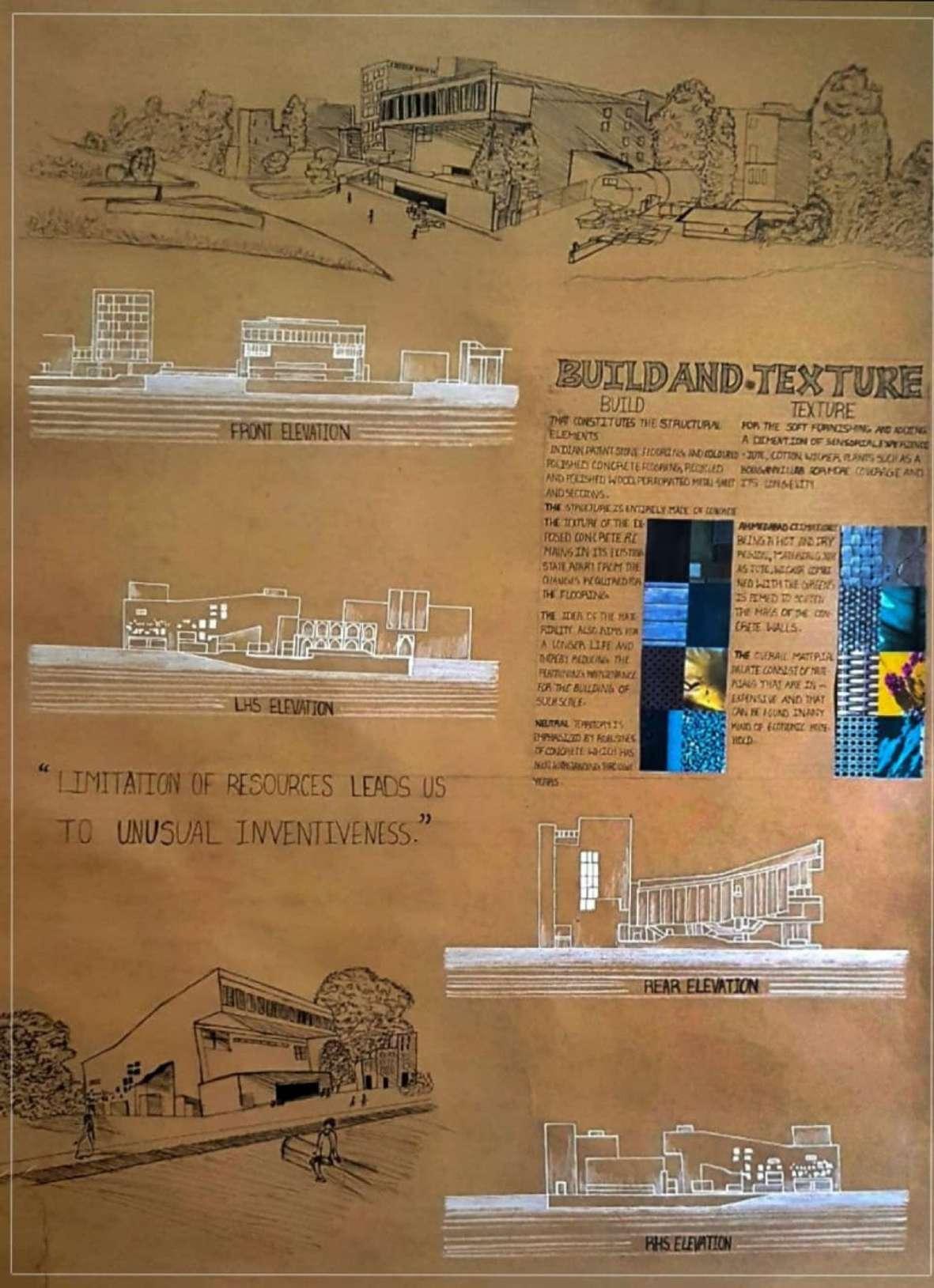

BAIT-UR ROFF MOSQUE STUDY

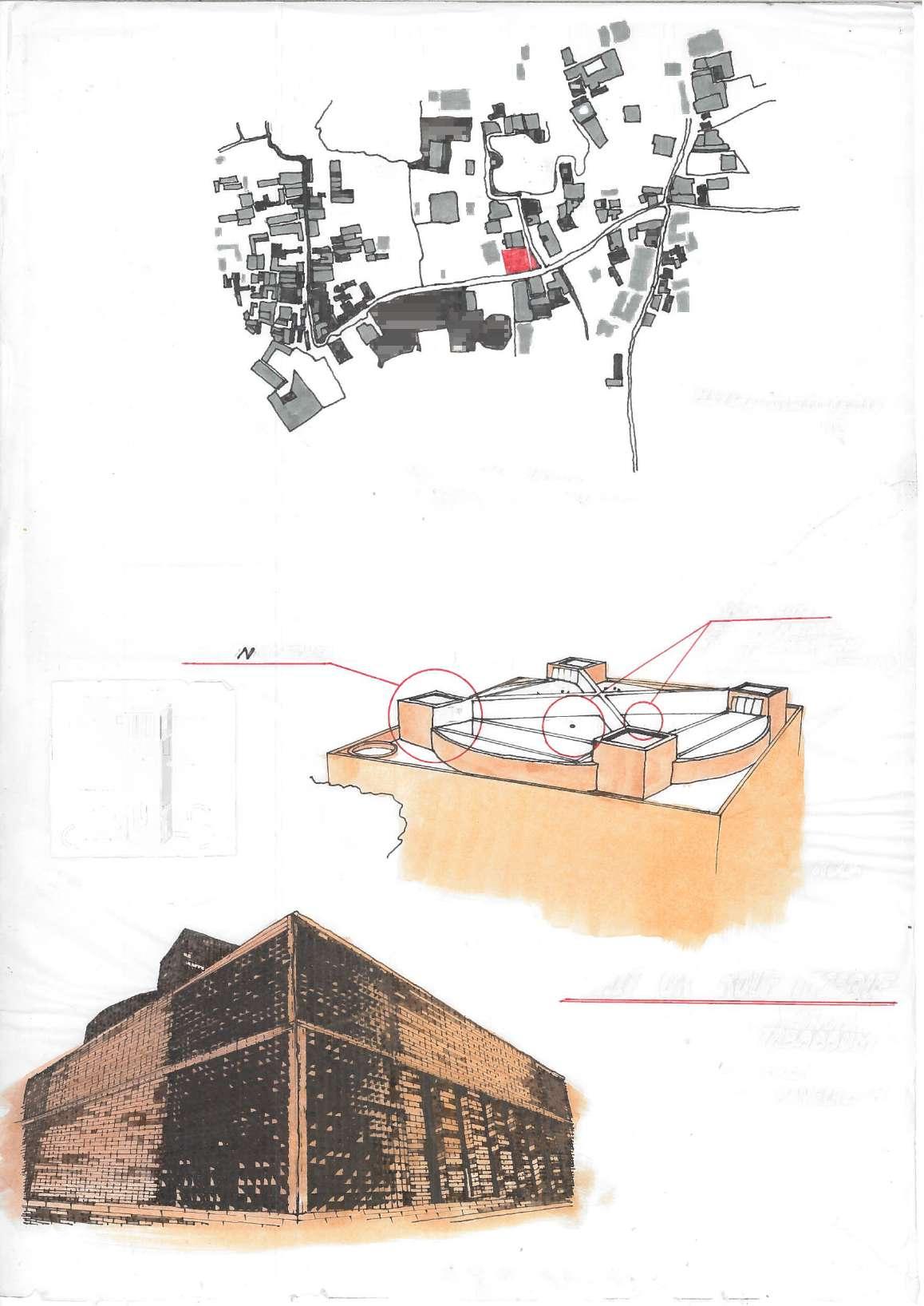

PREMABHAI HALL STUDY

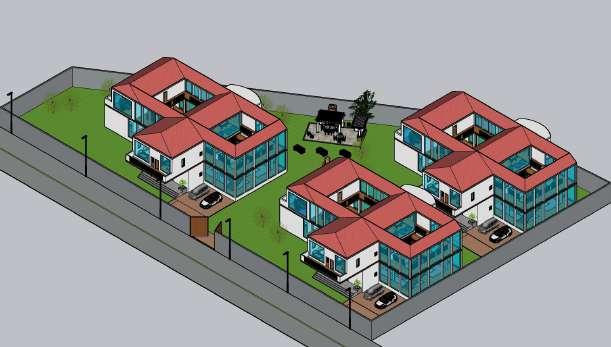

SKETCHUP PROJECTS
HAND DRAWINGS
34 07.
MISCELLANEOUS
35

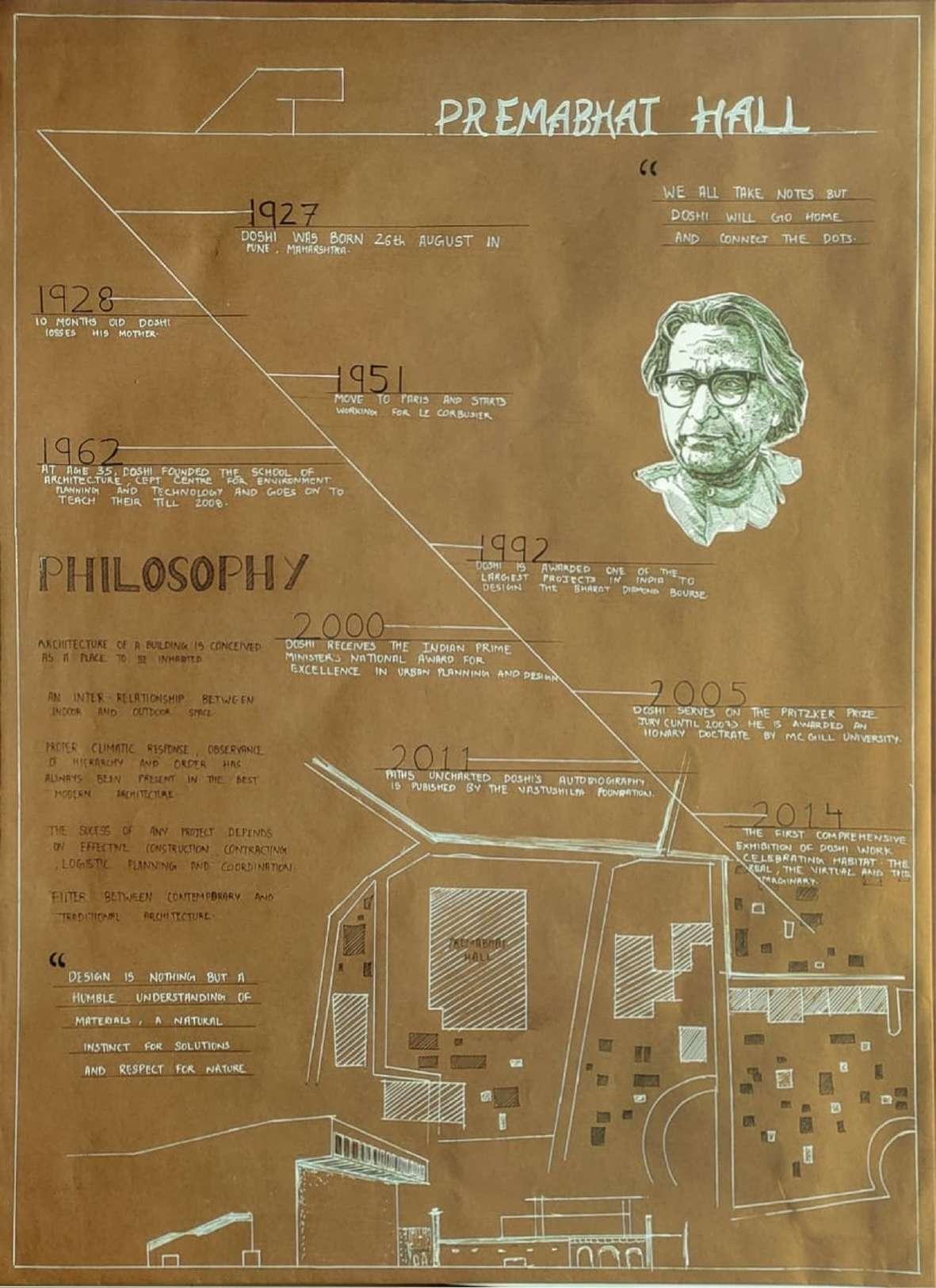

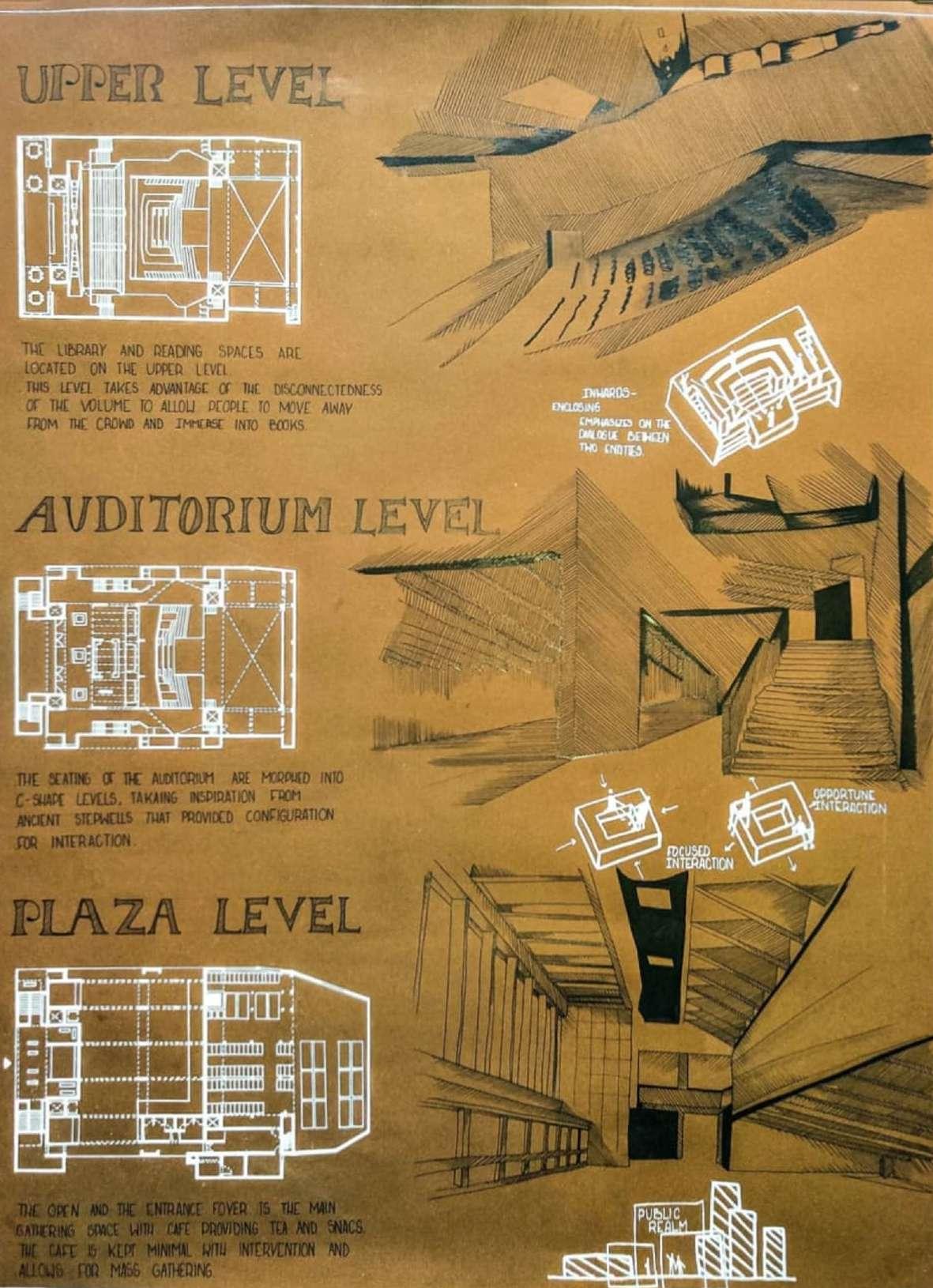

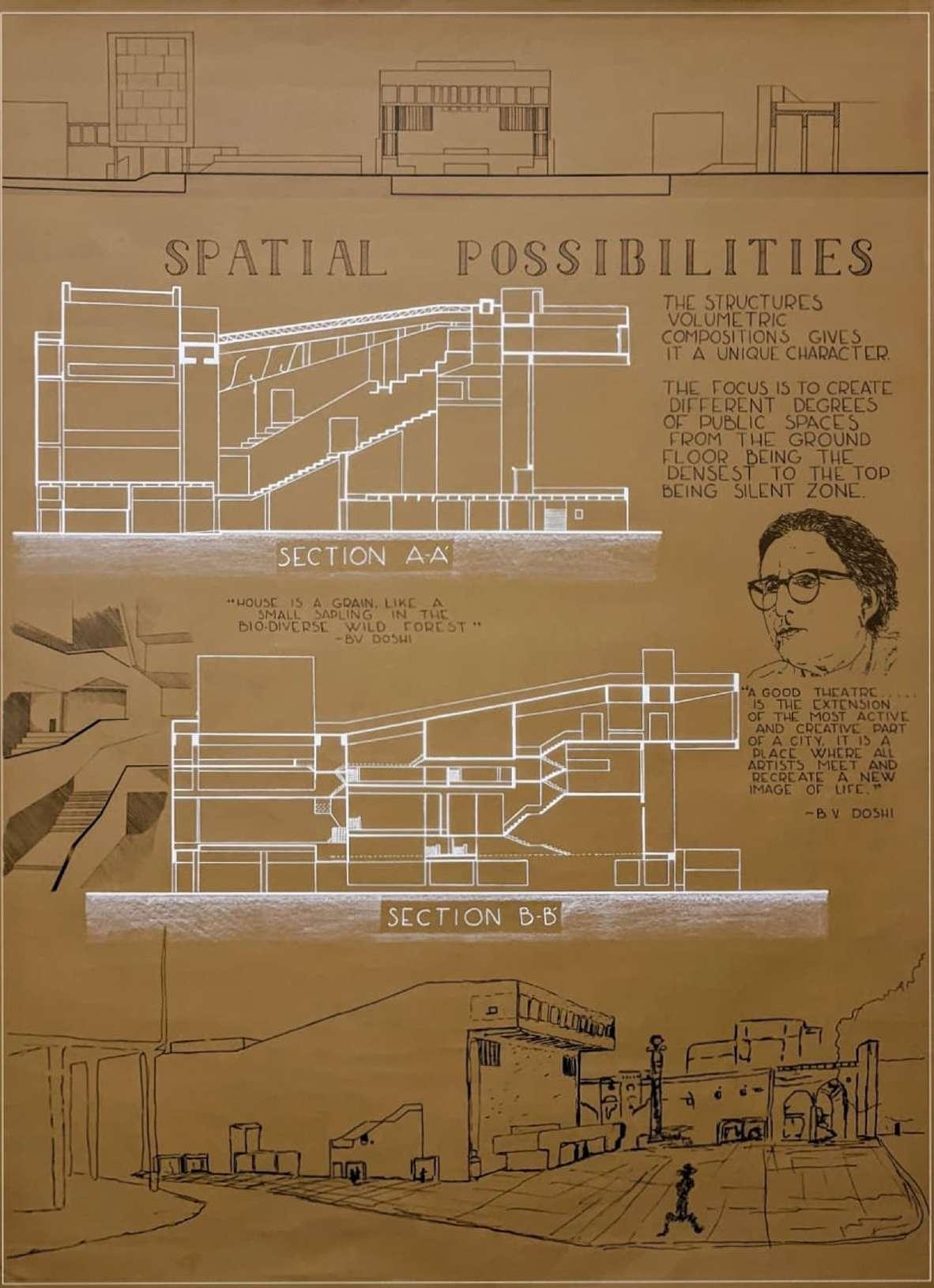

PREMABHAI HALL STUDY
36
37

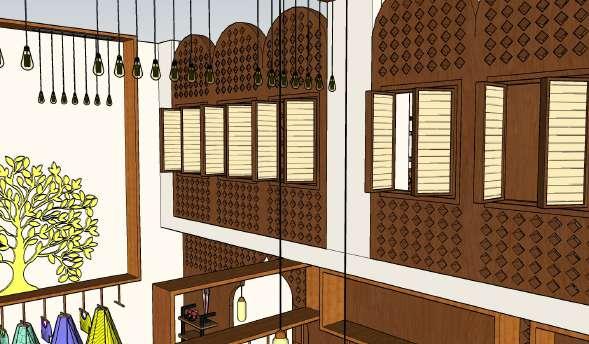

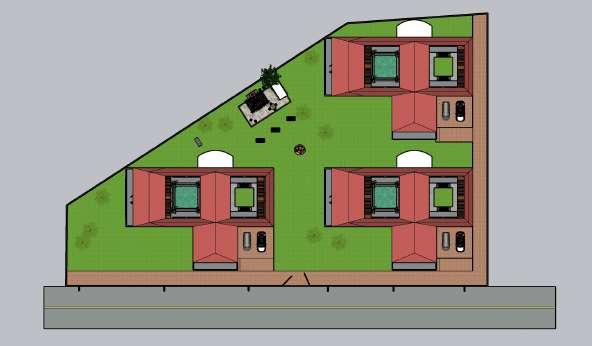

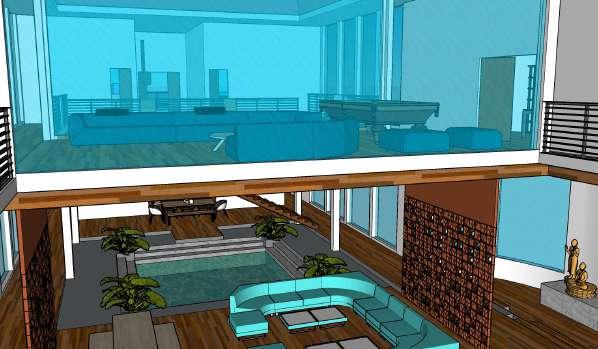

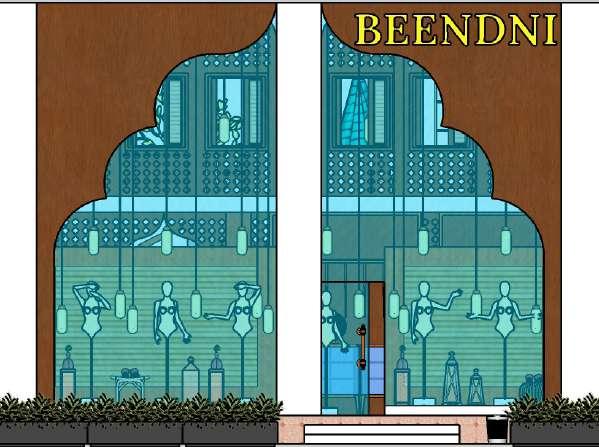

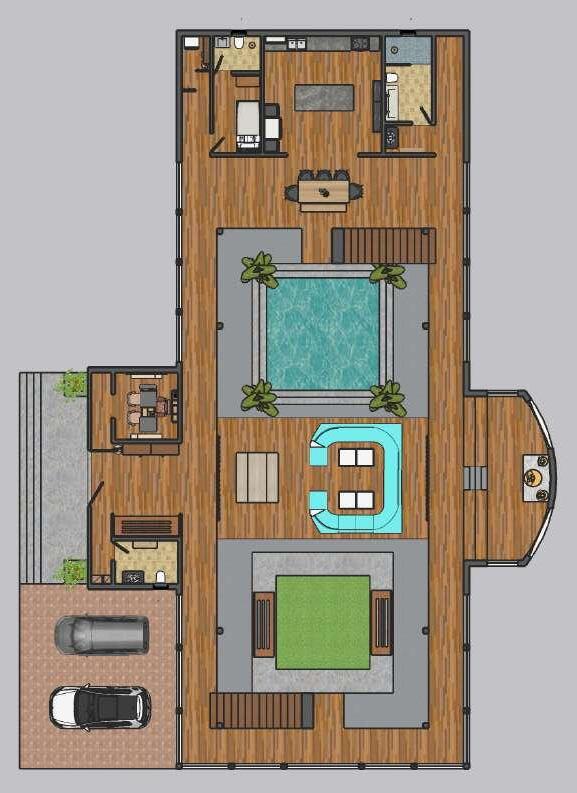

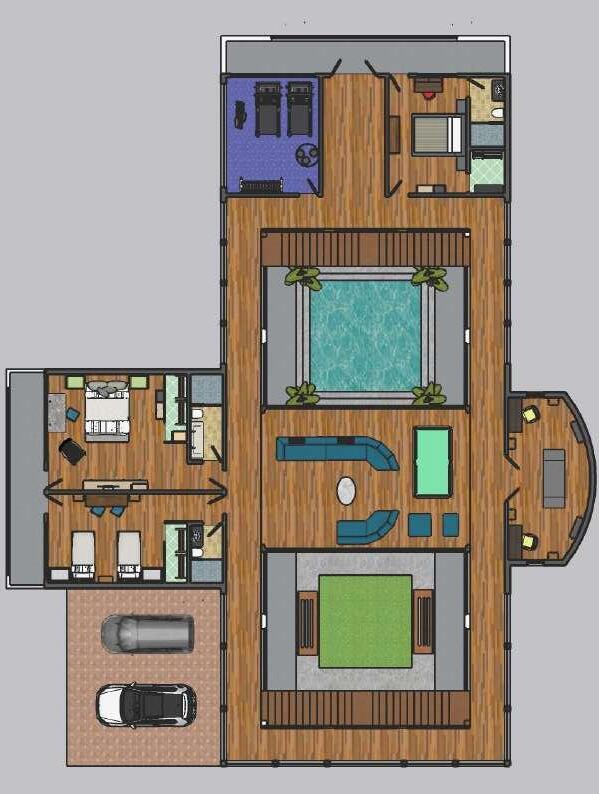

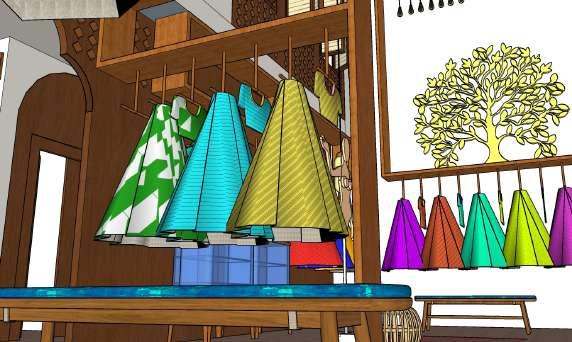

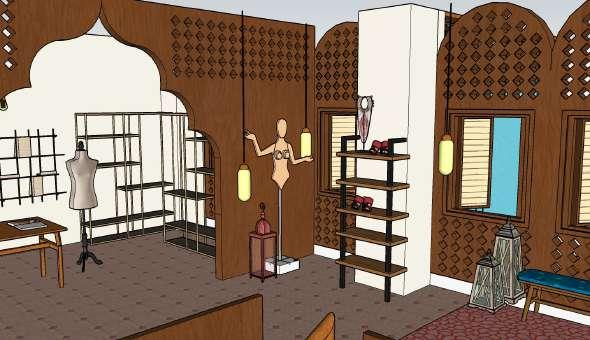

SKETCHUP PROJECTS
38

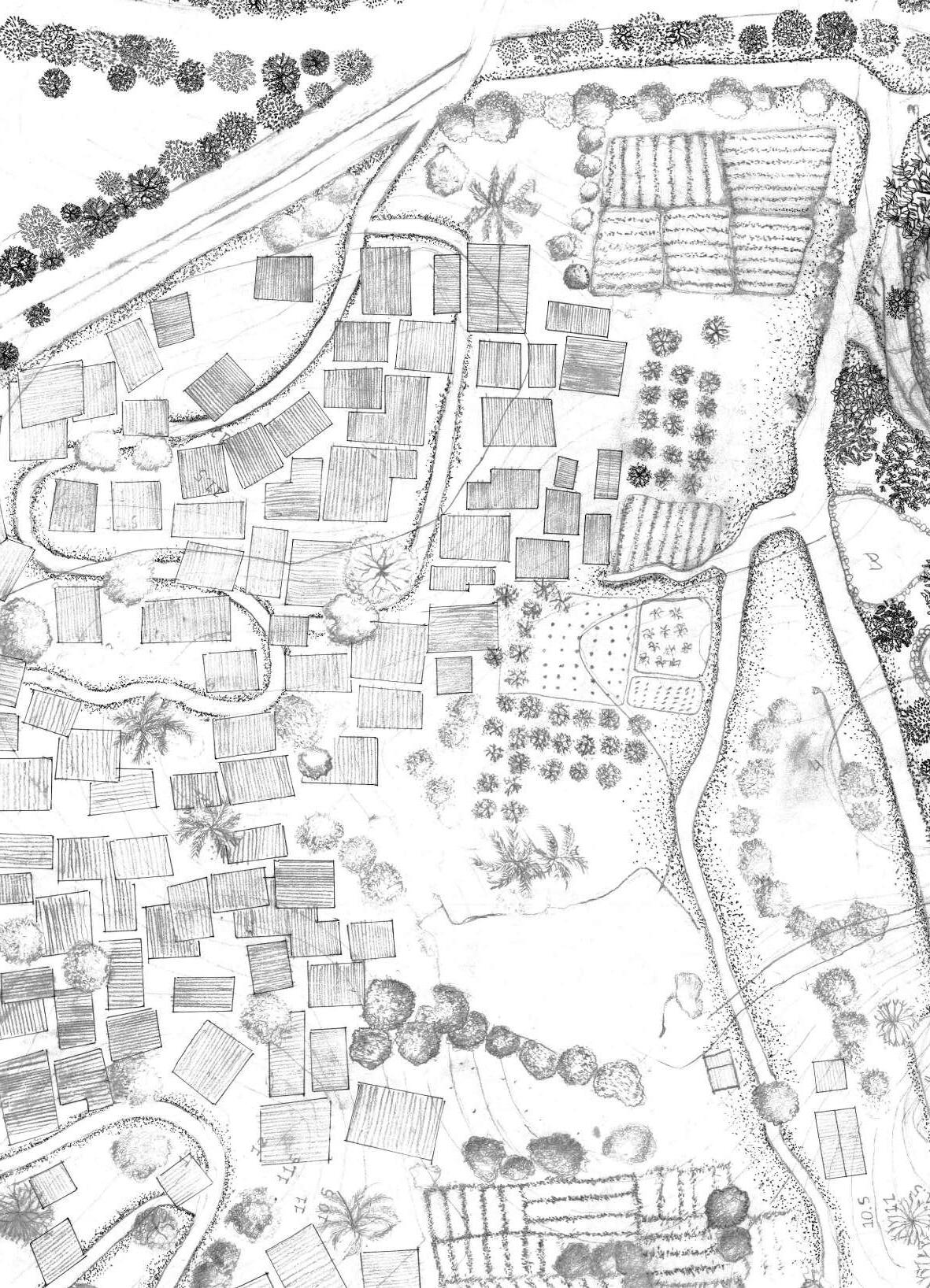

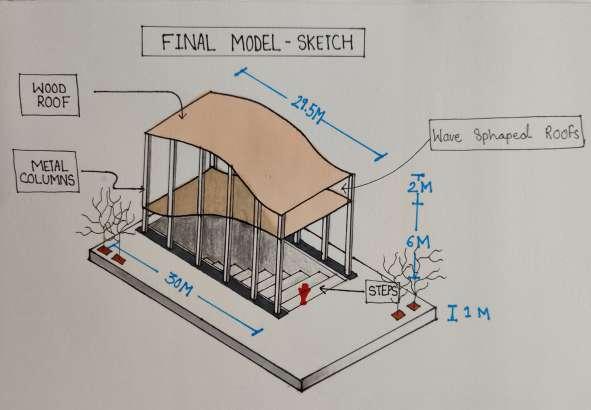

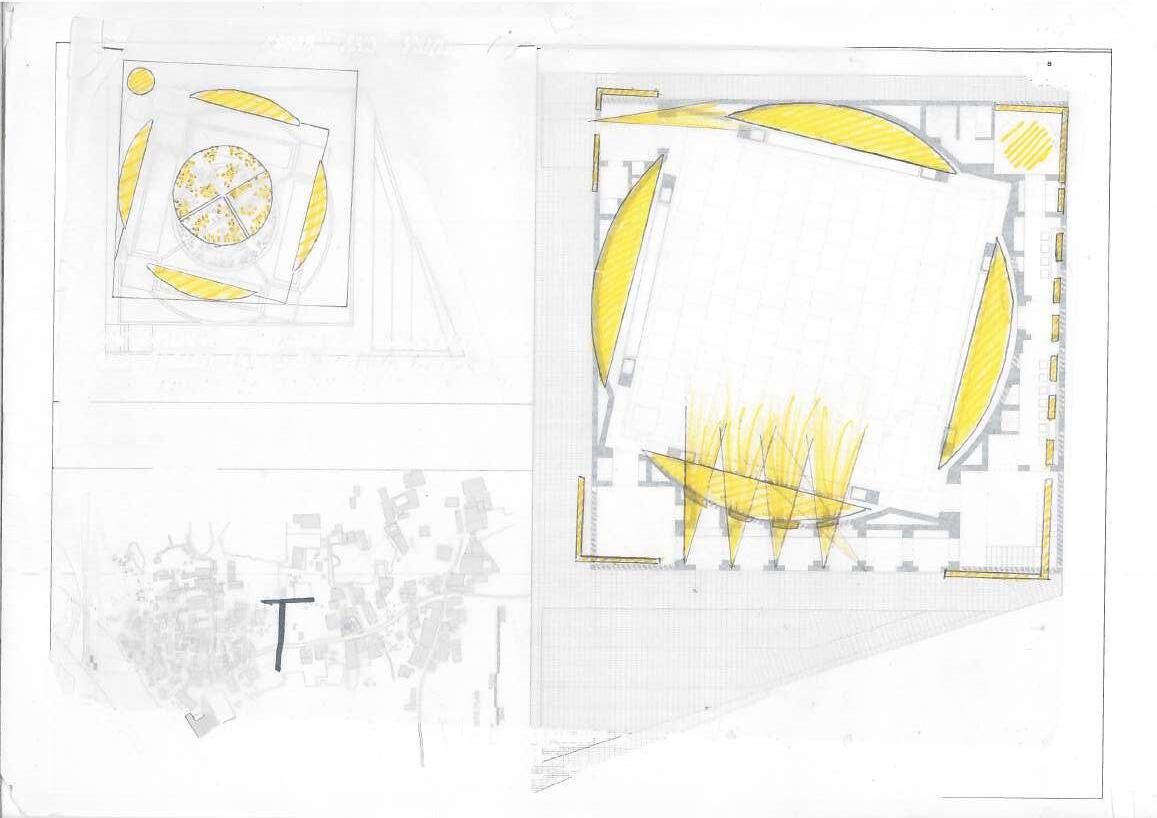

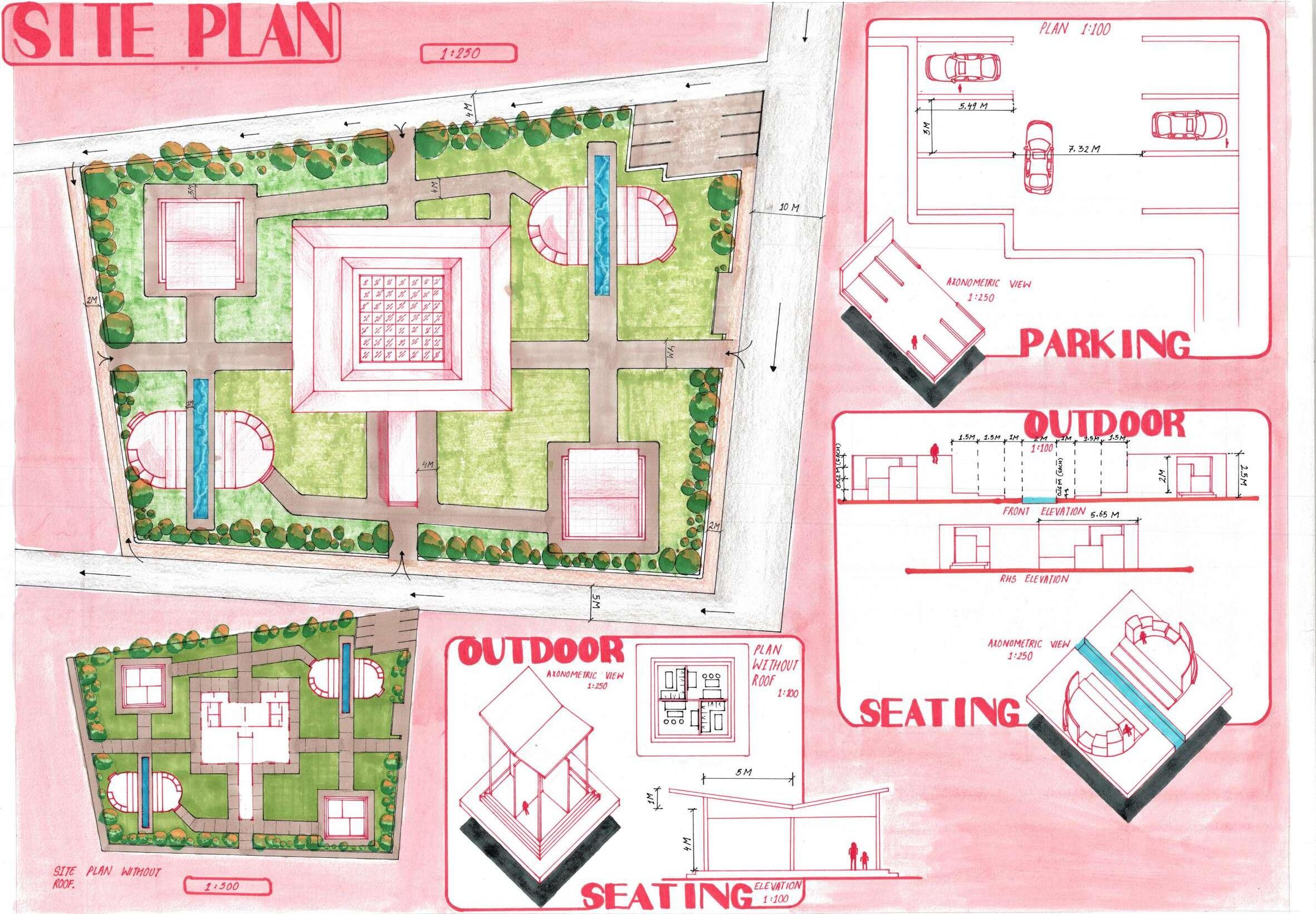

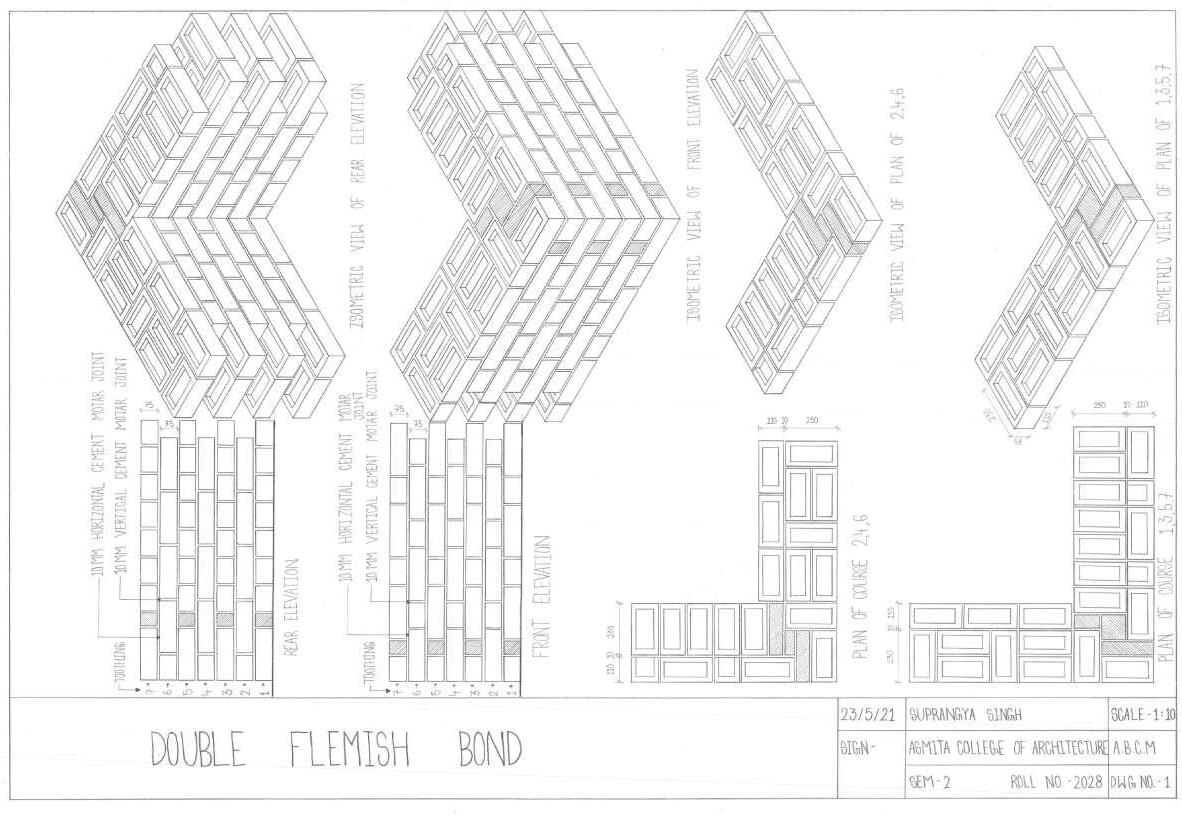

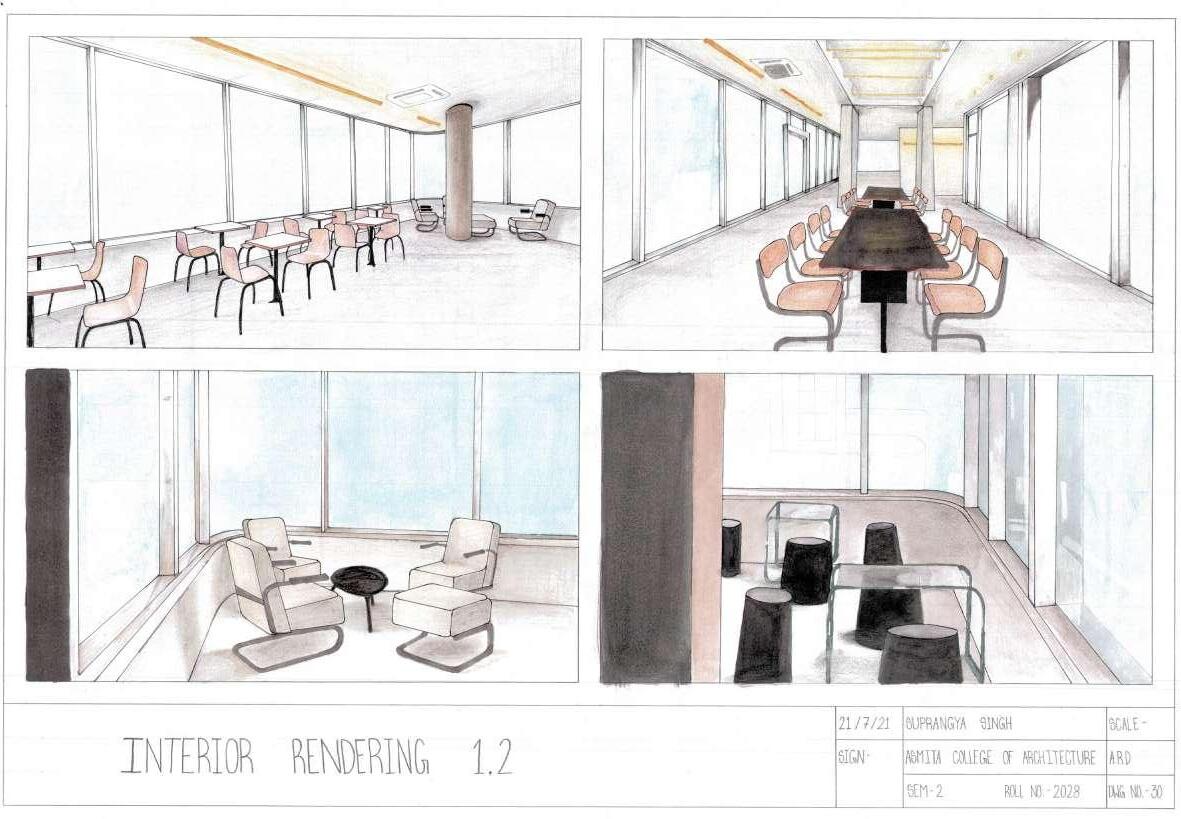

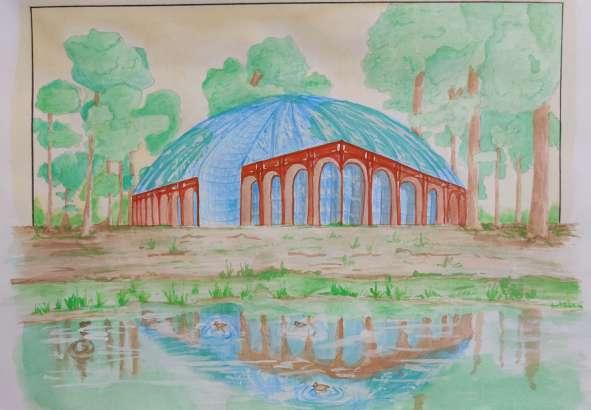

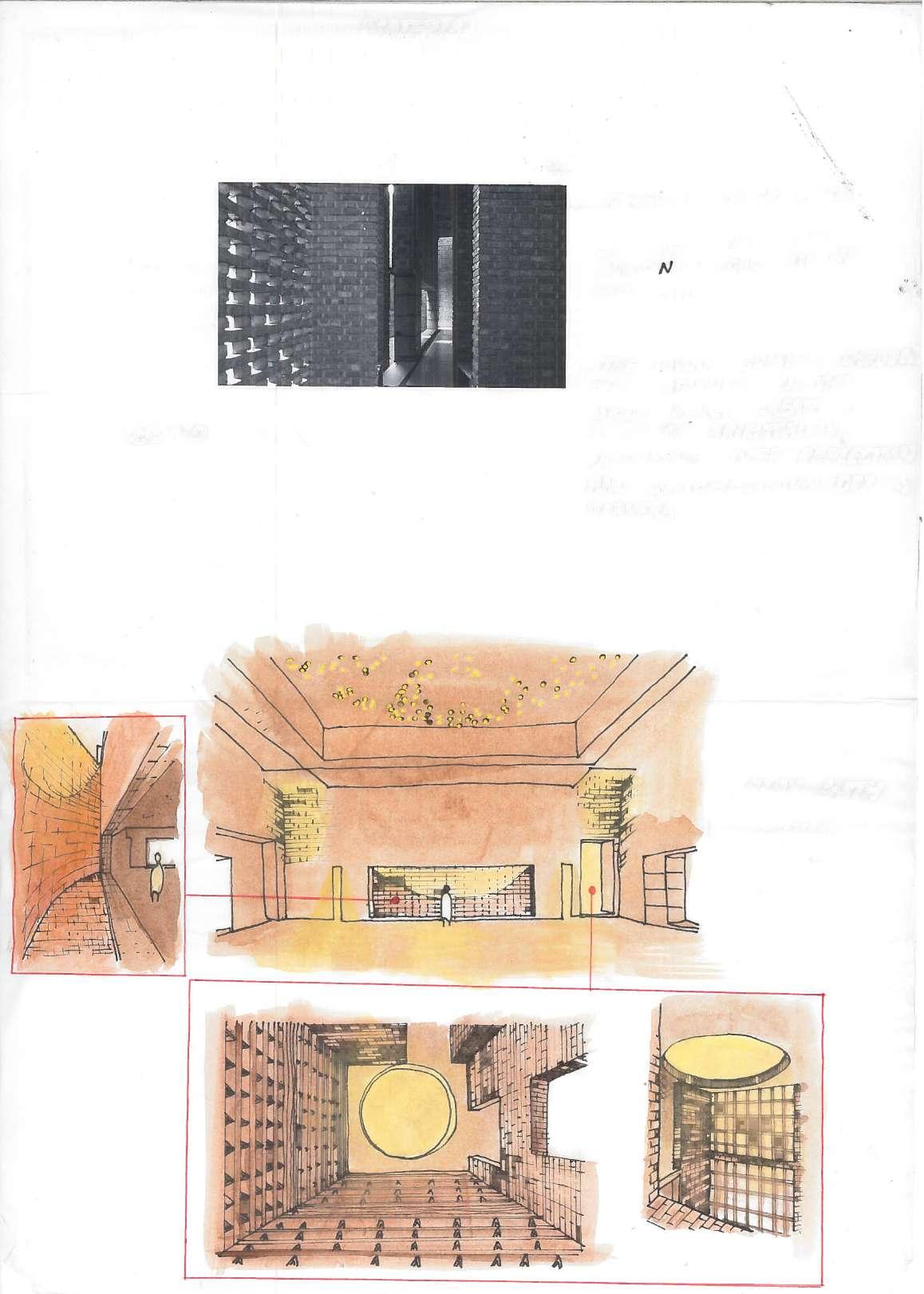

HAND DRAWINGS
39

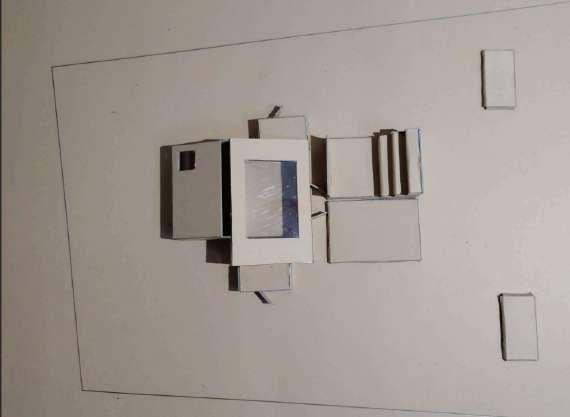

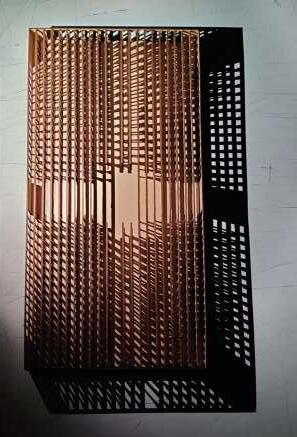

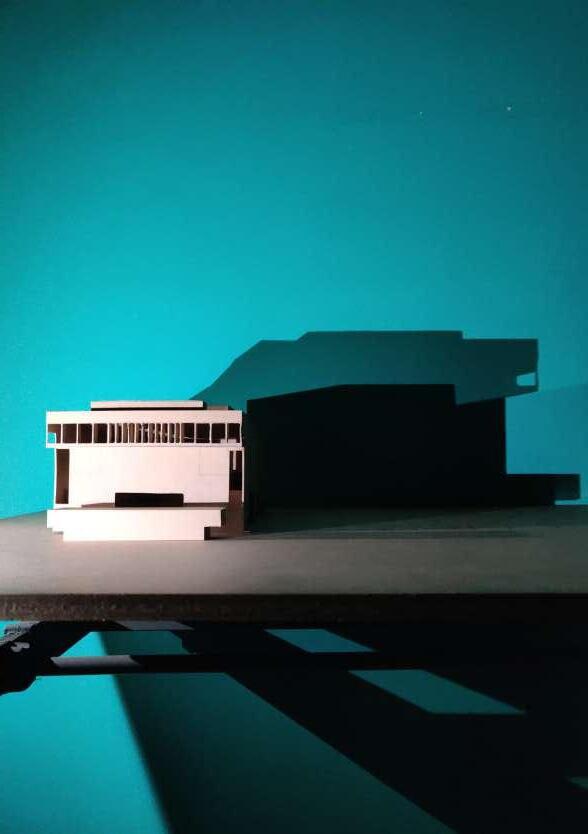

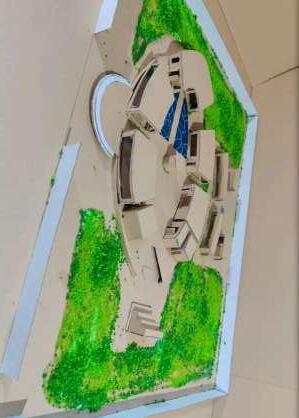

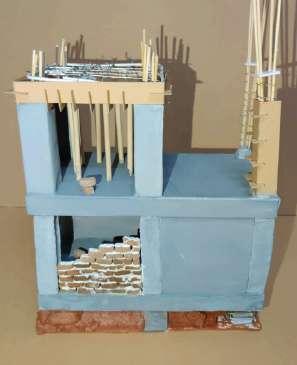

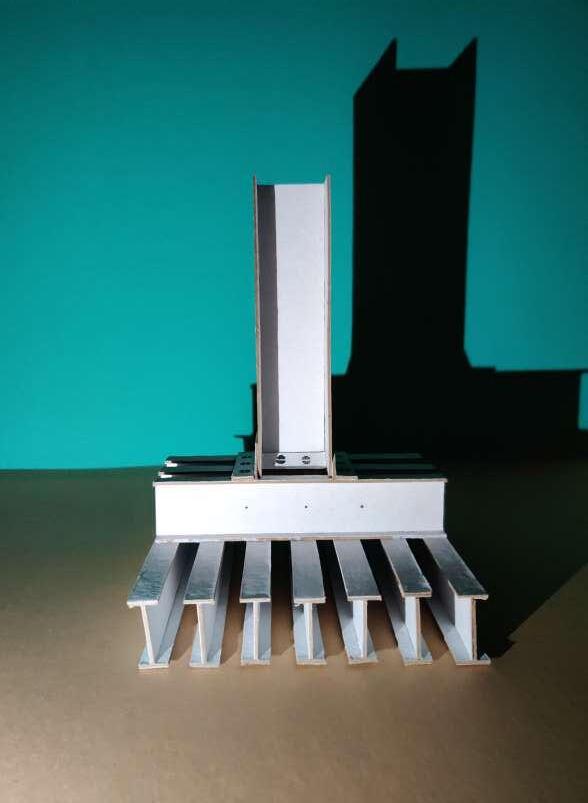

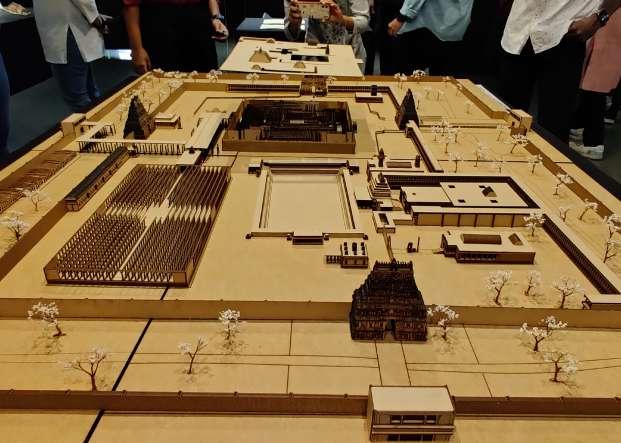

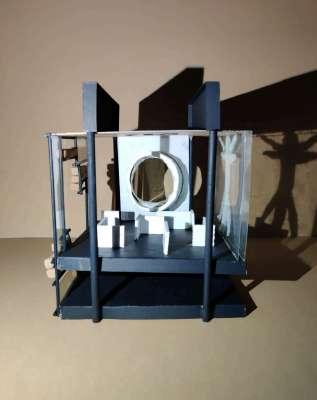

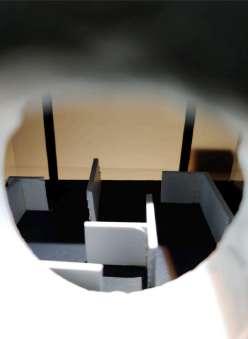

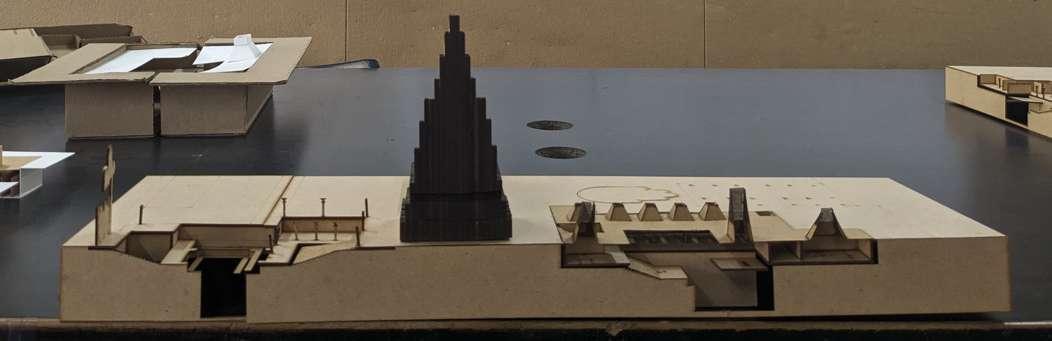

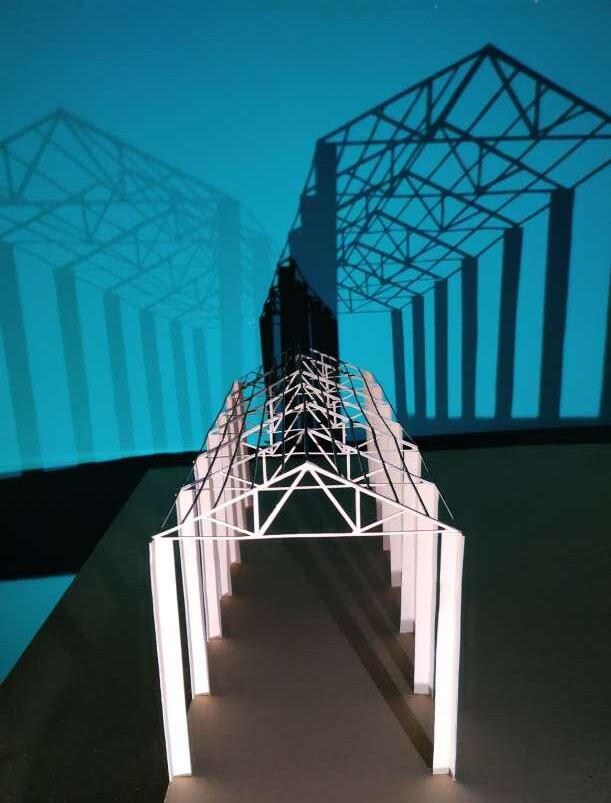

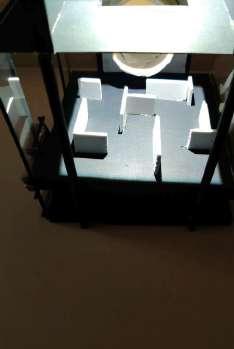

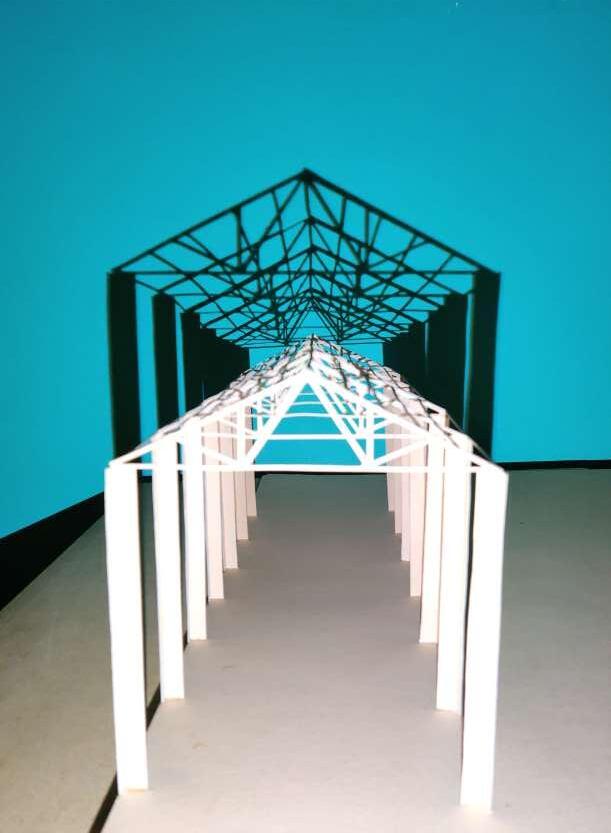

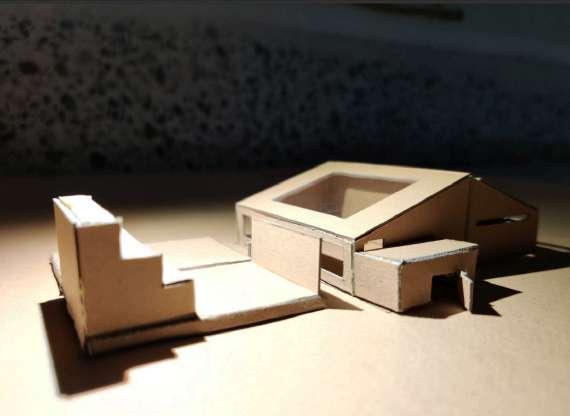

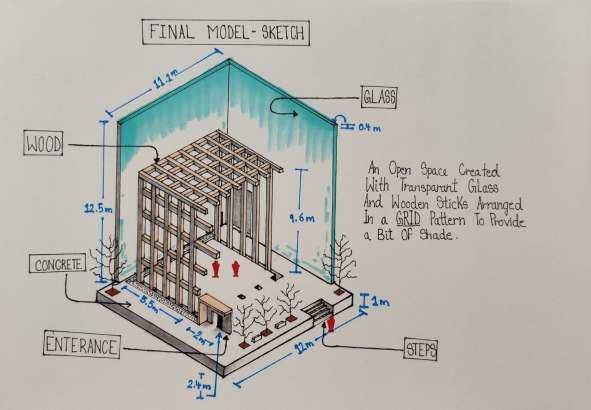

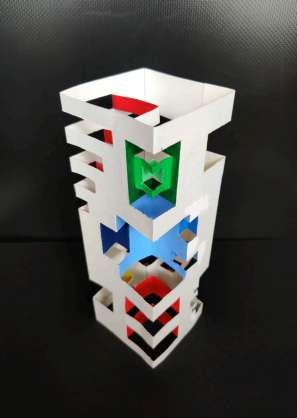

40 08 .MODEL
