APV CAST STEEL GATE GLOBE AND CHECK VALVES 5.1

GLOBE VALVE CAT 50~400AP151XXXXXXXXXX-XX CLASS 300

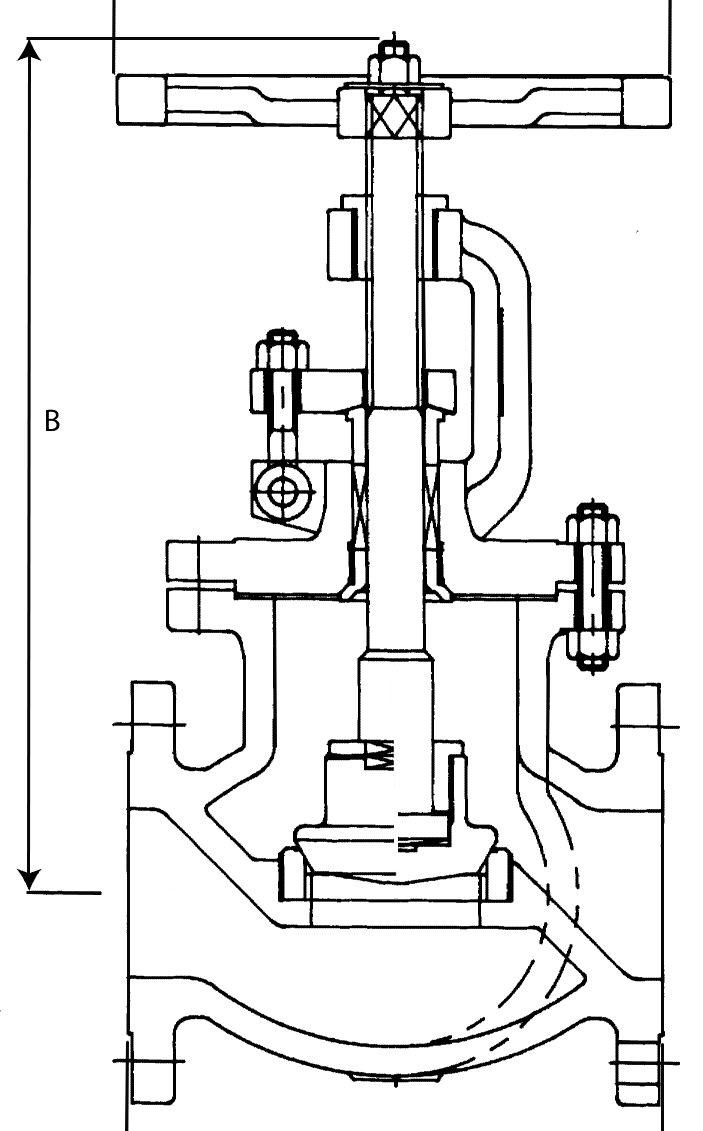

Body Guided Disc

Body guided disc style eliminates side thrust and provides longer disc, seat and body life as well as ensuring positve shut-off and low closing torque.

Torque Arm

Used in larger sizes the torque arm prevents stem movement which reduces wear on packing rings and enables better sealing as well as reducing torque. Non rotating stem, only the stem nut rotates. The arm also provides visual stem position indication and can be interfaced with position switches. Optional live loaded packing system is shown.

5.1

APV CAST STEEL GATE GLOBE AND CHECK VALVES

Globe Valve Y Pattern

CAT 50~300AP143~171YXXXXXXXXX-XX CLASS 150~600

Full Port Inclined Bonnet Design

150 CLASS - AP143Y

(MM & IN)

300 CLASS - AP151Y

(MM & IN)
