NEEDLE AND INSTRUMENTATION VALVES

www.australianpipelinevalve.com.au

QUALITY VALVE MANUFACTURER

QUALITY COMMITMENT Quality is Our First Priority.

Consistent product quality and a proven track record makes Australian Pipeline Valve a dependable choice where total reliability is the number one concern.

Since its founding, APV’s philosophy has been focused on quality. Our valves are manufactured in full compliance to worldwide standards (such as ASME/ANSI, API, EN, ISO, BS, AS).

70-78 Stanbel Road Salisbury Plain South Australia 5109 Telephone +61 (0)8 8285 0033 email: admin@australianpipelinevalve.com.au

www.australianpipelinevalve.com.au

CONTENTS Design Overview

4

Part Number System - Needle Valves

11

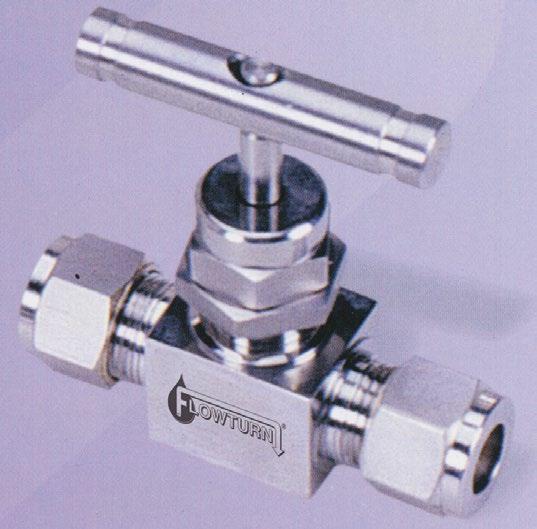

Needle Valves Model S-H71

12

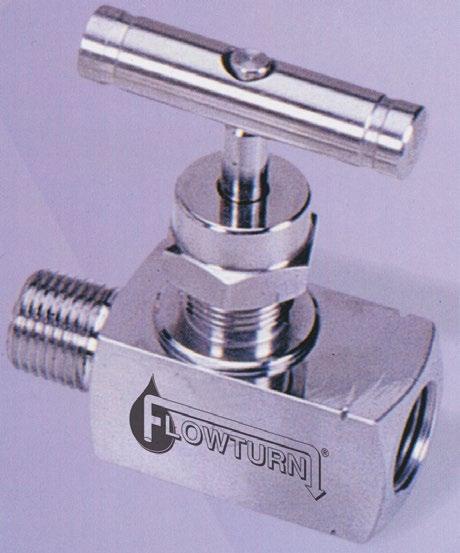

Needle Valves Model S-H7, S-M9

13

Needle Valves Model S-H7/H71-PM

14

Needle Valves Model S-H1/S-M9S

16

Gauge Root Needle Valves Model S-M5

17

Mini Needle Valve Model S-H5

18

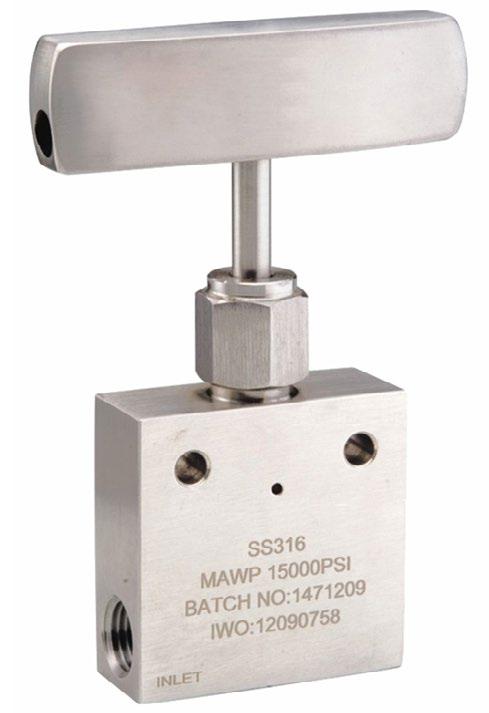

Needle Valve Model S-15K

20

Needle Valve Y Type & Angle Type Globe Style Model KER-JY

21

Needle Valve Model SLNT6000 Series

22

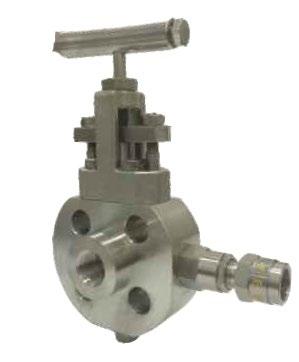

Mono Flange Block & Bleed Valve

23

Ball/Needle Double Block & Bleed Valve

24

Positive Isolation Block & Bleed Valve

25

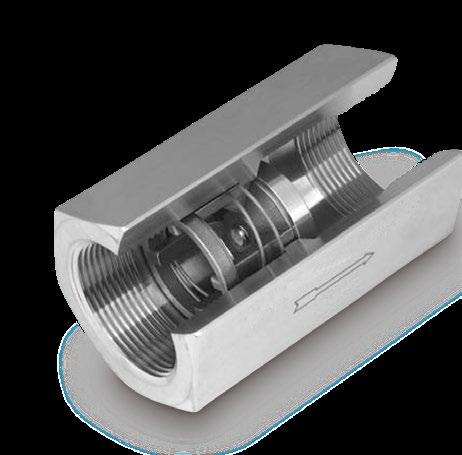

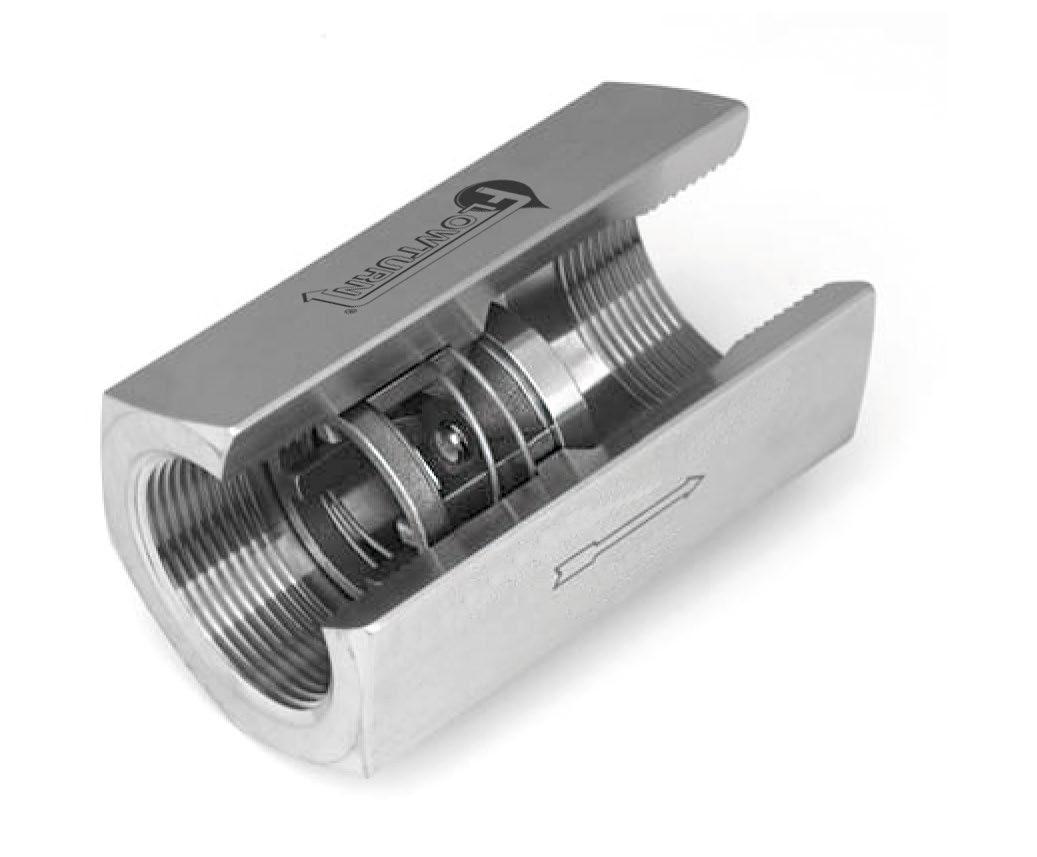

Inline Piston Check 3000 PSI Model CAV-3

27

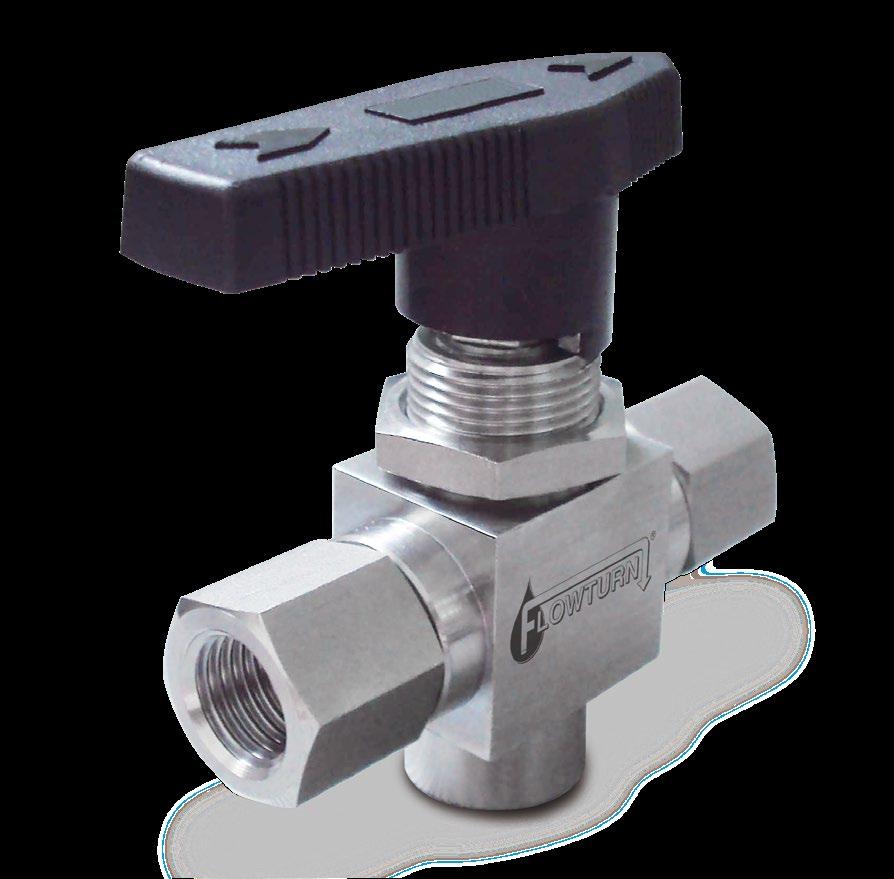

Instrument Ball Valves 40 Series 3 Way

29

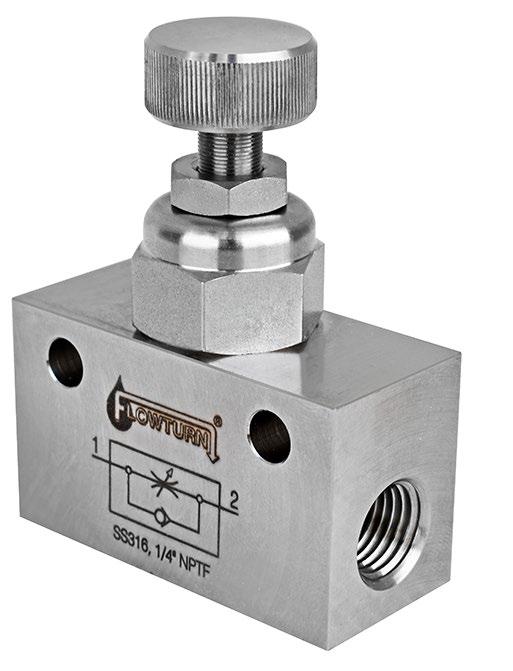

Flow Control Regulators FCV Series

30

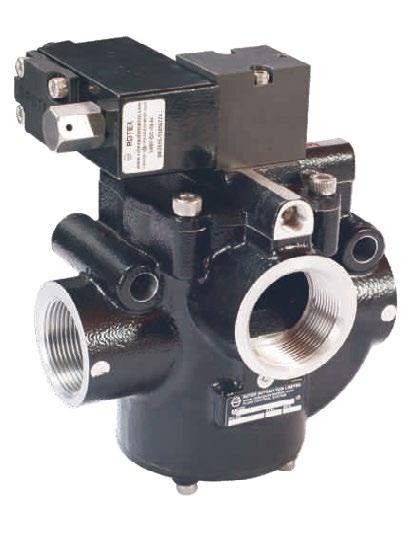

Stainless Steel Quick Exhaust Valves

31

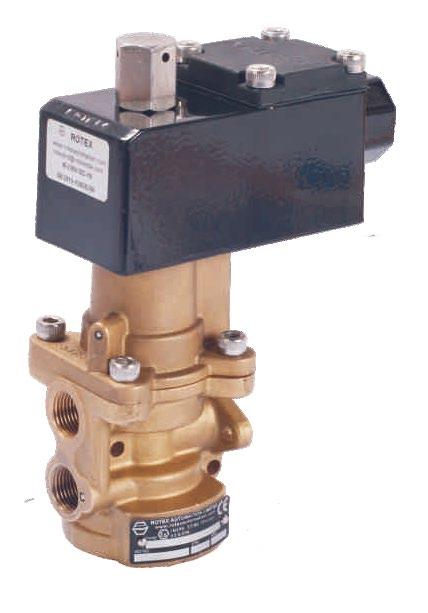

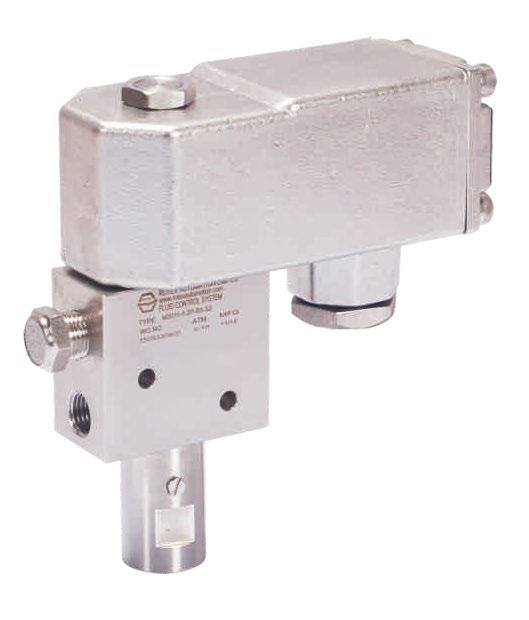

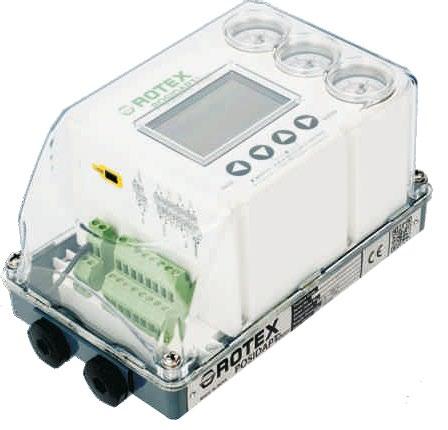

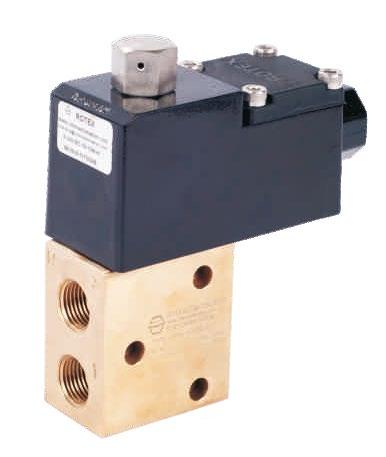

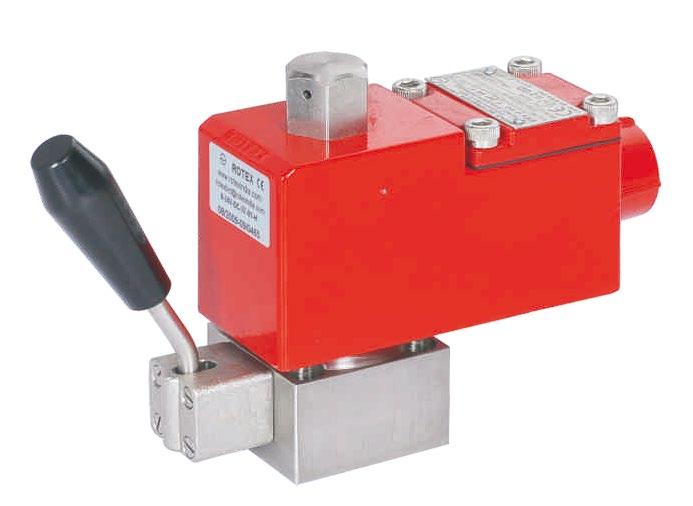

Solenoid Valves Iec Ex Sil Positioners

32

© Copyright Australian Pipeline Valve 1990 - 2025 Edition Catalogues, photos, brochures and technical publications are the exclusive property of Australian Pipeline Valve.

Any unauthorised reproduction in total or in part, shall result in prosecution. Products and data sheets in this publication are subject to change at anytime without notice. Australian Pipeline Valve reserves the right to carry out amendments to products and materials.

AU S T R A L I A N P I P E L I N E VA LV E

3

DESIGN OVERVIEW

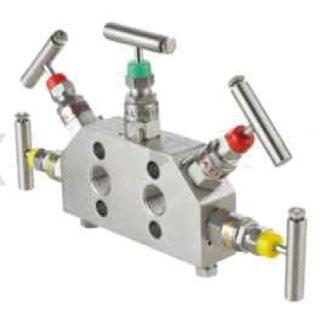

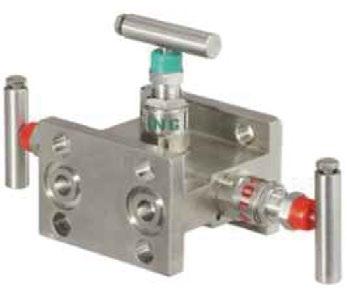

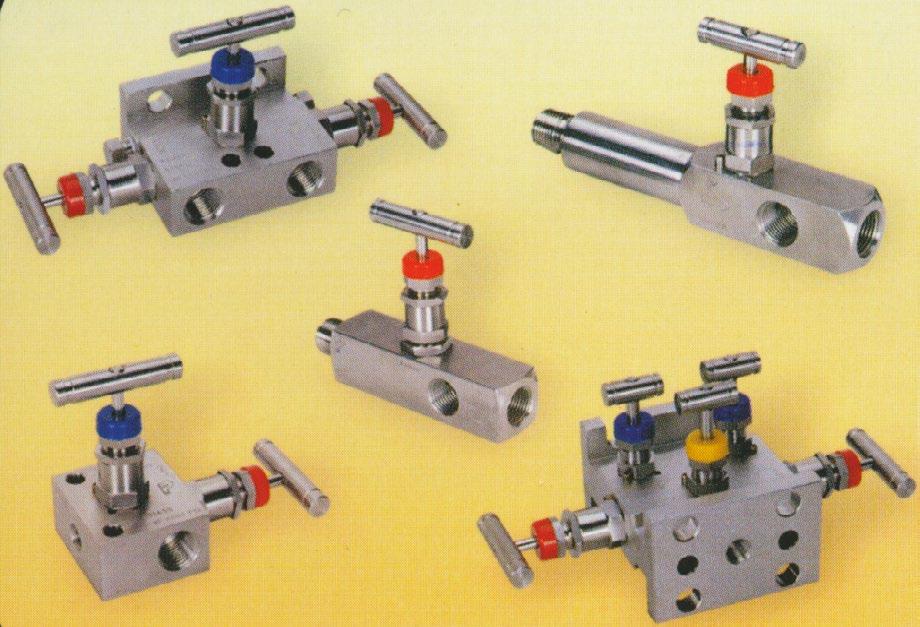

M A N I F O L D VA LV E S The Flowturn range of Manifolds offer a safe and economical method of installation to control and measure pressure of liquids and gaseous media. They are ruggedly manufactured and precision machined to the most exacting dimensional tolerance to ensure perfect installation and application.

Flowturn Manifolds are functionally installed to control, measure, isolate, equalise, calibrate, drain, vent or differentiate the pressure of liquids and gases.

Flowturn Manifold series offer optional 2, 3 and 5 valve configurations which come in remote mounting (pipe to pipe), direct mounting (pipe to flange, flange to flange) onto the instrument on a 2 1/8” (54mm) centre.

Working Pressure up to 6000 PSI.

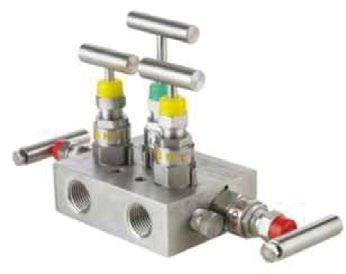

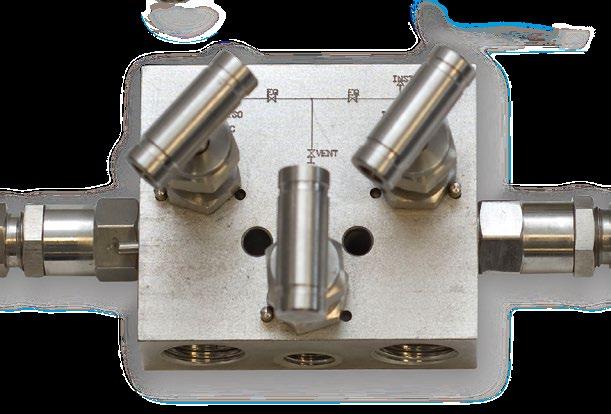

2, 3 AND 5 WAY MANIFOLD VALVES Flowturn offers a variety of 2, 3 and 5 valve instrument manifolds.

The 2 valves manifolds are designed for static pressure and liquid level application; the 3 and 5 valve manifolds are designed for differential pressure appplications.

FEATURES • Convenient method of blocking, bleeding, and calibrating pressure instruments.

• Designed for connected system impulse line & transmitter.

• Combines the function of a tee, calibration valve, isolation valve, all tubing and fittings in a single valve configuration.

• Bonnet stopper prevents accidental movement.

• Free swiveling ball end stem (metal seat, standard.) assures bubbles tight valve closure without seat galling.

• Special hardened ball seat is ideal for both gas and liquid service.

• All stem packing is located below the stem threads preventing galling, corrosion and contamination.

• Adjustable packing reduces the possibility of bonnet/body leaks.

• Full back sealed bonnets prevents accidental stem removal and blowout.

TECHNICAL • Working pressure up to 6000 psig (413 bar).

• Temperature up to 450°F (232°C) with PTFE packing up to 1200°F (648°C) with Grafoil® packing.

• Orifice Size - 0.156 inch (4.0 mm).

• For block and bleed (or calibration) of a gauge or absolute pressure transmitter or gauge.

• Consists of equalizing, isolation and vent.

• Direct instrument mount and remote mount.

• End connections pipe or flange.

APPLICATIONS • • • • •

General plant service.

Pressure instrumentation devices.

Differential pressure instruments devices.

Pressure equalization.

Block and bleed applications.

T-TYPE SINGLE (SINGLE FLANGE, PIPE TO FLANGE) Manifolds bolt directly to the differential pressure Instruments which eliminate the need for unnecessary piping, valves and fittings. T-Type manifolds come complete with mounting kit for quick and easy installation to a pipe stand.

R-TYPE (PIPE TO PIPE IN-LINE) Manifolds are designed for differential pressure of flowrecorder to impulse tubing. Connections are 1/2” NPT industry standard and 2 1/8” (54mm) centre dimension (Model for 2 3/16” & 21/4” dimension) (Model for 2 3/16” & 21/4”- centre dimension).

H-TYPE (DUAL FLANGE, FLANGE TO FLANGE) Manifolds bolt directly to the differential pressure instruments which eliminate the need for unnecessary piping, valves and fittings.

4

F LOW T U R N - Needle and Instrumentation Valves

DESIGN OVERVIEW

N E E D L E & I N S T RU M E N TAT I O N VA LV E S Flowturn supply quality precision valves for each application.

As well as hand valves, Flowturn can produce monoflange double block and bleed integral manifolds.

Flowturn’s hand valve and gauge valves include multi-port and block and bleed styles suitable for gauge isolation, calibration and venting with a choice of either globe pattern or through bore designs. A wide choice of end connections and comprehensive range of standard gauge accessories allows complete flexibility for individual installations.

SPECIFICATIONS Materials

CS, SS, Duplex and other exotic materials.

Seats

Metal (and soft)

Orifice Size

1/8 inch (3mm) to 5/8 inch (16mm).

Pressure (max)

10,000psig [690 bar]

Temperature (max) 1000OF [538OC]

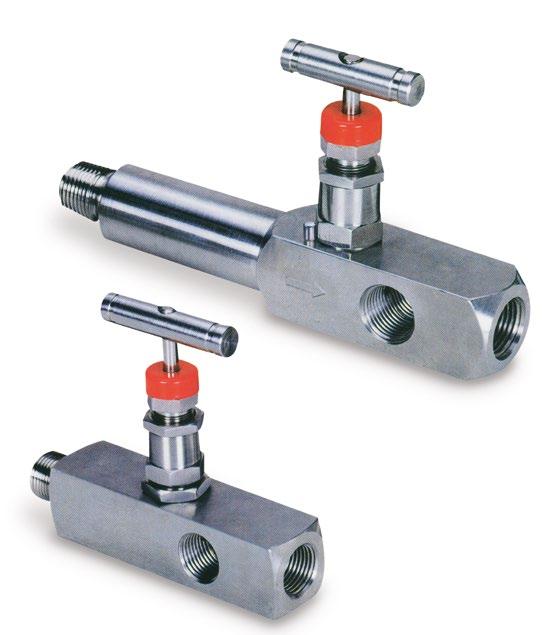

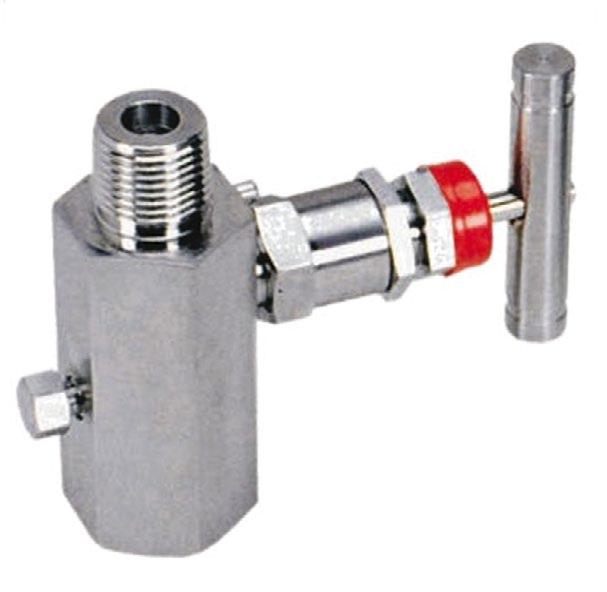

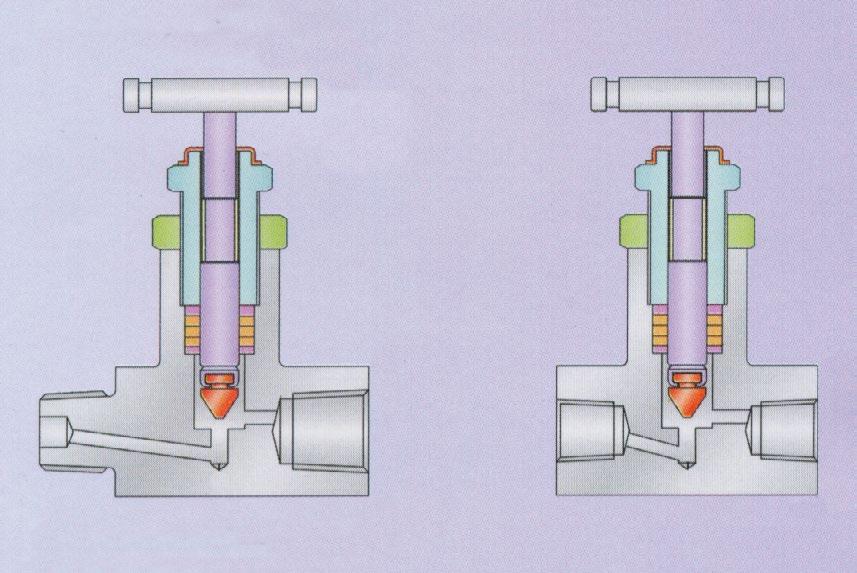

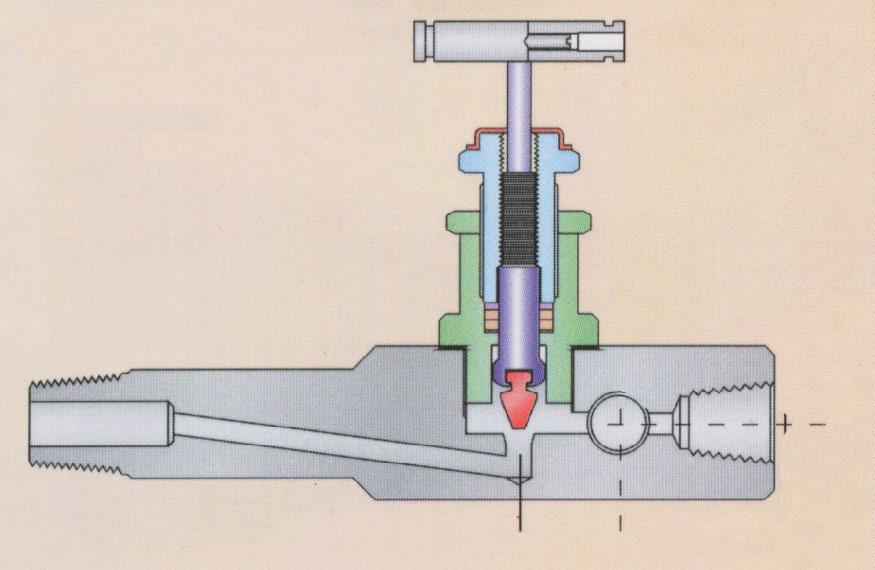

S-M9 Integral Block & Bleed Gauge Valve

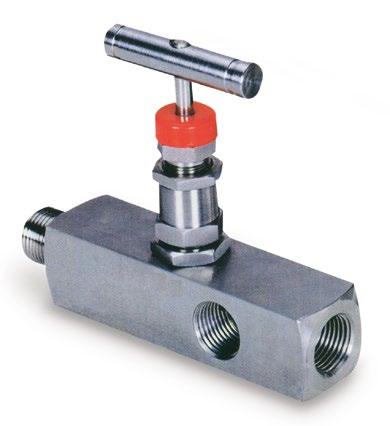

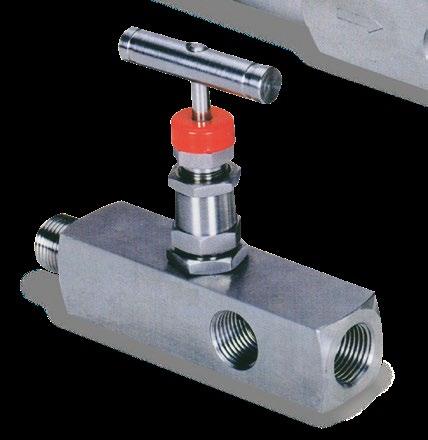

S-M5 Multi Port Gauge Root Valve

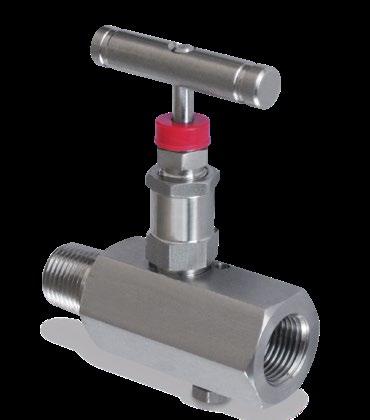

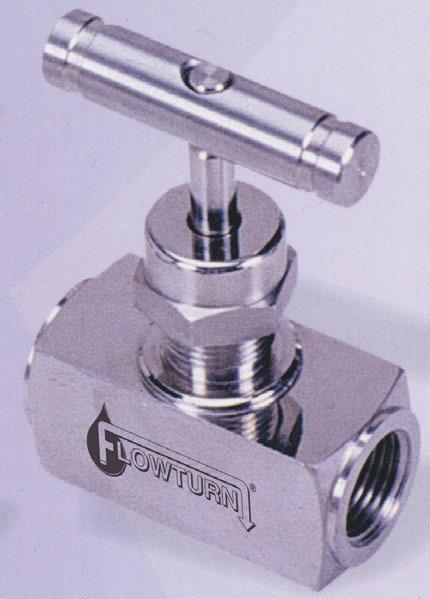

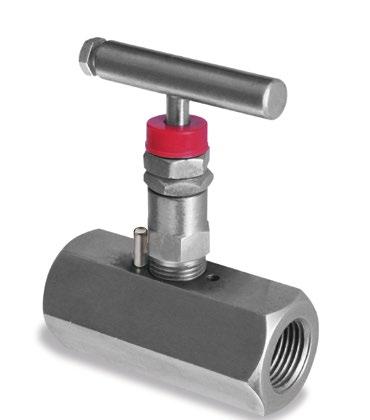

S-H1 Rising Plug Hand Needle Valve

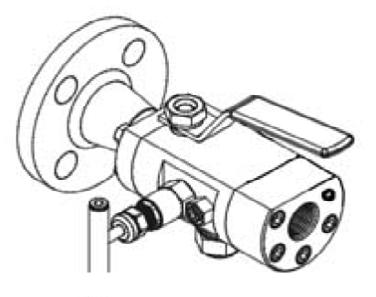

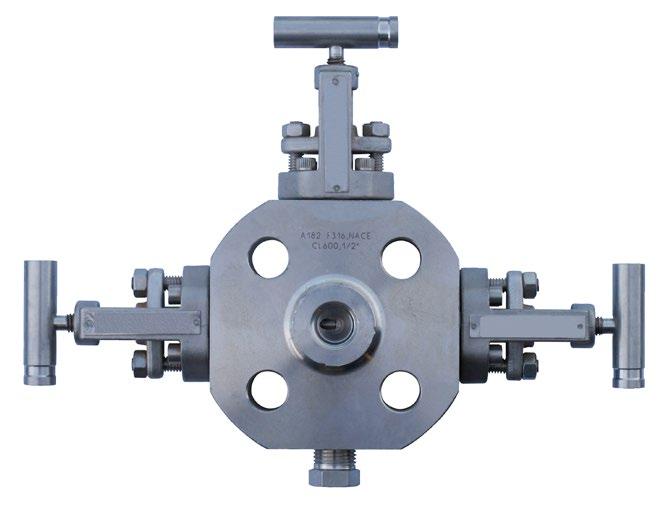

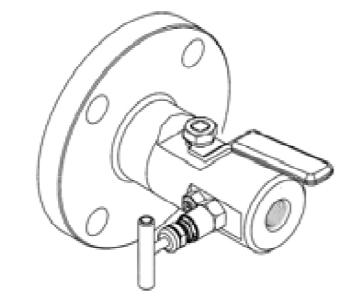

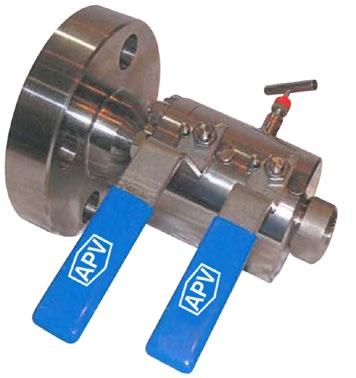

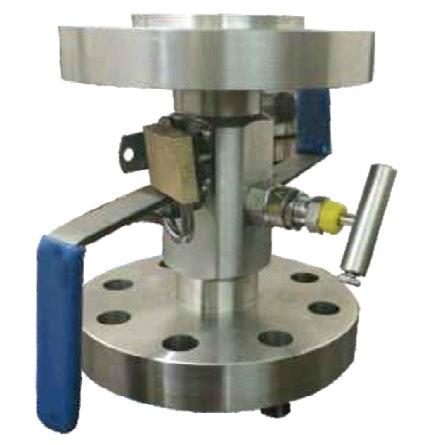

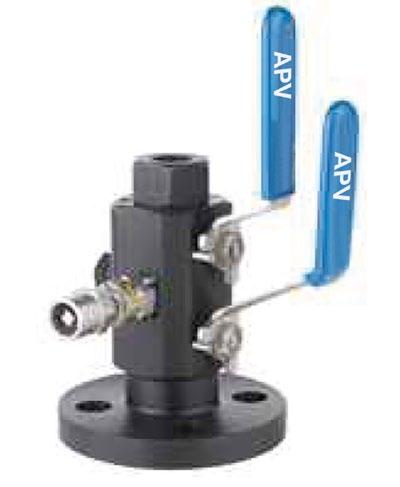

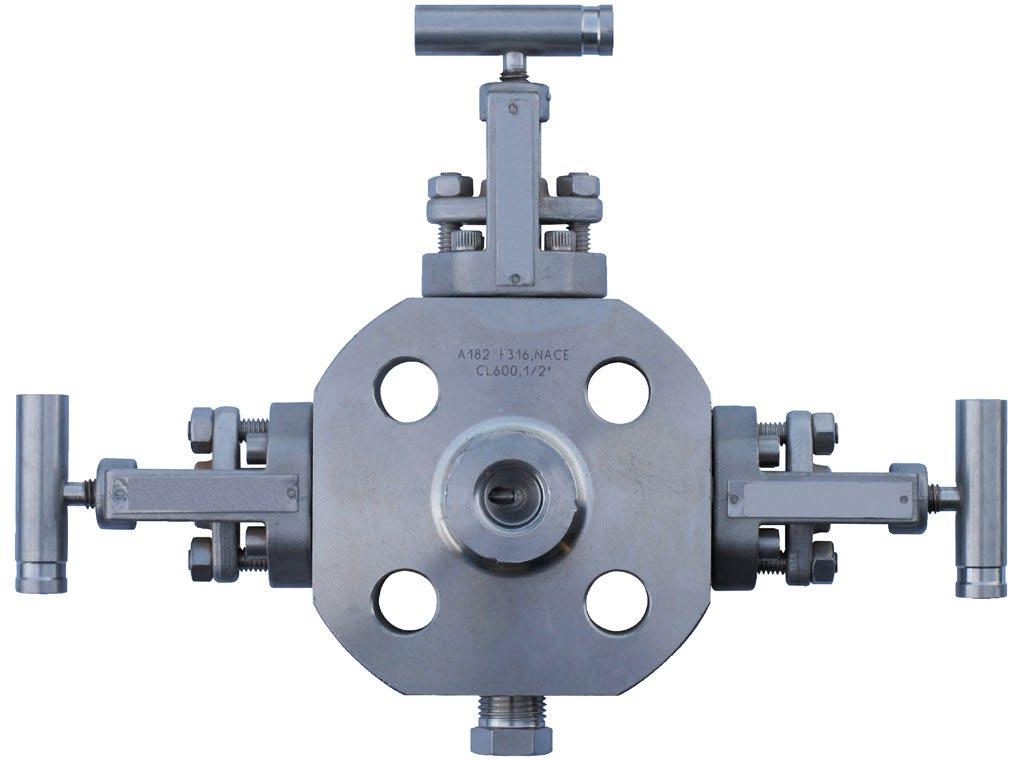

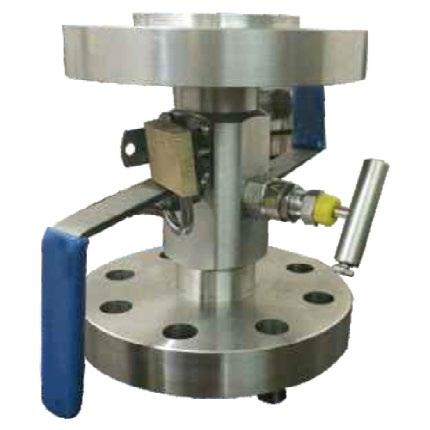

Mono Flange Wafer Type Double Block & Bleed Valve

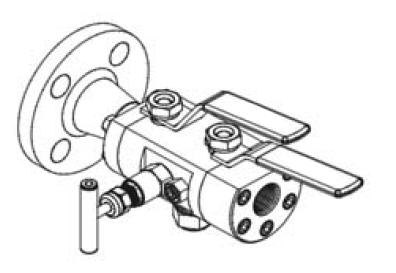

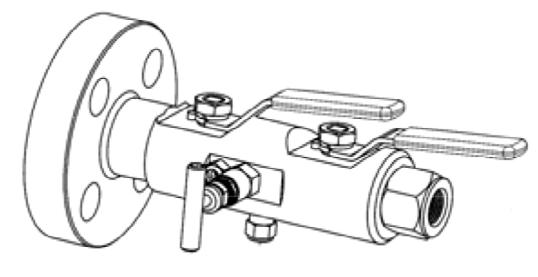

Double Block & Bleed Valve

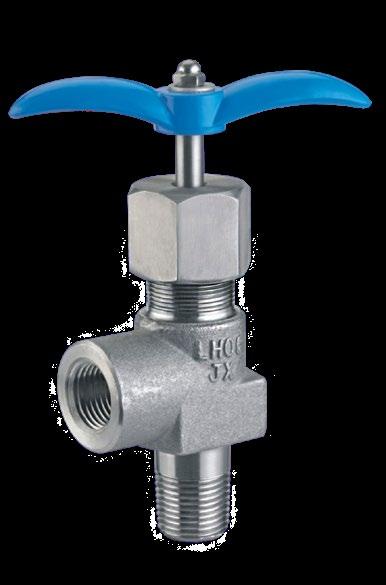

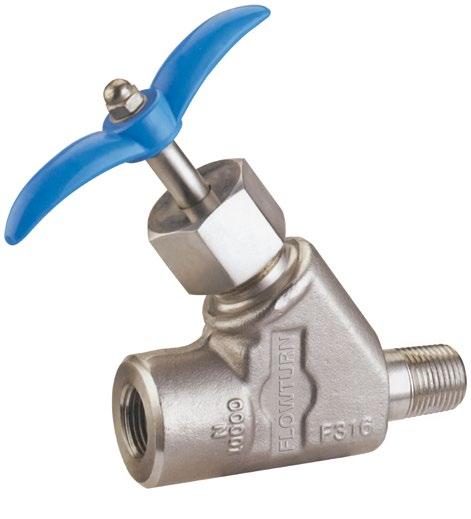

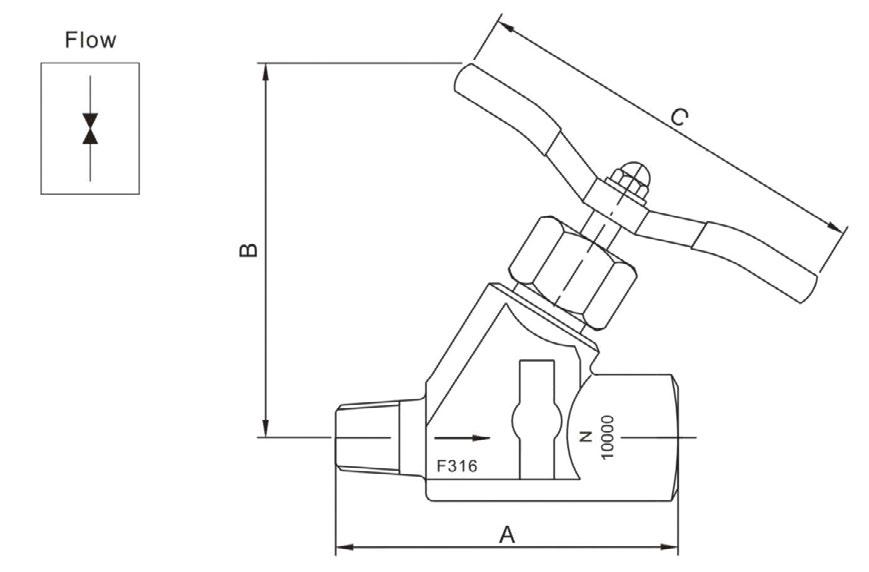

KER-JY Y Globe Type Valve

F LOW T U R N - Needle and Instrumentation Valves

5

DESIGN OVERVIEW

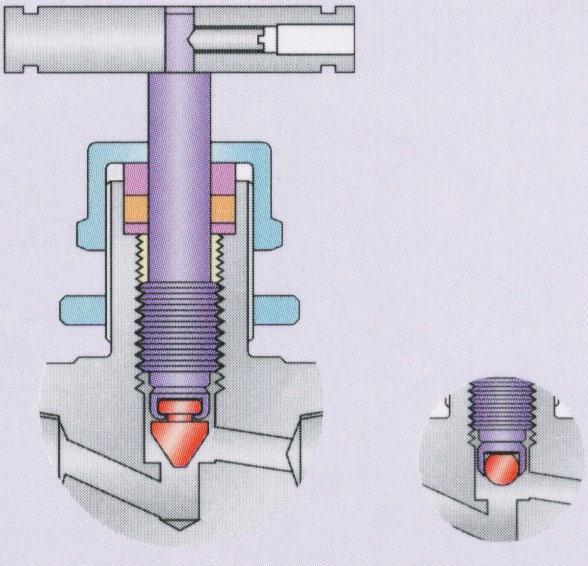

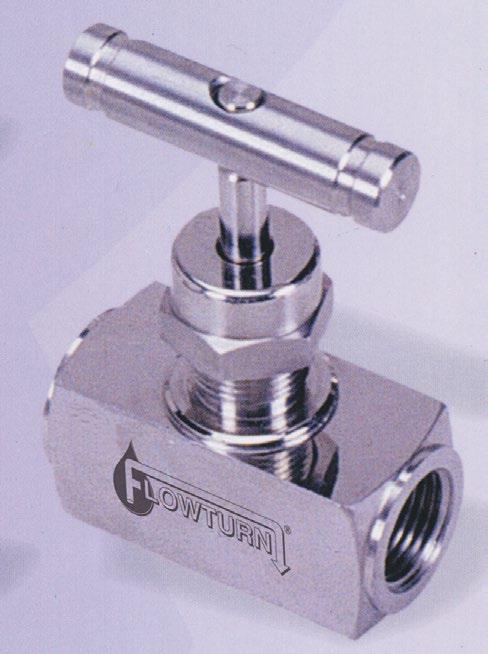

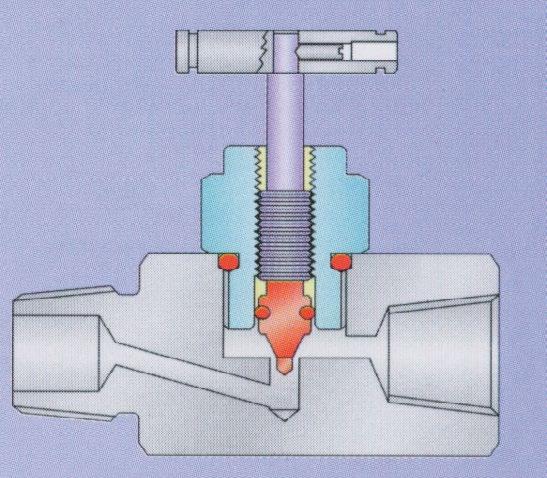

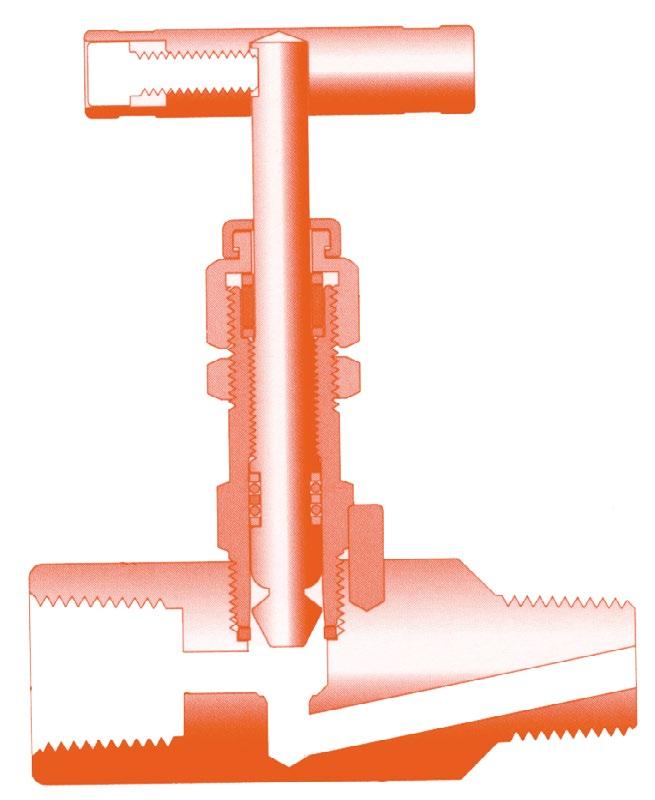

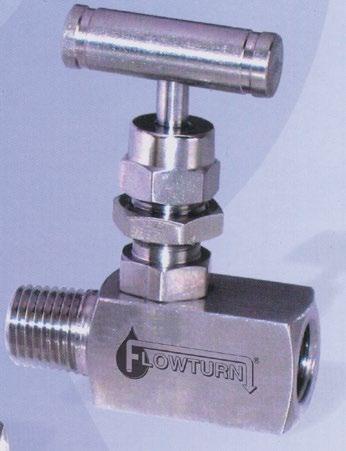

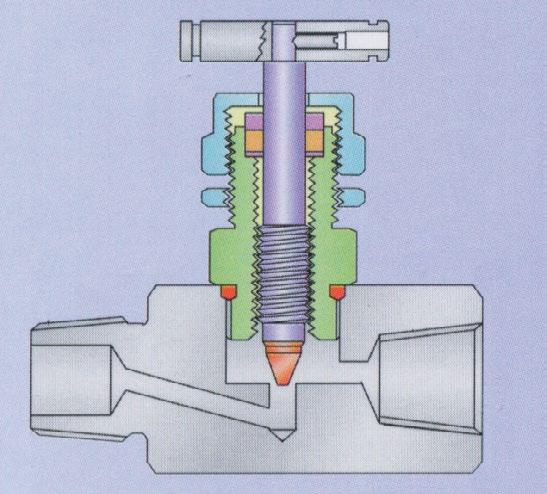

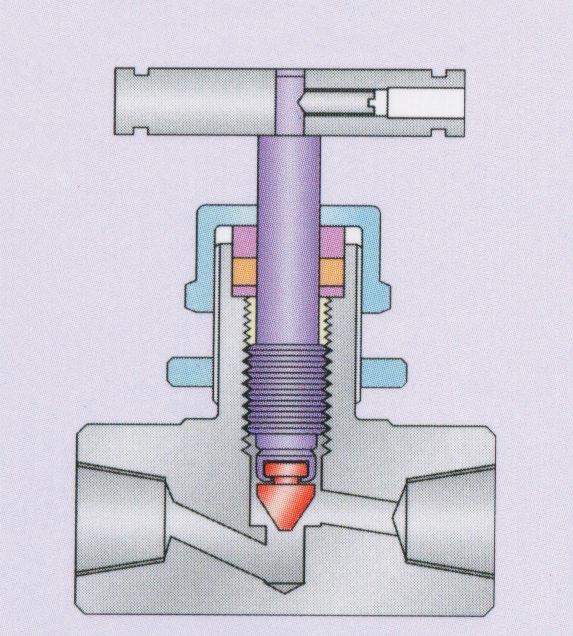

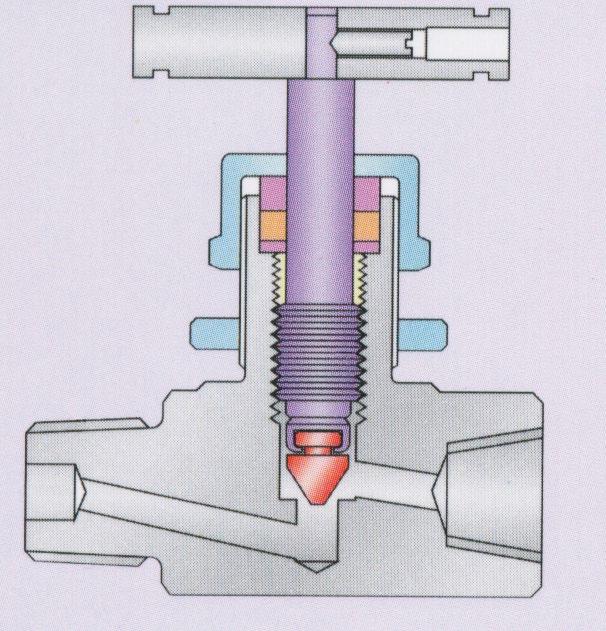

MODEL S-H7, S-H71, S-M5, S-M9* FEATURES HANDLE

Standard with tee bar handles.

ROLLED STEM THREADS

DUST CAP (PTFE PACKED ONLY)

Keeps external contamination out of thread area.

BACK SEAT DESIGN MIRROR FINISH STEM Burnished to 16 RMS.

BODY MATERIAL

Available in 316SS, carbon steel with yellow or plain zinc plated.

REINFORCED GLAND PACKAGE

Eliminating potential leakage.

VARIETY OF THREADED CONNECTIONS

SEALING AREA BELOW STEM THREAD

Choice of NPT, BSPT or TUBE. Male - Male Male - Female Female - Female

Protecting the thread from contamination by process media.

BONNET STOPPER

Preventing accidental emission.

NON-ROTATING BALL OR CONICAL ‘V’ STEM TIP

Providing an excellent seal between the seat and stem tip without galling.

1/2” to 1” Style Shown

METAL TO METAL SEAT

Serving the working conditions of high pressure and temperature. Integral hard seat. Soft seat also available in plug type straight through style.

*S-M9 has integral bleed plug

MODEL S-H7/H71-PM

OPTIONAL PANEL MOUNT NUTS

1/8” to 3/8” Style Shown

6

F LOW T U R N - Needle and Instrumentation Valves

DESIGN OVERVIEW

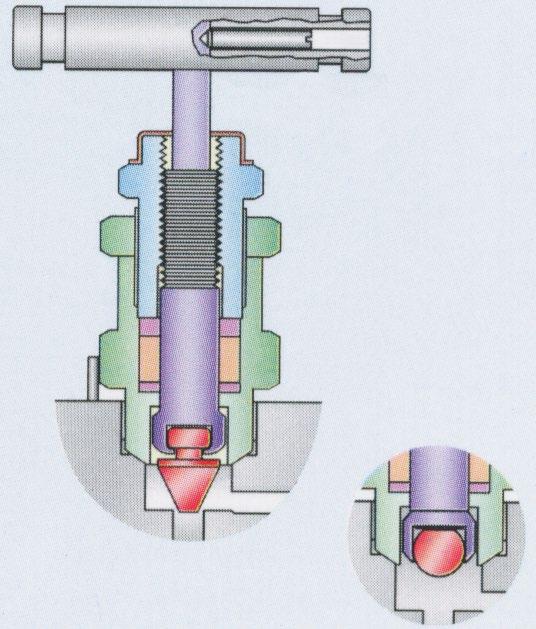

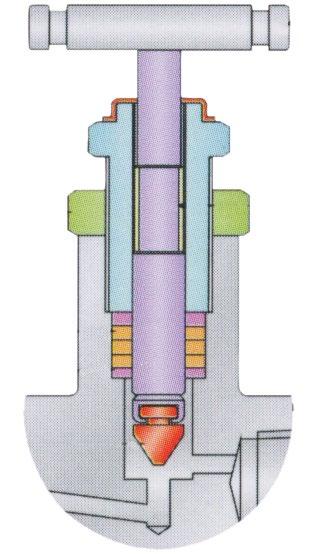

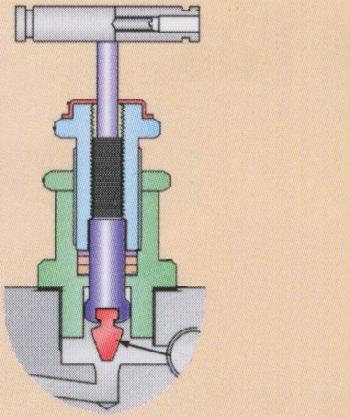

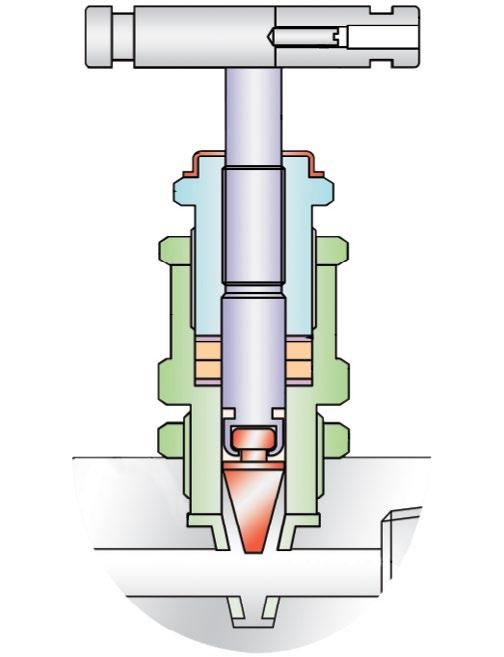

MODEL S-H1, S-M9S* FEATURES HANDLE

Standard with tee bar handles.

ROLLED STEM THREADS

DUST CAP (PTFE PACKED ONLY) Keeps external contamination out of thread area.

BACK SEAT DESIGN MIRROR FINISH STEM Burnished to 16 RMS.

BODY MATERIAL

Available in 316SS, carbon steel with yellow or plain zinc plated.

REINFORCED GLAND PACKAGE Eliminating potential leakage.

VARIETY OF THREADED CONNECTIONS

SEALING AREA BELOW STEM THREAD

Choice of NPT, BSPT or TUBE. Male - Male Male - Female Female - Female

Protecting the thread from contamination by process media.

BODY TO BONNET METAL SEAT

NON-ROTATING RISING PLUG Providing an excellent seal between the seat and plug.

1/2” to 1” Style Shown

BUBBLE TIGHT SHUT OFF Soft Delrin or PTFE seat.

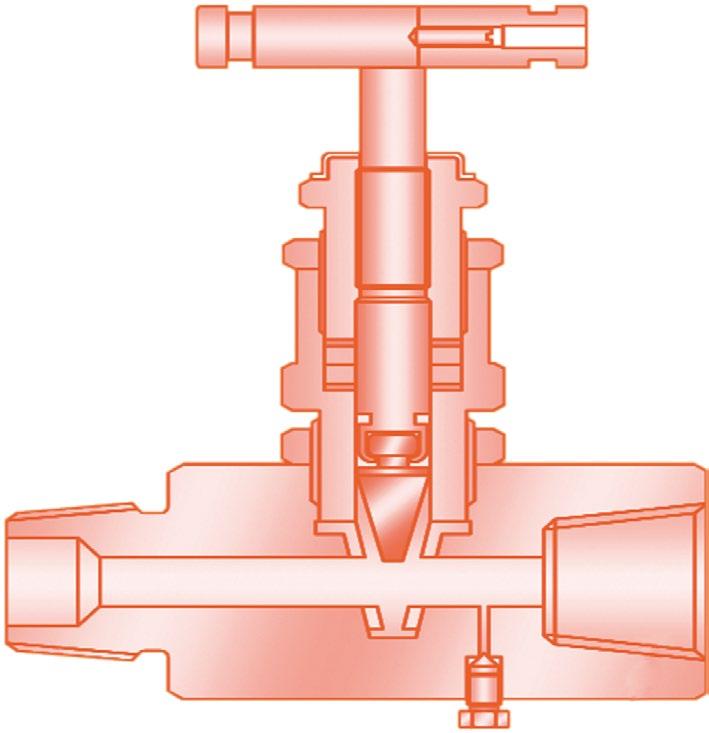

*S-M9S has integral bleed plug See below.

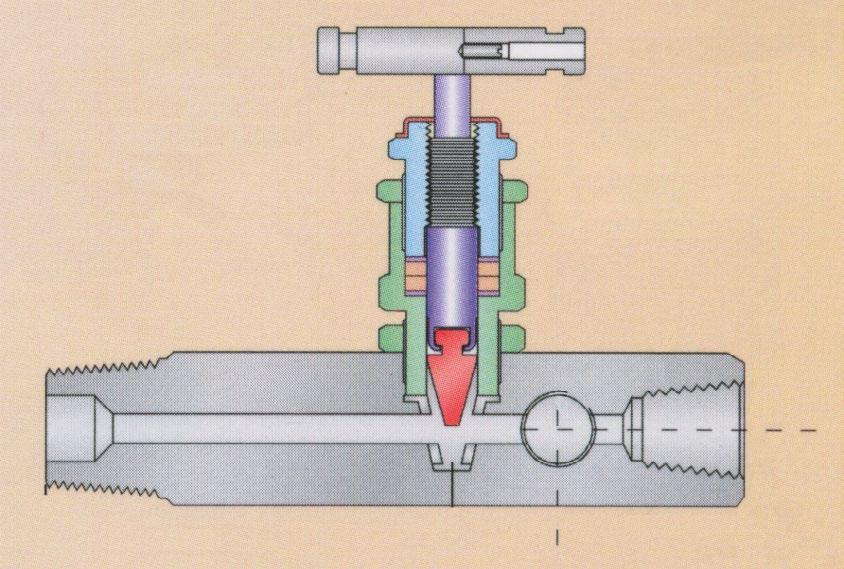

MODEL S-M9S

INTEGRAL BLEED

1/8” to 3/8” Style Shown

F LOW T U R N - Needle and Instrumentation Valves

7

DESIGN OVERVIEW

M AT E R I A L S P E C I F I C AT I O N VALVE Carbon Steel

BODY A108

BONNET A108

STEM A508

PACKING PTFE Graphoil

Stainless Steel

A479 316

A479 316

A479 316

PTFE Graphoil

Duplex

A182 F44/F51

A182 F44/F51

A182 F44/F51 (S31803)

PTFE Graphoil

Monel

400 Monel

400 Monel

400 Monel

PTFE Graphoil

Hastelloy

Hastelloy C276

Hastelloy C276

Hastelloy C276

PTFE Graphoil

PRESSURE & TEMPERATURE RATING 6000 psi @ 200°F 414 bar 93°C 4000 psi @ 500°F 276 bar 260°C 6000 psi @ 200°F 276 bar 93°C 4000 psi @ 600°F 276 bar 315°C 6000 psi @ 200°F 414 bar 260°C 4000 psi @ 500°F 276 bar 260°C 6000 psi @ 200°F 414 bar 93°C 3000 psi @ 500°F 207 bar 260°C 6000 psi @ 200°F 414 bar 93°C 4000 psi @ 500°F 276 bar 260°C 6000 psi @ 200°F 414 bar 93°C 3000 psi @ 500°F 207 bar 260°C 6000 psi @ 200°F 414 bar 93°C 4000 psi @ 500°F 276 bar 260°C 6000 psi @ 200°F 414 bar 93°C 3000 psi @ 500°F 207 bar 260°C 6000 psi @ 200°F 414 bar 93°C 4000 psi @ 500°F 276 bar 260°C 6000 psi @ 200°F 414 bar 93°C 3000 psi @ 500°F 207 bar 260°C

M AT E R I A L S TA N DA R D S SR No. 1

MATERIAL STAINLESS STEEL

2

BRASS

3

CARBON STEEL

4 5 6 7 8

ALLOY 400 COPPER MONEL HASTELLOY C276 INCOLOY 825

9

INCONEL 600

BAR STOCK ASTM A479 ASTM A276 JIS G4303 ASTM B16 Alloy 360 ASTM B453 Alloy 345 JIS H3250 Alloy C3604 JIS G4051 S20C - S48C ASTM B164 BS 3076 NA 13 ASTM B164 ASTM B575 S 3076 NA16 ASTM B425 ASTM B166

FORGING ASTM A182 F316 JOS G3214 ASTM B124 Alloy 377 JIS H3250 Alloy C3771 ASTM B88 JIS G4051 S20C - S48C ASTM B164 BS 3076 NA 13 ASTM B164 ASTM B574 BS 3076 NA16 ASTM B425 ASTM B564

TUBING ASTM A269 ASTM A213 ASTM A249 ASTM B68 ASTM B75 DIN 1786 ASTM A161 ASTM A179 DIN 2391 ASTM B165 ASTM B75 -

M A N U FAC T U R I N G & T E S T I N G S TA N DA R D S SR No. 1 2 3 4

DESCRIPTION Pressure & Temperature Rating Valves Sour Gas Service Valves Fittings

STANDARD ANSI B16-34 ANSI B16 Class 2500 ANSI B31.1 JIS B2351, BS 4368

T H R E A D S TA N DA R D S SR No. 1 2 3 4 5

8

DESCRIPTION British Parallel Pipe British Taper Pipe Metric Parallel Threads Metric Taper Threads National Pipe Taper Thread

STANDARD ISO/BS 2779 - DIN -3852 BS21 - IS 07, DIN - 3852 ISO 6149, DIN - 3852 DIN - 3852 ANSI/ASME B20.1 - 1983

F LOW T U R N - Needle and Instrumentation Valves

DESIGN OVERVIEW

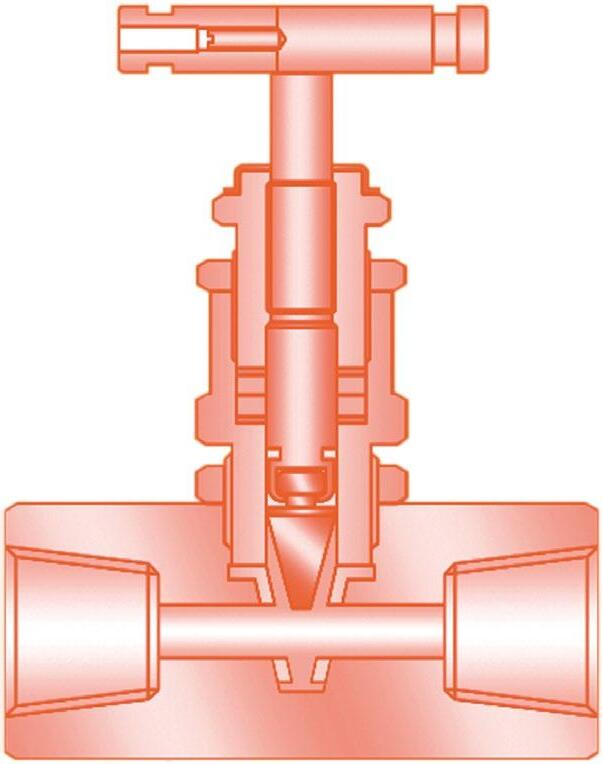

D E S I G N OV E RV I E W One piece bar stock construction with full material traceability.

Back seating of stems in a fully open position prevents stem back out.

All types of valves have self centring, non rotating needle on the valve seat, alternative seating to choose for every application requiring bubble tight shut off.

Safety Stop Pin, 316 stainless steel stopper prevents detachment of the bonnet from the body due to vibration.

Stainless steel models of needle, gauge and instrument manifold valves, equipped with needle stems, meet NACE MR-01-75.

Bonnet-to-body-seat, metal-to-metal seal eliminates the need for O-ring seals.

Shroud with colour identification Handle - T-bar metal (standard) or circular plastic optional.

ROTATING

Double bonnet or single bonnet (optional).

Optional high temperature packing for compatibility to 1000°F on certain models.

All valves are designed in accordance with ASME/ANSI B16.34-1988 and ASME Section VIII, Div 1.

Low torque operation.

Spindle treated for durable operation.

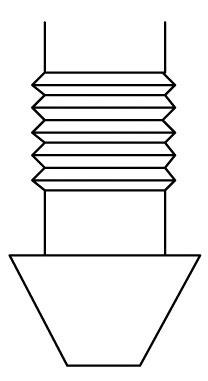

Stem Types

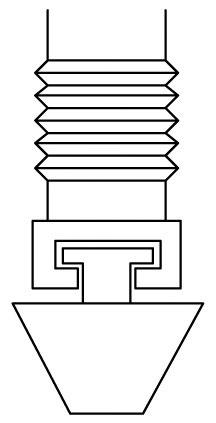

NON ROTATING

Taper

Regulating

Ball

Soft

Working Pressure (bar)

Ball (only for NUH Series) 10,000 PSI

450 400 350 300 250 200 150 100 50 0

PTFE PACKING

GRAPHOIL-PACKING

Short Time Period

Temp/Pressure Reductions Possible due to connections

0

50

100

150

200

250

300

350

400

450

500 550

Working Temperature °C *Assuming not Viton stem seal design.

WARNING FOR YOUR SAFETY The system designer and user have the sole responsibility to select products suitable for their special application requirements to ensure the proper installation. Operation and maintenance of the product. Application details, material compatability and product ratings should all be considered it the individual selection. Improper selection or use of products can cause property damage or personal injury. Flowturn accept no liability for any improper selection, installation, operation or maintenance.

F LOW T U R N - Needle and Instrumentation Valves

9

DESIGN OVERVIEW

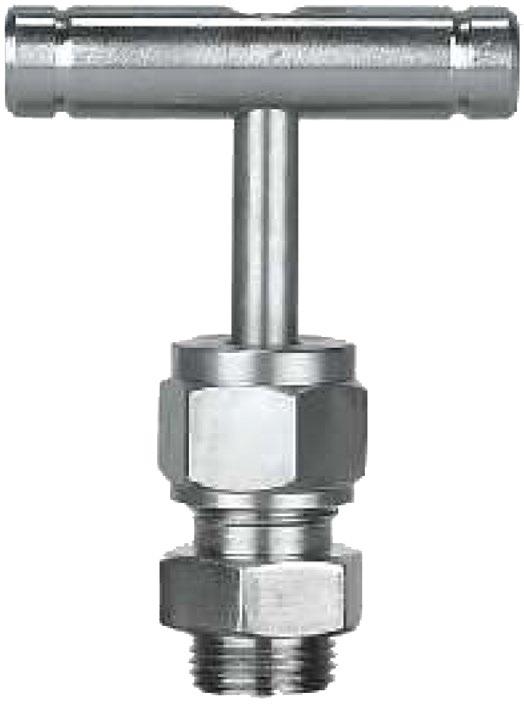

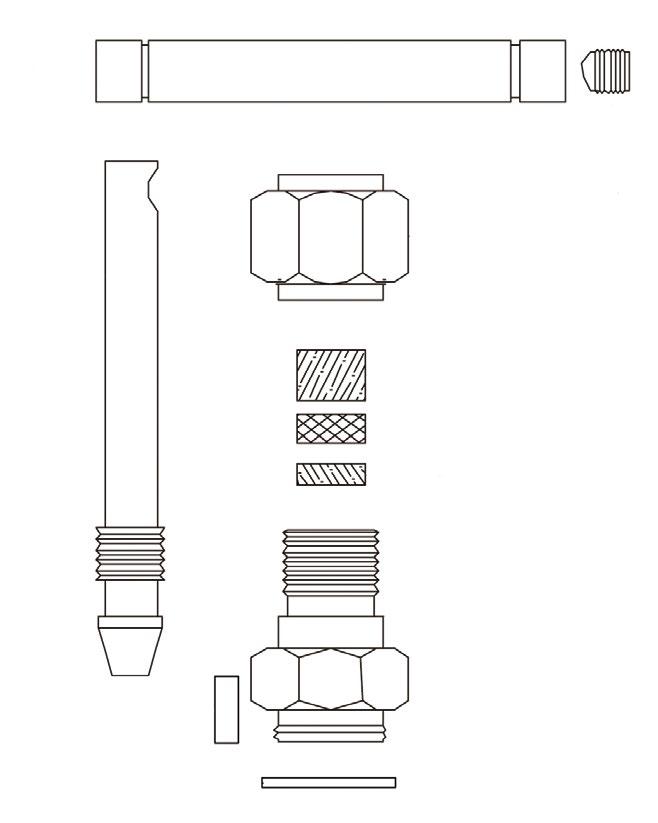

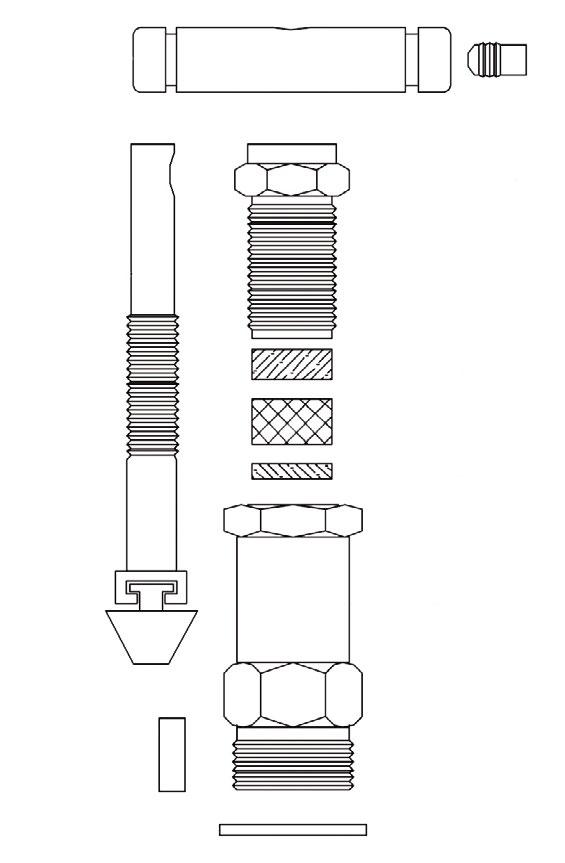

D O U B L E B O N N E T A S S E M B LY (MODEL S-H1/M5/M5A/M5F/H7/M9) 2

No.

Description

Qty.

Material

1

Set Screw

1

MS

2

Handle

1

SS

3

Spindle

1

316SS

4

Packing Bolt

1

MS/316SS

5

Bonnet

1

MS/316SS

6

Bush

1

MS/316SS

6

7

Packing

1

PTFE/Graphite

8

Bush

1

MS/316SS

7 8

2 1

4

9

Bonnet Stopper

1

316SS

10

Washer

1

COPPER

11

Dust Cap*

11

33

5

PLASTIC

5

*PTFE Packed Version 9 9

10

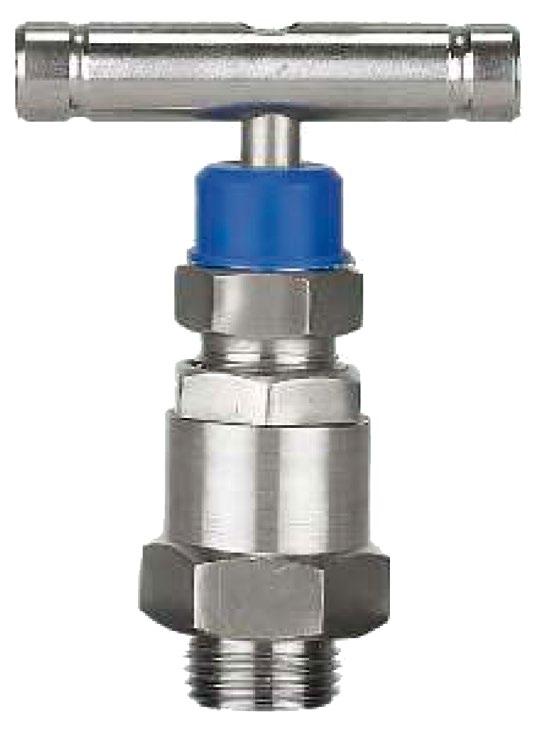

S I N G L E B O N N E T A S S E M B LY ( M O D E L S - H 5 ) No.

Description

Qty.

Material

1

Set Screw

1

MS

2

Handle

1

SS

3

Spindle

1

316SS

4

Gland Nut

1

MS/316SS

5

Bush

1

MS/316SS

6

Packing

1

PTFE/Graphite

5

7

Bush

1

MS/316SS

8

Bonnet

1

MS/316SS

6 7

9

Bonnet Stopper

1

316SS

10

Washer

1

COPPER

2 1 4 3

8 9 10

Bellows sealed version (VAF) bonnet

10

F LOW T U R N - Needle and Instrumentation Valves

PART NUMBER SYSTEM

PA RT N U M B E R S YS T E M N E E D L E VA LV E S SH7 1

V

D

C - 44Q - TC

A

I

BL

MODEL SH1 SM5 SM5A SM5F SM5K SH7 S15K SM9 SM9S SH5 SMO SBB

- Rising Plug Straight Through Type 6000 PSI or 10000 PSI - Multiport Gauge Valve Globe Type MxF 6000 PSI - Multiport Gauge Valve Straight Through MxF 6000 PSI - Multiport Gauge Valve Straight Through FxF 6000 PSI - OS&Y Root Isolation Valves - Globe Type 6000 PSI - Globe Type 15,000 PSI - Integral Block & Bleed Gauge-Globe Type 6000 PSI - Integral Block & Bleed Gauge-Straight Thru Type 6000PSI - Miniature Globe Type 6000 PSI (Soft) 3000 PSI (Metal) - Monoflange Instrument Valve - Block & Bleed Valves

ALTERNATE PRESSURE SUFFIX BLANK - 6000 PSI 1 - 10,000 PSI

3 5

- 3000 PSI - 15,000 PSI

PACKING V R H E L

- Teflon® - Viton® O-Ring with Teflon® or 316 backup ring - Graphoil® - Fugitive / Low emission Graphoil (or use FE suffix) H7 & M5 do use E - Low Temp. Viton - 46˚C or HNBR

SEAT D K E

- Delrin® - PCTFE / KELF - PEEK

I V M

- Integral Metal - Teflon® - 316 Overlay

J W Z

- Hastelloy® - 316L - Special

N Z

- Nylon - Special

MATERIAL C S M

- CS (CAD or Zinc Plated) - 316 SS - Monel® 400

CONNECTIONS INLET x Outlet † 2 - 1/4 -inch NPTF x 1/4 -inch NPTF 44 - 1/2 -inch NPTM x 1/2 -inch NPTF 3 - 3/8 -inch NPTF x 3/8 -inch NPTF 46 - 3/4 -inch NPTM x 1/2 -inch NPTF 22 - 1/4 -inch NPTM x 1/4 -inch NPTF 48 - 1/2 -inch NPTM x 1 -inch NPTF 24 - 1/2 -inch NPTM x 1/4 -inch NPTF 6 - 3/4 -inch NPTF x 3/4 -inch NPTF 33 - 3/8 -inch NPTM x 3/8 -inch NPTF 66 - 3/4 -inch NPTM x 3/4 -inch NPTF 4 - 1/2 -inch NPTF x 1/2 -inch NPTF 8 - 1-inch NPTF x 1-inch NPTF 4M - 1/2 -inch NPTM x 1/2 -inch NPTM 88 - 1-inch NPTM x 1-inch NPTF AT* - Tube Compression Fitting End(s) ** - 1 1/4-inch to 2-inch *Concatenate with size, example 4AT4 is 1/2 inch Tube x 1/2 inch NPTF, 4AT is 1/2 inch Tube x 1/2 inch Tube **32/40/50 † SH1 is Bi-Directional

SPECIAL SUFFIX FOR SH1/S-H7/S-H71 ONLY Q - 1/2 inch & Over End connections (S-H1/S-H7/S-H71 ONLY) BLANK - Under 1/2 inch End connections (Except 6.4mm Orifice 1/4 inch ~ 1/2 inch S-H1 see below.)

QR - 6.4mm Orifice 1/4 inch ~ 1/2 inch (S-H1 ONLY)

CONNECTION VARIATION SUFFIX BLANK - No Variation BSP - BSP MSW - Male plain end (Male Socket Weld)(CS is black oxide coated) SWF - Female Socket Weld TB - Female Tube End TC - Male Tube Stub End

BODY STYLE VARIATION SUFFIX BLANK - Inline

A

- Angle

L

- Integral Long body extension

I O

- Integral Bonnet - OS&Y Bonnet

W Z

- Welded Bonnet - Special

BONNET VARIATION SUFFIX BLANK - Threaded Bonnet (Standard) B - Bolted Bonnet OS&Y

OPTIONS BL BS LT MO OX PM RH SG

- Bonnet Lock Device - Bellow Sealed - Low Temp Lubricant (low temperature service -46˚C) - Monel® Stem - Oxygen Cleaning - Panel Mount - Black Round Handle - (Sour Gas) meets NACE MR0175/ISO 15156-3 -2 (for Chloride conditions ≤ 50 mg/l [ppm]) and NACE MR0103-2005 (316 SS only)

SG1 SV6 SVA BP DB DBB Z

- (Sour Gas) meets NACE MR0175/ISO 15156-3 -2 (for Chloride conditions > 50 mg/l [ppm]) - Side Bleeder Fitted Type SV6 - Side Bleeder Fitted Type SVA - Bleed Plug - Bleed Valve Bonnet - Two Bleed Valve Bonnets - Special

F LOW T U R N - Needle and Instrumentation Valves

11

NEEDLE VALVES

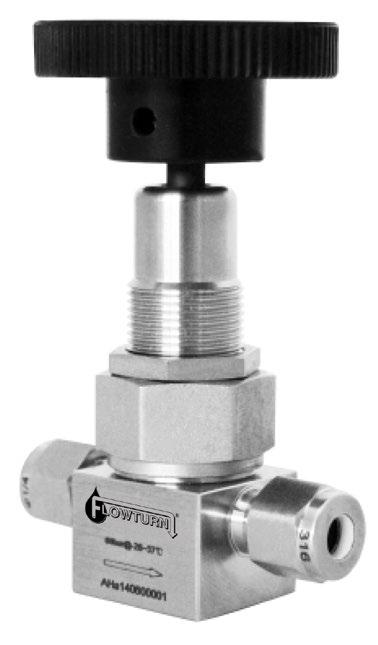

M O D E L S - H 7 1 , 1 0 , 0 0 0 P S I G LO B E T Y P E Flowturn ‘HP’ Series Globe Pattern Needle Valves are specially designed and ruggedly manufactured for use in corrosive and hazardous environments. ‘HP’ Series valves are used in process control, instrumentation and flow control applications.

‘HP’ Series valves are precision machined, and designed for durability and maximum efficiency to provide a high quality valve for use in fluid and gaseous control systems of different applications, to meet the exacting standards of our growing and demanding customers.

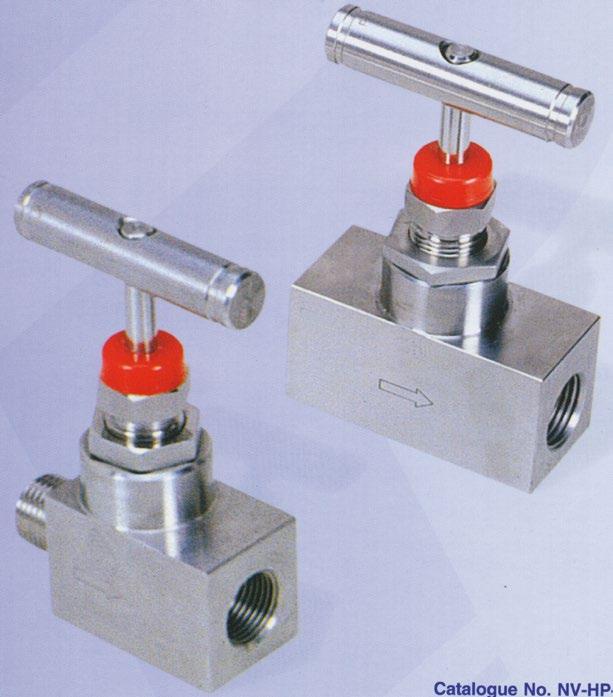

Flowturn ‘HP’ Series Valves are available in high grade stainless steel, carbon steel, monel and other materials in a variety of end connections including male / female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends. Valves can be supplied to meet current revision of NACE MR-01-75 (Sour Gas Service).

FEATURES - BENEFITS • One piece body construction no welding - for high strength and safety.

• Vee tip design - controls accurate flow.

• Stem thread rolled and hard plated - provides additional strength and maximum service life.

• Mirror finish stem, burnished to Ra 0.20 µm (8~10 RMS) - extends packing life and smooth stem operation. Fugitive Emission compliant.

• Stainless steel handle - for proper actuation.

• Dust cap - prevents contaminants and lubricant washout of bonnet assembly.

• Repairable Metal Seat - can be resurfaced without removing valve from line.

MATERIAL OF CONSTRUCTION

7

Sr No.

Part

Qty.

Material

1 2 3 4 5 6 7 8 9

Body Stem Packing Washer Gland Packing Lock Nut Gland Retainer Handle Dust Cap Vee Tip

1 1 1 1 1 1 1 1 1

A479-316 A479-316 A479-316 Glass Filled PTFE A479-316 A479-316 Stainless Steel Plastic 17.4 PH/316/HF

DIMENSIONS (MM)

3 4 1 9

PRESSURE/TEMPERATURE RATINGS S-SQ

H

L

Orifice

Cv

Pressure Rating

Temperature Rating

1/4”

60

55

25

86

60

5mm*

0.22

10,000 PSI (700 bar)

-65° to 200°F (-50° to 93°C)

3/8”

60

55

28

86

60

1/2”

82

75

34

98

70

3/4”

87

80

38

98

70

* Larger orifice available to 16mm.

L

L

12

S-SQ.

Every Flowturn ‘HP’ Series Needle Valve is 100% tested with nitrogen gas at 1200psig (80Bar) for leakage at seal and seat.

Hydrostatic test performed with pure water at 1 1/2 times the working pressure. Other optional tests like helium and low temperature are available upon request.

H-OPEN HT.

TESTING

H-OPEN HT.

A(MF) A(FF)

2

5

A

F LOW T U R N - Needle and Instrumentation Valves

S-SQ.

Size

8

6

A

NEEDLE VALVES

MODEL S-H7 & S-M9, 6000 PSI GLOBE TYPE Flowturn ‘HB’ Series Globe Pattern Needle Valves are specially designed and ruggedly manufactured for use in corrosive and hazardous environment. ‘HB’ Series valves are used in process control, instrumentation and flow control applications.

‘HB’ Series are precision machined, and designed for durability and maximum efficiency to provide a high quality valve for use in fluid and gaseous control systems of different applications, to meet the exacting standards of our growing and demanding customers. The model S-M9 is complete with an integral bleed plug.

Flowturn ‘HB’ Series Valves are available in high grade stainless steel, carbon steel, monel and other materials in variety of end connections including male / female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends. Valves can be supplied to meet current revision of NACE MR01-75 (Sour Gas Service). All valves are 100% factory tested and complete traceability is available upon request.

FEATURES - BENEFITS • Non rotating vee / ball tip design - which forms a bearing joint with the stem eliminates rotation between plug and seat at closure. This prevents scoring and galling up the valve seat and ensure long life in repetitive shut off service.

• Safety bonnet lock - prevents accidental disassembly.

• Stem thread rolled and hard plated - provides additional strength and maximum service life • Mirror finish stem, burnished to Ra 0.20 µm (8~10 RMS) - extends packing life and smooth stem operation. Fugitive Emission compliant.

• Adjustable packing below stem threads - prevents stem lubrication washout and isolate threads from process contamination.

• Safety back seating - provides secondary stem seal in full open position, prevents stem blow out.

• Stainless steel handle - for proper actuation.

• Body to bonnet seal - metal to metal constant compression isolates bonnet threads from system fluids.

• Dust cap - prevents contaminants and lubricant washout of bonnet assembly.

• Repairable Metal Seat - can be resurfaced without removing valve from line.

MATERIAL OF CONSTRUCTION Sr No.

Part

Qty.

1 Body 2 Gland Body 3 Gland Retainer 4 Washer 5 Packing 6 Packing Washer 7 Spindle 8 Lock Nut 9 Grub Screw 10 Handle 11 Bonnet Stopper/Bolt 12 Dust Cap 13 Vee Tip / Ball Tip See Page 15 for dimensions (same as S-H7-PM).

1 1 1 1 1 1 1 1 1 1 1 1 1

Material A479-316 / A-105* A479-316 / A-105* A479-316 / A-105* A479-316 PTFE / Graphoil A276-316 A276-316 A479-316 / A-105* A479-316 A276-304 / A-105* A479-316 Plastic LD 17.4 PH/316 *CAD or zinc plated

S-M9 & S-H7

10

12

7

9 3

8 2

6

11

5 4

1 13

Non Rotating Vee Tip Non Rotating Ball Tip

Vent Drain Plug & Bleed Port

PRESSURE/TEMPERATURE RATINGS Valve

Orifice

Cv

Max. Working Pressure

Temp

Pressure@Max. Pressure PTFE

1/4” 3/8” 1/2” 3/4” 1” 1 1/4” 1 1/2” 2”

3.5mm 3.5mm 4.8mm 6.4mm 9.5mm 11.9mm 11.9mm 14.0mm

0.31 0.31 0.52 1.40 2.40

-29° to 121°C -20° to 250°F 41,300 kpa (6000 psi)

-29° to 315°C -20° to 600°F

27,579 kpa @ 230°C (4000 psi @ 446°F) GRAPHOIL 24,821 kpa @ 230°C (3600 psi @ 446°F)

20670 kpa (3000 psi)

TESTING Every Flowturn ‘HB’ Series Needle Valve is 100% tested with nitrogen gas at 1200 psig (80Bar) for leakage at seal and seat.

Hydrostatic test performed with pure water at 1 1/2 times the working pressure. Other optional tests like helium and low temperature are available upon request.

F LOW T U R N - Needle and Instrumentation Valves

13

NEEDLE VALVES

N E E D L E VA LV E S M O D E L S - H 7 - P M PA N E L M O U N T Flowturn ‘IB’ Series Panel Mount Globe Type Needle Valves are specially designed and ruggedly manufactured for use in corrosive and hazardous environments. ‘IB’ Series valves are used in Process control, instrumentation and flow control applications.

‘IB’ Series Valves are precision machined, and designed for durability and maximum efficiency to provide a high quality valve for use in fluid and gaseous control systems of different applications, to meet the exacting standards of our growing and demanding customers.

Flowturn ‘IB’ Series Valves are available in high grade stainless steel, carbon steel, monel and other materials in a variety of end connections including male / female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends. Valves can be supplied to meet current revision of NACE MR01-75 (Sour Gas Service). All valves are 100% factory tested and complete traceability is available upon request. Model S-H71-PM 10,000 psi is also available.

FEATURES - BENEFITS • One piece body construction no welding used - for high strength and safety.

• Non rotating vee / ball tip design - which forms a bearing joint with the stem eliminates rotation between plug and seat at closure. This prevents scoring and galling up the valve seat and ensure long life in repetitive shut off service.

• Stem thread rolled and hard plated - provides additional strength and maximum service life.

• Mirror finish stem, burnished to Ra 0.20 µm (8~10 RMS) - extends packing life and smooth stem operation.

Fugitive Emission compliant.

• Stainless steel handle - for proper actuation.

• Repairable Metal Seat - can be resurfaced without removing valve from line.

8

MATERIAL OF CONSTRUCTION Sr No.

Part

Qty.

Material

1 2 3 4 5 6 7 8 9

Body Panel Nut Stem Packing Washer Gland Nut Grub Screw Handle Vee Tip / Ball Tip

1 1 1 1 1 1 1 1 1

A479-316 A479-316 A479-316 Teflon / Graphoil A479-316 A479-316 Steel Plated / 316 Stainless Steel 17.4 PH/316/HF

7

3 5 4 6 2 1

9

Non Rotating Vee Tip

Non Rotating Ball Tip

PRESSURE/TEMPERATURE RATINGS Valve

Orifice

Cv

Max. Working Pressure

Temp

Pressure@Max. Pressure PTFE

1/4” 3/8” 1/2” 3/4” 1”

3.5mm 3.5mm 4.8mm 6.4mm 9.5mm

0.31 0.31 0.52 1.40 2.40

41,300 kpa

-29° to 121°C -20° to 250°F

(6000 psi) -29° to 315°C -20° to 600°F

27,579 kpa @ 230°C (4000 psi @ 446°F) GRAPHOIL 24,821 kpa @ 230°C (3600 psi @ 446°F)

The S-H71 10,000 psi is also available.

TESTING Every Flowturn ‘IB’ Series Needle Valve is 100% tested with nitrogen gas at 1200psig (80Bar) for leakage at seal and seat. Hydrostatic test performed with pure water at 1 1/2 times the working pressure. Other optional tests like helium and low temperature are available upon request.

14

F LOW T U R N - Needle and Instrumentation Valves

NEEDLE VALVES

N E E D L E VA LV E S M O D E L S - H 7 - P M NEEDLE VALVE MODEL S-H7-PM L

DIMENSIONS* (MM) A

S-SQ

H

L

1/4”

55

22

69

60

3/8”

55

25

69

60

1/2”

73

30

83

60

3/4”

80

36

89

70

1”

88

45

102

70

OPEN-H.

P-NPTF

S-SQ.

P. THREADS

* Dimensions shown are for S-H7 and S-H7 panel mount (PM)

A

NEEDLE VALVE I.B. FF (MODEL S-H7-PM) L

OPEN H.

DIMENSIONS* (MM) P-NPTF

A

S-SQ

H

L

1/4”

50

22

69

60

3/8”

50

25

69

60

1/2”

68

30

83

60

3/4”

70

36

89

70

1”

88

45

102

70

P. THREADS (TYP)

S-SQ.

* Dimensions shown are for S-H7 and S-H7 panel mount (PM)

A

NEEDLE VALVE I.B. OD (MODEL S-H7-PM) L

OPEN H CLOSE H

DIMENSIONS* (MM) TUBE O.D. Nut Back Ferrule Front Ferrule

P-NPTF

A

S-SQ

H

L

1/4”

50

22

69

60

3/8”

50

25

69

60

1/2”

68

30

83

60

3/4”

70

36

89

70

1”

88

45

102

70

* Dimensions shown are for S-H7 and S-H7 panel mount (PM)

A

WARNING: Inadequate care and improper utilisation of valves can cause intense and excessive damage to life and property. Flowturn’s products are not for your liable use and at the behest of the user’s responsibility to check and analyse the service in which it is going to be inserted into, so that the valve functions properly and the relevant product type and materials have been selected. Also all other precautions should be taken before the user puts the product into service.

F LOW T U R N - Needle and Instrumentation Valves

15

NEEDLE VALVES

MODEL S-H1 & S-M9S RISING PLUG TYPE 6000 PSI Flowturn SH1 and S-M9S Needle Valves are specially designed and ruggedly manufactured for use in corrosive and hazardous environment. S-H1 & S-M9S valves are used in process control, instrumentation and flow control applications. ‘HB’ Series are precision machined, and designed for durability and maximum efficiency to provide a high quality valve for use in fluid and gaseous control systems of different applications, to meet the exacting standards of our growing and demanding customers.

The model S-M9S is complete with an integral bleed plug.

Flowturn Needle Valves are available in high grade stainless steel, carbon steel, monel and other materials in variety of end connections including male/female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends. Valves can be supplied to meet current revision of NACE MR01-75 (Sour Gas Service). All valves are 100% factory tested and complete traceability is available upon request.

FEATURES - BENEFITS • Straight through flow path - provides high flow capacity bi-directional S-H1 ‘roddable’ capability.

• Safety bonnet lock - prevents accidental disassembly.

S-M9S • Stem thread rolled and hard plated - provides additional strength and maximum service life.

• Mirror finish stem, burnished to Ra 0.20 µm (8~10 RMS) - extends packing life and smooth stem operation.

Fugitive Emission compliant.

• Adjustable packing below stem threads - prevents stem lubrication washout and isolate threads from process contamination.

• Safety back seating - provides secondary stem seal in full open position, prevents stem blow out.

• Stainless steel handle - for proper actuation.

• Body to bonnet seal - metal to metal constant compression isolates bonnet threads from system fluids.

• Dust cap - prevents contaminants and lubricant washout of bonnet assembly.

12

MATERIAL OF CONSTRUCTION

11

Sr No.

Part

Qty.

1 2 3 4 5 6 7 8 9 10 11 12 13 14

Body Bonnet Stem Spacer Packing Lock Nut Gland Lock Nut Gland Retainer Rising Plug Seat Dust Cap Grub Screw Handle Rising Plug Bonnet Stopper (Optional)

1 1 1 1 1 1 1 1 1 1 1 1 1 1

Material A479-316 / A-105* A479-316 / A-105* A276-316 PTFE / Graphoil PTFE / Graphoil A479-316 / A-105* A479-316 / A-105* A479-316 Delrin Plastic LD A479-316 A276-304 / A-105* A479-316 A479-316 *CAD or zinc plated

8 7

1/4” 3/8” 1/2” 3/4” 1”

Orifice 3.5mm 3.5mm 4.8mm 6.4mm 9.5mm

Cv 0.31 0.31 0.52 1.40 2.40

Max. Working Pressure

41,300 kpa (6000 psi)

4

2

5

1

6

9 13

Non Rotating Vee Tip (Soft Seat)

Vent Drain Plug & Bleed Port

PRESSURE/TEMPERATURE RATINGS Valve

3

10

DIMENSIONS (MM) Temp -29° to 121°C -20° to 250°F

Pressure@Max. Pressure

Size

PTFE 27,579 kpa @ 230°C

1/4”

60

55

27

93.5

3/8”

60

55

27

93.5

(4000 psi @ 446°F) GRAPHOIL 24,821 kpa @ 230°C -29° to 315°C -20° to 600°F (3600 psi @ 446°F)

(MF)* (FF)*

HQ

A (open)

1/2”

80

75

32

96.5

3/4”

95

80

42

117

1”

100

95

45

119

*S-M9S Refer to drawing

TESTING Every Flowturn Needle Valve is 100% tested with nitrogen gas at 1200 psig (80Bar) for leakage at seal and seat. Hydrostatic test performed with pure water at 1 1/2 times the working pressure. Other optional tests like helium and low temperature are available upon request.

16

F LOW T U R N - Needle and Instrumentation Valves

NEEDLE VALVES

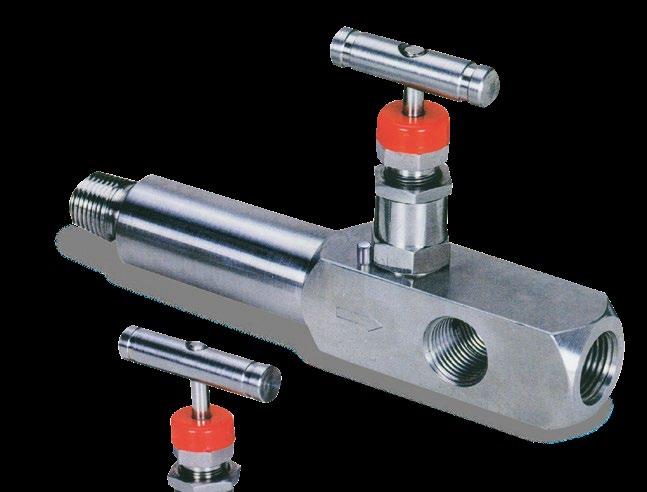

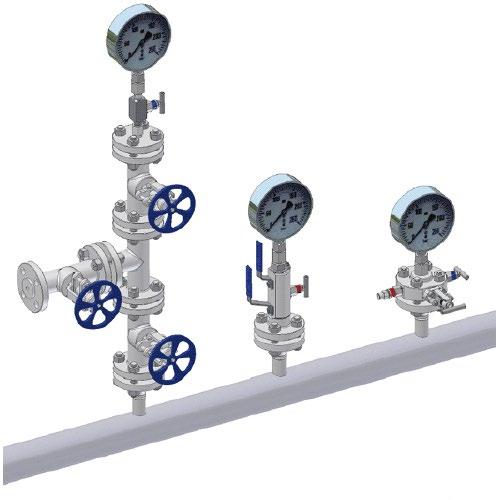

MODEL S-M5 & S-M5A/F GAUGE ROOT 6000 PSI Flowturn Gauge Root Globe and Plug Type Needle Valves are used for safe installation in pressure switches, gauges and differential pressure transmitters, suitable for blockand bleed assemblies to test pressure source required in sampling line or purge valve.

H

Rugged Stainless steel handle Stem threads isolated from system fluids, Rolled & hard plated ‘E’ Max. Open

Gauge Ports (2) 1/2” NPT (F)

Safety back seating

1/2” NPT (F)

1/2” or 3/4” NPT (M)

D

FEATURES 316 S.S. construction for corrosion resistance. Non rotating vee or ball tip. Extended body for insulation clearance. Scheduled 160 or heavier pipe valve inlet for strength. Optional graphoil packing available for high temperatures. Ball*/vee tip design forms a bearing joint with the stem which eliminates rotation between ball/vee tip and seat at closure.

This prevents scoring and galling up the valve seat and ensures long life in repetitive shut off service.

B

C A

Globe Style S-M5

D

Non-rotating Vee / Ball Tip stem • Non rotating vee / ball* tip design - which forms a bearing joint for excellent control without surge in repetative shut off with the stem eliminates rotation between plug and seat at closure.

Gauge Ports (2) 1/2” NPT (F) This prevents scoring and galling up the valve seat and ensure long Through for easy flow life in repetitive shut off service.

1/2” NPT (F) • Safety bonnet lock - prevents accidental disassembly.

3/4” NPT (M) • Stem thread rolled and hard plated - provides additional strength and maximum service life.

• Mirror finish stem, burnished to Ra 0.20 µm (8~10 RMS) - extends packing life and smooth stem operation. Fugitive Emission compliant.

B C • Adjustable packing below stem threads - prevents stem lubrication A washout and isolate threads from process contamination.

Straight Through Style S-M5A/F • Safety back seating - provides secondary stem seal in full open (Drawing on request) position, prevents stem blow out.

DIMENSIONS • Stainless steel handle - for proper actuation.

Connecting Size Dimensions • Body to bonnet seal - metal to metal constant compression isolates Body Orifice mm Inlet Outlet A B C D E H bonnet threads from system fluids.

5 1/2” NPT 1/2” NPT 137 76 38 32 SQ 90 64 Short • Dust cap - prevents contaminants and lubricant washout of bonnet assembly.

• Repairable Metal Seat - can be resurfaced without removing valve from line. Lagging 5 1/2” NPT 1/2” NPT 184 123 38 32 SQ 90 64

*Ball tip available as option only on S-M5 globe style.

Extension

MATERIAL OF CONSTRUCTION (S-M5)

TESTING

Sr No.

Part

Qty.

Material

1 2 3 4 5 6 7 8 9 10 11 12

Body Stem Spacer Gland Body Gland Packing Bonnet Stopper/Bolt Retainer Cap Grub Screw Washer Handle Vee / Ball Tip

1 1 2 1 2 1 1 1 1 1 1 1

A479-316 / A-105** A479-316 A479-316 A479-316 / A-105** Teflon / Graphoil A479-316 / A-105** A479-316 / A-105** Plastic / LD A479-316 A479-316 Stainless Steel Titanium / 17-4PH/316/HF **CAD or zinc plated

Material

Seat

Temperature Rating

Pressure Rating @ 100°F (38°C)

S. S. 316

V-Stem Rising Plug

-65°F to 450°F (-54°C to 232°C)

6000 PSI (41,300 Kpa)

Each valve is tested with nitrogen gas at 1000 psi for seat and packing leakage with a maximum allowable leak rate of 0.1 sec/min. Hydro test performed with pure water at 1 1/2 times the working pressure. Other tests like vibration and temperature, helium etc. are available upon requests.

8 7 6 4 1

11 9 2 3

OUTLET OUTLET

OUTLET OUTLET

5 10 12

Non Rotating Ball Tip Non Rotating Vee Tip Globe Style S-M5

F LOW T U R N - Needle and Instrumentation Valves

17

‘E’ Max. Open

H

NEEDLE VALVES

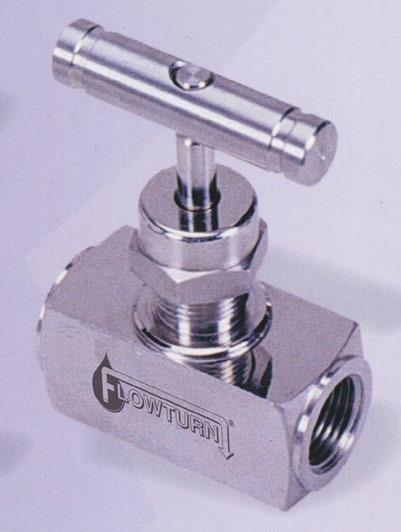

MINI NEEDLE VALVE MODEL S-H5 3000 PSI GLOBE TYPE Flowturn Mini Series Needle Valves are specially designed and ruggedly manufactured for use in corrosive and hazardous environment. Mini valves are used in process control, instrumentation and flow control application. Mini valves are precision machined, and designed for durability and maximum efficiency to provide a high quality valve for use in fluid and gaseous control systems of different applications, to meet the exacting standards of our growing and demanding customers.

Flowturn Mini Series Valves are available in high grade stainless steel, carbon steel, monel and other materials in a variety of end connections including male / female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends.

Valves can be supplied to meet current revision of NACE MR-01-75 (Sour Gas Service).

FEATURES - BENEFITS • • • • •

One piece body construction no welding - for high strength and full safety.

Vee tip design - controls accurate flow.

Dust cap - prevents contaminants and lubricant washout of bonnet assembly.

Stem thread rolled and hard plated - provides additional strength and maximum service life.

Mirror finish stem, burnished to Ra 0.20 µm (8~10 RMS) - extends packing life and smooth stem operation. Fugitive Emission compliant.

• Stainless steel handle - for proper actuation.

MATERIAL OF CONSTRUCTION

9

Sr No.

Part

Qty.

Material

1 2 3 4 5 6 7 8 9 10 11 13

Body Bonnet Lock Nut Dust Cap Packing Washer Gland Packing Gland Retainer Stem Handle Grub Screw Gasket Vee Tip

1 1 1 1 1 1 1 1 1 1 1 1

A479-316 / A-105 A479-316 A479-316 A479-316 / A-105 Teflon / Graphoil A479-316 / A-105 A479-316 / A-105 Plastic / LD A479-316 A479-316 Stainless Steel 17.4 PH/316/HF

6

3

5

2 1

11

13

33

1/4” NPT (F) 48

1/4” NPT (M)

19 SQ.

1/4” NPT (F)

19 SQ.

70

Max. Panel 5mm.

THK. Panel Hole Dia 12mm 1/4” NPT (M)

7

4

33

DIMENSIONS (MM)

10

8

25

25

48

48

Available in 1/4”, 3/8”, 1/2”

PRESSURE/TEMPERATURE RATINGS Orifice

Cv

Pressure Rating

Temperature Rating

3.5mm*

0.31

20,700kpa (3000 PSI*)

-29° to 121°C (-20° to 250°F)

*Also available in 6000PSI and in larger orifice for 3/8” and 1/2” ends

TESTING Every Flowturn Needle Valve is 100% tested with nitrogen gas at 1200psig (80Bar) for leakage at seal and seat. Hydrostatic test performed with pure water at 1 1/2 times the working pressure. Other optional tests like helium and low temperature are available upon request.

18

F LOW T U R N - Needle and Instrumentation Valves

NEEDLE VALVES

PRESSURE/TEMPERATURE RATINGS SOFT SEAT & PACKING PRESSURE TEMPERATURE* PACKING RATING 6,000PSI

PRESSURE TEMPERATURE* PACKING RATING 10,000PSI 6000 [414]

PTFE Packing g

5000 [345]

Graphite Packing Denotes intersecting dataa

5000 [345]

Graphite Packing Denotes intersecting dataa

2000 [138] 1000 [69]

1500 [103]

0

3000 [207] 2000 [138] 1000 [69] 0

0 [-18]

100 [38]

200 [93]

300 [149]

400 [204]

500 [260]

600 [316]

700 [371]

Temperature °F [°C]

800 [427]

900 [482]

1000 [538]

0 [-18]

Pressure psig [barg] 200 [14]

4000 [276]

300 [149]

400 [204]

500 [260]

600 [316]

700 [371]

3000 [207] 2000 [138] 1000 [69]

800 [427]

900 [482]

1000 [538]

850 850 [454] [454]

* Based on up to 4.8mm orifice. Temperature also limited by seat and seals.

Special bonnet may be required for high temperature service above 300°C.

PRESSURE TEMPERATURE SEAT RATING* 10,000PSI

Pressure psig [barg]

PEEK (3/16”) [4.8MM] PEEK (1/4”) [6.4MM] Delrin® (3/16”) [4.8MM] PCTFE (KELF) (3/16”) [4.8MM] Delrin® (1/4”) [6.4MM] Teflon® Denotes intersecting data

5000 [345]

200 [93]

Temperature °F [°C]

PRESSURE TEMPERATURE SEAT RATING* 6,000PSI 6000 [414]

100 [38]

850 850 [454] [454]

*Temperature also limited by seat and seals. Special bonnet may be required for high temperature service above 300°C.

1600 [110]

PTFE very short time period

3000 [207]

4000 [276]

PTFE

4000 [276]

Pressure psig [barg]

PTFE Packing g

PTFE very short time period

1500 [103]

6000 [414]

PTFE

Pressure psig [barg]

10000 [689]

PEEK Delrin® Denotes intersecting data

10000 [689] 8000 [552] 6000 [414] 4000 [276] 2000 [138]

0

0 0 [-18]

100 [38]

200 [93] 150 [66]

300 [149]

400 [204]

500 [260]

0 [-18]

100 [38]

200 [93]

300 [149]

Temperature °F [°C]

Temperature °F [°C]

* Based on up to 6.4mm orifice. Temperature also may be limited by PTFE stem packing.

* Based on up to 4.8mm orifice.

F LOW T U R N - Needle and Instrumentation Valves

400 [204]

500 [260]

19

NEEDLE VALVES

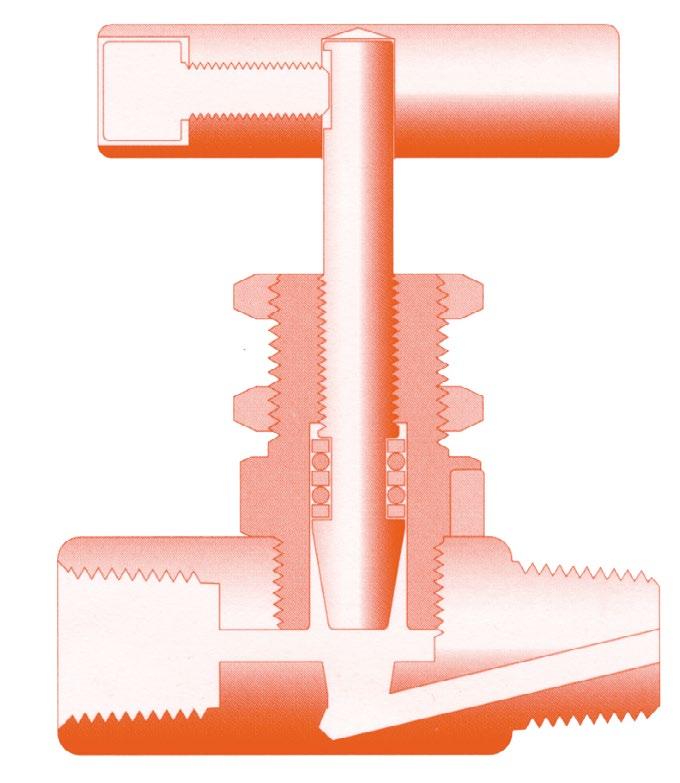

HIGH PRESSURE NEEDLE VALVE MODEL S-15K 15000 PSI GLOBE TYPE Flowturn ARY - S15K Needle Valves are specially designed and ruggedly manufactured for use in corrosive and hazardous environment.

S15K valves are used in process control, instrumentation and flow control application. S15K valves are precision machined and designed for durability and maximum efficiency to provide a high quality valve for use in fluid and gaseous control systems of different applications, to meet the exacting standards of our growing and demanding customers.

Valves can be supplied to meet current revision of NACE MR-01-75 (Sour Gas Service).

BENEFITS One piece heavy duty body construction no welding - for high strength and full safety.

Vee tip design - ensures accurate flow control.

Stem thread rolled and hard plated - provides additional strength and maximum service life.

Mirror finish stem, burnished to 16RMS - extends packing life and smooth stem operation.

Stainless steel handle - for proper actuation.

FEATURES • • • • • • • •

NPT threads to assure 15,000 psi.

Valve design provides in-line pipe connections for 1/4” to 1/2” pipe sizes.

Rising stem & bar stock body design.

Non-rotating stem prevents stem/seat galling. These stems are standard for on-off service and insure long life on valve seats.

Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.

PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.

Teflon 232°C (450°F) standard with optional Viton 177°C (350°F), BUNA-N 93°C (200°F) and Grafoil 343°C (650°F) available.

Materials include high tensile Type 316 stainless steel for valve bodies and hardened 17-4PH stainless steel for lower section stems. Stem sleeve and packing gland materials have been carefully chosen to achieve extended thread cycle life and reduced handle torque.

Operating temperature range from -17°C (0°F) TO 204°C (400°F).

MATERIAL OF CONSTRUCTION

7

Sr No.

Part

Qty.

Material

1 2 3 4 5 6 7 8

Body Stem Holder Bonnet Washer Packing Packing Handle Stem

1 1 1 1 1 1 1 1

A479-316 A479-316 Aluminium/Bronze Aluminium PTFE Brass Aluminium 17-4 PH

2

M

3 4 1

A

6 5

M1 Inlet

8 D

B

DIMENSIONS Inlet-F

Outlet-F

A

B

D

M

M1

1/4” NPT 3/8” NPT 1/2” NPT

1/4” NPT 3/8” NPT 1/2” NPT

50.0 63.5 76.0

50.0 50.0 73.0

19.0 25.4 35.0

31.5 31.5 35.0

41.0 54.5 64.0

TESTING Every Flowturn Needle Valve is 100% tested with nitrogen gas for leakage at seal and seat. Hydrostatic test performed with pure water.

Other optional tests like helium and low temperature are available upon request.

20

F LOW T U R N - Needle and Instrumentation Valves

NEEDLE VALVES

MODEL KER-JY Y TYPE & ANGLE TYPE G LO B E S T Y L E Flowturn KER-JY Series Needle Valves, with their rugged compact design, offer positive shut off or directional control of fluids in process, oilfield wellhead and instrumentation applications. The unique proven design ensures excellent sealing characteristics while accomodating a superior temperature range and cycle life. A high integrity metal to metal bonnet anti ingress seal ensures leak tightness at high pressures.

These valves are available in Y-type and right angle configurations in steel, stainless steel, Monel, Duplex and Inconel construction, with a wide variety of port connections.

• • • • • • • •

Globe Style, Metal Seat.

Compact and lightweight.

Pressure responsive PTFE packing seal arrangement.

Bi-directional flow, with preferred flow indicated.

Ingress seals fitted as standard.

Full material traceability of main components.

100% Hydrotestic testing.

Materials of construction can be supplied to NACE MR 01-75.

Flowturn ‘KER-JY’ Series Valves are available in high grade stainless steel, carbon steel, monel and other materials in variety of end connections including male / female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends. Valves can be supplied to meet current revision of NACE MR01-75 (Sour Gas Service). All valves are 100% factory tested and complete traceability is available upon request.

FEATURES - BENEFITS

SPECIFICATIONS • Non rotating vee / ball tip design - which forms a bearing joint with the stem eliminates rotation between plug and seat at closure.

Up to 10,000PSI (700 Bar) Pressure Rating This prevents coring and galling up the valve seat and ensure long 1/4” to 1” Size Range life in repetitive shut off service.

• Safety bonnet lock - prevents accidental disassembly.

PTFE Packing • Stem thread rolled and hard plated - provides additional strength Temperature -54°Cto 200°C (-65°F to 392°F) Graphite Packing Rating and maximum service life.

-50°C to 550°C (-58°F to 1022°F) • Mirror finish stem, burnished to Ra 0.20 µm (8~10 RMS) - extends packing life and smooth stem operation. Fugitive Emission compliant.

Tube compression - Twin Ferrule • Adjustable packing below stem threads - prevents stem lubrication NPT (Male / Female) Port Connections BSP washout and isolate threads from process contamination.

• Safety back seating - provides secondary stem seal in full open position, prevents stem blow out.

• Body to bonnet seal - metal to metal constant compression isolates DIMENSIONS bonnet threads from system fluids.

Weight Connection • Repairable Metal Seat - can be resurfaced without removing A B C CV Size (kgs) valve from line.

MATERIAL OF CONSTRUCTION Sr No.

Part

Qty.

Material

1

Body

1

A479-316 / A-105*

2

Gland Body

1

A479-316 / A-105*

3

Gland Retainer

1

A479-316 / A-105*

4

Washer

1

A479-316

5

Packing

1

PTFE / Graphoil

6

Packing Washer

1

A276-316

7

Spindle

1

A276-316

8

Handle

1

Painted or 316

9

Vee Tip / Ball Tip

1

17.4 PH/316/HF

1/4”

60

55

25

86

60

3/8”

60

55

28

86

60

1/4”, 3/8”, 3/4”, 1” Refer to Drawing

TESTING Every Flowturn ‘KER-JY’ Series Needle Valve is 100% tested with nitrogen gas at 1200 psig (80Bar) for leakage at seal and seat. Hydrostatic test performed with pure water at 1 1/2 times the working pressure.

Other optional tests like helium and low temperature are available upon request.

*CAD or zinc plated

F LOW T U R N - Needle and Instrumentation Valves

21

NEEDLE VALVES

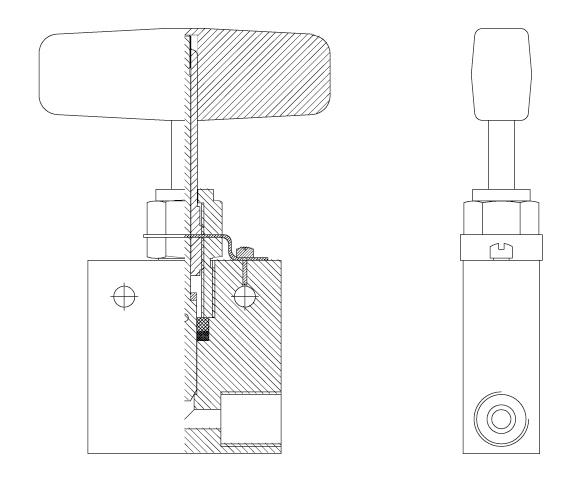

M O D E L S L N T 6 0 0 0 6 0 0 0 P S I G LO B E T Y P E The SLNT6000 is an economical Globe Style Needle Valve with needle point tip. This valve has a smaller orifice than the S-H7 Globe Type Needle Valve. This valve is available in Female X Female and Male X Female end connections.

H

1

E

2 3

F

4 G

5

D

C

6 7

PRESSURE/TEMPERATURE CHART

8

(TEFLON SEATED VALVE) 8000

122oF

212oF

302oF

392oF

402oF

9 F

7000

483

6000

414

5000

345

4000

276

3000

207

2000

138

1000

69

0

0

50oC

100oC

150oC

Temperature

200oC

BAR A

METAL SEATED T-6000-M TEFLON SEATED NT-6000-T

Delivery - US. Gallons Per Minute

PSI

32oF

C 250oC

(with graphite packing, metal seated version will do 315oC Max)

MATERIAL OF CONSTRUCTION Sr No.

Part

Material

1

Set Screw

316

2

Handle

316

3

Stem

316

4

Gland Nut

316

5

Gland

316

6

Packing

PTFE or graphite

7

Bonnet

316 or A105*

8

Body

316 or A105*

9

Seat

PTFE or metal

B

100 90 80 70 60 50 35

High Pressure 1” Valve

30

Low Pressure

3/4” Valve

1/2” Valve

25 20 3/8” Valve

15 10

1/4” Valve

5 0

20

40

60

80

100 300 500 700 900

Pressure Drop - lbs. Per Sq. Inch

TESTING TYPE OF TEST

MEDIUM

PRESSURE

Seat Test Body Test

Air Water

100 PSI (7 bar) 9000 PSI (620 bar)

*CAD or zinc plated

DIMENSIONS (MM) Size

A

B

C

D

E

F

G

H

Minimum* Orifice Size

Weight Kg

1/4”

45

22

80

70

13

7

21

60

1/8”

.27

3/8”

50

25

85

73

13

7

21

60

1/8”

.33

1/2”

60

30

110

95

16

8

24

65

3/16”

.54

3/4”

65

35

115

100

16

8

24

65

3/16”

.68

1”

83

46

129

102

19

10

30

80

1/4”

1.4

*Also available large orifice needle valves

22

F LOW T U R N - Needle and Instrumentation Valves

MONO FLANGE VALVES

MONO FLANGE BLOCK & BLEED VALVES MODEL SMO 150-2500 CLASS MONO FLANGE Flowturn Design Mono Flange, Single block and bleed and Double block and bleed valves incorporate primary process valves together with standard isolation and vent needle valves in one single compact unit to offer a space, weight and cost saving compared to traditional block & bleed valve. The compact size allows the use of more expensive materials like 316 & F51 to provide a longer life.

FEATURES

ADVANTAGES

• Single piece body with Bonnet assembly.

1500-lb, One -piece integrally forged valve -

• Flange connection 15NB to 50NB (1/2” to 2”).

• Reduced weight

• TFE or Graphite Packing for Bubble tight sealing.

• Reduced height

• Non-Rotating Tip to provide positive, bubble - tight seal.

• Reduced leakage points

• Metal to Metal Body/Bonnet Seal.

• Reduced effect of system vibration

• Tbar Handle.

• Supporting brackets are not required

• Designed to comply with requirements of ANSI/ASME B16.5. Optional valve Bonnet assembly OS & Y bolted, Anti Tamper and globe Style assembly with non roating needle trim.

• Reduced bending moment acting on the vessel branch fitting weld.

• Reduced installation cost • Reduced gaskets and bolting

TECHNICAL • NACE MR-01-75.

• ASTM (Gr) Stainless steel, F316/F316LCarbon steel, A150/ LF2 and duplex or Super duplex and Alloy (400, 625, 825 and C276).

• Heat Code for material traceable to EN 10204.3.1.B. • End connection accordance with ASME B16.5 RF and RTJ NPTconnection accordance with ASME B1.20.1 • Working pressure in accordance to ASME B16.5 class 150 to 2500 class working temperature -58 to 400°F (-50 to 204°C ) for stainless steel and duplex -50 to 400°F (-46 to 204°C ) carbon steel valve • All valves are 100% factory testing hydrostatically and pneumatic leakage accordance with BS 12266.1

Mono Flange Wafer Type Double Block & Bleed Valve

F LOW T U R N - Needle and Instrumentation Valves

23

BLOCK AND BLEED VALVES

BALL/NEEDLE DOUBLE BLOCK & BLEED VALVES MODEL SBB 150-2500 CLASS BALL/NEEDLE BALL ASSEMBLY Flowturn provides needle/ball valve assembly in Single block and bleed and Double block and bleed in one single compact unit. This combination of primary and secondary valve provides shut off assurance & verification as well as space, weight and cost savings.

This style is configured with one ball and one needle isolation valve in-line with an additional needle valve side bleed for block & bleed use. Flowturn can supply this style of valve in very short delivery in A105N, LF2, 316, F51, etc., in 150 to 2500 class

Combination Needle & Ball

FEATURES

TECHNICAL

• Process interface in one compact ball/needle ball valve assembly.

• Three piece bolted body and integral single piece forged body styles.

• Flanged or Flanged & Screwed connection 15NB to 100NB (1/2” to 4”).

• Graphite packing for bubble tight sealing.

• Ball seats in PTFE, Delrin or PEEK. • Bore size available 10mm to 100mm.

• Anti-blowout valve stems and non rotating needles.

• Fire safe designed to meet API 607.

• Optional vent valve bonnet assembly, OS&Y bolted, Anti-Tamper and globe style assembly with non-rotating needle trim.

• NACE MR-01-75.

• ASTM (Gr) Stainless steel, F316/F316L carbon steel, A105/ LF2 and duplex F51/F53 and Alloy 400, 625, 825 and C276.

• Heat Code for material traceable to EN 10204.3.1.B. • Flange connection accordance with ASME B16.5 RF, RTJ or NPT connections in accordance with ASME B1.20.1.

• Working pressure in accordance to ASME B16.5 class 150 to 2500 class working temperature -58 to 400°F (-50 to 204°C) for stainless steel and duplex -50 to 400°F (-46 to 204°C) for carbon steel valve.

• All valve 100% factory testing hydrostatically and pneumatic leakage accordance with BS 12266.1.

Block Only

Double Ball

OS & Y Bonnet Option

Block & Bleed Single Ball Block & Bleed

Block & Bleed Ball/Needle Style

Double Ball Block & Bleed

Double Block & Bleed Ball/Needle/Ball Style

Double Block & Bleed

24

F LOW T U R N - Needle and Instrumentation Valves

POSITIVE ISOLATION BLOCK & BLEED VALVE

MODEL SBB-SW FLANGED NPT OR SW DOUBLE BLOCK & BLEED & NEEDLE VALVE Size NB (NPS)

Dimension (mm) Rating (Class) 150

20mm (3/4”)

35mm (1”)

40mm (1 1/2”)

50mm (2”)

89

60.3 66.7

900/1500

121

82.5

2500

134

88.9

150

99

69.8

118

82.5

900/1500

130

88.9

2500

140

95.2

150

108

600

300 600

L

T RTJ

RF

-

11.2

-

3.6

188

193

14.3

18.3

3.9

196

20.6

19.8

4.0

28.8

28.8

5.4

36.6

36.6

6.9

12.7

-

3.9

15.7

20.6

4.6

22.1

22.3

4.7

31.8

21.8

6.3

38.2

38.2

7.5

14.3

19.0

4.0

213 -

188

196

206

213

79.4

178

183

124

88.9

180

900/1500

150

101.6

2500

159

108.0

150

127

98.4

300 600

300

RTJ

Weight (kg)

RF

206

185

17.5

22.3

4.6

188

23.9

23.9

4.7

191

198

34.8

34.8

7.0

206

206

41.5

41.5

8.6

180

185

17.5

22.3

4.6

183

188

20.6

25.4

6.0

156

114.3

193

193

28.8

28.8

6.5

900/1500

178

123.8

203

203

38.2

38.2

9.4

2500

203

146.1

216

216

50.9

52.4

15.9

150

153

120.6

183

188

19.1

23.9

6.6

165

127.0

900/1500

216

2500

235

600

300 600

185

192

22.4

28.7

8.0

196

197

31.8

33.3

8.3

165.1

226

210

44.5

46.0

15.0

171.5

221

223

57.2

58.7

22.0

ØB

(1/2”)

B

96

ØA

15mm

300

A

APV

APV

T L

F LOW T U R N - Needle and Instrumentation Valves

25

POSITIVE ISOLATION BLOCK & BLEED VALVE

MODEL SBB-SW FLANGED BOTH ENDS DOUBLE BLOCK & BLEED TWIN BALL VALVE Size NB (NPS)

Dimension (mm) Rating (Class) 150

(1/2”)

20mm (3/4”)

25mm (1”)

40mm (1 1/2”)

50mm

89

60.3

96

66.7

900/1500

121

825

2500

134

88.9

150

99

69.8

118

82.5

900/1500

130

88.9

2500

140

95.2

150

108

79.4

124

88.9

900/1500

150

2500

159

150

127

600

300 600

300 600

300

L RF 208

243

208

T RF

-

11.2

-

4.3

14.2

18.3

5.0

20.6

19.8

5.2

28.8

28.8

7.9

221 256

RTJ

36.6

36.6

10.8

-

12.7

-

4.9

221

15.7

20.6

6.3

-

22.1

22.3

6.5

31.8

21.8

9.5

38.2

38.2

12.0

14.2

19.0

5.0

243

256

180

189

186

196

17.5

22.3

6.3

199

199

23.9

23.9

6.5

101.6

221

1221

34.8

34.8

11.2

108.0

234

234

41.5

41.5

14.3

98.4

186

196

17.5

22.3

6.4

192

202

20.6

25.4

9.1

114.3

208

208

28.8

28.8

10.1

900/1500

178

123.8

227

227

38.2

38.2

16.0

2500

203

146.1

253

256

50.9

52.4

27.8

150

153

120.6

189

199

19.1

23.9

9.9

165

127.0

900/1500

216

2500

235

300 600

196

208

22.4

28.7

11.9

215

218

31.8

33.3

13.4

165.1

240

243

44.5

46.0

27.2

171.5

265

268

57.2

58.7

40.0

T L

26

Weight (kg)

RTJ

156

600

ØA

(2”)

B

ØB

15mm

300

A

F LOW T U R N - Needle and Instrumentation Valves

CHECK VALVES

PISTON CHECK MODEL CAV-3 INLINE 3000 PSI

The CAV-3 check valve is a one piece body machined from bar stock and is designed for minimum pressure drop. The valve has a light weight compact design that provides maintenance-free dependable service. 10,000PSI Model also available to 2”

DIMENSIONS MM (INCHES) A

B

C (TYP)

FLOW

Body Material

Availability

NB (mm)

Nom. Pipe Size (in)

Size Code

A mm (in)

Hex* Size B

C

Orifice Diameter

10 15 20 25 32 40 50 65 80 100

3/8 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 4

C D F H I J K L M N

54.9 (2.16) 68.8 (2.71) 74.9 (2.95) 92.5 (3.64) 99.3 (3.91) 110.7 (4.36) 148.6 (5.85) 139.7 (5.50) 158.7 (6.25) 181.1 (7.13)

13/16 1-1/8 1-1/4 1-5/8 2-1/4 2-1/2 3 3-3/4 4-1/2 5-1/2

3/8 NPT 1/2 NPT 3/4 NPT 1 NPT 1-1/4 NPT 1-1/2 NPT 2 NPT 2-1/2 NPT 3 NPT 4 NPT

8.8 (0.348) 11.8 (0.464) 15.1 (0.593) 22.6 (0.890) 28.8 (1.135) 35.2 (1.385) 39.5 (1.555) 39.5 (1.555) 51.4 (2.025) 65.0 (2.560)

Non-Shock Pressure-Temperature Rating

316 Stainless Steel (SS) Carbon Steel (CS)

Standard

Brass (BR) Alloy 20 (A2) Hastelloy® C (HC)

Semi-standard

Monel® Hastelloy® B (HB) Titanium (TI)

3/8 - 3” (10 - 80mm) 3000 PSIG @ 38oC (100oF) (1500 PSIG for o-ring seats)

4” (100mm) 1500 PSIG @38oC (100oF)

Special

F LOW T U R N - Needle and Instrumentation Valves

27

CHECK VALVES

PISTON CHECK MODEL CAV-3 INLINE 3000 PSI PRESSURE/FLOW For Water at 72oF 100

10

1 1

10

100

SIZE NPS (in) NB (mm)

BRASS

3/8

10

0.085 kg (3.0 oz.)

0.094 kg (3.3 oz.)

4.3

1/2

15

0.241 kg (8.5 oz.)

0.258 kg (9.1 oz.)

7.2

3/4

20

0.272 kg (9.6 oz.)

0.286 kg (10.1 oz.)

11.0

1

25

0.544 kg (1.2 lb.)

0.590 kg (1.3 lb.)

19.0

1-1/4

32

1.315 kg (2.9 lb.)

1.451 kg (3.2 lb.)

31.9

1-1/2

40

1.633 kg (3.6 lb.)

1.769 kg (3.9 lb.)

42.0

2

50

2.948 kg (6.5 lb.)

3.266 kg (7.2 lb.)

50.0

2-1/2

65

4.173 kg (9.2 lb.)

4.536 kg (10.0 lb.)

89.0

3

80

6.486 kg (14.3 lb.)

7.031 kg (15.5 lb.)

140.0

4

100

9.752 kg (21.5 lb.)

10.569 kg (23.3 lb.)

Note: All flow curves and Cv values presume the valves are fully open with 1/2 PSI cracking pressure springs. Consult the factory for more information.

1000

WATER FLOW RATE - GPM

SS & CS ALLOYS

1.9

4”

/ 4” 1-1 2” / 2” 2-1 / 2” 3”

1-1

”

” 1”

3/ 4

1/ 2

3/ 8

PRESSURE DROP - PSI

”

Style CAV-3 Cv Values & Valve Weights CV

ORDERING CODE

BODY MATERIAL

SPRING CRACKING PRESSURES

ALLOY 20 = A2 BRASS = BR CARBON STEEL = CS HASTELLOY ®B = HB HASTELLOY ®C = HC MONEL® = MO 316 SS = SS TITANIUM = TI

Replace “X” with actual desired setting.

Must use decimal as a character.

(PSI) FORMAT 0.000 TO 0.999 = .XXX 1.00 TO 9.99 = X.XX 10.0 TO 99.9 = XX.X NO SPRING = NOSPRG

C

A

V

3

Note: Many other cracking pressures are available.

Consult factory.

SPECIAL OPTIONS

STANDARD CRACKING PRESSURES (1)

T = FEP ENCAPSULATED SPRING

.125 .500 1.50 3.50 (Sizes C-I Only)

Contact the factory for more options

D

C

S

N

E

.

X

X

X

S

S

T

VALVE STYLE

SIZE

SEAT MATERIAL (2)

SPRING MATERIAL

3/8 = C 1/2 = D 3/4 = F 1=H 1-1/4 = I 1-1/2 = J 2=K 2-1/2 = L 3=M 4=N

AFLAS® = AS BUNA-N = BN EPDM = EP KALREZ® = KZ METAL-TO-METAL = MT NEOPRENE = NE PTFE = TF VITON® = VT

316 SS = SS HASTELLOY®C = HC HASTELLOY®B = HB INCONEL® X-750 = IX MONEL® = MO 17-7PH SS = PH TITANIUM = TI

Listed above are the most common material selections. Please contact the factory for additional options.

(1) .500 PSI is the only standard cracking pressure for spring materials other than Stainless Steel.

Cracking pressure tolerance is +/- 15%. .125 PSI springs are not recommended for installations with flow vertical down.

(2) Seat materials other than metal-to-metal have a maximum pressure rating of 1500 PSI. PTFE seats are not resilient.

28

F LOW T U R N - Needle and Instrumentation Valves

BALL VALVES

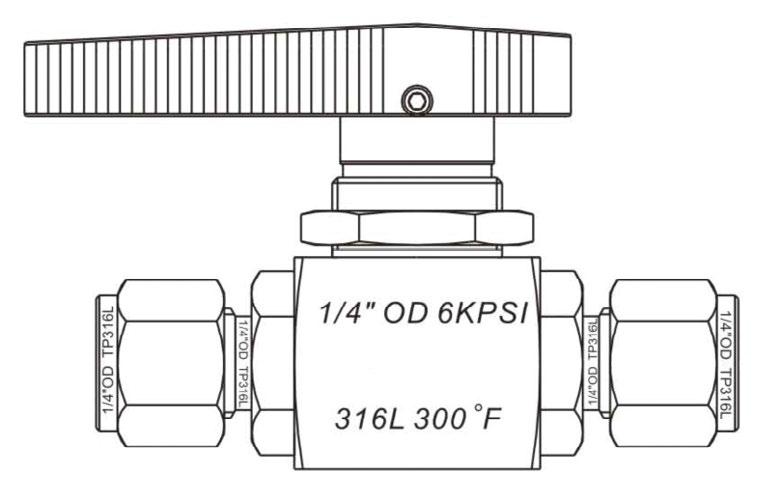

INSTRUMENT BALL VALVES 40 SERIES 3 WAY Flowturn 40 Series 3 way L-port Ball Valves, are a rugged compact design, offer positive shut off or directional control of fluids in process, power and instrumentation applications. The unique design ensures excellent sealing characteristics while accomodating a superior temperature range and cycle life.

A high integrity metal to metal bonnet anti ingress seal ensures leak tightness at high pressures up to 413 Bar (6000 PSI). These valves are available in two-way and multi-way 3/4/5 configurations in brass, 316 stainless steel, Monel and Inconel construction, with a wide variety of port connections. A trunnion mounted version with Kel-F or Polyaman or metal seats is available for higher pressures up to 689 Bar (10,000 PSI).

FEATURES • • • • • • • • • • • • • • • •

6~25 NB (1/4”~1”) Uni-Body, multi gland seal design*.

L-port.

Broad temperature range.

Blow out proof stem.

Available in one piece stem/ball*, floating ball.

Panel mountable option.

Bi-Directional flow.

Handle indicates preferred direction of flow.

Positive handle stops.

100% factory Nitrogen tested.

Low operating torque.

Vent option.

Manual, electric or pneumatic actuation.

Screwed tube fitting ends.

Option - also available with 316SS handle and locking device

* Refer to drawing, several design options available.

• Ingress seals fitted as standard • Flexible packing for replacement can extend field life further.

MATERIAL OF CONSTRUCTION Item#

Part Description

Stainless Steel

Brass

1

Body

ASTM A 276 Type 316

ASTM B16 Alloy C36000

2

Stem

ASTM A276 Type 316

3

Hollow Insert

316 Stainless Steel

4

Packing Washer

5

Packing Nut

6

Solid Insert

316 Stainless Steel ASTM A 479 Type 316

ASTM B16 Alloy C36000

316 Stainless Steel

7

Handle

Phenolic

8

Set Screw

Stainless Steel

9

Panel Nut

316 Stainless Steel

10

Seat

Perfluoroalkoxy (PFA)/KEL-F/RPTFE

11

Packing Ring

ASTM A 479 Type 316

12

Packing

PFA-Perfluoroalkoxy/PTFE

Also refer to pressure temperature ratings of elastomers (such as Viton and Buna) and the overall pressure rating of the valve design itself, can reduce the pressure temperature rating of the valve.

• Full material traceability of main components.

• Materials of construction can be supplied to meet the requirements of NACE MR-01-75 latest revision.

SPECIFICATIONS Pressure Rating

2,500 PSI (172 Bar) to 6,000 PSI (414 Bar)

Temperature Rating

-54°C to 200°C* (-65°F to 392°F)

Cv

.05 to 6.96

Body Configurations

2 way, 3-way, 4 way and 5 way

Port Connection

6~25NB (1/4”~1”) Tube compression - Twin Ferrule NPT (Male / Female) BSP

Seat/Packing

PFA-Perfluoroalkoxy/PTFE

* or -29° ~ 150°C if Viton seal fitted.

F LOW T U R N - Needle and Instrumentation Valves

29

FLOW CONTROL REGULATORS

FLOW CONTROL REGULATORS FCV SERIES MODEL FCV3 (ONE WAY) 3000 SERIES

MODEL FCV4 (BI-DIRECTIONAL) 4000 SERIES

Available Size

1/8” to 1/2” pipe thread.

Available Size

1/8” to 1/2” pipe thread.

Pressure Rating

Up to 16 bar [232psi]

Pressure Rating

Up to 40 bar [580psi]

Temperature Rating

Up to 120OC

Temperature Rating

Up to 120OC

End Connection

BSP/BSPT/NPT/SAE Straight Thread

End Connection

BSP/BSPT/NPT/SAE Straight Thread

1 4

2 side mount holes 3

E

5

ø6.5

D 6

P

• Bifold style

P

• Side fixing panel or mount option.

A

8

A

MATERIAL OF CONSTRUCTION Item#

Part Description

Material

1

Knob

SS316

2

Lock Position Nut (1)

SS316

3

Bonnet Body

SS316

4

Spindle (3)

SS316

5

O-Ring

Viton

6

Bushing

PTFE

7

Washer

Viton

8

Valve Body

SS316

F

(1) Adjustable Nut set to maximum travel.

(3) Variable controllable open position.

DIMENSIONS MM & KG Pipe thread P 1/8 BSP/NPT 1/4 BSP/NPT 3/8 BSP/NPT 1/2 BSP/NPT

30

Dimension A 16.5 27.5 27.5 34.0

C 22.0 32.0 32.0 40.0

D max.

52.0 75.0 75.0 92.0

E 23.8 35.0 35.0 48.5

F 16.0 25.0 25.0 30.0

ev

kg

Orifice mm

.40 .50 .90 1.10

0.40 0.45 0.55 0.95

3 4 5 9

F LOW T U R N - Needle and Instrumentation Valves

(Female)

(Female)

C

7

QUICK EXHAUST VALVES

FL-QEV PNUEMATIC QUICK EXHAUST VALVES Allows direct exhaust of compressed air due to increase of cylinder rod displacement speed, this result in reductions of cycle time.

Operating Media

Air, Sweet and Sour Gas

Available Size

8~25NB (1/4” to 1”) Pipe Thread

Pressure Rating

Up to 12 bar [174psi]

Temperature Rating

-20OC to 180OC Standard Service

Sealing Material

Viton

End Connection

BSPP/BSPT/NPT Pipe Threads

Style

Bifold Quick Acting Shuttle Style

D P 1 2

L2 A/F

P 3

1

L1

3

4 2 Free Exhaust

INLET P

Free Exhaust

H

VERTICAL INSTALLATION AS SHOWN

MATERIAL OF CONSTRUCTION Cylinder

Cylinder

Control Valve

Control Valve

PRESSURE

Item#

Part Description

Material

1

Cap/Plug

SS316

2

O-Ring

Viton

3

Sealing Disc

Viton

4

Body

SS316L/316

DIMENSIONS MM & KG

Size

Working Pressures

Cv

P (Female)

D

H

L1

L2

A/F

Model

1/4”

1 - 12 Bar

1.1 (Cyl to exh) / 0.9 (in to cyl)

3/8”

0 - 12 Bar

3.0 (Cyl to exh) / 1.7 (in to cyl)

1/2”

0 - 12 Bar

3.5 (Cyl to exh) / 1.9 (in to cyl)

3/4”

1 - 12 Bar

8.3 (Cyl to exh) / 6.5 (in to cyl)

1”

1 - 12 Bar

10.0 (Cyl to exh) / 8.2 (in to cyl)

1/8” BSP/NPT 1/4” BSP/NPT 3/8” BSP/NPT 1/2” BSP/NPT 3/4” BSP/NPT 1” BSP/NPT

21.0 21.0 25.8 31.0 44.0 44.0

23.0 25.5 26.0 36.0 42.0 46.0

23.0 25.5 26.0 36.0 44.0 48.0

18.7 19.7 21.5 27.8 35.0 35.0

22.0 22.0 27.0 32.0 46.0 46.0

504-FL-QEV 506-FL-QEV 509-FL-QEV 512-FL-QEV 519-FL-QEV 525-FL-QEV

PART NUMBER SYSTEM S AS

Standard Service Arctic Service 06 09 12 19 25

(-20OC to 180OC) (-60OC to 60OC)

Model Prefix Port Sizes

1/4” NPT 3/8” NPT 1/2” NPT 3/4” NPT 1” NPT

Configuration

FL-QEV Quick Exhaust Valve Blank K4

NPT Bug Vent

BSPP BSPT

BSPP Straight Port Option BSPT Taper Thread Option

Options

Blank E S AL AC

S

-

06

-

FL-QEV

-

BSPP

-

Standard Viton EPDM Seal Nitrile Seal Fluorosilicone Seal Silicon Seal

E

F LOW T U R N - Needle and Instrumentation Valves

Ordering Example

31

CONTROLS

SOLENOID VALVES IEC EX SIL POSITIONERS HAZARDOUS ATEX/ANZ/IEC EXd Hazardous, Flameproof, SIL Approved for Oil and Gas, Fertilizer, Power-Thermal, Metal, Chemical & Pharma etc..

2/3/5 Way Solenoid valves with manual reset option, T3,T4,T6 IP 66, IP67 Positioners complete electro-hydraulic actuation systems (linear multi/part turn and rotary in controls and on-off ) positioners

APPROVED

FLUID CONTROLS

FLUID CONTROLS

3 Port Solenoid Valve

Positioners

POWER-THERMAL

KOSHA

OIL AND GAS

MINES & METAL

IEC

CuTR System Certification

AE

AU

PAT I

ME N

M

AE

AU

OCCUPATI

VIRONMEN EN

AS

9100D

S

I TY

SPACE Q RO

M

16949

S

IATF

M

OHSAS

18001

SYSTEM

AS

S

S

IATF

SPACE Q RO

M

MOTIVE Q TO

M

OHSAS

F LOW T U R N - Needle and Instrumentation Valves SY

ISO

AL HEALTH ON

&

SYS

ISO

L MANAGE TA

NT ME

T

AGEM EN AN

ISO

14001

MOTIVE Q TO

AL HEALTH ON

&

32

PED

L MANAGE TA

NT SYSTE ME

CuTR

ISO

9001

TE SYS M

IEC

AGEM EN AN

T

ALI TY QU M

KOSHA

M

Product Certification

PED

AUSTRALIAN PIPELINE VALVE BRAND RANGE - CATALOGUES

COMPLETE PRODUCT LINE “Australian Pipeline Valve

Product Brochure

Ball Valves Floating & Trunnion Mounted

Ball Valves Floating Small Bore

Ball Valves Special Service

Gate, Globe & Check Valves - Cast Steel

Gate, Globe & Check Valves - Forged Steel

Plug Valves Lubricated, Sleeved & Lined

Oilfield Products Valves & Wellheads

produces isolation, control and flow reversal protection products for severe and critical service media in utility, steam, pipelines, oil & gas and process industries.

APV valves and pipeline products form the most

APV FAMILY OF BRANDS RANGE - CATALOGUES

competitive portfolio in the market.”

Diamond Gear Gearboxes

Flowturn Ball Valves Multiway & Deadman

Flowturn Gate, Globe & Check Valves

Flowturn Instrument Valves

Flowturn Strainers & Sight Glasses

Steamco Steam Valves

Supercheck Wafer Check Valves

Superseal Butterfly Valves

Superseal Industrial Ball Valves

Torqturn Actuators

TwinLok Tube & Pipe Fittings

Uniflo Check Valves

Contact us for your local stockist/distributor View our catalogues at www.australianpipelinevalve.com.au

www.australianpipelinevalve.com.au LOCAL DISTRIBUTOR

QUALITY ASSURANCE AND CERTIFICATION We are continually improving all facets of quality assurance. Full metallurgical and test certificates are always supplied for all pressure retaining parts.

We have endeavoured to provide a broad outline of our range and capabilities. Because we are continually developing new products for our customers this catalogue will, to some extent be incomplete. This catalogue is a general overview only, individual drawings and data sheets can be furnished on request.

If you have any requirement in the field of valves, please contact us for a prompt response. Continuous development of Australian Pipeline Valve products may necessitate changes in the design or manufacturing processes. Australian Pipeline Valve reserves the right to effect any such changes without prior notice.

© Australian Pipeline Valve 1990 - 2025 Edition
