SUPERIOR Network of Companies DIRECTORY
DIVISION

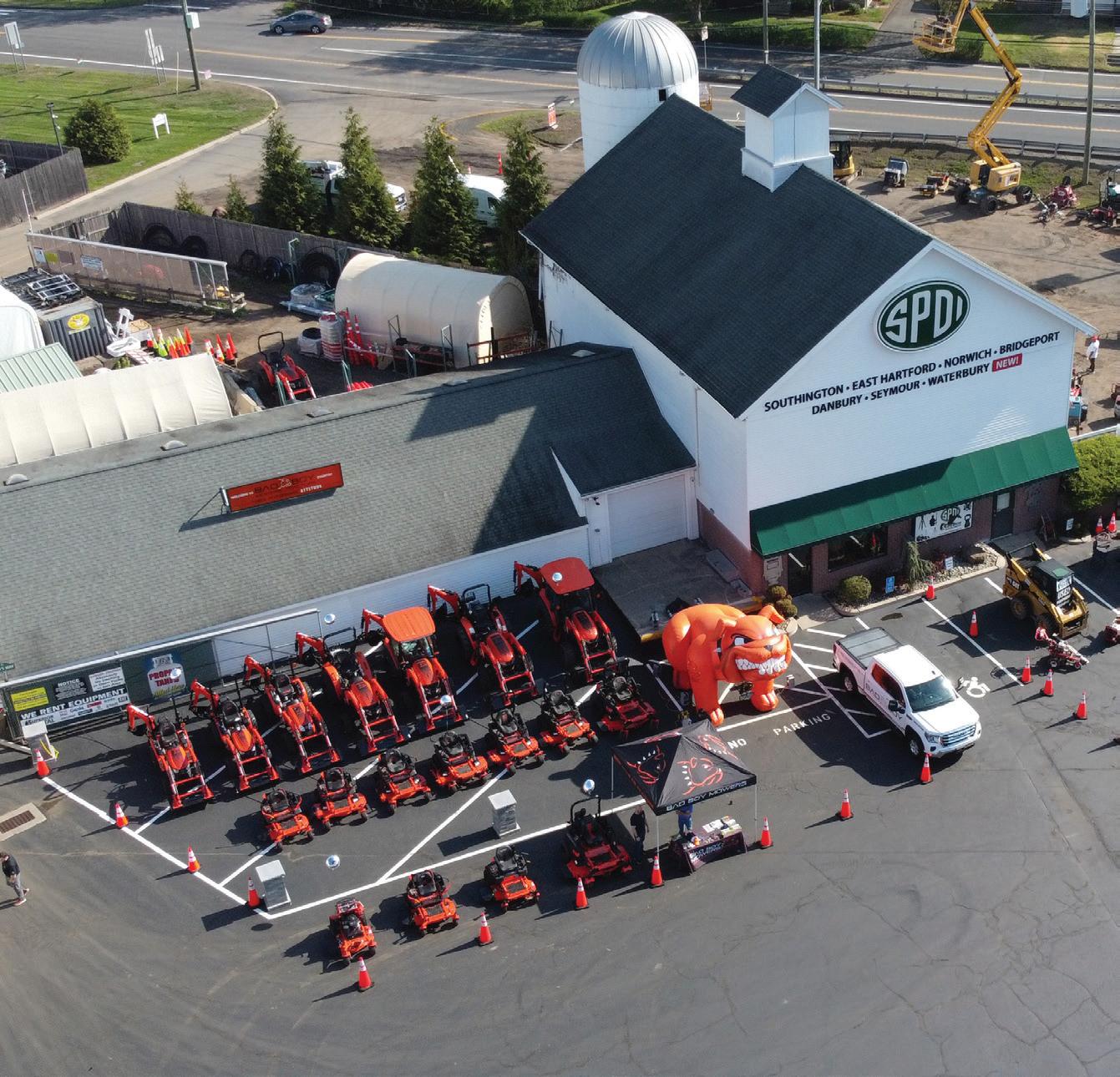

Superior Products Dist., Inc. (860) 621-3621 (860) 621-7922
7:00-5:00
1403 Meriden-Waterbury Turnpike TEXT OR CALL! Sat. 7:00-12:00
Southington, CT (Main Location) (Seasonal)
East Hartford (Branch) (860) 282-7688 (860) 282-7698 M-F 7:00-5:00
185 Burnham Street
East Hartford, CT
Norwich (Branch) (860) 886-9997 (860) 886-9995
251 West Thames Street
Norwich, CT
Bridgeport (Branch) (203) 659-0949 (203) 332-0359
380 Lindley Street
Bridgeport, CT
Danbury (Branch) (203) 744-9984 (888) 729-1110
42 Kenosia Avenue
Danbury, CT
Seymour (Branch) (203) 888-0030
600 Derby Avenue
Seymour, CT
Litchfield (Branch) NEW! (860) 618-5100
7 Iffland Pond Road Sat. 7:00-4:00
Litchfield, CT
Superior Rental (860) 628-4768 (860) 620-5534 M-F 7:00-5:00
1403 Meriden-Waterbury Turnpike TEXT OR CALL! Sat. 7:00-3:00
Southington, CT (Main Location)
Logistics Facility (860) 628-4768 M-F 7:00-5:00 1198 West Street
Southington, CT
Superior Equipment & Supplies (860) 628-4768 (860) 620-5534 M-F 7:00-5:00
1403 Meriden-Waterbury Turnpike Sat. 7:00-3:00
Southington, CT (Main Location)
Parts & Service Department (860) 628-4768 (860) 620-5534 M-F 9:00-5:00 (Main Location) Sat. 9:00-2:00
Superior Instrument (860) 276-8796 (860) 620-5534 M-F 7:00-5:00
1403 Meriden-Waterbury Turnpike
Southington, CT (Main Location)
Superior Hearth, Spas & Leisure
Southington (860) 620-5555 (860) 620-6699 Tu-F 10:00-6:00
1457 Meriden-Waterbury Turnpike Sat. 9:00-5:00
Southington, CT (Seasonal) Sun. 11:00-4:00
Avon (860) 677-2304 (860) 677-2094
353 West Main Street Sat. 9:00-5:00
Avon, CT (Seasonal) Sun. 11:00-4:00
Superior Hearth, Spas & Leisure (860) 620-6487 M-F 9:00-5:00
Parts & Service Department
Schmidt’s & Serafine’s (203) 754-5186 (203) 755-2763 M-F 8:00-6:00
464 Chase Avenue Sat. 8:00-5:00
Waterbury, CT Sun. 9:00-2:00
Parts & Service Department (203) 754-5186 (203) 754-5186 M-F 8:00-5:00
440 Chase Avenue Sat. 8:00-3:00
Waterbury, CT
General InformatIon
Delivery/Pickup
We offer statewide delivery service for our rental equipment, instrument services, and jobsite supplies. Ask for our delivery rates upon making your reservation. We also provide same day delivery. There is no jobsite in New England or New York that is out of our range. We also realize there are certain times when there is an emergency and we will immediately adjust to respond to those needs. Be sure to make a reservation to ensure we have a delivery time that is convenient for you.
Rental Purchase
We have programs available to convert a rental into a purchase. All rental to purchase transactions must be clearly defined in writing before the onset of the rental. Any previously paid rental will not be applied towards a buyout after the fact.
Accessories/Fuel
We have many accessories for our rental equipment which are not listed in the rate guide. In some cases these accessories may be available at an additional charge. Please be aware fuel is not included in our listed rental rates. We can provide fuel, available at all four locations, for your convenience and this cost will be added to your rental contract.
Rental Period
Our rental rates are based on nine hours of running time per day or forty-five hours per week. This is a considerable advantage over our competitors who offer only an eight hour running day. Please note, two shift usage is charged at 1.5 times the normal rate and 3 shift usage is charged at 2 times the normal rate.
Financing Online with Great America & Trio Capital
We are able to arrange financing for you on most equipment purchases. We can also create a monthly finance payment schedule that can be tailored to your needs.
Service/Parts
We service everything that we sell in-house. Our service technicians are factory trained to repair many types of equipment. We have the capability to repair most small jobsite equipment that is gasoline, diesel, or electrically powered. We offer quick estimates and turnaround on all of our service work. We also have a large variety of replacement parts in stock for most of the manufacturers we carry. Our parts network is quite extensive for any major manufacturer in the industry, so we can normally have parts we do not stock within a few days. There is no part order too small!
loGIstIcs facIlIty
Strengthening Service Where It Matters Most
Superior Rental is expanding its service and logistics capabilities with a new centralized facility built to do one thing better for customers: keep equipment working, available, and ready for the job.
This facility is not a customer-facing location. It is an operational investment focused on improving how quickly equipment is serviced, how reliably it performs, and how efficiently Superior Rental can support jobs in the field. By bringing service, maintenance, and logistics together in one modern facility, we are removing delays that slow projects down.
Built to Keep Equipment Job-Ready
Reliable rentals start long before equipment reaches a job site. They depend on space to work, skilled technicians, and systems designed to keep equipment moving without bottlenecks.
The new logistics facility provides a larger, modern environment for inspections, repairs, and preventative maintenance. It allows our service teams to work more efficiently, address issues faster, and prepare equipment to meet today’s job demands. Centralizing these operations improves coordination across teams and helps reduce downtime that can disrupt schedules.
What This Means for Your Rental
This investment directly improves the rental experience. With service and logistics operating from one location, Superior Rental can turn equipment faster, respond to service needs more quickly, and support more jobs at the same time.
Customers benefit through improved equipment availability, faster service response, and greater confidence that equipment will perform as expected. Even though customers do not visit this facility, its impact is felt on every delivery, pickup, and service call.
Ready for Today’s Jobs and What Comes Next
As projects become larger and timelines tighter, service infrastructure needs to keep pace. This facility gives Superior Rental the space and resources to support modern equipment, higher utilization, and continued growth without sacrificing reliability.
It strengthens our ability to support customers today while preparing for the demands of tomorrow.
A Continued Investment in Reliable Service
This new logistics facility reflects Superior Rental’s ongoing commitment to dependable equipment and responsive support. Continued investments in people, facilities, and equipment ensure customers can focus on their work, knowing their rental partner is built to support it.
Compressors & air tools
Compressors & Air Tools

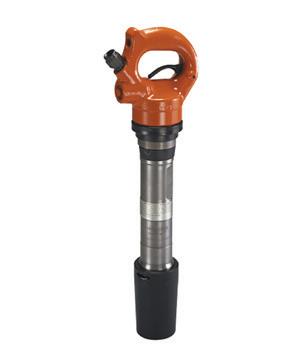

Breaker,
15 lb. Air Chipping
Specifications: Optional
Shank Size: .580” Hex Shank
Stroke Length: 2-1/2” (50.8 mm)
Piston Diameter: 1-1/8” (28.54 mm)

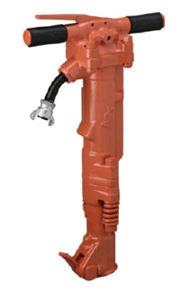

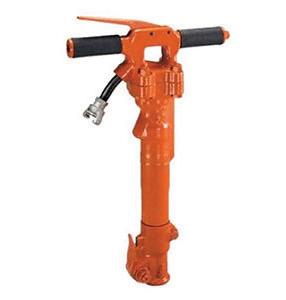

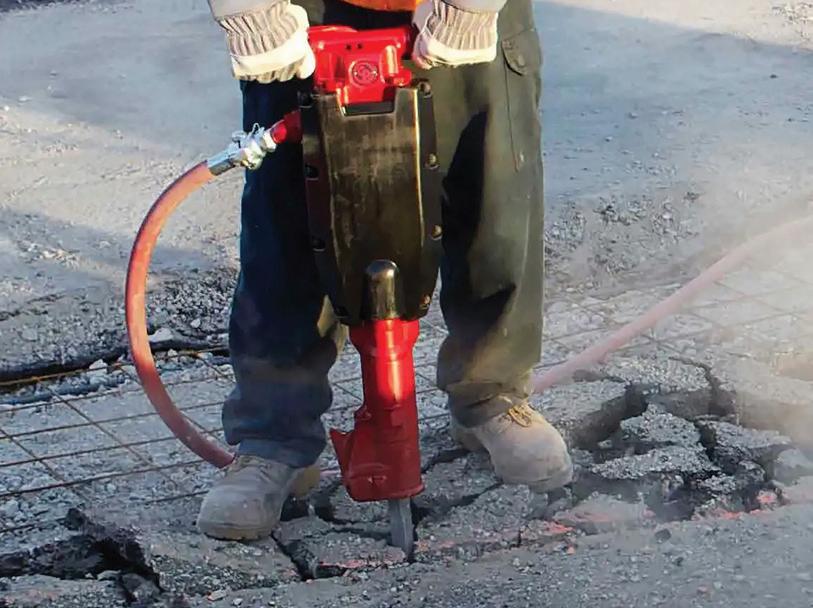

Breaker, 30 lb. Air
Toku PB-30 Paving Breaker
Impact Rate: 2,000 to 2,200 B.P.M.
Max PSI: 90 lbs
• Steel Point, Chipping Gun • Air Hose, 50’
Shank Size: 1” x 4-1/4”
Impact Rate: 1,550 B.P.M. Weight: 33 lbs (15 kg) Specifications:
Stroke Length: 3-11/32” (85 mm) Piston Diameter: 1-3/4” (44.45 mm)
Breaker, 60 lb. Air
Specifications:
Consumption: 48 cfm
Inlet Diameter: 3/4” NPT
Chuck Size: 1-1/8” x 6”
Bore Diameter: 2-5/8”
Shipping Weight: 74 lbs Chuck Size: 1-1/8” HX x 6”, 1-1/4” HX x 6”
1,350 Breaker, 90 lb. Air CFM at 90 PSI: 75-80
91 lbs
29”
Inlet Size: 3/4” male NPT
Breaker, Rivet Buster 133APT
Bore Diameter: 1-3/16”
Stroke: 8”
Weight: 30 lbs Length: 22-1/2” Air Inlet Size: 1/2” female NPT Specifications:
Blows per Minute: 1,140 CFM @ 90 PSI: 42 - 46
Specifications:

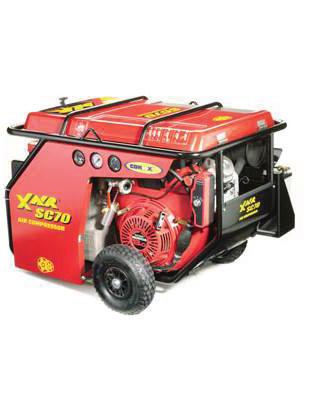

Rated Output: 70 CFM (1.98 m^3/min)
Rated Pressure: 100 PSI (6.9 bar)
Pressure Range: 72 - 125 PSI (5 - 8 bar)
Oil Capacity: 1.1 gal (4.0 L)
Engine Make/Model: Honda GX610K1
Cooling System: Air/Oil
Full Safety Shutdown: Compressor & Engine Compressor, 70 CFM Portable
Splitter, Air Rock
Hole Diameter: 1-3/4”
Hole Depth: 26”
Effective Force: 400 tons
Weight: 68 lbs
Including Hydraulic power pack
The Elco air powered hydraulic power
Engine Output: 18 HP (12 kW)
Starting System: Electric/Recoil
Engine RPM Range: 2,200-3,500
Tank Capacity: 5.3 gal / 20 L
Lifting Hooks Included
Dry Weight kg / lbs 135 / 298
Dim. L x W x H 34 x 26 x 23 in
Sound level dB(A) @ 23 feet 74
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
Breaker Tool, Dirt Tamper
Breaker Tool, Frost or Split Wedge
Breaker Tool, Point
Air Hose, 50’
• Breaker Tool, Asphalt Cutter • Breaker Tool, 1” or 3” Chisel • Breaker Tool, Dirt Tamper • Breaker Tool, Frost or Split Wedge • Breaker Tool, Point • Air Hose, 50’
Air Hose, 50’
unit consists of an air motor, hydraulic pump, hydraulic reservoir, and pressurematic valve, all contained within a compact package. The air motor requires 50 to 80 CFM at 100 PSI. The air must be clean, dry, and lubricated.

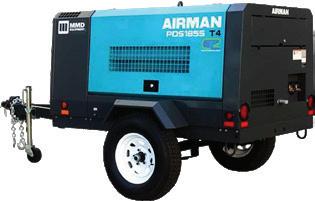

• Compressor, 185 CFM Diesel

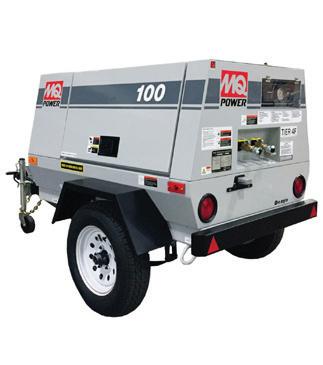

Compressor, 100 cfm Diesel
Specifications:
Type: Rotary Screw
Rated Delivery: 95 / 2.8
Rated Operating Pressure: 100 PSI
6.9 BAR
Trailer Specifications
Gross Axle Weight Rating (GAWR):
2,500 lbs (1,334 kg)
Hitch: Pintle
Dimensions & Weights
Overall Length: 112.20 in (2850 mm)
Overall Width: 58.07”
Compressors & Air Tools
Overall Height: 51.57”
Operating Weight: 1,631.42 lbs
Shipping Weight: 1,521.19 lbs
Engine Specifications
Make/Model: Kubota / D1005-E4B
Emissions: Tier 4 Final Certified
Starting System: Electric
Gross Engine Power Output: 24.4 bhp 18.19 kW
Fuel Tank Capacity: 10.6 gal
Oil Capacity: 1.4 gal

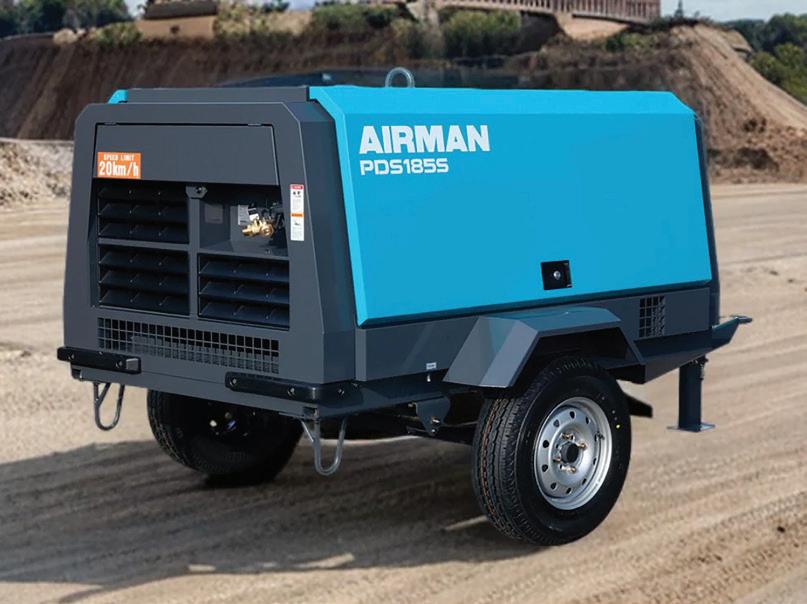

Compressor, 185 CFM Diesel
• Air Hose, 50’
• Breaker, 15 lb. Air Chipping
• Breaker, 30 lb. Air
• Breaker, 60 lb. Air
• Breaker, 90 lb. Air
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
• Breaker Tool, Point
Specifications: Optional
Engine Model: Yanmar 4TNV88C-DHKS
Horsepower: 47.6 HP
Free Air Delivery: 185 cfm
Working Pressure: 100 psig
Max. Working Pressure: 120 psig
Air Receiver Tank Capacity: 5.29 gal
Air Outlets: ¾” x 2
Fuel Capacity: 24 gal
Sound Level: 62 dBA
Operating Weight: 2,620 lbs
Dry Weight: 2,120 lbs
Weight w/ Towing Frame: 2,420 lbs
Dimensions (w/ Towing Frame): 132” L x 68” W x 62” H
Compressor, 375 CFM Diesel
Model: M114
Free Air Delivery @ 100 psig: 375 CFM
Free Air Delivery @ 145 psig: 345 CFM
Free Air Delivery @ 175 psig: 296 CFM
Free Air Delivery @ 205 psig: 265 CFM
• Air Hose, 50’
• Breaker, 15 lb. Air Chipping
• Breaker, 30 lb. Air
• Breaker, 60 lb. Air
• Breaker, 90 lb. Air
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
• Breaker Tool, Point
Pintle Hitch: Included Specifications:
Fuel Tank Capacity: 45 gal
Weight: 4,111 lbs
Outlets: 3 x ¾”, 1 x ½”
Dimensions (L x W x H): 191-7/16” x 73-7/16” x 62-15/16”
Power at Full Load: 103 HP
Fuel Type: Diesel
Drill, Rock Air
Specifications:
Weight: 48.5 lbs
Length: 23-1/4”
Bore & Stroke: 3” x 2-5/8”
Impact Rate: 1,800 blows/min
Air Consumption: 99 cfm
(2.8 m^3/min, 47 l/s)
Air Inlet Diameter: 3/4” NPT
Shipping Weight: 55 lbs
Chuck Size(s): 7/8” HX x 3 1/4”, 7/8” HX x 4 1/4”, 1” HX x 4 1/4”
Post Drive, Pneumatic, Rhino
Specifications:
Duty: Medium
Air Consumption: 42 CFM @ 90 PSI
Weight: 5.46 lbs (24.8 kg)
Master Chuck: 3-7/8” ID
Material: Rhino Alloy
Piston: Double Valve
Rhino PDT-55 Transport Kit Includes: Transport Accessories, PD-55 Medium
Duty Post Driver, 3” (76.2 mm) Chuck
Adapter, 2-1/2” (63.5 mm) Chuck Adapter, 2” (50.8 mm) Chuck Adapter, Channel Post Chuck Adapter, Throttle Valve Kit with 20.5 ft of Hose, Filter-Regulator-Lubricator and 5 ft. of Hose, Total Solution includes the PDT-55 (071216) & MP-3 Post Puller (071012)
• Air Hose, 50’
• Breaker, 15 lb. Air Chipping
• Breaker, 30 lb. Air
• Breaker, 60 lb. Air
• Breaker, 90 lb. Air
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
• Breaker Tool, Point
Optional Accessories:
• Air Hose, 50’
• Drill Rod, 3’
• Drill Rod, 4’
• Drill Rod, 5’
• Drill Rod, 6’
Optional Accessories:
• Air Hose, 50’
• Compressor, 185 CFM Diesel
compaction
Plate Attachment, MVC88 Urethane Pad
Specifications:
The UPA88T is designed for compacting paving stones and decorative brick. The pad prevents damage to the stone as the plate passes over the surface. It is not intended for soil or backfill compaction.

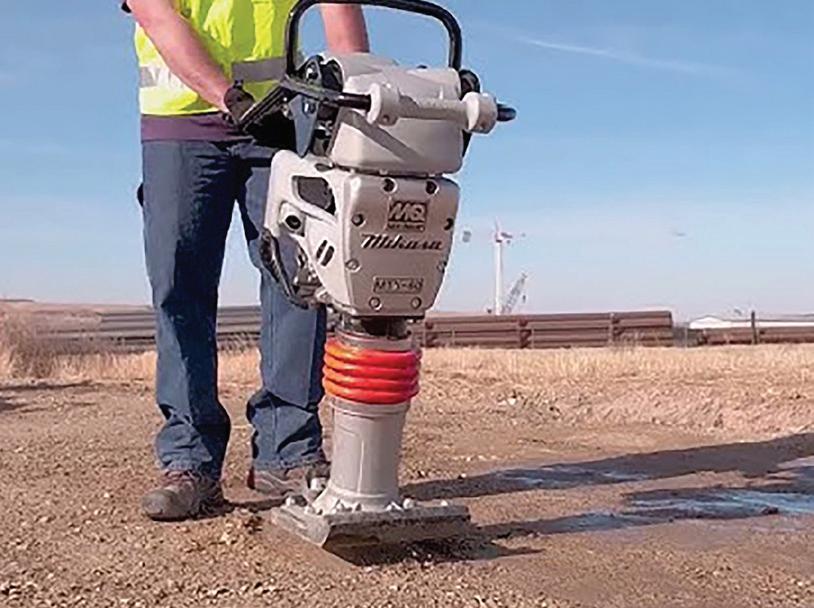

Compactor Rammer
Specifications:
Blows (per min): Up to 690
Impact Force: 3,350 lbf (1520 kgf)
Shoe Jump Height: 3.1” (79 mm)
Shoe Dimensions (L x W): 13.4” x 11.2”
Travel Speed (per min): 55.8’ (17 m)
Fuel Tank Capacity: 2.5 qt (2 L)
Overall Length: 31.0” (788 mm)
Overall Width: 13.8” (350 mm)
Compactor, Roller Paver
Specifications:
MVB85H
Plate size W x L in: 12.60 x 17.05
Centrifugal Force: 2,270 lbs
Exciter Speed VPM: 5,600
Operating Weight: 203 lbs
Rubber Roller Diameter: 2.9”
Compactor, MVC88 Plate
For the use with Multiquip MVC88VTH/VTHW Series plate compactors only.
Overall Height: 40.4” (1,027 mm)
Operating Weight: 165 lbs (75 kg)
Engine Make/Model: Honda GX100
Engine Power: 2.8 HP (2.1 kW)
Fuel Type: Gasoline
Gasoline Engine - Honda GX120 HP Rating BHP (kW)*: 3.5 (2.6) Rollers - 4
Optional Accessories:
Specifications: Optional
Centrifugal Force: 3,420 lbf
Exciter Speed: 6,000 VPM
Plate Size: 19.7” x 20.7”
Fuel Consumption (per/hr): 0.31 gal
Water Tank Capacity: 11.5 qt
Overall Length: 41.75” (1,060 mm)
Overall Width: 19.75” (502 mm)
Overall Height: 37” (940 mm)
Shipping Dimensions (L x W x H): 38” x 22” x 29”
Operating Weight: 218 lbs (99 kg)
Shipping Weight: 225 lbs (102 kg)

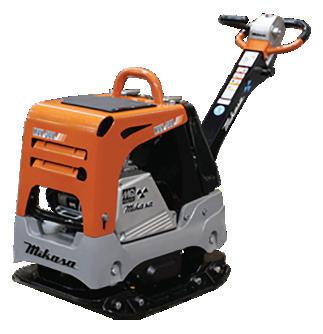

Compactor, 128GH Rev. Plate
• Plate Attachment, MVC88 Urethane Pad
Specifications: Optional Accessories:
MVH128GH
Plate size W x L: 15.8” x 23.2”
Centrifugal Force: 5,283 lbs
Exciter Speed VPM: 5,400
Operating Weight: 268 lbs
Cyclonic Pre-Cleaner: Triple Engine: Overhead Valve, Gasoline
Compactor, 158GH Rev. Plate
Specifications: Optional Accessories:
MVH158GH
Plate size W x L: 16.9” x 27.6”
Centrifugal Force: 6,070 lbs
Exciter Speed VPM: 5,400
Operating Weight: 308 lbs
Cyclonic Pre-Cleaner: Triple Engine: Gasoline
Compactor, 208GH Rev. Plate
Specifications:
MVH208GH
Plate size W x L: 19.7” x 28.3”
Centrifugal Force: 8,318 lbs
Exciter Speed VPM: 5,200
Operating Weight: 463 lbs
Max travel Speed ft/min: 85
Cyclonic Pre-Cleaner: Triple

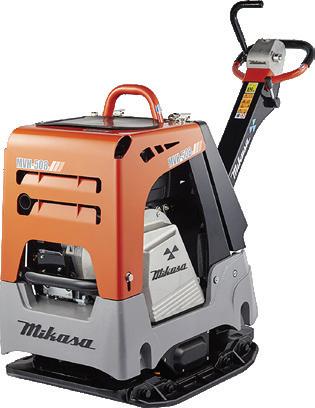

Compactor, 308GH Rev. Plate
Specifications:
MVH308GH
Plate size W x L: 24” x 34”
Centrifugal Force: 10,116 lbs
Exciter Speed VPM: 4,400
Operating Weight: 717 lbs
Max travel Speed ft/min: 79
Cyclonic Pre-Cleaner: Single
Engine: Gasoline
Compactor,
408GH Rev. Plate
Centrifugal Force: 12,400 lbf
Exciter Speed: 4,600 VPM
Overall Width: 25.5”
Overall Height: 53.5”
Operating Weight: 816 lbs Specifications:
Plate Size (L x W): 22” x 35”
Plate Size w/ Extensions: 28” x 35”
Max Forward Speed: 75’
Fuel Consumption (per/hr): .98 gal
Engine: Overhead valve, Gasoline
Overall Length: 35.5”
Compactor, 508MVH Rev. Plate
Specifications:
Centrifugal Force: 15,737 lbf
Exciter Speed: 4,400 VPM
Plate Size: 20” x 35”
Max Forward Speed Per Min: 82 ft
Dimensions & Weights
Overall Length: 63”
Overall Width: 26”
Overall Height: 48”

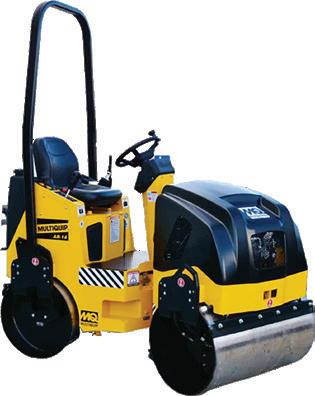

Roller, 1-1/2 Ton Vibratory
Operating Weight: 1,182 lbs Hatz 1D90E Diesel
Operating Weight: 2,910 lbs
On Front: 1,325 lbs
On Rear: 1,587 lbs
Vibration Frequency: 4,000 vpm (67 Hz)
Centrifugal Force: 2,975 lbs
Amplitude (in 0.014”): 0.35 mm
Speed Ranges: 0-4.6 mph
Gradability: 34%
Sprinkler System Capacity: 15 gal
Drum Diameter: 22”
Drum Width: 35”
Overall Length: 75”
Overall Width: 40”
Overall Height: 96”
Wheelbase: 51”
Curb Clearance: 13.4”
Turning Radius: Inside - 74.5”; Outside - 110”
Fuel tank: 9 Gal - Gas
Roller, 3-1/2 Ton Vibratory
Specifications:
Maximum Operating Weight: 6,808 lbs
Operating Weight: 5,533 lbs
Standard Compaction Width: 47”
Travel Speed - Maximum: 7.5 mile/h
Gross Power: 30.7 HP
Engine Model: C1.5
Overall Width: 52”
Wheel Base: 71”
Height - ROPS: 106”
Overall Length: 101”
SERVICE REFILL CAPACITIES
Fuel Tank Capacity: Diesel, 15.9 gal
Water Spray Tank Capacity: 52.8 gal
Centrifugal Force per Drum: Min 3,305 lbs
Centrifugal Force per Drum: Max 6,744 lbs
Roller, 10 Ton Vibratory
Specifications: Optional
Overall Length: 17’
Overall Width: 6.2’
Height to Top of Cab: 9.4’
Wheelbase: 8.4’
Ground Clearance: 15.2”
Drum Diameter (Front): 4.3’
Operating Weight: 15,741 lbs
Fuel Capacity: 72.6 gal
Drum Width: 66.1”
Drum Diameter: 51.2”
Nominal Amplitude - Low: 0.07”
Centrifugal Force - Low: 32,597.3 lbs
Centrifugal Force - High: 29,225.2 lbs
Wheelbase: 8.4’
Roller, Sheepsfoot Trench
Specifications:
The highly productive Husqvarna LP 9505 articulated trench compactor delivers a smooth, compacted surface, which doesn’t dig up soil when turning. Due to the high operating weight and ultimate traction, it is suitable for all kinds of soils (dry or wet) but especially suited for cohesive materials like clay and silt. The fuel-efficient engine provides class-leading power for a whole day of uninterrupted work and the radio remote control offers great flexibility, better ergonomics and safer working conditions. Servicing is quick and easy with all service points clearly marked and easily accessed under the hoods.
Overall Length: 17’
Overall Width: 6.2’
Height to Top of Cab: 9.4’
Ground Clearance: 15.2”
Drum Diameter (Front): 4.3’
Motor/Engine Model: D1105
Engine Power : 24 HP
Power/Fuel Type: Diesel
Starter: Electric
Power Source: Diesel
Centrifugal Force: 16,186 lbf
Speed: 79 ft/min
Length: 73.07 in
Width: 33.46 in
Height: 53.9 in
Weight: 3,704 lbs
Optional Accessories:
concrete & masonry
Concrete & Masonry
Bucket, 1 YD Concrete w/ Side Chute
Specifications:
Model: 100
Width Outside Diameter: 56”
Width Inside Diameter: 52”
Load Height: 46”

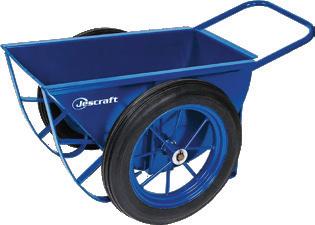

Buggy, Georgia
Specifications:
Make: Jesco
Model: JB Series
Weight: 142 lbs
Overall Height: 63”
Gate Diameter: 24”
Weight: 435 lbs
Cap: 1 yd
Dimensions (L x W x H): 61” x 29.5” x 31”
Capacity: 8 cf
Wheels: 27” Pneumatic

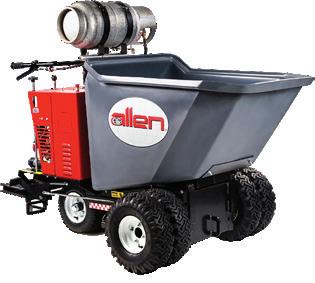

Buggy, 16 CF Propane Concrete Power
Specifications:
Standard Features & Benefits:
13 HP Honda GX390 Engine
8 Gallon (33 lbs) propane tank provides hours of use
16 CF easy-to-clean poly bucket
2,500 lbs load capacity
A top speed of 7 mph for quick transportation
Solid steel 2” frame for maximum durability
Top Speed: 7 mph (11.2 kph)
Bucket Capacity: 16 cu ft
Wheelbase: 40” (102 cm)
Weight: 1,370 lbs (590 kg)
Dimensions: (L x W x H)
97” x 47” x 64”
Buggy, 16 CF Concrete Power
Engine: Honda GX390 (389 cc)
Horse Power Class: 13 hp (9.6 kW)
Starter: Recoil or Electric
Fuel Type: Gasoline
Fuel Capacity: 2 gal
Top Speed: 7 mph (11.2 kph)
Payload: 2,500 lbs (1,134 kg)
Bucket Capacity: 16 cu ft (0.45 cu m)
Lift Cylinder Diameter: 2” (51 mm)
Dump / Return Speed (Empty): 5 sec
Wheelbase: 40” (102 cm)
Weight: 1,300 lbs (590 kg)
Dimensions (L x W x H): 97” x 47” x 50” (246 x 119 x 127 cm)
Buggy, 16 CF Track High Lift Battery OP
Specifications:
Ultra Buggy e2500-THL(68142)
Raise productivity on the jobsite with Toros electric high-lift Ultra Buggy
e2500-THL. With a 76” dump height, operators can effortlessly clear a 30yard dumpster with up to 1,250-lbs of material.Powered by Toros patented HyperCell Battery technology, the Ultra Buggy e2500-THL delivers up to eight hours of quiet performance to easily transition from outdoor jobsites to noise-sensitive indoor spaces. Save time, boost efficiency and save crews from excess fatigue.
Battery Capacity: 13 kWh
Battery Charging Requirements: 100-240 Volt, on-board
Battery Charging Time: Up to 6 hours for full charge
Battery Charging Type: 100-240 Volt, on-board
Battery Chemistry: Toro HyperCell Lithium Ion
Discharge Height - Scissor Down: 41.7 in
Discharge Height - Scissor Raised: 76 in
Height: 59.3 in
Length - Platform Down: 101.5 in
Length - Platform Up: 88.7 in
Max Load Capacity - Full Dump Height: 1,250 lbs
Max Load Capacity - Standard Dump
Height: 2,500 lbs
Maximum Load Capacity: 2,500 lbs
Run Time: Up to 8 hours
Weight: 2,650 lbs
Width: 31.5 in
Propane Tank, 33 lbs
Propane, 33# Fill
Buggy, 16 CF Gas Swivel Dump Track
Specifications: Optional Accessories:
180 degree swivel allows user to dump anywhere along the swivel radius increasing the productivity on jobsites in tight spaces.
The traction controls are easy to learn and with the dump and swivel switches mounted and linked to the traction controls users have easy access.
Reinforced tracks ensure maximum strength and performance
Auto-Return Dump feature ensures the tub automatically returns to resting position so the operator can focus on retrieving the next load of materials.
Capacity 16 cu ft (0.45 cu m)
Engine 25 HP Kohler Confidant Speeds 6 mph forward, 3 mph reverse
Weight 1,975 lbs
Buggy, 16 CF Battery Gas Swivel Dump Track
Specifications:
The electric swivel Ultra Buggy e2500TS gives crews the flawless precision needed to transform jobsites. Operators can unload sand, gravel, concrete and other heavy materials along a 180-degree radius for ultimate precision from any angle. And it s all powered by Toro s patented HyperCell battery technology that delivers up to eight hours of quiet runtime without sacrificing power. Crews
Optional Accessories:
will still enjoy the same 2,500-lb carrying capacity of gas models to reduce physical strain and accelerate efficiency on indoor or outdoor jobs.
2,500 lb / 14 ft capacity 13kWh HyperCell Battery Powered
Up to 5 mph Travel Speed
31.5” Width
Up to 8 hr runtime on a single charge 2,080 lbs

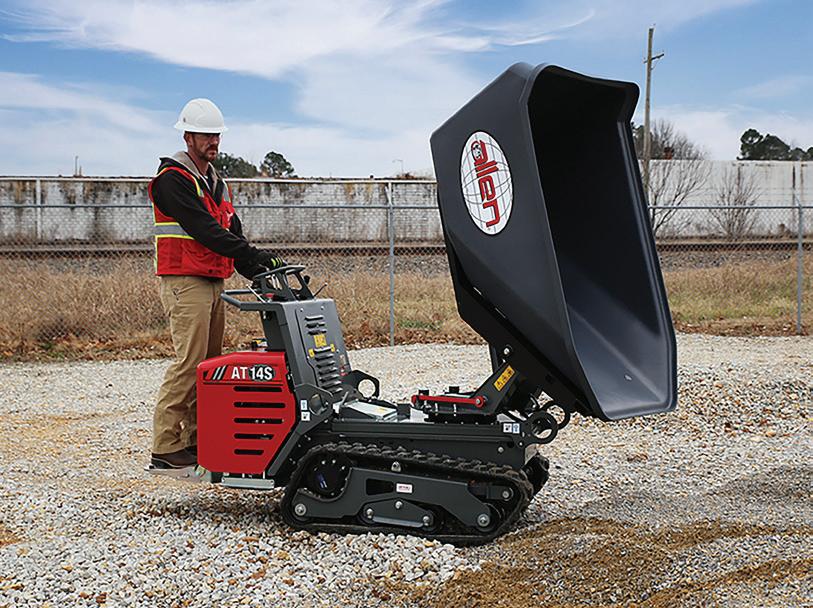

Buggy, 16 CF Track Concrete
Specifications:
Model: AT16
Engine: Kohler 27 HP Vertical Shaft with Electric Start
Payload: 2,500 lbs (1,135 kg)
Dimensions L x H: 102.5” x 65.25” (260 cm x 166 cm)
Length with Platform Up: 92” (234 cm)
Length with Platform Down: 102.5” (260 cm)
Dimensions (Width): 35.625” (90 cm)
Wheelbase / Track Length: 119” (302 cm)
Bucket Capacity: 16 cu ft (0.45 cu m)
Weight: 1,475 lbs (669 kg)
Lift Cylinder Diameter: 2.5” (64 mm)
Dump/Return: 7 sec
Top Speed Work: 4 mph (6 kph)
Transport: 6 mph (10 kph)
Fuel Capacity: 6 gal Gas

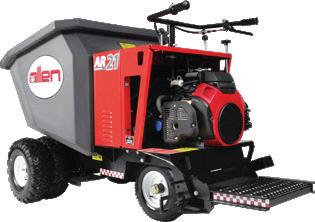

Buggy, 21 CF Concrete Power
Specifications:
Engine: Honda GX630 (688 cc)
Horse Power Class: 20 hp (14.9 kW)
Starter: Electric
Fuel Type: Gasoline
Fuel Capacity: 2.1 gal (8 L)
Top Speed: 5.9 mph (9.5 kph)
Payload: 3,200 lbs (1,451 kg)
Concrete Chute
Specifications:
Lengths Available: 8’, 10’, 12’ and 16’
Bucket Capacity: 21 cu ft (0.59 cu m)
Lift Cylinder Diameter: 2.5” (63.5 mm)
Dump / Return Speed (Empty): 8 sec
Wheelbase: 40” (102 cm)
Weight: 1,405 lbs (637 kg)
Dimensions (L x W x H): 97” x 47” x 50” (246 cm x 119 cm x 127 cm)
Core Drill Rig
Specifications:
Motor: 4.8 HP Power @ 120V: 20 A No Load: 450/900 rpm
Core Bit Cap Concrete: 10” Base Size: 14” x 19”
Column Diameter: 2-1/2” x 2-1/2”

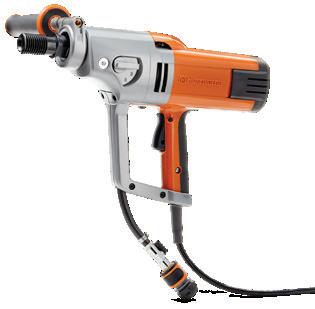

Core Drill, Handheld Rig
Specifications:
Voltage: 230 / 110 V
Amperage: 8 /15 A
Power: 1,850 W
Output rpm: 700 / 1700 / 3,600 rpm
Output rpm at Full Load:
500 / 1,400 / 2,900 rpm
Speeds: 3
Column Height: 42”
Overall Depth: 30”
Overall Height: 46”
Overall Width: 16”
Tool Weight: 120 lbs
Optional Accessories:
• Core Drill Bits: 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2”, 4”, 5”, 6”, 7”, 8”, 10”, 12”
• Extension, 12”
• Vacuum Pump w/ Gaskets (1 set)
• Reducer (1” to 5/8”-11)
• Water Bottle Attachment
Water Coupling: G1/4”
Rated Output: 1,100 / 0 W
Rated Current: 8 / 15 A
Spindle Speed Idle High Speed: 900 / 2,150 / 4,500 rpm
Max Drill Bit Diameter (handheld): 3”
Core Drill, Handheld Hydraulic
Brand: Hycon
Model: HCD50-200
Motor: HCD50-200
Engine: Hydraulic Drill Speeds: 1-Speed Core Drill rpm: 600 rpm
Maximum Bit Capacity: 2” - 14”

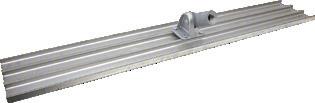

Float, Bull
Blade Length: 4’
Bull Float Handle, 6’
Drilling Stroke: 14” Stroke
Hydraulic Working Pressure: 1,600 psi / 100 bar
Hydraulic Maximum Pressure: 2,500 psi / 172 bar
Hydraulic Oil Flow: 5-8 GPM / 20 LPM Weight: 17 lbs
• Core Drill Bits: 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2” and 4”
• Reducer (1” to 5/8”-11)
Ceiling Grinder, Electric Concrete w/ Vac
Handles ceiling heights from 7’ to 12’
Electric model - 1½ HP Baldor motor Self-aligning, spring-loaded grinding head.
Welded aluminum frame will not rust.
Rapid winch driven height adjustment 12” tires for easy maneuverability 5/8” - 11 thread for wheel mount with dust collection vacuum system
• Hydraulic Power Unit
Grinding Disc Speed Min: 0 rpm
Grinding Disc Speed Max: 865 rpm
Direction of Rotation: One Direction Number of Grinding discs: 3 Weight: 240 lbs
• Bull Float Handle, 6’
• Insert, Diamond Misc.
• Vacuum, Hepa Dust Extractor S26-S36
• Bucket, Floor Polishing System
• Pad, 3” Concrete Polishing P1243
Grinder, Elec Turbo PG280 Floor
Specifications:
Required: 30 Amp Breaker
Rated Input Power: 3 HP
Rated Current: 18 Amp
Voltage: 110 V
Phases: 1
Pins: 3
Frequency: 60 Hz
Grinding Width: 11”
Grinding Pressure: 55 lbs
Product Size Width: 16.5”
Product Size Height: 39” Weight: 170 lbs
Grinder, Electric Husqvarna PG540 Floor
Rated Input Power: 5.5 HP
Rated Current: 30 A
Voltage: 200-240 V
Phases: 1
Pins: 3P+E
Product Size Width: 22”
Product Size Height: 28.9”
Weight: 392 lbs
Grinding Disc Diameter: 9”
Concrete & Masonry
Insert, Diamond Misc
Vacuum, Hep Dust Extractor S26-S36
Direction of Rotation: Both directions Number of Grinding Discs: 3 Specifications:
Inserts, Diamond
Product Size Length: 40”
Grinder, Electric Husqvarna PG830 RC Floor
Rated Input power: 22 HP
Rated Current:30 A Voltage: 440-480 V
3
Weight: 1,437 lbs
Grinding Disc Diameter: 10.5”
Direction of Rotation: Independent FWD/REV Direction Control on Both Grinding Discs and Planetary Head Number of Grinding Discs: 3 Specifications:
• Vacuum, Large Hepa Dust Extractor T10000
• Inserts, Diamond
Product Size Length: 55.5” Product Size Width: 32.7”
Vacuum, Large Hepa Dust Extractor DC6000
Voltage: 380-480 V Phases: 3
Air Flow: 406 cfm Max Vacuum: 22 kPa
Suction Inlet Diameter: 3” Weight: 640 lbs
L x W x H: 49” x 30” x 75”

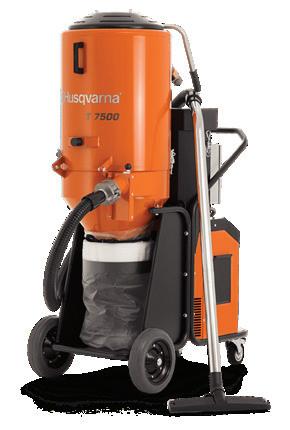

Vacuum, Large Hepa Dust Extractor T7500
Power, HP: 10.1
Voltage: v230
Rated current: 24.2 amps
Power supply: 3-phase
Airflow: 353 cfm
Water Lift: 110” Max vacuum: 28 kPa
Mixer, Cement Towable
Drum Capacity: 9 cu ft (2) 80 lb bags
Drum Opening: 23”
Drum Depth: 31”
Overall Length: 106”
Overall Width: 51”
Overall Height: 72”
Suction Inlet Diameter: 3”
Dimensions L x W x H: 49” x 27” x 69” Weight: 454 lbs
Operating Weight: 800 lbs
Engine Power: 7.1 HP (5.3 kW)
Engine Capacity: 3600 rpm
Fuel Type: Gasoline Pintle Hitch
Hitch, Reese Pintle w/ 2” Ball

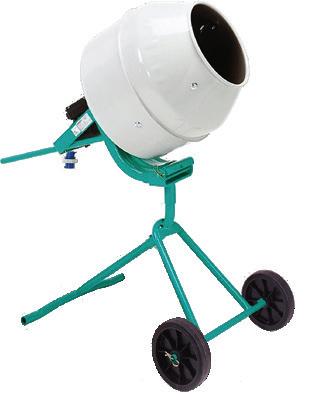

Mixer, Small Portable 3CF-5CF Electric
Specifications:
1/2 HP 110v industrial grade motor with direct gear drive
10” pneumatic wheels
5 cu ft poly or metal drum with 2.5 cu ft output
Aggressive paddles to mix fast and complete
Mixer, Mortar Towable 9CF
Specifications:
Drive System: V-belt
Drum Capacity: 9 cu ft 254.9 L
(2-1/2 - 3-1/2 bags)
Dump Type: Manual
Discharge Height: 21”
Drum Type: Steel
Drum Thickness: 10
Tire Size: B78x13
Power Source: Honda GX240KIHA2
Dimensions & Weights
Overall Length: 98”
Drum capacity: 5 cu ft
Batch output: 2.5 cu ft
Motor rating: 1/2 HP 110v / 6 amp
Drum diameter: 24”
Discharge outlet height: 21”
Wheel size: 10”
Weight: 120 lbs
Overall Width: 50”
Overall Height: 59”
Overall Height w/ Dump Handle: 77”
Operating Weight: 770 lbs
Engine Specifications
Engine Make/Model: Honda GX-240
Start Method: Recoil
Engine Power: 7.9 HP
Engine RPM: 3,600
Fuel Type: Gasoline

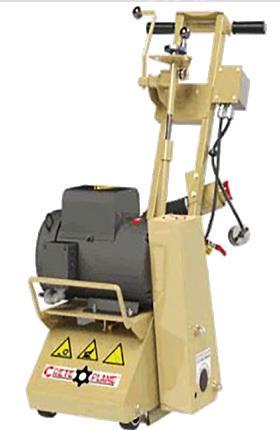

Planer, 8” Concrete Electric
8” working width will scarify approximately 350-500 sq ft per hour at a depth per pass of 1/8”
Removes traffic lines at 800-1,000 lineal feet per hour
Comes standard with universal vacuum port hookup
Carbide & steel cutters
2,130 RPM 220 lbs
Ideal for:
• Sidewalk trip hazard repair
• Concrete and coatings removal
• Creating non-slip surfaces
• Traffic line and markings removal Specifications:
• Floor cleaning and/or preparations
• Cutters, Small Carbide Wheel
5 HP electric motor 230V
Planer, 8” Concrete Gas
Specifications:
Model: CPM-8-9H
Power: Gasoline
Horse Power: 9 HP
RPM’s: 2,150
Length: 35”
Width: 20”
Height: 39”
Weight: 190 lbs
Planer, 10” Concrete Floor
Specifications:
Ideal for:
• Sidewalk trip hazard repair
• Fixing Sidewalks
• Concrete and coatings removal
• Floor cleaning and/or preparations
• Creating non-slip surfaces
• Traffic line and markings removal
Cutter Rotation (Down, Up, Rotary): Down
Production Rate: approx. 2,250 LF
Width / Pass: Up to 10” (254 mm)
Removal Depth / Pass: Up to 1/4” (6.35 mm)
Height: 44” (1,117.6 mm)
Width: 19” (482.6 mm)
Length: 38” (965.2 mm)
• Cutters, Small Carbide Wheel
• Planer, Edger Assembly
• Extension Cord, 50’
Diamond Groove Assembly • Cutters, Large Carbide Wheel
Pump, Grout Imer50
Specifications:
Motor: 115 V
Horsepower: 1-3/4 HP
Pumping System: 2L6 rotor/stator
Flow Rate: 3.5 GPM
Maximum Pumping Pressure: 300 PSI
Maximum Aggregate Size: 1/4”
Hopper Capacity: 12.5 gal
Concrete & Masonry
Compressor Output: 45 psi @ 9 cfm
Weight (palletized): 110 lbs (150 lbs)
Dimensions L x W x H (palletized): 44” x 20” x 25” (50” x 25” x 28”)
Pump, Electric Towable Grout
Specifications:
Motor Power Rate: 7.5 HP, 3 phase
Mixer Power Rate: 2 HP
Electric Compressor: 3 HP / 11 cfm
Max Aggregate Size: 3/8”
Maximum Flow Rate: IM25L 2.75 cu yd
Maximum Flow Rate: 60.12 6 cu yd
Maximum Flow Rate: 2L6 2.35 cu yd
Horizontal Pumping Distance: 300’
Vertical Pumping Distance: 200’
Hopper Capacity: 4.25 cu ft
Dimensions: 33” W x 80” L x 38” H
Weight: 616 lbs

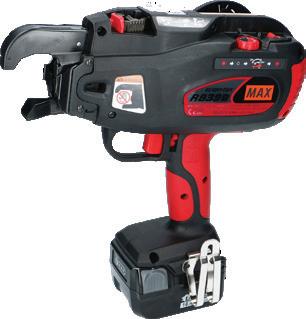

Rebar, Tying Tool
Model: RB398
Applicable Rebar Size #3 x #3#5 x #6
Wire Product/GA: TW898
(Sold per case)
Ties Per Coil: 120
Optional Accessories:
• Hose, 50’ x 25mm Grout
• Gun, Spray Grout
• Mixer, Mortar Portable
• Imer 50 Grout Pump Compressor
• Kit, Imer Pump Cleaning
Standard Equipment Includes:
• 2 Speed Control Panel
• 66’ Power Cord
• Remote Control Ready
• 5 HP / 7.5, 2 Speed, 3 Phase 100%
• Duty Cycle Motor
• IM25L Rotor/Stator
• Tow Kit
• Grate for Premixed Materials
• Accessory Tool Box
Hose, 33’ x 25mm Grout
Ties Per Charge: 2,600
Weight: 5.3 lbs
Tie Speed: less than 1 sec
Tie Wraps: 3
Battery Charge Time: 40 minutes full charge
Rebar Bender, Hydraulic w/ Footswitch
Specifications:
Maximum Rebar Size: 1” (25 mm)
Maximum Bed Rate: 180 degrees diameter in seconds
Bend Angle: Adjustment knob allows fine tuning of bending angle
Standard Foot Switch: Includedprovides the operator the ability to free up hands for safe material handling
Rebar Bender, Manual
Specifications:
• Longer handle and cam mechanism provides greater leverage when cutting and bending grade 60 rebar
• Adjustable 2-1/2” dia. bending roller
• Replaceable cutting jaws have two open slots with innovative shaped
Motor: 115 V, single-phase electric motor @ 13 amps
Rollers & Collars: Included - quickly change your bending radius Built-in Lifting Handles: 2
• Rebar Tiewire Roll
Optional
blades to prevent chipping of the jaws
• Other features include a 12” long no-slip handle grip and a lifting chain to make it easier to carry
Item Weight: 55 lbs
Product Dimensions: 61” x 8” x 10”

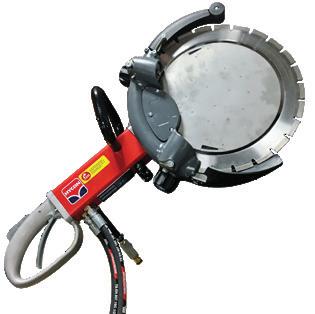

Ring Saw, Hydraulic
Specifications:
Hycon 16” Ring Saw HRS400 11-3/4”
Cutting Depth
• Upgraded Heavy Duty motor design
• Compact, Lightweight 24 Lbs
• Up to 18 HP Output
• ASCO Safety System
• Cuts up to 11-3/4” deep
• Wet use only
• Works Underwater
Power Pack, Hydraulic
Specifications:
HPP23HP Powerpack 23
SKU: P00022
Brand Name: Hycon™
PSI Oouput: PSI 2300/158 Bar
HYD Connections: Single-Output
Primary Output: 5-8-10-12 GPM / 20-30-40-60 Lpm

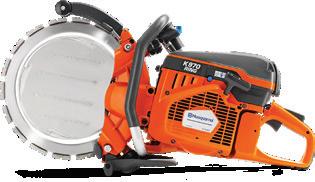

Saw, Diamond Ring Gas
Specifications:
Blade, in (mm): 14” (350)
Cutting depth, in (mm): 10.6” (254)
Power, HP (kw): 6.5 (4.8)
Displacement, cu in (cc): 5.71 (93.6)
Power / weight ratio, HP/lbs: .21
Weight, w/out fuel or blade: 29.8 lbs
Fuel Capacity: 1.1 qt
Concrete & Masonry
• Ergonomic design for comfort
• Minimal maintenance, & easy service
• Guide rollers last 3 times longer than competitors saws
• Improved blade design
• Long lifetime - all parts run in oil
• Easy change of blades
• 1/3 less cutting cost than chainsawing
Optional
• Hydraulic Power Pack
• Ring Blade, 16” Hydraulic
HYD Oil Capacity: 2-3 Gal/7.5 - 11.3 L
Starter: Electric/Recoil
Motor Size: 23 HP Gas
Engine/Motor: Briggs & Stratton Vanguard
Fuel Tank Capacity: 2.3 Gal
Weight: 235 lbs
Optional Accessories:
• Hydraulic Ring Saw
• Saw, Hydracutter Diamond Chain
• Hose Set (2) 1/2” x 50’
• Core Drill, Handheld Hydraulic
Optional Accessories:
• Ring Blade, 14” Diamond
• Can, Gas
• Goggles, Safety

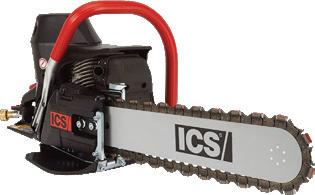

Saw, Concrete Diamond Chain
Specifications:
Weight: 21 lbs 9.6 kg (w/out bar & chain)
Bar Length: -14”
Horsepower: 5 HP (3.7 KW) @ 9,500 rpm
Engine Type: 2-stroke, single cylinder air cooled
Displacement: 4.7 cu. inch (77 cc)
Powerhead Dimensions:
18 in (45 cm) length
11.5” (29 cm) height 10” (25 cm) width
Noise Level: 100 dB @ 3’ (1 m)
Vibration Level: 10.5 meters/second 2 (front handle)
Water Supply: Minimum 20 PSI (1.5 bar)
Fuel Mix Ratio: 25:1 (4%)
Optional Accessories:
Fuel Capacity: 0.23 gal (0.88 liter), 15-18 minutes run • Chain, Concrete Diamond *DIAMOND CHAIN NOT INCLUDED

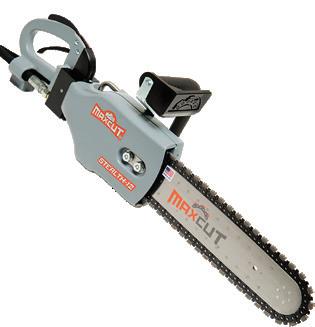

Saw, Hydracutter Diamond Chain
Specifications: Optional Accessories:
12 GPM Hyd
Shipping Weight: 22.90
Saw Powered by Hydraulic
Oil Flow GPM/LPM: 12 GPM/40 LPM
Chain Pitch: .456” Pitch F4
17.5
170
Working PSI/BAR: PSI 2000/135 BAR
Max PSI/BAR: PSI 2500/172 BAR
Water Pressure Min: PSI 30/2 BAR
• Hydraulic Power Unit
• Chain, Concrete Diamond
Concrete & Masonry
Saw, 14” Electric Abrasive Cutoff
Specifications: Optional Accessories:
Rated Input Power: 2.4 HP
Voltage: 100 - 120 V
Frequency: 50 - 60 Hz
Cutting Depth, Maximum: 4.5”
Maximum Blade Diameter: 14”

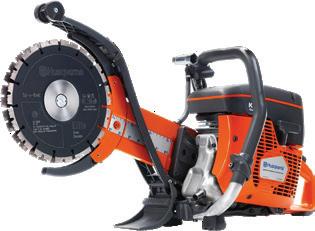

Saw, 16” Gas Cut n Break
Specifications:
Engine Air-cooled: 2 stroke engine
Cylinder displacement: 4.48 cu in
Power output: 5 HP
Fuel tank volume: 30.4 fl oz
Idling speed: 2,700 rpm
Sound pressure level at operators ear 101 dB(A)
Arbor Diameter: 1”
Product Size Length: 25.6”
Product Size Width: 8.5”
Product Size Height: 12.1”
Weight: 19.6 lbs • 14” Dual Diamond Blade • Vacuum, Dust Reducer Attachment Assy • Goggles, Safety
Optional Accessories:
Sound power level, guaranteed (LWA) 115 dB(A)
Blade diameter: 9”
Max cutting depth: 16”
Weight (excl. cutting equipment): 21.2 lbs
Weight incl. cutting equipment: 24.5 lbs
Fuel tank volume: 1.9 US pint
Saw, 16” Electric Cut n Break
Specifications:
Engine:
Rated Input Power: 3.6 HP
Voltage: 110-230 V
Frequency: 50-60 Hz
Cutting Equipment:
Cutting Depth, Max: 16”
Blade Diameter, Max: 9”
Blade Thickness, Max: 0.1”
Peripheral Speed, Max: 11,810 fpm
Optional Accessories:
Dimensions:
Product Size Width: 8.7”
Product Size Height: 15.4”
Weight: 19.6 lbs
Sound and Noise:
Sound Power Level, Guaranteed (LWA): 109 dB(A)
Sound Pressure Level at Operators Ear: 95 dB(A)
Vibrations:
Vibrations Left/Front Handle: 3.2 m/s²
Vibrations Right/Rear Handle: 3.4 m/s

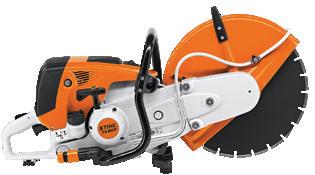

Saw, 16” Gas Abrasive Cutoff
Specifications:
Displacement: 98.5 cc (6.0 cu in)
Engine Power: 5.0 kW (6.7 bhp)
Weight: 13.0 kg (28.7 lbs)
Fuel Tank Capacity: 1,200 cc (40.6 oz)
Engine Speed: 9,300 rpm (Elec. Gov.)
Max Spindle Speed: 4,600 rpm
Arbor Size: 20 mm
Max Wheel Size: 400 mm (16”)
Max Cutting Depth: 143 mm (5.6”)
Saw, 14” Gas Abrasive Cutoff Specifications:
Displacement: 66.7 cc (4.07 cu in)
Engine Power: 3.2 kW (4.4 bhp)
Weight: 9.6 kg (21.2 lbs)
Fuel Tank Capacity: 710 cc (24 oz)
Engine Speed: 9,000 rpm (Elec. Gov.)
Saw, 13 HP W/B Drivematic
Specifications:
Engine:
Engine Manufacturer: Honda
Engine Model: GX390
Horsepower: 11.7 HP
Power Mode: Gasoline
Performance:
Blade Capacity Diameter: 18”
Maximum Cutting Depth: 6.1”
Max Spindle Speed: 5,350 rpm
Arbor Size: 20 mm
Max Wheel Size: 350 mm (14”)
Max Cutting Depth: 125 mm (4.9”)
Power Source: Gas
Transmission:
Drive: Hydrostatic
Operating:
Type: Asphalt/Concrete
Weights & Dimensions:
Operating Weight: 424 lbs
Overall Height: 47.2”
Overall Length: 66.9”
Overall Width: 26”
Concrete & Masonry

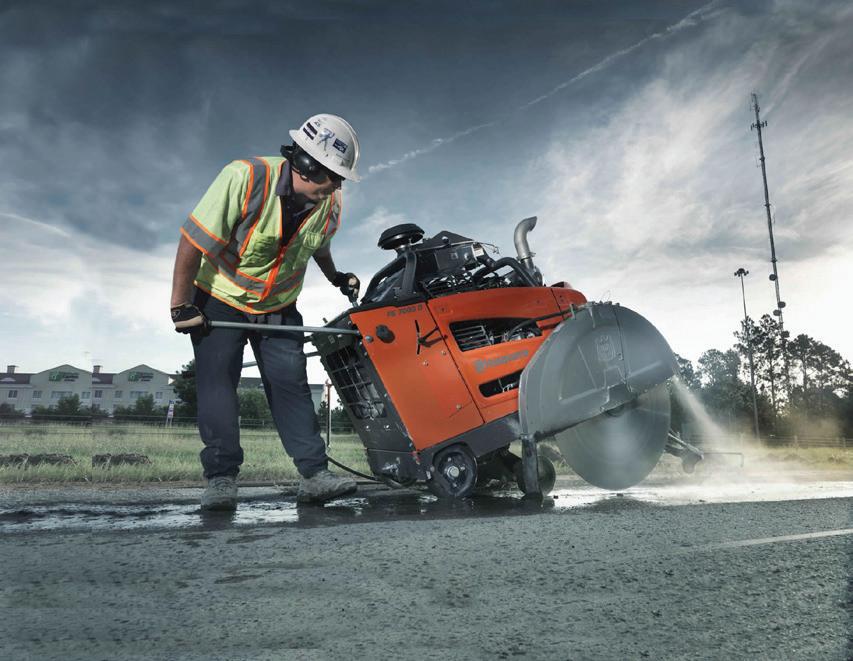

Saw, 35 HP Road Saw
Specifications:
Output power (As rated by the engine/motor manufacture): 37 HP
Motor/engine manufacturer: Kohler
Arbor diameter: 1”
Blade depth control: Electric hydraulic Blade diameter, max: 20”
Saw, 65-75 HP Road
Saw
Specifications:
Ideal for concrete and asphalt cutting up to 15” deep.
Fuel diesel: 10 gal tank
Blade Size: 36”

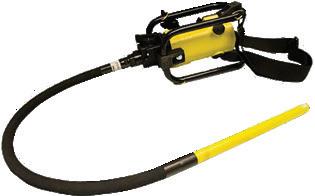

Vibrator, Concrete Specifications:
2.4 HP Oztec Vibrator Motor with 1-1/2” Vibrator Head & 14’ Flex Hose
The OZTEC 2.4 Electric Concrete Vibrator features a watertight, strain relief power cord.

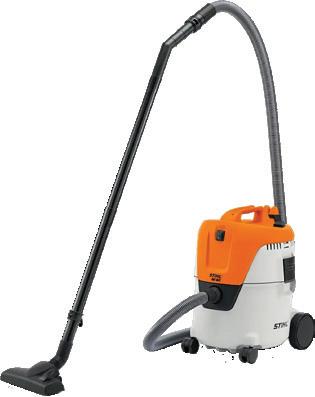

Vacuum,
Hepa
Specifications:
Ship Weight: 127.0 lbs
Air Flow: (CFM) 258 Volts: 120
HP: 3.4
Amps: 19.6
Cutting depth, max: 7.75”
Length: 46”
Width: 31.8”
Height: 45.4”
Weight: 985 lbs
Blade RPM: 1,350
Dimensions: 77.25” x 38.38” x 59”
Weight: 2,275 lbs
115V 17 amp • 2.4 hp electric motor
2.5” max head diameter
10,000 VPM
Dust Extractor S26-S36
• Single-phase HEPA dust extractor for use with hand-operated power tools to extract freshly cut, friable concrete dust
• All-around jobsite vacuum to pick up a variety of building materials and debris

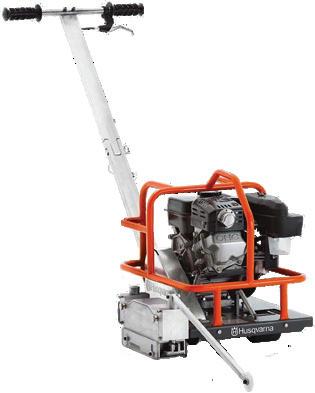

Saw, 6” Soff-Cut
Specifications:
Motor Manufacturer: Robin
Motor Spec: EX13
Max Output: (As rated by the engine manufacturer) 3.21 kW / 4.3 HP
Cylinders: 1
Number of Strokes: 4-Stroke Engine
Cylinder Displacement: 7.69 cu in
Cylinder Bore: 2.9”
Cylinder Stroke: 1.9”
Fuel Tank Volume: 0.7 gal.
Starter: Recoil
Engine Cooling: Air
Number of Belts:1
Displacement, l: 126 lit
Oil capacity, l: 0.6 lit
Cutting Equipment:
Output RPM: 3800 rpm
Diamond Blade, Max: 6 “
Max Cutting Depth: 1.18”
• Powered by a 3.4 HP, 19.6 Amp, 120V electric motor
• 100 in. water lift
• Cartridge pre-filter
• Two HEPA H13 filters
• Features cyclonic pre-separation prior to the HEPA filters
• Jet Pulse pre-filter cleaning, hour counter and vacuum meter for filter control
• Longopac® bag hose system ensures simple, dust-free bag changes
Optional
Blade Depth Control: Manual
Blade Control: Manual
Blade Shaft Diameter: 0.75”
Blade Flange: 3 “
Blade Shaft RPM: 3800 rpm
Transmission:
Axle front: 0.75”
Rear Axle Diameter: 0.75”
Handle Bars: Fixed
Miscellaneous:
Primary Wheel Size Outside Diameter:
3 Wheel Width: 3 Inner Bore: 0 “
Secondary wheel size: Outside Diameter:
3 Wheel Width: 3 Inner Bore: 0 “
Dimensions: Weight: 87 lbs
Weight Incl. Packaging: 91 lbs
Product Size, L x W x H: 68” x 19” x 33.5”
Concrete & Masonry
Saw, 10” G2000 Soff-Cut
Specifications:
Motor Manufacturer Robin4 stroke engine
Max Output: 6.5 kW / 9 HP
Cylinders: 1, displacement 16.2 cu in
Cylinder Bore: 2.9”
Cylinder Stroke: 2.3”
Fuel Tank Volume: 1.59 gal Gasoline
Starter: Electric
Cutting Equipment: Output RPM: 3,600 rpm

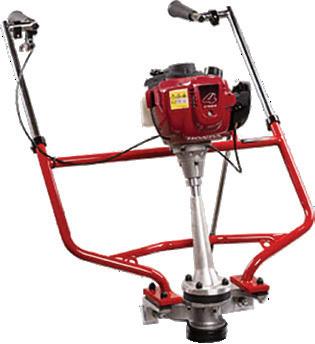

Magic Screed, Power Head
Specifications:
Engine: Honda GX35 / 35 CC
Horsepower Class: 1.5 HP / 1.1 KW
Weight: 30 lbs / 13.6 kg
Handles Adjustable
Diamond Blade, Max: 10 “
Max Cutting Depth: 1.5”
Blade Control & Depth Control: Manual
Blade Shaft Diameter: 1.25”
Blade Flange: 4.25“
Blade Shaft RPM: 3,600 rpm
Dimensions:
Weight: 317 lbs
Weight Incl. Packaging: 388 lbs
Product size, L x W x H: 94” x 29” x 34”
Vibration Frequency: 7,500 RPM
Consolidation Depth: Up to 6” / 15.24 cm
Trowel, 24” Walkbehind Power
Max Rotor Speed: 135 rpm
Weight: 122 lbs
Engine: Honda GX120 118 cc
Horsepower: 4
Trowel, 36” Walkbehind Power
Length: 65”
Width: 24”
Height: 43”
Clutch Type: Centrifugal
No. of Blades: 4
Ring Diameter: 36”, 914.4 mm
Rotor Speed: 60-115 RPM
Overall Length: 70”, 1789 mm
Overall Width: 36”, 915 mm
Overall Height: 41”, 1044 mm
Operating Weight: 184 lbs, 83.4 kg
Shipping Weight: 182 lbs, 82.5 kg
Trowel, 46” Walkbehind Power Specifications:
Clutch Type: Friction Type Clutch System No. of Blades: 4
Ring Diameter: 46 in, 1,168.4 mm
Rotor Speed: Min 60-130, Max RPM
Trowel, 36” Ride-On Power Specifications:
Engine: Honda GX690 (688 cc)
Class: 22.1 hp (16.5 kW) Fuel Type: Air-Cooled Gasoline
Panning Path Width: 74 in (188 cm)
Class Rotor Diameter: 36 in (91.4 cm) 4-Bladed Spider
Overall Length: 75 in, 1,910 mm
Overall Width: 46 in, 1,170 mm
Overall Height: 41 in, 1044 mm
Operating Weight: 281 lbs, 127 kg
Shipping Weight: 289 lbs, 131 kg
- 4’, 6’, 8’, 10’, 12, 16’
Maximum Rotor Speed: 165 rpm
Steering Control System: Manual
Fuel Capacity: 6 gal (23 L)
Retardant Capacity: 6 gal (23 L)
Weight: 735 lbs (333 kg)
Dimensions: L X W X H: 78” x 41” x 53” (198 x 104 x 135 cm)
Dolly Jacks
Lifting Bridle
Blade, 36” Trowel 6” x 14”
Blade, 36” Trowel 8” x 14”
Blade, 36” Trowel 10” x 14”
Pan, 36” Float
Concrete & Masonry

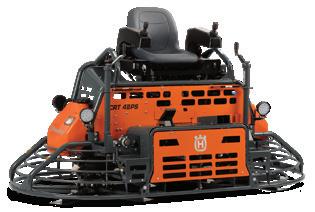

Trowel, 48” Ride-On Power
Specifications:
Ideal to finish surfaces from 10,000 sq ft up to 20,000 sq ft.
Power: 37 hp (28kW)
Blade Quantity: 10
Rotor Speed Min/Max RPM: 25/170 RPM
Trowel Blade Coverage: 48 in
Blade Combination: 18 x 8 in
Fuel Tank Volume: 6.5 gal Gas
Water Tank Capacity: 3.6 gal
Weight: 1,205 lbs
Trowel, 46” - 48” Ride-On Hydro
Specifications:
Twin Pitch Control enables the operator to simultaneously control the pitch of both rotors with minimal effort while also allowing the individual pitch adjustment of each set of rotors
Engine: 31 HP WG972 Kubota Dual Fuel
Engine Cooling: Liquid
Blades per Rotor: 5
Rotor RPM: 0-180
Path Width: 92 in 0 mm
Fuel Tank Capacity: 10 gal 37.8 L
Run Time: 2.31 gal/hr
Operating Weight: 1520 lb 689 kg
Trowel, 60” Ride-On Hydro
• Dolly Jacks
• Lifting Bridle
• Blade, 46-48” Trowel 6” x 18” Finish
• Blade, 46-48” Trowel 8” x 18” Combo
• Blade, 46-48” Trowel 10” x 18” Float
• Pan, 48” Float
• Dolly Jacks
• Lifting Bridle
• Pan, 48” Float Hydro • Blade, 48” Hydro Trowel 8” x 16” Combo
Specifications: Optional
Operating dimensions:
127” L x 65” W x 57” H
Operating weight: 2,720 lbs
Blades and Finishing Data:
Troweling diameter: 59”
Quantity of blades: 12
Blades (Combination): 23” x 8”
Blades (Finsh): 23” x 6”
Blades (Float Pan Ø): 60”
Pitch range: 0° – 25°
Rotor speed (min. / max.): 25/132 rpm
Engine / Motor: Liquid-cooled, four cylinder, turbo-charged diesel
Engine / Motor manufacturer: Kohler
Displacement: 151.4 in.³
Operating performance (SAE J1995): 74 hp
RPM / speed: 2,600 rpm
Engine oil: 9 qt
Fuel type: Diesel
Fuel consumption: 3.3 gal/hr
Fuel tank capacity: 12 gal
Tank capacity Water: 12 gal
Runtime: 3.6 hr
• Dolly Jacks
• Lifting Bridle
• Float Pans (1 set)

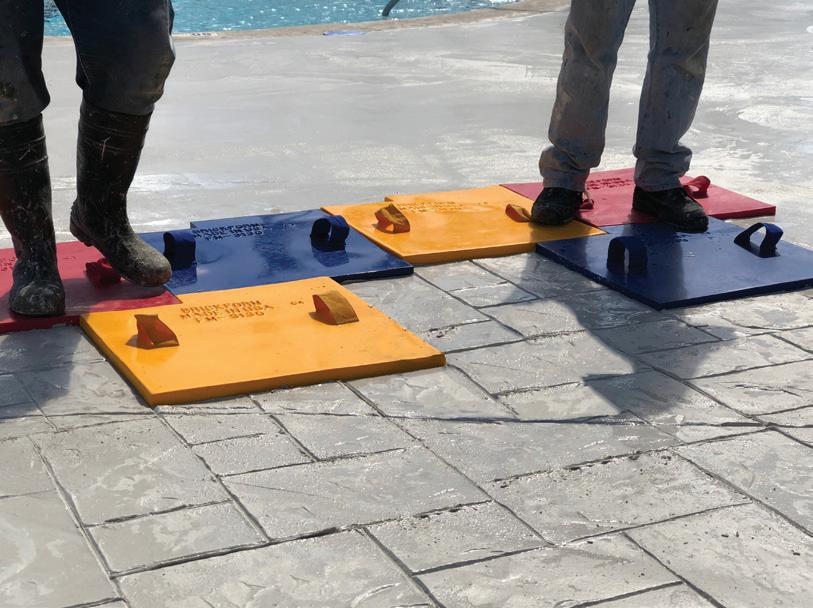

concrete stamps
Stamp, FM540 London Cobble
Specifications:
17” x 29.75” (43.18 x 75.56 cm)
Blue
A traditional lightly textured cobble stone pattern.
Matching Skin / Touch-Up Wheel: Slate / TW-1
Joint Width: 1/8” - 1/4”, Depth: 1/4”
Concrete Stamps
Optional Accessories:
Stone Size: 5 1/2” - 5 5/8” Wide, 6” - 8” Long
Includes: 4 Stamps & 1 Floppy Mat
Stamp, FM520 Edinburgh Cobble
Specifications:
6” x 6” Edinburgh Cobble, FM-520 26” x 36” (66.04 x 91.41 cm)
Yellow
A rugged weathered cobblestone pattern.
Matching Touch-Up Wheel: TW-7
Joint Size 1/2” - 3/4” wide, 1/2” deep Stone Dize: 5 3/4” - 6” wide, 5 7/8” - 6 1/4” long
Stamp, FM700 Random Stone
Specifications:
Random Stone, FM-700 29.125” x 29.125” (73.97 x 73.97 cm)
Red, Yellow and Blue
Heavily textured random fieldstones.
Matching Skin / Touch-Up Wheel: Rough Stone / TW-2.
Stamp, FM650 European
Specifications:
European Fan, FM-650 s/o 26” x 46” (66.04 x 116.84 cm)
Blue
An elegant European fan pattern, consisting of slightly curved rectangular slate stones.
Matching Skin / Touch-Up Wheel: Smooth Slate / TW-2.
Joint Size: 1/4” - 3/4” wide, 3/8” deep
Optional Accessories:
Stone Size: 7” - 11 1/2” wide, 10” - 15” long
Joint Size: 1/8” - 1/4” wide, 3/8” deep
Optional Accessories:
Stone Size: 3 3/4” - 5 1/2” wide, 4” - 6 1/2” long
Stamp, FM5900 Herringbone New Brick
Specifications:
32’ x 36”
Includes: 4 Stamps & 1 Floppy Mat
Stamp, FM3125 Small Ashlar Slate
Specifications:
Ashlar Cut Slate, FM-3125 s/o 23.125” x 23.125” (58.74 x 58.74 cm) Red, Yellow and Blue
A naturally laminated stone texture split along parallel planes, handtooled to create a more pronounced, chipped, fragmented texture with small, deep joints.
Matching Skin / Touch-Up Wheel: Smooth Slate / TW-1.
Joint Size 1/8” - 1/4” wide, 5/8” deep
Stone Size 5 1/4” - 9 7/8” wide, 6 3/4”20 5/8” long
Includes: 2 Blue, 2 Red, 2 Yellow stamps & 1 Floppy Mat
Optional Accessories:
Optional Accessories:
Stamp, FM3675 Grand Ashlar Slate
Specifications:
36” x 36”
Matching Touch-Up Wheel: FM-6550.
Joint Size: 1/8 3/8 wide, 3/8 deep
Stone Size: 6 15 wide, 6 22 long
Includes: 2 Blue, 2 Red, 2 Yellow stamps & 1 Floppy Mat
Stamp, FM5200 Basketweave Used Brick
Specifications:
15-3/8” x 30-3/4”
Includes: 1 Stamp & 1 Floppy Mat
Stamp, Cedar Wood Plank
Specifications:
11-1/2” x 24”
Includes: (1) 2’ Wood Plank Stamp, (1) 3’ Wood Plank Stamp, (1) 4’ Wood Plank Stamp, (1) 6’ Wood Plank Stamp, (1) 8’ Wood Plank Stamp & 1 Floppy Mat
Stamp, FM3120 Ashlar Cut Slate
Specifications:
36” x 36” (91.44 x 91.44 cm)
Stones with a slate surface, in an Ashlar pattern.
Matching skin / touch-up wheel: Smooth Slate / TW-5. Joint size 3/8” - 3/4” wide, 3/8” deep
Includes: 2 Red Stamps, 2 Blue Stamps, 2 Yellow Stamps & 1 Floppy Mat
Stamp, Rough Stone Texture Skin 36”
Specifications:
36” x 36” Texture Skin with Handle
Stamp, Bluestone Texture Skin 48”
Specifications:
48” x 48” Texture Skin with Handle
general tools

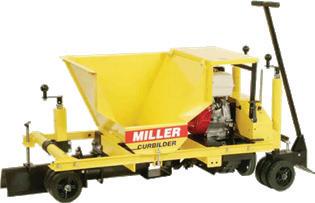

Asphalt Curbing Machine
Specifications:
Engine Power: 13 HP
Engine Model: Honda MC550
Fuel Capacity: 2 gal gas
Hopper Capacity: 6.1 cu ft
Height: 34-1/2”
Length: 72” with form
Width: 30”
Available Auger(s): 6” standard
Wheels: (9) 8” x 2” hard rubber
Weight: 760 lbs

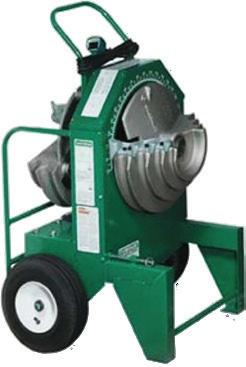

Bender, Conduit/Pipe Greenlee
Specifications:
Amperage Rating: 20 AMP
GFCI-Protected Receptacle
Pipe Thickness: 40 mm
(PVC Coated Rigid)
Shoe Group: 1/2’’ - 2’’
Relative Humidity: 0 - 98%
Storage/Operating Temperature:
-5 To 120 degrees F
Sub Brand: 555C Classic Series
Voltage Rating: 120 VAC
Weight: 260 lbs
Blower, Insulation w/Hose
Specifications:
Height: 41”
Width: 32-1/4”
Weight: 177 lbs
Production (Cellulose): 540 lbs/hr
Production (Fiberglass): 177 lbs/hr
Hose Size: 2-1/2”
Electric: 115 V / 220 V (50 Hz / 60 Hz)
Power Requirements: (1) 20 amp circuit @ 115 VAC
Wheels: 6”
Blower, Manhole Electric
Specifications:
Model: HVHF12COMBO
Brand: Ventamatic
Power: 120 V
Speed: 2
Flow Rate: 2,000 CFM
Cord Length: 6 ft
Material: Polyvinyl
Optional Accessories:
• Standard Curbform for 6” Auger CFD-10L
• Capecod Curbform for 6” Auger CFD-1194
Optional Accessories:
• Bending Shoe, 1/2” - 2” PVC
• Storage Box
Optional Accessories:
Optional Accessories:
• Hose, Manhole Flex
• Storage Rack, Hose
Road Plate, 8’ x 10’ & 8’ x 20’
Specifications:
Width: 8’
Length: 10’
Thickness: 1”
Width: 8’
Length: 20’
Thickness: 1”
Mat, 4’ x 8’ Ground
Protection
Specifications:
Thickness: 1/2”
Material: Polyethylene
Maximum Weight: 120 tons
Corners: Drilled with the option of having two hand holes on each side of the mat for easier handling
Sewer & Drain Inspection Camera
Length: 29”
Width: 16”
Height: 33-1/2”
Brand: General Wire
Operating Temp Range: 14°F to 122°F
Sonde Frequency: 512 Hz
Series: Gen-Eye POD
Style: POD w/Self-Leveling Color
Camera
Sensitivity: .5 Lux
Includes: POD with Self-Leveling Color
Camera, 200 ft. Gel-Rod, Sonde
External Ports: Video Out
Pipe Size: 3” to 10”
Reel Capacity: 300

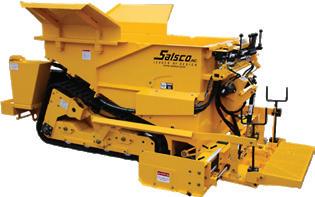

Sidewalk Paver, Mini Track
Specifications:
Engine Model: Hatz 1D81Z-9221
Engine Power: 14 HP Diesel
Start: Electric
Fuel Tank Capacity: 8.9 gal
Hopper: Dual hopper, 1/4” thick, steel plate
Hopper Tilt: 52 degrees angle for ease of dumping material
Hopper Capacity: 1.85 sq. yd
Screed Dimensions (L x W): 4’2” x 1’2”
Screed Features: Crown/Invert Adjustment, Power End Gates and Endgate Adjustment Plates for uniform texture
Auger Assemblies: (2) 9” cast augers, both with independent hydraulic drive, Forward and Reverse Drive: Hydrostatic; variable forward and reverse
Paving Speed: 0 - 50’ +, per minute
Paving Width: 36” to 72”
(Narrow paving with cut off plates)
Paving Thickness: 1/4” - 5”
Dimensions (L x W x H): 9’ 4” (with step up) x 4’ 9 x 3’ 11” (from the ground to top of hopper)
Weight: 3,060 lbs
Single Turn-a-links
Metal Storage Skid Rack w/ Hooks & Straps
Charger
Vutek Remote
Base Frame w/ Camera, 200’ and 300’

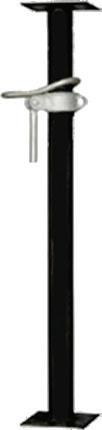

Post Shore, Heavy Duty 6’6” - 11’ 10K Cap
Specifications:
Height: 6’6” - 11’
Overall Grade: Heavy Duty
Material: High-strength steel
Collar: Forged steel
Base Plate: 1½” hole
Top Plate: 1½” hole
Nail Holes: (8) in Base Plate and Top Plate
Locking Pin: “Paper Clip” style
Dimensions Closed: 6’6”
Dimensions Extended: 11”
Load Capacity Closed: 13,890 lbs
Post Shore, Heavy Duty
Specifications:
Overall Grade: Heavy duty
Material: Hot-dip galvanized for prevention of rust and increased life
Locking Pin Grade: Heavy duty
Dimensions Closed 8’6”
Dimensions Extended: 13”
Load Capacity Closed: 10,390 lbs
Safety Factor 3:1
Load Capacity Extended: 4,400 lbs
safety Factor 3:1
Weight: 48.5 lbs
Saw, Tub & Tile Tilt 10”
Specifications:
Blade Diameter: 10”
Blade Shaft Diameter: 5/8”
Maximum Cutting Length (with plunge cut): 28” (31”)
Maximum Cutting Depth: 3-3/4”
Motor Rating: 1.75 HP / 110 V / 15 A
Blade Speed: 2,800 rpm
Water Pan Capacity: 10 gal
Water Pump Flow Rate: 3 gpm
Noise Level: 78 db(A)
Operating Dimensions L x H x W: 40” x 22” x 18”
Saw, Brick & Block
Specifications:
Model: MS360
Included: MS360 Fixed Leg Stand
Motor Horsepower: 1-1/2 HP
Motor Frequency: 60 Hz
Voltage: 100 - 115 V
Rated Input Power: 1.5 HP
Maximum Blade Diameter: 14”
Maximum Cutting Depth: 5”
Max Cutting Length: 17.72”
Height: 27.56” Weight: 128.31 lbs
Safety Factor 3:1
Load Capacity Extended: 5,650 lbs
Safety Factor 3:1
Weight: 42.5 lbs
8’6” - 13’ 10K Cap
Sweeper, Parking Lot
Specifications:
Width: 36”
Path at 15° Angle: 32”
Weight: 275 lbs
Brush Diameter: 24”
Maximum Brush Speed: 100 rpm
High Range Brush Speed: 190 rpm
Washer, 2600# - 3300# Cold Water
Specifications:
Engine Brand: Honda GX
Starter: Recoil
HP/cc: 6.5 HP
Hose Length: 50’
Hose Diameter: 3/8”
Hose Connections: Quick-Connect
Spray Gun Connection: Quick-Connect
Spray Gun Wand: Single Wand
Spray Tips: Quick Connect Tips (5)
Weight: 155 lbs. (70.31 kg)
Dimensions L x W x H: 35” x 21” x 24” (88.90 cm x 53.34 cm x 60.96 cm)
Washer, 3000-3500# Hot Water
Optional Accessories:
Optional Accessories:
• Washer, Hose & Wand
• Washer, Nozzle
• Washer, Rotary Nozzle
• Washer, 18’ Telesc. Pressure
• Washer, 24’ Telesc. Pressure
• Injector, Chemical/Detergent
• Pressure Washer Rotary Surface Cleaner
Specifications: Optional
Engine Brand: Honda GX
Starter: 12 V
Horsepower: 13 HP
CC: 389 CC
Pump Brand: Karcher
Pump Type: Triplex Plunger
Adjustable Pressure: Yes
Chemical Injection: Down-Stream
Water Temperature: Hot
Hose Length: 50’
Hose Diameter: 3/8”
Weight: 575 lbs
Product Length: 46”
Product Width: 28”
Product Height: 44”
Washer, 3500# Hot Water Towable
Specifications:
Engine Brand: Honda GX
Starter: 12 V
Horsepower: 13 HP
CC: 389 CC
Pump Brand: Karcher
Pump Type: Triplex Plunger
Adjustable Pressure: Yes
Chemical Injection: Down-Stream
Water Temperature: Hot
Water Pressure: 3500 PSI
Water Flow: 3.5 gp
Frame Type: 4-Wheel Frame
Water Trailer, 525 Gal.
Specifications:
Water Tank: 525 gal Polypropylene Trailer: DOT certified, dual axle, 3,500 lbs
Power Source: Honda GX120
Recoil Start
Pump: Multiquip QP2H 2” Centrifugal
Flow / Head: 158 gpm / 115’
Manifold (Left & Right): 1.5” & 2” (QD Couplers)
Hose Length: 50’
Hose Diameter: 3/8”
Hose Connections: Threaded
Spray Gun Wand: Dual Wand
Weight: 575 lbs
Product Length: 46”
Product Width: 28”
Product Height: 44”
• Washer, Hose & Wand
• Washer, Nozzle
• Washer, Rotary Nozzle
• Washer, 18’ Telesc. Pressure
• Washer, 24’ Telesc. Pressure
• Injector, Chemical/Detergent
• Pressure Washer Rotary Surface Cleaner
Optional Accessories:
• Washer, Hose & Wand
• Injector, Chemical/Detergent
Optional Accessories:
Garden Hose Valves Included (2)
Rear Spray Bar: Included
Overall Length: 146”
Overall Width: 68”
Overall Height: 80”
Shipping Weight: 1,428 lbs
Washer, 4,000 - 4,200# Cold Water
Specifications:
Pressure Rating: 4,000 PSI
Flow Rate: 4 gpm
Usage: Heavy Duty
Engine Brand: Honda
Engine Horsepower: 13 HP
Pump Type: Commercial-Grade Triplex
Spray Tips: Included (4)
Chemical/Detergent Injection: Yes
Hose Length: 50’
Start Type: Manual/Pull Start
Recommended Engine Oil: 10W-30
Engine Oil Capacity: 204.8 oz
Assembled Weight: 160 lbs
Cart, 6 Passenger
Specifications:
Seating Capacity: 6 passenger
Vehicle Load Capacity: 1,200 lbs
Height: 48.6”
Height with Suntop: 72”
Length: 136”
Width: 48.5”
Wheelbase: 93.5”
Ground Clearance: 4.3”
Curb Weight: 936 lbs
Dry Weight: 896 lbs
Hose Diameter (Inches): 3/8”
Hose Material: Rubber
Nozzle Type: Pro style tips with quick disconnect
Optional Accessories:
• Washer, Hose & Wand
• Washer, Nozzle
• Washer, Rotary Nozzle
• Washer, 18’ Telesc. Pressure
• Washer, 24’ Telesc. Pressure
• Injector, Chemical/Detergent
• Pressure Washer Rotary Surface Cleaner
Optional Accessories:
Fuel Capacity: 5.8 gal
Air Filter: Industrial Rated Dry Filter
Battery: One, 12 Volt Maintenance Free
Electrical System Starter/Generator: Solid State Regulator
Utility Vehicle, RTV w/Enclosure
Specifications:
Engine and Electrical Make: Kubota
D105-E2-UV
Horsepower: 24.8 HP @ 3,000
Fuel Capacity: 7.9 gal Diesel
Length (w/o Bush guard): 128.4”
Width: 66.5”
Height: 82.8”
Max. Rolling Weight (Towing capacity):
1,300 lbs
Payload Capacity: 1,631 lbs
Weight: 2,469 lbs
Cargo Box Width: 52”
Length (w/o bush guard) 46.7”
Volume: 16 cu. ft
Bed Height (unloaded): 32.3”
Cargo Bed Load 1,102 lbs
Well Pump Puller, Up Z Dazy
Specifications: Optional
Motor: 1 H.P., 115-V.A.C
Switch: Waterproof Push Button 8’ Lead
Capacity: 600 lbs load
Will Handle: 1” to 1 1/2” coil or semi-rigid pipe or up to 2” galvanized pipe
Will also pull or set 2 pipe jet systems
Speed: Set or Pull 28’ F.P.M.
Size: W 24” x L 30” x H 25”
Weight: 155 lbs
Overhead Guide
Wheel kit with handles, winch attachment
earth moving
Backhoe, Kubota B26TLB-V 4WD
Specifications: Optional Accessories:
Make: Kubota
Model: D1105
Type: Diesel
Cooling: Liquid
Number of Cycles: 4
Aspiration: Natural
Cylinders: 3
Bore and Stroke: 3.1” x 3.1”
(78 mm x 78.4 mm)
Displacement: 68.5 cu. in (1,123 cc)
Engine Gross @ rpm: 24.3 HP
(18.1 kW) @ 2,800 rpm
Engine Net @ rpm: 23.1 HP
(17.2 kW) @ 2,800 rpm
PTO @ rpm: 19.5 hp (14.5 kW) @ 2,800 rpm
Injection Pump: Inline, piston type
Backhoe, 420F2 CAT
Specifications:
Engine Make: 2236
Engine Model: C4.4 ACERT
Net Power: 92.6 HP
Gross Power: 102 HP
Power Measured @ 2,200 rpm
Net Torque Rise: 46%
Displacement: 268.6 cu in
Bore: 4.2”
Stroke: 5”
Fuel Capacity: 43.6 gal
Max Weight: 24,251 lbs
Hydraulic System Fluid Capacity: 25.1 gal
L47 Kubota Tractor
Specifications:
With Backhoe Bucket: 18” Make: Kubota
Self Bleed Fuel System: Yes
Lift Capacity at Lift Points: 2,139 lbs (970 kg)
24” Behind Lift Point: 1,676 lbs (760 kg)
Overall Height (Top of Canopy) 89.5” (2,273 mm)
Overall Length: 198.2” (5,035 mm) including loader & backhoe
Overall Width: 53.7” (1,365 mm) / rear axle
Loader w/ 24” Bucket
Oil System Fluid Capacity: 2.4 gal
Cooling System Fluid Capacity: 5.8 gal
Transmission Fluid Capacity: 4.9 gal
Dig Depth - Std: 14.31’
Load At Max Lift - Std: 7,237.78 lbs
Transport Length: 23.53’
Transport Height: 11.74’
Optional Accessories:
Engine Gross @ 2,700 rpm: 47.1 HP
Engine Net @ 2,700 rpm: 44.7 HP
Fuel Type: Diesel
Tank Capacity 17.7 gal (67 L)
Loader Bucket Width: 72”
Bucket Capacity: 15.5 cu ft
Max. Bucket Lift Capacity: 2,848 lbs
3-point Hitch Lift Capacity: 24” behind lift point, 2,756 lbs (1,250 kg)
Maximum Backhoe Digging Depth: 121” (3,073 mm)
Operating Height, Fully Raised: 157.2” (3,993 mm)
Overall Width: 71.2” (1,809 mm)
Boring Tool, 2” Grundomat
Specifications:
Tool Diameter: 2”
Length: 43”
Weight: 32 lbs
Air Constant: 18 cfm
Stroke Rate: 480 strokes/min
50’ Lead hose
Optional Accessories:
• 3PT Hitch Scraper Box Attachment for L47
• Backhoe Attachment for L47 Tractor
Optional Accessories:
• Compressor, 185 CFM Diesel
• Air Hose, 50’
• Oiler, Boring Tool
• Regulator, Boring Tool
Bulldozer, Premier
Specifications:
Engine Model: C4.4 ACERT
Net Power: 80 HP
Displacement: 269 cu in
Operating Weight: 17,544 lbs
Fuel Capacity: 51.5 gal
Engine Oil Capacity: 3 gal
Hydraulic Fluid Capacity:15.7 gal
Max Speed - Forward: 5.6 mph
Max Speed - Reverse: 6.2 mph
Standard Blade Width: 8.7’
Height: 35.8”
Capacity: 2 yd 3
Blade Angle (Both Directions): 25 degrees
Cutting Depth: 22.5”
Machine Dimensions:
Length W/ Blade: 14’
Width Over Tracks: 6.23’
Height To Top Of Cab: 9.07’
Length Of Track On Ground: 6.92’
Ground Clearance: 1.08’
Length W/O Blade: 10.7’
Excavator, Battery 9V 1 Ton w/ 12” Bucket
Specifications:
The V5 Mini Excavator series not only has zero tail swing, but its high-powered digging force is increased by 10%, and the 4-pump system is quick to respond, making this the ultimate mini excavator.
Comfortable and easy-to-use, the V5 mini excavators are also fuel efficient and easy to maintain. With an auto-parking brake and a neutral engine-start, the V5 mini excavators are proactive in error-prevention.
Max Digging Radius: 9’ 10”
Max Digging Height: 9’ 0”
Max Dumping Height: 6’ 6”
Max Vertical Digging Depth: 3’ 10”
Front Turning Radius: 4’ 0”
At Right Boom Swing: 3’ 1”
Bucket Capacity: 0.77 ft3
Bucket Width: 12”
Operating Weight: 2,400 lbs
Excavator, Electric 1 Ton
Specifications:
Recommended Use: 25,000-70,000 kW generator
Engine: 5 HP Baldor Motor
Hydraulic Attachments: Included
Total Flow: 6.0 gpm
Digging Depth: 5’ 2”
Operating Weight: 2,060 lbs Power Cord: 100’
Excavator, 1 Ton
Specifications:
Model: Cat® 300.9D
Overall Width: 2.5’ (730 mm) Bucket: 10-12”
Weight: 2,205 lbs (1,000 kg)
Digging Force - Bucket: 2,000 lbs
Digging Force - Stick 1,011 lbs
Operating Weight w/ Safety Frame: 2,170 lbs
Transport Weight: 2,169 lbs
Swing Speed: 8.0 rpm
Travel Speed: (Low/ High) 1.1 mph/ 1.9 mph
Gradeability: 30º
Ground Pressure: 4.4 psi
Bucket Digging Force: 2,340 lbs
Engine:
Model: Kubota D722
Output Rating: 9.9 HP / 2000 rpm
Fuel Tank Capacity: 2.9 gallons
Boom Swing System:
Type: Offset Boom w/ Hydraulic Cyl.
Swing Angle (L / R): 500 / 700
Hydraulic System:
Total Hydraulic System Flow: 5.9 gpm
Max Auxiliary Hydraulic Flow: 4 gpm
Dozer Blade:
Size: 2’ 5” x 8.6”
Lift Above / Drop Below Ground: 8.6” x 6”
Total Length: 8’10”
Total Width: 27.5”
Total Height: 6’10”
Rated Output: 220 V - 240 V
Operating Weight w/out Safety Frame: 2,061 lbs
Engine Model: Yanmar 31NV70
Fuel Type: Diesel
Tank Capacity: 5 gal
Excavator, 1-1/2 Ton
Specifications:
Operating Weight: 3,880 lbs
Bucket: 10-12”
Fuel Tank: diesel 5.8 gal
Width: 39”
Track Width - Expanded: 4.25’
Blade Height: 8.9”
Dig Depth: 92.1”
Boom In Reach: 57.5”
Boom Swing - Left: 65.0°
Boom Swing - Right: 50.0°
Maximum Blade Depth: 10.2”
Excavator, 3-1/2 Ton
Specifications:
Engine Make: Yanmar
Model: 3TNV88F-ESBV Tier IV
Fuel Tank: 10.8 gal Diesel
Gross Power: (kW) @ rpm 24.5 HP
(18.2) @ 2,200
Net Power: (kW) @ rpm 23.9 HP
(17.8) @ 2,200
Hydraulic Tank: 10.6 gal.
Gradability: 20°
Undercarriage Length: 7’1”
Track Length on Ground: 5’ 10”
Operating Weight w/Canopy: 7,905 lbs
Operating Weight w/Cab: 8,214 lbs
Maximum Blade Height: 10.8”
Maximum Dig Height: 135”
Maximum Dump Clearance: 96.5”
Maximum Reach: 149.6”
Minimum Ground Clearance Below
Undercarriage: 6.1”
Track Width - Expanded: 51.18”
Gross Power - ISO 14,396: 21.6 HP
Digging Force - Bucket: 3,169.8 lbf
Digging Force - Stick - Long: 1,616.4 lbf
Optional Accessories:
• Rammer, 250# Hydraulic
Digging Force - Stick - Standard: 1,843 lbf
Optional Accessories:
Max Digging Depth: 10’8”
Max Vertical Wall Digging Depth: 7’11”
Max Reach at Ground Level: 17’3.5”
Transport Length: 15’8”
Undercarriage Length: 7’1”
Max Digging Height: 16’9.2”
Max Dump Height: 11’2.3”
Transport Height: 8’1”
Blade Below Ground: 1’2.6”
Overall Base Width: 5’ 8.5”
Track Width: 11.8”
Max Dig Depth with 8’
Excavator, 3-1/2 Ton Premier
Specifications:
Engine Model: Cat® C1.8
Net Power: 31.6 HP / 23.6 kW
Gross Power: 33.3 HP / 24.8 kW
Bucket: 18”
Operating Weight: 7,734.0 lbs
Operating Weight w/Cab: 8,139 lbs
Max Digging Depth - Strd Stick: 9.6’
Max Reach Ground Level - Strd Stick: 16.7’
Height Over Cab: 8.2’
Max Cutting Height - Long Stick: 16.5’
Max Cutting Height - Strd Stick: 16.2’
Max Dump Height - Long Stick: 11.9’
Excavator, 5-6 Ton
Specifications:
Engine Model: Cat C2.4 Turbo
Net Power: 55.9 HP
Gross Power: 57.9 HP
Displacement: 148 in³
Bore: 3.4”
Stroke: 4”
Operating Weight: 15,766 lbs
Hydraulic System: 27.5 gal (US)
Hydraulic Tank: 14 gal (US)
Engine Oil: 2.1 gal (US)
Fuel Tank: 34.3 gal (US)
DIMENSIONS - STANDARD STICK
Track Belt/Shoe Width: 16”
Max Reach: 248”
Stick Length: 62”
Vertical Wall: 107”
Max Dump Height - Strd Stick: 11.5’
• Thumb, Hydraulic Excavator
Optional Accessories:
Max Horizontal Reach - Long Stick: 17.8’
Max Horizontal Reach - Strd Stick: 17.1’
Max Vertical Dig Depth - Long Stick: 8.2’
Max Vertical Dig Depth - Strd Stick: 7.7’
Shipping Height: 8.2’
Shipping Length: 15.5’
Track Shoe Width: 1.0’
Transport Width: 5.8’
Fuel Type: Diesel Fuel Tank: 12.2 gal
Swing Bearing - Height: 27”
Max Reach - Ground Level: 241”
Max Blade Height: 16”
Ground Clearance: 12”
Boom In Reach: 98”
Transport Height: 69”
Cab Height: 100”
Width over Upper House: 77”
Max Dump Clearance: 170”
Undercarriage Length: 102”
Max Dig Height: 230”
Max Blade Depth: 24”
Track Width: 78”
Dig Depth: 146”
Shipping Length: 235”
Optional Accessories:
• Thumb, Hydraulic Excavator
• Grading Bucket 6 & 9 Ton Excavators Only
• Thumb, Hydraulic Excavator
Excavator, 9 Ton Premier
Specifications:
CAT 308
Tank Capacity: 33 gal
Fuel Type: Diesel
Dig Depth: 13.4’
Bucket: 24-30”
Weight: 20,678 lbs
Ground Pressure: 5.26 psi / 36.3 kPa
Forks, Clip-On
Specifications:
Lift Capacity: 4,000 lbs
Useable Tine Length: 42”
Maximum Bucket Lip Thickness: 1-3/4”
Dingo, Rammer Attachment
Specifications:
For use on Dingo® TX 427, TX 525, TX 1000, TX 1300 and e-Dingo models.
Height: (cm) 33 (inches) 13
Hydraulic Flow: 5.3 to 8.2 US gallons
Rammer, 250# Hydraulic
Model: TNB-2M
Impact: 250 lbs
Impact Frequency: 600-1150 bpm
Working Weight: 1-piece top mount 242 lbs., box bracket 364 lbs
Gradeability (maximum): 30°
Travel Speed – High: 3.17 mph (5.1 km/h)
Travel Speed – Low 1.74 mph (2.8 km/h)
Max reach: 24’
Net Power (ISO 9,249): 65 hp / 48.5 kW
• Thumb, Hydraulic Excavator
• Grading Bucket 6 & 9 Ton Excavators Only
Tine Size: 2” x 4”
Weight: 170 lbs
per minute (20 to 35 L per minute)
Length: (cm) 130 (inches) 51.2
Weight: (kg) 176 (lbs) 389
Width: (cm) 63 (inches) 24.8
Operating Pressure: 1,160-2,175 PSI / 8-15 mpa
Chisel Diameter: 2”
Hose Size: 1/2”
Base Carrier: 1.5 - 2.5 tons
Rammer, 500# Hydraulic Excavator/Skid Steer Specifications:
Impact Rate: 550 - 1,060 bpm
Model(s): TNB-3MD / TNB-4M-SSL
Gas Pressure: 114 psi (8 bar)
Working Weight: 418 - 561 lbs
Energy per Strike: 350 ft lbs (475 J)
• Excavator 1-1/2 Ton
Compatible Equipment: Nearly All Bobcats, Cats, John Deere, CASE, Kubota, Mustang and Kobelco equipment
Rammer, 1,000# Lg Hydraulic
Specifications:
Impact Energy Class: 750 ft lbs
Recommended Carrier Weight: 1,000 lbs
Frequency: 500 - 1,700 bpm
Hydraulic Flow Rate: 11 - 32 gpm
Loader, Wheeled 1.5 Yard
Maximum Gross Power: 73 HP
Net Power: 74 HP
Engine Model: Cat® C3.3B DIT
Operating Weight: 14,032 lbs
Fuel Tank: 20.6 gal
Hydraulic System - Including Tank: 19 gal
Rated Bucket Capacity: 1.4 yd³
Hydraulic Pressure: 1,300 - 2,050 PSI
Tool Diameter: 3.15” Length: 57”
Working Weight: 820 lbs
Clearance - Full Lift & 45° Dump: 8’
Full Turn Tipping Load: 8,311 lbs
Dig Depth: 3.9”
Height - Ground to Cab: 8.67’
Length - Overall: 18.42’
Machine Width: 6.5’
Operating Weight: 14,323 lbs
• Excavator 9 Ton Premier
Dingo TX1000, Track Loader w/ Bucket
Specifications:
Engine: 24.9 HP (18.6 kW) Kubota® D1305 Diesel
Ground Clearance: 6.0” (15 cm)
Ground Pressure: 3.6 PSI
Ground Speed: 4.7 mph (7.6 km/h)
Height: 53.2” (135 cm)
Hinge Pin Height: 81” (206 cm)
Hydraulic System Pressure: 3,000 PSI
Length with Bucket: 100.7” (256 cm)
Length w/out Bucket: 81.7” (208 cm)
Operating Capacity (35% of tip capacity): 1,075 lbs (488 kg)
Reservoir Capacity: 10 gal (57.5 L)
Fuel Type: Diesel
Tip Capacity: 3,071 lbs (1,393 kg)
Track: 127.6” x 9.5” (324 cm x 24 cm)
Track Width: 9.5” (24 cm)
Traction Flow: 13.3 gpm (each pump)
Weight: 2,860 lbs (1,297 kg)
Width: 41” (104 cm)
Dingo TX1300, Track Loader w/ Bucket
Specifications:
Engine: 37 HP (27 kW) Yanmar® Diesel
Ground Clearance: 5.9” (15 cm)
Ground Pressure: 5.5 PSI
Ground Speed: -4.7 mph (7.6 km/h)
Height: 56.5” (143.5 cm)
Length: 103.1” (262 cm) with bucket
84.9” (215.6 cm) without bucket
Width: 46” (116.8 cm)
Wheelbase: 39” (99 cm)
Weight: 3,858 lbs (1,750 kg)
Optional
Accessories:
• Dingo Auger
• Dingo Fork
• Dingo Grapple Rake
• Dingo Rammer
• Dingo Soil Cultivator
• Dingo Vibratory Plow
• Dingo Brushcutter
• Dingo Tiller
Track Width: 9.1” (23 cm)
Tip Capacity: 3,714 lbs (1,685 kg)
Operating Capacity: 1,300 lbs (590 kg) retracted 618 lbs (280 kg) - extended Optional
• Dingo Auger
• Dingo Fork
• Dingo Grapple Rake
• Dingo Rammer
• Dingo Soil Cultivator
• Dingo Vibratory Plow
• Dingo Brushcutter
• Dingo Tiller
e-Dingo, Wheeled Battery Powered
Specifications:
Battery Capacity: 9.12 kW/h
Battery Electric System Voltage: 48
Battery Chemistry: Lithium Ion
Ground Clearance: 5.8” (15 cm)
Front & Rear
Ground Speed: 2.75 mph
Height: 48.7” (123.7 cm)
High Flow Pump: 6.5 gpm
Hinge Pin Height: 66” (167.6 cm)
Hydraulic Reservoir Capacity: 14.8 gal
Hydraulic System Pressure: 3,250 PSI
Length: 82.2” (208.8 cm) with bucket;
Loader, Premier Skid Steer Specifications:
Operating Weight: 8,011 lbs
Rated Operating Capacity: 1,800 lbs
Tipping Load: 3,600 lbs
Breakout Force, Tilt Cylinder: 5,074
62” (157.5 cm) without bucket
Operating Capacity: 515 lbs (234 kg)
Weight: 2,076 lbs (942 kg)
Wheelbase: 28”
Wheels: Non-marking / Solid Width: 35.6” (90 cm)
• Forks, Dingo Attachment
width: 66” Fuel Tank: 24.8 gal (US)
Hydraulic System: 13.7 gal
• Bucket
• Skid Steer Grapple Bucket
• Auger, Skid Steer Mounted
• Rammer 500# Hyd Excavator/Skid Steer
• Forks, Skid Steer Attachment
• Sweeper, Skid Steer
• Bobcat, Super Scraper
• Skid Steer, Trencher Unit
• Skid Steer, Brush Hog Attachment
• Skid Steer, Bucket w/ Teeth
Loader, Premier Track
Specifications:
Operating Weight: 8,945.0 lbs
Fuel Capacity: 27.8 gal
Tipping Load: 5,800.4 lbs
Operating Load: 2,899.1 lbs
Length w/Bucket on Ground: 137.3”
Length w/o Bucket: 108.9”
Vehicle Width: 69”
Max. Overall Height: 154.1”
Engine Model: Cat C3.3B DIT (Turbo)
Net Power: 73.2 HP
Rated Operating Capacities: 50%
Tipping Load: 2,900 lbs
Rated Operating Capacities: 35%
Tipping Load: 2,030 lbs
Skid Steer, Rock Bucket
Specifications:
Width: 66”
Tine Spacing: 3”
Weight: 680 lbs
Skid Steer, Bucket w/ Teeth
Specifications:
Width: 66” bucket
Weight: 465 lbs
Skid Steer, Planer
Specifications:
Hydraulic Requirements: Standard Flow
Hydraulic Flow: 12 to 22 gpm
Overall Width: 64.94”
Overall Height: 34.57”
Overall Length: 50.30”
Planing Width: 16”
Planing Depth: 0” to 5”
Rake,
Harley Power
Specifications:
Make / Model: Harley / M6H
Attachment Type: Power rake
Mounting: Universal (72” Hoses and Couplers)
Angle (R or L): 13 deg
Flow Rate Range: 13 - 40 gpm
Overall Height: 30.3”
Overall Length: 64”
Tipping Load: 5800 lbs
Breakout Force: Tilt Cylinder 5,035 lbs
Fuel Tank: 27.7 gal
Hydraulic System: 13.2 gal
Hydraulic Tank: 10.3 gal
Tilt: ±8°
Drum Diameter: 22”
Carbide Picks: 43 Weight: 2,150 lbs
Sideshift Center to Right: -3” to 22”
Operating Pressure: 2,500 to 3,000 psi
Optional Accessories:
• Bucket
• Skid Steer Grapple Bucket
• Auger, Skid Steer Mounted
• Rammer 500# Hyd Excavator/Skid Steer
• Forks, Skid Steer Attachment
• Sweeper, Skid Steer
• Bobcat, Super Scraper
• Skid Steer, Trencher Unit
• Skid Steer, Brush Hog Attachment
• Skid Steer, Bucket w/ Teeth
Optional Accessories:
Overall Width: 81”
Pressure Range: 2,000 - 3,500 PSI
Raking Width at full angle: 68”
Weight: 1,100 lbs
Working Width: 72”
Skid Steer, Brush Hog Attachment
Specifications:
Cutting Width: 60”
Overall Height: 22.5”
Overall Length: 78”
Overall Width: 72”
Minimum Cutting Height: 2”
Deck Height: 9”
Deck Thickness: 1/4” Steel
Recommended Hydraulic: 15 to 30 gpm
Optional Accessories:
Required Skid Skeer Lift Capacity: 1,300 lbs
Weight: 1,230 lbs
Skid Steer, Grapple Bucket
Specifications:
Overall Width: 66-3/4”
Grapple Open: 34”
Grapple Closed: 19-3/4”
Overall Depth: 36”
Weight: 788 lbs
Skid Steer, Rake Landscape Rock Hound
Specifications:
Maximum Rock Diameter: 3/4” to 6”
Working Width: 66”
Hopper Capacity: 1/2 yd
Flow Rate Range: 10 to 25 gpm
Pressure Range: 1,000 - 3,500 PSI
Skid Steer, Trencher Unit
Specifications:
Model: 48” bar
Weight: 1,075 lbs
Depth Presets: 24”, 32”, 40” 48”
Flow Range: 16-30 GPM
Auger, Skid Steer Mounted
Specifications:
Drive: 2”
Flow Rate: 10 - 25 gpm
Maximum Diameter: 30”
Optional Accessories:
Lift Capacity: 9,000 lbs
Operating Weight: 1,390 lbs
• Breaks up clods and levels the soil
• Collects rocks and debris in hopper
• Dumps collected debris quickly and easily
Included: Cradle, Universal Skid Steer Quick Attach Mounting Bracket and hoses with flat face couplers
Mulcher, Skid Steer Attachment
• Auger, 9”, 12”, 18”, 24”, 30” Bit Skid/
Exc Hex Shank
• Auger, 24” Exc/Skid Steer Extension
• Loader Premier Skid Steer
Specifications: Optional Accessories:
Overall Width: 73”
Overall Height: 32.6”
Overall Length: 36.7”
Cutting Width: 60”
Height with Pushover Bar: 60.4”
Length with Pushover Bar: 49.5”
Sweeper, Skid Steer
Specifications:
Overall Width: 78.3”
Sweeping Width: 60”
Brush Diameter: 26”
Required Hydraulics: Standard Flow
Height: 34.3”
Length: 72.3”
Operating Pressure: 3,000-4,000 PSI
Hydraulic Flow: 30-45 gpm
Recommended Horsepower: 60-95 HP Teeth: 44
Weight: 2,530 lbs
Weight: 1159.6 lbs
Required Hydraulic Flow: 42-86 L/min
Optimal Hydraulic Pressure: 145-235 bar
(2,100 - 3,400 PSI)
Hopper Capacity: 0.5 yd³
Gutter Brush Weight: 90.4 lbs
Forks, Skid Steer Attachment
Specifications:
Lifting Capacity: 4,000 lbs
Pallet Forks: 1.5 x 4 x 48 (PAIR)
Mounting: No tools required
Handle Features: Slideable - allows
forks to be mounted in most positions on the bucket, such as next to the side or back of the bucket
Loader Premier Skid Steer
Pusher, 8’ Skid Steer
Specifications:
Model: SP08S
Width: 8’
Approximate Weight: 800 lbs
Pusher, 12’ Backhoe
Specifications:
Model: SP12B
Width: 12’
Approximate Weight: 1,450 lbs
Machine Application (minimum): 46-70 HP
Snow Capacity: 7 yd
Machine Application (minimum): Backhoe - 4 x 4
Snow Capacity: 11 yd
Brush Cutter, Dingo Attachment
Specifications:
Operating Equipment: Compact
Utility Loader
Cutting Width: 42”
Max Cutting Capacity: 2”
Auxiliary Hydraulic Flow: 8-20 gpm
Weight: 469 lbs
Forks, Dingo Attachment
Specifications:
Width: Adjustable
Fork Material: Steel
Operating Capacity: 335 lbs. (152 kg)
Overall Length: 58.25”
Overall Width: 43.75”
Optional
Blades: (2) 0.5’’ x 4” (High Strength, Updraft)
Blade Carrier Type: 1” bar
Blade Rotation: Counter Clockwise
Optional Accessories:
Total Weight: 275 lbs.
Frame Width: 46”
Frame Height: 30.5”
Grapple Rake, Dingo Attachment
Specifications: Optional
Cylinders: Twin heavy-duty hydraulic cylinders
Width: 34.5” (87.6 cm)
Tines: 3/8” (1 cm) AR400 steel
Tine Spacing: 7” (17.8 cm)
Bottom Tine Spacing: 6-1/4” (15.9 cm)
Pivots: (4) greaseable to reduce wear
Compatibility: All Dingo Traction units except TX 413
Leveler Platform: Fabricated welded frame
Mounting Frame: Fabricated, welded base
Standard Equipment: Dingo Quick-Attach Mount Plate Clamping Force: 3,000 lbs
Harley Power Rake 48”, Dingo Attachment
Specifications:
This 48” Toro Dingo rake is designed for wide variety of landscaping purposes, including land leveling, breaking up tough soil, and preparing dirt for seeding. This attachment is designed for use on dirt, mulch, soil, gravel or seed beds, and effortlessly handles everything from residential lawn projects to large-scale landscaping and farming.
Weight: 140 lbs.
Dimensions: 36” x 48” x 16”
Teeth: (34) 1/4 welded-on teeth
Bucket Specs:
Frame: 2 x 2 (2 sq)
11 gauge tubing
3/16” formed gussets & side boards
Vibratory Plow, Dingo Attachment
Specifications:
Height without Blade: 27” (69 cm)
Width: 28.2” (72 cm)
Length: 34” (86 cm)
Weight: 457 lbs (207 kg)
Blade Adjustment: 0 -18” (0-46 cm)
Working Depth: 6-18” (15-46 cm)
Chain: Machined, plated 2” (5 cm) hex bullet
Soil Cultivator, Dingo Attachment
Specifications:
Roller: Offset wire mesh finish
Maximum Depth: 5.5” (14 cm)
Blade Adjustment: Mechanical adjustment
Depth Control: Mechanical adjustment
Flow: 7 - 14 gpm (26.5 - 53 lpm)
Height: 21” (53.3 cm)
Length: 51” (129.5 cm)
Motor Type: LSHT Motor
Tiller, Dingo Attachment Specifications:
Height: 26” (66 cm)
Length: 20” (50.8 cm)
Number of Blades: 20 “V” non-panning blades
Rated Pressure: 3,000 psi (206.7 bar)
Roller Adjustment: Mechanical adjustment
Rotor Outside Diameter: 11.25” (28.6 cm)
Standard Equipment: Dripless flush face couplers
Weight: 550 lbs (249.5 kg)
Width: 51” (129.5 cm)
Working Width: 36” (91.4 cm)
Working Depth: 5.5” (14 cm)
Standard Equipment : Flush face quick couplers
Tine Heads: 36
363 lbs (164.7 kg)
Auger, Dingo Attachment
The high torque translates into the Dingo’s capability to dig 30” (76.2 cm) holes up to 6’ (1.8 m) deep in clay, gravel, sandstone and many other conditions.
Auger Speed: 57 rpm at 11 gpm (41.6 lpm), 95% efficiency
Height: 23”
Length: 16”
Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base
Shaft (inches): 2.6
Torque: 1,515 ft/lb at 3000 PSI, at 11 gpm (461 m-kg at 207 bar, at 72 lpm)
Weight: 182 lbs
Width: 24”
48” Fork, Wheeled Loader Attachment Specifications:
Fork Length: 48”
Carriage Weight: 311 lbs
Carriage Frame Width: 55”
Machine Type: Compact Wheel Loader
Trenching Bucket
Carriage Length: 10”
Carriage Height: 22.8”
Rake, 6’ York Tractor
Specifications:
Maximum Working Width: 6’
Minimum Working Width: 5’ 1”
Number of Rake Positions: 5
Tractor Hitch Required: 3-point
Number of Rake Teeth: 36
Size of Rake Teeth L x W x H:
Tip Radius: 20”
Interface Type: Pin On
Auger, 6”, 9”, 12” and 18” Bit Toro Round Shank
Accessories: 5/16” x 1“ x 28”
Rake Tooth Material: Heat treated alloy steel
Fasteners: Heat treated cap screws
Distance Between Teeth: 1” • L47 Kubota Tractor
Rake, 8’ York Tractor
Specifications:
Maximum Working Width: 8’
Minimum Working Width: 7’ 1”
Number of Rake Positions: 5
Tractor Hitch Required: 3-point
Number of Rake Teeth: 48
Size of Rake Teeth (L x W x H): 5/16” x 1 “ x 28”
Rake Tooth Material: Heat treated alloy steel
Fasteners: Heat treated cap screws
Distance Between Teeth: 1”
3 PT Hitch Scraper Box, Attachment for L47
Specifications:
Cutting Width: 84”
Depth:45.5”
Capacity: 1.38 yd
Weight: 1,565 lbs
Rake, 3 PT Harley Power
Optional Accessories:
• L47 Kubota Tractor
L47 Kubota Tractor
Specifications: Optional Accessories: • L47 Kubota Tractor
Model: M6H / T6H
Working Width: 6’
Mount: 3-point
Angle: 13 - 15 deg
Flow Rate Range: 12 - 40 gpm
Overall Height: 30.3”
Overall Length: 48 - 64”
Overall Width: 81”
Pressure Range: 2,000 - 3,500 PSI
Weight: 1,100 lbs
Dirt Screener, Portable
Specifications:
Loading Bucket Size Range: 8’
Compatible Loaders: ½ - 1 ¾ yd
Inside access for Bucket: 9’4”
Feed height at hopper 8’3”
Screen Box Dimensions L x W: 6’ x 5’
Double deck
Fuel Type: Diesel
Horsepower: 10 HP
Overall Width: 5’8”
Overall Height: 8’3”
Weight at Tongue: 1,760 lbs
Overall Weight: 5,462 lbs Optional
Vibratory Plow & Trencher, Ride-On
Specifications:
ProSneak 365 Vibratory Plow & 36” Trencher
Width: (with 23x10.5x12 tires): 46”
mounted wide (standard); 36”
mounted narrow
Wheelbase: 48”
Overall Height: (with ROPS and 23x10.5x12 tires): 85”
Overall Length: (with plow and blade, no trencher) 114”
Ground Clearance: (with 23x10.5x12 tires): 5.25”
Operating Weight: 2,930 lbs
Engine: Yanmar® 3TNV88C-DTR4 ( Tier 4 Final)
Fuel Type: Diesel
Fuel Tank Capacity: 7.1 gal (26.9 L)
Cylinders: 3
Optional Accessories:
Net Power Rating: per SAE J1349 36.8 hp (27.5 kW)
Rated Speed: 3,030 rpm
Max Plow Depth: 24”
Trench Depth: 36”
floor care
Floor Care
Carpet Cleaner, Large 5 Gal
Specifications:
Solution Tank: 5 gal
Cleaning Width: 14”
Wheels: 7”, non-marking
Power Cord: 25’
Weight: 68 lbs
Electrical Draw: 14 A
Carpet Cleaner, Rug Doc EZ
Specifications:
Solution Tank: 3 gal
Lift-off Recovery Tank: 3 gal
Solution Pressure: 50 PSI
Vacuum Motor: 112 cfm, 2 HP
Waterlift: 107”
Brush Motor: 1/6 HP
Brush Speed: 2,500 rpm
Brush Style: Chevron design, 4 rows
Brush Bearings: Sealed, stainless steel ball bearings
Cleaning Width: 12”
Sander, Drum Floor
Specifications:
Motor: 1-1/2 HP, Enclosed
Drum Width: 8”
Dust/Filter Bag: 2 cu ft
Drum Speed: 1,800 rpm
Leveling Control: Externally adjusted
Motor Starter: Mechanical relay
Power Cable: 40’
Sandpaper Available: 20, 36, 60, 80 and 100 grit
Sander, Floor Edger
Optional Accessories:
• Vacuum, Floor Tool Large
• Vacuum, Hose
• Vacuum, Wand
• Upholstery Kit
Wheels: 7”, non-marking
Dimensions L x W x H: 23” x 12” x 24”
Weight: 40 lbs
Electric Draw: 12 A
Optional Accessories:
• Shipp Marvel Carpet Cleaner (1/2 Gal)
• Shipp Marvel Carpet Cleaner (1 Gal)
• Shipp Pre-Clean Spotter (1 Quart)
Optional Accessories:
• Sandpaper, 8” x 19” 20, 36, 60, 80 & 100 Grit
Specifications:
Model: Su7R
Weight: 41.9 lbs
Product Dimensions L x W x H: 13” x 13” x 12.5”
Finish: Polished Aluminum
Sandpaper Available: 20, 30, 60, 80 and 100 grit
Scraper, Ride-On Floor Battery Powered
Specifications:
Working Width: 6-27” (Depending on the type of blade)
Ground Speed: 160’ min. working speed
Power: 12 8V Batteries / Up to 10 HR run time
Dimensions L x W x H:
59” x 24” x 52”
Weight: 2,245 lbs with weights, 1,995 lbs without weights
Surfaces: Hardwood Parquet, Ceramics, Linoleum, Vinyl, Carpet, Adhesives, Glue, Tiles
Optional Accessories:
• Disc, 7” 20, 36, 60, 80 & 100 Grit
Sandpaper
Optional Accessories:
• Transport Dolly, Ride-On Floor
Scraper
• Beveled Tile Blade, 6”, 8” & 12”
• Self Scoring Carpet Blade, 8”, 10” & 12”
• Premium Chisel Heavy Duty, 2” & 4”
• Heavy Duty Tile Blade, 12”
Scrubber, Floor Walk-Behind
Specifications:
Application: Indoor
Estimated Coverage/Productivity: Up to 47,520 sq ft / 4,415 sq m
Estimated Run Time: Up to 6.9 hours (cylindrical)
Main Down Pressure: Up to 300 lbs (disk), up to 90 lbs (cylindrical), 170 lbs (orbital)
Power Source: Battery
Sound Level: As low as 69.2 dBA
Squeegee Width: 39”, 43.1”, 47.7”
Head Type: Disk, Cylindrical, Orbital
Charger type: Standard: On-board
Cleaning Path: 28”, 32”, 36”
Machine Type: Walk-Behind
Recovery Tank Capacity: 37 gal
Pad RPMs: Up to 300 rpm (disk), 760 rpm (cylindrical), 2,200 rpm (orbital)
Solution Tank Capacity: 32 gal
Stripper, Ceramic Tile
Specifications:
Power Source: 35 lbs weight class electric breakers
Outside Wheel Width: 21-1/4” (540 mm)
Handle Width: 30” (762 mm)
Weight: 130 lbs (59 kg), less breaker
Vacuum, Wet/Dry Shop
Specifications:
Voltage: 120 V (60 hz)
Motor Output: 1 kW (8.3 A)
Weight: 16.5 lbs (7.5 kg)
Suction: 210 mbar (84 in H2O)
Air Flow: 3,200 L/min (113 cfm)
Sound Pressure Rating: 70 dB(A)
Container Capacity: 6.6 gal (25 L)
Suction Hose Length: 8.2’ (2.5 m)
Power Cord Length: 16.4’ (5 m)
Power Source: Electric
Vacuum, SM 8 Gal Dust Collector HEPA
Specifications:
Automatic Filter Clean pulses every 30 seconds for continuous operations
Powerful 15 Amp motor delivers 150 CFM of airflow for maximum suction
Power Tool Actuation controls the On/ Off operations of the vacuum with a power tool
Lightweight and portable weighing in at only 21 lbs
Can be used with wet or dry applications
• Breaker Tool, 1” & 3” Chisel
Optional Accessories:
• Vacuum, Floor Tool Large
• Vacuum Hose
• Vacuum Wand
landscape, lawn & tree
Landscape, Lawn & Tree
Aerator, Core (Gas) 19”
Specifications:
Maximum Depth: 3”
Weight: 240-288 lbs (model dependent)
Aerating Width: 19”
Fuel Type: Gas
Engine Make: Honda
Performance kW: 2,9
Performance HP: 4,0
Productivity (m2/h): 2,000
Working Width (cm/in): 48 / 19”
Aerator, 30” Stand On
Specifications:
Highly productive with extra fuel capacity and speeds up to 7.5 mph (12,1 km/h)
Smooth ride with the floating operator platform
Foot pedal control lets you raise and lower tines on the fly
Intuitive controls that function a lot like a mower, saving time
Tine Type: Drum
Tine Depth (cm): 8,9
Number of Tines: 24
Tine pattern (cm): 12 x 18
Drive Type: Self Propelled
Transmission Type: Geared
Gears Forward: 1.0
Wheel Type: Semi-Pneumatic
Maximum Aerating Depth: 5”
Aerating Width: 30”
Fuel Capacity: 5 gal
Fuel Type: Gasoline
Ground Speed: 7.5 mph (forward)/2.2 mph (reverse)
Dimensions L x W x H: 65” x 48” x 53”
Weight: 1,015 lbs
Spreader Attachment, Stand On Aerator
Specifications:
Auger, Towable Hydraulic
Specifications:
Auger Speed 140 rpm @ 3600 engine rpm (no load)
Auger Torque 275 ft lbs torque (approximate)
Maximum Depth Depends on length of Auger
Auger, 2 Man Power
Specifications:
Maximum Auger Speed @ 3600 engine rpm (no load): 160 rpm
Maximum Torque: 192 ft lbs torque (approximate)
Weight 295 lbs (134 kg) (with fluids)
Length Normal Drilling 100” (253 cm)
Length Close-up Drilling 75” (190 cm)
Width 34” (86 cm)
Height 38” (96 cm)
Maximum Auger Diameter: 12”
Weight: 72 lbs
Length: 40.5”
Width: 30”
Chipper, 6” Brush Bandit
Specifications:
Model: 65XP
Capacity: 6”
Engine Power: 35 HP
Fuel Type: Gasoline
Fuel Capacity: 10 gal
Disc / Drum Diameter: 26” (66 cm)
Chipper Width: 1.6 m
Number of Reversible Blades: 2
Chipper Weight: 2,425 lbs
Tow Hitch Type: 2” ball
Optional
• Spreader Attachment, Stand On Aerator Optional
• Auger, 8” & 16” Bit Towable & 2-Man
• Auger, 10” & 12” Bit Hydraulic
• Extention, 12” & 24”
• Auger, 8” & 16” Bit Towable & 2-Man
• Auger, 10” & 12” Bit Hydraulic
• Extention, 12” & 24”
Landscape, Lawn & Tree
Chipper, 12” Brush Bandit
Specifications:
Capacity: 12” (30.48 cm)
Opening: 14” x 17” (35.6 cm x 43 cm)
Width: 72” (182.90 cm)
Height: 100” (254 cm)
Length (Open): 202” (513 cm)
Chopper/Blower, Hay Bale
Specifications:
Model: SB1300
Power Source: 13 HP Honda Engine
Weight: 460 lbs
Bales/Minute: 1 - 1.5
Blower, Bark & Mulch
Specifications:
Power: Diesel Kubota V1505, 33.5 HP (25 kw), 4 cylinder
Engine Safety: Low oil pressure, high water temperature shutoff
Capacity: 1.5 cubic yd (1.2m^3)
Fuel Capacity: 15 gal
Fuel Type: Diesel
Splitter, 26” Log
Specifications:
Max Log Opening: 26”
Ram Pressure: 26 tons (calculated)
Cycle Time: Approximately 12 sec
Sod Cutter, 18”
Specifications:
Engine Brand: Honda®
Weight: 157.8 kg
Cutting Width: 18” (45.7 cm)
Blower, Backpack Leaf
Specifications:
Displacement: 4.0 cu in (64.8 cc)
Engine Power: 2.8 kW (3.8 bhp)
Weight: 23.4 lbs (10.6 kg)
Blower, 8-9 HP Leaf
Specifications:
Model Number: F902H
Fan Material: (17) 16-blade Single
Shot Composite
Displacement: 262 cc
Length: 58”
Housing Height: 32”
Handle Height: 45”
Front Tire Style: Semi-pneumatic
Rear Tire Type: Pneumatic
Front Wheel Width: 10”
Length (Closed): 172” (436 cm)
Weight: 5,800 lbs (2,630 kg)
Feed Rate: 120 ft/min (36.60 m/min)
Fuel Tank: 29 gal
Fuel Type: Diesel
Rotor: 16”
Blower: 18”
Number of Knives: 32
Discharge: 45’ - 50’
Blower: 500 cfm @ 10 psi (14 cmm @ 69 kPa)
Empty Weight: 4,550 lbs (2,065 kg)
Working Weight: 5,750 lbs (2,610 kg)
Truck Requirement: 6,000 lbs (2,730 kg)
Hose Length: 100’
Hitch Coupler: 2 Locking Ball (Standard)
Cylinder Size: 4” x 24”; Clevis type
Hydraulic Tank: 7.5 gal capacity
Hitch, Reese Pintle w/ 2” Ball
Max Cutting Depth: 2.5” (6.35 cm)
Length: 59” | Width: 26.5”
Height: 36.5”
Fuel Capacity: 47.3 oz (1,400 cc)
Blowing Force: 35 Newtons
Fuel: 50 to 1 gas mix
Velocity (mph): 200 mph
Discharge: 4”
Weight: 143 lbs
Width: 29.25”
Front Tire Size: 10” x 3”
Rear Tire Size: 13” x 5”
Rear Wheel Width: 13”
Fuel Tank Capacity: 1 gal
Fuel Type: Gasoline
Blower, Stand On Leaf
Specifications:
Model: 5901807-Z3000
Engine: Vanguard V-Twin
Engine Power Rating: 35 HP
Displacement: 993 cc
Transmission: Twin HYDRO-GEAR®
3100 IZTs
Velocity: 165+ mph
Fuel Type: Gasoline
Tank Capacity: 10 Gal
Air Flow: 7,500 cu ft/min
Mower, 21” Walkbehind
Specifications:
21” Mowing Path
Snapper HI VAC 190cc 3-N-1 Push
Lawn Mower with 21” Mower Deck and Ready Start System and 7 Position
Height-of-Cut
Mower, 26” w/ Brush Cutter
Specifications:
Engine: 388 cc Honda
Start: Pull
Cut Width: 26”
Cut Height: 3.75”
Weight: 317 lbs
Length: 83”
Width: 31”
Travel Speed: 9 mph
Fuel Capacity: 10 gal
Length: 65”
Width: 45”
Height: 56”
Weight: 895 lbs
Mower, Ride-On Commercial
Specifications:
Engine Power Rating: 29.5 gross HP
Engine Manufacturer: Kawasaki®
FX850V EFI
Displacement: 852 cc
Cylinder Liners: 2
Starter: Electric
Operating Speed:
Ground Speed-Fwd: 0-12 mph
Ground Speed-Rev: 0-6 mph
Roller, 250# Push Lawn
Specifications:
Weight: 250 lbs
Operation Type: Push
Roller, 650# Towable Lawn
Specifications:
Tractor: Rented Separately
Product Name: 18” x 36” Poly Tow
Model Number: 45-0268
UPC: 052613452684
Weight: 45 lbs
Weight (Filled with water): 650 lbs
Drive Axles: 1.375 Tapered in
Overall Length: 81”
Height Cutting: 1.5 - 5”
Cutting Width: 61”
• Ramp, Loading w/ Equip.
Overall Width Deflector Down/Deflector
Up: 76” / 63”
Fuel Capacity: 11 gal
Weight: 1,405 lbs
Landscape, Lawn & Tree
Hydro Seeder, 700 Gal w/ Tower
Specifications:
With Bowie s Lancer 700, you can apply your product either from the working platform using the discharge cannon or from the ground with
a hose. This unit uses one clutch to operate the agitator and another to operate the pump. I
Bowie Lancer 700 Gas
Engine: Kohler 25HP Air Cooled Gas EFI
Small Reel & 100’ of 1-1/2” hose
Flush Tank: 35 gal
Pump: 2” Bowie Gear Pump
Length: 15’-11”
Width: 6’-5”
Height: 9’-4”
Empty Weight: 4,360lbs
4-Nozzles
Pintle hitch
Approx load Weight: 10,107 lbs
Liquid Capacity: 700 US Gal/ (2650) liters
Hydro Seeder, 300 Gal T30
Specifications:
Power: Kohler Command 18 HP
(11.2 kW), electric start, air cooled gas
Tank Size: 335 gal
Seeding Rate: 10.68 loads per hour
Fuel Tank Gas Capacity: 4 gal (15.1 L)
Material Capacity: 500 lbs (227 kg) granular solids, 100 lbs (45 kg) fiber mulch
Empty Weight: 1,480 lbs (671 kg)
Working Weight: 4,560 lbs (2,068 kg)
Hose: 100’
Seeder, Slice Push
Specifications:
Engine Make: Honda
Engine Model: GX160
Performance kW: 4,1
Performance HP: 5,5
Displacement (cc): 163
Working Width (cm/in): 51 / 20
Working depth (cm): 0,3 - 1,3
Weight: 178.54 lbs (81 kg)
Width: 26” (67 cm)
Length:45” (116 cm)
Height: 46” (119 cm)
Productivity: 1,225 m2 /h
Drive Type: Push
Seed Box Capacity: 11,3 kg
Seeder, Turf Revitalizer
Specifications:
Displacement: 270 cc
Seeding Width: 22” slicing Weight: 314 lbs
Thatcher, Lawn
Specifications:
Engine: 205 cc Vanguard (PR550); 162 cc Honda
Depth: Infinite
Depth Adjustment: 0.125” with up to 0.5” adj. for blade wear
Snow Blower
Specifications:
Engine Rating: 250 cc
Engine Type: Ariens Polar Force by Briggs & Stratton
Clearing Width: 24’’
Tire Size: 15’’ x 5’’
Reel: 20” Flail
Productivity: 13,000 sq ft/hr
Weight: 160 lbs
Length: 45.5”
Width: 26.5”
Speed: 6 mph (Forward)/ 2 mph (Reverse)
Impeller Diameter: 14’’
Augers: 14’’ Steel, Serrated
Snow Machine, Stand On Removal
Specifications:
This go anywhere, clear anything behemoth was designed and built unlike anything anyone has seen before. From its best-in-class engine to its beefy, four-wheel-driven tires, there is not a snow-covered path it cannot clear with ease. Read on and you’ll quickly see how the Mammoth is wreaking vengeance on snow.
Engine Kawasaki 850v Efi
Horsepower 28.5 HP
Stump Grinder, Large
Specifications:
Engine: 30SGB: Briggs Vanguard 31HP V-Twin
Dimensions:
Weight: 1,700 lbs
Height: 49”
Length (head to side): 79”
Length (head straight): 98”
Width: 35.5”
Optional Accessories:
Starting System 12V Key Start
Ground Speed 8 MPH Forward / 4 MPH Reverse Drive Type 4-Wheel Drive
Lights Two Forward Led Headlights, One Rear Led Light Drive Shaft Auto Stay Back Collar Attachment System ‘Snowzilla’ Quick Attach System
Length: 58 in
Width: 35.8 in
Height: 49.5 in
Wheel Specifications:
Cutting Wheel: 19.2” diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12”
Cutting Height: 32”
Head Swing: 134”, 99.7” arc
Tiller, 9HP Hydrostatic Rear Tine
Specifications:
Dimensions: 66” x 20.75” x 36”
Tine Width: 16”
Tilling depth: 7.5”
Trimmer, Gas Hedge
Specifications:
Blade Length: 24”
Duty: Professional use
Engine Displacement: 21.4 cc
Wheel Width: 18.75”
Weight: 460 lbs
Handlebar Pivot Angle: Up to 20”
Optional Accessories:
• 48” Mammoth Snow Plow Blade Attachment
Engine Power: 0.87 bhp
Power Source: Gas Power: 3,640 strokes per minute
Optional Accessories:
• Trailer, 4’ x 6’
Optional Accessories:
• Gas Can
Landscape, Lawn & Tree
Kombi System Powerhead
Specifications:
Displacement: 1.9 cu in (31.4 cc)
Engine Power: 1.05 kW (1.4 bhp)
Weight: 9.7 lbs (4.4 kg)
Fuel Capacity: 24.0 oz (710 cc)
Power Source: Gas
Kombi Blade Attachment
Specifications:
Displacement: 1.9 cu. in (31.4 cc)
Engine Power: 1.05 kW (1.4 bhp)
Weight: 9.7 lbs (4.4 kg)
Fuel Capacity: 24.0 oz (710 cc)
Power Source: Gas
Kombi String Trimmer
Specifications:
Displacement: 1.9 cu in (31.4 cc)
Engine Power: 1.05 kW (1.4 bhp)
Weight: 9.7 lbs (4.4 kg)
Fuel Capacity: 24.0 oz (710 cc)
Power Source: Gas
Kombi Sweeper Attachment
Specifications:
Displacement: 1.9 cu in (31.4 cc)
Engine Power: 1.05 kW (1.4 bhp)
Weight: 9.7 lbs (4.4 kg)
Fuel Capacity: 24.0 oz (710 cc)
Power Source: Gas
Kombi Edger Attachment
Specifications:
Displacement: 1.9 cu in (31.4 cc)
Engine Power: 1.05 kW (1.4 bhp)
Weight: 9.7 lbs (4.4 kg)
Fuel Capacity: 24.0 oz (710 cc)
Power Source: Gas
Trencher, Mini Walkbehind
Specifications:
Weight: 134 lbs (61 kg)
Width: 23” (58 cm)
Engine Make: Honda Cutter Wheel Diameter: 10.5” (27 cm)
Teeth (3): 1” Dia. (2.5 cm), 0.2” Thick (.508 cm) Leonardi® Carbide Tips
Drive: Direct Belt Drive 1600 Series
Noram Clutch
Cutting Capacity (Above Grade):
10” (25 cm)
Cutting Capacity (Below Grade):
9” (23 cm)
Optional Accessories:
• Kombi Blade Attachment
• Kombi String Trimmer
• Kombi Hedge Trimmer
• Kombi Edger Attachment
• Kombi Sweeper Attachment
• Kombi Pole Pruner Attachment
• Kombi System Powerhead
Optional Accessories:
• Kombi System Powerhead
• Kombi System Powerhead
• Kombi System Powerhead
Trencher, Walkbehind
Specifications:
Trench Depth: 24”
Trench Width: 4”
Weight: 900 lbs
Transport Width: 35”
Transport Height: 46”
Wheel Base: 35”
Head Shaft Height Digging Chain: 8”
Front Wheel to Handlebar: 83”
Boom End to Handlebar: 88”
Trench Center to Outside Left: 16”
Trench Center to Outside Right: 19”
Boom Travel (Up): 60”
Boom Travel (Down): 60”
Trencher, Walkbehind Track
Specifications:
Motor: Honda, 20 HP
Weight: 1,600 lbs
Dimensions L x W x H: 92.5” x 36” x 52.5”
Maximum Digging Width: 4.3”
Maximum Digging Depth: 36”
Trencher, Ride-On V3550
Specifications:
Motor: 37 HP, Duetz
Fuel Type: Diesel
Weight : 4,500 lbs
Cutting Depth: 4’
Dimensions (L x W x H): 13’4” x 58” x 7’2”
Back Fill Blade: 6-Way
Optional Accessories:
Optional Accessories:
generators, lighting & welding
Generator, 2500 WATT
Specifications:
Frequency: 60 hz
Phase: Single
Voltage: 120 V
Fuel Tank Capacity: 3.2 gal (12 L)
Wattage (Maximum): 2,500 W
Wattage (Continuous): 2,200 W
Amps at 120 V (Maximum): 20.8 A
Amps at120 V (Continuous): 18.3 A
Main Circuit Breaker: 20 A
Overall Length: 20.9”
Width: 17.7”
Generators, Lighting & Welding
Optional Accessories:
Height: 20.1”
Operating Weight: 132 lbs (60 kg)
Engine Make/Model: Honda GX-160
/ 5.5 HP (4.1 kW)
Engine RPM: 3,600
Fuel Type: Gasoline
Generator, 3600 - 3800 WATT
Specifications:
Phase: Single
Voltage: 120/240 V
Sound Level at 30’: 76 dBA
Fuel Tank Capacity: 5 gal (19 L)
Wattage (Maximum): 3,600 W
Wattage (Continuous): 3,200 W
Amps at 120 V (Maximum): 30 A
Amps at 120 V (Continuous): 26.6 A
Amps at 240 V (Maximum): 15 A
Amps at 240 V (Continuous): 13.3 A
Main Circuit Breaker: 21 A
Overall Length: 25.5”
Generator, 6000 WATT
Specifications:
Phase: Single
Voltage: 120/240 V
Sound level at 30’: 75 dBA
Fuel Tank Capacity: 5 gal (19 L)
Wattage (Maximum): 6,000 W
Wattage (Continuous): 5,000 W
Amps at 120V (Maximum): 50 A
Amps at 120V (Continuous): 41.6 A
Amps at 240V (Maximum): 25 A
Amps at 240V (Maximum): 20.8 A
Main Circuit Breaker: 23 A
Overall Length: 27”
Width: 22”
Generator, 9700 WATT
Specifications:
Frequency: 60 hz
Phase: Single
Voltage: 120/240 V
Fuel Tank Capacity: 10 gal (37.8 L)
Wattage (Maximum): 9700 W
Wattage (Continuous): 8400 W
Amps at 120 V (Maximum): 80.8 A
Amps at 120 V (Continuous) 70 A
Amps at 240 V (Maximum): 40.4 A
Amps at 240 V (Continuous): 35 A
Main Circuit Breaker: 40 A
Overall Length 31.25”
Width: 21.25”
Width: 22”
Height: 24”
Operating Weight: 215.73 lbs (97.85 kg)
Engine Power: 7.1 HP (5.3 kW)
Power: 3,600 rpm
Fuel Type: Gasoline
Optional Accessories:
Height: 24”
Operating Weight: 241 lbs
Start Method: Recoil
Engine Power: 9.5 HP
Engine RPM: 3600
Fuel Type: Gasoline
Optional Accessories:
Height: 27.5”
Operating Weight: 402.73 lbs
Start Method: Electric Power: 16.6 HP (12.4 kW)
Engine Power: 3,600 rpm
Fuel Type: Gasoline
Optional Accessories:
Generators, Lighting & Welding
Generator, 15,000 WATT Towable
Specifications:
Prime Rating: 14 kW
Standby Rating: 14.7 kW
Generator RPM: 1800
Voltage - Single Phase: 120/240 V
Generator Design: Revolving field,
Self-Ventilated, Drip-Proof, Single Bearing Voltage Regulation (No Load to Full Load): ±0.5%
Power Factor: 1.0
Armature Connection: Series
Excitation: Brushles with AVR No. Poles: 4
Frequency: 60 Hz
Frequency Regulation (steady state load): ±0.25%
Sound Level (Full Load at 23 ft.): 64 dB(A)
Engine Specifications Make/Model: Kubota / D1503
Emissions: Tier 4 Final
Fuel Tank Capacity: 28 gal
TRLRMPXF Trailer Specifications
Gross Vehicle Weight Rating (GVWR): 2,000 lbs
Coupler Rating: 3 in. Pintle Eye20,000 lbs
Overall Length: 98.60”
Overall Width: 55.50”
Overall Height: 22.00”
Operating Weight: With Fuel: 713 lbs
Without Fuel: 513 lbs
Generator, 25,000 WATT Towable
Prime Rating: 20 kW (25 kVA)
Standby Rating: 22 kW (27.5 kVA)
Generator Power: 1,800 rpm
Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Generator Design: Revolving field, Self-ventilated, Drip-proof, Single bearing Voltage Regulation (No Load to Full Load): ±0.5 %
Power Factor: 0.8
Armature Connection: Star with Neutral/ Zig Zag
Excitation: Brushless with AVR
Number of Poles: 4
Frequency: 60 Hz
Frequency Regulation (steady state load): ±0.25 %
Sound Level (Full Load at 23’): 65 dB(A)
Optional Accessories:
• Generator Usage Policy
• Distribution Box
• Cord, Distribution Box
Emissions: EPA Tier 4 Final Certified
Fuel Tank Capacity: 41.7 gal
• Generator Usage Policy
• Distribution Box
Fuel Consumption: Full load 1.62 gph; 3/4 load 1.26 gph; 1/2 load 0.94 gph; 1/4 load 0.67 gph
Gross Vehicle Weight Rating (GVWR): 3,500 lbs
Ball Coupler: 2” (10,000 lbs)
Overall Length: 105.79”
Overall Width: 56.18”
Overall Height: 20.85”
Operating Weight (w/out fuel): 444 lbs
• Cord, Distribution Box
Generator, 45,000 WATT Towable
Specifications:
Prime Rating: 36 kW, 45 kVA
Standby Rating: 40 kW, 50 kVA
Generator RPM: 1800
Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Emissions: EPA Tier 4 Final Certified Gross Vehicle Weight Rating: (GVWR) 7,000 lbs
Coupler: Pintle
Overall Length: 147.33”
Overall Width: 66.25”
Overall Height: 23.2”
Optional Accessories:
• Generator Usage Policy
• Distribution Box
• Cord, Distribution Box
Operating Weight: w/out Fuel: 1,056 lbs
Fuel Tank Capacity: 79.2 gal
Generators, Lighting & Welding
Generator, 70,000 WATT Towable
Specifications:
Prime Rating: 56 kW 70 kVA
Standby Rating: 62 kW 77 kVA
Generator RPM: 1800
Voltage - Three Phase: 208, 220, 240, 416, 440, 460, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Engine Make/Model: Isuzu / BR-4JJ1X
Emissions: EPA Tier 4 Final Certified
Fuel Tank Capacity: 103 gal
Gross Vehicle Weight Rating (GVWR): 7,000 lbs
Coupler: Pintle
Overall Length: 151.3”
Overall Width: 69.3”
Overall Height: 24.8”
Operating Weight: with Fuel: 2,077 lbs w/out Fuel: 1,366 lbs
• Generator Usage Policy
• Distribution Box
• Cord, Distribution Box
Generator, 125,000 WATT Towable
Specifications:
Prime Rating: 100 kW, 125 kVA
Standby Rating: 110 kW, 137.5 kVA
Generator RPM: 1,800
Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Engine Make/Model: Isuzu / BR-4HK1X
Emissions: EPA Tier 4 Final Certified
Gross Vehicle Weight Rating (GVWR): 10,000 lbs
Light Tower, 4,000 WATT
Specifications:
Wind Stability: 65 MPH (w/outriggers)
Support Points: (4) Adjustable Jacks
Run Time: 64 hrs
Number of Lamps: 4
Lamp Output: 440,000 Lumens
Lamp Type: 1kW Metal Halide
Generator Power: 120V/50A - 240V/25A
Generator Output (Max): 6,600 W
Weight (lbs): 1,492
Light Tower, 2400W LED
Specifications:
Model :GBX Light Tower
Voltage 120 VAC
Frequency 60 Hz
Wind Stability 55 mph (24.6 m/s)
Mast 23 ft (7 m) / 359°
Support Points 3X Adjustable Jacks
Lamp: Type 600 W LED (X4)
Number of Lamps 4
Lumens 280,000 lm
Power Requirement 2,400 W/20A
Generator:
Power 120 V/33 A
Output 4200 W
External Receptacles Duplex
120V/20A GFCI
Storage: 56.5 x 47.2 x 87 in
(1,435 x 1,200 x 2,210 mm)
Couper: Pintle
Fuel Tank Capacity: 169
Overall Length: 181”
Overall Width: 79.5”
Overall Height: 24.7”
Weight (without fuel): 1,772 lbs
• Generator Usage Policy • Distribution Box • Cord, Distribution Box
Fuel Tank Volume: 31 gal
Length: 112”
Width: 50”
Height: 72”
Hitch: 2” Ball or Pintle
Optional Accessories:
Working: 105.1” x 96.6” x 302”
(2,670 x 2,455 x 2,880 mm)
Operating Weight: 1,433 lbs (650 kg)
Engine Specifications:
Model Kohler KD15-440
Horsepower 8.7 HP
Type 1 Cylinder: Air-cooled
EPA Certification: Tier 4F
Fuel Type: Diesel
Fuel Capacity: 48 gal (182 L)
Fuel Consumption: 0.34 gal/hr
Oil Capacity: 1.2 gal (4.45 L)
Run Time: 140 hours/Lights only
Standard Hitch Type: 2” Ball
Optional Accessories:
Welder, Wire Feed 140 AMP
Specifications:
Forney 309 Wire Feed Welder 120 VOLT MIG Welder
*ORGILL 8909392**
Technical Details
Item Weight: 62 lbs
Product Dimensions: 20.2” x 10.2” x 16”
Item Model Number: 309
Size: 140 Amp
Color: Green
Material: Metal
Power Source: Corded-Electric
Voltage: 120 volts
Horsepower: 309
Amperage Capacity: 140 A
Cord Length: 8’
Measurement System: Standard
Welder, 180 AMP (Gas)
Specifications:
DC Voltage: 26.8 V
DC Current: 180 A
Current Range: 50 - 180 A
Max Duty Cycle w/Full Amps Available at 180 A: 50%
Fuel Tank Capacity: 3.7 gal
Fuel Consumption at Rated Load: 0.93 gph
Operating Weight: 225 lbs
Engine: 3600 rpm
Fuel Type: Gasoline
Welder, 400 AMP (Diesel)
Generators, Lighting & Welding
Optional Accessories:
• Helmet, Welders
• Lead, Welding
Specifications: Optional Accessories:
DC Voltage: Single 34V, Dual 27V V
DC Current: Single 400, Dual 200 A
Current Range: Single 30-400, Dual 30-200 A
Fuel Tank Capacity: 11.1 gal
Fuel Consump.at Rated Load: 1.3 gph
AC Power Output (Single Phase): 14 kW
Cycle: 60 Hz
Voltage: 120/240 V
Amperage: 116/58 A
Voltage Regulation: 1.5%
Overall Length: 61”
Width: 29”
Height: 35”
Operating Weight: 1,144 lbs.
Torch, Oxygen & Acet. Set
• Helmet, Welders
• Lead, Welding
Specifications: Optional Accessories:
Model: CK-6-FP 250
Truck Outfit Type: 250 Truck Series Deluxe Outfit
Maximum Cutting: 5/64”
Welding Capacity: 3/8”
• Goggles, Dark Cutting
• Oxygen, 100 Cubic Foot
• Acetylene, 10 Cubic Foot
heating & cooling
Heating & Cooling
Ground Heater, Thawzall TCH150
Specifications:
Thaw Area: 1,200 - 2,400 sq ft Cure
Area (Concrete): 2,400 sq ft Cure Area
(Accessories): 6,000 sq ft
Frost Prevention: 2,400 sq ft Frost
Prevention (w/ accessories): 10,800 sq ft
Heat Buildings: 210,00 cu ft Maximum
Fuel Consumption: 1 gph (3.8 lph)
Maximum Run Time: 4+ days
Pump Capacity: 30/1,800 gpm/gph
(110/6,800 lpm/lph)
Weight (with fuel & fluid): 3,460 lbs
Optional Generator: 500 lbs (230 kg)
Fuel Capacity: 102 gal (390 L)
Ground Heater, Thawzall TCH250
Specifications:
THAW frozen ground sq ft 3,000-6,000
CURE concrete sq ft 6,000 with accessories sq ft 18,000 max
FROST prevention sq ft 9,000 with accessories sq ft 27,000 max
HEAT buildings: cu ft 400,000
Input/Output: MBH 280/234
Operating Range: °F 70-200 °C 21-93
Operating Pressure: psi 1-5
Fuel Consumption (max): gph 1.75
Run Time :days 3+
Pump Capacity: gpm/gph 30/1800
L x W x H in 170 x 84 x 97
Weight w/fuel & fluid: 5,600 lbs
Generator: 310 lbs
Fuel Capacity: 160 gal
HTF (Heat Transfer Fluid): 122 gal
SPECIFICATIONS:
(1) 1/2 HP Pump Closed Loop Centrifugal
Hose Length (5 zones x 600’) 3,000 ft
Electrical, GFI 20 amp x 120 vac
HTF Pumpability °F -80 / °C -62
Fuel: Winter blend diesel or #1 fuel oil
Hitch: Pintle
Diesel Generator: 7.0 KWH
Ground Heater, HK500 – HK600
Ground Thawing Capacity: up to 11,200 ft²
Concrete Curing Capacity: up to 22,400 ft²
Temporary Heating Capacity: up to 15,000 ft²
Heater Capacity: 605,000 BTUH
Heating Fuel Input
Field Hoses: 8 - 5/8” & 1 - 1” quick connect
Run Time: Up to 60 hours (Depending on conditions)
Length (from hitch): 165”
Width: 75”
Height: 84”
Manifolds (Supply & Return): 8 - 5/8” & 1 - 1 1/4” quick connect
Electrical Requirement: 2 - 120V AC
20A Circuits
Glycol Tank Capacity: 130 US gal
Fuel Tank Capacity: 192 US gal
Weight (Fuel Tank Empty/Full): 7,095 lbs/8,439 lbs
Ground Heater, 1Mil BTU IND Towable
Specifications:
9KW Kubota Powered Genset, 1800 rpm Battery disconnect Block Heater
True Spill Containment for genset, burner, fuel lines
Double Wall Fuel Cell- 300 Gallon
Ducting Capabilities of 150ft
(Recirculating Capabilities)
Tandem 5200 lb Axles, Galvanized Trailer
4 X 12 or 2 X 16 Supply Panels, with 2 X 16 Return Panels
Low Fuel Alert At 20%, Automatic Shut Down At 5%
Auto Sequence Start Up and Shut Down External Battery Boost/Jump Ports
External Heat Exchanger Drain Port
Easy Access External Power Outlet 120 volts, 20A GFI
LED Lights Illuminate Surrounding Workspace
Heated Filter Recovery System
Panel Mounted Volt Meter AND Digital Temperature Controller 154 Length x 95 Width x 102
Height / Weight 5,180lbs DRY, 7,678lbs WET
DB1000CT
CAMPO EB400D X s 2
11,000 CFM
3 MAX Static Pressure
Run Time Up To 44 Hours
798,000 BTU’s
Optional
Optional Accessories:
• Duct 24” X 25’ Hi Temp Heater
Concrete Powerblanket, 5’ x 20’ Electric
Specifications: Optional Accessories:
Adjustable Thermostat: Internal/Fixed
Amperes: 12 A
Dimensions: 5’ x 20’
Heat Range: Mid
UL/ CSA Compliant: Yes
Voltage: 120 V
Wattage: 1440 W
Heater, 1.6KW Electric
Specifications:
Amperes: 13.5 A
Heater Type: Electric
Minimum Breaker Required: 15 A
Output: 5,630 btu/hr/120 cfm/1.65 kW
Phase: Single, 115 V
Wattage: 1,650 W
Weight: 14 lbs
Heater, 10,000 Watt Electric Specifications:
Output: 10 kW and 7kW / 34,121
and 23,884 btu/hr / 350 cfm
Wattage: 10,000 kW
Voltage: 240 V
Amperes: 28/42 A
Minimum Breaker Required: 2-Pole
Heater, 20,000 Watt Electric
Specifications:
Output: 20 kW / 13kW; 68,242 /
44,357 btu/hr; 600 cfm
Watts: 20,000 kW
Voltage: 240 V
Amps: 54 / 81 A
Minimum Breaker Required: 2-pole
60 A or 2-pole 100 A
Phase: Single Weight: 45 lbs
Heater, 40-50,000 Watt Electric
Specifications:
Standard Features:
• Clean dry heat
• Built-in thermostat (32º - 100º F)
• Cycles heater on/off automatically
• Ductable to 50’
• Overheat protection
• Three power settings
Input BTU/Kw
136,500 / 40
102,400 / 32
51,200 / 16
Electrical Rating: 480 Volts / 3Ø / 50
amps
Optional Accessories:
Single
Fan: 1,800 CFM
Temperature Rise: 100ºF
Dimensions: 46”L x 20”W x 25”H
Approx. weight: 130 lbs
Optional Accessories:
Torch, Propane Flame Thrower
Specifications:
Output: 500,000 btu/hr
Suggested Use: Farm and Ranch, Construction, Road Crews, Grounds Maintenance, Industry and More
Fuel Type: Tank pressure - No
regulator required
Torch Bell Diameter: 3”
Total Length: 33-1/2”
Heater, 150-175,000 Kerosene
Specifications:
Heater Style: Salamander / Torpedo
Heat Output: 190,000 BTU
Hot-Air Flow: 630 CFM
Air Pump Pressure: 8.5 PSI
AC Power: 120V, 60Hz, 2.7 Amps
Motor Size: 1/4 HP
Fuel Tank Capacity: 13.0 gal
Fuel Consumption: 1.42 gal/hr
Max. Operating Hours: 9.1 hours
Heater, 200,000 Kerosene
Specifications:
Weight: 185 lbs
Hot Air Flow: 180,000 btu/hr
Fuel Type: Kerosene, Diesel 1# or 2#, Fuel Oil
Tank Capacity: 17 gal
Ignition: Continuous
Electrical Rating: 120 V, 60 Hz, 13 A
Heating Area :4,300 sq ft
Multi-Fuel Capable: Yes
Weights & Dimensions
Net Weight: 60 lbs
Shipping Weight: 68 lbs
Length: 47”
Width: 22”
Height: 28”
Heating & Cooling
Optional Accessories:
• Propane Tank, 20 lb
• Goggles, Dark Cutting
Air Volume: 1060 cfm
Heated Fuel Filter: Standard
Clearance to Combustibles: Horizontal 6’
Adapter: F105111 Single (14”)
Heater, 400,000 Ind Diesel/Kerosene
Specifications:
Weight (Lbs): 484
BTU per Hour: 400,000
Fuel Type: Kerosene, Diesel 1# or 2#, Fuel Oil
Ignition: Continuous
Electrical Rating: 120v, 60 HZ, 13 Amp
Air Volume (CFM): 4032
Heated Fuel Filter: Standard
Heated Nozzle: No
Clearance to Combustibles: Horiz. 6’
Duct Length Max: 100 ft
Duct Diameter: Standard Dual (12”)
Wheel Type: Pneumatic
Item Length: 64”
Item Width: 27”
Item Height: 60”
Item Weight: 573 lbs
Heater, 400,000 Ind Oil Fired w/ 100 Gal Tank
Specifications:
Air Volume (CFM): 5,500 (Turbo), 3,500 (Axial)
Heat Rise: 220˚F+
Ductability: 150 ft (Turbo), 24 ft Axial
Indirect NG/LP
Recirculating Capabilities
Thermostat Operation
Gas Pressure Gauges on manifold and inlet side of train
Redundant Fail Safe Control System
Forklift Pockets
Weight: 470 lbs
Dimensions: 76.7” x 31” x 57.6”
Full Load Amps: 8.5 A (Turbo)/11.5A (Axial)
Air outlets: Two 12” or 1 x 16”
Kerosene
Thermostat, 32”
Heater, Stack w/Rain Cap
12” x 12”
Heater, 150,000 Propane Fan
Specifications:
I70,000 BTU per hour
Weight: 30.35 lbs
Length: 26.75”
Width: 11.75”
Heating Area (sq ft): 4,250
Runs up to 17 hrs on 100 lb tank (low setting)
Tank Capacity (Min): 100# Propane Cylinder • Propane Tank 100 lb.
Heater, 1.6 mil BTU Makeup Air Direct
Specifications:
550,000 BTU to 1,600,000 BTU,
Modulating
9,452 CFM Heated Air Output 1ph or 3ph
230V 40A
For Use with Metal Ducting
Lockable Casters
Forklift Pockets
Stackable
Very Quiet L92 , W31.50 , H62.5 992 lbs
For use with or without ductwork static
Pressure in ductwork is not to exceed 0.35 W.C.
Heater, 375,000 Propane Fan
Specifications:
250,000 - 400,000 BTU per hour
For use with propane gas
Heats up to 9,000 sq ft
Operates up to 17 hours on 2-100 lbs
propane tanks on low setting
Rugged & durable steel construction
Economical, efficient and clean burning
Heavy duty high output fan
Hose and regulator included Two 100 lb propane tanks are required
Heater, 400,000 Prop/NG Direct Fan
Specifications:
Input: 400,000 btu/hr
Fuel: Vapor Propane/ Natural Gas
Fuel Consumption: 4.4 GPH Propane /400 CFH NG
Gas Connection: 1” FNPT
Inlet Pressure: 7” min / 14” max
Electrical: 120 Volts 12 amp circuit
Fan: 2,000 CFM 1/4 HP
Thermostat: On/Off
• Remote Thermostat c/w 50’ cord
• Gas Regulator #RE3
• Duct, 24” x 25’ Hi Temp
• Furnace Starter Cap
Optional Accessories:
Propane Tank 100 lb.
Optional Accessories:
Temp Rise: 344°
Weight: 95 lbs
Dimensions: 46” L / 18” W 24” H
Regulator (recommended): 40SV06
Heater, 400,000 Ind Propane/NG
Specifications:
Maximum Capacity: 420,000 btu’s
Heated Air (without duct): 3,100 cfm
Discharge Temperature: 220º F with duct creating 0.5” static pressure
Fuel: Propane/natural gas
Nozzle Size: 2.8”
Finish: Powder coat
Burner Motor (115v , 60 cycle): 1/3 hp, 3,450 rpm
Net Weight: 520 lbs
Shipping Weight: 550 lbs
Air Outlets: Standard - (2) 12” dia
Dimensions L x W x H: 83” x 37” x 52”
Optional Accessories:
• Duct, 12” x 12” Hi Temp
• Duct, 16” x 25’
• Thermostat, Heater
• Heater, Stack w/ Rain Cap
Heater, 750,000 Propane Fan
Specifications: Optional Accessories:
Input: 750,000 - 450,000 btu/hr
Fuel: Vapor Propane/Natural Gas
Gas Consumption: 8.3 gph Propane / 750 cfh Natural Gas
Gas Connection: 3/4” FNPT
Electrical: 120 V / 15 A circuit
Fan: 1 hp (4,200 cfm)
Thermostat: 2-Stage Hi/Lo/Off with 50’ Remote
Temperature Rise: 385° F
Dimensions L x W x H:
48.5” x 26” x 31.5”
Weight: 200 lbs
Heater, 950,000 Heat Wagon 950H
Specifications:
Wheel Size: 12”
Ductable: Up to 100’
Input: 650,000 – 950,000 btu/hr
Fuel Consumption: 10.4 gph
Gas Connection: 1-1/4” FNPT
Inlet Pressure Minimum: 1 psi propane / 3 psi Natural Gas
Electrical: 120 V, 15 A circuit
Thermostat 2 Stage Hi/Lo/Off w/50’ Remote
Temperature Rise: 250° F
Weight: 325 lbs Dimensions L x W x H:
x 30.5” x 39”
Heater, 1,000,000 BTU Ind Oil w/ 300 Gal Tank
Specifications:
Indirect Fired
Recirculating Capabilities
Input btu/h: 1,000,000
Oil/Gas Fired
Beckett Burner
3 Fan Speeds up to 13,500 CFM
Weight: 2,000 lbs
Dimensions: 111” x 33.25” x 50“
High Static Fan: up to 6.5” Static Pressure with 300 US gal Sub-base double wall fuel tank
Ducting: up to 400 ft, 1×24” duct panels on supply and return side
Full Load Amps: 1PH 42 Amps, 3PH 25 AMPS
Voltage: 1PH or 3PH/208-240V
Heater, 1,500,000 Propane Fan
Specifications:
Input: 1,500,000 - 850,000 btu/hr
Fuel: Vapor Propane/Natural Gas
Gas Consumption: 16.4 gph Propane / 1,500 cfh Natural Gas
Gas Connection: 1-1/4” FNPT
Electrical: 120 V, 15 A circuit
Fan: 7,000 cfm (1 HP)
Thermostat: 2 Stage Hi/Lo/Off with 15’ remote Temp Rise: 490° F
Shipping Dimensions L x W x H: 69” x 32” x 41.5” Weight: 300 lbs
Heater, 200-250,000 Propane Radiant
Specifications:
Hot Air Flow: 200,000 btu/hr
Fuel Type: Propane
Max Area: Heats up to 4,700 sq ft
Max Operating Time: 24 hours
Pilot: Standing (for increased safety)
Electricity Required: No
Heater, 115,000 Tent
Specifications:
Brand: HeatStar
Ship Weight: 91 lbs
Product Style: Industrial
Heating Capability: 2,875 sq ft
Output: 115,000 btu
Color: White
Hot Air Flow Rate: 650 cfm
Voltage: 115 V
Dimensions (L x W x H): 30” x 15” x 23-3/4”
Heater, Patio Propane
46,000 BTU output
• Propane Tank, 40 lb., 100 lb
• Propane Tank, 100 lb
Propane T-Block
Duct, 12” x 10”
Duct, 12” Adapter
Piezo ignition system
Specifications: Optional Accessories: • Propane Tank, 20 lb • Propane, #20 Fill
Wheels for easy mobility
Uses standard 20 lb LPG BBQ tank
Consumption rate approx. 10 hrs
Assembled Dimensions: 18” Dia
Base x 33”Dia. Reflector x 92”H, Weight; 40 lbs
Air Conditioner, Portable
Specifications:
Cooling Capacity: 16,800 btu / 1.4 ton / 4.9 kW
Power Supply: 50 Hz/120 V 10 AMPS
Weight: 190 lbs.
Current Consumption: 8.5 A
Power Consumption: 1.96 kW
Refrigerant Type: R-410A
Maximum Hot Air Duct Length: 15 m
Condensate Tank: 18 L
Cooling Area: 40 cu m
jobsite technologies
Data Collector
Specifications:
Dimensions L x W x H:
5.4” x 10.2” x 1.6”
Weight: 2 lbs
Protection
Class: IP68
Processor: 1.0 GHz ARM Cortex
A8 i.MX53
Memory: 512 MB
Storage: 8 GB flash
Expansion: microSD slot
Battery Life: 20 hours
Audio: Speaker
I/O: Serial RS232, USB Host, USB Client, DC input, docking port
Operating System: Windows
Embedded Handheld 6.5
Display: 4.2” 640 x 480 high visibility backlit LCD
Keyboard: Full numeric and QWERTY
Detector, Metal
Specifications:
Iron Audio: No
Iron Discrimination Segments: 4
Notch Discrimination: Adjustable
Search Modes: 5 (Plus Pinpoint)
Sensitivity/Depth Adjustments: 8
Digital Target ID: Yes
Pinpoint: Yes
Frequency: 8 kHz, adjustable
Audio Tone ID Levels: 3
Target Depth Indictor: Yes
Standard Searchcoil: 7” x 10” concentric PROformance
Length (Adjustable): 40” x 53”
(1.016 m x 1.35 m)
Total Weight: 2.8 lbs. (1.27 kg)
Power: 4 AA
Jobsite Technologies
keypad
External Audio: 3.5 mm mini jack
LED: No
Wi-Fi: 802.11 b/g/n, 2.4 GHz
radio band
Bluetooth: BT 2.1 + EDR
Sensors: No
GPS Network Rover Survey Grade
Specifications:
Receiver Type: Multi-Frequency GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, and Atlas L-band
Signals Received: GPS L1CA/L1P/L1C/ L2P/L2C/L5
GLONASS G1/G2/G3, P1/P2 BeiDou
B1i/B2i/B3i/B10C/B2A/B2B/ACEBOC
GALILEO E1BC/E5a/E5b/E6BC/ALTBOC
QZSS L1CA/L2C/L5/L1C/LEX IRNSS L5
Atlas
Channels: 800+
RTK Formats: RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 including MSM, CMR, CMR+
Recording lntervals: Selectable from 1, 2, 4, 5, 10 Hz (20 Hz or 50 Hz optional)
L-Band Receiver Specifications
Receiver Type: Single Channel
Frequency Range: 1525 to 1560 MHz
Sensitivity: -130 dBm
Channel Spacing: 5.0 kHz
Optional
Optional Accessories: • Mobile Hotspot • GPS Pole
GPS Bipod
Satellite Selection: Manual and Automatic
Reacquisition Time: 15 seconds (typical)
Grading Box, Level Best Skid Steer
Specifications:
Model: PD84
Width: 84”
Front Capacity: 13.4 cu ft
Rear Capacity: 8 cu ft
Weight: 2,070 lbs
Grading Accuracy: Within 1/10”
Operating Design: Push-pull design grades moving forward and in reverse to utilize the maneuverability of a SSL or CTL and increase productivity
Hydraulic valve System: Adjusts
grading box
Cutting Edge: Reversible and replaceable on all sides; main edges are hinged to allow better penetration when digging
Universal Skid Steer Mount: Compatible
Couplers: Quick connect-underpressure flat face
Compatibility: CASE Site Control laser control panel, receivers and beacons
Mast Options: Single or dual (single mast for automated elevation only; dual mast for automated elevation and cross-slope)
Laser, LP500/LB100 Laserplane
Specifications:
Self-Leveling Range: ±11 arc minutes
Compensation Type: Wire Hung, Air
Damped
Accuracy: 1.5 mm at 30 m (1/16” at 100’), ±10 arc seconds
Laser Type: 670nm visible, Class 2
Battery Life 20°C (68°F): 4 D-Cell
Alkaline - 175 hrs NiMH - 100 hrs
Laser Distance Measure
Specifications:
Digital target locator with 4x zoom to measure distances up to 660’/200 m
• Bluetooth Smart (4.0) offers simple data exchange, e. g. with iPhone or iPad
• New STABILA Measures app lets you insert measurements directly into photos or drawings
• Built-in calculator lets you multiply or divide measurement data by fixed values (e. g. hourly rates or materials costs)
Laser, Single Slope Auto
Specifications:
Range up to 2,600 ft with laser receiver
Accuracy ±1/16” at 100 feet
Self-leveling within ±14 degrees
Single grade to ±25 %
Grade matching and PlaneLok
Automatic temperature compensation
Battery life up to 40 hours
Graphic LCD display & keypad
Operating Diameter: 500 m (1,600’)
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Weight: 3.6 kg (8 lbs)
Tripod Mount: 5/8” x 11
Optional Accessories:
• Grading Kit, Spectra Precision
• Robust, impact-resistant housing with shock-absorbing softgrip cover
• Class II
• Power output<1mW
Optional Accessories:
• Detector, 1275 Laser-Eye
• Detector, HL700
• Rod, 14-1/2’ - 16’ FG (inches or tenths)
• Tripod, Surveying
• Clamp, 1061 Column
• Elevating Column, 1052
• Case, Carrying
• Batteries, Duracell D (2 pkg)
Optional Accessories:
Optional Accessories:
• Rod, 14-1/2’ - 16’ FG (inches)
• Tripod, Surveying
Laser, Dual Slope
Specifications:
Leveling Accuracy: 1,3: ± 0.5 mm / 10 m, 1/16“ @ 100 ft, 10 arc seconds
Grade Accuracy: 1,3: ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds
Grade Temperature Drift Sensitivity: ± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F
Operating Diameter: 1,2: appr. 800 m (2600 feet) with detector
Grade Range (Y;X): ± 25% both axes (not simultaneously)
Grade Range (Z): ± 25%
Rotation: 0 - 750 rpm
Scan Mode: 5 preset sizes + variable adjustment
Laser Type: Red diode laser 650 nm
Laser Class : Class 3
Self-Leveling Range: appr. ± 14°
Leveling Indicators: LCD indications
Pipe Laser
Specifications:
Includes: Battery, Remote & Charger
Accuracy, Self-Leveling (level): 1,3 ± 1.5 mm/30 m, (1/16 in @ 100 ft)10 arc seconds
Operating Range: 1,2 up to 150 m (500 feet)
Laser Type: DG613 Red diode laser
600 - 680 nm
Laser Class: 3A/3R, <5mW or Class 2
Self-Leveling Range - Longitudinal:
Over the entire grade range with automatic cross axis compensation
Grade Range: -12% to +40%
Spot Align Search Range (DG813): Up to +45° (with SF803 tilted to the laser) Line Range: 20° ±1°
Leveling Indicators: LCD indications; beam and LED flash
Level, Automatic
Specifications:
24x - 32x Magnification
Objective Lens Diameter: 36 mm
Accuracy: ~2.0 mm @ 1.0 km
Double Level Run: ±1.5 mm
Coarse Sighting: Peep sight
Transit Level, 26X
Specifications:
26 power magnification
±3/16 in at 150 ft (4.75 mm at 45m)
leveling accuracy
Up to 400’ (120 m) range
Horizontal circle, lock and tangent
and LED flashes
Radio Range (HL760)1,2,4: up to 150 m (490 ft)
Power Source: NiMH battery pack/ alkalines
Battery life1 : 35 hours NiMH
Operating Temp.: -20°C to 50°C (-4°F to 122°F)
Storage Temp.: -20°C to 70°C (-4°F to 158°F)
Tripod Attachments: 5/8 x 11 horizontally and vertically
Dust and Waterproof: Yes - IP67
Weight: 3.1 kg (6.8 lbs)
Low Voltage Indication: LCD battery indicator
Low Voltage Disconnection: Unit shuts off
Warranty: 5 Years
Optional Accessories:
• Detector, HL700
• Power Cord
• Operator’s Manual
• Case, Carrying
Power Source: 10,000 mAh NiMH
battery pack
Battery Life: 40 hours NIMH
Temperature Compensation: Yes
Length: 9.8” (25 cm)
Diameter: 5.3” (13.5 cm)
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Tripod Attachments: 5/8 x 11 horizontally
Safety Rating: IP68
Weight: 6.61 lbs. (3.98 kg)
Low Voltage Indication: LCD battery indicator
Low Voltage Disconnection: Yes
Optional Accessories:
• Invert Plate, 1228
• Pole, Adj. Trivet Kit
• Remote Line Switch
• Target, Large Pipe
• Blower, 929 Laser
• Manhole Mount, 1016
• T-Bar Mount, 934
• Operation’s Manaual
• Case, Carrying
Vertical arc, lock and tangent
Optical plummet magnification: 1.5X 1:100 stadia with glass reticle
Weight (Instrument Only): 9.5 lbs
Optional
• Tripod, Surveying
• Clamp, Signal
Optional
• Tripod, Surveying
• Rod, 14-1/2’ - 16’ FG (inches or tenths)
• Case, Carrying
Transit, Digital 5 sec.
Specifications:
Magnification: 30X
Resolving Power: 3.5”
Field of View: 1°30’
Minimum Focus: 4.27’ (1.3 m)
Angular Accuracy: 5 sec
Min. Reading: 1” / 5” switchable
Min. Focus: 1.3 m or 4.26’
Stadia Ratio: 1:100
Tilt Sensor: Yes, +/- 3’
Magnetic Locator
Specifications:
Detects the magnetic field of iron and steel objects, with unmatched sensitivity
Optimized for finding Survey Pins, Markers & Nails, Water & Gas Valves, Manhole Covers, Unexploded
Ordnance, other deep iron/steel objects
Unsurpassed detection range
Clear, sharp, detection signal pinpoints the target
Five individual sensitivity settings
No response to aluminum, brass, or copper
Input Power: Supplied by (2) 9V batteries
Hot Spot Pipe Locator
Specifications:
Camera/Sonde Frequencies: 512 Hz and 33 KHz
Line/Utility Frequencies: 1 KHz, 8KHz, 33 KHz, 65 KHz
Active Power Line Frequencies: 60/50
Hz and 180/150 Hz
Depth Range: 10’ in cast iron pipe/20’ in clay or plastic
Screen: LCD Digital Signal Read-Out, Graphic Display, Directional Arrows, Null Icon, Camera Icon, Utility Icon, Audible Tone, Auto Digital Depth,
Cable Locator
Optional Accessories:
• Tripod, Surveying
• Rod, 14-1/2’ - 16’ FG (inches or tenths)
• Case, Carrying
Specifications:
The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs at slightly over 7 lbs
The entire system fits easily into a custom shoulder bag.
Ultralight Design: Receiver +
Transmitter = Under 7lbs
Compact & Portable: Receiver retracts for easy carrying
Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz
Battery Life: 40 hrs (intermittent usage)
Optional Accessories:
Output: Approximately 40 Hz idle tone in speaker. Tone frequency increases (or decreases) with gradient-field intensity.
Sensitivity: 5 Settings
Weight: Approximately 2.5 lbs (1.13 kg)
Operating Temp: -13° to 140°F (-25° to 60°C)
Overall Length: 42.5” (107.4 cm)
Waterproof Length: 34.5” (87.6 cm)
Nominal Sensor Spacing: 20” (50.8 cm)
Battery Status, Auto Backlight
Antenna Configurations: Total Field, Single Peak, Twin Peak, Null and Left/Right (Line Location Only)
External Ports: Mini USB
Weight: 4.8 lbs (2.18 kg)
Batteries: (2) D-cell alkaline
Battery Life: 30 hrs
Operating Temperature Range: -4° F to 122° F (-20° C to 50° C)
Optional Accessories:
passive and 512 Hz sonde detection
Transmitter comes equipped with rechargeable batteries
Designed for utility locating professionals in Water, Sewer, Gas, Electric, Telecomm industries.
Optional Accessories:
• Clamp, Inductive Signal
3” Robotic Total Station
Specifications:
Magnification: 30x
Accuracy: 3” (0.0006 gon/.015 mil)
Bluetooth: Yes
Measuring Time for Angle: 0.5 sec or less
Measuring Range: Up to 5,000 m (16,400 ft)
Internal Memory: 1GB
Data Transfer: RS232C compatible, USB
5” Auto Total Station
Specifications:
5” angle accuracy
Fast, accurate EDM
Convenient and long-lasting Li-ion
battery
Easy-to-use keypad
Rugged and lightweight
Bluetooth enabled
Dual axis compensation 50,000 point storage
Optional Accessories:
• 3” Robotic Accessory Kit, Total Station
• Total Station Robotic Battery & Charger
Optional Accessories:
• Prism, Mini Topcon w/ Case
• Case, Carrying
• Data Collector Package
aerial & platform lifts
40’ Boom Lift
Specifications:
Maximum Working Height: 46’
Maximum Platform Height: 40’
Maximum Horizontal Reach: 31’8”
Lift Capacity: 500 lbs
Power Source: 49 HP
45’ Boom Lift w/ JIB
Specifications:
Max. Working Height: 52 ft
Max. Platform Height: 46 ft
Max. Horizontal Reach: 42 ft
Platform Size: 8 ft x 3 ft
Overall Width: 7 ft 7 in
Transport Width: 6 ft 10 in
Transport Length: 21 ft 6 in
Transport Height: 9 ft 6 in
Stowed Height: 7 ft 10 in
Ground Clearance: 12.5 in
60’ Boom Lift
Specifications:
Fuel Type: Dual Fuel, Diesel
Fuel Tank Capacity: 40 gal (151.42 L)
Platform Size: (L x W): 36” x 96” (0.91 m x 2.44 m)
Overall Width: 7’11” (2.41 m)
Weight: 22,750 lbs (10,319 kg)
Aerial & Platform Lifts
Fuel Tank Capacity: 20 gal
Fuel Type: Diesel Weight: 12,310 lbs
Optional Accessories:
• Safety Harness & Lanyard
Platform Capacity: 600 lbs
Gradeability: 50%
Jib Length: 5 ft 6 in
Platform Rotation: 150
Drive System: 4 wheel drive
Power Source
Kubota 24.9 HP (18.6kW) diesel Tier
4 Final Weight: 17,260 lbs
Optional Accessories:
• Safety Harness & Lanyard
Platform Height: 60’3” (18.36 cm)
Horizontal Outreach: 49’ 6” (15.09 m)
Optional Accessories:
• Safety Harness & Lanyard
Platform Capacity - Unrestricted: 500 lbs
Workforce Boom Lift 45’ Towable
Specifications:
Working height: 51’
Platform height: 45’
Horiz. outreach (from centerline): 27’
Horiz. outreach (from edge of footpad): 21’
Up and over height: 20’ 9”
Lift capacity: 500 lbs
Length - stowed: 20’ 8”
Width stowed: 5’ 6”
Height stowed: 6’ 8”
Platform size: 4’1” x 2’ 9”
Jib - length: 4’ 3”
Tow speed rating: 65 mph
Leveling capability: 12.5 °
Tire size: ST 225 / 75 R15
Power source: 4 x 6 V 245 amp-hr
Weight 4,200 lbs
62’ Track Electric Boom Lift
Specifications:
Working Height: 62’ 3”
Platform Height: 55’ 9”
Side Outreach: 32’ / 176 lbs - 28’ / 310 lbs - 23’ / 510 lbs
Rotation: 360 (not continuous)
Basket Dimensions: 57 x 28 x 43
Transport Length: 17’ 4” - 15’ 2” (without basket)
Transport Width: Min 31.1” / Max 44”
Height in Stowed Position: Min 78.4”/ Max 82.7” (with stablizers in position)
Overall Outrigger Footprint: 9’ 6” x 9’ 8”
Driving Speed: 0-1.24 MPH
Gradability: 32º
Platform Capacity: 440 lbs
Gasoline Engine: Honda GX39011HP @ 3600 RPM
Total Weight of the Machine: 5,100 lbs
Optional Accessories:
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
51’ Articulating Boom Lift
Specifications:
Working height: 55’ 10”
Platform height: 49’ 10”
Horizontal outreach: 35’ 2”
Up and over height: 21’ 8”
Lift capacity: 500 lbs
Platform size: 7’ 6 in x 2’ 7”
Length: 24’ 11”
Transport length: 19’ 4”
Width: 7’ 7”
Height - stowed: 7’ 3”
Transport height: 7’ 7”
Wheelbase: 6’ 6”
Ground clearance: 16”
Tilt alarm: 5 °
Drive speed: 0.5 - 3.4 mph
Gradeability: 50%
Engine: 31 kW - 42 hp
Hydraulic tank capacity: 26 gal
Fuel tank capacity: 19.8 gal
Weight: 17,750 lbs
55’ Lightweight Boom Lift
Specifications:
Working Height: 61’3”
Platform Height: 55’3”
Horiz. Outreach (from centerline): 3’5”
Horizontal Outreach (from edge of footpad): 27’4”
Up and Over Height: 23’1”
Lift Capacity: 500 lbs
Engine Manufacturer: Kubota
Engine Power: 31 HP
55’ Towable Boom Lift
Specifications:
Working height: 61’ 3”
Platform height: 55’ 3”
Horizontal outreach (from centerline):
33’ 5”
Horizontal outreach (from edge of footpad): 27’ 4”
Up and over height: 23’ 1”
Lift capacity: 500 lbs
Length - stowed: 23’ 8”
Width stowed: 5’ 7”
Height stowed: 6’ 9”
Platform size: 4’ 1” x 2’ 9”
Turntable rotation: 350° noncontinuous
Optional Accessories:
Harness & Lanyard
Engine Capacity: 15 gal
Fuel Type: Gas Weight: 6,000 lbs
Optional Accessories:
Jib - length: 4’ 3”
Tow speed rating: 65 mph
Leveling capability: 12.5 °
Power source: 4 x 6 V 245 amp-hr
Tongue weight: 335 lbs
Weight: 4,800 lbs
Widest Point: 14’ 8”
Widest Point: 15’
60’ - 62’ Articulating Boom Lift
Specifications:
Working Height: 67’ 7”
Platform Height: 61’
Horizontal Outreach: 40’
Up and over height 27’ 7”
Lift Capacity: 500 lbs
Platform Size (L x W): 6’ x 2’ 7”
Engine Manufacturer: Kubota
Engine Model: T4i
Engine Power: 36.5kW (49.6 hp)
Tank Capacity: 40 gal
Fuel Type: Diesel
Weight: 21,165 lbs
& Lanyard
65’ - 66’ Boom Lift w/ Jib
Specifications:
Max Platform Height: 65’
Max Horizontal Reach: 54’ 2”
Max Weight Capacity: 660 lbs
Platform Length: 3’ 6”
Platform Width: 8’
Platform Rotation: 160 degree
Overall Width: 98”
Turning Radius: 18’ 2”
Wheelbase: 8’ 3”
Overall Height Stowed: 9’ 3”
Overall Length: 31’ 10”
Ground Clearance: 16.30”
Operating Weight: 25,160 lbs
Maximum Speed: 3 mph Capacity - Fuel Tank: 35 gal Diesel
80’ Articulating Boom Lift w/ Jib
Specifications:
Fuel Tank Capacity: 39 gal
Fuel Type: Diesel
Platform Capacity - Unrestricted:
500 lbs
Machine Length: 36’ 6”
85’ Boom Lift w/ Jib
Specifications:
Overall Length: 36.6’ (11,160 mm)
Overall Width: 8.5’ (2,600 mm)
Closed height: 9’ 2”
Wheelbase: 12.1’ (3,700 mm)
Operating Weight: 30,159 lbs (13,680 kg)
Fuel Capacity: 39.9 gal
Machine Width: 8’ 2” (2.49 m)
Platform Dimensions (L x W): 8’ x 3’
Horizontal Outreach: 51’ 10”
Platform Height: 80’ Up and Over Height: 32’ 1”
Fuel Type: Diesel
Platform Weight Capacity: 500.4 lbs
Platform Length 96.1”
Platform Width 29.9”
Max Horizontal Reach 76’ 8”
Work height: 91’
Z30 Electric Articulating Boom Lift
Specifications:
Maximum Working Height: 35’ 2”
Maximum Platform Height: 29’ 2”
Maximum Horizontal Reach: 20’ 6”
Platform Length: 2’ 6”
Platform Width: 3’ 11”
Height - Stowed: 6’ 6”
Length - Stowed: 17’ 5”
Storage Height: 7’ 4”
Storage Length: 12’
Width: 3’ 11”
Wheelbase: 5’ 3”
Ground Clearance - Center: 3.5”
Lift Capacity: 500 lbs (227 kg)
Power Source: 48 V DC (8) 6 V batteries, 350 Ah capacity)
Weight: 14,599 lbs (6,622 kg)
Z45 Electric Articulating 2WD Boom Lift
Specifications:
The Genie Z-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.
Zero tail swing and tight turning radius for easy maneuvering in confined jobsites.
30% grade ability and 3 mph travel speed for excellent drive performance. 5 ft articulating jib with a 135 vertical rotation to accurately position workers. 160 hydraulic platform rotation and
self-leveling platform for easy operation.
Large 6 ft (1.83 m) all-steel platform lifts up to 500 lbs
Working Height Max: (1) 51 ft 9 in 15.94m
Platform Height Max: 45 ft 9 in 13.94m
Horizontal Reach Max: 25 ft 1 in 7.65m
Up and Over Clearance Max: 23 ft 9 in 7.24m
Platform Length: 2 ft 6 in 0.76m
Platform Width: 6 ft 1.83m
Lift Capacity Max: - unrestricted 500 lbs
Power: 48V DC
Auxiliary Power Unit: 24V DC 24V DC
Hydraulic Tank Capacity: 8 gal
Weight (tires): 16,315 lbs
& Lanyard
Z45 - Z46 Articulating Boom Lift
Specifications:
Overall Length: 18.25’
Overall Width: 7.52’
Overall Height - Mast Lowered: 6.93’
Wheelbase: 6.67’
Ground Clearance: 15.36”
Max Platform Height: 45.94’
Max Horizontal Reach: 25’
Platform Inner Length: 72.05”
Max Platform Weight Capacity: 500 lbs
Max Working Height: 52.5’
Platform Inner Width: 29.93”
Operating Weight: 13,675.3 lbs
Fuel Capacity: 17.1 gal
Hydraulic System Fluid Capacity: 24 gal
Max Speed: 5 mph Optional Accessories: • Safety Harness & Lanyard
13’-14’ Electric Scissor Lift
Specifications:
Max Working Height: 18’ 10”
Capacity: 500 lbs
Steel Platform: 50” x 26.5”
Machine Width: 30.5”
Machine Length: 4’ 8”
Platform Height Stowed 2’ 11” Weight: 1,950 lbs
19’ Electric Scissor Lift
Specifications:
Max Working Height: 25’
Platform Height: 19’
Overall Length: 72”
Overall Height: 79”
Overall Width: 30”
Platform Width: 29”
Load Capacity: 500 lbs
Machine Weight: 3,313 lbs
20’ Electric Scissor Lift
Specifications:
Max Working Height: 25’ 11”
Capacity: 800 lbs
Machine Width: 2‘ 8”
Machine Length: 8’ Weight: 3,574 lbs
26’ Electric Scissor Lift
Harness & Lanyard
Safety Harness & Lanyard
Safety Harness & Lanyard
Specifications: Optional Accessories: • Safety Harness & Lanyard
Max Working Height: 32 ft 1 in
Capacity: 500 lbs
Machine Width: 2 ft 8 in
Machine Length: 8 ft Weight: 4,413 lbs
32’ Electric Scissor Lift
Specifications:
Max Working Height: 38’ 1”
Capacity: 700 lbs
Machine Width: 3’ 10”
Machine Length: 8’ Weight: 5,218 lbs
& Lanyard
40’ Electric Scissor Lift
Specifications:
Max Working Height: 45’ 2”
Capacity: 770 lbs
Machine Width: 3’ 10”
Machine Length: 8’ 2”
Height Stowed folded rails: 8’ 5”
Height stowed lowered rails: 6’6”
Weight: 6,871 lbs
33’ RT Scissor Lift 4WD
Specifications:
40% Gradeability
Foam-filled, Rough-Terrain Tires
Working Height: 39’
Platform Height: 33’
Lift Capacity: 1,000 lbs
Height Stowed rails lowered: 6’ 3.5”
Width: 5’ 10”
43’ RT Scissor Lift 4WD
Specifications:
Working Height: 48’8”
Platform Height: 42’8”
Platform Size (L x W): 13’1” x 6’3”
Height - Stowed: 9’1”
Width: 7’5”
Length: 13’9”
Gradeability: 45%
10’ 5”
Power Source: 24 kW - 33 HP
Weight: 13,980 lbs
20’ Single Man Lift Self-Propelled
Specifications:
Drive: Yes
Power Source: DC
Load Capacity: 350 lbs
Closed Height: 6’ 6”
Max. Work Height: 25’ 11”
Platform Extension: 20”
Overall Length: 53”
Overall Width: 31-1/2”
Platform Width: 29-1/2”
Max. Platform Height: 19’ 9”
Handrail Height: 44-3/4”
Stowed Height: 78”
•
Harness & Lanyard
Casters: No
Drive Wheel: Yes
Max. Drive Height: 19’ 9”
Max. Speed Elevated: 1/2 mph
Max. Speed Lowered: 2-1/2 mph
Ground Clearance: 2-1/2”
Mast Vertical: Aluminum Mast
Batteries Included: Yes
Gross Vehicle Weight: 2,451 lbs
Includes Battery Charger
30’ Electric Push Around Lift
Specifications:
Weight: 870 lbs
Product Type: Aerial work platform
Working Height: 35’
Capacity: 350 lbs
Lift Height: 30’
Platform Height: 360”
Motor Voltage: 12 V DC battery
Charger Type: Smart charging system
Charger Included: Yes
Base L x W: 53” x 29”
Stowed Height: 6’ 6”
Machine Width: 2’ 5”
• Safety Harness & Lanyard
• Safety Harness & Lanyard
forklifts & material handling
Forklifts & Material Handling
Conveyor, Dirt 10’ x 16’ Portable
Specifications:
Belt Width: 16”
Overall Bed Width: 16”
Weight: 245 lbs
Weight Capacity: 440 lbs
Belt Length: 10’
Length: 10’
Type: Dirt & Aggregate Conveyor
Horsepower: 1 HP
Series: LKS400
Style: Portable Conveyor
Includes: Standard Hopper, 20” Stand, Power Cord, and Link Cord
Voltage: 110 V
Motor: Interroll 1.0KW
Material: Aluminum
Dirt Conveyor 13” x 16” Portable
Conveyor Speed: 92 ft/min (Fast) 65 ft/min (Slow)
Conveyor, Dirt 13’ x 16’ Portable
Specifications:
Belt Width: 16”
Overall Bed Width: 16”
Weight: 290 lbs
Weight Capacity: 440 lbs
Belt Length: 13’
Length: 13’
Assembly Required: No
Type: Dirt & Aggregate Conveyor
Horsepower: 1 HP
Series: LKS400
Style: Portable Conveyor
Includes: Standard Hopper, 20” Stand, Power Cord, and Link Cord
Voltage: 110 V
Motor: Interroll 1.0KW
Material: Aluminum
Conveyor Speed: 92 ft/min (Fast) 65 ft/min (Slow)
Curb Lifter, 1500-2205# Lift Capacity
Specifications:
Model: ASL-200
Weight: 103.6 lbs
Lift Capacity: 2,205 lbs
Use: Lift Concrete Curbing Lifting Width: 2”-7.9”
Curb Lifter, 8000# Lift Capacity
Specifications:
Kenco manufactures the ML8K10T68V1 Multi-lift to lift and move slabs such as concrete block, sidewalk pads or other precast items. It has an 8,000 pound capacity with specially engineered pads that pivot in all directions to accommodate a sloped surface. This ML8K slab lifter for sale can grip blocks from the outside 10 to 68 inches wide. The legs can be reversed to grip 29 to 80 inches from inside - out. The patented design of our block grab attachment is simple to operate and requires no hydraulics.
Dump Hopper
Specifications:
Length: 64”
Width: 57-3/4”
Height: 46”
Capacity: 2 cubic yards
Capacity: 7,000 lbs
Base thickness: 1/4”
ML8K Multilift - 68”
Capacity: 8,000 lb
Grip Range: 10” to 68”
Reverse Grip Range: 29” to 80”
Shipping Dimensions: 87” x 12” x 36”
Shipping Weight: 580 lbs
Construction: Steel
Dump angle: 38º
Fork opening: 3” x 28-1/2”
Wall gauge: 7
Weight: 805 lbs
• Bending Shoe, 1/2” - 2” PVC
Storage Box
Forklift 4,000 lb. Electric
Specifications:
Type: Single Reach
Power Voltage: 36V
Capacity @
Rated Load Center: 4,000 lbs
Maximum Fork Height: 20’
Fork Width: 3.9”
Fork Spacing- out-to-out max. 1: 31.5”
Tilt Angle - forward/backward degrees 3/4
Overall Length: 76.1”
Length to Fork Face: 55”
Overall Chassis Width: 41.5”
Forklifts & Material Handling cont.
Overall Lowered Height: 107”
Optional Accessories:
Overall Height to top of overhead guard: 95”
Overall Height with Extended Mast: 290”
Minimum Outside Turning Radius: 70.74”
Grade Clearance 5: 15.5 %
Travel Speed Loaded/Empty - standard 6): 7.5 mph
Truck Weight: 9,050 lbs
Wheelbase: 61.5 in
Battery max. capacity - A/H (6 hr rating): 1,120
Forklift 5,000 lb. Capacity
Specifications:
Length To Fork Face: 100.8” (2,560 mm)
Height Mast Lowered: 84.5” (2,150 mm)
Top of Overhead Guard: 81.7” (2,074 mm)
Ground Clearance Lowest Point of Mast: 4.6” (117 mm)
Horsepower at 2,700 rpm: 50.3 hp (37.5 kW)
Weight: 7,990 lbs (3,620 kg)
Fuel Type: Propane
Capacity: 5,000 lbs (2,500 kg)
Fork Size L x W x H: 42” x 4” x 1.6” (1,070 mm x 100 mm x 40 mm)
Maximum Lift Height: 188”
• Propane Tank, 33 lbs.
• Propane, 33# Refill
Maximum Load at Full Height: 3,950 lbs
Forklift 19’ 5,000 lb. Lift Cap
Specifications:
Maximum Lift Height: 18’ 10”
Maximum Forward Reach: 11’ 3”
Reach at Maximum Height: 1’ 10”
Height, Stowed: 6’ 6”
Length, Stowed (without forks): 12’ 3”
Wheelbase: 7’ 6”
Maximum Lift Capacity: 5,500 lbs
Lift Capacity at Maximum Height:
4,400 lbs
Lift Capacity at Maximum Reach: 1,900 lbs
Electrical System Voltage: 12V
Hydraulic Tank Capacity: 18.5 gal
Diesel Fuel Tank Capacity: 15.8 gal
Weight: 10,360 lbs
Forklift 42’ Rough Terrain 6,000 lb. Lift Cap
Specifications:
Overall Height: 7.9’
Net Power: 110 HP
Fuel Capacity: 35 gal
Fuel Type: Diesel
Max Lift Capacity: 6,700 lbs
Max Lift Height: 42’
Max Load at Max Height: 6,000 lbs
Max Forward Reach: 26.3’
Max Load at Max Reach: 1,000 lbs
Length to Fork Face: 20.2’
Width Over Tires: 8.5’
Forklift 43’ Rough Terrain 9,000 lb.
Specifications:
Rated Load Capacity: 9,000 lbs
Maximum Lift Height: 43’
Load at Max Height - No Stabilizers: 7,000 lbs
Maximum Forward Reach: 31.50’
Load at Max Reach - No Stabilizers: 1,200 lbs
Top Travel Speed: 20.30 mph
Load at Max Height: 7,000 lbs
Load at Max Reach: 1,200 lbs
Operating Weight: 26,525 lbs
Height: 8’ Width: 7.94’
Wheelbase: 11’
Length to Fork Face: 20.50’
Ground Clearance: 19”
Turning Radius Over Tires: 12’
Fuel Tank: Diesel 38 gal
4’ x 8’
Optional Accessories:
• Forklift Basket Attachment, 4’ x 8’
Forklifts & Material Handling
Forklift 55’ RT 10,000 lb. Lift Cap
Specifications:
Operating Weight: 34,160 lbs
Rated Load Capacity: 10,000 lbs
Maximum Lift Height: 55.1’
Load at Maximum Height (Stabilizers Down): 5000 lbs
Load at Maximum Reach (Stabilizers Down) 2,500 lbs
Maximum Forward Reach: 42.5’
Height: 8.4’
Width: 8.4’
Wheelbase: 12.0’
Ground Clearance: 18”
Fuel Tank: 38 gal
Forklift 55’ RT 12,000 lb. Lift Cap
Specifications:
Operating Weight: 34,361 lbs
Rated load Capacity: 12,000 lbs
Maximum Lift Height: 54.6’
Maximum Foward Reach: 42’
Top Travel Speed: 20.5 mph
Load at maximum height: 5,000 lbs
Laod at maximum Reach: 3,500 lbs
Fuel Tank: 38 gal
Hydraulic tank: 50 gal
Boom up: 16.7 S
Boom down: 14.4 S Tele in: 16.3 S Tele out: 18.5 S
Forklift, Walkbehind Stacker
Specifications:
3,000lb capacity model with lift heights to 189”
Vehicle Type : Walkie Reach Stacker
Capacity: 3,000lbs.@ 24” load center
Power: 24 volt AC electric with ZAPI controller
Max Lift Height: up to 157”
Collapsed Height: 77.5”
Fork Dimensions: 42” L x 4” W x 1.5”
Thick
Travel Speed: Programmable (0-3.7mph empty / 0-2.9mph loaded)
Hydraulic Jack, 60 Ton
Specifications:
Minimum Height: 12”
Load Capacity: 60 tons
Piston Lift : 6-3/4”
Maximum Height: 18-5/8” Weight: 82 lbs
Jack, Electric Pallet
Basic Capacity: 4,500 lbs
Maximum Fork Height: 8.1”
Voltage: 24 V
Battery Compartment : 31.6” x 9.06” x
OPEN / 31.6” x 13.1” x OPEN
Battery Capacity: Industrial battery or 224AH AGM battery pack
Charger: External or 120v integral to battery pack
Forklift Basket Attachment, 4’ x 8’
• Handle, Jack
Small Material Lift 2412
Specifications:
Maximum Height (forks up): 13’
Maximum Height (forks down): 12’
Lift Capacity: 400 lbs
Height - Stowed: 62.8”
Length - Stowed: 23”
Length - Operating: 48”
Width - Stowed: 26.4”
Large Material Lift 2124
Specifications:
Height - Stowed: 84”
Length - Stowed: 34”
Height - Operating: 84”
Length - Operating: 73”
Base Width: 31.25”
Width with Stabilizer Legs: 74”
Ground Clearance: 2.5”
Minimum Load Height: 6”
Maximum Height (forks down): 22’ 1”
Forklifts & Material Handling
Width - Operating: 26.4”
Winch Cranks: 8/ft
Basic Weight: 195 lbs
Optional Accessories:
Maximum height (forks reversed) 23’ 1”
Maximum Height: 23’ 11”
Lifting Capacity: 650 lbs
Lift Weight: 366 lbs
Rol-a-Lift (Pair) Hydraulic Jack
Specifications:
Model: M-4 (1 pair)
Capacity Per Pair: 4,000 lbs
Maximum Hydraulic Lift: 12-3/16”
Lift Type: Hydraulic
Standard Wheels: Phenolic
Wheel Size: 6” x 2”
Overall Height: 44”
Overall Width: 23”
Caster Centers: 18”
Sheet Rock Lift
Specifications:
Load Capacity: 150 lbs
Lifting Height Maximum: 14’9”
Lifting Height Minimum: 48”
Lift Weight: 99 lbs
Drywall Dimensions: 4’ x 12’
Base Height: 7”
Base Footprint (open): 55” x 55” x 52”
Use: Drywall Lift
Truck, Electric Stair Climber
Specifications:
Flat Surface Moving: 650 lbs (1 person); 1,500 lbs (2 people)
Stair Climbing: 450 lbs (1 person); 1,000 lbs (2 people)
Tailgate Lifting: 450 lbs (1 person); 1,000 lbs (2 people)
Machine Dimensions (L x W x H): 17” x 24” x 60”
Machine Weight 165 lbs
Adjustable Strap Bars: 2
Strap Bar Length: 26”
Overall Depth: 16-1/2”
Forks Adjustable: 5”-19-1/2”
Fork Length: 6”
Fork Thickness: 1-1/8”
Weight Per Pair (Standard): 325 lbs
Sealed Battery: 12 V 32 AH Maintenance free and rechargeable
Lifting Height: 40” (101.6 cm)
Machine Capacity: 1,500 lbs (682 kg)
pipe products & trench safety
Pipe Products & Trench Safety
Hydraulic Vertical Shoring System Set 4
Specifications:
Standard Rail (lg X CB): HVS-5-5288
Crossbrace width: 52”-88”
Cylinders: 2
Weight: 87 lbs
Tripod, 7’ Retreival System
Specifications:
Length: 60’
Manufacturer Part Number: 7508
Weight: 88 lbs
Height Range: 61”- 97”
Weight Capacity: 310 lbs
,15” - 30” Muni Ball
Specifications:
Material: Rubber
Brand: Cherne
GTIN: 00675115262133
Maximum Pressure: 13 PSI / 30’
Inflation Pressure: 35 PSI
Bypass Type: Female NPT
Bypass Diameter: 3”
Range of Use: 14-16”
Maximum Working Load: 5,000 lbs
Tensile Strength: 5,000 lbs
Cable Material: Galvanized steel
Approvals for Certifications: ANSI Z359.1-2008, OSHA 1926.502
Optional Accessories:
• Shoring Board, Chudoform 3/4” x 4’ x 8’
• Hydraulic Sys Hand Pump Bucket 5 Gal
• Release Tool
• Removal Hook
,15” - 32” Flow Through Muni Ball
Specifications:
Type: Pneumatic
Size: 15”–32”
Material: Natural rubber with full body cording and aluminum end plates
Bypass: 4” MNPT bypass
Valve Style: Removable 1/4” & 1/2”
inflation valves
,15” - 30” Air Test Plug
Specifications:
Nominal size: 15 to 30”
Diameter (min/max): 14.50” / 30.50”
Plug length: 51.00”
PSI: 7.5 to 10
,8” - 12” Test Plug
Specifications:
Type: Pneumatic
Nominal Size: 8 to 12”
Min. Diameter: 7”
Max. Diameter: 12.25”
Max. Back Pressure: 25’ of Head
Required Inflation Pressure: 20 PSI
Deflated Size: 16” L x 6.75” D
Optional Accessories:
Optional Accessories:
Optional Accessories:
Includes: 3/4” eye bolts (2) & Rupture
Disc
Weight: 121 lbs
Industry: Pipe maintenance
Optional Accessories:
Optional Accessories:
24” -
48”
Air Test Ball
Specifications:
Type: Pneumatic
Size: 24” - 48”
Material: Full body corded rubber with aluminum end plates
Weight: 138 lbs
8’ x 10’ Manhole Shield
Specifications:
Model: 810MHXLSW
Dimensions (L x W): 8’ x 10’
Weight: 5,370 lbs
Pipe Clearance: 52”
Shield Capacity: 660 lbs/sq ft
Depth of Cut: 25’ - 41’
8’ x 12’ Trench Shield
Specifications:
Model: 812MHXLD
Dimensions (L x W): 8’ x 12’
Weight: 5,800 lbs
Pipe Clearance: 60”
Shield Capacity: 2,040 lbs/sq ft Depth of Cut: 34’ - 45’
8’ x 20’ Trench Shield
Model: 820 XLD
Weight (lbs): 8,920
Pipe Clearance (in): 64
Sheild Capacity: 1,320 (Ht. X Lg.) 8’H x 20’ L
6’ Build-A-Box Panel
Ultra-light double wall aluminum
Max spread: 60”
Pick-up truck transportable
Can be hand-assembled in minutes
Exclusive corner end posts
Tongue and groove design
Foam filled
Narrow sidewalls
approximately 3’8” with spreaders fully compressed/retracted
Sidewalls are smooth to prevent dirt build-up and reduce friction
Pipe Products & Trench Safety
Valve Style: Removable 1/4” & 1/2”
inflation valves
Other: I-Series
Includes: 3/4” Eye bolts (2) & Rupture
Disc or PRV
Thrench Shield Keeper
Lifting Bridle, Trenchbox
Thrench Shield Keeper
Lifting Bridle, Trenchbox
plumbing tools
Plumbing Tools
Snake, 1/2” x 75’ Power
Specifications:
Weight: 65 lbs (without cable)
Capacity: 100’ of 1/2” Flexicore Wire
Rope Center Cable
Motor: 1/3 hp Heavy Duty, Capacitor Start, Thermal Overload Protection, Forward/Off/Reverse Switch
Snake, 3/4” x 100’ Power
Specifications:
Weight: 80 lbs without cable
Motor: 1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Reverse Switch
Foot Pedal: Leaves operator’s hands free to control cable. Uses air pressure, so there’s no electrical contact between pedal and motor.
Wheels: 10” semi-pneumatic with roller bearings
Snake, Electric Water Jet
Pressure: 1500 PSI
Flow: 1.7 gpm
Motor: 1-1/2 HP, 13 amp with GFCI
Reel Capacity: 150’ x 1/4” hose
Weight: 111 lbs (50 kg)
Dimensions with Reel (L x W x H):
28” x 15” x 34”
Dimensions without Reel (L x W x H):
28” x 15” x 14”
Uses: Clear grease, sand and ice
Cutter, 2” - 6” Cast Iron
Specifications:
Weight: 26 lbs
Pipe/Tube Size: 1-1/2” - 6”
Cutting Capacity: 1-1/2” (Min), 6” (Max)
Cutter, 4” - 6” Pipe
Pipe Capacity: 4 to 6”
Product Weight: 22 lbs
Threader, Power Handheld Specifications:
Motor: Universal, 1/2 HP, 115V or 230V 50/60 Hz
Switch: Double-throw reversible
Material: Cast Aluminum
Vise, Portable Tripod
Specifications:
Overall Height: 37 in
Leg Style: Folding
Pipe Capacity: 1/8 to 2-1/2 in
Foot Pedal: Uses air pressure, so there’s no electrical contact between pedal and motor
Power Cord: 20’, 3 wire, equipped with ground fault circuit interrupter
Wheels: 8” Semi-pneumatic tires, with roller bearings
Power Cord: 20’, 3 wire, vinyl covered with molded plug. Equipped with ground fault circuit interrupter.
Cables: 3/4” for 4-10” lines; 5/8” for 3-6” lines; 1/2” for 2-3” lines and 4” lines without roots
Cutter Set: Spear Head, 2” U-Cutter, 3” Heavy-Duty Side Cutter, 3” Heavy-duty Saw Blade, and Large Retriever
• Cutter, Snake
Grade: Compact, portable jet fits into the trunk of a car
Hose Length: 150’ removable hose reel reduces height to 14-1/2”
Pressure: 1500 PSI, 1.7 gpm
Motor: 1-½ hp dual capacitor sealed motor with GFCI pulls only 13 amps
Features: Slide out handle; 8” wheels for easy transport
• Cutter, Snake
For cutting cast iron, concrete and clay pipe where space is limited.
• Snake, 1/8” and 1/4” Nozzle Set
Spindle Speed: 26-30 rpm; 1/8”-2” Pipe (3mm-50mm); 1/4”-1” (6mm-25mm)
• Die, Threader
Weight: 25 lbs Power Drive only
Length: 28-1/4”
Height Range: 36 in - 37 in
Pipe Size Range: 0.13 in - 2.5 in
Tool Weight: 32 lbs
power tools & Hand tools
Brake, Aluminum Siding
Specifications:
14” throat depth; wide, 2-3/8” mouth opening; inside working pockets
Length: 10’ 6”
Weight: 10’ 6” brake, 106 lbs
Breaker, 40 lbs Electric
Specifications:
Amps: 15
Impact energy: 35 Joules
Max watts out: 1600 w
Tool length: 30”
Vibration measurement: 6.8 M/S²
Chuck type: 1-1/8” hex
Breaker, 70 lb. Electric
Impact Energy: 61’ - lbs
Vibration Control: Yes - SHOCKS
Vibration Measurement: 6.6 m/s2
Amps: 15 Amps
Max Watts Out: 1,600 W
Loaded Speed (BPM): 900 bpm
Chain Saw, Gasoline Specifications:
Displacement: 56.5 cc (3.45 cu in)
Engine Power: 2.8 kW (3.8 bhp)
Powerhead Weight: 5.9 kg (13.0 lbs)
Fuel Capacity: 560 cc (18.9 oz)
Guide Bar Lengths: (Recommended ranges) 40 to 50 cm (16” to 20”)
Power Tools & Hand Tools
Bending capacities: All vinyl; soft aluminum up to .030; galvanized steel up to 28 ga; copper sheet and coil up to 16 oz
Loaded speed (BPM): 1460 BPM
Power tool type: corded Weight: 40.5 lbs
Tool Length: 30.75”
Weight: 68.3 lbs
Chain Oil Capacity: 330 cc (11.2 oz)
Oilomatic Chain: .325” RM3
Chain Saw, Pole Top w/ Tele.
Specifications:
Displacement: 31.4 cc (1.9 cu in)
Engine Power: 1.05 kW (1.4 bhp)
Weight (with cutting attachment): 7.4 kg (16.3 lbs)
Fuel Capacity: 530 cc (18.0 oz)
Chain Oil Capacity: 220 cc (7.4 oz)
Drill, Magnetic Base
Specifications:
Power Source: Corded Electric
Maximum Rotational Speed: 450 RPM
Voltage: 240 Volts
Amperage: 10 Amps
Optional
Optional Accessories:
• Breaker Tool, 1” and 3” Chisel
• Breaker Tool, Point
• Breaker Tool, 1” and 3” Chisel
• Breaker Tool, Point
• Breaker Tool, Asph. Cutter
Oilomatic Chain: 3/8” PMM3, 12” Bar and Chain
Shaft Length: 7’6” to 11’6”
Grinder, 5” - 6” Hand w/ Dust Shroud
Specifications:
Wheel Diameter: 4-1/2”; 5”
Current: 13 A
Max. Speed: 11,000 RPM
Switch Type: Slide
Thread Size: 5/8 in-11
Dust Management: Dust Shroud Voltage: 120V AC
• Diamond Turbine Wheel, 4” - 5”
• Vacuum, Sm 8 Gal Dust Collector HEPA
Grinder, 7”- 9” Hand
Specifications:
Depth: 24.02”
Height: 4.92”
Width: 9.76”
Weight: 14.66”
Wheel Diameter: 7”
Amperage:15 amps
Maximum Speed: 8,500 RPM
Arbor Size: 5/8-11
Hammer, Rotary Spline
Specifications:
Voltage: 120
Rate of Impact (BPM): 1,700 - 2,900
Impact Energy: 8.1
Length: 18”
Style: Rotary Hammer
Brand: BOSCH
Speed (RPM): 170 - 340
AMPS: 13
Description: Rotary Hammer
Manufacturers Part No.: 11265EVS
Chuck Size: 1- 5/8”
Weight: 15.1 lbs
Type: Corded
Saw, Recipro
Optional Accessories:
• Wrench
• Goggles
• Diamond Turbine Wheel, 7” Const Premium
Optional Accessories:
• Hammer, Bit Chisel
• Hammer, Bit Point
• Hammer, Bit 3” Chisel
• Spline Adapter, Rotary Hammer
Specifications: Optional Accessories:
Power Source: Corded
Tool Style: Handheld
Current: 12A
Stroke Length: 1-1/8”
Stroke Type: Straight
Min. Strokes per Minute: 0
Max. Strokes per Minute: 2,900
Pivoting Head: Yes
Vibration Reduction: No
Tool Length: 17-1/2”
Tool Weight: 7.2 lbs
Voltage: 120 VAC
Cord Length: 6’
Hammer, Rotary Max
Specifications:
Dimensions: H 18.5”, W 7.09”, D 18”
Amperage:10 amps
Blow energy: 4.6 ft lbs
Chuck Size: 1-9/16”
Chuck Type: SDS-Max
Cord Length: 8.2’
Cordless/Corded: Corded
Drill/ Driver Type: Rotary Hammer
Included: Tool Case
Maximum Speed (RPM): 680 RPM
Power Tool Features: Keyless Chuck
Product Weight: 14.6 lbs
• Wrench
Optional Accessories:
• Hammer, Bit 3” Chisel
• Hammer, Bit 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 7/8” Drill
• Core Bit, 1-1/2” Carbide
• Spline Adapter, Rotary Hammer
pumps
Pump, 3” Diaphragm
Specifications:
Discharge Size: 3” (76 mm)
Flow Rate: 90 gpm (340 L)
Power: 4 HP (2.9 kw)
Includes: Screen for intake
Engine: Honda GX-120
Fuel Tank: 0.66 gal fuel tank (2.5 L)
Starting Method: Recoil
Total Head: 2’ (8 m)
Max Solid Size: 1.5” (38 mm)
Weight: 139 lbs (72 kg)
Pump, 6” Dri-Prime w/ Trailer
Specifications:
Max capacity: 2,290 USGPM (520 m³/hr)
Max impeller diameter: 11.8” (300 mm)
Max solids handling: 3” (75 mm)
Max operating temp: 176 °F (80°C)*
Max working pressure: 91 PSI (6.3 bar)
Max suction pressure: 58 PSI (4 bar)
Max casing pressure: 138 PSI (9.5 bar)
Max operating speed: 2,200 rpm
Suction connection: 6” (150 mm) flange
Delivery connection 6” (150 mm) flange
Open trailer
Fuel capacity 60 US gal
Weight dry 2750 lbs
Weight wet 3170 lbs
Dimensions L 119” x W 66” x H 87”
Pintle Hitch
Hydrostatic Pressure Pump
Specifications:
Model: DPH3B
Type: Gas (Honda) Diaphragm
Pump: Triple Diaphragm
Inlet/Outlet: 1” Hose Barb/1/2” Quick
Connect
PSI/GPM: 550 / 11
Weight: 116 lbs
Shipping Dimensions: 25” x 21” x 17”
Shipping Weight: 136 lbs
Pump, 2” Electric 1/2 HP - 1HP
Specifications:
Impeller Disc Size: 2”
Water Capacity: 87 gpm
Power: 1 HP
Phase: Single
Voltage: 115 V
Cable Length: 50’
Pump Diameter: 7.4”
Pump, 3” Trash
Specifications:
Suction x Discharge: 3” x 3”
Maximum Water Capacity: 396 gpm
Maximum Lift: 25’
Maximum Head: 95’
Pump, 4” Trash
Specifications:
Suction x Discharge: 4” x 4”
Maximum Water Capacity: 555 gpm
Maximum Pressure: 40 PSI
Maximum Solid Intake: 2”
Fuel Tank Capacity: 1.65 gal
Operating Weight: 216 lbs
Overall Height: 15.4”
Operating Weight: 33 lbs
Optional Accessories:
• Hose, 3” x 20’ Intake
• Hose, 3” x 50’ Discharge
• Hose, 3” x 25’ Discharge
• Screen, Intake Hose
Maximum Pressure: 41.1 PSI
Maximum Solid Intake: 1.5”
Fuel Tank Capacity: 1.58 gal
Operating Weight: 142 lbs
Optional Accessories:
• Hose, 6” x 10’ Intake
• Hose, 6” x 20’ Intake
• Hose, 6” x 50’ Discharge
• Screen, Intake Hose
• Bend, 6” 90 Degree Godwin QD
Optional Accessories:
• Hose, 2” x 50’ Discharge
• Float Switch, Sump Pump
Optional Accessories:
• Hose, 3” x 20’ Intake
• Hose, 3” x 25’ Discharge
• Hose, 3” x 50’ Discharge
• Screen, Intake Hose
Optional Accessories:
• Hose, 4” x 20’ Intake
• Hose, 4” x 50’ Discharge
• Screen, Intake Hose
Pump, 3” Electric w/ CB-10
Specifications:
Impeller Disc Size: 3”
Water Capacity: 170 gpm
Power: 2 HP
Phase: Single
Voltage: 230 V
Pump, 2” Trash
Specifications:
Maximum Water Capacity: 211 gpm
Maximum Lift: 25’
Maximum Head: 98’
Maximum Pressure: 42.4 PSI
Fuel Tank Capacity: 1.03 gal
Operating Weight: 97 lbs
Cable Length: 50’
Pump Diameter: 6.7”
Overall Height: 28.5”
Operating Weight: 67 lbs
Optional Accessories:
• Hose, 3” x 25’ Discharge
• Hose, 3” x 50’ Discharge
Optional Accessories:
• Hose, 2” x 20’ Intake
• Hose, 2” x 25’ Discharge
• Hose, 2” x 50’ Discharge
• Screen, Intake Hose
remediation & drying equipment
Remediation & Drying Equipment
Dehumidifier, 200+ Commercial
Specifications:
Model: LGR 2800i – F410
Power: 8 A, 115 V
Water Removal AHAM (80° F/60% RH):
130 pints | 61.5 liters / day
Maximum Water Removal: (90° F/90% RH): 200 pints | 94.6 liters / day
Water Removal Minimum: (80° F/20% RH): 20 pints | 9.5 liters / day
Maximum Process Air: 400 cfm (679.7 cmh)
Air Filter: 3M HAF filter (Dri-Eaz part no. F421)
Dimensions L x W x H: 23” x 24” x 40.5” (103 cm × 58 cm × 61 cm)
Weight: 160 lbs (72.6 kg)
Dehumidifier, Drizair 80-139
Specifications:
Dimensions (L x W x H): 19.5” x 20” x 32”
Weight: 80 lbs (36 kg)
Maximum Water Removal at Saturation: 145 pints/day (68.6 L /day)
Water Removal AHAM (80° F/60 % RH): 64 pints/day (30 L/day)
Operating Range: 33° – 100° F (1° – 38° C)
Compressor Type: 6,670 btu Rotary
Process Air: 227 cfm
Drain Hose Length: 40’
Dryer, Carpet Turbo
Specifications:
Dimensions L x W x H: 18.3” x 17” x 18.8”
(47.8 cm × 43 cm × 47 cm)
Weight: 36 lbs (16 kg)
Speeds: 3
Power: 10 A
Rated Airflow: 3,500 cfm (5,947 cmh)
Cord Length: 25’ (7.6 m)
Operating Positions: 3 (0°, 45° and 90°)
Fan, Large Pedestal 30”
Specifications:
Motor: 1/3 hp, Open Air Over PSC-type ball bearing
Number of Blades: 3
Range of Motion: 70° oscillating sweep
Fixed Head Positioning: Yes
Style: Pivot-action head
Height: 58-65”, Adjustable
Included: Screw knob
Optional Accessories:
Optional Accessories:
Optional Accessories:
Uses: Economical cooling and air circulation for all environments; including warehouses, factories, offices, kitchens and more
Fan, 42” 14,000 CFM Portable
Specifications: Optional
Rating: 14,000 cfm at 550 rpm
Type: 42” diameter belt driven
Electrical Requirements: 115 V, 15 A
Weight: 210 lbs
Dimensions L x W x H: 26” x 50” x 51”
Motor: 1 HP /TEAO 1,725 rpm
Remediation & Drying Equipment
Scrubber, Air
Specifications: Optional Accessories:
Model: F284
Power: 3 A, 115 V, 60 Hz
Dimensions L × W × H: 18.2” x 24.6 ×
26.2” (46.2 cm x 62.5 cm × 66.5 cm)
Duct Sizes Intake: 12”
Outlet: 8”
Weight: 44 lbs (19.9 kg)
Frequency: 60 Hz
Minimum Air Movement: 250 cfm
Maximum Air Movement: 500 cfm
Filter System: 2-stage
Primary Filter: HEPA filtration technology
GFCI Outlet Protected: Yes
Power Cord Length: 25’ (7.62 m)
Scrubber, Air Large HEPA
Filter Change Light: Indicates when primary (HEPA) filter needs to be changed
Housing: Rotomolded polyethylene
• Filter, F270 Stage 1 Prefilter
• Filter, F271 Stage 2 Prefilter
• Filter, F397 Carbon Filter
• Filter, F321 HEPA 500 Filter
• Flat Duct Per Ft
Specifications: Optional Accessories:
Variable air movement (500–2000 CFM / 14.2–56.6 m3/min.) for versatile application and precise control on negative-and positive-pressure setups.
Weight: 124 lbs | 56.25 kg
Air movement: 500–2000 CFM | 14.2–
56.6 m3/m
Static pressure: 2.68” | 6.81 cm H2O
Dimensions H × D × W: 28.37” × 29.17” × 35.63”
Outlet duct size: 12”
• Amps: 7.7 A
• Voltage: 115V
• Frequency: 60 Hz
• Power cord: 25’
scaffolding & ladders
Ladder, 32’ Aluminum Extension
Specifications:
Maximum Reach: 32’
Load Capacity: 300 lbs
Step Depth: 1-3/4”
Ladder, 10’ Fiberglass Step
Specifications:
Maximum Reach: 10’
Maximum Load Capacity: 300 lbs
Grade: IA Duty Rating
Ladder, 12’ Fiberglass Step
Specifications:
Maximum Reach: 12’
Maximum Load Capacity: 300 lbs
Grade: IA Duty Rating
Platform, 6’ Bakers Rolling
Specifications:
Frame Width: 29”
Platform Adjustment: 2”
Scaffold Platform Deck (L x W): 6’ x 29”
Stackable: Yes (2 units max.)
Platform Thickness: 5/8” with steel edge banding
Grade: Heavy duty
2 pieces make a complete Scaffold guard rail system with toeboard
Material: Powder-coated, Yellow scaffold frames and arm braces
Maximum Load Capacity: 1000 lbs
Scaffolding & Ladders
Optional Accessories:
Optional Accessories:
Optional Accessories:
Optional Accessories:
• Platform, Guard Rail
traffic control
Jersey Barrier, 10’
Specifications:
Also referred to as “K-Rail” or “Concrete Traffic Barrier,” a precast jersey utility barrier is a standard in perimeter security. Designed for highway traffic, these cement dividers serve to protect from vehicular impact. One of the most common applications of these concrete barriers is to place along a fence line to prevent tractor-trailer damage. Other customers
Sand Barrel Lifting Ring
use concrete dividers for: sidewalks, parking areas, property separation, events, parks, and a myriad of other applications.
10 ft
1 cu yard
Barrier Weight: 4,050 lbs
Specifications:
Engineered to safely lift filled TrafFix “Big Sandy” Sand Barrels. Adjusts to lift 200#/400#/700# combination barrel, 1400# barrel and 2100# barrel.
Easily lifts with a forklift, truck mounted crane or a knuckle boom.
Lightweight (62 lbs) aluminum construction.
Designed for TrafFix “Big Sandy” Barrels only.
Sand Barrel w/ Lid, 1400# Capacity
Specifications:
The Big Sandy 1400 lb sand barrel (part number 48140-0) has an empty weight of 23 lbs, a height of approximately 41 inches, a length of 38 inches, and a width of 23 inches. It is designed to be filled with sand to a specific line to achieve the 1400 lb weight, making it easy to verify. The barrel is made from high-density polyethylene and is tested and approved for use as an impact attenuator.
Traffic Control
Optional
Weight: 43 lbs
Barrel Capacity: 1,400 lbs
Width: 23”
Length: 48”
Height: 41”
Sand Barrel w/ Lid, 2100# Capacity
Specifications:
The Big Sandy 2100# sand barrel has a capacity of 2100 lbs. The barrel is made of high-density polyethylene and has features like a reinforced lip and molded-in fill lines for accurate sand filling
Capacity: 2,100 lbs
Empty Weight: Approximately 29-30 lbs
Height: Approximately 52 inches
Width: 36 inches
Length: 38 inches
Sand Barrel w/ Pedestal & Lid
Specifications:
Combination barrel utilizes a pedestal base and 200, 400, 700 lbs top half barrel to obtain weights without using shelves or cone inserts - eliminates leaking sand
Simply fill the sand to the molded-in fill line to obtain the correct weight. The molded-in fill line makes external verification of weights easy
Reinforced lip prevents the barrels from deforming when filled and provides a quick and secure fit for reinforced lids.
Barrel Weight: 33 lbs
Barrel Capacity: 200-700 lbs
Solar Powered Message Sign Towable
Specifications:
The Sunray 380 is a full matrix sign capable of displaying 3 lines of 18” high characters through the color touch screen.
Message scheduling allows you to select the day, week and time that chosen messages should be displayed on your sign.
Display:
Pixel Matrix SR380 7 rows by 5 columns, 8 characters per line, 3 lines
Dimensions: 78”H x 128”W
Character Size: 18” fonts
Trailer Construction:
Width Across Fenders: 78”
Drawbar: 3” x 3” x 3/16”
Wall Tube ‘A’ Frame
Length w/ Drawbar: 168”
Height Sign Up: 166”
Height Sign Down: 113”
Hitch: 2” ball class II 3500 lb capacity
Jacks: (4) swing, (1) swing type w/ caster
Weight: 2100 lbs
Optional Accessories:
trailers
Trailer, 6’ x 12’ Landscape
Specifications:
Grade: Lightweight Weight: 1,020 lbs
GVWR: 2,995 lbs
Ball Hitch: 2”
Safety Chains: (2) 1/4” Grade 30 with Safety Latch Hook
Jack: 2,000 lbs., Top wind (bolted on)
Tongue Channel: 3”
Trailer, 6’ x 12’ Enclosed Specifications:
Trailer Type: 6’ x 12’ Enclosed
Brakes: Surge Ball Hitch: 2”
Exterior Dimensions: (L x W x H):
15’11” x 7’6” x 7’6”
Interior Dimensions (L x W x H):
12’3” x 5’9” x 6’
GVW: 2,990 lbs.
Payload Capacity: 1,930 lbs
Trailer, 18’ Equipment
Model Number: 5CAM18FTT
GVWR: 11,960 lbs
Empty Weight: 2,800
Trailer, Car Specifications:
Model: 8218
Trailer Type: Car Hauler
GVWR: 7,000 lbs
Duty: Lightweight Weight: 1,425 lbs
Trailer Dump, 6’ x 10’
Model: 3.5CAM610LPD GVWR: 8,050 lbs
Brakes: Surge Empty Weight: 2,420 lbs Payload: 5,630 lbs
Trailer, 7’ x 12’
Wheel Diameter: 15”
Wheel Type: Radial
Rear Door (W x H): 61”x 65” Side Door Width: 32”
Between the Fenders: 81”
Deck Height: 16”
Brakes: Surge Pintle Hitch
Hitch, Reese Pintle w/ 2”
Binder, Chain
Chain, Tie Down
Strap, Ratchet
Overall Trailer Length: 18 ft Width: 6-1/2’
Brakes: electric Ball Hitch
Axle Capacity: 3,500 lbs Volume Capacity: 3.9 cu yd Deck Height: 27” Inside Height: 20-1/2” Inside Width: 72-1/2”
Tilt Equipment
2-5/16” Ball Hitch GVW: 6,000
Lightweight:1,620
Brakes: Electric
Trailer, Stump Grinder 4’ x 6’
Overall Length: 10’ 5/8”
Width: 5’ 3/16”
Height: 20”
Size: 4’ x 6’
Empty Weight: 500 lbs Gross Weight: 2,200 lbs
Doly Coupler: 2” Diameter Ball
Binder, Chain
Chain, Tie Down
Strap, Ratchet • Hitch, 2-5/16” Ball • Hitch, Reese 2” Ball
Rental Protection Plan
1. YOUR RESPONSIBILITIES.
Rental customers or “lessees” are generally responsible for ALL COSTS AND EXPENSES ARISING IN CONNECTION WITH ANY LOSS, THEFT, DAMAGE TO OR DESTRUCTION OF RENTED ITEM(S) regardless of whether the rental customer or lessee was at fault. This can amount to thousands of dollars in additional expense, even for rental customers who maintain insurance (e.g., for deductibles, coverage limits, exclusions, etc.).
2. WHAT IS RPP?
Superior’s Rental Protection Plan (“RPP”) is an OPTIONAL program that ENABLES OUR CUSTOMERS TO LIMIT THEIR EXPOSURE TO MANY CLAIMS for physical damage to or destruction of “Covered Item(s)” when a covered loss occurs through no fault of the customer.
REP IS NOT INSURANCE, NOR IS IT A WARRANTY.
3. WHAT DOES RPP COST?
The fee for RPP (if offered) is the percentage (of the Rent) charged for RPP set forth on Page 1 of your Rental Contract solely with respect to Covered Item(s) during each Rental Contract Term. No RPP Fee is applied to purchases, delivery charges, fuel, or tax. All RPP fees are non-refundable.
4. HOW DOES RPP WORK, AND WHAT DOES IT COVER?
In exchange for your purchase of RPP, Superior agrees to waive its claims against you and your company for a portion of the charges identified in Section 5 of this Rental Protection Plan Guide with respect to Covered Item(s), enabling you to spend your valuable time and money on your business.
5. THE VALUE OF RENTAL PROTECTION
Our Optional Rental Protection Plan enables you to avoid costly downtime and expensive repairs and/ or replacements by:
(a) Covering:
(i) Repair/Replacement Costs: A portion of the cost of repairing and/or replacing Covered Item(s) which suffer physical damage during your rental (subject to the limitations set forth in Section 6 below and the reverse side or Page 1 hereof); AND
(ii) Rental Charges: 100% of the Rent that would otherwise be due under your Rental Contract during the period in which the Covered Item(s) is/are being repaired or replaced (as applicable); AND
(iii) Certain Other Costs: 100% of the following charges that would normally be due under your Rental Contract: late fees, transportation and storage fees and interest; AND
(b) Enabling You to Avoid Costly Insurance Claims and Premium Increases: Costly insurance premium increases may be limited or avoided because in many cases, customers are able to avoid filing claims on their own insurance policies (increasing their “loss histories”).
6. WHAT IS NOT COVERED?
Following is a summary of what RPP will not cover (as more specifically described on the reverse side or Page 1 hereof):
• Certain “Item(s) Not Covered” (including those with respect to which you do not pay or agree to pay the RPP fee in advance);
• A “deductible” equal to 20% of the total of all “Repair/Replacement Costs” (as defined on the reverse side hereof);
• Repair/replacement costs exceeding $10,000 in the aggregate across all Covered Items;
• Intentional abuse, improper use, negligence, and neglect;
• Violation of your Rental Contract, applicable laws or any instructions provided by Superior and/or any owner(s) or manufacturer(s) of Covered Item(s);
• Criminal activities, Civil Insurrection, War and Terrorism;
• Actions of Governmental Authorities;
• Loss, theft, disappearance of, or any other failure to return, any Covered Item(s);
• Maintenance Failures, Excessive Wear and Tear, and Damage During Transportation;
• Failure to Secure and Protect Covered Item(s);
• Use of alcohol and/or illicit drugs;
• Damage caused by electric current; and
• Exposure to Hazardous Materials, Pollutants and/or Contaminants.
7. HOW DO I USE RPP?
If a Covered Item is damaged or destroyed (an “Event of Loss”) during your rental, you must advise us of the date, time and suspected cause of the Event of Loss in writing within 24 hours. In the event of a reportable accident or vandalism, you must also properly complete and file a police report with local authorities. A copy of the police report must be provided to us within 48 hours after the Event of Loss. You will be 100% responsible for any Event of Loss which is not covered by RPP (e.g., for any Rented Item(s) which you elected not to cover and for Covered Item(s) with respect to which any exclusion(s) referenced in this Rental Protection Plan Guide (including Page 1 hereof) apply(ies)).
8. HOW CAN I AVOID PAYING FOR RPP?
RPP is not mandatory; it is OPTIONAL. If you wish to decline RPP, you must provide us with proof that you have the property damage / inland marine insurance required under Section 10 of your Rental Contract. NO RPP COVERAGE WILL APPLY TO ANY ITEM(S) FOR WHICH YOU DO NOT PAY THE APPLICABLE RPP FEE (WHICH, IF CHARGED, WILL BE SET FORTH IN YOUR RENTAL CONTRACT).
9. ENVIRONMENTAL FEE: To promote sustainability and cover the costs associated with environmentally friendly disposal and maintenance practices, a nominal Environmental Fee of 2% based on the rental charge will be assessed. This fee is non-refundable and is applied per rental agreement to ensure our continued commitment to environmental responsibility.
TECHNOLOGY
• Water, Sewer, Storm Pipe Products
• Site Work Specialties
• Masonr y & Concrete Accessories
• Contractor & Safety Supplies
• Road & Bridge Specialties
• Equipment Rentals
• Jobsite & Specialty Equipment
• Lasers & Surveying Equipment
• Concrete Placing & Finishing Equipment
• D ecorative Concrete Materials
• Site Precast
• Hardscapes & Landscape Materials
• Septic Systems
• Spas, Saunas & Outdoor Living Products
• Fireplaces, Stoves & Inserts
• Special Pipeline Services & MORE!
NEW! location 7 iffland pond road litchfield, ct phone: (860) 618-5100 main location: 1403 meriden-waterbury rd rte. 322, southington phone: (860) 628-4768
east hartford: 185 burnham street east hartford phone: (860) 282-7688
norwich: 251 west thames street rte. 32, norwich phone: (860) 886-9997
380bridgeport: lindley phone:bridgeportstreet (203) 659-0949 danbury: 42 kenosiadanburyavenue phone: (203) 744-9984
