SUPERIOR Network of Companies DIRECTORY
Superior Relationships... Built One Satisfied Customer at a
MAIN NUMBER: (860) 621-3621 • FAX NUMBER: (860) 621-7922 • TOLL FREE: (800) 937-7734
DIVISION
Superior Products Dist., Inc. (860) 621-3621 (860) 621-7922 (800) 937-7734 M-F 7:00-5:00
1403 Meriden-Waterbury Turnpike TEXT OR CALL! Sat. 7:00-12:00
Southington, CT (Main Location) (Seasonal)
East Hartford (Branch) (860) 282-7688 (860) 282-7698 (888) 562-7483 M-F 7:00-5:00
185 Burnham Street
East Hartford, CT
Norwich (Branch) (860) 886-9997 (860) 886-9995 (866) 462-3278 M-F 7:00-5:00
251 West Thames Street
Norwich, CT
Bridgeport (Branch) (203) 659-0949 (203) 332-0359 (888) 700-7734 M-F 7:00-5:00
380 Lindley Street
Bridgeport, CT
Danbury (Branch) (203) 744-9984 (888) 729-1110 (203) 794-4858 M-F 7:00-5:00
42 Kenosia Avenue
Danbury, CT
Seymour (Branch) (203) 888-0030 M-F 7:00-5:00
600 Derby Avenue Sat. 7:00-12:00
Seymour, CT
Superior Rental (860) 628-4768 (860) 620-5534 (877) 289-7368 M-F 7:00-5:00
1403 Meriden-Waterbury Turnpike TEXT OR CALL! Sat. 7:00-3:00
Southington, CT (Main Location)
Superior Equipment & Supplies (860) 628-4768 (860) 620-5534 (877) 289-7368 M-F 7:00-5:00 1403 Meriden-Waterbury Turnpike Sat. 7:00-3:00
Southington, CT (Main Location)

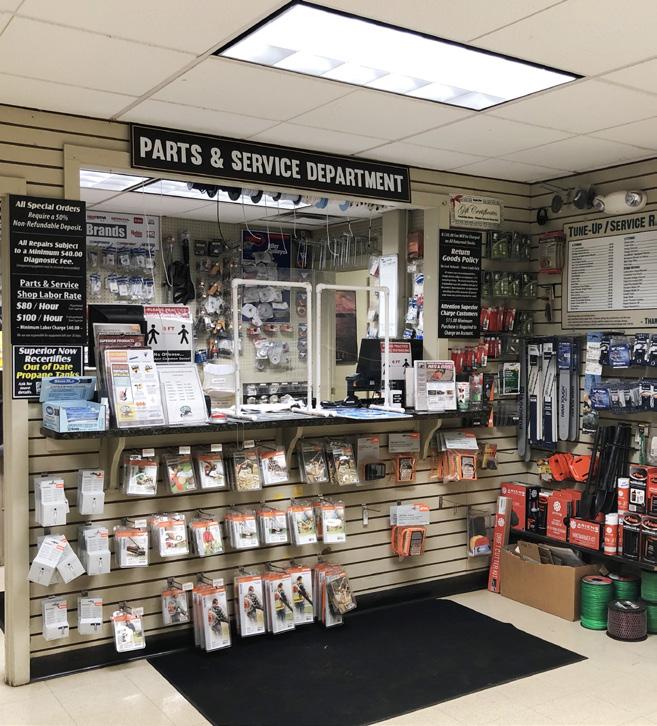

Parts & Service Department (860) 628-4768 (860) 620-5534 (877) 289-7368 M-F 9:00-5:00 (Main Location) Sat. 9:00-2:00
Superior Instrument (860) 276-8796 (860) 620-5534 (888) 852-7377 M-F 7:00-5:00 1403 Meriden-Waterbury Turnpike
Southington, CT (Main Location)
Superior Hearth, Spas & Leisure
Southington (860) 620-5555 (860) 620-6699 (888) 966-3427 Tu-F 10:00-6:00 1457 Meriden-Waterbury Turnpike Sat. 9:00-5:00
Southington, CT (Seasonal) Sun. 11:00-4:00
Avon (860) 677-2304 (860) 677-2094 (888) 772-7288 Tu-F 10:00-6:00
353 West Main Street Sat. 9:00-5:00
Avon, CT (Seasonal) Sun. 11:00-4:00
Superior Hearth, Spas & Leisure (860) 620-6487 M-F 9:00-5:00
Parts & Service Department
Hour Emergency
General InformatIon
Delivery/Pickup
We offer statewide delivery service for our rental equipment, instrument services, and jobsite supplies. Ask for our delivery rates upon making your reservation. We also provide same day delivery. There is no jobsite in New England or New York that is out of our range. We also realize there are certain times when there is an emergency and we will immediately adjust to respond to those needs. Be sure to make a reservation to ensure we have a delivery time that is convenient for you.
Rental Purchase
We have programs available to convert a rental into a purchase. All rental to purchase transactions must be clearly defined in writing before the onset of the rental. Any previously paid rental will not be applied towards a buyout after the fact.
Accessories/Fuel
We have many accessories for our rental equipment which are not listed in the rate guide. In some cases these accessories may be available at an additional charge. Please be aware fuel is not included in our listed rental rates. We can provide fuel, available at all four locations, for your convenience and this cost will be added to your rental contract.
Rental Period
Our rental rates are based on nine hours of running time per day or forty-five hours per week. This is a considerable advantage over our competitors who offer only an eight hour running day. Please note, two shift usage is charged at 1.5 times the normal rate and 3 shift usage is charged at 2 times the normal rate.
Financing Online with Great America
We are able to arrange financing for you on most equipment purchases. We can also create a monthly finance payment schedule that can be tailored to your needs.
Service/Parts
We service everything that we sell in-house. Our service technicians are factory trained to repair many types of equipment. We have the capability to repair most small jobsite equipment that is gasoline, diesel, or electrically powered. We offer quick estimates and turnaround on all of our service work. We also have a large variety of replacement parts in stock for most of the manufacturers we carry. Our parts network is quite extensive for any major manufacturer in the industry, so we can normally have parts we do not stock within a few days. There is no part order too small!
Air Equipment
Breaker,

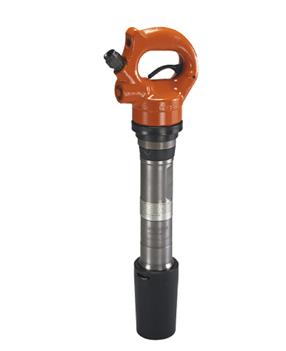

15 lb. Air Chipping
Specifications: Optional
Shank Size: .580” Hex Shank
Stroke Length: 2-1/2” (50.8 mm)
Piston Diameter: 1-1/8” (28.54 mm)
Breaker, 30 lb. Air
Toku PB-30 Paving Breaker
Impact Rate: 2,000 to 2,200 B.P.M.
Max PSI: 90 lbs
• Steel Point, Chipping Gun • Air Hose, 50’
Shank Size: 1” x 4-1/4”
Impact Rate: 1,550 B.P.M. Weight: 33 lbs (15 kg) Specifications:
Stroke Length: 3-11/32” (85 mm) Piston Diameter: 1-3/4” (44.45 mm)
Breaker, 60 lb. Air
Specifications:
Consumption: 48 cfm
Inlet Diameter: 3/4” NPT
Chuck Size: 1-1/8” x 6”
Bore Diameter: 2-5/8”
Shipping Weight: 74 lbs Chuck Size: 1-1/8” HX x 6”, 1-1/4” HX x 6”
1,350 Breaker, 90 lb. Air CFM at 90 PSI: 75-80
91 lbs
29”
Inlet Size: 3/4” male NPT
Breaker, Rivet Buster 133APT
Specifications:
Bore Diameter: 1-3/16”
Stroke: 8”
Blows per Minute: 1,140 CFM @ 90 PSI: 42 - 46

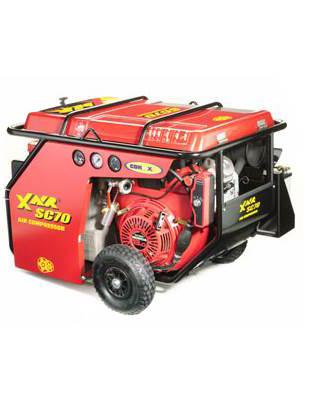

Specifications:
Rated Output: 70 CFM (1.98 m^3/min)
Rated Pressure: 100 PSI (6.9 bar)
Pressure Range: 72 - 125 PSI (5 - 8 bar)
Oil Capacity: 1.1 gal (4.0 L)
Engine Make/Model: Honda GX610K1
Cooling System: Air/Oil
Weight: 30 lbs
Length: 22-1/2” Air Inlet Size: 1/2” female NPT
Full Safety Shutdown: Compressor & Engine Compressor, 70 CFM Portable
Splitter, Air Rock
Hole Diameter: 1-3/4”
Hole Depth: 26”
Effective Force: 400 tons
Weight: 68 lbs
Including Hydraulic power pack
The Elco air powered hydraulic power
Engine Output: 18 HP (12 kW)
Starting System: Electric/Recoil
Engine RPM Range: 2,200-3,500
Tank Capacity: 5.3 gal / 20 L
Lifting Hooks Included
Dry Weight kg / lbs 135 / 298
Dim. L x W x H 34 x 26 x 23 in
Sound level dB(A) @ 23 feet 74
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
Breaker Tool, Dirt Tamper
Breaker Tool, Frost or Split Wedge
Breaker Tool, Point
Air Hose, 50’
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
• Breaker Tool, Dirt Tamper • Breaker Tool, Frost or Split Wedge • Breaker Tool, Point
• Air Hose, 50’
Air Hose, 50’
unit consists of an air motor, hydraulic pump, hydraulic reservoir, and pressurematic valve, all contained within a compact package. The air motor requires 50 to 80 CFM at 100 PSI. The air must be clean, dry, and lubricated.
• Compressor, 185 CFM Diesel

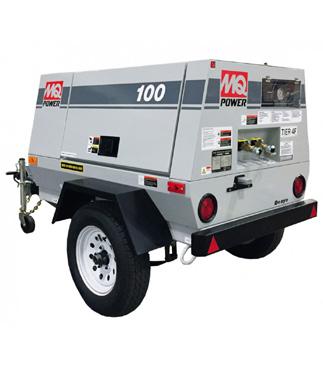

Compressor, 100 cfm Diesel
Specifications:
Type: Rotary Screw
Rated Delivery: 95 / 2.8
Rated Operating Pressure: 100 PSI
6.9 BAR
Trailer Specifications
Gross Axle Weight Rating (GAWR):
2,500 lbs (1,334 kg)
Hitch: Pintle
Dimensions & Weights
Overall Length: 112.20 in (2850 mm)
Overall Width: 58.07”
Overall Height: 51.57”
Operating Weight: 1,631.42 lbs
Shipping Weight: 1,521.19 lbs
Engine Specifications
Make/Model: Kubota / D1005-E4B
Emissions: Tier 4 Final Certified
Starting System: Electric
Gross Engine Power Output: 24.4 bhp 18.19 kW
Fuel Tank Capacity: 10.6 gal
Oil Capacity: 1.4 gal
Compressor, 185 CFM Diesel
Specifications:
Engine Model: Yanmar 4TNV88C-DHKS
Horsepower: 47.6 HP
Free Air Delivery: 185 cfm
Working Pressure: 100 psig
Max. Working Pressure: 120 psig
Air Receiver Tank Capacity: 5.29 gal
Air Outlets: ¾” x 2
Fuel Capacity: 24 gal
Sound Level: 62 dBA
Operating Weight: 2,620 lbs
Dry Weight: 2,120 lbs
Weight w/ Towing Frame: 2,420 lbs
Dimensions (w/ Towing Frame): 132” L x 68” W x 62” H
Compressor, 375 CFM Diesel
Specifications:
Model: M114
Free Air Delivery @ 100 psig: 375 CFM
Free Air Delivery @ 145 psig: 345 CFM
Free Air Delivery @ 175 psig: 296 CFM
Free Air Delivery @ 205 psig: 265 CFM
Power at Full Load: 103 HP
Fuel Type: Diesel
Drill, Rock Air
Specifications:
Weight: 48.5 lbs
Length: 23-1/4”
Bore & Stroke: 3” x 2-5/8”
Impact Rate: 1,800 blows/min
Air Consumption: 99 cfm
(2.8 m^3/min, 47 l/s)
Air Equipment
Optional Accessories:
• Air Hose, 50’
• Breaker, 15 lb. Air Chipping
• Breaker, 30 lb. Air
• Breaker, 60 lb. Air
• Breaker, 90 lb. Air
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
• Breaker Tool, Point
Optional
• Air Hose, 50’
• Breaker, 15 lb. Air Chipping
• Breaker, 30 lb. Air
• Breaker, 60 lb. Air
• Breaker, 90 lb. Air
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
• Breaker Tool, Point
Fuel Tank Capacity: 45 gal
Weight: 4,111 lbs
Outlets: 3 x ¾”, 1 x ½”
Dimensions (L x W x H): 191-7/16” x 73-7/16” x 62-15/16”
Pintle Hitch: Included
Air Inlet
Diameter: 3/4” NPT
Shipping Weight: 55 lbs
Chuck Size(s): 7/8” HX x 3 1/4”, 7/8” HX x 4 1/4”, 1” HX x 4 1/4”
Post Drive, Pneumatic, Rhino
Specifications:
Duty: Medium
Air Consumption: 42 CFM @ 90 PSI
Weight: 5.46 lbs (24.8 kg)
Master Chuck: 3-7/8” ID
Material: Rhino Alloy
Piston: Double Valve
Rhino PDT-55 Transport Kit Includes:
Transport Accessories, PD-55 Medium
Duty Post Driver, 3” (76.2 mm) Chuck
Adapter, 2-1/2” (63.5 mm) Chuck Adapter, 2” (50.8 mm) Chuck Adapter, Channel Post Chuck Adapter, Throttle Valve Kit with 20.5 ft of Hose, Filter-Regulator-Lubricator and 5 ft. of Hose, Total Solution includes the PDT-55 (071216) & MP-3 Post Puller (071012)
• Air Hose, 50’
• Breaker, 15 lb. Air Chipping
• Breaker, 30 lb. Air
• Breaker, 60 lb. Air
• Breaker, 90 lb. Air
• Breaker Tool, Asphalt Cutter
• Breaker Tool, 1” or 3” Chisel
• Breaker Tool, Point
Optional Accessories:
• Air Hose, 50’
• Drill Rod, 3’
• Drill Rod, 4’
• Drill Rod, 5’
• Drill Rod, 6’
Optional Accessories:
• Air Hose, 50’
• Compressor, 185 CFM Diesel
Plate Attachment, MVC88 Urethane Pad
Specifications:
The UPA88T is designed for compacting paving stones and decorative brick. The pad prevents damage to the stone as the plate passes over the surface. It is not intended for soil or backfill compaction.
Compactor Rammer
Specifications:
Blows (per min): Up to 690
Impact Force: 3,350 lbf (1520 kgf)
Shoe Jump Height: 3.1” (79 mm)
Shoe Dimensions (L x W): 13.4” x 11.2”
Travel Speed (per min): 55.8’ (17 m)
Fuel Tank Capacity: 2.5 qt (2 L)
Overall Length: 31.0” (788 mm)
Overall Width: 13.8” (350 mm)
Compactor, Roller Paver
MVB85H
Plate size W x L in: 12.60 x 17.05
Centrifugal Force: 2,270 lbs
Exciter Speed VPM: 5,600
Operating Weight: 203 lbs
Rubber Roller Diameter: 2.9”

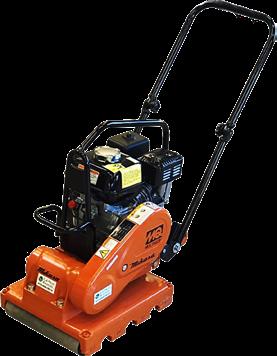

Compactor, MVC88 Plate
For the use with Multiquip MVC88VTH/VTHW Series plate compactors only.
Overall Height: 40.4” (1,027 mm)
Operating Weight: 165 lbs (75 kg)
Engine Make/Model: Honda GX100
Engine Power: 2.8 HP (2.1 kW)
Fuel Type: Gasoline
Gasoline Engine - Honda GX120
HP Rating BHP (kW)*: 3.5 (2.6) Rollers - 4
Optional Accessories:
Specifications: Optional
Centrifugal Force: 3,420 lbf
Exciter Speed: 6,000 VPM
Plate Size: 19.7” x 20.7”
Fuel Consumption (per/hr): 0.31 gal
Water Tank Capacity: 11.5 qt
Overall Length: 41.75” (1,060 mm)
Overall Width: 19.75” (502 mm)
Overall Height: 37” (940 mm)
Shipping Dimensions (L x W x H): 38” x 22” x 29”
Operating Weight: 218 lbs (99 kg)
Shipping Weight: 225 lbs (102 kg)

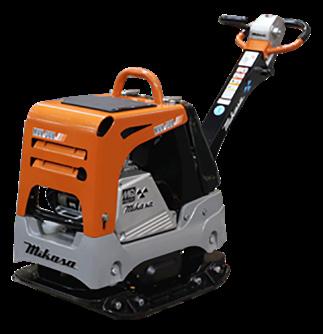

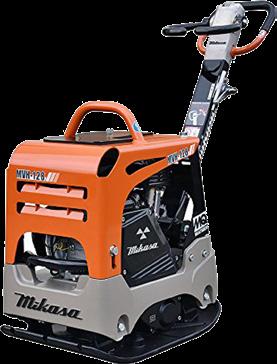

Compactor, 128GH Rev. Plate
Specifications:
MVH128GH
Plate size W x L: 15.8” x 23.2”
Centrifugal Force: 5,283 lbs
Exciter Speed VPM: 5,400
Operating Weight: 268 lbs
• Plate Attachment, MVC88 Urethane Pad
Optional Accessories:
Cyclonic Pre-Cleaner: Triple Engine: Overhead Valve, Gasoline
Compactor, 158GH Rev. Plate
Specifications: Optional Accessories:
MVH158GH
Plate size W x L: 16.9” x 27.6”
Centrifugal Force: 6,070 lbs
Exciter Speed VPM: 5,400
Operating Weight: 308 lbs
Cyclonic Pre-Cleaner: Triple Engine: Gasoline

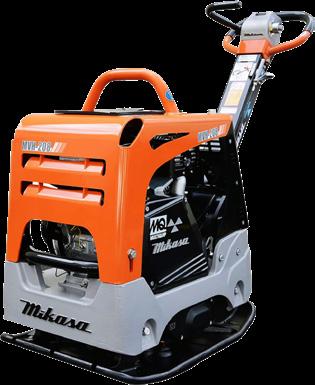

Compactor, 208GH Rev. Plate
Specifications: Optional
MVH208GH
Plate size W x L: 19.7” x 28.3”
Centrifugal Force: 8,318 lbs
Exciter Speed VPM: 5,200
Operating Weight: 463 lbs
Max travel Speed ft/min: 85
Cyclonic Pre-Cleaner: Triple
Compactor, 308GH Rev. Plate
Specifications:
MVH308GH
Plate size W x L: 24” x 34”
Centrifugal Force: 10,116 lbs
Exciter Speed VPM: 4,400
Operating Weight: 717 lbs
Max travel Speed ft/min: 79
Cyclonic Pre-Cleaner: Single
Engine: Gasoline
Compactor, 408GH Rev. Plate
Centrifugal Force: 12,400 lbf
Exciter Speed: 4,600 VPM
Overall Width: 25.5”
Overall Height: 53.5”
Operating Weight: 816 lbs Specifications:
Plate Size (L x W): 22” x 35”
Plate Size w/ Extensions: 28” x 35”
Max Forward Speed: 75’
Fuel Consumption (per/hr): .98 gal
Engine: Overhead valve, Gasoline
Overall Length: 35.5”

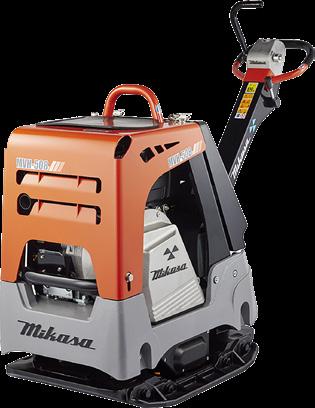

Compactor, 508MVH Rev. Plate
Specifications:
Centrifugal Force: 15,737 lbf
Exciter Speed: 4,400 VPM
Plate Size: 20” x 35”
Max Forward Speed Per Min: 82 ft
Dimensions & Weights
Overall Length: 63”
Overall Width: 26”
Overall Height: 48”
Roller, 1-1/2 Ton Vibratory
Specifications:
Operating Weight: 2,910 lbs
On Front: 1,325 lbs
On Rear: 1,587 lbs
Vibration Frequency: 4,000 vpm (67 Hz)
Centrifugal Force: 2,975 lbs
Amplitude (in 0.014”): 0.35 mm
Speed Ranges: 0-4.6 mph
Gradability: 34%
Sprinkler System Capacity: 15 gal
Drum Diameter: 22”
Drum Width: 35”
Operating Weight: 1,182 lbs Hatz 1D90E Diesel
Overall Length: 75”
Overall Width: 40”
Overall Height: 96”
Wheelbase: 51”
Curb Clearance: 13.4”
Turning Radius: Inside - 74.5”; Outside - 110”
Fuel tank: 9 Gal - Gas
Roller, 3-1/2 Ton Vibratory
Specifications:
Maximum Operating Weight: 6,808 lbs
Operating Weight: 5533 lbs
Standard Compaction Width: 47”
Travel Speed - Maximum: 7.5 mile/h
Gross Power: 30.7 HP
Engine Model: C1.5
Overall Width: 52”
Wheel Base: 71”
Height - ROPS: 106”
Overall Length: 101”
SERVICE REFILL CAPACITIES
Fuel Tank Capacity: Diesel, 15.9 gal
Water Spray Tank Capacity: 52.8 gal
Centrifugal Force per Drum: Min 3,305 lbs
Centrifugal Force per Drum: Max 6,744 lbs
Roller, 10 Ton Vibratory
Specifications:
Overall Length: 17’
Overall Width: 6.2’
Height to Top of Cab: 9.4’
Wheelbase: 8.4’
Ground Clearance: 15.2”
Drum Diameter (Front): 4.3’
Operating Weight: 15,741 lbs
Fuel Capacity: 72.6 gal
Drum Width: 66.1”
Drum Diameter: 51.2”
Nominal Amplitude - Low: 0.07”
Centrifugal Force - Low: 32,597.3 lbs
Centrifugal Force - High: 29,225.2 lbs
Wheelbase: 8.4’
Overall Length: 17’
Overall Width: 6.2’
Height to Top of Cab: 9.4’
Ground Clearance: 15.2”
Drum Diameter (Front): 4.3’
Roller, Double Drum Diesel W/B
Specifications:
Model Number: LP 6,505
Horsepower: 8.6 HP
Max Compaction Width: 25.6”
Drum diameter 15.7”
Height: 47.8”
Width: 28.3”
Length: 43.7” / 98.4”
Weight: 745 lbs

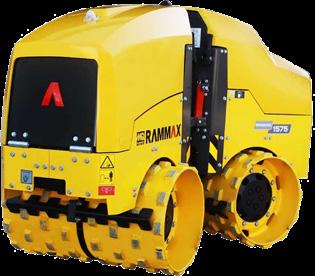

Roller, Sheepsfoot Trench
Specifications:
Operating Weight: 3,263 lbs. (1,480 kg)
Overall Length: 80” (2,020 mm)
Overall Width: 33” (850 mm)
Overall Height: 48” (1,220 mm)
Drum Width: 33” (850 mm)
Drum Diameter: 21.7” (550 mm)
Amplitude: 0.087” (22 mm)
Centrifugal Force: 18,500 lbs (8,391 kg)
Engine Power: 18.5 hp (13.8 kW)
Diesel Fuel Tank Capacity: 5.9 gal
Vibrations per Minute: 1,800 vpm (830 hz)
Dynamic Linear Force Per Drum (33”): 269 lbs/in (480 kg/cm)
Concrete & Mason Tools & Equipment
Bucket, 1 YD Concrete w/ Side Chute
Specifications: Optional
Model: 100
Width Outside Diameter: 56”
Width Inside Diameter: 52”
Load Height: 46”
Overall Height: 63”
Gate Diameter: 24”
Weight: 435 lbs
Cap: 1 yd
Buggy, 16 CF Propane Concrete Power
Specifications:
Standard Features & Benefits:
13 HP Honda GX390 Engine
8 Gallon (33 lbs) propane tank provides hours of use
16 CF easy-to-clean poly bucket
2,500 lbs load capacity
A top speed of 7 mph for quick transportation
Solid steel 2” frame for maximum durability
Top Speed: 7 mph (11.2 kph)
Bucket Capacity: 16 cu ft
Wheelbase: 40” (102 cm)
Weight: 1,370 lbs (590 kg)
Dimensions: (L x W x H) 97” x 47” x 64”
Buggy, 16 CF Concrete Power
Bucket Capacity: 16 cu ft (0.45 cu m)
Lift Cylinder Diameter: 2” (51 mm)
Dump / Return Speed (Empty): 5 sec
Wheelbase: 40” (102 cm)
Weight: 1,300 lbs (590 kg)
7 mph (11.2
Dimensions (L x W x H): 97” x 47” x 50” (246 x 119 x 127 cm)
Buggy, 16 CF Battery Powered
Specifications:
Engine: 48 Volt Lithium Ion Battery
Charging Port: 110Volt
Horsepower: 7.4 hp
Power Type: Battery Operated
Battery Life: 6+ Hours
Travel Speed: 6 mph
Payload: 2,500 lbs
Bucket Capacity: 16 cu ft
Dump Angle: 90
Wheelbase: 40”
Tires: Foam Filled
Weight: 1,507 lbs
Dimensions L x W x H: 97” x 47” x 50”
Buggy, 16 CF Track Concrete
Model: AT16
Engine: Kohler 27 hp Vertical Shaft with Electric Start
Payload: 2,500 lbs (1,135 kg)
Dimensions L x H: 102.5” x 65.25” (260 cm x 166 cm)
Length with Platform Up: 92” (234 cm)
• Propane Tank, 33 lbs • Propane, 33# Fill

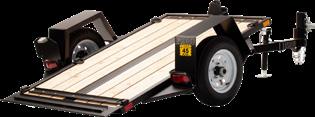

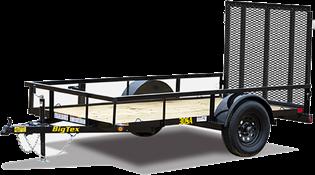

• Trailer, 6’ x 12’ Landscape
• Hitch, Reese Pintle w/ 2” Ball
Fuel Capacity: 6 gal Gas Specifications:
Dimensions (Width): 35.625” (90 cm)
Wheelbase / Track Length: 119” (302 cm)
Bucket Capacity: 16 cu ft (0.45 cu m)
Weight: 1,475 lbs (669 kg)
Lift Cylinder Diameter: 2.5” (64 mm)
Dump/Return: 7 sec
Top Speed Work: 4 mph (6 kph)
Length with Platform Down: 102.5” (260 cm)
Transport: 6 mph (10 kph)

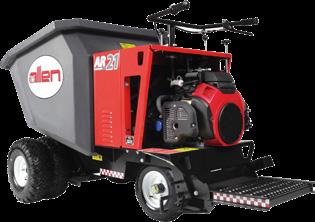

Buggy, 21 CF Concrete Power
Bucket Capacity: 21 cu ft (0.59 cu m)
Lift Cylinder Diameter: 2.5” (63.5 mm)
Dump / Return Speed (Empty): 8 sec
Wheelbase: 40” (102 cm)
Weight: 1,405 lbs (637 kg)
Dimensions (L x W x H): 97” x 47” x 50” (246 cm x 119 cm x 127 cm)
Concrete
Specifications:
JB
Concrete Chute
Lengths Available: 8’, 10’, 12’ and 16’
Core Drill Rig
Specifications:
Motor: 4.8 HP
Power @ 120V: 20 A
No Load: 450/900 rpm
Core Bit Cap Concrete: 10”
Base Size: 14” x 19”
Column Diameter: 2-1/2” x 2-1/2”
Core Drill, Handheld Rig
Dimensions (L x W x H): 61” x 29.5” x 31”
Capacity: 8 cf Wheels: 27” Pneumatic
Column Height: 42”
Overall Depth: 30”
Overall Height: 46”
Overall Width: 16”
Tool Weight: 120 lbs
• Core Drill Bits: 1”, 1-1/2”,
• Extension, 12”
• Vacuum Pump w/ Gaskets (1 set)
• Reducer (1” to 5/8”-11)
• Water Bottle Attachment
Specifications: Optional Accessories:
Voltage: 230 / 110 V
Amperage: 8 /15 A Power: 1,850 W
Output rpm: 700 / 1700 / 3,600 rpm
Output rpm at Full Load: 500 / 1,400 / 2,900 rpm
Speeds: 3
Water Coupling: G1/4”
Rated Output: 1,100 / 0 W
Rated Current: 8 / 15 A
Spindle Speed Idle High Speed: 900 / 2,150 / 4,500 rpm
Max Drill Bit Diameter (handheld): 3”

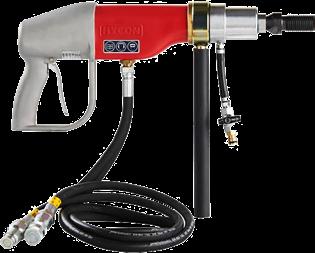

Core Drill, Handheld Hydraulic
Specifications:
Brand: Hycon
Model: HCD50-200
Motor: HCD50-200
Engine: Hydraulic
Drill Speeds: 1-Speed
Core Drill rpm: 600 rpm
Maximum Bit Capacity: 2” - 14”
Float, Bull
Specifications:
Blade Length: 4’
Drilling Stroke: 14” Stroke
Hydraulic Working Pressure: 1,600 psi / 100 bar
Hydraulic Maximum Pressure: 2,500 psi / 172 bar
Hydraulic Oil Flow: 5-8 GPM / 20 LPM Weight: 17 lbs
• Core Drill Bits: 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2” and 4”
• Reducer (1” to 5/8”-11)
• Bull Float Handle, 6’ Bull Float Handle, 6’
Specifications:
• Hydraulic Power Unit Handles ceiling heights from 7’ to 12’ Electric model - 1½ HP Baldor motor Self-aligning, spring-loaded grinding
Rapid winch driven height adjustment 12” tires for easy maneuverability 5/8” - 11 thread for wheel mount with dust collection vacuum system
Concrete & Mason Tools & Equipment
Grinder/Polisher, Elec Turbo PG450 Floor
Rated Input Power: 3 HP
Rated Current: 13 A Voltage: 220-240 V Phases: 1 ph
Number of Grinding discs: 3 Weight: 240 lbs Specifications:
Grinding Disc Speed Min: 0 rpm
Grinding Disc Speed Max: 865 rpm
Direction of Rotation: One Direction
Frequency: 60 Hz
Grinding Width: 17.7”
Grinder, PG450, Elec Dual Disc Floor w/ Ext Cord
Edco Model: (2EC-NG-1.5) Power: Electric
Horse Power: 1.5 hp 115/230V Phase: Single
Amps: 16/8 RPM’S: 231
Belts: Std. “V” Belts
Frequency: 60 Hz
Grinding Width: 11”
Grinding Pressure: 55 lbs Product Size Width: 16.5”
Product Size Height: 39”
170 lbs

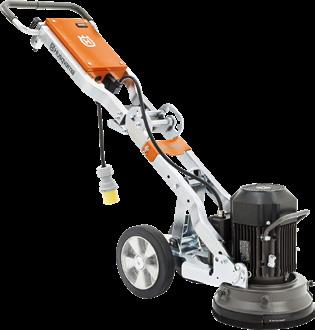

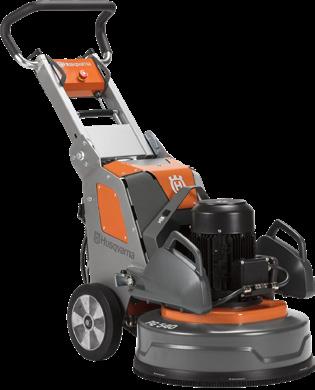

Grinder, Electric Husqvarna PG540 Floor
Rated Input Power: 5.5 HP
Rated Current: 30 A
Voltage: 200-240 V Phases: 1
Pins: 3P+E
Product Size Length: 40”
Product Size Width: 22”
Product Size Height: 28.9”
Weight: 392 lbs
Grinding Disc Diameter: 9”
Direction of Rotation: Both directions Number of Grinding Discs: 3
Grinder, Electric Husqvarna PG830 RC Floor
Rated Input power: 22 HP
Current:30 A
440-480 V Phases: 3
Size Width: 32.7”
380-480 V Phases: 3
Weight: 1,437 lbs
Grinding Disc Diameter: 10.5”
Direction of Rotation: Independent
FWD/REV Direction Control on Both Grinding Discs and Planetary Head Number of Grinding Discs: 3
3” Vacuum, Large Hepa Dust Extractor DC6000 Weight: 640 lbs
L x W x H: 49” x 30” x 75”
• Insert, Diamond Misc.
Vacuum, Hepa Dust Extractor S26-S36 • Bucket, Floor Polishing System • Pad, 3” Concrete Polishing P1243 100 grit
• Pad, 10” Concrete Flex Polishing 200 grit • Pad, 10” Concrete Flex Polishing 400 grit
• Pad, 10” Concrete Flex Polishing 800 grit
Heads, Diamond Grinding
Strip-Cert Assembly, Carbide
Inserts, Diamond
Inserts, Diamond
Concrete & Mason Tools & Equipment

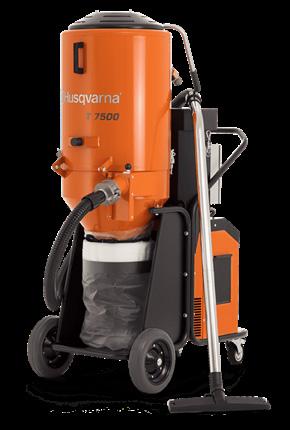

Vacuum, Large Hepa Dust Extractor T7500
Specifications: Optional
Power, HP: 10.1
Voltage: v230
Rated current: 24.2 amps
Power supply: 3-phase
Airflow: 353 cfm
Water Lift: 110”
Max vacuum: 28 kPa
Mixer, Cement Towable
Specifications:
Drum Capacity: 9 cu ft (2) 80 lb bags
Drum Opening: 23”
Drum Depth: 31”
Overall Length: 106”
Overall Width: 51”
Overall Height: 72”
Operating Weight: 800 lbs
Suction Inlet Diameter: 3”
Dimensions L x W x H: 49” x 27” x 69”
Weight: 454 lbs
Engine Power: 7.1 HP (5.3 kW)
Engine Capacity: 3600 rpm
Fuel Type: Gasoline
Pintle Hitch
Mixer, Small Portable 3CF-5CF Electric
1/2 HP 110v industrial grade motor with direct gear drive
10” pneumatic wheels
5 cu ft poly or metal drum with 2.5 cu ft output
Aggressive paddles to mix fast and complete
Drum capacity: 5 cu ft
Batch output: 2.5 cu ft
Motor rating: 1/2 HP 110v / 6 amp
Mixer, Mortar Portable
Specifications:
Drum Capacity: 4.25 cu. ft.
Drum Diameter: 30”
Batch Output: 3 cu. ft.
Motor Rating: 2 HP/15 amps/110 V
Paddle Speed: 38 RPM
Dimensions: 33” x 50” x 30”

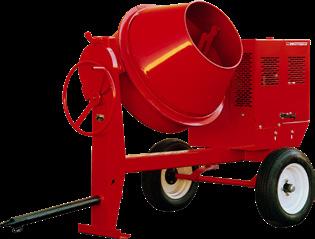

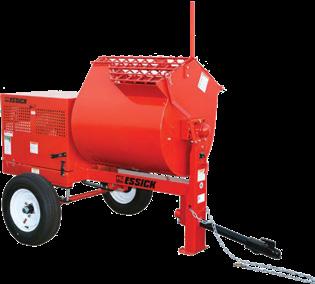

Mixer, Mortar Towable 9CF
Specifications:
Drive System: V-belt
Drum Capacity: 9 cu ft 254.9 L (2-1/2 - 3-1/2 bags)
Dump Type: Manual
Discharge Height: 21”
Drum Type: Steel
Drum Thickness: 10
Tire Size: B78x13
Power Source: Honda GX240KIHA2
Dimensions & Weights
Overall Length: 98”
Overall Width: 50”
Overall Height: 59”
Drum diameter: 24”
Discharge outlet height: 21”
Wheel size: 10”
Weight: 120 lbs
Overall Height w/ Dump Handle: 77”
Operating Weight: 770 lbs
Engine Specifications
Engine Make/Model: Honda GX-240
Start Method: Recoil
Engine Power: 7.9 HP
Engine RPM: 3,600
Fuel Type: Gasoline
Concrete & Mason Tools & Equipment
Planer, 8” Concrete Electric
Specifications:
8” working width will scarify approximately 350-500 sq ft per hour at a depth per pass of 1/8”
Removes traffic lines at 800-1,000 lineal feet per hour
Comes standard with universal vacuum port hookup
Carbide & steel cutters
5 HP electric motor 230V
Planer, 8” Concrete Gas
Specifications:
Model: CPM-8-9H
Power: Gasoline
Horse Power: 9 HP
RPM’s: 2,150
Length: 35”
Width: 20”
Height: 39”
Weight: 190 lbs
Planer, 10” Concrete Floor
Specifications:
2,130 RPM
220 lbs
Ideal for:
• Sidewalk trip hazard repair
• Concrete and coatings removal
• Floor cleaning and/or preparations
• Creating non-slip surfaces
• Traffic line and markings removal
• Cutters, Small Carbide Wheel
Ideal for:
• Sidewalk trip hazard repair
• Fixing Sidewalks
• Concrete and coatings removal
• Floor cleaning and/or preparations
• Creating non-slip surfaces
• Traffic line and markings removal
• Cutters, Small Carbide Wheel
• Planer, Edger Assembly
• Extension Cord, 50’ Cutter Rotation (Down, Up, Rotary): Down
Hourly Production Rate: approx. 2,250 LF
Removal Width / Pass: Up to 10” (254 mm)
Removal Depth / Pass: Up to 1/4” (6.35 mm)
Height: 44” (1,117.6 mm)
Width: 19” (482.6 mm)
Length: 38” (965.2 mm)
Pump, Grout Imer50
Specifications:
Motor: 115 V
Horsepower: 1-3/4 HP
Pumping System: 2L6 rotor/stator
Flow Rate: 3.5 GPM
Maximum Pumping Pressure: 300 PSI
Maximum Aggregate Size: 1/4”
Hopper Capacity: 12.5 gal
Compressor Output: 45 psi @ 9 cfm
Weight (palletized): 110 lbs (150 lbs)
Dimensions L x W x H (palletized): 44” x 20” x 25” (50” x 25” x 28”)

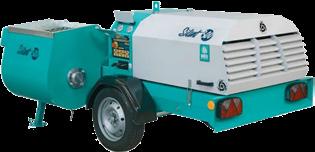

Pump, Electric Towable Grout
Specifications:
Motor Power Rate: 7.5 HP, 3 phase
Mixer Power Rate: 2 HP
Electric Compressor: 3 HP / 11 cfm
Max Aggregate Size: 3/8”
Maximum Flow Rate: IM25L 2.75 cu yd
Maximum Flow Rate: 60.12 6 cu yd
Maximum Flow Rate: 2L6 2.35 cu yd
Horizontal Pumping Distance: 300’
Vertical Pumping Distance: 200’
Hopper Capacity: 4.25 cu ft
Dimensions: 33” W x 80” L x 38” H
Weight: 616 lbs
Standard Equipment Includes:
• 2 Speed Control Panel
• 66’ Power Cord
• Remote Control Ready
• 5 HP / 7.5, 2 Speed, 3 Phase 100%
• Duty Cycle Motor
• IM25L Rotor/Stator
• Tow Kit
• Grate for Premixed Materials
• Accessory Tool Box
• Diamond Groove Assembly
• Cutters, Large Carbide Wheel
• Hose, 50’ x 25mm Grout
• Gun, Spray Grout
• Mixer, Mortar Portable
• Imer 50 Grout Pump Compressor
• Kit, Imer Pump Cleaning
• Hose, 33’ x 25mm Grout
Concrete & Mason Tools & Equipment
Pump, Grout Portable
Specifications:
Power supply: 220v 1phase
Total machine power: HP 5
Mixing & pumping Motor: HP 3
Feeding impeller wheel motor: HP 1/2
Built in electric compressor: 1 HP- 9
cfm V-stroke: Yes
Variable speed material flow: 4 speeds
Material flow rate cubic feet per hour 17, 23, 30, 36
Pump, Grout Towable
Specifications:
Model: Silent 300 Prestige
Motor: Kohler / Lombardini 3 cyl
Horse Power: 20 HP
Pumping System: 2L6 rotor / stator
Flow Rate: 0 - 15 GPM or 4.5 CYPH
Maximum Pumping Pressure: 580 PSI
Maximum Aggregate Size: 1/4” std 3/8” w / options
Pipe Outlet: 50 mm
Rebar, Tying Tool
Maximum pumping distance: 25 mm (1”) hose feet
Maximum pumping distance: 35 mm (1-3/8”) hose 125’
Hopper capacity: 4 cu ft
Loading height: 36”
Dimensions: W 27”/ L 62”/ H 47”
Weight: 561 lbs
Optional Accessories:
• Hose, 50’ x 25mm Grout
• Gun, Spray Grout
• Kit, Imer Pump Cleaning
Hopper Capacity: 8 cf
Mixer Batch Output: 6 cf
Mixer System: Integrated hydraulic drive/dump
Compressor Output: 14 CFM @ 45 PSI
Weight (palletized): 1,590 lbs (1,800) lbs
Length (palletized): 132” (103”)
Width (palletized): 53” (60”)
Height (palletized): 54” (60”)
Optional Accessories:
• Hose, 66’ x 35mm Grout
• Hose, 33’ x 35mm Grout
• Gun, Spray Grout
• Kit, Imer Pump Cleaning
Specifications: Optional
Model: RB398
Applicable Rebar Size #3 x #3#5 x #6
Wire Product/GA: TW898
(Sold per case)
Ties Per Coil: 120
Rebar Cutter, Hydraulic
Specifications:
Model: HBC19A
Bar Capacity: 3/4”
Design: Electro-hydraulic
Maximum Rebar Size: 3/4” (20 mm) in 3 seconds
Rebar
Bender,
Specifications:
Ties Per Charge: 2,600
Weight: 5.3 lbs
Tie Speed: less than 1 sec
Tie Wraps: 3
Battery Charge Time: 40 minutes full charge
Motor: 115V, 60 Hz single-phase
Pump: Hydraulic with magnetic particle filtering
Blades: Heat-treated steel Weight: 27 lbs (12 kg)
Hydraulic w/ Footswitch
Maximum Rebar Size: 1” (25 mm)
Maximum Bed Rate: 180 degrees diameter in seconds
Bend Angle: Adjustment knob allows fine tuning of bending angle
Standard Foot Switch: Included -
Rebar Bender, Manual
Specifications:
• Longer handle and cam mechanism provides greater leverage when cutting and bending grade 60 rebar
• Adjustable 2-1/2” dia. bending roller
• Replaceable cutting jaws have two open slots with innovative shaped
• Rebar Tiewire Roll
provides the operator the ability to free up hands for safe material handling
Motor: 115 V, single-phase electric motor @ 13 amps
Rollers & Collars: Included - quickly change your bending radius
Built-in Lifting Handles: 2
blades to prevent chipping of the jaws
• Other features include a 12” long no-slip handle grip and a lifting chain to make it easier to carry
Item Weight: 55 lbs
Product Dimensions: 61” x 8” x 10”
Concrete & Mason Tools & Equipment

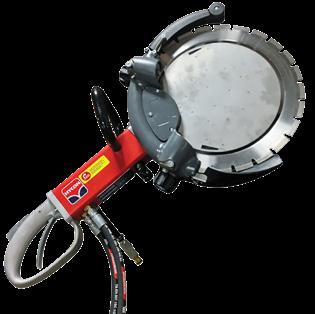

Ring Saw, Hydraulic
Specifications:
Hycon 16” Ring Saw HRS400 11-3/4”
Cutting Depth
• Upgraded Heavy Duty motor design
• Compact, Lightweight 24 Lbs
• Up to 18 HP Output
• ASCO Safety System
• Cuts up to 11-3/4” deep
• Wet use only
• Works Underwater
• Ergonomic design for comfort
• Minimal maintenance, & easy service
• Guide rollers last 3 times longer than competitors saws
• Improved blade design
• Long lifetime - all parts run in oil
• Easy change of blades
• 1/3 less cutting cost than chainsawing
Hand Saw, Hydraulic 20” Concrete
Specifications:
Max Blade Capacity: 20”
Max Cutting Depth: 8-3/4”
Oil Flow: 8-10 GPM / 30-40 LPM
Working Pressure: 1,800 PSI / 120 Bar
Max Pressure 2,500 PSI / 172 Bar
For Use Under Water: Yes
Power Pack, Hydraulic
Specifications:
HPP23HP Powerpack 23
SKU: P00022
Brand Name: Hycon™
PSI Oouput: PSI 2300/158 Bar
HYD Connections: Single-Output
Primary Output: 5-8-10-12 GPM / 20-30-40-60 Lpm
HYD Oil Capacity: 2-3 Gal/7.5 - 11.3 L
Starter: Electric/Recoil
Saw, Diamond Ring Gas
Specifications:
Blade, in (mm): 14” (350)
Cutting depth, in (mm): 10.6” (254)
Power, HP (kw): 6.5 (4.8)
Displacement, cu in (cc): 5.71 (93.6)
Power / weight ratio, HP/lbs: .21
Weight, w/out fuel or blade: 29.8 lbs
Fuel Capacity: 1.1 qt
RPM: 1,500 - 2,300 RPM
Unboxed Weight: 21lbs / 9.2kg
Optional Accessories:
• Hydraulic Power Pack
• Ring Blade, 16” Hydraulic
Optional Accessories:
• 20” Diamond Blade
Motor Size: 23 HP Gas
Engine/Motor: Briggs & Stratton
Vanguard
Fuel Tank Capacity: 2.3 Gal
Weight: 235 lbs
• Hydraulic Ring Saw
• Saw, Hydracutter Diamond Chain
• Hose Set (2) 1/2” x 50’
• Core Drill, Handheld Hydraulic
Optional Accessories:
• Ring Blade, 14” Diamond
• Can, Gas
• Goggles, Safety

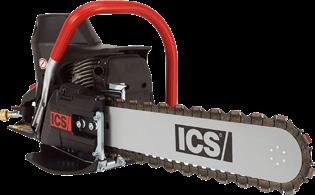

Saw, Concrete Diamond Chain
Specifications:
Weight: 21 lbs 9.6 kg (w/out bar & chain)
Bar Length: -14”
Horsepower: 5 HP (3.7 KW) @ 9,500 rpm
Engine Type: 2-stroke, single cylinder air cooled
Displacement: 4.7 cu. inch (77 cc)
Powerhead Dimensions:
18 in (45 cm) length
11.5” (29 cm) height
10” (25 cm) width
Noise Level: 100 dB @ 3’ (1 m)
Vibration Level: 10.5 meters/second 2 (front handle)
Water Supply: Minimum 20 PSI (1.5 bar)
Fuel Mix Ratio: 25:1 (4%)
Fuel Capacity: 0.23 gal (0.88 liter), 15-18 minutes run
Optional Accessories:
• Chain, Concrete Diamond
*DIAMOND CHAIN NOT INCLUDED
Concrete & Mason Tools & Equipment
Saw, Hydracutter Diamond Chain
Specifications:
Maxcut & Trade: Stealth-12
Hydraulic Chain Saw
Bar Length: 25”
2,500 PSI @ 12 GPM
F-4 .456” Pitch
17.5 HP @ 2,500 PSI
170 in-lbs @ 2,500 PSI
Max Speed 6,500 RPM
Saw,
14”
12 GPM Hyd
Shipping Weight: 22.90
Saw Powered by Hydraulic
Oil Flow GPM/LPM: 12 GPM/40 LPM
Chain Pitch: .456” Pitch F4
Working PSI/BAR: PSI 2000/135 BAR
Max PSI/BAR: PSI 2500/172 BAR
Water Pressure Min: PSI 30/2 BAR
Electric Abrasive Cutoff
Specifications:
Rated Input Power: 2.4 HP
Voltage: 100 - 120 V
Frequency: 50 - 60 Hz
Cutting Depth, Maximum: 4.5”
Maximum Blade Diameter: 14”
Saw, 16” Gas Cut n Break
Arbor Diameter: 1”
Product Size Length: 25.6”
Product Size Width: 8.5”
Product Size Height: 12.1”
Weight: 19.6 lbs
• Hydraulic Power Unit
• Chain, Concrete Diamond
• 14” Dual Diamond Blade
• Vacuum, Dust Reducer Attachment Assy
• Goggles, Safety
Specifications: Optional Accessories:
Engine Air-cooled: 2 stroke engine
Cylinder displacement: 4.48 cu in
Power output: 5 HP
Fuel tank volume: 30.4 fl oz
Idling speed: 2,700 rpm
Sound pressure level at operators ear 101 dB(A)
Sound power level, guaranteed (LWA) 115 dB(A)
Blade diameter: 9”
Max cutting depth: 16”
Weight (excl. cutting equipment): 21.2 lbs
Weight incl. cutting equipment: 24.5 lbs
Fuel tank volume: 1.9 US pint

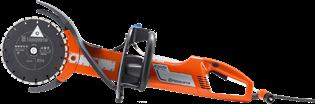

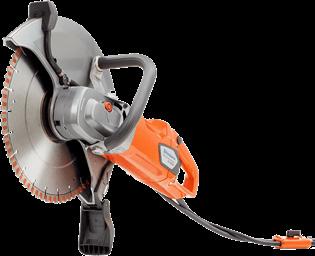

Saw, 16” Electric Cut n Break
Specifications: Optional
Engine:
Rated Input Power: 3.6 HP
Voltage: 110-230 V
Frequency: 50-60 Hz
Cutting Equipment:
Cutting Depth, Max: 16”
Blade Diameter, Max: 9”
Blade Thickness, Max: 0.1”
Peripheral Speed, Max: 11,810 fpm
Dimensions:
Product Size Width: 8.7”
Product Size Height: 15.4”
Weight: 19.6 lbs
Sound and Noise:
Sound Power Level, Guaranteed (LWA): 109 dB(A)
Sound Pressure Level at Operators Ear: 95 dB(A)
Vibrations:
Vibrations Left/Front Handle: 3.2 m/s²
Vibrations Right/Rear Handle: 3.4 m/s

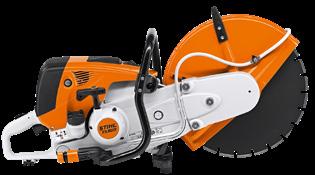

Saw, 16” Gas Abrasive Cutoff
Specifications:
Displacement: 98.5
Max Spindle Speed: 4,600 rpm
Arbor Size: 20 mm Max Wheel Size: 400 mm (16”) Max Cutting Depth: 143 mm (5.6”)

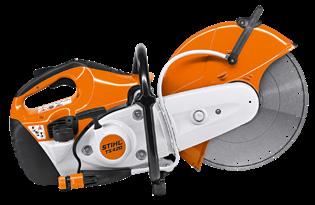

Saw, 14” Gas Abrasive Cutoff
Specifications:
Displacement:
Max Spindle Speed: 5,350 rpm
Arbor Size: 20 mm
Max Wheel Size: 350 mm (14”)
Max Cutting Depth: 125 mm (4.9”)
Power Source: Gas
Concrete & Mason Tools & Equipment
Saw, 13 HP W/B Drivematic
Specifications: Optional Accessories:
Engine:
Engine Manufacturer: Honda
Engine Model: GX390
Horsepower: 11.7 HP
Power Mode: Gasoline
Performance:
Blade Capacity Diameter: 18”
Maximum Cutting Depth: 6.1”
Transmission:
Drive: Hydrostatic
Operating:
Type: Asphalt/Concrete
Weights & Dimensions:
Operating Weight: 424 lbs
Overall Height: 47.2”
Overall Length: 66.9”
Overall Width: 26”
Saw, 5 HP Electirc W/B Concrete
Specifications:
DS18-5hp/230v/1ph
Part# 37300
Power: Electric
Horse Power: 5 HP, 230 Volt
Phase: Single AMPS: 19.8* RPM: 3000
Saw, 35 HP Road Saw
Specifications:
Output power (As rated by the engine/motor manufacture): 37 HP
Motor/engine manufacturer: Kohler
Arbor diameter: 1”
Blade depth control: Electric hydraulic Blade diameter, max: 20”
Saw, 65-75 HP Road Saw
Specifications:
Ideal for concrete and asphalt cutting up to 15” deep.
Fuel diesel: 10 gal tank
Blade Size: 36”
Vibrator, Concrete
Specifications:
2.4 HP Oztec Vibrator Motor with 1-1/2” Vibrator Head & 14’ Flex Hose
The OZTEC 2.4 Electric Concrete Vibrator features a watertight, strain relief power cord.
Length: 49”
Width: 27”
Height: 40”
Weight: 280 lbs
Belts: Cgd ”V” Belts
Maximum Cutting Depth: 6-3/4”
• 14” Dual Diamond Blade
• 18” Asphalt Diamond Blade
• 18” Concrete Diamond Blade
Cutting depth, max: 7.75”
Length: 46”
Width: 31.8”
Height: 45.4”
Weight: 985 lbs
Blade RPM: 1,350
Dimensions: 77.25” x 38.38” x 59”
Weight: 2,275 lbs
• 115V 17 amp
• 2.4 hp electric motor
• 2.5” max head diameter
• 10,000 VPM
Vacuum, Hepa Dust Extractor S26-S36
Specifications:
Ship Weight: 127.0 lbs
Air Flow: (CFM) 258 Volts: 120
HP: 3.4
Amps: 19.6
• Single-phase HEPA dust extractor for use with hand-operated power tools to extract freshly cut, friable concrete dust
• All-around jobsite vacuum to pick up a variety of building materials and debris
• Powered by a 3.4 HP, 19.6 Amp, 120V electric motor
• 100 in. water lift
• Cartridge pre-filter
• Two HEPA H13 filters
• Features cyclonic pre-separation prior to the HEPA filters
• Jet Pulse pre-filter cleaning, hour counter and vacuum meter for filter control
• Longopac® bag hose system ensures simple, dust-free bag changes
• 14” Dual Diamond Blade
• 18” Asphalt Diamond Blade
• 18” Concrete Diamond Blade
• 18” Asphalt Diamond Blade
• 18” Concrete Diamond Blade
• 26” Asphalt Diamond Blade
• 26” Concrete Diamond Blade
• 18” Asphalt Diamond Blade
• 18” Concrete Diamond Blade
• 26” Asphalt Diamond Blade
• 26” Concrete Diamond Blade

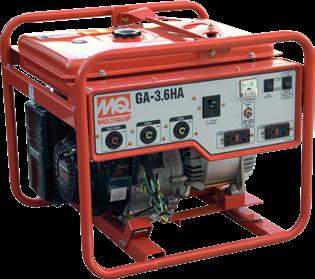

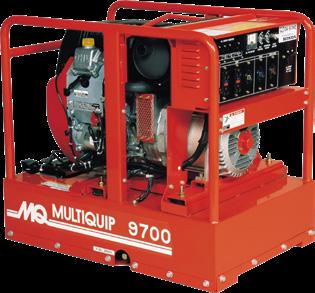

• Generator, 3600-3700 Watt
• Vibrator Head, 1”, 1-1/4”, 1-1/2”
Concrete & Mason Tools & Equipment

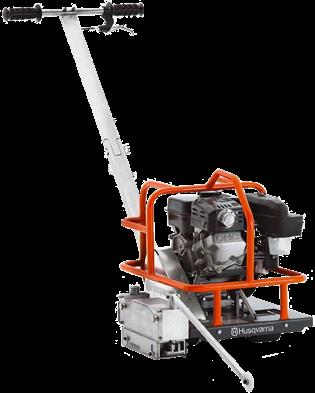

Saw, 6” Soff-Cut
Specifications:
Motor Manufacturer: Robin
Motor Spec: EX13
Max Output: (As rated by the engine manufacturer) 3.21 kW / 4.3 HP
Cylinders: 1
Number of Strokes: 4-Stroke Engine
Cylinder Displacement: 7.69 cu in
Cylinder Bore: 2.9”
Cylinder Stroke: 1.9”
Fuel Tank Volume: 0.7 gal.
Starter: Recoil
Engine Cooling: Air
Number of Belts:1
Displacement, l: 126 lit
Oil capacity, l: 0.6 lit
Cutting Equipment:
Output RPM: 3800 rpm
Diamond Blade, Max: 6 “
Max Cutting Depth: 1.18”
Saw, 10” G2000 Soff-Cut
Motor Manufacturer Robin -
4 stroke engine
Max Output: 6.5 kW / 9 HP
Cylinders: 1, displacement 16.2 cu in
Cylinder Bore: 2.9”
Cylinder Stroke: 2.3”
Fuel Tank Volume: 1.59 gal Gasoline
Starter: Electric
Cutting Equipment: Output RPM: 3,600 rpm
Optional Accessories:
Blade Depth Control: Manual
Blade Control: Manual
Blade Shaft Diameter: 0.75”
Blade Flange: 3 “
Blade Shaft RPM: 3800 rpm
Transmission:
Axle front: 0.75”
Rear Axle Diameter: 0.75”
Handle Bars: Fixed
Miscellaneous:
Primary Wheel Size Outside Diameter:
3 Wheel Width: 3 Inner Bore: 0 “
Secondary wheel size: Outside Diameter:
3 Wheel Width: 3 Inner Bore: 0 “
Dimensions:
Weight: 87 lbs
Weight Incl. Packaging: 91 lbs
Product Size, L x W x H: 68” x 19” x 33.5”
Diamond Blade, Max: 10 “
Max Cutting Depth: 1.5”
Blade Control & Depth Control: Manual
Blade Shaft Diameter: 1.25”
Blade Flange: 4.25“
Blade Shaft RPM: 3,600 rpm
Dimensions:
Weight: 317 lbs
Weight Incl. Packaging: 388 lbs
Product size, L x W x H: 94” x 29” x 34”

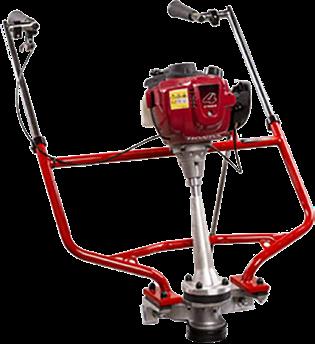

Magic Screed, Power Head
Engine: Honda GX35 / 35 CC
Horsepower Class: 1.5 HP / 1.1 KW
Weight: 30 lbs / 13.6 kg
Handles Adjustable
Vibration Frequency: 7,500 RPM
Consolidation Depth: Up to 6” / 15.24 cm

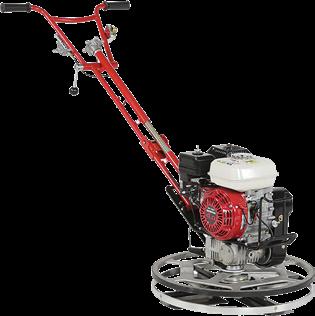

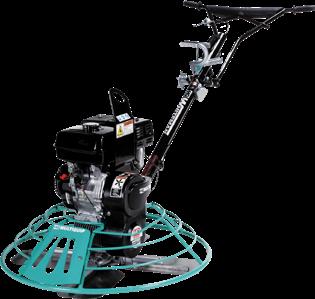

Trowel, 24” Walkbehind Power
Max Rotor Speed: 135 rpm
Weight: 122 lbs
Engine: Honda GX120 118 cc
Horsepower: 4
Unit Length: 65” Unit Width: 24”
Trowel, 36” Walkbehind Power
Clutch Type: Centrifugal
No. of Blades: 4
Ring Diameter: 36”, 914.4 mm
Rotor Speed: 60-115 RPM
Overall Length: 70”, 1789 mm
• Screed, Allen Magic - 4’, 6’, 8’, 10’, 12, 16’
Height: 43” • Blade, 24” Trowel 3/4” x 9”
Overall Width: 36”, 915 mm
Overall Height: 41”, 1044 mm
Operating Weight: 184 lbs, 83.4 kg
Shipping Weight: 182 lbs, 82.5 kg
Blade, 24” Trowel 3/4” x 9”
• Blade, 36” Trowel 6” x 14” Finish
• Blade, 36” Trowel 8” x 14” Combo
• Blade, 36” Trowel 10” x 14” Float
Concrete & Mason Tools & Equipment
Trowel, 46” Walkbehind Power
Specifications:
Clutch Type: Friction Type Clutch System
No. of Blades: 4
Ring Diameter: 46 in, 1,168.4 mm
Rotor Speed: Min 60-130, Max RPM

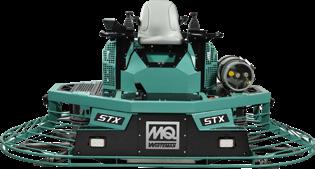

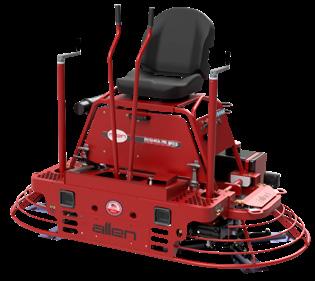

Trowel, 36” Ride-On Power
Specifications:
Engine: Honda GX690 (688 cc)
Horsepower Class: 22.1 hp (16.5 kW)
Fuel Type: Air-Cooled Gasoline
Panning Path Width: 74 in (188 cm)
6’ Class
Rotor Diameter: 36 in (91.4 cm)
4-Bladed Spider
Trowel, 48” Ride-On Power
Specifications:
Ideal to finish surfaces from 10,000 sq ft up to 20,000 sq ft.
Power: 37 hp (28kW)
Blade Quantity: 10
Rotor Speed Min/Max RPM: 25/170 RPM
Trowel Blade Coverage: 48 in
Blade Combination: 18 x 8 in
Trowel, 48” Ride-On Hydro
Specifications:
Twin Pitch Control enables the operator to simultaneously control the pitch of both rotors with minimal effort while also allowing the individual pitch adjustment of each set of rotors
Engine: 31 HP WG972 Kubota Dual Fuel
Engine Cooling: Liquid Blades per Rotor: 5
Trowel, 60” Ride-On Hydro
Specifications:
Operating dimensions:
127” L x 65” W x 57” H
Operating weight: 2,720 lbs
Blades and Finishing Data:
Troweling diameter: 59”
Quantity of blades: 12
Blades (Combination): 23” x 8”
Blades (Finsh): 23” x 6”
Blades (Float Pan Ø): 60”
Pitch range: 0° – 25°
Rotor speed (min. / max.): 25/132
rpm
Engine / Motor: Liquid-cooled, four cylinder, turbo-charged diesel
Overall Length: 75 in, 1,910 mm
Overall Width: 46 in, 1,170 mm
Overall Height: 41 in, 1044 mm
Operating Weight: 281 lbs, 127 kg
Shipping Weight: 289 lbs, 131 kg • Blade, 46-48” Trowel 6” x 18” Finish • Blade, 46-48” Trowel 8” x 18” Combo
Maximum Rotor Speed: 165 rpm
Steering Control System: Manual
Fuel Capacity: 6 gal (23 L)
Retardant Capacity: 6 gal (23 L)
Weight: 735 lbs (333 kg)
Dimensions: L X W X H: 78” x 41” x 53” (198 x 104 x 135 cm)
Blade, 46-48” Trowel 10” x 18” Float
Optional Accessories:
• Dolly Jacks • Lifting Bridle
• Blade, 36” Trowel 6” x 14”
Blade, 36” Trowel 8” x 14”
Blade, 36” Trowel 10” x 14”
Pan, 36” Float
Fuel Tank Volume: 6.5 gal Gas
Water Tank Capacity: 3.6 gal Weight: 1,205 lbs
Dolly Jacks
Lifting Bridle
Blade, 46-48” Trowel 6” x 18”
46-48”
• Pan, 48” Float
Rotor RPM: 0-180
Path Width: 92 in 0 mm
Fuel Tank Capacity: 10 gal 37.8 L
Run Time: 2.31 gal/hr
Operating Weight: 1520 lb 689 kg
Optional Accessories:
• Dolly Jacks
• Lifting Bridle
• Pan, 48” Float Hydro
• Blade, 48” Hydro Trowel 8” x 16” Combo
Engine / Motor manufacturer: Kohler
Displacement: 151.4 in.³
Operating performance (SAE J1995): 74 hp
RPM / speed: 2,600 rpm
Engine oil: 9 qt
Fuel type: Diesel
Fuel consumption: 3.3 gal/hr
Fuel tank capacity: 12 gal
Tank capacity Water: 12 gal
Runtime: 3.6 hr
Optional Accessories:
• Dolly Jacks
• Lifting Bridle
• Float Pans (1 set)
Stamp, FM540 London Cobble
Specifications:
17” x 29.75” (43.18 x 75.56 cm)
Blue
A traditional lightly textured cobble stone pattern.
Matching Skin / Touch-Up Wheel: Slate / TW-1
Joint Width: 1/8” - 1/4”, Depth: 1/4”
Concrete Stamps
Optional Accessories:
Stone Size: 5 1/2” - 5 5/8” Wide, 6” - 8” Long
Includes: 4 Stamps & 1 Floppy Mat
Stamp, FM520 Edinburgh Cobble
Specifications:
6” x 6” Edinburgh Cobble, FM-520 26” x 36” (66.04 x 91.41 cm)
Yellow
A rugged weathered cobblestone pattern.
Matching Touch-Up Wheel: TW-7
Joint Size 1/2” - 3/4” wide, 1/2” deep Stone Dize: 5 3/4” - 6” wide, 5 7/8” - 6 1/4” long
Stamp, FM700 Random Stone
Specifications:
Random Stone, FM-700 29.125” x 29.125” (73.97 x 73.97 cm)
Red, Yellow and Blue
Heavily textured random fieldstones.
Matching Skin / Touch-Up Wheel: Rough Stone / TW-2.
Stamp, FM650 European
Specifications:
European Fan, FM-650 s/o 26” x 46” (66.04 x 116.84 cm)
Blue
An elegant European fan pattern, consisting of slightly curved rectangular slate stones.
Matching Skin / Touch-Up Wheel: Smooth Slate / TW-2.
Joint Size: 1/4” - 3/4” wide, 3/8” deep
Optional Accessories:
Stone Size: 7” - 11 1/2” wide, 10” - 15” long
Joint Size: 1/8” - 1/4” wide, 3/8” deep
Optional Accessories:
Stone Size: 3 3/4” - 5 1/2” wide, 4” - 6 1/2” long
Stamp, FM5900 Herringbone New Brick
Specifications:
32’ x 36”
Includes: 4 Stamps & 1 Floppy Mat
Stamp, FM3125 Small Ashlar Slate
Specifications:
Ashlar Cut Slate, FM-3125 s/o 23.125” x 23.125” (58.74 x 58.74 cm) Red, Yellow and Blue
A naturally laminated stone texture split along parallel planes, handtooled to create a more pronounced, chipped, fragmented texture with small, deep joints.
Matching Skin / Touch-Up Wheel: Smooth Slate / TW-1.
Joint Size 1/8” - 1/4” wide, 5/8” deep
Stone Size 5 1/4” - 9 7/8” wide, 6 3/4”20 5/8” long
Includes: 2 Blue, 2 Red, 2 Yellow stamps & 1 Floppy Mat
Optional Accessories:
Optional Accessories:
Stamp, FM3675 Grand Ashlar Slate
Specifications:
36” x 36”
Matching Touch-Up Wheel: FM-6550.
Joint Size: 1/8 3/8 wide, 3/8 deep
Stone Size: 6 15 wide, 6 22 long
Includes: 2 Blue, 2 Red, 2 Yellow stamps & 1 Floppy Mat
Stamp, FM5200 Basketweave Used Brick
Specifications:
15-3/8” x 30-3/4”
Includes: 1 Stamp & 1 Floppy Mat
Stamp, Cedar Wood Plank
Specifications:
11-1/2” x 24”
Includes: (1) 2’ Wood Plank Stamp, (1) 3’ Wood Plank Stamp, (1) 4’ Wood Plank Stamp, (1) 6’ Wood Plank Stamp, (1) 8’ Wood Plank Stamp & 1 Floppy Mat
Stamp, FM3120 Ashlar Cut Slate
Specifications:
36” x 36” (91.44 x 91.44 cm)
Stones with a slate surface, in an Ashlar pattern.
Matching skin / touch-up wheel: Smooth Slate / TW-5. Joint size 3/8” - 3/4” wide, 3/8” deep
Includes: 2 Red Stamps, 2 Blue Stamps, 2 Yellow Stamps & 1 Floppy Mat
Stamp, Rough Stone Texture Skin 36”
Specifications:
36” x 36” Texture Skin with Handle
Stamp, Bluestone Texture Skin 48”
Specifications:
48” x 48” Texture Skin with Handle
Contractors Misc. Equipment

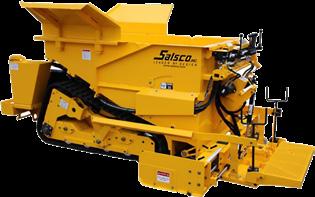

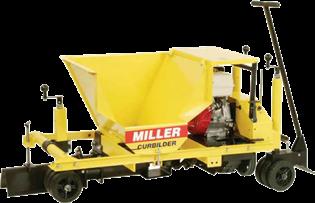

Asphalt Curbing Machine
Specifications:
Engine Power: 13 HP
Engine Model: Honda MC550
Fuel Capacity: 2 gal gas
Hopper Capacity: 6.1 cu ft
Height: 34-1/2”
Length: 72” with form
Width: 30”
Available Auger(s): 6” standard
Wheels: (9) 8” x 2” hard rubber
Weight: 760 lbs

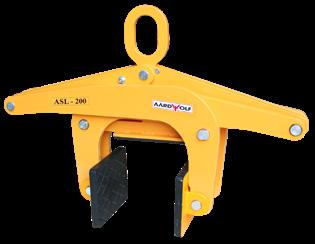

Curb Lifter, 1500-2205# Lift Capacity
Specifications:
Model: ASL-200
Weight: 103.6 lbs
Lift Capacity: 2,205 lbs
Use: Lift Concrete Curbing
Lifting Width: 2”-7.9”

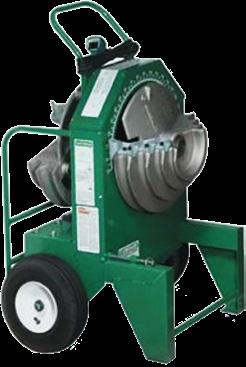

Bender, Conduit/Pipe Greenlee
Specifications:
Amperage Rating: 20 AMP
GFCI-Protected Receptacle
Pipe Thickness: 40 mm
(PVC Coated Rigid)
Shoe Group: 1/2’’ - 2’’
Relative Humidity: 0 - 98%
Storage/Operating Temperature:
-5 To 120 degrees F
Sub Brand: 555C Classic Series
Blower, Insulation w/Hose
Voltage Rating: 120 VAC
Weight: 260 lbs
Optional Accessories:
• Standard Curbform for 6” Auger CFD-10L
• Capecod Curbform for 6” Auger CFD-1194
Optional Accessories:
• Bending Shoe, 1/2” - 2” PVC
• Storage Box
Specifications: Optional Accessories:
Height: 41”
Width: 32-1/4”
Weight: 177 lbs
Production (Cellulose): 540 lbs/hr
Production (Fiberglass): 177 lbs/hr
Hose Size: 2-1/2”
Electric: 115 V / 220 V (50 Hz / 60 Hz)
Power Requirements: (1) 20 amp circuit @ 115 VAC
Wheels: 6”

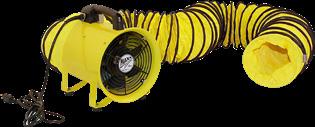

Blower, Manhole Electric
Specifications:
Model: HVHF12COMBO
Brand: Ventamatic
Power: 120 V
Speed: 2
Flow Rate: 2,000 CFM
Cord Length: 6 ft
Material: Polyvinyl
• Hose, Manhole Flex
• Storage Rack, Hose
Contractors Misc. Equipment
Conveyor, Dirt 10’ x 16’ Portable
Specifications:
Belt Width: 16”
Overall Bed Width: 16”
Weight: 245 lbs
Weight Capacity: 440 lbs
Belt Length: 10’
Length: 10’
Type: Dirt & Aggregate Conveyor
Horsepower: 1 HP
Series: LKS400
Style: Portable Conveyor
Includes: Standard Hopper, 20” Stand, Power Cord, and Link Cord
Voltage: 110 V
Motor: Interroll 1.0KW
Material: Aluminum
Optional Accessories:
Conveyor Speed: 92 ft/min (Fast) 65 ft/min (Slow) • Dirt Conveyor 13” x 16” Portable
Conveyor, Dirt 13’ x 16’ Portable
Specifications:
Belt Width: 16”
Overall Bed Width: 16”
Weight: 290 lbs
Weight Capacity: 440 lbs
Belt Length: 13’
Length: 13’
Assembly Required: No
Type: Dirt & Aggregate Conveyor
Horsepower: 1 HP
Series: LKS400
Style: Portable Conveyor
Includes: Standard Hopper, 20” Stand, Power Cord, and Link Cord
Voltage: 110 V
Motor: Interroll 1.0KW
Material: Aluminum
Optional Accessories:
Conveyor Speed: 92 ft/min (Fast) 65 ft/min (Slow) • Dirt Conveyor 10” x 16” Portable
Road Plate, 8’ x 13’ & 8’ x 20’
Specifications:
Width: 8’
Length: 13’
Thickness: 1”
Width: 8’
Length: 20’
Thickness: 1”
Mat, 4’ x 8’ Ground Protection
Specifications:
Thickness: 1/2”
Material: Polyethylene
Maximum Weight: 120 tons
Corners: Drilled with the option of having two hand holes on each side of the mat for easier handling
Sewer & Drain Inspection Camera
Specifications:
Length: 29”
Width: 16”
Height: 33-1/2”
Brand: General Wire
Operating Temp Range: 14°F to 122°F
Sonde Frequency: 512 Hz
Series: Gen-Eye POD
Style: POD w/Self-Leveling Color
Camera
Sensitivity: .5 Lux
Includes: POD with Self-Leveling Color Camera, 200 ft. Gel-Rod, Sonde
External Ports: Video Out
Pipe Size: 3” to 10”
Reel Capacity: 300
Optional
Optional Accessories:
• Single Turn-a-links
• Metal Storage Skid Rack w/ Hooks & Straps
Optional Accessories:
• Charger
• Vutek Remote
• Base Frame w/ Camera, 200’ and 300’
• Hot Spot Pipe Locator
Contractors Misc. Equipment
Sidewalk Paver, Mini Track
Specifications:
Engine Model: Hatz 1D81Z-9221
Engine Power: 14 HP Diesel
Start: Electric
Fuel Tank Capacity: 8.9 gal
Hopper: Dual hopper, 1/4” thick, steel plate
Hopper Tilt: 52 degrees angle for ease of dumping material
Hopper Capacity: 1.85 sq. yd
Screed Dimensions (L x W): 4’2” x 1’2”
Screed Features: Crown/Invert Adjustment, Power End Gates and Endgate Adjustment Plates for uniform texture
Auger Assemblies: (2) 9” cast augers,
both with independent hydraulic drive, Forward and Reverse Drive: Hydrostatic; variable forward and reverse
Paving Speed: 0 - 50’ +, per minute
Paving Width: 36” to 72” (Narrow paving with cut off plates)
Paving Thickness: 1/4” - 5”
Dimensions (L x W x H): 9’ 4” (with step up) x 4’ 9 x 3’ 11” (from the ground to top of hopper)
Weight: 3,060 lbs
Post Shore, Heavy Duty 6’6” - 11’ 10K Cap
Specifications:
Height: 6’6” - 11’
Overall Grade: Heavy Duty
Material: High-strength steel
Collar: Forged steel
Base Plate: 1½” hole
Top Plate: 1½” hole
Nail Holes: (8) in Base Plate and Top Plate
Locking Pin: “Paper Clip” style
Dimensions Closed: 6’6”
Dimensions Extended: 11”
Load Capacity Closed: 13,890 lbs
Safety Factor 3:1
Load Capacity Extended: 5,650 lbs
Safety Factor 3:1
Weight: 42.5 lbs
Post Shore, Heavy Duty 8’6” - 13’ 10K Cap
Specifications:
Overall Grade: Heavy duty
Material: Hot-dip galvanized for prevention of rust and increased life
Locking Pin Grade: Heavy duty
Dimensions Closed 8’6”
Dimensions Extended: 13”
Saw, Tub & Tile Tilt 10”
Specifications:
Blade Diameter: 10”
Blade Shaft Diameter: 5/8”
Maximum Cutting Length (with plunge cut): 28” (31”)
Maximum Cutting Depth: 3-3/4” Motor Rating: 1.75 HP / 110 V / 15 A
Saw, Brick & Block
Specifications:
Model: MS360
Included: MS360 Fixed Leg Stand
Motor Horsepower: 1-1/2 HP
Motor Frequency: 60 Hz
Voltage: 100 - 115 V
Rated Input Power: 1.5 HP
Load Capacity Closed: 10,390 lbs
Safety Factor 3:1
Load Capacity Extended: 4,400 lbs
safety Factor 3:1
Weight: 48.5 lbs
Blade Speed: 2,800 rpm
Water Pan Capacity: 10 gal
Water Pump Flow Rate: 3 gpm
Noise Level: 78 db(A)
Operating Dimensions L x H x W: 40” x 22” x 18”
Optional Accessories:
Optional Accessories:
Blade, Tile • Protractor Angle & Clamp
Maximum Blade Diameter: 14”
Maximum Cutting Depth: 5”
Max Cutting Length: 17.72”
Height: 27.56”
Weight: 128.31 lbs • 14” Dual Diamond
Sweeper, Parking Lot
Specifications:
Width: 36”
Path at 15° Angle: 32”
Weight: 275 lbs
Brush Diameter: 24”
Maximum Brush Speed: 100 rpm
High Range Brush Speed: 190 rpm
Washer, 2600# - 3300# Cold Water
Specifications:
Engine Brand: Honda GX
Starter: Recoil
HP/cc: 6.5 HP
Hose Length: 50’
Hose Diameter: 3/8”
Hose Connections: Quick-Connect
Spray Gun Connection: Quick-Connect
Spray Gun Wand: Single Wand
Spray Tips: Quick Connect Tips (5)
Weight: 155 lbs. (70.31 kg)
Dimensions L x W x H: 35” x 21” x 24” (88.90 cm x 53.34 cm x 60.96 cm)
Washer, 3000-3500# Hot Water
Specifications:
Engine Brand: Honda GX
Starter: 12 V
Horsepower: 13 HP
CC: 389 CC
Pump Brand: Karcher
Pump Type: Triplex Plunger
Adjustable Pressure: Yes
Chemical Injection: Down-Stream
Water Temperature: Hot
Hose Length: 50’
Hose Diameter: 3/8”
Weight: 575 lbs
Product Length: 46”
Product Width: 28”
Product Height: 44”
Washer, 3500# Hot Water Towable
Specifications:
Engine Brand: Honda GX
Starter: 12 V
Horsepower: 13 HP
CC: 389 CC
Pump Brand: Karcher
Pump Type: Triplex Plunger
Adjustable Pressure: Yes
Chemical Injection: Down-Stream
Water Temperature: Hot
Water Pressure: 3500 PSI
Water Flow: 3.5 gp
Frame Type: 4-Wheel Frame
Water Trailer, 525 Gal.
Specifications:
Water Tank: 525 gal Polypropylene Trailer: DOT certified, dual axle, 3,500 lbs
Power Source: Honda GX120
Recoil Start
Pump: Multiquip QP2H 2” Centrifugal
Flow / Head: 158 gpm / 115’
Manifold (Left & Right): 1.5” & 2” (QD Couplers)
Hose Length: 50’
Hose Diameter: 3/8”
Hose Connections: Threaded
Spray Gun Wand: Dual Wand
Weight: 575 lbs
Product Length: 46”
Product Width: 28”
Product Height: 44”
Garden Hose Valves Included (2)
Rear Spray Bar: Included
Overall Length: 146”
Overall Width: 68”
Overall Height: 80”
Shipping Weight: 1,428 lbs
Optional Accessories:
Optional Accessories:
• Washer, Hose & Wand
• Washer, Nozzle
• Washer, Rotary Nozzle
• Washer, 18’ Telesc. Pressure
• Washer, 24’ Telesc. Pressure
• Injector, Chemical/Detergent
• Pressure Washer Rotary Surface Cleaner
• Washer, Hose & Wand
• Washer, Nozzle
• Washer, Rotary Nozzle
• Washer, 18’ Telesc. Pressure
• Washer, 24’ Telesc. Pressure
• Injector, Chemical/Detergent
• Pressure Washer Rotary Surface Cleaner
Optional Accessories:
• Washer, Hose & Wand
• Injector, Chemical/Detergent
Optional Accessories:
Washer, 4000# Cold Water
Specifications:
Pressure Rating: 4,000 PSI
Flow Rate: 4 gpm
Usage: Heavy Duty
Engine Brand: Honda
Engine Horsepower: 13 HP
Pump Type: Commercial-Grade Triplex
Spray Tips: Included (4)
Chemical/Detergent Injection: Yes
Hose Length: 50’
Start Type: Manual/Pull Start
Cart, 4 Passenger
Specifications:
Overall Length: 94.5” (240 cm)
Overall Width: 47.0” (119 cm)
Overall Height (w/o canopy): 45.7” (116 cm) (top of steering wheel)
Overall Height (w/ canopy): 68.5” (174 cm) (top of sun canopy)
Wheel Base: 65.7” (167 cm)
Horsepower: 13.5 HP (10 kW)
Cart, 6 Passenger
Specifications:
Seating Capacity: 6 passenger
Vehicle Load Capacity: 1,200 lbs
Height: 48.6”
Height with Suntop: 72”
Length: 136”
Width: 48.5”
Wheelbase: 93.5”
Ground Clearance: 4.3”
Curb Weight: 936 lbs
Recommended Engine Oil: 10W-30
Engine Oil Capacity: 204.8 oz
Assembled Weight: 160 lbs
Hose Diameter (Inches): 3/8”
Hose Material: Rubber
Nozzle Type: Pro style tips with quick disconnect
Optional Accessories:
• Washer, Hose & Wand
• Washer, Nozzle
• Washer, Rotary Nozzle
• Washer, 18’ Telesc. Pressure
• Washer, 24’ Telesc. Pressure
• Injector, Chemical/Detergent
• Pressure Washer Rotary Surface Cleaner
Optional Accessories:
exceeds SAE J1940 standard
Electric System Starter/Generator: Solid State Regulator
Batteries: One, 12-volt Maintenance-Free Fuel Capacity: 6.2 gal (23.5 L)
Optional
Dry Weight: 896 lbs
Fuel Capacity: 5.8 gal
Air Filter: Industrial Rated Dry Filter
Battery: One, 12 Volt Maintenance Free Electrical System Starter/Generator: Solid State Regulator
Utility Vehicle, RTV w/Enclosure
Specifications:
Engine and Electrical Make: Kubota
D105-E2-UV
Horsepower: 24.8 HP @ 3,000
Fuel Capacity: 7.9 gal Diesel
Length (w/o Bush guard): 128.4”
Width: 66.5”
Height: 82.8”
Max. Rolling Weight (Towing capacity): 1,300 lbs
Payload Capacity: 1,631 lbs
Weight: 2,469 lbs
Cargo Box Width: 52”
Length (w/o bush guard) 46.7”
Volume: 16 cu. ft
Bed Height (unloaded): 32.3”
Cargo Bed Load 1,102 lbs
Well Pump Puller, Up Z Dazy
Specifications:
Motor: 1 H.P., 115-V.A.C
Switch: Waterproof Push Button 8’ Lead
Capacity: 600 lbs load
Will Handle: 1” to 1 1/2” coil or semi-rigid pipe or up to 2” galvanized pipe
Will also pull or set 2 pipe jet systems
Speed: Set or Pull 28’ F.P.M.
Size: W 24” x L 30” x H 25”
Weight: 155 lbs
Overhead Guide
Optional Accessories:
Wheel kit with handles, winch attachment
Backhoe, Kubota B26TLB-V 4WD
Specifications:
Make: Kubota
Model: D1105
Type: Diesel
Cooling: Liquid
Number of Cycles: 4
Aspiration: Natural
Cylinders: 3
Bore and Stroke: 3.1” x 3.1”
(78 mm x 78.4 mm)
Displacement: 68.5 cu. in (1,123 cc)
Engine Gross @ rpm: 24.3 HP (18.1 kW) @ 2,800 rpm
Engine Net @ rpm: 23.1 HP (17.2 kW) @ 2,800 rpm
Optional
PTO @ rpm: 19.5 hp (14.5 kW)
@ 2,800 rpm
Injection Pump: Inline, piston type
Self Bleed Fuel System: Yes
Lift Capacity at Lift Points: 2,139 lbs (970 kg)
24” Behind Lift Point: 1,676 lbs (760 kg)
Overall Height (Top of Canopy) 89.5” (2,273 mm)
Overall Length: 198.2” (5,035 mm) including loader & backhoe
Overall Width: 53.7” (1,365 mm) / rear axle
Backhoe, 420F2 CAT Loader w/ 24”
Bucket
Engine Make: 2236
Engine Model: C4.4 ACERT
Net Power: 92.6 HP
Gross Power: 102 HP
Power Measured @ 2,200 rpm
Net Torque Rise: 46%
Displacement: 268.6 cu in
Bore: 4.2”
Stroke: 5”
Fuel Capacity: 43.6 gal
L47
Kubota Tractor
Specifications:
With Backhoe Bucket: 18”
Make: Kubota
Engine Gross @ 2,700 rpm: 47.1 HP
Engine Net @ 2,700 rpm: 44.7 HP
Fuel Type: Diesel
Tank Capacity 17.7 gal (67 L)
Loader Bucket Width: 72”
Bucket Capacity: 15.5 cu ft
Boring Tool, 2” Grundomat
Specifications:
Tool Diameter: 2”
Length: 43”
Weight: 32 lbs
Air Constant: 18 cfm
Stroke Rate: 480 strokes/min
50’ Lead hose
Boring Tool, 3” Grundomat
Max Weight: 24,251 lbs
Hydraulic System Fluid Capacity: 25.1 gal
Oil System Fluid Capacity: 2.4 gal
Cooling System Fluid Capacity: 5.8 gal
Transmission Fluid Capacity: 4.9 gal
Dig Depth - Std: 14.31’
Load At Max Lift - Std: 7,237.78 lbs
Transport Length: 23.53’
Transport Height: 11.74’
Max. Bucket Lift Capacity: 2,848 lbs
3-point Hitch Lift Capacity: 24” behind lift point, 2,756 lbs (1,250 kg)
Maximum Backhoe Digging Depth: 121” (3,073 mm)
Operating Height, Fully Raised: 157.2” (3,993 mm)
Overall Width: 71.2” (1,809 mm)
• 3PT Hitch Scraper Box Attachment for L47
• Backhoe Attachment for L47 Tractor
• Compressor, 185 CFM Diesel
• Air Hose, 50’
• Oiler, Boring Tool
• Regulator, Boring Tool
Specifications:
Tool Diameter: 3”
Length: 57”
Weight: 75 lbs
Air Constant: 32 cfm
Stroke Rate: 400 strokes/min
• Compressor, 185 CFM Diesel
• Air Hose, 50’
• Oiler, Boring Tool
• Regulator, Boring Tool
Bulldozer, Premier
Specifications:
Engine Model: C4.4 ACERT
Net Power: 80 HP
Displacement: 269 cu in
Operating Weight: 17,544 lbs
Fuel Capacity: 51.5 gal
Engine Oil Capacity: 3 gal
Hydraulic Fluid Capacity:15.7 gal
Max Speed - Forward: 5.6 mph
Max Speed - Reverse: 6.2 mph
Standard Blade Width: 8.7’
Height: 35.8”
Excavator, Electric 1 Ton
Specifications:
Recommended Use: 25,000-70,000
kW generator
Engine: 5 HP Baldor Motor
Hydraulic Attachments: Included
Total Flow: 6.0 gpm
Digging Depth: 5’ 2”
Excavator, 1 Ton
Specifications:
Model: Cat® 300.9D
Overall Width: 2.5’ (730 mm)
Bucket: 10-12”
Weight: 2,205 lbs (1,000 kg)
Digging Force - Bucket: 2,000 lbs
Digging Force - Stick 1,011 lbs
Excavator, 1-1/2
Ton
Specifications:
Operating Weight: 3,880 lbs
Bucket: 10-12”
Fuel Tank: diesel 5.8 gal
Width: 39”
Track Width - Expanded: 4.25’
Blade Height: 8.9”
Dig Depth: 92.1”
Boom In Reach: 57.5”
Boom Swing - Left: 65.0°
Boom Swing - Right: 50.0°
Maximum Blade Depth: 10.2”
Excavator, 3-1/2 Ton
Specifications:
Engine Make: Yanmar
Model: 3TNV88F-ESBV Tier IV
Fuel Tank: 10.8 gal Diesel
Gross Power: (kW) @ rpm 24.5 HP (18.2) @ 2,200
Net Power: (kW) @ rpm 23.9 HP (17.8) @ 2,200
Hydraulic Tank: 10.6 gal.
Gradability: 20°
Undercarriage Length: 7’1”
Track Length on Ground: 5’ 10”
Operating Weight w/Canopy: 7,905 lbs
Operating Weight w/Cab: 8,214 lbs
Capacity: 2 yd 3
Optional Accessories:
Blade Angle (Both Directions): 25 degrees
Cutting Depth: 22.5”
Machine Dimensions:
Length W/ Blade: 14’
Width Over Tracks: 6.23’
Height To Top Of Cab: 9.07’
Length Of Track On Ground: 6.92’
Ground Clearance: 1.08’
Length W/O Blade: 10.7’
Operating Weight: 2,060 lbs
Power Cord: 100’
Total Length: 8’10”
Total Width: 27.5”
Total Height: 6’10”
Rated Output: 220 V - 240 V / 50
Optional Accessories:
• Generator, 70,000 Watt Towable
• Cord, Distribution Box
Optional Accessories:
Operating Weight w/ Safety Frame: 2,170 lbs
Operating Weight w/out Safety Frame: 2,061 lbs
Engine Model: Yanmar 31NV70
Fuel Type: Diesel Tank Capacity: 5 gal
Maximum Blade Height: 10.8”
Maximum Dig Height: 135”
Maximum Dump Clearance: 96.5”
Maximum Reach: 149.6”
Minimum Ground Clearance Below
Undercarriage: 6.1”
Track Width - Expanded: 51.18”
Gross Power - ISO 14,396: 21.6 HP
Digging Force - Bucket: 3,169.8 lbf
Digging Force - Stick - Long: 1,616.4 lbf
Optional Accessories:
• Rammer, 250# Hydraulic
Digging Force - Stick - Standard: 1,843 lbf
Optional Accessories:
Max Digging Depth: 10’8”
Max Vertical Wall Digging Depth: 7’11”
Max Reach at Ground Level: 17’3.5”
Transport Length: 15’8”
Undercarriage Length: 7’1”
Max Digging Height: 16’9.2”
Max Dump Height: 11’2.3”
Transport Height: 8’1”
Blade Below Ground: 1’2.6”
Overall Base Width: 5’ 8.5”
Track Width: 11.8”
Max Dig Depth with 8’
• Thumb, Hydraulic Excavator
Excavator, 3-1/2 Ton Premier
Specifications:
Engine Model: Cat® C1.8
Net Power: 31.6 HP / 23.6 kW
Gross Power: 33.3 HP / 24.8 kW
Bucket: 18”
Operating Weight: 7,734.0 lbs
Operating Weight w/Cab: 8,139 lbs
Max Digging Depth - Strd Stick: 9.6’
Max Reach Ground Level - Strd Stick: 16.7’
Height Over Cab: 8.2’
Max Cutting Height - Long Stick: 16.5’
Max Cutting Height - Strd Stick: 16.2’
Max Dump Height - Long Stick: 11.9’
Excavator, 5-6 Ton
Specifications:
Engine Model: Cat C2.4 Turbo
Net Power: 55.9 HP
Gross Power: 57.9 HP
Displacement: 148 in³
Bore: 3.4”
Stroke: 4”
Operating Weight: 15,766 lbs
Hydraulic System: 27.5 gal (US)
Hydraulic Tank: 14 gal (US)
Engine Oil: 2.1 gal (US)
Fuel Tank: 34.3 gal (US)
DIMENSIONS - STANDARD STICK
Track Belt/Shoe Width: 16”
Max Reach: 248”
Stick Length: 62”
Vertical Wall: 107”
Excavator, 9 Ton Premier
Specifications:
308
Capacity: 33 gal Fuel Type: Diesel
Depth: 13.4’
24-30”
Weight: 20,678 lbs
Ground Pressure: 5.26 psi / 36.3 kPa
Forks, Clip-On Specifications:
Lift Capacity: 4,000 lbs
Useable Tine Length: 42” Maximum Bucket Lip Thickness: 1-3/4”
Dingo, Rammer Attachment
Specifications:
For use on Dingo® TX 427, TX 525, TX 1000, TX 1300 and e-Dingo models.
Height: (cm) 33 (inches) 13 Hydraulic Flow: 5.3 to 8.2 US gallons
Max Dump Height - Strd Stick: 11.5’
Max Horizontal Reach - Long Stick: 17.8’
Max Horizontal Reach - Strd Stick: 17.1’
Max Vertical Dig Depth - Long Stick: 8.2’
Max Vertical Dig Depth - Strd Stick: 7.7’
Shipping Height: 8.2’
Shipping Length: 15.5’
Track Shoe Width: 1.0’
Transport Width: 5.8’
Fuel Type: Diesel
Optional Accessories:
Fuel Tank: 12.2 gal • Thumb, Hydraulic
Swing Bearing - Height: 27”
Max Reach - Ground Level: 241”
Max Blade Height: 16”
Ground Clearance: 12”
Boom In Reach: 98”
Transport Height: 69”
Cab Height: 100”
Width over Upper House: 77”
Max Dump Clearance: 170”
Undercarriage Length: 102”
Max Dig Height: 230”
Max Blade Depth: 24”
Track Width: 78”
Dig Depth: 146”
Shipping Length: 235”
Gradeability (maximum): 30°
Travel Speed – High: 3.17 mph (5.1 km/h)
Travel Speed – Low 1.74 mph (2.8 km/h)
Max reach: 24’
Net Power (ISO 9,249): 65 hp / 48.5 kW
Thumb, Hydraulic Excavator • Grading Bucket 6 & 9 Ton Excavators Only
Tine Size: 2” x 4” Weight: 170 lbs Optional
per minute (20 to 35 L per minute)
Length: (cm) 130 (inches) 51.2
Weight: (kg) 176 (lbs) 389 Width: (cm) 63 (inches) 24.8
Rammer, 250# Hydraulic
Specifications:
Model: TNB-2M
Impact: 250 lbs
Impact Frequency: 600-1150 bpm
Working Weight: 1-piece top mount
242 lbs., box bracket 364 lbs
Operating Pressure: 1,160-2,175 PSI / 8-15 mpa
Chisel Diameter: 2”
Hose Size: 1/2” Base Carrier: 1.5 - 2.5 tons • Excavator 1-1/2 Ton
Rammer, 500# Hydraulic Excavator/Skid Steer
Specifications: Optional Accessories:
Impact Rate: 550 - 1,060 bpm
Model(s): TNB-3MD / TNB-4M-SSL
Gas Pressure: 114 psi (8 bar)
Working Weight: 418 - 561 lbs
Energy per Strike: 350 ft lbs (475 J)
Compatible Equipment: Nearly All
Bobcats, Cats, John Deere, CASE, Kubota, Mustang and Kobelco equipment
Rammer, 1,000# Lg Hydraulic
Specifications:
Impact Energy Class: 750 ft lbs
Recommended Carrier Weight: 1,000 lbs
500 - 1,700 bpm
1,300 - 2,050 PSI
Diameter: 3.15”
Loader, Wheeled 1.5 Yard
Maximum Gross Power: 73 HP Net Power: 74 HP
Engine Model: Cat® C3.3B DIT
Operating Weight: 14,032 lbs
Fuel Tank: 20.6 gal
Hydraulic System - Including Tank: 19 gal
Rated Bucket Capacity: 1.4 yd³
Clearance - Full Lift & 45° Dump: 8’
Full Turn Tipping Load: 8,311 lbs Dig Depth: 3.9”
Length: 57”
Working Weight: 820 lbs
- Ground to Cab: 8.67’
Dingo TX1000, Track Loader w/ Bucket
Specifications:
Engine: 24.9 HP (18.6 kW) Kubota® D1305 Diesel
Ground Clearance: 6.0” (15 cm)
Ground Pressure: 3.6 PSI
Ground Speed: 4.7 mph (7.6 km/h)
Height: 53.2” (135 cm)
Hinge Pin Height: 81” (206 cm)
Hydraulic System Pressure: 3,000 PSI
Length with Bucket: 100.7” (256 cm)
Length w/out Bucket: 81.7” (208 cm)
Operating Capacity (35% of tip capacity): 1,075 lbs (488 kg)
Reservoir Capacity: 10 gal (57.5 L)
Fuel Type: Diesel
Tip Capacity: 3,071 lbs (1,393 kg)
Track: 127.6” x 9.5” (324 cm x 24 cm)
Track Width: 9.5” (24 cm)
Traction Flow: 13.3 gpm (each pump)
Weight: 2,860 lbs (1,297 kg)
Width: 41” (104 cm)
Optional Accessories:
• Dingo Auger
• Dingo Fork
• Dingo Grapple Rake
• Dingo Rammer
• Dingo Soil Cultivator
• Dingo Vibratory Plow
• Dingo Brushcutter
• Dingo Tiller
Dingo TX1300, Track Loader w/ Bucket
Specifications:
Engine: 37 HP (27 kW) Yanmar® Diesel
Ground Clearance: 5.9” (15 cm)
Ground Pressure: 5.5 PSI
Ground Speed: -4.7 mph (7.6 km/h)
Height: 56.5” (143.5 cm)
Length: 103.1” (262 cm) with bucket
84.9” (215.6 cm) without bucket
Width: 46” (116.8 cm)
Wheelbase: 39” (99 cm)
Weight: 3,858 lbs (1,750 kg)
Track Width: 9.1” (23 cm)
Tip Capacity: 3,714 lbs (1,685 kg)
Operating Capacity: 1,300 lbs (590 kg)
retracted 618 lbs (280 kg) - extended
e-Dingo, Wheeled Battery Powered
Specifications:
Battery Capacity: 9.12 kW/h
Battery Electric System Voltage: 48
Battery Chemistry: Lithium Ion
Ground Clearance: 5.8” (15 cm)
Front & Rear
Ground Speed: 2.75 mph
Height: 48.7” (123.7 cm)
High Flow Pump: 6.5 gpm
Hinge Pin Height: 66” (167.6 cm)
Loader, Premier Skid Steer
Hydraulic Reservoir Capacity: 14.8 gal
Hydraulic System Pressure: 3,250 PSI
Length: 82.2” (208.8 cm) with bucket; 62” (157.5 cm) without bucket
Operating Capacity: 515 lbs (234 kg)
Weight: 2,076 lbs (942 kg)
Wheelbase: 28”
Wheels: Non-marking / Solid Width: 35.6” (90 cm)
Operating Weight: 8,011 lbs
Rated Operating Capacity: 1,800 lbs
Tipping Load: 3,600 lbs
Breakout Force, Tilt Cylinder: 5,074 lbs
Engine Model: Cat C3.3B DIT (Turbo)
Gross Power: 74.3 HP
Wheel Base: 49.2”
Length - w/ Bucket on Ground: 146.2”
Length - w/out Bucket: 117.9”
Height - Top of Cab: 83.1”
Loader, Premier Track
• Dingo Auger
Dingo Fork
Dingo Grapple Rake
Dingo Rammer • Dingo Soil Cultivator • Dingo Vibratory Plow
Dingo Brushcutter • Dingo Tiller
Vehicle Width over Tires: 66”
Maximum Overall Height: 157.8”
Bucket width: 66”
Fuel Tank: 24.8 gal (US)
Hydraulic System: 13.7 gal
Hydraulic Tank: 10.3 gal
• Forks, Dingo Attachment
Operating Weight: 8,945.0 lbs
Fuel Capacity: 27.8
Length w/Bucket on Ground: 137.3” Length w/o Bucket: 108.9” Vehicle Width: 69” Max. Overall Height: 154.1”
Engine Model: Cat C3.3B DIT (Turbo) Net Power: 73.2 HP Rated Operating Capacities: 50% Tipping Load: 2,900 lbs Rated Operating Capacities: 35% Tipping Load: 2,030 lbs
Tipping Load: 5800 lbs
Force: Tilt Cylinder 5,035 lbs
• Bucket
• Skid Steer Grapple Bucket
• Auger, Skid Steer Mounted
• Rammer 500# Hyd Excavator/Skid Steer
• Forks, Skid Steer Attachment
• Sweeper, Skid Steer
• Bobcat, Super Scraper
• Skid Steer, Trencher Unit
• Skid Steer, Brush Hog Attachment
• Skid Steer, Bucket w/ Teeth
Tank: 27.7 gal Hydraulic System: 13.2 gal Hydraulic Tank: 10.3 gal • Bucket
• Skid Steer Grapple Bucket
• Auger, Skid Steer Mounted
• Rammer 500# Hyd Excavator/Skid Steer
• Forks, Skid Steer Attachment
• Sweeper, Skid Steer
• Bobcat, Super Scraper
• Skid Steer, Trencher Unit
• Skid Steer, Brush Hog Attachment
• Skid Steer, Bucket w/ Teeth
Skid Steer, Rock Bucket
Specifications:
Width: 66”
Tine Spacing: 3”
Weight: 680 lbs
Skid Steer, Bucket w/ Teeth
Optional Accessories:
Specifications: Optional Accessories:
Width: 66” bucket
Weight: 465 lbs
Skid Steer, Planer
Specifications:
Hydraulic Requirements: Standard Flow
Hydraulic Flow: 12 to 22 gpm
Overall Width: 64.94”
Overall Height: 34.57”
Overall Length: 50.30”
Planing Width: 16”
Planing Depth: 0” to 5”
Tilt: ±8°
Drum Diameter: 22”
Rake, 6’ Skid Steer York
Specifications:
Maximum Working Width: 6’
Minimum Working Width: 5’ 3”
Number of Teeth: 36
Size of Teeth: 5/16” x 1” x 28”
Rake Tooth Spacing: 1”
Carbide Picks: 43
Weight: 2,150 lbs
Sideshift Center to Right: -3” to 22”
Operating Pressure: 2,500 to 3,000 psi
Optional Accessories:
Optional
Frame: Structural steel, electrically welded
Weight: 647 lbs
Rake, Harley Power
Specifications:
Make / Model: Harley / M6H
Attachment Type: Power rake
Mounting: Universal (72” Hoses and Couplers)
Angle (R or L): 13 deg
Flow Rate Range: 13 - 40 gpm
Overall Height: 30.3”
Overall Length: 64”
Optional Accessories:
Overall Width: 81”
Pressure Range: 2,000 - 3,500 PSI
Raking Width at full angle: 68” Weight: 1,100 lbs
Working Width: 72”
Skid Steer, Brush Hog Attachment
Specifications:
Cutting Width: 60”
Overall Height: 22.5”
Overall Length: 78”
Overall Width: 72”
Minimum Cutting Height: 2”
Deck Height: 9”
Deck Thickness: 1/4” Steel
Recommended Hydraulic: 15 to 30 gpm
Required Skid Skeer Lift Capacity: 1,300 lbs
Weight: 1,230 lbs
Skid Steer, Grapple Bucket
Specifications:
Overall Width: 66-3/4”
Grapple Open: 34”
Grapple Closed: 19-3/4”
Overall Depth: 36”
Weight: 788 lbs
Skid Steer, Rake Landscape Rock Hound
Specifications:
Maximum Rock Diameter: 3/4” to 6”
Working Width: 66”
Hopper Capacity: 1/2 yd
Flow Rate Range: 10 to 25 gpm
Pressure Range: 1,000 - 3,500 PSI
Skid Steer, Trencher Unit
Specifications:
Model: 48” bar
Weight: 1,075 lbs
Depth Presets: 24”, 32”, 40” 48”
Flow Range: 16-30 GPM
Auger, Skid Steer Mounted
Specifications:
Drive: 2”
Flow Rate: 10 - 25 gpm
Maximum Diameter: 30”
Optional Accessories:
Lift Capacity: 9,000 lbs
Operating Weight: 1,390 lbs
• Breaks up clods and levels the soil
• Collects rocks and debris in hopper
• Dumps collected debris quickly and easily
Included: Cradle, Universal Skid Steer Quick Attach Mounting Bracket and hoses with flat face couplers
Mulcher, Skid Steer Attachment
Specifications:
Overall Width: 73”
Overall Height: 32.6”
Overall Length: 36.7”
Cutting Width: 60”
Height with Pushover Bar: 60.4”
Length with Pushover Bar: 49.5”
Sweeper, Skid Steer
Specifications:
Overall Width: 78.3”
Sweeping Width: 60”
Brush Diameter: 26”
Required Hydraulics: Standard Flow
Height: 34.3” Length: 72.3”
• Auger, 9”, 12”, 18”, 24”, 30” Bit Skid/ Exc Hex Shank • Auger, 24” Exc/Skid Steer Extension • Loader Premier Skid Steer
Optional Accessories:
Operating Pressure: 3,000-4,000 PSI
Hydraulic Flow: 30-45 gpm
Recommended Horsepower: 60-95 HP Teeth: 44
Weight: 2,530 lbs
Weight: 1159.6 lbs
Required Hydraulic Flow: 42-86 L/min
Optimal Hydraulic Pressure: 145-235 bar (2,100 - 3,400 PSI)
Hopper Capacity: 0.5 yd³
Gutter Brush Weight: 90.4 lbs
Forks, Skid Steer Attachment
Specifications:
Lifting Capacity: 4,000 lbs
Pallet Forks: 1.5 x 4 x 48 (PAIR)
Mounting: No tools required
Handle Features: Slideable - allows
forks to be mounted in most positions on the bucket, such as next to the side or back of the bucket
Optional Accessories:
• Loader Premier Skid Steer
Optional Accessories:
Pusher, 8’ Skid Steer
Specifications:
Model: SP08S
Width: 8’
Approximate Weight: 800 lbs
Pusher, 12’ Backhoe
Specifications:
Model: SP12B
Width: 12’
Approximate Weight: 1,450 lbs
Optional
Machine Application (minimum): 46-70 HP
Snow Capacity: 7 yd
Machine Application (minimum):
Backhoe - 4 x 4
Snow Capacity: 11 yd
Brush Cutter, Dingo Attachment
Specifications:
Operating Equipment: Compact
Utility Loader
Cutting Width: 42”
Max Cutting Capacity: 2”
Auxiliary Hydraulic Flow: 8-20 gpm
Weight: 469 lbs
Forks, Dingo Attachment
Specifications:
Width: Adjustable
Fork Material: Steel
Operating Capacity: 335 lbs. (152 kg)
Overall Length: 58.25”
Overall Width: 43.75”
Optional
Optional Accessories:
Blades: (2) 0.5’’ x 4” (High Strength, Updraft)
Blade Carrier Type: 1” bar
Blade Rotation: Counter Clockwise
Total Weight: 275 lbs.
Frame Width: 46”
Frame Height: 30.5”
Grapple Rake, Dingo Attachment
Specifications:
Cylinders: Twin heavy-duty hydraulic cylinders
Width: 34.5” (87.6 cm)
Tines: 3/8” (1 cm) AR400 steel
Tine Spacing: 7” (17.8 cm)
Bottom Tine Spacing: 6-1/4” (15.9 cm)
Pivots: (4) greaseable to reduce wear
Optional Accessories:
Optional Accessories:
Compatibility: All Dingo Traction units except TX 413
Leveler Platform: Fabricated welded frame
Mounting Frame: Fabricated, welded base
Standard Equipment: Dingo Quick-Attach Mount Plate
Clamping Force: 3,000 lbs
Vibratory Plow, Dingo Attachment
Specifications: Optional
Height without Blade: 27” (69 cm)
Width: 28.2” (72 cm)
Length: 34” (86 cm)
Weight: 457 lbs (207 kg)
Blade Adjustment: 0 -18” (0-46 cm)
Working Depth: 6-18” (15-46 cm)
Chain: Machined, plated 2” (5 cm) hex bullet
Soil Cultivator, Dingo Attachment
Specifications: Optional
Roller: Offset wire mesh finish
Maximum Depth: 5.5” (14 cm)
Blade Adjustment: Mechanical adjustment
Depth Control: Mechanical adjustment
Flow: 7 - 14 gpm (26.5 - 53 lpm)
Height: 21” (53.3 cm)
Length: 51” (129.5 cm)
Motor Type: LSHT Motor
Number of Blades: 20 “V” non-panning blades
Rated Pressure: 3,000 psi (206.7 bar)
Roller Adjustment: Mechanical adjustment
Rotor Outside Diameter: 11.25” (28.6 cm)
Standard Equipment: Dripless flush face couplers
Weight: 550 lbs (249.5 kg)
Width: 51” (129.5 cm)
Working Width: 36” (91.4 cm)
Working Depth: 5.5” (14 cm)
Tiller, Dingo Attachment
Specifications:
Height: 26” (66 cm)
Length: 20” (50.8 cm)
Standard Equipment : Flush face quick couplers
Tine Heads: 36
Weight: 363 lbs (164.7 kg)
Auger, Dingo Attachment
Specifications:
The high torque translates into the Dingo’s capability to dig 30” (76.2 cm) holes up to 6’ (1.8 m) deep in clay, gravel, sandstone and many other conditions.
Auger Speed: 57 rpm at 11 gpm (41.6 lpm), 95% efficiency
Height: 23” Length: 16”
Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base
Shaft (inches): 2.6
Torque: 1,515 ft/lb at 3000 PSI, at 11 gpm (461 m-kg at 207 bar, at 72 lpm)
Weight: 182 lbs Width: 24”
48” Fork, Wheeled Loader Attachment
Fork Length: 48”
Carriage Weight: 311 lbs
Carriage Frame Width: 55”
Machine Type: Compact Wheel Loader
Carriage Length: 10”
Carriage Height: 22.8”
Trenching Bucket
Specifications:
Width: 11.8”
Capacity: 0.8 ft³
Weight: 68.6 lbs
Base Edge Thickness: 0.4”
Tip Radius: 20”
Interface Type: Pin On
Rake, 6’ York Tractor
Maximum Working Width: 6’
Minimum Working Width: 5’ 1”
Number of Rake Positions: 5
Tractor Hitch Required: 3-point
Number of Rake Teeth: 36
Size of Rake Teeth L x W x H:
Rake, 8’ York Tractor
Maximum Working Width: 8’
Minimum Working Width: 7’ 1”
Number of Rake Positions: 5
Tractor Hitch Required: 3-point
Number of Rake Teeth: 48
Size of Rake Teeth (L x W x H): 5/16” x 1 “ x 28”
Optional Accessories:
• Auger, 6”, 9”, 12” and 18” Bit Toro Round Shank
5/16” x 1“ x 28”
Rake Tooth Material: Heat treated alloy steel
Fasteners: Heat treated cap screws Distance Between Teeth: 1” • L47 Kubota Tractor
Rake Tooth Material: Heat treated alloy steel
Fasteners: Heat treated cap screws
Distance Between Teeth: 1”
L47 Kubota Tractor
3 PT Hitch Scraper Box, Attachment for L47
Specifications:
Cutting Width: 84”
Depth:45.5”
Capacity: 1.38 yd
Weight: 1,565 lbs
Cutter, 5’ Brush Hog 3 PT Hitch
Specifications:
Weight: 599 lbs
Cutting Width: 60”
Overall Width: 65”
Overall Length: 99-3/8”
Deck Height (Bottom of Deck to
Tiller, 3 PT Hitch Roto
Specifications:
Model: Kuhn EL42
Working Width: 50”
Maximum Offset: 12”
Engine Capacity: 540 rpm
Maximum Horsepower: 40 HP
Wheels: Depth control
Rake, 3 PT Harley Power
Specifications:
Model: M6H / T6H
Working Width: 6’
Mount: 3-point
Angle: 13 - 15 deg
Flow Rate Range: 12 - 40 gpm
Overall Height: 30.3”
Overall Length: 48 - 64”
Dirt Screener, Portable
Specifications:
Loading Bucket Size Range: 8’
Compatible Loaders: ½ - 1 ¾ yd
Inside access for Bucket: 9’4”
Feed height at hopper 8’3”
Screen Box Dimensions L x W: 6’ x 5’
Double deck
Fuel Type: Diesel
Horsepower: 10 HP
Optional Accessories:
• L47 Kubota Tractor
Bottom of Skid Shoe): 7-1/2”
Cutting Height: 1-1/2” - 13”
Cutting Capacity: 2” Diameter
Overall Width: 81”
Pressure Range: 2,000 - 3,500 PSI
Weight: 1,100 lbs
Optional
• L47 Kubota Tractor
Optional Accessories:
Overall Width: 5’8”
Overall Height: 8’3”
Weight at Tongue: 1,760 lbs
Overall Weight: 5,462 lbs
Vibratory Plow & Trencher, Ride-On
Specifications:
ProSneak 365 Vibratory Plow & 36” Trencher
Width: (with 23x10.5x12 tires): 46”
mounted wide (standard); 36”
mounted narrow
Wheelbase: 48”
Overall Height: (with ROPS and 23x10.5x12 tires): 85”
Overall Length: (with plow and blade, no trencher) 114”
Ground Clearance :(with 23x10.5x12 tires): 5.25”
Operating Weight: 2,930 lbs
Engine: Yanmar® 3TNV88C-DTR4 (Tier 4 Final)
Fuel Type: Diesel
Fuel Tank Capacity: 7.1 gal (26.9 L)
Cylinders: 3
Net Power Rating: per SAE J1349 36.8 hp (27.5 kW)
Rated Speed: 3,030 rpm
Max Plow Depth: 24”
Trench Depth: 36”
Carpet Cleaner, 3 Gal
Specifications:
Solution Tank: 3 gal
Lift-Off Recovery Tank: 3 gal
Vacuum Motor: 112 cfm, 2 HP
Cleaning Width: 12”
Wheels: 7”, non-marking
Power Cord: 25’
Weight: 40 lbs
Shipping Dimensions (L x W x H): 26” x 15” x 28”
12 A
Carpet Cleaner, Large 5 Gal
Specifications:
Solution Tank: 5 gal
Cleaning Width: 14”
Wheels: 7”, non-marking Power Cord: 25’
Weight: 68 lbs
Electrical Draw: 14 A
Carpet Cleaner, Rug Doc EZ
Specifications:
Solution Tank: 3 gal
Lift-off Recovery Tank: 3 gal
Solution Pressure: 50 PSI
Vacuum Motor: 112 cfm, 2 HP
Waterlift: 107”
Brush Motor: 1/6 HP
Brush Speed: 2,500 rpm
Brush Style: Chevron design, 4 rows
Brush Bearings: Sealed, stainless
steel ball bearings
Cleaning Width: 12”
Wheels: 7”, non-marking
Dimensions L x W x H: 23” x 12” x 24”
Weight: 40 lbs
Electric Draw: 12 A
Steam Cleaner, Tile & Grout w/ Cart
Specifications:
Grade: Heavy, Commercial
Maximum Run Time: N/A
Heating System: Continuous Fill, Dual-Tank
Sander, Drum Floor Specifications:
Motor: 1-1/2 HP, Enclosed
Drum Width: 8”
Dust/Filter Bag: 2 cu ft
Drum Speed: 1,800 rpm
Leveling Control: Externally adjusted
Sander, Floor Edger Specifications:
Model: Su7R
Weight: 41.9 lbs
Casing: Stainless Steel Weight: 19 lbs
Operating Pressure: 75 PSI
Steam Temperature: 305 deg F
Motor Starter: Mechanical relay
Power Cable: 40’
Sandpaper Available: 20, 36, 60, 80 and 100 grit
Product Dimensions L x W x H: 13” x 13” x 12.5”
Finish: Polished Aluminum
Sandpaper Available: 20, 30, 60, 80 and 100 grit
Sandpaper, 8” x 19” 20, 36, 60, 80 & 100 Grit
Disc, 7” 20, 36, 60, 80 & 100 Grit Sandpaper
Scraper, Ride-On Floor Battery Powered
Specifications: Optional
Working Width: 6-27” (Depending on the type of blade)
Ground Speed: 160’ min. working speed
Power: 12 8V Batteries / Up to 10 HR run time
Scrubber,
Dimensions L x W x H:
59” x 24” x 52”
Weight: 2,245 lbs with weights, 1,995 lbs without weights
Surfaces: Hardwood Parquet, Ceramics, Linoleum, Vinyl, Carpet, Adhesives, Glue, Tiles
Floor Walk-Behind
Specifications:
Application: Indoor
Estimated Coverage/Productivity: Up to 47,520 sq ft / 4,415 sq m
Estimated Run Time: Up to 6.9 hours (cylindrical)
Main Down Pressure: Up to 300 lbs (disk), up to 90 lbs (cylindrical), 170 lbs (orbital)
Power Source: Battery
Sound Level: As low as 69.2 dBA
• Transport Dolly, Ride-On Floor
Scraper
• Beveled Tile Blade, 6”, 8” & 12”
• Self Scoring Carpet Blade, 8”, 10” & 12”
• Premium Chisel Heavy Duty, 2” & 4”
• Heavy Duty Tile Blade, 12”
Optional
Squeegee Width: 39”, 43.1”, 47.7”
Head Type: Disk, Cylindrical, Orbital
Charger type: Standard: On-board
Cleaning Path: 28”, 32”, 36”
Machine Type: Walk-Behind
Recovery Tank Capacity: 37 gal
Pad RPMs: Up to 300 rpm (disk), 760 rpm (cylindrical), 2,200 rpm (orbital)
Solution Tank Capacity: 32 gal
Stripper, Ceramic Tile
Specifications: Optional
Power Source: 35 lbs weight class electric breakers
Outside Wheel Width: 21-1/4” (540 mm)
Handle Width: 30” (762 mm)
Weight: 130 lbs (59 kg), less breaker
Stripper, Comm. Turbo Floor
Specifications:
Power Type: Electric
Horsepower: 2 HP
Volt: 115v/ 60Hz
Height: 43.3”
Vacuum, Wet/Dry Shop
Specifications:
Voltage: 120 V (60 hz)
Motor Output: 1 kW (8.3 A)
Weight: 16.5 lbs (7.5 kg)
Suction: 210 mbar (84 in H2O) Air Flow: 3,200 L/min (113 cfm)
Width: 15”
Length: 35.4”
Weight: 350 lbs
• Breaker Tool, 1” & 3” Chisel
• Blade, Floor Stripper VCT
• Blade, Floor Stripper Carpet
Sound Pressure Rating: 70 dB(A)
Container Capacity: 6.6 gal (25 L)
Suction Hose Length: 8.2’ (2.5 m)
Power Cord Length: 16.4’ (5 m)
Power Source: Electric
Vacuum, SM 8 Gal Dust Collector HEPA
Specifications:
Automatic Filter Clean pulses every 30 seconds for continuous operations
Powerful 15 Amp motor delivers 150 CFM of airflow for maximum suction Power Tool Actuation controls the On/
Off operations of the vacuum with a power tool
Lightweight and portable weighing in at only 21 lbs
Optional Accessories:
• Vacuum, Floor Tool Large
• Vacuum Hose
• Vacuum Wand
Can be used with wet or dry applications
Aerator, Core (Gas) 19”
Specifications:
Maximum Depth: 3”
Weight: 240-288 lbs (model dependent)
Aerating Width: 19”
Fuel Type: Gas
Engine Make: Honda
Performance kW: 2,9
Performance HP: 4,0
Productivity (m2/h): 2,000
Working Width (cm/in): 48 / 19”
Aerator, 30” Stand On
Specifications:
Highly productive with extra fuel capacity and speeds up to 7.5 mph (12,1 km/h)
Smooth ride with the floating operator platform
Foot pedal control lets you raise and lower tines on the fly
Intuitive controls that function a lot like a mower, saving time
Garden & Yard Equipment
Tine Type: Drum
Tine Depth (cm): 8,9
Number of Tines: 24
Tine pattern (cm): 12 x 18
Drive Type: Self Propelled
Transmission Type: Geared
Gears Forward: 1.0
Wheel Type: Semi-Pneumatic
Maximum Aerating Depth: 5”
Aerating Width: 30”
Fuel Capacity: 5 gal
Fuel Type: Gasoline
Ground Speed: 7.5 mph (forward)/2.2 mph (reverse)
Dimensions L x W x H: 65” x 48” x 53”
Weight: 1,015 lbs
Spreader Attachment, Stand On Aerator
Specifications:
Auger, Towable Hydraulic
Specifications:
Auger Speed 140 rpm @ 3600 engine rpm (no load)
Auger Torque 275 ft lbs torque (approximate)
Maximum Depth Depends on length of Auger
Auger, 2 Man Power
Specifications:
Maximum Auger Speed @ 3600 engine rpm (no load): 160 rpm
Maximum Torque: 192 ft lbs torque (approximate)
Weight 295 lbs (134 kg) (with fluids)
Length Normal Drilling 100” (253 cm)
Length Close-up Drilling 75” (190 cm)
Width 34” (86 cm)
Height 38” (96 cm)
Maximum Auger Diameter: 12”
Weight: 72 lbs
Length: 40.5”
Width: 30”
Chipper, 6” Brush Bandit
Specifications:
Model: 65XP
Capacity: 6”
Engine Power: 35 HP
Fuel Type: Gasoline
Fuel Capacity: 10 gal
Disc / Drum Diameter: 26” (66 cm)
Chipper Width: 1.6 m
Number of Reversible Blades: 2
Chipper Weight: 2,425 lbs
Tow Hitch Type: 2” ball
Optional Accessories:
• Spreader Attachment, Stand On Aerator
• Auger, 8” & 16” Bit Towable & 2-Man
Auger, 10” & 12” Bit Hydraulic
Extention, 12” & 24”
Auger, 8” & 16” Bit Towable & 2-Man
Auger, 10” & 12” Bit Hydraulic
Extention, 12” & 24”
Chipper, 12” Brush Bandit
Specifications:
Capacity: 12” (30.48 cm)
Opening: 14” x 17” (35.6 cm x 43 cm)
Width: 72” (182.90 cm)
Height: 100” (254 cm)
Length (Open): 202” (513 cm)
Chopper/Blower, Hay Bale
Specifications:
Model: SB1300
Power Source: 13 HP Honda Engine
Weight: 460 lbs
Bales/Minute: 1 - 1.5
Blower, Bark & Mulch
Specifications:
Power: Diesel Kubota V1505, 33.5 HP (25 kw), 4 cylinder
Engine Safety: Low oil pressure, high water temperature shutoff
Capacity: 1.5 cubic yd (1.2m^3)
Fuel Capacity: 15 gal
Fuel Type: Diesel
Splitter, 26”
Log
Specifications:
Max Log Opening: 26”
Ram Pressure: 26 tons (calculated)
Cycle Time: Approximately 12 sec
Sod Cutter, 18”
Specifications:
Engine Brand: Honda®
Weight: 157.8 kg
Cutting Width: 18” (45.7 cm)
Blower, Backpack Leaf
Specifications:
Displacement: 4.0 cu in (64.8 cc)
Engine Power: 2.8 kW (3.8 bhp)
Weight: 23.4 lbs (10.6 kg)
Blower, 8-9 HP Leaf
Specifications:
Model Number: F902H
Fan Material: (17) 16-blade Single
Shot Composite
Displacement: 262 cc
Length: 58”
Housing Height: 32”
Handle Height: 45”
Front Tire Style: Semi-pneumatic
Rear Tire Type: Pneumatic
Front Wheel Width: 10”
Length (Closed): 172” (436 cm)
Weight: 5,800 lbs (2,630 kg)
Feed Rate: 120 ft/min (36.60 m/min)
Fuel Tank: 29 gal
Fuel Type: Diesel
Hitch, Reese Pintle w/ 2” Ball
Rotor: 16”
Blower: 18”
Number of Knives: 32
Discharge: 45’ - 50’
Blower: 500 cfm @ 10 psi (14 cmm @ 69 kPa)
Empty Weight: 4,550 lbs (2,065 kg)
Working Weight: 5,750 lbs (2,610 kg)
Truck Requirement: 6,000 lbs (2,730 kg)
Hose Length: 100’
Hitch Coupler: 2 Locking Ball (Standard)
Cylinder Size: 4” x 24”; Clevis type
Hydraulic Tank: 7.5 gal capacity Optional Accessories:
Max Cutting Depth: 2.5” (6.35 cm)
Length: 59” | Width: 26.5”
Height: 36.5”
Fuel Capacity: 47.3 oz (1,400 cc)
Blowing Force: 35 Newtons
Fuel: 50 to 1 gas mix
Velocity (mph): 200 mph
Discharge: 4”
Weight: 143 lbs
Width: 29.25”
Front Tire Size: 10” x 3”
Rear Tire Size: 13” x 5”
Rear Wheel Width: 13”
Fuel Tank Capacity: 1 gal
Fuel Type: Gasoline
• Ramp, Loading w/ Equip.
Blower, 10 HP Leaf
Specifications:
Housing Height: 32”
Handle Height: 45”
Velocity: 200 mph (approximately)
Discharge: 4”
Blower, Stand On Leaf
Specifications:
Model: 5901807-Z3000
Engine: Vanguard V-Twin
Engine Power Rating: 35 HP
Displacement: 993 cc
Transmission: Twin HYDRO-GEAR® 3100 IZTs
Velocity: 165+ mph
Fuel Type: Gasoline
Weight: 143 lbs
Width: 29.25”
Tank Capacity: 1 Gal
Fuel Type: Gasoline
Tank Capacity: 10 Gal
Air Flow: 7,500 cu ft/min
Travel Speed: 9 mph
Fuel Capacity: 10 gal
Length: 65”
Width: 45”
Height: 56”
Weight: 895 lbs
Cutter, Brush Gas Powered Specifications:
Displacement: 2.3 cu in (37.7 cc)
Engine Power: 1.7 kW (2.3 bhp)
Weight: 18.7 lbs (8.5 kg)
Fuel Capacity: 25.4 oz (750 cc)
Power Source: Gas
Mower, 21” Walkbehind
Specifications:
21” Mowing Path
Snapper HI VAC 190cc 3-N-1 Push Lawn Mower with 21” Mower Deck and Ready Start System and 7 Position Height-of-Cut
Mower, 24” w/ Brush Cutter
Specifications:
Engine: 388 cc Honda
Start: Pull
Cut Width: 26”
Cut Height: 3.75”
Weight: 317 lbs
Length: 83” Width: 31”
Mower, Ride-On Commercial
Specifications:
Engine Power Rating: 29.5 gross HP
Engine Manufacturer: Kawasaki®
FX850V EFI
Displacement: 852 cc
Cylinder Liners: 2
Starter: Electric
Operating Speed:
Ground Speed-Fwd: 0-12 mph
Ground Speed-Rev: 0-6 mph
Drive Axles: 1.375 Tapered in
Overall Length: 81”
Height Cutting: 1.5 - 5”
Cutting Width: 61”
Overall Width Deflector Down/Deflector
Up: 76” / 63”
Fuel Capacity: 11 gal Weight: 1,405 lbs • Ramp, Loading w/ Equip.
Roller, 250# Push Lawn
Specifications:
Weight: 250 lbs
Operation Type: Push
Roller, 650# Towable Lawn
Specifications:
Tractor: Rented Separately
Product Name: 18” x 36” Poly Tow
Model Number: 45-0268
UPC: 052613452684
Weight: 45 lbs
Weight (Filled with water): 650 lbs
Hydro Seeder, 600 Gal T60
Specifications:
Tank Size: 600 gal liquid capacity, 500 gal working capacity
Loads per Acre: 6
Discharge Distance: Up to 90’ (27 m) from end of discharge tower
Max Material Capacity: 1,550 lbs
Empty Weight: T60T 2,770 lbs; Working Weight: T60T 7,770 lbs
Hitch Weight: Approx. 1,300 lbs
Fuel Tank Capacity: 8.2 gal (31 L)
Pump: Centrifugal 3” x 1-1/2”
(7.5 cm x 3.75 cm), 65 GPM @ 75 psi (245 lpm @ 5.3 kg/cm2), 3/4”
(1.9 cm) solid clearance, adjustable
Optional Accessories:
Optional Accessories:
Optional Accessories:
Pump Drive: Direct drive through electric clutch independent of agitator operation
Agitation: Mechanical paddle agitation and liquid recirculation
Agitator Drive: Reversible, variable speed hydraulic motor (0-110 rpm)
Power: 25 HP, 2 cylinder, OHV, air cooled gas
Engine Safety System: Low oil pressure, high temperature shutoff
Hydro Seeder, 300 Gal T30
Specifications:
Power: Kohler Command 18 HP
(11.2 kW), electric start, air cooled gas
Tank Size: 335 gal
Seeding Rate: 10.68 loads per hour
Fuel Tank Gas Capacity: 4 gal (15.1 L)
Seeder, Slice Push
Optional Accessories:
Material Capacity: 500 lbs (227 kg) granular solids, 100 lbs (45 kg) fiber mulch
Empty Weight: 1,480 lbs (671 kg)
Working Weight: 4,560 lbs (2,068 kg)
Hose: 100’
Specifications: Optional Accessories:
Engine Make: Honda
Engine Model: GX160
Performance kW: 4,1
Performance HP: 5,5
Displacement (cc): 163
Working Width (cm/in): 51 / 20
Working depth (cm): 0,3 - 1,3
Seeder, Turf Revitalizer
Specifications:
Displacement: 270 cc
Seeding Width: 22” slicing Weight: 314 lbs Length: 58.38”
Weight: 178.54 lbs (81 kg)
Width: 26” (67 cm)
Length:45” (116 cm)
Height: 46” (119 cm)
Productivity: 1,225 m2 /h
Drive Type: Push
Seed Box Capacity: 11,3 kg
Thatcher, Lawn
Specifications: Optional Accessories:
Engine: 205 cc Vanguard (PR550); 162 cc Honda
Depth: Infinite
Depth Adjustment: 0.125” with up to 0.5” adj. for blade wear
Reel: 20” Flail
Productivity: 13,000 sq ft/hr
Weight: 160 lbs
Length: 45.5”
Width: 26.5”
Thatcher, Lawn w/ Bag Attachment
Specifications:
Engine: 205 cc Vanguard (PR550); 162 cc Honda
Depth: Infinite
Depth Adjustment: 0.125” with up to 0.5” adj. for blade wear
Snow Blower
Specifications:
Engine Rating: 250 cc
Engine Type: Ariens Polar Force by Briggs & Stratton
Clearing Width: 24’’
Tire Size: 15’’ x 5’’
Reel: 20” Flail
Productivity: 13,000 sq ft/hr
Weight: 160 lbs
Length: 45.5”
Width: 26.5”
Speed: 6 mph (Forward)/ 2 mph (Reverse)
Impeller Diameter: 14’’
Augers: 14’’ Steel, Serrated
Stump Grinder, Mini Walkbehind
Specifications:
Engine: 196cc Honda GX Engine w/ Cyclone Air Cleaner
Fuel Type: Gasoline
Teeth: Greenteeth® 500 Series Teeth (4)
Cutter Wheel Diameter: 9-5/8”
Cutter Wheel Thickness: 3/8”
Disc Rate: 4,700 rpm
Stump Grinder, Large
Specifications:
Engine: 30SGB: Briggs Vanguard
31HP V-Twin
Dimensions:
Weight: 1,700 lbs
Height: 49”
Length (head to side): 79”
Length (head straight): 98”
Width: 35.5”
Tiller, 5-6 HP Rear Tine
Specifications:
Engine: 6 HP (169 cc), Subaru Engine
Rotational Speed: 190 rpm
Working Width: 17”
Working Depth: 6.5”
Tine Diameter: 13”
Transmission: Chain Gear
Gears: Forward, Reverse
Tiller: Versatile Dual Rotating Tine
Tires: 12.5”, 410-350 x 6” Adjustable
Brake Band
Weight: 134 lbs
Dimensions L x W x H: 56” x 23” x 45”
Cutting Capacity (Above Grade): 10”
Cutting Capacity (Below Grade): 9”
Folded Dimensions L x W x H: 36” x 23” x 23”
Optional Accessories:
Wheel Specifications:
Cutting Wheel: 19.2” diameter to tooth
• Trailer, 4’ x 6’
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12”
Cutting Height: 32”
Head Swing: 134”, 99.7” arc
Tiller, 9HP Hydrostatic Rear Tine
Specifications: Optional Accessories: Wheel Width: 18.75”
Dimensions: 66” x 20.75” x 36” Tine Width: 16” Tilling depth: 7.5”
460 lbs Handlebar Pivot Angle: Up to 20”
Trimmer, Gas Hedge Poletop
Specifications:
Power Source: Gas
Weight: 13.7 lbs
Blade Length: 24”
Cutting Attachment: 24” / 145° head
Trimmer, Gas Hedge Specifications:
Blade Length: 24”
Professional use
String Trimmer, Large Gas
Kombi System Powerhead
Kombi String Trimmer
Kombi Sweeper Attachment
Specifications:
Kombi Blade Attachment
Kombi String Trimmer
Kombi Hedge Trimmer
Kombi Edger Attachment
Kombi Sweeper Attachment
Kombi Pole Pruner Attachment
Kombi System Powerhead • Kombi System Powerhead • Kombi System Powerhead
Kombi Edger Attachment
Specifications:
Displacement: 1.9 cu in (31.4 cc)
Engine Power: 1.05 kW (1.4 bhp)
Weight: 9.7 lbs (4.4 kg)
Fuel Capacity: 24.0 oz (710 cc)
Power Source: Gas
Lawn Edger, Crack Cleaner
Specifications:
Tires: Large, pneumatic
Bristles: Solid steel wire
Height Adjustment: Six-position, Sturdy
Brush Declutch: Remote
Caster: Full circle, Heavy duty
Trencher, Mini Walkbehind
Specifications:
Weight: 134 lbs (61 kg)
Width: 23” (58 cm)
Engine Make: Honda
Cutter Wheel Diameter: 10.5” (27 cm)
Teeth (3): 1” Dia. (2.5 cm), 0.2” Thick (.508 cm) Leonardi® Carbide Tips
Drive: Direct Belt Drive 1600 Series Noram Clutch
Trencher, Walkbehind
Specifications:
Trench Depth: 24”
Trench Width: 4”
Weight: 900 lbs
Transport Width: 35”
Transport Height: 46”
Wheel Base: 35”
Head Shaft Height Digging Chain: 8”
Front Wheel to Handlebar: 83”
Boom End to Handlebar: 88”
Trench Center to Outside Left: 16”
Trencher, Walkbehind Track
Unit Weight: 76 lbs
Fuel Source: Gas Engine: 4 hp, Honda
Cutting Capacity (Above Grade): 10” (25 cm)
Cutting Capacity (Below Grade): 9” (23 cm)
Optional Accessories: • Kombi System Powerhead
Optional Accessories:
Trench Center to Outside Right: 19” Boom Travel (Up): 60” Boom Travel (Down): 60”
Specifications: Optional Accessories:
Motor: Honda, 20 HP
Weight: 1,600 lbs
Dimensions L x W x H: 92.5” x 36” x 52.5”
Maximum Digging Width: 4.3”
Maximum Digging Depth: 36”
Trencher, Ride-On V3550
Specifications: Optional Accessories:
Motor: 37 HP, Duetz
Fuel Type: Diesel
Weight : 4,500 lbs
Cutting Depth: 4’
Dimensions (L x W x H): 13’4” x 58” x 7’2”
Back Fill Blade: 6-Way
Generator, 2500 WATT
Specifications:
Frequency: 60 hz
Phase: Single
Voltage: 120 V
Fuel Tank Capacity: 3.2 gal (12 L)
Wattage (Maximum): 2,500 W
Wattage (Continuous): 2,200 W
Amps at 120 V (Maximum): 20.8 A
Amps at120 V (Continuous): 18.3 A
Main Circuit Breaker: 20 A
Overall Length: 20.9”
Width: 17.7”
Generators, Lighting & Welding
Optional Accessories:
Height: 20.1”
Operating Weight: 132 lbs (60 kg)
Engine Make/Model: Honda GX-160 / 5.5 HP (4.1 kW)
Engine RPM: 3,600
Fuel Type: Gasoline
Generator, 3600 - 3800 WATT
Specifications:
Phase: Single
Voltage: 120/240 V
Sound Level at 30’: 76 dBA
Fuel Tank Capacity: 5 gal (19 L)
Wattage (Maximum): 3,600 W
Wattage (Continuous): 3,200 W
Amps at 120 V (Maximum): 30 A
Amps at 120 V (Continuous): 26.6 A
Amps at 240 V (Maximum): 15 A
Amps at 240 V (Continuous): 13.3 A
Main Circuit Breaker: 21 A
Overall Length: 25.5”
Generator, 6000 WATT
Specifications:
Phase: Single
Voltage: 120/240 V
Sound level at 30’: 75 dBA
Fuel Tank Capacity: 5 gal (19 L)
Wattage (Maximum): 6,000 W
Wattage (Continuous): 5,000 W
Amps at 120V (Maximum): 50 A
Amps at 120V (Continuous): 41.6 A
Amps at 240V (Maximum): 25 A
Amps at 240V (Maximum): 20.8 A
Main Circuit Breaker: 23 A
Overall Length: 27”
Width: 22”
Generator, 9700 WATT
Specifications:
Frequency: 60 hz
Phase: Single
Voltage: 120/240 V
Fuel Tank Capacity: 10 gal (37.8 L)
Wattage (Maximum): 9700 W
Wattage (Continuous): 8400 W
Amps at 120 V (Maximum): 80.8 A
Amps at 120 V (Continuous) 70 A
Amps at 240 V (Maximum): 40.4 A
Amps at 240 V (Continuous): 35 A
Main Circuit Breaker: 40 A
Overall Length 31.25”
Width: 21.25”
Width: 22”
Height: 24”
Operating Weight: 215.73 lbs (97.85 kg)
Engine Power: 7.1 HP (5.3 kW)
Power: 3,600 rpm
Fuel Type: Gasoline
Optional Accessories:
Height: 24”
Operating Weight: 241 lbs
Start Method: Recoil
Engine Power: 9.5 HP
Engine RPM: 3600
Fuel Type: Gasoline
Optional Accessories:
Height: 27.5”
Operating Weight: 402.73 lbs
Start Method: Electric
Power: 16.6 HP (12.4 kW)
Engine Power: 3,600 rpm
Fuel Type: Gasoline
Optional Accessories:
Generators, Lighting & Welding
Generator, 15,000 WATT Towable
Specifications:
Prime Rating: 14 kW
Standby Rating: 14.7 kW
Generator RPM: 1800
Voltage - Single Phase: 120/240 V
Generator Design: Revolving field,
Self-Ventilated, Drip-Proof, Single Bearing Voltage Regulation (No Load to Full Load): ±0.5%
Power Factor: 1.0
Armature Connection: Series
Excitation: Brushles with AVR
No. Poles: 4
Frequency: 60 Hz
Frequency Regulation (steady state load): ±0.25%
Sound Level (Full Load at 23 ft.): 64 dB(A)
Engine Specifications Make/Model: Kubota / D1503
Emissions: Tier 4 Final
Fuel Tank Capacity: 28 gal
TRLRMPXF Trailer Specifications
Gross Vehicle Weight Rating (GVWR): 2,000 lbs
Coupler Rating: 3 in. Pintle Eye20,000 lbs
Overall Length: 98.60”
Overall Width: 55.50”
Overall Height: 22.00”
Operating Weight: With Fuel: 713 lbs Without Fuel: 513 lbs
Generator, 25,000 WATT Towable
Prime Rating: 20 kW (25 kVA)
Standby Rating: 22 kW (27.5 kVA)
Generator Power: 1,800 rpm
Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Generator Design: Revolving field,
Self-ventilated, Drip-proof, Single bearing
Voltage Regulation (No Load to Full Load): ±0.5 %
Power Factor: 0.8
Armature Connection: Star with Neutral/ Zig Zag
Excitation: Brushless with AVR
Number of Poles: 4
Frequency: 60 Hz
Frequency Regulation (steady state load): ±0.25 %
Sound Level (Full Load at 23’): 65 dB(A)
Optional Accessories:
• Generator Usage Policy
• Distribution Box
• Cord, Distribution Box
Emissions: EPA Tier 4 Final Certified
Fuel Tank Capacity: 41.7 gal
• Generator Usage Policy
• Distribution Box
Fuel Consumption: Full load 1.62 gph; 3/4 load 1.26 gph; 1/2 load 0.94 gph; 1/4 load 0.67 gph
Gross Vehicle Weight Rating (GVWR): 3,500 lbs
Ball Coupler: 2” (10,000 lbs)
Overall Length: 105.79”
Overall Width: 56.18”
Overall Height: 20.85”
Operating Weight (w/out fuel): 444 lbs
• Cord, Distribution Box
Generator, 45,000 WATT Towable
Specifications:
Prime Rating: 36 kW, 45 kVA
Standby Rating: 40 kW, 50 kVA
Generator RPM: 1800
Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Emissions: EPA Tier 4 Final Certified Gross Vehicle Weight Rating: (GVWR) 7,000 lbs
Coupler: Pintle
Overall Length: 147.33”
Overall Width: 66.25”
Overall Height: 23.2”
• Generator Usage Policy
• Distribution Box
• Cord, Distribution Box
Operating Weight: w/out Fuel: 1,056 lbs
Fuel Tank Capacity: 79.2 gal
Generators, Lighting & Welding cont’d
Generator,
70,000 WATT Towable
Specifications:
Prime Rating: 56 kW 70 kVA
Standby Rating: 62 kW 77 kVA
Generator RPM: 1800
Voltage - Three Phase: 208, 220, 240, 416, 440, 460, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Engine Make/Model: Isuzu / BR-4JJ1X
Emissions: EPA Tier 4 Final Certified
Fuel Tank Capacity: 103 gal
Gross Vehicle Weight Rating (GVWR): 7,000 lbs
Coupler: Pintle
Overall Length: 151.3”
Overall Width: 69.3”
Overall Height: 24.8”
Operating Weight: with Fuel: 2,077 lbs w/out Fuel: 1,366 lbs
Optional Accessories:
• Generator Usage Policy
• Distribution Box
• Cord, Distribution Box
Generator, 125,000 WATT Towable
Specifications:
Prime Rating: 100 kW, 125 kVA
Standby Rating: 110 kW, 137.5 kVA
Generator RPM: 1,800
Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable
Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable
Engine Make/Model: Isuzu / BR-4HK1X
Emissions: EPA Tier 4 Final Certified
Gross Vehicle Weight Rating (GVWR): 10,000 lbs
Light Tower, 4,000 WATT
Specifications:
Wind Stability: 65 MPH (w/outriggers)
Support Points: (4) Adjustable Jacks
Run Time: 64 hrs
Number of Lamps: 4
Lamp Output: 440,000 Lumens
Lamp Type: 1kW Metal Halide
Generator Power: 120V/50A - 240V/25A
Generator Output (Max): 6,600 W
Weight (lbs): 1,492
Couper: Pintle
Fuel Tank Capacity: 169
Overall Length: 181”
Overall Width: 79.5”
Overall Height: 24.7”
Weight (without fuel): 1,772 lbs
• Generator Usage Policy
Distribution Box
Cord, Distribution Box
Optional Accessories:
Fuel Tank Volume: 31 gal
Length: 112”
Width: 50”
Height: 72”
Hitch: 2” Ball or Pintle
Light Tower, GBX 4-Spot 2400W LED
Specifications:
Model :GBX Light Tower
Voltage 120 VAC
Frequency 60 Hz
Wind Stability 55 mph (24.6 m/s)
Mast 23 ft (7 m) / 359°
Support Points 3X Adjustable Jacks
Lamp: Type 600 W LED (X4)
Number of Lamps 4
Lumens 280,000 lm
Power Requirement 2,400 W/20A
Generator:
Power 120 V/33 A
Output 4200 W
External Receptacles Duplex
120V/20A GFCI
Storage: 56.5 x 47.2 x 87 in
(1,435 x 1,200 x 2,210 mm)
Working: 105.1” x 96.6” x 302” (2,670 x 2,455 x 2,880 mm)
Operating Weight: 1,433 lbs (650 kg)
Engine Specifications: Model Kohler KD15-440
Horsepower 8.7 HP
Type 1 Cylinder: Air-cooled
EPA Certification: Tier 4F
Fuel Type: Diesel
Fuel Capacity: 48 gal (182 L)
Fuel Consumption: 0.34 gal/hr
Oil Capacity: 1.2 gal (4.45 L)
Run Time: 140 hours/Lights only
Standard Hitch Type: 2” Ball
Optional Accessories:
Generators,
Lighting & Welding
Welder, Wire Feed 140 AMP
Specifications: Optional Accessories:
Forney 309 Wire Feed Welder 120 VOLT MIG Welder
*ORGILL 8909392**
Technical Details
Item Weight: 62 lbs
Product Dimensions: 20.2” x 10.2” x 16”
Item Model Number: 309
Size: 140 Amp
Color: Green
Material: Metal
Power Source: Corded-Electric
Voltage: 120 volts
Horsepower: 309
Amperage Capacity: 140 A
Cord Length: 8’
Measurement System: Standard
Welder, 180 AMP (Gas)
Specifications:
DC Voltage: 26.8 V
DC Current: 180 A
Current Range: 50 - 180 A
Max Duty Cycle w/Full Amps Available at 180 A: 50%
Fuel Tank Capacity: 3.7 gal
Fuel Consumption at Rated Load: 0.93 gph
Operating Weight: 225 lbs
Engine: 3600 rpm
Fuel Type: Gasoline
Welder, 400 AMP (Diesel)
• Helmet, Welders • Lead, Welding
Specifications: Optional Accessories:
DC Voltage: Single 34V, Dual 27V V
DC Current: Single 400, Dual 200 A
Current Range: Single 30-400, Dual 30-200 A
Fuel Tank Capacity: 11.1 gal
Fuel Consump.at Rated Load: 1.3 gph
AC Power Output (Single Phase): 14 kW
Cycle: 60 Hz
Voltage: 120/240 V
Amperage: 116/58 A
Voltage Regulation: 1.5%
Overall Length: 61”
Width: 29”
Height: 35”
Operating Weight: 1,144 lbs.
Torch, Oxygen & Acet. Set
Specifications:
Model: CK-6-FP 250
Truck Outfit Type: 250 Truck Series Deluxe Outfit
Maximum Cutting: 5/64”
Welding Capacity: 3/8”
• Helmet, Welders
• Lead, Welding
• Goggles, Dark Cutting • Oxygen, 100 Cubic Foot • Acetylene, 10 Cubic Foot
Ground Heater, Thawzall TCH150
Specifications:
Thaw Area: 1,200 - 2,400 sq ft Cure
Area (Concrete): 2,400 sq ft Cure Area
(Accessories): 6,000 sq ft
Frost Prevention: 2,400 sq ft Frost
Prevention (w/ accessories): 10,800 sq ft
Heat Buildings: 210,00 cu ft Maximum
Fuel Consumption: 1 gph (3.8 lph)
Maximum Run Time: 4+ days
Heating Equipment
Pump Capacity: 30/1,800 gpm/gph (110/6,800 lpm/lph)
Weight (with fuel & fluid): 3,460 lbs
Optional Generator: 500 lbs (230 kg)
Fuel Capacity: 102 gal (390 L)
Ground Heater, Thawzall TCH250
Specifications:
THAW frozen ground sq ft 3,000-6,000
CURE concrete sq ft 6,000 with accessories sq ft 18,000 max
FROST prevention sq ft 9,000 with accessories sq ft 27,000 max
HEAT buildings: cu ft 400,000
Input/Output: MBH 280/234
Operating Range: °F 70-200 °C 21-93
Operating Pressure: psi 1-5
Fuel Consumption (max): gph 1.75
Run Time :days 3+
Pump Capacity: gpm/gph 30/1800
L x W x H in 170 x 84 x 97
Weight w/fuel & fluid: 5,600 lbs
Generator: 310 lbs
Fuel Capacity: 160 gal
HTF (Heat Transfer Fluid): 122 gal
SPECIFICATIONS:
(1) 1/2 HP Pump Closed Loop Centrifugal
Hose Length (5 zones x 600’) 3,000 ft
Electrical, GFI 20 amp x 120 vac
HTF Pumpability °F -80 / °C -62
Fuel: Winter blend diesel or #1 fuel oil
Hitch: Pintle
Diesel Generator: 7.0 KWH
Ground Heater, HK500 – HK600
Specifications:
Ground Thawing Capacity: up to 11,200 ft²
Concrete Curing Capacity: up to 22,400 ft²
Temporary Heating Capacity: up to 15,000 ft²
Heater Capacity: 605,000 BTUH
Heating Fuel Input
Field Hoses: 8 - 5/8” & 1 - 1” quick connect
Run Time: Up to 60 hours (Depending on conditions)
Length (from hitch): 165”
Optional Accessories:
Optional Accessories:
Optional Accessories:
Width: 75”
Height: 84”
Manifolds (Supply & Return): 8 - 5/8” & 1 - 1 1/4” quick connect
Electrical Requirement: 2 - 120V AC 20A Circuits
Glycol Tank Capacity: 130 US gal
Fuel Tank Capacity: 192 US gal
Weight (Fuel Tank Empty/Full): 7,095 lbs/8,439 lbs
Concrete Powerblanket, 5’ x 20’ Electric
Specifications:
Adjustable Thermostat: Internal/Fixed
Amperes: 12 A
Dimensions: 5’ x 20’
Heat Range: Mid
Heater, 1.6KW Electric
Specifications:
Amperes: 13.5 A
Heater Type: Electric
Minimum Breaker Required: 15 A
Output: 5,630 btu/hr/120 cfm/1.65 kW
UL/ CSA Compliant: Yes
Voltage: 120 V
Wattage: 1440 W
Optional Accessories:
Optional Accessories:
Phase: Single, 115 V
Wattage: 1,650 W
Weight: 14 lbs
Heater, 10,000 Watt Electric
Specifications:
Output: 10 kW and 7kW / 34,121 and 23,884 btu/hr / 350 cfm
Wattage: 10,000 kW
Voltage: 240 V
Amperes: 28/42 A
Minimum Breaker Required: 2-Pole
50 A at 10 kW or 2-pole 30 Amp @
7 kW A
Phase: Single Weight: 35 lbs
Heater, 20,000 Watt Electric
Specifications:
Output: 20 kW / 13kW; 68,242 / 44,357 btu/hr; 600 cfm
Watts: 20,000 kW
Voltage: 240 V
Amps: 54 / 81 A
Minimum Breaker Required: 2-pole
60 A or 2-pole 100 A
Phase: Single Weight: 45 lbs
Heater, 40-50,000 Watt Electric
Specifications:
Standard Features:
• Clean dry heat
• Built-in thermostat (32º - 100º F)
• Cycles heater on/off automatically
• Ductable to 50’
• Overheat protection
• Three power settings
Input BTU/Kw
136,500 / 40
102,400 / 32
51,200 / 16
Cord Set, 10/3 AWG 25’
Electrical Rating: 480 Volts / 3Ø / 50 amps
Fan: 1,800 CFM
Temperature Rise: 100ºF
Dimensions: 46”L x 20”W x 25”H
Approx. weight: 130 lbs
Torch, Propane Flame Thrower
Specifications:
Output: 500,000 btu/hr
Suggested Use: Farm and Ranch, Construction, Road Crews, Grounds
Maintenance, Industry and More
Fuel Type: Tank pressure - No regulator required
Torch Bell Diameter: 3”
Total Length: 33-1/2”
Heater, 150-175,000 Kerosene
Specifications:
Heater Style: Salamander / Torpedo
Heat Output: 190,000 BTU
Hot-Air Flow: 630 CFM
Air Pump Pressure: 8.5 PSI
AC Power: 120V, 60Hz, 2.7 Amps
Motor Size: 1/4 HP
Fuel Tank Capacity: 13.0 gal
Fuel Consumption: 1.42 gal/hr
Max. Operating Hours: 9.1 hours
Heating Area :4,300 sq ft
Multi-Fuel Capable: Yes
Weights & Dimensions
Net Weight: 60 lbs
Shipping Weight: 68 lbs
Length: 47”
Width: 22”
Height: 28”
Propane Tank, 20 lb
Goggles, Dark Cutting
Kerosene
Heating Equipment
Heater, 200,000 Kerosene
Specifications:
Weight: 185 lbs
Hot Air Flow: 180,000 btu/hr
Fuel Type: Kerosene, Diesel 1# or 2#, Fuel Oil
Tank Capacity: 17 gal
Ignition: Continuous
Electrical Rating: 120 V, 60 Hz, 13 A
Air Volume: 1060 cfm
Heated Fuel Filter: Standard
Clearance to Combustibles: Horizontal 6’
Adapter: F105111 Single (14”)
Heater, 400,000 Ind Diesel/Kerosene
Specifications:
Weight (Lbs): 484
BTU per Hour: 400,000
Fuel Type: Kerosene, Diesel 1# or 2#, Fuel Oil
Ignition: Continuous
Electrical Rating: 120v, 60 HZ, 13 Amp
Air Volume (CFM): 4032
Heated Fuel Filter: Standard
Heated Nozzle: No
Clearance to Combustibles: Horiz. 6’
Duct Length Max: 100 ft
Duct Diameter: Standard Dual (12”)
Wheel Type: Pneumatic
Item Length: 64”
Item Width: 27”
Item Height: 60”
Item Weight: 573 lbs
Heater, 400,000 Ind Oil Fired w/ 100 Gal Tank
Specifications:
Air Volume (CFM): 5,500 (Turbo), 3,500 (Axial)
Heat Rise: 220˚F+
Ductability: 150 ft (Turbo), 24 ft Axial
Indirect NG/LP
Recirculating Capabilities
Thermostat Operation
Gas Pressure Gauges on manifold and inlet side of train
Redundant Fail Safe Control System
Forklift Pockets
Weight: 470 lbs
Dimensions: 76.7” x 31” x 57.6”
Full Load
Heater, 150,000 Propane Fan
Heater, 1.6 mil BTU Makeup Air Direct
Duct, 12” x 12” Hi Temp
Thermostat, 32” Remote
Heater, Stack w/Rain
Heater, 375,000 Propane Fan
Specifications:
250,000 - 400,000 BTU per hour
For use with propane gas
Heats up to 9,000 sq ft
Operates up to 17 hours on 2-100 lbs
propane tanks on low setting
Rugged & durable steel construction
Economical, efficient and clean burning
Heavy duty high output fan
Hose and regulator included
Two 100 lb propane tanks are required
Heater, 400,000 Prop/NG Direct Fan
Specifications:
Input: 400,000 btu/hr
Fuel: Vapor Propane/ Natural Gas
Fuel Consumption: 4.4 GPH Propane /400 CFH NG
Gas Connection: 1” FNPT
Inlet Pressure: 7” min / 14” max
Electrical: 120 Volts 12 amp circuit
Fan: 2,000 CFM 1/4 HP
Thermostat: On/Off
Temp Rise: 344°
Weight: 95 lbs
Dimensions: 46” L / 18” W 24” H
Regulator (recommended): 40SV06
Heater, 400,000 Ind Propane/NG
Specifications:
Maximum Capacity: 420,000 btu’s
Heated Air (without duct): 3,100 cfm
Discharge Temperature: 220º F with duct creating 0.5” static pressure
Fuel: Propane/natural gas
Nozzle Size: 2.8”
Finish: Powder coat
Burner Motor (115v , 60 cycle): 1/3 hp, 3,450 rpm
Net Weight: 520 lbs
Shipping Weight: 550 lbs
Air Outlets: Standard - (2) 12” dia
Dimensions L x W x H:
83” x 37” x 52”
Heater, 750,000 Propane Fan
Specifications:
Input: 750,000 - 450,000 btu/hr
Fuel: Vapor Propane/Natural Gas
Gas Consumption: 8.3 gph Propane / 750 cfh Natural Gas
Gas Connection: 3/4” FNPT
Electrical: 120 V / 15 A circuit
Fan: 1 hp (4,200 cfm)
Thermostat: 2-Stage Hi/Lo/Off with 50’ Remote
Temperature Rise: 385° F
Dimensions L x W x H:
48.5” x 26” x 31.5”
Weight: 200 lbs
Heater, 950,000 Heat Wagon 950H
Specifications:
Wheel Size: 12”
Ductable: Up to 100’
Input: 650,000 – 950,000 btu/hr
Fuel Consumption: 10.4 gph
Gas Connection: 1-1/4” FNPT
Inlet Pressure Minimum: 1 psi propane / 3 psi Natural Gas
Electrical: 120 V, 15 A circuit
Thermostat 2 Stage Hi/Lo/Off w/50’ Remote
Temperature Rise: 250° F
Weight: 325 lbs
Dimensions L x W x H: 73” x 30.5” x 39”
Optional Accessories:
• Propane Tank 100 lb.
Optional Accessories:
Optional Accessories:
• Duct, 12” x 12” Hi Temp
• Duct, 16” x 25’
• Thermostat, Heater
• Heater, Stack w/ Rain Cap
Optional Accessories:
Optional Accessories:
• Duct, 24” x 25’ Hi Temp
Heater, 1,000,000 BTU Ind Oil w/ 300 Gal Tank
Specifications:
Indirect Fired
Recirculating Capabilities
Input btu/h: 1,000,000
Oil/Gas Fired
Beckett Burner
3 Fan Speeds up to 13,500 CFM
Weight: 2,000 lbs
Dimensions: 111” x 33.25” x 50“
High Static Fan: up to 6.5” Static
Pressure with 300 US gal Sub-base double wall fuel tank
Optional Accessories:
Ducting: up to 400 ft, 1×24” duct panels on supply and return side
Full Load Amps: 1PH 42 Amps, 3PH 25 AMPS
Voltage: 1PH or 3PH/208-240V
Heater, 1,500,000 Propane Fan
Specifications:
Input: 1,500,000 - 850,000 btu/hr
Fuel: Vapor Propane/Natural Gas
Gas Consumption: 16.4 gph Propane /
1,500 cfh Natural Gas
Gas Connection: 1-1/4” FNPT
Electrical: 120 V, 15 A circuit
Fan: 7,000 cfm (1 HP)
Thermostat: 2 Stage Hi/Lo/Off with 15’ remote
Temp Rise: 490° F
Shipping Dimensions L x W x H:
69” x 32” x 41.5”
Weight: 300 lbs
Optional Accessories:
Heater, 200-250,000 Propane Radiant
Specifications:
Hot Air Flow: 200,000 btu/hr
Fuel Type: Propane
Max Area: Heats up to 4,700 sq ft
Max Operating Time: 24 hours
Pilot: Standing (for increased safety)
Electricity Required: No
Heater, 115,000 Tent
Specifications:
Brand: HeatStar
Ship Weight: 91 lbs
Product Style: Industrial
Heating Capability: 2,875 sq ft
Output: 115,000 btu
Color: White
Hot Air Flow Rate: 650 cfm
Heater, Patio Propane
Specifications:
46,000 BTU output
Piezo ignition system
Wheels for easy mobility
Uses standard 20 lb LPG BBQ tank
Consumption rate approx. 10 hrs
Assembled Dimensions: 18” Dia
Base x 33”Dia. Reflector x 92”H, Weight; 40 lbs
Voltage: 115 V
Dimensions (L x W x H): 30” x 15” x 23-3/4”
• Propane Tank, 40 lb., 100 lb
Optional Accessories:
• Propane Tank, 100 lb
• Propane T-Block
• Duct, 12” x 10”
• Duct, 12” Adapter
• Propane Tank, 20 lb
• Propane, #20 Fill
Data Collector
Specifications:
Dimensions L x W x H:
5.4” x 10.2” x 1.6”
Weight: 2 lbs
Protection Class: IP68
Processor: 1.0 GHz ARM Cortex A8 i.MX53
Memory: 512 MB
Storage: 8 GB flash
Expansion: microSD slot
Battery Life: 20 hours
Audio: Speaker
I/O: Serial RS232, USB Host, USB Client, DC input, docking port
Detector, Metal
Specifications:
Iron Audio: No
Iron Discrimination Segments: 4
Notch Discrimination: Adjustable
Search Modes: 5 (Plus Pinpoint)
Sensitivity/Depth Adjustments: 8
Digital Target ID: Yes
Pinpoint: Yes
Frequency: 8 kHz, adjustable
Detector, HL700
Specifications:
Digital readout of elevation - not only will high or low arrows be displayed, but the exact distance from grade will be numericallydisplayed.
Large 12.7 cm (5”) reception height acquires the beam quickly and makes it easy to stay in the beam.
Anti-strobe sensor stops construction strobe lights from setting off the receiver, and makes it easier to identify true laser beam signals.
Simultaneous elevation LED’s signal in low light levels and over a longer range for easier reading in poor light conditions.
Instrument & Lasers
Operating System: Windows
Embedded Handheld 6.5
Display: 4.2” 640 x 480 high visibility backlit LCD
Keyboard: Full numeric and QWERTY keypad
External Audio: 3.5 mm mini jack
LED: No
Wi-Fi: 802.11 b/g/n, 2.4 GHz radio band
Bluetooth: BT 2.1 + EDR
Sensors: No
Audio Tone ID Levels: 3
Target Depth Indictor: Yes
Standard Searchcoil: 7” x 10” concentric PROformance
Length (Adjustable): 40” x 53” (1.016 m x 1.35 m)
Total Weight: 2.8 lbs. (1.27 kg)
Power: 4 AA
New CAPTURE function remotely captures and retains a measurement when the display is difficult to see Multiple deadband setting allows adaptation to meet all your jobsite requirements.
Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.
Two clamp positions for cut/fill or excavation.
Excavation mode puts more recep-
GPS Network Rover Base/Rover System
Specifications:
Receiver Type: Multi Frequency GNSS
Positioning Modes: RTK, L-band
DGNSS/HP/XP, SBAS External RTCM, Autonomous
Channels: 270
RTK Formats: CMR, CMR+, RTCM3, ROX
OmniSTAR Formats: VBS, HP, XP, G2
Update Rate/Recording Interval: Selectable from 1, 2 and 5 Hz
Height: 4.49” (114 mm)
Depth: 7.76” (197 mm)
Weight: 3.33 lbs (1.51 kg)
Humidity: Up to 100%
Operating Temperature: -22 - 158 deg
F (-30 - 70 deg C)
Enclosure: IP67, EP455, waterproof, dustproof
Shock: 6.56’ (2 m) pole drop
Optional Accessories:
Optional Accessories:
Optional Accessories:
tion height and elevation information above grade for higher utilization in digging and staking applications.
Optional Accessories:
• Mobile Hotspot
• GPS Pole
• GPS Bipod
GPS Network Rover Survey Grade
Specifications:
Receiver Type: Multi-Frequency GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, and Atlas L-band
Signals Received: GPS L1CA/L1P/L1C/ L2P/L2C/L5
GLONASS G1/G2/G3, P1/P2 BeiDou
B1i/B2i/B3i/B10C/B2A/B2B/ACEBOC
GALILEO E1BC/E5a/E5b/E6BC/ALTBOC
QZSS L1CA/L2C/L5/L1C/LEX IRNSS L5
Atlas
Channels: 800+
RTK Formats: RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 including MSM, CMR, CMR+
Recording lntervals: Selectable from 1, 2, 4, 5, 10 Hz (20 Hz or 50 Hz optional)
L-Band Receiver Specifications
Receiver Type: Single Channel
Frequency Range: 1525 to 1560 MHz
Sensitivity: -130 dBm
Channel Spacing: 5.0 kHz
Optional Accessories:
• Mobile Hotspot
• GPS Pole
• GPS Bipod
Satellite Selection: Manual and Automatic
Reacquisition Time: 15 seconds (typical)
Grading Box, Level Best Skid Steer
Specifications:
Model: PD84
Width: 84”
Front Capacity: 13.4 cu ft
Rear Capacity: 8 cu ft
Weight: 2,070 lbs
Grading Accuracy: Within 1/10”
Operating Design: Push-pull design grades moving forward and in reverse to utilize the maneuverability of a SSL or CTL and increase productivity
Hydraulic valve System: Adjusts grading box
Cutting Edge: Reversible and replaceable on all sides; main edges are hinged to allow better penetration when digging
Universal Skid Steer Mount: Compatible
Couplers: Quick connect-underpressure flat face
Compatibility: CASE Site Control laser control panel, receivers and beacons
Mast Options: Single or dual (single mast for automated elevation only; dual mast for automated elevation and cross-slope)
Laser, LP500/LB100 Laserplane
Specifications:
Self-Leveling Range: ±11 arc minutes
Compensation Type: Wire Hung, Air
Damped
Accuracy: 1.5 mm at 30 m (1/16” at 100’), ±10 arc seconds
Laser Type: 670nm visible, Class 2
Battery Life 20°C (68°F): 4 D-Cell
Alkaline - 175 hrs NiMH - 100 hrs
Laser Distance Measure
Specifications:
Digital target locator with 4x zoom to measure distances up to 660’/200 m
• Bluetooth Smart (4.0) offers simple data exchange, e. g. with iPhone or iPad
• New STABILA Measures app lets you insert measurements directly into photos or drawings
Operating Diameter: 500 m (1,600’)
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Weight: 3.6 kg (8 lbs)
Tripod Mount: 5/8” x 11
Optional Accessories:
• Grading Kit, Spectra Precision
• Built-in calculator lets you multiply or divide measurement data by fixed values (e. g. hourly rates or materials costs)
• Robust, impact-resistant housing with shock-absorbing softgrip cover
• Class II
• Power output<1mW
Optional
Accessories:
• Detector, 1275 Laser-Eye
• Detector, HL700
• Rod, 14-1/2’ - 16’ FG (inches or tenths)
• Tripod, Surveying
• Clamp, 1061 Column
• Elevating Column, 1052
• Case, Carrying
• Batteries, Duracell D (2 pkg)
Optional
Accessories:
Laser, Dual Slope
Specifications:
Leveling Accuracy: 1,3: ± 0.5 mm / 10 m, 1/16“ @ 100 ft, 10 arc seconds
Grade Accuracy: 1,3: ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds
Grade Temperature Drift Sensitivity:
± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F
Operating Diameter: 1,2: appr. 800 m (2600 feet) with detector
Grade Range (Y;X): ± 25% both axes (not simultaneously)
Grade Range (Z): ± 25%
Rotation: 0 - 750 rpm
Scan Mode: 5 preset sizes + variable adjustment
Laser Type: Red diode laser 650 nm
Laser Class : Class 3
Self-Leveling Range: appr. ± 14°
Leveling Indicators: LCD indications
Laser, Single Slope Auto
Specifications:
Range up to 2,600 ft with laser receiver
Accuracy ±1/16” at 100 feet
Self-leveling within ±14 degrees
Single grade to ±25 %
Pipe Laser
Specifications:
Includes: Battery, Remote & Charger
Accuracy, Self-Leveling (level): 1,3 ± 1.5 mm/30 m, (1/16 in @ 100 ft)10 arc seconds
Operating Range: 1,2 up to 150 m (500 feet)
Laser Type: DG613 Red diode laser
600 - 680 nm
Laser Class: 3A/3R, <5mW or Class 2
Self-Leveling Range - Longitudinal: Over the entire grade range with automatic cross axis compensation
Grade Range: -12% to +40%
Spot Align Search Range (DG813): Up to +45° (with SF803 tilted to the laser)
Line Range: 20° ±1°
Leveling Indicators: LCD indications; beam and LED flash
Level, Automatic
Specifications:
24x - 32x Magnification
Objective Lens Diameter: 36 mm
Accuracy: ~2.0 mm @ 1.0 km
Double Level Run: ±1.5 mm
Coarse Sighting: Peep sight
and LED flashes
Radio Range (HL760)1,2,4: up to 150 m (490 ft)
Power Source: NiMH battery pack/ alkalines
Battery life1 : 35 hours NiMH
Operating Temp.: -20°C to 50°C (-4°F to 122°F)
Storage Temp.: -20°C to 70°C (-4°F to 158°F)
Tripod Attachments: 5/8 x 11 horizontally and vertically
Dust and Waterproof: Yes - IP67
Weight: 3.1 kg (6.8 lbs)
Low Voltage Indication: LCD battery indicator
Low Voltage Disconnection: Unit shuts off
Warranty: 5 Years
Grade matching and PlaneLok
Automatic temperature compensation
Battery life up to 40 hours
Graphic LCD display & keypad
Optional Accessories:
• Detector, HL700
• Power Cord
• Operator’s Manual
• Case, Carrying
Power Source: 10,000 mAh NiMH
battery pack
Battery Life: 40 hours NIMH
Temperature Compensation: Yes
Length: 9.8” (25 cm)
Diameter: 5.3” (13.5 cm)
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Tripod Attachments: 5/8 x 11 horizontally
Safety Rating: IP68
Weight: 6.61 lbs. (3.98 kg)
Low Voltage Indication: LCD battery indicator
Low Voltage Disconnection: Yes
Optional Accessories:
• Rod, 14-1/2’ - 16’ FG (inches)
• Tripod, Surveying
Optional Accessories:
• Invert Plate, 1228
• Pole, Adj. Trivet Kit
• Remote Line Switch
• Target, Large Pipe
• Blower, 929 Laser
• Manhole Mount, 1016
• T-Bar Mount, 934
• Operation’s Manaual
• Case, Carrying
Optional Accessories:
• Tripod, Surveying
• Clamp, Signal
Transit Level, 26X
Specifications:
26 power magnification
±3/16 in at 150 ft (4.75 mm at 45m)
leveling accuracy
Up to 400’ (120 m) range
Horizontal circle, lock and tangent
Transit, Digital 5 sec.
Specifications:
Magnification: 30X
Resolving Power: 3.5”
Field of View: 1°30’
Minimum Focus: 4.27’ (1.3 m)
Angular Accuracy: 5 sec
Magnetic Locator
Specifications:
Detects the magnetic field of iron and steel objects, with unmatched sensitivity
Optimized for finding Survey Pins, Markers & Nails, Water & Gas Valves, Manhole Covers, Unexploded
Ordnance, other deep iron/steel objects
Unsurpassed detection range
Clear, sharp, detection signal pinpoints the target
Five individual sensitivity settings
No response to aluminum, brass, or copper
Hot Spot Pipe Locator
Specifications:
Camera/Sonde Frequencies: 512 Hz and 33 KHz
Line/Utility Frequencies: 1 KHz, 8KHz, 33 KHz, 65 KHz
Active Power Line Frequencies: 60/50 Hz and 180/150 Hz
Depth Range: 10’ in cast iron pipe/20’ in clay or plastic
Screen: LCD Digital Signal Read-Out, Graphic Display, Directional Arrows, Null Icon, Camera Icon, Utility Icon,
Cable Locator
Specifications:
The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs at slightly over 7 lbs
The entire system fits easily into a custom shoulder bag.
Ultralight Design: Receiver + Transmitter = Under 7lbs
Compact & Portable: Receiver retracts for easy carrying
Vertical arc, lock and tangent
Optical plummet magnification: 1.5X 1:100 stadia with glass reticle
Weight (Instrument Only): 9.5 lbs
Optional Accessories:
• Tripod, Surveying
• Rod, 14-1/2’ - 16’ FG (inches or tenths)
• Case, Carrying
Min. Reading: 1” / 5” switchable
Min. Focus: 1.3 m or 4.26’
Stadia Ratio: 1:100
Tilt Sensor: Yes, +/- 3’
Optional Accessories:
• Tripod, Surveying
• Rod, 14-1/2’ - 16’ FG (inches or tenths)
• Case, Carrying
Optional Accessories:
Input Power: Supplied by (2) 9V batteries
Battery Life: 40 hrs (intermittent usage)
Output: Approximately 40 Hz idle tone in speaker. Tone frequency increases (or decreases) with gradient-field intensity.
Sensitivity: 5 Settings
Weight: Approximately 2.5 lbs (1.13 kg)
Operating Temp: -13° to 140°F (-25° to 60°C)
Overall Length: 42.5” (107.4 cm)
Waterproof Length: 34.5” (87.6 cm)
Nominal Sensor Spacing: 20” (50.8 cm)
Audible Tone, Auto Digital Depth, Battery Status, Auto Backlight Antenna Configurations: Total Field, Single Peak, Twin Peak, Null and Left/Right (Line Location Only)
External Ports: Mini USB
Weight: 4.8 lbs (2.18 kg)
Batteries: (2) D-cell alkaline
Battery Life: 30 hrs
Operating Temperature Range: -4° F to 122° F (-20° C to 50° C)
Optional Accessories:
Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection
Transmitter comes equipped with rechargeable batteries
Designed for utility locating professionals in Water, Sewer, Gas, Electric, Telecomm industries.
Optional Accessories:
• Clamp, Inductive Signal
2” Robotic Total Station
Specifications:
Sensor type: Absolute encoder with diametrical reading
Accuracy1: 1” (0.3 mgon) 2” (0.6 mgon), 3” (0.9 mgon), or 5” (1.5 mgon)
Angle Display (least count): 0.1” (0.01 mgon)
Automatic level compensator
Type: Centered dual-axis
Accuracy: 0.5” (0.15 mgon)
Range: ± 5.4’ (±100 mgon )
Accuracy (ISO)
Prism mode
Standard mode2: 1 mm + 2 ppm (0.003 ft + 2 ppm)
Accuracy (RMSE)
Prism mode
Standard mode: 2 mm + 2 ppm (0.0065 ft + 2 ppm)
Tracking mode: 4 mm + 2 ppm (0.013 ft + 2 ppm)
3” Robotic Total Station
Specifications:
Magnification: 30x
Accuracy: 3” (0.0006 gon/.015 mil)
Bluetooth: Yes
Measuring Time for Angle: 0.5 sec or less
Measuring Range: Up to 5,000 m (16,400 ft)
5” Robotic Total Station
Specifications:
Reflectorless range up to 2,625 feet
Up to 13,123-foot range with a single prism
Bluetooth connectivity
1 GB internal storage
128 MB RAM
Optical plummet
31x magnification
Motorized drive system
2.4 GHz radio modem
Dual-axis compensator with 0.5second accuracy
Onboard Survey Pro field software
StepDrive motion technology
5” Auto Total Station
Specifications:
5” angle accuracy
Fast, accurate EDM
Convenient and long-lasting Li-ion battery
Easy-to-use keypad
DR mode
Standard mode: 2 mm + 2 ppm
(0.0065 ft + 2 ppm)
Tracking mode: 4 mm + 2 ppm (0.013 ft + 2 ppm)
Extended Range: 10 mm + 2 ppm (0.033 ft + 2 ppm)
Prism mode
Standard mode: 1.2 sec
Tracking mode: 0.4 sec
DR mode
Standard mode: 1–5 sec
Tracking mode: 0.4 sec
Magnification: 30×
Aperture: 40 mm (1.57 in)
Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft)
Shortest focusing distance: 1.5 m (4.92 ft)–infinity
Illuminated crosshair: Variable (10 steps)
Optional Accessories:
• 2” Robotic Accessory Kit, Total Station
• Total Station Robotic Battery & Charger
Internal Memory: 1GB
Data Transfer: RS232C compatible, USB
Optional Accessories:
• 3” Robotic Accessory Kit, Total Station
• Total Station Robotic Battery & Charger
LockNGo FastTrack technology
GeoLock GPS-assist technology
Alphanumeric keypad
Face 1: Colored, backlit touch screen display
Face 2: Monochrome backlit display Windows CE interface Li-Ion batteries
12-hour battery life
Dustproof and water resistant (IP55)
Optional Accessories:
• Total Station Robotic Battery & Charger
• Pole, 12’ Prism
Rugged and lightweight
Bluetooth enabled
Dual axis compensation
50,000 point storage
Optional Accessories:
• Prism, Mini Topcon w/ Case
• Case, Carrying
• Data Collector Package
40’ Boom Lift
Specifications:
Maximum Working Height: 46’
Maximum Platform Height: 40’
Maximum Horizontal Reach: 31’8”
Lift Capacity: 500 lbs
Power Source: 49 HP
60’ Boom Lift
Specifications:
Fuel Type: Dual Fuel, Diesel Fuel Tank Capacity: 40 gal (151.42 L)
Platform Size: (L x W): 36” x 96” (0.91 m x 2.44 m)
Overall Width: 7’11” (2.41 m)
Weight: 22,750 lbs (10,319 kg)
Fuel Tank Capacity: 20 gal
Fuel Type: Diesel Weight: 12,310 lbs
Optional Accessories:
• Safety Harness & Lanyard
Platform Height: 60’3” (18.36 cm)
Horizontal Outreach: 49’ 6” (15.09 m)
Optional Accessories:
• Safety Harness & Lanyard
Platform Capacity - Unrestricted: 500 lbs
Workforce Boom Lift 45’ Towable
Specifications:
Working height: 51’
Platform height: 45’
Horiz. outreach (from centerline): 27’
Horiz. outreach (from edge of footpad): 21’
Up and over height: 20’ 9”
Lift capacity: 500 lbs
Length - stowed: 20’ 8”
Width stowed: 5’ 6”
Height stowed: 6’ 8”
Platform size: 4’1” x 2’ 9”
Jib - length: 4’ 3”
Tow speed rating: 65 mph
Leveling capability: 12.5 °
Tire size: ST 225 / 75 R15
Power source: 4 x 6 V 245 amp-hr
Weight 4,200 lbs
62’ Track Electric Boom Lift
Specifications:
Working Height: 62’ 3”
Platform Height: 55’ 9”
Side Outreach: 32’ / 176 lbs - 28’ / 310 lbs - 23’ / 510 lbs
Rotation: 360 (not continuous)
Basket Dimensions: 57 x 28 x 43
Transport Length: 17’ 4” - 15’ 2” (without basket)
Transport Width: Min 31.1” / Max 44”
Height in Stowed Position: Min
78.4”/ Max 82.7” (with stablizers in position)
Overall Outrigger Footprint: 9’ 6” x 9’ 8”
Driving Speed: 0-1.24 MPH
Gradability: 32º
Platform Capacity: 440 lbs
Gasoline Engine: Honda GX39011HP @ 3600 RPM
Total Weight of the Machine: 5,100 lbs
51’ Articulating Boom Lift
Specifications:
Working height: 55’ 10”
Platform height: 49’ 10”
Horizontal outreach: 35’ 2”
Up and over height: 21’ 8”
Lift capacity: 500 lbs
Platform size: 7’ 6 in x 2’ 7”
Length: 24’ 11”
Transport length: 19’ 4”
Width: 7’ 7”
Height - stowed: 7’ 3”
Transport height: 7’ 7”
Wheelbase: 6’ 6”
Ground clearance: 16”
Tilt alarm: 5 °
Drive speed: 0.5 - 3.4 mph
Gradeability: 50%
Engine: 31 kW - 42 hp
Hydraulic tank capacity: 26 gal
Fuel tank capacity: 19.8 gal
Weight: 17,750 lbs
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
• Safety Harness & Lanyard
55’ Lightweight Boom Lift
Specifications:
Working Height: 61’3”
Platform Height: 55’3”
Horiz. Outreach (from centerline): 3’5”
Horizontal Outreach (from edge of footpad): 27’4”
Up and Over Height: 23’1”
Lift Capacity: 500 lbs
Engine Manufacturer: Kubota
55’ Towable Boom Lift
Specifications:
Working height: 61’ 3”
Platform height: 55’ 3”
Horizontal outreach (from centerline): 33’ 5”
Horizontal outreach (from edge of footpad): 27’ 4”
Up and over height: 23’ 1”
Lift capacity: 500 lbs
Length - stowed: 23’ 8”
Width stowed: 5’ 7”
Height stowed: 6’ 9”
Platform size: 4’ 1” x 2’ 9”
Turntable rotation: 350° noncontinuous
Engine Power: 31 HP
Engine Capacity: 15 gal
Fuel Type: Gas
Weight: 6,000 lbs
Jib - length: 4’ 3”
Tow speed rating: 65 mph
Leveling capability: 12.5 °
Power source: 4 x 6 V 245 amp-hr
Tongue weight: 335 lbs
Weight: 4,800 lbs
Widest Point: 14’ 8”
Widest Point: 15’
60’ - 61’ Articulating Boom Lift
Specifications:
Working Height: 67’ 7”
Platform Height: 61’
Horizontal Outreach: 40’
Up and over height 27’ 7”
Lift Capacity: 500 lbs
Platform Size (L x W): 6’ x 2’ 7”
Engine Manufacturer: Kubota
65’ - 66’ Boom Lift w/ Jib
Specifications:
Max Platform Height: 65’
Max Horizontal Reach: 54’ 2”
Max Weight Capacity: 660 lbs
Platform Length: 3’ 6”
Platform Width: 8’
Platform Rotation: 160 degree
Overall Width: 98”
Turning Radius: 18’ 2”
Wheelbase: 8’ 3”
Optional Accessories:
Engine Model: T4i
Engine Power: 36.5kW (49.6 hp)
Tank Capacity: 40 gal
Fuel Type: Diesel Weight: 21,165 lbs
Overall Height Stowed: 9’ 3”
Overall Length: 31’ 10”
Ground Clearance: 16.30”
Operating Weight: 25,160 lbs
Maximum Speed: 3 mph
Capacity - Fuel Tank: 35 gal Diesel
80’ Articulating Boom Lift w/ Jib
Specifications:
Fuel Tank Capacity: 39 gal
Fuel Type: Diesel
Platform Capacity - Unrestricted: 500 lbs
Machine Length: 36’ 6”
Machine Width: 8’ 2” (2.49 m)
Platform Dimensions (L x W): 8’ x 3’
Horizontal Outreach: 51’ 10”
Platform Height: 80’
Up and Over Height: 32’ 1”
Optional Accessories:
85’ Boom Lift w/ Jib
Specifications:
Overall Length: 36.6’ (11,160 mm)
Overall Width: 8.5’ (2,600 mm)
Closed height: 9’ 2”
Wheelbase: 12.1’ (3,700 mm)
Operating Weight: 30,159 lbs (13,680 kg)
Fuel Capacity: 39.9 gal
Fuel Type: Diesel
Platform Weight Capacity: 500.4 lbs
Platform Length 96.1”
Platform Width 29.9”
Max Horizontal Reach 76’ 8”
Work height: 91’
Z30 Electric Articulating Boom Lift
Specifications:
Maximum Working Height: 35’ 2”
Maximum Platform Height: 29’ 2”
Maximum Horizontal Reach: 20’ 6”
Platform Length: 2’ 6”
Platform Width: 3’ 11”
Height - Stowed: 6’ 6”
Length - Stowed: 17’ 5”
Storage Height: 7’ 4”
Storage Length: 12’
Width: 3’ 11”
Wheelbase: 5’ 3”
Ground Clearance - Center: 3.5”
Lift Capacity: 500 lbs (227 kg)
Optional Accessories:
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
Power Source: 48 V DC (8) 6 V batteries, 350 Ah capacity)
Weight: 14,599 lbs (6,622 kg)
Z45 - Z46 Articulating Boom Lift
Specifications:
Overall Length: 18.25’
Overall Width: 7.52’
Overall Height - Mast Lowered: 6.93’
Wheelbase: 6.67’
Ground Clearance: 15.36”
Max Platform Height: 45.94’
Max Horizontal Reach: 25’
Platform Inner Length: 72.05”
Forklift 4,000 lb. Electric
Specifications:
Type: Single Reach
Power Voltage: 36V
Capacity @ Rated Load Center: 4,000 lbs
Maximum Fork Height: 20’
Fork Width: 3.9”
Fork Spacing- out-to-out max. 1: 31.5”
Tilt Angle - forward/backward degrees 3/4
Overall Length: 76.1”
Length to Fork Face: 55”
Overall Chassis Width: 41.5”
Overall Lowered Height: 107”
Max Platform Weight Capacity: 500 lbs
Max Working Height: 52.5’
Platform Inner Width: 29.93”
Operating Weight: 13,675.3 lbs
Fuel Capacity: 17.1 gal
Hydraulic System Fluid Capacity: 24 gal
Max Speed: 5 mph
• Safety Harness & Lanyard
Optional Accessories:
Overall Height to top of overhead guard: 95”
Overall Height with Extended Mast: 290”
Minimum Outside Turning Radius: 70.74”
Grade Clearance 5: 15.5 %
Travel Speed Loaded/Empty - standard 6): 7.5 mph
Truck Weight: 9,050 lbs
Wheelbase: 61.5 in
Battery max. capacity - A/H (6 hr rating): 1,120
Forklift 5,000 lb. Capacity
Specifications:
Length To Fork Face: 100.8” (2,560 mm)
Height Mast Lowered: 84.5” (2,150 mm)
Top of Overhead Guard: 81.7” (2,074 mm)
Ground Clearance Lowest Point of Mast: 4.6” (117 mm)
Horsepower at 2,700 rpm: 50.3 hp (37.5 kW)
Weight: 7,990 lbs (3,620 kg)
Fuel Type: Propane Capacity: 5,000 lbs (2,500 kg)
Fork Size L x W x H: 42” x 4” x 1.6” (1,070 mm x 100 mm x 40 mm)
Maximum Lift Height: 188”
Maximum Load at Full Height: 3,950 lbs
33#
Forklift 19’ 5,000 lb. Lift Cap
Specifications:
Maximum Lift Height: 18’ 10”
Maximum Forward Reach: 11’ 3”
Reach at Maximum Height: 1’ 10”
Height, Stowed: 6’ 6”
Length, Stowed (without forks): 12’ 3”
Wheelbase: 7’ 6”
Maximum Lift Capacity: 5,500 lbs
Lift Capacity at Maximum Height: 4,400 lbs
Lift Capacity at Maximum Reach: 1,900 lbs
Electrical System Voltage: 12V
Hydraulic Tank Capacity: 18.5 gal
Diesel Fuel Tank Capacity: 15.8 gal Weight: 10,360 lbs
Forklift 42’ Rough Terrain 6,000 lb. Lift Cap
Specifications:
Overall Height: 7.9’
Net Power: 110 HP
Fuel Capacity: 35 gal
Fuel Type: Diesel
Max Lift Capacity: 6,700 lbs
Max Lift Height: 42’
Forklift 55’ RT 12,000 lb. Lift Cap
Specifications:
Forklift 55’ RT 10,000 lb. Lift Cap
Specifications:
Operating Weight: 34,160 lbs
Rated Load Capacity: 10,000 lbs
Maximum Lift Height: 55.1’
Load at Maximum Height (Stabilizers Down): 5000 lbs
Load at Maximum Reach (Stabilizers Down) 2,500 lbs
Maximum Forward Reach: 42.5’ Height: 8.4’ Width: 8.4’
Wheelbase: 12.0’
Ground Clearance: 18” Fuel Tank: 38 gal
Forklift 43’ Rough Terrain 9,000 lb.
Specifications:
Rated Load Capacity: 9,000 lbs
Maximum Lift Height: 43’
Load at Max Height - No Stabilizers: 7,000 lbs
Maximum Forward Reach: 31.50’
Load at Max Reach - No Stabilizers: 1,200 lbs
Top Travel Speed: 20.30 mph
Load at Max Height: 7,000 lbs
Specifications:
Max Working Height: 18’ 10”
Capacity: 500 lbs
Steel Platform: 50” x 26.5”
Machine Width: 30.5” 13’ Electric Scissor Lift
Load at Max Reach: 1,200 lbs Operating Weight: 26,525 lbs
8’ Width: 7.94’
Wheelbase: 11’
Length to Fork Face: 20.50’
Ground Clearance: 19”
Turning Radius Over Tires: 12’
Fuel Tank: Diesel 38 gal
Machine Length: 4’ 8” Platform Height Stowed 2’ 11”
1,950 lbs
Safety Harness & Lanyard
19’ Electric Scissor Lift
Specifications:
Max Working Height: 25’
Platform Height: 19’
Overall Length: 72”
Overall Height: 79”
Overall Width: 30”
Platform Width: 29”
20’ Electric Scissor Lift
Specifications:
Max Working Height: 25’ 11”
Capacity: 800 lbs
Machine Width: 2‘ 8”
Machine Length: 8’ Weight: 3,574 lbs
26’ Electric Scissor Lift
Specifications:
Max Working Height: 32 ft 1 in
Capacity: 500 lbs
Machine Width: 2 ft 8 in
Machine Length: 8 ft
Weight: 4,413 lbs
32’ Electric Scissor Lift
Specifications:
Max Working Height: 38’ 1”
Capacity: 700 lbs
Machine Width: 3’ 10”
Machine Length: 8’
Weight: 5,218 lbs
40’ Electric Scissor Lift
Specifications:
Max Working Height: 45’ 2”
Capacity: 770 lbs
Machine Width: 3’ 10”
Machine Length: 8’ 2”
Height Stowed folded rails: 8’ 5”
Height stowed lowered rails: 6’6” Weight: 6,871 lbs
33’ RT Scissor Lift 4WD
Specifications:
40% Gradeability
Foam-filled, Rough-Terrain Tires
Working Height: 39’
Platform Height: 33’
Lift Capacity: 1,000 lbs
Height Stowed rails lowered: 6’ 3.5”
Width: 5’ 10”
Length: 10’ 5”
Engine: 18.5 kW - 24.8 hp
Load Capacity: 500 lbs
Machine Weight: 3,313 lbs
Weight: 9,063 lbs Platform Size - Extended L x W: 12’ 2” x 4’ 9” Fuel capacity: 10 gal diesel
Optional Accessories:
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
Optional Accessories:
• Safety Harness & Lanyard
20’ Single Man Lift Self-Propelled
Specifications:
Drive: Yes
Power Source: DC
Load Capacity: 350 lbs
Closed Height: 6’ 6”
Max. Work Height: 25’ 11”
Platform Extension: 20”
Overall Length: 53”
Overall Width: 31-1/2”
Platform Width: 29-1/2”
Max. Platform Height: 19’ 9”
Handrail Height: 44-3/4”
Stowed Height: 78”
Casters: No
Drive Wheel: Yes
Max. Drive Height: 19’ 9”
Max. Speed Elevated: 1/2 mph
Max. Speed Lowered: 2-1/2 mph
Ground Clearance: 2-1/2”
Mast Vertical: Aluminum Mast
Batteries Included: Yes
Gross Vehicle Weight: 2,451 lbs
Includes Battery Charger
30’ Electric Push Around Lift
Specifications: Optional
Weight: 870 lbs
Product Type: Aerial work platform
Working Height: 35’
Capacity: 350 lbs
Lift Height: 30’
Platform Height: 360”
Motor Voltage: 12 V DC battery
Charger Type: Smart charging system
Charger Included: Yes
Large Material Lift 2124
Specifications:
Height - Stowed: 84”
Length - Stowed: 34”
Height - Operating: 84”
Length - Operating: 73”
Base Width: 31.25”
Width with Stabilizer Legs: 74”
Ground Clearance: 2.5”
Minimum Load Height: 6”
Maximum Height (forks down): 22’ 1”
Maximum height (forks reversed) 23’ 1”
Base L x W: 53” x 29” Stowed Height: 6’ 6”
Machine Width: 2’ 5”
Harness & Lanyard
Optional Accessories:
Maximum Height: 23’ 11”
Lifting Capacity: 650 lbs
Lift Weight: 366 lbs
Small Material Lift 2412
Specifications:
Maximum Height (forks up): 13’
Maximum Height (forks down): 12’
Lift Capacity: 400 lbs
Height - Stowed: 62.8”
Length - Stowed: 23”
Length - Operating: 48”
Sheet Rock Lift
Specifications:
Load Capacity: 150 lbs
Lifting Height Maximum: 14’9”
Lifting Height Minimum: 48”
Lift Weight: 99 lbs
Drywall Dimensions: 4’ x 12’
Width - Stowed: 26.4”
Width - Operating: 26.4”
Winch Cranks: 8/ft
Basic Weight: 195 lbs
Optional Accessories:
Base Height: 7”
Base Footprint (open): 55” x 55” x 52”
Use: Drywall Lift
Optional Accessories:
Jack, Electric Pallet
Specifications:
Basic Capacity: 4,500 lbs
Maximum Fork Height: 8.1”
Voltage: 24 V
Length To Fork Face: 64.8”
Moving & Lifting Equipment
Chassis Width: 28.3”
Chassis Height: 8.1”
Gross Weight: 913 lbs
Rol-a-Lift (Pair) Hydraulic Jack
Specifications:
Model: M-4 (1 pair)
Capacity Per Pair: 4,000 lbs
Maximum Hydraulic Lift: 12-3/16”
Lift Type: Hydraulic
Standard Wheels: Phenolic
Wheel Size: 6” x 2”
Overall Height: 44”
Hydraulic Jack, 60 Ton
Specifications:
Minimum Height: 12”
Load Capacity: 60 tons
Piston Lift : 6-3/4”
Car Transmission Jack
Specifications:
Forward Tilt (Deg): 60 Degree
Maximum Height (in): 31 Inch
Maximum Height (mm): 790mm
Truck, Electric Stair Climber
Specifications:
Flat Surface Moving: 650 lbs (1 person);
1,500 lbs (2 people)
Stair Climbing: 450 lbs (1 person);
1,000 lbs (2 people)
Tailgate Lifting: 450 lbs (1 person);
1,000 lbs (2 people)
Machine Dimensions (L x W x H):
17” x 24” x 60”
Tripod, 7’ Retreival System
Specifications:
Length: 60’
Manufacturer Part Number: 7508
Weight: 88 lbs
Height Range: 61”- 97”
Weight Capacity: 310 lbs
Dump Hopper
Specifications:
Length: 64”
Width: 57-3/4”
Height: 46”
Capacity: 2 cubic yards
Capacity: 7,000 lbs
Base thickness: 1/4”
Overall Width: 23”
Caster Centers: 18”
Overall Depth: 16-1/2”
Forks Adjustable: 5”-19-1/2”
Fork Length: 6”
Fork Thickness: 1-1/8”
Weight Per Pair (Standard): 325 lbs
Maximum Height: 18-5/8”
Weight: 82 lbs
Optional Accessories:
• Handle, Jack
Optional Accessories:
Capacity (Lbs): 2,000 Lbs
Weight: 180 lbs
Machine Weight 165 lbs
Adjustable Strap Bars: 2
Strap Bar Length: 26”
Sealed Battery: 12 V 32 AH Maintenance free and rechargeable
Lifting Height: 40” (101.6 cm)
Machine Capacity: 1,500 lbs (682 kg)
Maximum Working Load: 5,000 lbs
Tensile Strength: 5,000 lbs
Cable Material: Galvanized steel
Approvals for Certifications: ANSI Z359.1-2008, OSHA 1926.502
Optional Accessories:
Construction: Steel
Dump angle: 38º
Fork opening: 3” x 28-1/2”
Wall gauge: 7
Weight: 805 lbs
Pipe Products & Trench Safety
Hydraulic Vertical Shoring System Set 4
Specifications:
Standard Rail (lg X CB): S-5x4269
Crossbrace width: 42”-69”
Cylinders: 2
Weight: 78 lbs
,15” - 30” Muni Ball
Optional Accessories:
• Shoring Board, Chudoform 3/4” x 4’ x 8’
• Hydraulic Sys Hand Pump Bucket 5 Gal
• Release Tool
• Removal Hook
Specifications: Optional Accessories:
Material: Rubber Brand: Cherne
GTIN: 00675115262133
Maximum Pressure: 13 PSI / 30’
Inflation Pressure: 35 PSI
Bypass Type: Female NPT
Bypass Diameter: 3”
Range of Use: 14-16”
,15” - 32” Flow Through Muni Ball
Specifications:
Type: Pneumatic
Size: 15”–32”
Material: Natural rubber with full body cording and aluminum end plates
Bypass: 4” MNPT bypass
Valve Style: Removable 1/4” & 1/2”
inflation valves
Includes: 3/4” eye bolts (2) & Rupture
Disc
Weight: 121 lbs
Industry: Pipe maintenance
,15” - 30” Air Test Plug
Specifications: Optional
Nominal size: 15 to 30”
Diameter (min/max): 14.50” / 30.50”
Plug length: 51.00”
PSI: 7.5 to 10
,8” - 12” Test Plub
Specifications:
Type: Pneumatic
Nominal Size: 8 to 12”
Min. Diameter: 7”
Max. Diameter: 12.25”
Max. Back Pressure: 25’ of Head
Required Inflation Pressure: 20 PSI
Deflated Size: 16” L x 6.75” D
24” - 48” Air Test Ball
Specifications:
Type: Pneumatic
Size: 24” - 48”
Material: Full body corded rubber with aluminum end plates
Weight: 138 lbs
8’ x 10’ Manhole Shield
Specifications:
Model: 810MHXLSW
Dimensions (L x W): 8’ x 10’
Weight: 5,370 lbs
Pipe Clearance: 52”
Shield Capacity: 660 lbs/sq ft
Depth of Cut: 25’ - 41’
8’ x 12’ Trench Shield
Specifications:
Model: 812MHXLD
Dimensions (L x W): 8’ x 12’ Weight: 5,800 lbs
Pipe Clearance: 60”
Capacity: 2,040 lbs/sq ft
8’ x
20’
Trench Shield
Model: 820 XLD
(lbs): 8,920
Pipe Clearance (in): 64 Sheild Capacity: 1,320 (Ht. X Lg.) 8’H x 20’ L
6’ Build-A-Box Panel
Ultra-light double wall aluminum
Max spread: 60”
Pick-up truck transportable
Can be hand-assembled in minutes
Exclusive corner end posts
Tongue and groove design
Foam filled
Narrow sidewalls
approximately 3’8” with spreaders fully compressed/retracted
Sidewalls are smooth to prevent dirt build-up and reduce friction
Pipe Products & Trench Safety
Valve Style: Removable 1/4” & 1/2”
inflation valves
Other: I-Series
Includes: 3/4” Eye bolts (2) & Rupture Disc or PRV
Lifting Bridle, Trenchbox
Lifting Bridle, Trenchbox
Plumbing Tools
Snake,
1/2” x 75’ Power
Specifications:
Weight: 65 lbs (without cable)
Capacity: 100’ of 1/2” Flexicore Wire
Rope Center Cable
Motor: 1/3 hp Heavy Duty, Capacitor Start, Thermal Overload Protection, Forward/Off/Reverse Switch
Snake, 3/4” x 100’ Power
Specifications:
Weight: 80 lbs without cable
Motor: 1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Reverse Switch
Foot Pedal: Leaves operator’s hands free to control cable. Uses air pressure, so there’s no electrical contact between pedal and motor.
Wheels: 10” semi-pneumatic with roller bearings
Snake, Electric Water Jet
Pressure: 1500 PSI
Flow: 1.7 gpm
Motor: 1-1/2 HP, 13 amp with GFCI
Reel Capacity: 150’ x 1/4” hose
Weight: 111 lbs (50 kg)
Dimensions with Reel (L x W x H):
28” x 15” x 34”
Dimensions without Reel (L x W x H):
28” x 15” x 14”
Uses: Clear grease, sand and ice
Cutter, 2” - 6” Cast Iron
Specifications:
Weight: 26 lbs
Pipe/Tube Size: 1-1/2” - 6”
Cutting Capacity: 1-1/2” (Min), 6” (Max)
Cutter, 4” - 6” Pipe
Pipe Capacity: 4 to 6”
Product Weight: 22 lbs
Threader, Power Handheld
Motor: Universal, 1/2 HP, 115V or 230V 50/60 Hz
Switch: Double-throw reversible
Material: Cast Aluminum
Vise, Portable Tripod
Specifications:
Overall Height: 37 in
Leg Style: Folding
Pipe Capacity: 1/8 to 2-1/2 in
Foot Pedal: Uses air pressure, so there’s no electrical contact between pedal and motor
Power Cord: 20’, 3 wire, equipped with ground fault circuit interrupter
Wheels: 8” Semi-pneumatic tires, with roller bearings
Power Cord: 20’, 3 wire, vinyl covered with molded plug. Equipped with ground fault circuit interrupter.
• Cutter,
Cables: 3/4” for 4-10” lines; 5/8” for 3-6” lines; 1/2” for 2-3” lines and 4” lines without roots
Cutter Set: Spear Head, 2” U-Cutter, 3” Heavy-Duty Side Cutter, 3” Heavy-duty Saw Blade, and Large Retriever
Grade: Compact, portable jet fits into the trunk of a car
• Snake, 1/8” and 1/4” Nozzle Set
Hose Length: 150’ removable hose reel reduces height to 14-1/2”
Pressure: 1500 PSI, 1.7 gpm
Motor: 1-½ hp dual capacitor sealed motor with GFCI pulls only 13 amps
Features: Slide out handle; 8” wheels for easy transport
For cutting cast iron, concrete and clay pipe where space is limited.
Spindle Speed: 26-30 rpm; 1/8”-2” Pipe (3mm-50mm); 1/4”-1” (6mm-25mm)
• Die, Threader
Weight: 25 lbs Power Drive only
Length: 28-1/4”
Height Range: 36 in - 37 in
Pipe Size Range: 0.13 in - 2.5 in
Tool Weight: 32 lbs
• Cutter, Snake
Snake
Power Tools & Hand Tools
Brake, Aluminum Siding
Specifications: Optional
14” throat depth; wide, 2-3/8” mouth opening; inside working pockets
Length: 10’ 6” Weight: 10’ 6” brake, 106 lbs
Breaker, 40 lbs Electric
Bending capacities: All vinyl; soft aluminum up to .030; galvanized steel up to 28 ga; copper sheet and coil up to 16 oz
Specifications: Optional Accessories:
Amps: 15
Impact energy: 35 Joules
Max watts out: 1600 w
Tool length: 30”
Vibration measurement: 6.8 M/S²
Breaker, 70 lb. Electric
Impact Energy: 61’ - lbs
Vibration Control: Yes - SHOCKS
Vibration Measurement: 6.6 m/s2
Amps: 15 Amps
Chain Saw, Gasoline
Displacement: 56.5 cc (3.45 cu in) Engine Power: 2.8 kW (3.8 bhp) Powerhead Weight: 5.9 kg (13.0 lbs)
Capacity: 560 cc (18.9 oz)
Chuck type: 1-1/8” hex
Loaded speed (BPM): 1460 BPM
Power tool type: corded Weight: 40.5 lbs
Max Watts Out: 1,600 W
Speed (BPM): 900 bpm
Length: 30.75”
Guide Bar Lengths: (Recommended ranges) 40 to 50 cm (16” to 20”) Chain Oil Capacity: 330 cc (11.2 oz) Oilomatic Chain: .325” RM3
Chain Saw, Pole Top w/ Tele.
Displacement: 31.4 cc (1.9 cu in) Engine Power: 1.05 kW (1.4 bhp)
(with cutting attachment): 7.4 kg (16.3 lbs)
Drill, Magnetic Base
Specifications:
Power Source: Corded Electric
Maximum Rotational Speed: 450 RPM
Voltage: 240 Volts
Amperage: 10 Amps
Grinder, 4”- 4-1/2” Hand
Specifications:
Wheel Diameter: 4-1/2”
Current: 11 A
Max. Speed: 11,000 RPM
Minimum Speed: 11,000 RPMS
Chain Oil Capacity: 220 cc (7.4 oz)
Oilomatic Chain: 3/8” PMM3, 12” Bar and Chain Shaft Length: 7’6” to 11’6”
• Breaker Tool, 1” and 3” Chisel
• Breaker Tool, Point
Thread Size: 5/8 in-11 Voltage: 120V AC Tool Weight: 4.3 lbs
Grinder, 5” - 6” Hand w/ Dust Shroud
Specifications:
Wheel Diameter: 4-1/2”; 5”
Current: 13 A Max. Speed: 11,000 RPM Switch Type: Slide
Thread Size: 5/8 in-11
Dust Management: Dust Shroud
Voltage: 120V AC
• Diamond Turbine Wheel, 4” - 5”
• Vacuum, Sm 8 Gal Dust Collector HEPA
Power Tools & Hand Tools
Grinder, 7”- 9” Hand
Specifications: Optional Accessories:
Depth: 24.02”
Height: 4.92”
Width: 9.76”
Weight: 14.66”
Hammer, Rotary Spline
Specifications:
Voltage: 120
Rate of Impact (BPM): 1,700 - 2,900
Impact Energy: 8.1
Length: 18”
Style: Rotary Hammer
Brand: BOSCH
Speed (RPM): 170 - 340
Porta-Power, 10 Ton Set
Specifications:
Item: Hydraulic Maintenance Set
Tonnage Capacity: 10 Ton
Stroke Length: 6”
Max. Pressure: 10,000 PSI
Number of Pieces: 14
Application: For Bending, Pushing, and Spreading
Wheel Diameter: 7”
Amperage:15 amps
Maximum Speed: 8,500 RPM
Arbor Size: 5/8-11
• Wrench
• Goggles
• Diamond Turbine Wheel, 7” Const Premium
AMPS: 13
Description: Rotary Hammer
Manufacturers Part No.: 11265EVS
Chuck Size: 1- 5/8”
Weight: 15.1 lbs
Type: Corded
• Hammer, Bit Chisel
• Hammer, Bit Point
• Hammer, Bit 3” Chisel
• Spline Adapter, Rotary Hammer
Includes: Hand Pump Assembly with Hose, Heavy Duty Spreader Ram, 2 3/4” Rubber Head, Rubber Faced Flat Base, Ram Toe and Plunger Toe, Chrome Plated, Long Life Ram Plunger, Serrated Saddle, Wedge Head, Combination Head, 27, 18, 10 and 4-1/8” Extension Tubes.
Sander/Vacuum Kit, Drywall Specifications:
Power: 120 VAC, 60 HZ
Amps: 4.7 Amp, AC Only Amps
Speed: Variable 1,400 - 2,000 rpm
Saw, Recipro
Specifications:
Power Source: Corded
Tool Style: Handheld
Current: 12A
Stroke Length: 1-1/8”
Stroke Type: Straight
Min. Strokes per Minute: 0
Max. Strokes per Minute: 2,900
Steamer, Wallpaper
Pad Size: 8 7/8 “ Length: 62“
Pad: Foam-Backed
Pivoting Head: Yes
Vibration Reduction: No
Tool Length: 17-1/2”
Tool Weight: 7.2 lbs
Voltage: 120 VAC
Cord Length: 6’
• Disc, 9” Drywall Foam 120 Grit
• Disc, 9” Drywall Pad 100 Grit
• Vacuum, HEPA 10 Gal Drywall Sander
• Vacuum, Wet/Dry Shop
Optional Accessories:
• Wrench
Specifications: Optional Accessories:
Depth: 18”
Height: 16”
Width: 18”
Amperage: 12.5 amps
Hammer, Rotary Max Specifications:
Dimensions: H 18.5”, W 7.09”, D 18”
Amperage:10 amps
Blow energy: 4.6 ft lbs
Chuck Size: 1-9/16”
Chuck Type: SDS-Max
Cord Length: 8.2’
Tank Capacity: 1.9 gal
Voltage: 120V
Watts: 1,500 W
Weight: 21.2 lbs
Cordless/Corded: Corded
Drill/ Driver Type: Rotary Hammer
Included: Tool Case
Maximum Speed (RPM): 680 RPM
Power Tool Features: Keyless Chuck
Product Weight: 14.6 lbs
• Hammer, Bit 3” Chisel
• Hammer, Bit 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 7/8” Drill
• Core Bit, 1-1/2” Carbide
• Spline Adapter, Rotary Hammer
Pump, 2” Diaphragm
Specifications:
Discharge Size: 2” (51 mm)
Flow Rate: 50 gpm (189 L)
Power: 4 HP (2.9 kW)
Includes: Screen for intake
Engine: Honda GX-120
Fuel Tank: 0.66 gal (2.5 L)
Starting Method: Recoil
Total Head: 25’ (8 m)
Maximum Solid Size: 1” (25 mm)
Weight: 138 lbs (63 kg)
Pump, 3” Diaphragm
Specifications:
Discharge Size: 3” (76 mm)
Flow Rate: 90 gpm (340 L)
Power: 4 HP (2.9 kw)
Includes: Screen for intake
Engine: Honda GX-120
Fuel Tank: 0.66 gal fuel tank (2.5 L)
Starting Method: Recoil
Total Head: 2’ (8 m)
Max Solid Size: 1.5” (38 mm)
Weight: 139 lbs (72 kg)
Pump, 6” Dri-Prime w/ Trailer
Specifications:
Max capacity: 2,290 USGPM (520 m³/hr)
Max impeller diameter: 11.8” (300 mm)
Max solids handling: 3” (75 mm)
Max operating temp: 176 °F (80°C)*
Max working pressure: 91 PSI (6.3 bar)
Max suction pressure: 58 PSI (4 bar)
Max casing pressure: 138 PSI (9.5 bar)
Max operating speed: 2,200 rpm
Suction connection: 6” (150 mm)
flange
Delivery connection 6” (150 mm)
flange
Open trailer
Fuel capacity 60 US gal
Weight dry 2750 lbs
Weight wet 3170 lbs
Dimensions L 119” x W 66” x H 87”
Pintle Hitch
Hydrostatic Pressure Pump
Specifications:
Model: DPH3B
Type: Gas (Honda) Diaphragm
Pump: Triple Diaphragm
Inlet/Outlet: 1” Hose Barb/1/2” Quick
Connect
PSI/GPM: 550 / 11
Weight: 116 lbs
Shipping Dimensions: 25” x 21” x 17”
Shipping Weight: 136 lbs
Optional Accessories:
• Hose, 2” x 20’ Intake
• Hose, 2” x 50’ Discharge
Optional Accessories:
• Hose, 3” x 20’ Intake
• Hose, 3” x 50’ Discharge
• Hose, 3” x 25’ Discharge
• Screen, Intake Hose
Optional Accessories:
• Hose, 6” x 10’ Intake
• Hose, 6” x 20’ Intake
• Hose, 6” x 50’ Discharge
• Screen, Intake Hose
• Bend, 6” 90 Degree Godwin QD
Optional Accessories:
Pump, 2” Electric 1/2 HP - 1HP
Specifications:
Impeller Disc Size: 2”
Water Capacity: 87 gpm
Power: 1 HP
Phase: Single
Voltage: 115 V
Cable Length: 50’
Pump Diameter: 7.4”
Overall Height: 15.4”
Operating Weight: 33 lbs
Pump, 3” Trash
Specifications:
Suction x Discharge: 3” x 3”
Maximum Water Capacity: 396 gpm
Maximum Lift: 25’
Maximum Head: 95’
Maximum Pressure: 41.1 PSI
Maximum Solid Intake: 1.5”
Fuel Tank Capacity: 1.58 gal
Operating Weight: 142 lbs
Pump, 4” Trash
Specifications:
Suction x Discharge: 4” x 4”
Maximum Water Capacity: 555 gpm
Maximum Pressure: 40 PSI
Maximum Solid Intake: 2”
Fuel Tank Capacity: 1.65 gal
Operating Weight: 216 lbs
Pump, 3” Electric w/ CB-10
Specifications:
Impeller Disc Size: 3”
Water Capacity: 170 gpm
Power: 2 HP
Phase: Single
Voltage: 230 V
Cable Length: 50’
Pump Diameter: 6.7”
Overall Height: 28.5”
Operating Weight: 67 lbs
Pump, 2” Trash
Specifications:
Maximum Water Capacity: 211 gpm
Maximum Lift: 25’
Maximum Head: 98’
Maximum Pressure: 42.4 PSI
Fuel Tank Capacity: 1.03 gal
Operating Weight: 97 lbs
Optional Accessories:
• Hose, 2” x 50’ Discharge
• Float Switch, Sump Pump
Optional Accessories:
• Hose, 3” x 20’ Intake
• Hose, 3” x 25’ Discharge
• Hose, 3” x 50’ Discharge
• Screen, Intake Hose
Optional Accessories:
• Hose, 4” x 20’ Intake
• Hose, 4” x 50’ Discharge
• Screen, Intake Hose
Optional Accessories:
• Hose, 3” x 25’ Discharge
• Hose, 3” x 50’ Discharge
Optional Accessories:
• Hose, 2” x 20’ Intake
• Hose, 2” x 25’ Discharge
• Hose, 2” x 50’ Discharge
• Screen, Intake Hose
Remediation & Drying Equipment
Air Conditioner, Portable
Specifications:
Cooling Capacity: 16,800 btu / 1.4 ton / 4.9 kW
Power Supply: 50 Hz/120 V 10 AMPS
Weight: 190 lbs.
Current Consumption: 8.5 A
Power Consumption: 1.96 kW
Refrigerant Type: R-410A
Maximum Hot Air Duct Length: 15 m
Condensate Tank: 18 L Cooling Area: 40 cu m
Dehumidifier, 200+ Commercial
Specifications:
Model: LGR 2800i – F410
Power: 8 A, 115 V
Water Removal AHAM (80° F/60% RH): 130 pints | 61.5 liters / day
Maximum Water Removal: (90° F/90%
RH): 200 pints | 94.6 liters / day
Water Removal Minimum: (80° F/20%
RH): 20 pints | 9.5 liters / day
Maximum Process Air: 400 cfm (679.7 cmh)
Air Filter: 3M HAF filter (Dri-Eaz part no. F421)
Dimensions L x W x H: 23” x 24” x 40.5” (103 cm × 58 cm × 61 cm)
Weight: 160 lbs (72.6 kg)
Dehumidifier, Drizair 80-139
Specifications:
Dimensions (L x W x H): 19.5” x 20” x 32”
Weight: 80 lbs (36 kg)
Maximum Water Removal at Saturation: 145 pints/day (68.6 L /day)
Water Removal AHAM (80° F/60 % RH): 64 pints/day (30 L/day)
Operating Range: 33° – 100° F (1° – 38° C)
Compressor Type: 6,670 btu Rotary
Process Air: 227 cfm
Drain Hose Length: 40’
Dryer, Carpet Turbo
Specifications:
Dimensions L x W x H: 18.3” x 17” x 18.8”
(47.8 cm × 43 cm × 47 cm)
Weight: 36 lbs (16 kg)
Speeds: 3
Power: 10 A
Rated Airflow: 3,500 cfm (5,947 cmh)
Cord Length: 25’ (7.6 m)
Operating Positions: 3 (0°, 45° and 90°)
Fan, Large Pedestal 30”
Specifications:
Motor: 1/3 hp, Open Air Over PSC-type ball bearing
Number of Blades: 3
Range of Motion: 70° oscillating sweep
Fixed Head Positioning: Yes
Style: Pivot-action head
Height: 58-65”, Adjustable Included: Screw knob
Uses: Economical cooling and air circulation for all environments; including warehouses, factories, offices, kitchens and more
Optional Accessories:
Optional Accessories:
Optional Accessories:
Optional Accessories:
Remediation & Drying Equipment
Fan, 42” 14,000 CFM Portable
Specifications:
Rating: 14,000 cfm at 550 rpm
Type: 42” diameter belt driven
Electrical Requirements: 115 V, 15 A
Weight: 210 lbs
Dimensions L x W x H: 26” x 50” x 51”
Motor: 1 HP /TEAO 1,725 rpm
Ozone Generator
Specifications:
Ozone Output Rate: 2,500 mg/hour (measured with free air not pure O2 input)
Dimensions L x W x H: 14” x 15”
x 5.5” (36 cm x 38 cm x 14 cm)
Weight: 22 lbs (10 kg)
Power Requirement: 120 V / 75 W / 60 Hz
Timer: Yes
Uses: Odor elimination, pest control an pathogen reduction
Scrubber, Air
Specifications:
Model: F284
Power: 3 A, 115 V, 60 Hz
Dimensions L × W × H: 18.2” x 24.6 ×
26.2” (46.2 cm x 62.5 cm × 66.5 cm)
Duct Sizes Intake: 12”
Outlet: 8”
Weight: 44 lbs (19.9 kg)
Frequency: 60 Hz
Minimum Air Movement: 250 cfm
Maximum Air Movement: 500 cfm
Filter System: 2-stage
Primary Filter: HEPA filtration technology
GFCI Outlet Protected: Yes
Power Cord Length: 25’ (7.62 m)
Scrubber, Air Large HEPA
Specifications:
Variable air movement (500–2000 CFM / 14.2–56.6 m3/min.) for versatile application and precise control on negative-and positive-pressure setups.
Weight: 124 lbs | 56.25 kg
Air movement: 500–2000 CFM | 14.2–
56.6 m3/m
Static pressure: 2.68” | 6.81 cm H2O
Filter Change Light: Indicates when primary (HEPA) filter needs to be changed Housing: Rotomolded polyethylene
Optional Accessories:
Dimensions H × D × W: 28.37” × 29.17” × 35.63”
Outlet duct size: 12”
• Amps: 7.7 A
• Voltage: 115V
• Frequency: 60 Hz
• Power cord: 25’
Optional Accessories:
Optional Accessories:
• Filter, F270 Stage 1 Prefilter
• Filter, F271 Stage 2 Prefilter
• Filter, F397 Carbon Filter
• Filter, F321 HEPA 500 Filter
• Flat Duct Per Ft
Optional Accessories:
Ladder, 32’ Aluminum Extension
Specifications:
Ladder, 40’ Aluminum Extension
Specifications:
Ladder, 60’ Aluminum Extension Specifications:
Industry Ladder Size: 60 ft
Extended Ladder Height: 47 ft
Weight: 179 lbs
Ladder, 10’ Fiberglass Step
Scaffolding & Ladders
Ladder, 12’ Fiberglass Step
Pro 24’ Set
Platform, 6’ Bakers Rolling
Frame Width: 29”
Adjustment: 2” Scaffold Platform Deck (L x W): 6’ x 29” Stackable: Yes (2 units max.) Platform Thickness: 5/8” with steel edge banding
Frame, 5’ x 5’ Scaffold
Catwalk, 7’ Scaffold
Specifications:
Guard Rail, 5’
Specifications:
Grade: Heavy duty 2 pieces make a complete Scaffold guard rail system with toeboard Material: Powder-coated, Yellow scaffold frames and arm braces Maximum Load Capacity: 1000 lbs
Guard Rail, 7’
Specifications:
Brace, 5 x 7’ Corner
Specifications:
Casters, 5” Scaffold
Specifications:
Casters, 8” Scaffold
Specifications:
Guard Rail, Post
Specifications:
Leveling Jacks, 24” L Adj.
Specifications:
Outrigger, 18” Scaffold
Specifications:
Plate, Base Scaffold
Specifications:
Decks, 6’ Plywood
Specifications:
Hooks, Pigtail S
Specifications:
Stem, 30” Adj. Scaffold
Specifications:
Pin, Stacking Scaffold Specifications:
Trailer, 6’ x 12’ Landscape
Specifications: Optional
Grade: Lightweight
Weight: 1,020 lbs
GVWR: 2,995 lbs
Ball Hitch: 2”
Trailer, 6’ x 12’ Enclosed
Specifications:
Trailer Type: 6’ x 12’ Enclosed
Brakes: Surge
Ball Hitch: 2”
Exterior Dimensions: (L x W x H):
15’11” x 7’6” x 7’6”
Interior Dimensions (L x W x H):
12’3” x 5’9” x 6’
Safety Chains: (2) 1/4” Grade 30 with Safety Latch Hook
Jack: 2,000 lbs., Top wind (bolted on)
Tongue Channel: 3”
GVW: 2,990 lbs.
Payload Capacity: 1,930 lbs
Wheel Diameter: 15”
Wheel Type: Radial
Rear Door (W x H): 61”x 65”
Side Door Width: 32”
Trailer, Hydraulic Equipment
Deck Dimensions (L x W): 10’ x 5’
Deck Style: Drop-down
GVW: 9,690 lbs
Grade: Lightweight
Trailer, 18’ Equipment
Specifications:
Model Number: 5CAM18FTT
GVWR: 11,960 lbs
Empty Weight: 2,800 lbs
Payload: 8,980 lbs
Deck Length: 18’
Trailer, Car
Specifications:
Model: 8218
Trailer Type: Car Hauler
GVWR: 7,000 lbs
Duty: Lightweight
Weight: 1,425 lbs
Trailer Dump, 6’ x 10’
Model: 3.5CAM610LPD GVWR: 8,050 lbs
Weight: 2,290 lbs
Weight Capacity 7,000 lbs
Hitch Type: Pintle
Binder, Chain
Chain, Tie Down
Strap, Ratchet
Overall Width: 102”
Between the Fenders: 81”
Deck Height: 16”
Brakes: Surge Pintle Hitch
Overall Trailer Length: 18 ft
Width: 6-1/2’
Brakes: electric Ball Hitch
Trailer, 7’ x 12’ Tilt Equipment
Trailer, Stump Grinder 4’ x 6’
Binder, Chain
Chain, Tie Down
Strap, Ratchet
Binder, Chain • Chain, Tie Down
Strap, Ratchet
• Hitch, 2-5/16” Ball • Hitch, Reese 2” Ball
Box Truck, 14’ Ford
Specifications:
Truck Length: 14’
Make: Ford
GVW: 11,500
Lightweight: 7,878
Mileage: $0.45
Box Truck, 24’
Specifications:
Lift Gate Capacity: 700 lbs
Door Height: 85”
Overall Truck Height: 12.5’
GVW: 26,000
Lightweight: 12,600
Mileage: $0.45 per mile
Dump Truck, 3 Yd Ford
Specifications:
Make / Model: Ford / F350
Availability: Milldale only
GVW: 19,500
Lightweight: 7,508
Mileage Cost: $0.55/mi
Pickup Truck, F250
Make / Model: Ford / F250
Grade: Lightweight
Weight: 5,891 lbs
GVW: 10,000 lbs
Axes: Dual
Bed Dimensions (L x W): 8’ x 5’ Mileage Cost: $0.45/mi
Pickup Truck, 1/2 Ton
Specifications:
Make: Dodge Truck Type: Pick-up
Availability: Only in Milldale
GVW: 6,600
Lightweight: 4,909
Mileage Cost: $0.45/mi
Rack Truck
Has lift gate GVW: 19,500
Lightweight: 8,500 Mileage Cost: $0.45/mi
GVW:8,600 Lightweight: 4,842 Mileage Cost: $0.45/mi Van, Transit T150 Specifications:
• Truck, Appliance Hand
Pad, Moving 52” x 80”
*Truck Fuel
Truck, Appliance Hand
Pad, Moving 52” x 80”
*Truck Fuel
*Truck Fuel
Hitch, Reese Pintle w/ 2” Ball
*Truck Fuel
Rental Protection Plan
1. YOUR RESPONSIBILITIES.
Rental customers or “lessees” are generally responsible for ALL COSTS AND EXPENSES ARISING IN CONNECTION WITH ANY LOSS, THEFT, DAMAGE TO OR DESTRUCTION OF RENTED ITEM(S) regardless of whether the rental customer or lessee was at fault. This can amount to thousands of dollars in additional expense, even for rental customers who maintain insurance (e.g., for deductibles, coverage limits, exclusions, etc.).
2. WHAT IS RPP?
Superior’s Rental Protection Plan (“RPP”) is an OPTIONAL program that ENABLES OUR CUSTOMERS TO LIMIT THEIR EXPOSURE TO MANY CLAIMS for physical damage to or destruction of “Covered Item(s)” when a covered loss occurs through no fault of the customer.
REP IS NOT INSURANCE, NOR IS IT A WARRANTY.
3. WHAT DOES RPP COST?
The fee for RPP (if offered) is the percentage (of the Rent) charged for RPP set forth on Page 1 of your Rental Contract solely with respect to Covered Item(s) during each Rental Contract Term. No RPP Fee is applied to purchases, delivery charges, fuel, or tax. All RPP fees are non-refundable.
4. HOW DOES RPP WORK, AND WHAT DOES IT COVER?
In exchange for your purchase of RPP, Superior agrees to waive its claims against you and your company for a portion of the charges identified in Section 5 of this Rental Protection Plan Guide with respect to Covered Item(s), enabling you to spend your valuable time and money on your business.
5.
THE
VALUE OF RENTAL PROTECTION
Our Optional Rental Protection Plan enables you to avoid costly downtime and expensive repairs and/ or replacements by:
(a) Covering:
(i) Repair/Replacement Costs: A portion of the cost of repairing and/or replacing Covered Item(s) which suffer physical damage during your rental (subject to the limitations set forth in Section 6 below and the reverse side or Page 1 hereof); AND
(ii) Rental Charges: 100% of the Rent that would otherwise be due under your Rental Contract during the period in which the Covered Item(s) is/are being repaired or replaced (as applicable); AND
(iii) Certain Other Costs: 100% of the following charges that would normally be due under your Rental Contract: late fees, transportation and storage fees and interest; AND
(b) Enabling You to Avoid Costly Insurance Claims and Premium Increases: Costly insurance premium increases may be limited or avoided because in many cases, customers are able to avoid filing claims on their own insurance policies (increasing their “loss histories”).
6. WHAT IS NOT COVERED?
Following is a summary of what RPP will not cover (as more specifically described on the reverse side or Page 1 hereof):
• Certain “Item(s) Not Covered” (including those with respect to which you do not pay or agree to pay the RPP fee in advance);
• A “deductible” equal to 20% of the total of all “Repair/Replacement Costs” (as defined on the reverse side hereof);
• Repair/replacement costs exceeding $10,000 in the aggregate across all Covered Items;
• Intentional abuse, improper use, negligence, and neglect;
• Violation of your Rental Contract, applicable laws or any instructions provided by Superior and/or any owner(s) or manufacturer(s) of Covered Item(s);
• Criminal activities, Civil Insurrection, War and Terrorism;
• Actions of Governmental Authorities;
• Loss, theft, disappearance of, or any other failure to return, any Covered Item(s);
• Maintenance Failures, Excessive Wear and Tear, and Damage During Transportation;
• Failure to Secure and Protect Covered Item(s);
• Use of alcohol and/or illicit drugs;
• Damage caused by electric current; and
• Exposure to Hazardous Materials, Pollutants and/or Contaminants.
7. HOW DO I USE RPP?
If a Covered Item is damaged or destroyed (an “Event of Loss”) during your rental, you must advise us of the date, time and suspected cause of the Event of Loss in writing within 24 hours. In the event of a reportable accident or vandalism, you must also properly complete and file a police report with local authorities. A copy of the police report must be provided to us within 48 hours after the Event of Loss. You will be 100% responsible for any Event of Loss which is not covered by RPP (e.g., for any Rented Item(s) which you elected not to cover and for Covered Item(s) with respect to which any exclusion(s) referenced in this Rental Protection Plan Guide (including Page 1 hereof) apply(ies)).
8. HOW CAN I AVOID PAYING FOR RPP?
RPP is not mandatory; it is OPTIONAL. If you wish to decline RPP, you must provide us with proof that you have the property damage / inland marine insurance required under Section 10 of your Rental Contract. NO RPP COVERAGE WILL APPLY TO ANY ITEM(S) FOR WHICH YOU DO NOT PAY THE APPLICABLE RPP FEE (WHICH, IF CHARGED, WILL BE SET FORTH IN YOUR RENTAL CONTRACT).
(888)
(866) 462-3278
