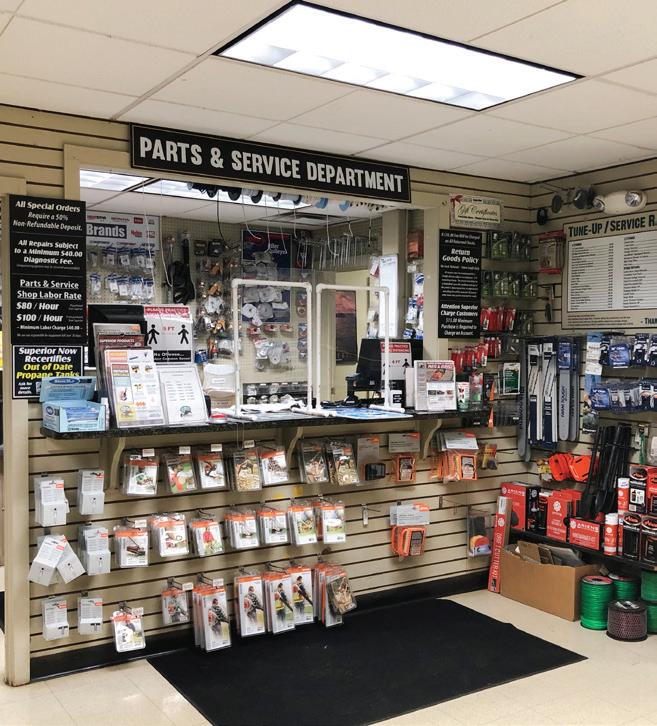

Parts & Service Department (860) 628-4768 (860) 620-5534 (877) 289-7368 M-F 9:00-5:00 (Main Location) Sat. 9:00-2:00

Superior Instrument (860) 276-8796 (860) 620-5534 (888) 852-7377 M-F 7:00-5:00 1403 Meriden-Waterbury Turnpike

Southington, CT (Main Location)

Superior Hearth, Spas & Leisure

Southington (860) 620-5555 (860) 620-6699 (888) 966-3427 Tu-F 10:00-6:00 1457 Meriden-Waterbury Turnpike Sat. 9:00-5:00

Southington, CT (Seasonal) Sun. 11:00-4:00

Avon (860) 677-2304 (860) 677-2094 (888) 772-7288 Tu-F 10:00-6:00

353 West Main Street Sat. 9:00-5:00

Avon, CT (Seasonal) Sun. 11:00-4:00

Superior Hearth, Spas & Leisure (860) 620-6487 M-F 9:00-5:00

Parts & Service Department

Hour Emergency Service

General InformatIon

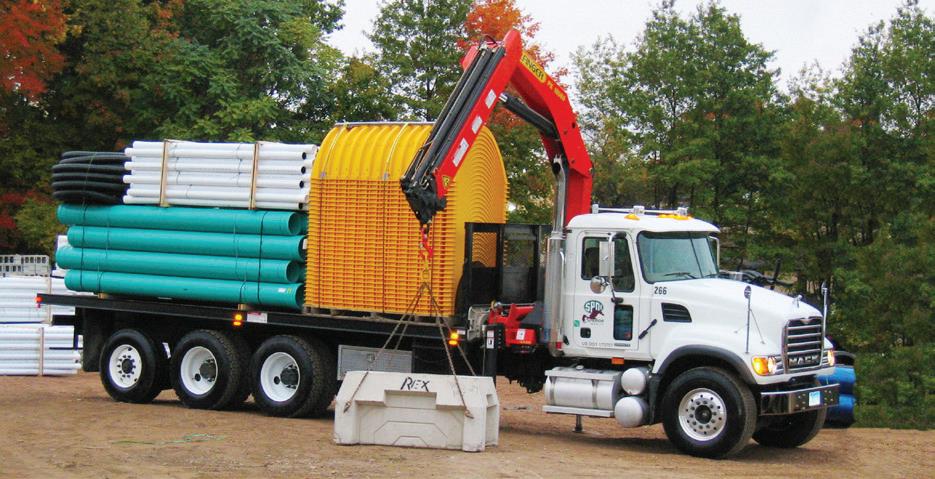

Delivery/Pickup

We offer statewide delivery service for our rental equipment, instrument services, and jobsite supplies. Ask for our delivery rates upon making your reservation. We also provide same day delivery. There is no jobsite in New England or New York that is out of our range. We also realize there are certain times when there is an emergency and we will immediately adjust to respond to those needs. Be sure to make a reservation to ensure we have a delivery time that is convenient for you.

Rental Purchase

We have programs available to convert a rental into a purchase. All rental to purchase transactions must be clearly defined in writing before the onset of the rental. Any previously paid rental will not be applied towards a buyout after the fact.

Accessories/Fuel

We have many accessories for our rental equipment which are not listed in the rate guide. In some cases these accessories may be available at an additional charge. Please be aware fuel is not included in our listed rental rates. We can provide fuel, available at all four locations, for your convenience and this cost will be added to your rental contract.

Rental Period

Our rental rates are based on nine hours of running time per day or forty-five hours per week. This is a considerable advantage over our competitors who offer only an eight hour running day. Please note, two shift usage is charged at 1.5 times the normal rate and 3 shift usage is charged at 2 times the normal rate.

Financing Online with Great America

We are able to arrange financing for you on most equipment purchases. We can also create a monthly finance payment schedule that can be tailored to your needs.

Service/Parts

We service everything that we sell in-house. Our service technicians are factory trained to repair many types of equipment. We have the capability to repair most small jobsite equipment that is gasoline, diesel, or electrically powered. We offer quick estimates and turnaround on all of our service work. We also have a large variety of replacement parts in stock for most of the manufacturers we carry. Our parts network is quite extensive for any major manufacturer in the industry, so we can normally have parts we do not stock within a few days. There is no part order too small!

Air Equipment

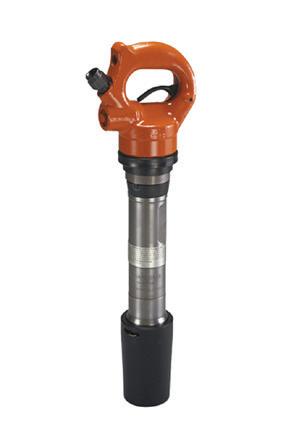

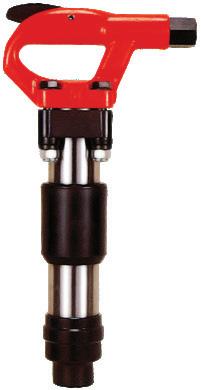

Breaker, 15 lb. Air Chipping

Specifications:

Shank Size: .580” Hex Shank

Stroke Length: 2-1/2” (50.8mm) Piston Diameter: 1-1/8” (28.54mm) Impact Rate: 2,000 to 2,200 B.P.M.

Breaker, 30 lb. Air

Toku PB-30 Paving Breaker

Shank Size: 1” x 4-1/4”

Stroke Length: 3-11/32” (85mm)

Piston Diameter: 1-3/4” (44.45mm)

Impact Rate: 1,550 B.P.M.

Weight: 33 lbs (15 kg)

Breaker, 60 lb. Air

Size: 1-1/8” x 6”

Diameter: 2-5/8”

6-1/8”

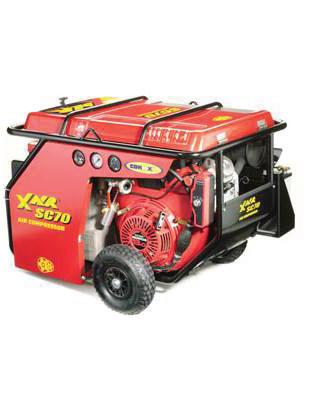

Bore Diameter: 1-3/16” Stroke: 8” Blows per Minute: 1,140 CFM @ 90 PSI: 42 - 46 Breaker, Rivet Buster 133APT

Rated Output: 70 CFM (1.98 m^3/min)

Pressure: 100 PSI (6.9 bar) Pressure Range: 72 - 125 PSI (5 - 8 bar) Oil Capacity: 1.1 gal (4.0 L)

Engine Make/Model: Honda GX610K1 Cooling System: Air/Oil Full Safety Shutdown: Compressor &

Engine Output: 18 HP (12 kW)

Starting System: Electric/Recoil Engine RPM Range: 2,200-3,500 Tank Capacity: 5.3 gal / 20 L Lifting Hooks Included

Steel Point, Chipping Gun

Air Hose, 50’

Air Hose, 50’

Compressor, 100 cfm Diesel

Specifications:

Type: Rotary Screw

Rated Delivery: 95 / 2.8

Rated Operating Pressure: 100 PSI

6.9 BAR

Trailer Specifications

Gross Axle Weight Rating (GAWR):

2,500 lbs (1,334 kg)

Hitch: Pintle

Dimensions & Weights

Overall Length: 112.20 in (2850 mm)

Overall Width: 58.07 in

Overall Height: 51.57 in

Operating Weight: 1,631.42 lbs

Shipping Weight: 1,521.19 lbs

Engine Specifications

Make/Model: Kubota / D1005-E4B

Emissions: Tier 4 Final Certified

Starting System: Electric

Gross Engine Power Output: 24.4 bhp 18.19 kW

Fuel Tank Capacity: 10.6 gal

Oil Capacity: 1.4 gal

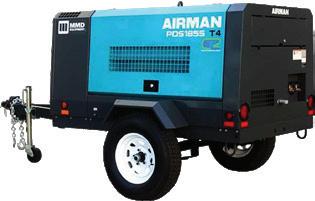

Compressor, 185 CFM Diesel

Engine Model: Yanmar 4TNV88C-DHKS

Horsepower: 47.6 HP

Free Air Delivery: 185 cfm

Working Pressure: 100 psig

Max. Working Pressure: 120 psig

Air Receiver Tank Capacity: 5.29 gal

Air Outlets: ¾” x 2

Compressor,

Model: M114

Fuel Capacity: 24 gal

Sound Level: 62 dBA

Operating Weight: 2,620 lbs

Dry Weight: 2,120 lbs

Weight w/ Towing Frame: 2,420 lbs

Dimensions (w/ Towing Frame): 132” L x 68” W x 62” H

375 CFM Diesel

Free Air Delivery @ 100 psig: 375 CFM

Free Air Delivery @ 145 psig: 345 CFM

Free Air Delivery @ 175 psig: 296 CFM

Free Air Delivery @ 205 psig: 265 CFM

Power at Full Load: 103 HP

Fuel Type: Diesel

Drill, Rock Air

Fuel Tank Capacity: 45 gal

Weight: 4,111 lbs Outlets: 3 x ¾”, 1 x ½”

Dimensions (L x W x H): 191-7/16” x 73-7/16” x 62-15/16”

Pintle Hitch: Included

Air Equipment

Optional Accessories:

• Air Hose, 50’

• Breaker, 15 lb. Air Chipping

• Breaker, 30 lb. Air

• Breaker, 60 lb. Air

• Breaker, 90 lb. Air

• Breaker Tool, Asphalt Cutter

• Breaker Tool, 1” or 3” Chisel

• Breaker Tool, Point

• Air Hose, 50’

• Breaker, 15 lb. Air Chipping

• Breaker, 30 lb. Air

• Breaker, 60 lb. Air

• Breaker, 90 lb. Air

• Breaker Tool, Asphalt Cutter

• Breaker Tool, 1” or 3” Chisel

• Breaker Tool, Point

• Air Hose, 50’

• Breaker, 15 lb. Air Chipping

• Breaker, 30 lb. Air

• Breaker, 60 lb. Air

• Breaker, 90 lb. Air

• Breaker Tool, Asphalt Cutter

• Breaker Tool, 1” or 3” Chisel

• Breaker Tool, Point

Specifications: Optional Accessories:

Weight: 48.5 lbs.

Length: 23-1/4”

Bore & Stroke: 3” x 2-5/8”

Impact Rate: 1,800 blows/min

Air Consumption: 99 cfm (2.8 m^3/min, 47 l/s)

Air Inlet Diameter: 3/4” NPT

Shipping Weight: 55 lbs

Chuck Size(s): 7/8” HX x 3 1/4”, 7/8” HX x 4 1/4”, 1” HX x 4 1/4”

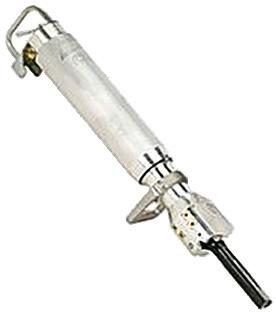

Post Drive, Pneumatic, Rhino

Specifications:

Duty: Medium

Air Consumption: 42 CFM @ 90 PSI

Weight: 5.46 lbs (24.8 kg)

Master Chuck: 3-7/8” ID

Material: Rhino Alloy

Piston: Double Valve

Rhino PDT-55 Transport Kit Includes:

Transport Accessories, PD-55 Medium

Duty Post Driver, 3” (76.2 mm) Chuck

Adapter, 2-1/2” (63.5 mm) Chuck Adapter, 2” (50.8 mm) Chuck Adapter, Channel Post Chuck Adapter, Throttle Valve Kit with 20.5 ft of Hose, Filter-Regulator-Lubricator and 5 ft. of Hose, Total Solution includes the PDT-55 (071216) & MP-3 Post Puller (071012)

• Air Hose, 50’

• Drill Rod, 3’

• Drill Rod, 4’

• Drill Rod, 5’

• Drill Rod, 6’

• Air Hose, 50’

• Compressor, 185 CFM Diesel

Splitter, Air Rock

Specifications:

The C12 is extremely well suited for the demolition of harder materials where high production rates are essential. This splitter is excellent at breaking reinforced concrete, hard bedrock and boulders, and for the production of granite blocks in the natural stone industry. These units can effectively remove blocks of rock that weigh in excess of 50 tons.

Hole Diameter: 1-3/4”

Hole Depth: 26”

Effective Force: 400 tons

Weight: 68 lbs

Including Hydraulic power pack

The Elco air powered hydraulic power unit consists of an air motor, hydraulic pump, hydraulic reservoir, and pressurematic valve, all contained within a compact package. The air motor requires 50 to 80 CFM at 100 PSI. The air must be clean, dry, and lubricated.

Optional Accessories:

• Compressor, 185 CFM Diesel

Plate Attachment, MVC88 Urethane Pad

Specifications:

The UPA88T is designed for compacting paving stones and decorative brick. The pad prevents damage to the stone as the plate passes over the surface. It is not intended for soil or backfill compaction.

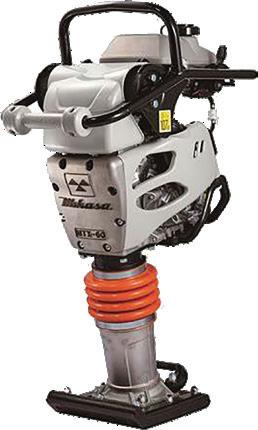

Compactor Rammer

For the use with Multiquip MVC88VTH/VTHW Series plate compactors only.

Optional Accessories:

Specifications: Optional

Blows (per minute): Up to 690

Impact Force: 3,350 lbf (1520 kgf)

Shoe Jump Height: 3.1” (79 mm)

Shoe Dimensions (L x W): 13.4” x 11.2”

Travel Speed (per min.): 55.8 ft (17 m)

Fuel Tank Capacity: 2.5 qt (2 L)

Overall Length: 31.0” (788 mm)

Overall Width: 13.8” (350 mm)

Overall Height: 40.4” (1,027 mm)

Operating Weight: 165 lbs. (75 kg)

Engine Make/Model: Honda GX100

Engine Power: 2.8 HP (2.1 kW)

Fuel Type: Gasoline

Compactor Rammer, Battery Powered

Specifications:

Multiquip’s MTe55 Battery-Powered Rammer enhances your job site with zero emissions and reduced noise levels. Honda’s eGX-Series electric motor is powered by an interchangeable lithium-ion battery pack, capable of rapidly charging to 80% capacity in only 60 minutes

Blows (per minute): Up to 689

Impact Force: 2,425 lbf

Shoe Jump Height: Up to 2.76”

Shoe Dimensions (LxW): 10.4” x 13.4”

Travel Speed (per min.): Up To 34.8 ft (10.6 m)

Operating Range per battery charge: Up to 1,598 ft

Operating Time: Up to 35 min

Dimensions & Weights

Overall Length: 28.2”

Overall Width: 13.8”

Overall Height: 40.9”

Operating Weight: 165* lbs

*Weight includes battery pack.

Electric Motor Specifications

Electric Motor Make/Model: Honda GXE2.0S

Phase: DC Brushless

Electric Motor Power: 2.4 HP

Optional

Compactor, Roller Paver

Specifications:

MVB85H

Plate size WxL in: 12.60 x 17.05

Centrifugal Force lbs: 2,270

Exciter Speed VPM: 5,600

Operating Weight lbs:203

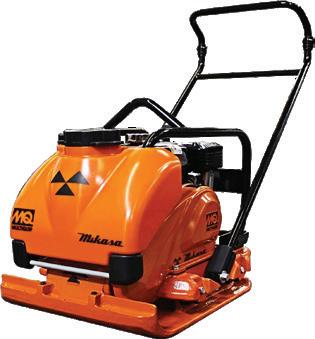

Compactor, MVC88 Plate

Specifications:

Centrifugal Force: 3,420 lbf

Exciter Speed: 6,000 VPM

Plate Size: 19.7” x 20.7”

Fuel Consumption (per/hr): 0.31 gal

Water Tank Capacity: 11.5 qt

Overall Length: 41.75” (1,060 mm)

Rubber Roller Diameter in: 2.9

Gasoline Engine - Honda GX120

HP Rating BHP (kW)*: 3.5 (2.6)

Rollers - 4

Overall Width: 19.75” (502 mm)

Overall Height: 37” (940 mm)

Shipping Dimensions (L x W x H): 38” x 22” x 29”

Operating Weight: 218 lbs. (99 kg)

Shipping Weight: 225 lbs. (102 kg)

Compactor, 128GH Rev. Plate

Specifications:

size WxL in: 15.8x23.2 Centrifugal Force

Operating Weight lbs: 268

Cyclonic Pre-Cleaner: Triple Engine: Overhead Valve, Gasoline

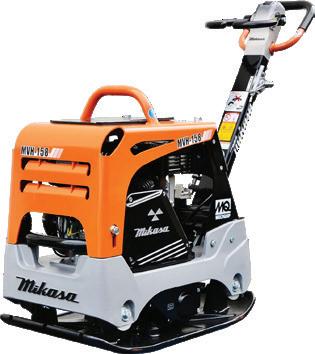

Compactor, 158GH Rev. Plate

Specifications:

x 27.6

Operating Weight lbs: 308

Cyclonic Pre-Cleaner: Triple Engine: Gasoline

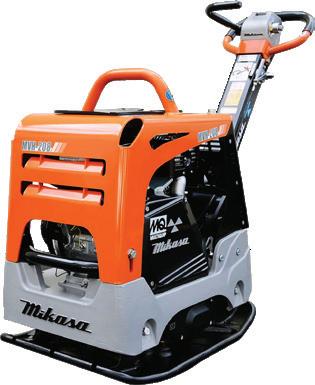

Compactor, 208GH Rev. Plate

Specifications:

Operating Weight lbs: 463

Max travel Speed ft/min: 85

Cyclonic Pre-Cleaner: Triple

Compactor, 308GH Rev. Plate

Specifications:

MVH308GH

Plate size WxL in: 24x34

Centrifugal Force lbs: 10,116 Exciter Speed VPM: 4,400

Operating Weight lbs: 717

Max travel Speed ft/min: 79

Cyclonic Pre-Cleaner: Single Engine: Gasoline

Compactor, 408GH Rev. Plate

Specifications:

Centrifugal Force: 12,400 lbf

Exciter Speed: 4,600 VPM

Plate Size (L x W): 22” x 35”

Plate Size w/ Extensions: 28” x 35”

Max Forward Speed: 75 ft

Fuel Consumption (per/hr): .98 gal

Engine: Overhead valve, Gasoline

Overall Length: 35.5”

Overall Width: 25.5”

Overall Height: 53.5”

Operating Weight: 816 lbs

Compactor, 508MVH Rev. Plate

Specifications:

Multiquip’s Mikasa brand reversible plate compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

Centrifugal Force: 15,737 lbf

Exciter Speed: 4,400 VPM

Plate Size: 20 x 35 in

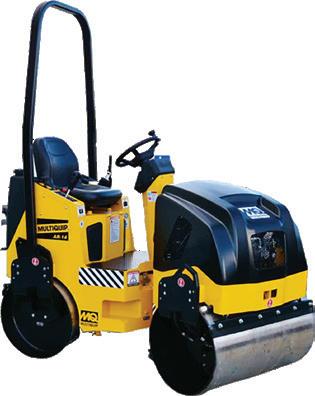

Roller, 1-1/2 Ton Vibratory

Max Forward Speed Per Min: 82 ft

Dimensions & Weights

Overall Length: 63 in

Overall Width: 26 in

Overall Height: 48 in

Operating Weight: 1,182 lbs Hatz 1D90E Diesel

Operating Weight: 2,910 lbs

On Front: 1,325 lbs On Rear: 1,587 lbs

Vibration Frequency: 4,000 vpm (67 Hz)

Centrifugal Force: 2,975 lbs

Amplitude (in 0.014”): 0.35 mm

Speed Ranges: 0-4.6 mph

Gradability: 34%

Sprinkler System Capacity: 15 gal

Roller, 3-1/2 Ton Vibratory

Drum Diameter: 22”

Drum Width: 35”

Overall Length: 75”

Overall Width: 40”

Overall Height: 96”

Wheelbase: 51”

Curb Clearance: 13.4”

Turning Radius: Inside - 74.5”; Outside - 110”

Fuel tank: 9 Gal - Gas

Maximum Operating Weight: 6,808 lbs Operating Weight: 5533 lbs Standard Compaction Width: 47 in Travel Speed - Maximum: 7.5 mile/h

Gross Power: 30.7 HP

Engine Model: C1.5

Height - ROPS: 106 in

Overall Length: 101 in

Centrifugal Force per Drum: Min 3,305 lb

Centrifugal Force per Drum: Max 6,744 lb

SERVICE REFILL CAPACITIES

Fuel Tank Capacity: Diesel, 15.9 gal

Overall Width: 52 in

Water Spray Tank Capacity: 52.8 gal Specifications:

Wheel Base: 71 in

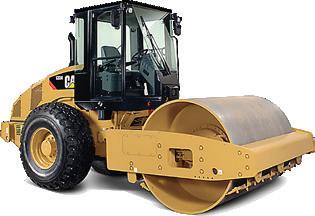

Roller, 10 Ton Vibratory

Specifications:

Overall Length: 17” ft

Width: 6.2 ft

8.4”

Clearance: 15.2 in Drum Diameter (Front): 4.3 ft Operating Weight: 15,741 lbs

Fuel Capacity: 72.6 gal

Drum Width: 66.1” Drum Diameter: 51.2”

Nominal Amplitude - Low: 0.07”

Centrifugal Force - Low: 32,597.3 lbs

Centrifugal Force - High: 29,225.2 lbs

Wheelbase: 8.4 ft

Overall Length: 17 ft

Overall Width: 6.2 ft

Height to Top of Cab: 9.4 ft

Ground Clearance: 15.2”

Drum Diameter (Front): 4.3 ft

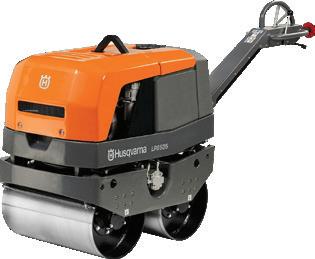

Roller, Double Drum Diesel W/B

Specifications: Optional

Model Number: LP 6,505

Horsepower: 8.6 HP

Max Compaction Width: 25.6”

Drum diameter 15.7”

Roller, Sheepsfoot Trench

Height: 47.8”

Width: 28.3”

Length: 43.7” / 98.4”

Weight: 745 lbs

Specifications: Optional

Operating Weight: 3,263 lbs. (1,480 kg)

Overall Length: 80” (2020 mm)

Overall Width: 33” (850 mm)

Overall Height: 48” (1,220 mm)

Drum Width: 33” (850 mm)

Drum Diameter: 21.7” (550 mm)

Amplitude: 0.087” (22 mm)

Centrifugal Force: 18,500 lbs. (8,391 kg)

Vibrations per Minute: 1,800 vpm (830 hz)

Dynamic Linear Force Per Drum (33”):

269 lbs/in (480 kg/cm)

Engine Power: 18.5 hp (13.8 kW)

Diesel Fuel Tank Capacity: 5.9 gal

Concrete & Mason Tools & Equipment

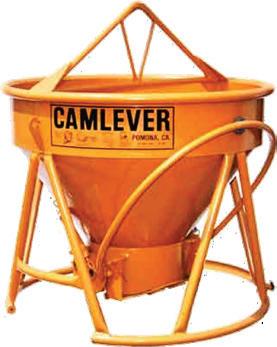

Bucket, 1 YD Concrete w/ Side Chute

Model: 100

Width Outside Diameter: 56”

Width Inside Diameter: 52”

Load Height: 46”

Overall Height: 63”

Gate Diameter: 24”

Weight: 435 lbs

Cap: 1 yd

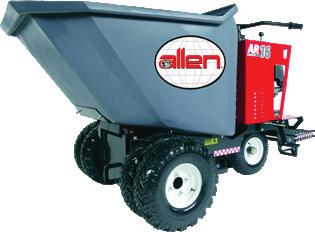

Buggy, 16 CF Propane Concrete Power

Specifications:

The sixteen cubic foot AR16 Propane Power Wheel Buggy is perfect for indoor or around in-the-dry jobsites where air quality is an issue. It is fully compliant with CARB, OSHA, and EPA standards. It also comes standard with a massive two-inch thick solid steel tank-tough frame to provide unparalleled strength and durability along with a lower center of gravity and ideal weight distribution

Standard

Features & Benefits:

• 13 HP Honda GX390 Engine

• 8 Gallon (33 lb) propane tank provides hours of use

• 16 CF easy-to-clean poly bucket

• 2,500 lb load capacity

• A top speed of 7 mph for quick transportation

• Solid steel 2” frame for maximum durability

• Top Speed: 7 mph (11.2 kph)

• Bucket Capacity: 16 cu ft

• Wheelbase: 40” (102 cm)

• Weight: 1370 lb (590 kg)

• Dimensions: (L X W X H) 97 X 47 X 64 in

Buggy, 16 CF Concrete Power

• Propane Tank, 33 lb.

• Propane, 33# Fill

Specifications: Optional

Engine: Honda GX390 (389 cc)

Horse Power Class: 13 hp (9.6 kW)

Starter: Recoil or Electric

Fuel Type: Gasoline

Fuel Capacity: 2 gal

Top Speed: 7 mph (11.2 kph)

Payload: 2,500 lbs. (1,134 kg)

Bucket Capacity: 16 cu ft (0.45 cu m)

Lift Cylinder Diameter: 2” (51 mm)

Dump / Return Speed (Empty): 5 sec

Wheelbase: 40” (102 cm)

Weight: 1,300 lb (590 kg)

Dimensions (L X W X H): 97 X 47 X 50 in (246 X 119 X 127 cm)

Buggy, 16 CF Battery Powered

Specifications:

Engine: 48 Volt

Lithium Ion Battery

Charging Port: 110Volt

Horsepower: 7.4 hp

Power Type: Battery Operated

Battery Life: 6+ Hours

Travel Speed: 6 mph

Payload: 2,500 lbs

Bucket Capacity: 16 cu ft

Dump Angle: 90

Wheelbase: 40”

Tires: Foam Filled

Weight: 1,507 lbs

Optional Accessories:

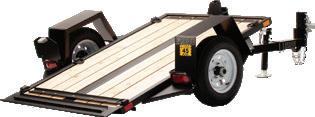

• Trailer, 6’ x 12’ Landscape

• Hitch, Reese Pintle w/ 2” Ball

Dimensions: (L X W X H): 97” X 47” X 50”

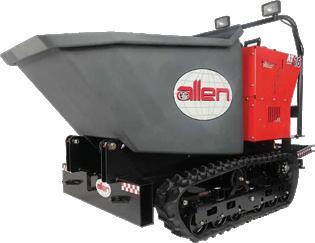

Buggy, 16 CF Track Concrete

Specifications: Optional

Model: AT16

Engine: Kohler 27 hp Vertical Shaft with Electric Start

Payload: 2,500 lbs (1,135 kg)

Dimensions (L x H): 102.5” x 65.25” (260 cm x 166 cm)

Length with Platform Up: 92” (234 cm)

Length with Platform Down: 102.5” (260 cm)

Dimensions (Width): 35.625” (90 cm)

Wheelbase / Track Length: 119” (302 cm)

Bucket Capacity: 16 cu ft (0.45 cu m)

Weight: 1,475 lbs (669 kg)

Lift Cylinder Diameter: 2.5” (64 mm)

Dump/Return: 7 sec

Top Speed Work: 4 mph (6 kph)

Transport: 6 mph (10 kph)

Fuel Capacity: 6 gal Gas

Buggy, 21 CF Concrete Power

Engine: Honda GX630 (688 cc)

Horse Power Class: 20 hp (14.9 kW)

Starter: Electric

Fuel Type: Gasoline

Fuel Capacity: 2.1 gal (8 L)

Top Speed: 5.9 mph (9.5 kph)

Payload: 3,200 lbs (1,451 kg)

Bucket Capacity: 21 cu ft (0.59 cu m)

Lift Cylinder Diameter: 2.5” (63.5 mm)

Dump / Return Speed (Empty): 8 sec

Wheelbase: 40” (102 cm)

Weight: 1,405 lbs (637 kg)

Dimensions (L x W x H): 97” x 47” x 50” (246 cm X 119 cm X 127 cm)

Make: Jesco

Model: JB Series

Weight: 142 lbs Buggy, Georgia

Concrete Chute

Specifications:

Lengths Available: 8’, 10’, 12’ and 16’

Core Drill Rig

Specifications:

Motor: 4.8 hp

Power @ 120V: 20 A

No Load: 450/900 rpm

Core Bit Cap Concrete: 10”

Base Size: 14” x 19”

Column Diameter: 2-1/2” x 2-1/2”

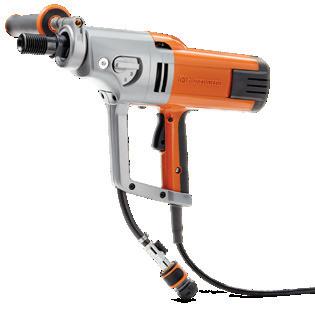

Core Drill, Handheld Rig

Specifications:

Voltage: 230 / 110 V

Amperage: 8 /15 A

Power: 1,850 W

Output rpm: 700 / 1700 / 3,600 rpm

Output rpm at Full Load:

500 / 1,400 / 2,900 rpm

Speeds: 3

Dimensions (L x W x H): 61” x 29.5” x 31”

Capacity: 8 cf

Wheels: 27” Pneumatic

Column Height: 42”

Overall Depth: 30”

Overall Height: 46”

Overall Width: 16”

Tool Weight: 120 lbs

Water Coupling: G1/4”

Rated Output: 1,100 / 0 W

Rated Current: 8 / 15 A

Spindle Speed Idle High Speed: 900 / 2,150 / 4,500 rpm

Max Drill Bit Diameter (handheld): 3”

Optional Accessories:

• Core Drill Bits: 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2”, 4”, 5”, 6”, 7”, 8”, 10”, 12”

• Extension, 12”

• Vacuum Pump w/ Gaskets (1 set)

• Reducer (1” to 5/8”-11)

• Water Bottle Attachment

Optional Accessories:

• Core Drill Bits: 1”, 1-1/2”, 2”, 2-1/2”, 3”, 3-1/2” and 4”

• Reducer (1” to 5/8”-11)

Concrete

Core Drill, Handheld Hydraulic

Specifications:

Brand: Hycon

Model: HCD50-200

Motor: HCD50-200

Engine: Hydraulic

Drill Speeds: 1-Speed

Core Drill rpm: 600 rpm

Maximum Bit Capacity: 2” - 14”

Float, Bull

Specifications:

Blade Length: 4’

Bull Float Handle, 6’

Specifications:

Drilling Stroke: 14” Stroke

Hydraulic Working Pressure: 1,600 psi / 100 bar

Hydraulic Maximum Pressure: 2,500 psi / 172 bar

Hydraulic Oil Flow: 5-8 GPM / 20 LPM

Weight: 17 lbs

Optional Accessories:

• Hydraulic Power Unit

• Bull Float Handle, 6’

Ceiling Grinder, Electric Concrete w/ Vac

The Northrock PRO-1200E Electric Powered Concrete Ceiling Grinder can smooth concrete ceilings from 7’ to 12’ high with this unique concrete ceiling grinder. Perfect for grinding/smoothing concrete ceilings in parking structures hotels and condos.

Handles ceiling heights from 7’ to 12’ Electric model - 1½ HP Baldor motor Self-aligning, spring-loaded grinding head Welded aluminum frame will not rust Rapid winch driven height adjustment 12” tires for easy maneuverability 5/8” - 11 thread for wheel mount with dust collection vacuum system

Grinder/Polisher, Elec Turbo PG450 Floor

PG 450 is a versatile and user-friendly planetary floor grinder. Perfect for a wide range of applications, e.g. coating removal, concrete grinding and concrete polishing. It is also suitable to use to make Husqvarna HiPERFLOOR®. With its 450 mm grinding width it is excellent for both small hard to get to areas, as well as larger surfaces. . 1-phase means it is suitable for industrial and domestic applications. It can easily be folded and divided without tools for transport and storage.

Rated Input Power: 3 HP

Rated Current: 13 A Voltage: 220-240 V Phases: 1 ph Frequency: 60 Hz

Grinding Width: 17.7 in Grinding Disc Speed Min: 0 rpm Grinding Disc Speed Max: 865 rpm Direction of Rotation: One Direction Number of Grinding discs: 3 Weight: 240 lbs

Grinder, PG450, Elec Dual Disc Floor w/ Ext Cord

Specifications:

Edco Model: (2EC-NG-1.5) Power: Electric

Horse Power: 1.5 hp 115/230V

Phase: Single Amps: 16/8

RPM’S: 231

Belts: Std. “V” Belts

Length: 46”

Width: 27”

Height: 37”

Weight: 258 LBS

• Insert, Diamond Misc.

• Insert, Sharx Double Seg 30grit

• Insert, Carbide PCD’s

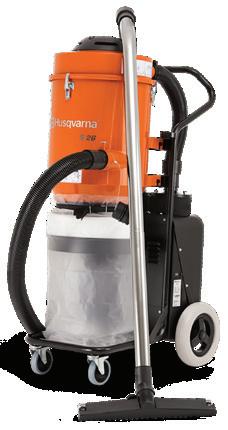

• Vacuum, Hepa Dust Extractor S26-S36

• Bucket, Floor Polishing System

• Pad, 3” Concrete Polishing P1243 100 grit

• Pad, 10” Concrete Flex Polishing 200 grit

• Pad, 10” Concrete Flex Polishing 400 grit

• Pad, 10” Concrete Flex Polishing 800 grit

• Insert, Grey G643D 20 grit medium

• Insert, Pink G1443D 20 grit medium

• Insert, Grey G647 D 100 grit medium

• Insert, Diamond Misc

• Heads, Diamond Grinding

• Strip-Cert Assembly, Carbide

Concrete & Mason Tools & Equipment

Grinder, Elec Turbo PG280 Floor

Specifications:

Required: 30 Amp Breaker

Rated Input Power: 3 HP

Rated Current: 18 Amp

Voltage: 110 V

Phases: 1

Pins: 3

Frequency: 60 Hz

Grinding Width: 11”

Grinding Pressure: 55 lbs

Product Size Width: 16.5”

Product Size Height: 39”

Weight: 170 lbs

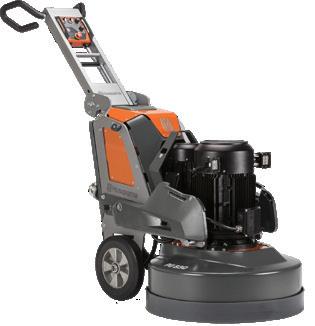

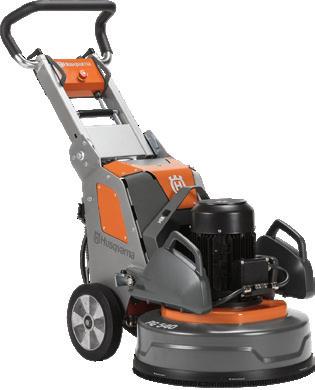

Grinder, Electric Husqvarna PG540 Floor

Specifications:

The PG 540 (5.5 hp / 4.0 kW) is a powerful, compact and versatile planetary floor grinder perfect for smaller jobs. Suitable for all applications: floor prep, grinding and polishing. The PG 540 is the compact choice for the HIPERFLOOR™ concrete polishing system.

Rated Input Power: 5.5 HP

Rated Current: 30 A

Voltage: 200-240 V

Phases: 1

Pins: 3P+E

Product Size Length: 40 in

Product Size Width: 22 in

Product Size Height: 28.9 in Weight: 392 lbs

Grinding Disc Diameter: 9 in

Direction of Rotation: Both directions Number of Grinding Discs: 3

Grinder, Electric Husqvarna PG830 RC Floor

The PG 830 RC is the largest and most powerful remote-controlled floor grinder in the Husqvarna PG-range. The remote control sets the operator free to manage hoses and cables while still grinding, for up to 40% higher productivity. This is a powerful choice for most grinding jobs, both industrial and commercial. Suitable for all applications: floor prep, grinding and polishing.

Rated Input power: 22 HP

Rated Current:30 A

Voltage: 440-480 V

Phases: 3

Product Size Length: 55.5 in

Product Size Width: 32.7 in Product Size Height: 45.5 in Weight: 1,437 lbs

Grinding Disc Diameter: 10.5 in Direction of Rotation: Independent FWD/REV Direction Control on Both Grinding Discs and Planetary Head. Number of Grinding Discs: 3

Vacuum, Large Hepa Dust Extractor DC6000

Specifications:

Voltage: 380-480 V

Phases: 3

Air Flow: 406 cfm

Max Vacuum: 22 kPa

Suction Inlet Diameter: 3”

Weight: 640 lbs

Dimensions (L x W x H): 49” x 30” x 75”

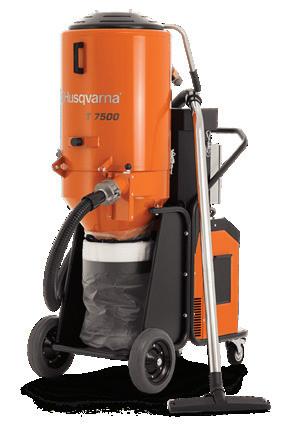

Vacuum, Large Hepa Dust Extractor T7500

Power, hp: 10.1

Voltage: v230

Rated current: 24.2 amps

Power supply: 3-phase

Airflow: 353 cfm

Water Lift: 110”

Max vacuum: 28 kPa

Suction Inlet Diameter: 3”

Dimensions (L x W x H): 49” x 27” x 69”

Weight: 454 lbs

Optional Accessories:

• Insert, Diamond Misc

• Insert, Carbide PCD’s

• Vacuum, Hep Dust Extractor S26-S36

• Insert, Sharx Double Seg 30 grit

• Insert, Pink G1443D 20 grit medium

• Insert, Grey G647 D 100 grit medium

Vacuum, Large Hepa Dust

Concrete & Mason Tools & Equipment

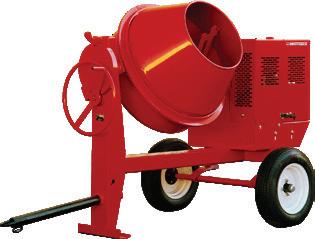

Mixer, Cement Towable

Specifications:

Drum Capacity: 9 cu ft (2) 80lb bags

Drum Opening: 23”

Drum Depth: 31”

Overall Length: 106”

Overall Width: 51”

Overall Height: 72”

Operating Weight: 800 lbs

Engine Power: 7.1 HP (5.3 kW)

Engine Capacity: 3600 rpm

Fuel Type: Gasoline

Pintle Hitch

Mixer, Small Portable 3CF-5CF Electric

Specifications:

The Original Beltless Gear-driven Portable Electric Mixer. It’s quiet and easy to assemble making it perfect for indoor applications.

• 1/2 HP 110v industrial grade motor with direct gear drive

• 10” pneumatic wheels

• 5 cu ft poly or metal drum with 2.5 cu ft output

Mixer, Mortar Portable

Specifications:

Drum Capacity 4.25 cu. ft.

Drum Diameter 30 inch

Batch Output 3 cu. ft.

Mixer, Mortar Towable 9CF

Specifications:

Drive System: V-belt

Drum Capacity: 9 cu ft 254.9 L

(2-1/2 - 3-1/2 bags)

Dump Type: Manual

Discharge Height: 21 in

Drum Type: Steel

Drum Thickness: 10

Tire Size: B78x13

Power Source: Honda GX240KIHA2

Dimensions & Weights

Overall Length: 98 in

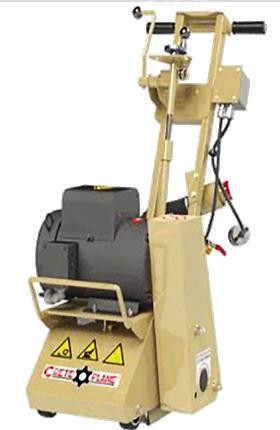

Planer, 8” Concrete Electric

Specifications:

• 8” working width will scarify approximately 350-500 sq ft per hour at a depth per pass of 1/8”

• Removes traffic lines at 800-1,000 lineal feet per hour

• Power source over drum to eliminate vibration and maximize surface contact

• Compact design

• Front-mounted lifting handle makes loading and unloading easy

• Vacuum port equipped

Optional Accessories:

• Hitch, Reese Pintle w/ 2” Ball

• Aggressive paddles to mix fast and complete

• Drum capacity: 5 cu ft

• Batch output: 2.5 cu ft

• Motor rating: 1/2 HP 110v / 6 amp

• Drum diameter: 24”

• Discharge outlet height: 21”

• Wheel size: 10”

• Weight: 120 lbs

Motor Rating 2 HP/15 amps/110 V

Paddle Speed 38 RPM

Dimensions 33” x 50” x 30”

Optional

Overall Width: 50 in

Overall Height: 59 in

Overall Height w/ Dump Handle: 77 in

Operating Weight: 770 lbs

Engine Specifications

Engine Make/Model: Honda GX-240

Start Method: Recoil

Engine Power: 7.9 HP

Engine RPM: 3,600

Fuel Type: Gasoline

• Comes standard with universal vacuum port hookup

• Carbide & steel cutters

• 5 HP electric motor 230V

• 2,130 RPM

• 220 lbs

Ideal for:

• Sidewalk trip hazard repair

• Concrete and coatings removal

• Floor cleaning and/or preparations

• Creating non-slip surfaces

• Traffic line and markings removal

Optional Accessories:

• Cutters, Small Carbide Wheel

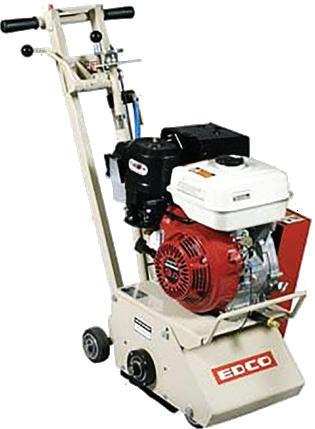

Planer, 8” Concrete Gas

Specifications:

• Power source over drum to eliminate vibration and maximize surface contact

• Compact design

• Front-mounted lifting handle makes loading and unloading easy

• Vacuum port equipped

• Water misting system standard

• Optional edger attachment allows the CPM-8 to get within 1 3/4” of any vertical surface

• Does come with a loaded drum w/ 78 cutter ( carbide ) 210 spacers

Planer,

10”

Concrete Floor

Specifications:

Concrete & Mason Tools & Equipment

Ideal for:

• Sidewalk trip hazard repair

• Fixing Sidewalks

• Concrete and coatings removal

• Floor cleaning and/or preparations

• Creating non-slip surfaces

• Traffic line and markings removal

• Model: CPM-8-9H

• Power: Gasoline

• Horse Power: 9 HP

• RPM’s: 2,150

• Length: 35”

• Width: 20”

• Height: 39”

• Weight: 190 lbs

Cutter Rotation (Down, Up, Rotary): Down

Hourly Production Rate: approx. 2,250 LF

Removal Width / Pass: Up to 10” (254 mm)

Removal Depth / Pass: Up to 1/4” (6.35 mm)

Height: 44” (1,117.6 mm)

Width: 19” (482.6 mm)

Length: 38” (965.2 mm)

Pump, Grout Imer50

Specifications:

Motor: 115 V

Horsepower: 1-3/4 HP

Pumping System: 2L6 rotor/stator

Flow Rate: 3.5 GPM

Maximum Pumping Pressure: 300 PSI

Maximum Aggregate Size: 1/4”

Hopper Capacity: 12.5 gal

Compressor Output: 45 psi @ 9 cfm

Weight (palletized): 110 lbs (150 lbs)

Dimensions (L x W x H) (palletized): 44” x 20” x 25” (50” x 25” x 28”)

Pump, Electric Towable Grout

Specifications:

Motor Power Rate: 7.5 HP, 3 phase

Mixer Power Rate: 2 HP

Electric Compressor: 3 HP / 11 cfm

Max Aggregate Size: 3/8 in

Maximum Flow Rate: IM25L 2.75 cu yd

Maximum Flow Rate: 60.12 6 cu yd

Maximum Flow Rate: 2L6 2.35 cu yd

Horizontal Pumping Distance: 300 ft

Vertical Pumping Distance: 200 ft

Hopper Capacity: 4.25 cu ft

Dimensions: 33 W x 80 L x 38 H in

Weight: 616 lbs

Standard Equipment Includes:

2 Speed Control Panel

66’ Power Cord

Remote Control Ready

5 HP / 7.5, 2 Speed, 3 Phase 100%

Duty Cycle Motor

IM25L Rotor/Stator

Tow Kit

Grate for Premixed Materials

Accessory Tool Box

Optional Accessories:

• Cutters, Small Carbide Wheel

• Planer, Edger Assembly

• Extension Cord, 50’

Optional Accessories:

• Diamond Groove Assembly

• Cutters, Large Carbide Wheel

Optional Accessories:

• Hose, 50’ x 25mm Grout

• Gun, Spray Grout

• Mixer, Mortar Portable

• Imer 50 Grout Pump Compressor

• Kit, Imer Pump Cleaning

Optional Accessories:

Concrete & Mason Tools & Equipment

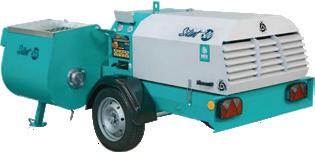

Pump, Grout Towable

Specifications:

Model: Silent 300 Prestige

Motor: Kohler / Lombardini 3 cyl

Horse Power: 20 HP

Pumping System: 2L6 rotor / stator

Flow Rate: 0 - 15 GPM or 4.5 CYPH

Maximum Pumping Pressure: 580 PSI

Maximum Aggregate Size: 1/4” std

3/8” w / options

Pipe Outlet: 50 mm

Hopper Capacity: 8 cf

Pump, Grout Portable

Specifications:

The Koine 35 pump from IMER is one of the most advanced and versatile production pumps on the market today. It is packed with features that allow it to do a variety of applications yet is compact and highly portable making it perfect for interior or hi rise building work.

The Koine 35 is a continuous mixer style pump where the hopper is loaded with dry bagged material where a feeding wheel takes it into a mixing chamber where water is introduced and the material is mixed. This process allows for production applications without the huge mess normally associated with open mixers and water.

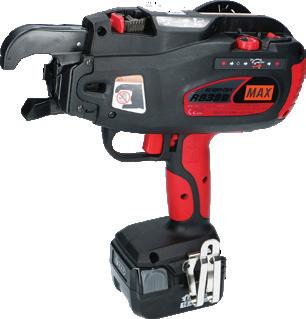

Rebar, Tying Tool

Specifications:

Model: RB398

Applicable Rebar Size #3 x #3#5 x #6

Wire Product/GA: TW898

(Sold per case)

Ties Per Coil: 120

Rebar Cutter, Hydraulic

Specifications:

Model: HBC19A

Bar Capacity: 3/4”

Design: Electro-hydraulic

Maximum Rebar Size: 3/4” (20 mm) in 3 seconds

Mixer Batch Output: 6 cf

Mixer System: Integrated hydraulic drive/dump

Compressor Output: 14 CFM @ 45 PSI

Weight (palletized): 1,590 lbs (1,800) lbs

Length (palletized): 132” (103”)

Width (palletized): 53” (60”)

Height (palletized): 54” (60”)

Optional Accessories:

• Hose, 66’ x 35mm Grout

• Hose, 33’ x 35mm Grout

• Gun, Spray Grout

• Kit, Imer Pump Cleaning

Power supply: 220v 1phase

Total machine power: HP 5

Mixing & pumping Motor: HP 3

Feeding impeller wheel motor: HP 1/2

Built in electric compressor: 1 HP- 9 cfm

V-stroke: Yes

Variable speed material flow: 4 speeds

Material flow rate cubic feet per hour 17, 23, 30, 36

Maximum pumping distance: 25 mm (1”) hose feet

Maximum pumping distance: 35 mm (1-3/8”) hose 125’

Hopper capacity: 4 cu ft

Loading height: 36”

Dimensions: W 27”/ L 62”/ H 47”

Weight: 561 lbs

Ties Per Charge: 2,600

Weight: 5.3 lbs

Tie Speed: less than 1 sec

Tie Wraps: 3

Battery Charge Time: 40 minutes full charge

• Hose, 50’ x 25mm Grout

• Gun, Spray Grout

• Kit, Imer Pump Cleaning

Motor: 115V, 60 Hz single-phase

Pump: Hydraulic with magnetic particle filtering

Blades: Heat-treated steel

Weight: 27 lbs (12 kg)

Rebar Bender, Hydraulic w/ Footswitch

Specifications:

Maximum Rebar Size: 1” (25 mm)

Maximum Bed Rate: 180 degrees diameter in seconds

Bend Angle: Adjustment knob allows fine tuning of bending angle

Standard Foot Switch: Included -

Optional Accessories:

• Rebar Tiewire Roll

Optional Accessories:

Optional Accessories:

provides the operator the ability to free up hands for safe material handling

Motor: 115 V, single-phase electric motor @ 13 amps

Rollers & Collars: Included - quickly change your bending radius

Built-in Lifting Handles: 2

Concrete & Mason Tools & Equipment

Rebar Bender, Manual

Specifications:

• Longer handle and cam mechanism provides greater leverage when cutting and bending grade 60 rebar

• Adjustable 2-1/2” dia. bending roller

• Replaceable cutting jaws have two open slots with innovative shaped

Ring Saw, Hydraulic

Specifications:

Hycon 16” Ring Saw HRS400 11-3/4”

Cutting Depth

• Upgraded Heavy Duty motor design

• Compact, Lightweight 24 Lbs

• Up to 18 HP Output

• ASCO Safety System

• Cuts up to 11-3/4” deep

• Wet use only

• Works Underwater

blades to prevent chipping of the jaws

• Other features include a 12” long no-slip handle grip and a lifting chain to make it easier to carry

Item Weight: #55 lbs

Product Dimensions: #61 x 8 x 10 in

• Ergonomic design for comfort

• Minimal maintenance, & easy service

• Guide rollers last 3 time longer than competitors saws

• Improved blade design

• Long lifetime - all parts run in oil

• Easy change of blades

• 1/3 less cutting cost than chainsawing

Hand Saw, Hydraulic 20” Concrete

Can be used for horizontal and vertical cutting and cut all types of concrete, steel, brick wall, asphalt etc. The HYCON cut-off saw is a very sturdy tool intended for cutting even under the most extreme conditions. It is completely unaffected by water and dust, and all parts run in oil. The HYCON PREMIUM-saws are built for hard use day after day - without breakdowns. The fact that the saw is always working and does not require service means higher profits than with e.g. a petrol saw. The cut-off saw

Power Pack, Hydraulic

Specifications:

HPP23HP Powerpack 23

SKU: P00022

Brand Name: Hycon™

PSI Oouput: PSI 2300/158 Bar HYD Connections: Single-Output

Primary Output: 5-8-10-12 GPM / 20-30-40-60 Lpm

Saw, Diamond Ring Gas

Specifications:

When you need to make deep cuts fast our K 970 Ring is the answer. It has an exceptionally cutting depth of 270 mm, twice the amount of a traditional power cutter. It has a high cutting capacity, can make deep cuts from one side and is the quickest method for small and medium-sized cuts, as no time is lost on installing rails.

offers top safety with the built-in ASCO System (Automatic Safety Cut off). The tool automatically cuts off if the disc jams - no injury to the operator.

Max Blade Capacity: 20”

Max Cutting Depth: 8-3/4”

Oil Flow: 8-10 GPM / 30-40 LPM

Working Pressure: 1,800 PSI / 120 Bar

Max Pressure 2,500 PSI / 172 Bar

For Use Under Water: Yes

RPM: 1,500 - 2,300 RPM

Unboxed Weight: 21lbs / 9.2kg

HYD Oil Capacity: 2-3 Gal/7.5 - 11.3 L

Starter: Electric/Recoil

Motor Size: 23 HP Gas

Engine/Motor: Briggs & Stratton Vanguard

Fuel Tank Capacity: 2.3 Gal

Weight: 235 lbs

• Hydraulic Ring Saw

• Saw, Hydracutter Diamond Chain

• Hose Set (2)

Blade, in (mm): 14” (350)

Cutting depth, in (mm): 10.6” (254)

Power, HP (kw): 6.5 (4.8)

Displacement, cu in (cc): 5.71 (93.6)

Power / weight ratio, HP/lbs: .21

Weight, w/out fuel or blade: 29.8 lbs

Fuel Capacity: 1.1 qt

Optional Accessories:

• Ring Blade, 14” Diamond

• Can, Gas

• Goggles, Safety

• Hydraulic Power Pack

• Ring Blade, 16” Hydraulic

Concrete & Mason Tools & Equipment

Saw, Concrete Diamond Chain

Specifications:

Lets you make deeper, cleaner and more accurate cuts in less time. Deeper cuts and square corners means getting the job done with fewer steps. No more trying to match up cuts from both sides. Eliminates over-cuts which helps reduce patchworking. Allows you to cut all the way through from one side.

Weight: 21 lbs 9.6 kg (w/out bar & chain)

Bar Length: -14”

Horsepower: 5 HP (3.7 KW) @ 9,500 rpm

Engine Type: 2-stroke, single cylinder air cooled

Displacement: 4.7 cu. inch (77 cc)

Powerhead Dimensions:

18 in (45 cm) length

11.5 in (29 cm) height

10 in (25 cm) width

Noise Level: 100 dB @ 3 ft (1 m)

Vibration Level: 10.5 meters/second2 (front handle)

Water Supply: Minimum 20 PSI (1.5 bar)

Fuel Mix Ratio: 25:1 (4%)

Fuel Capacity: 0.23 gal (0.88 liter), 15-18 minutes run

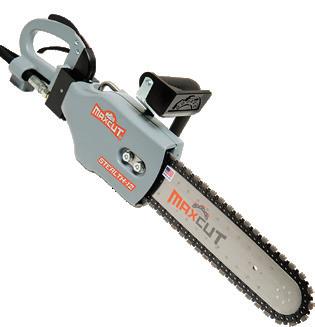

Saw, Hydracutter Diamond Chain

Specifications:

Maxcut & Trade: Stealth-12

Hydraulic Chain Saw

Bar Length: 25”

2,500 Psi @ 12 GPM

F-4 .456” Pitch

17.5HP @ 2,500 PSI

170 in-lbs @ 2,500 PSI

Max Speed 6,500 RPM

12 GPM Hyd

Shipping Weight: 22.90

Saw Powered by Hydraulic Oil Flow GPM/LPM: 12 GPM/40 LPM

Chain Pitch: .456” Pitch F4

Working PSI/BAR: PSI 2000/135 BAR

Max PSI/BAR: PSI 2500/172 BAR

Water Pressure Min: PSI 30/2 BAR

Saw, 14” Electric Abrasive Cutoff

Specifications:

Rated Input Power: 2.4 hp

Voltage: 100 - 120 V Frequency: 50 - 60 Hz

Cutting Depth, Maximum: 4.5”

Maximum Blade Diameter: 14”

Saw, 16” Gas Cut n Break

Specifications:

Engine Air-cooled: 2 stroke engine

Cylinder displacement: 4.48 cu in

Power output: 5 HP

Fuel tank volume: 30.4 fl oz

Idling speed: 2,700 rpm

Sound pressure level at operators ear 101 dB(A)

Saw, 16” Electric

Specifications:

Engine:

Optional Accessories:

• Chain, Concrete Diamond

*DIAMOND CHAIN NOT INCLUDED

Arbor Diameter: 1”

Product Size Length: 25.6”

Product Size Width: 8.5”

Product Size Height: 12.1”

Weight: 19.6 lbs.

• Hydraulic Power Unit

• Chain, Concrete Diamond

Optional Accessories:

• 14” Dual Diamond Blade

• Vacuum, Dust Reducer Attachment Assy

• Goggles, Safety

Optional Accessories:

Sound power level, guaranteed (LWA) 115 dB(A)

Blade diameter: 9 in

Max cutting depth: 16 in

Weight (excl. cutting equipment): 21.2 lbs

Weight incl. cutting equipment: 24.5 lbs

Fuel tank volume: 1.9 US pint

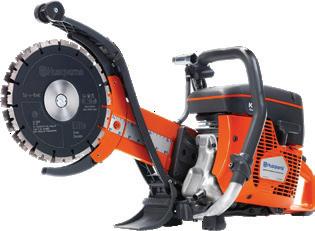

Cut n Break

Rated input power: 3.6 HP

Voltage: 110-230 V

Frequency: 50-60 Hz

Cutting Equipment:

Cutting depth, max: 16 in

Blade diameter, max: 9 in

Blade thickness, max: 0.1 in

Peripheral speed, max: 11,810 fpm

Dimensions:

Product size width: 8.7 in

Product size height: 15.4 in

Weight: 19.6 lbs

Sound and Noise:

Optional

Accessories:

Sound power level, guaranteed (LWA): 109 dB(A)

Sound pressure level at operators ear: 95 dB(A)

Vibrations:

Vibrations left/front handle: 3.2 m/s²

Vibrations right/rear handle: 3.4 m/s

Concrete & Mason Tools & Equipment

Saw, 16” Gas Abrasive Cutoff

Specifications:

Displacement: 98.5 cc (6.0 cu in)

Engine Power: 5.0 kW (6.7 bhp)

Weight: 13.0 kg (28.7 lbs)

Fuel Tank Capacity: 1,200 cc (40.6 oz)

Engine Speed: 9,300 rpm (Elec. Gov.)

Max Spindle Speed: 4,600 rpm

Arbor Size: 20 mm

Max Wheel Size: 400 mm (16”)

Max Cutting Depth: 143 mm (5.6”)

Saw, 14” Gas Abrasive Cutoff

Specifications: Optional Accessories:

Displacement: 66.7 cc (4.07 cu in)

Engine Power: 3.2 kW (4.4 bhp)

Weight: 9.6 kg (21.2 lbs)

Fuel Tank Capacity: 710 cc (24 oz)

Engine Speed: 9,000 rpm (Elec. Gov.)

Saw, 13 HP W/B Drivematic

Specifications:

Engine:

Engine Manufacturer: Honda

Engine Model: GX390

Horsepower: 11.7 HP

Power Mode: Gasoline

Performance:

Blade Capacity Diameter: 18 in

Maximum Cutting Depth: 6.1 in

Max Spindle Speed: 5,350 rpm

Arbor Size: 20 mm

Max Wheel Size: 350 mm (14”)

Max Cutting Depth: 125 mm (4.9”)

Power Source: Gas

Transmission:

Drive: Hydrostatic

Operating:

Type: Asphalt/Concrete

Weights & Dimensions:

Operating Weight: 424 lbs

Overall Height: 47.2 in

Overall Length: 66.9 in

Overall Width: 26 in

Saw, 5 HP Electirc W/B Concrete

Specifications:

DS18-5hp/230v/1ph

Part# 37300

Power: Electric

Horse Power: 5 HP, 230 Volt

Phase: Single AMPS: 19.8* RPM: 3000

Saw, 35 HP Road Saw

Specifications:

FS3500 G is a self-propelled floor saw ideal for small to medium patch and service jobs. It is lightweight, low profiled, easy to maneuver and service. Comes standard with adjustable handle bars, engine tachometer and hour meter.

Output power (As rated by the engine/motor manufacture): 37 HP

Length: 49”

Width: 27”

Height: 40”

Weight: 280 lbs

Belts: Cgd”V”Belts

Maximum Cutting Depth: 6 3/4”

Optional Accessories:

Motor/engine manufacturer: Kohler

Arbor diameter: 1 in

Blade depth control: Electric hydraulic

Blade diameter, max: 20 in

Cutting depth, max: 7.75 in

Length: 46 in

Width: 31.8 in

Height: 45.4 in

Weight: 985 lbs

Concrete & Mason Tools & Equipment

Saw, 65-75 HP Road Saw

Specifications:

The modern FS 7000 D is our most powerful diesel walk-behind flat saw with low emissions, developed to be compliant with Tier 4 regulations. Ideal for concrete and asphalt cutting up to 15” deep. Suitable for mid-sized road work, service work and smaller jobs that require high production rates

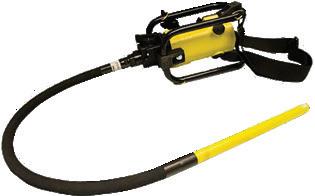

Vibrator, Concrete

Specifications:

2.4 HP Oztec Vibrator Motor with 1-1/2” Vibrator Head & 14’ Flex Hose

The OZTEC 2.4 Electric Concrete Vibrator features a watertight, strain relief power cord.

• 115V 17 amp

•2.4 hp electric motor

• 2.5” max head diameter

• 10,000 VPM

Fuel diesel: 10 gal tank

Blade Size: 36 in

Blade RPM: 1,350

Dimensions: 77.25” x 38.38” x 59”

Weight: 2,275 lbs

Optional Accessories:

• 18” Asphalt Diamond Blade

• 18” Concrete Diamond Blade

• 26” Asphalt Diamond Blade

• 26” Concrete Diamond Blade

All Oztec power units run vibrator heads 11,000 to 12,000 vpm. They never drop below 10,000 vpm even in the lowest slump concrete. Oztec power units come standard with the Quick Disconnect “QD” system. Changing shafts and heads on the job is a snap.

Vacuum, Hepa Dust Extractor S26-S36

Specifications:

Ship Weight: 127.0 lbs

Air Flow: (CFM) 258

Volts: 120

HP: 3.4

Amps: 19.6

• Single-phase HEPA dust extractor for use with hand-operated power tools to extract freshly cut, friable concrete dust

• All-around jobsite vacuum to pick up a variety of building materials and debris

Saw, 6” Soff-Cut

Specifications:

Motor manufacturer: Robin

Motor spec: EX13

Max output: (As rated by the engine manufacturer) 3.21 kW / 4.3 HP

Cylinders: 1

Number of strokes: 4-stroke engine

Cylinder displacement: 7.69 cu in

Cylinder bore: 2.9 in

Cylinder stroke: 1.9 in

Fuel tank volume: 0.7 gal.

Starter: Recoil

Engine cooling: Air

Number of belts:1

Displacement, l: 126 lit

Oil capacity, l: 0.6 lit

Cutting Equipment:

Output RPM: 3800 rpm

Diamond blade, max: 6 “

Max cutting depth: 1.18 in

Optional Accessories:

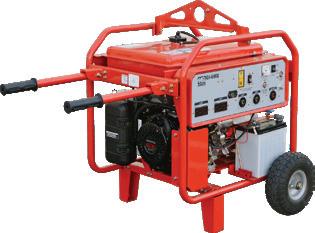

• Generator, 3600-3700 Watt

• Vibrator Head, 1”, 1-1/4”, 1-1/2”

Optional Accessories:

• Powered by a 3.4 HP, 19.6 Amp, 120V electric motor

• 100 in. water lift

• Cartridge pre-filter

• Two HEPA H13 filters

• Features cyclonic pre-separation prior to the HEPA filters

• Jet Pulse pre-filter cleaning, hour counter and vacuum meter for filter control

• Longopac® bag hose system ensures simple, dust-free bag changes

Optional Accessories:

Blade depth control: Manual

Blade control: Manual

Blade shaft diameter: 0.75 in

Blade flange: 3 “

Blade shaft RPM: 3800 rpm

Transmission:

Axle front: 0.75 in

Rear axle diameter: 0.75 in

Handle bars: Fixed

Miscellaneous:

Primary wheel size Outside diameter:

3 Wheel width: 3 Inner bore: 0 “

Secondary wheel size: Outside diameter:

3 Wheel width: 3 Inner bore: 0 “

Dimensions:

Weight: 87 lbs

Weight incl. packaging: 91 lbs

Product size, L x W x H: 68 x 19 x 33.5 in

Concrete & Mason Tools & Equipment

Specifications:

Motor manufacturer Robin4 stroke engine

Max output: 6.5 kW / 9 HP

Cylinders: 1, displacement 16.2 cu in

Cylinder bore: 2.9 in

Cylinder stroke: 2.3 in

Fuel tank volume: 1.59 gal Gasoline

Starter: Electric

Cutting Equipment:

Output RPM: 3,600 rpm

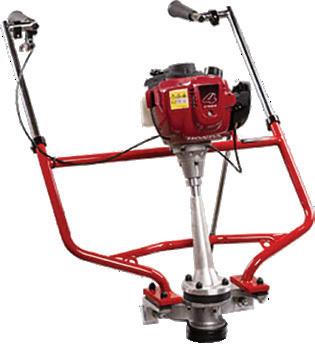

Magic Screed, Power Head

Specifications:

The HD7070 provides for uniform distribution over the entire blade length and enhances concrete compaction. Regardless of the concrete slump and the size of the aggregates used in the concrete mix, the Magic Screed® vibrating blade allows you to produce consistently high-quality floors.

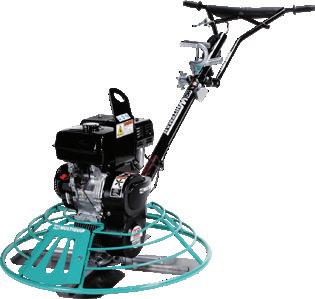

Trowel, 24” Walkbehind

Specifications:

The compact weight and size of the VP424 walk-behind trowel make this easy to use for tight areas. This walker is great for edging against walls, pipes and other obstructions, and will fit easily through doorways. Rotor Diameter: 24” 4 blades

Diamond blade, max: 10 “

Max cutting depth: 1.5 in

Blade control & depth control: Manual

Blade shaft diameter: 1.25 in

Blade flange: 4.25“

Blade shaft RPM: 3,600 rpm

Dimensions:

Weight: 317 lbs

Weight incl. packaging: 388 lbs

Product size, L x W x H: 94 x 29 x 34 in

Optional Accessories:

Engine: Honda GX35 / 35 CC

Horsepower Class: 1.5 HP / 1.1 KW

Weight: 30 LBS / 13.6 KG

Handles Adjustable

Vibration Frequency: 7,500 RPM

Optional Accessories:

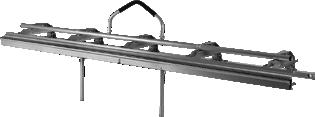

Screed, Allen Magic

16’

Consolidation Depth: Up to 6” / 15.24 CM

Power

Max Rotor Speed: 135 rpm

Weight: 122 lbs

Engine: Honda GX120 118 cc

Horsepower: 4

Unit Length: 65 in

Unit Width: 24 in

Unit Height: 43 in

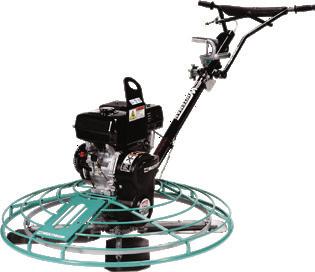

Trowel, 36” Walkbehind Power

Specifications: Optional

Clutch Type: Centrifugal

No. of Blades: 4

Ring Diameter: 36 in, 914.4 mm

Rotor Speed: 60-115 RPM

Overall Length: 70 in, 1789 mm

Overall Width: 36 in, 915 mm

Overall Height: 41 in, 1044 mm

Operating Weight: 184 lbs, 83.4 kg

Shipping Weight: 182 lbs, 82.5 kg • Blade, 36” Trowel 6” x 14” Finish • Blade, 36” Trowel 8” x 14” Combo

Blade, 36” Trowel 10” x 14”

Trowel, 46” Walkbehind Power

Specifications: Optional

Clutch Type: Friction Type Clutch System

No. of Blades: 4

Ring Diameter: 46 in, 1,168.4 mm

Rotor Speed: Min 60-130, Max RPM

Overall Length: 75 in, 1,910 mm

Overall Width: 46 in, 1,170 mm

Overall Height: 41 in, 1044 mm

Operating Weight: 281 lbs, 127 kg

Shipping Weight: 289 lbs, 131 kg

• Blade, 46-48” Trowel 6” x 18” Finish

• Blade, 46-48” Trowel 8” x 18” Combo • Blade, 46-48” Trowel 10” x 18”

• Blade, 24” Trowel 3/4” x 9”

Concrete & Mason Tools & Equipment

Trowel, 36” Ride-On Power

Specifications:

This MP215 rider is loaded with features found on our larger riders and the renowned durability of all Allen equipment. It is equipped with a reliable Honda air-cooled gasoline engine, a heavy-duty drive-train on an easy-to-service frame. This versatile rider can be used for slab on grade, paving, and other projects.

Engine: Honda GX690 (688 cc)

Horsepower Class: 22.1 hp (16.5 kW)

Fuel Type: Air-Cooled Gasoline

Panning Path Width: 74 in (188 cm)

6’ Class

Rotor Diameter: 36 in (91.4 cm)

4-Bladed Spider

Maximum Rotor Speed: 165 rpm

Steering Control System: Manual

Fuel Capacity: 6 gal (23 L)

Retardant Capacity: 6 gal (23 L)

Weight: 735 lb (333 kg)

• Dolly Jacks

• Lifting Bridle

• Blade, 36” Trowel 6” x 14” Finish

• Blade, 36” Trowel 8” x 14” Combo

• Blade, 36” Trowel 10” x 14” Float

• Pan, 36” Float

Dimensions: (L X W X H) 78 x 41 x 53 in (198 x 104 x 135 cm)

Trowel, 48” Ride-On Power

Specifications:

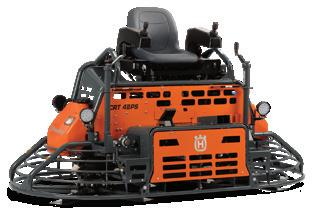

The 48-inch Husqvarna CRT 48 rideon trowel delivers great results with maximum productivity and is ideal to finish surfaces from 10,000 sq ft up to 20,000 sq ft. The distinguishing feature is a superior steering system that is easy to operate and reduces operator fatigue. In addition, the rigid frame ensures excellent steering control. Combined with the ergonomic 2-lever controls it achieves optimum manoeuvrability.

Trowel, 48” Ride-On Hydro

Power: 37 hp (28kW)

Blade Quantity: 10

Rotor Speed Min/Max RPM: 25/170 RPM

Trowel Blade Coverage: 48 in

Blade Combination: 18 x 8 in

Fuel Tank Volume: 6.5 gal Gas

Water Tank Capacity: 3.6 gal

Weight: 1,205 lbs

Optional Accessories:

• Dolly Jacks

• Lifting Bridle

• Blade, 46-48” Trowel 6” x 18” Finish • Blade, 46-48” Trowel 8” x 18” Combo • Blade, 46-48” Trowel 10” x 18” Float • Pan, 48” Float

Specifications:

Powerful 31 HP Gasoline-LPG engine from Kubota delivers the high torque needed for panning while having the high rotor speed needed for finishing Continuously Variable Transmission (CVT) provides superior performance by constantly adjusting the drive ratio to obtain torque and speed during all phases of finishing from low speed torque to high speed burnishing LED Lighting provides state of the art illumination for night time or indoor work

Spider Assemblies can be economically rebuilt and feature long lasting wear plates and spider hubs

Twin Pitch Control enables the operator to simultaneously control the pitch of both rotors with minimal effort while also allowing the individual pitch adjustment of each set of rotors

Engine: 31 HP WG972 Kubota Dual Fuel

Engine Cooling: Liquid

Blades per Rotor: 5

Rotor RPM: 0-180

Path Width: 92 in 0 mm

Fuel Tank Capacity: 10 gal 37.8 L

Run Time: 2.31 gal/hr

Operating Weight: 1520 lb 689 kg

Optional Accessories:

• Dolly Jacks

• Lifting Bridle

• Pan, 48” Float Hydro

• Blade, 48” Hydro Trowel 8” x 16” Combo

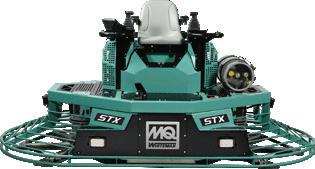

Trowel, 60” Ride-On Hydro

Specifications:

Powerful Tier 4 final engine and heavy duty enhanced hydraulic system provide industry leading torque. Large display for enhanced diagnostics and operator feedback Including fuel level, engine RPM, temperature, and pressure.

Structural forklift pockets allow user to lift the machine from either side and are integral to the structure adding strength and rigidity to the machine.

Gyroscopic steering assist system and cruise control makes it easier for the operator to run the trowel.

Increased visibility and life: high-output LED working lights.

Operating dimensions: 127” L x 65” W x 57” H

Operating weight: 2,720 lbs

Contractors Misc. Equipment

Blades and Finishing Data:

Troweling diameter: 59”

Quantity of blades: 12

Blades (Combination): 23” x 8”

Blades (Finsh): 23” x 6”

Blades (Float Pan Ø): 60”

Pitch range: 0° – 25°

Rotor speed (min. / max.): 25/132 rpm

Engine / Motor: Liquid-cooled, four cylinder, turbo-charged diesel

Engine / Motor manufacturer: Kohler Displacement: 151.4 in.³

Operating performance (SAE J1995): 74 hp

RPM / speed: 2,600 rpm

Engine oil: 9 qt.

Fuel type: Diesel

Fuel consumption: 3.3 gal./hr

Fuel tank capacity: 12 gal

Tank capacity Water: 12 gal

Runtime: 3.6 hr

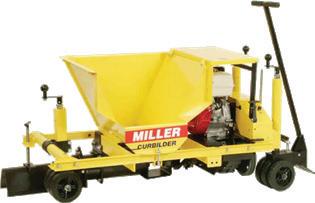

Asphalt Curbing Machine

This quick and efficient process drastically reduces the high labor costs associated with hand formed and poured curb and produces high quality extremely dense curb at a rate of up to 15 fpm.

Engine Power: 13 hp

Engine Model: Honda MC550

Optional Accessories:

• Dolly Jacks

• Lifting Bridle

• Float Pans (1 set)

Fuel Capacity: 2 gal gas

Hopper Capacity: 6.1 cu ft

Height: 34-1/2”

Length: 72” with form

Width: 30”

Available Auger(s): 6” standard

Wheels: (9) 8” x 2” hard rubber

Weight: 760 lbs

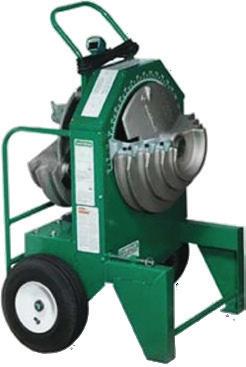

Bender, Conduit/Pipe Greenlee

Amperage Rating : 20 AMP

GFCI-Protected Receptacle

Pipe Thickness: 40 mm

(PVC Coated Rigid)

Shoe Group: 1/2’’ - 2’’

Relative Humidity : 0 - 98%

Blower, Insulation w/Hose

Specifications:

Height: 41”

Width: 32-1/4”

Weight: 177 lbs

Production (Cellulose): 540 lbs/hr

Production (Fiberglass): 177 lbs/hr

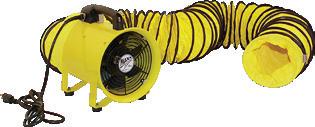

Blower, Manhole Electric

Storage/Operating Temperature: -5 To 120 degrees F

Sub Brand : 555C Classic Series

Voltage Rating : 120 VAC Weight : 260 lbs.

• Standard Curbform for 6” Auger CFD-10L

• Capecod Curbform for 6” Auger CFD-1194

• Bending Shoe, 1/2” - 2” PVC

• Storage Box

Hose Size: 2-1/2”

Electric: 115 V / 220 V (50 Hz / 60 Hz)

Power Requirements: (1) 20 amp circuit @ 115 VAC

Wheels: 6”

Specifications: Optional

Model: HVHF12COMBO

Brand: Ventamatic Power: 120 V

Speed: 2

Flow Rate: 2,000 CFM

Cord Length: 6 ft

Material: Polyvinyl

• Hose, Manhole Flex

• Storage Rack, Hose

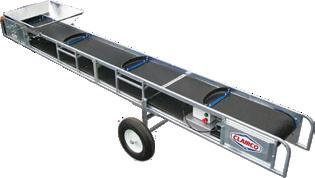

Conveyor, 12’ Belt

Specifications:

Weight: 420 lb

Technical Specs:

All steel construction

10” wide heavy duty 3 ply belt with

Contractors Misc. Equipment

2” high rubber buckets.

Electric motor, 1-1/2 HP / 120V.

Size 70 gearbox speed reducer

Constant belt speed of 160 ft / min

Conveyor, Dirt 10’ x 16’ Portable

Specifications:

LINKIT LKS400-3 - 400 Series Portable Dirt & Aggregate Conveyor 10’ x 16” a “plug-and-play” material management solution for dirt, aggregate, brick and more. Ideal for confined spaces, restricted access sites, basements, trenches, backyards and more. Portable electric conveyor with 16” wide rubber chevron belt. The LKS400 SERIES is ideal for: basement excavations, tunneling, recycling, swimming pool excavations, tank clean Outs and repair, material stockpiling.

Belt Width: 16”

Overall Bed Width: 16”

Weight: 245 lbs

Weight Capacity: 440 lbs

Belt Length: 10’

Length: 10’

Type: Dirt & Aggregate Conveyor

Horsepower: 1 HP

Series: LKS400

Style: Portable Conveyor

Includes: Standard Hopper, 20” Stand, Power Cord, and Link Cord

Voltage: 110 V

Motor: Interroll 1.0KW

Material: Aluminum

Optional Accessories:

• Hose, Manhole Flex

• Storage Rack, Hose

Optional Accessories:

16” Portable

Conveyor Speed: 92 ft/min (Fast) 65 ft/min (Slow)

Conveyor, Dirt 13’ x 16’ Portable

LINKIT LKS400-4 - 400 Series Portable

Dirt & Aggregate Conveyor 10’ x 13’

A “plug-and-play” material management solution for dirt, aggregate, brick and more. Ideal for confined spaces, restricted access sites, basements, trenches, backyards and more. Portable electric conveyor with 16” wide rubber chevron belt. The LKS400 SERIES is ideal for: basement excavations, tunneling, recycling, swimming pool excavations, tank clean outs and repair, material stockpiling.

Cutter Plasma

Specifications:

Cuts up to 3/8 in. mild steel. The unit offers easy connection to 120V or 240V input with Auto-Line technology and MVP Adapters.

Rated Output at 104 Degrees

Fahrenheit: 120 V (15 A): 20 A at 88

VDC, 60% duty cycle; 120 V: 27 A at 92 VDC, 35% duty cycle; 240 V: 30 A at 92 VDC, 40% duty cycle

Belt Width: 16”

Overall Bed Width: 16”

Weight: 290 lbs

Weight Capacity: 440 lbs

Belt Length: 13’

Length: 13’

Assembly Required: No

Type: Dirt & Aggregate Conveyor

Horsepower: 1 HP

Series: LKS400

Style: Portable Conveyor

Includes: Standard Hopper, 20” Stand, Power Cord, and Link Cord

Voltage: 110 V

Motor: Interroll 1.0KW

Material: Aluminum

Dirt Conveyor 10” x 16” Portable

Conveyor Speed: 92 ft/min (Fast) 65 ft/min (Slow)

Recommended Generator Power: 4,000

Input Hz: 50/60 Hz

Cutting Amperage Min: 14 A

Cutting Amperage Max: 30 A

Width: 5.5 in

Height: 9 in

Length: 13.25 in

Weight: 19 lbs

• Goggles, Dark Cutting

• Electrode & Tip

• Dirt Conveyor 13” x

•

Contractors Misc. Equipment

Road Plate, 8’ x 13’ & 8’ x 20’

Specifications:

Width: 8 ft

Length: 13 ft

Thickness: 1”

Width: 8 ft

Length: 20 ft

Thickness: 1”

Mat, 4’ x 8’ Ground Protection

Specifications:

Thickness: 1/2”

Material: Polyethylene

Maximum Weight: 120 tons

Sidewalk Paver, Mini Track

Specifications:

Engine Model: Hatz 1D81Z-9221

Engine Power: 14 HP Diesel

Start: Electric

Fuel Tank Capacity: 8.9 gal

Hopper: Dual hopper, 1/4” thick, steel plate

Hopper Tilt: 52 degrees angle for ease of dumping material

Hopper Capacity: 1.85 sq. yd

Screed Dimensions (L x W): 4’2” x 1’2”

Screed Features: Crown/Invert Adjustment, Power End Gates and Endgate Adjustment Plates for uniform texture

Corners: Drilled with the option of having two hand holes on each side of the mat for easier handling

Optional

Auger Assemblies: (2) 9” cast augers, both with independent hydraulic drive, Forward and Reverse Drive: Hydrostatic; variable forward and reverse

Paving Speed: 0 - 50’ +, per minute

Paving Width: 36” to 72” (Narrow paving with cut off plates)

Paving Thickness: 1/4” - 5”

Dimensions (L x W x H): 9’ 4” (with step up) x 4’ 9 x 3’ 11” (from the ground to top of hopper)

Weight: 3,060 lbs

Post Shore, Heavy Duty 6’6” - 11’ 10K Cap

Specifications:

Height: 6’6” - 11’

Overall Grade: Heavy Duty

Material: High-strength steel

Collar: Forged steel

Base Plate: 1½” hole

Top Plate: 1½” hole

Nail Holes: (8) in Base Plate and Top Plate

Locking Pin: “Paper Clip” style

Dimensions closed: 6’6”

Dimensions extended: 11”

load capacity closed: 13,890 lbs

Safety factor 3:1

Load Capacity extended: 5,650 lbs

Safety factor 3:1

Weight: 42.5 lbs

Post Shore, Heavy Duty 8’6” - 13’ 10K Cap

Specifications:

Overall Grade: Heavy duty

Material: Hot-dip galvanized for prevention of rust and increased life

Locking Pin Grade: Heavy duty

Dimensions closed 8’6”

Dimensions extended: 13”

Saw, Tub & Tile Tilt 10”

Specifications:

Blade Diameter: 10”

Blade Shaft Diameter: 5/8”

Maximum Cutting Length (with plunge cut): 28” (31”)

Maximum Cutting Depth: 3-3/4”

Motor Rating: 1.75 hp / 110 V / 15 A

Load capacity closed: 10,390 lbs

safety factor 3:1

Load capacity extended: 4400 lbs

safety factor 3:1

Weight: 48.5 lbs

Blade Speed: 2,800 rpm

Water Pan Capacity: 10 gal

Water Pump Flow Rate: 3 gpm

Noise Level: 78 db(A)

Operating Dimensions (L x H x W): 40” x 22” x 18”

Optional Accessories:

• Single Turn-a-links

• Metal Storage Skid Rack w/ Hooks & Straps

Optional Accessories:

Optional Accessories:

Optional

Optional Accessories:

• Blade, Tile

• Protractor Angle & Clamp

Saw, Brick & Block

Specifications:

Model: MS360

Included: MS360 Fixed Leg Stand

Motor Horsepower: 1-1/2 HP

Motor Frequency: 60 Hz

Voltage: 100 - 115 V

Rated Input Power: 1.5 HP

Sweeper, Parking Lot

Specifications:

Width: 36”

Path at 15° Angle: 32”

Weight: 275 lbs

Brush Diameter: 24”

Maximum Brush Speed: 100 rpm

High Range Brush Speed: 190 rpm

Maximum Blade Diameter: 14”

Maximum Cutting Depth: 5”

Max Cutting Length: 17.72”

Height: 27.56”

Weight: 128.31 lbs

Optional Accessories:

• 14” Dual Diamond Blade

Washer, 2600# - 3300# Cold Water

Specifications: Optional Accessories:

Engine Brand: Honda GX

Starter: Recoil

HP/cc: 6.5 HP

Hose Length: 50 ft

Hose Diameter: 3/8”

Hose Connections: Quick-Connect

Spray Gun Connection: Quick-Connect

Spray Gun Wand: Single Wand

Spray Tips: Quick Connect Tips (5)

Weight: 155 lbs. (70.31 kg)

Dimensions (L x W x H): 35” x 21” x 24” (88.90 cm x 53.34 cm x 60.96 cm)

Washer, 3000-3500# Hot Water

Specifications:

Engine Brand: Honda GX

Starter: 12 V

Horsepower: 13 HP

CC: 389 CC

Pump Brand: Karcher

Pump Type: Triplex Plunger

Adjustable Pressure: Yes

Chemical Injection: Down-Stream

Water Temperature: Hot

Hose Length: 50 ft

Hose Diameter: 3/8”

Weight: 575 lbs

Product Length: 46”

Product Width: 28”

Product Height: 44”

Washer, 3500# Hot Water Towable

Specifications:

Engine Brand: Honda GX

Starter: 12 V

Horsepower: 13 HP

CC: 389 CC

Pump Brand: Karcher

Pump Type: Triplex Plunger

Adjustable Pressure: Yes

Chemical Injection: Down-Stream

Water Temperature: Hot

Water Pressure: 3500 PSI

Water Flow: 3.5 gp

Frame Type: 4-Wheel Frame

Hose Length: 50 ft

Hose Diameter: 3/8”

Hose Connections: Threaded

Spray Gun Wand: Dual Wand Weight: 575 lbs.

Product Length: 46”

Product Width: 28”

Product Height: 44”

• Washer, Hose & Wand

• Washer, Nozzle

• Washer, Rotary Nozzle

• Washer, 18’ Telesc. Pressure

• Washer, 24’ Telesc. Pressure

• Injector, Chemical/Detergent

• Pressure Washer Rotary Surface Cleaner

• Washer, Hose & Wand

• Washer, Nozzle

• Washer, Rotary Nozzle

• Washer, 18’ Telesc. Pressure

• Washer, 24’ Telesc. Pressure

• Injector, Chemical/Detergent

• Pressure Washer Rotary Surface Cleaner

Optional Accessories:

• Washer, Hose & Wand

• Injector, Chemical/Detergent

Water Trailer, 525 Gal.

Specifications:

The Multiquip WT5C Water Trailer is ready to tackle a host of assignments to include: Dust Control, Emergency Fire Fighting Response, Construction, Agricultural Support and Equipment Wash Down. This mobile unit features: DOT approved Double-Axle Trailer, trusted high-flow MQ QP2H centrifugal pump, flexible suction/discharge manifold system with simple valve operations, and a rugged 525 gal polyethylene water tank.

Washer, 4000# Cold Water

Specifications:

Pressure Rating: 4000 PSI

Flow Rate: 4 gpm

Usage: Heavy duty

Engine Brand: Honda

Engine Horsepower: 13 HP

Pump Type: Commercial-grade triplex

Spray Tips: Included (4)

Chemical/Detergent Injection: Yes

Hose Length: 50 ft

Cart, 4 Passenger

Specifications:

Overall Length: 94.5” (240 cm)

Overall Width: 47.0” (119 cm)

Overall Height (w/o canopy): 45.7” (116 cm) (top of steering wheel)

Overall Height (w/ canopy): 68.5” (174 cm) (top of sun canopy)

Wheel Base: 65.7” (167 cm)

Cart, 6 Passenger

Specifications:

Seating Capacity: 6 passenger Vehicle Load Capacity: 1,200 lbs Height: 48.6”

Height with Suntop: 72”

Length: 136”

Width: 48.5”

Wheelbase: 93.5”

Ground Clearance: 4.3”

Water Tank: 525 gal Polypropylene

Optional Accessories:

Trailer: DOT certified, dual axle, 3,500 lbs

Power Source: Honda GX120 recoil start

Pump: Multiquip QP2H 2” Centrifugal

Flow / Head: 158 gpm / 115 ft

Manifold (Left & Right): 1.5” & 2” (QD Couplers)

Garden Hose Valves Included (2)

Rear Spray Bar: Included

Overall Length: 146”

Overall Width: 68”

Overall Height: 80”

Shipping Weight: 1,428 lbs

Start Type: Manual/Pull start

Recommended Engine Oil: 10W-30

Engine Oil Capacity: 204.8 oz

Assembled Weight: 160 lbs

Hose Diameter (Inches): 3/8”

Hose Material: Rubber

Nozzle Type: Pro style tips with quick disconnect

Optional Accessories:

• Washer, Hose & Wand

• Washer, Nozzle

• Washer, Rotary Nozzle

• Washer, 18’ Telesc. Pressure

• Washer, 24’ Telesc. Pressure

• Injector, Chemical/Detergent

• Pressure Washer Rotary Surface Cleaner

Horsepower: 13.5 hp (10 kW) exceeds SAE J1940 standard

Electric System Starter/Generator: Solid State Regulator

Batteries: One, 12-volt maintenance-free

Fuel Capacity: 6.2 gal (23.5 L)

Curb Weight: 936 lbs

Dry Weight: 896 lbs

Fuel Capacity: 5.8 gal

Air Filter: Industrial Rated Dry Filter

Battery: One, 12 Volt Maintenance Free

Electrical System Starter/Generator: Solid State Regulator

Utility Vehicle, RTV w/Enclosure

Specifications:

Payload Capacity: 1631 lbs

Weight: 2,469 lbs

Cargo Box Width: 52”

Length (w/o bush guard) 46.7”

Volume: 16 cu. ft

Bed Height (unloaded): 32.3”

Cargo Bed Load 1,102 lbs

Contractors Misc. Equipment

Well Pump Puller, Up Z Dazy

Specifications: Optional

Motor – 1 H.P., 115-V.A.C

Switch – waterproof push button 8’ lead

Capacity – 600 lbs load

Will Handle – 1” to 1 1/2” coil or semi-rigid pipe or up to 2” galvanized pipe

Will also pull or set 2 pipe jet systems

Speed – set or pull 28’ F.P.M.

Size – 24”(w) x 30”(l) x 25”(h)

Weight – 155 lbs

Overhead Guide

Wheel kit with handles, winch attachment

Curb Lifter, 1500-2205# Lift Capacity

Specifications:

Model: ASL-200

Weight: 103.6 lbs

Lift Capacity: 2,205 lbs

Use: Lift concrete curbing

2”-7.9” Lifting Width

Superchute Door Section

Specifications:

Superchute Regular Section

Specifications:

Chute sections are conical tubes 48” (1.2 m) in height

The working length of each section is 40” (1 m) 8 in (20 cm) overlap when linked together

Superchute Top Hopper

Specifications:

Backhoe, Kubota B26TLB-V 4WD

Specifications:

Make: Kubota

Model: D1105

Type: Diesel

Cooling: Liquid

Number of Cycles: 4

Aspiration: Natural

Cylinders: 3

Bore and Stroke: 3.1” x 3.1”

(78 mm x 78.4 mm)

Displacement: 68.5 cu. in (1,123 cc)

Engine Gross @ rpm: 24.3 HP (18.1 kW) @ 2,800 rpm

Engine Net @ rpm: 23.1 HP (17.2 kW) @ 2,800 rpm

PTO @ rpm: 19.5 hp (14.5 kW) @ 2,800 rpm

Injection Pump: Inline, piston type

Self Bleed Fuel System: Yes

Lift Capacity at Lift Points: 2,139 lbs (970 kg)

24” Behind Lift Point: 1,676 lbs (760 kg)

Overall Height (Top of Canopy) 89.5” (2,273 mm)

Overall Length: 198.2” (5,035 mm) including loader & backhoe

Overall Width: 53.7” (1,365 mm) / rear axle

Ceiling Hopper

Backhoe, 420F2 CAT Loader w/ 24” Bucket

Specifications:

Engine Make: 2236

Engine Model: C4.4 ACERT

Net Power: 92.6 HP

Gross Power: 102 HP

Power Measured @ 2200 rpm

Net Torque Rise: 46%

Displacement: 268.6 cu in

Bore: 4.2 in

Stroke: 5 in

Fuel Capacity: 43.6 gal

L47 Kubota Tractor

Specifications:

With Backhoe Bucket: 18”

Make: Kubota

Engine Gross @ 2,700 rpm: 47.1 HP

Engine Net @ 2,700 rpm: 44.7 HP

Fuel Type: Diesel

Tank Capacity 17.7 gal (67 L)

Loader Bucket Width: 72”

Bucket Capacity: 15.5 cu ft

Optional

Max Weight: 2,4251 lbs

Hydraulic System Fluid Capacity: 25.1 gal

Oil System Fluid Capacity: 2.4 gal

Cooling System Fluid Capacity: 5.8 gal

Transmission Fluid Capacity: 4.9 gal

Dig Depth - Std: 14.31 ft in

Load At Max Lift - Std: 7,237.78 lbs

Transport Length: 23.53 ft in

Transport Height: 11.74 ft in

Max. Bucket Lift Capacity: 2,848 lbs

3-point Hitch Lift Capacity: 24” behind lift point, 2,756 lbs (1,250 kg)

• 3PT Hitch Scraper Box Attachment for L47 • Backhoe Attachment for L47 Tractor

Maximum Backhoe Digging Depth: 121” (3,073 mm)

Operating Height, Fully Raised: 157.2” (3993 mm)

Overall Width: 71.2” (1,809 mm)

Boring Tool, 2” Grundomat

Specifications:

Boring

Tool,

3” Grundomat

Specifications:

Tool Diameter: 3”

Length: 57”

Weight: 75 lbs

Air Constant: 32 cfm

Stroke Rate: 400 strokes/min

Bulldozer, Premier

Specifications:

Engine Model: C4.4 ACERT Net Power: 80 HP

Displacement: 269 cu in

Operating Weight: 17,544 lbs Fuel Capacity: 51.5 gal

Engine Oil Capacity: 3 gal

Hydraulic Fluid Capacity:15.7 gal

Max Speed - Forward: 5.6 mph

Max Speed - Reverse: 6.2 mph Standard Blade Width: 8.7 ft in

35.8 in

Capacity: 2 yd 3

Blade Angle (Both Directions): 25 degrees

Cutting Depth: 22.5 in

Machine Dimensions:

Length W/ Blade: 14 ft in

Width Over Tracks: 6.23 ft in

Height To Top Of Cab: 9.07 ft in

Length Of Track On Ground: 6.92 ft in

Ground Clearance: 1.08 ft in

Length W/O Blade: 10.7 4ft in

Excavator, Electric 1 Ton

Specifications:

Recommended Use: 25,000-70,000 kW generator

Engine: 5 hp Baldor motor

Hydraulic Attachments: Included

Total Flow: 6.0 gpm

Digging Depth: 5’ 2”

Excavator, 1 Ton

Specifications:

Model: Cat® 300.9D

Overall Width: 2.5’ (730 mm)

Bucket: 10-12”

Weight: 2,205 lbs (1,000 kg)

Digging Force - Bucket: 2,000 lbs

Digging Force - Stick 1,011 lbs

Excavator, 1-1/2 Ton

Operating Weight: 2,060 lbs

Power Cord: 100 ft

Total Length: 8’10”

Total Width: 27.5”

Total Height: 6’10”

Rated Output: 220 V - 240 V / 50

Optional Accessories:

• Generator, 70,000 Watt Towable

• Cord, Distribution Box

Optional Accessories:

Operating Weight w/ Safety Frame: 2,170 lbs

Operating Weight w/out Safety Frame: 2,061 lbs

Engine Model: Yanmar 31NV70

Fuel Type: Diesel

Tank Capacity: 5 gal

Specifications: Optional Accessories:

Operating Weight: 3,880 lbs

Bucket: 10-12”

Fuel Tank: diesel 5.8 gal

Width: 39”

Track Width - Expanded: 4.25’

Blade Height: 8.9”

Dig Depth: 92.1”

Boom In Reach: 57.5”

Boom Swing - Left: 65.0°

Boom Swing - Right: 50.0°

Maximum Blade Depth: 10.2”

Excavator, 3-1/2 Ton

Specifications:

Engine Make: Yanmar

Model: 3TNV88F-ESBV Tier IV

Fuel Tank: 10.8 gal. Diesel

Gross Power: (kW) @ rpm 24.5 hp (18.2) @ 2200

Net Power: (kW) @ rpm 23.9 hp (17.8) @ 2200

Hydraulic Tank: 10.6 gal.

Gradability: 20°

Undercarriage Length: 7’1”

Track Length on Ground: 5’ 10”

Operating Weight w/Canopy: 7,905 lbs

Operating Weight w/Cab: 8,214 lbs

Maximum Blade Height: 10.8”

Maximum Dig Height: 135”

Maximum Dump Clearance: 96.5”

Maximum Reach: 149.6”

Minimum Ground Clearance Below

Undercarriage: 6.1”

Track Width - Expanded: 51.18”

Gross Power - ISO 14,396: 21.6 HP

Digging Force - Bucket: 3,169.8 lbf

Digging Force - Stick - Long: 1,616.4 lbf

• Rammer, 250# Hydraulic

Digging Force - Stick - Standard: 1,843 lbf

Optional Accessories:

Max Digging Depth: 10’8”

Max Vertical Wall Digging Depth: 7’11”

Max Reach at Ground Level: 17’3.5”

Transport Length: 15’8”

Undercarriage Length: 7’1”

Max Digging Height: 16’9.2”

Max Dump Height: 11’2.3”

Transport Height: 8’1”

Blade Below Ground: 1’2.6”

Overall Base Width: 5’ 8.5”

Track Width: 11.8”

Max Dig Depth with 8ft. • Thumb,

Excavator, 3-1/2 Ton Premier

Specifications:

Engine Model: Cat® C1.8

Net Power: 31.6 HP / 23.6 kW

Gross Power: 33.3 HP / 24.8 kW

Bucket: 18”

Operating Weight: 7,734.0 lbs

Operating Weight w/Cab: 8,139 lbs

Max Digging Depth - Strd Stick: 9.6’

Max Reach Ground Level - Strd Stick: 16.7’

Height Over Cab: 8.2’

Max Cutting Height - Long Stick: 16.5’

Max Cutting Height - Strd Stick: 16.2’

Max Dump Height - Long Stick: 11.9’

Max Dump Height - Strd Stick: 11.5’

Max Horizontal Reach - Long Stick: 17.8’

Max Horizontal Reach - Strd Stick: 17.1’

Max Vertical Dig Depth - Long Stick: 8.2’

Max Vertical Dig Depth - Strd Stick: 7.7’

Shipping Height: 8.2’

Shipping Length: 15.5’

Track Shoe Width: 1.0’

Transport Width: 5.8’

Optional Accessories:

Fuel Type: Diesel Fuel Tank: 12.2 gal • Thumb, Hydraulic Excavator

Excavator, 5-6 Ton

Specifications:

Engine Model: Cat C2.4 Turbo

Net Power: 55.9 HP

Gross Power: 57.9 HP

Displacement: 148 in³

Bore: 3.4 in

Stroke: 4 in

Operating Weight: 15,766 lbs

Hydraulic System: 27.5 gal (US)

Hydraulic Tank: 14 gal (US)

Engine Oil: 2.1 gal (US)

Fuel Tank: 34.3 gal (US)

DIMENSIONS - STANDARD STICK

Track Belt/Shoe Width: 16.00 in

Max Reach: 248.00 in

Stick Length: 62.00 in

Vertical Wall: 107.00 in

Excavator, 9 Ton Premier

Forks, Clip-On

Specifications:

Swing Bearing - Height: 27.00 in

Max Reach - Ground Level: 241.00 in

Max Blade Height: 16.00 in

Ground Clearance: 12.00 in Boom In Reach: 98.00 in Transport Height: 69.00 in Cab Height: 100.00 in Width over Upper House: 77.00 in Max Dump Clearance: 170.00 in

Undercarriage Length: 102.00 in Max Dig Height: 230.00 in Max Blade Depth: 24.00 in Track Width: 78.00 in Dig Depth: 146.00 in

Shipping Length: 235.00 in

Optional Accessories:

• Thumb, Hydraulic Excavator

• Grading Bucket 6 & 9 Ton Excavators Only

Ground Pressure: 5.26 psi / 36.3 kPa

Gradeability (maximum): 30°

Travel Speed – High: 3.17 mph (5.1 km/h)

Travel Speed – Low 1.74 mph (2.8 km/h)

Max reach: 24’

Net Power (ISO 9,249): 65 hp / 48.5 kW

• Thumb, Hydraulic

Tine Size: 2” x 4”

Weight: 170 lbs

Dingo, Rammer Attachment

Specifications:

The Toro® concrete breaker delivers exceptional impact energy, and less parts to service. In addition, the unique design minimizes operator fatigue and environmental impact. For use on Dingo® TX 427, TX 525, TX 1000, TX 1300 and e-Dingo models.

Height: (cm) 33 (inches) 13

Hydraulic Flow: 5.3 to 8.2 US gallons per minute (20 to 35 L per minute)

Length: (cm) 130 (inches) 51.2

Weight: (kg) 176 (lbs) 389

Width: (cm) 63 (inches) 24.8

Rammer, 250# Hydraulic

Specifications:

Model: TNB-2M

Impact: 250 lbs

Impact Frequency: 600-1150 bpm

Working Weight: 1-piece top mount

242 lbs., box bracket 364 lbs

Operating Pressure: 1,160-2,175 PSI / 8-15 mpa

Chisel Diameter: 2”

Hose Size: 1/2”

Base Carrier: 1.5 - 2.5 tons

• Excavator 1-1/2 Ton

Rammer, 500# Hydraulic Excavator/Skid Steer

Specifications:

Impact Rate: 550 - 1,060 bpm

Model(s): TNB-3MD / TNB-4M-SSL

Gas Pressure: 114 psi (8 bar)

Working Weight: 418 - 561 lbs

Energy per Strike: 350 ft lbs (475 J)

Optional Accessories:

Compatible Equipment: Nearly all Bobcats, Cats, John Deere, CASE, Kubota, Mustang and Kobelco equipment

Rammer, 1,000# Lg Hydraulic

Specifications:

Impact Energy Class: 750 ft lbs

Recommended Carrier Weight: 1,000 lbs

Frequency: 500 - 1,700 bpm

Hydraulic Flow Rate: 11 - 32 gpm

Loader, Wheeled 1.5 Yard

Specifications:

Maximum Gross Power: 73 HP

Net Power: 74 HP

Engine Model: Cat® C3.3B DIT

Operating Weight: 14,032 lbs

Fuel Tank: 20.6 gal

Hydraulic System - Including Tank: 19 gal

Rated Bucket Capacity: 1.4 yd³

Hydraulic Pressure: 1,300 - 2,050 PSI

Tool Diameter: 3.15”

Length: 57”

Working Weight: 820 lbs

Optional Accessories:

• Excavator 9 Ton Premier

Optional Accessories:

Clearance - Full Lift & 45° Dump: 8 ft

Full Turn Tipping Load: 8,311 lbs

Dig Depth: 3.9”

Height - Ground to Cab: 8.67 ft

Length - Overall: 18.42 ft

Machine Width: 6.5 ft

Operating Weight: 14,323 lbs

Dingo TX1000, Track Loader w/ Bucket

Specifications:

The all-new TX 1000 - a giant step forward in performance and versatility. This lightweight maneuverable machine packs unmatched strength and reach in a compact package for the ultimate working advantage. The 1,000 pound rated operating capacity makes the TX 1000 a powerful, compact alternative to larger skid steer loaders and other machines.

Engine: 24.9 HP (18.6 kW) Kubota®

D1305 Diesel

Ground Clearance: 6.0” (15 cm)

Ground Pressure: 3.6 PSI

Ground Speed: 4.7 mph (7.6 km/h)

Height: 53.2” (135 cm)

Hinge Pin Height: 81” (206 cm)

Hydraulic System Pressure: 3,000 psi

Length with Bucket: 100.7” (256 cm)

Length without Bucket: 81.7” (208 cm)

Optional Accessories:

Operating Capacity (35% of tip capacity): 1,075 lbs (488 kg)

Reservoir Capacity: 10 gal (57.5 L)

Fuel Type: Diesel

Tip Capacity: 3,071 lbs (1,393 kg)

Track: 127.6” x 9.5” (324 cm x 24 cm)

Track Width: 9.5” (24 cm)

Traction Flow: 13.3 gpm (each pump)

Weight: 2,860 lbs (1,297 kg)

Width: 41” (104 cm)

Dingo TX1300, Track Loader w/ Bucket

Specifications:

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 HP Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26” of reach, and the telescoped hinge-pin height of 109” means you can lift loads up and over the side of a dumpster or truck for maximum productivity.

Engine: 37 HP (27 kW) Yanmar® diesel

Ground Clearance: 5.9” (15 cm)

Ground Pressure: 5.5 PSI

Ground Speed: -4.7 mph (7.6 km/h)

Height: 56.5” (143.5 cm)

Length: 103.1” (262 cm) with bucket 84.9” (215.6 cm) without bucket Width: 46” (116.8 cm)

Wheelbase: 39” (99 cm)

Weight: 3,858 lbs (1,750 kg)

Track Width: 9.1” (23 cm)

Tip Capacity: 3,714 lbs (1,685 kg)

Operating Capacity: 1,300 lbs (590 kg)

retracted 618 lbs (280 kg) - extended

Optional Accessories:

e-Dingo, Wheeled Battery Powered

Specifications:

Battery Capacity: 9.12 kW/h

Battery Electric System Voltage: 48

Battery Chemistry: Lithium Ion

Ground Clearance: 5.8” (15 cm)

front & rear

Ground Speed: 2.75 mph

Height: 48.7” (123.7 cm)

High Flow Pump: 6.5 gpm

Hinge Pin Height: 66” (167.6 cm)

Loader, Premier Skid Steer

Hydraulic Reservoir Capacity: 14.8 gal

Hydraulic System Pressure: 3,250 PSI

Length: 82.2” (208.8 cm) with bucket; 62” (157.5 cm) without bucket

Operating Capacity: 515 lbs (234 kg)

Weight: 2,076 lbs (942 kg)

Wheelbase: 28”

Wheels: Non-marking / Solid

Width: 35.6” (90 cm)

Specifications:

Operating Weight: 8,011 lbs

Rated Operating Capacity: 1,800 lbs

Tipping Load: 3,600 lbs

Breakout Force, Tilt Cylinder: 5,074 lbs

Engine Model: Cat C3.3B DIT (Turbo)

Gross Power: 74.3 HP

Wheel Base: 49.2 in

Length - w/ Bucket on Ground: 146.2 in

Length - w/out Bucket: 117.9 in

Height - Top of Cab: 83.1 in

Vehicle Width over Tires: 66.0 in

Maximum Overall Height: 157.8 in

Bucket width: 66”

Fuel Tank: 24.8 gal (US)

Hydraulic System: 13.7 gal

Hydraulic Tank: 10.3 gal

Loader, Premier Track

Operating Weight: 8,945.0

Rated Operating Capacities: 50%

Tipping Load: 2,900.0 lbs

Rated Operating Capacities: 35%

Tipping Load: 2,030.0 lbs

Tipping Load: 5800.0 lbs

Breakout Force: Tilt Cylinder 5,035 lbs

Fuel Tank: 27.7 gal

Hydraulic System: 13.2 gal

Hydraulic Tank: 10.3 gal

Optional

Accessories:

• Forks, Dingo Attachment

Optional

Accessories:

• Bucket

• Skid Steer Grapple Bucket

• Auger, Skid Steer Mounted

• Rammer 500# Hyd Excavator/Skid Steer

• Forks, Skid Steer Attachment

• Blade, 6’ Bobcat Ango Angle

• Sweeper, Skid Steer

• Bobcat, Super Scraper

• Bobcat, Grouser Tracks

• Skid Steer, Trencher Unit

• Skid Steer, Brush Hog Attachment

• Skid Steer, Bucket w/ Teeth

• Bucket

• Skid Steer Grapple Bucket

• Auger, Skid Steer Mounted

• Rammer 500# Hyd Excavator/Skid Steer

• Forks, Skid Steer Attachment

• Blade, 6’ Bobcat Ango Angle

• Sweeper, Skid Steer

• Bobcat, Super Scraper

• Bobcat, Grouser Tracks

• Skid Steer, Trencher Unit

• Skid Steer, Brush Hog Attachment

Steer, Rock Bucket

3”

• Skid Steer, Bucket w/ Teeth

Tilt: ±8°

Drum Diameter: 22”

Carbide Picks: 43

Weight: 2,150 lbs.

Sideshift Center to Right: -3” to 22”

Operating Pressure: 2,500 to 3,000 psi

Rake, 6’ Skid Steer York

Specifications:

Maximum Working Width: 6’

Minimum Working Width: 5’ 3”

Number of Teeth: 36

Size of Teeth: 5/16” x 1” x 28”

Rake, Harley

Power

Specifications:

Make / Model: Harley / M6H

Attachment Type: Power rake

Mounting: Universal (72” Hoses and Couplers)

Angle (R or L): 13 deg

Flow Rate Range: 13 - 40 gpm

Overall Height: 30.3”

Skid

Steer,

Rake Tooth Spacing: 1”

Frame: Structural steel, electrically welded Weight: 647 lbs

Overall Length: 64”

Overall Width: 81”

Pressure Range: 2,000 - 3,500 PSI

Raking Width at full angle: 68”

Weight: 1,100 lbs

Working Width: 72”

Brush Hog Attachment

Specifications:

Cutting Width: 60”

Overall Height: 22.5”

Overall Length: 78”

Overall Width: 72”

Minimum Cutting Height: 2”

Skid Steer, Grapple Bucket

Specifications:

Overall Width: 66-3/4”

Grapple Open: 34”

Grapple Closed: 19-3/4”

Overall Depth: 36”

Weight: 788 lbs

Deck Height: 9”

Deck Thickness: 1/4” Steel

Recommended Hydraulic: 15 to 30 gpm

Required Skid Skeer Lift Capacity: 1,300 lbs Weight: 1,230 lbs

Skid Steer, Rake Landscape Rock Hound

Specifications: Optional Accessories:

Maximum Rock Diameter: 3/4” to 6”

Working Width: 66”

Hopper Capacity: 1/2 yd

Flow Rate Range: 10 to 25 gpm

Pressure Range: 1,000 - 3,500 PSI

Skid Steer, Trencher Unit

Specifications:

Model: 48” bar

Weight: 1,075 lbs

Depth Presets: 24”, 32”, 40” 48”

Flow Range: 16-30 GPM

Specifications:

Drive: 2”

Flow Rate: 10 - 25 gpm

Maximum Diameter: 30” Auger, Skid Steer Mounted

Lift Capacity: 9,000 lbs

Operating Weight: 1,390 lbs

• Breaks up clods and levels the soil

• Collects rocks and debris in hopper

• Dumps collected debris quickly and easily

Included: Cradle, Universal Skid Steer Quick Attach Mounting Bracket and hoses with flat face couplers

• Auger, 9”, 12”, 18”, 24”, 30” Bit Skid/ Exc Hex Shank

Auger, 24” Exc/Skid Steer Extension

Mulcher, Skid Steer Attachment

Specifications:

Overall Width: 73”

Overall Height: 32.6”

Overall Length: 36.7”

Cutting Width: 60”

Height with Pushover Bar: 60.4”

Length with Pushover Bar: 49.5”

Sweeper, Skid Steer

Specifications:

Overall Width: 78.3 in

Sweeping Width: 60 in

Brush Diameter: 26 in

Required Hydraulics: Standard Flow

Height: 34.3 in

Length: 72.3 in

Optional

Operating Pressure: 3,000-4,000 PSI

Hydraulic Flow: 30-45 gpm

Recommended Horsepower: 60-95 HP

Teeth: 44

Weight: 2,530 lbs

Weight: 1159.6 lbs

Required Hydraulic Flow: 42-86 L/min

Optional Accessories:

• Loader Premier Skid Steer

Optimal Hydraulic Pressure: 145-235 bar (2100-3400 PSI)

Hopper Capacity: 0.5 yd³

Gutter Brush Weight: 90.4 lbs

Forks, Skid Steer Attachment

Specifications:

Lifting Capacity: 4,000 lbs

Pallet Forks: 1.5 x 4 x 48 (PAIR)

Mounting: No tools required

Handle Features: Slideable - allows

Pusher, 8’ Skid Steer

Specifications:

Model: SP08S

Width: 8’

Approximate Weight: 800 lbs

Optional Accessories:

forks to be mounted in most positions on the bucket, such as next to the side or back of the bucket.

Machine Application (minimum): 46-70 HP

Snow Capacity: 7 yd

Pusher, 12’ Backhoe

Specifications:

Model: SP12B

Width: 12’

Approximate Weight: 1,450 lbs

Machine Application (minimum): Backhoe - 4 x 4

Snow Capacity: 11 yd

Brush Cutter, Dingo Attachment

Specifications:

Operating Equipment: Compact

Utility Loader

Cutting Width: 42”

Max Cutting Capacity: 2”

Auxiliary Hydraulic Flow: 8-20 gpm

Weight: 469 lbs

Forks, Dingo Attachment

Specifications:

Width: Adjustable

Fork Material: Steel

Operating Capacity: 335 lbs. (152 kg)

Overall Length: 58.25”

Overall Width: 43.75”

Blades: (2) 0.5’’ x 4” (High Strength, Updraft)

Blade Carrier Type: 1” bar

Blade Rotation: Counter Clockwise

Total Weight: 275 lbs.

Frame Width: 46”

Frame Height: 30.5”

Grapple Rake, Dingo Attachment

Specifications:

Cylinders: Twin heavy-duty hydraulic cylinders

Width: 34.5” (87.6 cm)

Tines: 3/8” (1 cm) AR400 steel

Tine Spacing: 7” (17.8 cm)

Bottom Tine Spacing: 6-1/4” (15.9 cm)

Pivots: (4) greaseable to reduce wear

Optional Accessories:

Compatibility: All Dingo Traction units except TX 413

Leveler Platform: Fabricated welded frame

Mounting Frame: Fabricated, welded base

Standard Equipment: Dingo Quick-Attach Mount Plate

Clamping Force: 3,000 lbs.

Vibratory Plow, Dingo Attachment

Specifications:

Height without Blade: 27” (69 cm)

Width: 28.2” (72 cm)

Length: 34” (86 cm)

Weight: 457 lbs (207 kg)

Blade Adjustment: 0 -18” (0-46 cm)

Working Depth: 6-18” (15-46 cm)

Optional Accessories:

Chain: Machined, plated 2” (5 cm) hex bullet

Soil Cultivator, Dingo Attachment

Specifications:

Roller: Offset wire mesh finish

Maximum Depth: 5.5” (14 cm)

Blade Adjustment: Mechanical adjustment

Depth Control: Mechanical adjustment

Flow: 7 - 14 gpm (26.5 - 53 lpm)

Height: 21” (53.3 cm)

Length: 51” (129.5 cm)

Motor Type: LSHT Motor

Tiller, Dingo Attachment

Specifications:

Height: 26” (66 cm)

Length: 20” (50.8 cm)

Optional Accessories:

Number of Blades: 20 “V” non-panning blades

Rated Pressure: 3,000 psi (206.7 bar)

Roller Adjustment: Mechanical adjustment

Rotor Outside Diameter: 11.25” (28.6 cm)

Standard Equipment: Dripless flush face couplers

Weight: 550 lbs (249.5 kg)

Width: 51” (129.5 cm)

Working Width: 36” (91.4 cm)

Working Depth: 5.5” (14 cm)

Standard Equipment : Flush face quick couplers

Tine Heads: 36

Weight: 363 lbs (164.7 kg)

Trencher, Dingo Attachment

Specifications:

Model: 48” trencher

Trench Depth: 48”

Headshaft Height: 8”

Overall Length: 86”

Auger, Dingo Attachment

Specifications:

The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo’s capability to dig 30” (76.2 cm) holes up to 6’ (1.8 m) deep in clay, gravel, sandstone and many other conditions.

Auger Speed: 57 rpm at 11 gpm (41.6 lpm), 95% efficiency

Overall Width: 53”

Overall Height: 32”

Weight: 750 lbs

Optional Accessories:

Height (inches): 23

Length (inches): 16

Mounting Frame: Dingo® quick-attach mount plate, fabricated, welded base

Shaft (inches): 2.6

• Auger, 6”, 9”, 12” and 18” Bit Toro Round Shank

Torque: 1515 ft/lb at 3000 PSI, at 11 gpm (461 m-kg at 207 bar, at 72 lpm)

Weight (lbs): 182

Width (inches): 24

48” Fork, Wheeled Loader Attachment

Specifications:

Fork Length: 48”

Carriage Weight (lbs): 311

Carriage Frame Width (in): 55

Trenching Bucket

Optional

Machine Type: Compact Wheel Loader

Carriage Length (in): 10

Carriage Height (in): 22.8

Specifications: Optional

Width: 11.8 in

Capacity: 0.8 ft³

Weight: 68.6 lbs

Rake, 6’ York Tractor

Specifications:

Maximum Working Width: 6’

Minimum Working Width: 5’ 1”

Number of Rake Positions: 5

Tractor Hitch Required: 3-point

Number of Rake Teeth: 36

Rake, 8’ York Tractor

Specifications:

Maximum Working Width: 8’

Minimum Working Width: 7’ 1”

Number of Rake Positions: 5

Tractor Hitch Required: 3-point

Number of Rake Teeth: 48

3 PT

Base Edge Thickness: 0.4 in

Tip Radius: 20 in

Interface Type: Pin On

Size of Rake Teeth (L x W x H): 5/16” x 1 “ x 28”

Rake Tooth Material: Heat treated alloy steel

Fasteners: Heat treated cap screws

Distance Between Teeth: 1”

Optional Accessories:

Size of Rake Teeth (L x W x H): 5/16” x 1 “ x 28”

Rake Tooth Material: Heat treated alloy steel

Fasteners: Heat treated cap screws

Distance Between Teeth: 1” •

Hitch Scraper Box, Attachment for L47

Specifications:

FFC Box Scraper, by Paladin, is perfect for fine grading and heavyduty landscaping jobs. It can backfill, grade, excavate, rip, and scarify. The hydraulically-actuated scarifiers, for leveling or removing materials, make switching from ripping/excavating to finish grading effortless.

Model number: 24884-0796

Cutting Width (in): 84

Depth (in):45.5

Capacity (yd): 1.38

Weight (lbs): 1,565 Optional

• L47 Kubota Tractor

Cutter, 5’ Brush Hog 3 PT Hitch

Specifications:

Weight: 599 lbs

Cutting Width: 60”

Overall Width: 65”

Overall Length: 99-3/8”

Tiller, 3 PT Hitch Roto

Specifications:

Model: Kuhn EL42

Working Width: 50”

Maximum Offset: 12”

Deck Height (Bottom of Deck to Bottom of Skid Shoe): 7-1/2”

Cutting Height: 1-1/2” - 13”

Cutting Capacity: 2” Diameter Optional

• L47 Kubota Tractor

Engine Capacity: 540 rpm

Maximum Horsepower: 40 hp

Wheels: Depth control

Optional

• L47 Kubota Tractor

L47 Kubota Tractor

L47 Kubota Tractor

Rake, 3 PT Harley Power

Specifications:

Model: M6H / T6H

Working Width: 6 ft

Mount: 3-point

Angle: 13 - 15 deg

Flow Rate Range: 12 - 40 gpm

Dirt Screener, Portable

Specifications:

This heavy-duty plant can handle topsoil, gravel, aggregate, wood chips and street sweepings. The 1000XL is an everything-in-one portable screening plant, designed to handle every kind of screening work that every job site has to offer.

Loading Bucket Size Range: 8’

Compatible Loaders: ½ - 1 ¾ yd

Overall Height: 30.3”

Overall Length: 48 - 64”

Overall Width: 81”

Pressure Range: 2,000 - 3,500 PSI

Weight: 1,100 lbs

Optional Accessories:

• L47 Kubota Tractor

Inside access for Bucket: 9’4”

Feed height at hopper 8’3”

Screen Box Dimensions (L x W): 6’ x 5’

Double deck

Fuel Type: Diesel

Horsepower: 10 HP

Overall Width: 5’8”

Overall Height: 8’3”

Weight at Tongue: 1,760 lbs

Overall Weight: 5,462 lbs

Vibratory Plow & Trencher, Ride-On

Specifications:

ProSneak 365 Vibratory Plow & 36” Trencher

Width (with 23x10.5x12 tires): 46” mounted wide (standard); 36”

mounted narrow

Wheelbase 48”

Overall Height (with ROPS and 23x10.5x12 tires): 85”

Overall Length (with plow and blade, no trencher): 114”

Carpet Cleaner, Spotter

Specifications:

Solution Tank: 3 gal

Recovery Tank: 3.5 gal

Solution Pressure: 55 PSI

Vacuum Motors: 2-stage, bypass

Handle: Adjustable, 22” - 37”

Wheels: 6” non-marking Power Cord: 25’

Carpet

Cleaner,

3 Gal

Specifications:

Solution Tank: 3 gal

Lift-Off Recovery Tank: 3 gal

Vacuum Motor: 112 cfm, 2 HP

Cleaning Width: 12”

Wheels: 7”, non-marking Power Cord: 25 ft

Weight: 40 lbs

Optional Accessories:

Ground Clearance (with 23x10.5x12 tires): 5.25”

Operating Weight: 2,930 lbs

Engine: Yanmar® 3TNV88C-DTR4 (Tier 4 Final)

Fuel Type: Diesel

Fuel Tank Capacity: 7.1 gal (26.9 L)

Cylinders: 3

Net Power Rating: per SAE J1349 36.8 hp (27.5 kW)

Rated Speed: 3,030 rpm

Max Plow Depth: 24”

Trench Depth: 36”

Floor Care

Heater: 1,500 W, stainless steel

Dimensions (L x W x H): 15” x 13” x 20.5”

Weight: 19 lbs

Shipping Weight: 27 lbs

Shipping Dimensions (L x W x H): 18” x 15.5” x 23”

Electrical Draw: 15 A

Shipping Dimensions (L x W x H): 26” x 15” x 28”

Electrical Draw: 12 A

Carpet Cleaner, Large 5 Gal

Specifications:

Solution Tank: 5 gal

Cleaning Width: 14”

Wheels: 7”, non-marking

Power Cord: 25”

Weight: 68 lbs

Electrical Draw: 14 A

Carpet Cleaner, Rug Doc EZ

Specifications:

Solution Tank: 3 gal

Lift-off Recovery Tank: 3 gal

Solution Pressure: 50 PSI

Vacuum Motor: 112 cfm, 2 HP

Waterlift: 107”

Brush Motor: 1/6 HP

Brush Speed: 2,500 rpm

Brush Style: Chevron design, 4 rows

N/A

Polisher, 13” Floor

Voltage: 120 V / 60 Hz

Power Cord: 50’ - 14/3

Pad/Brush Size: 12” - 13”

Weight: 68 lbs

Polisher, 17” Floor

Specifications:

Diameter: 17”

Brush Speed: 175 rpm

Voltage: 120 V

Horsepower: 1.5 HP

Wheels: 5” non-marking

Weight: 95 lbs

Sander, Drum Floor

Specifications:

Motor: 1-1/2 HP, Enclosed

Drum Width: 8”

Dust/Filter Bag: 2 cu ft

Drum Speed: 1,800 rpm

Leveling Control: Externally adjusted

Brush Bearings: Sealed, stainless steel ball bearings

Cleaning Width: 12”

Wheels: 7”, non-marking

Dimensions (L x W x H): 23” x 12” x 24”

Weight: 40 lbs

Electric Draw: 12 A

Casing: Stainless Steel

Weight: 19 lbs

Operating Pressure: 75 PSI

Steam Temperature: 305 deg F

• Vacuum, Floor Tool Large

• Vacuum, Hose

• Vacuum, Wand

• Upholstery Kit

Motor Starter: Mechanical relay

Power Cable: 40’

Sandpaper Available: 20, 36, 60, 80 and 100 grit

• Brush, 13” Floor

• Pad, 12” x 18” White Polishing

• Pad, 13” Green Scrubbing

• Pad, 13” Tan Polishing

• Pad, 13” Black Scrubbing/Stripping

Optional Accessories:

• Brush, 17” Floor

• Driver, 17” Sandpaper

• Mastic Removal Attachment 17”

• Grinder Attachment, 17” Floor

• Pad, 17” x 1” Sanding

• Pad, 17” x 1” Black Stripping

• Pad, 17” x 1” Green Scrub

• Pad, 17” x 1” Tan Polishing

• Disc, 17” 20, 36, 60 & 100 Grit

Sandpaper

• Disc, 17” 60 & 80 Grit Screen

Optional Accessories:

• Sandpaper, 8” x 19” 20, 36, 60, 80 &

100 Grit

Sander, Square Buff

Specifications:

Motor: Electric, 1 HP, Universal, Enclosed, 115 V, 60 Hz

Sanding Path: 18” (45.7 cm)

Power Cord: 50’ (15.3 m) gray, non-marking rubber

Sanding Pad Size: 12” x 18”

Sander, Floor Edger

Specifications:

Weight: 41.9 lbs

Size (L x W x H): 18” x 20” x 45”

Machine Weight: 125 lbs (56.7 kg)

Shipping Weight: 140 lbs (64 kg)

Sandpaper Available: 20, 30, 60, 80 and 100 grit

Product Dimensions (L x W x H): 13” x 13” x 12.5”

Model: Su7R

Finish: Polished aluminum

Sandpaper Available: 20, 30, 60, 80 and 100 grit

Scraper,

Ride-On

Floor Battery Powered

Optional Accessories:

• Pad, 12” x 18” White Polishing

• Sandpaper, 12” x 18” 20, 36, 60, 80 & 100 Grit

• Sanding Screen, 12x18 60, 80, 100, 120 & 150 Grit

Optional Accessories:

• Disc, 7” 20, 36, 60, 80 & 100 Grit Sandpaper

Specifications: Optional

Working Width: 6-27in. (Depending on the type of blade)

Ground Speed: 160 ft. min. working speed

Power: 12 8V Batteries / Up to 10 HR run time

Dimensions: L 59” x W 24” x H 52”

Weight: 2245 lbs with weights, 1995 lbs without weights

Surfaces: Hardwood Parquet, Ceramics, Linoleum, Vinyl, Carpet, Adhesives, Glue, Tiles

Scrubber, Floor Walk-Behind

Specifications:

Application: Indoor

Estimated Coverage/Productivity: Up to 47,520 sq ft / 4,415 sq m

Estimated Run Time: Up to 6.9 hours (cylindrical)

Main Down Pressure: Up to 300 lbs (disk), up to 90 lbs (cylindrical), 170 lbs (orbital)

Power Source: Battery

Sound Level: As low as 69.2 dBA

Squeegee Width: 39”, 43.1”, 47.7”

Stripper, Ceramic Tile

Specifications:

Head Type: Disk, Cylindrical, Orbital

Charger type: Standard: On-board

Cleaning Path: 28”, 32”, 36”

Machine Type: Walk-Behind

Recovery Tank Capacity: 37 gal

Pad RPMs: Up to 300 rpm (disk), 760 rpm (cylindrical), 2,200 rpm (orbital)

Solution Tank Capacity: 32 gal

Power Source: 35-lb. weight class electric breakers

Outside Wheel Width: 21-1/4” (540 mm)

Handle Width: 30” (762 mm)

Weight: 130 lbs (59 kg), less breaker

Stripper, Comm. Turbo Floor

Specifications:

Power Type: Electric

Horsepower: 2 hp

Volt: 115v/ 60Hz

Height: 43.3”

Width: 15”

Length: 35.4”

Weight: 350 lbs

• Transport Dolly, Ride-On Floor Scraper

• Beveled Tile Blade, 6”, 8” & 12”

• Self Scoring Carpet Blade, 8”, 10” & 12”

• Premium Chisel Heavy Duty, 2” & 4”

• Heavy Duty Tile Blade, 12”

Optional Accessories:

Optional Accessories:

• Breaker Tool, 1” & 3” Chisel

Optional Accessories:

• Blade, Floor Stripper VCT

• Blade, Floor Stripper Carpet

Vacuum, Wet/Dry Shop

Specifications:

Voltage: 120 V (60 hz)

Motor Output: 1 kW (8.3 A)

Weight: 16.5 lbs (7.5 kg)

Suction: 210 mbar (84 in H2O)

Air Flow: 3,200 L/min (113 cfm)

Sound Pressure Rating: 70 dB(A)

Container Capacity: 6.6 gal (25 L)

Suction Hose Length: 8.2’ (2.5 m)

Power Cord Length: 16.4’ (5 m)

Power Source: Electric

Vacuum, SM 8 Gal Dust Collector HEPA

Specifications:

Automatic Filter Clean pulses every 30 seconds for continuous operations

Powerful 15 Amp motor delivers 150 CFM of airflow for maximum suction

Power Tool Actuation controls the On/

Off operations of the vacuum with a power tool

Lightweight and portable weighing in at only 21 lbs

Can be used with wet or dry applications

Aerator, Towable w/ Weights

Specifications:

Vacuum, Floor Tool Large

Vacuum Hose

Vacuum Wand

Garden & Yard Equipment

Aerating Width: 48”

Maximum Aerating Depth: 3”

Aerating Pattern: 4.4

Number of Tines: 40

Aerator, Core (Gas) 19”

Specifications:

Maximum Depth: 3”

Weight: 240-288 lbs (model dependent)

Aerating Width: 19”

Fuel Type: Gas

Engine Make: Honda

Performance kW: 2,9

Performance HP: 4,0

Productivity (m2/h): 2000

Working Width (cm/in): 48 / 19”

Aerator, 30” Stand On

Specifications:

Highly productive w/extra fuel capacity and speeds up to 7.5 mph (12,1 km/h)

Smooth ride with the floating operator platform

Foot pedal control lets you raise and lower tines on the fly

Intuitive controls that function a lot like a mower, saving time

Tine Type: Drum

Tine Depth (cm): 8,9

Number of Tines: 24

Tine pattern (cm): 12 x 18

Drive Type: Self Propelled

Transmission Type: Geared Gears Forward: 1.0

Wheel Type: Semi-Pneumatic

Maximum Aerating Depth: 5”

Aerating Width: 30”

Fuel Capacity: 5 gal

Fuel Type: Gasoline

Ground Speed: 7.5 mph (forward)/2.2 mph (reverse)

Dimensions (L x W x H): 65” x 48” x 53”

Weight: 1,015 lbs

Spreader Attachment, Stand On Aerator

Specifications:

• Spreader Attachment, Stand On Aerator

Auger, Towable Hydraulic

Specifications:

Auger Speed 140 rpm @ 3600 engine rpm (no load)

Auger Torque 275 ft. lbs. torque (approximate)

Maximum Depth Depends on length of Auger

Auger,

2 Man Power

Specifications:

Maximum Auger Speed @ 3600 engine rpm (no load): 160 rpm

Maximum Torque: 192 ft lbs torque (approximate)

Chipper, 9” Brush Bandit

Specifications:

• 270-degree hydraulic swivel discharge

• Gas engine

• Hydraulic lift cylinder for top feed wheel

• Reversing auto feed

• Slide box feed system w/ dual horizontal feed wheels

• Wide 9” x 17” throat opening

Chipper, 6” Brush Bandit

Specifications:

Model: 65XP

Capacity: 6”

Engine Power: 35 HP

Fuel Type: Gasoline

Fuel Capacity: 10 gal

Chipper, 12” Brush Bandit

Specifications:

Capacity: 12” (30.48 cm)

Opening: 14” x 17” (35.6 cm x 43 cm)

Width: 72” (182.90 cm)

Height: 100” (254 cm)

Length (Open): 202” (513 cm)

Chopper/Blower, Hay Bale

Specifications:

Garden

Weight 295 lbs (134 kg) (with fluids)

Length Normal Drilling 100” (253 cm)

Length Close-up Drilling 75” (190 cm)

Width 34” (86 cm)

Optional Accessories:

Auger, 10” & 12” Bit Hydraulic

Extention, 12” & 24”

Height 38” (96 cm) • Auger, 8” & 16” Bit Towable & 2-Man

Maximum Auger Diameter: 12”

Weight: 72 lbs

Length: 40.5”

Width: 30”

Capacity: 9 in

Opening: 17 in x 9.50 in

Width: 77 in

Height: 93 in

Length: (Open) 206 in (Closed) 176 in

Weight: 7,500 lbs

Feed Rate: 90 ft/min 27.43 m/min

Fuel Tank: 40 gal (GAS)

Hydraulic Tank: 35 gal

Pintle Hitch

Disc / Drum Diameter: 26” (66 cm)

Chipper Width: 1.6 m

Number of Reversible Blades: 2

Chipper Weight: 2425 lbs

Tow Hitch Type: 2” ball

Optional Accessories:

• Auger, 8” & 16” Bit Towable & 2-Man

• Auger, 10” & 12” Bit Hydraulic • Extention, 12” & 24”

/ Minute: 1 - 1.5

Length (Closed): 172” (436 cm)

Weight: 5,800 lbs (2,630 kg)

Feed Rate: 120 ft/min (36.60 m/min)

Fuel Tank: 29 gal

Fuel Type: Diesel

Rotor: 16” Blower: 18”

Number of Knives: 32

Discharge: 45’ - 50’

• 6” x 30’ Hose Kit, Hay Bale Blower • Hose Adapter, Hay Bale Blower

Blower, Bark & Mulch

Specifications:

Power: Diesel Kubota V1505, 33.5 HP (25 kw), 4 cylinder

Engine Safety: Low oil pressure, high water temperature shutoff

Capacity: 1.5 cubic yd (1.2m^3)

Fuel Capacity: 15 gal

Fuel Type: Diesel

Splitter, 26” Log

Specifications:

Max Log Opening: 26”

Ram Pressure: 26 tons (calculated)

Cycle Time: Approximately 12 sec

Sod Cutter, 18”

Specifications:

Engine Brand: Honda®

Weight: 157.8 kg

Cutting Width: 18” (45.7 cm)

Blower, Backpack Leaf

Specifications:

Displacement: 4.0 cu. in (64.8 cc)

Engine Power: 2.8 kW (3.8 bhp)

Weight: 23.4 lbs (10.6 kg)

Blower, 8-9 HP Leaf

Specifications:

Model Number: F902H

Fan Material: (17) 16-blade Single

Shot Composite

Displacement: 262 cc

Length: 58”

Housing Height: 32”

Handle Height: 45”

Front Tire Style: Semi-pneumatic

Rear Tire Type: Pneumatic

Front Wheel Width: 10

Blower, 10 HP Leaf

Specifications:

Housing Height: 32”

Handle Height: 45”

Velocity: 200 mph (approximately)

Discharge: 4”

Garden & Yard Equipment

Blower: 500 cfm @ 10 psi (14 cmm @ 69 kPa)

Empty Weight: 4,550 lbs (2,065 kg)

Working Weight: 5,750 lbs (2,610 kg)

• Bark & Mulch Blower Remote

Truck Requirement: 6,000 lbs (2,730 kg)

Hose Length: 100’

Hitch Coupler: 2 Locking Ball (Standard)

Cylinder Size: 4” x 24”; Clevis type

Hydraulic Tank: 7.5 gal capacity

Max Cutting Depth: 2.5” (6.35 cm)

Length: 59” | Width: 26.5”

Height: 36.5”

Fuel Capacity: 47.3 oz. (1,400 cc)

Blowing Force: 35 Newtons

Fuel: 50 to 1 gas mix

Velocity (mph): 200 mph

Discharge: 4”

Weight: 143 lbs

Width: 29.25”

Front Tire Size: 10” x 3”

Rear Tire Size: 13” x 5”

Rear Wheel Width: 13”

Fuel Tank Capacity: 1 gal

Fuel Type: Gasoline

Weight: 143 lbs

Width: 29.25”

Tank Capacity: 1 Gal

Fuel Type: Gasoline

• Ramp, Loading

Blower, Stand On Leaf

Specifications:

Model: 5901807-Z3000

Engine: Vanguard V-Twin

Engine Power Rating: 35 HP

Displacement: 993 cc

Transmission: Twin HYDRO-GEAR®

3100 IZTs

Velocity: 165+ mph

Fuel Type: Gasoline

Cutter, Brush Gas Powered Specifications:

Displacement: 2.3 cu. in (37.7 cc)

Engine Power: 1.7 kW (2.3 bhp)

Weight: 18.7 lbs (8.5 kg)

Fuel Capacity: 25.4 oz. (750 cc)

Power Source: Gas

Mower, 21” Walkbehind

21” Mowing Path

Snapper HI VAC 190cc 3-N-1 Push

Lawn Mower with 21-Inch Mower Deck and Ready Start System and 7 Position Height-of-Cut

Mower, 24” w/ Brush Cutter

Specifications:

Engine: 388 cc Honda

Start: Pull

Cut Width: 26”

Cut Height: 3.75”

Tank Capacity: 10 Gal

Air Flow (cubic ft/min): 7,500

Travel Speed (mph): 9

Fuel Capacity (gal): 10

Length (in): 65

Width (in): 45

Height (in): 56

Weight (lbs): 895

Weight: 317 lbs

Length: 83”

Width: 31”

Mower, Ride-On Commercial

Specifications:

Engine Power Rating: 29.5 gross HP

Engine Manufacturer: Kawasaki® FX850V EFI

Displacement: 852 cc

Cylinder Liners: 2

Starter: Electric

Operating Speed:

Ground Speed-Fwd: 0-12 mph

Ground Speed-Rev: 0-6 mph

Mower, 48” Walkbehind

Specifications:

Engine Make / Model: Kawasaki / FS600V

Fuel Type: Petrol

Horsepower: 18.5 HP

Drive Axles: 1.375 Tapered in

Overall Length: 81 in

Height Cutting: 1.5 - 5 in

Cutting Width: 61 in

Overall Width Deflector Down/Deflector

Up: 76 / 63 in

Fuel Capacity: 11 gal

Weight: 1,405 lbs

Fuel Capacity: 5 gal

Cutting Width: 36” Rear discharge

Overall Length: 198 cm

Overall Width: 94 cm

Roller, 250# Push Lawn

Specifications:

Weight: 250 lbs

Operation Type: Push

Roller, 650# Towable Lawn

Specifications:

Tractor: Rented Separately

Product Name: 18” x 36” Poly Tow

Model Number: 45-0268

UPC: 052613452684

Weight: 45 lbs

Weight (Filled with water): 650 lbs

Hydro Seeder, 600 Gal T60

Specifications:

Tank Size: 600 gal liquid capacity, 500 gal working capacity

Loads per Acre: 6

Discharge Distance: Up to 90 ft

(27 m) from end of discharge tower

Max Material Capacity: 1,550 lbs

Empty Weight: T60T 2,770 lbs;

Working Weight: T60T 7,770 lbs

Hitch Weight: Approx. 1,300 lbs

Fuel Tank Capacity: 8.2 gal (31 L)

Pump: Centrifugal 3” x 1-1/2”

(7.5 cm x 3.75 cm), 65 GPM @ 75 psi (245 lpm @ 5.3 kg/cm2), 3/4” (1.9 cm) solid clearance, adjustable

Pump Drive: Direct drive through electric clutch independent of agitator operation

Agitation: Mechanical paddle agitation and liquid recirculation

Agitator Drive: Reversible, variable speed hydraulic motor (0-110 rpm)

Power: 25 hp, 2 cylinder, OHV, air cooled gas

Engine Safety System: Low oil pressure, high temperature shutoff

Hydro Seeder, 300 Gal T30

Specifications:

Power: Kohler Command 18 HP (11.2 kW), electric start, air cooled gas

Tank Size: 335 gal

Seeding Rate: 10.68 loads per hour

Fuel Tank Gas Capacity: 4 gal (15.1 L)

Seeder, Slice Push

Specifications:

Engine Make: Honda Engine Model: GX160

Performance kW: 4,1

Performance HP: 5,5

Displacement (cc): 163

Working Width (cm/in): 51 / 20

Working depth (cm): 0,3 - 1,3

Seeder, Turf Revitalizer

Specifications:

Billy Goat’s self-propelled overseeder reduces fatigue associated with pushing and features intuitive forward and reverse operator controls. The unit is 22” wide with an exclusive 11-blade slicing reel that floats along contours of yards increasing seed to soil contact and improving germination rates. The unit comes standard with a 30 lb.

Material Capacity: 500 lbs (227 kg) granular solids, 100 lbs. (45 kg) fiber mulch

Empty Weight: 1,480 lbs (671 kg)

Working Weight: 4,560 lbs (2,068 kg) Hose: 100’

Weight (kg): 81

Width (cm): 67

Length (cm):116

Height (cm): 119

Productivity (m2 /h): 1,225

Drive Type: Push

Seed Box Capacity (kg): 11,3

seed box that is generously elevated above the turf to eliminate any clogging that may occur from moisture.

Displacement (cc): 270

Seeding Width (in): 22 slicing

Weight (lbs.): 314

Length (in.): 58.38

Width (in.): 30.75

• Ramp, Loading w/ Equip.

Thatcher, Lawn

Specifications:

Engine: 205 cc Vanguard (PR550); 162 cc Honda

Depth: Infinite

Depth Adjustment: 0.125” with up to 0.5” adj. for blade wear

Optional Accessories:

Reel: 20” Flail

Productivity: 13,000 sq ft/hr

Weight: 160 lbs

Length: 45.5”

Width: 26.5”

Thatcher, Lawn w/ Bag Attachment

Specifications:

Engine: 205 cc Vanguard (PR550); 162 cc Honda

Depth: Infinite

Depth Adjustment: 0.125” with up to 0.5” adj. for blade wear

Snow Blower

Specifications:

Engine Rating: 250 cc

Engine Type: Ariens Polar Force by Briggs & Stratton

Clearing Width: 24’’

Tire Size: 15’’ x 5’’

Stump Grinder, Mini

Specifications:

Reel: 20” Flail

Productivity: 13,000 sq ft/hr

Weight: 160 lbs

Length: 45.5”

Width: 26.5”

Speed: 6 mph (Forward)/ 2 mph (Reverse)

Impeller Diameter: 14’’ Augers: 14’’ Steel, Serrated

Walkbehind

Engine: 196cc Honda GX Engine w/ Cyclone Air Cleaner

Fuel Type: Gasoline

Teeth: Greenteeth® 500 Series Teeth (4)

Cutter Wheel Diameter: 9-5/8”

Cutter Wheel Thickness: 3/8”

Disc Rate: 4,700 rpm

Stump Grinder, Large

Specifications:

Engine: 30SGB: Briggs Vanguard 31HP V-Twin

Dimensions:

Weight: 1700 lbs

Height: 49”

Length (head to side): 79”

Length (head straight): 98”

Width: 35.5”

Tiller, 5-6 HP Rear Tine

Specifications:

Engine: 6 HP (169 cc), Subaru Engine

Rotational Speed: 190 rpm

Working Width: 17”

Working Depth: 6.5”

Tires: 12.5”, 410-350 x 6” Adjustable

Brake Band

Weight: 134 lbs

Dimensions (L x W x H): 56” x 23” x 45”

Cutting Capacity (Above Grade): 10”

Cutting Capacity (Below Grade): 9”

Folded Dimensions (L x W x H): 36” x 23” x 23”

Optional Accessories:

Wheel Specifications:

Cutting Wheel: 19.2” diameter to tooth

Cutting Teeth: 0.750 thick, 16 green teeth

Cutting Depth: 12”

Cutting Height: 32”

Head Swing: 134”, 99.7” arc

Optional Accessories:

Tine Diameter: 13”

Transmission: Chain Gear

Gears: Forward, Reverse

Optional Accessories:

Tiller: Versatile Dual Rotating Tine • Ramp, Loading w/ Equip.

Tiller, 9HP Hydrostatic Rear Tine

Specifications: Optional

Dimensions: 66” x 20.75” x 36” Tine Width: 16”

7.5”

Wheel Width: 18.75”

460 lbs Handlebar Pivot Angle: Up to 20”

Trimmer, Gas Hedge Poletop Specifications:

Power Source: Gas

Weight: 13.7 lbs

Blade Length: 24

Cutting Attachment: 24” / 145° head

Trimmer, Gas Hedge

Blade Length: 24”

Professional use

String Trimmer, Large Gas

Kombi System Powerhead

Kombi Hedge Trimmer

Kombi Edger Attachment

Kombi Sweeper Attachment

Kombi Pole Pruner Attachment

Kombi String Trimmer

Kombi Sweeper Attachment

Specifications:

Kombi System

Garden

Kombi Edger Attachment

Specifications:

Displacement: 1.9 cu in (31.4 cc)

Engine Power: 1.05 kW (1.4 bhp)

Weight: 9.7 lbs (4.4 kg)

Lawn Edger, Crack Cleaner

Fuel Capacity: 24.0 oz (710 cc)

Power Source: Gas

Optional Accessories:

• Kombi System Powerhead

Specifications: Optional Accessories:

Tires: Large, pneumatic

Bristles: Solid steel wire

Height Adjustment: Six-position, Sturdy

Brush Declutch: Remote

Trencher, Mini Walkbehind

Specifications:

Weight: 134 lbs (61 kg)

Width: 23” (58 cm)

Engine Make: Honda

Cutter Wheel Diameter: 10.5” (27 cm)

Teeth (3): 1” Dia. (2.5 cm), 0.2” Thick (.508 cm) Leonardi® Carbide Tips

Trencher, Walkbehind

Specifications:

Trench Depth: 24”

Trench Width: 4”

Weight: 900 lbs

Transport Width: 35”

Transport Height: 46”

Wheel Base: 35”

Head Shaft Height Digging Chain: 8”

Trencher, Walkbehind Track

Caster: Full circle, Heavy duty

Unit Weight: 76 lbs

Fuel Source: Gas

Engine: 4 hp, Honda

Drive: Direct Belt Drive 1600

Series Noram Clutch

Cutting Capacity (Above Grade): 10” (25 cm)

Cutting Capacity (Below Grade): 9” (23 cm)

Front Wheel to Handlebar: 83”

Boom End to Handlebar: 88”

Trench Center to Outside Left: 16”

Trench Center to Outside Right: 19”

Boom Travel (Up): 60”

Boom Travel (Down): 60”

Specifications:

Motor: Honda, 20 HP

Weight: 1,600 lbs

Dimensions (L x W x H): 92.5” x 36” x 52.5”

Maximum Digging Width: 4.3”

Maximum Digging Depth: 36”

Trencher, Ride-On V3550

Specifications:

Motor: 37 HP, Duetz

Fuel Type: Diesel

Weight : 4,500 lbs

Cutting Depth: 4’

Dimensions (L x W x H): 13’4” x 58” x 7’2”

Back Fill Blade: 6-Way

Optional Accessories:

Generator, 2500 WATT

Specifications:

Frequency: 60 hz

Phase: Single

Voltage: 120 V

Fuel Tank Capacity: 3.2 gal (12 L)

Wattage (Maximum): 2,500 W

Wattage (Continuous): 2,200 W

Amps at 120 V (Maximum): 20.8 A

Amps at120 V (Continuous): 18.3 A

Main Circuit Breaker: 20 A

Generators, Lighting & Welding

Optional Accessories:

Overall Length: 20.9”

Width: 17.7”

Height: 20.1”

Operating Weight: 132 lbs (60 kg)

Engine Make/Model: Honda GX-160 / 5.5 HP (4.1 kW)

Engine RPM: 3,600

Fuel Type: Gasoline

Generator, 3600 - 3800 WATT

Specifications:

Phase: Single

Voltage: 120/240 V

Sound Level at 30’: 76 dBA

Fuel Tank Capacity: 5 gal (19 L)

Wattage (Maximum): 3,600 W

Wattage (Continuous): 3,200 W

Amps at 120 V (Maximum): 30 A

Amps at 120 V (Continuous): 26.6 A

Amps at 240 V (Maximum): 15 A

Amps at 240 V (Continuous): 13.3 A

Generator, 6000 WATT

Specifications:

Phase: Single

Voltage: 120/240 V

Sound level at 30 ft: 75 dBA

Fuel Tank Capacity: 5 gal (19 L)

Wattage (Maximum): 6,000 W

Wattage (Continuous): 5,000 W

Amps at 120V (Maximum): 50 A

Amps at 120V (Continuous): 41.6 A

Amps at 240V (Maximum): 25 A

Amps at 240V (Maximum): 20.8 A

Generator,

9700 WATT

Specifications:

Frequency: 60 hz

Phase: Single

Voltage: 120/240 V

Fuel Tank Capacity: 10 gal (37.8 L)

Wattage (Maximum): 9700 W

Wattage (Continuous): 8400 W

Amps at 120 V (Maximum): 80.8 A

Amps at 120 V (Continuous) 70 A

Amps at 240 V (Maximum): 40.4 A

Amps at 240 V (Continuous): 35 A

Main Circuit Breaker: 21 A

Overall Length: 25.5”

Width: 22”

Height: 24”

Operating Weight: 215.73 lbs (97.85 kg)

Engine Power: 7.1 HP (5.3 kW)

Power: 3,600 rpm

Fuel Type: Gasoline

Optional Accessories:

Optional Accessories:

Main Circuit Breaker: 23 A

Overall Length: 27”

Width: 22”

Height: 24”

Operating Weight: 241 lbs

Start Method: Recoil

Engine Power: 9.5 HP

Engine RPM: 3600

Fuel Type: Gasoline

Main Circuit Breaker: 40 A

Overall Length 31.25”

Width: 21.25”

Height: 27.5”

Operating Weight: 402.73 lbs

Start Method: Electric

Power: 16.6 HP (12.4 kW)

Engine Power: 3,600 rpm

Fuel Type: Gasoline

Optional Accessories:

Generators, Lighting & Welding

Generator, 15,000 WATT Towable

Specifications:

Prime Rating: 14 kW

Standby Rating: 14.7 kW

Generator RPM: 1800

Voltage - Single Phase: 120/240 V

Generator Design: Revolving field,

Self-Ventilated, Drip-Proof, Single Bearing

Voltage Regulation (No Load to Full Load): ±0.5%

Power Factor: 1.0

Armature Connection: Series

Excitation: Brushles with AVR

No. Poles: 4

Frequency: 60 Hz

Frequency Regulation (steady state load): ±0.25%

Sound Level (Full Load at 23 ft.): 64 dB(A)

Engine Specifications Make/Model: Kubota / D1503

Emissions: Tier 4 Final

Fuel Tank Capacity: 28 gal

TRLRMPXF Trailer Specifications

Gross Vehicle Weight Rating (GVWR): 2,000 lbs

Coupler Rating: 3 in. Pintle Eye20,000 lbs

Overall Length: 98.60”

Overall Width: 55.50”

Overall Height: 22.00”

Operating Weight: With Fuel: 713 lbs

Without Fuel: 513 lbs

Generator, 25,000 WATT Towable

Specifications:

Prime Rating: 20 kW (25 kVA)

Standby Rating: 22 kW (27.5 kVA)

Generator Power: 1,800 rpm

Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable

Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable

Generator Design: Revolving field,

Self-ventilated, Drip-proof, Single bearing

Voltage Regulation (No Load to Full Load): ±0.5 %

Power Factor: 0.8

Armature Connection: Star with Neutral/ Zig Zag

Excitation: Brushless with AVR

Number of Poles: 4

Frequency: 60 Hz

Optional Accessories:

• Generator Usage Policy • Distribution Box • Cord, Distribution Box

Optional Accessories:

Frequency Regulation (steady state load): ±0.25 %

Sound Level (Full Load at 23 ft.): 65 dB(A

Emissions: EPA Tier 4 Final Certified

Fuel Tank Capacity: 41.7 gal

Fuel Consumption: Full load 1.62 gph; 3/4 load 1.26 gph; 1/2 load 0.94 gph; 1/4 load 0.67 gph

Gross Vehicle Weight Rating (GVWR): 3,500 lbs

Ball Coupler: 2” (10,000 lbs)

Overall Length: 105.79”

Overall Width: 56.18”

Overall Height: 20.85”

Operating Weight (w/out fuel): 444 lbs

Generator, 45,000 WATT Towable

Specifications:

Prime Rating: 36 kW, 45 kVA

Standby Rating: 40 kW, 50 kVA

Generator RPM: 1800

Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable

Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable

Emissions: EPA Tier 4 Final Certified

Generator,

Gross Vehicle Weight Rating (GVWR)

7,000 lb Coupler: Pintle

Overall Length: 147.33”

Overall Width: 66.25”

Overall Height: 23.2”

Operating Weight: Without Fuel: 1,056 lb

Fuel Tank Capacity: 79.2 gal

70,000 WATT Towable

Specifications:

Prime Rating: 56 kW 70 kVA

Standby Rating: 62 kW 77 kVA

Generator RPM: 1800

Voltage - Three Phase: 208, 220, 240, 416, 440, 460, 480V Switchable

Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable

Engine Make/Model: Isuzu / BR-4JJ1X

Emissions: EPA Tier 4 Final Certified

Fuel Tank Capacity: 103 gal

Gross Vehicle Weight Rating (GVWR):

7,000 lbs

Coupler: Pintle

Overall Length: 151.3”

Overall Width: 69.3 in

Overall Height: 24.8 in

Operating Weight: With Fuel: 2,077 lbs

Without Fuel: 1,366 lbs

Cord, Distribution

Cord, Distribution

Generators, Lighting & Welding

Generator, 125,000 WATT Towable

Specifications:

Prime Rating: 100 kW, 125 kVA

Standby Rating: 110 kW, 137.5 kVA

Generator RPM: 1,800

Voltage - Three Phase: 208, 220, 240, 416, 440, 480V Switchable

Voltage - Single Phase: 120, 127, 139, 240, 254, 277V Switchable

Engine Make/Model: Isuzu / BR-4HK1X

Emissions: EPA Tier 4 Final Certified

Light Tower, 4,000 WATT

Gross Vehicle Weight Rating (GVWR): 10,000 lbs

Couper: Pintle

Fuel Tank Capacity: 169

Overall Length: 181”

Overall Width: 79.5”

Overall Height: 24.7”

Weight (without fuel): 1,772 lbs

Specifications:

Wind Stability: 65 MPH (w/outriggers)

Support Points: (4) Adjustable Jacks

Run Time: 64 hrs

Number of Lamps: 4

Lamp Output: 440,000 Lumens

Lamp Type: 1kW Metal Halide

Generator Power: 120V/50A - 240V/25A

Generator Output (Max): 6,600 W

Weight (lbs): 1,492

Fuel Tank Volume: 31 Gal

Length: 112”

Width: 50”

Height: 72”

Hitch: 2” Ball or Pintle

Light Tower, GBX 4-Spot 2400W LED

Model :GBX Light Tower

Voltage 120 VAC

Frequency 60 Hz

Wind Stability 55 mph (24.6 m/s)

Mast 23 ft (7 m) / 359°

Support Points 3X Adjustable Jacks

Lamp: Type 600 W LED (X4)

Number of Lamps 4

Lumens 280,000 lm

Power Requirement 2,400 W/20A

Generator:

Power 120 V/33 A

Output 4200 W

External Receptacles Duplex 120V/20A GFCI

Torch, Oxygen & Acet. Set

Specifications:

Model: CK-6-FP 250

Storage: 56.5 x 47.2 x 87 in (1435 x 1200 x 2210 mm)

Working: 105.1 x96.6 x 302 in (2670 x 2455 x 2880 mm)

Operating Weight: 1,433 lb (650 kg)

Engine Specifications:

Model Kohler KD15-440

Horsepower 8.7 HP

Type 1 Cylinder: Air-cooled

EPA Certification: Tier 4F

Fuel Type: Diesel

Fuel Capacity: 48 gal (182 L)

Fuel Consumption: 0.34 gal/hr

Oil Capacity: 1.2 gal (4.45 L)

Run Time: 140 hours/Lights only

Standard Hitch Type: 2” Ball

Truck Outfit Type: 250 Truck Series Deluxe Outfit

Maximum Cutting: 5/64”

Welding Capacity: 3/8”

Welder, Wire Feed 140 AMP

Optional Accessories:

• Generator Usage Policy

• Distribution Box

• Cord, Distribution Box

Optional Accessories:

• Goggles, Dark Cutting

• Oxygen, 100 Cubic Foot

• Acetylene, 10 Cubic Foot

Specifications: Optional Accessories:

Forney 309 Wire Feed Welder 120 VOLT MIG Welder

*ORGILL 8909392**

Technical Details

Item Weight: 62 pounds

Product Dimensions: 20.2 x 10.2 x 16 in

Item model number: 309

Size: 140-Amp Color: Green

Material: Metal

Power Source: Corded-Electric

Voltage: 120 volts

Horsepower: 309

Amperage Capacity: 140 A

Cord Length: 8 ft

Measurement System: standard

Generators, Lighting & Welding

Welder, 180 AMP (Gas)

Specifications:

DC Voltage: 26.8 V

DC Current: 180 A

Current Range: 50 - 180 A

Max Duty Cycle w/Full Amps Available at 180 A: 50%

Fuel Tank Capacity: 3.7 gal

Welder, 400 AMP (Diesel)

Specifications:

DC Voltage: Single 34V, Dual 27V V

DC Current: Single 400, Dual 200 A

Current Range: Single 30-400, Dual 30-200 A

Fuel Tank Capacity: 11.1 gal

Fuel Consump.at Rated Load: 1.3 gph

AC Power Output (Single Phase): 14 kW Cycle: 60 Hz

Fuel Consumption at Rated Load: 0.93 gph

Operating Weight: 225 lbs

Engine: 3600 rpm

Fuel Type: Gasoline • Helmet, Welders

• Lead, Welding

Voltage: 120/240 V

Amperage: 116/58 A

Voltage Regulation: 1.5%

Overall Length: 61”

Width: 29”

Height: 35”

Operating Weight: 1,144 lbs.

Ground Heater, Thawzall TCH150

Specifications:

Thaw Area: 1,200 - 2,400 sq ft Cure

Area (Concrete): 2,400 sq ft Cure Area

(Accessories): 6,000 sq. ft

Frost Prevention: 2,400 sq ft Frost

Prevention (w/ accessories): 10,800 sq ft

Heat Buildings: 210,00 cu ft Maximum

Fuel Consumption: 1 gph (3.8 lph)

Optional Accessories:

• Helmet, Welders

• Lead, Welding

Heating Equipment

Maximum Run Time: 4+ days

Pump Capacity: 30/1,800 gpm/gph

(110/6,800 lpm/lph)

Weight (with fuel & fluid): 3,460 lbs

Optional Generator: 500 lbs (230 kg)

Fuel Capacity: 102 gal (390 L)

Ground Heater, Thawzall TCH250

Specifications:

THAW frozen ground sq ft 3,000-6,000

CURE concrete sq ft 6,000 with accessories sq ft 18,000 max

FROST prevention sq ft 9,000 with accessories sq ft 27,000 max

HEAT buildings: cu ft 400,000

Input/Output: MBH 280/234

Operating Range: °F 70-200 °C 21-93

Operating Pressure: psi 1-5

Fuel Consumption (max): gph 1.75

Run Time :days 3+

Pump Capacity: gpm/gph 30/1800

L x W x H in 170 x 84 x 97

Weight w/fuel & fluid: 5,600 lbs

Generator: 310 lbs

Fuel Capacity: 160 gal

HTF (Heat Transfer Fluid): 122 gal

SPECIFICATIONS:

(1) 1/2 HP Pump Closed Loop Centrifugal

Hose Length (5 zones x 600’) 3,000 ft

Electrical, GFI 20 amp x 120 vac

HTF Pumpability °F -80 / °C -62

Fuel: Winter blend diesel or #1 fuel oil

Hitch: Pintle

Diesel Generator: 7.0 KWH

Ground Heater, HK500 – HK600

Specifications:

Ground Thawing Capacity: up to 11,200 ft²

Concrete Curing Capacity: up to 22,400 ft²

Temporary

Heating Capacity: up to 15,000 ft²

Heater Capacity: 605,000 BTUH

Heating Fuel Input

Field Hoses: 8 - 5/8” & 1 - 1” quick

connect

Run Time: Up to 60 hours (Depending on conditions)

Length (from hitch): 165 in

Width: 75 in

Height: 84 in Manifolds (Supply & Return): 8 - 5/8” & 1 - 1 1/4” quick connect

Electrical Requirement: 2 - 120V AC 20A Circuits

Glycol Tank Capacity: 130 US Gal

Fuel Tank Capacity: 192 US Gal

Weight (Fuel Tank Empty/Full): 7,095 lbs/8,439 lbs

Optional Accessories:

Concrete Powerblanket, 5’ x 20’ Electric

Specifications:

Adjustable Thermostat: Internal/Fixed

Amperes: 12 A

Dimensions: 5’ x 20’

Heat Range: Mid

Heater, 1.6KW Electric

Specifications:

Amperes: 13.5 A

Heater Type: Electric

Minimum Breaker Required: 15 A

Output: 5,630 btu/hr/120 cfm/1.65 kW

UL/ CSA Compliant: Yes

Voltage: 120 V

Wattage: 1440 W

Phase: Single, 115 V

Wattage: 1,650 W

Weight: 14 lbs

Heater, 10,000 Watt Electric

Specifications:

Output: 10 kW and 7kW / 34,121 and 23,884 btu/hr / 350 cfm

Wattage: 10,000 kW

Voltage: 240 V

Amperes: 28/42 A

Minimum Breaker Required: 2-Pole 50 A at 10 kW or 2-pole 30 Amp @ 7 kW A

Phase: Single Weight: 35 lbs

Heater, 20,000 Watt Electric

Specifications:

Output: 20 kW / 13kW; 68,242 / 44,357 btu/hr; 600 cfm

Watts: 20,000 kW

Voltage: 240 V

Amps: 54 / 81 A

Minimum Breaker Required: 2-pole

60 A or 2-pole 100 A

Phase: Single Weight: 45 lbs

Heater, 40-50,000 Watt Electric

Specifications:

Standard Features:

• Clean dry heat

• Built-in thermostat (32º - 100º F)

• Cycles heater on/off automatically

• Ductable to 50’

• Overheat protection

• Three power settings

Input BTU/Kw

Optional Accessories:

Optional Accessories:

Optional Accessories:

• Cord Set, 10/3 AWG 25’

Optional Accessories:

• Cord Set, 10/3 AWG 25’

Optional Accessories:

136,500 / 40

102,400 / 32

51,200 / 16

Electrical Rating: 480 Volts / 3Ø / 50 amps

Fan: 1,800 CFM

Temperature Rise: 100ºF

Dimensions: 46”L x 20”W x 25”H

Approx. weight: 130 lbs

Torch, Propane Flame Thrower

Specifications:

Output: 500,000 btu/hr

Suggested Use: Farm and Ranch, Construction, Road Crews, Grounds Maintenance, Industry and More

Fuel Type: Tank pressure - No regulator required

Torch Bell Diameter: 3”

Total Length: 33-1/2”

Optional Accessories:

• Propane Tank, 20 lb.

• Goggles, Dark Cutting

Heater, 150-175,000 Kerosene

Specifications:

Heater Style: Salamander / Torpedo

Heat Output: 190,000 BTU

Hot-Air Flow: 630 CFM

Air Pump Pressure: 8.5 PSI

AC Power: 120V, 60Hz, 2.7 Amps

Motor Size: 1/4 HP

Fuel Tank Capacity: 13.0 gallon

Fuel Consumption: 1.42 gal/hr

Max. Operating Hours: 9.1 hours

Heater, 200,000 Kerosene

Heating Area :4,300 sq ft

Multi-Fuel Capable :Yes

Weights & Dimensions

Net Weight: 60.00 lbs

Shipping Weight: 68.00 lbs

Length: 47.00 in

Width: 22.00 in

Height: 28.00 in

Optional Accessories:

• Kerosene

Specifications: Optional

Weight: 185 lbs

Hot Air Flow: 180,000 btu/hr

Fuel Type: Kerosene, Diesel 1# or 2#, Fuel Oil

Tank Capacity: 17 gal

Ignition: Continuous

Electrical Rating: 120 V, 60 Hz, 13 A

Air Volume: 1060 cfm

Heated Fuel Filter: Standard

Clearance to Combustibles: Horizontal 6 ft

Adapter: F105111 Single (14”)

Heater, 400,000 Ind Diesel/Kerosene

Specifications:

Weight (Lbs): 484

BTU per Hour: 400,000

Fuel Type: Kerosene, Diesel 1# or 2#, Fuel Oil

Ignition: Continuous

Electrical Rating: 120v, 60 HZ, 13 Amp

Air Volume (CFM): 4032

Heated Fuel Filter: Standard

Heated Nozzle: No

Clearance to Combustibles: Horiz. 6 ft

Duct Length Max: 100 ft

Duct Diameter: Standard Dual (12 in)

Wheel Type: Pneumatic

Item Length (in): 64

Item Width (in): 27

Item Height (in): 60

Item Weight (lb): 573

Heater, 400,000 Ind Oil Fired w/ 100 Gal Tank

Specifications:

Air Volume (CFM): 5,500 (Turbo), 3,500 (Axial)

Heat Rise: 220˚F+

Ductability: 150 ft (Turbo), 24 ft Axial

Indirect NG/LP

Recirculating Capabilities

Thermostat Operation

Gas Pressure Gauges on manifold and inlet side of train

Redundant Fail Safe Control System

Forklift Pockets

Weight: 470 lbs

Dimensions: 76.7” x 31” x 57.6”

Full Load Amps: 8.5 A (Turbo)/11.5A (Axial)

Air outlets: Two 12” or 1 x 16”

Heater, 150,000 Propane Fan

Specifications:

I70,000 BTU per hour

Weight: 30.35 Length: 26.75 Width: 11.75

Heating Area (sq ft): 4,250

Runs up to 17 hrs on 100 lb tank (low setting)

Tank Capacity (Min): 100# Propane Cylinder

Duct, 12” x 12”

Thermostat, 32” Remote

Optional Accessories:

• Propane Tank 100 lb.

Heater, 375,000 Propane Fan

Specifications:

250,000 - 400,000 BTU per hour

For use with propane gas

Heats up to 9,000 sq ft

Operates up to 17 hours on 2-100 lbs

propane tanks on low setting

Rugged & durable steel construction

Economical, efficient and clean burning

Heavy duty high output fan

Hose and regulator included Two 100 lb propane tanks are required

Heater, 400,000 Prop/NG Direct Fan

Specifications:

Input: 400,000 BTU/hr

Fuel: Vapor Propane/ Natural Gas

Fuel Consumption: 4.4 GPH Propane

/400 CFH NG

Gas Connection: 1” FNPT

Inlet Pressure: 7” min / 14” max

Electrical: 120 Volts 12 amp circuit

Optional Accessories:

• Propane Tank 100 lb.

Optional Accessories:

Fan: 2,000 CFM 1/4 HP

Thermostat: On/Off

Temp Rise: 344 degrees

Weight: 95 lbs

Dimensions: 46” L / 18” W 24” H

Regulator (recommended): 40SV06

Heater, 400,000 Ind Propane/NG

Specifications: Optional

Maximum Capacity: 420,000 btu’s

Heated Air (without duct): 3,100 cfm

Discharge Temperature: 220º F with duct creating 0.5” static pressure

Fuel: Propane/natural gas

Nozzle Size: 2.8”

Finish: Powder coat

Burner Motor (115v , 60 cycle): 1/3 hp, 3,450 rpm

Net Weight: 520 lbs

Shipping Weight: 550 lbs

Air Outlets: Standard - (2) 12” dia\

Dimensions (L x W x H): 83” x 37” x 52”

Heater, 750,000 Propane Fan

Specifications:

Input: 750,000 - 450,000 btu/hr

Fuel: Vapor Propane/Natural Gas

Gas Consumption: 8.3 gph Propane / 750 cfh Natural Gas

Gas Connection: 3/4” FNPT

Electrical: 120 V / 15 A circuit Fan: 1 hp (4,200 cfm)

Thermostat: 2-Stage Hi/Lo/Off with 50’ Remote

Temperature Rise: 385°F

Dimensions (L x W x H): 48.5” x 26” x 31.5”

Weight: 200 lbs

Heater, 950,000 Heat Wagon 950H

Specifications:

Wheel Size: 12”

Ductable: Up to 100’

Input: 650,000 – 950,000 btu/hr

Fuel Consumption: 10.4 gph

Gas Connection: 1-1/4” FNPT

Inlet Pressure Minimum: 1 psi propane / 3 psi Natural Gas

Electrical: 120 V, 15 A circuit

Thermostat 2 Stage Hi/Lo/Off w/50’ Remote

Temperature Rise: 250 deg F

Weight: 325 lbs

Dimensions (L x W x H): 73” x 30.5” x 39”

Heater, 1,000,000 BTU Ind Oil w/ 300 Gal Tank

Specifications:

Indirect Fired

Recirculating Capabilities

3 Fan Speeds up to 13,500 CFM

Weight: 2,000 lbs

Dimensions: 111”x 33.25” x 50

High Static Fan: up to 6.5” Static Pressure with 300 US Gallon Sub-base double wall fuel tank

Ducting: up to 400 ft., 1×24” duct panels on supply and return side

Full Load Amps: 1PH 42 Amps, 3PH 25 AMPS

Voltage: 1PH or 3PH/208-240V

• Duct, 12” x 12” Hi Temp

• Duct, 16” x 25’

• Thermostat, Heater

• Heater, Stack w/ Rain Cap

• Duct, 24” x 25’ Hi Temp

Heater, 1,500,000 Propane Fan

Specifications:

Input: 1,500,000 - 850,000 btu/hr

Fuel: Vapor Propane/Natural Gas

Gas Consumption: 16.4 gph Propane / 1,500 cfh Natural Gas

Gas Connection: 1-1/4” FNPT

Electrical: 120 V, 15 A circuit

Fan: 7,000 cfm (1 HP)

Optional Accessories:

Thermostat: 2 Stage Hi/Lo/Off with 15’ remote

Temp Rise: 490°F

Shipping Dimensions (L x W x H):

69” x 32” x 41.5”

Weight: 300 lbs

Heater, 200-250,000 Propane Radiant

Specifications:

Hot Air Flow: 200,000 btu/hr

Fuel Type: Propane

Max Area: Heats up to 4,700 sq ft

Heater, 115,000 Tent

Specifications:

Brand: HeatStar

Ship Weight: 91 lbs

Product Style: Industrial

Heating Capability: 2,875 sq ft

Output: 115,000 btu

Heater, Patio Propane

Specifications:

46,000 BTU output

Piezo ignition system

Wheels for easy mobility

Uses standard 20lb LPG BBQ tank

Data Collector

Specifications:

Dimensions (L x W x H):

5.4” x 10.2” x 1.6”

Weight: 2 lbs

Protection Class: IP68

Processor: 1.0 GHz ARM Cortex

A8 i.MX53

Memory: 512 MB

Storage: 8 GB flash

Expansion: microSD slot

Battery Life: 20 hours

Audio: Speaker

I/O: Serial RS232, USB Host, USB

Client, DC input, docking port

Max Operating Time: 24 hours

Pilot: Standing (for increased safety)

Electricity Required: No

Color: White

Hot Air Flow Rate: 650 cfm

Voltage: 115 V

Dimensions (L x W x H): 30” x 15” x 23-3/4”

Consumption rate approx. 10 hrs

Assembled Dimensions: 18” Dia

Base x 33”Dia. Reflector x 92”H, Weight; 40 lbs

• Propane Tank, 100 lb. • Propane T-Block • Duct, 12” x 10”

• Duct, 12” Adapter

Propane Tank, 20 lb. • Propane, #20 Fill

Instrument & Lasers

Operating System: Windows

Embedded Handheld 6.5

Display: 4.2” 640 x 480 high visibility backlit LCD

Keyboard: Full numeric and QWERTY keypad

External Audio: 3.5 mm mini jack

LED: No

Wi-Fi: 802.11 b/g/n, 2.4 GHz radio band

Bluetooth: BT 2.1 + EDR

Sensors: No

Optional Accessories:

Detector, Metal

Specifications:

Iron Audio: No

Iron Discrimination Segments: 4

Notch Discrimination: Adjustable

Search Modes: 5 (Plus Pinpoint)

Sensitivity/Depth Adjustments: 8

Digital Target ID: Yes

Pinpoint: Yes

Frequency: 8 kHz, adjustable

Detector, HL700

Specifications:

Digital readout of elevation - not only will high or low arrows be displayed, but the exact distance from grade will be numericallydisplayed.

Large 12.7 cm (5”) reception height acquires the beam quickly and makes it easy to stay in the beam.

Anti-strobe sensor stops construction strobe lights from setting off the receiver, and makes it easier to identify true laser beam signals.

Simultaneous elevation LED’s signal in low light levels and over a longer

Optional Accessories:

Audio Tone ID Levels: 3

Target Depth Indictor: Yes

Standard Searchcoil: 7” x 10”

concentric PROformance

Length (Adjustable): 40” x 53” (1.016 m x 1.35 m)

Total Weight: 2.8 lbs. (1.27 kg)

Power: 4 AA

Instruments & Lasers

range for easier reading in poor light conditions.

New CAPTURE function remotely captures and retains a measurement when the display is difficult to see Multiple deadband setting allows adaptation to meet all your jobsite requirements.

Dust and weatherproof housing withstands a drop of up to 3 m (10 ft) onto concrete for reduced downtime.

Two clamp positions for cut/fill or

GPS Network Rover Base/Rover System

Specifications:

Receiver Type: Multi Frequency GNSS

Positioning Modes: RTK, L-band

DGNSS/HP/XP, SBAS External RTCM, Autonomous

Channels: 270

RTK Formats: CMR, CMR+, RTCM3, ROX

OmniSTAR Formats: VBS, HP, XP, G2

Update Rate/Recording Interval: Selectable from 1, 2 and 5 Hz

Height: 4.49” (114 mm)

Depth: 7.76” (197 mm)

Weight: 3.33 lbs (1.51 kg)

Humidity: Up to 100%

Operating Temperature: -22 - 158 deg

F (-30 - 70 deg C)

Enclosure: IP67, EP455, waterproof, dustproof

Shock: 6.56’ (2 m) pole drop

GPS Network Rover Survey Grade

Specifications:

Receiver Type: Multi-Frequency GPS,

GLONASS, BeiDou, Galileo, QZSS, IRNSS, and Atlas L-band

Signals Received: GPS L1CA/L1P/L1C/ L2P/L2C/L5

GLONASS G1/G2/G3, P1/P2 BeiDou

B1i/B2i/B3i/B10C/B2A/B2B/ACEBOC

GALILEO E1BC/E5a/E5b/E6BC/ALTBOC

QZSS L1CA/L2C/L5/L1C/LEX IRNSS L5

Atlas

Channels: 800+

RTK Formats: RTCM2.1, RTCM2.3,

RTCM3.0, RTCM3.1, RTCM3.2 including MSM, CMR, CMR+

Recording lntervals: Selectable from 1, 2, 4, 5, 10 Hz (20 Hz or 50 Hz optional)

L-Band Receiver Specifications

Receiver Type: Single Channel

Frequency Range: 1525 to 1560 MHz

Sensitivity: -130 dBm

Channel Spacing: 5.0 kHz

Optional Accessories:

excavation.

Excavation mode puts more reception height and elevation information above grade for higher utilization in digging and staking applications.

Optional Accessories:

• Mobile Hotspot

• GPS Pole

• GPS Bipod

Optional Accessories:

• Mobile Hotspot

• GPS Pole

• GPS Bipod

Satellite Selection: Manual and Automatic

Reacquisition Time: 15 seconds (typical)

Grading Box, Level Best Skid Steer

Specifications:

Model: PD84

Width: 84”

Front Capacity: 13.4 cu ft

Rear Capacity: 8 cu ft

Weight: 2,070 lbs

Grading Accuracy: Within 1/10”

Operating Design: Push-pull design grades moving forward and in reverse to utilize the maneuverability of a SSL or CTL and increase productivity

Hydraulic valve System: Adjusts

grading box

Cutting Edge: Reversible and

replaceable on all sides; main edges are hinged to allow better penetration when digging

Universal Skid Steer Mount: Compatible

Couplers: Quick connect-underpressure flat face

Compatibility: CASE Site Control laser control panel, receivers and beacons

Mast Options: Single or dual (single mast for automated elevation only; dual mast for automated elevation and cross-slope)

Laser, LP500/LB100 Laserplane

Specifications:

Self-Leveling Range: ±11 arc minutes

Compensation Type: Wire Hung, Air

Damped

Accuracy: 1.5 mm at 30 m (1/16 in at 100 ft), ±10 arc seconds

Laser Type: 670nm visible, Class 2

Battery Life 20°C (68°F): 4 D-Cell

Alkaline - 175 hrs NiMH - 100 hrs

Laser Distance Measure

Specifications:

Digital target locator with 4x zoom to measure distances up to 660’/200 m

• Bluetooth Smart (4.0) offers simple data exchange, e. g. with iPhone or iPad

• New STABILA Measures app lets you insert measurements directly into photos or drawings

Laser, Dual Slope

Specifications:

Leveling Accuracy: 1,3: ± 0.5 mm / 10 m, 1/16“ @ 100 ft, 10 arc seconds

Grade Accuracy: 1,3: ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds

Grade Temperature Drift Sensitivity:

± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F

Operating Diameter: 1,2: appr. 800 m (2600 feet) with detector

Grade Range (Y;X): ± 25% both axes (not simultaneously)

Grade Range (Z): ± 25%

Rotation: 0 - 750 rpm

Scan Mode: 5 preset sizes + variable adjustment

Laser Type: Red diode laser 650 nm

Laser Class : Class 3

Self-Leveling Range: appr. ± 14°

Leveling Indicators: LCD indications

Operating Diameter: 500 m (1,600 ft)

Operating Temperature: -20°C to 50°C (-4°F to 122°F)

Weight: 3.6 kg (8 lbs)

Tripod Mount: 5/8 in x 11

Optional Accessories:

• Grading Kit, Spectra Precision

• Built-in calculator lets you multiply or divide measurement data by fixed values (e. g. hourly rates or materials costs)

• Robust, impact-resistant housing with shock-absorbing softgrip cover

• Class II

• Power output<1mW

and LED flashes

Radio Range (HL760)1,2,4: up to 150 m (490 ft)

Power Source: NiMH battery pack/ alkalines

Battery life1 : 35 hours NiMH

Operating Temp.: -20°C to 50°C (-4°F to 122°F)

Storage Temp.: -20°C to 70°C (-4°F to 158°F)

Tripod Attachments: 5/8 x 11 horizontally and vertically

Dust and Waterproof: Yes - IP67

Weight: 3.1 kg (6.8 lbs)

Low Voltage Indication: LCD battery indicator

Low Voltage Disconnection: Unit shuts off Warranty: 5 Years

Optional

Accessories:

• Detector, 1275 Laser-Eye

• Detector, HL700

• Rod, 14-1/2’ - 16’ FG (inches or tenths)

• Tripod, Surveying

• Clamp, 1061 Column

• Elevating Column, 1052

• Case, Carrying

• Batteries, Duracell D (2 pkg)

Optional Accessories:

Optional Accessories:

• Detector, HL700 • Power Cord • Operator’s Manual • Case, Carrying

Laser, Single Slope Auto

Specifications:

Range up to 2,600 ft with laser receiver

Accuracy ±1/16” at 100 feet

Self-leveling within ±14 degrees

Single grade to ±25 %

Pipe Laser

Specifications:

Includes: Battery, Remote & Charger

Accuracy, Self-Leveling (level): 1,3 ± 1.5 mm/30 m, (1/16 in @ 100 ft)10 arc seconds

Operating Range: 1,2 up to 150 m (500 feet)

Laser Type: DG613 Red diode laser

600 - 680 nm

Laser Class: 3A/3R, <5mW or Class 2

Self-Leveling Range - Longitudinal:

Over the entire grade range with automatic cross axis compensation

Grade Range: -12% to +40%

Spot Align Search Range (DG813): Up to +45° (with SF803 tilted to the laser)

Line Range: 20° ±1°

Leveling Indicators: LCD indications; beam and LED flash

Level, Automatic

Specifications:

24x - 32x Magnification

Objective Lens Diameter: 36 mm

Accuracy: ~2.0 mm @ 1.0 km

Double Level Run: ±1.5 mm

Coarse Sighting: Peep sight

Transit Level, 26X

Specifications:

26 power magnification

±3/16 in at 150 ft (4.75 mm at 45m)

leveling accuracy

Up to 400 ft (120 m) range

Horizontal circle, lock and tangent

Transit, Digital 5 sec.

Specifications:

Magnification: 30X

Resolving Power: 3.5”

Field of View: 1°30’

Minimum Focus: 4.27 ft (1.3 m)

Angular Accuracy: 5 sec

Grade matching and PlaneLok

Automatic temperature compensation

Battery life up to 40 hours

Graphic LCD display & keypad

Optional Accessories:

• Rod, 14-1/2’ - 16’ FG (inches)

• Tripod, Surveying

Power Source: 10,000 mAh NiMH

battery pack

Battery Life: 40 hours NIMH

Temperature Compensation: Yes

Length: 9.8” (25 cm)

Diameter: 5.3” (13.5 cm)

Operating Temperature: -4°F to 122°F (-20°C to 50°C)

Storage Temperature: -4°F to 158°F (-20°C to 70°C)

Tripod Attachments: 5/8 x 11 horizontally

Safety Rating: IP68

Weight: 6.61 lbs. (3.98 kg)

Low Voltage Indication: LCD battery indicator

Low Voltage Disconnection: Yes

Optional

• Invert Plate, 1228

• Pole, Adj. Trivet Kit

• Remote Line Switch

• Target, Large Pipe

• Blower, 929 Laser

• Manhole Mount, 1016

• T-Bar Mount, 934

• Operation’s Manaual

• Case, Carrying

Vertical arc, lock and tangent

Optical plummet magnification: 1.5X 1:100 stadia with glass reticle

Weight (Instrument Only): 9.5 lbs

Optional Accessories:

• Tripod, Surveying

• Clamp, Signal

Optional Accessories:

• Tripod, Surveying

• Rod, 14-1/2’ - 16’ FG (inches or tenths)

• Case, Carrying

Min. Reading: 1” / 5” switchable

Min. Focus: 1.3 m or 4.26 ft

Stadia Ratio: 1:100

Tilt Sensor: Yes, +/- 3’

Optional Accessories:

• Tripod, Surveying

• Rod, 14-1/2’ - 16’ FG (inches or tenths)

• Case, Carrying

Magnetic Locator

Specifications:

Detects the magnetic field of iron and steel objects, with unmatched sensitivity.

Optimized for finding Survey Pins, Markers & Nails, Water & Gas Valves, Manhole Covers, Unexploded Ordnance, other deep iron/steel objects.

Unsurpassed detection range

Clear, sharp, detection signal pinpoints the target.

Five individual sensitivity settings

No response to aluminum, brass, or copper.

Hot Spot Pipe Locator

Specifications:

Camera/Sonde Frequencies: 512 Hz and 33 KHz

Line/Utility Frequencies: 1 KHz, 8KHz, 33 KHz, 65 KHz

Active Power Line Frequencies: 60/50 Hz and 180/150 Hz

Depth Range: 10’ in cast iron pipe/20’ in clay or plastic

Screen: LCD Digital Signal Read-Out, Graphic Display, Directional Arrows, Null Icon, Camera Icon, Utility Icon,

Optional Accessories:

Input Power: Supplied by (2) 9V batteries

Battery Life: 40 hours (intermittent usage)

Output: Approximately 40 Hz idle tone in speaker. Tone frequency increases (or decreases) with gradient-field intensity.

Sensitivity: 5 Settings

Weight: Approximately 2.5 lbs (1.13 kg)

Operating Temp: -13° to 140°F (-25° to 60°C)

Overall Length: 42.5” (107.4 cm)

Waterproof Length: 34.5” (87.6 cm)

Nominal Sensor Spacing: 20” (50.8 cm)

Optional Accessories:

Audible Tone, Auto Digital Depth, Battery Status, Auto Backlight

Antenna Configurations: Total Field, Single Peak, Twin Peak, Null and Left/Right (Line Location Only)

External Ports: Mini USB

Weight: 4.8 lbs (2.18 kg)

Batteries: (2) D-cell alkaline

Battery Life: 30 hrs

Operating Temperature Range: -4° F to 122° F (-20° C to 50° C)

Sewer & Drain Inspection Camera

Specifications:

Length: 29”

Width: 16”

Height: 33-1/2”

Brand: General Wire

Operating Temp Range: 14°F to 122°F

Sonde Frequency: 512 Hz

Series: Gen-Eye POD

Style: POD w/Self-Leveling Color

Camera

Cable Locator

Specifications:

The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs at slightly over 7 lbs

The entire system fits easily into a custom shoulder bag.

Ultralight Design: Receiver + Transmitter = Under 7lbs

Compact & Portable: Receiver retracts for easy carrying

Sensitivity: .5 Lux

Includes: POD with Self-Leveling Color Camera, 200 ft. Gel-Rod, Sonde

External Ports: Video Out Pipe Size: 3” to 10” Reel Capacity: 300

Optional Accessories:

• Charger

• Vutek Remote

• Base Frame w/ Camera, 200’ and

Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection

Transmitter comes equipped with rechargeable batteries

Designed for utility locating professionals in Water, Sewer, Gas, Electric, Telecomm industries.

Optional Accessories:

Clamp, Inductive Signal

2” Robotic Total Station

Specifications:

Sensor type: Absolute encoder with diametrical reading

Accuracy1: 1” (0.3 mgon) 2” (0.6 mgon), 3” (0.9 mgon), or 5” (1.5 mgon)

Angle Display (least count): 0.1” (0.01 mgon)

Automatic level compensator

Type: Centered dual-axis

Accuracy: 0.5” (0.15 mgon)

Range: ± 5.4’ (±100 mgon )

Accuracy (ISO)

Prism mode

Standard mode2: 1 mm + 2 ppm

(0.003 ft + 2 ppm)

Accuracy (RMSE)

Prism mode

Standard mode: 2 mm + 2 ppm

(0.0065 ft + 2 ppm)

Tracking mode: 4 mm + 2 ppm (0.013 ft + 2 ppm)

3” Robotic Total Station

Specifications:

Magnification: 30x

Accuracy: 3” (0.0006 gon/.015 mil)

Bluetooth: Yes

Measuring Time for Angle: 0.5 sec or less

5” Robotic Total Station

Specifications:

Reflectorless range up to 2,625 feet

Up to 13,123-foot range with a single prism

Bluetooth connectivity 1 GB internal storage

128 MB RAM

Optical plummet

31x magnification

Motorized drive system

2.4 GHz radio modem

Dual-axis compensator with 0.5second accuracy

DR mode

Standard mode: 2 mm + 2 ppm (0.0065 ft + 2 ppm)

Tracking mode: 4 mm + 2 ppm (0.013 ft + 2 ppm)

Extended Range: 10 mm + 2 ppm (0.033 ft + 2 ppm)

Prism mode

Standard mode: 1.2 sec

Tracking mode: 0.4 sec DR mode

Standard mode: 1–5 sec

Tracking mode: 0.4 sec

Magnification: 30×

Aperture: 40 mm (1.57 in)

Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft)

Shortest focusing distance: 1.5 m (4.92 ft)–infinity

Illuminated crosshair: Variable (10 steps)

Optional Accessories:

• 2” Robotic Accessory Kit, Total Station

• Total Station Robotic Battery & Charger

Measuring Range: Up to 5,000 m (16,400 ft)

Internal Memory: 1GB

Data Transfer: RS232C compatible, USB

Optional Accessories:

• 3” Robotic Accessory Kit, Total Station

• Total Station Robotic Battery & Charger

Onboard Survey Pro field software

StepDrive motion technology

LockNGo FastTrack technology

GeoLock GPS-assist technology

Alphanumeric keypad

Face 1: Colored, backlit touch

screen display

Face 2: Monochrome backlit display

Windows CE interface Li-Ion batteries

12-hour battery life

Dustproof and water resistant (IP55)

5” Auto Total Station

Specifications:

5” angle accuracy Fast, accurate EDM

Convenient and long-lasting Li-ion battery

Easy-to-use keypad

Rugged and lightweight

Bluetooth enabled

Dual axis compensation 50,000 point storage

Optional Accessories:

• Total Station Robotic Battery & Charger

• Pole, 12’ Prism

Optional Accessories:

• Prism, Mini Topcon w/ Case

• Case, Carrying

• Data Collector Package

40’ Boom Lift

Specifications:

Maximum Working Height: 46’

Maximum Platform Height: 40’

Maximum Horizontal Reach: 31’8”

Lift Capacity: 500 lbs.

60’ Boom Lift

Specifications:

Fuel Type: Dual Fuel, Diesel

Fuel Tank Capacity: 40 gal (151.42 L)

Platform Size: (L x W): 36” x 96” (0.91 m x 2.44 m)

Overall Width: 7’11” (2.41 m)

Power Source: 49 HP

Fuel Tank Capacity: 20 gal

Fuel Type: Diesel Weight: 12,310 lbs.

Optional Accessories:

• Safety/Instruction Booklet

• Safety Harness & Lanyard

Weight: 22,750 lbs (10,319 kg)

Platform Height: 60’3” (18.36 cm)

Horizontal Outreach: 49’ 6” (15.09 m)

Optional Accessories:

• Safety/Instruction Booklet

• Safety Harness & Lanyard

Platform Capacity - Unrestricted: 500 lbs

Workforce Boom Lift 45’ Towable

Specifications:

Working height: 51 ft

Platform height: 45 ft

Horiz. outreach (from centerline): 27 ft

Horiz. outreach (from edge of footpad): 21 ft

Up and over height: 20 ft 9 in

Lift capacity: 500 lbs

Length - stowed: 20 ft 8 in

Width stowed: 5 ft 6 in

Height stowed: 6 ft 8 in

Platform size: 4 ft 1 in x 2 ft 9 in

Jib - length: 4 ft 3 in

Tow speed rating: 65 mph

Leveling capability: 12.5 °

Tire size: ST 225 / 75 R15

Power source: 4 x 6 V 245 amp-hr

Weight 4,200 lbs

42’ Lightweight Track Boom Lift

Specifications:

Weight: 4390 lbs

Working Height: 48’6”

Working Outreach: 25’

Platform Height: 42’

Machine Width: 4’7”

Machine Height: 6’7”

Machine Length: 1’5”

Working Width: 12’6”

Safe Working Load: 500 lbs

Basket Width: 4’7”

Basket Depth: 2’4”

Power: Diesel

Fuel Capacity: 6 gal

51’ Articulating Boom Lift

Specifications:

Working height: 55 ft 10 in

Platform height: 49 ft 10 in

Horizontal outreach: 35 ft 2 in

Up and over height: 21 ft 8 in

Lift capacity: 500 lbs

Platform size: 7 ft 6 in x 2 ft 7 in

Length: 24 ft 11 in

Transport length: 19 ft 4 in

Width: 7 ft 7 in

Height - stowed: 7 ft 3 in

Transport height: 7 ft 7 in

Wheelbase: 6 ft 6 in

Ground clearance: 16 in

Tilt alarm: 5 °

Drive speed: 0.5 - 3.4 mph

Gradeability: 50%

Engine: 31 kW - 42 hp

Hydraulic tank capacity: 26 gal

Fuel tank capacity: 19.8 gal

Weight: 17,750 lbs

55’ Lightweight Boom Lift

Specifications:

Working Height: 61’3”

Platform Height: 55’3”

Horiz. Outreach (from centerline): 3’5”

Horizontal Outreach (from edge of footpad): 27’4”

Up and Over Height: 23’1”

Lift Capacity: 500 lbs

Engine Manufacturer: Kubota

Engine Power: 31 HP

Engine Capacity: 15 gal

Fuel Type: Gas

Weight: 6,000 lbs.

Optional Accessories:

• Safety/Instruction Booklet

• Safety Harness & Lanyard

Optional

Optional Accessories:

Optional Accessories:

55’ Towable Boom Lift

Specifications:

Working height: 61 ft 3 in

Platform height: 55 ft 3 in

Horizontal outreach (from centerline): 33 ft 5 in

Horizontal outreach (from edge of footpad): 27 ft 4 in

Up and over height: 23 ft 1 in

Lift capacity: 500 lb

Length - stowed: 23 ft 8 in

Width stowed: 5 ft 7 in

Height stowed: 6 ft 9 in

Platform size: 4 ft 1 in x 2 ft 9 in

Optional Accessories:

Turntable rotation: 350° non-continuous

Jib - length: 4 ft 3 in

Tow speed rating: 65 mph

Leveling capability: 12.5 °

Power source: 4 x 6 V 245 amp-hr

Tongue weight: 335 lbs

Weight: 4,800 lbs

Widest Point: 14 ft 8 in

Widest Point: 15 ft

60’ - 61’ Articulating Boom Lift

Specifications:

Working Height: 67’7”

Platform Height: 61’

Horizontal Outreach: 40’

Up and over height 27’7”

Lift Capacity: 500 lbs

Platform Size (L x W): 6’ x 2’7”

65’ - 66’ Boom Lift w/ Jib

Specifications:

Max Platform Height: 65 ft

Max Horizontal Reach: 54 ft 2 in

Max Weight Capacity: 660 lbs

Platform Length: 2 ft 6 in 3 ft

Platform Width: 8 ft 6 ft

Platform Rotation: 160 degree

Overall Width: 98 in

Turning Radius: 18 ft 2 in

Engine Manufacturer: Kubota

Engine Model: T4i

Engine Power: 36.5kW (49.6 hp)

Tank Capacity: 40 gal

Fuel Type: Diesel

Weight: 21,165 lbs

Wheelbase: 8 ft 3 in

Overall Height Stowed: 9 ft 3 in

Overall Length: 31 ft 10 in

Ground Clearance: 16.30 in

Operating Weight: 25,160 lbs

Maximum Speed: 3 mph

Capacity - Fuel Tank: 35 gal Diesel

80’ Articulating Boom Lift w/ Jib

Specifications:

Fuel Tank Capacity: 39 gal

Fuel Type: Diesel

Platform Capacity- Unrestricted: 500 lbs

Machine Length: 36’6”

85’ Boom Lift w/ Jib

Specifications:

Overall Length: 36.6’ (11,160 mm)

Overall Width: 8.5’ (2,600 mm)

Closed height: 9’ 2”

Wheelbase: 12.1’ (3,700 mm)

Operating Weight: 30,159 lbs

(13,680 kg)

Fuel Capacity: 39.9 gal

Machine Width: 8’2” (2.49 m)

Platform Dimensions (L x W): 8’ x 3’

Horizontal Outreach: 51’10”

Platform Height: 80’

Up and Over Height: 32’1”

Fuel Type: Diesel

Platform Weight Capacity: 500.4 lbs

Platform Length 96.1 in

Platform Width 29.9 in

Max Horizontal Reach 76.8 ft in

Work height: 91’

Z30 Electric Articulating Boom Lift

Specifications:

Maximum Working Height: 35’2”

Maximum Platform Height: 29’2”

Maximum Horizontal Reach: 20’6”

Platform Length: 2’6”

Platform Width: 3’11”

Height - Stowed: 6’6.5”

Length - Stowed: 17’5”

Storage Height: 7’4”

Storage Length: 12’ Width: 3’11”

Wheelbase: 5’3”

Ground Clearance - Center: 3.5”

Lift Capacity: 500 lbs (227 kg)

Optional Accessories:

Optional Accessories:

Power Source: 48 V DC (8) 6 V batteries, 350 Ah capacity)

Weight: 14,599 lbs (6,622 kg)

Z45 - Z46 Articulating Boom Lift

Specifications:

Overall Length: 18.25 in Overall Width: 7.52 ft in

Overall Height - Mast Lowered: 6.93 ft in

Wheelbase: 6.67 ft in

Ground Clearance: 15.36 in

Max Platform Height: 45.94 ft in

Max Horizontal Reach: 25 ft in

Platform Inner Length: 72.05 in

Forklift 4,000 lb. Electric

Specifications:

Type: Single Reach Power Voltage: 36V

Capacity @ Rated Load Center: 4,000 lbs

Maximum Fork Height: 20 FT

Fork Width: 3.9 in

Fork Spacing- out-to-out max. 1: 31.5 in Tilt Angle - forward/backward degrees 3/4

Overall Length: 76.1 in

Length to Fork Face: 55 in

Overall Chassis Width: 41.5 in

Optional Accessories:

Max Platform Weight Capacity: 500 lbs

Max Working Height: 52.5 ft in

Platform Inner Width: 29.93 in Operating Weight: 13675.3 lb Fuel Capacity: 17.1 gal

Hydraulic System Fluid Capacity: 24 gal Max Speed: 5 mph

Optional Accessories:

Overall Lowered Height: 107 in Overall Height to top of overhead guard: 95 in Overall Height with Extended Mast: 290 in Minimum Outside Turning Radius: 70.74 in Grade Clearance 5: 15.5 %

Travel Speed Loaded/Empty - standard 6): 7.5 mph

Truck Weight: 9050 lbs

Wheelbase: 61.5 in

Battery max. capacity - A/H (6 hr rating): 1120

Forklift 5,000 lb. Capacity

Specifications:

Length To Fork Face: 100.8” (2,560 mm)

Height Mast Lowered: 84.5” (2,150 mm)

Top of Overhead Guard: 81.7” (2,074 mm)

Ground Clearance Lowest Point of Mast: 4.6” (117 mm)

Horsepower at 2,700 rpm: 50.3 hp (37.5 kW)

Weight: 7,990 lbs (3,620 kg)

Fuel Type: Propane

Capacity: 5,000 lbs (2,500 kg)

Fork Size (L x W x H): 42” x 4” x 1.6” (1,070 mm x 100 mm x 40 mm)

Maximum Lift Height: 188”

Maximum Load at Full Height: 3,950 lbs Optional

Forklift 42’ Rough Terrain

Specifications:

Overall Height: 7.9’

Net Power: 110 HP

Fuel Capacity: 35 gal

Fuel Type: Diesel

Max Lift Capacity: 6,700 lbs

Max Lift Height: 42’

Max Load at Max Height: 6,000 lbs

Max Forward Reach: 26.3’

Max Load at Max Reach: 1,000 lbs

Length to Fork Face: 20.2’

Width Over Tires: 8.5’

Forklift 55’ RT 12,000 lb. Lift Cap

Specifications:

Operating Weight: 34,361 lbs

Rated load Capacity: 12,000 lbs

Maximum Lift Height: 54.6 ft

Maximum Foward Reach: 42 ft

Top Travel Speed: 20.5 mph

Load at maximum height: 5,000 lbs

Laod at maximum Reach: 3,500 lbs

Fuel Tank: 38 gal

Hydraulic tank: 50 gal

• Propane Tank, 33 lbs.

• Propane, 33# Refill

Forklift 55’ RT 10,000 lb. Lift Cap

Specifications:

Operating Weight: 34,160 lbs Rated Load Capacity: 10,000 lbs

Maximum Lift Height: 55.1’ Load at Maximum Height (Stabilizers Down): 5000 lbs

Load at Maximum Reach (Stabilizers Down) 2500 lbs

Maximum Forward Reach: 42.5’ Height: 8.4’ Width: 8.4’ Wheelbase: 12.0’

Ground Clearance: 18” Fuel Tank: 38 gal

Forklift 43’ Rough Terrain 9,000 lb.

13’ Electric Scissor Lift

40’ Electric Scissor Lift

Specifications:

Max Working Height: 45 ft 2 in

Capacity: 770 lbs

Machine Width: 3 ft 10 in

Machine Length: 8 ft 2 in

33’ RT Scissor Lift 4WD

Specifications:

40% Gradeability

Foam-filled, Rough-Terrain Tires

Working Height: 39’

Platform Height: 33’

Lift Capacity: 1,000 lbs

Height Stowed rails lowered: 6’ 3.5”

43’ RT Scissor Lift 4WD

Specifications:

Working Height: 48’ 8”

Platform Height: 42’ 8”

Platform Size (L x W): 13’ 1” x 6’ 3”

Height - Stowed: 9’ 1”

Width: 7’ 5”

Length: 13’ 9”

Height Stowed folded rails: 8’ 5”

Height stowed lowered rails: 6’6”

Weight: 6,871 lbs

Optional Accessories:

• Safety/Instruction Booklet

• Safety Harness & Lanyard

Width: 5’10”

Length: 10’5”

Engine: 18.5 kW - 24.8 hp

Weight: 9,063 lbs

Optional Accessories:

• Safety/Instruction Booklet

• Safety Harness & Lanyard

Platform Size - Extended (L x W): 12’ 2” x 4’ 9”

Fuel capacity: 10gal diesel

Optional Accessories:

Gradeability: 45%

Power Source: 24 kW - 33 HP

Weight: 13,980 lbs

20’ Single Man Lift Self-Propelled

Specifications:

Drive: Yes

Power Source: DC

Load Capacity: 350 lbs

Closed Height: 6 ft 6 in

Max. Work Height: 25 ft 11 in

Platform Extension: 20 in

Overall Length: 53 in

Overall Width: 31-1/2 in

Platform Width: 29-1/2 in

Max. Platform Height: 19 ft 9 in

Handrail Height: 44-3/4 in

Optional

Stowed Height: 78 in

Casters: No

Drive Wheel: Yes

Max. Drive Height: 19 ft 9 in

Max. Speed Elevated: 1/2 mph

Max. Speed Lowered: 2-1/2 mph

Ground Clearance: 2-1/2 in

Mast Vertical: Aluminum Mast

Batteries Included: Yes

Gross Vehicle Weight: 2,451 lbs

Includes Battery Charger

30’ Electric Push Around Lift

Specifications:

Weight: 870 lbs

Product Type: Aerial work platform

Working Height: 35’

Capacity: 350 lbs

Lift Height: 30’

Platform Height: 360”

Large Material Lift 2124

Specifications:

Height - Stowed: 84”

Length - Stowed: 34”

Height - Operating: 84”

Length - Operating: 73”

Base Width: 31.25”

Width with Stabilizer Legs: 74”

Ground Clearance: 2.5”

Motor Voltage: 12 V DC battery

Charger Type: Smart charging system

Charger Included: Yes

Base (L x W): 53” x 29”

Stowed Height: 6 ft 6 in

Machine Width: 2 ft 5 in

Optional Accessories:

Minimum Load Height: 6”

Maximum Height (forks down): 22’1”

Maximum height (forks reversed) 23’1”

Maximum Height: 23’11”

Lifting Capacity: 650 lbs

Lift Weight: 366 lbs

Optional Accessories:

Small Material Lift 2412

Specifications:

Maximum Height (forks up): 13’

Maximum Height (forks down): 12’

Lift Capacity: 400 lbs

Height - Stowed: 62.8”

Length - Stowed: 23”

Sheet Rock Lift

Specifications:

Load Capacity: 150 lbs

Lifting Height Maximum: 14’9”

Lifting Height Minimum: 48”

Lift Weight: 99 lbs

Jack, Electric Pallet

Specifications:

Basic Capacity: 4,500 lbs

Maximum Fork Height: 8.1”

Voltage: 24 V

Length To Fork Face: 64.8”

Pallet Jack

Specifications:

48” x 27”

Capacity: 5,000 lbs

Collapsible/Foldable: No

Length - Operating: 48”

Width - Stowed: 26.4”

Width - Operating: 26.4”

Winch Cranks: 8/ft

Basic Weight: 195 lbs

Optional Accessories:

Drywall Dimensions: 4’ x 12’

Base Height: 7”

Base Footprint (open): 55” x 55” x 52”

Use: Drywall Lift

Moving & Lifting Equipment

Optional

Chassis Width: 28.3”

Chassis Height: 8.1”

Gross Weight: 913 lbs

Color: Orange

Finish: Powder Coat

Tire Size: 8” x 2”

Rol-a-Lift (Pair) Hydraulic Jack

Specifications:

Model: M-4 (1 pair)

Capacity Per Pair: 4,000 lbs

Maximum Hydraulic Lift: 12-3/16” Lift Type: Hydraulic

Standard Wheels: Phenolic

Wheel Size: 6” x 2”

Overall Height: 44”

Hydraulic Jack, 60 Ton

Specifications:

Minimum Height: 12”

Load Capacity: 60 tons

Piston Lift : 6-3/4”

Car Transmission Jack

Specifications:

Forward Tilt (Deg): 60 Degree

Maximum Height (in): 31 Inch

Maximum Height (mm): 790mm

Overall Width: 23”

Caster Centers: 18”

Overall Depth: 16-1/2”

Forks Adjustable: 5”-19-1/2”

Fork Length: 6”

Fork Thickness: 1-1/8”

Weight Per Pair (Standard): 325 lbs

Maximum Height: 18-5/8” Weight: 82 lbs • Handle, Jack

Capacity (Lbs): 2000 Lbs

Weight: 180 lbs

Truck, Electric Stair Climber

Specifications: Optional Accessories:

Flat Surface Moving: 650 lbs (1 person); 1,500 lbs (2 people)

Stair Climbing: 450 lbs (1 person); 1,000 lbs (2 people)

Tailgate Lifting: 450 lbs (1 person); 1,000 lbs (2 people)

Machine Dimensions (L x W x H): 17” x 24” x 60”

Machine Weight 165 lbs

Adjustable Strap Bars: 2

Strap Bar Length: 26”

Sealed Battery: 12 V 32 AH Maintenance free and rechargeable

Lifting Height: 40” (101.6 cm)

Machine Capacity: 1,500 lbs (682 kg)

Walkbehind Stacker Forklift 3,000 lbs. Cap

Specifications:

3,000 lbs capacity model w/ lift heights to 189”

Vehicle Type: Walkie Reach Stacker

Capacity: 3,000 lbs @ 24” load center

Power: 24 volt AC electric with ZAPI controller

Max Lift Height: up to 157”

Collapsed Height: 77.5”

Fork Dimensions: 42” L x 4” W x 1.5” Thick

Tripod, 7’ Retreival System

Specifications:

Length: 60’

Manufacturer Part Number: 7508

Weight: 88 lbs

Height Range: 61”- 97”

Weight Capacity: 310 lbs

Dump Hopper

Specifications:

Length: 64”

Width: 57-3/4”

Height: 46”

Capacity: 2 cubic yards

Capacity: 7,000 lbs

Base thickness: 1/4”

Optional Accessories:

Travel Speed: Programmable (0-3.7mph empty / 0-2.9mph loaded)

Battery Compartment : 31.6” x 9.06” x OPEN / 31.6” x 13.1” x OPEN

Battery Capacity: Industrial battery or 224AH AGM battery pack

Charger: External or 120v integral to battery pack

Maximum Working Load: 5,000 lbs

Tensile Strength: 5,000 lbs

Cable Material: Galvanized steel

Approvals for Certifications: ANSI Z359.1-2008, OSHA 1926.502

Optional Accessories:

Construction: Steel

Dump angle: 38º

Fork opening: 3” x 28-1/2”

Wall gauge: 7

Weight: 805 lbs

Pipe Products & Trench Safety

Hydraulic Vertical Shoring System Set 4

Specifications:

Standard Rail (lg X CB): S-5x4269

Crossbrace width: 42”-69”

Cylinders: 2

Weight: 78 lbs

Shoring Board, Chudoform 3/4” x 4’ x 8’

Hydraulic Sys Hand Pump Bucket 5 Gal

Release Tool

Removal Hook

Pipe Products & Trench Safety

,15” - 30” Muni Ball

Specifications: Optional Accessories:

Material: Rubber

Brand: Cherne

GTIN: 00675115262133

Maximum Pressure: 13 PSI / 30 ft

Inflation Pressure: 35 PSI

Bypass Type: Female NPT

Bypass Diameter: 3 inch

Range of Use: 14-16 inch

,15” - 32” Flow Through Muni Ball

Specifications:

Type: Pneumatic

Size: 15”–32”

Material: Natural rubber with full body cording and aluminum end plates

Bypass: 4” MNPT bypass

,15” - 30” Air Test Plug

Specifications:

Nominal size: 15 to 30”

Diameter (min/max): 14.50” / 30.50”

Plug length: 51.00”

PSI: 7.5 to 10

,8” - 12” Test Plub

Valve Style: Removable 1/4” & 1/2”

inflation valves

Includes: 3/4” eye bolts (2) & Rupture Disc

Weight: 121 lbs

Industry: Pipe maintenance

Specifications: Optional Accessories:

Type: Pneumatic

Nominal Size: 8 to 12 in

Min. Diameter: 7 in

Max. Diameter: 12.25 in

24” - 48” Air Test Ball

Max. Back Pressure: 25 ft of Head

Required Inflation Pressure: 20 PSI

Deflated Size: 16 in L x 6.75 in D

Specifications: Optional Accessories:

Type: Pneumatic

Size: 24” - 48”

Material: Full body corded rubber with aluminum end plates

Weight: 138 lbs

8’ x 10’ Manhole Shield

Specifications:

Model: 810MHXLSW

Dimensions (L x W): 8’ x 10’

Weight: 5,370 lbs

8’ x 12’ Trench Shield

Specifications:

Model: 812MHXLD

Dimensions (L x W): 8’ x 12’

Weight: 5,800 lbs

Valve Style: Removable 1/4” & 1/2”

inflation valves

Other: I-Series

Includes: 3/4” Eye bolts (2) & Rupture Disc or PRV

Pipe Clearance: 52”

Shield Capacity: 660 lbs/sq ft Depth of Cut: 25’ - 41’

,60” ,48” ,36” Spreaders (Set of 4)

Thrench Shield Pin

Thrench Shield Keeper

Pipe Clearance: 60”

Shield Capacity: 2,040 lbs/sq ft

Depth of Cut: 34’ - 45’

4)

Thrench Shield Pin

Thrench Shield Keeper • Lifting Bridle, Trenchbox

8’ x 20’ Trench Shield

Specifications:

Model: 820 XLD

Weight (lbs): 8,920

Pipe Clearance (in): 64

Sheild Capacity: 1,320

(Ht. X Lg.) 8’H x 20’ L

6’ Build-A-Box Panel Specifications:

Ultra-light double wall aluminum

Max spread: 60”

Pick-up truck transportable

Can be hand-assembled in minutes

Exclusive corner end posts

Tongue and groove design

Stone Mizer w/ Lift Bar

Stone Mizer 7.5 cubic yard

Double Taper w/ bar

Weight 4,820 lbs

Snake, 1/2” x 75’ Power

Weight: 65 lbs (without cable)

Capacity: 100’ of 1/2” Flexicore Wire

Rope Center Cable

Motor: 1/3 hp Heavy Duty, Capacitor

Start, Thermal Overload Protection, Forward/Off/Reverse Switch

Snake, 3/4” x 100’ Power

Specifications:

Weight: 80 lbs without cable

Motor: 1/3 hp heavy duty, capacitor start, thermal overload protection, Forward/Off/Reverse Switch

Foot Pedal: Leaves operator’s hands free to control cable. Uses air pressure, so there’s no electrical contact between pedal and motor.

Wheels: 10” semi-pneumatic with roller bearings

Snake, Electric Water Jet

Specifications:

Pressure: 1500 PSI

Flow: 1.7 gpm

Motor: 1-1/2 HP, 13 amp with GFCI

Reel Capacity: 150’ x 1/4” hose

Weight: 111 lbs (50 kg)

Dimensions with Reel (L x W x H):

28” x 15” x 34”

Dimensions without Reel (L x W x H): 28” x 15” x 14”

Uses: Clear grease, sand and ice

Foam filled

Narrow sidewalls

approximately 3’8” with spreaders fully compressed/retracted Sidewalls are smooth to prevent dirt build-up and reduce friction

Optional Accessories:

• ,120” ,96” ,72” ,60” ,48” ,36”

Spreaders (Set of 4)

• Thrench Shield Pin

• Thrench Shield Keeper

• Lifting Bridle, Trenchbox

Foot Pedal: Uses air pressure, so there’s no electrical contact between pedal and motor

Power Cord: 20’, 3 wire, equipped with ground fault circuit interrupter

Wheels: 8” Semi-pneumatic tires, with roller bearings

3’ & 4’ Build-a-Box Panel

,72” Corner End Post (Set of 4)

Lifting Eyes (Set of 4)

,48” Corner End Post (Set of 4)

,36” - 60” Adjustable Spreaders (Set of 4)

Power Cord: 20’, 3 wire, vinyl covered with molded plug. Equipped with ground fault circuit interrupter.

Cables: 3/4” for 4-10” lines; 5/8” for 3-6” lines; 1/2” for 2-3” lines and 4” lines without roots

Cutter Set: Spear Head, 2” U-Cutter, 3” Heavy-Duty Side Cutter, 3”

Heavy-duty Saw Blade, and Large Retriever

Grade: Compact, portable jet fits into the trunk of a car

Hose Length: 150’ removable hose reel reduces height to 14-1/2”

Pressure: 1500 PSI, 1.7 gpm

Motor: 1-½ hp dual capacitor sealed motor with GFCI pulls only 13 amps

Features: Slide out handle; 8” wheels for easy transport

Optional Accessories:

• Cutter, Snake

• Cutter, Snake

• Snake, 1/8” and 1/4” Nozzle Set

Cutter, 2” - 6” Cast Iron

Specifications:

Weight: 26 lbs

Pipe/Tube Size: 1-1/2” - 6”

Cutting Capacity: 1 1/2 in (Min), 6 in (Max)

For cutting cast iron, concrete and clay pipe where space is limited.

Cutter, 4” - 6” Pipe

Specifications:

Pipe Capacity: 4 to 6”

Product Weight: 22 lbs

Pipe Freeze, 120V Specifications:

Pipe Capacity: 1/2” - 2”

Propress Tool

Capable of pressing pipe fittings from 1/2” to 4” copper and stainless steel pipe

Electric Supply: 115V, Ph, 60 Hz Model: SF-2500

Shipping Weight: 60 lbs

Tool Weight: 55 lbs

The head of the tool pivots 360° to maneuver in tight spaces

Propress, Small Jaw Set 6 pc.

Specifications:

Capacity: ½” to 4” for Copper and Stainless Steel (½” to 2” for PEX)

Head Rotation: 180˚ barrel/jaw swivel

Hydraulic Ram Output: 7,200 lbs (32 kN)

Weight: 8.3 lbs (3.76 kg)

Battery: Advanced Lithium 2 battery, 9.5 lbs/4.3 kg w/ AC power adapter

Operating Temperature Range: 15˚ F to 122˚ F (-10˚ C to 50˚ C)

Approximate Cycle Time: 4 - 5 sec

Service Interval: 42,000 cycles

Compatibility: Copper and stainless steel tubing, steel pipe, PEX and cutting soil pipe

Propress, Large Jaw Set 4 pc. Specifications:

Capacity: ½” to 4” Copper and Stainless Steel (½” to 2” for PEX)

Head Rotation: 180˚ barrel/jaw swivel

Hydraulic Ram Output: 7,200 lbs

Weight: 8.3 lbs

Battery: Advanced Lithium/9.5 lbs

Operating Temperature Range: 15 ˚F to 122˚ F

Approximate Cycle Time: 4 - 5 sec

Service Interval: 42,000 cycles

Spindle Speed: 26-30 rpm; 1/8”-2” Pipe (3mm-50mm); 1/4”-1” (6mm-25mm)

Weight: 25 lbs Power Drive only Length: 28-1/4”

Threading Machine, 1”-4” Rex

Specifications: Optional Accessories:

NPT Ties: 1/8”-2” (3 mm - 50 mm); 2-1/2”-4” (62 mm - 100 mm) with No. 141 Geared Threader Bolt; 1/4”-2” (6 mm - 50 mm)

Motor: 1 1/2 HP, single-phase, 60 Hz or 50 Hz, induction

Spindle Speed: 45 and 16 rpm, righthand, can be adapted to left-hand operation

Oil Pump: Self-priming motor

Vise,

Portable Tripod

Transmission: Two-speed (45 rpm for up to 1 1/4” pipe and 1” bolt, 16 rpm for low voltage and higher torque applications)

Front Chuck: Automatic gripping/centering

Rear Centering Device: Automatic, centering only

Cutter: Model 364, 1/8”-2” full-floating, selfcentering with E-1032 Cutter Wheel

Reamer: Model 344, 1/8”-2” right-hand only

Specifications: Optional Accessories:

Overall Height: 37 in

Leg Style: Folding

Pipe Capacity: 1/8 to 2-1/2 in

Brake, Aluminum Siding

14” throat depth; wide, 2-3/8” mouth opening; inside working pockets Length: 10’ 6” Weight: 10’ 6”

Breaker, 40 lbs Electric

Specifications:

Amps: 15

Impact energy: 35 Joules

Max watts out: 1600 w

Tool length: 30 in

Vibration measurement: 6.8 M/S²

Breaker, 70 lb. Electric

Specifications:

Impact Energy: 61ft - lbs

Vibration Control: Yes - SHOCKS

Vibration Measurement: 6.6 m/s2

Amps: 15 Amps

Chain Saw, Gasoline

Height Range: 36 in - 37 in

Pipe Size Range: 0.13 in - 2.5 in

Tool Weight: 32 lbs

Power Tools & Hand Tools

Bending capacities: All vinyl; soft aluminum up to .030; galvanized steel up to 28 ga; copper sheet and coil up to 16 oz

Chuck type: 1-1/8” hex

Loaded speed (BPM): 1460 BPM

Power tool type: corded Weight: 40.5 lbs

Max Watts Out: 1,600 W

Loaded Speed (BPM): 900 bpm

Tool Length: 30.75”

Tool Weight: 68.3 lbs

Specifications: Optional Accessories:

Displacement: 56.5 cc (3.45 cu in)

Engine Power: 2.8 kW (3.8 bhp)

Powerhead Weight: 5.9 kg (13.0 lbs)

Fuel Capacity: 560 cc (18.9 oz)

Guide Bar Lengths: (Recommended ranges) 40 to 50 cm (16” to 20”)

Chain Oil Capacity: 330 cc (11.2 oz)

Oilomatic Chain: .325” RM3

Chain Saw, Pole Top w/ Tele.

Specifications:

Displacement: 31.4 cc (1.9 cu in)

Engine Power: 1.05 kW (1.4 bhp)

Weight (with cutting attachment):

7.4 kg (16.3 lbs)

Fuel Capacity: 530 cc (18.0 oz)

Chain Oil Capacity: 220 cc (7.4 oz)

Oilomatic Chain: 3/8” PMM3, 12” Bar and Chain

Shaft Length: 7’6” to 11’6”

Breaker Tool, 1” and 3” Chisel

Breaker Tool, Point

Breaker Tool, Asph. Cutter

Drill, Magnetic Base

Power Source: Corded Electric Maximum Rotational Speed: 450 RPM

Voltage: 240 Volts

Amperage: 10 Amps

Grinder, 4”- 4-1/2” Hand

Wheel Diameter: 4-1/2 in Current: 11 A Max. Speed: 11,000 RPM Minimum Speed: 11,000 RPMS

Thread Size: 5/8 in-11

120V AC

4.3

Grinder, 5” - 6” Hand w/ Dust Shroud

13 A

Thread Size: 5/8 in-11 Dust Management: Dust Shroud

120V AC

Wheel Diameter (in): 7 in Amperage (amps):15 Maximum Speed (RPM): 8500 RPM Arbor Size: 5/8-11

Wrench

Goggles

Hammer, Rotary Spline Specifications:

120

of Impact (BPM): 1,700 - 2,900

18”

Style: Rotary Hammer Brand: BOSCH Speed (RPM): 170 - 340

Porta-Power, 10 Ton Set Specifications:

Item: Hydraulic Maintenance Set Tonnage Capacity: 10 Ton Stroke Length: 6”

Pressure: 10,000 PSI

Number of Pieces: 14

Application: For Bending, Pushing, and Spreading

Specifications:

AMPS: 13

Description: Rotary Hammer

Manufacturers Part No.: 11265EVS

Chuck Size: 1- 5/8” Weight: 15.1 lbs

Type: Corded

• Hammer, Bit Chisel

• Hammer, Bit Point

Hammer, Bit 3” Chisel

Spline Adapter, Rotary Hammer

Includes: Hand Pump Assembly with Hose, Heavy Duty Spreader Ram, 2 3/4” Rubber Head, Rubber Faced Flat Base, Ram Toe and Plunger Toe, Chrome Plated, Long Life Ram Plunger, Serrated Saddle, Wedge Head, Combination Head, 27, 18, 10 and 4 1/8” Extension Tubes. Power: 120 VAC, 60 HZ

4.7 Amp, AC Only Amps

Variable 1,400 - 2,000 rpm Sander/Vacuum Kit, Drywall

Pad Size: 8 7/8 “ Length: 62 “ Pad: Foam-Backed

Saw, Recipro

Specifications:

Power Source: Corded

Tool Style: Handheld

Current: 12A

Stroke Length: 1-1/8”

Stroke Type: Straight

Min. Strokes per Minute: 0

Max. Strokes per Minute: 2,900

Steamer, Wallpaper

Specifications:

Depth (in): 18 in

Height (in): 16 in

Width (in): 18 in

Amperage (amps): 12.5 amps

Hammer, Rotary Max

Specifications:

Dimensions: H 18.5 in, W 7.09 in, D 18 in

Amperage (amps):10 A

Blow energy (ft lbs): 4.6

Chuck Size (In.): 1-9/16 in

Chuck Type: SDS-Max

Cord Length (ft): 8.2

Pump, 2” Diaphragm

Specifications:

Discharge Size: 2” (51 mm)

Flow Rate: 50 gpm (189 L)

Power: 4 HP (2.9 kW)

Includes: Screen for intake

Engine: Honda GX-120

Pump, 3” Diaphragm

Specifications:

Discharge Size: 3” (76 mm)

Flow Rate: 90 gpm (340 L)

Power: 4 HP (2.9 kw)

Includes: Screen for intake

Engine: Honda GX-120

Pivoting Head: Yes

Vibration Reduction: No

Tool Length: 17-1/2”

Tool Weight: 7.2 lbs

Voltage: 120 VAC

Optional Accessories:

Cord Length: 6 ft. • Wrench

Tank Capacity: 1.9 gal

Voltage (volts): 120V

Watts: 1,500 W

Weight (lbs): 21.2 lbs

Cordless/Corded: Corded

Drill/ Driver Type: Rotary Hammer

Included: Tool Case

Maximum Speed (RPM): 680 RPM

Power Tool Features: Keyless Chuck

Product Weight (lbs): 14.6

Optional Accessories:

• Hammer, Bit 3” Chisel

• Hammer, Bit 3/8”, 7/16”, 1/2”, 9/16”, 5/8”, 7/8” Drill

• Core Bit, 1-1/2” Carbide

• Spline Adapter, Rotary Hammer

Pumps

Fuel Tank: 0.66 gal (2.5 L)

Starting Method: Recoil

Total Head: 25’ (8 m)

Maximum Solid Size: 1” (25 mm)

Weight: 138 lbs (63 kg)

Fuel Tank: 0.66 gal fuel tank (2.5 L)

Starting Method: Recoil

Total Head: 2’ (8 m)

Max Solid Size: 1.5” (38 mm)

Weight: 139 lbs (72 kg)

Pump, 6” Dri-Prime w/ Trailer

Specifications:

Max capacity: 2,290 USGPM (520 m³/hr)

Max impeller diameter: 11.8 in (300 mm)

Max solids handling: 3 in (75 mm)

Max operating temp: 176 °F (80°C)*

Max working pressure: 91 PSI (6.3 bar)

Max suction pressure: 58 PSI (4 bar)

Max casing pressure: 138 PSI (9.5 bar)

Max operating speed: 2,200 rpm

Suction connection: 6 in (150 mm) flange

Delivery connection 6 in (150 mm) flange

Open trailer

Fuel capacity 60 US gal

Weight dry 2750 lbs

Weight wet 3170 lbs

Dimensions L 119 in x W 66 in x H 87 in

Pintle Hitch

Hose, 3” x 20’ Intake

Hose, 3” x 50’ Discharge

Hose, 3” x 25’ Discharge • Screen, Intake Hose

Optional Accessories:

• Hose, 6” x 10’ Intake

• Hose, 6” x 20’ Intake

• Hose, 6” x 50’ Discharge

• Screen, Intake Hose

• Bend, 6” 90 Degree Godwin QD

Hydrostatic Pressure Pump

Specifications: Optional

Model: DPH3B

Type: Gas (Honda) Diaphragm

Pump: Triple Diaphragm

Inlet/Outlet: 1” Hose Barb/1/2” Quick

Connect

PSI/GPM: 550 / 11

Weight: 116 lbs

Shipping Dimensions: 25” x 21” x 17”

Shipping Weight: 136 lbs

Pump, 2” Electric 1/2 HP - 1HP

Specifications:

Impeller Disc Size: 2”

Water Capacity: 87 gpm

Power: 1 hp

Phase: Single

Voltage: 115 V

Pump, 3” Electric w/ CB-10

Specifications:

Impeller Disc Size: 3”

Water Capacity: 170 gpm

Power: 2 HP

Phase: Single

Voltage: 230 V

Pump, 2” Trash

Specifications:

Maximum Water Capacity: 211 gpm

Maximum Lift: 25’

Maximum Head: 98’

Pump, 3” Trash

Specifications:

Suction x Discharge: 3” x 3”

Maximum Water Capacity: 396 gpm

Maximum Lift: 25’

Maximum Head: 95’

Pump, 4” Trash

Cable Length: 50’

Pump Diameter: 7.4”

Overall Height: 15.4”

Operating Weight: 33 lbs

• Hose, 2” x 50’ Discharge

• Float Switch, Sump Pump

Cable Length: 50’

Pump Diameter: 6.7”

Overall Height: 28.5”

Operating Weight: 67 lbs

• Hose, 3” x 25’ Discharge

• Hose, 3” x 50’ Discharge

Maximum Pressure: 42.4 PSI

Fuel Tank Capacity: 1.03 gal

Operating Weight: 97 lbs

• Hose, 2” x 20’ Intake

• Hose, 2” x 25’ Discharge

• Hose, 2” x 50’ Discharge

• Screen, Intake Hose

Maximum Pressure: 41.1 PSI

Maximum Solid Intake: 1.5”

Fuel Tank Capacity: 1.58 gal

Operating Weight: 142 lbs

• Hose, 3” x 20’ Intake

• Hose, 3” x 25’ Discharge

• Hose, 3” x 50’ Discharge

• Screen, Intake Hose

Specifications: Optional Accessories:

Suction x Discharge: 4” x 4”

Maximum Water Capacity: 555 gpm

Maximum Pressure: 40 PSI

Maximum Solid Intake: 2”

Fuel Tank Capacity: 1.65 gal

Operating Weight: 216 lbs

• Hose, 4” x 20’ Intake

• Hose, 4” x 50’ Discharge

• Screen, Intake Hose

Remediation & Drying Equipment

Air Conditioner, Portable

Specifications:

Cooling Capacity: 16,800 btu / 1.4 ton / 4.9 kW

Power Supply: 50 Hz/120 V 10 AMPS Weight: 190 lbs. Current Consumption: 8.5 A

Power Consumption: 1.96 kW

Refrigerant Type: R-410A

Maximum Hot Air Duct Length: 15 m

Condensate Tank: 18 L

Cooling Area: 40 cu m

Optional Accessories:

Dehumidifier, Drizair 1200

Specifications:

Model: F203

Type: Standard Refrigerant

Dimensions (L x W x H): 19.5” x 20” x 32” (83 cm × 50 cm × 50 cm)

Remediation & Drying Equipment

Optional Accessories:

Weight: 80 lbs (36 kg)

Maximum Water Removal at Saturation: 145 pints/day (68.6 L /day)

Dehumidifier, 200+ Commercial

Specifications:

Model: LGR 2800i – F410

Power: 8 A, 115 V

Water Removal AHAM (80° F/60% RH): 130 pints | 61.5 liters / day

Maximum Water Removal: (90° F/90%

RH): 200 pints | 94.6 liters / day

Water Removal Minimum: (80° F/20%

RH): 20 pints | 9.5 liters / day

Optional Accessories:

Maximum Process Air: 400 cfm (679.7 cmh)

Air Filter: 3M HAF filter (Dri-Eaz part no. F421)

Dimensions (L x W x H): 23” x 24” x 40.5” (103 cm × 58 cm × 61 cm)

Weight: 160 lbs (72.6 kg)

Dehumidifier, Drizair 80-139

Specifications:

Dimensions (L x W x H): 19.5” x 20” x 32”

Weight: 80 lbs (36 kg)

Maximum Water Removal at Saturation: 145 pints/day (68.6 L /day)

Water Removal AHAM (80° F/60 % RH): 64 pints/day (30 L/day)

Operating Range: 33° – 100° F (1° – 38° C)

Compressor Type: 6670 btu Rotary

Process Air: 227 cfm

Drain Hose Length: 40’

Dryer, Carpet Turbo

Specifications:

Dimensions (L x W x H) 18.3” x 17” x 18.8” (47.8 cm × 43 cm × 47 cm)

Weight: 36 lbs. (16 kg)

Speeds: 3

Fan, Large Pedestal 30”

Specifications:

Motor: 1/3 hp, Open Air Over PSC-type ball bearing

Number of Blades: 3

Range of Motion: 70° oscillating sweep

Fixed Head Positioning: Yes

Style: Pivot-action head

Power: 10 A

Rated Airflow: 3,500 cfm (5,947 cmh)

Cord Length: 25’ (7.6 m)

Operating Positions: 3 (0°, 45° and 90°)

Optional Accessories:

Height: 58-65”, Adjustable

Included: Screw knob

Uses: Economical cooling and air circulation for all environments; including warehouses, factories, offices, kitchens and more

Fan, 42” 14,000 CFM Portable

Specifications:

Rating: 14,000 cfm at 550 rpm

Type: 42” diameter belt driven

Electrical Requirements: 115 V, 15 A

Ozone Generator

Specifications:

Ozone Output Rate: 2,500 mg/hour (measured with free air not pure O2 input)

Dimensions (L x W x H): 14” x 15” x 5.5” (36 cm x 38 cm x 14 cm)

Weight: 210 lbs

Dimensions (L x W x H): 26” x 50” x 51”

Motor: 1 hp /TEAO 1,725 rpm

Optional Accessories:

Optional Accessories:

Optional Accessories:

Optional Accessories:

Weight: 22 lbs (10 kg)

Power Requirement: 120 V / 75 W / 60 Hz

Timer: Yes

Uses: Odor elimination, pest control an pathogen reduction

Remediation & Drying

Scrubber, Air

Specifications:

Model: F284

Power: 3 A, 115 V, 60 Hz

Dimensions (L × W × H) 18.2” x 24.6 ×

26.2” (46.2 cm x 62.5 cm × 66.5 cm)

Duct Sizes Intake: 12”

Outlet: 8”

Weight: 44 lbs (19.9 kg)

Frequency: 60 Hz

Minimum Air Movement: 250 cfm

Scrubber, Air Large HEPA

Specifications:

Variable air movement (500–2000 CFM / 14.2–56.6 m3/min.) for versatile application and precise control on negative-and positive-pressure setups.

Weight: 124 lbs. | 56.25 kg

Air movement: 500–2000 CFM | 14.2–56.6 m3/m

Maximum Air Movement: 500 cfm

Filter System: 2-stage

Primary Filter: HEPA filtration technology

GFCI Outlet Protected: Yes

Power Cord Length: 25’ (7.62 m)

Filter Change Light: Indicates when primary (HEPA) filter needs to be changed

Housing: Rotomolded polyethylene

Optional Accessories:

• Filter, F270 Stage 1 Prefilter

• Filter, F271 Stage 2 Prefilter

• Filter, F397 Carbon Filter

• Filter, F321 HEPA 500 Filter

• Flat Duct Per Ft

Static pressure: 2.68 in. | 6.81 cm H2O

Dimensions (H × D × W): 28.37 × 29.17 × 35.63 in.

Outlet duct size: 12 in.

• Amps: 7.7 A

• Voltage: 115V

• Frequency: 60 Hz

• Power cord: 25 ft

Scaffolding & Ladders

Pump Jack, Pro 24’ Set

Specifications: Optional Accessories:

Includes:

(2) Aluminum pump jacks

(2) 24’ Aluminum poles

(2) Pump jack braces

Platform, 6’ Bakers Rolling

(1) Aluminum pump jack benches

(1) pump jack 14” x 24’ aluminum plank

(1) pump jack 20” x 24’ aluminum plank

• Pump Jack 12’ Aluminum Pole

• Pump Jack Brace

• Pump Jack 6’ Splice Brace

• Pump Jack Work Bench

• Pump Jack 22’ Saf-t-Net

Specifications: Optional Accessories:

Frame Width: 29”

Platform Adjustment: 2”

Scaffold Platform Deck (L x W): 6’ x 29”

Stackable: Yes (2 units max.)

Platform Thickness: 5/8” with steel

edge banding

Grade: Heavy duty

Frame, 5’ x 5’ Scaffold

2 pieces make a complete Scaffold guard rail system with toeboard Material: Powder-coated, Yellow scaffold frames and arm braces

Maximum Load Capacity: 1000 lbs

• Platform, Guard Rail

Specifications: Optional Accessories:

• Crossbrace, 7’ Scaffold

• Pin, Stacking Scaffold

• Casters, 5” and 8” Scaffold

• Plate, Base Scaffold

• Catwalk, 7’ Scaffold

• Leveling Jacks, 24” L Adj.

• Hooks, Pigtail S

Crossbrace, 7’ Scaffold

Specifications:

Catwalk, 7’ Scaffold

Specifications:

Guard Rail, 5’

Specifications:

Guard Rail, 7’

Specifications:

Brace, 5 x 7’ Corner

Specifications: Optional Accessories:

Casters, 5” Scaffold

Specifications:

Casters, 8” Scaffold

Specifications: Optional Accessories:

Scaffolding & Ladders

Guard Rail, Post

Specifications:

Leveling Jacks, 24” L Adj.

Specifications:

Outrigger, 18” Scaffold

Specifications:

Plate, Base Scaffold

Specifications:

Decks, 6’ Plywood

Specifications:

Hooks, Pigtail S

Specifications:

Stem, 30” Adj. Scaffold

Specifications:

Pin, Stacking Scaffold

Specifications:

Trailer, 6’ x 12’ Landscape

Specifications:

Grade: Lightweight

Trailer, 6’ x 12’ Enclosed

Specifications:

Safety Chains: (2) 1/4” Grade 30 with Safety Latch Hook Jack: 2,000 lbs., Top wind (bolted on)

Trailers

Trailer,

Hydraulic Equipment

Specifications:

Deck Dimensions (L x W): 10’ x 5’

Deck Style: Drop-down

GVW: 9,690 lbs

Grade: Lightweight

Trailer, 18’ Equipment

Specifications:

Model Number: 5CAM18FTT

GVWR: 11,960 lbs

Empty Weight: 2,800 lbs

Payload: 8,980 lbs

Deck Length: 18’

Trailer, Car

Model: 8218

Trailer Type: Car Hauler

GVWR: 7,000 lbs

Duty: Lightweight Weight: 1,425 lbs

Trailer Dump, 6’ x 10’ Specifications:

Model: 3.5CAM610LPD

GVWR: 8,050 lbs

Brakes: Surge

Empty Weight: 2,420 lbs

Payload: 5,630 lbs

Weight: 2,290 lbs

Weight Capacity 7,000 lbs

Hitch Type: Pintle

Overall Width: 102”

Between the Fenders: 81”

Deck Height: 16”

Brakes: Surge Pintle Hitch

Overall Trailer Length: 18 ft

Width: 6-1/2’

Brakes: electric Ball Hitch

Axle Capacity: 3,500 lbs

Volume Capacity: 3.9 cu yd

Deck Height: 27”

Inside Height: 20-1/2”

Inside Width: 72-1/2”

Trailer, 7’ x 12’ Tilt Equipment Specifications:

Color: Black Length: 12’ 0” Width: 80” Axle: 1

2-5/16” Ball Hitch

GVW: 6,000

Lightweight:1,620

Brakes: Electric

Trailer, Stump Grinder 4’ x 6’ Specifications:

Overall Length: 10’ 5/8”

Overall Width: 5’ 3/16”

Overall Height: 20”

Bed Size: 4’ x 6’

Empty Weight: 500 lbs

Gross Weight: 2,200 lbs

Doly Coupler: 2” Diameter Ball

• Hitch, Reese Pintle w/ 2” Ball

• Binder, Chain

• Chain, Tie Down

• Strap, Ratchet

• Hitch, Reese Pintle w/ 2” Ball

• Binder, Chain

• Chain, Tie Down

• Strap, Ratchet

Binder, Chain

Chain, Tie Down • Strap, Ratchet • Hitch, 2-5/16” Ball • Hitch, Reese 2” Ball

Hitch, Reese Pintle w/ 2-5/16” Ball

Truck Length: 14’ Make: Ford

GVW: 11,500 Box Truck, 14’ Ford Specifications:

Lightweight: 7,878 Mileage: $0.45

Truck, Appliance Hand

Pad, Moving 52” x 80”

*Truck Fuel

Box Truck, 24’

Specifications:

Lift Gate Capacity: 700 lbs

Door Height: 85”

Overall Truck Height: 12.5’

Dump Truck, 3 Yd Ford Specifications:

Make / Model: Ford / F350

Availability: Milldale only

GVW: 19,500

Pickup Truck, F250

Specifications:

Make / Model: Ford / F250

Grade: Lightweight

Weight: 5,891 lbs

GVW: 10,000 lbs

Pickup Truck, 1/2 Ton Specifications:

Make: Dodge Truck Type: Pick-up

Availability: Only in Milldale

Rack Truck Specifications:

Has lift gate

GVW: 19,500

Lightweight: 8,500

Mileage Cost: $0.45/mi

Van, Transit T150 Specifications:

GVW:8,600

Lightweight: 4,842

Mileage Cost: $0.45/mi

GVW: 26,000

Lightweight: 12,600 Mileage: $0.45 per mile

Lightweight: 7,508

Axes: Dual Bed Dimensions (L x W): 8’ x 5’ Mileage Cost: $0.45/mi

• Truck, Appliance Hand • Pad, Moving 52” x 80” • *Truck Fuel

GVW: 6,600

4,909

Cost: $0.45/mi

Hitch, Reese Pintle w/ 2” Ball

*Truck Fuel

Strap, Ratchet

*Truck Fuel

TECHNOLOGY

Hardscape & Landscaping Products

Contractor & Safety Supplies

Road & Bridge Specialities

Equipment Rentals

Jobsite & Specialty Equipment

Lasers

Concrete

Decorative

Site Precast

Retaining

Spas,

Special
