GUARDIAN E-2.0 AN
By
ECHO 2.0 SERIES
SunFusion Energy Systems
ABOUT:

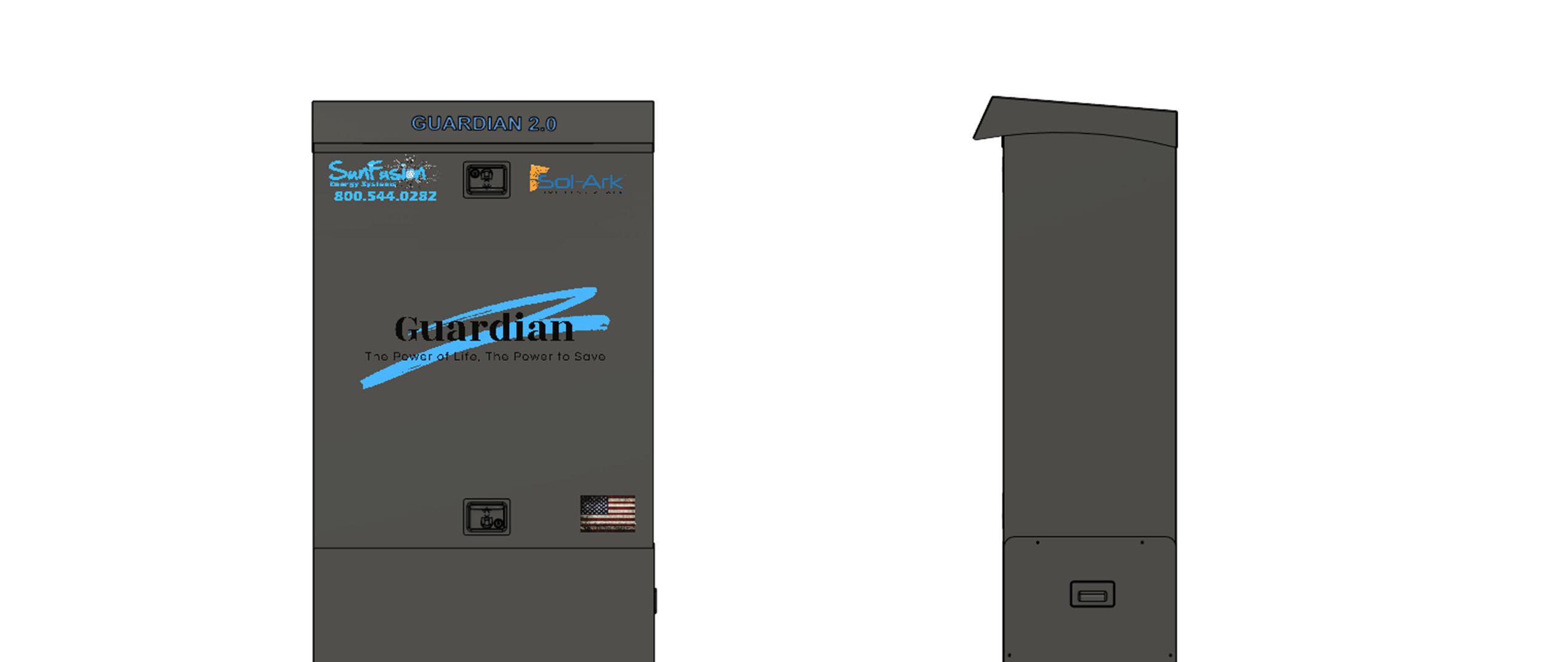

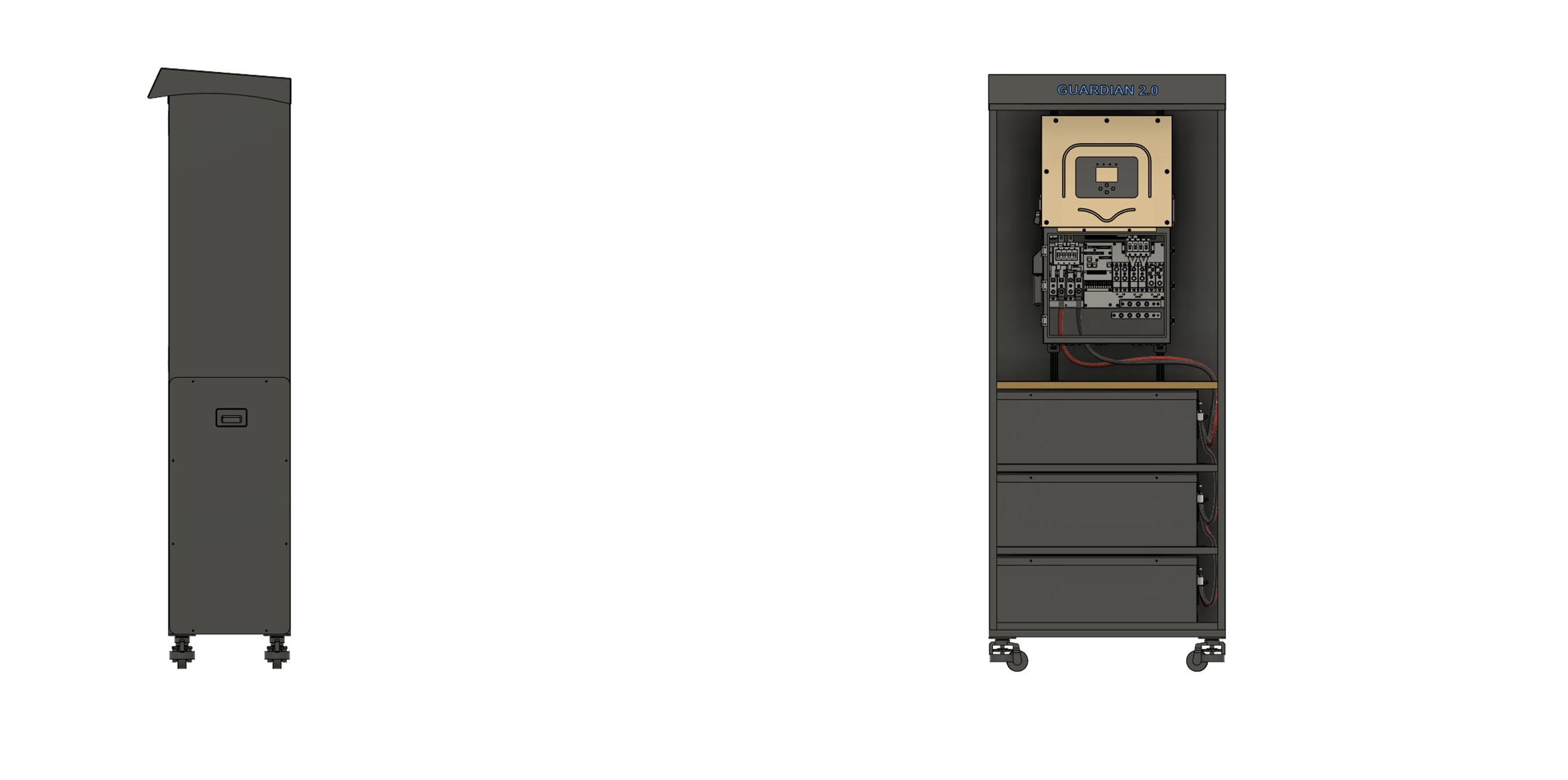

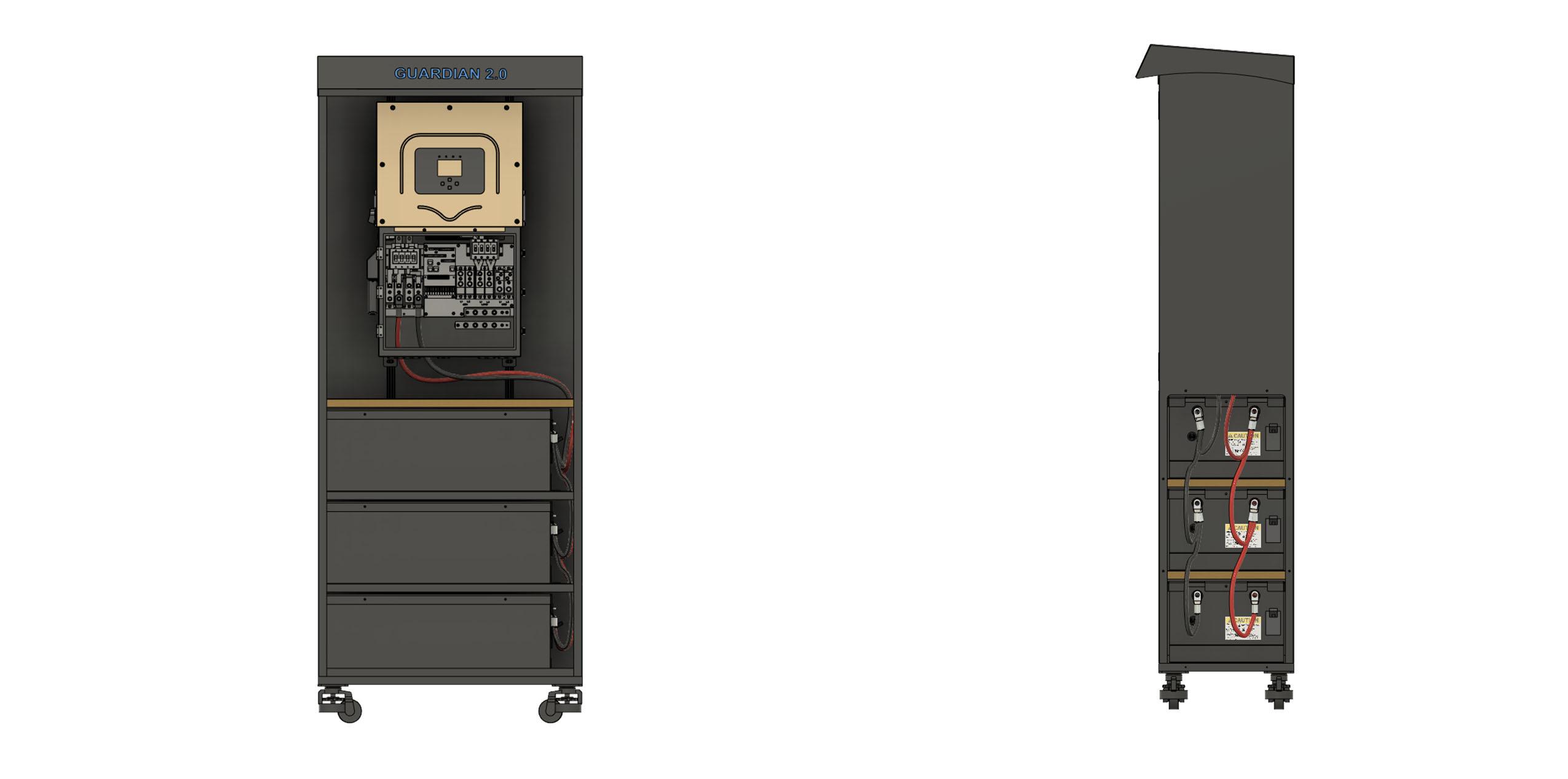

SunFusion developed the Guardian E-2.0 as the single most versatile home system. The unit comprises 1 Sol-Ark 15K Inverter, 3-ECHO 2.0 14kWh battery modules 42kWh of Storage, and a super slim housing (33L x 17D x 82H).
WHY:
The Guardian and the ECHO 2.0 uses the top inverter manufacturer in the United States, SolArk, out of Texas, and has several modules to choose from SunFusion currently uses the 12K, 15K, 30K, and soon the 60K. With higher performance and system strength, the SolArk inverters are the only way to succeed.
SunFusion Energy Systems
Model# Guardian E2.0
Serial# G202334
120/240/208Vac Split Phase 50/60Hz
15kW Sol-Ark
60AMPS MAX PER PHASE
Short Circuit Current Rating Per Inverter: 150Apk at 240V for 100ms
DC 42kWh
Using 3-ECHO 2.0 14kWh Battery Modules
OCP PER Module is 175AMPS DC
Charging Current 100AMPS MAX DC
Discharge Current 175AMPS MAX DC
MAX LB 1050
Enclosure Type: NEMA 3R
Operation Temperature: 65°C(149°F) or below -20°C (-4°F).
SunFusion Energy Systems
Model# ECHO 2.0 Tower
Serial# ET202334
DC 84kWh
Using 6-ECHO 2.0 14kWh Battery Modules
OCP PER Module is 175AMPS DC
Charging Current 100AMPS MAX DC
Discharge Current 175AMPS MAX DC
MAX LB 1850
Enclosure Type: NEMA 3R
Operation Temperature: 65°C(149°F) or below -20°C (-4°F).
Start-up

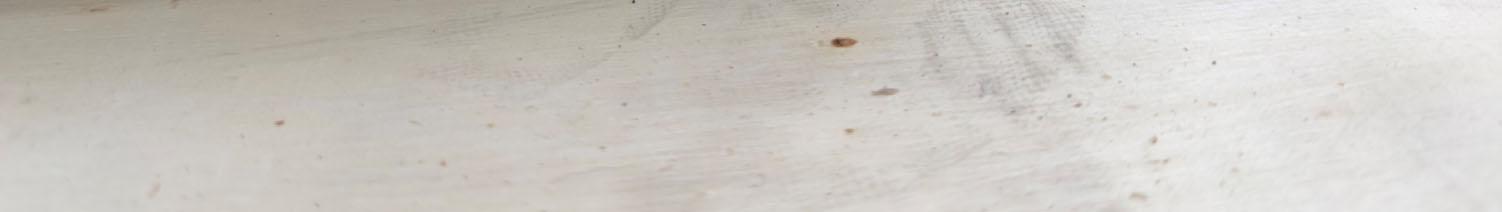

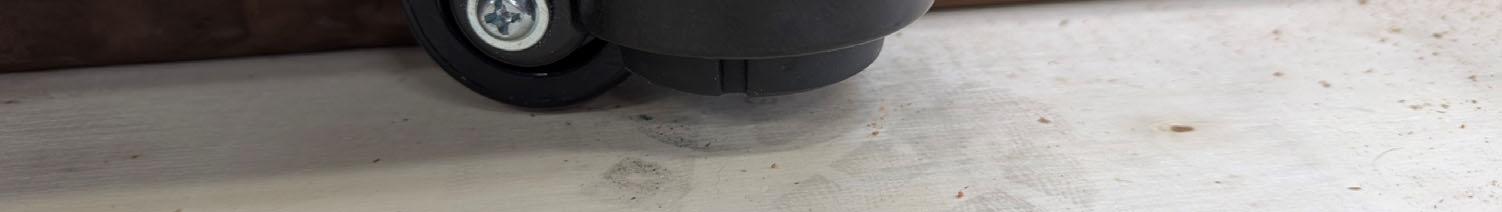

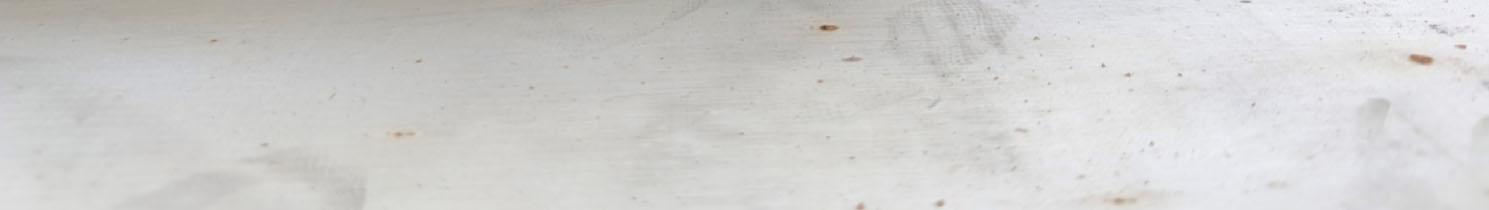

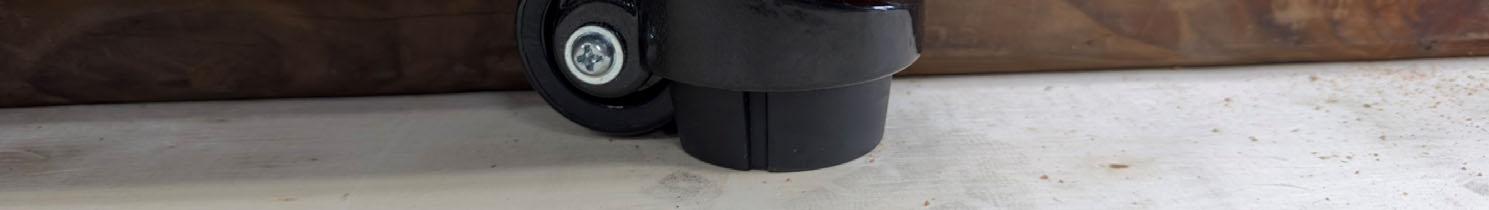

(1) Unpacking your system, Remove the Guardian from the pallet, and have personnel help guide the unit to the ground. Once on the ground, the levelers must be retracted to move around. See the photo below.

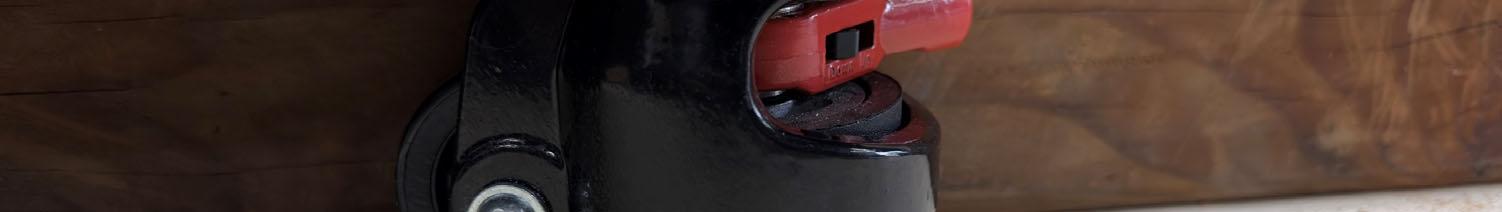

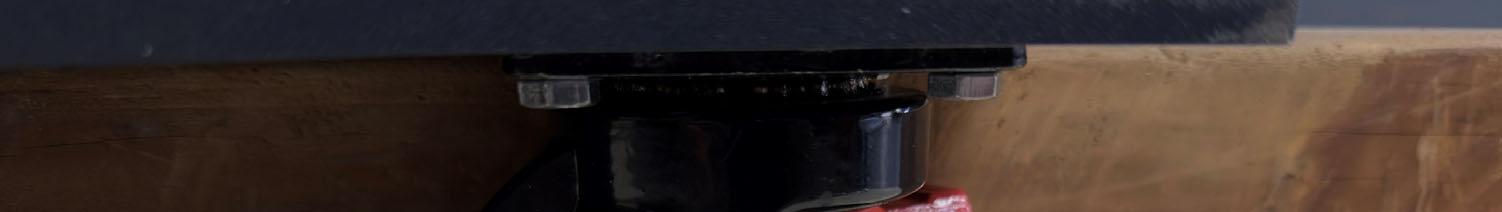

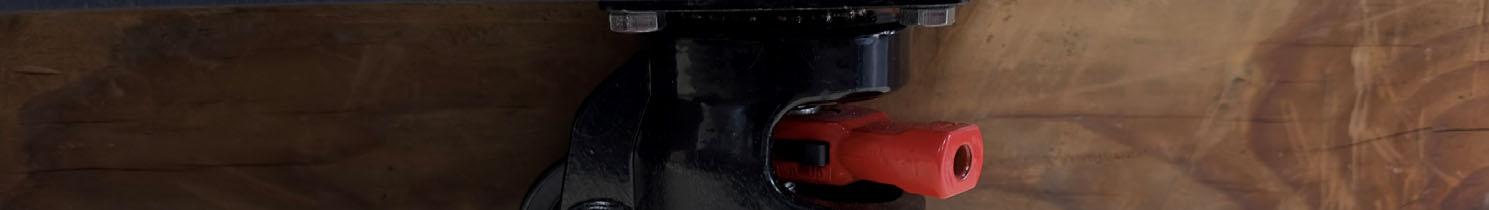

(2) Move the cabinet to its position, reset the levelers and strap system, or anchor the system. See the photo below. Move the black pin lever side to side for the up or down ratchet. Then use the red swing arm to rachet up or down.
(3) Placement of unit, once the Guardian is in place and level to your liking, secure it to the foundation and or the wall using seismic strapping or L-Brackets; if using seismic or LBrackets and is outdoors, watch for waterproofing, permanently seal your holes.

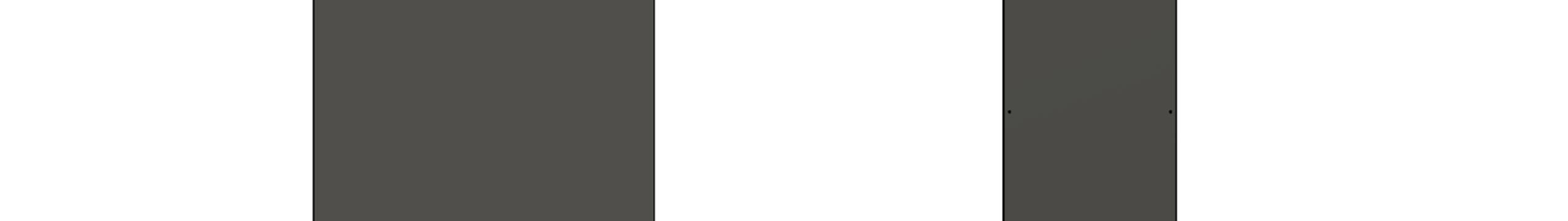

Strapping Points Using the 1” Frame. This is two-point strapping per side. Safe Zones for holes in the back or sides
Do not strap screw or drill in this section, and the same goes for the other sides. Were you see this X it’s a no-penetration zone.
(4) Opening the Guardian: while in transport, shipment may move due to bouncing; take cause when first opening the panels so nothing that may have been dislodged could potentially fall out.
(5) While all the covers are off, do a system check, Check the battery modules for voltage, one at a time, turning on one breaker, then turn it off and move to the next battery module. Once all are clear and voltage is around 51.2V, turn them all on.
