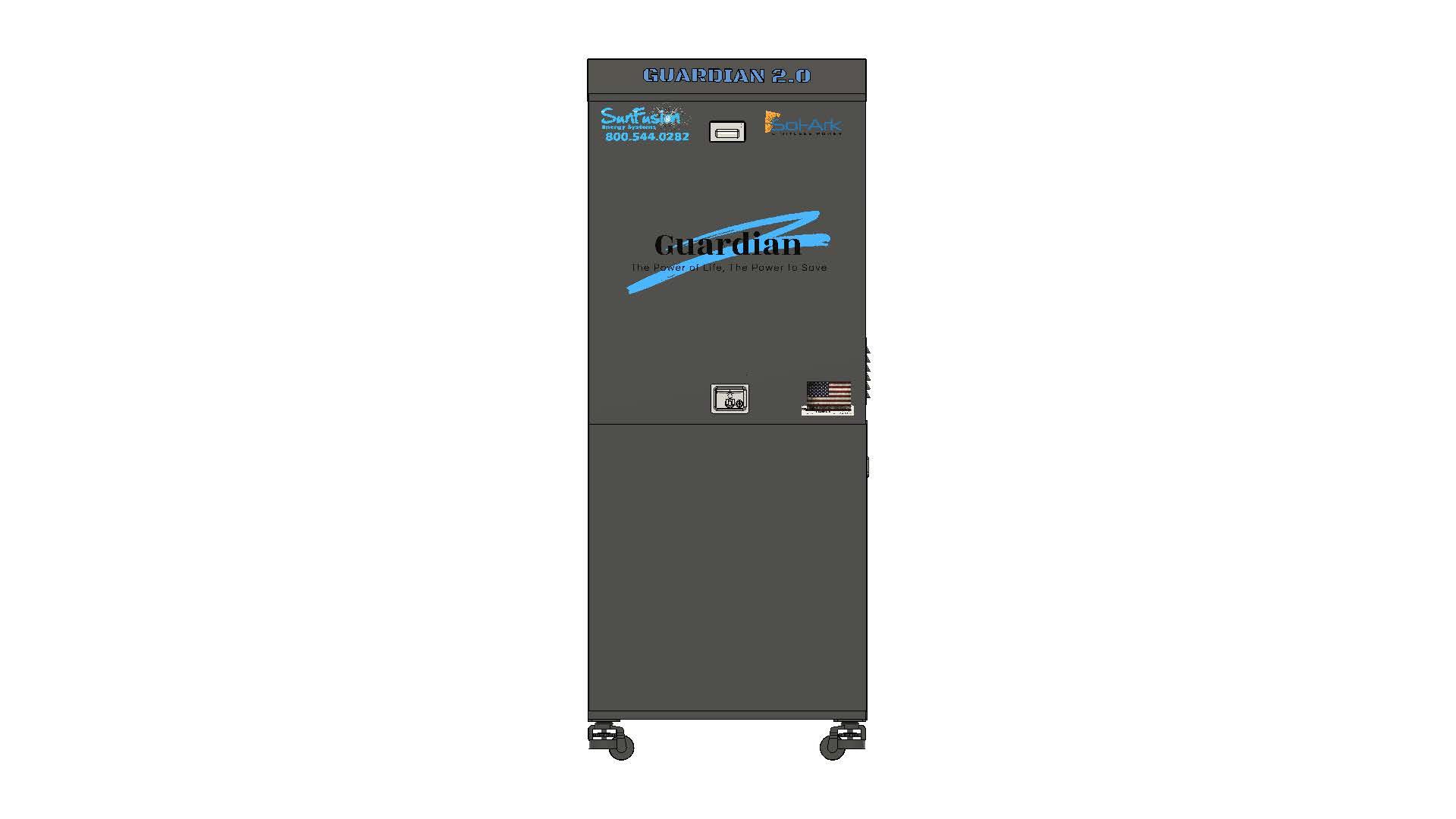

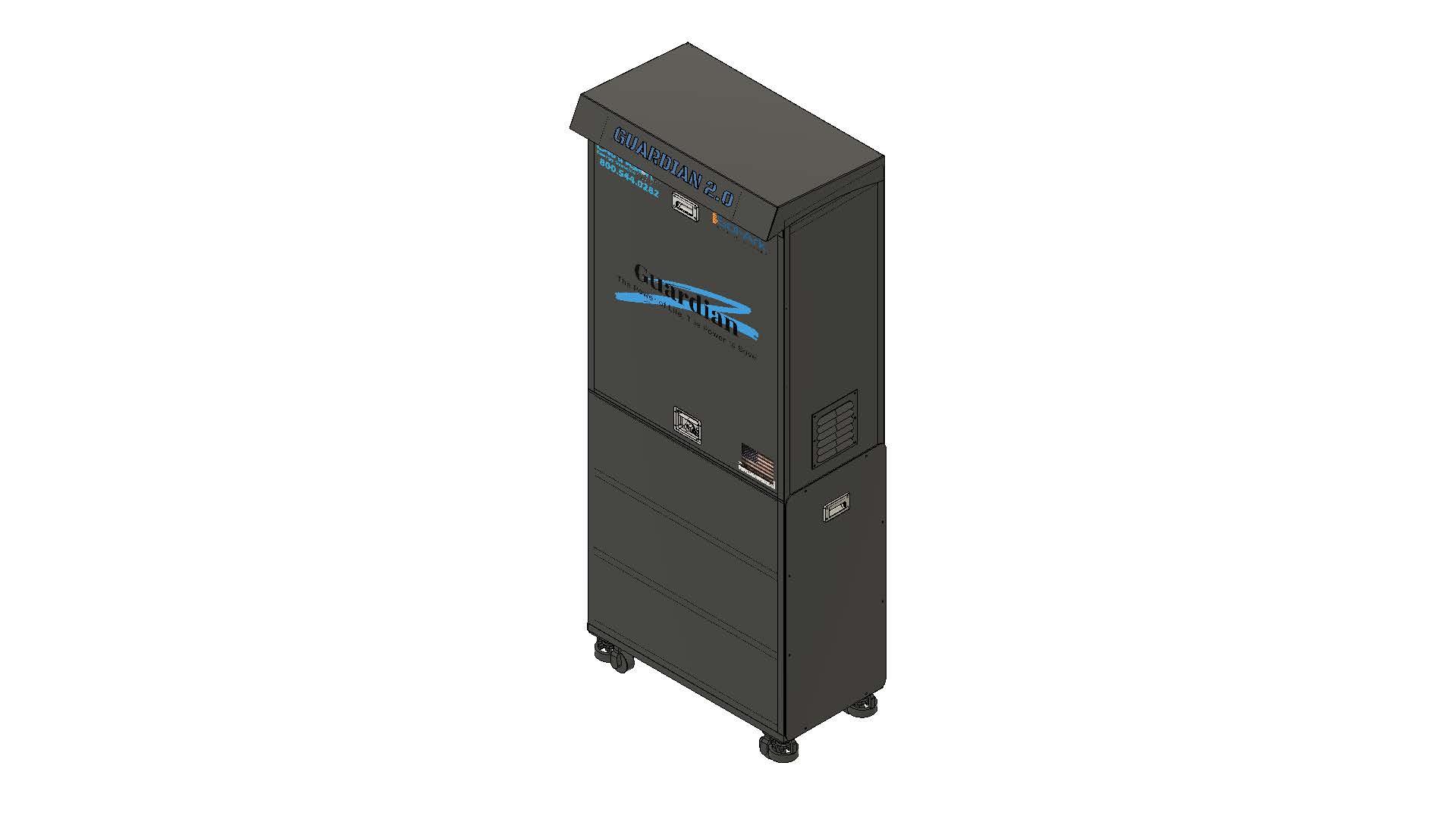

Complete system with Sunfusion batteries and Sol-Ark Inverters.
NOT REQUIRED DUE TO THE CONSTRUCTION OF THE CABINETS AND BATTERY MODULES 2022CRC-R328.1 USING 5052-H32 AEROSPACE
Cabinet Type Cabinet Finish
Forced Air Control
Battery Module
Cell Type Ultra-Safe
Battery Includes
Cable Type (In AC load & grid outbreaker only)
Battery Cable Type
CATL 271Ah 6LH3L8 Cell in each 14KWh SunFusion Battery Module.
Lithium Iron Phosphate Large Prismatic Cells #1 AWG
Battery Includes: 16 CATL 6LH3L8 cells, 1-175A battery breaker, 1-48V Advanced BMS.
Polar wire Artic Ultraflex Blue; AUF-#1 Red, Black Amp rating to 223 amps at 40°C (104°F) OCP at 175A DC.
Max Charge Discharge Rate

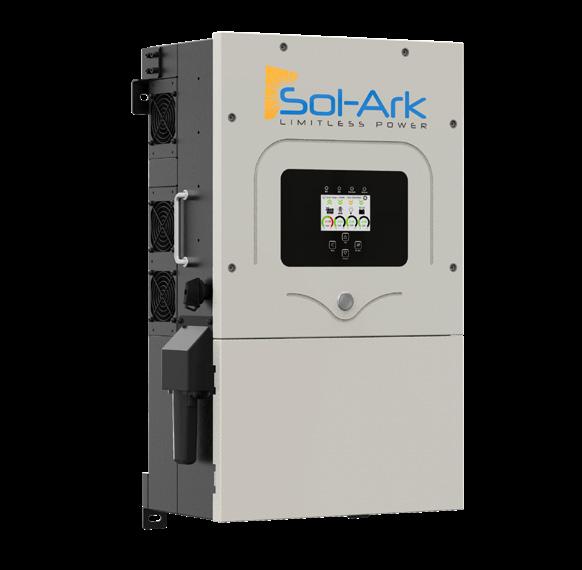

Sol-Ark 15K PV Specifications
Max PV power delivered to Battery & AC outputs
DC Voltage
MPPT Voltage Range
Number if MPPT
ECHO 2.0 Output Power 14000W Per Module
Nominal DC
Per MPPT
Max AC Coupled Input (Micro/String Inverters)
AC Output Power 15-KW on Grid Off Grid
Continuous AC Power to Grid (on-grid)
Surge AC power 16ms
Parallel Stacking
Generator Solar Strings
Continuous AC power with Grid or
Idle Consumption typical - no load
Design (DC to AC)
Response Time (Grid-Tied to Off-Grid)
Power Factor
Inverter Specifications
Continuous Battery Charging Out Put Wi-Fi Communication
CEC Efficiency External Temperature Senor Current Shunt for Accurate % SOC External Generator Start Based on Voltage or % SOC Communication to Lithium Battery
Weight
Protection Certifications
Yes: Electronics certified safety by SGS labs to NEC & UL specs - NEC 690.4B & NEC 705.4/6
Integrated: PV DC disconnect switch - Nec 240.15; Ground Fault Detection - Nec 690.5; PV Rapid shutdown control - NEC 690.12; PV Arc Fault detection - 690.11/UL1699B; PV input lightning protection; AC input/output 50A breakers; Battery breaker / disconnect; User wiring enclosure with 1” & 1-1/2” knock-outs;
Optional: Solar Flare/EMP Hardened to 2015 MILSTD-461G (Independently tested June 2018)
