NO SEPARATION REQUIRMENT DO TO CONSTRUCTION OF THE CABINETS AND BATTERY MODULES

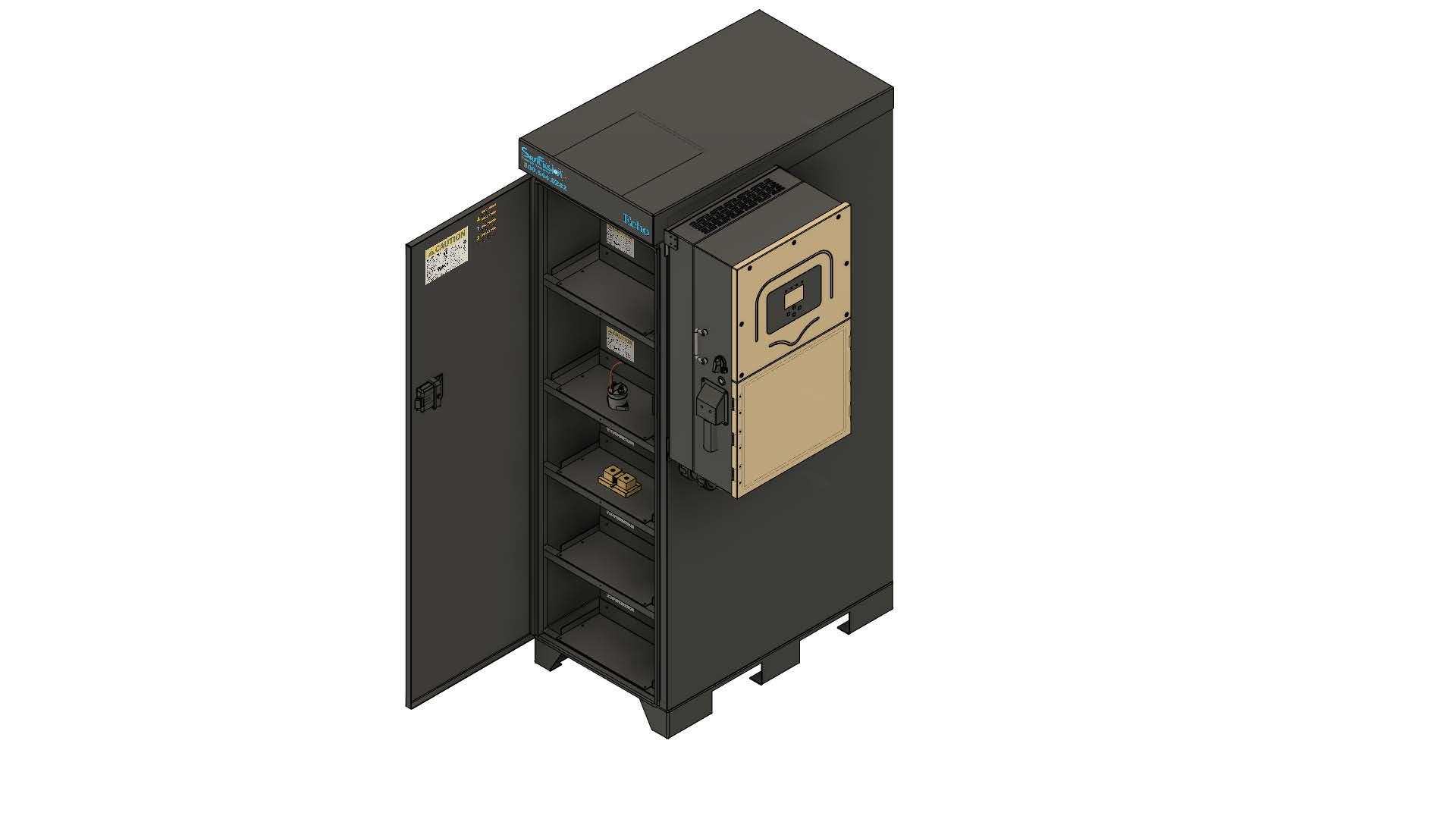

Echo 2.0 5T
Battery Module
ECHO 14kWh Battery Module
SOL-ARK 15K PCS Compliant
Complete system with Sunfusion batteries and Sol-Ark Inverters.
SEPARATION NOT REQUIRED DUE TO THE CONSTRUCTION OF THE CABINETS AND BATTERY MODULES 2022CRC-R328.1 USING 5052-H32 AEROSPACE ALUMINUM MELTING POINT 1,125-1,200 °F PER CABINET AND PER BATTERY MODULE
Cabinet Type
Cabinet Finish
Forced Air Control
Battery Module
Cell Type Ultra-Safe
Battery Includes
Cable Type (In AC load & grid outbreaker only)
Battery
Cable Type
Aluminim 5052 Gun Metal Finish
2 Thermal fans at 41dB
CATL 271Ah 6LH3L8 Cell in each 14KWh SunFusion Battery Module.
Lithium Iron Phosphate Large Prismatic Cells
Battery Includes: 16 CATL 6LH3L8 cells, 1-175A battery breaker, 1-3A Fast Fuse, 1-48V Display and a KMP BMS Slave box.
#1 AWG
Polar wire Artic Ultraflex Blue; AUF-#1 Red, Black Amp rating to 223 amps at 40°C (104°F) OCP at 175A DC.
Air vents located bottom and top
14kWh Max 70kWh
Single Inverter Off-Grid 15kW
Dual Inverter Off-Grid 30kW
Single Inverter On-Grid 15kW
Dual Inverter On-Grid 30kW

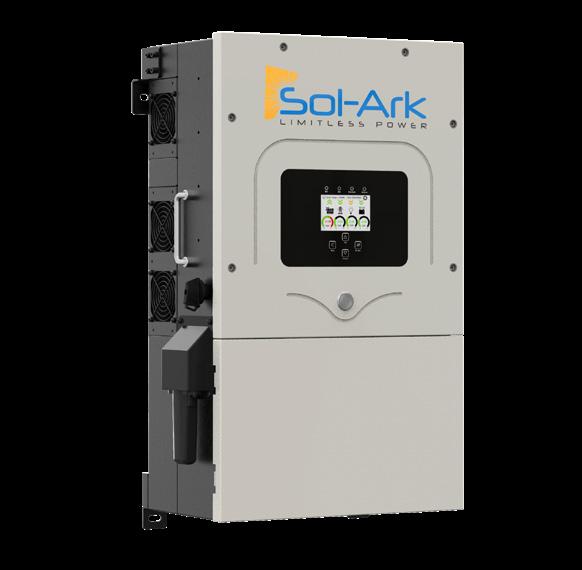

Sol-Ark 15K PV Specifications
Max allowed PV Power
Max PV power delivered to Battery & AC outputs
Max DC Voltage
MPPT Voltage Range
Starting Voltage
Number if MPPT
Solar Strings Per MPPT
Max DC current per MPPT
Max AC Coupled Input (Micro/String Inverters)
AC Output Power 15-KW on Grid Off Grid
Connections
Continuous AC Power to Grid (on-grid)
Continuous AC Power to Load (off-grid)
Surge AC power 10sec
Surge AC power 16ms
Parallel Stacking
Frequency
Continuous AC power with Grid or Generator
CEC Efficiency
Idle Consumption typical - no load
Sell Back Power Modes
Design (DC to AC)
Response Time (Grid-Tied to Off-Grid)
Power Factor
PV Battery Output Power 14000W
Type
Nominal DC
Capacity
Voltage Range (Min. / Max.)
Continuous Battery Charging
Out Put
Charging Curve
Grid to Battery Charging Efficiency
External Temperature Senor
Current Shunt for Accurate % SOC
External Generator Start
Based on Voltage or % SOC
Communication to Lithium Battery
Inverter Specifications
Dimensions
Weight
Enclosure
Operating Temperature
Wi-Fi Communication
Standard Warranty
Protection Certifications
Yes: Electronics certified safety by SGS labs to NEC & UL specs - NEC 690.4B & NEC 705.4/6
Integrated: PV DC disconnect switch - Nec 240.15; Ground Fault Detection - Nec 690.5; PV Rapid shutdown control - NEC 690.12; PV Arc Fault detection - 690.11/UL1699B; PV input lightning protection; AC input/output 50A breakers; Battery breaker / disconnect; User wiring enclosure with 3/4” & 1” knock-outs;
Optional: Solar Flare/EMP Hardened to 2015 MILSTD-461G (Independently tested June 2018)
