Echo 2.0 5T
SOL-ARK 12K-P PCS Compliant
Complete system with Sunfusion batteries and Sol-Ark Inverters.
SEPARATION NOT REQUIRED DUE TO THE CONSTRUCTION OF THE CABINETS AND BATTERY MODULES 2022CRC-R328.1 USING 5052-H32 AEROSPACE ALUMINUM MELTING POINT 1,125-1,200 °F PER CABINET AND PER BATTERY MODULE

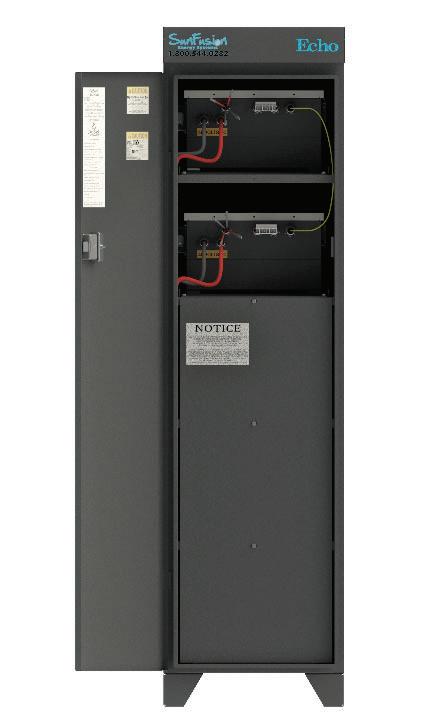

Sunfusion Battery Cabinet (Interior)
Cabinet Type
Cabinet Finish
Forced Air Control
Battery Module
Cell Type Ultra-Safe
Battery Includes
Cable Type (In AC load & grid outbreaker only)
Aluminim 5052
Gun Metal Finish
2 Thermal fans at 41dB
CATL 271Ah 6LH3L8 Cell in each 14KWh SunFusion Battery Module.
Lithium Iron Phosphate Large Prismatic Cells
MODULES16 CATL 271Ah 6LH3L8 cells, 1-175A battery breaker, Propriatery BMS.
Min, Polar wire Artic-Ultraflex Blue; AUF-8 Red, Black Amp rating to 81 amps at 40°C (104°F) max used 63A AC.
Sunfusion Battery Cabinet (Exterior)
Warranty
Rapid Shutdown Switch (RSS)
Forced Air Control
Security Dimension
MAX Weight
25 year System Warranty
Min 5 sec Max 15 sec
Air vents located bottom and top
Lockable door
74” x 21.5” x 38.5” (5T)
(5T) 1050 lb
2.0 5T
Battery
Cable Type
Polar wire Artic Ultraflex Blue; AUF-#1 Red, Black Amp rating to 223 amps at 40°C (104°F) OCP at 175A DC.
Off-Grid 9kW
On-Grid 15kW
CE, UL 9540, 1973 compliance, UL 1973, UL 9540A (batteries), and FCC part 15 Class B compliant. Certified to UL 1741, PCS Utility Compliant. (inverter) CPUC Inteconnection Rule 21.
ECHO 14kWh Battery Module
Capacity MCDR Min 14kWh Max 56kWh
ECHO
Sunfusion
800.544.0282 www.sunfusion.us info@sunfusion.us 9020 Kenamar Dr Ste. 204, San Diego, CA 92121
800.544.0282 Us a Call!

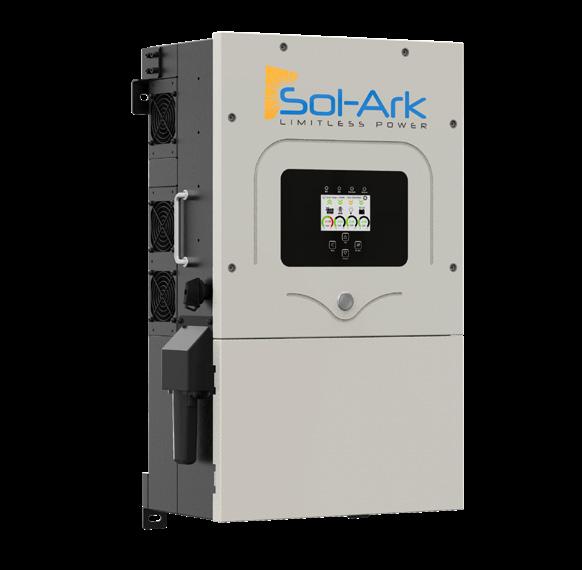

Sol-Ark 12K-P PV Specifications
Max allowed PV Power
Max DC Voltage
MPPT Voltage Range
Max PV power delivered to Battery & AC outputs Nominal DC
PV Battery Output Power 14000W
Starting Voltage Continuous Battery Charging
Solar Strings Per MPPT
Max DC current per MPPT
Max AC Coupled Input (Micro/String Inverters)
Number if MPPT Charging
AC Output Power 15-KW on Grid & 9-KW Off Grid
Connections
Continuous AC Power to Grid (on-grid)
Continuous AC Power to Load (off-grid)
Surge AC power 10sec
Surge AC power 16ms
Parallel Stacking
Frequency
Continuous AC power with Grid or Generator
CEC Efficiency
Idle Consumption typical - no load
Sell Back Power Modes
Design (DC to AC)
Response Time (Grid-Tied to Off-Grid)
Power Factor
Grid to Battery Charging Efficiency
External Temperature Senor
Current Shunt for Accurate % SOC
External Generator Start
Based on Voltage or % SOC
Communication to Lithium Battery
Mechanical Specifications
Protection Certifications
Yes: Electronics certified safety by SGS labs to NEC & UL specs - NEC 690.4B & NEC 705.4/6
Integrated: PV DC disconnect switch - Nec 240.15; Ground Fault Detection - Nec 690.5; PV Rapid shutdown control - NEC 690.12; PV Arc Fault detection - 690.11/UL1699B; PV input lightning protection; AC input/output 50A breakers; Battery breaker / disconnect; User wiring enclosure with 3/4” & 1” knock-outs;
Optional: Solar Flare/EMP Hardened to 2015 MILSTD-461G (Independently tested June 2018)
30”x 18.30”x 10.00” 78 lbs NEMA type 3R Included 10 year standard by Manufacturer -25°C - 55°C ( -13°F - 131°F ) 15-KW 500V@18A; 450V@20A 150-425V 175V 2 2 w/o fuses, 3 w/ fuses 20A@300V, 18A@400V 9.6-KW / 9.6-KW 15-KW 62A L-L (240V) 9-KW 37.5A L-L (240V) 4.8-KW 40A L-N (120V) 13.5-KW 4.8-KW 40A L-N (120V) 2-8 (240V), 2,3,6,9 (208V) 60/50Hz 15.1-KW 63A L-L (240V) 7.6-KW 63A L-N (120V) 97.5% (Peak 99.5%) 60W Transformerless DC 4ms +-0.9 - 1.0 LiFePO4 48V 271 - 17,820Ah 44.0 - 57.0V 175A 3-stage w/ equalization 97.0% Included Integrated Integrated CanBus & RS485 Limited to household or Full Grid-Tied 16-KVA L-L (240V) 25-KVA L-N (120V) 120/140/208V Split Phase
Type Dimensions
Capacity Enclosure
Voltage Range (Min. / Max.) Operating Temperature
Out Put Wi-Fi Communication
Curve Standard Warranty
Weight
