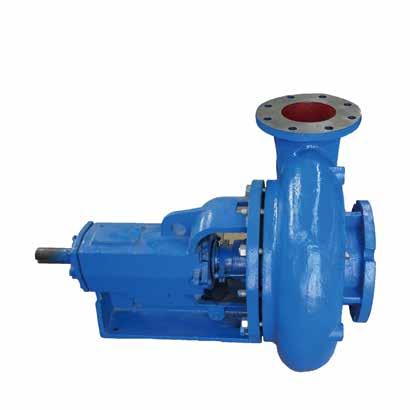

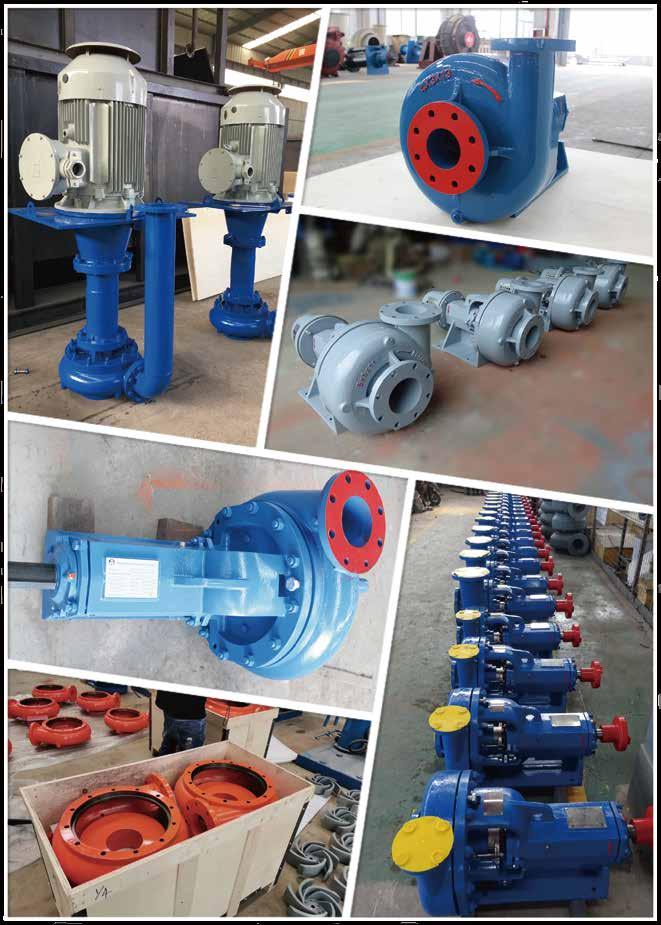

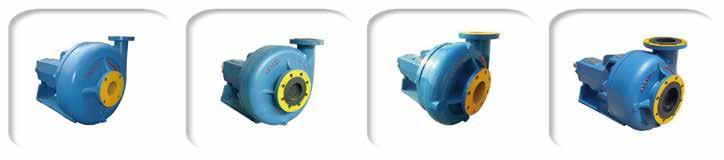

SM系列离心式砂泵

SM TYPE SAND PUMP

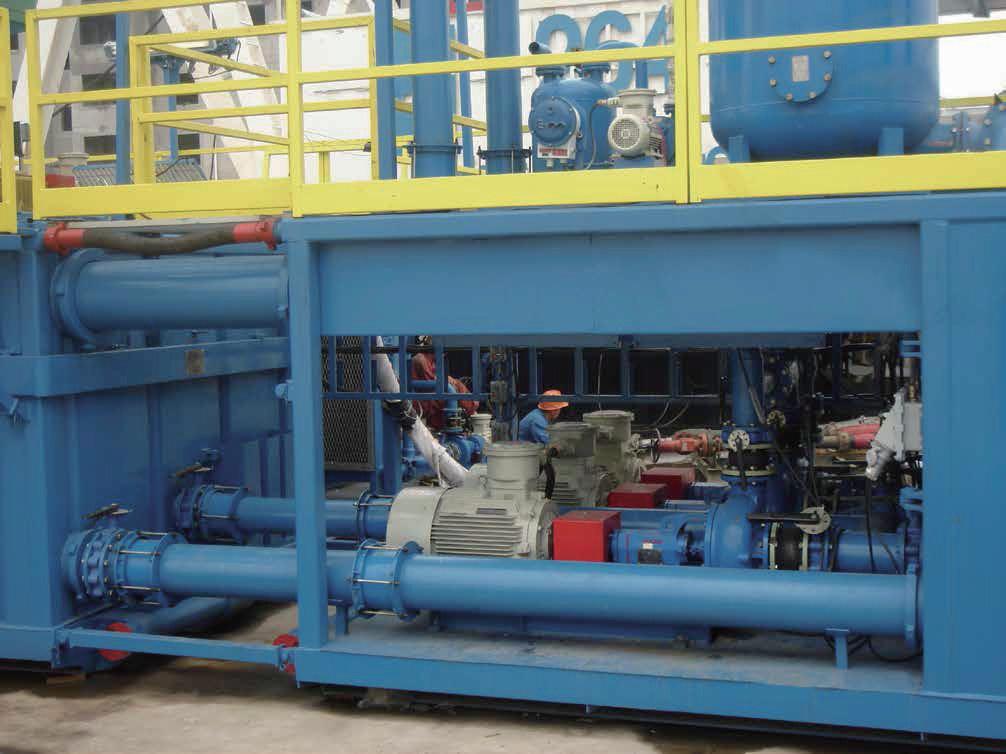

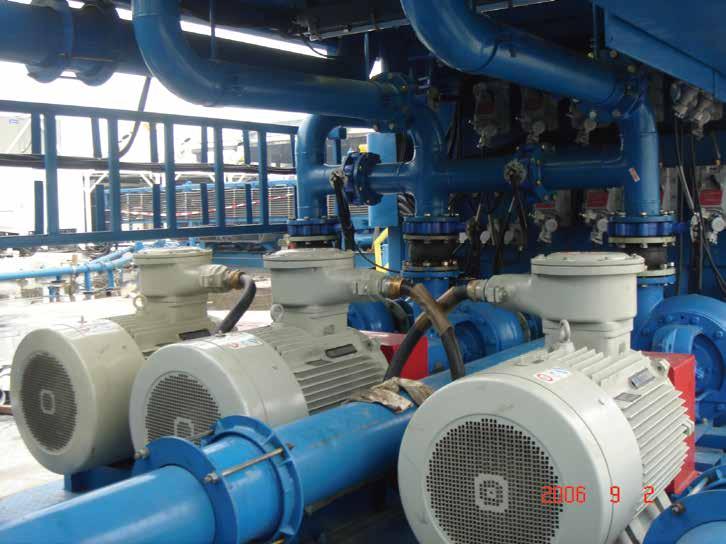

SM系列离心式砂泵主要是用来给油田钻机的循环固控系统配套， 其作用是给除砂器、 除泥器、 混料器等提 供具有一定排量和压力的钻井液，以保证这些设备高效工作。

其中SM10×8×14 离心式砂泵主要适应于配套3000m以上的钻机， 且钻井液粘度、 比重都比较大的钻井工 程使用；SM8×6×14 离心式砂泵主要配套3000m以上的钻机；SM8×6×11 离心式砂泵主要配套3000m以下的 钻机，也可作为灌注泵给三缸泥浆泵供浆；SM6×5×11、 SM5×4×14离心式砂泵一般用于车装钻机或小型钻机 的配套；SM4×3×13离心式砂泵与计量罐配套，通常称计量泵或补给泵； SM3×2×13离心式砂泵一般作为清水 泵使用。

SM series centrifugal sand pump mainly supplies to solids control circulating system of oilfield drill rig, and be used to provide drilling liquid with a certain discharge capacity and pressure to sand, desilter and mud mixer,to assure these equipments work efficiently.

The SM10×8×14 centrifugal sand pump applies to over 3000-meter-long drilling rigswith big viscosity and specific gravity drilling fluid.The SM8×6×14 centrifugal sand pmp applies to over 3000-meter-long drilling rigs. The SM8×6×11 centrifugal sand pump applies to under 3000-meter-long drilling rigs,also can be can be used to supply mud to triplex mud pump as a filling pump. The SM6×5×11 centrifugal sand pump applies to truck-mounted drilling rigs or pocket drilling rigs.

The SM4×3 centrifugal sand pump is usually used as measuring pump or replenishment pump. The SM 3×2 centrifugal sand pump is usually used as clean water pump

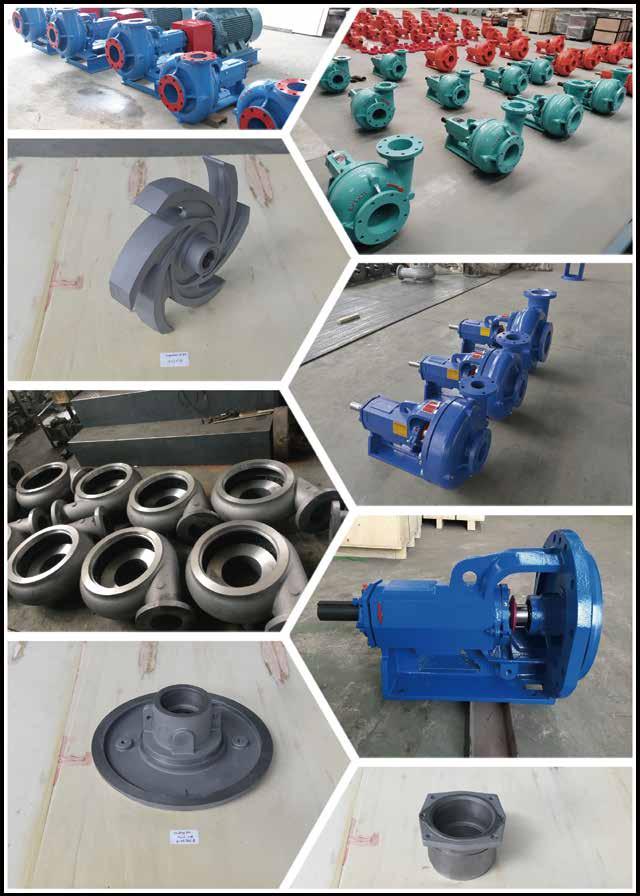

离心式砂 泵特点 Centrifugal Sand Pump features

Open impeller,apply to transport high viscosity drilling liquid.

Mechanical seal and packing seal combination seal guarantees zero leakage and long service life.

Use universal bearing houses and bearings,convenient to maintain and cut the costs.

4.主要零部件（泵壳、叶轮、机械密封盒）均为耐磨球铁QT600-3， 树脂砂精密铸造，使用寿命长、外型美观；

The major parts are made from antiwear nodular iron,and long service life.

1.开式叶轮，适于输送高粘度的钻井液；

2.采用机械密封和盘根密封组合密封，密封效果好，使用寿命长；

3.SM系列砂泵中轴承座、轴等零部件通用，备件及维修方便、节 约成本；

申博泵业 SUNBO PUMP 申博泵业 SUNBO PUMP

1. 泵壳 Casing 2. 叶轮 Impeller 3. 机械密封盒 Stuffing box, Mech. Seal

4. 轴承座 Frame, Grease Lubricated 5. 轴套 Shaft Sleeve 6.盘根压 套

Gland Assy, Packing 7. L螺栓 Bolt Assemly,Gland 8. 油封 Oil S eal

9.轴承 Bearing 10. 轴 Shaft 11. 外侧轴承座 Bearing Base 12. 轴承

Bearing 13. 外侧轴承盖 Bearing Cover 14. 油封 oil Seal 15. 锁紧螺母

Locknut 16. 填料 Packing 17. 机封 Mech. Seal

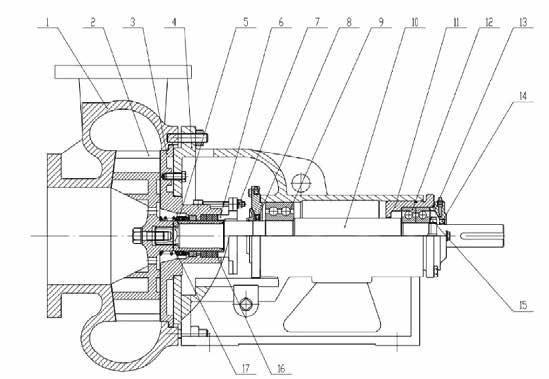

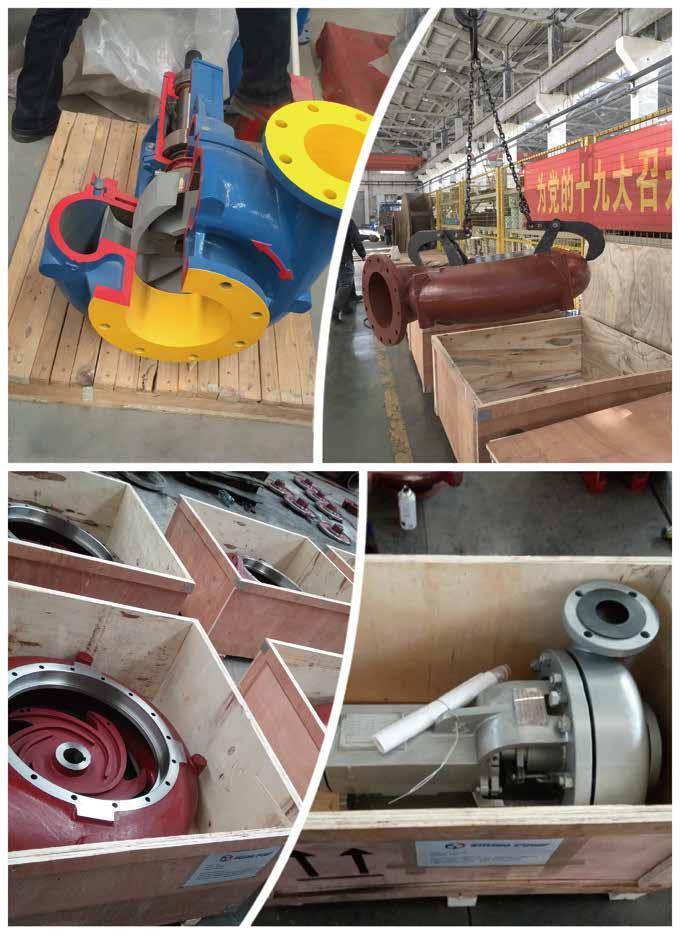

SM泵结构图 SM Pump Structure

申博泵业 SUNBO PUMP

申博泵业 SUNBO PUMP 申博泵业 SUNBO PUMP

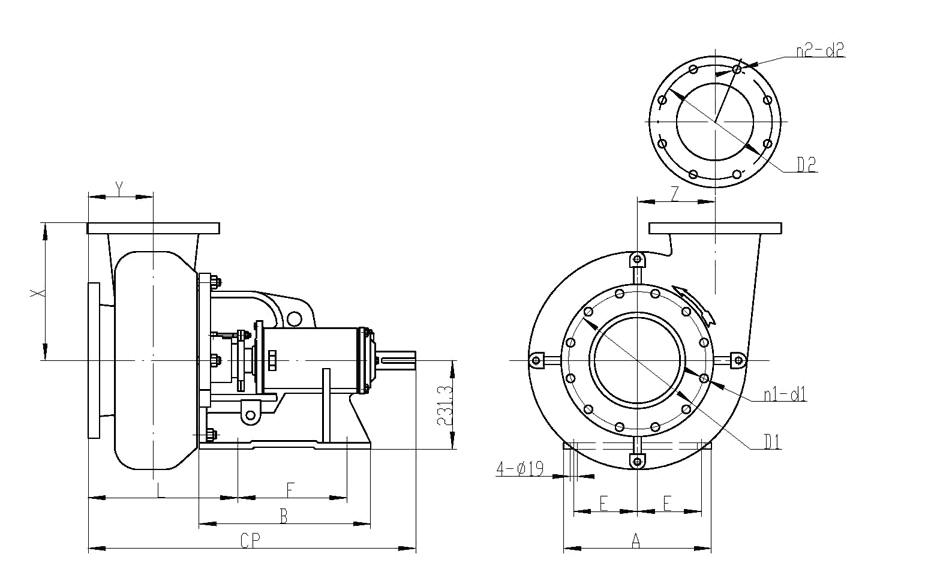

SM泵外形尺寸图 SM Pump Outline Dimension

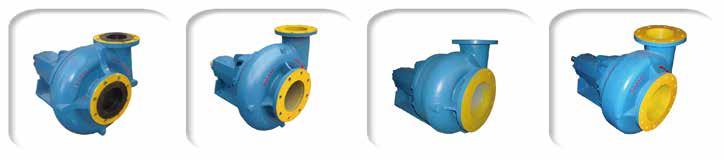

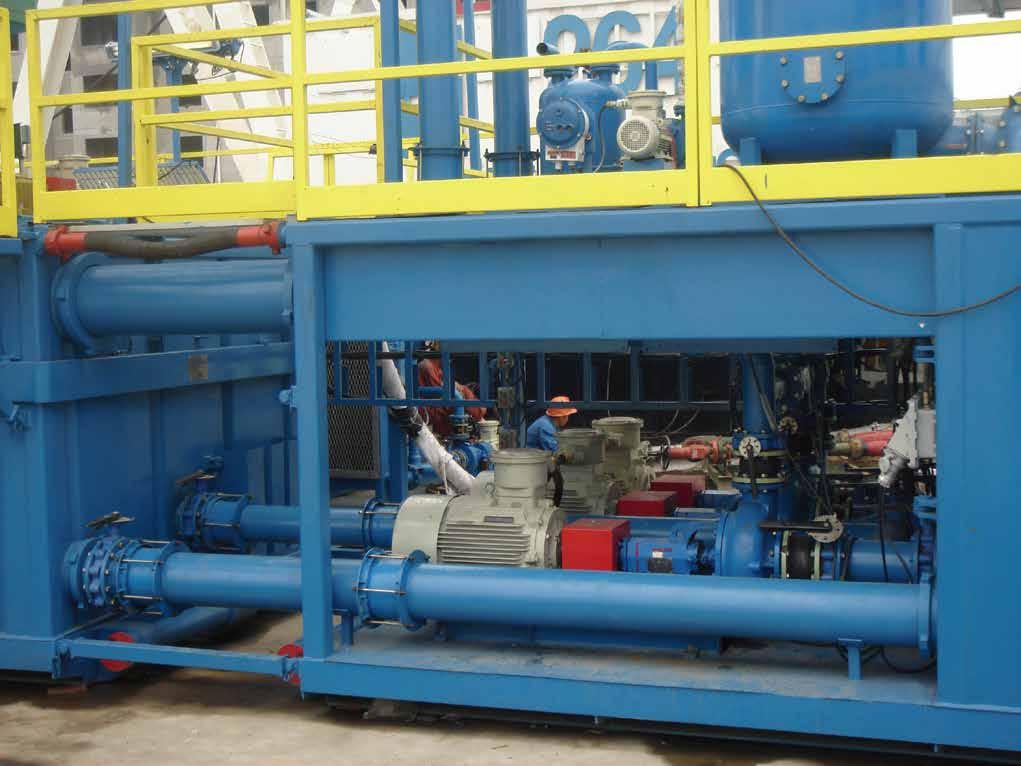

SSA系列离心式砂泵

SSA series centrifugal sand pump

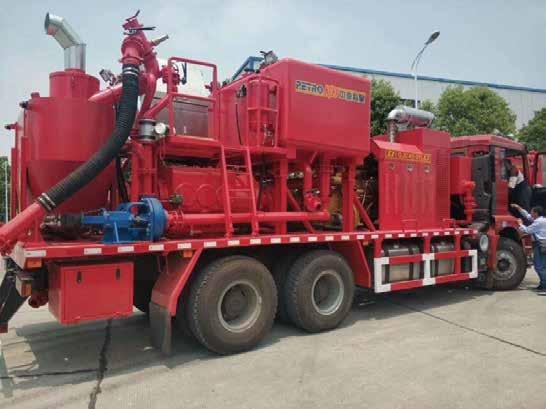

SSA系列离心式砂泵不但具有SM系列离心泵的优点，而且设计更紧凑，适应性更强，可以由液压马达 来驱动。所以还可以用在油田的压列车、混砂车上。除了设计形状和轴外，其它零部件都是和SM系列离心 泵通用的。它的外形尺寸和轴都比普通泵短4英寸，当装备空间有限的时候，SSA离心泵就是最佳的选择。

SSA series centrifugal sand pump includes virtually all of the features of the SM series pumps SSA series pumps are more compact in design and can be adapted for hydraulic motor drive. These features make. SSA series pump ideal for use in applications such as oilfield frac trucks as well as blending and pump charging for water well drilling applications. All parts for these pumps are identical to the SM series pump except for the frame and shaft. The frame and shaft have been shortened 4" to reduce the length of the pump. When the space is small, the SSA series pump is a good choice.

特性 Features

1.开式叶轮，适于输送高粘度的钻井液;

Open impeller, specially design for high viscosity drilling liquid;

2.组合密封，使用寿命长;

Combination seal for a long service life;

3.所有型号离心泵的轴承座、轴等零部件通用，维修方便、节约成本;

Use universal bearing houses and bearings, convenient to maintain and cut the costs;

4.主要零部件均为耐磨球铁，树脂砂精密铸造，使用寿命长、外型美观;

The major parts are made from antiwear nodular iron,and long service life;

S S A系列泵的性能参 数 SSA Type Pump Performance Chart

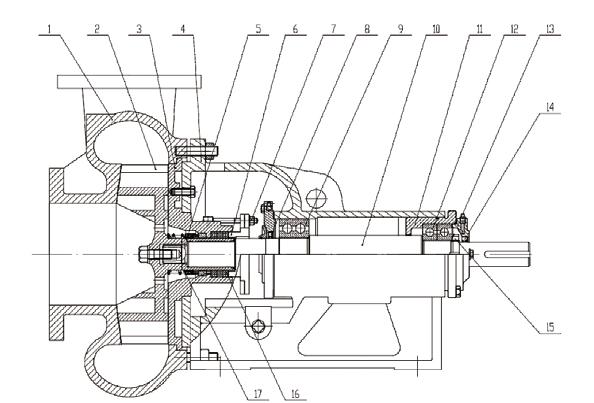

SSA泵结构图 SSA Pump Structure

1. 叶轮 Impeller 2. 泵壳 Casing 3. 机械密封盒 Stuffing box, Mech. Seal 4. 轴承座

Frame, Grease Lubricated 5. 轴套 Shaft Sleeve 6.盘根压套 Gland As sy, Packing

7. 螺栓 Bolt Assemly,Gland 8. 油封 O il Seal 9.轴承 Bearing 10. 轴 Shaft

11. 外侧轴承座 Bearing Base 12. 轴承 Bearing 13. 外侧轴承盖 Bearing Co ver

14. 油封 oil Seal 15. 锁紧螺母 Locknut 16. 填料 Packing 17. 机封 Mech. Seal

申博泵业 SUNBO PUMP

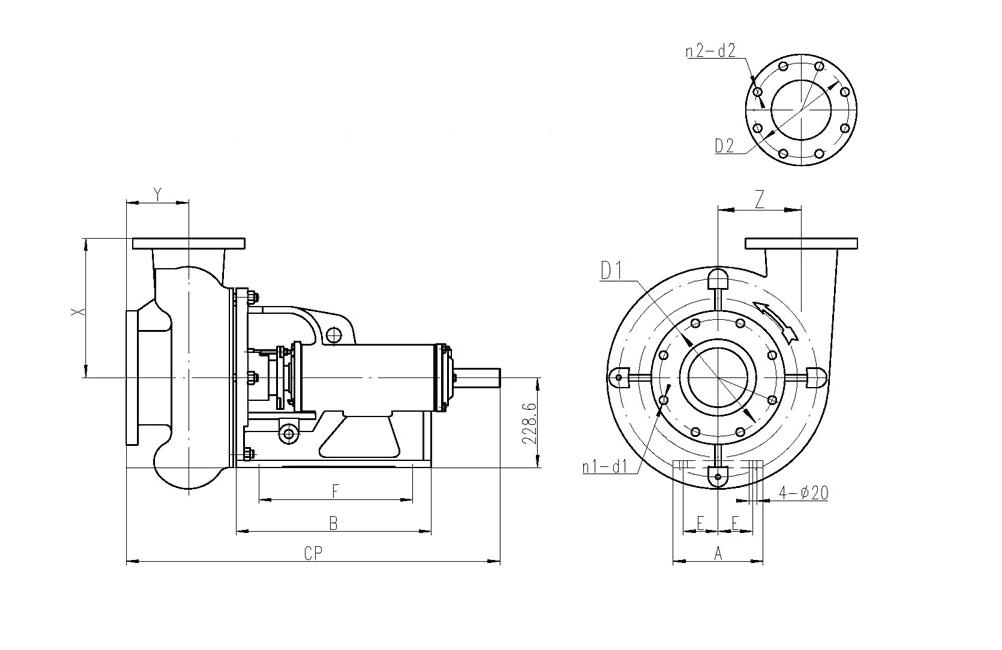

SSA泵外形尺寸图 SSA Pump Outline Dimension

申博泵业 SUNBO PUMP 申博泵业 SUNBO PUMP

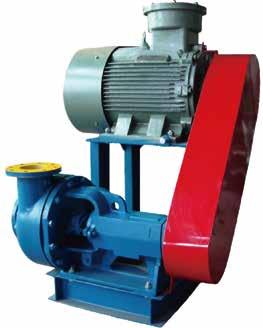

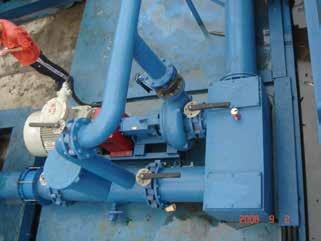

剪切泵能为高分子聚合物（或粘土）迅速水合提供高 度剪切，解决聚合物（粘土）在钻井液中或完井液中因水 合不好而存在的突出问题。有效地消除“鱼眼”，达到高 效的钻井作业。申博公司生产的剪切泵能使膨润土的用量 减少30%以上。剪切泵作为钻井液循环系统中的重要设备 之一，使液流中的固相破碎并均匀分布，显著改善钻井液 滤失性能和泥饼质量，建立良好的凝胶强度，更有效地保

护井壁和防止油层污染，使钻井液在低剪切速率下的携砂 能力显著提高，改善钻井液质量，降低钻井成本和钻井周 期，保护下游设备。 减轻工人劳动强度。

The Shear Pump is used to shear, refine, mix polymer, bentonite etc drilling mud material. It can remove “fish eye” help drilling fluid achieve high property for oil drilling. Sunbo Shearing pump can save over 30% bentonite. As one very important equipment within the drilling fluid circulating system, shearing pumps perform the dual function of cutting and pumping, making the drilling fluid ideally suited for every drilling requirements of reducing solids size, and protect its downstream equipments.

技术参数 Specification:

申博泵业 SUNBO PUMP

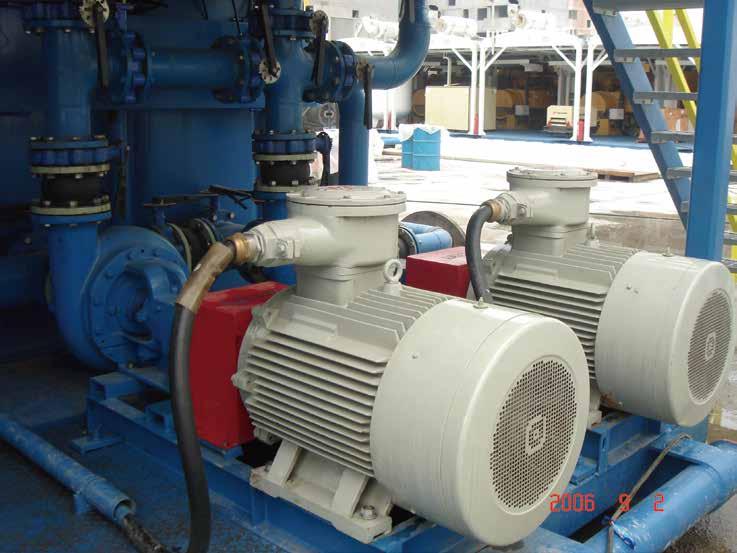

S2500 Series Pump

S2500 SUPREME是一种可靠的大功率低成本泥浆泵 。 独特的 同心圆外壳和宽叶轮设计 ， 使2500 SUPREME离心泵具备高耐磨 、 使用寿命长的特点 ， 而且使用中的维护保养费用也很低 。 同心圆的 设计能够减小振动和湍流 ， 因为在泵入含有坚硬固体的钻井液时会 引起大的磨损 。 这种设计同样能够缓解泵的高负荷和轴偏差 。 2500 SUPREME离心泵的宽叶轮设计可以降低液体脱离叶片的速度 ， 窄叶 片的设计会使钻井液中的硬物对叶片造成很大的冲击 ，而宽叶片设计 则不会出现这种情况。除此之外 ，S2500 SUPREME离心泵还配了大 载荷的轴，最大程度地延长了使用寿命 。S2500 SUPREME离心泵的 材质主要是高硬质合金，可以用电动机 、柴油机或液压马达驱动 。我 们可以提供整机或单独的泵头以及配件 ，全方位满足用户的需求.

S2500 SUPREME is a robust and powerful centrifugal sand pump It has an open impeller design that has wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids . The S2500 SUPREME wide impeller reduce the pump housinginner pressure , and the strong big shaft design , increasing the pump life time maximumly . The main wear parts are made of high hardness alloy, and the pump can work with motor , diesel engine , and hydraulic motor , anyway is ok . Sunbo offers pump, pump parts and whole pumping system, we are meeting all your request.

申博泵业 SUNBO PUMP 申博泵业 SUNBO PUMP

FEATURES

• 多功能设计填料箱

• 加厚高强度的泵壳连接可更换的前耐磨盘

• 双填料箱螺栓设计便于更换填料

• 弹簧式机封设计安装时免调节，使用寿命长，零泄漏

• 轴套可更换

• 一体式托架设计，使泵的动力端更加稳固

• 转子部分的迷宫套课对轴承起到很大的保护作用，最大限度地延长了轴承的使用寿命

• 完美的管径入口可最大程度地减少湍流并提高效率

• 半开式宽叶道设计叶轮最大程度上减小了轴向推力，延长了轴的使用寿命

• Versatile stuffing box

• Thick, strong, concentric casing with replaceable casing wear pad

• Replaceable stuffing box cover with dual stuffing box bolts

• Long-life, no-adjustment mechanical seal available for near zero leakage

• Replaceable shaft sleeve

• Solid Frame base

• Labyrinth seals for maximum bearing protection

• Full pipe diameter entrance for minimum turbulence and maximum efficiency

• Wide semi-open impeller creates lower axial thrust for improved bearing life

申博泵业 SUNBO PUMP

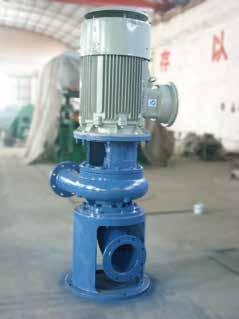

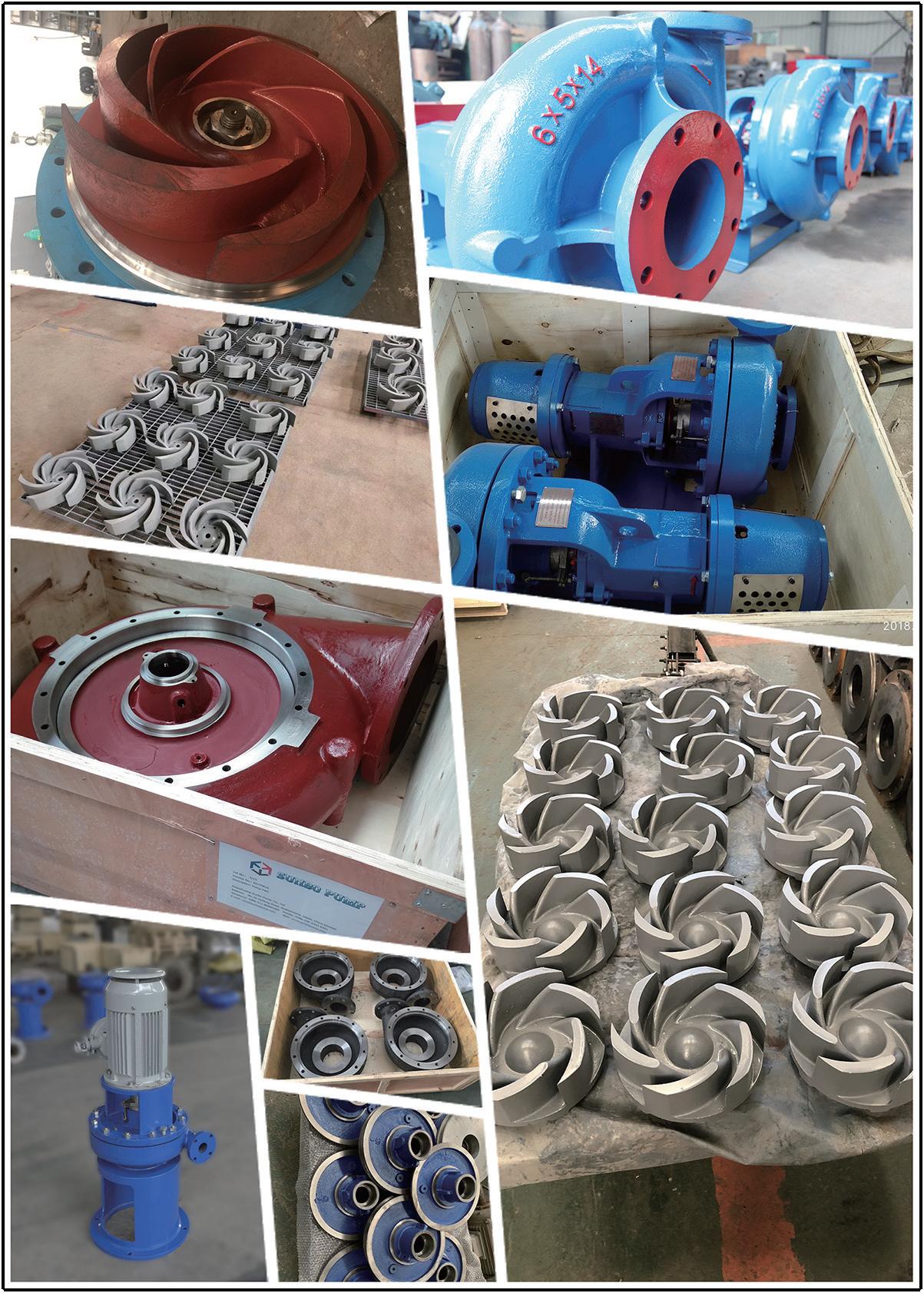

SBV立式砂泵

SBV立式砂泵主要是用来给油田钻机的循环固控系统配套，起作 用时给除砂器、除泥器提供具有一定排量和压力的钻井液，以保证这 些设备高效工作。该系列立式砂泵的特点是：立式安装，比卧式安装 节省了三分之二的安装空间，增大了泥浆罐的有效容积； 开式叶轮， 适于输送高粘度的钻井液；机械密封盒油封组合密封，使用寿命长， 密封效果好。

SBV vertical Centrifugal Sand Pump mainly suppose to solid control circulating system of oilfield drilling rig. It is used to [rovide drilling liquid with a certain capaicity and discharge pressure to desander and desilter to assure these equipments work efficiently. The advantages of this SBV Pump: Vertical installation saves two-thirds of space than horizontal installation; Open impeller is good at handling high viscosity drilling liquid; Combination seal for a long service life and good seal result.

技术参数 Specification

SBV Vertical Centrifugal Pump

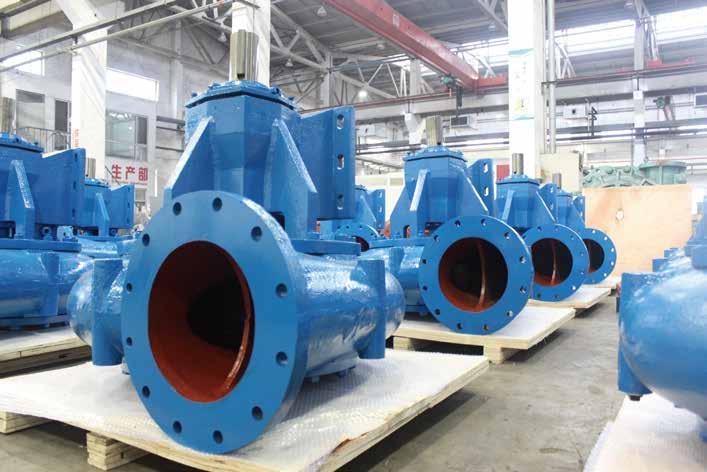

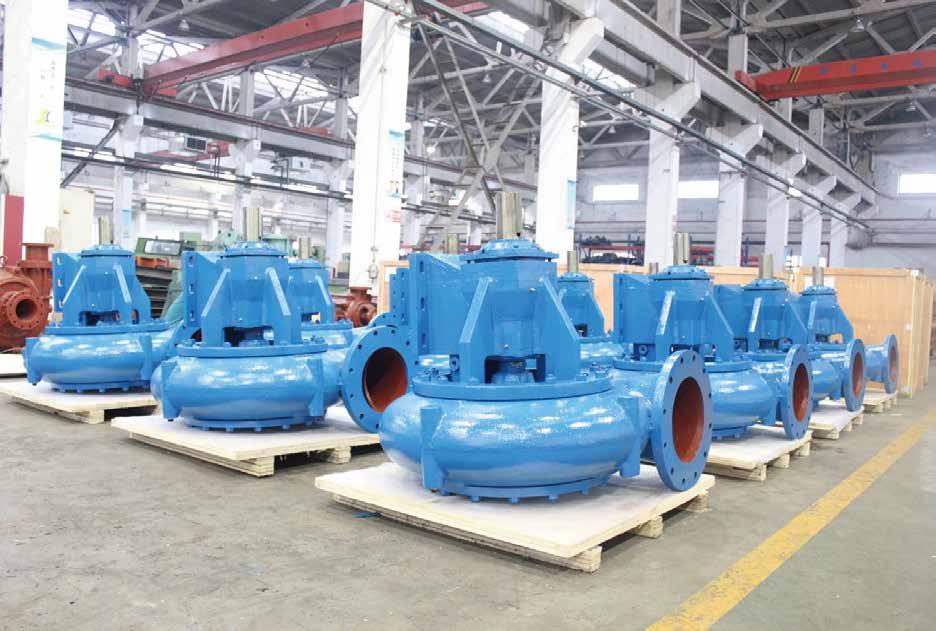

SXP 系列石油压裂泵

SXP Series Oilwell Frac Pump

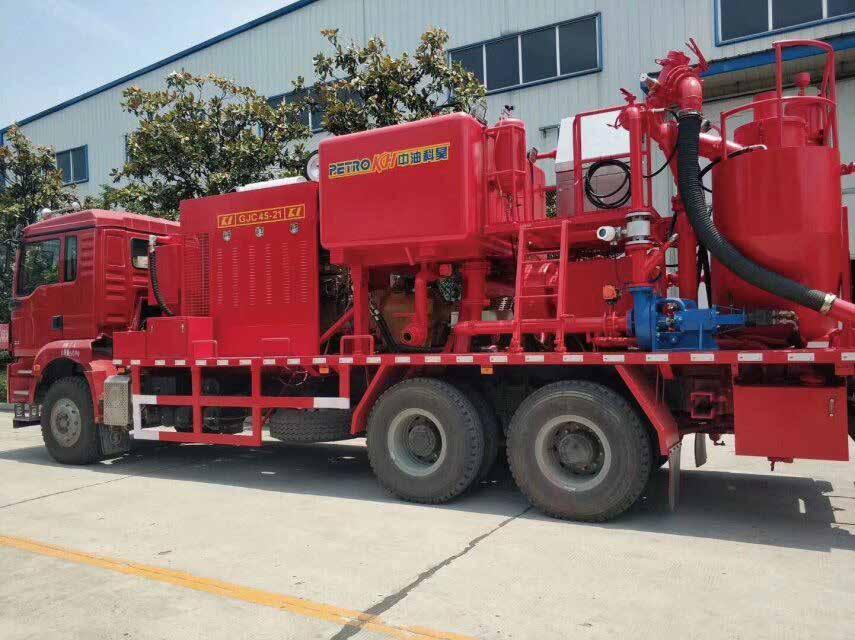

SXP系高铬耐磨硬质量合金石油压裂砂泵是单级单吸离心泵，该系列砂泵多用于石油压裂车上，适用于苛 刻作业环境的大功率工况使用。高排量的双流道重型耐磨混料灌浆泵设计， 特别适合于输送大流量，高磨蚀 性浆液。泵主要部件材质为高铬耐磨合金，布氏硬度 HRC58-62；叶轮为开式，背叶片设计最大程度上降低 浆液对填料箱的压力，最大程度上提高了泵的使用寿命。其紧凑的外形设计，使得该系列砂泵更适用于安装 空间有限的车载环境，便于泵的移动、安装和固定。其中14×12×22 和12×10×23输送量可以达到3000-75 00加仑/分钟（681-1703立方米/时），扬程可达75-410英尺（23-125米）。我司生产的的压裂泵尺寸能够 100%配套压裂车成套设备安装，欢迎广大新老客户咨询订货。

The SXP type frac pump is single-stage, single suction centrifugalslurry sand pump, which is used on frac truck mostly It is good at handling big capacity of high abrasive, corrosive and plain tough slurries. The pump wet parts are made of high chrome alloy, hardness HRC58-62. The impeller is open type and back vane design decrease the slurry pressure to stuffing box maximally, increasing the pump life. The small footprint design is specially for compact overall dimensions of the SXP make it an excellent choice for high volume mobile and stationary applications. We have two pump models 14x12x22 and 12x10x23, capacity 3000-7500 gpm(681-1703m3/h), head 75-410 feet (23-125m). Sunbo frac pump can meet the frac track whole equipment system 100%, welcome to contact us.

应用 Typical Application

砂浆、压裂液 Sand Slurry

尾矿输送 Dredge Tailing

矿渣 Slag

底灰渣 Bottom Ash

混料Blending

废料浆 Waste Slurry

液体增压 Fluid Supercharging

污水处理 Sewage

纸浆处理 Paper and pulp processing

铅锌矿尾矿处理 Lead and zinc ore and tailings

铜、铝土矿及采石场废料Copper, Bauxite, and Quarry Slurry
