SUMO Emergency Services Capability Statement

Survey Solutions for UK Emergency Services Capability Statement

No more guesswork above or below ground sumoservices.com Survey services you can rely on...

The SUMO Group provides a diverse range of specialist surveys applicable to the UK’s emergency services.

SUMO Group Accreditations

We are committed to maintaining the highest possible standards in all aspects of surveying. We pride ourselves on providing a survey solution individually tailored to your needs.

We also pride ourselves on maintaining industry leading professional accreditations and a high level of appropriate insurance cover.

NO MORE GUESSWORK ABOVE OR BELOW GROUND

0845 456 1104

Call : Email : info@sumoservices.com

sumoservices.com

2

SUMO Group Insurance Cover Professional Indemnity Public Liability Employee Liability Drone Operator

£5,000,000 £10,000,000 £10,000,000 £10,000,000

SUMO supports Emergency Services across the country...

Asset Management

Forensic 4 Emergency 5 Response Services

Enabling you to understand the size, area and layout of your property assets, SUMO can provide everything from topographic maps with or without utility services, to simple 2D building plans, sections & elevations, to full 3D models and visualisations.

Tailored to meet your specific requirements, SUMO can offer a reliable, fast response service including 3D laser scanning and drone services to capture important site data and images which are time sensitive or have limited restricted access.

6 Secure Facilities

Using cutting edge laser scanning, 3D surveying equipment and specialist drones, SUMO can provide highly detailed and accurate spatial information, plus photogrammetric images of any site, suitable for use in official investigative reports.

7 Surveying 8 Solutions

Working in secure Police, MoD, MoJ, Government and other Emergency Services premises, SUMO’s personnel hold appropriate security clearances, (Enhanced DBS, BPSS, NPPV, SC, CTC, PTS) and all data is held on secure dedicated servers.

3D Modelling

8

Drone (UAS)

9

Geophysics

10

Laser Scanning

11

Measured Building 12 Photogrammetry

13

Topographic

14

Utility Detection

15

SUMO IS ONE OF THE LARGEST INDEPENDENT SURVEY GROUPS IN THE UK

3

SUMO SPECIALIST SECTORS

tel : 0845 456 1104

Asset Management Experience has shown us that many Emergency Service providers have very limited, or no records whatsoever of their property assets, leading to potential issues when it comes to redesigning or refurbishing said premises to meet today’s demanding operational and compliance needs.

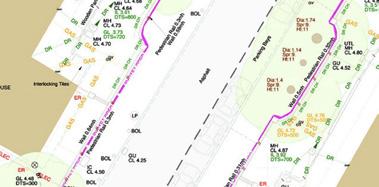

Below: Example of drawing output recording all services and physical details.

In addition, this lack of information can lead to unforeseen conflicts with Health & Safety legislation, planning provisions and accessibility requirements.

SUMO can help you to get the best out of your property assets through the provision of topographic maps of the surrounding land and car parks, detailed building and floor plans, and locating and identifying the utility services connected to the property.

What’s more, SUMO can provide this data in 2D or 3D format, including visualisations and fly-through animations tailored to meet your specific requirements. These tools not only help you in ensuring compliance but also enable clearer communication during the planning and design stages of your development projects, helping you streamline activities and mitigate risks.

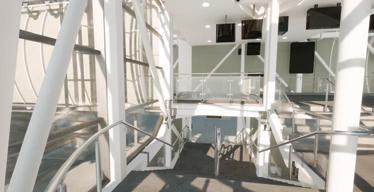

Left: 3D Scanning data produce full animated walk throughs.

This can also be manually walked through in 3D by use of a free downloadable viewer.

4

SUMO PROVIDES EVERYTHING FROM BASIC 2D PLANS TO FULL 3D MODELS Above: Using ground based 3D Laser scanning combined with Drone outputs, clients can get a 360 degree overview of their site assets.

SUMO SPECIALIST SECTORS

web : sumoservices.com

Emergency Response It’s no surprise that an Emergency Service should require an emergency survey response when it comes to time critical matters, or sites that have limited restricted access, which is where SUMO, with over 100 staff spread throughout the country can help.

SUMO’s emergency response services, which include laser scanning and drone surveying, are expressly designed to capture important site data and images, whilst minimising our time and intrusion on site.

SUMO can offer a reliable, fast response survey service ranging from a simple same day survey, to attendance at site within a guaranteed timescale, to a full 24/7x365 service. Whatever your requirements, we pride ourselves on working with our clients to agree a level of service tailored to meet your specific needs and budget.

SUMO PROVIDES A RELIABLE, FAST RESPONSE SERVICE

Above: SUMO employ the latest technology across all survey disciplines.

Above: Detailed mapping of underground assets.

5

SUMO SPECIALIST SECTORS

tel : 0845 456 1104

Forensic Services The nature of the work carried out by the Emergency Service providers and the likelihood of their findings being subject to public scrutiny and / or being of critical importance in associated court proceedings, generates a demand for highly accurate and specialised survey data.

To meet this demand, SUMO uses laser scanning and drone equipment which capture precise spatial information, plus photogrammetric images of the site, which can be used post-event, to analyse the site and permanently record

Left: Example of how laser scan data can be developed into a model giving clarity and understanding of any buildings proportions.

the incident.

Using these techniques, SUMO can quickly generate a 3D point cloud which can be interrogated time and again, without the need to revisit the site, the output from which can be used in official investigative reports.

SUMO PROVIDES ACCURATE SITE DATA FOR USE IN INVESTIGATIVE REPORTS

6

Above: Large areas can be captured, modelled and detailed precisely.

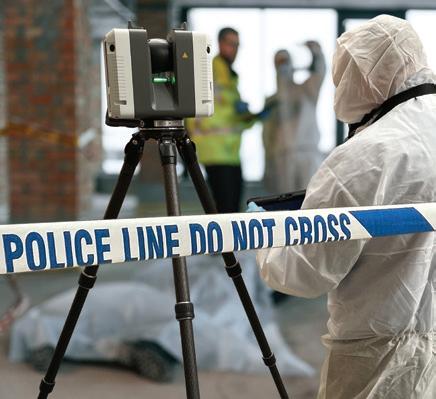

Above: Using 3D Scanning of any building or crime scene delivers a clear and concise record of the area.

SUMO SPECIALIST SECTORS

Secure Facilities The majority of the property assets owned and managed by the Emergency Services are secure sites, with limited public access and SUMO is experienced in working on such sites, whilst respecting the operational needs of the personnel going about their daily activities.

To date, SUMO’s staff have worked on Police, Fire, Hospital, Prison, Rail, MoD, MoJ and Government premises, including high-profile / high-security areas. To do this, SUMO’s staff hold appropriate security clearances, including Enhanced DBS, BPSS, NPPV, SC, CTC and PTS. SUMO also works with its Emergency Services clients to agree an individual protocol for storing, managing and transferring any data collected, which can include a dedicated secure server, with no external connections, where appropriate.

Left: SUMO undertake surveys across the UK no matter the location.

SUMO’S STAFF MAINTAIN APPROPRIATE SECURITY CLEARANCES

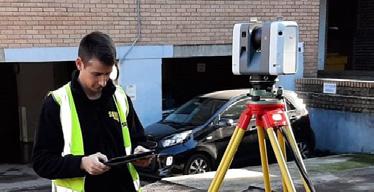

Above: A SUMO staff member collecting scan data from which SUMO created 3D models for the BBC’s election coverage.

7

SURVEY SOLUTIONS

tel : 0845 456 1104

3D Modelling SUMO offers a comprehensive 3D modelling service including the creation of site visualisations and building models suitable for fire and emergency simulations.

Our technical expertise results in highly accurate, life-like 3D models, from small objects, to large buildings and structures.

3D modelling can be undertaken on any existing or proposed structures, objects or organic surfaces and can be simple or highly detailed and comprehensive, depending on your budget and requirements.

We can provide 3D solid, surface, mesh, or wireframe models, provided as CAD / NURBS or polygon mesh surfaces in a variety of popular and leading formats to suit your requirements. Our team can also create 3D models from 3D laser scanned point cloud data, 2D CAD drawings or survey data .

SUMO SUPPORTS MORE THAN 3000 ACTIVE CUSTOMERS

8

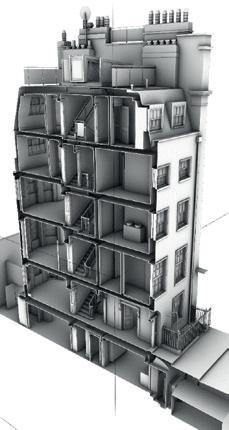

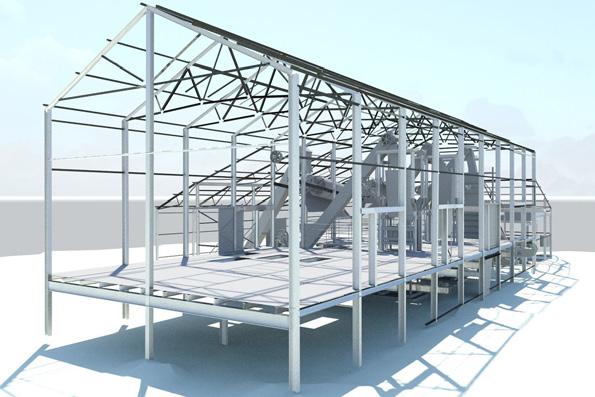

Above: Fully rendered model which can incorporate individual asset details as used in BIM (Building Information Modelling).

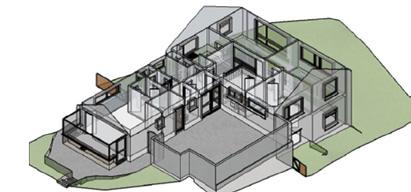

Above: Partially rendered models, still offer great clarity of detail.

Left: 3D Scanners accurately capture millions of laser dots per second which form a pointcloud from which highly accurate detail can be gathered.

SURVEY SOLUTIONS

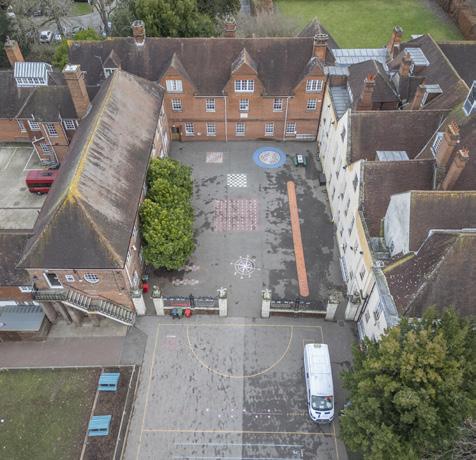

Below: Using drones large areas can be captured quickly and efficiently.

SUMO UAS drone services can survey areas which may be impractical to access or costly to survey with conventional technology. This includes complex internal surveys, confined spaces, roofs and high buildings (removing the need for costly scaffolding or elevating work platforms), as well as large landscapes.

web : sumoservices.com

Drone Surveys

With CAA Permission for Commercial Operation (PfCO), we can obtain the correct permissions to ensure all SUMO aerial surveys are commissioned safely, rapidly and legally, wherever your site is located. SUMO’s UAS drone services are also covered by comprehensive insurance, giving you peace of mind.

SUMO can produce outputs of photography, photogrammetry video and thermal imagery, all suitable for use in official investigative reports.

Left: Inaccessible areas can easily be reviewed and monitored using SUMO’s drones.

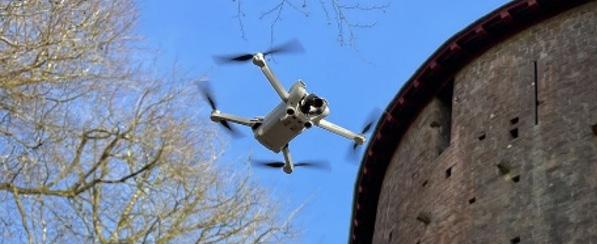

SUMO IS STRUCTURED TO HANDLE LARGE AND SMALL SCALE SURVEYS Above: SUMO employ several Drones of varying sizes with capabilities of Videography, Photogrammetry, Multispectral, Thermal and Lidar.

9

SURVEY SOLUTIONS

tel : 0845 456 1104

Geophysics

Below: Timeslice (plan view) of a buildings foundations collected with High Density GPR.

SUMO applies a range of non-invasive geophysical techniques to investigate the properties of a site including the surrounding land, and any buildings present thereon, including the floors and walls.

Using these techniques SUMO can help to detect unseen features, such as buried objects, hidden cellars, vaults and tunnels and voids in floors and walls.

SUMO uses a range of Ground Penetrating Radar systems operating at different frequencies dependent upon the site conditions / structures to be surveyed. The results of this high-resolution technique provide depth information and enables the data to be analysed and presented in detailed drawings including plan or section views.

SUMO HAS BEEN IN BUSINESS FOR OVER 25 YEARS

Left: Example of Ground Penetrating Radar (GPR) data which when analysed by our Geophysicists gives clients an interpretive understanding of what is below the ground.

10

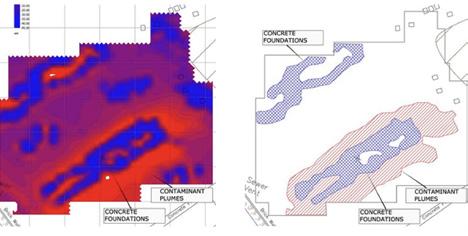

Above: Geophysics data indicating the subsurface siting of concrete foundations and also areas of contaminants.

SURVEY SOLUTIONS

web : sumoservices.com

Laser Scanning SUMO utilises a range of different laser scanners to meet the individual requirements of each assignment, across a wide range of applications and environments.

Using these laser scanners SUMO can quickly capture highly accurate rich data (a Point Cloud) for the entire site, in one visit, thereby minimising our impact upon the site.

Having collected this data, SUMO can then interrogate and process the data to produce simple 2D drawings, complex 3D Models, ortho-images and fly-through-animations as required. The retention of the Point Cloud data also enables us to ‘revisit’ the site information at a later date, should further analysis prove necessary following your investigations.

Above: Scanning in difficult to measure roof structures.

SUMO PRIDES ITSELF ON DELIVERING SURVEY DATA THAT IS CLEAR & ACCURATE Above: Modeling allows clients to appreciate building layout and plan the best use of space.

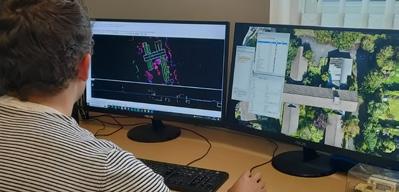

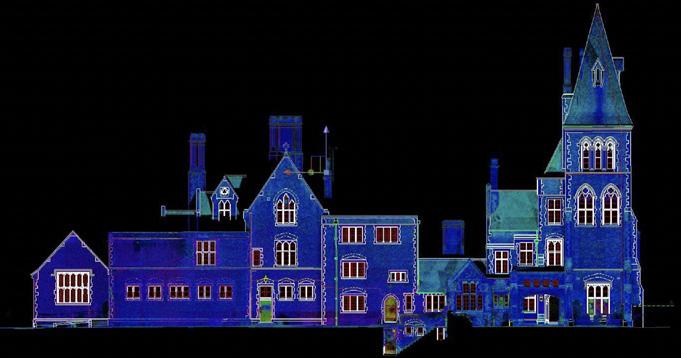

Above: Image shows how pointcloud data can easily be converted to accurate 2D plans and used by clients for developing sites and understanding its assets.

11

SURVEY SOLUTIONS

tel : 0845 456 1104

Measured Building Surveys SUMO measured building survey projects range from small single buildings, to large commercial and industrial facilities, including heritage sites.

SUMO SUPPORTS A LARGE BLUE CHIP CLIENT BASE

These measured building surveys enable our clients to fully understand the size, area and layout of their properties, as well as visualising the building and its immediate environment.

With outputs from 2D plans, sections & elevations, to full 3D BIM Ready Models and 3D visualisations delivered in Revit, our experienced staff can recommend the right level of survey for your project.

12

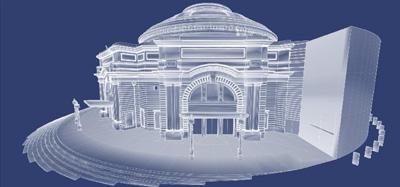

Above: A wireframe model.

Above: Small areas or entire buildings or complexes can be quickly converted to give full external and internal detail.

SURVEY SOLUTIONS

A SUMO photogrammetric survey enables rapid data capture using specialist cameras, where overlapping digital images are recorded which allow the collected survey data to be combined into one continuous image from which detailed measurements can be taken.

Photogrammetry can also be also used to create ortho-images and textured meshes, where the quality of the images and the true colours recorded can provide extra information that is hard to achieve from other survey techniques.

web : sumoservices.com

Photogrammetry

Finally, multispectral imagery can be used to detect changes in vegetation health due to differing levels of chlorophyll, which can be caused by buried materials, including graves. These images can then be used by 3rd parties who have not physically attended the site, to gain a better understanding of it.

SUMO EMPLOYS OVER 100 STAFF UK WIDE AND GROWING

Above: Multispectral imaging showing the presence of shallow graves.

Above: Thermal imaging showing both hot and cold anomalies.

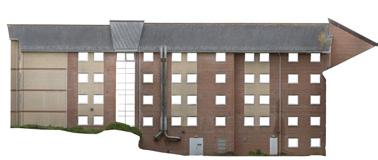

Above: Example of how photogrammetry can be used to produce cost-effective and accurate models.

13

SURVEY SOLUTIONS

tel : 0845 456 1104

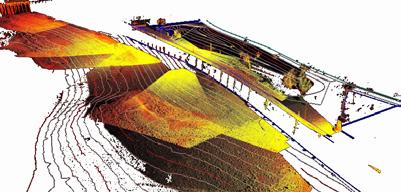

Topographic Below: Topographical data used to produce a 3D model interpretation of the land.

Topographic surveys are a fundamental component of land assessment, providing a detailed representation of the physical features and contours of a given area.

A SUMO topographic survey will capture and map both the natural and man-made features present on a site, including the contours of the land, trees, buildings, roads and pathways.

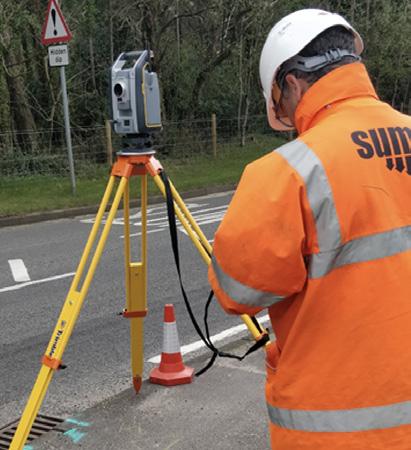

Using advanced technology (Robotic Total Stations, GPS, 3D laser scanners and UAS drones) and precise measurement techniques, our surveyors meticulously record the elevation, size, shape, and position of these elements, creating accurate and highly detailed maps, which can be issued in 2D and 3D formats.

SUMO ENJOYS MORE THAN 80% REPEAT BUSINESS

14

Above: Topographical data combined with 3D laser scanning giving precise GPS accuracy.

Above: SUMO has teams across the UK using the latest technology.

SURVEY SOLUTIONS

web : sumoservices.com

Utility Detection A SUMO utility detection survey is a crucial non-invasive process used to locate and identify the underground utilities and infrastructure connected to your property assets.

The primary goal of a utility detection survey is to accurately pinpoint the location, depth, and type of buried utilities to prevent damage, accidents, and service disruptions during refurbishment, construction or excavation projects, thereby minimising ‘down time’ and any associated impact on your operational needs.

The typical features detected by a SUMO utility survey include metal and plastic pipes, clay drainage systems, low and high voltage electricity cables, and data and fibre optic cables. The utility data recorded

Above: Ground Penetrating Radar (GPR) is used to nonintrusively find buried objects.

during the survey is then overlaid on a topographic drawing including identifiable surface features, thereby enabling you to locate and / or avoid each utility service as required.

SUMO MAINTAINS HIGH LEVELS OF APPROPRIATE INSURANCE COVER

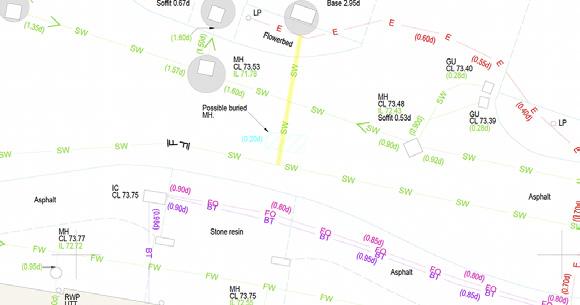

Above: 2D drawing showing subsurface utility location

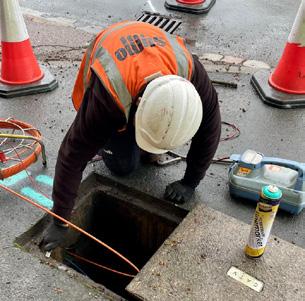

Above: Utility detection surveyor investigating utilities entering a chamber.

15

Survey services you can rely on...

Professional Accreditations Comprehensive Insurance Cutting Edge Equipment

The SUMO Group is one of the leading, multi-disciplinary survey practices in the UK.

Non-Invasive Technology Clear & Accurate Data 2D Plans & 3D Models Visualisations & Fly-Throughs 3000+ Active Customers 25+ Years Experience 100 Staff & Growing 80%+ Repeat Business Emergency Services Supplier MoD, MoJ & Gov. Supplier
