Adheres to wet joints
Corrosion inhibitor package

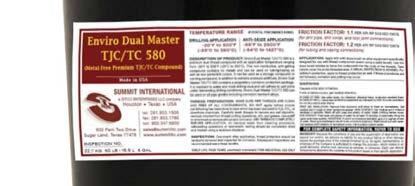

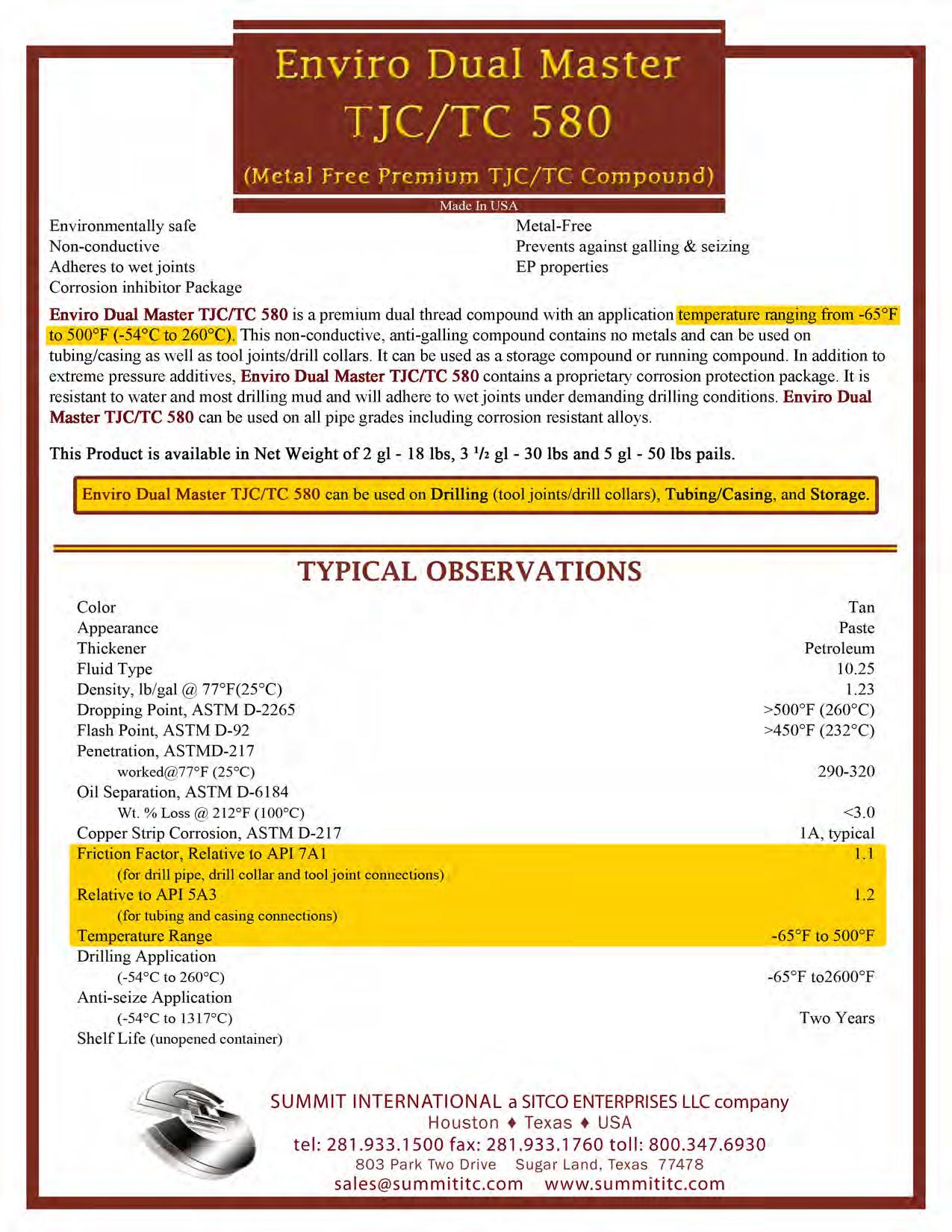

Enviro Dual Master TJC/TC 580 is a premium dual thread compound with an application temperature ranging from -65°F to 2600°F
Enviro Dual Master TJC/TC 580 contains a proprietary conditions. Enviro Dual Master TJC/TC 580 can be used on all pipe grades including corrosion resistant alloys.

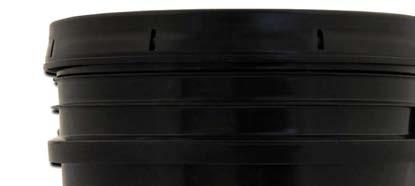

This product is available in Weight of 2 gal - 18 lbs., 3 1/2 gal - 30 lbs., and 5 gal - 50 lbs. pails.
Enviro Dual Master TJC/TC 580 can be used on drilling, tool joint/drill collars, tubing/casing, and storage.
TYPICAL OBSERVATIONS
Color Tan
Appearance Paste
Thickener Calcium Sulfonate Complex Base
Fluid Type Petroleum
Density, lb/gal @ 77°F (25°C) 10.60 @ 77°F (25°C) 1.23
Dropping Point, ASTM D-2265
>500°F (>260°C)
Flash Point, ASTM D-92 >450°F (>232°C)
Penetration, ASTM D-217
worked @ 77°F (25°C)
Oil Separation, ASTM D-6184
Wt. % Loss @ 212°F (100°C)
290–320
<3.0
4-Ball Weld Point, ASTM D-2596 76.62 Kgf
Copper Strip Corrosion, ASTM D-4048 1A, typical Friction Factor, 1.1 (for drill pipe, drill collar and tool joint connections)
(for tubing and casing connections)
Temperature Ranges
Anti-seize Application
Drilling Application
-65°F to 2600°F (-54°C to 1427°C)
-20°F to 500°F (-29°C to 260°C)
Shelf Life (unopened container) Four years
