Ordering Information

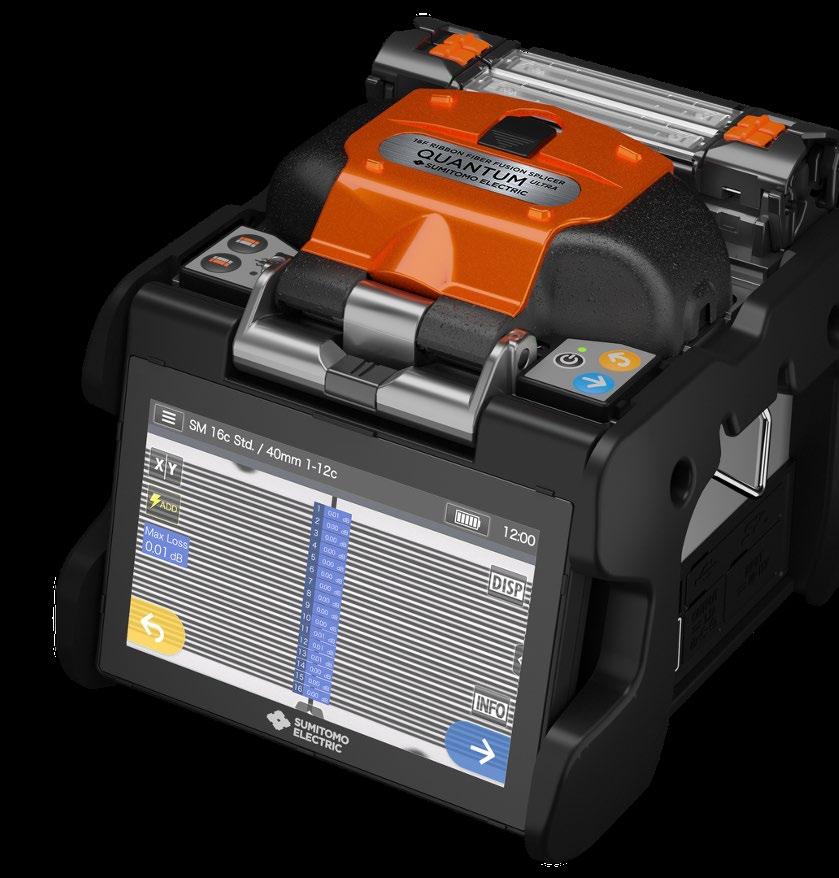

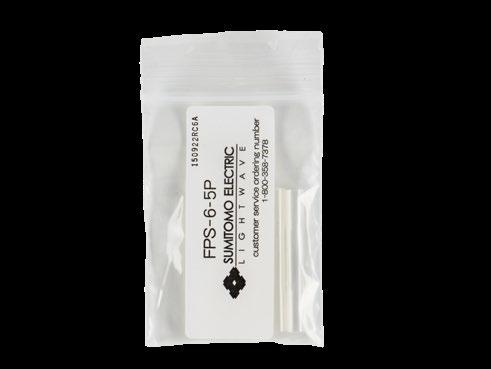

QULTRA-RBN12-250KIT-6Rp1 Quantum ULTRA Ribbon Fiber Splicer Kit for 12f-250µm pitch with Dual Built-in Heat Shrink Ovens, Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/ Battery Charger with Power Cord, Battery Unit (BU-102), Fiber Protection Sleeves (FPS-6), V-groove Cleaning Brush (VGB004), Cleaning Kit (FUS-CLN-KIT)
250µm 12-Fiber Holders (FHM12V), 250µm Single Fiber Holders (FHS025) Tabletop Cleaver (FC-6R+), Thermal Jacket Remover (JR-7)

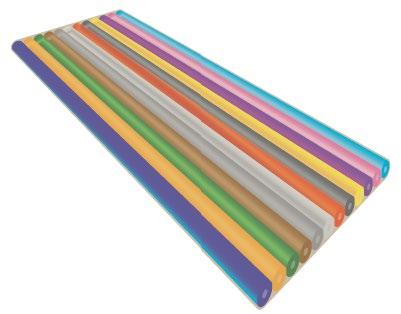

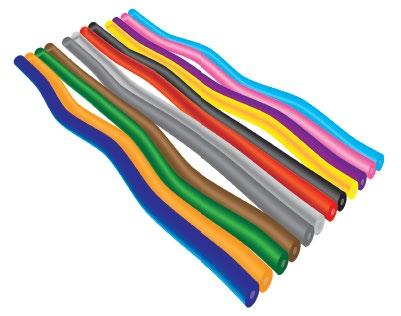

2.Pliable Ribbon
QULTRA-RBN12-250KIT-6Rp2
Quantum ULTRA Ribbon Fiber Splicer Kit for 12f-250µm pitch with Dual Built-in Heat Shrink Ovens, Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/ Battery Charger with Power Cord, Battery Unit (BU-102), Fiber Protection Sleeves (FPS-6), V-groove Cleaning Brush (VGB004), Cleaning Kit (FUS-CLN-KIT)
250µm 12-Fiber Holders (FHM12V), 250µm Single Fiber Holders (FHS025) Tabletop Cleaver (FC-6R+), Hot Jacket Remover (JR-7)
Fiber Arrangement Tool (FTA-02), Consumable Kit (FAC-24)
QULTRA-RBN12-250KIT-6Rp3
Quantum ULTRA Ribbon Fiber Splicer Kit for 12f-250µm pitch with Dual Built-in Heat Shrink Ovens, Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/ Battery Charger with Power Cord, Battery Unit (BU-102), Fiber Protection Sleeves (FPS-6), V-groove Cleaning Brush (VGB004), Cleaning Kit (FUS-CLN-KIT)
250µm 12-Fiber Holders (FHM12V), 250µm Single Fiber Holders (FHS025) Tabletop Cleaver (FC-6R+), Hot Jacket Remover (JR-7)

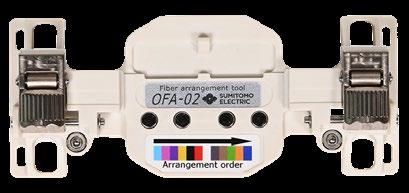

Glueless Fiber Arrangement Tool (OFA-02)
QULTRA-RBN12-250KIT-MPO
Quantum ULTRA Ribbon Fiber Splicer Kit for 12f-250µm pitch with Dual Built-in Heat Shrink Ovens, Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/ Battery Charger with Power Cord, Battery Unit (BU-102), Fiber Protection Sleeves (FPS-6), V-groove Cleaning Brush (VGB004), Cleaning Kit (FUS-CLN-KIT)
250µm 12-Fiber Holders (FHM12V), 250µm Single Fiber Holders (FHS025) Tabletop Cleaver (FC-6R+), Hot Jacket Remover (JR-7)
Lynx-CustomFit™ SOC MPO Assembly Tool System, Consumable Kit, Aramid Shears, 2mm/3mm Cord Tool, Lynx-CustomFit™ SOC MPO Metal Holder
ACCESSORIES & CONSUMABLES

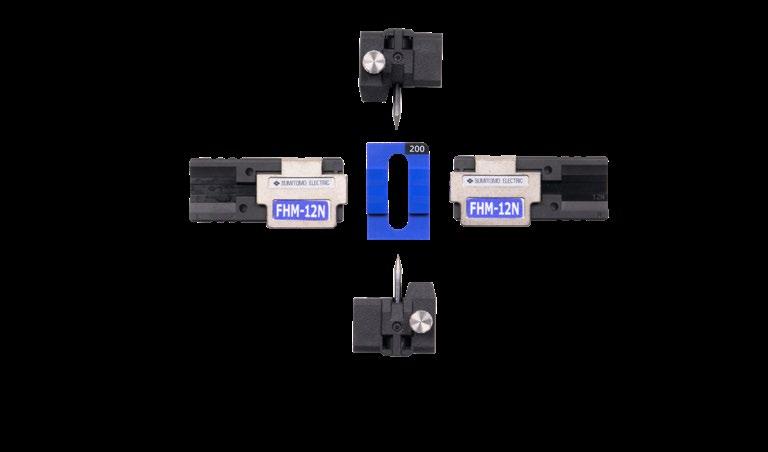

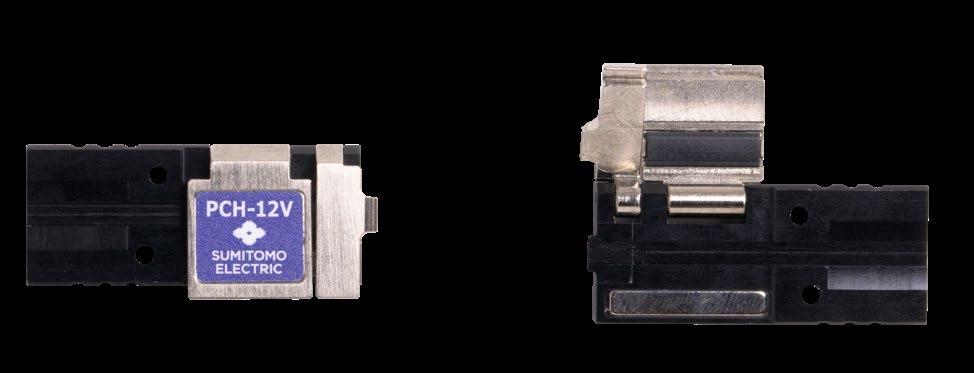

FHM-12 12

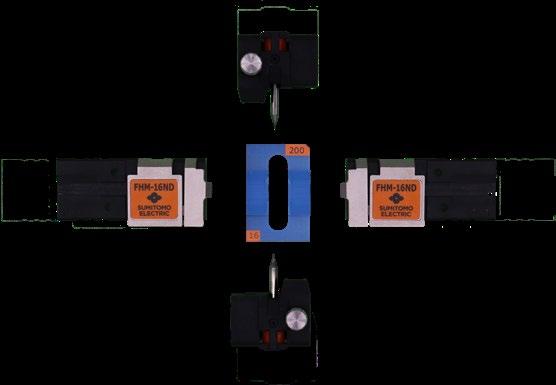

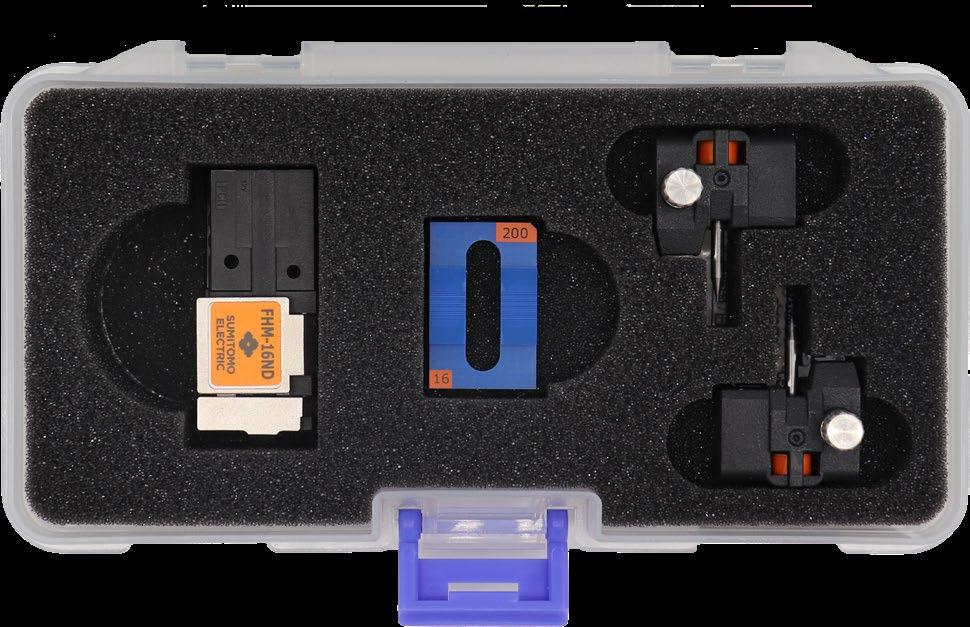

FHM-16ND 16 Count Ribbon Holders for 200µm Pitch

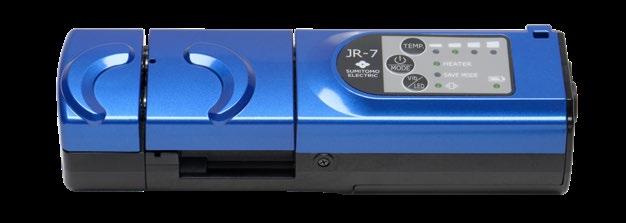

JR-7 Jacket remover for Compatible with 200 & 250µm ribbon /Compatible with standard & pliable ribbon (Up to 16 fibers)
JR-7BL Replacement Blade for JR-7
FC-8R Handheld Automatic Blade Rotation Cleaver (Up to 16fibers)

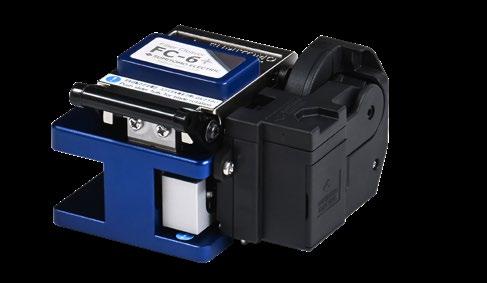

FC-6R+ Tabletop Type Automatic Blade Rotation Cleaver FC-6R / Pre-fitted Off-cut collector (CU-FC6+) (Up to 16 fibers)

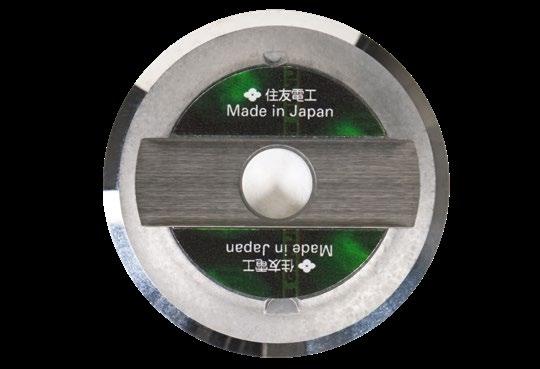

FCP-7RBL Replacement Blade for FC-8R, FC-6R+ Auto-Rotating Cleaver Blade Models
ER-10 Electrodes for 250µm pitch 12 fiber and 200µm pitch 16 fiber (Orange Cap)
ER-10-200 Electrodes for 200µm pitch 12 fiber (Black Cap)
SVG01-0100 1f 250µm corting fiber V-Groove Block Replacement kit/ Include ER-10, FHS-09
Ribbon Splicing SOLUTION GUIDE
QUANTUM-ULTRA RIBBON RIBBON SPLICING. REDEFINED.
Tapper Function

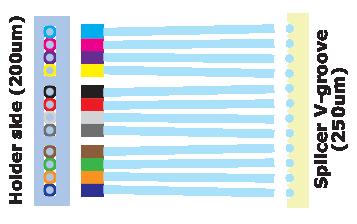

PITCH CONVERSION
Pitch

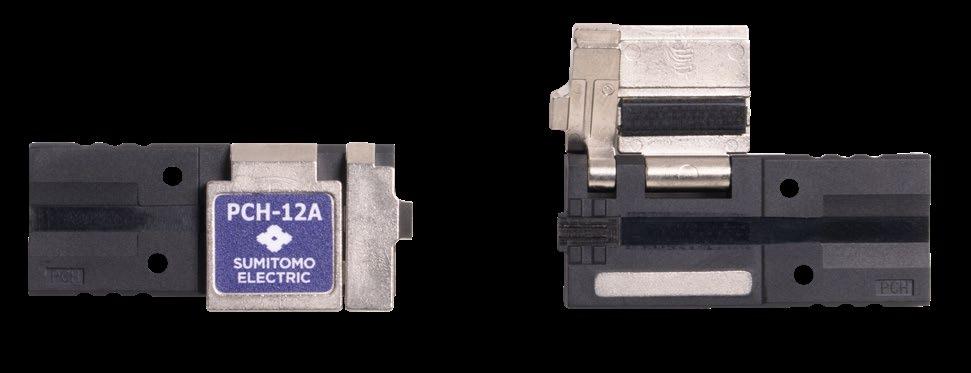

HolderDedicated for Sumitomo Electric
Freeform Ribbon™ and Corning Pliable Ribbon
Dedicated for all other pliable ribbon fibers (excludes Sumitomo and Corning types)

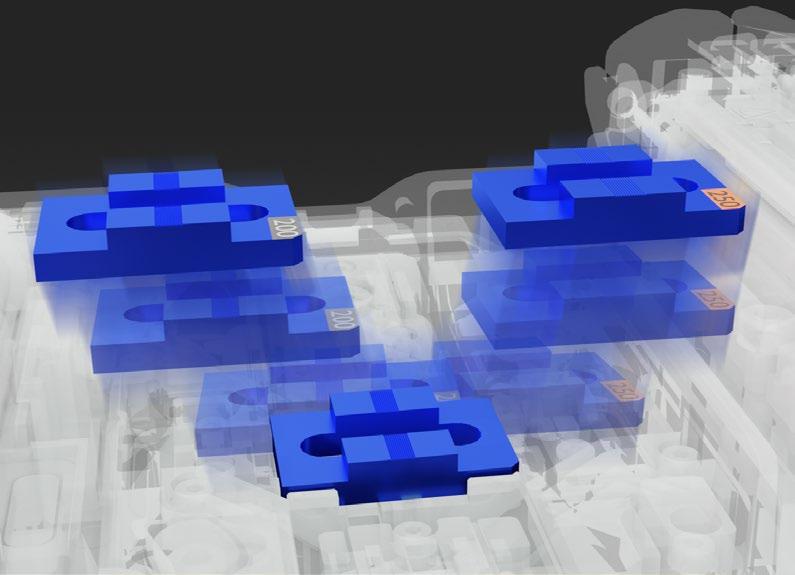

V-GROOVE KIT
Compatible with Sumitomo Electric’s Quantum-Ultra Ribbon, each kit includes a V-groove, fiber holders, and electrode set.
FEATURES
• Provides the ability to splice across multiple fiber counts and pitch using only one fusion splicer.
• Each kit comes with the appropriate V-groove, fiber holders, and factory pre-conditioned electrodes.
• Single fiber V-groove improves single splicing efficiency by ensuring fiber alignment when compared to multi-fiber V-groove.
OTHER HANDY TOOLS AND CONSUMABLES
Thermal Jacket Remover Fiber Cleaver
Consumables
•
• Ready notification by vibration
• LED lighting illuminates the heater area • IPx2 Water protection and shock-resistant
• Field replaceable blade and battery for easy maintenance
• Up to 16f fibers
•
•
