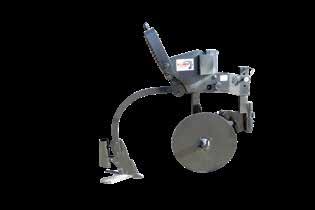

SHANKS
1
3
More volume and better application coverage in certain soil types.
PHANTOM TILL
2
Requires less horsepower and can operate at higher speeds.
4
5 INJECTOR STYLE
ROW SPACINGS
COULTER STYLES
SEALER STYLE
TOOLBAR SIZES
TILLAGE AGGRESSIVENESS
ADDITIONAL FEATURES

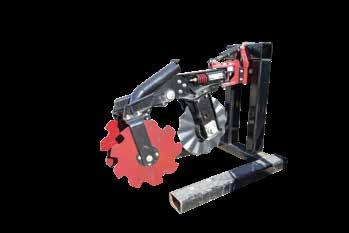

1 ZML RED VIPER GEN 3
Individual Row Swivel Injector
24” or 30”
Straight Notched or Wavy
Dual Sealers
6” x 6” or 7” x 7”
Minimum Till
10” of Vertical Hydroflex Travel

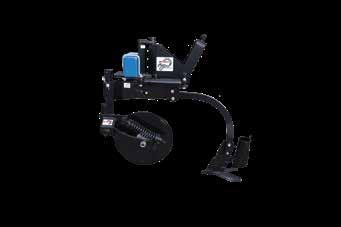

2 DIETRICH PYTHON
Individual Row Swivel Injector
24” or 30”
Smooth or Wavy
Optional: Dual Sealers
6” x 6” or 4” x 6”
More Aggressive Minimum Till
Optional: 12” High-Rate Sweeps
3 DIETRICH SERIES 70
Rigid Injector
24” or 30”
Smooth or Wavy
Optional: Dual Sealers
6” x 6” or 4” x 6”
More Aggressive Minimum Till
Optional: 12” High-Rate Sweeps
Single Sealer
4” x 6” or 6” x 4”
Standard: Minimum Till Optional Edge Upgrade: More Aggressive Minimum Till
Opener Blade Runs at 4.5 Degree Angle Optional Edge Upgrade: Designed to Penetrate Harder Ground and Cut a Larger Trench
4

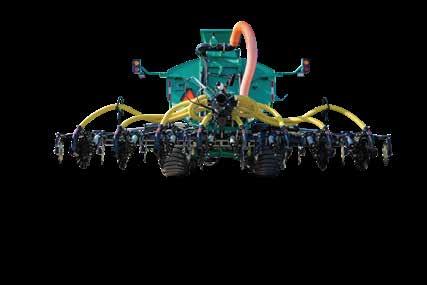

BAZOOKA FARMSTAR PHANTOM 1
Standard: Rigid Injector Optional: Two Row Swivel Injector
24” or 30”
Standard: Wavy Optional: Edge Upgrade Coulter (Higher Rates and Better Coverage)
5
BAZOOKA FARMSTAR PHANTOM 2
Standard: Rigid Injector Optional: Two Row Swivel Injector
24” or 30”
Standard: Wavy Optional: Edge Upgrade Coulter (Higher Rates and Better Coverage)
Single Sealer
4” x 6” or 6” x 4”
Standard: Minimum Till Optional Edge Upgrade: More Aggressive Minimum Till
Opener Blade Runs at 3 Degree Angle Optional Edge Upgrade: Designed to Penetrate Harder Ground and Cut a Larger Trench
6

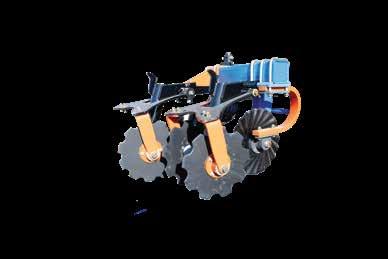

VTI / VERTICAL TILL INJECTOR
Standard: Rigid Injector Optional: Two Row Swivel Injector
24” or 30”
Standard: Low Disturbance Optional: More Aggressive Disturbance
Dual Sealers
6” x 6” or 4” x 6”
Minimum Till
Medium Weight and Operates at Higher Speeds
7

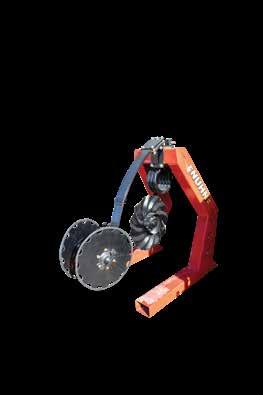

NUHN HIGH SPEED ROTARY INJECTOR
Rigid Injector with Some Swivel Integrated into Design
24” or 30”
Wavy
Dual Sealers
6” x 6”
More Aggressive Minimum Till
Only Injector Compatible with Nuhn Tanks Lightweight Unit Allows for More Units per Toolbar
Rigid Injector
36”
N/A – Twin Disc Incorporator
N/A
4” x 4”
Conventional Tillage
Requires Minimal Horsepower

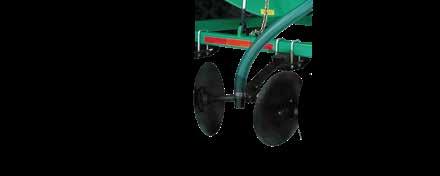

DISC 8 GEA INCORPORATOR
VERTICAL TILL
Requires less horsepower and can operate at higher speeds.
6
ROTARY INJECTOR
Requires less horsepower and can operate at higher speeds.
7

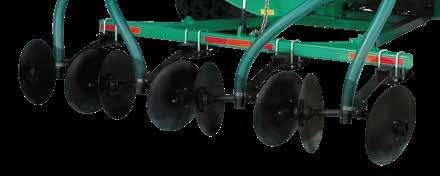

CONVENTIONAL TILLAGE DISC INCORPORATOR Extremely lightweight and a simple design.
8
