SERVING FOR SUCCESS SINCE 1934

hile running his normal milk route in 1934, Eldon Stutsman’s neighbors started asking him to bring supplies back from town. With a desire to serve others, Eldon was glad to oblige. The requests kept coming and a company was born.

What started as just a man and a truck is now Eastern Iowa’s largest family-owned supplier of wholesale and retail agriculture products and services.

Our strength is in our diversity. Our 200+ employees have extensive experience in agronomy services, manure handling equipment, feed ingredient distribution, transportation, logistics, precision & application equipment, and grain handling equipment.

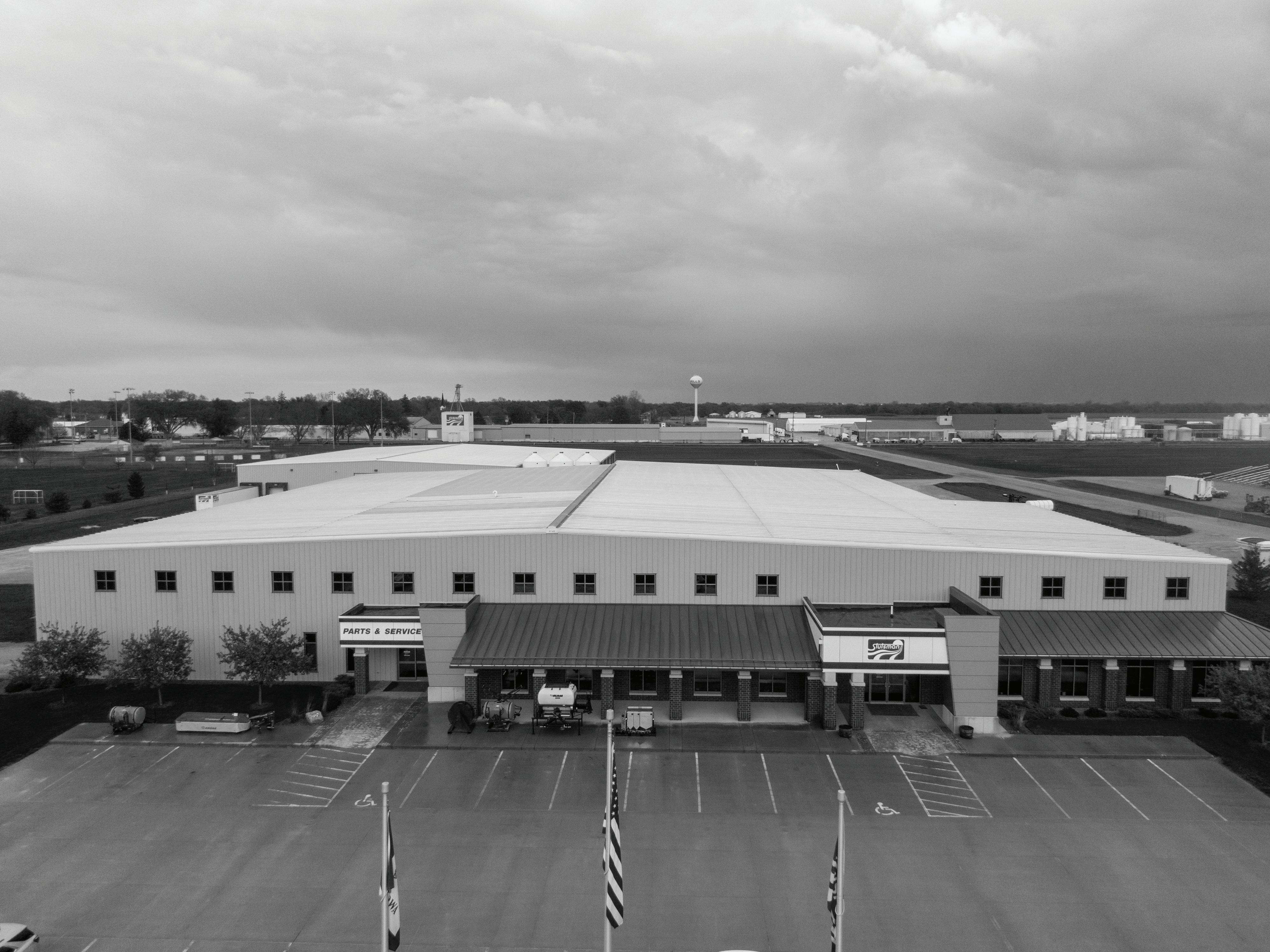

Headquartered in Hills, Iowa, we are ideally located to serve not only Iowa but the Midwest.

It has forever been in our company’s DNA to passionately serve our customers, community, and industry for success. From that tradition, we have been (and still are) driven to not only change to keep up with the times but to be innovative enough to stay ahead; all to better serve our customers while staying rooted to who we are.

As practices, equipment, and technology continue to advance and shi t, we can guarantee our tradition of serving for success remains the same; just as it has the past 87 years.

GARDEN HOSE FITTINGS

GARDEN HOSE COUPLINGS

• Quick and convenient way to connect and disconnect your garden hose.

• Easily connects hose to spigot, sprinkler, nozzle or other hose end accessories.

• Durable, rustproof polypropylene construction.

• Never have to use pliers to tighten to prevent leaks.

• Yellow ﬁberglass reinforced polypropylene.

• Standard 3/4” opening diameter.

HOSE NOZZLE

• Ideal for all your spraying needs.

• Heavy-duty machined aluminum construction stands up to hard use.

• Comfort-grip soft rubber provides a comfortable gripping texture.

• Resists dents, mars and scratches and also protects any surface that comes in contact with nozzle.

• Aluminum hose connection provides a tight ﬁt, will not rust.

• Multiple spray pattern adjusts from a powerful jet stream to a gentle fan spray.

• Stainless steel spray cap for precise spray patterns.

BARB

(800) 669-2281

(319) 679-2929

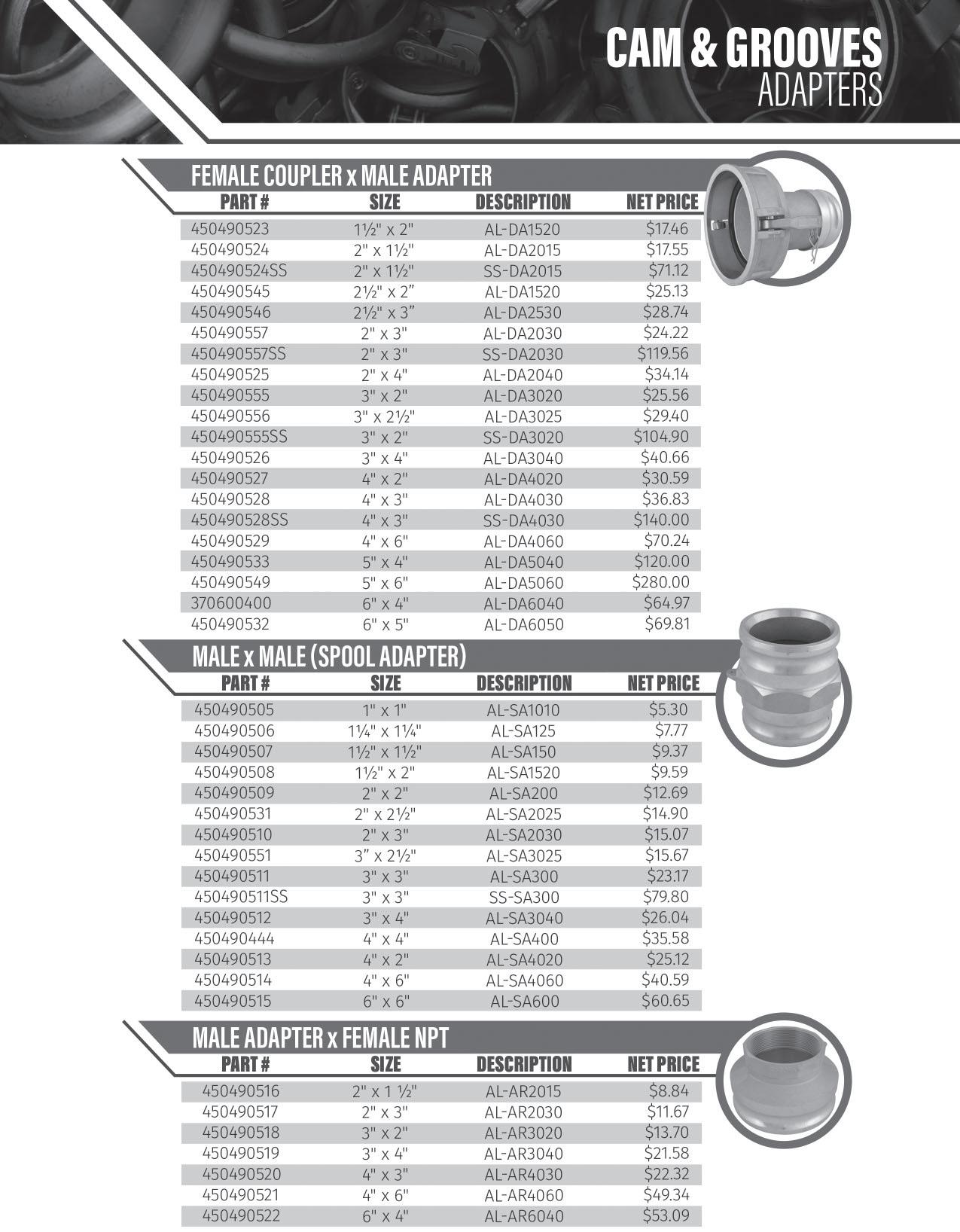

QUICK COUPLERS

Cam and groove couplers are available in glass-ﬁlled polypropylene.

Type F (POLY)

Type B (POLY)Female Coupler x Male Thread Part

Male Adapter x Male Thread Part #DescriptionPrice Ea.

500051841 3/4” x 1/2” ............$4.57

500006671 3/4” x 3/4” ............$4.57

500561036 1” x 1” ..................$5.07

500006796 1” x 1-1/4”.............$5.07

500000822 1-1/2” x 1-1/2” .....$5.07

500000823 2” x 2” ..................$6.67

500000824 3” x 3” ................$17.48

500054475 4” x 4” ................$24.97

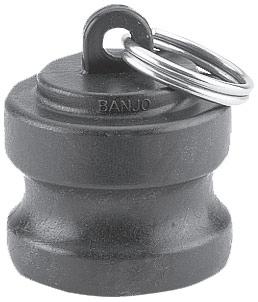

Type PL (POLY)

Plug

Type

Type C (POLY)Female

Type D (POLY)

Type E (POLY)Male

TYPE

(POLY)

TYPE

POLY COUPLER PARTS & FITTINGS

CAM LEVER POLY COUPLINGS

Fittings and hose barbs are made of glass-reinforced polypropylene. They have a wide range of chemical resistance. Step up to the quality of the “Black Poly”, a great change! Rated at 150 PSI at 70ºF.

NIPPLES

REDUCER BUSHINGS (POLY)

500053077 3/8” x 1/4” ..............$2.62

500051571 1/2” x 1/4” ..............$2.17

500051167 1/2” x 3/8” ..............$2.62

500075018 3/4” x 1/8” ..............$1.90

500051573 3/4” x 1/4” ..............$2.62

500051168 3/4” x 3/8” ..............$2.62

500051169 3/4” x 1/2” ..............$2.62

500053075 1” x 1/8” .................$1.60

500053074 1” x 1/4” .................$2.78

500051170 1” x 1/2” .................$2.78

500051057 1” x 3/4” .................$2.30

500051171 1-1/4” x 3/4”...........$2.78

500051172 1-1/4” x 1”..............$2.78

500050256 1-1/2” x 3/4”...........$3.67

500050257 1-1/2” x 1”..............$3.67

500050258 1-1/2” x 1-1/4” .......$3.67

500051173 2” x 3/4” .................$3.32

500050259 2” x 1” ....................$3.32

500050260 2” x 1-1/4”..............$3.98

500050261 2” x 1-1/2”..............$3.32

500050680 3” x 1-1/2”............$16.60

500050681 3” x 2” ..................$13.83

500056241 4” x 3” ..................$25.75

POLY CROSSES

POLY FITTINGS

POLY PIPE PLUGS

Part

45º AND 90º STREET ELBOWS (POLY)

Part

POLY GAUGE TEE

POLY PIPE COUPLINGS

REDUCER NIPPLES (POLY)

Part #DescriptionPrice Ea.

500053082 1/2” x 3/8” ..............$1.98

500051435 3/4” x 1/2” ..............$2.13

500053081 1” x 1/2” .................$2.75

500051436 1” x 3/4” .................$2.50

500053080 1-1/4” x 3/4”...........$2.88

500051437 1-1/4” x 1”..............$2.62

500053079 1-1/2” x 1”..............$3.10

500051438 1-1/2 x 1-1/4”.........$2.78

500053078 2” x 1-1/4”..............$3.78

500051439 2” x 1-1/2”..............$3.08

500051440 3” x 2” ..................$10.53

STRAIGHT POLY HOSE BARBS

NPT X BARB

Part #DescriptionPrice Ea.

500051842 1/4” x 1/4” ........................$1.10

500051843 1/4” x 3/8” ........................$1.10

500250500 1/4” x 1/2” .........................$1.32

500051174 3/8” x 3/8” ........................$1.18

500038025 3/8” x 1/4” .........................$0.80

500051844 3/8” x 1/2” ........................$1.18

500500025 1/2” x 1/4” .........................$1.00

500051175 1/2” x 3/8” ........................$1.18

500051176 1/2” x 1/2” ........................$1.00

500051177 1/2” x 3/4” ........................$1.32

500075038 3/4” x 3/8” .........................$1.32

500051178 3/4” x 1/2” ........................$1.32

500051180 3/4” x 5/8” ........................$1.60

500051179 3/4” x 3/4” ........................$1.10

500051181 3/4” x 1” ...........................$1.60

500051182 1” x 3/4” ...........................$1.60

500051059 1” x 1” ..............................$1.35

500051183 1” x 1-1/4” ........................$1.97

500051184 1-1/4” x 3/4” .....................$1.65

500051185 1-1/4” x 1” ........................$1.97

500051186 1-1/4” x 1-1/4” ..................$1.97

500125150 1-1/4” x 1-1/2” ..................$3.77

500051533 1-1/2” x 1” ........................$2.97

500051534 1-1/2” x 1-1/4” ..................$2.93

500000766 1-1/2” x 1-1/2” ..................$2.75

500052456 1-1/2” x 2” ........................$5.07

500000769 2” x 1-1/2” ........................$4.22

500000767 2” x 2” ..............................$3.35

500000768 3” x 3” ...........................$10.83

500054472 4” x 4” ...........................$27.25

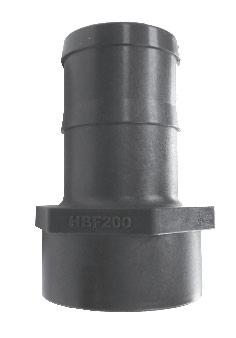

500HBF200 2” Female Thread X HB ...$4.72

POLY ELBOWS 90 º

Part #DescriptionPrice Ea.

500035025 1/4” 90º ..................$2.87

500055298 3/8” 90º ..................$3.87

500051125 1/2” 90º ..................$3.50

500051126 3/4” 90º ..................$3.15

500051127 1” 90º .....................$3.70

500051128 1-1/4” 90º ...............$5.57

500050275 1-1/2” 90º ...............$8.32

500050276 2” 90º .....................$8.64

500050687 3” 90º ...................$43.90

POLY SWIVEL

Part #Description Price Ea.

500053934 1” x 1” ...................$13.17

500053935 1-1/2” x 1-1/2” ......$16.12

500053936 2” x 2” ...................$18.07

POLY FITTINGS

90º HOSE BARBS

1/4”

POLY PIPE CAPS

Part

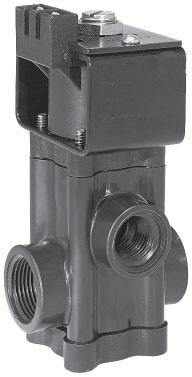

PINCH VALVES

Part

500517858 1” x 3/4” Poly Pinch Valve ............................$69.73

500054350 1” x 3/4” FKM (viton type) Poly Pinch

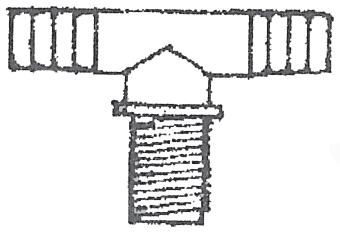

POLY HOSE BARB TEES

Part # Description Price Ea.

500005718 1/4” ................................$1.46

500028038 3/8” ................................$1.47

500505038 1/2” x 1/2” x 3/8” ............$2.00

500028050 1/2” ................................$2.28

500505075 1/2” x 1/2” x 3/4” ............$2.28

500005742 5/8” ................................$1.10

500757550 3/4” x 3/4” x 1/2” ............$2.28

500100075 3/4” ...............................$2.28

500757510 3/4” x 3/4” x 1” ...............$1.95

500101075 1” X 1” X 3/4” .................$2.00

500100100 1” ...................................$2.40

500005720 1-1/4” .............................$5.00 500007139 1-1/2” .............................$5.00

500028200 2” ...................................$9.12

500028300 3” .................................$25.35

PIPE REDUCER COUPLINGS

500215823 1” x 3/4” ................$5.90

500050262 1-1/2” x 1”.............$10.02

500050263 1-1/2” x 1-1/4” ......$10.02

500050267 2” x 1/2” ................$10.67

500050264 2” x 1” .....................$8.88

500050265 2” x 1-1/4”.............$10.67

500050266 2” x 1-1/2”...............$8.88

500050682 3” x 2” ...................$31.50

TEFLON TAPE

The easy-to-use, no-mess way to seal threaded connections. May be used on most materials with positive results.

POLY FLANGE FITTINGS

Flange fittings offer quick and easy assembly with no threads, no sealant or pipe tape. “V” style stainless steel worm drive clamp and a gasket is used to create positive sealing at each connection. Glass-filled polypropylene construction. Note: FP = Full Port SP = Standard Port FLANGED

FLANGED CROSS

Part

FLANGED PLUGS

Part

500059580 2” SP with 1” FPT ........$11.80

500022075 2” FP with 3/4” FPT .....$17.98

500300075 3” with 3/4” FPT...........$21.33

90º

HOSE CONNECTOR (Flange x Hose)

Part #DescriptionPrice Ea.

500056280 1” x 3/4”, 90º ............$2.45

500056272 1” x 1”, 90º ................$2.45

500057585 1” x 1-1/4”, 90º .........$2.45

500057586 2” SP x 1”, 90º ...........$8.17

500056290 2” SP x 1-1/4”, 90º ....$8.17

500056292 2” SP x 1-1/2”, 90º ....$7.43

500057587 2” FP x 1-1/2”, 90º ....$8.17

500056282 2” SP x 2”, 90º ...........$8.17

500057588 2” FP x 2”, 90º ..........$8.17

500059579 3” x 2”, 90º ..............$16.62

500057589 3” x 3”, 90º .............$32.80

ADAPTER (FLANGE x (F)NPT)

CONNECTOR

45° HOSE CONNECTOR (FLANGE X

FLANGED SWEEPS

BANJO CLAMPS & GASKETS

STAINLESS STEEL FITTINGS (304

ELBOWS (S.S.)

Part

COUPLINGS (S.S.)

Part

TEES (S.S.)

Part # Description Price Ea.

72461100025 1/4” .....................$4.45

72461100038 3/8” ....................$4.75

72461100050 1/2” ....................$5.25

72461100075 3/4” ....................$7.65

72461100100 1” ......................$11.20

72461100125 1-1/4” ...............$17.50

72461100150 1-1/2” ...............$23.25

72461100200 2” .....................$32.90

72461100300 3” ....................$85.15

HOSE BARBS - BANJO

CAPS (S.S.)

Part

PLUGS (S.S.)

90º STREET ELBOWS (S.S.)

316 STAINLESS STEEL

Part

500052110 1/4” x 1/4” .........$13.95

500025038 1/4” x 3/8”..........$12.65

500250050 1/4” x 1/2”..........$13.90

500052111 3/8” x 3/8”..........$12.65

500038050 3/8” x 1/2”..........$14.25

500052112 1/2” x 1/2”..........$15.85

500050058 1/2” x 5/8”..........$18.55

500050075 1/2” x 3/4”..........$19.55

500075050 3/4” x 1/2”..........$18.55

500052113 3/4” x 3/4”..........$18.55

500075100 3/4” x 1”.............$25.90

500010075 1” x 3/4”.............$25.90

500052114 1” x 1”................$25.90

500052115 1-1/4” x 1-1/4” ...$38.85

500052116 1-1/2” x 1-1/2” ...$40.25

500052117 2” x 2”................$47.55

500052118 3” x 3”..............$124.60

STAINLESS STEEL NIPPLES

Part

34400000201 1/4” x Close......................$1.80

34400000301 3/8” x

x Close ..................$5.95

34400000801 1-1/2” x Close ..................$7.25

34400000901 2” x Close.......................$10.75

34400001101 3” x Close.......................$32.85

34400001301 4” x Close.......................$39.25 Others available upon request.

HEX BUSHINGS (S.S.)

Part # Description Price

72460020043 Bushing 3/8” x 1/4”...........$2.15

72460020060 1/2” x 1/4”.........................$2.60

72460020062 1/2” x 3/8”.........................$2.60

72460020088 3/4” x 1/4”.........................$3.85

72460020090 3/4” x 3/8”.........................$3.40

72460020092 3/4” x 1/2”.........................$3.85

72460020113 1” x 1/2”............................$5.35

72460020114 1” x 3/4”............................$5.35

72460020142 1-1/4” x 3/4” .....................$6.95

72460020143 1-1/4” x 1” ........................$6.95

72460020186 1-1/2” x 3/4” ...................$10.25

72460020188 1-1/2” x 1” ........................$8.90

72460020190 1-1/2” x 1-1/4” ................$10.15

72460020242 2” x 1-1/2” ......................$14.40

72660020342 3” x 2” 316......................$46.45

72660020440 4” x 3” 316......................$90.96

STAINLESS STEEL PIPE & FITTINGS

304 STAINLESS STEEL PIPE (Schedule 10)

Part

Note:

304 STAINLESS STEEL 90° ELBOW (LONG RADIUS) (Schedule 10)

Part

304

Note:

304 STAINLESS STEEL 45° ELBOW (Schedule 10)

Part

Note:

304 STAINLESS

STEEL CONCENTRIC CONE REDUCER (Schedule 10)

Note:

STAINLESS STEEL AND CARBON STEEL FITTINGS

FLEXIBLE METAL HOSE CONNECTORS

• 1/4” — 14”

• 321 Stainless hose material

• 150# Flange ﬁtting

• Other sizes and ﬁttings optional CARBON STEEL FLANGE FITTING

STAINLESS STEEL FLANGE FITTING

Other

GASKET MATERIAL (RED)

SS STRAINERS

THOMPSON STAINLESS STEEL STRAINERS

• Conical screen design oﬀers more surface area

• When clean, less than 1 PSI pressure loss at maximum ﬂow

• 304 Construction Material (316 Available)

• EPDM Gasket Standard (other options available)

• Lid either Clamp or Bolt-on Style

• 2,3,4,6,8 and 10” size available

Screen Size Available:

• Mesh options - 16, 20, 30, 40, 50, 60, 80, 100, 120, 150, 200

• Perforated options - 1/4”, 1/8”, 1/16”

MLS-33”/NPT200 GPM125 PSIClamp1/4” FPT1 1/2” NPT$2,195.00

MLS-4C4”/Flanged350 GPM125 PSIClamp1/4” FPT1 1/2” NPT$3,295.00

MLS-4B4”/Flanged350 GPM150 PSIBolted1/4” FPT1 1/2” NPT$3,295.00

MLS-66”/Flanged750 GPM150 PSIBolted1/4” FPT1 1/2” NPT$4,950.00

MLS-88”/Flanged1300 GPM150 PSIBolted1/4” FPT1 1/2” NPT$8,400.00

MLS-1010”/Flanged2000 GPM150 PSIBolted1/4” FPT1 1/2” NPT $16,990.00

All strainers come with choice of screen sizes listed above.

Gasket Kit includes: (1) Head Gasket or O-Ring, (1) Filter Gasket, (1) Disc Gasket. Replacement Screen Includes: Filter Gaskets

subject to change without notice

FORGED CARBON STEEL

TEES 3000#

TEES 2000#

COUPLINGS

CROSSES

HEX BUSHINGS

90° ELBOWS 3000#

Part #DescriptionPrice Ea.

23060700025 1/4” ........................$10.20

23060700038 3/8” ........................$10.20

23060700050 1/2” ..........................$7.85

23060700075 3/4” ..........................$9.85

23060700100 1” ...........................$14.60 23060700125 1 1/4” .....................$27.75

23060700150 1 1/2” .....................$35.80

23060700200 2” ...........................$43.50

23060700300 3” .........................$185.40

90° ELBOWS 2000#

Part #DescriptionPrice Ea.

22060700025 1/4” ..........................$7.15

22060700038 3/8” ..........................$8.25

22060700050 1/2” ..........................$7.25

22060700075 3/4” ..........................$7.90

22060700100 1” ...........................$10.15 22060700125 1 1/4” .....................$20.35 22060700150 1 1/2” .....................$24.80 22060700200 2” ...........................$34.00

90° ST. ELBOWS

Part #DescriptionPrice Ea.

23060720025 1/4” ........................$15.30

23060720038 3/8” ........................$14.75

23060720050 1/2” ........................$14.75

23060720075 3/4” ........................$18.65

23060720100 1” ...........................$24.85

23060720125 1 1/4” .....................$45.00 23060720150 1 1/2” .....................$54.45 23060720200 2” ...........................$78.50

Other Sizes Available Upon Request

SQUARE PLUGS

Part #DescriptionPrice Ea.

22061800038 3/8” ..........................$1.80 22061800050 1/2” ..........................$1.90 22061800075 3/4” ..........................$2.35 22061800100 1” .............................$3.65 22061800125 1 1/4” .......................$7.50 22061800150 1 1/2” .......................$8.55

FS HEX PLUGS

Part #DescriptionPrice Ea.

22061810025 1/4” ..........................$1.45 22061810038 3/8” ..........................$1.50 22061810050 1/2” ..........................$1.50 22061810075 3/4” ..........................$2.80 22061810100 1” .............................$3.95

22061810125 1 1/4” .......................$6.70 22061810150 1 1/2” .......................$9.55 22061810200 2” ...........................$14.80

SCHEDULE 80 FITTINGS

TEES

CLOSE N PPLES

NIPPLES

BLACK EXTRA HEAVY

90° ELBOWS

Part #DescriptionPrice Ea. 13560700025 1/4” ........................$17.70 13560700038 3/8” ........................$15.70 13560700050

13560700125

13560700150 1 1/2” .....................$50.50 13560700200 2” ...........................$72.80 13560700300 3” .........................$216.75 13560700400 4” .........................$630.80

45° ELBOWS

Part

13560600050

13560600075

13560600100

13560600200

UNIONS

90° ST. ELBOWS

CAPS

Part

SCHEDULE 40 BLACK IRON PIPE FITTINGS

TEES

500554057

Part # Description Price Ea.

500559547 Tee 1/8 inch - NPT ...........$3.30

500555207 1/4” ..................................$3.12

500556580

500555320

500554421

500556599

500552259

500551813

500554332 3” ...................................$53.35

500050787 1-1/4” x 3/8” .............$3.85

500559369 1-1/4” x 1/2” .............$3.70

500555010 1-1/4” x 3/4” .............$3.35

500556440 1-1/4” x 1” ................$3.35

500561550 1-1/2” x 3/8” .............$5.10

500561548 1-1/2” x 1/2” .............$4.22

500558729 1-1/2” x 3/4” .............$4.22

500554391 1-1/2” x 1” ................$3.70

1-1/2” x 1-1/4”

CAPS

NIPPLES

500555290 3/8” x Close .............$2.30

500553492 1/2” x Close .............$1.92

500554472 3/4” x Close .............$2.25

500551767 1” x Close ................$3.20

500556858 1-1/4” x Close ..........$4.07

500556742 1-1/2” x Close ..........$5.07

500552305 2” x Close ................$6.87

500552550 3” x Close ..............$25.50 Other lengths available upon request.

90° ELBOWS

Part

PLUGS

Part

90° ST. ELBOWS

Part

500561212

500556939

COUPLINGS

Part

500556475 1/8” ..................................$3.07

500553115 1/4” ..................................$4.22

500556505 3/8” ..................................$5.07

500554499 1/2” ..................................$5.38

500553875 3/4” ..................................$6.90

500551945 1” .....................................$9.62

500556467 1-1/4” .............................$12.28

500554804 1-1/2” .............................$15.55

500555274 2” ...................................$22.70

500554618 3” ...................................$89.00

FLANGE 3-WAY BOTTOM LOAD POLY

THREADED BOTTOM LOAD 3-WAY POLY

Part

500053049 3-way 3/4” FPT, 1” Port ..................................$48.23

500053047 3-way 1” FPT, 1” Port .....................................$48.23

500053045 3-way 1-1/4” FPT, 1-1/2” Port .........................$74.95

500053043 3-way 1-1/2” FPT, 1-1/2” Port .........................$74.95

THREADED SIDE LOAD 3-WAY POLY

MALE CAM ADAPTER x HOSE BARB

Part

POLY VALVES & NOZZLES

3” FULL PORT VALVE

UNION VALVES POLY

3-WAY UNION VALVE POLY

NPT SPIGOT

Part

CHROME PLATED BRASS BALL VALVES

316 STAINLESS STEEL BALL VALVES

BRASS VALVES

THERMOPLASTIC CHECK VALVE

• PVC

• In-Line Check

• Schedule 40

• Threaded Connection

Features:

• Installs horizontally or vertically

• Stainless steel spring-loaded PVC popper

• Cracking pressure at .5 PSI Pressure

Solid 304 body with stainless steel poppet, spring and lock nut. Delrin guide bearing for smooth poppet operation and Viton O-ring for added chemical resistance.

BRAY VALVE WITH HANDLE

Series

Bray

Actuator

Stainless Steel Disc

• Direct Mount Cartridge-Style ANSI 150 Butterﬂy valves

• Epoxy coated cast iron wafer body

• Full port sizes 1 1/2” to 12”

• ISO 5200 direct mounting ﬂange

• EPDM resilient seat -30 to 250F

• AP1609 Face to face ﬂange

• Floating dual shaft disc design

• MSS SP 67 Compliant

• No pins in disc prevent potential leak points

• Handle Included

and electric available - Call for more information.

ELECTRIC MANIFOLD ON/OFF VALVES

Features:

• 316 S.S. Ball and Stem

• Fiberglass reinforced PTFE ball and seats

• 12 Volt DC operated

• 150 PSI maximum pressure

BANJO 1” ELECTRIC MANIFOLD VALVE ASSEMBLY — 3 VALVE

5MEVX1013 1” Manifold Valve Assembly (2” Std. Port Inlet Flanges & 1” Outlet Flanges)............................................$1,189.50

RAVEN BOOM VALVE

Features:

• 40 GPM ﬂow rate at a 5 PSI pressure drop per valve

• 0.7 seconds full open to full close cycle time

• 175 PSI maximum working pressure

• Flanged or NPT threaded plumbing options

• Stainless steel wetted parts

• Current draw: 2 Amps typ. (5 Amps max.)

• 12 volt operation

• Plunger style valve for complete shut oﬀ

• 1/4” (F) NPT gauge port

Note: 2” Full Port Banjo ﬂange inlet, 3/4” (F) NPT boom outlets

Part

TEEJET SPECIAL SHUT-OFF BALL VALVE DESIGNS:

• Extra ﬂuid passage in the shut oﬀ ball

• Relieve boom pressure after boom valves close

• Small liquid volume returned to top of tank

• Eliminates pressure bleed down through tips

TEEJET 453 SERIES SHUT OFF MANIFOLD

Other valve assemblies and options are available.

TEEJET 430 SERIES SHUT OFF MANIFOLD

A reasonably priced alternative to solenoid valves.

The Raven Boom Valve offers dual installation options (flanged style or threaded ports), easy maintenance (all working components can be removed from the stack by simply removing a pin) and rapid response time (0.7 seconds full open to full close). All this and the flexibility of up to 10 boom sections.

TEL: (800) 669-2281

FAX: (319) 679-2929

ELECTRIC ON/OFF VALVES

BANJO ELECTRIC THREADED VALVES ON/OFF

On/Off valves. Polypropylene valves are fitted with Teflon seals, viton O-rings, and 304 S.S. hardware. Maximum 150 PSI.

• 3/4” - 1-1/4” ON/OFF has 3/4 second response

• 1-1/2” and 2” ON/OFF has 1-1/2 second response Part

BANJO FLANGED ON/OFF

• 3/4” - 1 1/4” ON/OFF has 3/4 second response

•

RAVEN® ELECTRIC SHUT-OFF VALVES

TEEJET MODEL 344 BEC VALVES

Valves are compatible with all currently available sprayer controls. Only 0.6 second response time from open to close. Pressures up to 300 PSI,1” and pressures up to 150 PSI, 1-1/2” and made of corrosionresistant materials.

These 12-volt DC-operated valves can be operated by an SPST (on-oﬀ) switch. 3-way valves have three ports. Flow is diverted to either of the two outlets and there is no oﬀ position.

Part

DIRECTOVALVE MODEL 144A - TEEJET

Designed to provide remote on-oﬀ boom control, this 12V direct-acting valve has large internal ﬂow chambers to reduce clogging. A polypropylene body with stainless steel wetted parts provides excellent corrosion resistance. Coil can be changed without removing valve from manifold. Valves are equipped with either EPDM or Viton diaphragms and seat washers.

• 3/4” inlet, 1/2” boom outlet • Draws only 2 amp

• 10 GPM at only 5 PSI drop • Good corrosion resistance

• Maximum pressure 100 PSI

Part

500052262 Valve 144A-1 EPDM.......................................$130.95 500052260 Repair Kit 144A, EPDM ...................................$23.55 500052261 Repair Kit 144A, Viton .....................................$35.20

TEEJET MODEL AA 144-1-3 ELECTRIC VALVE

This valve is designed to provide by-pass control and maintain a constant system pressure through the use of an orifice in the secondary by-pass line. The orifice is equal in size to the volume of the nozzles on the boom section. For pressures up to 65 PSI and flows to 8 GPM (5 PSI pressure drop).

• Outlet #1 - 1/2”

• Outlet #2 - 3/4” Inlet Flow Thru Continuous

• Outlet #3 - 1/2”

Part #DescriptionPrice Ea.

500007709 Electric Valve, 144-1-3 ................................$178.20 500008997 EPDM Repair Kit ...........................................$27.00

subject to change without notice

ELECTRIC ON/OFF VALVES

1999A SERIES SOLENOID VALVE

Series 1999A 12-Volt DC Electric Boom Shutoff Valves have 1” NPT female inlet, 1” male bypass outlet and 3/4” NPT female boom line outlet for high volume applications at minimum pressure loss (pressure drop is only 5 PSI at 18 GPM). Current draw of only 1.1 amp per valve. Chemical resistant glass filled nylon body with Viton diaphragm and seals standard. Aflas is optional. Maximum operating pressure, 175 PSI and 18 GPM.

Part #DescriptionPrice Ea. 500001999 1999A Solenoid Shutoﬀ Valve, single ....$173.63

2200A SERIES 2-WAY SOLENOID VALVES

Series 2200A 12-Volt DC solenoid valves have a 1/4” NPT female inlet and outlet. The valve housing is made of glass ﬁlled nylon and the wetted metal parts of 304 and 430 stainless steel. Viton seal and “O” rings are standard. These direct operating valves can be used for foam and dye markers, small sprayers, boom end nozzles, chemical injection systems, individual nozzle shutoﬀs, etc.

2201A Solenoid Valve - .148 Dia. Oriﬁce, .45 CV Rating, 1 GPM (3.75 LPM), 125 PSI (860 kPa), 12-Volt DC, 1.1 Amp. Part

2202A Solenoid Valve - .148 Dia. Oriﬁce, .45 CV Rating, 1 GPM (3.75 LPM), 80 PSI (550 kPa), 12-Volt DC, .85 Amp.

Part #Description

500002202 2202A Solenoid Valve 1/4” FPT ............................................................................................. $82.90 500012202 2202A With Weather Pack Connector 1/4” FPT ......................................................................$85.85 500002502 2501B Solenoid Valve 0-6 GPM, 2 Amp draw, 1/2” FPT inlet & outlet, Max Pressure 150#$167.48

3-WAY SOLENOID VALVE

The 2204A 3-Way 12-Volt DC solenoid valves have a 1/4” NPT female inlet and two 1/4” NPT female outlets. Ideal for foam markers to control both air and liquids - .105 Dia. Oriﬁce, .22 CV Rating, 1/2 GPM (1.9 LPM), 55 PSI (380 kPa), 12-Volt DC, .85 Amp.

Part #DescriptionPrice Ea. 500002204 2204A 3-Way Solenoid Valve .................$99.83

ELECTRIC REGULATING VALVES

TEEJET MODEL 244 REGULATING VALVE

For remote pressure control. For 12 VDC system. Maximum pressure 100 PSI. Good corrosion resistance — celcon, viton and stainless steel ﬁtted. Valve has low 3/4” or 1-1/2” amp. draw. A DPDT spring-centered switch can be ordered separately.

Part #DescriptionPrice Ea. 500008927 3/4” Poly

CONTROL VALVES

TEEVALVE® CONTROL VALVE

For selective control of three-section boom sprayers at pressures up to 300 PSI:

• Use to open any of three-boom section lines in any desired combination

• Raise lever to open, lower lever to close the valve without changing the indexed position

• Aluminum construction with stainless steel and plastic internal parts for maximum corrosion resistance.

Note: Model No. 17Y: Inlet size--1”, Outlet size--3/4”, Bypass size--3/4”, Gunjet size--3/4”.

MODEL 12690 THROTTLING VALVE

For regulating ﬂow in systems equipped with centrifugal pumps where sensitive regulation is required...or to control ﬂow in agitation lines.

THROTTLING VALVE

Valve is designed for use in the bypass line of the 144-1-3 boom solenoid valve. When installed in the bypass-to-tank line, it may be adjusted to create a pressure drop equal to the line pressure of that particular boom section. Then when the operator turns the boom section on or oﬀ, the pressure in the remaining boom section will not be aﬀected.

Part #DescriptionPrice Ea. 500009925 1/2”

PRESSURE REGULATOR

All nylon/stainless steel pressure regulator handles pressures up to 150 PSI. Pressure adjustments are made without tools. 3/4” or 1/2” ports with 1/4” (F) NPT gauge opening.

Part

DIRECTOVALVE® CONTROL VALVE

Made of corrosion-resistant materials and handles ﬂows up to 10 GPM at only 5 PSI drop. Easy, dependable operation with maximum 150 PSI operating pressure. Includes mounting bracket and undrilled 1/4”-gauge connection.

• 3/4” Inlet connections

• 1/2” Boom connections

MODEL 8460 RELIEF VALVE

Diaphragm Type Nylon inlet body with aluminum bonnet. Choice of 1/2” or 3/4” connections. For pressures up to 300 PSI. Note: Repair kit includes stem seal, springs and diaphragm.

POLY MANIFOLD

Part

MANIFOLD PRESSURE SPIKE VALVES

AIRLINE FITTINGS/FLOW INDICATORS

An economical modular ﬂow indicator you can match to your speciﬁc requirements.

• Easy to see, visual indicator of liquid ﬂow. If one of the “ﬂoat balls” is lower than the others, there is a blockage

• Individual columns clip together so you can gang as many or as few columns as you need

• Exclusive O-ring seal and joint clip system is easy to assemble and service

• Can monitor up to three spray tips per column

• Low Flow model - 0.03 to 0.7 USGPM / Standard model - 0.05 to 2.7 USGPM

• Range of “ﬂoat balls” lets you match to your ﬂow rate

• 3/8”, 1/2” & 3/4” inlet and/or outlet ﬁttings

• 100 psi maximum operating pressure

• UV protected material stays clear

Part

504020001 Wilger 1R Ball Monitor .........$26.10

504020004

Typical Operating Ranges For Flow Indicator Balls (U.S. Gal/Min)

ORS Hose Barb Fitting

90° Push In Tube Fittings

Tee Fittings

Fitting Accessories

TEL: (800) 669-2281 FAX: (319) 679-2929

VISAGAGE II

POLY AND SS STRAINERS

POLY“T” STRAINER AND REPLACEMENT PARTS

A complete strainer consists of a strainer body assembly and the screen of choice. How to order: to receive a complete strainer, order the desired strainer body assembly size plus the screen mesh size of choice. See Couplers for required connectors, clamps and gaskets. Note: Order screen separately.

“T” STRAINER FLANGE STYLE 1” AND 1-1/2” STRAINER ASSEMBLIES

Note: Order screen

2” STRAINER BODY ASSEMBLY (BANJO)

Includes head, bowl and viton gasket. To receive a complete strainer, order the body assembly and the screen of your choice.

• Stainless Steel Head Type 316

• Poly Bowl

• 150 PSI Maximum at 70°F

• Viton Gasket

• Bowl Clean-out Plug

• S.S. Screens

Note: Order

BANJO POLY AND SS STRAINERS

2” STRAINER REPLACEMENT PARTS

3” TYPE 316 STAINLESS STEEL STRAINER

3” strainer body assembly is sold less your choice of screen.

• Low Flow Resistance

• Corrosion Resistant

• EPDM Rubber Gasket

• 200 PSI Maximum

Note: Order screen separately.

POLYPROPYLENE “Y” STRAINERS

• Precision molded

• Corrosion resistant

• Lightweight

• Fiberglass Reinforced

• Easy grip end cap

• End cap drain plug-new design on 1-1/2” and 2” models

• EPDM Gasket

• 150 PSI max. 1-1/2” - 2”

Note: To receive a complete strainer, order the size strainer body assembly plus the desired mesh screen.

“Y” STRAINER REPLACEMENT PARTS

BANJO POLY AND SS STRAINERS

& PARTS

SUCTION STRAINERS

Use of suction strainer on suction line when drawing from streams or ponds will help prevent plugging and damage to pump.

TEE JET LINE STRAINERS - POLY

122 TEEJET STRAINERS

POLY STRAINER

Hypro 1/4” Id 1/2” Od Mini Strainer

TEE JET LINE STRAINERS - POLY AND CAST IRON

126 STRAINERS — SELF-CLEANING

A tapered inner cylinder inside the screen causes incoming liquid to flow at high velocity past the screen. Foreign particles are continuously flushed toward the bottom of the bowl where they are discharged through the bypass outlet and returned to the tank. A minimum of 6 GPM is required through this bypass outlet. At the end of the spraying operation the debris can simply be flushed from the tank. Note: The 1/2-inch bypass outlet acts as a secondary bypass in most cases. This reduces the overall system pressure and will also reduce the volume of liquid previously available to the spray boom. For use on the pressure side of pumps, maximum pressure is 200 PSI at 100°F.

Note: EPR O-rings are standard. Viton also available.

126

PARTS

2” STRAINER

For pressures to 150 PSI and temperatures to 100°F. Iron head and nylon bowl. To receive a complete strainer, please order each component - head, bowl, gasket and screen of your choice.

126 STRAINER (POLYPROPYLENE)

Note: Order screen separately.

PARTS

NORWESCO TANKS

510040226

510040663

Other

HEAVY

* Require full

HEAVY DUTY DRAINABLE TANKS

* Require

HEAVY DUTY BLACK DRAINABLE TANKS

NORWESCO TANKS

ELLIPTICAL LEG TANKS

HEAVY WEIGHT ELLIPTICAL LEG TANKS

DRAINABLE TANK BANDS

510060584 short................*1010 ........45” .....46” ....2 required .........$112.90

510060585 long .................*1010 ........45” .....48” ....2 required .........$112.90

510063282...........................1310 ........76” .....66” ....4 required .........$150.70

510062434...........................1610 ........68” .....51” ....4 required .........$136.40 * 2 short and 2 long bands are required for 1 tank.

ELLIPTICAL

LEG TANK BANDS

510060325 1035 ...........77” ........47-1/4”.........3 required ........$134.00

510063642 1335 ........64-3/4”.....47-3/4”.........4

PICKUP TRUCK TANKS

NORWESCO TANKS APPLICATOR

SADDLES/CRADLES

CONE BOTTOM TANKS

510043850

510040809

510040817

*Polyethylene Stand

†Distance from bottom of cone to

ELLIPTICAL APPLICATOR TANKS

*Includes one stainless steel baﬄe

55270 ROTATING TANK RINSING NOZZLE

Features:

• Rotating head driven by the

•

• Removable retainer and rotating body allows for disassembly and cleaning

• Spray angle: 360º

• Self-lubricating and self-ﬂushing design

• Materials: Body - Black pom (Acetal), Fasteners - Stainless steel

• Recommended operating pressure: 10—50 PSI (0.7—3.5 bar)

• For tank diameters up to 10 ft. (3.0 m)

• Pipe connections: 1/2” NPT (F); 1/2” BSPT (F); 3/4” NPT (F); 3/4” BSPT (F)

CHEMICAL MIXER

• 75 Gallon capacity

• Unique 2 Jet agitator with Vortex cycling waterjet eductor system

• Rotary Tank cleanout rinse nozzle

• More eﬃcient Jug Knife with Jug Rinse

• All interior surfaces sloped for better drainage

• High-volume 3” ﬂow

Rinse Nozzle

NORWESCO TANKS INDUCTOR TANKS, STAND AND SPOT SPRAYER

TANKS

Part

510060313 Fits 510060214.............................................................................$177.00 510063397 Fits 510042064, 510042065 & 510042066 ..................................$185.20 510065517 Fits 510045098.............................................................................$195.75 510062204 Fits 510062205.............................................................................$252.00

MANIFOLD INDUCTION SYSTEM

CHEMBINE JUG KNIFE

•

• Assembled with high grade 316 Stainless Steel with high grade SS hardware

• Acts as a rinsing head also

HIGH DENSITY POLYETHYLENE LIDS

Part

5134300012

510060367

TEL: (800) 669-2281 FAX: (319) 679-2929

ELECTRIC REGULATING VALVES

POLY BULKHEAD FITTINGS

BANJO POLY TANK FITTINGS

BANJO BULKHEAD FITTING GASKETS

500000772 1/2” & 3/4” (1-5/8” Hole Dia.) EPDM

500000773 1” & 1-1/4” (2-1/4” Hole Dia.) B. Head Fitting Gasket - EPDM...$0.87 500000774 1-1/2” & 2” (3” Hole Dia.) B. Head Fitting Gasket - EPDM .........$1.17 500005582 2” (3-1/4” Hole Dia.) B. Head Fitting Gasket - EPDM ................$5.37 500051055 3” (4-1/2” Hole Dia.) B. Head Fitting Gasket - EPDM ................$8.67 500051056 3” (4-1/2” Hole Dia.) B. Head Fitting Gasket - Viton.................$40.85

Viton Gaskets available upon request.

MANIFOLD POLY BULKHEAD FITTINGS (Flanged Outlet)

Features:

• 16” Vented Lid

• Stand is drilled and ready to be bolted down

• 2” Male threaded snout (no bulk-head ﬁttings)

• 1 Gallon increments on 20 - 65 gallon tanks

• 2.5 Gallon increments on 100 & 200 gallon tanks

VERTICAL TANKS

HORIZONTAL TANKS

CONE BOTTOM TANKS

Part

Building Tanks

Since 1944

FIBERGLASS VERTICAL FLAT AND CONE BOTTOM TANKS

Fiberglass tanks make ideal storage for all fertilizer materials, including Ammonium Thio Sulfate.

Available Options:

• Dome Top

• Flat Top

• Conical Top

• Flat Bottom with internally sloped bottom

• Double wall available

• Bolted manways

• Threaded or ﬂanged outlets

• Sight gauges

With rising steel costs and increased cost of refinishing steel tanks, fiberglass is a cost effective alternative.

For more information, pricing or if you have questions, please call.

Cone Bottom Tank

MID-STATE TANK CO., INC.

MODEL 8670

STAINLESS DOUBLE-CONICAL NURSE TANKS

1200-Gal. 62.5” Diameter x 119” Length .........................................

1600-Gal. 66.5” Diameter x 139” Length .........................................

2000-Gal. 69.5” Diameter x 157” Length ......................................... 2400-Gal. 70.5” Diameter x 179” Length .........................................

2950-Gal. 76.5” Diameter x 187” Length ......................................... 3200-Gal. 77.5” Diameter x 201” Length .........................................

MODEL 8775

STAINLESS ELLIPTICAL DOUBLE-CONICAL NURSE TANKS

1600-Gal. 70” Diameter x 138.5” Length .........................................

2000-Gal. 78.75” Diameter x 148” Length ....................................... 2400-Gal. 83” Diameter x 162.5” Length .........................................

2800-Gal. 82.5” Diameter x 186.5” Length ...................................... 3200-Gal. 87.5” Diameter x 202.5” Length ......................................

MODEL 8660

STAINLESS NURSE TANKS

1600-Gal. 60” Diameter x 139” Length ............................................ 1850-Gal. 60” Diameter x 163” Length ............................................ 2000-Gal. 62” Diameter x 164” Length ............................................ 2250-Gal. 66” Diameter x 165” Length ............................................ 2600-Gal. 66” Diameter x 189” Length ............................................ 2800-Gal. 66” Diameter x 201” Length ............................................ 3050-Gal. 72” Diameter x 191” Length ............................................ 3300-Gal. 72” Diameter x 203” Length ............................................ 4000-Gal. 72” Diameter x 243” Length ............................................

MODEL 8690

STAINLESS VERTICAL STORAGE TANKS

1000-Gal. 60” Diameter x 9’5” Height .............................................. 1500-Gal. 66” Diameter x 10’7” Height ............................................ 2000-Gal. 78” Diameter x 10’6” Height ............................................ 2500-Gal. 78” Diameter x 12’6” Height ............................................ 3000-Gal. 78” Diameter x 14’7” Height ............................................ 4000-Gal. 96” Diameter x 13’4” Height ............................................ 5000-Gal. 96” Diameter x 16’ Height ............................................... 6000-Gal. 96” Diameter x 18’8” Height ............................................

MODEL 8755

STAINLESS ELLIPTICAL NURSE TANKS

500-Gal. 54” Diameter x 66” Length .............................................. 800-Gal. 54” Diameter x 104” Length ............................................ 1000-Gal. 54” Diameter x 129” Length ............................................ 1200-Gal. 54” Diameter x 153” Length ............................................ 1200-Gal. 61” Diameter x 127” Length ............................................ 1600-Gal. 69” Diameter x 132” Length ............................................ 2000-Gal. 69” Diameter x 163” Length ............................................ 2400-Gal. 78” Diameter x 152” Length ............................................ 2800-Gal. 78” Diameter x 177” Length ............................................ 3000-Gal. 78” Diameter x 189” Length ............................................ 3200-Gal. 78” Diameter x 202” Length ............................................

TEL: (800) 669-2281 FAX: (319) 679-2929

SINGLE-WALL VERTICAL

TANKS

Product Lines:

• Underground Storage Tanks

• Above-ground Storage Tanks

• Fire-rated Above-ground Storage Tanks

• Sizes available up to 30,000 Gallon Call for more information and pricing.

AGSYNERGY FERTILIZER TANK KITS

AgSynergy starter fertilizer kits are a great way to give your crop an extra boost in the ever-important early stages of growth. Precise and timely placed fertilizer means you are getting the maximum efficiency, productivity, and profitability out of your fertilizer dollar. You are already making the pass though the field, why not capture the proven benefits that split-applied nutrients provide?

Features:

• Color Matched on John Deere, Case IH, and Kinze planters

• Powder coat ﬁnish

• Tank mounts designed speciﬁcally for each planter model

• Electric, Roller, Ground-Drive, or Hydraulic pumps

• In-Furrow, 2 x 2, or dribble type placement

• Anything from speed/pressure to fully variable rate control

• Wilger (Redball) ﬂow monitoring systems available

• Plumb tanks to try multiple products/methods of application

• Kits also available for Drills

FERTILIZER TANK KITS

Diesel Fuel BossTM

COMPACT DIESEL POLY TANKS

Awesome Lowline Style Fits In Your Truck Box Out Of Sight

Part #Gallons Dimension(LxWxH) Price Ea.

DLC5512V10 55.............31” x 27” x 29”

DLC2512V10 25.............31” x 27” x 19”

SLIMLINE DIESEL POLY TANKS

Fits in front of your gooseneck hitch Part #GallonsDimension(LxWxH)Price Ea.

DLN10012V10 100 ...........51” x 21” x 38”

DLN7512V10 75 ............51” x 21” x 31”

DL10012VA40 100 ...........48” x 34” x 31”

DL5512V40 55 ............48” x 34” x 21”

DEF Fuel BossTM

MICRO MATIC

IBC

CONDENSATE-ARMORTM MATERIAL

Unlike steel and aluminum, this polyethylene material reduces condensation build-up to minimize machinery ﬁlter damage.

DUAL-STRAINTM FILTER SYSTEM

The first filter at the fill point eliminates muck entering the tank. The second filter at the suction hose stops debris entering the pump and the machine engine. Not to be used for gasoline - diesel only!

CORRODE-PROOF

ANCHOR-POINTTM STRAP GROOVES

5DPN4001

5DPN4005

Built with ISO 2224 compliant material, this tank will keep the DEF pure and eliminate engine damage.

5DPT4810 Down Tube for 55G Drum - 32” Length ..$18.40

5DPT4135 Down Tube IBC 275/330 - 45” Length ....$18.15

Please Note: Limited Micro Matic IBC Components available in stock

Heavy-duty, never-fail grooves are built-in on both sides. This makes tying down this unit quick and hassle-free.

F MATERIAL mpliant DEF pure grooves are This makes nd hassle-free

DIESEL EXHAUST FLUID (DEF)

There are many options not listed for storing and hauling your DEF. Talk with a sales representative today!

Pumping System Contains

• 135 Gallon Tote: Speciﬁcally designed to maintain the strictest purity of DEF

• Pump System: ISO/EPA compliant DEF Easy Caddy pumping system

• Coupler: RPV; MicroMatic

• Discharge Hose: 3/4” x 20 ft.

• Suction Hose: 3/4” x 1.5 ft.

• Lid: 6”; Vented

• Nozzle: Manual or Automatic

• Meter: DEF Dura-MeterTM (optional)

• Other: All hose clamps and ﬁttings DEF DURA-PUMP

MANUAL Nozzle AUTOMATIC Nozzle

5DEFE6518ME135 12 Volt 5DEFE6518AE135 12 Volt

5DEFE6518ME135 110 Volt 5DEFE6518AE135 110 Volt

DEF Dura-MeterTM 5DP3000D (sold separately)

• High-Flow pump with up to 15GPM free ﬂow rate and 10+ GPM with 3/4” discharge hose and nozzle

• Self-priming diaphragm pump with internal bypass

• Motor thermally protected from overheating

• 30 minute duty cycle

• Suction port has 2” Male NPT and 1” Female NPT

• Pump is easily ﬁeld serviceable with all parts readily available

• 10 minute auto-shut oﬀ option available (110V only)

• Features 2 Year Service Warranty plan

Part#DescriptionPrice Ea.

5DEF6018E12 12 Volt DEF Pump Only ...................$788.00

5DEFE6018AS110 110 Volt DEF Pump

DP-3000D DEF DURA-METER

Speciﬁcations

 Check Valve: Internal, EPA 165.45 compliant

 Vertical Suction Lift: Self-priming to 10 ft.

 Power Cord: 12 Volt; 20 ft. - 110 Volt 6.5 ft.

 Motor: 1/4 HP

 Amps: 12 Volt; 18.5 - 110 Volt; 2.0

 Suction Port: 2” Male and 1” Female NPT thread

 Discharge Port: 1” Female NPT thread

 ISO22241-3 Compliant: Yes

 Wetted Materials: Polypropylene; 304 Stainless Steel; Santroprene (73 shore)

• 100% Moisture-sealed circuitry makes meter impervious to water intrusion

• Meter calibrated for DEF

• Same great menu driven backlit display

• Plumbed for both in-line and 90 degree applications

• Features 2 Year Service Warranty plan

Part#DescriptionPrice

5DP3000D DEF Meter ...............................................$373.00

DURA DEF PRODUCTS

Speciﬁcations

 Operating Temp: -10°F to 130°F  Flow Rate: 2 to 22 GPM  ISO22241-3 Compliant: Yes

 Meter Accuracy: +/- .5%  Maximum Pressure: 40 PSI  Wetted Materials: Polypropylene; Ryton; 304 Stainless Steel; EPDM or Viton seals

5DEFE6518AE12 DEF Easy Caddy w/RPV Top Suction, Auto Shut-Oﬀ Nozzle - 12V .$1,080.00

5DEFE6518ME12 DEF Easy Caddy w/RPV Top Suction, Manual Nozzle - 12V ..............$952.00

Tote, Lid and Container Valve INCLUDED Nozzle - 110V $1,103 0

5DEFE6518AE110 DEF Easy Caddy w/RPV Top Suction, Auto Shut-Oﬀ Nozzle - 110V$1,103.00

Pumping System Contains

• 10+ GPM Pump: High-Flow Dura PumpTM

• Coupler: RPV; MicroMatic

• Discharge Hose: 3/4” x 20 ft.

• Suction Hose: 3/4” x 1.5 ft.

• Nozzle: Manual or Automatic

• Meter: DEF Dura-MeterTM (optional)

• Other: All hose clamps and ﬁttings

5DEFE6518ME110 DEF Easy Caddy w/RPV Top Suction, Manual Nozzle - 110V ............$950.00

BANJO TRANSFER PUMPS

333 AND 444 SERIES PUMPS

• More gallons per minute! — Higher Pressure!

• Maximum engine protection

• Pump end separated from engine

• Durable cast iron construction

• Dynamically balanced impeller

• Replaceable inlet and outlet ﬂanges

• Graphite loaded silicon carbide seal with stainless steel cup and spring with FKM (viton type) rubber

• Large weep holes between pump and engine

• “V” shaped for quicker priming

3” ALUMINUM TRANSFER PUMP FEATURES:

• 6.5 HP PowerProTM Pump

• Gas engine driven

• Housing: aluminum

• Pump seals: EPDM Mechanical

• Cast iron impeller wheel will handle 1-1/8” solids

SERIES1400 MODEL

• Base Mounted End suction Pump

• Capacities to 1800 GPM

• Heads to 275 feet TDH

• Temperature to 250° F

• Back pull-out construction

• Semi-open impeller

• External Impeller adjustment

• Mechanical Seal

• 1800 RPM T.E.F.C. Motor

• Standard double mechanic seal

• Grease cap for seal lubricated

• Stainless steel shaft

• All iron construction

• 416 stainless steel shaft

50004X320 4” x 3” x 20 HP Complete Assy .....400 GPM to 500 GPM ...................CALL 514204310

x 3” Pump Only ................................................................................CALL 50005X430 5” x 4” x 30 HP Complete Assy .....500 GPM to 600 GPM ...................CALL 514245410 5” x 4” Pump Only ................................................................................CALL 50006X540

514206510

x 5” x 40 HP Complete Assy .....600 GPM to 900 GPM ...................CALL

x 5” Pump Only ................................................................................CALL

x 6” x 40 HP Complete Assy ............................................................CALL 514206610

x 6” Pump Only ................................................................................CALL

Note: Pumping capacities may vary per the speciﬁc gravity or weight per gallon of liquid being pumped and per your plumbing arrangement.

GROUND DRIVE PUMPS

NGP PISTON PUMPS

Ground Speed Oriented for Precise Fertilizer Application

NGP PUMP REPAIR KITS

Pump Model Gasket Repair Kit

NGP6055115788

NGP7055115688

NGP8055115789

NGP9055115689

Features:

• Apply (2) products with one piston pump

• Ideal for starter fertilizer on one side and nitrogen on the other side

Rated Flow:

• 8055AR: 42 GPM total, 21 GPM per side

• 9055AR: 34.2 GPM total, 68.4 GPM per side

• 5655AR: 31.2 GPM total; 21.0 & 10.2 GPM

CENTRIFUGAL PUMPS

CAST-IRON PUMPS

NEXT GENERATION 2”, 3” AND 4” SELF-PRIMING CENTRIFUGAL PUMPS

2-YEAR UNCONDITIONAL WARRANTY ON CAST-IRON PUMPS!

All John Blue Centrifugal Pumps can run dry without damaging the seal. This, combined with a two-year factory-backed UNCONDITIONAL WARRANTY on cast-iron models, makes the John Blue Centrifugal Pumps second to no other pump manufacturer on the market today - all at an aﬀordable price. Available with Gas, Electric or Hydraulic Power Sources.

FEATURES:

• Patented Vac-U-Seal impeller design creates a vacuum between the impeller and mechanical seal. Lack of pressure on the seal face minimizes seal wear and results in a longer seal life

• Double wet seal design provides for continuous lubrication of the seal faces. This wet seal design allows the pump to be run dry for extended periods with no damage to the mechanical seal faces

• Closed impeller design minimizes thrust loading on the drive motor extending the life of the drive motor. Impeller wear increases performance, our pumps get better with use!

JB335013H 3” Flange, 13HP Honda, Wetseal, 3” Self-Priming HF 13 HP Honda, Electric Start, Engine with Base.................400

JB324051B 2” FPT, 5HP, Single Phase, Wetseal, 2” Self-Priming Drip Proof, Single Phase with Base ..................................200

503240G5H 2” FPT, 5HP Honda, Wetseal 2” Self-Priming, 5HP Honda Engine with Base ...................................................200

JB324053B 2” FPT, 5HP, 3 Phase, Wetseal, 2” Self-Priming 5HP Electric Drip Proof, 3 Phase with Base..............................200

JB334010B 3” FPT, 10HP, 3 Phase, Wetseal, 3” Self-Priming, 10HP Electric TEFC, 3 Phase .....................................................340

JB3350G14K 3” FPT, 14HP Kohler, Wetseal, 3” Self-Priming, 14HP Kohler. Electric Start. Engine with Base ..........................340 ...............265

JB3350FLG 3” FPT, Cast Wetseal Pump Only (GAS).............................................................................................$1,490.00

JB0116248 2nd Generation Gasket & Seal Kit (SP3340-SP3350) ...........................................................................$179.21

POLYPROPYLENE (PSP)

PATENT-PENDING

2” SELF-PRIMING POLY-CENTRIFUGAL PUMPS

200 GPM Max Flow Vac-U-Seal Impeller

45 PSI Max Pressure Close-coupled Shaft

112 GPM @ 25 PSI Fits 3/4” Diameter Shaft

Max Speed 3600 Double Wet Seal Assembly

Required Horsepower: 5 HP Chemical Resistant Materials

2” Inlet & Outlet FPT 1” FPT pressure access & 1/2” FPT drain port

PATENT-PENDING

3” SELF-PRIMING POLY-CENTRIFUGAL PUMPS

375 GPM Max Flow Vac-U-Seal Impeller

45 PSI Max Pressure Close-coupled Shaft

Max Speed 3600 Fits 1” and 1-1/8” Diameter Shafts

Required Horsepower: 10 HP Double Wet Seal Assembly

3” Inlet & Outlet FPT Chemical Resistant Materials 1” FPT pressure access & 1/2” FPT drain port

FEATURES:

• Fully-assembled from the factory - ready to be attached to power source immediately

• Double Wet Seal Assembly - pump can be run dry without causing seal failure. The seal is antifreeze cooled (Antifreeze is pre-ﬁlled from the factory)

• Closed Impeller Technology - pump eﬃciency improves over time as the impeller wears

• Polypropylene Body, FKM and Viton® Seals, 316SS Impeller Shft for excellent chemical resistance

• Pump can be removed, or engine can be replaced without having to disassemble the pump

JB POLY PUMPS

Part #DescriptionPrice Ea.

JB3240G5H 2” FPT, 5HP Honda, Wetseal ......................................................................................$1,148.00

JB3240E51 2” FPT, 5HP Single Phase, Wetseal ............................................................................$1,707.00

JB3240E53 2” FPT, 5HP, 3 Phase, Wetseal ...................................................................................$1,273.00

JB334013H 3” Flanged, 13HP Honda, Wetseal ..............................................................................$2,466.00

JB3340G14V 3” FPT, 14HP Vanguard, Wetseal................................................................................$2,363.00 y

TEL: (800) 669-2281

FAX: (319) 679-2929

CAST IRON TRANSFER PUMPS

BANJO 2” CAST IRON 222 SERIES PUMP

• More gallons per minute! — Higher pressure!

• Maximum engine protection

• Pump end separated from engine

• Heavy duty slinger seal on motor shaft

• Large weep holes between pump end and the engine

PUMP FEATURES:

• Cast iron construction for rugged dependable service

• Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber

• Replaceable inlet and outlet ﬂanges

• Dynamically balanced impeller

HONDA ENGINE

FEATURES:

• Commercial grade

• Legendary reliability/durabilty

• Powerful overhead Valve (OHV)

• Oil alert

• Quiet, easy starting

• Industrial 2-stage air ﬁlter

• 2-year commercial & homeowner warranty

BANJO 3” M332 SERIES CAST IRON MANIFOLD WET SEAL PUMP

FEATURES:

• Durable cast iron construction

• Dynamically balanced impeller

• Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber

• Large weep holes between pump end and engine or motor

• “V” Shaped for quicker priming DO NOT USE FLAMMABLE LIQUIDS

2” 222 PUMP

HYPRO 2” CAST IRON PUMP

• Close-coupled, gas engine-driven

• Max ﬂuid temperature 140° F

• Housing: Cast Iron

• Impeller: Nylon

HYPRO 3” POLY TRANSFER PUMP

• Series 1543P

• Housing: 3” x 3”

• Pump Seals: EPDM Mechanical

• Suction Lift: 25 ft./7.62m

• Poly impeller with stainless steel

BANJO 2” & 3” CAST IRON PUMPS

2” & 3” CAST IRON PUMPS

FEATURES:

• Cast iron construction for rugged dependable service.

• Stainless steel shaft sleeve to protect engine shaft.

• Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber.

• Replaceable inlet and outlet ﬂanges.

• Dynamically balanced impeller.

• With the addition of the Banjo bearing pedestal, the pump is easily adaptable to electric motor.

• Easily adaptable to electric motor (ﬂexible coupling not included).

• 1” Straight keyed shaft

PRECAUTION-WARNINGS: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump. No Flammables.

* Pumps on this page are truck shipments only.

BEARING PEDESTAL PUMPS (POLY)

2” Poly Self Priming Centrifugal Pumps

With the addition of the Banjo bearing pedestal, the pump is easily adaptable to electric power. A ﬂexible shaft coupling is used between motor and pump shaft. Pump and motor assembly is mounted on a metal base.

TEL: (800) 669-2281

FAX: (319) 679-2929

ROLLER

PUMPS

Ace Roller Pumps are ideal for a large range of spraying, cleaning and transfer applications. Beneﬁts of these pumps include:

• A compact, low cost design

• Mount directly to common tractor PTO shafts with optional PTO coupler

• Available counter clockwise standard rotation on “-R” reverse rotation clockwise models verse rotation clockwise models

RP-600 Series 6 Roller Pump

RP-800 Series 8 Roller Pump

BANJO POLY PUMP, 2” & 3”

2” POLY PUMP WITH ELECTRIC MOTOR

FEATURES:

• Additional drive unit protection with added 1” spacer for ultimate protection

GAS ENGINE PUMPS WITH EPDM RUBBER PARTS (POLY)

HONDA FEATURES:

• High strength polypropylene

• Corrosion resistant

• LightweightPortable

• High performance impellers

BRIGGS FEATURES:

• More gallons per minute!

• Maximum engine protection

• Pump end separated from engine

• Heavy duty slinger seal on motor shaft

• Large weep holes between pump end and engine

• High performance Precision Molded Impellers

• “V” shaped for quicker priming

FMC-75-HYD-204

BAC-37 RK-GE-75 GE-26-75

Poly Centrifugal Driven by a 4GPM Hydraulic Motor with Integral Needle Valve. Part # Max Flow: 25 GPM 500075204 Max Pressure: 100 PSI $920.00

FMC-HYD-204

Suction 1-1/4” Discharge 1” Part # Requires 4 GPM hydraulic ﬂow PC & open 500000158 center systems $1,116.00

FMC-HYD-210

BAC-37 RK-FMC

BAC-26-HYD

BAC-37 RK-FMC BAC-26-HYD Suction 1-1/4” Discharge 1” Part # Requires 8 GPM hydraulic ﬂow LS closed 500000159 & open systems $1,116.00

FMC-150F-HYD-206

BAC-37 RK-FMC-150 BAC-26-150P

Cast Iron Centrifugal Driven by 7 GPM Hydraulic motor with intefral Needle Valve Inlet 220 Standard Port Flange Part # & 1-1/2” NPT Outlet 200 Standard Port Flange & 1-1/4” 500051611 NPT. Max Flow: 135 GPM Max Pressure: 120 PSI $1,194.00

FMC-200-HYD-304

Cast Iron Centrifugal Driven by 11 GPM Hydraulic Motor with Integral Needle Valve. Part # 2” NPT inlet/1-1/2” NPT Outlet. Max Flow: 500054349 200 GPM Max Pressure: 120 PSI $1,356.00

BAC-37 RK-FMC BAC-26-200-P

FMC5C-205AF-HYD-307A-CD

Cast Iron Centrifugal Driven by 16-19 GPM Hydraulic Motor with Case Drain Part # Replacement for CNH & Patriot Sprayers $1,625.00 500500300

TEL: (800) 669-2281 FAX: (319) 679-2929

HYDRAULIC - DRIVEN CENTRIFUGAL PUMP

150 Series Pump Repair Parts

200 Series Pump Repair Parts

7AC-14-CCW 2 Volute, 2” x 1-1/2”

BAC-23-A 3 Nut, 3/8” NF, cad plated

BAC-24-HYD-SS 4 Washer, 3/8” star, SS 40400 1

BAC-26-200-CI 5 Impeller, w/extended Keyway, Cast Iron (optional) 40433 1

BAC-26-200-P 5 Impeller, w/extended Keyway, thermoplastic 40434 1

BAC-4A 6(1) O-ring, body seal 40005 1

BAC-7V 7(1) Seal, carbon/ceramic/Viton(includes 40160 “O” Ring 40151 1

BAC-7SC 7(2) Seal, silicon carbide (includes 40160 ”O” Ring (Optional) 40152 1 40160 7A “O” Ring, shaft seal 40160 1

BAC-14-HYD-300A 8 Mounting frame (for - 300A series hydraulic motor) 40314 1 40950 9 Cap screw, 3/8” NC x 3/4” hex head, SS (Optional) 40950 4 41330 10 Cap screw, 5/16” NC x 3/4” hex head, motor to pump 41330 4

BAC-54 11 Slinger 41130 1

BAC-33 12 Snap ring, internal, BAC-14 mounting frame 40810 2

BAC-37 13 Ball Bearing, sealed, BAC-6 shaft 40870 2

BAC-32 14 Snap ring, external, BAC-6 shaft 40790 2

BAC-32-S 15 Spacer for BAC-6 shaft 40795 1

BAC-25 16 Key, 1/8” x 1/8” x 13/16”, extended keyway 40425 1

BAC-6-HYD-200-SS 17 Shaft, extended keyway, tang, SS 40063 1 S300 18 Seal support spacer for 300 Series HYD motor,eﬀective 6/00 40162 1

BAC-75-HYD-304A 19 Hydraulic motor, 11 GPM, 1/2” NPT ports 41388 1

BAC-75-HYD-304A-12SAE 19 Hydraulic motor, 11 GPM, #12 SAE end ports (optional) 41426 1

RK-FMC (1) Repair Kit for FMC series pump 52700RK-FMCSC (2) Repair Kit for FMC series pump with silicon carbide shaft seal 52706 -

RK-BAC-75-HYD-300-L # Repair Kit for 300 Series - L motor 41362 - PLEASE CALL FOR PRICING

HYDRAULIC - DRIVEN CENTRIFUGAL PUMP

FMC-HYD Series Pump Repair Parts

BAC-53 1 Pipe plug, SS (optional) 41110 4

BAC-12 2 Volute, 1-1/4” x 1”, cast iron 40250 1

BAC-23-A 3 Nut, 3/8” NF, cad plated, SS (optional) 40391 1

BAC-24-HYD-SS 4(1)(2) Washer, 3/8” star, SS 40400 1

BAC-26-HYD-VALOX 5 Impeller, Valox, keyway 40440 1

BAC-26-HYD-CI 5 Impeller, cast iron, keyway (optional) 40442 1

BAC-7V 6(1) Seal, carbon/ceramic/Viton (includes 40160 O-Ring) 40151 1

BAC-7SC 6(2) Seal, silicon carbide/Viton (includes 40160 O-Ring) (optional) 40152 1 40160 6A(1)(2) O-Ring, shaft seal 40160 1

BAC-4A 7(1)(2) O-Ring, body seal 40005 1

BAC-14-HYD 8 Mounting frame, cast iron (for 200 Series hydraulic motor) 40300 1

BAC-14-HYD-300A 8 Mounting frame, cast iron (for 300A Series hydraulic motor) 40314 1 40950 9 Cap screw, 3/8” NC x 3/4” hex head 40950 4 40930 9 Cap screw, 3/8” NC x 3/8” hex head, stainless steel (optional) 40930 4

BAC-54 10 Slinger 41130 1

BAC-33 11 Snap ring, internal, BAC-14 mounting frame 40810 2

BAC-37 12 Ball Bearing, sealed, BAC-6 shaft 40870 2

BAC-32 13 Snap ring, external, BAC-6 shaft 40790 2

BAC-32-S 14 Spacer for BAC-6 shaft 40795 1

BACH-25 15 Key, 1/8” x 1/8” x 1/2” 40420 1

BAC-6-HYD-SS 16 Shaft, 5/8” diameter, keyway and tang slot, SS 40061 1

BAC-75-HYD-204 17 Hydraulic motor, 4 GPM (includes parts 18 - 25) 41370 1

BAC-75-HYD-210 17 Hydraulic motor, 10 GPM (includes parts 18 - 25) 41375 1 S200 18 Seal support spacer for 200 Series HYD motor 40161 1 S300 18 Seal support spacer for 300 Series HYD motor 40162 1

BAC-75-HYD-204N 19 Hydraulic motor, 4 GPM (motor only - no external ﬁttings) 41433 1

BAC-75-HYD-210N 19 Hydraulic motor, 10 GPM (motor only - no external ﬁttings) 41434 1

BAC-75-HYD-310 19 Hydraulic motor, 16 GPM (310A motor eﬀective March 2006) 41378 1 41253

20 Cap screw, 5/16” N.C. x 3-1/2” socket head (for 204N motor) 41253 4 41254 20 Cap screw, 5/16” N.C. x 4” socket head (for 210N motor) 41254 4 41330

20 Cap screw, 5/16” n.C. x 3/4” hex head (for 310 motor) 41330 4 41875 21 O-RING, #8 SAE ﬁtting 41875 2

BAC-78-8SAE 22 Reverse check valve, #8 SAE male x 1/2” NPT female 41441 1

BAC-80-8SAE 23 Adapter, restrictor body, #8 SAE male x 1/2” NPT female 41455 1 41448

24 O-Ring, oriﬁce insert 41448 1 41457

25 Oriﬁce, restrictor insert, .078 (204N) 41457 1 41456

LS-204N

LS-210N

RK-FMC (1) Repair kit for FMC series pump 52700RK-FMCSC (2) Repair kit for FMC series with silicon carbide shaft seal 52706RK-BAC-75-HYD-L # Repair kit for 200 series motor with high pressure lip seal 41374RK-BAC-75-HYD-300-L # Repair kit for 310 motor with high pressure lip seal 41362 - PLEASE CALL

TEL: (800) 669-2281

FAX: (319) 679-2929

25 Oriﬁce, restrictor insert, .109 (210N) 41456 1

26 Flow limiting valve (204N), #8 SAE male x 1/2” NPT female 41417 1

26 Flow limiting valve (210N), #8 SAE male x 1/2” NPT female 41423 1

HIGH-PERFORMANCE PTO BELT

PTOC-150 SERIES

• Suction 1-1/2” — Discharge 1-1/4”

• Stainless steel shaft and wear ring

• Chemical resistant Valox® or optional cast iron impeller

• Standard viton carbon/ceramic seal or optional severe duty silicon carbide mechanical seal

• Spring loaded idler absorbs shock of PTO engagement

500051291 Pump, 540 RPM, 6 Spline QC, 1-3/8” PTO ..........................................$1,486.00

500051606 Pump, 540 RPM, 1” Stub Shaft ............................................................$1,486.00

500051607 Pump, 1000 RPM, 21 Spline, 1-3/8” PTO ............................................$1,490.00

500051608 Pump, 1000 RPM, 20 Spline, 1-3/4” PTO ............................................$1,533.00

500051609 Pump, 1000 RPM, 1” Stub Shaft ..........................................................$1,486.00

PTO BELT DRIVEN CENTRIFUGAL PUMP

• Suction 1-1/4” — Discharge 1”

• Stainless steel shaft and wear ring

• Chemical resistant Valox® or optional cast iron impeller

• Standard viton carbon/ceramic seal or optional severe duty silicon carbide mechanical seal

• Spring loaded idler absorbs shock of PTO engagement

Part

500000144 Pump, 6 Spline, QC, 540 — 1-3/8” PTO ...............................................$1,323.00

500513253 Pump, 540, 1” Shaft — 1-3/8” PTO .......................................................$1,323.00

500005577 Pump, 20 Spline, 1000 — 1-3/4” PTO...................................................$1,370.00

500000149 Pump, 21 Spline, 1000 — 1-3/8” PTO...................................................$1,327.00

Series 9300C CAST IRON PUMP

• Motor capacities: 5 — 20 gpm

• Centrifugal shaft seals: Viton/ceramic are standard (Buna-N/ceramic and Viton/silicon carbide are available) Max.

500000247 9303C-HM1C 114 13 gpm hydraulic motor/cast iron pump for open/closed center systems, ports (NPT): 1-1/2” inlet, 1-1/4” outlet

500000248 9303C-HM2C 97 5 gpm hydraulic motor/cast iron pump for closed center systems, ports (NPT): 1-1/2” inlet, 1-1/4”

500005494 9303C-HM3C 125 20 gpm hydraulic motor/cast iron pump, large open center systems, ports (NPT): 1-1/2” inlet, 1-1/4” outlet ..................................................................$1,328.00 500005590 9303C-HM4C 115 7 gpm hydraulic motor/cast iron pump, closed/open center systems, ports (NPT): 1-1/2” inlet, 1-1/4” outlet

9303C-HM5C 147 15 gpm hydraulic motor/cast iron pump, closed/open center systems, ports (NPT): 1-1/2” inlet, 1-1/4” outlet ..................................................................$1,248.00 591093061 9306C-HM1C 207 13 gpm hydraulic motor/cast iron pump, open/closed center systems, ports (NPT): 2” inlet, 1-1/2” outlet. ........................................................................$1,448.00 591930612 9306C-HM1C-BU 207 13 gpm hydraulic motor/cast iron pump, 220 flange inlet, 220 flange outlet, life guard silicon carbide seal .....................................................................$1,624.00 591093062 9306C-HM1C-U 207 13 gpm hydraulic motor/cast iron pump, 220 flange inlet, 220 flange outlet, viton/ceramic standard seal .......................................................................$1,500.00 591009306 9306S-HM1C 207 13 gpm hydraulic motor/stainless steel pump, 220 flange inlet, 220 flange outlet, viton/ceramic standard seal.............................................................$2,675.00 591093063 9306C-HM3C 214 24 gpm hydraulic motor/cast iron pump, open/closed center systems, ports (NPT): 2” inlet, 1-1/2” outlet. ........................................................................$1,527.00 591093065 9306C-HM5C 212 17 gpm hydraulic motor/cast iron pump for open/closed center systems, ports (NPT): 2” inlet, 1-1/2” outlet. ........................................................................$1,448.00 509306528 9306C-HM5-BU 212 15 gpm hydraulic motor/cast iron pump, 220 flange inlet, 220 flange outlet, life guard silicon carbide seal .....................................................................$1,624.00 591093066 9306C-HM5-U 212 15 gpm, hydraulic motor/cast iron pump, 220 flange inlet, 220 flange outlet, viton/ceramic standard seal .......................................................................$1,500.00 500093132 9306C-HM5 212 15 gpm, hydraulic motor/cast iron pump, 220 flange inlet, 220 flange outlet, with case drain, life guard silicon carbide seal ...........................................$1,707.00 591093064 9306S-HM1C-3U 283 13 gpm hydraulic motor/stainless steel pump, 300 flange inlet, 220 flange outlet, lifeguard silicon carbide seal ......................................................................$2,860.00

HYPRO SERIES 9300 REPAIR KITS

6500 SERIES ROLLER PUMPS 3/4” Ports, 5/8” Shaft

PUMPS AND COUPLERS

PTO COUPLERS

HYPRO PUMP PARTS

HYPRO PUMP 9303C

Repair Parts Kit No. 3430-0332

Contains: One o-ring (Ref. 5), one rubber gasket (Ref. 6), and one mechanical seal (Ref. 7).

Req’d.Part No.Description

142406-0007Drain/Vent Plug (9303C)

142406-0016Drain/Vent Plug (9303S)

210150-9000CPump Casing (Model 9303C) 210150-9000SPump Casing (Model 9303S)

1-3/8” PTO Dual Speed ...........................$63.65 Ref. No. Qty.

Silicon Seal Kit No. 3430-0589

Contains one each: 1720-0083 o-ring (Ref. 5) and one mechanical seal (silicon carbide) (Ref. 7).

2A10153-9000CPump Casing (Universal Flange Model C-U)

2A10153-9000SPump Casing (Universal Flange Model S-U)

312253-0002Impeller Nut (9303C)

312253-0006Impeller Nut (9303S)

410401-9100PImpeller (Nylon Std. 9303C)

410402-9100PImpeller (Polypropylene Optional) (Std 9303C)

511720-0083O-ring

611700-0100Gasket

713430-0322Mechanical Seal (Viton/Ceramic) (Std 9303C)

713430-0589Mechanical Seal (Silicon Carbide) (Std 9303S)

810750-9300CMounting Flange (9303C)

810756-9300SMounting Flange (9303S)

942210-0020Hex Head Cap Screw (9303C) 942210-0125Hex Head Cap Screw (9303S)

PUMP PARTS

HYPRO PUMP 9306C

Repair Parts Kit No. 3430-0332

Contains: One mechanical seal (Ref. 7), one o-ring (Ref. 5) and one rubber gasket (Ref. 6).

Ref. No. Qty.

Req’d.Part No.Description

142406-0007Drain/Vent Plug (9306C)

142406-0016Drain/Vent Plug (9306S)

210154-9200C1Pump Casing (9306C) 210154-9200S1Pump Casing (9306S)

Silicon Carbide Seal Kit No. 3430-0589

Contains one each: Mechanical seal (Ref. 7) and o-ring (Ref. 5).

2A10157-9200CPump Casing (Universal Flange 220x200)

2B10158-9200CPump Casing (Universal Flange 300x220 Cast)

2B10158-9200SPump Casing (Universal Flange 300x220 S.S.)

312253-0002Impeller Nut (9306C) 312253-0006Impeller Nut (9306S)

410401-9200P2Impeller (Nylon St. 9306C) 410405-9100P2Impeller (Polypropylene Optional) (Std. 9306S) 410407-9306PImpeller (GTX Optional)

511720-0083O-ring

611700-0100Gasket

713430-0332Mechanical Seal (Viton/Ceramic) Std. 9306C)

713430-0589Mechanical Seal (Silicon Carbide) (Std. 9306S)

810750-93002CMounting Flange (9306C)

810756-9300SMounting Flange (9306S)

942210-0020Hex Head Cap Screw (9306C) 942210-0125Hex Head Cap Screw (9306S)

CADDY SYSTEM

Part

MINI-BULK PUMP

Part

MINI-BULK FLOW METERS

DIGI-STAR SCALE PLATFORM KIT

Includes:

• Digi-Star E2400 Scale Head

• Heavy Duty 4’ x 8’ Steel Platform

Part #Description 5SPKIT 4’ x 8’ Kit ............. 4 welded on on each end)

• 4 - D-Rings welded on (2 on each end)

• 4 - Weigh bars with capacity 6,000# each

• 4 - 6,000# each

• Power Source 12V

• • Resolution as low as .01 increments

• Display Resolution as low as .01 increments

art # Description p SPKIT ............. CALL FOR PRICING

DURA PRODUCTS AG CHEMICAL TRANSFER SYSTEM

DURA-METERTM

• Made of impact resistant LexanTM faceplate

• 100% moisture-sealed circuitry makes meter impervious to water intrusion

• Menu driven backlit display

• Plumbed both for in-line and 90 degree applications

• Uses 4 - “AAA” Batteries

• 1” Inlet and Outlet

• Includes 2 Year Warranty

Part #DescriptionPrice

5DP3000E EPDM ........................$345.00

5DP3000V Viton ..........................$357.00

5DP3000S Silicone ......................$357.00

DURA-PUMP

• HighFlow 15gpm

• Self-priming diaphragm pump with Internet bypass

• Suction port has 2” MPT & 1” FPT

• Outlet 1” FPT

• 2-Year Warranty

5DP6018E110 EPDM, 110 Volt.................. $863.00

5DP6018V110 Viton, 110 Volt ................... $863.00

TEL: (800) 669-2281

FAX: (319) 679-2929

DURA-ABS AUTO BATCH SYSTEM

The industry’s only transfer system offering an automated dispensing option

• Automatically dispenses programmed amount

• Optimized for repeatable batching

• 100% moisture sealed circuitry

• Available in 12V, 110V and EPDM or Viton

• Features a 2-Year Warranty

Part #Description

• Easy Programming - (select volume and press start)

5DPABS6318E12 12V w/EPDM ................$1,684.00

5DPABS6318S12 12V w/Silicone ..............$1,796.00

5DPABS6318V12 12V w/Viton ..................$1,796.00

5DPABS6318E110 110V w/EPDM ..............$1,785.00

5DPABS6318V110 110V w/Viton ................$1,880.00

Includes: Dura-ABS Meter, 15 gpm Pump, Mounting Plate, 1” x 5’ hose, 1” x 12’ hose and miscellaneous ﬁttings with ball valve.

For use with 55 Gal. Drum,; Add to above Kit:

Part #Description Price Ea. 5DPT4001 Telescoping Downtube (1” NPT) ...$37.00

DURA-PUMP EASY CADDY

• High Flow 15 gpm Pump

• Meter Optional

• 12V or 110V and EPDM, Viton or Silicone options

Part #Description

5DPE6018E12

5DPE6018V12

5DPE6018E110

5DPEM6318V12

5DPEM6318E110

Includes:

• 15 gpm Pump

• 1” x 5’ Suction Hose

• 1” x 12’ Discharge Hose

• Bell Valve Nozzle

• 2” Camlock

• Meter Optional

HOW IT WORKS

1 Select the volume desired

2 Press START

3 The pump will begin to dispense ﬂuid and automatically shuts off when complete

NYLON NH3 ASSEMBLIES

1-1/2” x 5’ ...............CALL 98118022 1-1/2” x 6’ ...............CALL 98118023 1-1/2” x 7’ ...............CALL 98118025 1-1/2” x 10’

98118008 1-1/2” x 11’..............CALL 98118005 1-1/2” x 12’

98118010 1-1/2” x 14’ .............CALL 98118020 1-1/2” x 15’ .............CALL 98118065 1-1/2” x 18’ .............CALL 98118030 1-1/2” x 20’ .............CALL

Pre-Coupled Stainless Steel NH3 Assemblies

HOSE REELS

FEATURES:

FEATURES

• Heavy Duty Construction

• 12V Motor with Hand Control

• Manual Crank Handle Included

• Guide Tubes for Easy Retrieval

• LiquidLock Steel Swivel

• Manual Clutch Lockout for Easy Pull-Out

• 2-Way Wireless and Manual Switches

OPTIONS:

• Stainless Steel Swivel (2” or 3” only)

Hose Capacity

5HR/HRE200SS75’ of 2” Bumblebee

5HRE300SS75’ of 3” Bumblebee

5HRE200SS 2” Electric Hose Reel with SS Swivel ........................................$1,990.00

5HRE300SS 3” Electric Hose Reel with SS Swivel ........................................$3,190.00

5HRE200SS50 2” Electric Hose Reel w/50’ Black Fabric Hose and Valve ........$2,370.00 5HRE300SS50 3” Electric Hose Reel w/50’ Black Fabric Hose and Valve ........$3,890.00

HRE200SS

HRE300SS

*Premium Laminated Curved Anhydrous Ammonia Decals Avery Dennison SuperCast Series Vinyl is a premium vinyl designed for use in ﬂeet/vehicle decals for outstanding durability and outdoor performance. Includes 3M Scotchcal Overlaminate for 5 - 8 year outdoor life** with no curling. **Variable on application method, exposure, not guaranteed.

TEL: (800) 669-2281

FAX: (319) 679-2929

Part

Lubricates upper cylinders, fuel pumps and injectors. Cleans fuel injectors, engine induction system, intake valve and combustion chamber.

Part #DescriptionPrice/Ea. 540131021 12 oz. (Treats 15 Gallon) ..........................$7.58

ULSW DIESEL TREAT 2000

Cold temperature protection against fuel gelling, waxing and fuel line freeze-up.

Part #DescriptionPrice/Ea. 540137042

Liqueﬁes gelled diesel fuel and dissolve ice and wax formations.

Part #DescriptionPrice/Ea. 540284012 Quart (Treats up to 50 Gallon) ................$10.57

SOY SHIELD ALL SEASON

Bio fuel additive aimed to help clean and improve cold temp ﬂow characteristics.

Part #DescriptionPrice/Ea. 540139042 Pint (Treats 50 Gallons) .............................$6.80

CARBON TREAT ALL-SEASON

Diesel fuel additive - Cleans and prevents carbon deposits in the high pressure fuel systems.

Part #DescriptionPrice/Ea. 540137043 Pint (Treats up to 125 Gallons) ................$15.95

FUEL SHOCK

Part

SPECIALTY PRODUCTS

HIGH GRADE PREMIUM TALC FOR SEED APPLICATION

Uses for Talc:

• Decreases static electricity in vacuum planters and air seeders

• Eliminates bridging in seed boxes and seed tenders

• Exceptional lubricant for seed meters

• Recommended by equipment manufacturers

Directions for use of Talc:

Talc 100%

1 cup to 3 bushels of seed

11 cups to 35 bushels of seed

Talc 80/20

1/4 cup per 80,000 seed count

16 cups to 50 bushels of seed For vacuum and feed cup meters

Increase rate for treated and high humidity

User friendly 20 lb. EZ store pail with handle and hinged lid.

Increase rate for treated and high humidity

Hitch Features:

• Towbar extends 7” from frame and swings 12” for quick one-person hookups - no need to accurately position your truck and no more pushing or pulling trailers!

• Independent release for swings and extension. Handles are protected within hitch frame. Up to 18,000 lbs. weight carrying and 1,800 lbs. tongue weight (without weight distribution system).

• Full-cushion springs reduce transmission, diﬀerential, brake, suspension and frame stress, taking the “jerk” out of towing.

• Mounting Brackets for most pickups available. Call For Pricing

ARTICULATING IMPLEMENT HITCHES

The world’s strongest articulating implement hitch creates a vital union between your tractor and implement. These heavy-duty hitches are now made from a hardened steel forging, making them even stronger than before. The Bull-Pull increases drawbar life while eliminating backlash, for precise control. Bull-Pull hitches are built for heavy loads and are easy to install, making them an excellent improvement to a standard pintle hitch.

STANDARD MOUNT

The vital union of your tractor and implement gets the attention it deserves.

• Eliminates backlash for precise control

• Heavy-duty for heavy loads

• New hardened forged steel body, making it even stronger than austempered ductile iron

• Easy installation

• Increases the life of drawbars and drawpins

• Eliminates implement “slam”, reducing shock loads on tractor and implement

• Available in categories 2, 3, 4 & 5

• Ability to change from category 3 to 4 in seconds

Stutsman Part #

HORIZONTAL MOUNT

The same benefits as the standard mount, just a different mounting configuration.

• Austempered ductile iron body

• Available in categories 3, 4 & 5 SBPFCAT4JDF

Stutsman

• Heat Treated to Grade 5 Hardness

• C1045 High Tensile Steel

• Welded, Red Vinyl Coated Head and Handle

MOVING VEHICLE (SMV)

•

500710109 5/8” x 5 3/4”

500710108 3/4” x 6 1/2”

500710107 7/8” x 6 1/2”

500710106 1” x 7 1/2”

500710105 1 1/8” x 8 1/2” HD..........$23.00

500710104 1 1/4” x 8 1/2” HD..........$26.00

500710103 1 1/2” x 8 1/2” HD..........$33.50 Other Sizes Available.

(319) 679-2929

SAFETY EQUIPMENT

FOAM MARKER

TANK CLEANER

Spray Tank System Cleaner.

• Non Corrosive

• Helps prevent cross contamination

• One pound treats 100 gallons

• Safe for agriculture, turf and pest control use Part

CORNBELT — Produces a thick, bright white foam, featuring high visibility that performs well under adverse conditions. Part

Dye

TEL: (800) 669-2281

(319) 679-2929

Part #Description Price/Ea. 5097 1 Gallon ............... CALL 5098 2 1/2 Gallon ......... CALL

Part #Description Price/Ea. 5357 1 quart.................. CALL

ROUNDUP QUICK-PRO

Part #Description Price/Ea. 5309 5 X 1.5 oz............. CALL

PRAMITOL

Part #Description Price/Ea. 5274 25E, 1 Gallon ....... CALL 5275 5PS, 25# .............. CALL MOLE GRUB

Part #Description Price/Ea. 9455 Box of 4................ $15.87

COMPATABILITY AGENT

Part #Description Price/Ea. 5109 1 Gallon ............... $40.30

CLEANLOAD CHEMICAL EDUCTOR

FEATURES:

• The Cleanload is a self-contained eduction system which allows the operator to mix liquid and dry chemicals safely and quickly

• All crop protection chemistry is mixed at ground level, ensuring the safety of both the operator and the environment

• Equipped with tank rinse, designed to completely wash the Cleanload hopper

• ProCleanTM bottle rinse

• Optional suction lance allows the operator to educt bulk liquid and dry chemicals (wettable powders, dry ﬂowables and waterdispersibile granules) from large containers without secondary handling

* Semi-assembled kit for reduced shipping. Carton Quantity: 5

3376 Series Right hand ﬂow shown

3375 Series

FOAM MARKERS & SUPPLIES

FOAM MARKERS FOR SCHABEN SPRAYERS

• Designed and includes components for up to 90’ boom

• Use with ﬁeld speeds up to 12 MPH

INCLUDES:

• 20 Gallon power unit/tank assembly (10’ cable)

• Switch box with pwr controls (10’ cable)

• Remote mount foamheads (with two 10’ hoses)

• Foamhead mounting hardware

• Drop hoses

• Collector deﬂectors

• Foam streamers

• 150’ tubing lengths (1/4 & 3/8)

FOAMER SUPPLIES

Part

CHEMICAL ISOLATOR KIT

(Gauge Protector)

• The Chemical Isolator Kit keeps chemicals from entering the tractor or truck cab for added operator safety

• Dampens and protects pressure gauge from corrosive chemicals

• Large capacity assures accurate pressure reading.

• Maximum operating pressure, 150 PSI

• Pre-ﬁlled at the factory with non-toxic RV antifreeze.

Part #DescriptionPrice Ea. 500002391 Chemical Isolator with mounting bracket and 1/4” female NPT threads without tube ﬁttings.........$69.70 IT ps chemicals from

1 GALLON DUAL DROP F/S ATV FOAMER

This is our lightweight foam marker model that makes small golf ball sized foam marks. This system comes with a dual drop marker.

• 12 Volt system

• Easy to mount on an ATV sprayer

• 2 x 10’ of Liquid Air Tubing

• Air Tube: 1/4” diameter

• Liquid Tube: 1/4” diameter

• 10’ Cable to connect the remote switch to tank

• 6’ Power Cable connecting remote switch to power supply

#DescriptionPrice/Ea.

TEST SCALES

FERTILIZER DENSITY SCALE

Measures the density of various fertilizer blends by both pounds per cubic foot and kilograms per cubic meter.

Part

SEED APPLICATION RATE SCALE

Named “SEEDER METER” determines POUNDS per ACRE

Part #DescriptionPrice Ea. 500000250 Seeder Meter..........................$100.00

GRAIN TEST WEIGHT SCALE

Scale is simple to use and determines POUNDS per BUSHEL for all grains.

Part #DescriptionPrice

subject to change without notice

GAUGES

LIQUID FLOW DIVIDERS

DRY STAINLESS STEEL MNPT (NH3)

Part

599019180 2-1/2” Face .......0-400..........$21.10

500000604 4” Face ..............0-60...........$44.00

500001604 4” Face .............0-160..........$44.00

95738110100 2-1/2” Face.....0-100..........$50.85

95738110160 2-1/2” Face.....0-160..........$50.85

- JOHN BLUE FLOW DIVIDER Accurately

DIVIDERS FLOW SPLITTERS

JOHN BLUE IMPELLICONES

& 13 Port Impellicone ..............$3.25 595115530 O-Ring - 18 Port Impellicone ....................$3.85 500103986 Impellicone Bracket ................................$40.00

520111656A1812

520111661A18133-Way$394.45

520111662A18164-Way$394.45

520111668A18175-Way$394.45

NH3 STEEL HOSE BARBS

ANHYDROUS ACCESSORIES

NH3 FORGED STEEL PLUGS

HOSE END GLOBE VALVES

SQUIBB TAYLOR LOCKING COLLAR

SENIOR NH3 GAUGES - STANDARD STOCK SIZES

Float Gauges are designed to indicate the liquid level contents of Anhydrous-Ammonia (NH3) Containers. These gauges mount in a Senior ﬂanged coupling with a 2 1/2” (51,5) diameter bolt circle. Senior gauges in top, side or end, and angle mounting for above ground tanks. A visible “4” Dial is available. NOTE: Torque mounting bolts evenly to 30 to 60 in-lb. [3,4 to 6,8 Nm]

SENIOR NH3 STANDARD STOCK SIZES

Part

SENIOR N-SERVE SS STANDARD STOCK SIZES

Part

A1520

A1525, A1527 & A1528

A330P

ANHYDROUS ACCESSORIES

SQUIBB TAYLOR SNAP ACTING HOSE END VALVES & ROTASEALS

ACME ADAPTERS

SQUIBB TAYLOR - FLO-MAX SAFETY COUPLERS

520113201

520113044 O-Ring Kit 126 and Tool ........................................................................$64.75 520113207 O-Ring Kit 150 and Tool ........................................................................$44.50

SQUIBB TAYLOR RELIEF VALVE MANIFOLD Part # Description -

A1416A

ANHYDROUS ACCESSORIES

SQUIBB TAYLOR HI-FLOW NURSE TANK VALVES

**Back Check

SQUIBB TAYLOR RISER VALVES

520110586 AR491NP-70 (AL477 & AL477-70) Riser

AR492NP-70 (AL478 & AL478-70) Riser

520110591 AR493NR-95 (AL479 & 490NR-95) Riser Valve...................................$576.70 520110593 AR494NR-110 (A490NR & A490R-110) Riser Valve ............................$576.70

No Special Hex Bushings Required. Do NOT use in Nurse Tanks. Reference ANSI Standard K61.1 Section 5.5.4 Regarding Excess Flows or Refer to the Local Authority having Jurisdiction.

SQUIBB

ANHYDROUS ACCESSORIES

TRIPODS & BULKHEADS

EXCESS FLOW VALVES

BACK CHECK VALVES

ANHYDROUS ACCESSORIES

EMERGENCY SHUTOFF VALVES

N550 ACCESSORIES

FLO-SAFE

N550 & P539A

N550 & P327D

FERTILIZER KNIVES

FREEZELESS KNIVES - DEEP FURROW

Part #DescriptionPrice Ea. 530005205 DF-1PMF Freezeless DF (Mole) 3/8” EVA........................................$88.90 530005207 DF-1PMF/3/4DA Freezeless DF (Mole),3/8” EVA, w/3/4” Vapor .......$98.90

FREEZELESS STANDARD POINT K-2

Part

530005215 K-2TF Freezeless up right knife, 3/8” EVA..........................................CALL 530005218 K-2TF Freezeless up right knife, 3/8” EVA w/3/4” Vapor .....................CALL 530005216 K-2TF/PLSPL Freezeless 3/8” EVA & Sealer....................................$76.65 530005217 K-2TF/3/4DA/PLSPL Freezeless 3/8” EVA w/3/4” Vapor & Sealer ...$95.30

CONVENTIONAL KNIVES - DEEP FURROW & MOPHER

Part #DescriptionPrice

530000079 DF-1PM/O Deep Furrow w/3/8” Open Tube .......................................CALL 530000087 DF-1PM/O/3/4”DA Deep Furrow w/3/8” Open Tube & 3/4” Vapor ......CALL 5M1TP8 Nichols 3/8” Tube w/Sealer ...............................................................$48.75

STANDARD POINT 1/2” X 2 1/2”

530000113 K-2T/0 3/8” Open Tube ................................................................CALL 530000116 K-2T/O/3/4DA/PLSPL 3/8” Open + 3/4” Vapor & Sealer ..............CALL 530000119 K-2T/O/PLSPL 3/8” Open Tube w/Sealer ....................................CALL 5N7CPTPSR8 Nichols 3/8” Tube w/Sealer ........................................................$59.80 5N7CPTSR834 Nichols 3/8” Tube with 3/4” Vapor ..............................................$83.30

K-4T KNIVES

Part #DescriptionPrice Ea. 530000120 K-4TSDF 3/8” Tube (Slim) 3/8” X 2-1/2” .............................................CALL 530000357 K-4T/O/PLSPL Open 1/2” X 2-1/2” .....................................................CALL 530000358 K-4T 3/8 x 3/4 /SP 1/2” X 2-1/2” ..........................................................CALL

LIQUID FERTILIZER KNIVES

Part #DescriptionPrice Ea.

530000157 Shim Kit.....................................................................................................$30.20 530000161 Thin Boron Knife (Not Coated)..................................................................$75.55 5N5CPTP8S Nichols 3/8” X 2-1/2” X 13”, Chromium Carbide Point .............................$45.00

IN-FURROW FERTILIZER PLACEMENT

Part #DescriptionPrice

AP-1985V Deere XP or X-Pro - 2006 + ................................................................CALL AP-1785V Deere Max Emerge or Kinze 2000 Series ...........................................CALL AP-4985V Kinze 4900 Series................................................................................CALL OTHER SIZES & COMBINATIONS AVAILABLE ANY COMBINATION OF 50 OR MORE RECEIVES AN ADDITIONAL 5% OFF!

Prices subject to change without notice

FERTILIZER COULTERS & BRACKETS

SHIELDAG COULTER BLADES

Note: An exclusive process developed by Shield AG assures the ﬂattest, truest running coulters on the market.

SHIELDAG RIGID SHANK

Bar Size Coulter Mount Front Bar Rigid Mount Lollipop Vert X Horiz. On Front Bar U-Bolts (Qty) 20” Arm 24” Arm Clamp Set Clamp Set

6X2 KSC-466340 AP-500534 (1) KSC-466360 KSC-466370 KSC-1262 KSC-386i-62

4X4 KSC-466340 AP-500531 (1) KSC-466360 KSC-466370 KSC-1244 KSC-386i-44

6X4 KSC-466340 AP-500532 (1) KSC-466360 KSC-466370 KSC-1264 KSC-386i-64

4X6 KSC-466640 AP-505532 (2) KSC-466360 KSC-466370 KSC-1246 KSC-386i-46

6X6 KSC-466640 AP-500533 (2) KSC-466360 KSC-466370 KSC-1266 KSC-386i-66

5X7 KSC-466571 AP-500535 (2) KSC-466360 KSC-466370 KSC-1257 KSC-384-57

5X5 KSC-466572 AP-505126 (2) KSC-466360 KSC-466360 KSC-1255 KSC-384-55

7X7 KSC-466571 AP-510755 (2) KSC-466360 KSC-466370 KSC-1277 KSC-384-77

CHOICE OF SHANK: KSC-1298, KSC-1298WP, KSC-1290, KSC-1295, KSC-1299

EXAMPLE: 4X6 means 4” vertical x 6” horizontal

SHIELD AG SPRING SHANK MOUNTS

6 X 2KSC-466340AP-500534 (1)KSC-466360KSC-466370N/AN/A

4 X 4KSC-466340AP-500531 (1)KSC-466360KSC-466370S-1244SLS-1244SLX

6 X 4KSC-466340AP-500532 (1)KSC-466360KSC-466370S-1264SLS-1264SLX

4 X 6KSC-466640AP-505532 (2)KSC-466360KSC-466370S-1246SLS-1246SLX

6 X 6KSC-466640AP-500533 (2)KSC-466360KSC-466370S-1266SLS-1266SLX

5 X 7KSC-466571AP-500535 (2)KSC-466360KSC-466370S-1257SLS-1257SLX

5 X 5KSC-466572AP-505126 (2)KSC-466360KSC-466370S-1255SLS-1255SLX

7 X 7KSC-466571AP-510755 (2)KSC-466360KSC-466370S-1277SLS-1277SLX

CHOICE OF SHANK: KSC-1298, KSC-1298WP, KSC-1290, KSC-1295, KSC-1299

Bolt for bolting the shank to the clamp 106-E3 3/4-10X3”

SHIELD AG SINGLE BAR LIQUID COULTER MOUNT

6 X 2KSC-466340AP-500534 (1)KSC-531002

4 X 4KSC-466340AP-500531 (1)KSC-531002

6 X 4KSC-466340AP-500532 (1)KSC-531002

4 X 6KSC-466640AP-505532 (2)KSC-531002

6 X 6KSC-466640AP-500533 (2)KSC-531002

5 X 7KSC-466571AP-500535 (2)KSC-531002

5 X 5KSC-466572AP-505126 (2)KSC-531002

7 X 7KSC-466571AP-510755 (2)KSC-531002

SHIELD AG COULTER PARTS

ItemPart #DescriptionQty

1KSC-466360-RP716Spring Pan, 7/16 X 32

2KSC-466315 (20” & 24”)Coulter Shaft1

3KSC-466320Coulter Pivot Assembly1

4KSC-466360-MB10Machine Bushing 10 ga.1

5MF6HWasher, Flat, 3/4” High Strength2 6106-N1HHCS, 3/4” x 14” Bolt GR.51

7KSC-466360-MB14Machine Bushing, 14 ga.2

8KSC-466360-CPCotter Pin, 1/4 X 21

9KSC-466360-GFDrive Zerk2

10KSC-466300-HUBN633 Hub Assembly With Bearings1

11AKSC-466300 (20”), KSC-46305 (24”)Colter Arm Assembly1

11BKSC-531020 Colter Arm Assembly1

12SPR-1 (20” & 24”)Main Spring1

13S1244SL-SPCSpring Cap Weldment2 14N6Nut, Hex, 3/4” High Strength1 15N6JNut, Hex, Jam, 3/4” Plated1

16KSC-466300-SPL (Spindle Only)N633 Spindle w/Hardware1

20 PL Combo (Not Shown)20” Smooth Blade

20 FL Combo (Not Shown)20” Fluted Blade

20 FLC Combo (Not Shown)20” Crucible Blade

20 NO Combo (Not Shown)20” Notched Blade

N633 HUB & SPINDLE PARTS

ItemPart #DescriptionQty

KSC-466300-HUBComes Complete with Items 1-8

1KSC-LM67010Inner Bearing Cup (large race)1

2KSC-LM11910Outer Bearing Cup (small race)1

3KSC-LM67048Inner Bearing Cone (large rollers/cage)1

4KSC-LM11949Outer Bearing Cone (small rollers/cage)1

5KSC-909911Hub Cap1

6KSC-906296Seal1

7KSC-913572Flange Head Bolts (each)4

8KSC-G1641-B1/4-28 X 35/64 Grease Zerk1

ItemPart #DescriptionQty

KSC-466300-SPLComes Complete with Items 9-11

9KSC-913608Spindle Washer1

10KSC-912953Spindle Castle Nut1

11KSC-905936Spindle Cotter Pin1

SHIELD AG FERTILIZER SHANKS

HINIKER ANHYDROUS AMMONIA KNIFE MONITOR

• PROVEN to reduce ODORS, SOLIDS & CRUSTING

• PROVEN to increase GROWTH and SURVIVAL rates

• Only ONE application per pit evacuation

• Reduces odor and gas build-up

Application: Apply 25-50 pounds of ManureMagic® for every million gallons of manure capacity. Visit manuremagic.com for full application details.

MANURE MECHANICAL DEFOAMERTM

An extremely eﬀective and fast-acting liquid manure mechanical defoamer. Apply at pump-out to knock down mechanical foam. Full pump-out or manure tanker capacity can be achieved. Add one gallon of Defoamer per 100,000 to 300,000 gallons of manure.

MANURE MASTER FOAM AWAYTM

Designed to knock down foam in swine storage facilities. It’s a concentrated dry blend of stabilized bacterial spores, enzymes, methane inhibitors and micronutrients. It inhibits the production of methane gas while populating the manure with beneﬁcial bioaugmentation microbes. Use 5 pounds FoamAway per 100,000 gallon manure. Also available in 10 or 25 pound pails.

Part #Description

MASTER

Manure Master Plus - PA provides technology to enhance liquid manure management including storage, handling, application, soil health, crop response and environmental safety. It can help enhance manure digestion and liquefaction, reduce barn and ﬁeld odors, reduce top crusting and bottom solids, enhance soil health and crop performance, reduce pest pressure and improve nutrient retention.

GAS MONITORS/HYDROGEN SULFIDE SENSORS

• 2 Year Life

• Hibernate mode - Spread 2 years over a 3 year period

• Docking capability

• .1 ppm resolution

• Calibration optional

• Shows gas reading

TEL: (800) 669-2281

(319) 679-2929

Ea.

TREATMENT PROTOCOL:

For one million gallons of manure, use 40 gallons of Manure Master Plus-PA on an annual basis: After major pump-out or at the start of treatment: 15 gallons (inoculation rate)

Treatment should occur 2 to 3 weeks after either the fall or spring pump-out, when pit/lagoon will be at its lowest capacity and fresh manure has accumulated. Scheduled 10 monthly treatments: 2.5 gallons/month (25 gallons total)

Treatment for 350,000 to 400,000 gallons (1,000 to 1,200 head swine barn) manure pit, use 15 gallons of Manure Master Plus-PA on an annual basis: After major pump-out or at the start of treatment: 5 gallons (inoculation rate)

Scheduled 10 monthly treatments: 1.0 gallon/month (10 gallons total)

LIQUID HANDLING PARTS

RINGLOCK HOULE FITTINGS

390771657 6” Male Ringlock to Hose Barb - Houle Green ..............$115.26 370095312 6” Male Ringlock 12 ga. to Hose Barb - Galvanized .....$114.06 390771658 8” Male Ringlock to Hose Barb - Houle Green ..............$187.94 370095314 8” Male Ringlock 12 ga. to Hose Barb - Galvanized .....$154.00 390760973 6” Female Ringlock to Hose Barb - Houle Green..........$182.00 370095311 6” Female Ringlock 12 ga. to Hose Barb - Galvanized .$150.00 390761951 8” Female Ringlock to Hose Barb - Houle Green..........$312.40 370095313 8” Female Ringlock 12 ga. to Hose Barb - Galvanized .$180.00

390760981 6” 45° Elbow x Female Ringlock ...................................$223.00 390761967 8” 45° Elbow x Female Ringlock ...................................$318.00 390761209 6” 70° Elbow x Female Ringlock ...................................$256.00

8”

Elbow x

Ringlock ...................................$406.00

6” 90° Elbow x Female Ringlock ...................................$267.00 390761848 8” 90° Elbow x Female Ringlock ...................................$392.00

390760980 6” 135° Elbow x Female Ringlock .................................$314.00 390761856 8” 135° Elbow x Female Ringlock .................................$465.00

All Females include Gasket Includes Gasket

FITTINGS

WELDABLE ELBOWS -

ANSI FLANGES

LOAD-OUT ASSEMBLIES

20’ of 6” Red Pressure Hose w/ Male and Female w/ Oring Better Bilt Fitting and 4 Bolt-on Clamps ......................$362.60

30’ of 6” Red Pressure Hose w/ Male and Female w/ Oring Better Bilt Fitting and 4

40’ of 6” Red Pressure Hose w/ Male and Female w/ Oring Better Bilt Fitting and 4

20’ of 8” Red Pressure Hose w/ Male and Female w/ Oring Better Bilt Fitting and 4 Bolt-on Clamps ......................$784.23

30’ of 8” Red Pressure Hose w/ Male and Female w/ Oring Better Bilt Fitting and 4 Bolt-on Clamps ......................$945.53

40’ of 8” Red Pressure Hose

TEL: (800) 669-2281

(319) 679-2929

BilFii

MATCO 10RW SERIES VALVES

ORBINOX VALVE

FARMSTAR HOSE HUSTLER & REEL

HOSE REEL

8-BOLT HUB

10-BOLT / 12,000#

Titan, Titan II, 2012HR, 2416HR, 2416HR-CF, Outlaw, Full Throttle, HHIII

10-BOLT / 15,000#

370801140CI Inner Race ............$29.75

300011068 Outer Race............$45.39

HOSE HUSTLER

Hose Hustler II

Part

Hose Hustler III Part

300011067

300011069

37080114S

37080114D

37080140BI Inner Bearing ........$51.38

300011069 Outer Bearing........$64.81

370801140S

37080114D

37080114G Dust Cap Gasket.....$6.00

370801115N Castle Nut ...............$6.00

DRAG HOSE FITTINGS

DRAG HOSE FITTINGS & ACCESSORIES

Hose Jack 6”

Hose Jack 10”

FARMSTAR MANIFOLD

Overhung Bearing Repair Kit - 370082030

1370101507Manifold Lift Plate$44.00 2370082029Hyd. Motor$756.00 3370082031Overhung Load Adapter$439.00 3A3708203111/4” Check Valve$46.00

4Elbow 2” 90 Black 5Nipple 2” 6370011190Check Valve 2”$56.00

7Elbow 2” 90 Street - Galv. 8370822414Winged T-Nut$50.00 9370822416Clamp, Over Center$105.00 1137082024916” O-Ring$80.00 12370822415Aluminum Seal Ring$350.00 13370000369Impeller Assembly$2,276.00 143708202443” Blocking Wing$67.73 143708202456” Blocking Wing$76.00 143708202469” Blocking Wing$83.61 1437082024712” Blocking Wing$93.42 16370822412Eye Bolt Assembly 1/2” x 2”$50.00 17Bolt, 1/2” x 4.5” 183708202411” Taper Bushing$108.00 2037010533CBolt, 3/8” x .75” Stainless$6.00 21370820248Cutting Knife$92.00 370202521Lid Assembly - Complete$6,295.00

FARMSTAR MANIFOLD BLOCKING WING RATE CHART

3” Wing - 1200 gpm and greater

6” Wing - 800 - 1200 gpm

9” Wing - 800 gpm or less

Prices subject to change without notice ITEMPART NUMBERDESCRIPTIONPRICE EA.

FARMSTAR LOAD STAND

CORNELL PUMP PARTS CORNELL PUMP-4NHTB

CORNELL PUMP-6NHTB

HOULE 4” HOG ELECTRIC PUMP

HOULE SUPER PUMP

93.5”-10’ Pit, 6” Discharge

HOULE SUPER PUMP

HOULE AGI LAGOON PUMP

390471018

390470309 390470304 390470308

390380241 390470314

390770455 Hub & Spindle

390770221 Complete Hub

390761387

TEL: (800) 669-2281 FAX: (319) 679-2929 Prices subject to change without notice

HOULE AGI LAGOON PUMP

390760704-#300

390763024-#350

390761998-20” (6”)

390762382-20” (8”)

390760998-20”

390390112

390014218

Prices subject to change without notice

390080026

390240446 390015003

390240600

390761681-20” 1000RPM

390761680-24” 540 RPM

390140462

390390490

390763103-20”

390750034 - 1/2” x 1 5/8”

390750035 - 1/2” x 1 15/16”

390750036 - 5/8” x 1 5/8”

390750037 - 5/8” x 1 15/16”

390760279-20”

390750034

HOULE AGI LAGOON PUMP

TEL: (800) 669-2281 FAX: (319) 679-2929

HOULE LIQUID SPREADER PARTS

10 BOLT BLACK HUB

HOULE LIQUID SPREADER

TIRES, RIMS, TUBES & FLAPS

HOULE LIQUID SPREADER PARTS

390762537 1000 RPM

390760284

390762058

390750149 1000 RPM 390750050

390760484-17 1/2”

390760601-19 3/8” 1000 RPM

390760073

subject to change without notice

390380039

390244613

390240633

390761578 from 96-1099 & Newer 390320013390320012390321013390320008390380097 390750123

(319) 679-2929

HOULE LIQUID SPREADER PARTS

TEL: (800) 669-2281 FAX: (319) 679-2929

HOULE LIQUID SPREADER PARTS

390330185 - 3-1/2” Suspension Cylinder

390330226 - 3-1/2” Seal Kit

390330197 - 3-1/4” Suspension Cylinder

390330225 - 3-1/4” Seal Kit

Suspension Arm Bushing

390390269 - Cast Arm

390390266 - Steel Arm

TEL: (800) 669-2281

FAX: (319) 679-2929

Prices subject to change without notice

HOULE LIQUID SPREADER PARTS

Prices subject to change without notice

390750044 - 17 3/8”, Tapered

390750684 - 15 3/8”, Tapered 390750566, Straight RH

Sept. 2014 & Newer17 3/8”, Tapered (S/N: CAI1-1408940)

2006 to 201415 3/8”, Tapered (S/N: CAI1-1408939 - 1801-065650)

2005 & OlderStraight

390750045 - 17 3/8”, Tapered 390750685 - 15 3/8”, Tapered 390750565, Straight LH

- 15 3/8”

390400096 - 17 3/8”

(319)

HOULE LIQUID SPREADER PARTS

15 3/8” Brake Rotor Black Hub

390471069

17 3/8” Brake Rotor Black Hub

TEL: (800) 669-2281

FAX: (319) 679-2929

without notice

HOULE LIQUID SPREADER PARTS

- 15 3/8”

390240800 - 17 3/8”

- 15 3/8”

390400096 - 17 3/8”

Caliper - NLA

390761507 - 15 3/8”

390771128 - 17 3/8”

Prices subject to change without notice

— 17 3/8” - Brake Rotor (SN: CAI1-1408940) Sept. 2014 & Newer

— 15 3/8” - Brake Rotor (SN: 95-783 to CAI1-1408939)

(319) 679-2929

Double Caliper

Single

HOULE TANK MANIFOLD PARTS

DIVERTER BOX

DISTRIBUTOR/MANIFOLD

“T” Nut..................................................$8.79

390770912 Inspection Plate w/ Gasket, Flat ........$47.88

390390084 Inspection Gasket ..............................$16.34 390770905 J Bolt ..................................................$20.55

390750576

PRECISION LIQUID MANURE HANDLING OFF SITE PUMP

Manure Tank Options:

• Precisely controls manure

• Equal

• Low maintenance and accurate application with

•

• VRT capable - apply according to a grid sample map or any map generated to apply manure at diﬀerent rates

• Guidance and automatic steering cable

• Geo Referenced as Applied Maps

FEATURES

Automatic Pressure Throttling

• Maintain set intake and discharge pressure targets while running, reducing the complexity to run multiple engines.

Line Break Warnings & Safeguards

• Safeguard your pumps from the dreaded cavitation.

The Nexus Advantage Control:

• End-user account information

• Crew creation

• Engine set-ups

• Auto-control your integrated hydrostat force feeder

RAVEN ISOBUS

Valuable, Real-Time Information

The engine control panel display screen gives operators valuable, real-time information about each pump including, but not limited to:

• Engine RPM

• Engine temperature

• Oil pressure

• Suction pressure

• Discharge pressure

• Battery voltage

• Flow rate (if an additional ﬂowmeter is added)

Engine codes will alert you with a yellow caution sign or red stop sign to indicate engine errors or warnings.

TOOLBARS

- HOULE DISC

TOOLBARS

TOOLBAR - DIETRICH

INJECTOR UNIT

TOOLBARS

TOOLBARS-COULTER TILL

(MAIN HUB)

(CLOSURE HUB)

TOOLBARS-COULTER TILL

PHANTOM REPLACEMENT PARTS

1370110861GREASE THROUGH BOLT$6.00 1A1/4 - 28 GREASE FITTING 2370110863MOUNT PIN SPACER WASHER$6.00 2A370111017MOUNT PIN D-SHAPE WASHER$10.00 3370103868CLOSURE ARM POLY BUSHING$65.00 4370204512CLOSURE ARM GREASE THROUGH 4.5 DEG. LH$256.00 4370204513CLOSURE ARM GREASE THROUGH 4.5 DEG. RH$256.00 4370204511CLOSURE ARM GREASE THROUGH 6 DEG. LH$278.00 4370204510CLOSURE ARM GREASE THROUGH 6 DEG. RH$278.00 537013905CBOLT, 3/4” X 2.25”$6.00 637010684CWASHER, 3/4”$0.70 7390244600BOLT, 1/2”-20 X 1.25”$1.34 837080100117” CLOSURE BLADE$72.00 9370801170CLOSURE HUB & VERTICAL ARM ASM$375.00 10370501154NUT, 1/2”-20 TOP LOCK$0.75 1137011516CNUT, 3/4” TOP LOCK$0.97 12370201556PHANTOM MANURE TUBE (RH)$371.00 12370201557PHANTOM MANURE TUBE (LH Shown)$371.00 133702015514-1/2 DEG MOUNT PLATE LH/RH$270.00 133702015666 DEG MOUNT PLATE LH/RH$355.00

1370022302 U-BOLT 4” W X 6” T, DRAG$42.00 1370022300 U-BOLT 6” W X 4” T, TANK$37.00 1A370022305 Nut - 7/8”$5.00 1B370022306Washer - 7/8”$5.00 3370801077 1.75” OD X .25” WALL BUSHING (2 Required)$39.00 4370602346 1/4” NPT GREASE ZERK$2.00 5370201578 MOUNT PLATE PIN$135.00 5A370501177NUT, 1/2” TOP LOCK$0.64 5370501172BOLT, 1/2 x 2.75” GR8$2.30

ITEMPART #DESCRIPTIONPRICE EA. 1370801017BOLT, 9/16” X 1.5”$2.60 2370103892GAUGE WHEEL CAP$46.00 3370501170NUT, 9/16” COUPLING$8.00 4370101090GAUGE WHEEL RETAINER ASM$215.00 537080122322” COULTER BLADE, 8MM$120.00 6370801190MAIN UNIT HUB & SPINDLE ASM$299.00 737010595CBOLT, 1/2” X 3.5”$2.36 8370501018BOLT, 9/16” X 2”$3.00 9370501177NUT, 1/2”

PHANTOM MAIN HUB PARTS

PHANTOM CLOSURE PARTS

5370801178ROLL PIN, 1/4” X 1.5”$5.00 6370801177NUT, 1”-14 HEX SLOTTED$6.00 7370801191WASHER, 1” FLAT$6.00 8370048548BEARING CONE$13.84 9370048510BEARING CUP$6.89 10GREASE ZERK, 1/4”-28 STRAIGHT 12 370801180 (3 PC. SEAL) COUNTERFACE PLATE $52.00 13V-SEAL, 1.75” SHAFT 14GRASSWRAP SLINGER/GUARD 16370801173CLOSURE SPINDLE SUB-ASSEMBLY$114.00 17*370801172CLOSURE HUB SUB-ASM W/O MOUNT ARM$265.00

*ITEM 17 INCLUDES ALL ITEMS EXCEPT ITEM 3

PHANTOM CLOSURE SPRING KITS

GREASE THROUGH STYLE

92BOLT 3/8” X 1.25” 101BOLT 3/8” X 1.50” HCS 113WASHER 3/8”FLAT USS 121BOLT 1/2” X 2.50” 131WASHER 1/2” FLAT Z

141GREASE ZERK 1/4” - 28 STRAIGHT Z 153NUT 3/8” TOP LOCK GR C

PHANTOM 2 CLOSURE HUB

NUHN ROTARY INJECTOR

20101-064Bolt -

21100-899Washer - Flat - 0.625” 22100-905Nut - Nylock - 0.625” - GR2

23110-766Bolt - Hex Head - 0.75” x 6” - GR8 - Yellow 24105-660Bolt - Hex Head - 0.75” x 8” - GR8 - Yellow

25102-652Nut - Nylock - 0.75” - GR8 - Yellow

NUHN VERTICAL PIT PUMP

13Bolt - Hex Head - 0.375” x 1” - GR8

14Bolt - Hex Head - 0.625” x 2” - GR5

15Bolt - Hex Head - 0.625” x 2.75” - GR5

16Nut - Nylock - 0.625”

17Bolt - Hex Head - 0.75” x 5.5” - GR5

18Nut - Nylock - 0.75” - GR2

VERTICAL PIT PUMP

NUHN CRAWLER

Style Crawler and Vertical Pit Pump Assembly

New Style Crawler and Vertical Pit Pump Assembly

NUHN CRAWLER

Pump Elbow and Fittings

BETTER-BILT PARTS

BALZER & BETTER-BILT PARTS

TEL: (800) 669-2281 FAX: (319) 679-2929

BALZER & BETTER-BILT PARTS

DODA PUMP PARTS

DODA AFI 35-CONE ASSEMBLY

DODA AFI 35-IMPELLER HOUSING

DODA PUMP PARTS

DODA AFI 35-PRIMER TANK

DODA AFI 35-MOISTURE TRAP

DODA PUMP PARTS

(Old Style Shown / NLA)

SBX Pull Type Spreaders

ITEMPART # DESCRIPTIONPRICE

7351148831Flap, SB Front Rubber$100.00 11351149649Clevis Hitch SB, Assembly$395.00 351107881Hitch, Single Lip, Cat 4 Bull Pull - 3 Bolt$495.00 14351140156BX - Threaded Rod Adjuster Assembly$26.00 15351140544Sprocket, Steel Idler 2” Bore$145.00 16351140787BX - Locking Ring, Rear Shaft$4.00 17351140184BX - Adjuster Plate / Nut Assembly$13.50 351100687Check Valve, Reversing Valve (Not Shown)$105.00 351108546PTO - 1-3/8 1000 CV$1,450.00 351108545PTO - 1-3/4 1000 CV$1,650.00

ITEMPART # DESCRIPTIONPRICE

5351108274Bearing, 2.188” W/Ctr Bottom Grease Zerk$93.75 8Bolt, 5/8” x 5-1/2” GR5 Plated 9Bolt, 5/8” x 8” Hex Head GR5 Plated 10351140787BX - Locking Ring, Ring Shaft$4.00 351108383 End Gate Lift Cyl * Not Shown (Guillotine) $375.00

ITEMPART # DESCRIPTIONPRICE

1Bolt, 3/4” x 3-1/2” GR5 Plated 2Washer, 3/4” SAE Plated 3351100711Sprocket-80, Idler HB 80a 12 x 3/4”$14.00 4Washer, 3/4” USS Plated 11351104821Motor, TG-0530-MS-820-AAAA Parker$955.00 12351102668Sprocket-80BS9-1.25” Bore 5/16” Keyway$64.00 13351103979Sprocket-80C60-2-3/16 BK (2) SS, 2” LTB$275.00 17351108330Latch, RW Rear Chain Door Cover$14.00

18Bolt, 1-1/2” x 2” GR5 Plated 19Locknut, 1/2” Nylon 20#80 or #80 HD Chain (6 ft./side) 21#80 or #80 HD Connector Link

(319) 679-2929 Prices subject to change without notice

Front View

Rear View And Transport Lights

Rear Floor Chain Drive System

SBX Pull Type Spreaders

ITEMPART #DESCRIPTIONPRICE

8351109499Bearing, #FC 208 Vertical Beater$105.00 13351105773Screw, Hex Head M16 x 1.5” x 50$5.49 14351108773VB - Flat Tooth, SB Auger$44.00 16351105773Screw, Hex Head M16 x 45 w/LN$5.49 17351161414VB - Formed Left Tooth Auger$23.00 18351161411VB - Formed Right Tooth Auger$23.00 351161636Reversible - Formed Tooth, Auger$30.00 23351148831Rubber, SBX Flap$100.00

SB/SBX Floor Chain

PART #DESCRIPTIONPRICE 351151096SB200 Channel Chain 88C$1,950.00 351149623SB600 Tube 88C$2,550.00 351148853SBX600 Tube 88C$2,350.00 351148857TSBX800 Tube 88C$2,900.00 351148858SBX800 Double Channel Chain 88C$3,255.00

ITEMPART #DESCRIPTIONPRICE

1351108737Bolt, Hubcap 5/16” x 1/2”$0.20 2351108509Nut, Wheel$3.25 3351108739Hubcap w/Gasket$12.95 4351108740Gasket$2.30 5351108741Nut, Outer Spindle$4.90 6351108742Lockwasher Spindle$5.70 7351108743Nut Inner Spindle$6.45 8351108744Outer Bearing Cone$34.00 9351108745Outer Bearing Cup$21.00 11351108747Inner Bearing Cup$29.00 12351108748Inner Bearing Cone$52.00 13351108656Seal, Wheel$50.25 14351108750Hub with Studs and Bearing Cups$475.00 15351108751Wheel Hub Spacers$75.00

Prices subject to change without notice

Vertical Beater

10-Bolt Hub & Parts

ARTEX TRACTOR PULLED SPREADERS

“S” Series

» Width: 5’

» Length: 16’ or 20’

» 300 cu. ft. or 400 cu. ft.

» Single Floor Chain

FEATURES:

SB Series

» Width: 5’ 6”

» Length: 14’ — 26’

» 300 cu. ft. — 700 cu. ft.

• 3/8” Thick tube construction on reach

• 5/8” Thick ﬂighting on vertical beater

• Remote grease banks

• Removable rear chain doors

• 88C Floor chain

• Floor chain pressure relief valve

• 7 Tooth rear chain drive sprocket

• 1/2” HMW poly ﬂoor

SBX Series

» Width: 6’ 6”

» Length: 16’ — 26’

» 528 cu. ft. — 858 cu. ft.

• Optional tire sizes available 425/65-22.5, 550/45-22.5, 600/50-22.5

• 10 Gauge steel walls

• 180 Degree swivel arm for hydraulic lines

• Articulating or clevis hitch

• Other models including combination trailers and truck mounts available on request

• Optional Cyclone Beater/Spinner combination for poultry, litter

• Guillotine Gate

• Optional Scale Based Rate Control System

FX-1800 AND

XH-1500

ROTARY CUTTERS

• Most heavy duty cutter on the market

• A single domed 7 gauge continuously welded deck. This makes the cutter extremely easy to clean, prevents water pooling and rusting, helps shed debris as you cut and weighs less than double decks

• 6.5” blade overlap and high blade tip speeds.

• A four gearbox drive line with independent slip clutches. The splitter has 1-3/4” 20 spline input and output shafts and is rated at 260hp. The centre and wing boxes have 1-3/4” 20 spline input shafts, 2-3/8” down shafts and are rated at 210hp.

• An 80 degree CV shaft allows for smooth power transmission during tight turns.

• Spun formed 7 gauge stump jumpers (round skid pans) ensure durability and balance.

• Available in 540 or 1000 rpm drive.

• Tandem walking axles result in smooth operation over rough surfaces on XH-1500.

• Higher slip clutch release settings than previous design ensures better performance in rough cutting.

CALL FOR PRICING

SDX-840, SDX-960 AND SDX-117 SNOW BLOWERS

• Highly eﬃcient 30” four paddle fan on the SDX-960 and 26” four paddle fan on the SDX-840, with an open center and cupped blades results in improved throwing distance.

• Schulte’s SDX-117 incorporates a 38” Five paddle open center cupped style fan which improves performance and is larger than most competitive designs on the market.

• Heavily reinforced auger feeds snow to the fan and ensures that chunks of ice and hard packed snow are broken up before being discharged.

• A replaceable cutting blade and replaceable adjustable skid shoes are standard on all models.

• A heavy duty gearbox with 1-5/8” splined shafts provides positive power delivery to the fan.

• A 300 degree rotating chute design includes a UHMW bearing area to reduce freeze up of the chute.

• Shear bolt protection for the fan and cross auger.

CALL FOR PRICING

S3 DELTA FLEX HARROWS

• Turf management

• Gravelled or dirt roadway maintenance

• Pasture management

• Forage crop improvement

• Arena resurfacing

• Seedbed preparation

• Corn stalk leveling

Delta Cart Features:

.Two-way ﬂexible tynes, cold-formed and built to last.

.5 inches of tyne means more tyne for your money. Choose from 7/16”, 1/2”, and 5/8” diameter tynes

.Cart frames use a sleeve and bolt-through mounting design for strength and are powder coated for durability

.Designed to handle rough terrain, 15” tires with extra long bolt-through spindle and reinforced axle

.Hydraulic cylinder mount is made from 1” solid steel, maximizing ﬂotation and durability

.Top mounted lift cylinder enhances ﬂotation and longevity

.Extra long hitch tongue for sharp turning when paired with other equipment

.Heavy duty cast hitch, 2000 lb. jack, safety chain – standard equipment

.Drawbars and 3-Points range in widths from 4 to 14’

.Carts are available in widths from 16 to 42’

TEL: (800) 669-2281

FAX: (319) 679-2929

SDX-117

AGRICULTURAL STORAGE AND HANDLING

HORIZONTAL ABOVEGROUND FUEL TANKS

Great Features. Great Quality:

• UL-142 Tanks bear the UL label

• Secondary Containment (double wall tanks only)

• Dip Stick for Tank Level Inspection

• Additional Spare Fittings

• Tank Saddles (HZDW tanks)

• Vented Fill Cap

SPECIFICATIONS

Accessories/Options:

• 4” Vents for tanks from 500-4000 gallon

• 5 Gallon Spill Bucket for 500-4000 gallon

• Krueger Sentry Site Level Gauge 500

• Krueger Sentry Site Level Gauge 1000-4000

• K2 Leak Gauge

• Vent Alarm

• PC350 Hose Retractor

MERIDIAN BULK SEED TENDERS

Designed to help you handle seed safer and easier while reducing your loading times so you can spend more hours each day planting.

Seed Express

110 - 92 Bushel, 1 Compartment, Poly Cupped Auger

225 - 180 Bushel, 2 Compartment, Poly Cupped Auger

240 - 192 Bushel, 2 Compartment, Conveyor

400 - 320 Bushel, 2 Compartment, Conveyor, Self-Loading

AGRICULTURAL STORAGE AND HANDLING

TRAVIS HSC 2000 SERIES SEED CART

Options:

• Holds 2 Big Boxes

• 8 HP Honda electric start

• 2-5/16” Ball Hitch

• Unload 625 lbs./minute

• 3,500# Rubber torsion axles

• Self contained hydraulic system

• Low center of gravity

• Powder coat paint

• 15’ 7” Poly cupped Auger

• 19’ 3-Staged telescoping down spout

TEL: (800) 669-2281

FAX: (319) 679-2929

subject to change without notice

FUEL TRAILERS

FuelPRO Trailers Available in 500, 750 and 990 Gallon.

Standard Features:

• 7 Gauge, Double Seam Welded Tank

• Internal Fuel Surge Baﬄes and Cross Bracing

• 6” Deep Drop Sump with 1/2” Drain Plug

• Custom 6” C-Channel Chassis

• Manufactured to DOT speciﬁcations

• Diamond Plate Rock Guard on Fenders

• Two Coats Acrylic Enamel Paint with Industrial Tuﬀ Coat Alkyde Primer

• Dexter Torsion Axles with EZ Lube Hubs

• 6 or 8 Bolt Steel Wheels (depending on model)

• ST235/80R16 Radial Tires

• GXL Outdoor Wire Ran Through Conduit for Maximum Protection from Weather Elements

• 12V DC Industrial Grade Pump, Rated up to 25 GPM and Self Priming

• Runs Oﬀ an Interstate Deep Cycle Battery (Standard on All Models with DC Pump)

• UPGRADE to a 40 GPM Kohler Electric Start, GAS Engine with Interstate Battery Battery Kit (N/A on 500 DEF Base Models)

• 18’ of 1” Fuel Hose with Auto Trip Nozzle on Base Models

• 35’ Auto Retracting Hose Reel with Auto Trip Nozzle on Models with Front Box

• At-a-Glance Fuel Gauge

• 5 Year Tank Warranty

Options:

• Aluminum Wheels, Air Compressor Generator, Fuel Meter, DEF Tank, Solar Charging Panel, Electric Over Hydraulic Jack, plus more.

FuelPRO 990 Front-Mid-Rear Box Model

FuelPRO 500 Base Model

SF500TSS TUFLINE STAINLESS STEEL PULL TYPE DRY

600 lb. capacity.

Can be pulled behind small tractors and/or ATV’s Also available in Black painted steel (SF500T)

• Pull Type ATV Spreader

• Wheel Driven

• Adjustable spreading angle right, left or straight

• Engage, disengage lever

• 52″ Wheel base for stability

• 18″ x 9.5″ pneumatic tires

• 1 7/8″ ball coupler hitch, 2″ coupler optional

• Disengageable axle gearbox for towing

• Available in painted steel or Stainless Steel

SUMMERS SPRAY FILL EXPRESS CHEMICAL BATCHING SYSTEM

Features:

• 3-Inch Plumbing - Extra large plumbing greatly reduces ﬁll times. The system is fully ﬂushable to help eliminate carry-over issues.

• Chemical Batching - To save time, chemicals in the stainless steel tank can be portioned into individual containment areas where they will remain separate until drawn into the sprayer. This avoids premixing, which can cause undesirable reactions

• Stainless Steel Tanks - Hold up to six diﬀerent chemicals in the SFX2430, or four chemicals in the SFX1630 to add to a mix. Each tank includes a jug rinse system for convenient chemical jug cleanout.

• Deep Sump Tank - A deep, aggressively angled bottom helps prevent splashing and is integral in moving chemicals quickly into the sprayer. This design also allows complete drainage of the tank.

• Rinse Wand - A handy solution for cleaning the chemical tanks, or for making a slurry during dry chemical induction.

• Forklift Access Holes - Quickly and easily move the Spray Fill Xpress from the ground to a tending trailer with the forklift access holes. At just 78 inches long, the SFX1630 is small enough to ﬁt crossways on a trailer.

• Modular Design - The SFX2430 is customizable using 3, 4, 5 or 6 tanks in 40- and 80-gallon capacities, for a total capacity of 240 gallons. The smaller SFX1630 is customizable using 2, 3 or 4 tanks for a total capacity of 160 gallons.

Options: Individual ﬂowmeters for each batch tank. Whole system scales. Attached pump.

TEL: (800) 669-2281

SFX2430

FAX: (319) 679-2929

The high capacity original model is 102 inches long (130 inches with pump) and can be ﬁtted with 3, 4, 5 or 6 tanks for a total of 240 gallons.

SFX1630

This smaller model can hold 2, 3, or 4 tanks for a total of 160 gallons, and at just 78 inches long (105 inches with pump) will ﬁt crossways on a trailer.

TEL: (800) 669-2281

FAX: (319) 679-2929

ECS SEMI NURSE TRAILERS

31’ Tender Trailer with 3,500 Gallon Mid-State 8660 Stainless Steel Tank

• HD Sills

• 2” Sparger

• Baﬄes

• Full length sump

• 10’ Wood upper deck

• 3” Side or rear unload

• 3” Banjo wet seal pump w/13 hp Honda motor

• LED lighting and reﬂector tape

• Powder coat paint

• Other tank options available

ECS POLY NURSE TRAILERS

ECS 1010HD

• 1010 Gallon Norwesco Tank

• 2” Quick ﬁll

• Honda motor on Banjo pump

• Adjustable clevis hitch

• 2” Discharge

 Norwesco heavy weight tanks

 Tank Sizes: 1010, 1315, 1610 and 2010 gallons

 Total drainable tanks

 2” Honda pump

 Banjo ﬁttings

 Dexter EZ lube axles

 Heavy tube frame

 Highway tires

 Heavy duty jack

 Powder coat ﬁnish

Optional:

• Lights

• Fenders

• Platform & Storage deck

• Gooseneck

subject to change without notice

Demco Liquid Tender Trailer

• 24” King Pin

• 2 Aluminum steps with handrail

• Available in 36’, 38’, 40’, 42’ and 48’ Length

• Tank Size: 2350, 2750 or 3250 Gallon

• 255/70 R22.5 16 Ply Tires

ECS 2010HD

• 2010 Gallon Norwesco Tank

• 2” Quick ﬁll

• Honda motor on Banjo pump

• Surge brakes on one axle

• Adjustable clevis hitch

• 2” Discharge

• 2” Plumbing with agitation

• Extended platform

ECS 2010HD

• Gooseneck

• Extended 8’ wide platform

ECS EQUIPMENT

NH3 TOOLBARS

• 42’ — 60’

• Heavy duty frame, 4 x 6 x 3/8

DOUBLE CONE PORTABLE TRAILERS

• 2 — 2,500 Gallon

• 2 — 3,000 Gallon

NH3 WAGON GEARS

• Single 1,000 or 1,450 Gallon

• Adjustable axle

• Fixed axle

GOOSENECK NH3 GEARS

• 2 — 1,000 Gallon

• 2 — 1,450 Gallon

• 1 — 2,000 Gallon

• 3 — 1,000 Gallon

STAINLESS STEEL NURSE TRAILERS

• 1,000 - 2,000 Gallon Tank

• Gooseneck or Bumper Hitch

• Extended storage deck option

• Electric or surge brakes

• Dexter EZ lube axle

• Heavy tube frame with heavy-duty jack

• Powder coat ﬁnish

TEL: (800) 669-2281

FAX: (319) 679-2929 Prices subject to change without notice

LAWN & GARDEN

595300015 15 Gallon Spot Sprayer .....................................................$255.00

595300025 25 Gallon Spot Sprayer .....................................................$269.00

• Corrosion Resistant Polyethylene Tank

• In Tank Filter System

• 12 Volt SHURﬂo Pump; 2.2 GPM; 100 PSI

• R1LAM Handgun - Spray up to 30’ Horizontal

• 15’ of 3/8” Rubber Hose

595301169 15 Gallon ATV Sprayer - Less Boom.................................$392.00 595301170 25 Gallon ATV Sprayer - Less Boom.................................$399.00

• Corrosion Resistant Polyethylene Tank

• Handgun Kit - R1ALM

• 2.2 GPM SHURﬂo Pump; 100 PSI

• Bypass Kit With Pressure Gauge

• 8’ Electric Cord With Battery Clip

• Boom Mounting Brackets (Boom Sold Separately)

595301406 25 Gallon Boomless Sprayer.............................................$749.00

• Corrosion Resistant Polyethylene Tank

• 12 Volt Pump; 4.0 GPM SHURﬂo

• 3 Individual Nozzle Shutoﬀs With Adjustable Angle

• 3 Polypropylene Nozzles With 30 Feet Spray Swath

595301167 15 Gallon Trailer Sprayer - Less Boom .............................$590.00

595301168 25 Gallon Trailer Sprayer - Less Boom .............................$599.00

• Corrosion Resistant Polyethylene Tank

• 12 Volt SHURﬂo Diaphragm Pump; 2.2 GPM

• Trailer With Large Pneumatic Tires

• Boom Mounting Brackets (Boom Sold Separately)

• Handgun Kit With 15’ Hose And R1ALM Handgun With Adjustable Nozzle

595301448 60 Gallon Trailer Sprayer 12 Volt - Less Boom ..............$2,132.00

• Corrosion Resistant Polyethylene Tank

• Full Drain Out Capability With Molded - In Drain Port

• 12 Volt Diaphragm Pump

• Boom Mounting Brackets (Boom Sold Separately)

595302904 65 Gallon Utility Sprayer - Less Boom ...........................$1,099.00

• Heavy Duty Roto Molded Polyethylene Tank

• 12 Volt Shurﬂo Pump; 4.0 GPM; 45 PSI Max

• Deluxe Handgun With Adjustable Pattern Tip and 25’ of Hose

• Built for the bed of your UTV (47” x 34-1/2” x 16-3/4”)

• Boom Mounting Brackets (Boom Sold Separately)

subject to change without notice

F.S MANUFACTURING TRU-KLEEN ATV SPRAYERS

Part # Description Price/Ea.

–

ATV Skid

Boom18Flex 18’ Narrow Fold ...........................................$880.00

Boom20Flex 20” Spray Boom...........................................$920.00

Boom22Flex

F/S HOMESTEAD 3 PT. SPRAYERS

Standard Features:

• Category I or II Hitch

• Hypro Cast Iron PTO Roller Pumps

• Hose Reel and Spray Wand NOW STANDARD!

• TeeJet Manual Controls

• 4 Point Standard

• 1 Year Sprayer Warranty

*Multiple Sizes Available

SUPERIOR PERFORMANCE BACKPACK SPRAYERS & MORE

The 4-Gallon HD400 is both robust and versatile. Independently tested for 1,500 hours without breakdown. This sprayer has a heavy duty build that takes performance and accuracy to another level with backpack sprayers.

Repair kit available upon request

ROBUSTNESS & VERSATILITY

Heavy Duty Trigger

Metal trigger can also be used as ﬁeld service tool.

Stainless Steel Wand

Very durable and chemical and corrosion resistant

Versatility

Easily converts for right or left hand operation.

High-density Polyethylene Tank Ergonomic design that is impact, chemical and UV resistant.

Bullt-in Agitator

Internal agitator constantly mixes chemical solution.

Nozzle

Adjustable cone nozzle standard and a complete line of nozzles are available.

Large 115 mm Filler Opening For fast ﬁlls and less spilling.

Carry Handle Molded in carry handle for convenience and ease of storage.

4-Gallon Viton Piston Cup

TEL: (800) 669-2281

(319) 679-2929

Large Capacity 900 ml Chamber Eﬃcient design with Viton Piston cup maintains pressure with less pumping.

Lever and Wand Storage Clip

Internal agitator constantly mixes chemical solution.

Deluxe Shoulder Straps Easily adjustable thick padded straps for operator comfort.

Tank Level Indicator

Very accurate ﬁll measurements in both gallons and liters.

Wide Base Tough composite base for added stability.

subject to change without notice

DALTON FERTILIZER SPREADERS & APPLICATORS

Mobility 600 & 800 Row Crop Speciﬁcations

Features:

• Hopper constructed of 409 stainless steel for longer life

• VRT-ready option for precision farming operations

• Twin PTO or tractor hydraulic spinners adjust to 40’, 50’ or 60’ spread pattern

• Retractable roll tarp standard on all models

• Up to 44” ground clearance under spinners, up to 37” under frame

• 42” - 46” high proﬁle row crop wheels and tires standard

- duals available

• State-of-the-art powder

coat white paint

• Adjustable axle 80” - 120”

• Scale Kit option

• 24-month limited warranty

DW SERIES NH3 TOOLBAR

• Row spacing 30”

• Work width 16 - 18 rows or 20-22 rows

• Heavy duty 6 x 6 Frame

• Frame Warranty - 2 years

• Light Kit - standard

• Bull Pull Hitch - Cat 4

• Raven Vortex Cooler Kit

• Heavy-duty independent oﬀ-set disc sealers

• Other sizes and options available

DLQHD “Delta Edition”

DLQHD 11-15 Row Combo Applicator

DALTON

Dalton 1315 gal. Cone bottom nurse trailer

SALFORD HALO VRT

The Halo VRT features adjustable blade angles to adapt tillage to any field condition while performing the work of multiple tillage machines. Mounted on 5 inch net spacing, the blades have rubber torsion suspension cable of 7.5” of travel or obstacle protection in rough and rocky conditions. Each 22 inch wavy blade is independently mounted, absorbing the shock load and providing excellent soil and residue flow through the machine and an even finish at speeds up to 14 mph.

All models transport under 12 feet wide. Double 14” rollers.

AERWAY BY SALFORD

• True vertical tillage

• Relieve compaction, manage crop residue, and warm the loosened soil for seedbed prep

• Available in single roller design and double roller (CCT) with harrow and rolling basket options

TEL: (800) 669-2281

FAX: (319) 679-2929

Prices subject to change without notice

VALMAR 56 SERIES IMPLEMENT-MOUNT APPLICATOR

• Perfect for seeding cover crops or applying fertilizer

• Commonly mounted on tillage, harrows and high clearance sprayers

• Precise metering

• Accomplish more work with one pass

VALMAR ST SERIES FERTILIZER CART

• 40-650 lbs. per acre metering range

• Available with pathﬁnder steerable cart or skid mount

• Optional single or dual product applicator with four sections

VALMAR AIRFLO PULL-TYPE AIR BOOM APPLICATORS

• High capacity and high speed applications (1,000 lbs./Acre @ 8 mph)

• Capable of hydraulic variable rate application

• Split hopper and dual metering = multi-product blends

SALFORD INDEPENDENT SERIES TILLAGE EQUIPMENT

I-1200

• True vertical tillage

• Superior residue management

• Shatters compaction

• Can transition into fertilizer applicator or chisel with the addition of Switch Blade shanks

SALFORD BBI SPREADER EQUIPMENT

MAGNA SPREAD JAVELIN ENDURANCE

• Fertilizer, Lime and Litter spreaders

• Wider, ﬂatter spread pattern

• Models from 634-336 cubic ft.

• Self-contained hydraulic system

I-2100

• Any soil, any season

• Wet or dry conditions

• 22” blades oﬀer deep soil penetration

KRONE HAY & FORAGE EQUIPMENT

• Disc Mowers & Mower Conditioners

• Rotary Tedders & Rakes

• Round Balers

• Large Square Balers & Accumulators

• Self-Propelled Forage Harvesters

KRONE EASY CUT MOWERS

• Fully welded cutterbar reduces risk of leaks and breaking

• Large, low RPM idler gears generate less heat and decrease maintenance

• Oﬀset pinion gear drives individual mower discs

• Skid shoes provide maximum wear protection to the cutterbar

• No inner shoe reduces mower drag and horsepower requirements

• SafecutTM hubs shear a roll pin if an obstacle is hit, reducing the risk of damage

• Quick ChangeTM blades make changing blades quick and easy with a single tool

• SmartCut cutterbar increases the blade overlap

KRONE ROTARY RAKES

• Clean Windrows

• Better Feed

• Greater ground clearance

• Higher work rates

• No crop contamination

• Higher-quality forage

• Minimum crop loss

KRONE KW/KWT ROTARY TEDDERS

• Clean forage with uniform spread

• Complete range of mounted and trailed models

• Maintenance-free driveline with 8-ﬁnger OctoLink clutch

• Maintenance-free, liquid-grease lubricated gearboxes

• Hardwearing Super-C tines

• Central border spreading control

TEL: (800) 669-2281

FAX: (319) 679-2929

6000 SERIES w/60’ or 72’ Boom

• 1,050 Gallon Tank

• 320/90R/38 Tires - 8-Bolt

• Short Hitch Pin To Axle - 158”

• 60’ or 72’ Heavy Duty Side Fold Boom w/Hydraulic

Accumulators

• Axle Adjustable from 60” - 120”

• 80 Gallon Fresh Water

7000 SERIES

w/60’,

• 1,350 Gallon Tank

80’ or 90’ Boom

• 46” - 10-Bolt; Dual Option

• Short Hitch Pin To Axle - 175”

• 60’, 80’ or 90’ Boom

• Heavy Duty 6” x 3” Center Section With 3” King Pin Center Pivot Suspension System

• 150 Gallon Rinse Tank

CALL FOR PRICING

8000 SERIES w/60’ to 132’ Boom

• 1,650 or 1,950 Gallon Tank

• 54” Rubber Tires - 10-Bolt; Dual Option

• Short Hitch Pin To Axle - 175”

• 60’, 80’ Or 90’, 120’ Or 132’ Boom

• Heavy 6” x 3” Center Suction With Ultra Glide Center Pivot Suspension System And Anti-Yaw System For Wing Ride

• 150 Gallon Rinse Tank

AG SPRAY LA9000 LIQUID APPLICATOR

• W/ 27’, 30’, 35’, 40’, or 55’ toolbar

• Wheel Drive Piston or Hydraulic Centrifugal Pump

• Short coupled trailer design with front mount bar

• Double toolbar 4x6 with large 2.25” pins and bushings

• Adjustable wing down pressure to maintain uniform coulter depth across tool bar

• Automatic gull wing is standard

AG SPRAY LA5000, 27’ & 35’ TOOLBAR

• 1,050 gallon redesigned tank

• 7 x 7 Toolbar

• Adjustable constant wing down pressure

• Front mount toolbar for superior trailing

• Toolbar guage wheels

• 320/85R/38 tires

• Gull wing standard

• Hydraulic or ground drive pump

Formulas and Conversion Factors

Useful Formulas

GPM = GPA x MPH x W GAL/1000FT2 — Gallons Per (Per Nozzle) 5,940 1000 Square Feet

GPM = GAL/1000FT x MPH x W MPH — Miles Per Hour (Per Nozzle) 136

GPA = 5,940 x GPM (Per Nozzle) W — Nozzle spacing (in inches) for MPH x W broadcast spraying

GAL/1000FT2 = 136 x GPM (Per Nozzle) — Spray width (in inches) for MPH x W single nozzle, band spraying or boomless spraying

GPM — Gallons Per Minute

— Row spacing (in inches) divided GPA — Gallons Per Acre by the number of nozzles per row for directed spraying. 2

Spraying Solutions Other Than Water — New Method

Since all the tabulations in this catalog are based on spraying water, which weighs 8.34 lbs. per USA gallon, conversion factors must be used when spraying solutions which are heavier or lighter than water. To determine the proper size nozzle for the solution to be sprayed, ﬁrst multiply the desired GPM or GPA of solution by the water rate conversion factor. Then use the new converted GPM or GPA rate to select the proper size nozzle.

Example:

Desired application rate is 20 GPA of 28% N. Determine the correct nozzle size as follows:

GPA (solution) x Conversion factor = GPA (from table)

20 GPA (28%) x 1.13 = 22.6 GPA (water)

The applicator should choose a nozzle size that will supply 22.6 GPA of water at the desired pressure.

Measuring Travel Speed

Measure a test course in the area to be sprayed or in an area with similar surface conditions. Minimum lengths of 100 and 200 feet are recommended for measuring speeds up to 5 and 10 mph, respectively. Determine the time required to travel the test course. To help insure accuracy, conduct the speed check with a partially loaded (about half full) sprayer and select the engine throttle setting and gear that will be used when spraying. Repeat the above process and average the times that were measured. Use the following equation or the table below to determine ground speed.

Speed (MPH) = Distance (ft) x 60

Time (seconds) x 88

Speeds

0.5136273409 1.068136205 154591136 2.03468102 2.5275582 3.0234568 3.5193958 4.0173451 4.5153045 5.0142741 5.5-2537 6.0-2334

Miscellaneous Conversion Factors

One Acre = 43,560 square feet One Mile = 5,280 Feet = 43.56 1000FT2 blocks = 1,610 Meters = 0.405 Hectares = 1.61 Kilometers

One Hectare = 2.471 Acres One Gallon = 128 Fluid Ounces

One Gallon Per Acre = 8 Pints = 2.9 Fluid Ounces per 1000FT2 =

TEL: (800) 669-2281

FAX: (319) 679-2929

Prices subject to change without notice

Nozzle Spacing

If the nozzle spacing on your boom is diﬀerent than those tabulated, multiply the tabulated GPA coverages by one of the following factors.

To calculate a conversion factor for spacings not listed in tables below, use the following formula:

Conversion Factor = Nozzle Spacing in table (inches) Your Nozzle Spacing (inches)

Suggested Minimum Spray Heights

The nozzle height suggestions in the table below are based on the minimum overlap required to obtain uniform distribution. However, in many cases, typical height adjustments are based on a 1 to 1 nozzle spacing to height ratio. For example, 110° ﬂat spray tips spaced 20 inches apart, are commonly set 20 inches above the target.

TeeJet® Standard, TJ65°22-24”33-35”NR*

TeeJet, XR, TX, DG, TJ80°17-19”26-28”NR*

TeeJet, XR, DG, TT, TJ, AI110°16-18”20-22”NR*

FullJet®120°10-18”**14-18”**14-18”**

FloodJet®, TK, TF120°14-16”***15-17”***18-20”***

*Not recommended.

** Nozzle height based on 30° to 45° angle of orientation

***Wide angle spray tip height is inﬂuenced by nozzle orientation. The critical factor is to achieve a double spray pattern overlap for TK FloodJet nozzles.

subject to change without notice

AccuPulse TwinJet Twin Flat Spray Tips

• Speciﬁcally designed for use on sprayers equipped with Pulse Width Modulation (PWM) spray tip control

• Can also be used for non-PWM applications, where maximum drift control is desired

• Non-air induction Twin spray tip, that produces highly drift-resistant droplets (XC and UC)

• Patent-pending recirculating design and concave exit oriﬁce geometry provide optimal spray performance

• Twin spray pattern allows for improved coverage and canopy penetration

• Compact design ﬁts into tight boom spaces and is less likely to be damaged during ﬁeld use

• Available in ten VisiFlo Polymer (VP) capacities

• Optimal for burndown, pre-emerge, and post-emerge systemic applications

Note: Always double check your application rates. Droplet size classiﬁcation shown is based on ISO 25358. Droplet size classiﬁcation standard is subject to change. Tabulations are based on spraying water at 70°F.

Caps for AccuPulse Spray Tips

Features:

Turbo TeeJet Wide Angle Flat Spray Tips

• Tapered edge wide angle ﬂat spray pattern for uniform coverage in broadcast spraying

• Large, rounded internal passage to minimize clogging

• Excellent resistance to corrosive solutions

• Superior wear characteristics

• Larger droplets for less drift — 15-90 PSI (1-6 bar)

Adjust spray height in the ﬁeld to overlap approximately 30% of each edge of pattern.

Suggested Spray Height

Turbo TeeJet® Spray Tips

TT 11001-VP Tip (Orange)

TT 110015-VP Tip (Green) $6.08

TT 11002-VP Tip (Yellow) ..$6.08 500054077 TT 110025-VP Tip (Purple) $6.08 500054074 TT 11003-VP Tip (Blue) .....$6.08 500054075 TT 11004-VP Tip (Red) ......$6.08

TT 11005-VP Tip (Brown) ..$6.06

TT 11006-VP Tip (Gray).....$6.08

TT 11008-VP Tip (White) ...$6.06

TT11010-VP Tip & Cap ......$8.99 50TT11012 TT11012-VP Tip & Cap ......$8.99

Caps for Turbo TeeJet® Tips

TEL: (800) 669-2281 FAX: (319) 679-2929

subject to change without notice

Features:

AI TeeJet Air Induction Spray Tips

• Stainless steel insert produces tapered edge ﬂat spray pattern for uniform coverage in broadcast spraying

• Polymer insert holder and pre-oriﬁce with VisiFlo® color-coding

• Larger droplets for less drift

• Depending on the chemical, produces large air-ﬁlled drops through the use of a venturi air aspirator

• Automatic spray alignment with 25598-*-NYR Quick TeeJet® cap and gasket.

• Now available in 06, 08 and 10 capacities

Adjust spray height in the ﬁeld to overlap approximately 30% of each edge of pattern.

Suggested Minimum Spray Height

AI TeeJet® Spray Tips

AIC Molded TeeJet® Tip & Cap

Caps for AI Spray Tips

AIXR TeeJet Air Induction XR Flat Spray Tips

Note:

TeeJet® Tips

FEATURES:

• Two-piece polymer construction with Visiﬂo® color-coding

• UHMWPE (Ultra-high molecular weight polyethylene) material provides excellent chemical resistance, including resistance to acids, as well as exceptional wear life

• Removable pre-oriﬁce for fast and easy cleaning

• Polymer oriﬁce products tapered edge ﬂat spray pattern for uniform coverage in broadcast spraying

• Air induction technology reduces drift

• Depending on the chemical, the AIXR TeeJet produces large, air-ﬁlled drops through the use of a Venturi Air Aspirator

• Automatic spray alignment with 25612-*-NYR Quick TeeJet cap and gasket

• Suggested spray pressure range: 15-90 PSI

TYPICAL APPLICATIONS:

• Excellent for pre-emerge surface applied herbicides

• Excellent for post-emerge systemic herbicides

• Good for post-emerge contact herbicides

• Typical pressure of 30 PSI and higher

Caps for AIXR TeeJet® Tips

subject to change without notice

XR

• Excellent spray distribution over a wide range of pressures — 15-60 PSI (1-4 bar)

• Ideal for rigs equipped with sprayer controllers

• Reduces drift at lower pressures, better coverage at higher pressures

XR TeeJet® 80º Extended Range Tips (Larger Sizes) Stainless Steel

110º XRCVK TeeJet® Tips

FEATURES:

Turbo TeeJet Induction Flat Spray Tips

• All acetal construction for excellent chemical and wear resistance.

• Removable pre-oriﬁce for fast and easy cleaning.

• Large, round passages to minimize plugging.

• Tip insert produces tapered edge ﬂat spray pattern for uniform coverage in broadcast spraying.

• Large droplets are produced through the use of a Venturi air aspirator, resulting in less drift.

• Ideal for sprayers equipped with automatic control systems.

• Automatic alignment with use of CP25597-*-NY (Twinjet) cap.

• To install - align tip barrel with cap flats and press in until tip bottoms out. Rotate tip 90 º until tips flats are parallel with cap flats. Press tip until it bottoms out again.

• Suggested spray pressure range: 30 - 100 PSI.

Note: EPA approved for application of XtendiMax (Monsanto) and Engenia (BASF) on Diacamba tolerant crops. Note: Consult the chemical manufacturer’s product label for speciﬁc rate and application recommendations.

CAPS FOR TTI TIPS

Order upon Request

Dicamba rated tips

TTI TWINJET

Turbo TwinJet Twin Flat Spray Tips

FEATURES:

• Tip produces dual, tapered edge, wide angle, ﬂat spray pattern for uniform coverage in broadcast spraying.

• Dual angled spray patterns help to penetrate the crop canopy and provide thorough leaf coverage.

• Large, round free passages to minimize clogging.

• All acetal construction for excellent chemical and wear resistance.

• Larger droplet size for improved drift control.

• Automatic spray alignment with 25612-_-NYR quick Teejet cap and gasket.

• To install - align tip barrel with cap flats and press in until tip bottoms out. Rotate tip 90º until tip flats are parallel with cap flats. Press tip until it bottoms out again.

• Suggested spray pressure range: 20 - 90 PSI.

Note: Number one choice to apply post contact herbicides such as Liberty, Accent and Cobra. Also the best choice for most insecticides and fungicides.

Note: Consult the chemical manufacturer’s product label for speciﬁc rate and application recommendations.

CAPS FOR TWINJET TIPS

TWIN TURBO TEEJET SPRAY TIPS

CAPS FOR TWIN TURBO TEEJET

FEATURES:

• Variable oriﬁce design is like having multiple ﬂow regulators in one simple assembly.

• PTC-VR features nylon construction for excellent strength and chemical resistance.

• QJ-VR features acetal and nylon construction with choice of nylon or stainless steel hose barbs for strength and chemical resistance.

• Simple, elastomer (EPDM) variable oriﬁce for long-term, reliable operation.

• Recommended operating pressure: 10-100 PSI (0.7 - 7.0 bar).

• Intended for use with ﬂow meter based control systems only.

• Multiple capacities available for a wide range of application rates and ground speeds.

Variable Rate Nozzles

QJ-VR Variable Rate Fertilizer Nozzles

• Available in 2 sizes

- 1/4” and 3/8” Hose Barb - Poly or Stainless Steel

- Replaces standard 4916-47 thru -75

• Pressure range: 10 psi to 100 psi

• Flow range: Minimum 0.13 gpm (0.49 to 1.09 gpm)

PTC-VR Variable Rate Nozzles

• Available in 3 sizes - 1/4”, 5/16” and 3/8” O.D. Tubing

- Replaces standard 4916-48 thru -70

• Pressure range: 10 psi to 100 psi

• Flow range: 0.14 gpm to 1.00 gpm

Part# DescriptionPrice Ea.

570002577 QJ-VR-X1.0-1/4-SS.....$34.57

570003877 QJ-VR-X1.0-3/8 SS .....$34.57

570038692 QJ-VR-X1.0-3/8-NYB ..$25.61

500023877 QJ-VR-X2.0-3/8-NYB ..$25.61

570008725 PTC-VR-X1.0-1/4 ........$24.80

570087516 PTC-VR-X1.0-5/16 ......$24.80

570008738 PTC-VR-X1.0-3/8 ........$24.80

500020137 QJ-VR-X0.5 .................$21.34

500020136 QJ-VR-X1.0 .................$21.34

500020138 QJ-VR-X2.0 .................$21.34

Features:

• VisiFlo® color coding system

StreamJet SJ-3 Fertilizer Nozzles

• Three solid streams of equal velocity and capacity

• Removable metering oriﬁce for easy cleaning

• Ten sizes for a wide range of application rates

• Equally spaced distribution at 20” (50cm) height

• Use with Quick TeeJet® cap 25598-*-NYR

• All acetal construction for excellent chemical resistance

• Recommended operating pressure: 20-60 PSI (1.5-4 bar)

Note: Always double check your application rates. Tabulations are based on spraying water at 70ºF (21ºC).

SJ3 NOZZLES

CAPS FOR AI SPRAY TIPS

SJ-7 Fertilizer Nozzles

Features:

• Excellent for application of liquid fertilizer

• Creates seven identical ﬂuid streams of equal velocity and capacity

• Excellent spray distribution quality

• Removable metering oriﬁce for easy cleaning

• Oﬀered in a variety of sizes for a wide range of application rates

• VisiFlo® color-coding for easy capacity identiﬁcation

• All acetal construction for excellent chemical resistance

• Recommended operating pressure: 20-60 PSI (1.5-4 bar)

SJ7-03-VP

Note: Always double check your application rates. Tabulations are based on spraying water at 70ºF (21ºC).

NOZZLES

subject to change without notice

Features:

• Excellent spray distribution for uniform coverage along the boom

• Nozzle design incorporates a pre-oriﬁce to produce larger droplets for less drift

• Large round oriﬁce reduces clogging

• Stainless steel with VisiFlo® color-coding band for easy size identiﬁcation

• Can be used with No. CP25599-*-NY Quick TeeJet® cap for automatic alignment.

Part

Adjust spray height in the ﬁeld to overlap approximately 30% of each edge of pattern.

Suggested Minimum Spray Height

CAPS FOR TURBO FLOODJET® TIPS

Quick Turbo FloodJet Wide Angle Flat Spray Tips

Features:

• Patented turbulence chamber creates a dramatic improvement in pattern uniformity

• Pre-oriﬁce design produces larger droplets for reduced drift

• Large round oriﬁce reduces clogging

• Grooved side molding for automatic alignment with any quick-connect coupler

• Stainless steel with color-coding for easy size identiﬁcation

• Available in standard sizes from 1.5 GPM up to 24.0 GPM at pressures of 10-40 PSI

Adjust spray height in the ﬁeld to overlap approximately 30% of each edge of pattern.

Suggested Minimum Spray Height*

*When nozzle is mounted parallel to the ground.

QCK

TYPE

QUICK FLOODJET NOZZLES

500007152 QCK20 S.S. Tip (White) ...........$34.43

500007162 QCK30 S.S. Tip (Yellow) ..........$34.43

500007161 QCK40 S.S. Tip (Red)..............$34.43

500007160 QCK50 S.S. Tip (Gray) ............$37.65

500007159 QCK60 S.S. Tip (Blue) .............$37.65

500007158 QCK80 S.S. Tip (Black) ...........$37.65

500007157 QCK100 S.S. Tip (L. Blue) .......$46.97

500007156 QCK120 S.S. Tip (Orange) ......$46.97

500007155 QCK150 S.S. Tip (Brown) ........$74.23

500007154 QCK180 S.S. Tip (Green) ........$74.23

500007153 QCK210 S.S. Tip (Purple) ........$74.23

Double Outlet Flat Spray Tips (150 Series)

TeeJet® 150º Brass

Solid Stream Spray Nozzles

H1/4U-SS0008

StreamJet® Solid

Stream Spray Nozzles Part

507000004 TP0004-SS .......$9.93

507000006 TP0006-SS .......$9.93

507000008 TP0008-SS .......$9.93

507000010 TP0010-SS .......$9.93

507000015 TP0015-SS .......$9.93

507000020 TP0020-SS .......$9.93

507000030 TP0030-SS .......$9.93

507000040 TP0040-SS .......$9.93

StreamJet®

Solid

Stream Spray Nozzles

Part # Description Price Ea.

500007303 H¼U-SS0003 .......$13.25

500007314 H¼U-SS0004 .......$13.25

500007313 H¼U-SS0006 .......$13.25

500007316 H¼U-SS0008 .......$13.25

500007317 H¼U-SS0010 .......$13.25

500007318 H¼U-SS0015 .......$13.25

500007319 H¼U-SS0020 .......$13.25

500007320 H¼U-SS0030 .......$13.25

500007321 H¼U-SS0040 .......$13.25

500007322 H¼U-SS0050 .......$13.25

500007323 H¼U-SS0060 .......$13.25

Features:

XP

BoomJet Boomless Flat Spray Nozzle with Color Coding

• Unique oriﬁce geometry produces wide spray pattern while maintaining superior distribution across entire width

• Pre-Oriﬁce design minimizes drift

• Extra wide spray pattern — up to 25 feet — for boomless and roadside applications

• Removable polymer pre-oriﬁce

• Acetal or stainless steel construction for excellent chemical resistance

• Recommended spray pressure range: 20—60 PSI

• Recommended spray height: 20—36 inches

• NPT or BSPT (Male) threads for easy assembly

• Color coding for easy capacity identiﬁcation

Typical Applications:

• Boomless ﬁeld spray applications

• Roadside and right-of-way applications

• End row spraying

• Orchard spraying

• Deicing applications

• Forestry

(B)1/4XP20R-VP (B)1/4XP20L-VP

(B)1/4XP25R-VP (B)1/4XP25L-VP VIOLET1/41.67

(B)1/2XP40R-VP (B)1/2XP40L-VP RED1/22.17

(B)1/2XP80R-VP (B)1/2XP80L-VP

— Tabulation based on spraying water at 70°F — (B) Indicates BSPT threads otherwise NPT is standard

570508001

SPRAYING SYSTEMS CO.

CP4916-0080.0030.0040.0060.0070.0080.0090.010

CP4916-100.0050.0070.0090.0110.0130.0150.016

CP4916-120.0070.0100.0130.0160.0190.0210.023

CP4916-140.0090.0130.0180.0220.0250.0280.013

CP4916-150.0100.0150.0210.0250.0290.0320.036

CP4916-160.0120.0170.0230.0290.0330.0370.040

CP4916-180.0150.0210.0300.0360.0420.0470.051

CP4916-200.0180.0260.0370.0450.0520.0580.064

CP4916-220.0220.0310.0430.0530.0610.0680.075

CP4916-240.0260.0370.0520.0640.0740.0830.091

CP4916-250.0280.0400.0560.0680.0790.0880.097

CP4916-260.0300.0430.0610.0740.0860.0960.105

CP4916-270.0320.0460.0640.0790.0910.1020.111

CP4916-280.0350.0490.0690.0850.0980.1100.120

CP4916-290.0380.0540.0760.0940.1080.1210.132

CP4916-300.0400.0570.0810.0990.1140.1270.140

CP4916-310.0430.0620.08701070.1230.1380.151

CP4916-320.0480.0680.0950.1170.1350.1510.165

CP4916-340.0520.0740.1040.1270.1470.1640.180

CP4916-350.0560.0790.1110.1360.1570.1760.192

CP4916-370.0610.0860.1220.1490.1720.1920.211

CP4916-390.0680.0960.1350.1650.1910.2140.234

CP4916-400.0720.1020.1440.1770.2040.2280.250

CP4916-410.0750.1060.1490.1830.2110.2360.258

CP4916-430.0820.1160.1630.2000.2310.2580.283

CP4916-450.0880.1250.1770.2170.2500.2800.306

CP4916-460.0950.1350.1910.2340.2700.3020.331

GPM

CP4916-470.0970.1380.1940.2380.2750.3070.337

CP4916-480.1010.1430.2020.2480.2860.3200.350

CP4916-490.1040.1480.2090.2550.2950.3300.361

CP4916-510.1160.1650.2330.2850.3290.3680.403

CP4916-520.1180.1680.2370.2900.3350.3750.410

CP4916-540.1270.1800.2550.3120.3600.4020.441

CP4916-550.1330.1890.2670.3260.3770.4210.462

CP4916-570.1410.2000.2830.3460.4000.4470.490

CP4916-590.1530.2170.3060.3750.4330.4840.530

CP4916-610.1650.2330.3300.4040.4660.5210.571

CP4916-630.1740.2460.3470.4250.4910.5490.601

CP4916-650.1850.2610.3690.4520.5220.5840.639

CP4916-670.1960.2780.3920.4810.5550.6210.680

CP4916-680.2030.2870.4050.4960.5730.6410.702

CP4916-700.2160.3060.4330.5300.6120.6840.750

CP4916-720.2260.3200.4530.5540.6400.7160.784

CP4916-730.2330.3300.4670.5720.6600.7380.808

CP4916-750.2450.3470.4910.6010.6940.7760.850

CP4916-780.2720.3850.5440.667.07700.8610.943

CP4916-800.2800.3970.5610.6870.7930.8870.971

CP4916-810.2900.4110.5810.7110.8210.9181.01

CP4916-830.3170.4490.6340.7770.8971.001.10

CP4916-860.3320.4700.664.08130.9391.051.15

CP4916-890.3460.4900.6930.8490.9801.101.20

CP4916-910.3690.5230.7390.9051.051.171.28

CP4916-930.3870.5470.7740.9471.091.221.34

CP4916-950.4040.5720.8080.9901.141.281.40

CP4916-980.4420.6250.8841.081.251.401.53

CP4916-1030.4610.6530.9231.131.311.461.60

CP4916-1070.5180.7331.041.271.471.641.79

CP4916-1100.5480.7751.101.341.551.731.90

CP4916-1150.6050.8551.211.481.711.912.09

CP4916-1200.6290.8901.261.541.781.992.18 CP4916-1250.6930.9801.391.701.962.19240 CP4916-1280.7211.021.441.772.042.282.50 CP4916-1320.7741.101.551.902.192.452.68 CP4916-1360.8401.191.682.062.382.662.91 CP4916-1400.8941.271.792.192.532.833.10 CP4916-1440.9261.311.852.272.622.933.21 CP4916-1470.9531.351.912.332.703.013.30 CP4916-1511.041.472.082.552.943.293.60 CP4916-1561.101.552.202.693.113.473.80 CP4916-1611.151.632.312.833.273.654.00 CP4916-1661.211.722.432.973.433.844.20 CP4916-1701.301.842.613.193.694.124.51 CP4916-1721.361.922.713.323.844.294.70 CP4916-1771.412.002.833.464.004.474.90 CP4916-1821.472.082.953.614.174.665.10 CP4916-1871.562.213.123.824.414.935.40 CP4916-1961.732.453.464.244.905.476.00 CP4916-2051.882.653.754.595.315.936.50 CP4916-2182.112.984.215.165.966.667.30 CP4916-2342.453.474.916.016.947.768.50 CP4916-2502.834.005.666.938.008.949.80

Note: Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).

500006285 4916-8 Ori

500006004 4916-10 Ori

500006286 4916-12 Oriﬁce.......$2.92

500006095 4916-14 Ori

500005756 4916-15 Oriﬁce.......$2.92

4916-16

500006288 4916-18 Ori

500005970 4916-20 Oriﬁce.......$2.92

500005551 4916-22 Oriﬁce......$2.92

500006289 4916-24 Ori

500005971 4916-25 Oriﬁce.......$2.92 500001675 4916-26 Ori

ce.......$2.92 500006282 4916-27 Ori

ce.......$2.92 500006003 4916-28 Oriﬁce.......$2.92

500001676 4916-29 Oriﬁce.......$2.92

500005968 4916-30 Oriﬁce.......$2.92 500006283 4916-31 Oriﬁce.......$2.92

500001677 4916-32 Oriﬁce.......$2.92

500006284 4916-34 Oriﬁce.......$2.92

500002501 4916-35 Oriﬁce......$2.92

500006150 4916-37

Bold items are in stock at Hills, Iowa.

500001680 4916-49 Ori

500006281 4916-51 Ori

500001681 4916-52 Ori

500006153 4916-54 Ori

500001682 4916-55 Ori

500006292 4916-57 Ori

500001683 4916-59 Ori

500006194 4916-61 Ori

500002591 4916-63 Ori

500005758 4916-65 Ori

500005990 4916-67 Ori

500006235 4916-68 Ori

500001684 4916-70 Ori

500001685 4916-72 Oriﬁce.......$2.92

500001686 4916-73 Ori

500006218 4916-75 Ori

500001687 4916-78 Ori

500006151 4916-80

500005890 4916-81

500006249 4916-83

500006024 4916-86 Ori

500001688 4916-89

ce......$2.92

MEDIUM PRESSURE TURBO DROP® XL VENTURI NOZZLE, 110°

Multi-purpose, medium pressure air injection nozzle. 20-120 PSI overall pressure range. 30-90 PSI optimal pressure range. 20-30,000 acres estimated life (60’ boom, 20” centers).

Polyacetal venturi body with polyacetal SprayMax TipCap nozzle and EPDM seat gasket.

5TDXL11005

MEDIUM PRESSURE TURBO DROP® XL VENTURI

NOZZLE - D VERSION

Designed for a coarser droplet with dicamba, 2,4D, etc. 30-120 PSI overall pressure range. 30-90 PSI optimal pressure range. 20-30,000 acres estimated life (60’ boom, 20” centers). Polyacetal venturi body with polyacetal SprayMax TipCap nozzle, DIF4 diﬀuser.

Part

Ea.

5TDXL11001-D ...............................................$11.70

5TDXL110015-D

5TDXL11002-D

5TDXL110025-D

5TDXL11003-D ...............................................$11.70

5TDXL11004-D

5TDXL11005-D

5TDXL11006-D

5TDXL11008-D ...............................................$11.70 Available in Ceramic .......................................$18.70

TURBO DROP® ASYMMETRIC DUAL FAN NOZZLE

Designed to improve coverage on vertical and angular targets with contact chemicals. 50° rearward spray - 10° forward spray. Medium-Coarse droplets below 80 PSI (for most sizes).Medium-Fine droplets above 80 PSI (for most sizes). Polyacetal venturi body with poly twin cap and poly tips.

5TADF025

5TADF06

5TADF08

5TADF10

5TADF15

TURBO DROP® ASYMMETRIC DUAL FAN

NOZZLE - D VERSION

DualFan TurboDrop designed to deliver a coarser spray. 50° rearward spray - 10° forward spray.

Polyacetal venturi body with poly twin cap and poly tips.

5TADF01-D

5TADF03-D

5TADF04-D

5TADF05-D

5TADF06-D

5TADF08-D

(319) 679-2929

HARDI ADAPTER GASKET

Allows sprayers with Hardi nozzle bodies to use TurboDrop® Nozzles. EPDM construction.

Part # Price Ea. 5GH170 ...................$1.15

G125 GASKET (Grey)

Standard TurboDrop® gasket. 3.0 mm EPDM construction.

Part # Price Ea. 5G125 .....................$0.38

(Used between Nozzle body and Venturi)

G120 GASKET (Black)

2.8 mm gasket used with DF and TCP. EPDM construction.

Part # Price Ea. 5G120 .....................$0.38

(Used between Cap and Venturi)

DIFFUSER

Diﬀuser requires Greenleaf cap. EPDM, polyacetal construction.

Part # Price Ea. 5D1F4 .....................$1.37

TURBO DROP VARIABLE RATE FERTILIZER NOZZLE

Variable rate streaming fertilizer nozzle. 10-140 PSI overall pressure range.

4x ﬂow rate range. Polyacetal, stainless steel, EPDM construction.

Part # Price Ea.

DROP

RATE HOSE BARB NOZZLE

Variable rate metering nozzle for side dressing fertilizer. 10-140 PSI overall pressure range.

4x ﬂow rate range. Polyacetal, stainless steel, EPDM construction.

Part #Price Ea.

WITH EXTENSION ADAPTOR

Variable rate metering nozzle for side dressing fertilizer. 10-140 PSI overall pressure range.

4x ﬂow rate range. Polyacetal, stainless steel, EPDM construction.

Part # Price Ea. 5TDVREX015

UR tips are specialty tips to produce ultra coarse spray.

Refer to chemical application label for maximum pressures, speeds and application information.

UR tips are specialty tips to produce ultra coarse spray.

Refer to chemical application label for maximum pressures, speeds and application information.

UR tips are specialty tips to produce ultra coarse spray.

Refer to chemical application label for maximum pressures, speeds and application information.

UR tips are specialty tips to produce ultra coarse spray.

Refer to chemical application label for maximum pressures, speeds and application information.

UR tips are specialty tips to produce ultra coarse spray.

Refer to chemical application label for maximum pressures, speeds and application information.

NOZZLE ACCESSORIES

NOZZLE STRAINERS

Part #DescriptionPrice Ea. 500001834 50 Mesh Nylon — Blue...............$1.03 500001836

STRAINER WITH CHECK VALVE

Prevents nozzle dripping. Opens at 5 PSI. For ﬂow rates up to 0.8 GPM.

Part #DescriptionPrice Ea.

500001635 50 Mesh Nylon ..........$3.35

500001998 100 Mesh Nylon ........$3.35

For high capacity nozzles that do not require strainers. Part #DescriptionPrice Ea. 500006368 5 PSI Opening Pressure.............$4.70

NOZZLE CLEANING BRUSH

7” long with long bristles on one end and shorter on the other. Handy for cleaning plugged nozzles without damaging the oriﬁce.

Part # DescriptionPrice Ea. 500007408 Nozzle Cleaning Brush .............................$7.67

Glass-filled polypropylene venturi-style agitator has snap-in interchangeable orifices. Output flow can be up to 5.5 times that of the inlet flow. Agitator must be fed by a separate line and not on the end of a relief valve or bypass line. Inlet is 3/4” (M) NPT.

Part #DescriptionPrice Ea. 500056240 3/8” Agitator ..............$51.85

OUTLET ADAPTERS

Female adapter has 11/16”—16 nozzle thread on one end and size NPT on the opposite end.

PLUG TIPS

To shut oﬀ selected nozzles or change spacing of operating nozzles on the boom.

Part #DescriptionPrice Ea.

Part

JOHN GUEST FITTINGS

CUP STRAINER

Part #DescriptionPrice Ea.

500001631 100 Mesh SS ..........$1.34

CALIBRATION CONTAINER 10 to 60 ounces, .30 to 1.80 liters.

Part #DescriptionPrice Ea. 500050297 Calibration Container....$34.55

NOZZLE CAPS

Part #DescriptionPrice Ea.

500006606 Nylon Wing Cap .........$1.09

500001832 Nylon ..........................$0.80

500001615 Stainless Steel............$6.85

NOZZLE SHANKS

Nylon shanks replace nozzle tips for attaching hoses to nozzle body. Fits standard nozzle cap. Part #DescriptionPrice Ea.

500001867 3/8” Hose Nylon............$0.90

500001868 1/2” Hose Nylon............$0.90

504251400 3/8” Hose SS ................$5.60

504251500 1/2” Hose SS ................$5.60

CHEMSAVER® CAP ASSEMBLY

The ChemSaver® Cap Assembly has coarse threads and is less the diaphragm.

Part #DescriptionPrice Ea.

500219502 Cap 2 PSI...............$3.10

500006554 Cap 10 PSI.............$3.10

500219505 Cap 5 PSI...............$3.10

500009056 Diaphragm EPDM ..$0.42

500009057 Diaphragm Viton* ...$1.27

Components designed speciﬁcally for liquid application systems on planters and drills. Components incorporate actual John Guest ﬁttings for 1/4” and 3/8” OD tubing into both the Quick TeeJet no-drip nozzle body and Quick TeeJet cap. The John Guest brand insert sub-assemblies are Celcon/stainless steel construction with an EPDM.

NOZZLE ACCESSORIES AND CAPS

SWIVEL SPRAY NOZZLES

Designed for use with tips employed with row crop spraying. Locknut holds swivel bodies ﬁrmly in position at selected spray angle, not aﬀected by jarring or vibration. Part number shown is for swivel body assembly only. Order tips, strainers and caps separately. Part

HOSE DROPS

Designed to attach to your existing nozzle bodies. Flex-poly tubing has shape memory; returns to its original position after meeting obstruction. Compatible with standard nozzle bodies or the Quick TeeJet® system. Available in 15” or 24” lengths.

TYPE T NOZZLE BODIES

Type T body has female threaded inlet.

Used to shut oﬀ individual nozzles and change spacings.

For certain booms, extension adapter may be needed for spray pattern clearance.

Designed to fit on any QUICK TEEJET nozzle body. Can be fitted with any combination of TWO TEEJET tips and quick caps to achieve desired effect.

QUICK TEEJET® CAPS — GASKETS ONLY

The quick-change caps are designed with grooves to ﬁt the locating lugs on the nozzle body. Caps are made of nylon and colored for easy identiﬁcation. Caps include EPDM Gaskets.

Note: For Pressures to 300 PSI,. Seat Gaskets are EPDM

TEEJET QJ90-1 ADAPTER

Features and Beneﬁts:

• Simpliﬁes attachment of TF & TK tips to single nozzle bodies

• Glass ﬁlled nylon material

• Automatic oﬀset of tips

• Max. pressure = 300 psi (20 bar)

• Accepts tip strainers

Part

TEL: (800) 669-2281 FAX: (319) 679-2929

NOZZLE BODIES AND CLAMPS

HOSE SHANKS FOR DRY BOOMS WITH DIAPHRAGM CHECK VALVE-SINGLE

Quick TeeJet® hose shanks are used to connect nozzles in a series on dry booms. Tips and strainers can be cleaned or replaced in seconds and changing nozzle spacing is quick and simple.

HOSE SHANK AND NOZZLE BODIES

NOZZLE ASSEMBLIES FOR WET BOOMS — QUICK TEE-JET SPLIT-EYELET

DIAPHRAGM CHECK VALVE

With Quick TeeJet nozzle assemblies, changing and cleaning plugged or worn spray tips and strainers is fast and easy. No tools necessary. Automatic self-alignment of flat spray patterns. Nozzle caps are color coded. Quick TeeJet Split-Eyelet Diaphragm Check Valves have instant drip-free shut-off. Split clamps fit 1/2”, 3/4” and 1” pipe. Opening pressure is 7 PSI while maximum operating pressure is 125 PSI. Made of durable nylon. Order colored cap and gaskets separately.

Part #DescriptionPrice Ea.

500006806

QUICK TEEJET DIAPHRAGM CHECK VALVE TYPE 8360T

Check valve is made of nylon and has 11/16” - 16 (F) TeeJet thread.

Part

HOSE SHANKS-SINGLE

Hose shanks are used to connect nozzles in series on dry booms. Tips and strainers can be cleaned or replaced in seconds and changing nozzle spacing is quick and simple.

HOSE SHANKS-DOUBLE

Part

CROSSES

Part

Part #DescriptionPrice Ea. 500001837 3/8” Nylon .....................$1.45 500001838 1/2” Nylon .....................$1.45 500560859 3/4” Nylon .....................$1.90

NOZZLE SHANKS — STRAIGHT

With Jam Nut

Part #DescriptionPrice Ea. 500009078 3/8” Nylon .....................$1.15 500009079 1/2” Nylon .....................$1.25

500009080 3/4” Nylon .....................$1.40

REPLACEMENT JAM NUTS

Part #DescriptionPrice Ea. 500561540 Nylon ...........................$0.30

MODEL QJ380 AND QJ380F HIGH FLOW NOZZLE BODY

Features:

• Standard O-rings and diaphragm made of viton

• Flow rates: 3 GPM (11.4 l/min) with a 5 PSI (.34 Bar) Drop through turret, 4.5 GPM (17.0 l/min) with a 5 PSI (.34 Bar) drop through fertilizer outlet

Standard O-Ring P/N: CP7717-2/110-VI Requires 3/8” (9.5mm) Hole drilled in pipe.

Part #DescriptionPrice Ea.

500003831 QJ383F-1-NYB - 1” Nozzle Body ............................$28.30

Optional Adapter Gasket P/N: CP98488-VI Requires 11/16” (17.5mm) Hole drilled in pipe.

Part #DescriptionPrice Ea.

500003833 QJ383F-1 x 11/16-NYB - 1” Nozzle Body with 11/16” Gasket ...........$33.76

Replacement for JD High Flow Nozzle Body

HOSE SHANK AND NOZZLE BODIES

QJ370 MULTIPLE OUTLET NOZZLE BODY (REPLACEMENT FOR QJ360)

The QJ370 multiple outlet nozzle body features a compact design to fit onto a variety of sprayers and boom designs. It has positive indexing that prevents accidental rotation and provides feedback to the operator. Optimized internal passages provide high flow rates for a wide variety of ground speeds and application rates. Choice of 3 or 5 outlet turrets with Quick TeeJet® system for fast, easy installation and selection of spray tips. Wet boom model fits 1/2”, 3/4” or 1” pipe; 20mm or 25mm tubing. Dry boom model fits 1/2”, 3/4” or 1” hose with choice of single or double hose barb.

MODEL 370 MULTIPLE NOZZLE BODIES FOR DRY BOOMS

MODEL 363F

Nozzle body with Fertilizer Outlet. Available in:

• Dry or Wet Boom • 3, 4 or 5 Nozzle Outlet

TRIPLE NOZZLES FOR WET BOOMS

Quick TeeJet® triple nozzles feature quick hand indexing for a choice of three different spray tips or application rates. A diaphragm check valve delivers drip-free positive shut-off. They are made of corrosion-resistant materials — nylon, celcon and stainless steel. Both models feature the quick-change nozzle cap system which permits exact nozzle alignment and fast and easy tip replacement. The maximum operating pressure is 150 PSI for the wet boom style and 125 PSI on the dry boom model. Note: For correct nozzle alignment, check valve must be located parallel with boom for both wet and dry type triple nozzles. Triple nozzle has a maximum flow rate of 1.5 GPM with 5 PSI pressure drop. Part #DescriptionPrice Ea.

FOR DRY BOOMS

Quick TeeJet triple nozzles features quick hand indexing for a choice of three diﬀerent spray tips or application rates. A diaphragm check valve delivers drip-free positive shut-oﬀ

Part #DescriptionPrice Ea.

Replaces QJ360

NOZZLE ACCESSORIES AND CAPS

CAPS — VISIFLO® FLOOD-JET® CAPS

Caps have groove for locating nib found on VisiFlo FloodJet tips. Provides for exact spray alignment. Also ﬁts Turbo FloodJets

CAPS — FOR TEEJET® FLAT SPRAY TIPS (XR Smaller Capacities)

XR 01- 08 — Turbo TeeJet

CAPS — FOR TEEJET® FLAT SPRAY TIPS (XR Larger Capacities)

CAPS AI SPRAY TIPS

CAPS — TYPE TX, TG (Through -5), TG-W, FL and TK Tips, SS

Note: *For use with metal disc and core combinations. **For use with ceramic disc and core combinations.

500055244

CAPS DESIGNED TO FIT HARDI SNAP FIT NOZZLE BODIES

SPRAY GUNS

FIMCO SPRAY WAND

Part

MODEL 43 SPRAY GUNS

Designed and built for heavy-duty service. For cleaning equipment, spot spraying in ﬁelds, orchards and nurseries. Inlet is 1/2” and operating response is instant with drip-free shut-oﬀ. Available in brass (wt. 3 lbs.) or aluminum (wt. 2 lbs.). As trigger is drawn back, spray pattern begins as a wide angle cone and narrows to a straight stream when trigger is fully opened. Trigger locks for continuous spraying and a knurled adjustment ring stops trigger at desired position. Length 22”

Note: 43L for pressures up to 200 PSI.43H for pressures up to 800PSI

Note: D-disc oriﬁces are interchangeable.

MODEL 23 SPRAY GUNS AND ACCESSORIES

The Model 23 guns are lightweight (1 lb.) which makes them ideal for spot spraying and high-pressure washing. Shut-off is at the orifice for drip-free operation. 23L models are for pressures up to 250 PSI, 23H models are for pressures from 250 to 1,000 PSI. Nozzle orifices sold separately.

Part

EXTENSION TUBES FOR MODEL 23 SPRAY GUNS

Nozzle

Note: Repair Kits include spring, cup

and oriﬁce seat.

SPRAY GUNS

MODEL 30 SPRAY GUNS

Nylon gun is designed to withstand impact and rough usage. Shut-oﬀ occurs behind spray tip to prevent dripping. Maximum ﬂow is 5 GPM, maximum temperature is 200°F, and maximum pressure is 250 PSI.

MODEL 50800 TRIGGERJET® SPRAY GUN

The 50800 TriggerJet spray gun is a lightweight spray gun designed for use with backpack, canister or other low pressure sprayers. The TriggerJet is made of molded polypropylene for excellent chemical resistance and durability.

Features:

• Available with 38720-PP-X18 adjustable ConeJet® spray tips with a 30° oﬀset.

• Trigger lock permits locking gun in an open position for continuous ﬂow.

• Maximum operating pressure — 100 PSI (7 bar)

• 1/4” or 3/8” hose shank connection

• Approximate max. hose O.D. — 1/2” (13 mm)

• Polypropylene strainer located inside handle to prevent tip clogging

Get ﬁngertip control of 4 spray patterns

• Finely atomized cone spray

• Narrow angle cone spray

• Full cone spray

• Solid stream spray

Note: 11/16”-16(F) Inlet TeeJet Thread Max. PSI 150.

LAWN SPRAY GUN

Features:

Interchangeable nozzle tips are color-coded for easy identiﬁcation of nozzle tip size. Nozzle sold separately. Nozzle tips provide a 45 full cone “showerhead” spray pattern.

Convenient trigger lock for continuous spraying.

Options available:

Hose shank swivel for inlet connection and extension wand and adapters for low volume and spot spraying. Maximum operating pressure of 200 PSI

Made of nylon with Viton O-rings and stainless steel springs.

Note: Please specify lawn gun number and nozzle number. Order nozzle tip separately.

SPRAY GUNS

SWIVEL FOR LAWN GUN

Allows operator to concentrate on application without hose interference. 3/4” (M) NPT connection with 1/2” hose shank. Maximum pressure 150 PSI.

Part #DescriptionPrice Ea. 500051118 Swivel .......................................$10.77

ADAPTER FOR LAWN GUN

Replaces shower nozzle to allow extension wand or standard TeeJet tip to be attached directly to Lawn Spray Gun.

3/4” (F) GHT inlet with 11/16”-16 TeeJet thread outlet. Maximum pressure 150 PSI.

Part #DescriptionPrice Ea. 500051119 Lawn Gun Adapter..................................$18.36

EXTENSION WAND FOR LAWN GUN

For low volume and spot spraying applications. Available in both 15” and 24” lengths, the extension ﬁts on adapter and has 11/16”-16 (M) TeeJet thread outlet to accept all interchangeable TeeJet tips. The extension is supplied with both straight and 45 nozzle bodies. Maximum pressure 150 PSI.

Part #DescriptionPrice Ea. 500051120 15” Wand ..................................................$9.45 500051121 24” Wand

SPRAYER

Part

Prices subject to change without notice

RAVEN FLOW MAX

FLOW MAX 221 FLOW MONITOR

• Flanged 2” Plumbing

• 200 GPM Maximum (ﬁll most sprayers in 6 minutes or less)

• U.S. or Metric Measurement units

• 3 Separate Total Volumes

• 3 Button Programming

• 6-digit Digital Display

• 3.6-volt AA Replaceable Battery

• Self-contained, no other consoles or ﬂowmeters needed

1” & 2” FULL PORT FLOW METER

• Displays overall total volume and batch total volume!

• Flow rate allows for Gallons or Liters Per Minute

• Digital readout in Metric or English

• Magnetic style meter

• Self calibrating meter — measures all viscous liquids

• Easy to change six (6) AA batteries

• No moving parts to fail during use

• Glass-reinforced polypropylene

• Temperature range from 0° to 150°

• Accuracy is approximately 1% from 30 to 300 gallons

2” & 3” High-Flow Dura-MeterTM

• Intuitive menu-driven backlit display

• Impact resistant LexanTM faceplate

• Accuracy +/- 0.5%

• 3” Manifold ﬂanged meter body

• Includes a 2-year Warranty and Maintenance Program

• Extended battery life with use of (2) 9V batteries

• Displays batch and total volume

• Gallons / Liters ﬂow rate measurement

• Paddlewheel Meter

(319) 679-2929

RAVEN CONSOLE AND COMPONENTS

RAVEN CONSOLE & COMPONENTS

CONSOLE - SERIAL INTERFACE

Part #Description

CABLES, SCS 440/450/460/660TM

Part #Description

1150159839 Boom/Power Cable, 6”, 460/660 ......................................................................$307.00 1150171085 Console Cable, 10’, 440/450............................................................................$484.00 1150159418 Console Cable, 10’. older style, 440 ................................................................$444.00 1150159707 Console Cable, 3’, 450/460 (p/n 063-0172-542) ..............................................$495.00 1150159786 Console Cable, 3’, 460/660..............................................................................$589.00

1150159856 Extension Cable, 12’, 7 Boom, 440/450...........................................................$516.00 1150159409 Extension Cable, 12’, older style, 440..............................................................$325.00 1150159717 Extension Cable, 24’, 460/660 .........................................................................$759.00 1150159857 Extension Cable, 24’, 7 Boom, 440/450...........................................................$506.00 1150171055 Flow Cable, 12’, 3 Boom, 3 pin weather pack, Raven boom valve, 440 ..........$468.00 1150171129 Flow Cable, 12’, 6 Boom, 3 pin weather pack, Raven boom valve, 440/450 ...$547.00 1150159405 Flow Cable, 12’, older style, 440 ......................................................................$355.00 1150159496 Flow Cable, 12’, spade terminals, 440/450 ......................................................$380.00 1150159787 Flow Cable, 21’, granular application, 660 .......................................................$578.00 1150159708 Flow Cable, 24’, spade terminals, 450/460/660 ...............................................$674.00

RADAR SPEED SENSOR INTERFACE CABLE

Part#

DescriptionPrice Ea.

1-115-0159-519 John Deere (w/SP2) .....................................................................................$293.00

1-115-0171-670 John Deere 30 Series (w/SP2).....................................................................$254.00

1-115-0159-700 John Deere 7000/8000/9000 Series (w/SP2)...............................................$275.00

1-115-0159-517 Case-IH and New Holland TG (w/SP2) ........................................................$325.00

1-115-0171-304 Case MX or STX Vehicle (w/SP2) ................................................................$519.00

TEL: (800) 669-2281 FAX: (319) 679-2929

RAVEN COMPONENTS

CONTROL VALVES

Part # Description

Ea.

0630172173 1/4” S.S. Control Valve (Ball).....................................................................................................$787.00

0630172175 3/4” S.S. Control Valve (Ball).....................................................................................................$884.00

0630172125 1” Poly Control Valve, 175 PSI (Butterﬂy), Flanged ..................................................................$460.00

0630173877 1” Carbon Steel Control Valve NH3 (Ball) (400 PSI) (Replaces 063-0172-977) .......................$855.00 1170171706 1” NH3 SS Control Valve with 1-1/4” Pipe Adapters (Replaces 063-0173-202) ........................$935.00 1170171707

NH3 SS Fast Valve with 1-1/4” Pipe Adapters (Replaces 063-0173-204) .........................$1,250.00

0630173667 1-1/2” NH3 Control Valve .......................................................................................................$1,371.00

0630171894 1-1/2” Poly Control Valve, 175 PSI (Butterﬂy) ...........................................................................$517.00

0630172177 2” S.S. Control Valve (Butterﬂy) .............................................................................................$1,173.00

0630172181 3” S.S. Control Valve (Butterﬂy) .............................................................................................$2,073.50

0630171120 3/4” Poly Control Valve (Butterﬂy) .............................................................................................$284.00

0630173878 1” Carbon Steel Fast Close Control Valve NH3 (Ball) (400 PSI) (Replaces 063-0172-979) ..$1,205.00

0630172265 3/4” S.S. Control Valve with Fast Motor .................................................................................$1,178.00 0630171896 1-1/2” 90° Poly Control Valve (Flanged & Threaded/Packard Shroud) .....................................$514.00

HYDRAULIC CONTROL VALVES

Part # Description Price Ea.

0630171841 5 GPM PWM Hydraulic Control Valve .......................................................................$1,099.00 0630171842 10 GPM PWM Hydraulic Control Valve ......................................................................$1,116.00 0630171843 15 GPM PWM Hydraulic Control Valve .....................................................................$1,099.00 0630171846 30 GPM PWM Hydraulic Control Valve .....................................................................$1,353.00 0630172844 25 GPM Hydraulic Valve (adjustable w/fast motor) ...................................................$1,552.00 0630172897

GRANULAR ENCODER & OPTIOINS

Prices subject to change without notice

RAVEN COMPONENTS

FLOW METERS

Part # Description

0630173867 RFM 60S (1-60 GPM S.S.) (NH3) - High Pulse .........................................................$1,110.00

0630173578 RFM 100P (5-100 GPM Poly) - Conxall ....................................................................$1,031.00

0630173579 RFM 200P (15-200 GPM Poly) M300 Flanged - Conxall ..........................................$1,547.00

RAVEN FLOW METERS

Part # Description

0630172058 RFM 15 HP Flanged 3 Pin Conxall (.3-15 GPM)..........................................................$509.00

0630173743 RFM 15P HP Deutsch (.3-15 GPM) .............................................................................$476.00

0630171985 RFM 60P High Pulse 3 Pin Conxall (1.5-60 GPM) .......................................................$697.00

0630172457 RFM 60P High Pulse Deutsch DTM (1.5-60 GPM) ......................................................$623.00

0630173761 RFM 100P HP Deutsch DTM (3-100 GPM) ..............................................................$1,105.00 0630173763 RFM 100P Deutsch DT (3-100 GPM) .......................................................................$1,031.00

0630173762 RFM 200P Deutsch DTM (15-200 GPM) ..................................................................$1,654.00

0630173764 RFM 200P Deutsch DT (15-200 GPM) .....................................................................$1,547.00

0630173618 RFM 60SG (1-60 GPM) (NH3) ..................................................................................$1,093.00

FLOW METER REPLACEMENT PARTS

RFM 200 POLY FLOWMETER REPLACEMENT PARTS

063-0159-646 5 End Bearing/P.C. Assembly

219-0000-040 8 O-Ring, Viton

063-0159-591 9 End Bearing Assembly

435-3003-031 10 Retainer Clamp $84.00 219-0000-052 11 O-Ring, Viton $46.00 117-0159-017 12 Kit, RFM 200 Turbine $110.00 063-0159-564 14 Turbine Hub/Bearing Assembly $444.00 063-0159-575 15 Turbine Stud Assembly with Bearing $109.00 107-0159-509 17 Mounting Bracket, RFM 200 (Not Shown) $43.00 117-0159-441 19 Cable Kit (Not Shown) $157.00 117-0159-428 20 End Bearing and P.C. Assembly (Optional) $408.00

RFM 60S & 60P FLOWMETER REPLACEMENT PARTS

Part # ITEM Description

Ea.

0630171673 2 Rotor/Magnet Assembly ..........$232.00 0630171674 3 Hub/Bearing Assembly............$142.00

0630171769 4 Hub Assembly, Downstream .....$50.00 3350000278 5 Ring, Retaining, Internal ...........$15.00

0630173062 6 Stud Bearing .............................$31.00 4353002017 7 Clamp, Cable ..............................$1.00 0630171669 9 Sensor, Assembly, External.....$231.00

RFM100 POLY FLOW METER REPLACEMENT PARTS

Part # ITEM Description

0630171068 1 Outlet Housing Assembly ........................$708.00 1070171005 3 Hub Housing Inlet......................................$57.00 1170159567 5 End Bearing/PC Assembly Kit .................$271.00 2190002018 8 O-Ring, Viton...............................................$4.00 0630171067 9 End Bearing Assembly ............................$272.00 4353003032 10 Retaining Clamp......................................$103.00 2190002238 11 O-Ring, Viton...............................................$8.00

0630173002 12 RFM 100 Turbine ......................................$79.00 3210000222 14 Turbine Hub/Bearing Assembly ...............$322.00 2190002140 16 O-Ring, Viton...............................................$4.00 1070159509 17 RFM 100 Mounting Bracket (Not Shown) .$43.00 1170159441 19 Cable Kit (Not Shown).............................$157.00

TEL: (800) 669-2281 FAX: (319) 679-2929

PRECISION

VIPER® 4

The Viper 4 is a powerful, fourth generation Viper field computer. Yet it’s also the first in a new generation of field computers powered by the new Raven Operating Software, which integrates Raven’s full line of products into one connected platform.

Designed to work with equipment of any brand, the Viper 4 is easy to use, requiring fewer touches and providing greater

fficiency. It’s a highly advanced field computer with intuitive controls, improved ease of use and extraordinary data management capabilities. And for your operation, this means increased efficiency, productivity and profitability.

FEATURES INCLUDE:

Swiping feature

Customization by user and machine

Horizontal or vertical orientation

An abundance of storage capacity

Sleek design with 12.1” LED backlit display and state-of-the-art rugged magnesium alloy enclosure

Responsive touchscreen and intuitive, tablet-like inter face

Dustproof for tough environments

4 camera inputs for monitoring bin levels, blind spots, etc.

2 USB ports

Ethernet port for Slingshot

Integrated, fully scalable GPS receiver

CANbus ports

TEL: (800) 669-2281

FAX: (319) 679-2929

FEATURES

 7" Lightweight ﬁeld computer

 Multiple language support and customizable units

 Simpliﬁed, customizable widget layout

 Ability to access settings page from inside a job

 Map-based navigation

 Auto ﬁeld boundaries keep you organized automatically

 Interactive ﬁeld/job list and map view

 Slingshot-ready for ﬁle transfer, remote support,and OTA software updates

 Compatible with Raven AccuBoom, serial SCS consoles, and external lightbar support

 ISO Universal Terminal and Task Controller functionality via unlock

 Straight A-B, A plus heading, pivot contour, and last pass guidance

 Compatible with autosteer including SmarTrax and SmarTrax MD

 Sub-meter single frequency GPS and GLONASS (optional external)

 Scalable GPS (optional external)

CR7 FIELD COMPUTER

PRECISION

KITS, VIPER 4TM

Part #Description

117-5010-068 Kit, Console Viper 4+ROS .....................................................................................$10,028.00

117-5010-010BM Kit, Viper 4+ w/o GPS single and multi-VRA..........................................................$12,148.00

117-0171-658 Kit, Watchdog Weather (Includes activation key for Viper 4) ...................................$3,864.00

CABLES, VIPER 4TM

Part #Description

1-115-0172-023 Cable, Viper 4 adapter to Viper Pro / Envizio Pro cabling ...............................................$301.00

SOFTWARE, VIPER 4TM

Part #Description

1-077-0180-100 Viper 4 Single Product VRA.............................................................................................$930.00

1-077-0180-101 Viper 4 Multi-Product VRA (if already have single product VRA) .................................$1,240.00

1-077-0180-102 Viper 4 Combo VRA (single and multi) .........................................................................$2,170.00

RAVEN CAN COMPONENTS

(includes “T”) .........................................................................................$444.00 115-0171-364 Cable, Adapter “T”, CANBus (use for multiple nodes mounted in same location) ................$165.00

115-0171-368 Cable, Adapter Tee w/Power, CANBus .................................................................................$252.00

115-0171-380 Cable, CAN, Single Product Control, Liquid .........................................................................$810.00

115-0171-381 Cable, CAN, Single Product Control, Granular ..................................................................$1,082.00

115-0171-382 Cable, CAN Granular w/Spinner Control, Granular ..............................................................$872.00

115-0171-385 Cable, 6’, CANBus, Extension (“T” not included)..................................................................$189.00

115-0171-386 Cable, 12’, CANBus Extension (“T” not included).................................................................$197.00

115-0171-387 Cable, 24’, CANBus Extension (“T” not included).................................................................$198.00

115-0171-400 Cable, CAN Granular w/Spinner Control, Spinner ................................................................$296.00

115-0171-405

Cable, CAN Boom Sense/Speed Node to 10 Boom Switchbox / 12V Radar .......................$471.00

117-0159-923 Kit, CANBus, Terminators & Power Adapter “T” ...................................................................$401.00

ISOBUS TRUNK LINE CABLING

ISOBUS DIRECT INJECTION

1-063-0173-420 ISO Pump, without tank, 1-40 oz/min

1-063-0173-421

1-063-0173-422

1-063-0173-781

RCM PRODUCT CONTROL

*An ISOBUS hitch cable and product control cables are needed to complete these kits

Part # Description

1-117-7100-003 Kit, Raven Rate Control Module* .......................................................................................$7,119.95

1-115-7347-003 Cable, 6’ Liquid Product 6 Section ........................................................................................$858.00

1-115-7347-005 Cable, 6’ Product, Accuﬂow NH3 Section ..........................................................................$1,218.00

1-115-7347-008 Cable, Adapter, 37 Pin Raven Product Harness ................................................................... $447.70

1-115-7347-012 Cable, Adapter, 16 Pin Raven Product Harness ................................................................... $473.00

1-115-7301-010 Cable, Adapter, John Deere...............................................................................................$1,017.50

ISOBUS RCM HITCH CABLES

1-115-0171-974 Cable, ISOBUS hitch to Raven RCM, ISO ECU, 12’ ............................................................$969.00 1-115-0171-988 Cable, ISOBUS hitch to Raven RCM, ISO ECU, 14’

TEL: (800) 669-2281 FAX: (319) 679-2929

ACCU-FLOW

ACCU-FLOW SYSTEM

The Raven AccuFlow system is designed to provide continuous and automatic control of anhydrous ammonia applications. AccuFlow will give you superior accuracy and control over your applications for higher yields, less waste and lower input costs. Paired with our preassembled units and universal brackets will allow for fast and simple installation. Our unique design will yield higher ﬂow, which will result in faster application speeds.

• All Units are Pre-Assembled

• Fast and Simple Installation

• Standard Multi-Section Check Valve Setup

• High Flow Fittings and Assembly

• Single, Dual, Pit-Stop Pro Feed Hose Option

• Dual or Fast Valve Control Option

• Optional Single or Dual Cooler

• Faster Application Speeds

• Match with John Deere, Ag Leader, or Raven Rate Controllers

• Direct Injection Kits Available

ACCU-FLOW

ACCU-FLOW HP SYSTEMS

ACCUFLOW VORTEX SYSTEM

Part #DescriptionPrice Ea.

117-0171-571 Kit, HP Plus w/Vortex Cooler, Fast Valve Only** ...........$19,361.00

117-0171-573 Kit, Vortex, Dual Inlet, Fast Valve ..................................$11,109.00

117-0171-574 Kit, Vortex, Dual Inlet, Dual Valve ..................................$11,109.00

117-0171-613 Kit, Vortex, Single Inlet, Two Valve ..................................$9,919.00

117-0171-612 Kit, Vortex, Single Inlet, Fast Valve..................................$9,568.00

**Must Order Vapor Tube Kits Separately**

ACCU-FLOW KITS, OTHER

Part #DescriptionPrice

117-0171-410 Kit, Vapor Tube 1/2 Four Tubes ..............................$714.00

117-0171-575 Kit, Vortex to HP Plus Upgrade Kit ......................$8,582.00

SCS SIDEKICK CABLES

Part #DescriptionPrice Each

115-0171-130 Console Cable 15’ ............................................................................$776.00

115-0171-138 Product Cable 27’ .............................................................................$572.00

115-0171-757 Boom Adapter Cable, 4730/4830 .....................................................$861.00

115-0171-522 Cable Boom SCS Sidekick to JD 4920 ............................................$365.00

115-0171-523 Cable Boom Sense SCS Sidekick to JD 4920 .............................$2,209.00

SCS SIDEKICK PARTS

Part #DescriptionPrice Each

333-0011-078 Check Valve, .5 PSI, 3/8” SS (N-Serve) ...........................................$155.00

333-0011-102 Check Valve, 1/2”, SS, 12 PSI, Extreme Viton (N-Serve) ................$140.00

333-0011-090 Check Valve, 1” 14 GPM ..................................................................$116.00

333-0011-091 Check Valve, 1-1/4” 22 GPM ............................................................$140.00

333-0011-093 Check Valve, 2” 70 GPM ..................................................................$332.00

063-0159-632 Mixer, Flow Assy, 1-1/4 NPT ............................................................$297.00

063-0171-300 Mixer, Flow Assy, 2” NPT .................................................................$343.00

063-0171-303 Mixer, Flow Assy, 1” NPT .................................................................$297.00

333-9000-010 Mixer, 3” Dia. SS ..........................................................................$1,178.00

TEL: (800) 669-2281

FAX: (319) 679-2929

RAVEN INJECTION PUMP PARTS

Part # Item Qty Description

R107-0171-523 1 1 Housing, 3/4” Injection Pump

R325-0000-018 2 2 Bearing, Piston

R107-0172-467 3 1 Piston, 3/4” Pump

R063-0173-398 4 1 Magnet Shuttle Assembly

R321-0000-380 5 2 Ball .283 diameter SS

R107-0171-526 6 2 Head, 3/4” Pump

R063-0171-035 7 1 Switch, Vacuum

R063-0172-501 8 1

Bearing Assembly

R107-0171-588 9 1 Key

R117-0171-394 10 1

R063-0173-677 11 2

R063-0172-504 12 2

Bearing Kit (Bearing, Screw, Key, O-ring)

Cartridge, Intake Blue

Cartridge, Discharge

R063-0173-310 13 1 Cartridge, Discharge w/Transducer Port

R063-0172-525 14 1

R063-0173-492 15 1

Sensor, Universal, Flowmonitor, WeatherPack Connector

Sensor, Pro / ISO, Flowmonitor, Round Connector*

R422-0000-090 16 1 Pressure Transducer

R063-0172-822 17 1

Pump Calibrator (Only)

R063-0173-260 18 1 Pump Calibrator Assembly

R333-0011-100 19 1

Recirculation Check Valve

R334-0001-054 20 1 3-Way Valve, Blue Dot

R063-0172-924 21 1

Pump Head Assembly (less Transducer)

R117-0159-987 22 1 Pump Seal Kit

R117-0171-459 23 1 Kit, Flow Monitor Update

R106-0159-637 24 1 Cal Tube Cover (Only)

R063-0172-312 A 1 Tach Feedback Assembly (5 - 200 oz. Motor)

R063-0172-935 A 1 Tach Feedback Assembly ( 1 - 40 oz. Motor)

R063-0172-351 A 1

R063-0172-500 B 1

R063-0172-527 B 1

R311-0073-066

R311-0068-191

Encoder/Sensor Speed

Motor Assembly Only (5 - 200 oz.)

Motor Assembly Only (1 - 40 oz.)

3/4” Hex Head Screw, Main

1-1/2” Hex Head Screw, Side

R107-0171-594 Pump, Mounting Straps

*Part #115-0172-110 Required to mate with weather pack connector

Please Call for Pricing

Once you’re done planting, there’s not much you can do about the stand. It’s while you’re planting that you can make a real diﬀerence. And that’s when 20/20 SeedSense pays oﬀ

With its color-coded, touch-screen display, you’ll spot any errors in down force, spacing and singulation immediately. You’ll zero in on the source. You’ll check it out. You’ll fix it. And you’ll move on, confident that you’re doing everything you can to plant profitably.

Singulations show you the percentage of skips and multiples for the entire planter and each individual row.

Monitor excess weight that leads to compaction and watch ground contact to be sure you’re planting at full depth.

This is the percentage of seed spaced within the limits you set.

Are hex shaft errors creating population issues for you? One glance tells you.

Find out your relative yield loss from the combined level of errors the monitor detects. If it says “Good”, you’re good.

Row Unit Ride reports bounce/ vibration of the row unit.

Think 1% Accuracy isn’t much on your planter meters?

1% Accuracy could be costing you up to $5/Acre. Precision Meters have a fast payback.

4 or 5 down pressure settings good enough?

CleanSweep

AirForce and DeltaForce have an inﬁnate number of settings, completely automated

AirForce studies show 8 BPA over OEM

DeltaForce studies show 11 BPA over OEM

The perfect seedbed, no matter the condition

Uneven emergence through no-till corn stalks?

Moving soil with the trash in conventional till?

CleanSweep forces down and lifts up row cleaners pneumatically, all from the cab

Proper seed bed preparation could gain you 5 BPA

Minimize expensive seed and fertilizer costs

RowFlow allows execution of variable rate perscriptions and control liquid fertilizer

With VDrive you can electrically drive your planter and forget chain, sprocket and hydraulic issues. Turn compensation eliminates over/under planting around contours

Is your seed hitting the bottom of the seed trench?

Are your seed tube sensors accurate? Are you sure?

Keeton Seed ﬁrmers maintain consistant depth control and seed to soil contact

WaveVision seed tube sensors measure mass for supreme accuracy. They won’t see dust as seed like common seed tube sensors.

TEL: (800) 669-2281

FAX: (319) 679-2929

RowFlow VDrive

Keeton WaveVision

SPEED SENSOR

SPEED SENSOR (5

MATRIX PRO

MATRIX 430

• High-contrast, full-color, 4.3 in / 110 mm graphic touchscreen display provides superior visibility in bright light conditions

• Minimal setup needed before operating

• Guidance modes include: Straight AB, Curved AB, Circle Pivot and Last Pass

• Boundary function allows for easy and precise measurement of ﬁeld area

• Area counter measures and displays applied area throughout application

• Simple reporting function provides coverage reports in .KML or .PDF format downloaded via USB port

Part

GD430-GLO-P-B Kit, Matrix 430, GLONASS, Patch antenna, Battery leads.......................$1,995.00

GD430-GLO-P-L Kit, Matrix 430, GLONASS, Patch antenna, US lighter connector ...........$1,995.00

GD430-GLO-R30-B Kit, Matrix 430, GLONASS, RXA-30 antenna, Battery leads ...................$2,510.00

GD430-GLO-R30-L Kit, Matrix 430, GLONASS, RXA-30 antenna, US lighter connector........$2,510.00

The TeeJet Matrix® 908 is an all new ﬁeld computer with expandable options to appeal to any agricultural application. The fully redesigned platform features an 8-inch diagonal high-resolution display that is the perfect match to being cost eﬀective and functional for high-end applications.

• Bright, high-resolution 8-inch touch screen display

• Integrated, dual frequency GNSS receiver with external antenna

• Simple, intuitive menu structure

• Available ISO application rate control

• Expandable platform that can support automatic steering, automatic section control, video cameras, external lightbar, droplet size monitoring and more

U.S. CONSOLE KITS

NAV

Part #DescriptionPrice

90-10006-ENUS Kit, M908 NAV-L1-GLO-ENUS (SBAS) ..........................$3,259.00

90-10007-ENUS Kit, M908 NAV-L2+TSL-GLO-ENUS (Terra Star - L) ......$2,458.00 90-10008-ENUS Kit, M908 NAV-L2+TSC-GLO-ENUS (Terra Star - C).....$4,827.00

ISO

Part #Description

90-10011-ENUS KIT, M908 ISO-L1-GLO-ENUS.......................................$4,433.00

90-10012-ENUS KIT, M908 ISO-L2+TSL-GLO-ENUS ..............................$4,632.00 90-10013-ENUS KIT, M908 ISO-L2+TSC-GLO-ENUS .............................$6,000.00

UNLOCKS & UPGRADES

Part #Description

99-01101 Unlock Code, M908, ISO - ISOBUS...............................$1,174.00 99-01102 Upgrade, M908, GNSS, Base to L1/L2, TSL.....................$199.00 99-01103 Upgrade, M908, GNSS, Base to TSC-Pro Ready..........$1,568.00 99-01106 Upgrade, M908, GNSS, TSL Ready to TSC-Pro Ready$1,369.00

PRO (L2 + TSC)

Note:

A. Horizontal pass-to-pass accuracy is based on a 15-minute time period, 95 percent conﬁdence level and clear view of sky.

B. TerraStar solution types require subscriptions

TEL: (800) 669-2281

FAX: (319) 679-2929

Ask about Norac UC7 Sprayer Boom Height Control Kits — Kits ﬁt most makes and models of sprayers

Norac oﬀers kits to upgrade most UC4, UC4.5 & UC5 systems to UC7

Norac Boom Height Control Systems:

• Improve spraying accuracy by holding consistent boom height in various terrain types

• Increase operator eﬃciency by decreasing stress and allowing faster ﬁeld speeds

• Allows maximization of inputs through consistent application and reduced spray drift

Many Norac parts in stock — including cables, sensors and valves!

UC5 components will also be obsolete by late 2025. , f g d 25.

NOTICE: UC4/UC4.5 parts and support are no longer available. We have a limited amount of UC4 & UC5 parts remaining in stock. Upgrading your system to a UC7 is strongly recommended.

Topcon oﬀers a suite of technology solutions that work well together or in combination with other precision ag systems.

• X Family Consoles oﬀering touchscreen Guidance and Machine Control in 7”, 8.4” or 12.1” sizes. XD and XD+ Consoles oﬀer customers the ability to pay for only the needed features and can be further unlocked in-cab using TAP Market — Topcon consoles work great as secondary ISOBUS consoles in the tractor cab.

• Athene ISOBUS spreader rate controller for manure or dry fertilizer applications allow inputs to be applied proportionally to forward speed. It also allows for Automatic Section Control and Variable Rate Control to minimize over application. Additionally, it can be tied to a ScaleLink 2, providing for accurate weight information or dynamic or on-the-go spreader calibration.

• Topcon’s Apollo lineup features several ISOBUS-based seeding and liquid rate controllers to accurately apply crop inputs.

Digi-Star oﬀers Weighing and Scale-Based solutions

• ScaleLink 2 can be tied to various controllers for scale display via ISOBUS

• WeighLog onboard weighing system for skid loaders, forklifts, tractors and wheel loaders

• Smart Cart is a connected grain cart weighing solution designed for automatic data upload and accurate harvest reports utilizing Digi-Star’s GT 560 indicator

DATA COLLECTORS

Display Kit - InCommand GO 10 ..............................................................................................$4,095.00

Display Bundle - InCommand GO 10 (Guidance Only) & GPS 7500 .......................................$4,995.00

Display Bundle - InCommand GO 10 & GPS 7500 ..................................................................$5,895.00

Display Bundle - InCommand GO 16 & GPS 7500 ..................................................................$8,045.00 Display Bundle - InCommand 1200 & GPS 7500 ..........................................................................................$7,595.00 **Power Cables not included YIELD MONITOR KIT

Description

CAN Grain Yield Monitor Kit - Depends on brand of combine ..................................................................... Please Call Combine Kit with Elevator Mount Moisture Kit

(a) Elevator Mount Moisture Kit for John Deere 9xx0 add $150.00 (If JD 9xx0 is prior to 1997, a template (p.n. 2001341 @ $49.00 is also needed).

(b) Grain Yield Monitor Kits for CAT Lexion combines add $700.00. For newer CAT Lexion combines with pre-existing factory Elevator Mount Holes, add additional $100.00 for Elevator Mount Moisture Kit ($800.00 total).

GPS 7000

GPS 7000 for AG LEADER DISPLAY (p.n. 4100980)

Description

Includes antenna mounting kit and cable to attach to Integra/Versa

Price Ea.

erential correction options: WAAS/EGNOS..................................................................................$1,150.00

GPS 7500

GPS 7500 for AG LEADER DISPLAY (p.n. 4100985)

Description

Includes antenna mounting kit and cable to attach to Integra/Versa/inCommand

Price Ea.

Diﬀerential correction options: WAAS/EGNOS **Unlocks required for TerraStar and RTK level acccuracy ................................................................................................................$2,295.00

CALL FOR MORE INFORMATION ON AG LEADER

SEED COMMAND

• Clutch Control

• Seed Tube Monitoring

• Kinze Planter Monitoring

• Hydraulic Seed Control

• Rawson Direct Drive

• Hydraulic Downforce

• Sureforce

• Surespeed

DIRECT COMMAND

• Liquid systems for plugging into existing Raven harness

• Liquid system for complete wiring harness

• Direct injection

• Strip-Till

• Granular spinner spreader control

• OptRX Crop Sensors

• Rightspot

SMS SOFTWARE PRODUCTS

Description Price Ea.

SMS Basic Desktop Software Unlock - p.n. 2001607 ......................................................................................$995.00 Unlimited mapping for one computer, one year free maintenance

SMS Advance Desktop Software Unlock - p.n. 2001621 ..............................................................................$2,995.00 Unlimited mapping for one computer, one year free maintenance

GUIDANCE & STEERING

Steady Steer Assisted Steering

Ag Leader’s Steady Steer system is the economical way to add assisted steering to tractors, combines, application rigs and more — without hooking into hydraulics. Steady Steer reduces operator fatigue while improving pass-to-pass accuracy.

• Quick, easy “Lock-n’-Roll” installation

• Easily transfer between vehicles

• Superior to friction-design steering systems - eliminates slippage

• Easy to engage/disengage from the display

• Quiet Operation

DIRECT COMMAND PRODUCT CONTROL

• Control Liquid/Dry applications

• On the go as-applied and coverage maps

• Adapt into your current Raven system

• Kits speciﬁc to Case, Deere, Ag-Chem, Hagie, Pull-Type systems and more

• User-Friendly Interface

• Make record keeping easy with Smart Reports

• Variable Rate Capabilities

• Having data from spraying, side dress, and dry fertilizer passes makes decision-making easier

STEERCOMMAND Z2

• SteerCommand Z2 Automatic Steering

• Access to CORS & RTK networks with GPS 6500

• GPS 6500 with SteerCommand Z2 supports WAAS/EGNOS, Terra-Star and RTK

• Nine-Axis Terrain Compensation accomodates for rolling terrain

• Internal compass helps maintain steady heading

• Over 600 diﬀerent vehicle kits Part #DescriptionPrice Ea. 973005001 SteerCommand Z2 .....................$5,495.00 973005002 SteerCommand Z2 CAN only......$4,395.00

**GPS 7500 Required**

**Hydraulic vehicle kits range from $695.00 - $5,595.00**

TEL: (800) 669-2281

FAX: (319) 679-2929

AgFINITI

AgFiniti, Ag Leader’s NEW cloud-based platform, allows you to send and receive data files wirelessly from the cab. Guidance lines, prescriptions, as-applied maps and other data files can be sent and received wirelessly and backed up on a secure AgFiniti account. Files can also be accessed from your smartphone or tablet in the field or at the office, then shared with trusted advisors such as dealers, coops or farm managers.

Part # Description Price Ea.

973101148 USB WIFI Adapter Kit ...................................................................................................$310.00

**Can only be used with Ag Leader Integra and Versa displays. Compass is not a supported display.**

973003883 File Transfer License ....................................................................................................$350.00

**One File Transfer license is needed per display per year.**

WATER MANAGEMENT

INTELLISLOPE

Ag Leader’s Intellislope simpliﬁes the process of installing ﬁeld drainage tile by using an RTK GPS receiver to install tile with a positive grade through the entire run. This eliminates the need for laser surveying equipment, which can be subject to weather conditions, and adjustments to keep the plow on grade in changing topography.

Part # Description Price Ea.

973100470 Tile Plow Kit ..............................................................................................................$5,795.00 **GPS Kit not included.**

FLOWTRAKTMII

The NEW FloTrak II is a user-friendly monitor for farmers and custom applicators needing a simple, low-cost way to achieve greater accuracy when applying liquid chemicals. It’s easy to install and operate, and its rugged design makes it the perfect ﬁt for your operation.

FEATURES

• “Control” output that can turn a valve or pump On/Oﬀ for batch control

• Triple counters for volume and area

• Track tank volume with a handy tank alarm (standard)

• High contrast liquid crystal display with large easy to read numbers

• Heavy duty rotary switch for quick and precise function selection

• Push-button run/hold, counter reset and calibration keys

• Durable Hall-eﬀect speed and ﬂowmeter sensors

• Weatherproof cable connectors

• Back-lit front panel for night operation

SPRAYMATETMII

STANDARD FEATURES

• On-the-go rate adjustment in Auto control mode

• Push-button auto/manual feature for spot treatments

• Minimum ﬂow feature to ensure proper application pattern as ground speed slows to extremes

• Precise rate control regardless of ﬁeld conditions

• Solenoid and ball valve compatible (2 or 3 wire valves)

• Controls electric and hydraulic valves/motors

ADVANCED FEATURES

• Flash memory for simple customization

• Built-in capability for VRA

• Added NH3 and Turf units

• Records area and volume in 3 independent pairs of counters so individual jobs may be tracked

• Tank counter shows amount remaining in tank

• Enhanced reliability, precision and accuracy

• Inline/bypass for servos

SPRAYMATE

II LIQUID RATE CONTROLLER

(319) 679-2929

MICRO-TRAK

• Controls motor speed on any 12-Volt pump to vary output

• Used for low volume starter fertilizer on drills and planters

• Provides accuracy over a wide range of RPM’s

FEATURES

• Manual speed control for 12-Volt Pumps

• Built-in circuit breaker

• Available with or without pressure gauge bracket

• Mounts in the tractor cab for easy access

• On/Oﬀ control switch with power indicator lamp

Part

7” VisionWorks Camera

Standard 7” camera kit, which is a portable kit that is a great solution to the blind spots on your grain carts, skidloaders, or any application. It’s equipped with standard 700 TVL camera with a 30 ft. cable. This particular monitor has two camera inputs, with the ability to toggle between two camera views. You can easily switch between your camera inputs with the remote that’s provided in the kit. Option to power the monitor withcigarette lighter adapter, or choose to hard-wire into your system. This kit can be easily installed. Installation video available on Visionworks website.

Kit Includes:

• 7” LCD monitor

• Standard 700 TVL camera

• 30 ft. cable

• Remote

• RCA female

• Heavy duty mounting bracket • Cigarette lighter adapter • Hard-wiring cables • 65 lb. magnet

10” VisionWorks Camera

Standard 10” camera kit, which is a portable kit that is a great solution to the blind spots on your grain carts, skidloaders, or any application. It’s equipped with standard 700 TVL cameras with two 30 ft. cables. While this monitor has up to four camera inputs, this particular kit will come with two cameras. The 10” monitor has the ability to monitor multiple cameras at the same time. Operators can choose to view any number of cameras with the touch of a button. 10” kits come with a remote that allows the user to switch the camera view and manage their monitor. You can power your monitor with the cigarette lighter adapter, or choose to hard-wire into your system. This kit can be easily installed. Installation video available on Visionworks website.

Kit Includes:

• 10” LCD monitor

• Standard 700 TVL camera

• Two 30 ft. cables

• Heavy duty bracket

Camera Accessories

VisionWorks Cameras are unique because any existing camera can be made wireless with the transmitter and receiver package. You can transmit up to 400 ft. with a good line of site. Wireless packages include your transmitter and receiver for a speciﬁc channel. If you wish to have more than one camera run wirelessly, please make sure you request a diﬀerent channel when your purchase your next wireless package. They come in A, B, C and D.

SEEDING ACCESSORIES

2920 SERIES SEALERS

Standard Features for All Models:

• Sealed double row ball bearings

• Spring cushioned to reduce damage from obstructions

• Adjustable blade angle

• 12” diameter solid blades/ 16” smooth or Notched, 4” x 16” planter type gauge wheels or 13” Residue Manager Wheels

• 2 blade positions

• Greasable hubs

Part #

2920-016

Anhydrous blade sealer. Fits standard 1-1/4” and 1” x 2” Anhydrous shanks. 16” blades ...........................................................................$450.00

2920-016-N Anhydrous blade sealer. Fits standard 1-1/4” and 1” x 2” Anhydrous shanks. 16” notched blades .............................................................$480.00

2920-020

Anhydrous wheel sealer. Fits standard 1-1/4” and 1” x 2”

Anhydrous shanks. 40 mm bearings. 4” x 16” planter type gauge wheels ........$575.00

2920 SERIES MAX SEALERTM PLUS

Standard Features for All Models:

• Arms operate iindependently

• Adjustable blade pitch

• Fits the following shanks:

1” x 2” shank 1.25” sq. coil shank 2” x 1.25” shank Part

• Heavy duty construction

• Greasable hubs

• Greasable pivots

• Heavy duty cast iron bearing hub

2920-051 Max Sealer PlusTM, 18” Notch .............................................................................$650.00 2920-053 Max Sealer PlusTM, Sharktooth® wheel ..............................................................$650.00

SEEDING ACCESSORIES

2000 SERIES ALL STEER FERTILIZER CART

Standard Features on All Models:

• All Wheel-Steer

• 1600 gallon or 1000 gallon tank

• Warning lights

• Welded frame construction

• Heavy duty 8 bolt hubs

• 24,000 lbs. load capacity

• 2 3/4” spindles

• Greasable 5th wheel

**Color Choices: Black, Blue or Green

Section A

Section B

Optional - Spacer Kits

TEL: (800) 669-2281

(319) 679-2929

Notch blade Smooth blade Sharktooth® wheel

2960 SERIES II UNIT MOUNTED CONSERVATION COULTER

Standard features for all models:

• Sealed tapered roller bearings (pre-lubricated)

• Planter unit mounted

• Greasable hub

• Heavy-duty spindle

• Adjustable coulter arm

Part #

502960127 Fits Yetter 6000, JD 1700, 7000, 7100, 7200, 7300 and Kinze ................................................16”-13” Wave ........$380.00 Spring Kits Available.

THE CLEANUP CREW

2967 SERIES RESIDUE MANAGER* 13” X 1/4” STEEL TAPER WHEEL WITH 16 FINGERS (INCLUDES BEARING SHIELDS)

Part # Description

502967028 Fits Yetter 6000, JD 1700, 7000, 7100, 7200, 7300, Kinze, New Idea and White 6100 Planters .............................$575.00 502967035 Titan Series Unit Mounted Floating Residue Manager .....................$730.00

2967 SERIES SCREW ADJUST RESIDUE MANAGER

Standard features for all models:

• Planter unit mounted

• Adjustable depth control

• Two bearing seals for extra wear

• Double row heavy-duty greasable ball bearings for long life

• Heavy-duty cast bearing hubs

• Grade 5 bolts for added strength and durability

• Smooth-headed carriage bolts, eliminate residue snagging

Part #

Description

502967052 Fits JD 1700, 7200, 7300, Kinze (‘93 to present), New Idea and White 6100 with standard 14” parallel arms. SEE NOTE BELOW ................................................................................................$625.00

2967-053 Fits Case IH 800-900, 950, 955, 1200 ...............................................................................$625.00

502967057 Fits JD Planters with long 21” parallel arms or 7000, 7100 standard, Kinze (‘92 and older) planters .........................................................$625.00

2984 SERIES GENERATION II MAVERICK OPENER

Great for Strip Till

Standard features for all models:

• Cast iron toolbar mounting bracket

• Heavy duty cast iron parallel linkages

• Standard planter type faceplate to mount various attachments

• 2 heavy duty down pressure springs with quick adjust tension

• Fits 4 x 4, 5 x 7 or 7x 7 toolbar

• Choice of sealing wheels or spring loaded sealing disc

• Coulter/residue manager combination work with the knife’s tillage action to promote mellow soil for early warm-up

• Sealing discs build a perfect berm, or strip, right in the planting zone

• Tillage, residue management, fertilizer placement and sealing are done in one pass, saving time and reducing operating costs

• Fertilizer is placed in the root zone where crops need it most all season long CALL 1-800-669-2281 FOR PRICING!

5000 SERIES STALK DEVASTATOR

Prices subject to change without notice

6200 SERIES CLOSING WHEELS CAST SPIKE WHEEL

• 17” Ripple blade

• 17” Multi-Wave Blade

• Adjustable depth control

• Heavy-duty spindle

• Left and right hand models

• Stainless steel fertilizer tubing

SERRATED CLOSING DISC

2982 SERIES VERTICAL TILLAGE ATTACHMENT

Standard features for all models:

• Double hub mounting

• Blades are spaced 6” apart

6200 SERIES DRAG CHAIN

Standard features for all models:

• Heavy-duty 3/8” square twisted link chain

• Fits most popular planters

• Squeeze together connections

• Formed bolt on mounting straps Part

506200108* Square twisted link drag chain .......................................................................$55.00

*Certain planters may require drilling a hole.

CLAMPS

Band Clamp ........................................82

Bolted Flange Clamp ............................7 Flange Clamp .......................................7 Spiral ..................................................82

Super Clamp ..................................84-85 Worm Clamp .......................................83

CONTROLLERS

Ag Leader Controllers ................262-263 Micro-Trak SprayMate II ............264-265

Raven Controllers ..............247, 250-252

TeeJet 744 Controller .......................244 12V ...................................................266

CORNELL

........................................18-19

...............................................3-7

Flange Clamps .....................................7

Flange Fittings ...................................6-7 Hose Barbs ........................................3-5 Menders ................................................3

Pipe Thread Compound .......................5

Teﬂon Tape ...........................................5

Quick Couplers ..................................2-3

Replacement Gaskets ......................3, 7

Sweeps .................................................7

PRECISION

Ag Leader Yield Monitor Ag Leader ...................................262

.........................................252

CR7 ..........................250-251

Guidance Lightbars

Ag Leader ...................................263 Raven CR7 ..........................250-251 TeeJet .........................................259 GPS Receiver ......................257-262

Manure .............................................162

Manure Electronic Control System(ECS) 162

Planting .............................................257

Raven ISO Bus - Manure .................162

Viper 4 ......................................250, 252

QUICK

TIPS — TEEJET - continued

AIXR .................................................219

AI Turbo Twinjet ................................223 Air Induction Spray Tip .....................218 Boomless Nozzles ............................230 Double Outlet Flat .............................229 FloodJet ............................................227

FloodJet - Wide Angle ......................228

Flow Regulators (Oriﬁces) ................231

Greenleaf ...................................232-234

Nozzle Accessories ...................236-237

Oriﬁces .............................................231

Quick Turbo Floodjet ........................228

Selection Guide .........................213-215

SJ-3 Fertilizer Nozzles ......................225

SJ-7 Fertilizer Nozzles ......................226

StreamJet .........................................229

StreamJet Tip ....................225-226, 229

TTI Turbo TeeJet Induction ...............221

Turbo FloodJet..................................227

Turbo TeeJet .....................................217

Turbo TeeJet Induction .....................221

TwinJet .............................................222

Twin Turbo TeeJet ............................222

Variable Rate Nozzles ......................224

XP BoomJet ......................................230

XR & XRC ........................................220

SPRAY TIPS — WILGER 110 Combo Jet..................................235

SPRAYERS

Ag Spray Sprayers ............202-203, 210

FS - Tru-Kleen ATV ...........................204

Lawn & Garden ..........................202-203

SPRAYERS - LAWN & GARDEN

ATV Spreaders .................................202

Backpack Sprayer - JACTO 4 Gal. ...205

Sprayer Accessories .........................203

SPREADERS

ATV ...........................................202, 204

SPREADERS/SEEDERS ..........................................199, 203, 206

SQUIBB TAYLOR

...................................................103-107

STAINLESS STEEL

Ball Valves ....................................19, 27

Barbs .............................................18-19

Check Valves ..............................27, 255

Fittings ...........................................18-19

Pipe ....................................................19

Quick Couplers ..............................11-12

Strainer ....................................20, 35-36

Tanks ..................................................47

Weld On Fittings .................................19

Rotary Injector ..................176-178

....................................168-175

VACUUM Pump Parts ................................184-187 Tank Parts ...................114-133, 184-187 VALMAR Air Boom Applicator ..........................208 Applicator ..........................................208

Fertilizer Cart ....................................208 VALVES

4 Bolt Flange Brass ...................122-131 Air Actuator and Pinch Valves ..5, 26, 28

Banjo Electric Ball ..........................29-30

Banjo Poly Ball Valves ...................24-26

Bonomi Butterﬂy .................................28 Brass ...................................27, 122-131

Bray Valves (Butterﬂy) ........................28

Check .......................6, 27, 88, 239, 255

Chrome Plated Brass .........................27

Cylinders ...........................................131

Electric Shut Oﬀ Valves .................29-31

Garden Hose ........................................1

Houle ................................................134

VALVES - CONTINUED...

Manual Control Valves ........................32

Matco ................................................134

MZ Valve ....................................122-133

Orbinox .............................................134

Poly Manifold ......................................32

Pressure Relief ...................................32

Raven Electric Manifold ......................29

Regulating

Raven ...................................31, 248

TeeJet ...........................................32

Spike ...................................................32

Stainless Steel ..............................19, 27

Stubby Valves .....................................24

TeeJet 144A ........................................30

TeeJet Electric Ball ........................29-31

Threaded ............................................27

Valve Manifold ....................................29

VARIABLE

NOZZLES

WELD FITTINGS

Elbows, 45°, 70°, 90°, 135°, 6” & 8” .120

Flange - 4-bolt, 8-bolt, 4”-12” ............120

Hose Barbs - 4”-12” ..........................120

Pipe - Nipples, Couplers - 3”, 4”,6”, 8” 120

Reducing Cone - 4”x6”, 6”x8”, 8”x10”120

SS Socket Weld Flange ........................7

Tee - 6” Sch 40 .................................120

Tubing - 4”, 6”, 8” ..............................120 WILGER

Ball Monitor .........................................33

Flow Indicators & Accessories ............33

Spray Tips .........................................235

YETTER EQUIPMENT

All Steer Cart ....................................269

Closing Wheels ..........................269-271

Disc Chisel Coulters .........................271

YETTER EQUIPMENT - Continued...

Disc Sealers .....................................271

Fertilizer Coulters ......................269-271

Markers .............................................271 Mavericks .........................................270

Residue Managers ...........................270

Row Cleaners ...................................270

Stalk Devastator ...............................270

United Mounted No-Till Coulters.......271 YIELD MONITOR ..........................................................262

Eldon C. Stutsman, Inc.

P.O. Box 250

Hills, IA 52235-0250

800-669-2281

319-679-2281

FAX: 319-679-2929

PURCHASED BY:

PURCHASE ORDER #

DATE ORDERED:

ORDER PLACED WITH:

SHIP DATE:

City, State, Zip __________________________________________________________________

Quality Products in this catalog are represented by these Quality Suppliers

Ace Pump

Aerway by Salford

Ag Leader Technology

Ag Spray (Schaben Industries)

Ag Synergy Planter Tanks

All-American/Snap-Tite Hose

Arcosa Triarc

Artex Manufacturing

B & H Tank

Balzer

Banjo Liquid Handling Products

Bazooka Farmstar

B-B Behnke Enterprises, Inc.

BBI

Bray Valves

Bull Pull Hitches

Capstan Ag

Chembine

ContiTech USA

Cornell

Dalton Ag

Deitrich/DSI Ag

Delta Harrows

Demco

Digi-Star

DMI Hitches

Doda

Dura Products

ECS Equipment

Fimco Spray Products

FS Manufacturing

FuelPRO

Galaxy Tires/Muckmaster Tires

GEA Houle

Gollmer & Hummel Hose

Greenleaf Technology

Hiniker Company

Hitch Doc - Travis Seed Cart

Hypro

Jacto

John Blue

Kanaﬂex Corp.

Krohne

Krone Hay Equipment

Lackender - Skid Steer Attachments

Mandals

Manure Magic/Drylet

Manure Master Foam Away

Matco Valves

Maxi-Gro Fertilizer

Meridian Manufacturing, Inc.

MFC (Minnesota Flexible Corporation)

Micro-Trak

Mid-State Tank Co.

MZ Valves

Nichols Tillage Tools

Norac

Norwesco - Poly Tanks

Nuhn

Palmer Mfg. & Tank, Inc.

Patriot All Steer Cart

Precision Planting

Raven Industries

Salford

Schaeﬀer Specialized Lubricants

Schimberg Co. - Pipes, Valves & Fittings

Schulte Industries

Sensor-1

Shield Ag Products

Shurﬂo Pumps

Squibb Taylor

Summers Manufacturing

Talc U.S.A.

TeeJet Technology - Spray Systems

Terog Manufacturing

TERREMAX Liquid Handling Products

Thompson Strainers

TIR (Texas Industrial RenCor, Inc.)

Topcon

Travis Seed Carts

Unverfurth

Valmar

Vertiﬂo Pumps

Vision Works

Wear Parts LLC

Wilger Industries, Ltd.

Yetter Manufacturing, Inc.

L ACKE NDE R BY TACKLE YOUR TO-DO LIST FASTER.

AMERICAN-MADE SKID STEER ATTACHMENTS FOR EVERY TASK.

COMPACT TRACTOR & SKID STEER

DIGGING & EXCAVATING

HAY EQUIPMENT PALLET FORKS SNOW REMOVAL

LAND CLEARING & MANAGEMENT MANURE HANDLING

SPECIALTY ATTACHMENTS

ACCESSORIES
