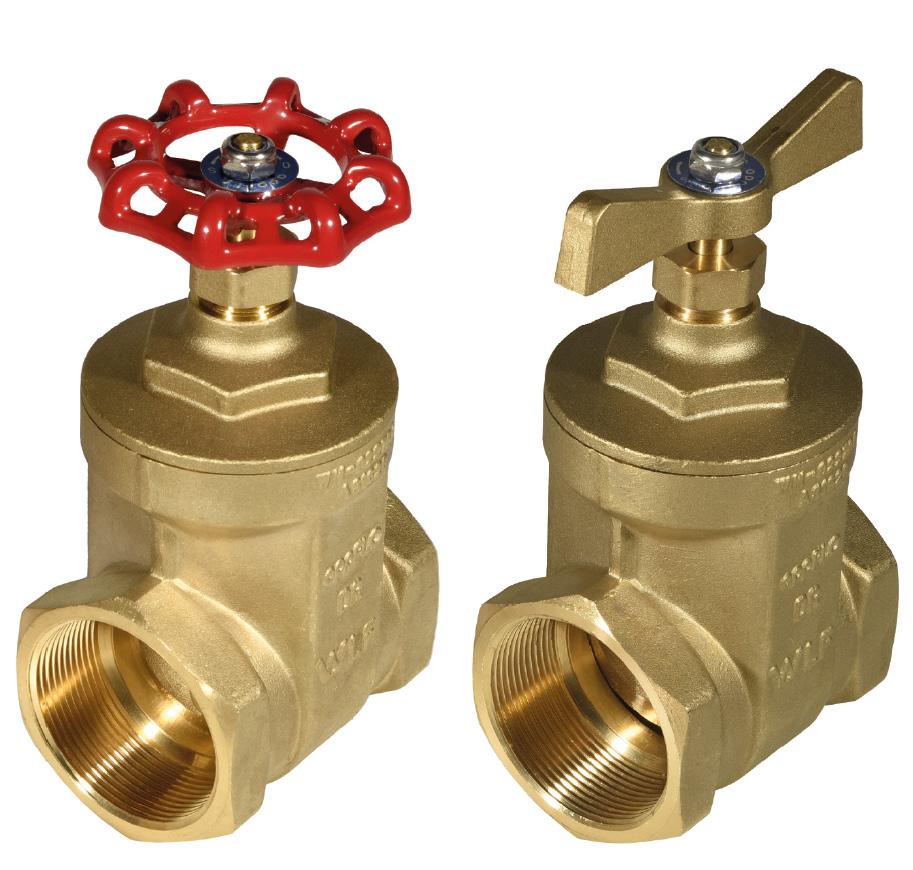

GATE VALVE
LEAD FREE ROUND HANDLE & T-HANDLE
MATERIALS Part
Material
Body
CW511L DR Brass
Bonnet
CW511L DR Brass
Wedge
CW511L DR Brass
Stem
CW511L DR Brass
Round Handle
Cast Iron
Tee Handle
CW511L DR Brass
Packing
P.T.F.E.
SPECIFICATIONS
This product meets new regulation in accordance to the New Zealand 2022 Building Code update, Acceptable Solution G12/AS1 Water Supplies, and meets the Potable Water Lead Limit of no more than 0.25% by weight. Steel & Tube proudly stocks and supplies appFlo, available through our nationwide branch network.
Thread
ISO 7.1
MAX working temperature
180 °C
Cold working pressure
2500 kPa AS1628

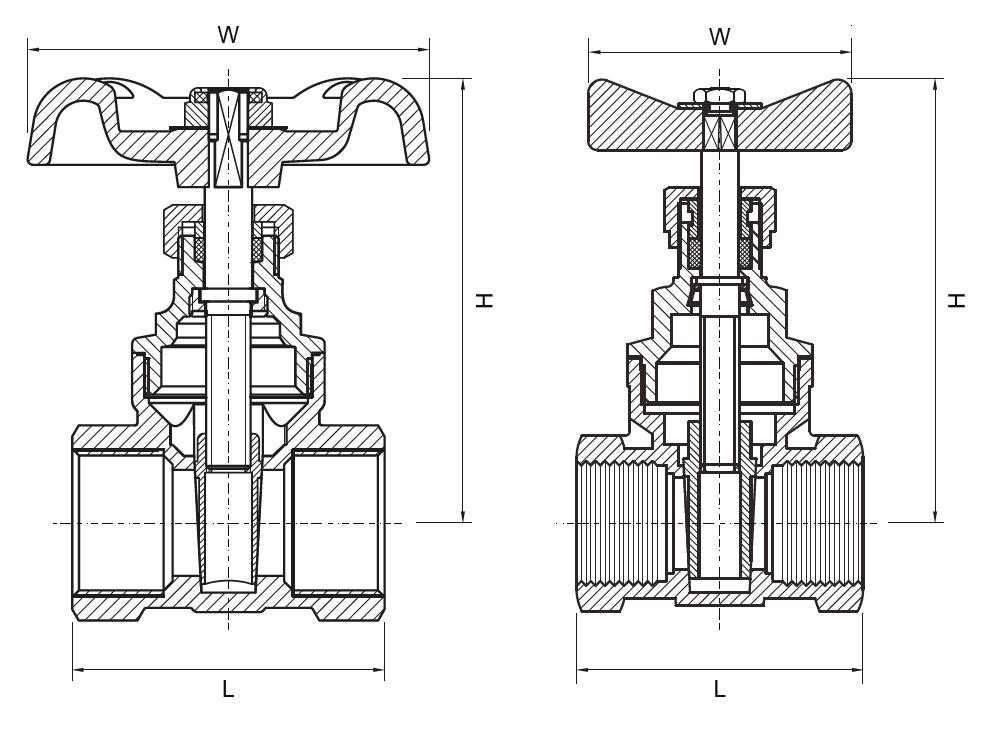

SIZE
L
H
W
APPROX. KG/PC
P0123716 P0123717 P0123718 P0123719 P0123720 P0123721
1/2” 3/4” 1” 1 1/4” 1 1/2” 2”
52 56 67 72 79 92
54 72 72 78 78 78
74 80 93 105 129 146
0.28 0.41 0.62 0.90 1.28 1.89
APPLICATIONS
Brass Approved Gate Valve (T-Handle) PRODUCT #
SIZE
L
H
W
APPROX. KG/PC
P0123755 P0123756 P0123757 P0123759 P0123759 P0123760
1/2” 3/4” 1” 1 1/4” 1 1/2” 2”
52 56 67 72 79 92
54 65 65 84 104 104
72 78 91 101 130 144
0.27 0.36 0.57 0.89 1.31 1.92
Potable water, Heating, waterworks, Irrigation, Air systems, and Low pressure steam
0800 478 425 262 335 fortress.kiwi sales@steelandtube.co.nz Disclaimer: this data should be used as a guide only, for exact applications you should engage the services of a qualified engineer.
NOV 2025
PRODUCT #
SPECIFICATION SHEET
Brass Approved Gate Valve (Round Handle)
