MIXING //

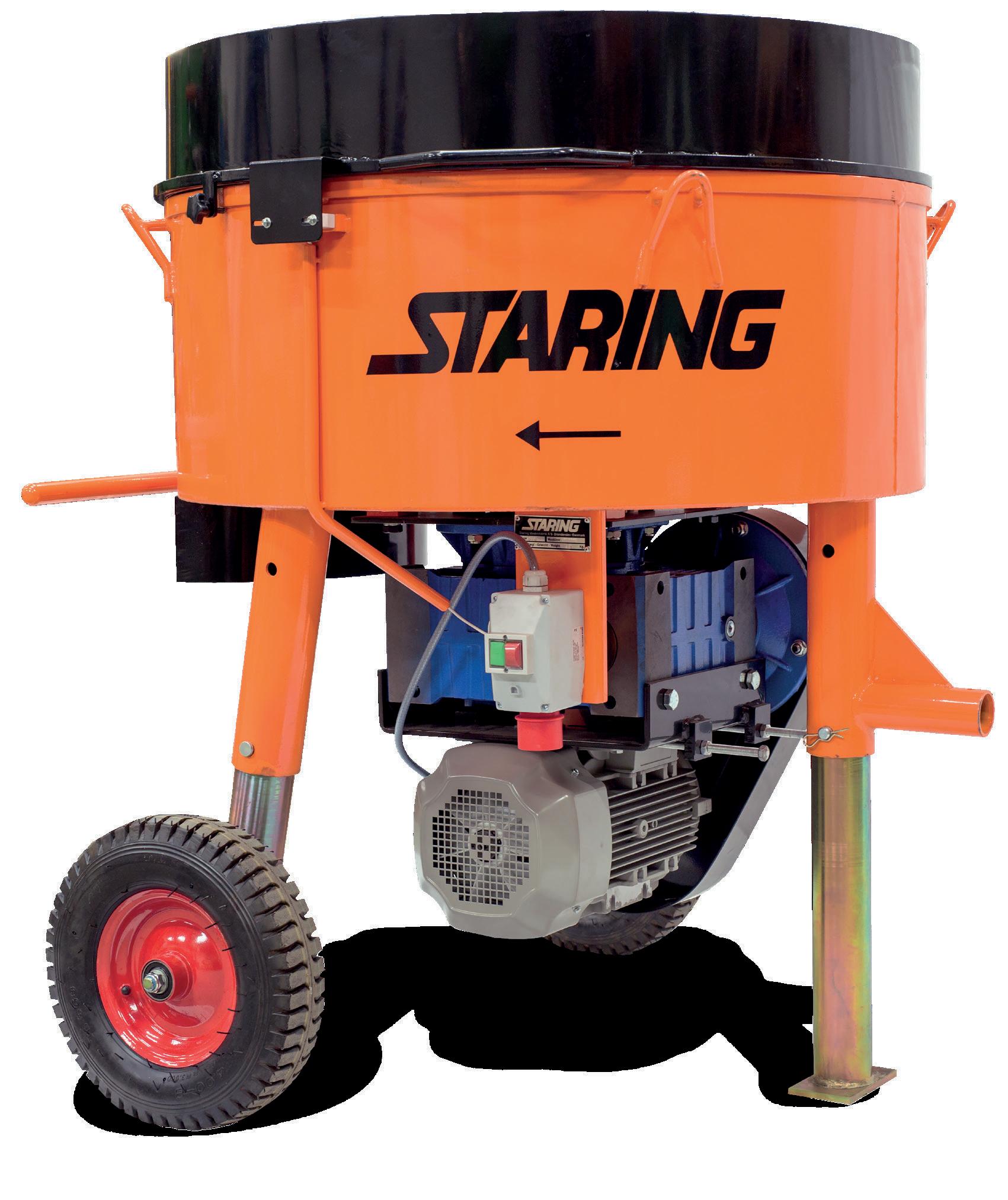

Pan Mixer STB-65 [ STB-006515230CHK ] Pan mixer specifications: • El-Motor 1,1 Kw 1x230 V – 50 Hz S1 (2,0 Kw S6) • Hinged net Cover with Sack Knife • Solid Rubber Transport Wheel • Loading Wheels on Handle • Epoxy Coated Mixing Pan and Frame • Magnet Switch as Safety Cut-out • Mixing head with Mixing Arms made of Chrome Nickel Steel • Replaceable Mixing paddle (rubber) • Adjustable Discharge height • Mixing Capacity (Volume) 65 L.

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING // Forced mixer with a capacity of approximately 90 liters is the perfect all-around mixer, suitable for many products across various industries.

The special design of the mixing head ensures absolutely efficient mixing of materials and keeps the mixing drum clean.

The efficient mixing head comes standard with steel paddles.

The mixing head can be lifted out of the drum without the use of tools, making cleaning and adjusting the mixing arms hassle-free. The mixing paddles can be adjusted individually.

Pan Mixer STB90 [ STB009015230CHK ] The mixer is delivered with: • Patented vibration system for improved discharge.

• Safety lid with sack knife.

• Safety switch on the lid.

• Tilting grid for buckets.

• Adjustable paddles and arms.

• Loading wheels.

• Puncture-proof wheels.

The design of the STB90 makes the mixer easy for one person to operate.

The high-mounted loading wheels make it easy to load the mixer.

STB90 comes with a patented vibration system for improved discharge.

The lid is hinged and comes with a sack knife and a magnetic safety switch.

MODEL

STB90

Product no.

STB009015230CHK

Mixing Capacity

90 L

Barrel width Ø

625 mm

Barrel height inside

310 mm

Mixing Arms

3

Emptying height

735 mm

Total width

670 mm

Total lenght

850 mm

Total height

1350 mm

Weight (empty)

69 Kg

Motor Size

1,5kW (S1)

Voltage Volts

230V~/ 50 Hz

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Pan Mixer SM-125 [ 01200400CHK ] Pan mixer specifications: • El-Motor 4,0 Kw (S1) - 400 V / 50 Hz • Hinged net Cover with Sack Knife • Extra Add-On Closed Cover as picture • Solid Rubber Transport Wheel • Epoxy Coated Mixing Pan and Frame • Magnet Switch as Safety Cut-out • Mixing head with Mixing Arms made of Chrome Nickel Steel • Replaceable Mixing paddle • Mixing Capacity (Volume) up to 125 L.

REFRACTORY

MIXING

WELL DONE

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Pan Mixer SM-340 [ 0340 ]

Pan mixer specifications: • El-Motor 5,5 kW or 7,5 kW (S1) - 400 V / 50 Hz • Output app 170 liter (300 L.) / 300 kg.

• Pan diameter 1000 mm • Main shaft, RPM 35 • 3 mixer arms + sidescraber • Emptying height 830 mm • Mixing Capacity (Volume) up to 300 L.

REFRACTORY

MIXING

WELL DONE

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Mega Mixer MEGA 300 [ 0310 ] Pan Mixer specifications: • 11,0 or 15,0 kW El-motor 3x400 Volt 50 Hz. • For mixing approx. 400 - 600 kg LCC. • Hinged Cover with Safety Cut-out • Cover can be delivered after customer’s requirement.

• It can be delivered as Grid Cover or closed cover with Inspection door, hopper for small sacks etc. just let us know your wish.

• Powerful European manufactured gearbox • Easy cleaning mixing head replaceable without tools.

• Adjustable and replaceable Mixing Arms made of Chrome

REFRACTORY

MIXING

WELL DONE

staring.dk

BIGGER. STRONGER. FASTER. For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Mega Mixer MEGA 500 [ 0510 ] Pan Mixer specifications: • 15,0, 18,5 or 22,0 kW El-motor 3x400 Volt 50 Hz. For mixing approx.

• 600 kg LCC With 15,0 kW • 740 kg LCC with 18,5 kW • 880 kg LCC with 22,0 kW • Hinged Cover with Safety Cut-out The Cover can be delivered after customer’s requirement.

It can be delivered as Grid Cover or closed cover with Inspection door, hopper for small sacks etc. just let us know your wish.

• Powerful European manufactured gearbox • Easy cleaning mixing head replaceable without tools.

• Adjustable and replaceable Mixing Arms made of Chrome Nickel Steel • Changeable mixing paddles faced with hard metal.

REFRACTORY

MIXING

WELL DONE

staring.dk

BIGGER. STRONGER. FASTER. For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Mega Mixer MEGA 750 [ 0750 ] Pan Mixer specifications: • 30,0 kW El-Motor 3x400 Volt 50 Hz For mixing approx. 1200 kg LCC • Hinged Cover with Safety Cut-out The Cover can be delivered after customer’s requirement.

It can be delivered as Grid Cover or closed cover with Inspection door, hopper for small sacks etc. just let us know your wish.

• Powerful European manufactured gearbox • Hydraulic operated discharge door complete • Replaceable Liner (Wear plates) • Easy cleaning mixing head replaceable without tools.

• Adjustable and replaceable Mixing Arms made of Chrome Nickel Steel • Changeable mixing paddles faced with hard metal.

REFRACTORY

MIXING

WELL DONE

staring.dk

BIGGER. STRONGER. FASTER. For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Mega Mixer MEGA 1000 [ 1010 ] Bucket Mixer specifications: • 45,0 kW El-Motor 3x400 Volt 50 Hz For mixing approx. 1800 kg LCC • Hinged Cover with Safety Cut-out The Cover can be delivered after customers requirement.

It can be delivered as Grid Cover or closed cover with Inspection door, hopper for small sacks etc.

• Powerful European manufactured gearbox • Replaceable Liner (Wear plates) • Hydraulic Operated Discharge door complete with Hydraulic station.

• Easy cleaning mixing head replaceable without tools.

• Adjustable and replaceable Mixing Arms made of Chrome Nickel Steel • Changeable mixing paddles faced with hard metal.

REFRACTORY

MIXING

WELL DONE

staring.dk

BIGGER. STRONGER. FASTER. For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Water Dosage WD4 [ VANDDOSERING4-1 ] Water dosage specifications: • CCE socket for a 220 V connection • Water connection - Depend • Water dosage - Depend • Display type - in/show the chosen • Start - Switch for start up dosage • Manual/automatic - Turning switch for manual/automatic dosage • Accuracy 0,1 L ATTENTION: this water dosage system is special configured to ACCURACY

be used in conjunction with our pan mixers.

Water accuracy is very important to many of the new materials eg. those with low water/cement content.

Using this system the water is metered with a very precisely accuracy.

0.0

DISCOLOURATION The addition of inexact quantities of water can cause destruction and discolouration of material.

STRENGTH Uniform distribution of water throughout the material provides strength.

staring.dk

For further info or placement of order! staring@staring.dk or +45 98 82 16 22

ACCESSORIES //

Easy Hammer

Effective concrete remover.

Easy Hammer concrete remover is a chemical product designed for the removal of concrete from most surfaces. It does not damage rubber, glass, aluminum, finished painted, or unpainted surfaces.

Easy Hammer concrete remover is an effective and environmentally friendly chemical for the removal of concrete and cement from machinery, tools, and concrete trucks.

USE. Pre-treatment: The substrate should be dry to ensure the best penetration. ALWAYS test Easy Hammer on a very small area first. Wait and observe the effect before using it on larger or multiple surfaces. Always wash the object afterward with plenty of water and let it dry again to see the final result.

APPLICATION. Working temperature: min. 5°C - max. 40°C At lower temperatures, the effect is slower.

Avoid working in direct sunlight as it shortens the lifespan and reduces effectiveness. Let the concrete remover work until a white layer is left, then rinse with a high-pressure cleaner. Repeat the treatment if necessary.

NOTE: Concrete remover should not be used on marble and other calcareous products.

5 L.

10 L.

20 L.

200 L. BARREL

1000 L. BARREL

5L. SPRAY

BARRELPUMP

St. varenr.

698000500

698001000

698002000

698020000

698100000

3237P

698020010

Weight (kg)

5,75

10,9

22,7

225

1143

1,55

1,20

Height (mm)

235

380

380

910

1200

1200

530

Lenght (mm)

190

220

260

585

1200

235

105

Widht (mm)

130

160

290

585

1000

195

255

Accessories

5 L. spray

5 L. spray

5 L. spray

Barrelpump 5 L. spray

Barrelpump 5 L. spray

–

–

TYPE:

UFI Code GEL

SJ40-902U-K00H-WREK

UFI Code FOAM

8G40-S0DF-9001-7DUH

AREAS OF APPLICATION. Easy Hammer concrete remover can be used on almost all surfaces except marble and other calcareous products. EASY HAMMER may cause discoloration on the surface of electro-galvanized products. It is essential always to have conducted a small test piece first, regardless of the material.

Gel: Used concentrated. Applied with a spray.

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

BLOWERS //

Blowers VAF-SERIES

The VAF series is perfect for: • Dust extraction during demolition.

• Air movement for drying in conjunction with a dehumidifier.

• Dust extraction from the ceiling during renovation.

MODEL

VAF-200

VAF-300

VAF-AM300

VAF-400

VAF-800

Staring no.

VAF-200

VAF-300

VAF-AM300

VAF-400

VAF-800

Dia. (discharge)

203 mm

305 mm

–

405 mm

512 mm

Air flow

22 m3/min

56 m3/min

24 m3/min

120 m3/min

256 m3/min

Width

318 mm

356 mm

600 mm

540 mm

650 mm

Lenght

470 mm

432 mm

495 mm

560 mm

700 mm

Height

470 mm

535 mm

240 mm

615 mm

700 mm

Weight

8,5 kg

15 kg

10,5 kg

20 kg

54 kg

Elmotor

Motor type 0,2kW

0,8 kW

0,4 kW

0,75 kW

3,7 kW

Power Supply

230V~/50hZ

230V~/50hZ

230V~/60hZ

230V~/50hZ

400V~/50hZ

Use of Amp.

2,3 A

7,1 A

21,6 - 1,7 A

7,1 A

13 A

R.P.M.

3200

3425

–

3250

3450

Motor size

The VAF-Series all have: • • • • •

Impact-resistant plastic.

Double casing.

Fully enclosed motor casing.

Large range of accessories.

Protective grilles on the suctionand blowing sides.

staring.dk

VAF-300

ACCESSORIES (NOT INCLUDED): MATCHING FLEXIBLE HOSE VAF-305 MM For further info or placement of order! staring@staring.dk or +45 98 82 16 22

VIBRATORS //

Poker Vibrator RABBIT [ SPV-RABBIT2800 ] Vibrator specifications: Staring Poker Vibrator type RABBIT is a super powerful Poker vibrator with a 1 x 230V 3hp motor capacity.

The Rabbit can be supplied with hoses ranging from 1.0 m up to 5.0 m in length and from a diameter of Ø25 mm to Ø60 mm. The vibrator operates at a stunning speed of 12,000 rpm with a centrifugal force of up to 6,000 kN. The RABBIT is particularly suitable for smaller concrete tasks as well as for element production and similar applications.

staring.dk

Special fitted hoses.

From Ø25 mm to Ø60mm PLEASE ASK FOR PRICE AND SPECIFICATIONS!

For further info or placement of order! staring@staring.dk or +45 98 82 16 22
