EXPORT

MIXING //

Trolley Mixer STB-75L [ STB-00750001CHK ] Trolley specifications: • Grosss volume 75 liter • Type of Mixers Most Types • Total weight with Tub 7,5 kg • Diameter of Tub 440 mm

Staring mixing cart with a 75L plastic bucket, specially designed for the application of floor leveling compound.

• Height of Tub 630 mm

This model of mixing cart makes it easy to handle many smaller tasks where a piping system is preferred over a tub mixer or forced mixer.

The mixing cart can be used with a bracket, easily mounted on the edge. This special bracket is used for the fixed installation of piping. Once the piping is installed, you can easily and effortlessly create your mixtures in an ergonomically correct position, without shoulder strain.

With the special bracket, the piping can be secured during application.

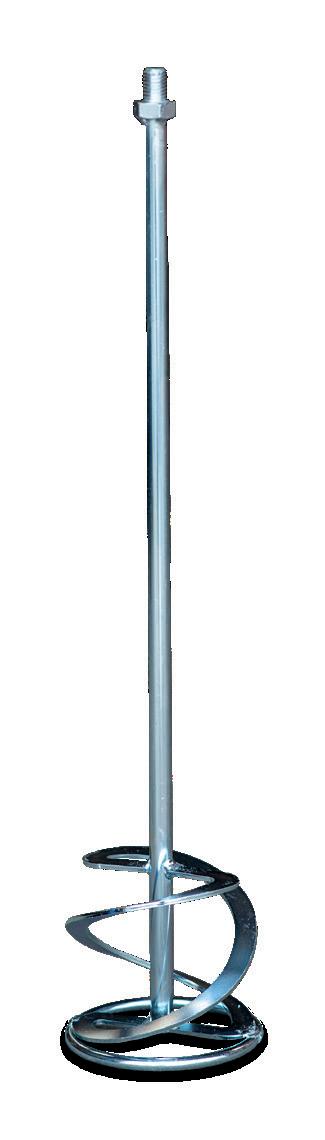

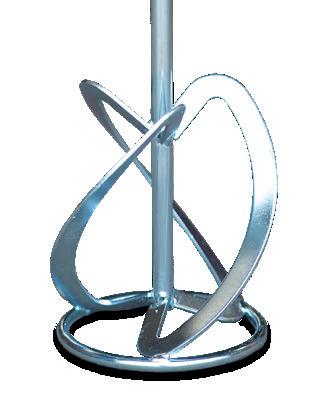

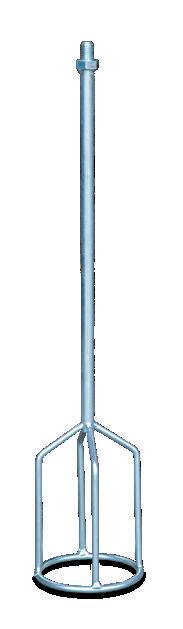

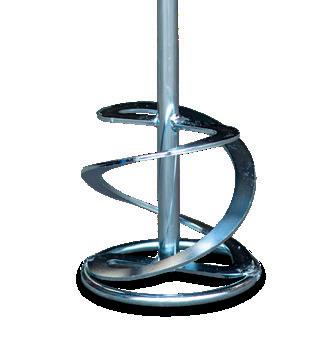

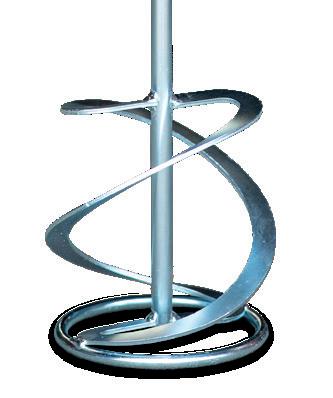

When the correct whisk is used on the piping, uniform and smooth mixtures are achieved without lumps.

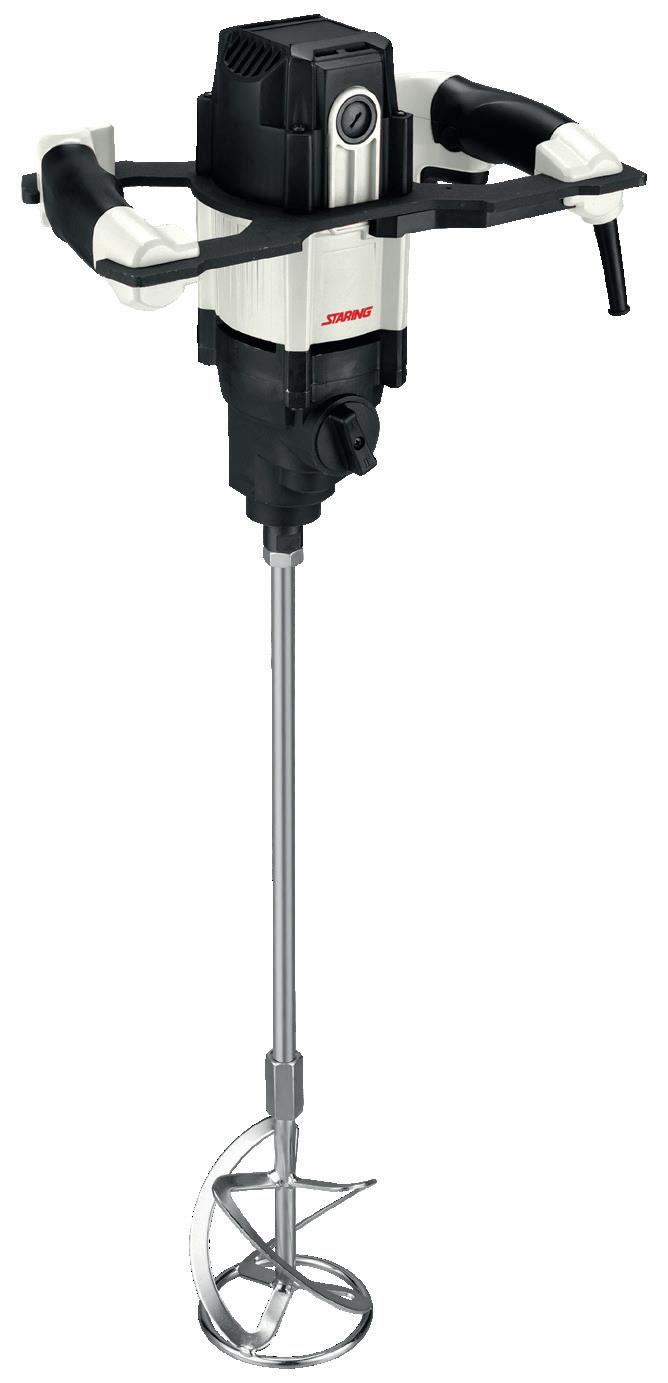

ATTENTION: Electric mixer not included but can be supplied!

Subsequently, the cart is easily transported to the task, where the cart is designed to tip and apply the material effortlessly.

staring.dk

MODEL

STB-75L.

Product no.

STB-00750001CHK

Capacity

75 L.

Diameter of Tub

440 mm.

Height

630 mm.

Weight Tub (empty)

2,3 Kg.

Weight metal part

5,1 Kg.

Total weight of cart

7,4 Kg.

PERFECT! FOR MIXING GLUE, MORTAR ETC. For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

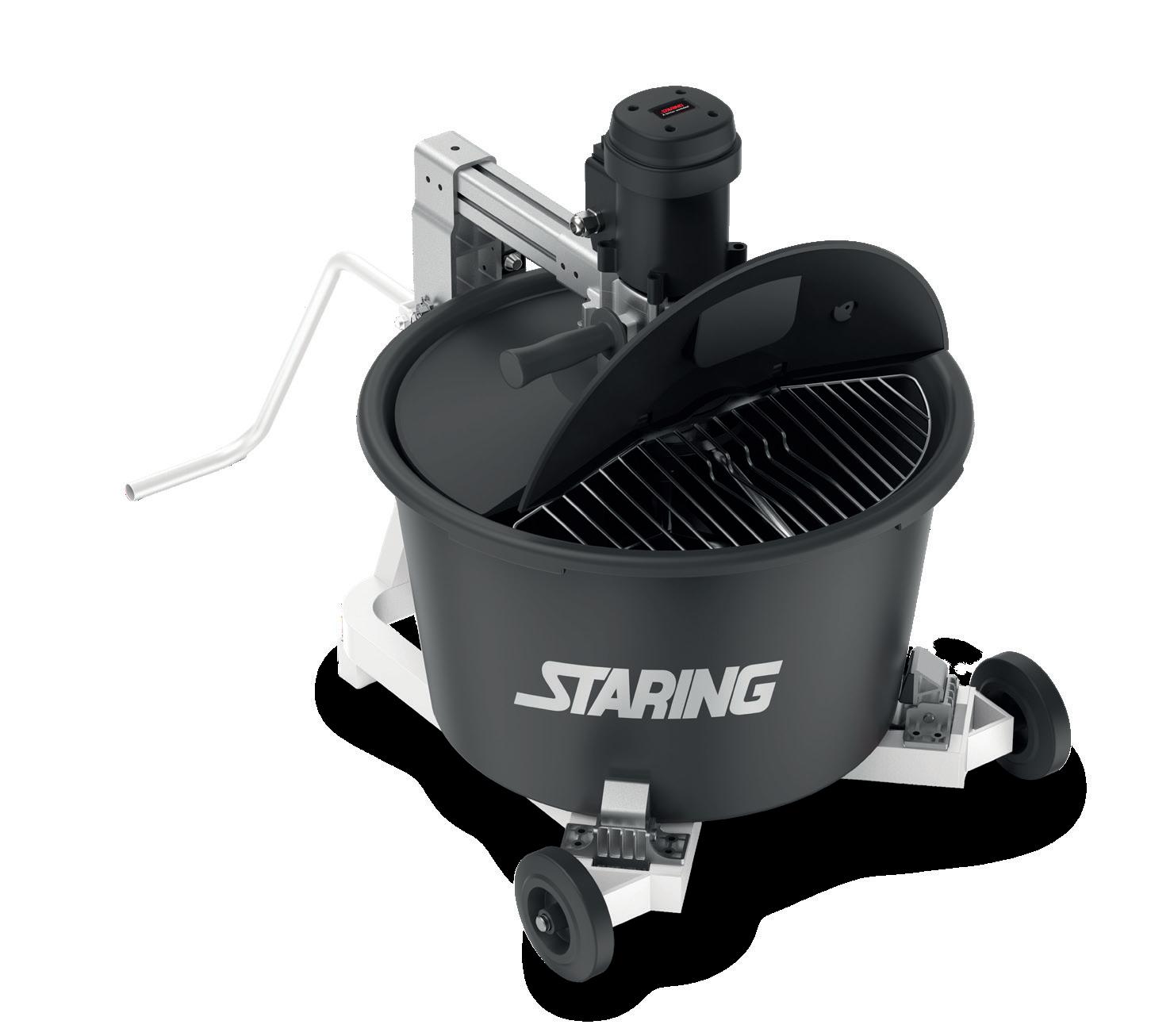

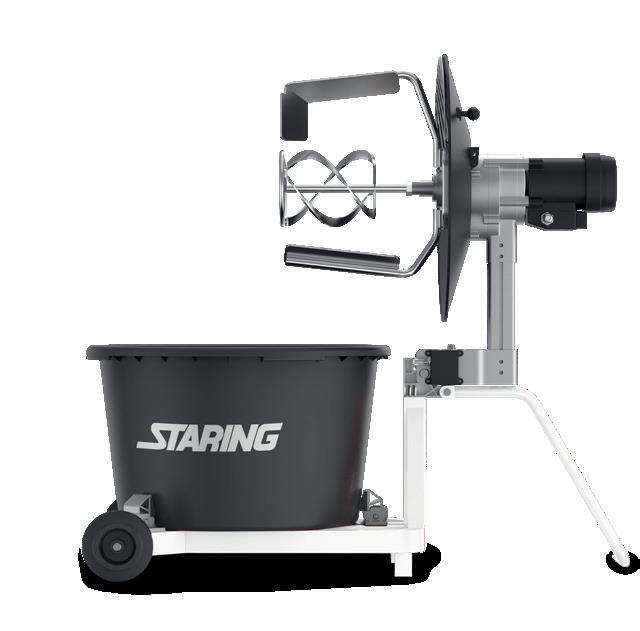

Counterflow Mixer BLM-65 [ STB-00651200M ]

The BLM-65 Counterflow Mixer is a highly practical and compact mixer, equipped with a powerful motor that makes it ideal for a wide range of smaller mixing jobs. The combination of a centrally mounted whisk and side-mounted mixing arms rotating in opposite directions delivers faster, more uniform mixing — every time.

The mixer features a Snaplock system for easy and secure attachment of the mixing tub, along with a safety grid lid fitted with a built-in safety switch.

WITH STEPLESS SPEED ADJUSTMENT!

Thanks to its low weight, the BLM-65 is easy to handle and perfect for jobs where flexibility and mobility matter.

Applications:

Dual mixing function

• • • • • • •

Mortar Plaster Tile adhesive Glue Epoxy (resin) Paint Cement mixtures with fine particles

MODEL

BLM-65

Product no.

STB-00651200M

Tub Volume

65 L

Tub Diameter

580 mm

Mixing Capacity

50 L

Snaplock for mixing tub.

RPM – Central Whisk

420 rpm/min

RPM – Side Arms

42 rpm/min

Weight (empty))

26/29.5 Kg 1 x 230V m. jord

Voltage Motor Size

staring.dk

1200W

MOBILE AND EFFICIENT COUNTERFLOW MIXER For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

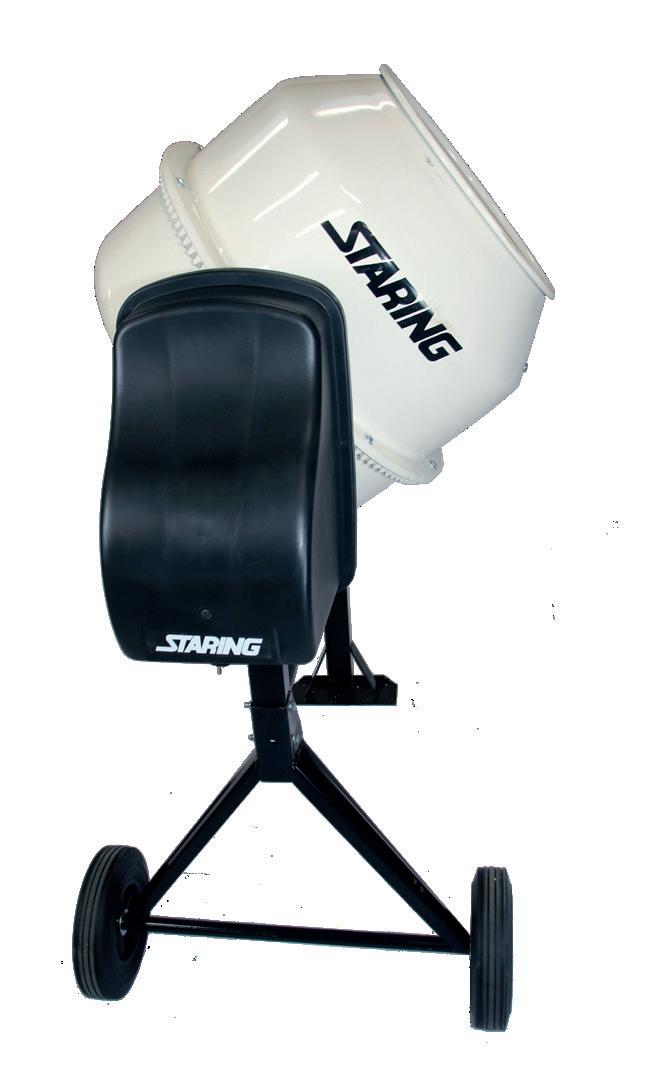

Drum Mixer STB-140F [ STB-140F ] Drum mixer specifications:

Drum mixer, concrete mixer, a beloved child has many names.

• El-Motor 1x230 V – 50 Hz • Steering Wheel for emptying the drum • Mixing Capacity (Volume) 140 L. • Solid Rubber Transport Wheel • Handle for pulling the Mixer • Steel Toothed Wheels

Staring’s experience in the production of this type of mixer goes back more than 50 years, and therefore attention has been paid to details.

Ideal for bricklayers, contractors, farmers, and other professional and semiprofessional users.

ARING ST

CL

staring.dk

A S SIC

MODEL

STB-140F

Staring no.

STB-140F

Mixing Capacity

145 L

Barrel Opening

390 mm

Mixing Arms

Double

Toothed Wheel

Cast Iron

Weight (empty)

53 kg

Dimension Wheels

250x70 mm

Spin Direction

Clock-wise

R.P.M.

27-30 rpm

Voltage Volts

230V~/ 50 Hz

Motor Size

650 W

CHOOSE TO HAVE THE MIXER DELIVERED IN A BOX FOR SELF-ASSEMBLY (45 MIN) For further info or placement of order! staring@staring.dk or +45 98 82 16 22

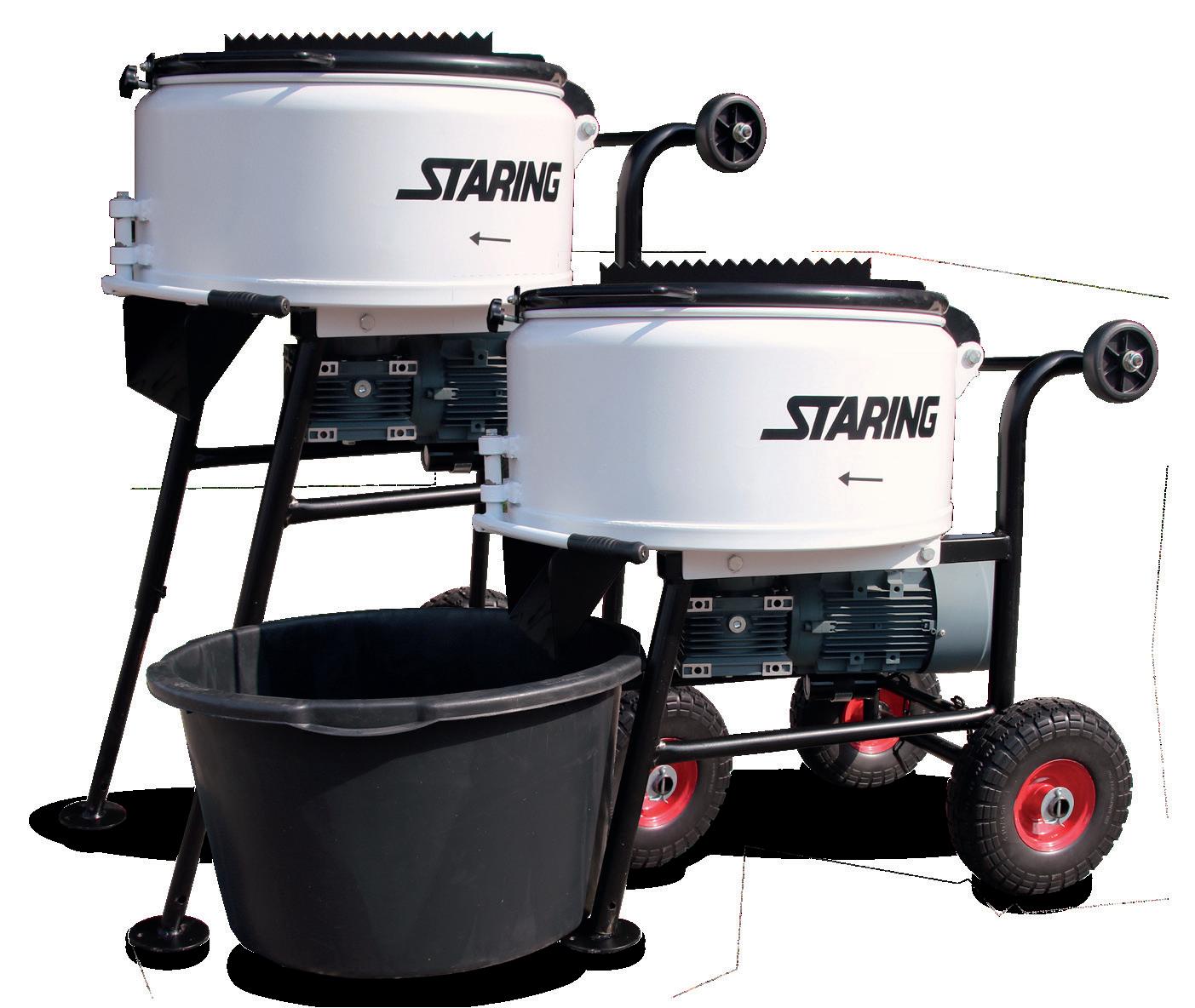

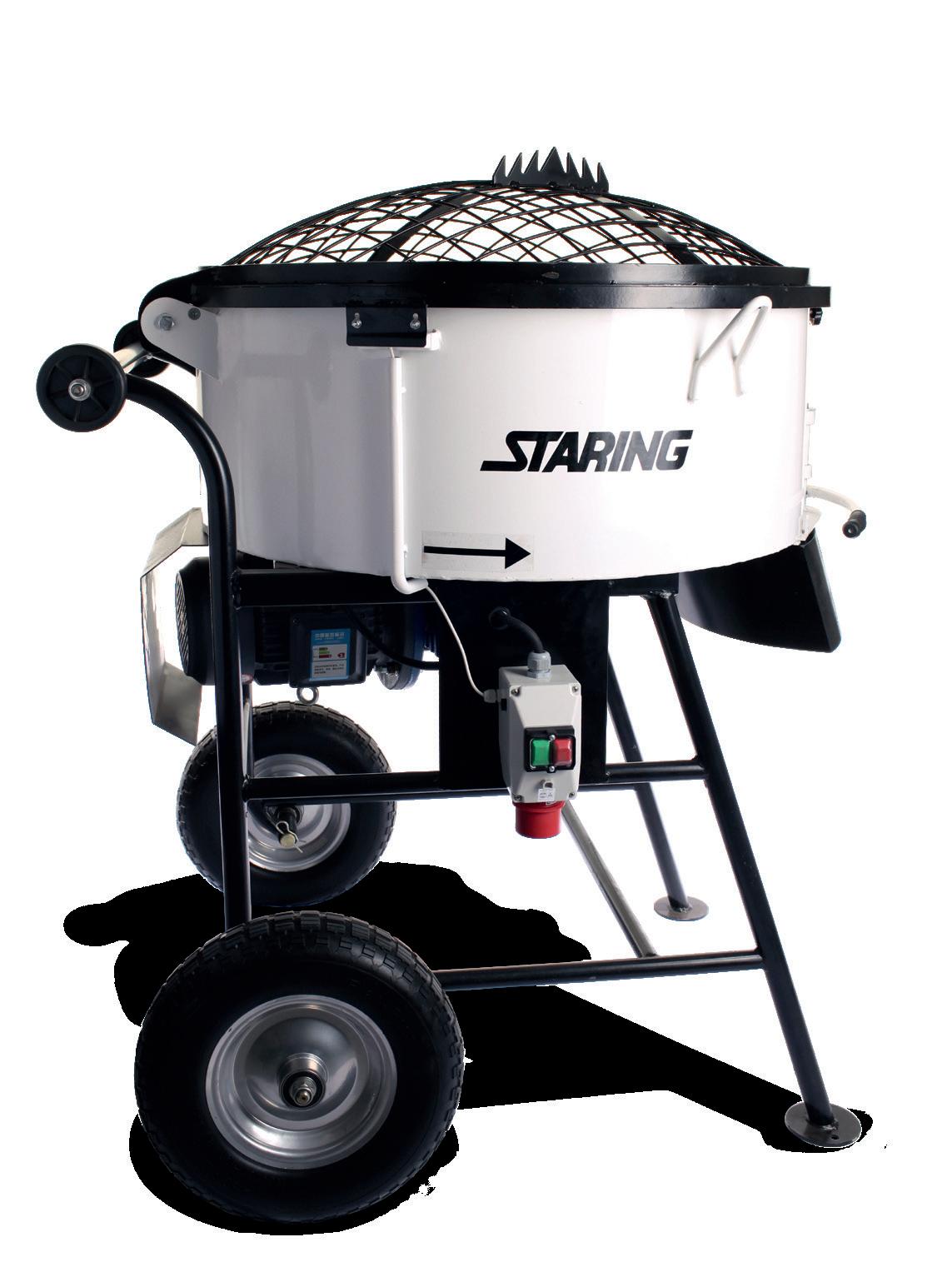

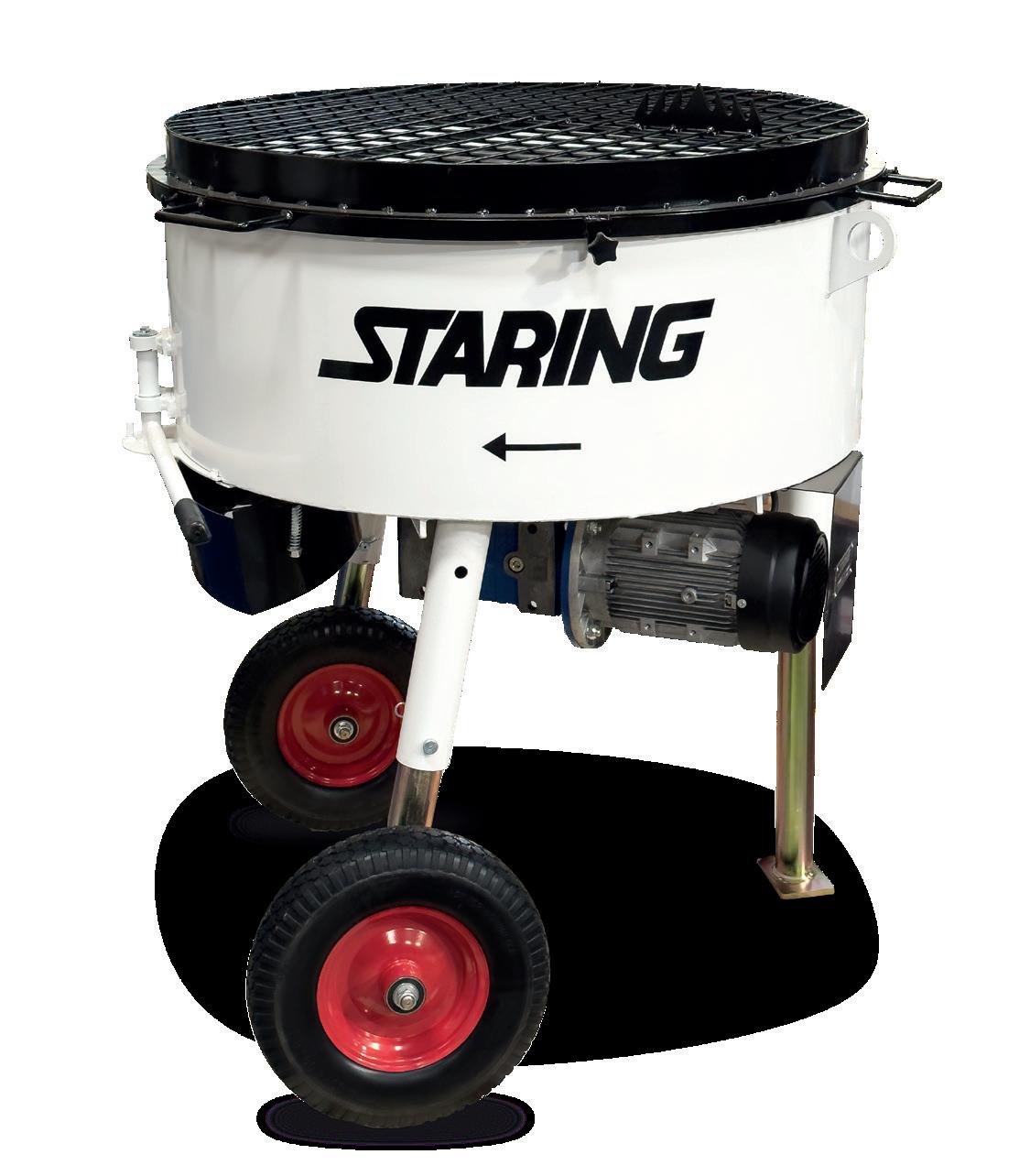

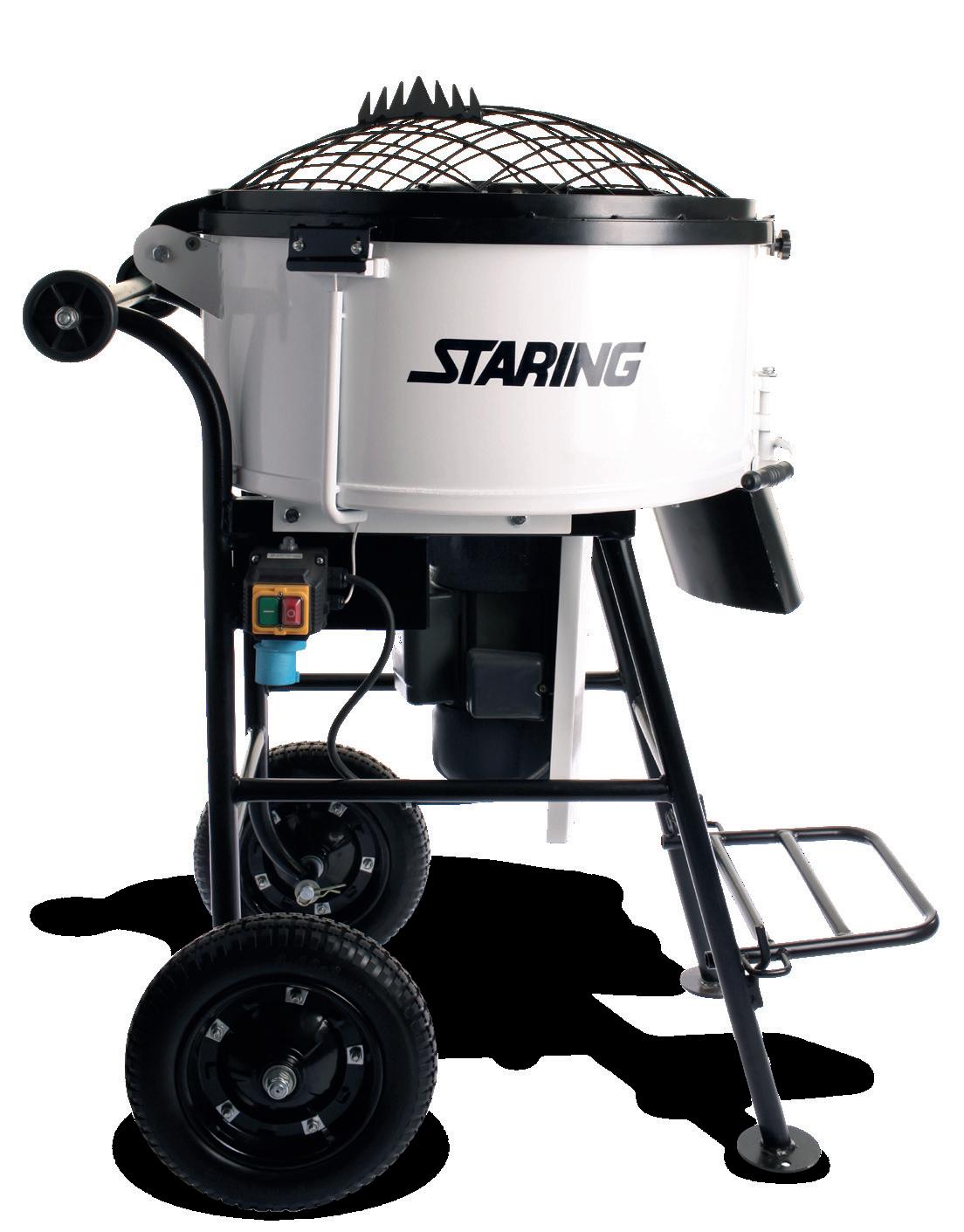

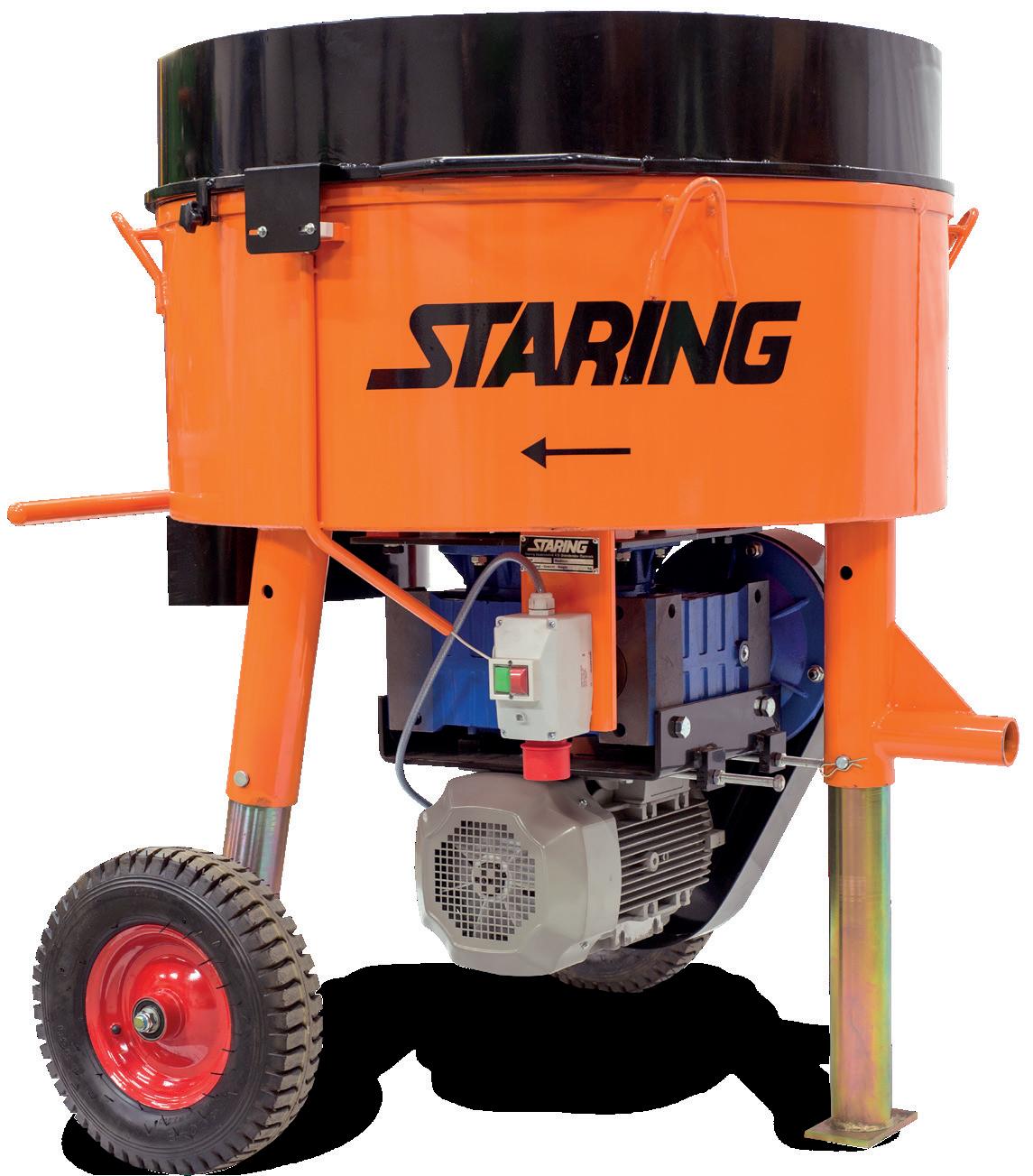

MIXING // The STB-65 is a compact, all-round forced-action mixer designed for a wide range of building-industry materials.

Its specially shaped mixing head combines a central scraper and two adjustable mixing arms to deliver a fast, homogeneous mix while continuously cleaning the drum.

The standard mixing head is fitted with steel paddles. It lifts clear of the drum without tools, making cleaning and paddle adjustment quick and simple. Both the arms and the paddles can be fine-tuned independently.

Pan Mixer STB-65 [ STB-006515230CHK ] Supplied as standard.: • • • • • •

Safety lid with bag cutter Magnetic safety switch on lid Individually adjustable paddles and arms Height-adjustable under-frame Puncture-proof transport wheels Raised loading wheels

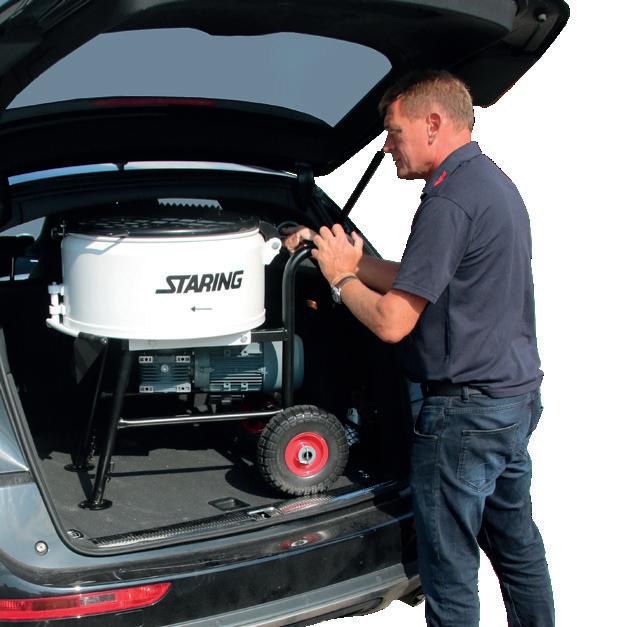

Built for one-man operation, the STB-65 chassis can be lowered to fit in the back of a large estate car, and the high-mounted loading wheels make it easy to roll the mixer into a van or onto a site.

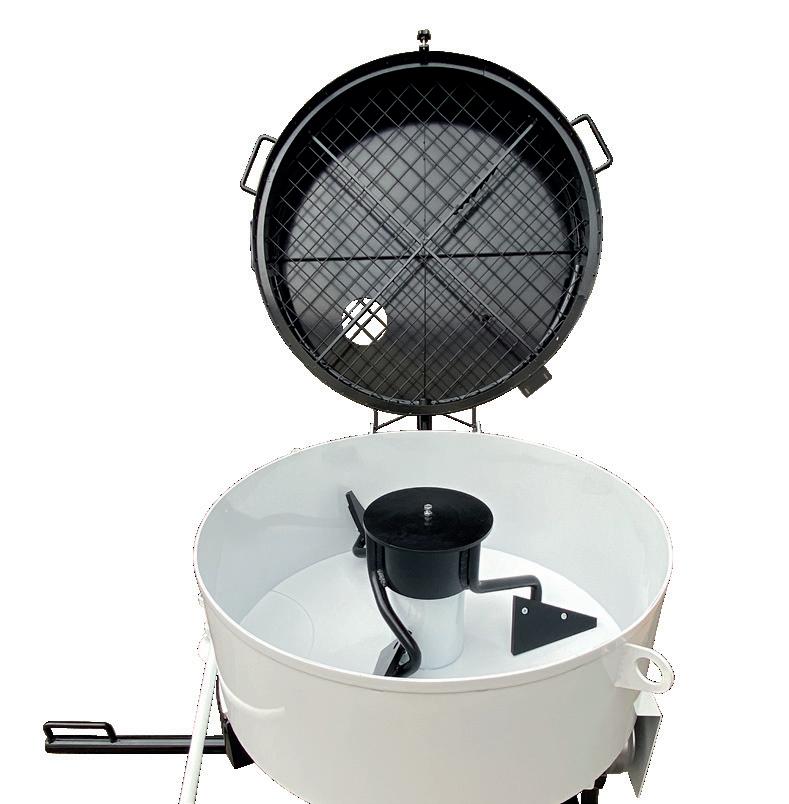

The hinged safety lid is supplied with an integrated bag cutter and a magnetic safety interlock. Like every Staring mixer, the STB-65 is engineered for durability and a long service life.

staring.dk

MODEL

STB-65

Prod no.

STB-006515230CHK

Mixing capacity

65 L

Drum diameter

560 mm

Mixing arms

2

Discharge height

655 mm.

Overall width

870 mm.

Overall height

652 - 1190 mm.

Total weight

61 Kg

Motor type

Electric

Motor power

1,1kW (S1)

Voltage

230V~/ 50 Hz

THE MIXER FRAME IS HEIGHT-ADJUSTABLE – IT CAN BE RAISED FOR ERGONOMIC DISCHARGE OR LOWERED FOR TRANSPORT. For further info or placement of order! staring@staring.dk or +45 98 82 16 22

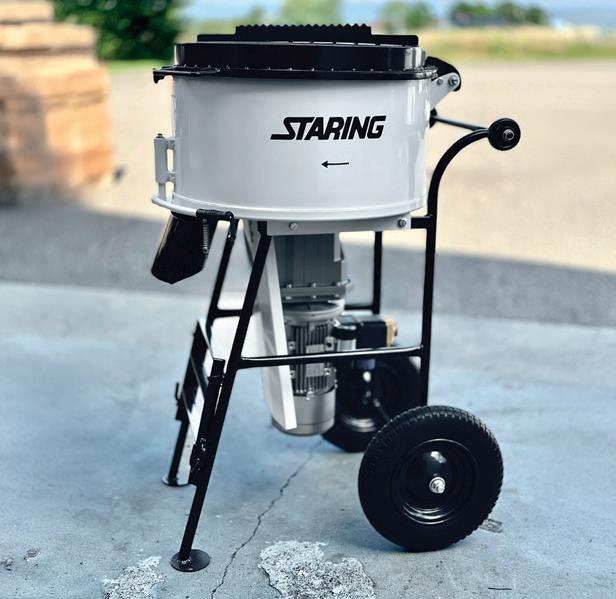

MIXING // Forced mixer with a capacity of approximately 90 liters is the perfect all-around mixer, suitable for many products across various industries.

The special design of the mixing head ensures absolutely efficient mixing of materials and keeps the mixing drum clean.

The efficient mixing head comes standard with steel paddles.

The mixing head can be lifted out of the drum without the use of tools, making cleaning and adjusting the mixing arms hassle-free. The mixing paddles can be adjusted individually.

Pan Mixer STB90 [ STB009015230CHK ] The mixer is delivered with: • Patented vibration system for improved discharge.

• Safety lid with sack knife.

• Safety switch on the lid.

• Tilting grid for buckets.

• Adjustable paddles and arms.

• Loading wheels.

• Puncture-proof wheels.

The design of the STB90 makes the mixer easy for one person to operate.

The high-mounted loading wheels make it easy to load the mixer.

STB90 comes with VibFlow® a patented vibration system for improved discharge.

The lid is hinged and comes with a sack knife and a magnetic safety switch.

MODEL

STB90

Product no.

STB009015230CHK

Mixing Capacity

90 L

Barrel width Ø

600 mm

Barrel height inside

310 mm

Mixing Arms

3

Emptying height

615 mm

Total width

670 mm

Total lenght

850 mm

Total height

1350 mm

Weight (empty)

90 Kg

Motor Size

1,5kW (S1)

Voltage Volts

230V~/ 50 Hz

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Pan Mixer

STB-110 [ STB-011015230CHK ] The STB-110 is a versatile forced-action mixer sized for batches of around 110 litres. Its robust design suits a wide range of building-industry and industrial materials.

A specially contoured mixing head keeps the drum self-cleaning while delivering a fast, homogeneous mix. The head can be fitted with steel or rubber paddles and lifts out of the drum without tools, so cleaning and paddle adjustment take only moments.

The mixer rides on two large transport wheels, and its high-mounted loading wheels let one person roll it easily into a van or onto a site.

Supplied as standard.: • • • • •

Safety lid with bag cutter and magnetic safety switch Tow bar Raised loading wheels Bucket stand Puncture‑proof transport wheels

Typical applications: • Concrete with aggregate up to Ø 35 mm • Mortar • LECA‑based mixes • Dry‑mix / insulation materials • Various granulates • Epoxy products • Feed blends

A hinged safety lid, shaped for hassle-free aggregate loading, comes with an integrated bag cutter and magnetic safety interlock.

Can be supplied with VibFlow® – a patented vibration system for improved discharge.

MODEL

STB-110

Product no.

STB‑011015230CHK

Mixing capacity

110 L

Drum diameter

680 mm

Drum height (internal)

300 mm

Mixing arms

3

Emptying height

635 mm

Overall width

1000 mm

Overall length

1300 mm

Overall height

1300 mm

Total weight

97 Kg

Motor type

Electric

Motor power

1,5kW (S1)

Voltage

230V~/ 50 Hz

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Pan Mixer

STB-200 [ STB-020030400CHK ] The STB-200 is a rugged, all-round forced-action mixer that handles batch sizes of roughly 200 litres. Its heavy-duty design makes it a go-to choice across construction, civil engineering, agriculture, flooring and epoxy trades.

Supplied as standard:

A specially contoured mixing head keeps the drum self-cleaning while delivering a fast, uniform blend.

The head accepts steel or rubber paddles and lifts clear of the drum without tools, so cleaning and paddle adjustment take only moments.

• Concrete with aggregate up to Ø 35 mm • Mortar • LECA‑based mixes • Epoxy systems • Feed blends • Dry‑mix / insulation materials

• • • • •

Safety lid with bag cutter Magnetic safety switch Tow‑bar Raised loading wheels Puncture‑proof transport wheels

Typical applications:

For single-operator handling, the mixer rides on large transport wheels, while high-mounted loading wheels let one person roll it into a van or onto a site.

A wide, hinged safety lid is shaped so coarse aggregate can be tipped in without obstruction and is equipped with an integrated bag cutter and magnetic safety interlock.

Can be delivered with VibFlow® a patented vibration system for improved discharge.

MODEL

STB-200

Prod no.

STB‑020030400CHK

Mixing capacity

200 L

Drum diameter

850 mm

Drum height (internal)

320 mm

Mixing arms

3

Discharge height

630 mm

Overall width

1100 mm

Overall length

1355 mm

Overall height

1355 mm

Total weight

225 Kg

Motor type

Electric

Motor power

3,0kW (S1)

Voltage

400V~/ 50 Hz

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Pan Mixer

STB-324 [ STB-032440400CHK ] The STARING STB-324, with a mixing capacity of 300 liters, is an all-round mixer designed for a wide range of materials across different industries.

The specially designed mixing head ensures thorough and highly efficient blending of all materials.

The efficient mixing head is fitted with steel blades and can be lifted out of the drum without the use of tools, making cleaning and adjustment of the mixing arms quick and simple.

The hinged safety lid is specially designed to allow easy filling of aggregates and other materials.

Recommended for: • Concrete • Mortar • Leca • Wet and dry mixes • Insulation materials • Epoxy products • Feed products • Various granulates

Supplied with: • Electric motor: 4 kW, 3x400 V – 50 Hz • Magnetic safety switch on lid • Safety grid at discharge • Tow bar

Optional accessories: • Two-part steel lid with inlet fittings for silo filling, water inlet, and dust extraction unit • Non-driven rotor head • Rubber blades

Supplied with VibFlow® – a patented vibration system for improved discharge.

MODEL Staring Product no.

STB-324 STB-032440400CHK

Mixing capacity

300 L

Drum diameter

990 mm

Drum height (internal)

380 mm

Mixing arms

staring.dk

Puncture-proof wheels

3

Discharge height

605 mm

Overall width

1200 mm

Overall length

1260 mm

Overall height

1270 mm

Total weight

238 Kg

Motor type

Electric Motor

Motor power

4,0kW (S1)

Voltage

400V~/ 50 Hz

IDEALLY SUITED FOR LARGE MIX VOLUMES! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Pan Mixer

STB-500 [ STB-0500075400CHK ] Pan Mixer specifications: • El-Motor 7,5 Kw 3x400 V - 150 Hz (S1) • Gross volume app. 500 litre • Output app. 300 litre • Pan diameter 1250 mm • Main shaft, RPM 30 • No. of mixer arms 4 • Emptying height 635 mm • Total weight 555 kg • Total length 1450 mm • Total width 1300 mm • Total height 1600 mm

staring.dk

The Mixer includes: • Safety cover w/ bagsplitter • Safety grid at discharge • Magnetic safety cut-out • Transportwheel • Guard w/discharge

PERFECT FOR MIXING CONCRETE, MORTAR, LECA AND DRY MIXTURES! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

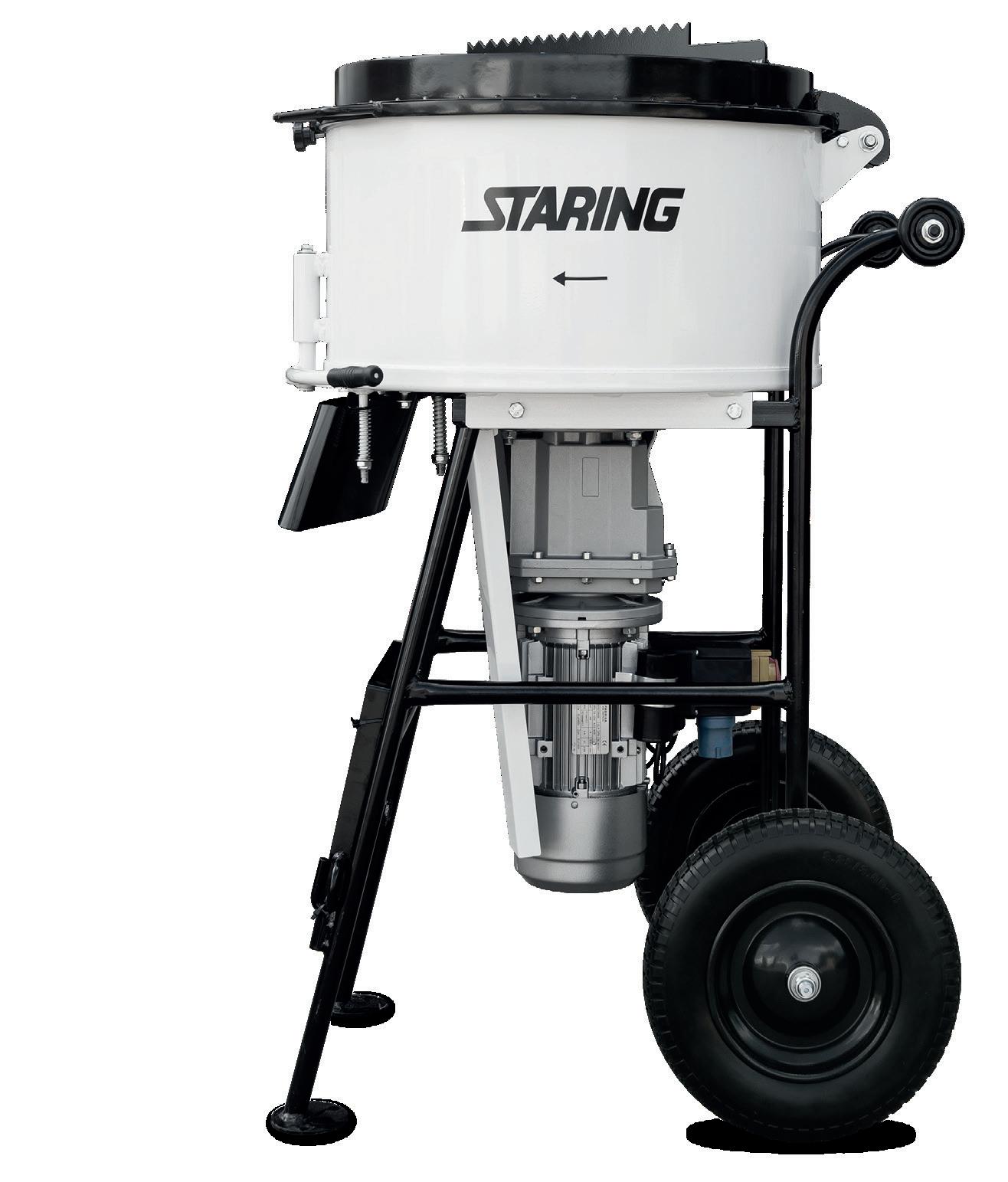

Pan Mixer SM-125 [ 012040400CHK ]

Built for one‑man handling—fits through an 820 mm doorway The SM‑125 is a versatile forced‑ac‑ tion mixer sized for batches of roughly 125 litres. Its rugged con‑ struction makes it equally at home with refractory compounds, con‑ crete, dry mixes, insulation materials, epoxies and more.

A specially contoured mixing head keeps the drum self‑cleaning while producing a fast, homogeneous blend. The head accepts steel or rubber paddles and lifts clear of the drum without tools, so cleaning and paddle adjustment take only moments.

Two large transport wheels pivot underneath the frame with a single catch, allowing the mixer to roll through a doorway just 820 mm wide. High‑mounted loading wheels make it easy for one person to tip the unit into a van or onto a site.

A wide, hinged safety lid—with integrated bag cutter and magnetic interlock—lets coarse aggregate be loaded without snagging.

REFRACTORY

MIXING

WELL DONE

Supplied as standard: • • • • •

Safety lid with bag cutter Magnetic safety switch on lid Tow‑bar Raised loading wheels Puncture‑proof transport wheels

Recommended materials: • Low‑water special cements (with 4.0 kW motor) • Concrete with aggregate up to Ø 35 mm • Mortar • LECA‑based mixes • All dry mixes / insulation fills • Epoxy systems • Feed blends • Various granulates • Refractory compounds In addition to the standard version, the mixer can be supplied with a 230 V, 1.5 kW electric motor for LECA, mortar, cement and similar materials.

MODEL

SM-125

Product no.

012040400CHK

Mixing capacity

125 L

Drum diameter

735 mm

Drum height (internal)

320 mm

Discharge height

735 mm

Overall width

940 mm

Overall length

1150 mm

Overall height

1150 mm

Total weight

140 Kg

Motor type

Electric

Motor power Voltage

staring.dk

3

Mixing arms

4kW (S1) 400V~/ 50 Hz

/

1,5kW (S1) /

230V~/ 50 Hz

IDEAL FOR REFRACTORY MIXES! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Pan Mixer SM-340 [ 0340 ] Supplied as standard: • Safety lid with bag cutter • Discharge guard

The SM‑340 is a high‑capacity forced‑action mixer that handles batches up to roughly 340 litres.

While versatile across many trades, it is especially suited to refractory and other demanding, low-water mixes.

A specially contoured mixing head can be fitted with steel or rubber paddles to suit the job. The entire head lifts clear of the drum without tools, making cleaning and paddle adjustment quick and straightfor‑ ward.

Recommended materials: • Low‑water special cements • Heavy concrete with large aggregate • Mortar • Wear‑layer screeds

The SM-340’s special mixing head can be fitted with either steel or rubber paddles.

The mixer rolls on two large pneumatic wheels, comes with a tow bar, and can be fitted with a trailer coupling if required. The motor starter is protected by a thermal‑relay overload.

REFRACTORY

MIXING

WELL DONE

MODEL

SM-340

Product no

0340

Mixing capacity

300 L

Drum diameter

1000 mm

Drum height (internal)

380 mm

Mixing arms Discharge height

830 mm

Overall width

1200 mm

Overall length

1260 mm

Overall height

1400 mm

Total weight

420 Kg

Motor type

Elmotor

Motor power

5,5kW or 7,5kW (S1)

Voltage

staring.dk

3

400V~/ 50 Hz

IDEAL FOR REFRACTORY MIXES! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

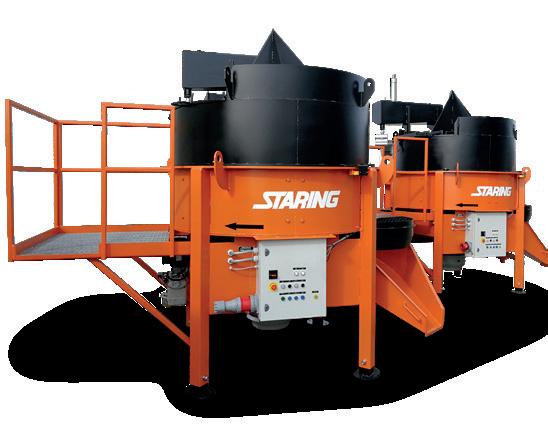

Pan Mixers

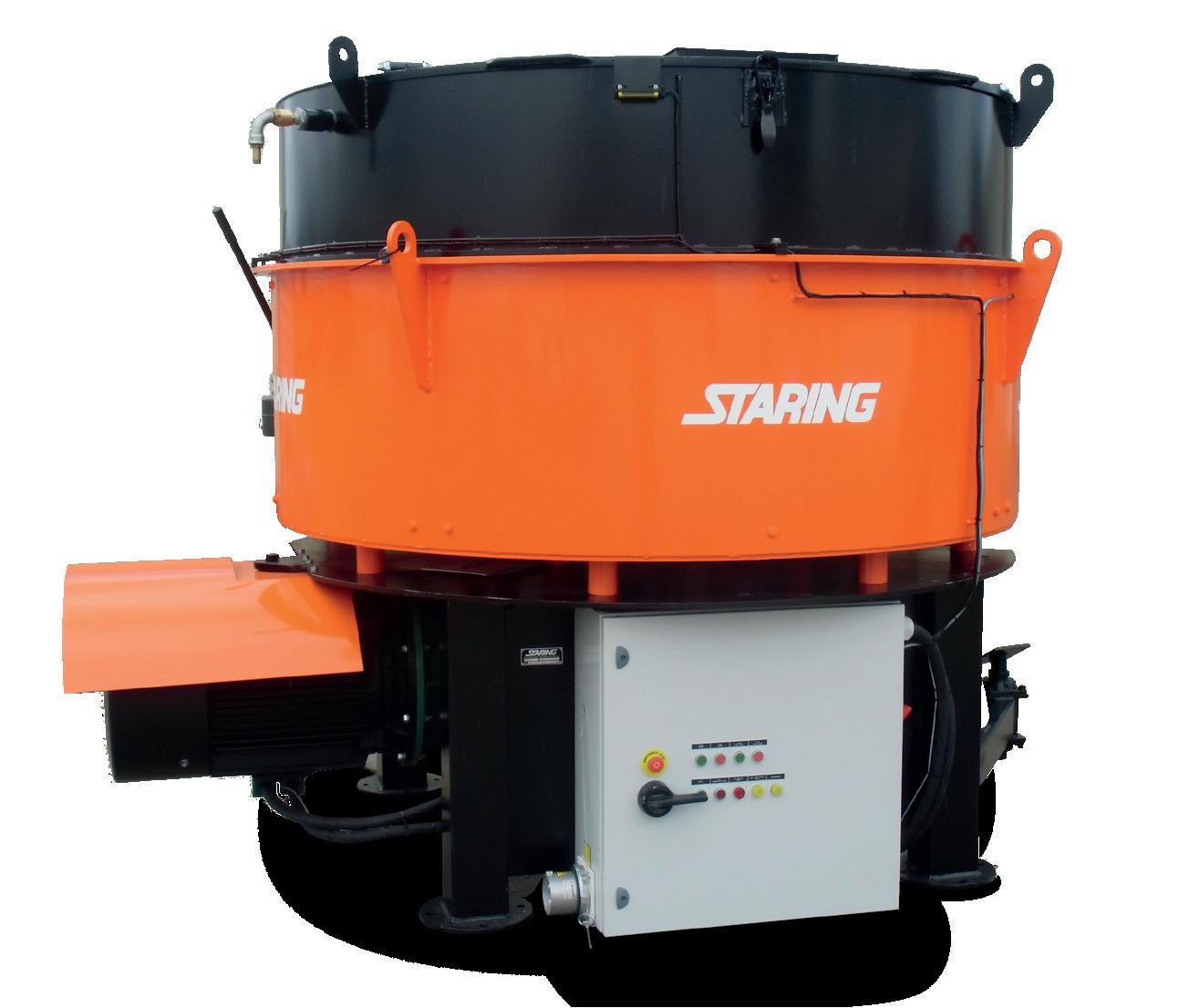

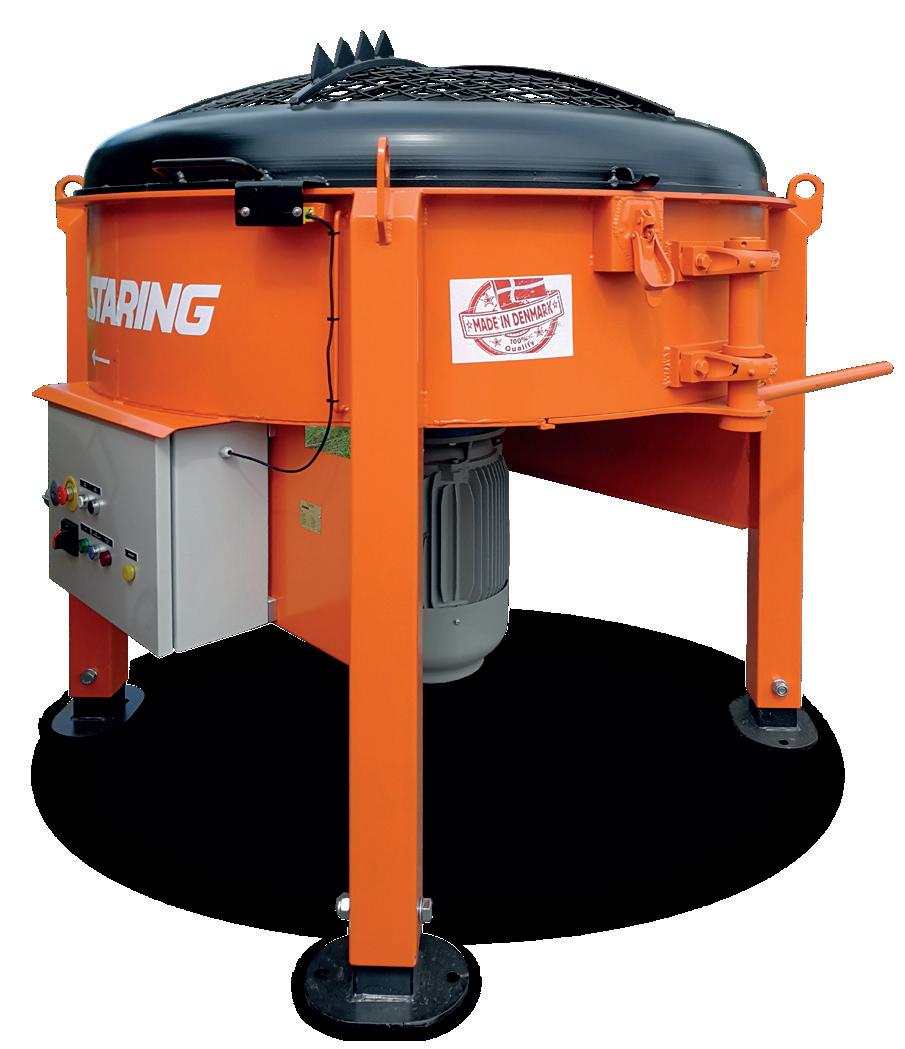

1500L-2000L-3000L [ 1510 - 2010 - 3010 ] Starings’ large and primarily stationary Pan mixers are designed for mixing a wide range of products.

These mixers are mainly used in the refractory industry, but are also suitable for other industries or applications where a mixer in stainless steel is required.

The mixing paddles are mounted on a specially designed mixing head, which is loosely seated on the main shaft. This design reduces wear and simplifies cleaning, as the mixing head can be lifted out of the drum without the use of tools. The mixing drum itself is loosely mounted on the frame, allowing for easy replacement when worn. The mixer is standardly equipped with replaceable wear plates made of TYPE2 steel.

The mixers include: • Safety lid • Safety grid at discharge • The mixers are equipped with a star-delta switch and motor protection • Wear plates • Hydraulic opening • Hard metal coated shovels • Riser scrapers • Outer scrapers Recommended for: • Concrete • Mortar • Leca (light expanded clay aggregate) • Dry mixtures • Special cements with low water content • Food industry • Chemical industry • Refractory Mixing

The mixing head and lid are fitted with lifting eyes, while the drum is equipped with handles. All mixer sizes can be supplied with a closed lid.

REFRACTORY

MIXING

WELL DONE

MODEL

SM1500

SM2000

SM3000

Product no

1510

2010

3010

Gross volume approx.

1500 L

2000 L

3000 L

Output approx.

1200 L

1600 L

2300 L

Pan diameter

1900 mm

2100 mm

2300 mm

600 mm

Pan height, internal

21

Main shaft, RPM No. of mixer arms

4

6

830 mm

Emptying height Total width

2000 mm

2200 mm

2400 mm

Total length

2200 mm

2400 mm

2600 mm

1900 mm

Total height Total weight app Motor size Voltage Volts

staring.dk

6

3000 Kg

3500 Kg

4500 Kg

45 kW / 55 kW

55 kW / 75 kW

75 kW / 95 kW

3 x 400V~/50 Hz

SUITABLE FOR REFRACTORY MIXING! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING // In addition to a standard range of mixers, Staring offers the development and manufacturing of complete mixing plants with all the necessary equipment.

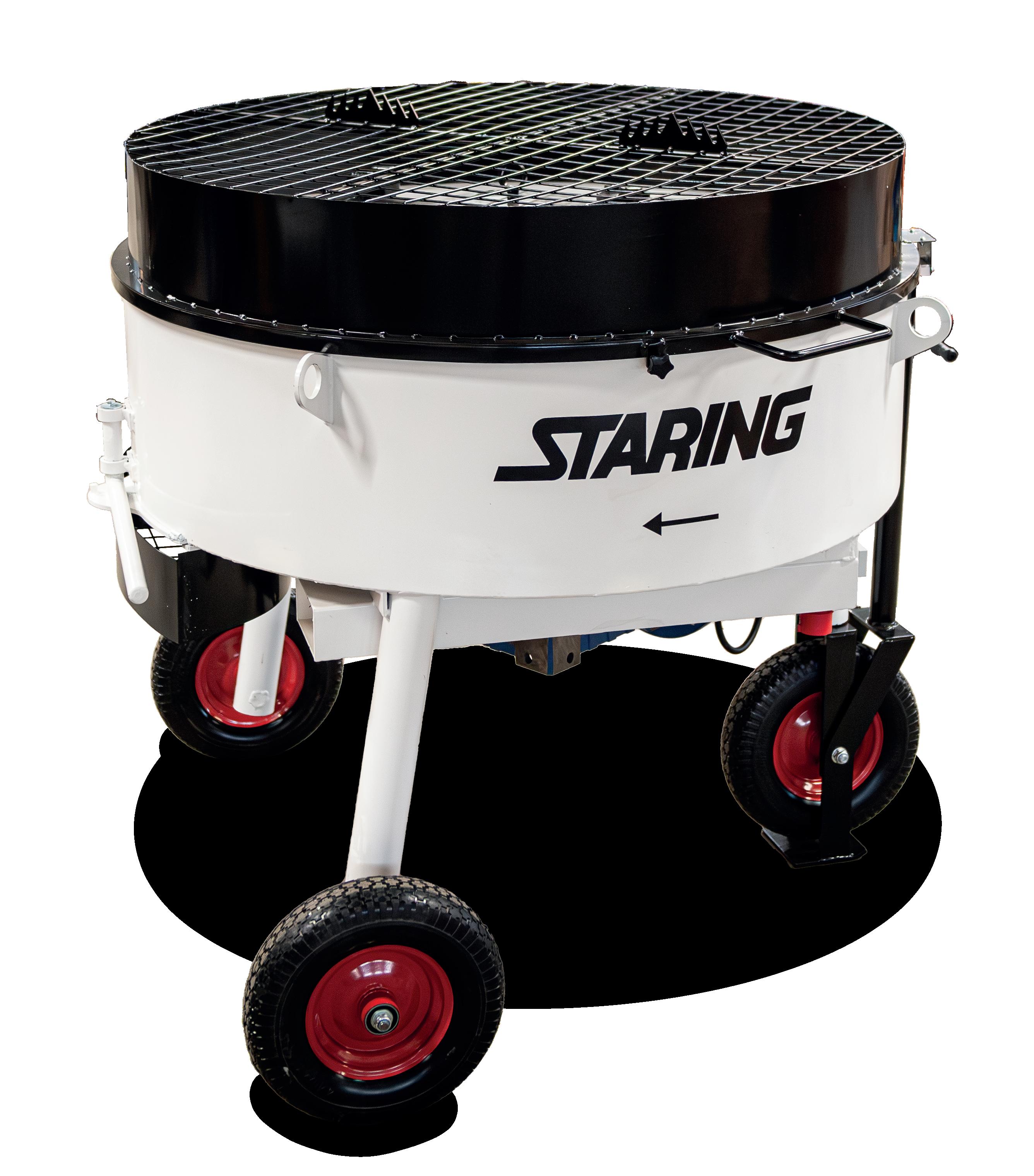

Mega Series

Mixers perfect for Refractory Mixing

Staring Megamixers are rugged and efficient, especially when it comes to mixing materials with low cement content (LCC).

Our Megamixers are made for mixing following materials: • Refractory material • Concrete • Epoxy products • Cement-based material • Spackle • Insulating materials • Dry mixes • Mortar

Staring Mega 1000

REFRACTORY

MIXING

WELL DONE

Staring Mega 500

MODEL

MEGA 300

MEGA 500

MEGA 750

MEGA 1000

Staring no.

0310

0510

0750

1010

Capacity

400-600 kg.

600-880 kg.

1200 kg.

1800 kg.

Pan Diameter

1200 mm

1500 mm

1650 mm

1800 mm

Pan Height

380 mm

400 mm

460 mm

500 mm

Discharge Height

500-100 mm

600-1200 mm

600-1200 mm

600-1200 mm

Mixing Arms

3+2

3+2

4+2

4+2

520 Kg

900 Kg

1500 Kg

2200 Kg

22/30kW

30/45kW

Weight

El-motor

Motor Type Motor Size

staring.dk

11/15kW

15/18.5/22kW

Voltage Volts

3x230V / 3x400V

Frequenzy

50 / 60 Hz

CONTACT US FOR PRICE AND GUIDANCE! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MIXING //

Electric Mixers STM-1200 [ STM-1200 ] STM-1400 [ STM-1400 ] STM-1600 [ STM-1600 ] STM-1800PRO [ STM-1800PRO ] For the professional craftsman and handyman alike, Staring offers the perfect solution for mixing cement, mortar, glue, epoxy, and similar materials with our range of electric mixers.

Available in 4 variants ranging from 1200W to 1800W, each model features a robust two-speed gear motor with variable speeds and comes complete with a corresponding whisk and a 2-meter cord.

Moreover, the STM1600 and STM1800PRO models are equipped with “Soft-start” and impact-resistant protection near the handle, providing added convenience and durability during operation.

STM-1200 STM-1400 STM-1600

STM-1800PRO

THE STM1600 AND STM1800PRO MODELS ALSO FEATURE AN AUTOMATIC HOLD FUNCTION DURING OPERATION!

NOTE: Standard 14mm thread for paddle attachment.

MODEL

STM1200

STM1400

STM1600

STM1800PRO

Model no.

STM1200

STM1400

STM1600

STM1800PRO

Rpm.

| = 0-530 || = 0-720

| = 0-550 || = 0-740

| = 0-600 || = 0-800

| = 0-440 || = 0-780

230V~50 Hz

Electricity

staring.dk

Electric motor

1200W

1400W

1600W

1800W

Paddle

Ø 120 mm

Ø 120 mm

Ø 140 mm

Ø 140 mm

PERFECT! FOR CEMENT, MORTAR, PAINT, AND GLUE! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

MASONRY TOOLS //

Mixing Paddles – efficient mixing of multiple materials.

Staring mixing paddles are designed for professional mixing of both light and heavy materials. The series covers Ø120 mm and Ø140 mm models, each tailored to different material types and application needs – from render and mortar to tile adhesive and self-levelling compounds.

All paddles are made from robust steel and optimised for use with Staring electric mixers. This ensures consistent, efficient mixing with minimal energy consumption and maximum reliability – regardless of material type or batch size.

Ø 120 MODEL

STM-120-59-01

STM-120-59-02

STM-120-59-03

DOWN / UP

UP / DOWN

HORIZONTAL

Suitable for

Tile adhesive, wall paint, gypsum plaster, levelling compounds

Concrete, mortar, cement render, epoxy, levelling compounds

Tile adhesive, self-levelling compounds, glue

Staring Item No.

STM-120-59-01

STM-120-59-02

STM-120-59-03

Mixing Direction

Ø 140 MODEL

Mixing Direction

Suitable for

Staring Item No.

staring.dk

STM-140-59-01

STM-140-59-02

DOWN / UP

UP / DOWN

Tile adhesive, wall paint, gypsum plaster, levelling compounds

Concrete, mortar, cement render, epoxy, levelling compounds

STM-140-59-01

STM-140-59-02

THE PERFECT MATCH FOR STARING ELECTRIC MIXERS! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

ACCESSORIES //

Water Dosage WD4 [ VANDDOSERING4-1 ] Water dosage specifications: • CCE socket for a 220 V connection • Water connection - Depend • Water dosage - Depend • Display type - in/show the chosen • Start - Switch for start up dosage • Manual/automatic - Turning switch for manual/automatic dosage • Accuracy 0,1 L ATTENTION: this water dosage system is special configured to ACCURACY

be used in conjunction with our pan mixers.

Water accuracy is very important to many of the new materials eg. those with low water/cement content.

Using this system the water is metered with a very precisely accuracy.

0.0

DISCOLOURATION The addition of inexact quantities of water can cause destruction and discolouration of material.

STRENGTH Uniform distribution of water throughout the material provides strength.

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

ACCESSORIES //

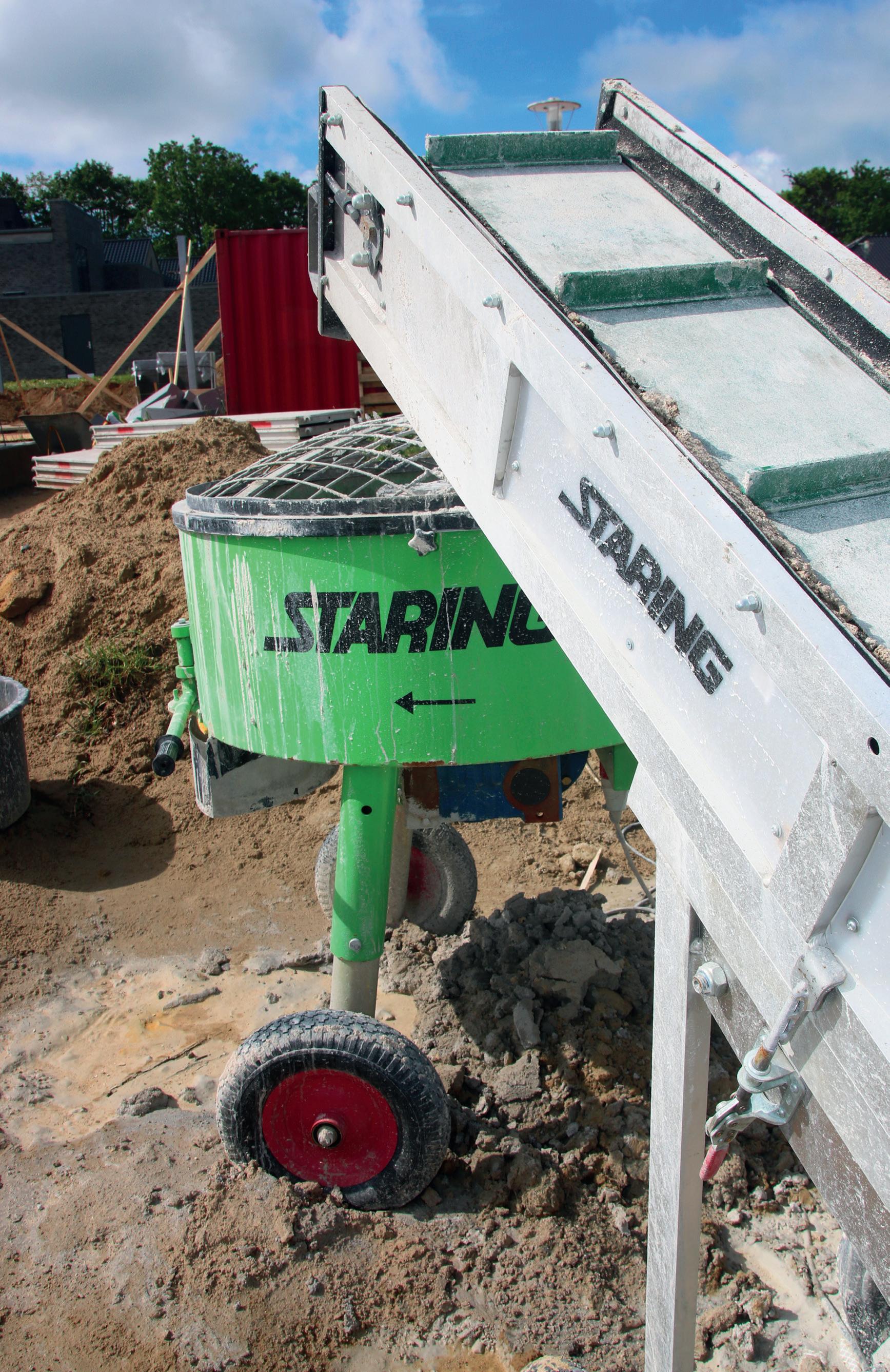

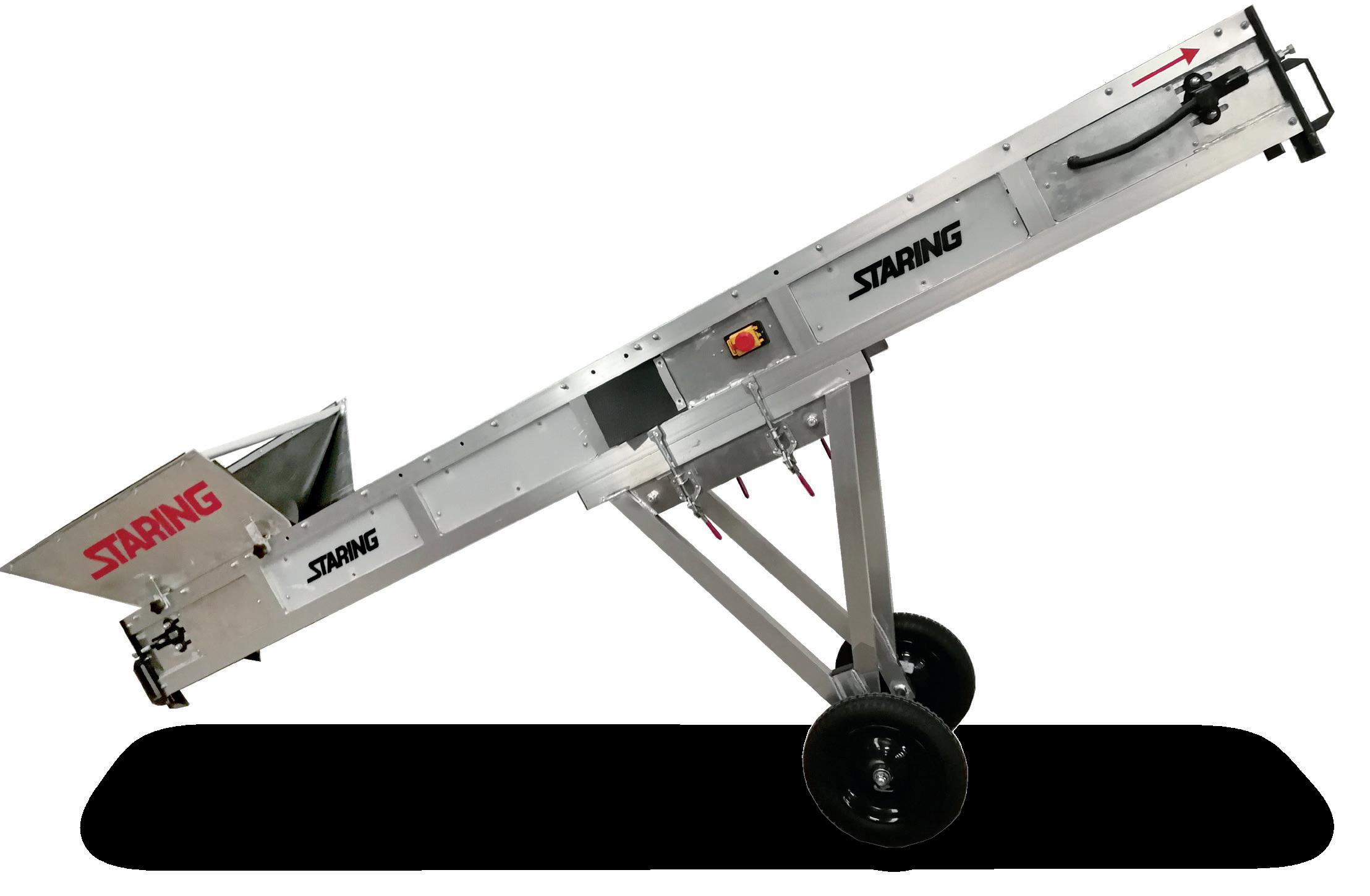

Conveyer Belt STT 3.0 m. [ STT0300230CHK ] STT 4.5 m. [ STT0450400CHK ] STT 6.0 m. [ STT0600400CHK ] Recommended for use with: • Gravel • Concrete • Soil • Rubble • Sand • Mortar

Staring conveyor belt for many tasks.

The conveyor belt comes with a transport cart, and due to the belt’s low weight, it is incredibly easy to handle. Using the lifting handles at both ends, the belt can be easily positioned. Special brackets for attaching to pan mixer lids are also available. The construction of aluminum profiles makes the belt one of the lightest on the market. Additionally, the specially designed profiles provide a very sturdy structure.

Example of use: In basement excavations with narrow access or other hard-to-reach areas Filling mixers.

When using a loading box, it’s easy to fill the conveyor belt, and it operates at a height of only 40 cm.

Cleaning the belt is almost eliminated. Along the sides of the belt, a felt edge is attached. This felt edge seals tightly to the rubber belt, preventing material from being pulled underneath the belt. The belt also operates without disruptive rollers, running instead on a smooth

RED WI TH LIVE E D

3

meter version

Y DRIVE WA !

2-

CAN B E

stainless steel plate.

STARING CONVEYER BELT COMES IN 3 SIZES! 2

can be delivered with 2-way drive!

staring.dk

3.0 m

2

motors

4.5 m

motors

6.0 m

For further info or placement of order! staring@staring.dk or +45 98 82 16 22

VIBRATORY PLATES //

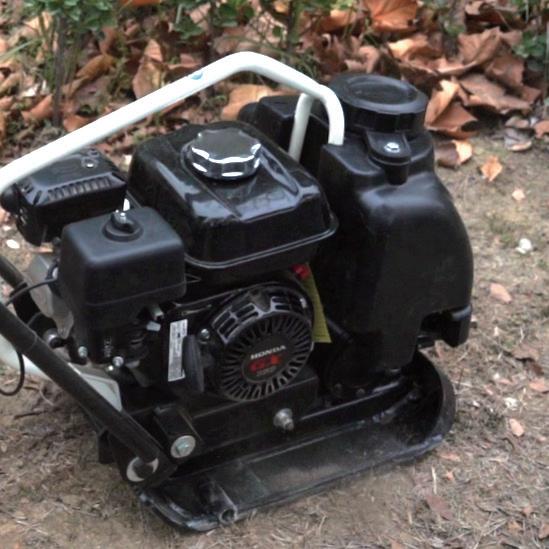

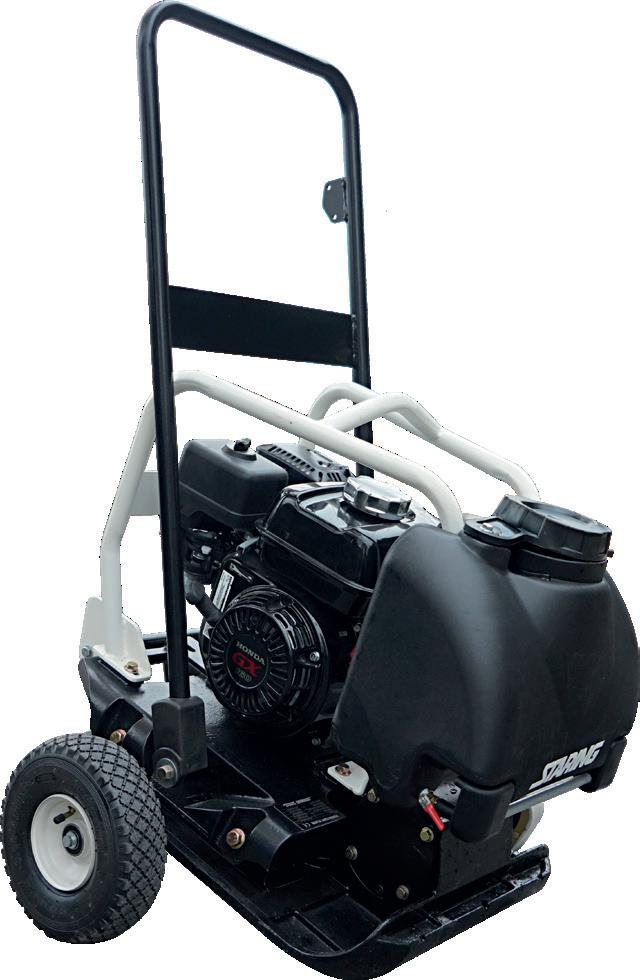

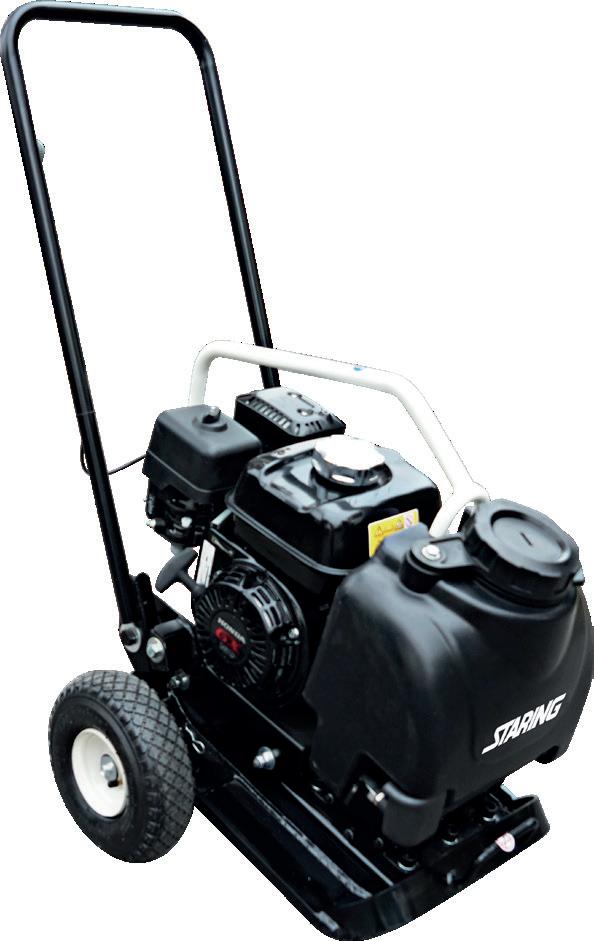

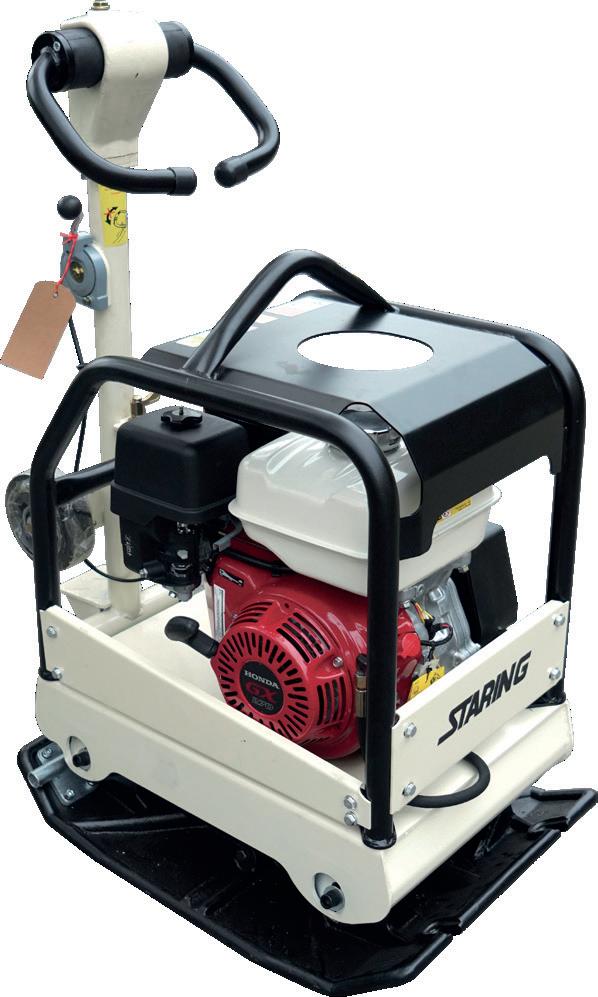

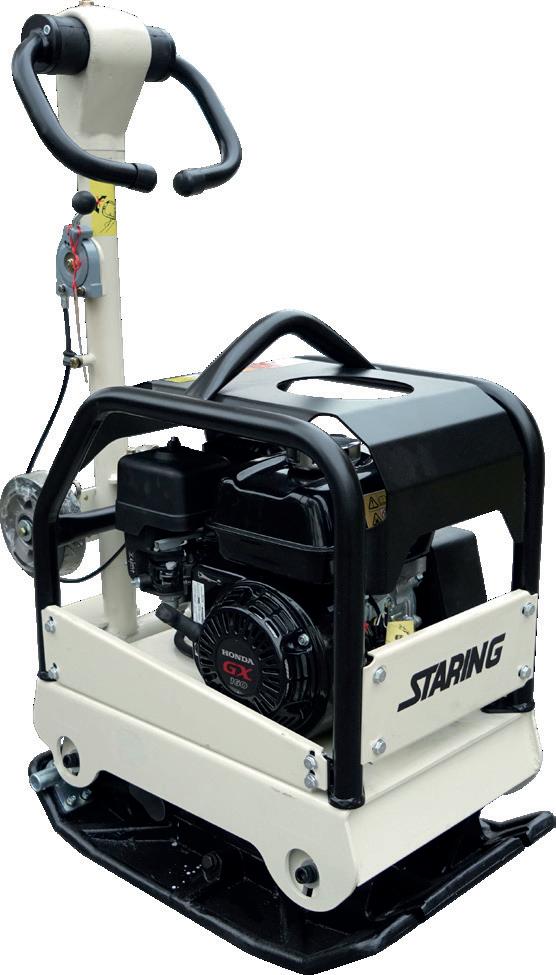

Vibratory Plates STV-070 / STV-090

Staring’s vibratory plate series delivers ample power and user comfort for the job.

Supplied vibration-dampened and equipped with powerful HONDA engines.

(EU 5 TYPE)

Specifikationer: • Streamlined design – Enables faster forward movement and improved ability to handle inclines.

• Dual-layer steel base plate – Features a self-cleaning function.

• One-piece pressed base plate – With raised edges that leave no compaction marks.

• Ergonomic handle – Anti-vibration system effectively reduces operator fatigue.

• Removable large water tank – Equipped with an ergonomically designed watering pipe.

• Transport wheels – For easier maneuverability.

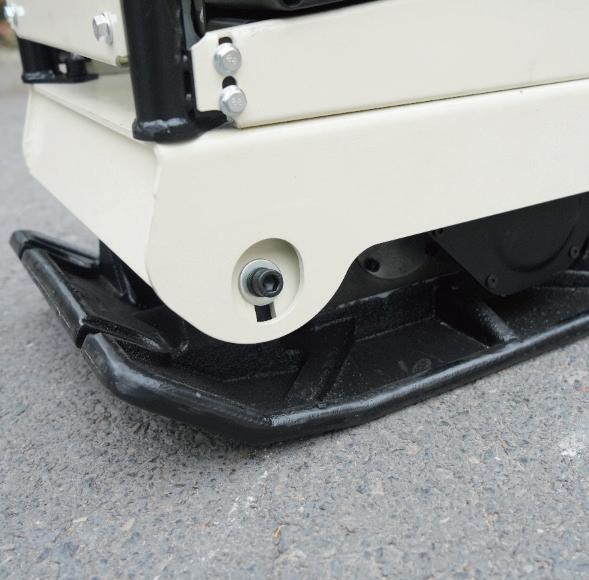

FRONT HOOK DESIGN PROTECTS AGAINST IMPACT WITH CURBS.

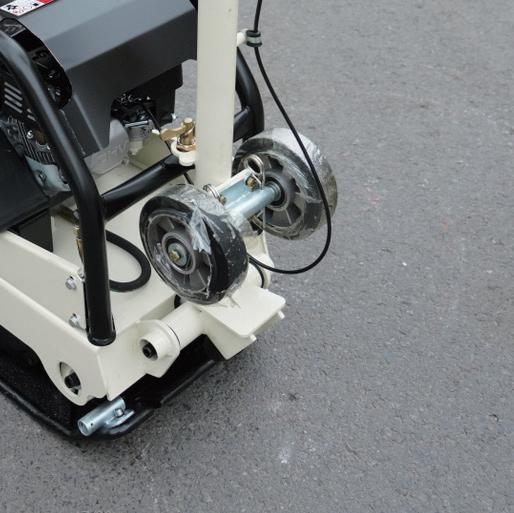

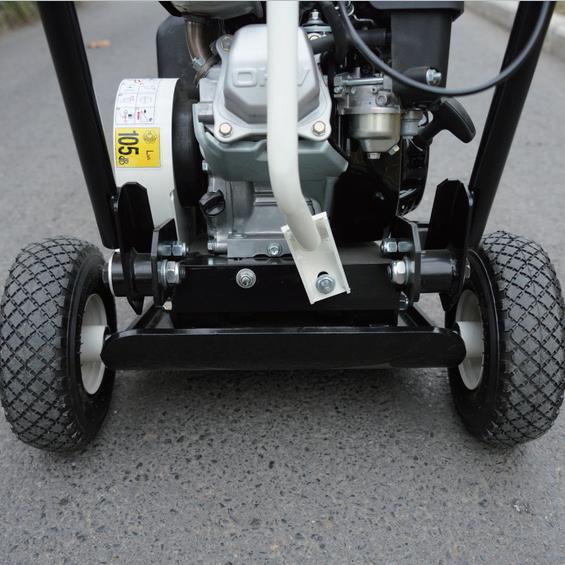

TRANSPORT WHEELS ENABLE EASY AND FAST TRANSPORTATION.

EFFICIENT COMPACTION

MODEL

STV-070

STV-090

Staring Product no.

STV-070-400

STV-090-500

Engine

5.5 HK - Honda motor GX160

Plate size (L x W)

500 × 350 mm

525×500 mm

Vibrating frequency

93Hz

100Hz

Centrifugal force (max)

10.1kN

15.0kN

Max.traveling speed

25m/min

25m/min

35°

35°

680×370×590 mm

1100×560×825 mm

68 kg

92 kg

Max.limited grade ability Dimension Weight

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

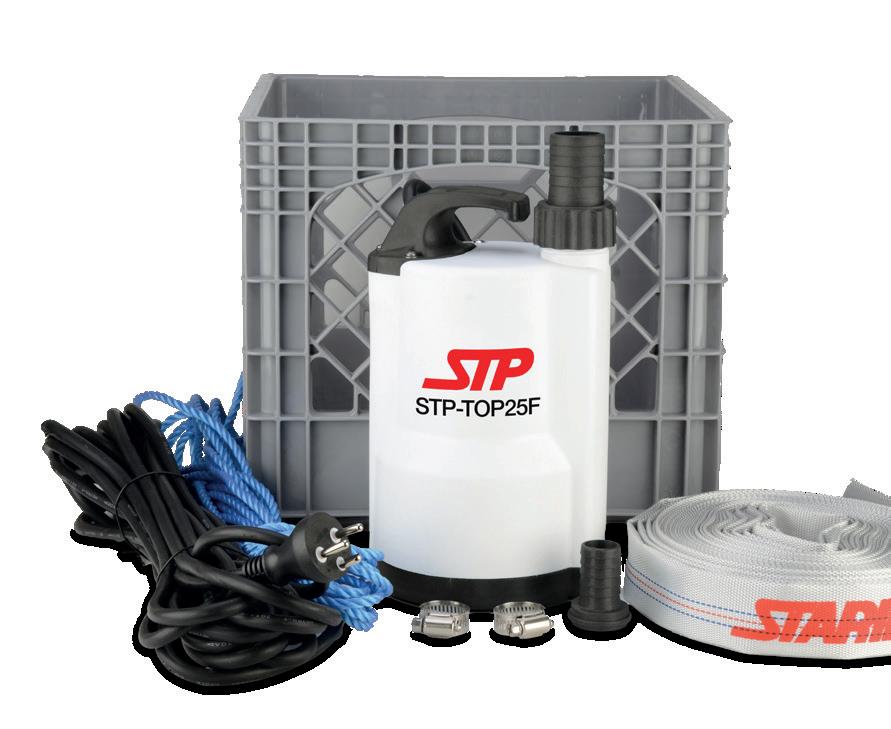

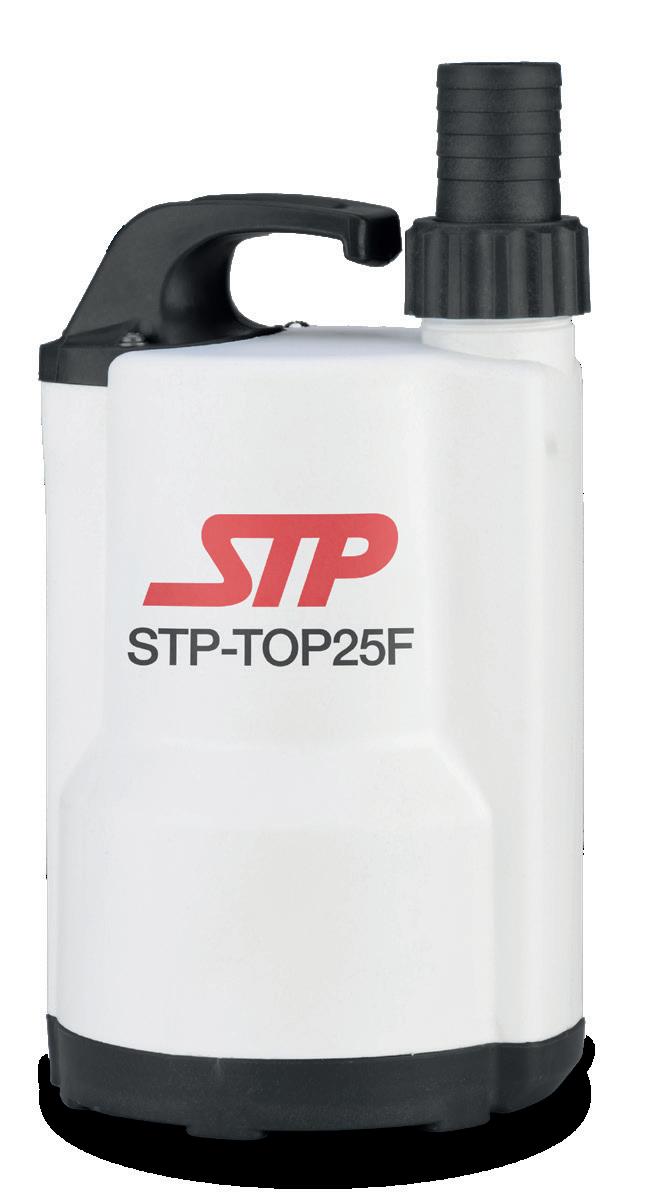

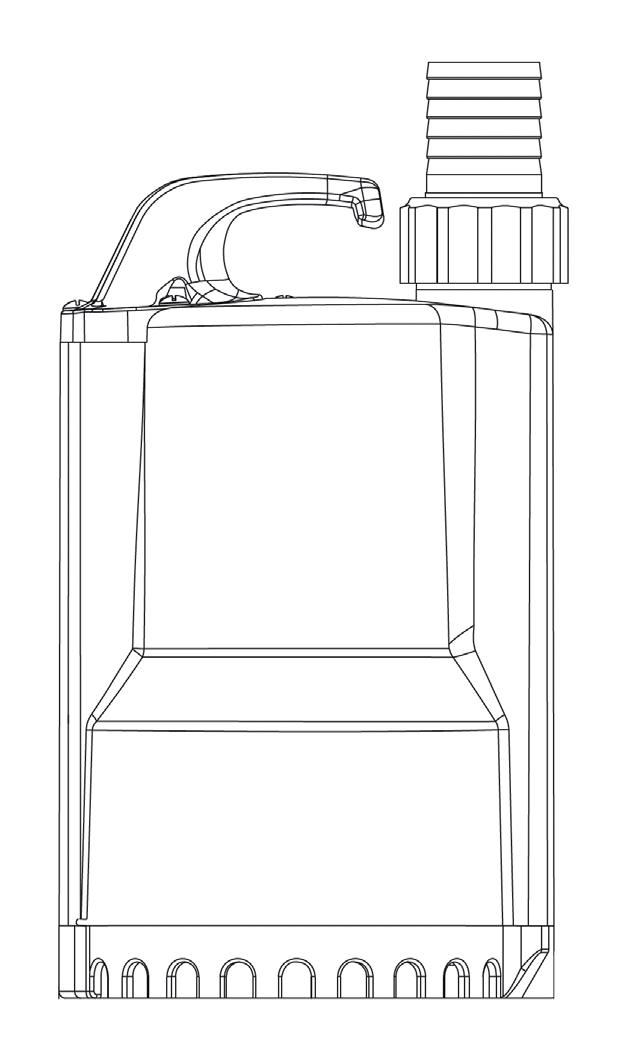

Flat-suction pump STP-TOP25F

Powerful and reliable flat-suction pump designed for fast and efficient water removal – down to just 2 mm residual water. Ideal for draining basements, flat roofs, swimming pools, and other areas where water needs to be removed completely.

The pump’s robust construction in durable plastic, combined with a stainless steel shaft (AISI 416), ensures long-lasting performance and high reliability. It can handle particles up to 5 mm, making it suitable for both clean and slightly dirty water.

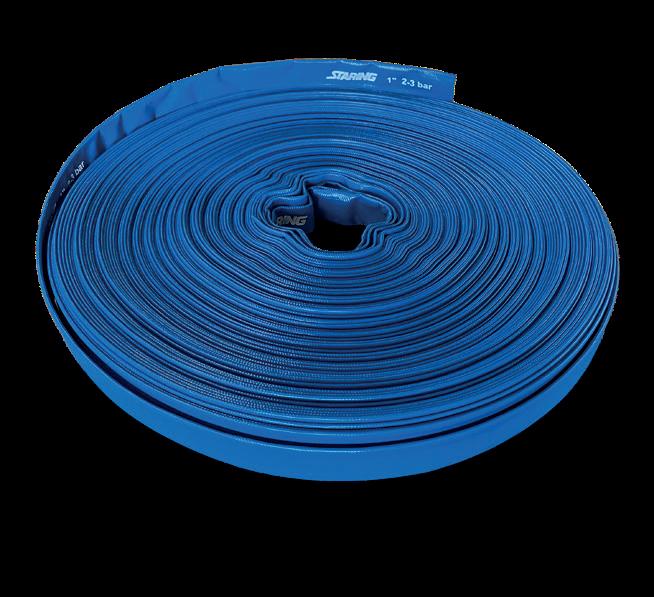

STP-TOP25F Also available as a box set! Including a 15 m contractor hose, rope, and hose connectors – ready to use right out of the box!

The motor is equipped with built-in thermal protection, which automatically shuts off in the event of overheating. A mechanical, oil-lubricated shaft seal in carbon and aluminum ensures high sealing performance with minimal maintenance.

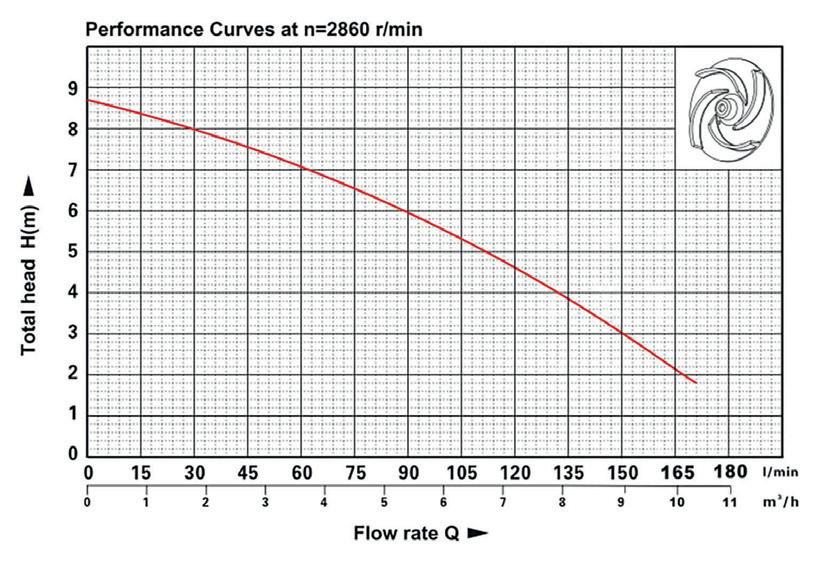

The pump delivers up to 170 litres per minute, offers a maximum head of 8.5 meters, and is powered by a 230 V – 50 Hz motor.

The STP-TOP25F is supplied with a 5-meter power cable and two hose connectors (1” and 1¼”), making installation and connection easy and flexible.

MODEL

STP-TOP25F

STP-TOP25F SÆT BOX

Prod no.

STP-TOP25F

STP-TOP25F SÆT BOX

Outlet (inches)

FLAT-SUCTION PUMP WITH MECHANICAL SHAFT SEAL

1” og 1¼”

Voltage (V)

230

Frequency (Hz)

50

Motor power (kW)

0,37

Max. head (m)

8,5

Capacity (L/min)

170

Cable length (m)

5

PUMPS DOWN TO JUST 2 MM.

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

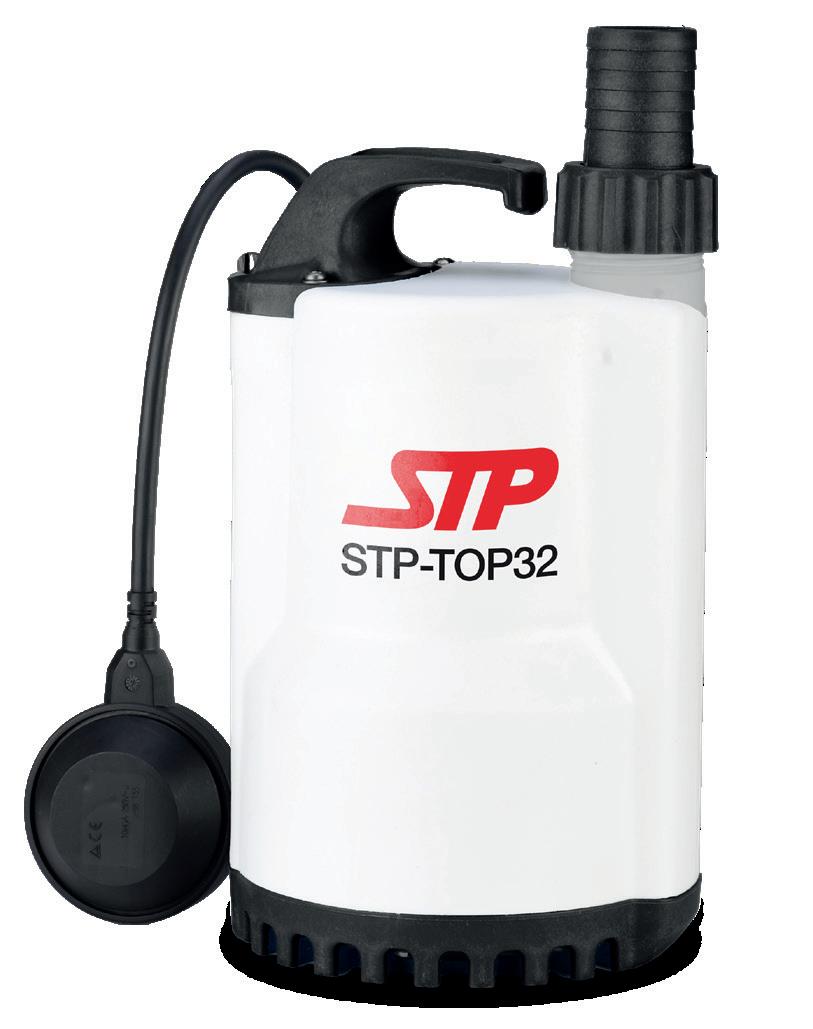

Drainage Pump STP-TOP32

STP-TOP32 is a submersible cellar and drainage pump that allows the passage of particles up to 10 mm.The pump can drain down to 14 mm and is a lightweightunit constructed in plastic with a shaft made of AISI 416 stainless steel.

It is equipped with a mechanically sealed shaft (carbon/aluminium) with oil lubrication.

The motor is fitted with thermal protection.

Specifications: • Drains down to 14 mm • Allows passage of particles up to 10 mm • Equipped with mechanical shaft seal (carbon/aluminium) with oil lubrication • Motor with thermal protection for increased safety • Suitable for drainage and rainwater pumping • Lightweight plastic construction with AISI 416 shaft

MODEL

STP-TOP32

Prod no.

STP-TOP32

Outlet (inches)

THIS PUMP IS SUITABLE FOR PUMPING DRAINAGE AND RAINWATER.

1” and 1¼” hose connectors

Voltage (V)

230

Frequency (Hz)

50

Motor power (kW)

0,37

Max. head (m)

8,5

Weight (kg) Capacity (L/min)

170

Cable length (m)

5

DRAINS DOWN TO 14 MM

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

Drainage Pump

STP-TOP32VGM VORTEX Cellar and drainage pump that allows the passage of particles up to 15 mm and drains down to 20 mm.

The vortex pump is constructed in plastic with a s haft made of AISI 416 stainless steel.

The pump is equipped with a mechanical shaft seal (carbon/aluminium) with oil lubrication. The motor features thermal protection. The pump is suitable for pumping dirty water containing solid particles and is supplied with vertical magnetic automatic control.

Specifications: • 1 × 230 V – 50 Hz motor • Mechanical shaft seal (carbon/aluminium) • Thermal protection against overheating • 1” hose connection included • 1 1/4” hose connection included • 5 m power cable • Level switch for automatic start/stop • Output power: 0.37 kW

Equipped with automatic control and mechanical shaft seal.

Drains down to 20 mm.

Fits in a 250 mm well, including automatic control.

MODEL

STP-TOP32VGM

Prod no.

STP-TOP32VGM

Outlet (inches)

1” and 1¼” hose connectors

Voltage (V)

230

Frequency (Hz)

50

Motor power (kW)

0,37

Max. head (m)

7

Weight (kg)

6

Capacity (L/min)

170

Cable length (m)

5

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

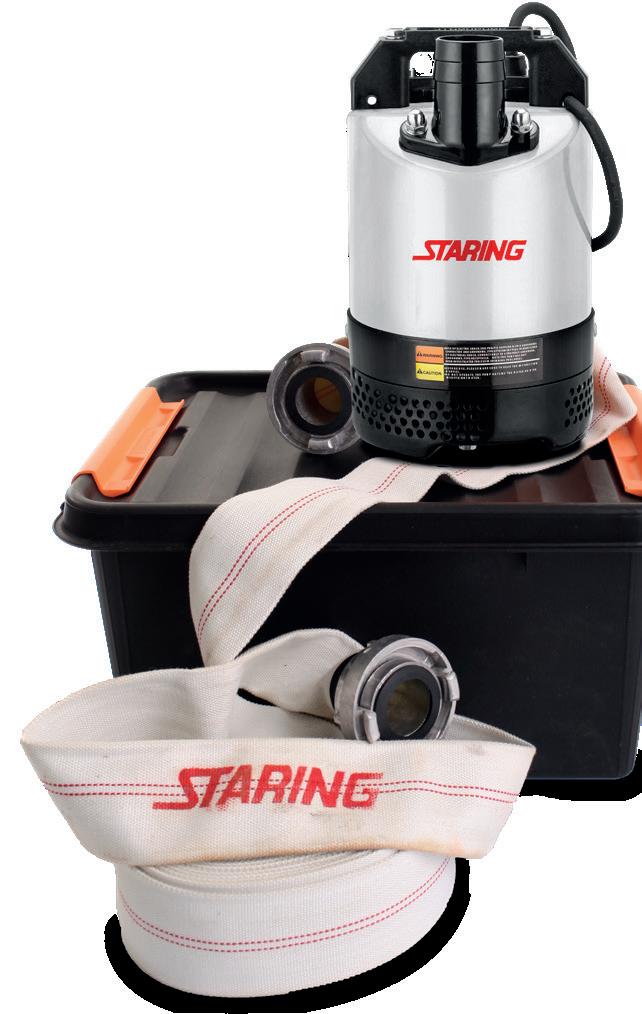

Submersible Pump STP2-450 [ STP2-450 ] STP2-450 Also available as box set!

This pump is specially suitable for: SAND – MUD – SLUDGE Compact 2” contractor pump for pumping sand and gravel-laden water. The STP2-450 pump, with its top discharge, is particularly well-suited for tasks with limited space.

The pump keeps itself cool by pumping water. The impeller is made of polyurethane.

The STP2-450 comes with a thermal protector that shuts off the pump at high temperatures.

The pump restarts automatically after cooling down.

The pump’s bottom strainer has an 8 mm passage.

10 m rope included.

The set consists of: 1 pump, 15 m hose with couplings, Storz coupling, and impact-resistant plastic box.

staring.dk

The pump’s discharge can be rotated, making the outlet perpendicular to the pump.

ORDER STP2-450A FOR THE MODEL WITH INTEGRATED FLOAT SWITCH. MODEL

STP2-450

STP2-450A

STP2-450 SÆT BOX

Staring no.

STP2-450

STP2-450A

STP2-450 SÆT BOX

Float Switch

-

-

Outlet size (inches)

50

Volts (gV)

230

Hz

50

Motor kW

0,50

Motor BHP

0,64

Max. lift height (m)

11

Max. capacity (L/ min.)

230

Weight (kg)

9,5

Impellar passage (mm)

8

Cable (m)

10

REMOVES SAND, MUD, AND SLUDGE DOWN TO 5 CM!

For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

Submersible Pump STP2-480DW The pump is suitable for:

STP2-480DW Also available as box set!

• Total emptying after water leakage • Total emptying of containers after cleaning • Total emptying of swimming pools • Emptying of concrete decks • Emptying low-lying construction sites STARING STP2-480DW is a traditional submersible pump which is also suitable as “water sucker”. STP2-480DW, a compact lightweight pump with high efficiency, which is made in an epoch-making design with fixed bottom that enables the absorption of water residues down to 1.0 mm water level.

Contra/flap valve on the suction side makes the water does not return even if the pump is stopped.

The bottom is provided with a rubber plate, so that the pump does not damage/scratch the surface it is placed on.

The outlet on the pump can be reversed as follows, that the outlet is perpendicular to the pump. This is a great advantage when the pump is placed on floor. This prevents the hose from kinking.

The pump is supplied with thermal fuse, 10 m rope, hose connector mounted on 1” thread, where storz coupling can also be mounted, and 10m. cable with approved impact-resistant connector.

staring.dk

MODEL

STP2-480DW

Staring no.

STP2-480DW

STPE2-480DW

STP2-480DW

ELECTR. SWITCH

SET BOX

STPE2-480DW

STP2-480 SÆT BOX

Outlet size (inches)

2”

Volts (gV)

230

Hz

50

Motor kW

0,50

Motor BHP

0,64

Max. lift height (m)

11

Max. capacity (L/min.)

170

Weight (kg)

14

Cable lenght (m)

10

ABLE TO REMOVE WATER DOWN TO 1 MM For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

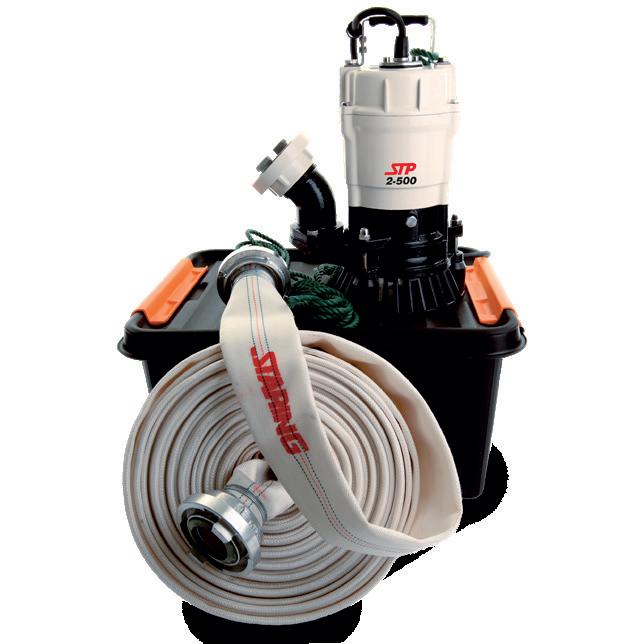

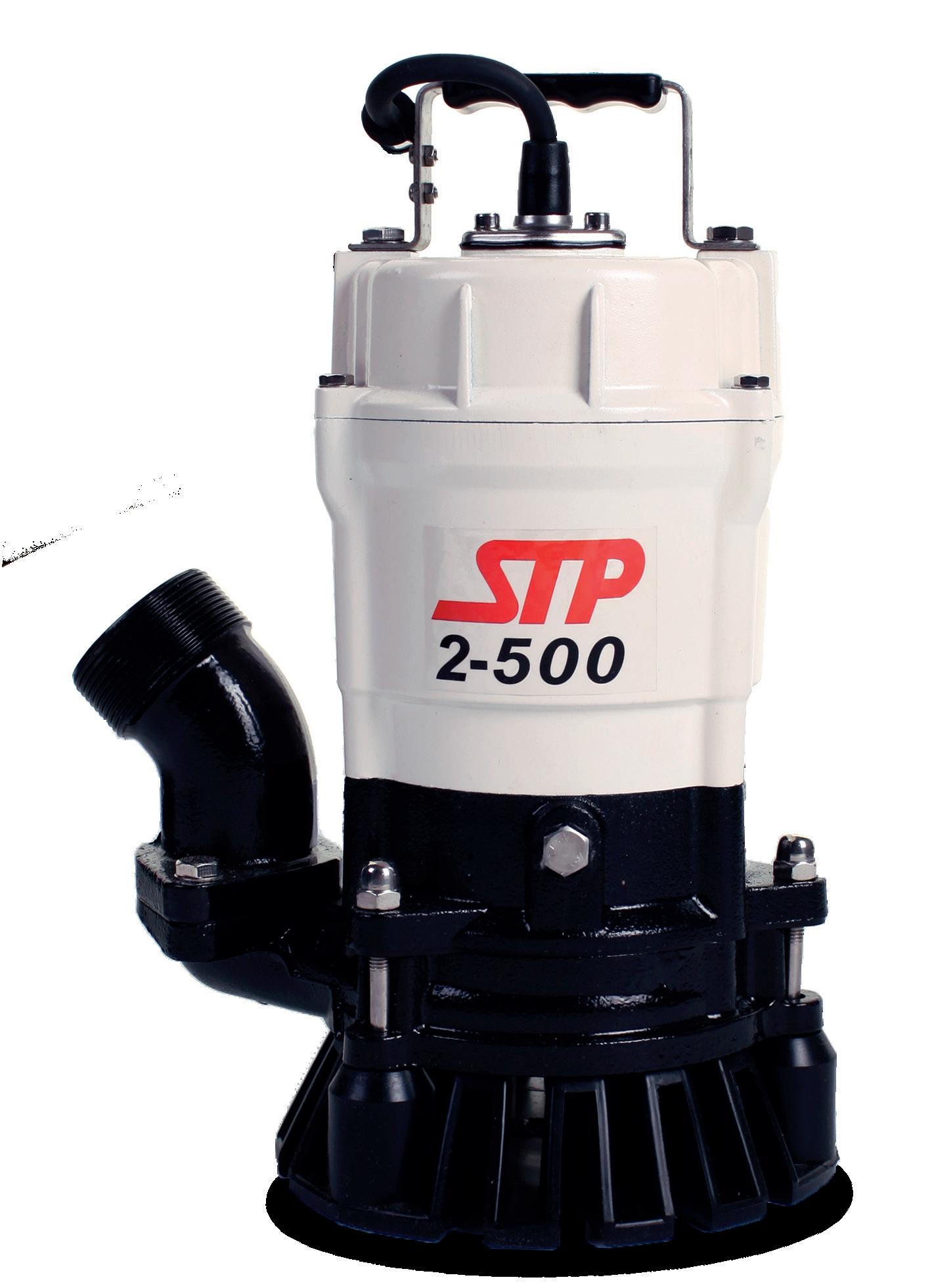

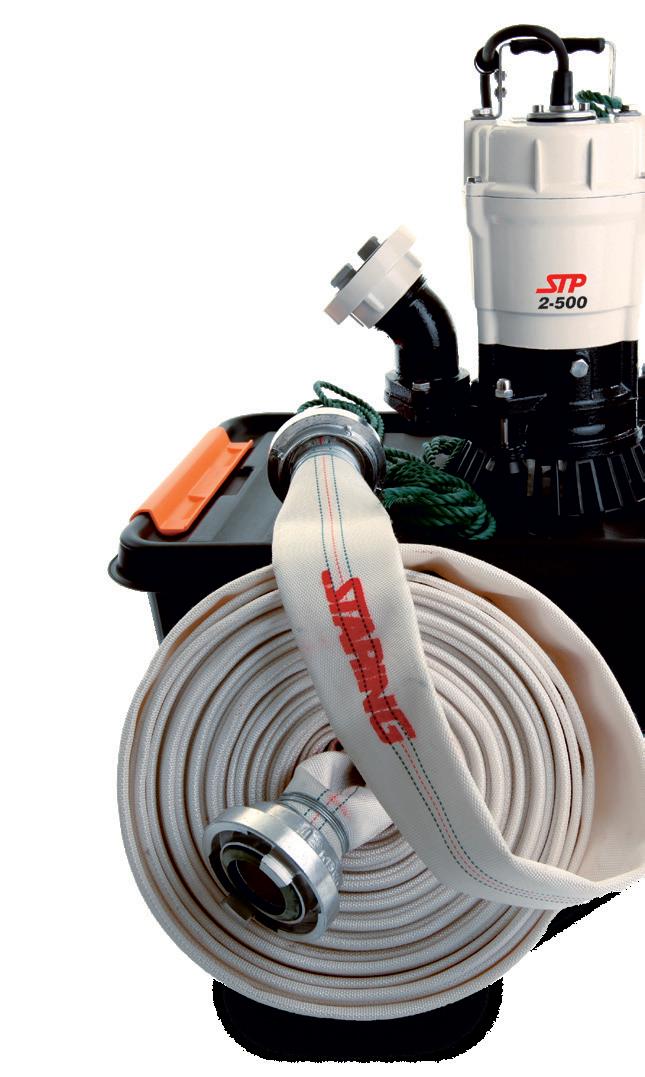

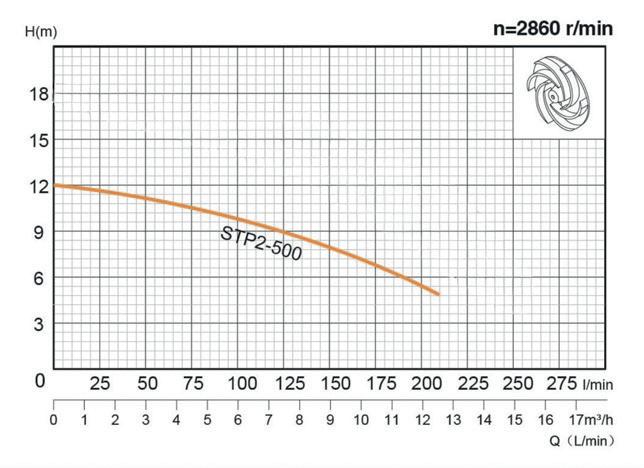

Contractor Pump STP2-500 SERIES Pump specifications: • The pumps are supplied with: • Pump housing in cast iron, which is particularly resistant to wear and tear high throughput.

• Scooter made of polyurethane.

STP2-500 Also available as box set!

• 10 mm free distance between impeller and pump housing that ensures large through flow and stable pump characteristic.

• Bottom strainer with 10 mm holes that prevents larger particles in blocking the impeller.

• Thermal fuse which switches off the pump from too high temperatures.

• Storz clutch • 10 m rope • Approved impact-resistant plug

STP2-500 pumps remove

SAND - MUD - SLUDGE as if it were the pure water!

staring.dk

MODEL

STP2-500

STP2-500A

STP2-500F

Staring no.

STP2-500

STP2-500A

STP2-500F

Variant

Standard

With switch Automatic

Removes water down to 5 mm

Outlet size (mm)

50

Volts

230

Hz

50

Motor kW

0,5

Motor BHP

0,64

Max. lift height (m)

12

Max. capacity (L/min.)

205

Weight (kg)

10

Impellar passage (mm)

10

POWERFULL SUBMERSIBLE PUMP! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

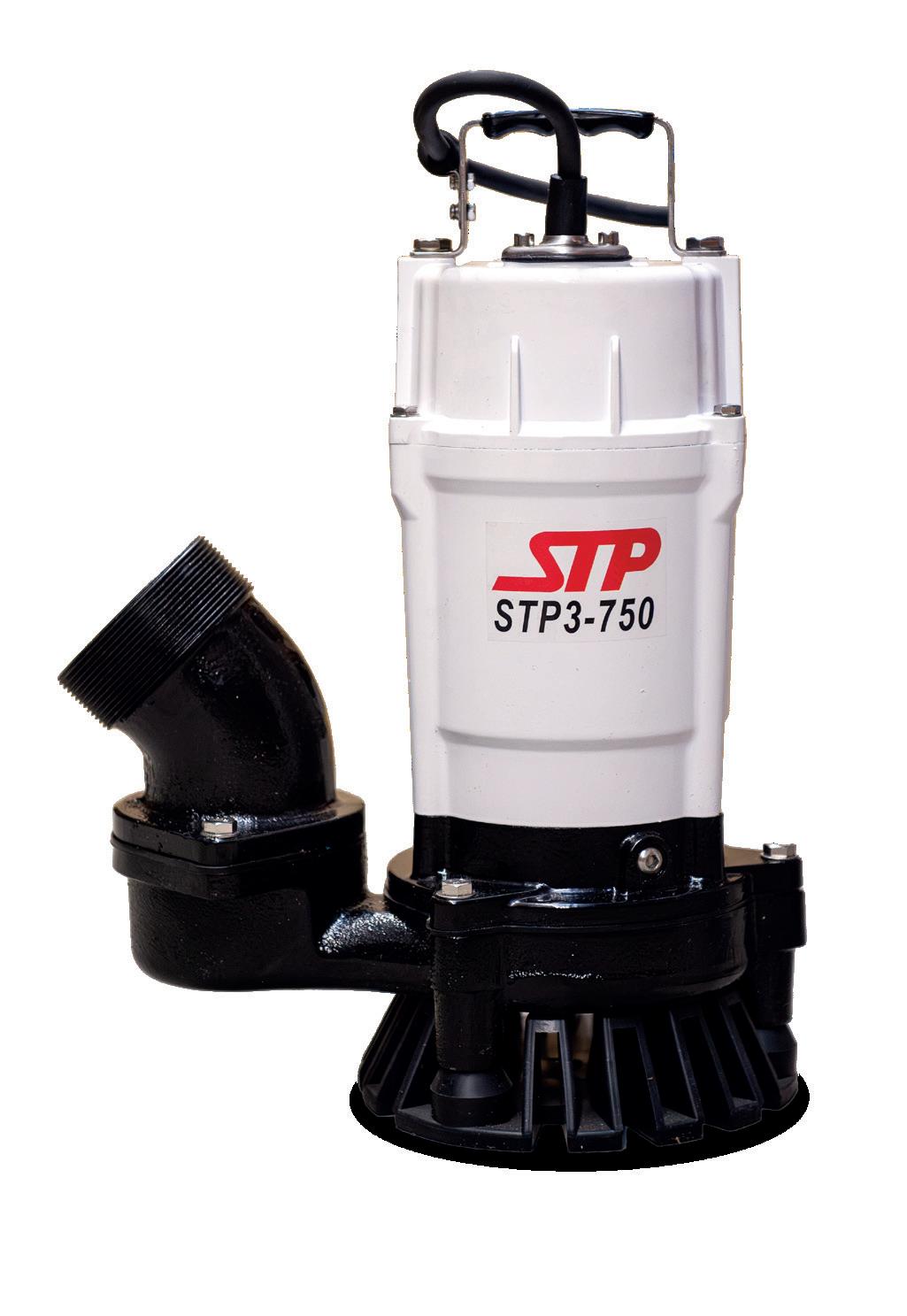

Contractor Pump STP3-750 SERIES

STP3-750 Pumps: Built for Contractors to Handle Sand, Mud, and Sludge Like It’s Clear Water!

The STP3-750 is one of the most powerful 230V contractor pumps on the market, thanks to its top-quality features:: • Cast Iron Pump Housing: Highly resistant to wear and capable of handling high flow rates.

• Polyurethane Impeller: Durable and efficient for long-term performance.

• 10 mm Clearance Between Impeller and Housing: Ensures excellent flow capacity and stable pumping characteristics.

• Base Strainer with 10 mm Holes: Prevents larger particles from clogging the impeller.

• Thermal Protection: Automatically shuts the pump off at high temperatures to prevent damage.

• Storz Coupling, 10 m Rope, and Durable Impact-Resistant Plug: Ready for tough job sites.

Ideal for contractors who need reliable performance, even in demanding conditions.

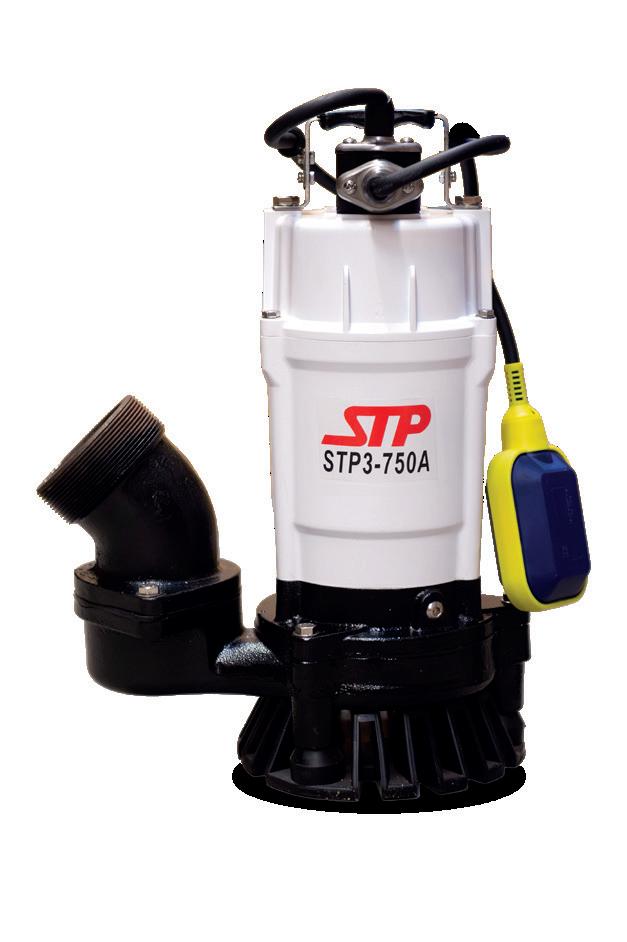

The pump is also available with an automatic function (STP3-750A).

MODEL

STP3-750

STP3-750A

STP3-750L

Product no.

STP3-750

STP3-750A

STP3-750L

Variant

Standard

With Automatic

“Big-flow”

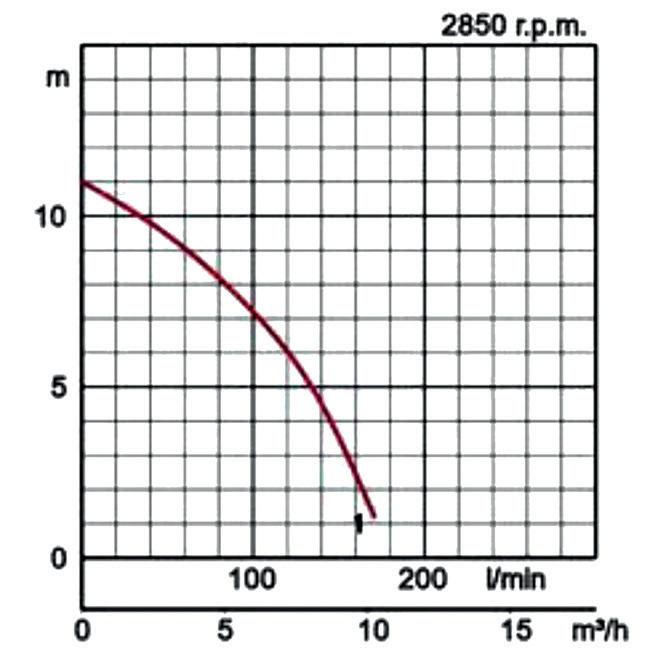

Head

l/min m3/h

Outlet size (mm)

80

Volts

230

Hz

50

Motor kW

0,75 18

10,8

Max. capacity

250 (L./min.)

600 (L./min.)

Weight (kg)

19

20,2

Max. Lift height (m)

Lenght of cable (m)

staring.dk

10

VERSATILE CONTRACTOR PUMPS FOR EVERY JOB! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

Contractor Pumps STP3-1500T / STP4-3700T This series consists of powerful 400V submersible pumps developed for contractors, rental, and demanding water handling applications where reliability and high capacity are essential. The pumps are designed for efficient removal of water from construction sites, excavations, and drainage applications, and are built for daily operation under harsh conditions – with stable performance even during long working days.

Advantages: • Powerful 400V contractor pumps for professional use • High capacity – up to 1580 l/min • Suitable for construction pits, drainage, and flooding • Robust construction for daily operation under demanding conditions • Stainless steel housing for long service life • Heavy-duty strainer base for water containing particles and sludge • Stable performance for contractors, rental, and damage restoration • Easy handling with solid carrying handle

MODEL

STP3-1500T

STP4-3700T

Product name

STP3-1500T

STP4-3700T

3”

4”

Outlet size

Both pumps are built according to the same robust design principle but differ in capacity and outlet size, making it easy to choose the right solution for the job.

400V / 50Hz

Voltage / frequency Rated current (A)

3,7

7,7

Motor kW

1,5

3,7

Head (m)

14

18

Capacity (L/min)

700

1580

Weight (kg)

37

59

559 x 240

613 x 300

Height × width (mm)

STP3-1500T

STP4-3700T

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

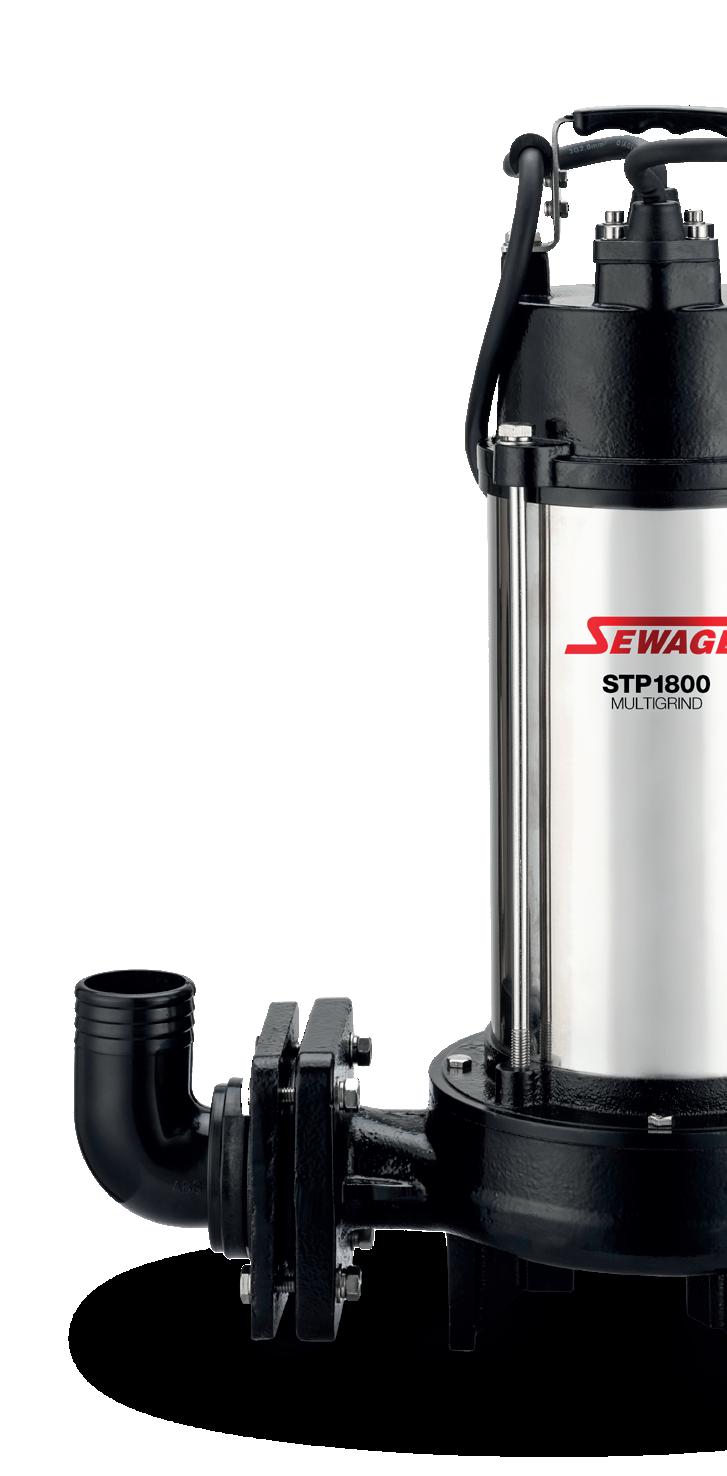

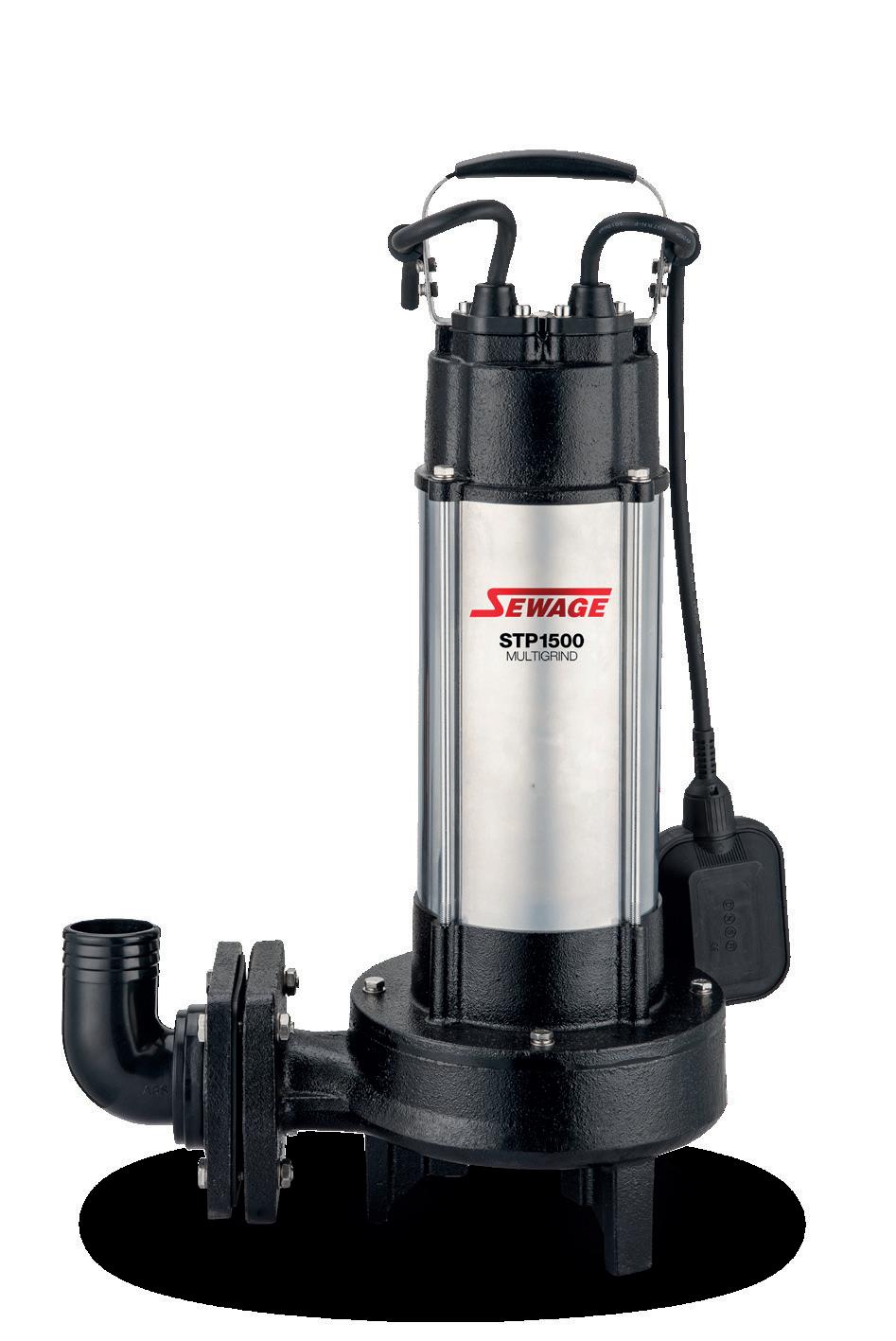

Grinder Pumps STP-1500MG [ STP-1500MG ] STP-1800MG [ STP-1800MG ]

Exceptionally strong grinder pumps constructed with a cast iron pump housing and a stainless steel motor housing.

Supplied in 230V, these pumps come with a float switch for start/stop functionality. The safety feature automatically engages again.

With the cutter function, this model is well-suited for sewage and pumping black wastewater.

AND IM PR NEW OV E

The STP series is equipped with thermal protection that turns off the pump if it becomes too hot.

staring.dk

D

ING IMPELLE R! IND GR

MODEL

STP-1500MG

STP-1800MG

Product no.

STP-1500MG

STP-1800MG

Outlet size (inches)

2”

Volts

230

Hz

50

Motor kW

1,5

1,8

Max. Lift height (m)

22

25

Max. capacity

300 L./min.

360 L./min.

Weight (kg)

28,5

37,6

SUITABLE FOR PUMPING BLACK WASTEWATER! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

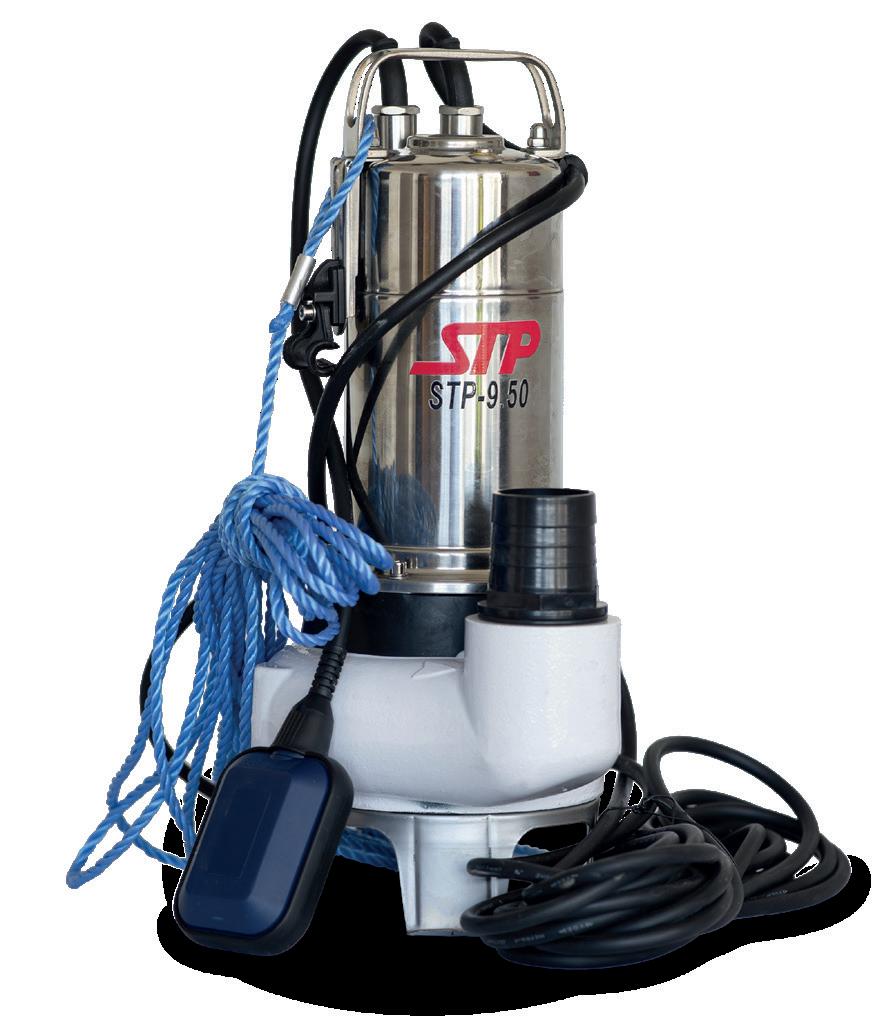

Sewage Pump STP-9.50

The STP-9.50 is a robust sewage pump designed for pumping dirty water and wastewater containing solid particles.

Developed for professional use where high capacity and operational reliability are required. The pump is equipped with a 0.75 kW motor and delivers up to 550 l/min, with a maximum head of 9 metres.

The impeller ensures free passage of solid particles up to 35 mm.

The STP-9.50 is supplied with a float switch for automatic start and stop. Integrated motor protection guards against overload and overheating, ensuring stable operation – even under demanding conditions.

The pump is supplied with an electronic switch (float) with 10 m rope and a 5 m power cable.

THE OPEN IMPELLER DESIGN ALLOWS FREE PASSAGE OF SOLID PARTICLES UP TO 35 MM AND REDUCES THE RISK OF CLOGGING.

MODEL

STP-9.50

Product no.

STP-9-50

Outlet size (inches)

2

Volts (V)

230

Hz

50

Motor kW

0,75

Head (m)

9

Capacity (L./Min.)

550

Weight (kg)

6

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

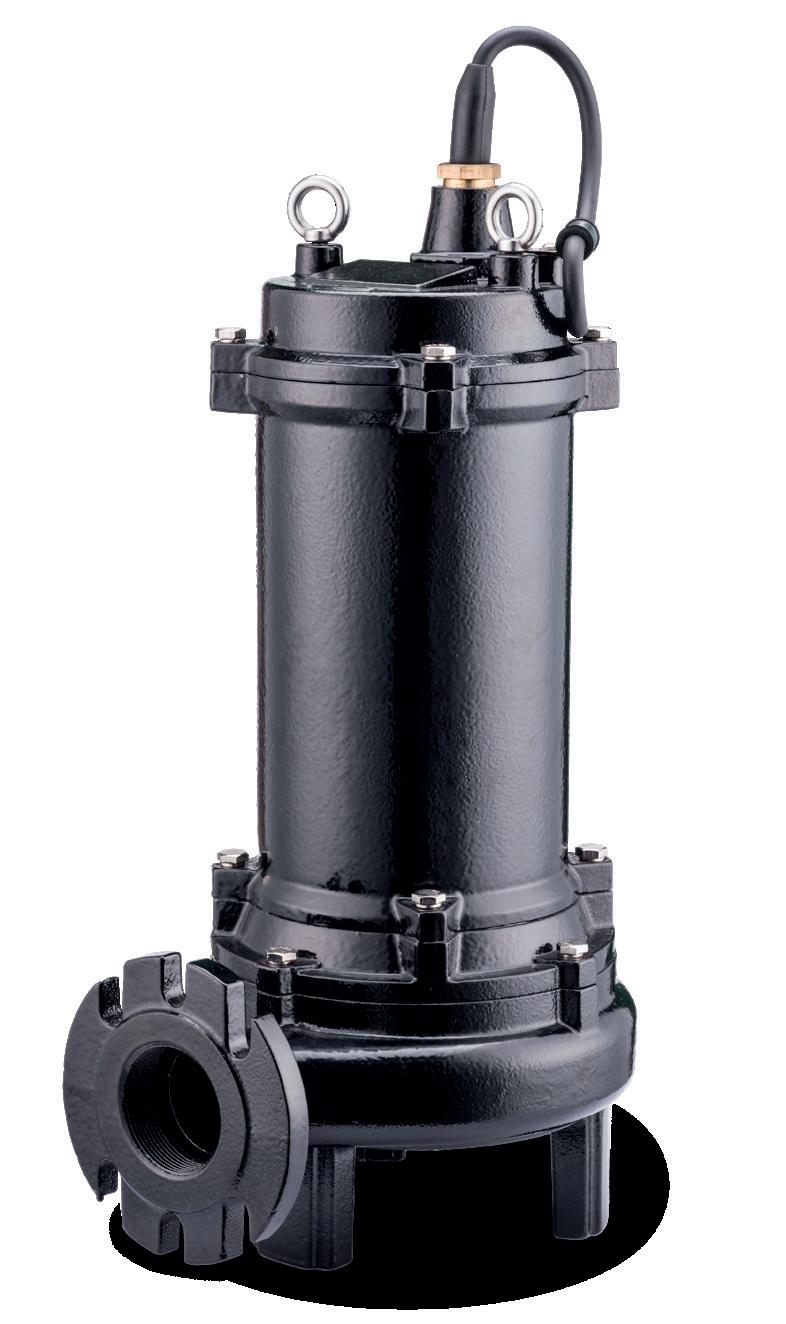

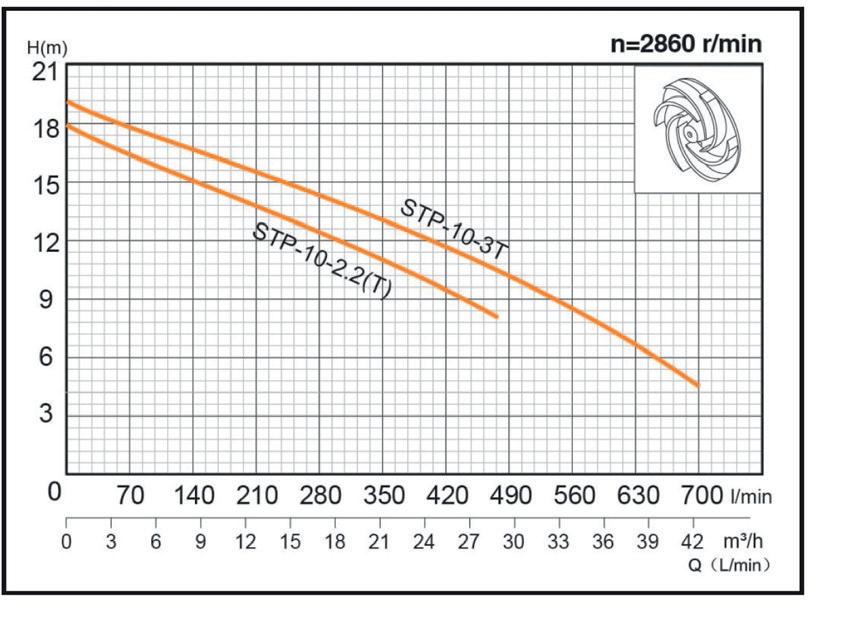

Knife Pump STP10 SERIES [ STP10-2.2 ] [ STP10-2.2T ] [ STP10-3T Special knife pump series in 2 sizes, built with a separate high-speed knife function at the inlet, preventing impellers from blocking. All 3 sizes are made of cast iron, making them resistant to saltwater.

The series consists of one 230V and two 400V pumps.

With the cutter function, all 3 models are suitable for pumping black sewage water.

The STP series is equipped with a thermal protection that shuts off if the pump becomes too hot. The safety feature automatically resets.

INDING IM D GR PE VE O LL R P

NEW AN D

!

ER

IM

Please note! The pump is also available in other sizes, refer to the product sheet for additional information and technical data.

MODEL

STP10-2.2

STP10-2.2T

STP10-3T

Staring no.

STP-10-2.2

STP-10-2.2T

STP-10-3T

Volts (gV)

230

400

400

50

Hz Outlet size (inches)

2

2

2,6

Motor kW

2,2

2,2

3

Motor BHP

2,99

2,99

4,1

Max. Lift height (m)

17

16

20

Max. capacity

450

450

700

Weight (kg)

35

35

41

Cable (m)

staring.dk

10

SUITABLE FOR PUMPING BLACK WASTEWATER! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

PUMPS //

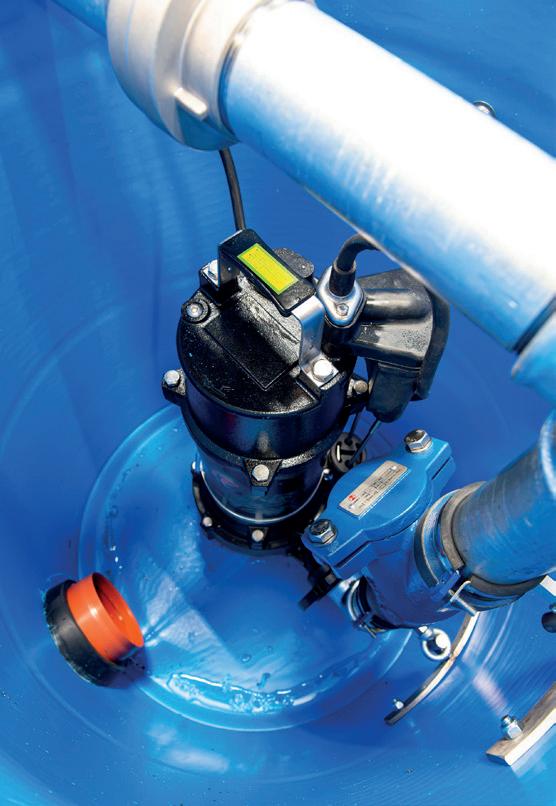

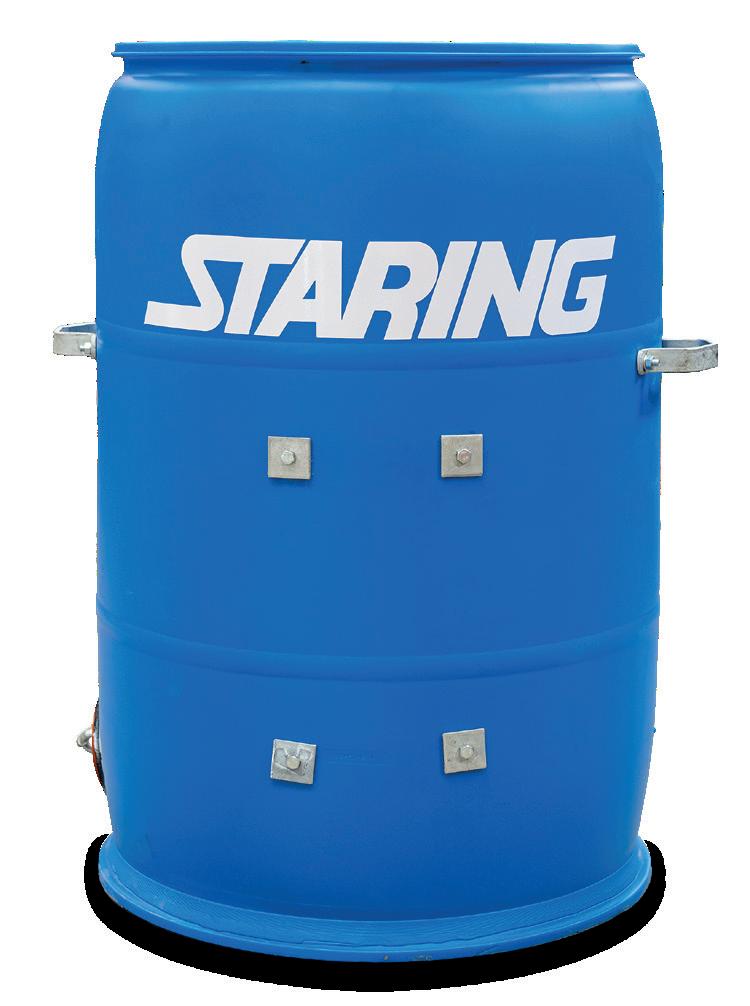

Pump Well

200L. FOR SEWAGE WATER Pump Well Components: • 1 unit plastic well, 200 L capacity.

• Loose cover with ventilation hole/pressure relief.

• 2 lifting handles.

• Inlet ø110mm or as per agreement.

• Pump with grinder and electronic switch.

• Outlet pipe with solvent-weld fitting.

• Union for quick disconnection of the pump.

• Outlet size 1” or as per agreement.

• Inlet/outlet penetration with seals in the well.

• Reinforcement in the well for pump and outlet pipe.

Pump well

SPECIAL HIGH EFFICIENT PUMP WITH GRINDING IMPELLER

staring.dk

MODEL

PUMPEBRØND

Product no.

PUMPEBRØND-200

Pump Included in Well MODEL

STP10-2.2

Product no.

STP-10-2.2

Outlet size (mm)

50

Volts (gV)

230

Hz

50

Motor kW

2,2

Motor BHP

2,99

Max. Lift height (m)

17

Kabellængde (m)

10

Weight (kg)

35

Max. capacity (L./min.)

450

COMPLETE WELL WITH 2.2 KW GRINDER PUMP! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

ACCESSORIES //

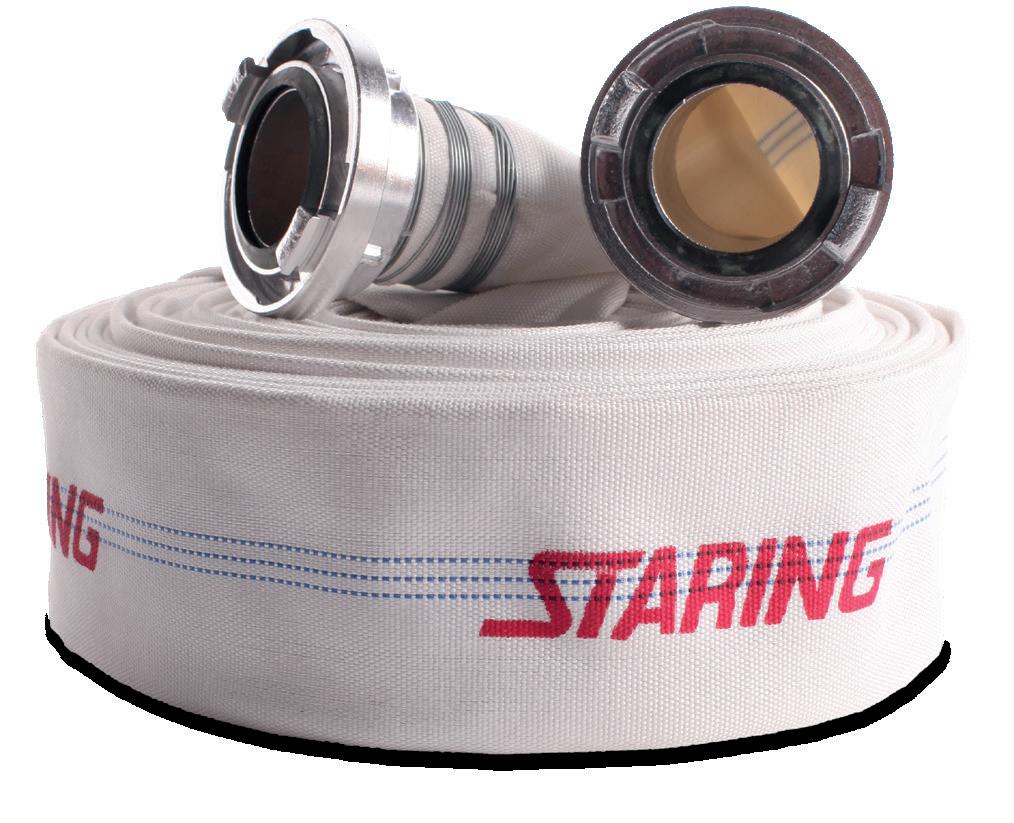

Construction Hoses With or without Storz Starings constructionhoses with Storz couplings are ideal for various construction and civil engineering projects.

The hoses transport water and other liquids easily and efficiently, secured by Storz couplings on both ends.

The hoses are available in a variety of sizes and lengths and can be supplied for both 8 and 13 bar pressures.

HOSES WITH STORZ PRODUCT NAME

SIZE

LENGHT

PRESSURE

2207CH

2”

15 m

8 Bar

2209CH

2”

30 m

8 Bar

2211CH

3”

15 m

8 Bar

2213CH

3”

30 m

8 Bar

2220CH

4”

15 m

8 Bar

2222CH

4”

30 m

8 Bar

2038CH

6”

15 m

8 Bar

2007CH

2”

15 m

13 Bar

1”

15 m

8 Bar

HOSES WITHOUT STORZ 2014CH

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

ACCESSORIES //

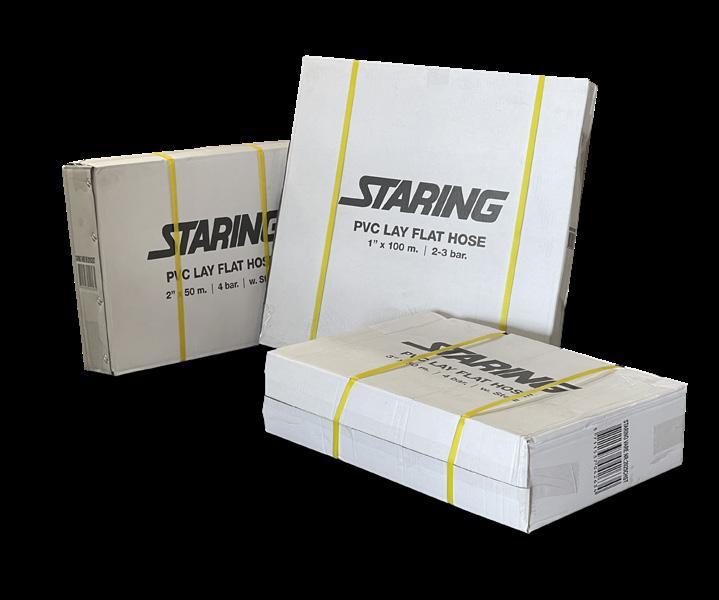

PVC Contractor Hoses With or Without Storz Coupling

Staring’s contractor hose is ideal for connecting contractor pumps and other construction or industrial applications.

This blue PVC hose is made from durable, weather-resistant material, ensuring long-lasting performance under demanding conditions.

The flat, flexible design is reinforced with spiral layers and polyester threads, providing extra strength and resistance against kinks and blockages.

NEW

The smooth inner lining ensures that water flows freely and efficiently through the hose.

Below, you can find the variant that best suits your needs!

PRODUCT NAME

AR

R IVA L

STORZ

SIZE

LENGTH

PRESSURE

2000CH

–

1”

100 m (roll)

2-3 Bar

2016CH

–

2”

100 m (roll)

2-3 Bar

2025CH

–

3”

100 m (roll)

2-3 Bar

2016CHST

P

2”

50 m

2-3 Bar

2025CHST

P

3”

50 m

2-3 Bar

The hoses are lightweight and can easily be rolled up for storage and transport.

STARING’S BLUE PVC HOSES FOR CONTRACTOR PUMPS ARE AVAILABLE IN VARIOUS LENGTHS AND CAN BE SUPPLIED WITH OR WITHOUT A STORZ COUPLING, MAKING THEM A FLEXIBLE AND PRACTICAL CHOICE FOR BOTH PRIVATE AND PROFESSIONAL USE.

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

POWER SUPPLY //

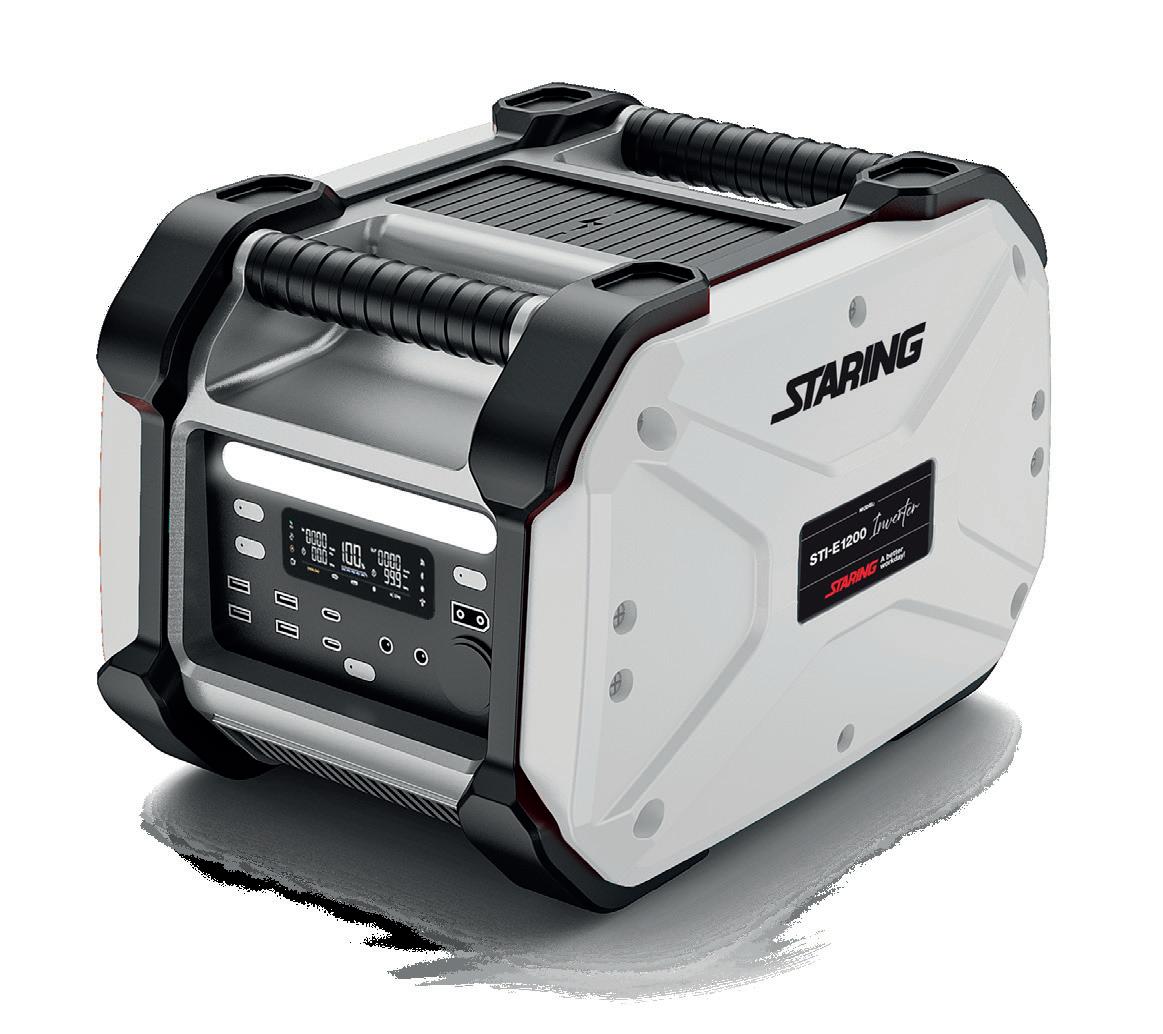

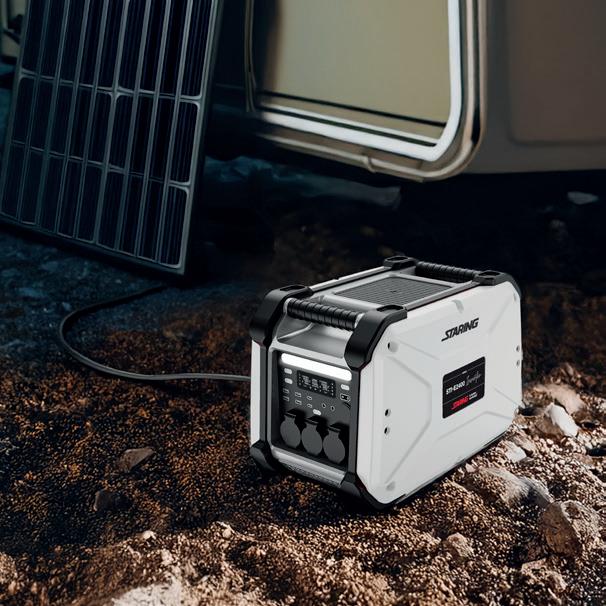

Inverters STI-E1200 STI-E2400

l.

Ca n

Portable Power for Construction and Private Use. ed via solar arg pa h c ne e b

The Staring Inverter series provides dependable, mobile power for both job sites and recreational use. With advanced LiFePO4 battery technology and high performance, the STI-E1200 and STI-E2400 are excellent as primary or backup power sources.

Ideal for: • Small tools • Electronics • Battery charging

STI-E2400W

STI-E1200W Reliable power source – right at your fingertips.

MODEL

STI-E1200

STI-E2400

Prod no.

STI-E1200

STI-E2400

Capacity

25,6V / 1152Wh (LiFePO4)

48V / 2160Wh (LiFePO4)

Continuous Output Power

1200W (230V AC)

2400W (230V AC)

USB Outputs

4 ports (incl. QC3.0 and 5V/2.4A)

4 ports (incl. QC3.0 and 5V/2.4A)

Type-C Outputs

100W + 25W PD

100W + 30W PD

DC Outputs

12V 3A / 24V 45A

12V 3A / 48V 50A

12–30V DC / 230V AC

15–100V DC / 230V AC

Charging time (100%)

Appx. 2 hours

Appx. 3 hours

Dimensions (cm)

L:59 x H:38 x W:36

L:59 x H:42,5 x W:36

15,6

25

Powerful lithium battery.

Charging via outlet, car, or solar panel.

Stable operation of tools and equipment.

For the job site, everyday use, and emergencies.

Input

Weight (kg)

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

VIBRATORS //

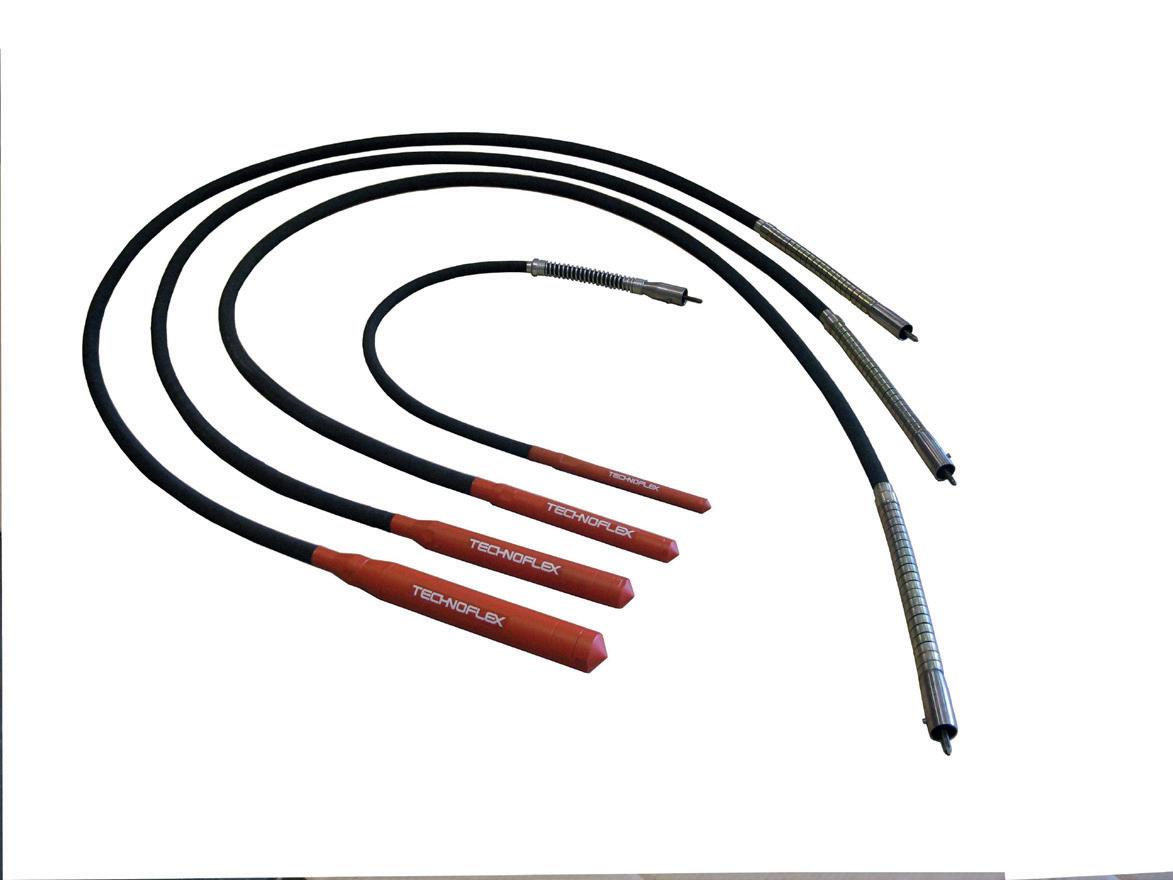

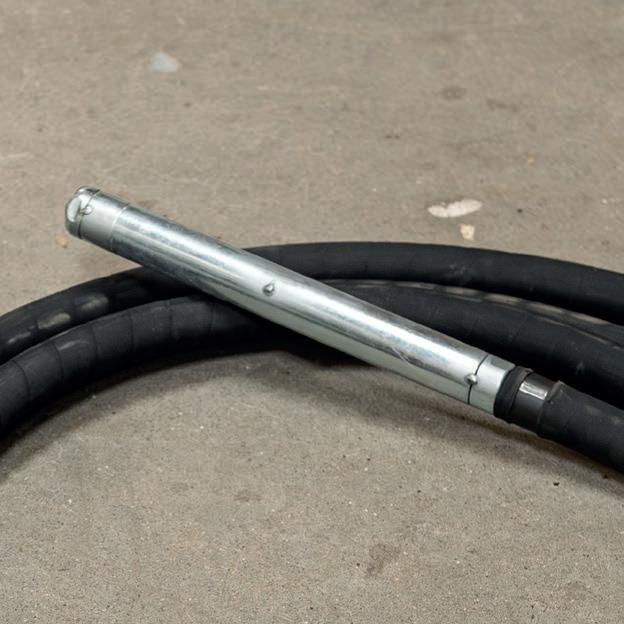

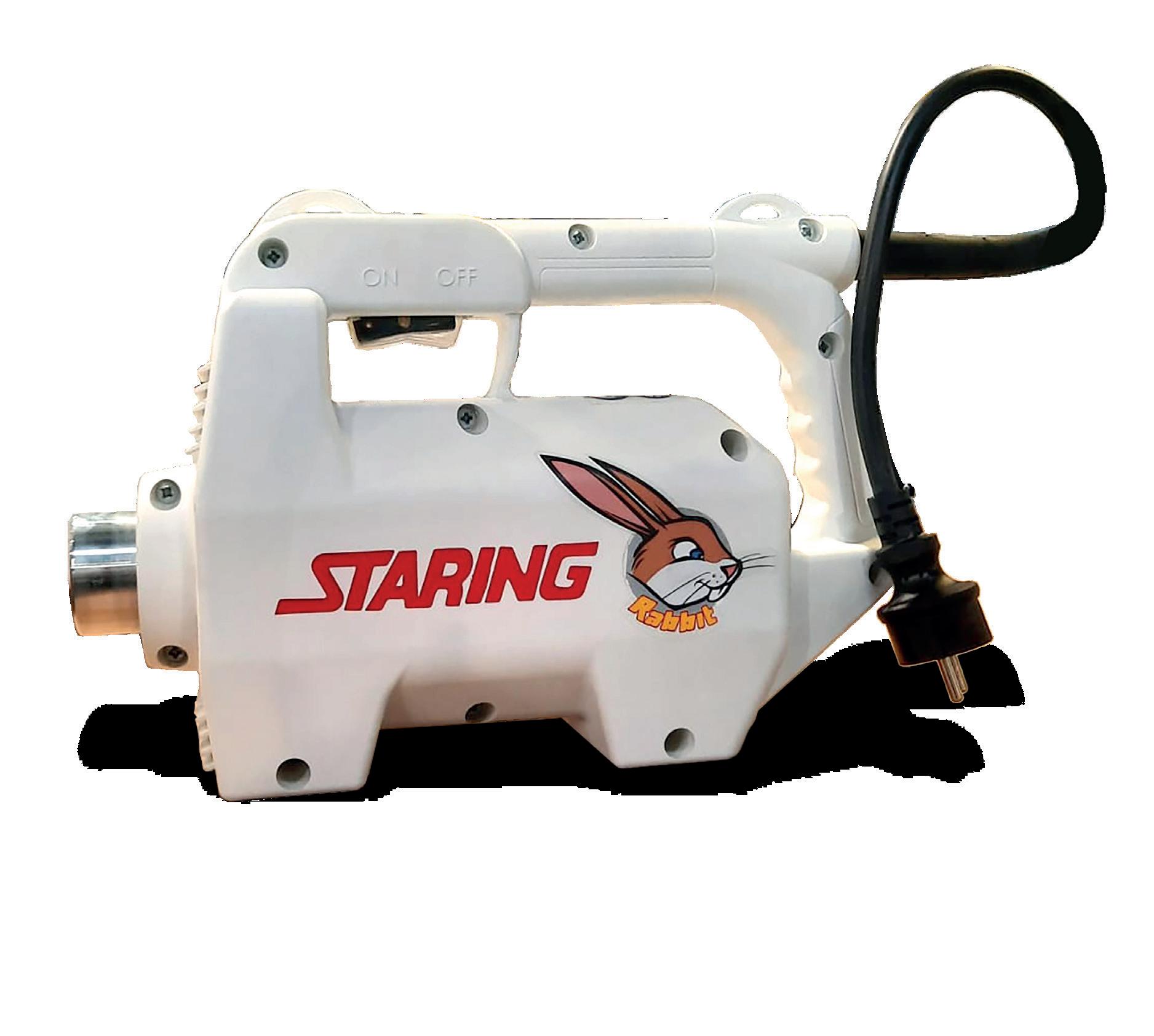

Poker Vibrator RABBIT [ SPV-RABBIT2800 ] Vibrator specifications: Staring Poker Vibrator type RABBIT is a super powerful Poker vibrator with a 1 x 230V 3hp motor capacity.

The Rabbit can be supplied with hoses ranging from 1.0 m up to 5.0 m in length and from a diameter of Ø25 mm to Ø60 mm. The vibrator operates at a stunning speed of 12,000 rpm with a centrifugal force of up to 6,000 kN. The RABBIT is particularly suitable for smaller concrete tasks as well as for element production and similar applications.

Special fitted hoses.

From Ø25 mm to Ø60mm PLEASE ASK FOR PRICE AND SPECIFICATIONS! staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

VIBRATORS //

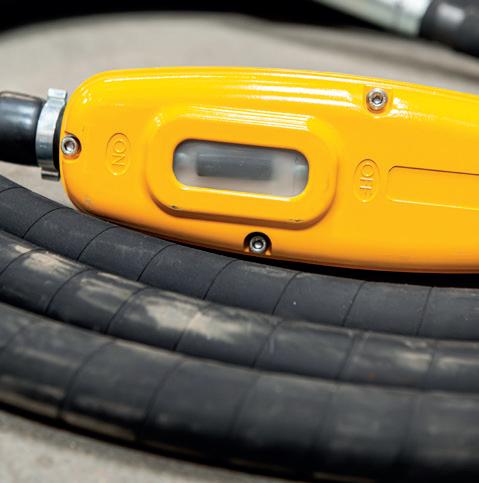

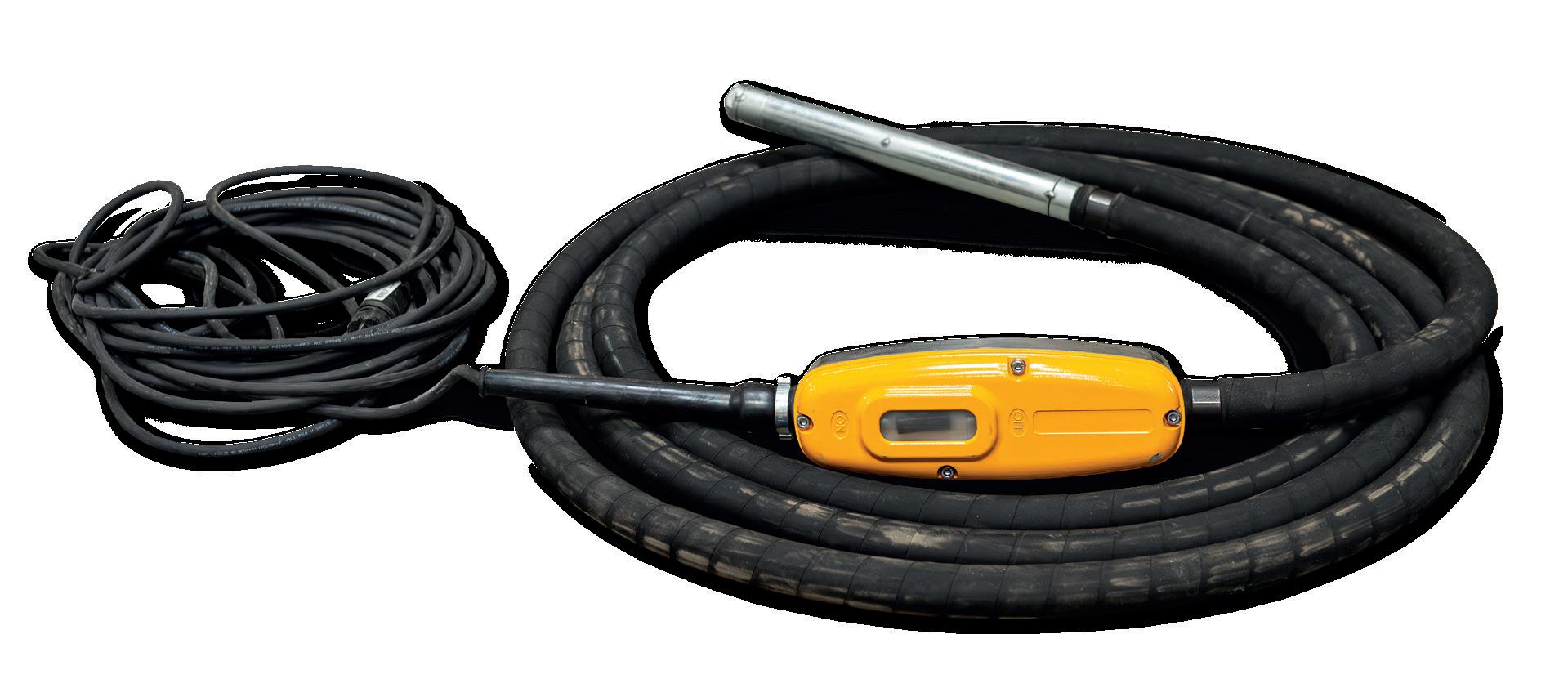

High-Frequency Poker Vibrator

The Staring high-frequency poker vibrator is designed with a focus on user-friendliness and easy handling. It is ideal for those seeking a lightweight machine that is both simple to operate and highly efficient.

The vibrator’s electronic components are protected against overvoltage and vibrations, which enhances both safety and makes the machine easier to handle.

TECHNICAL DATA: Vibrations (per minute)

Diameter (mm)

Hose Length (m.)

Head Length (mm.)

SPV-H385000

Ø 38

5

380

2,7

19

SPV-H502000

Ø 50

2

333

2,7

16

SPV-H503000

Ø 50

3

333

2,7

17

SPV-H504000

Ø 50

4

333

2,7

SPV-H505000

Ø 50

5

333

2,7

SPV-H5010000

Ø 50

10

435

2,7

47

SPV-H605000

Ø 60

5

445

2,7

24

SPV-H6010000

Ø 60

10

398

SPV-HE382000

Ø 38

2

360

1,5

15

SPV-HE384000

Ø 38

4

360

1,5

17

SPV-HE385000

Ø 38

5

360

1,5

19

SPV-HE387000

Ø 38

7

360

1,5

SPV-HE504000

Ø 50

4

360

1,5

19

SPV-HE505000

Ø 50

5

360

1,5

21

SPV-HE507000

Ø 50

7

360

1,5

24

staring.dk

13.500

Control Panel

Centrifugal Force (cm)

Cable Length (m)

Product no.

Motor

18

42 V

2,7

Weight (kg)

19

5

230 V

49

23

Poker Head

For further info or placement of order! staring@staring.dk or +45 98 82 16 22

ACCESSORIES //

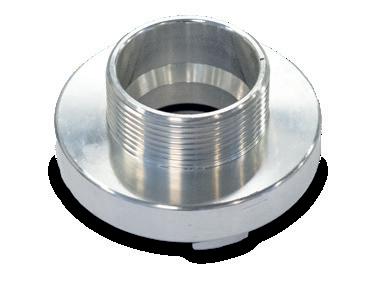

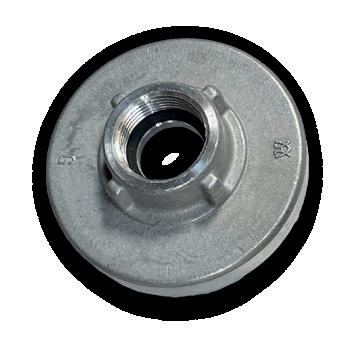

Storz Couplings Staring offers a wide range of different models and sizes of Storz couplings compatible with our contractor and fire hoses.

These couplings ensure tight and reliable liquid transport without leaks.

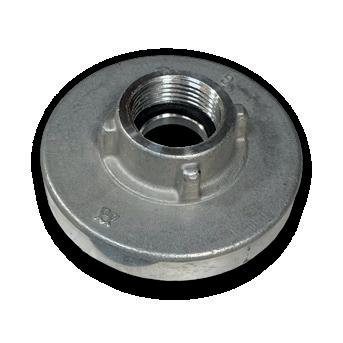

1. SLEEVE

1. SLEEVE Thread

Model D (1”)

1/2”

1200L

3/4”

1201L

1”

1202L (CH)

Model C (2”)

Model B (3”)

Model A (4”)

Model (6”)

1210L (CH)

1 1/4”

1211L (CH)

1 1/2”

1213L (CH)

2”

1215L (CH)

1220L

2 1/2”

1221L

3”

1223L 1231L CH

4”

1260L CH

6”

2. NIPPLE 2. NIPPLE Thread

Model D (1”)

Model C (2”)

Model B (3”)

1/2”

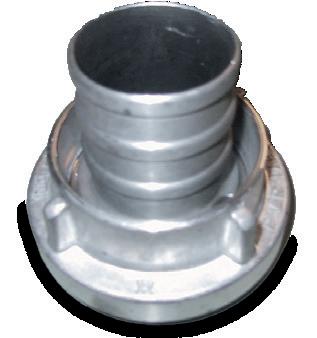

3. LONG NECK

3/4” 1203L (CH)

1”

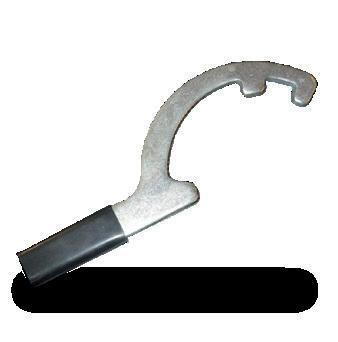

4. WRENCH

1 1/4”

1212L

1 1/2”

1214L

2”

1217L

2 1/2”

1222L

3”

1224L

3. LONG NECK 4. WRENCH FOR 2-3”

1215N CH

FOR 2-3-4”

1216 CH

Thread

Model D (1”)

1/2”

1002L

3/4”

1001L

1”

1100L (CH)

Model C (2” )

1014L

1 1/2”

1013L

2 1/2” 3” 4” 6”

Model A (4”)

Model (6”)

1015L (CH)

1 1/4”

2”

Model B (3”)

1011L (CH) 12221L 1021L (CH) 1024L CH 1060L CH

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

BLOWERS //

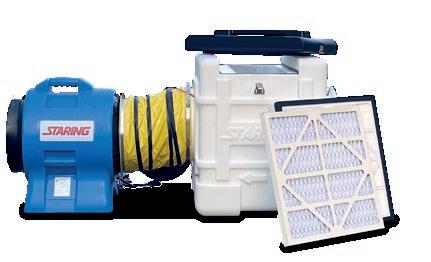

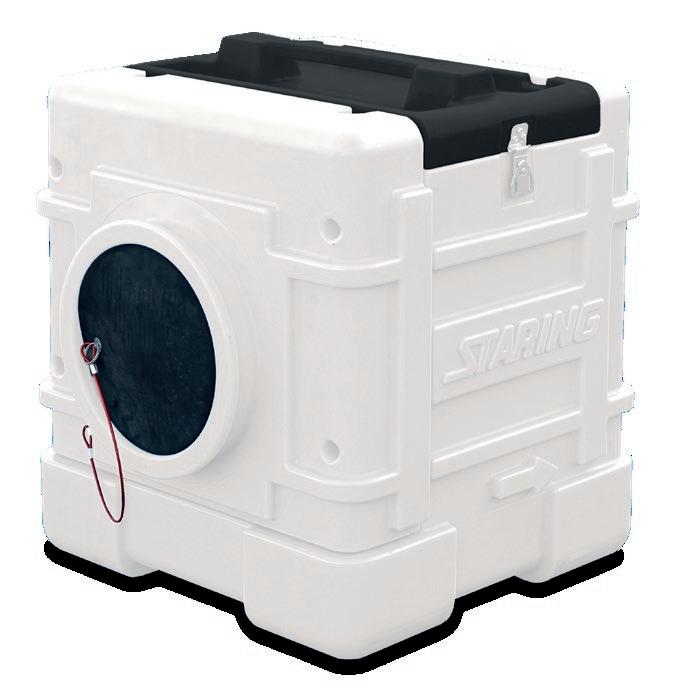

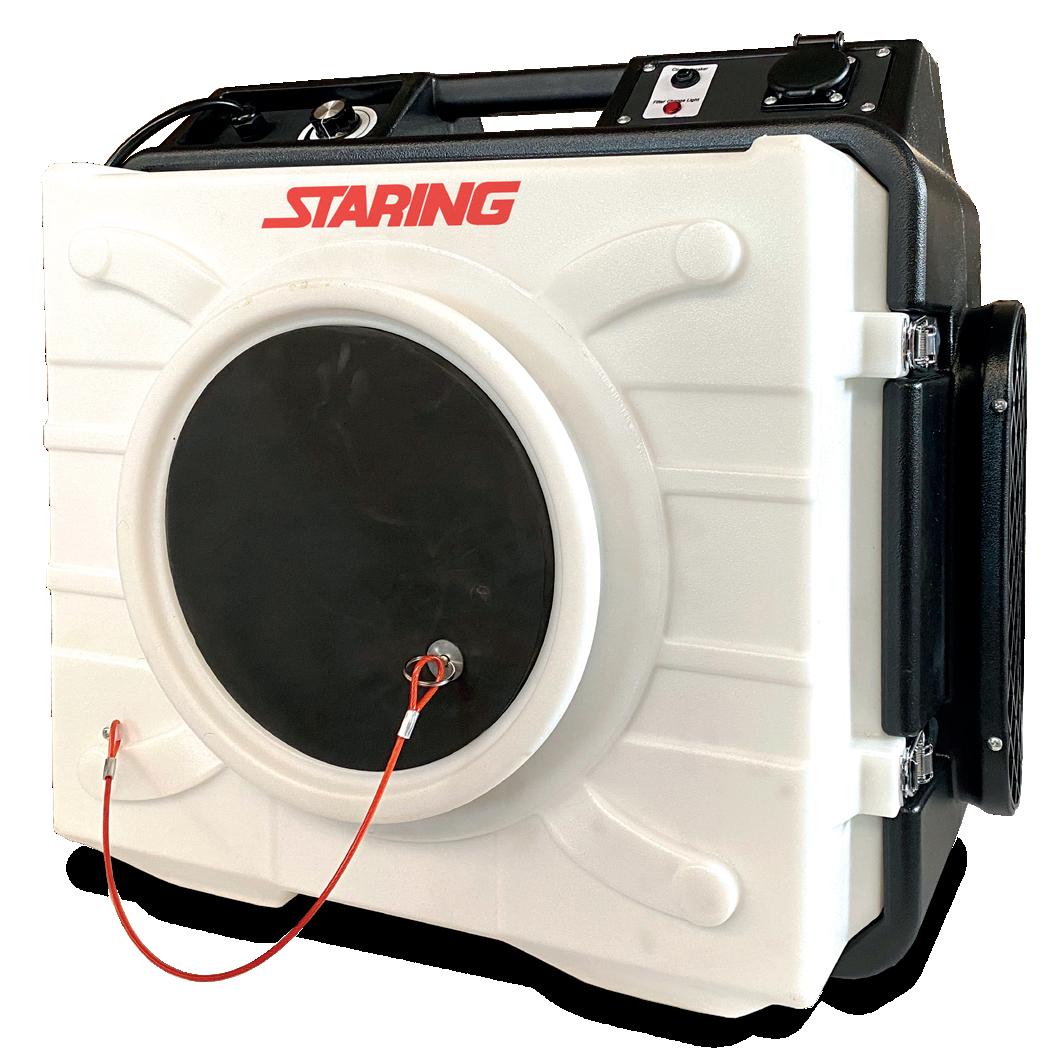

Aircleaner ST225 [ STAC-0225 ] The Staring Air Cleaner helps purify the air through filters, thereby improving indoor air quality. Avoid spreading unwanted particles such as mold and asbestos, as well as reduce odor issues associated with mold, moisture, and damage after a fire.

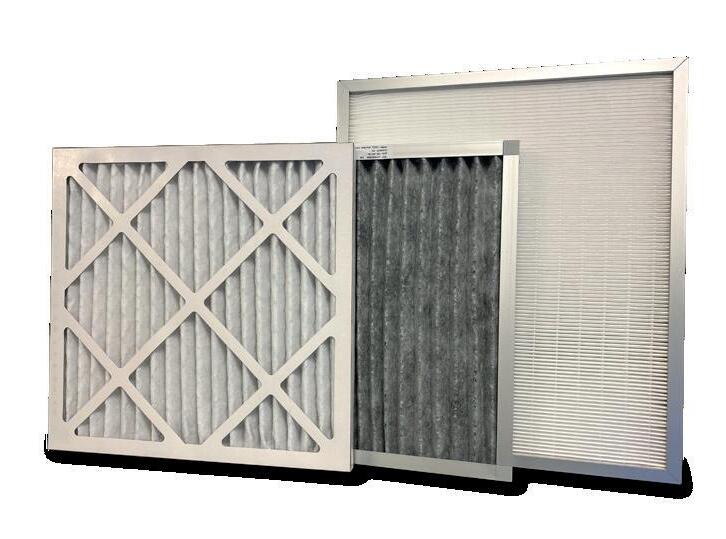

The first stage is a standard paper filter that captures large particles.

The next filter is a HEPA 13 filter, classified to capture 99.97% of the remaining particles down to 0.3 microns, effectively collecting most particles. An activated carbon/ potassium permanganate filter can be mounted to absorb odors and gases (optional).

Air Cleaner features:

Example of use:

• Air regulation on rotary knob • Extra 230V socket for series connection • Light indicator for filter replacement • Thermal fuse • Easy to replace air filter • Cabinet in impact-resistant plastic • Option for mounting VAF-305 hoses • Low weight - only 16.5 kg • Comes with HEPA 13 filter • Can be used upright and lying down • Level of noise 78 dB

• Construction • Demolition/Cleanup • Renovation • Repairs after damage

The air cleaner is made of impact-resistant plastic with a molded handle and high performance. It is stackable and can be used both upright and lying down. With its low weight of 16.5 kg, it is easy to transport for most tasks.

The machine has a maximum capacity of 1350 m³/hour but can be adjusted for different tasks using a rotary switch. Flexible hoses can be attached to the suction and exhaust sides, using standard VAF hoses.

A single air cleaner replaces a maximum of 22.5 m³ of air per minute with continuous use.

ST225 view from blowing side.

MODEL

ST225

Staring no.

STAC-0225

Power Supply

220 - 240V / 50Hz

Motor size

200 W

Use of Amp.

0,98

HEPA

13

Air flow max.

1350 m3/h

Weight

16,5 kg

Size

560 x 600 x 360 mm

Room Size Capacity

ADD-ONS VARIOUS FILTERS FOR SPECIFIC PURPOSES

10 x 10 x 2,30 m

(NOT INCLUDED)

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

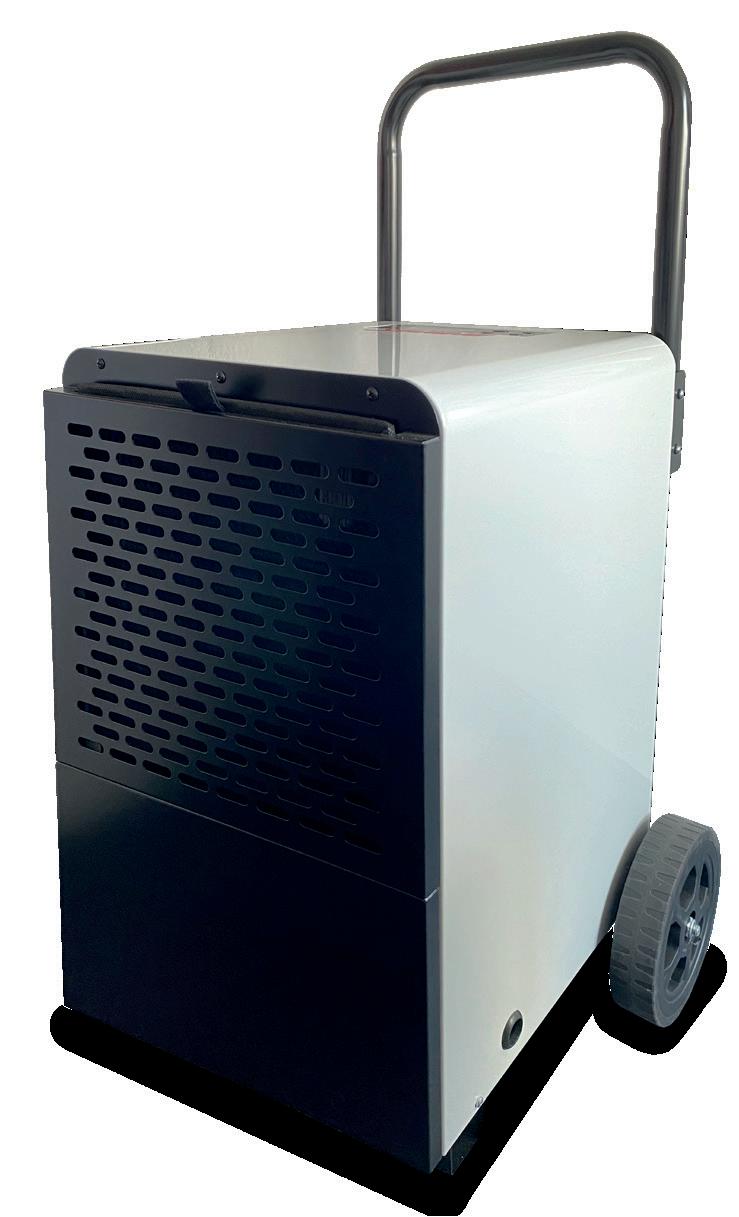

DEHUMIDIFIERS // SW-SERIES

Pro dehumidifier with WiFi

t! c e n on

C i f i W

Available for iOS and Android.

Reliable professional dehumidifier available in three sizes. Supplied with water tank and hose. Water can either be collected in the built-in 7 L tank or discharged directly via hose into a drain.

NOTE: Can be controlled via app (WiFi) and set for automatic start/stop at a specified humidity level.

Dehumidifier specifications: • WiFi control via app.

• Electronic control with adjustable start/stop settings.

• Option for continuous operation mode.

• Automatic defrost function.

• Not suitable for aggressive environments such as pig stables etc.

• Easy removable and washable air filter.

• Steel cabinet.

• Adjustable humidity-controlled operation.

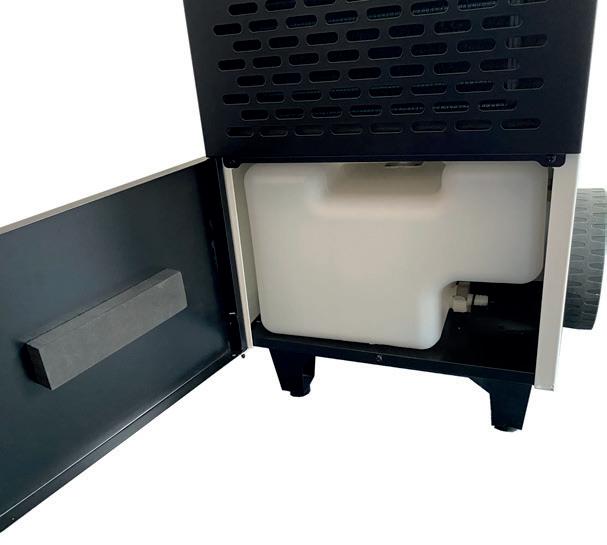

• 7 L collection tank.

Especially suitable for: Construction sites, post-flood drying in buildings, basements, and water damage restoration.

7 L TANK

MODEL Staring item no.

SW-Serie 30 L.

SW-Serie 50 L.

SW-Serie 70 L.

STA-AU30SW

STA-AU50SW

STA-AU70SW

Voltage / frequency

Dehumidifying capacity

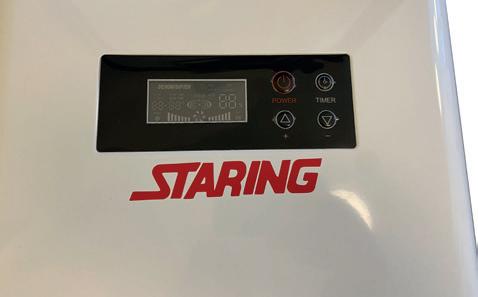

DISPLAY

Max power

220 - 240V / 50Hz 30L/DAY (30OC RH80%)

50L/DAY (30OC RH80%)

70L/DAY (30OC RH80%)

20L/DAY (27OC RH60%)

30L/DAY (27OC RH60%)

50L/DAY (27OC RH60%)

420 W

700 W

900 W

Compressor type

Rotary

Refrigerant

R290

Operating temperature

5 - 35oC

Airflow

300 m3/h

590 m3/h

690 m3/h

Weight

29 kg

37 kg

47 kg

472 x 435 x 653 mm

472 x 435 x 653 mm

497 x 467 x 798 mm

0-60 m2

50-120 m2

70-150 m2

Dimensions Room size up to Noise level

56 dB

60 dB

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DEHUMIDIFIERS // DEHUMIDIFIERS

Pro Series Affugter specifikationer: • Electronic control with the option to set start-stop.

• Hour counter for initiated jobs.

• Total hour counter.

• Option to set for continuous operation.

• However, does not withstand aggressive environments such as pigsties, etc.

• Easily washable removable air filter.

• Cabinet in impact-resistant plastic.

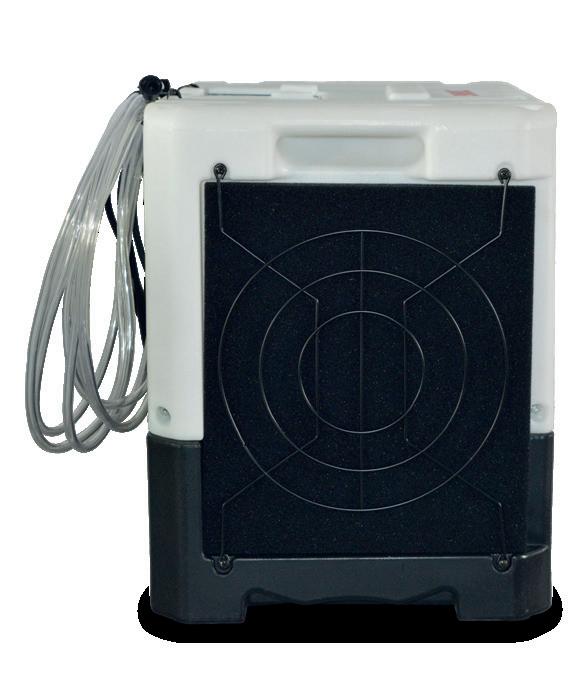

45 L. DEHUMIDIFIER

• Semi-pneumatic wheels.

• Foldable handle (70L).

• Built-in pump that lifts water 4.5m.

• 4.5m plastic hose included.

• Stackable (45L).

Particularly suitable for: Constructionsite, after flooding in buildings, basements, and repairs after water damage.

70 L. DEHUMIDIFIER

STACKABLE

MODEL

45 L.

70 L.

Staring no.

STA-A45

STA-A70 220 - 240V / 50Hz

Power Supply Dehumidifying Capacity Max Power

45L/DAY (30oC RH80%) 25L/DAY (27oC RH60%)

70L/DAY (30oC RH80%) 44L/DAY (27oC RH60%)

460 W

750 W

Compresser type

Rotary

Refrigerant

R290

Working temperature

5 - 35oC

Air Volume

300 m3/h

410 m3/h

Net Weight

25 kg

40 kg

605 x 360 x 470 mm

540 x 530 x 845 mm

115 m2

180 m2

Size Room Size Capacity

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DEHUMIDIFIERS // AFFUGTERE | IMPACT-RESISTANT PLASTIC

Pro Series Dehumidifier specifications:

• Electronic control with the option to set start and stop.

• Hour meter for the beginning of a job.

• Total hour meter.

• Option to set for continuous operation.

• However, it does not withstand aggressive environments such as pigsties, etc.

• Easily washable detachable air filter.

• Cabinet in impact-resistant plastic.

• Semi-pneumatic wheels.

• Built-in pump that lifts water 4.5m.

• 4.5m plastic hose included.

• Option to set operation based on humidity.

• Easy-to-clean air filter.

• Quick automatic defrosting.

• Built-in pump that pumps water 4.5m vertically.

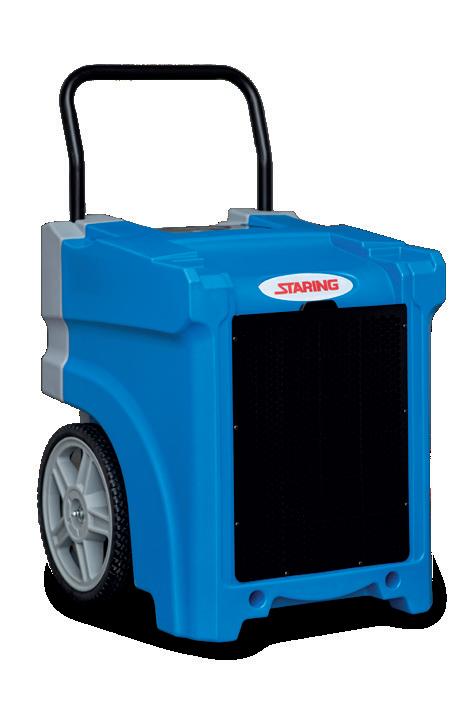

50 L. DEHUMIDIFIER

Particularly suitable for: Construction, after flooding in buildings, basements, and repairs after water damage.

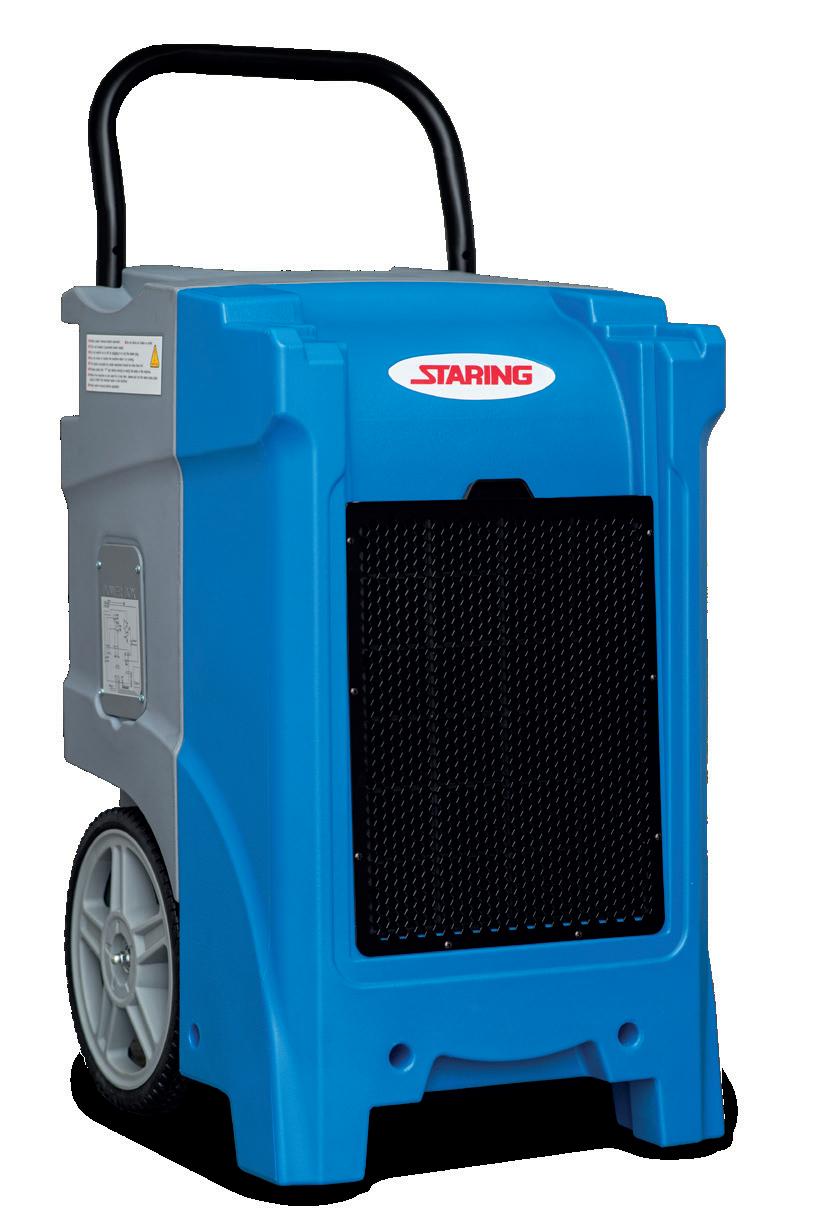

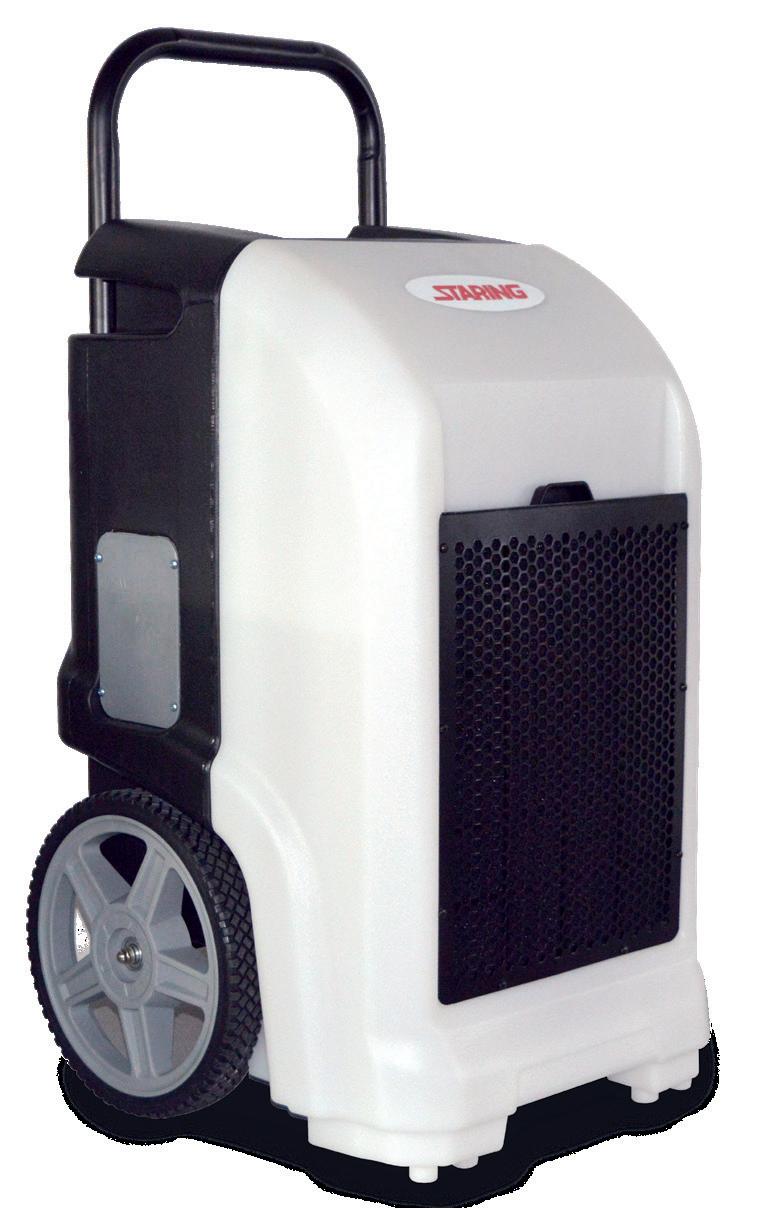

80 L. DEHUMIDIFIER 80L1400CH-PRO

50L0950CH-PRO

MODEL Staring varenr.

50L

65L

80L

50L0950CH-PRO

65L1200CH-PRO

80L1400CH-PRO

220 - 240V / 50Hz

Power Supply

Dehumidifying Capacity

Max Power

50L/DAG (30oC RH80%) 31L/DAG (27oC RH60%)

70L/DAG (30oC RH80%) 44L/DAG (27oC RH60%)

90L/DAG (30oC RH80%) 56L/DAG (27oC RH60%)

650 W

785 W

940 W

Rotary

Compresser type Refrigerant

65 L. DEHUMIDIFIER 65L1200CH-PRO

R290 / 0,15 kg

Working temperature

R290 / 0,26 kg

R290 / 0,29 kg

5 - 35oC

Air Volume

350 m3/h

400 m3/h

580 m3/h

Net Weight

38,0 kg

44,5 kg

44,0 kg

560 x 500 x 670 mm

540 x 530 x 890 mm

555 x 480 x 820 mm

120 m2

160 m2

330 m2

Size Room Size Capacity

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

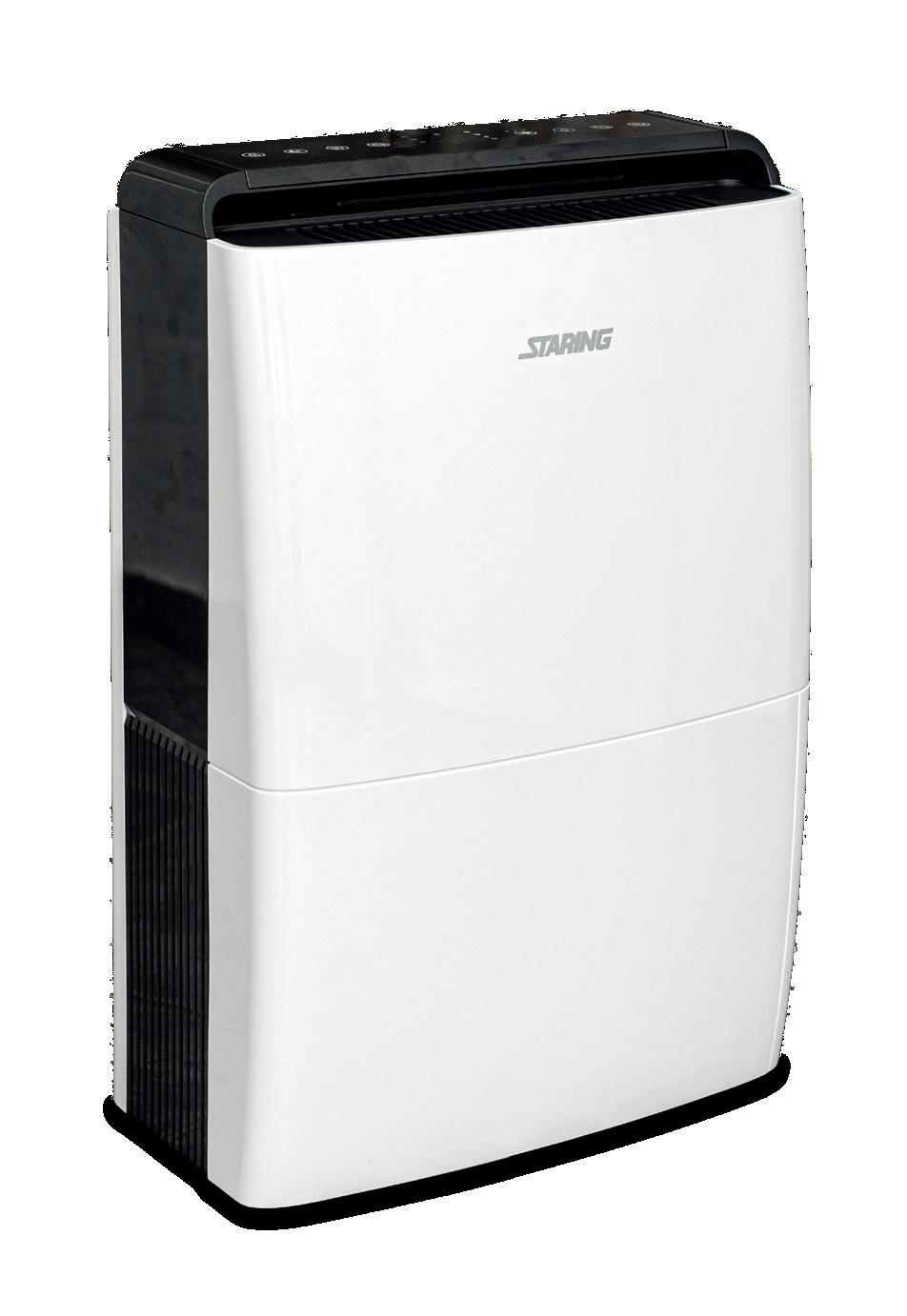

DEHUMIDIFIERS // DEHUMIDIFIERS SEMIPRO

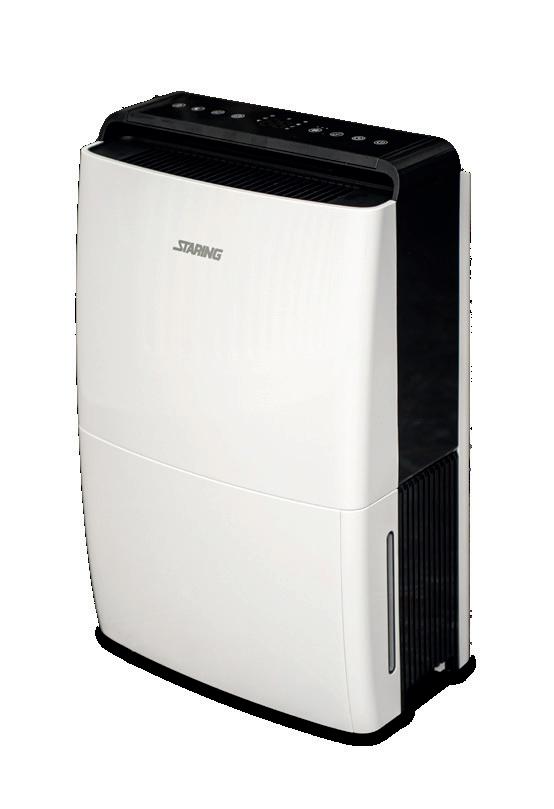

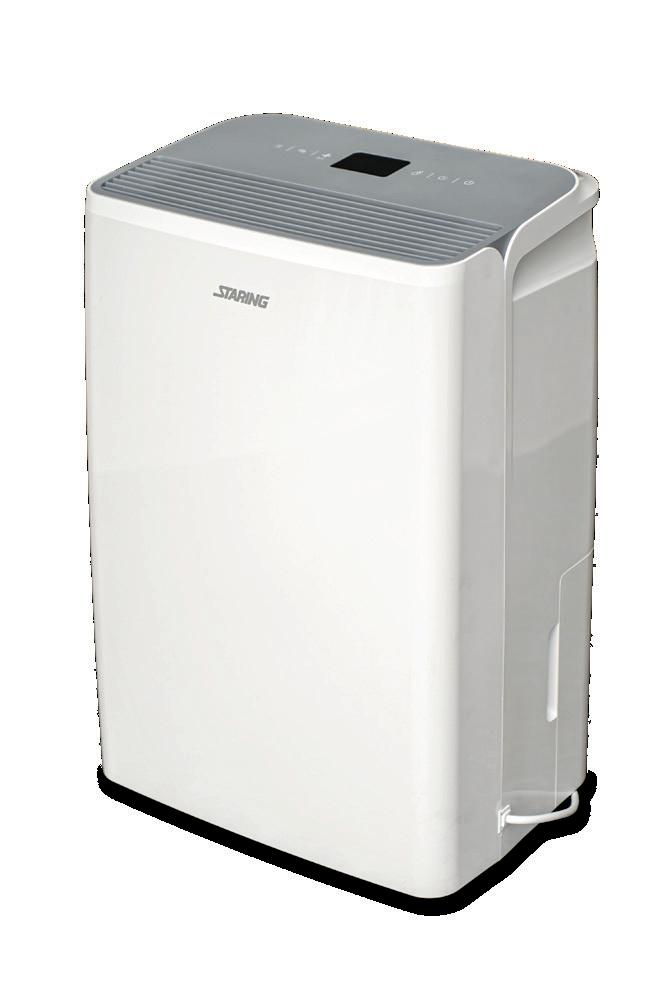

DYD-Series Dehumidifier Specifications: • Electronic control with the option to set start/stop • High performance • Simple operation • Capable of continuous operation, even in harsh environments • Fast automatic defrosting • Equipped with transport wheels • Tank capacity up to 6.3 L • Option for hose attachment Highly suitable for:

12 L. DEHUMIDIFIER 12L0430CH

Construction sites, post-flood building recovery, basements, and water damage repairs.

25 L. DEHUMIDIFIER 25L0430CH

MODEL

12 L

25 L

50 L

Product no.

12L0430CH

25L0430CH

50L0430CH

220 - 240V / 50Hz

Voltage Volts

50 L. DEHUMIDIFIER 50L0430CH

Capacity

12L/DAY (30oC RH80%) 8L/DAY (27oC RH60%)

25L/DAY (30oC RH80%) 15L/DAY (27oC RH60%)

50L/DAY (30oC RH80%) 30L/DAY (27oC RH60%)

Max Power

170 W

290 W

730 W

Tank size

2,6 L

5,0 L

6,3 L

5 - 35oC

Work temperature Air max.

100 m3/h

160 m3/h

360 m3/h

Weight

12 kg

13,4 kg

20,7 kg

Size

360 x 234 x 569 mm

360 x 234 x 569 mm

407 x 286 x 618 mm

For roomsize up to

30 m2

45 m2

75 m2

Noise level

41 dB

44 dB

50 dB

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

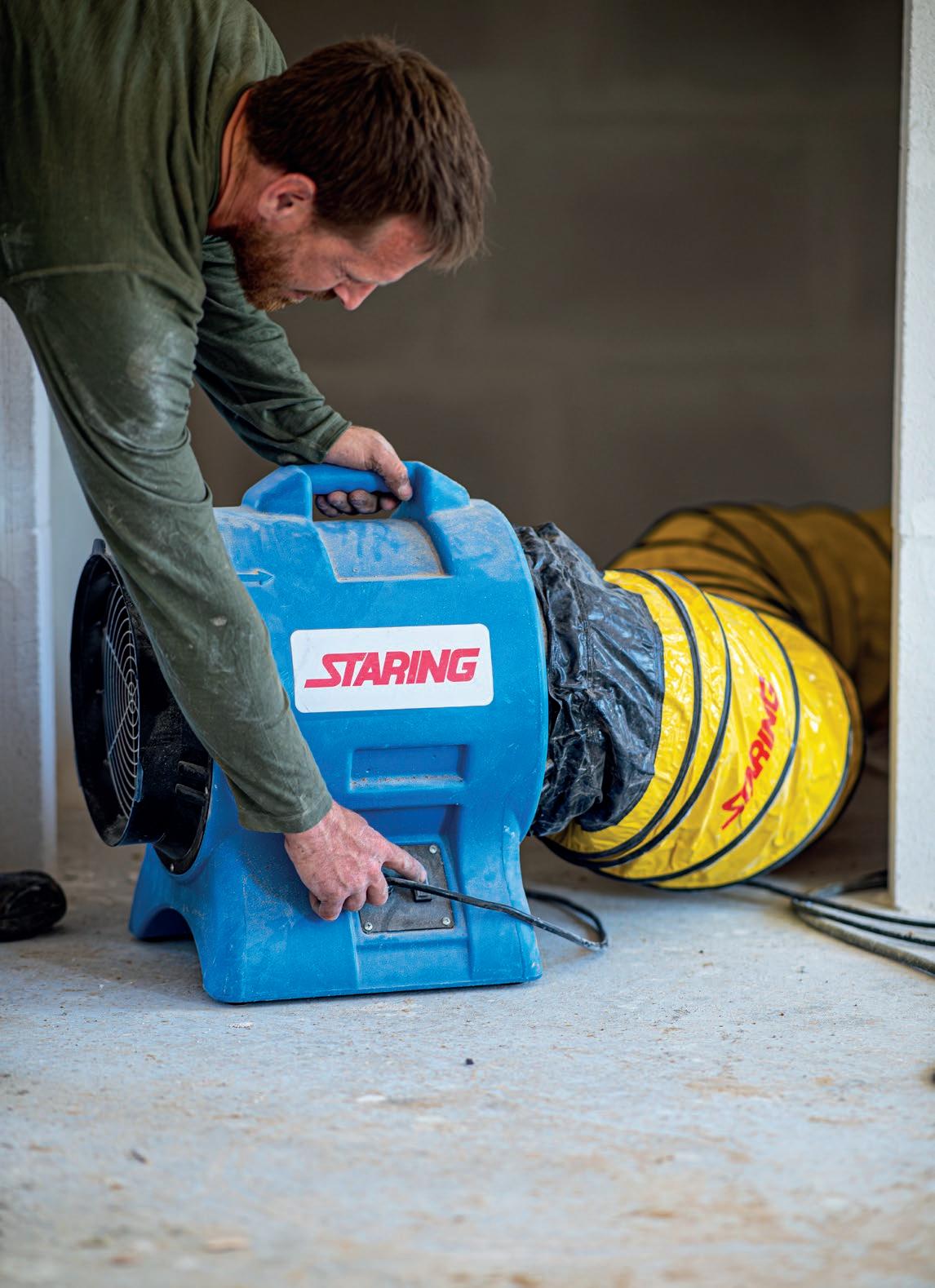

BLOWERS //

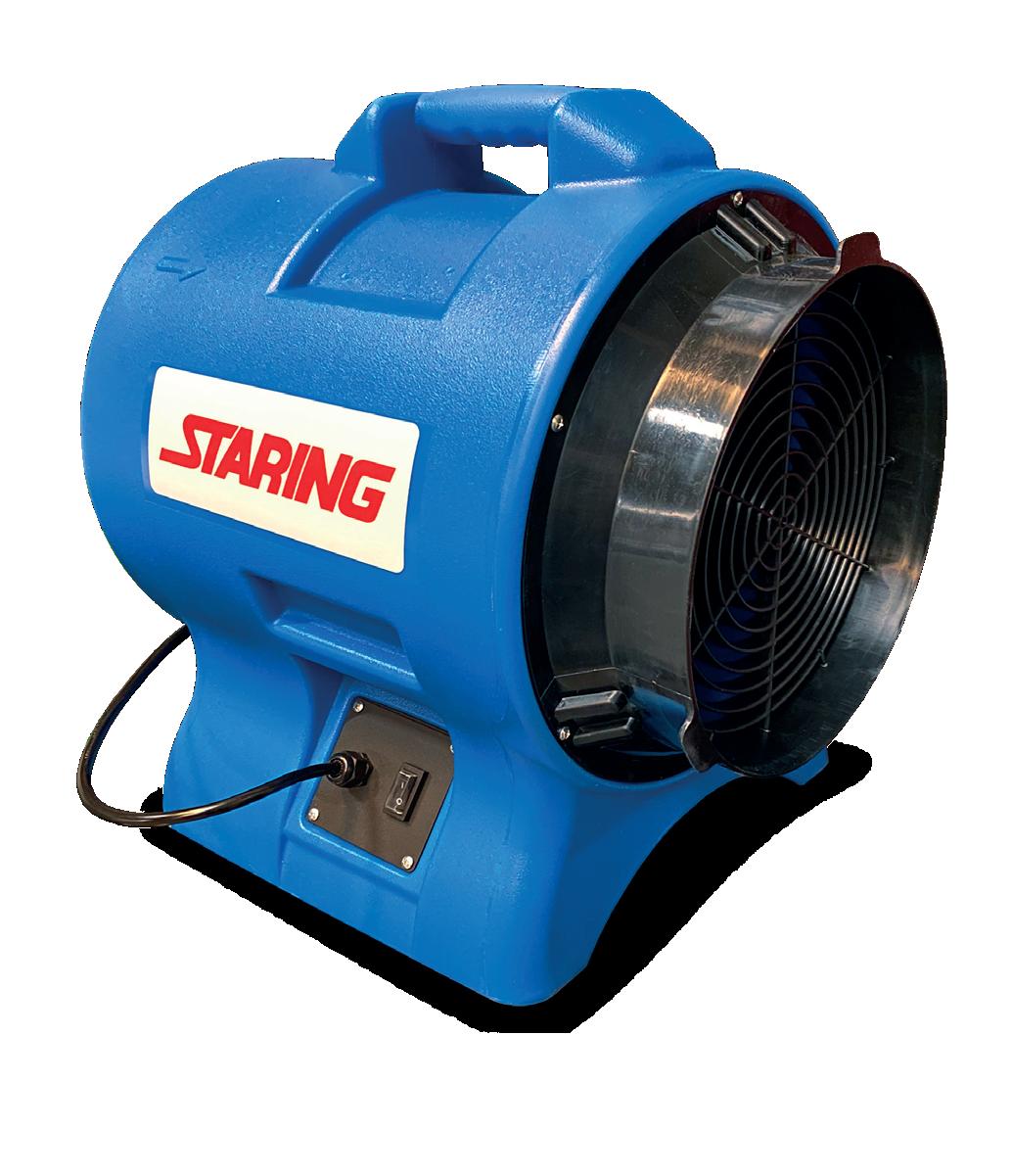

Blowers VAF-SERIES

The VAF series is perfect for: • Dust extraction during demolition.

• Air movement for drying in conjunction with a dehumidifier.

• Dust extraction from the ceiling during renovation.

MODEL

VAF-200

VAF-300

VAF-AM300

VAF-400

VAF-800

Staring no.

VAF-200

VAF-300

VAF-AM300

VAF-400

VAF-800

Dia. (discharge)

203 mm

305 mm

–

405 mm

512 mm

Air flow

22 m3/min

56 m3/min

24 m3/min

120 m3/min

336 m3/min

Width

318 mm

356 mm

600 mm

540 mm

650 mm

Lenght

470 mm

432 mm

495 mm

560 mm

700 mm

Height

470 mm

535 mm

240 mm

615 mm

700 mm

Weight

8,5 kg

15 kg

10,5 kg

20 kg

54 kg

Elmotor

Motor type 0,2kW

0,75 kW

0,4 kW

0,75 kW

3,7 kW

Power Supply

230V~/50hZ

230V~/50hZ

230V~/60hZ

230V~/50hZ

400V~/50hZ

Use of Amp.

1,0 A

2,5 A

2,3 A

2,8 A

8A

R.P.M.

3200

3425

–

3250

3450

Motor size

The VAF-Series all have: • • • • •

Impact-resistant plastic.

Double casing.

Fully enclosed motor casing.

Large range of accessories.

Protective grilles on the suctionand blowing sides.

staring.dk

VAF-300

ACCESSORIES (NOT INCLUDED): MATCHING FLEXIBLE HOSE VAF-305 MM For further info or placement of order! staring@staring.dk or +45 98 82 16 22

BLOWERS //

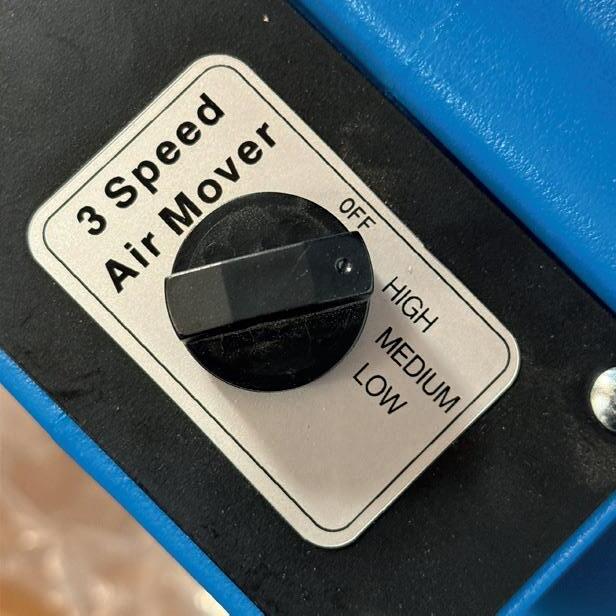

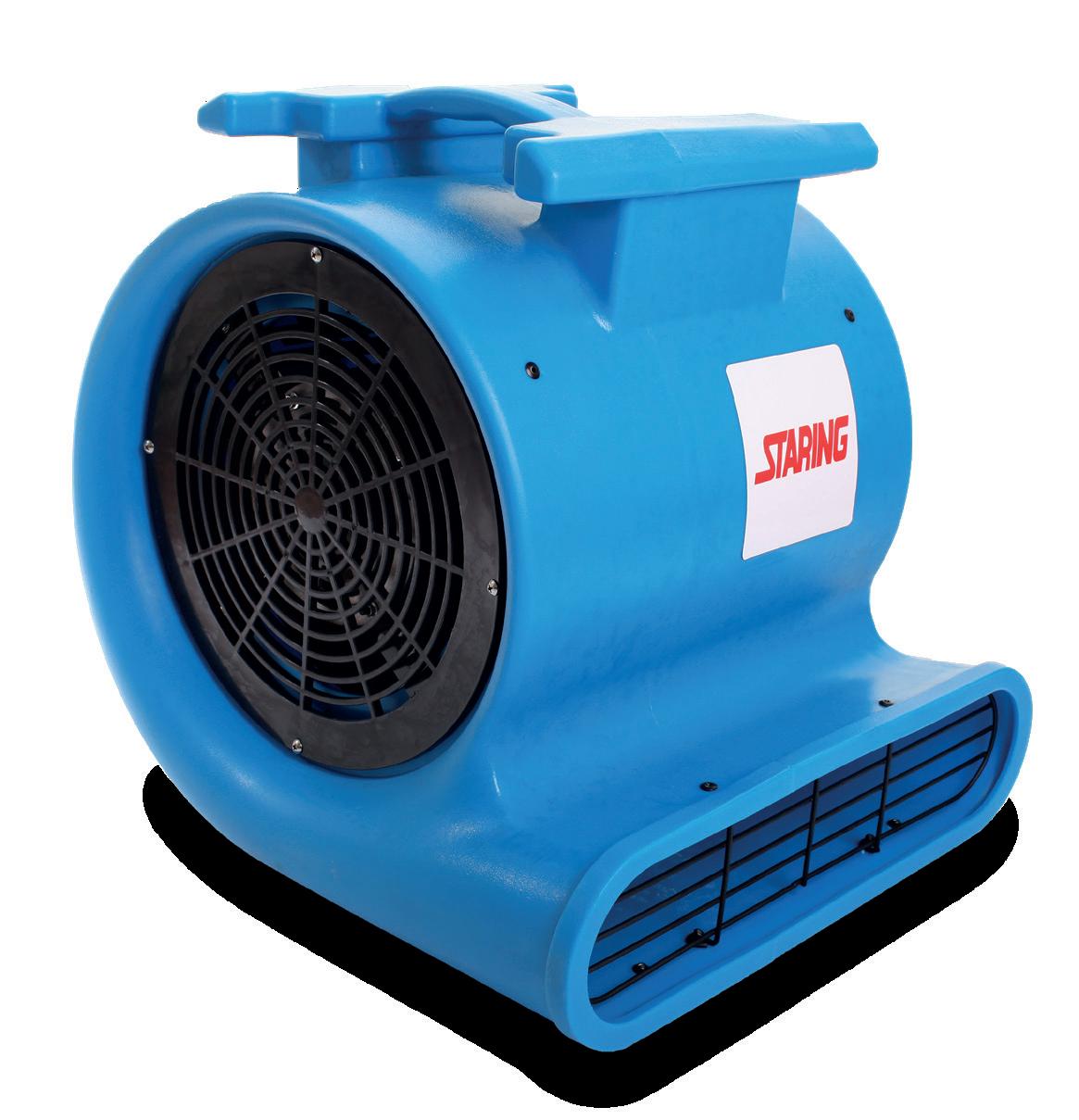

Floor Ventilator

VAF-FLOOR MAX [ VAF-GULV MAX ] ADVANTAGES OF THE VENTILATOR: Reduced downtime The durable plastic housing resists impacts and shocks that often damage traditional sheet-metal ventilators. This lowers the risk of fan blade damage and helps prevent unexpected breakdowns.

Long service life without rust Polyethylene does not rust.

Unlike steel housings, the VAF ventilator retains its clean finish and functionality over time – even after bumps and scratches.

VAF Floor-Max is a versatile and reliable ventilator for drying floors and carpets, as well as for air circulation in combination with dehumidifiers.

Designed for professional use, the ventilator can be positioned both horizontally and vertically, depending on the requirements of the task.

Despite its low energy consumption, the VAF Floor-Max delivers impressive airflow. With a variable capacity ranging from 10 m³ to 45 m³ per minute, it covers a wide range of applications – from small drying jobs to large-scale ventilation tasks.

The VAF Floor-Max is made from impact-resistant and corrosion-free polyethylene, ensuring both low weight and high resistance to shocks and weather exposure.

Lightweight – easy to handle The VAF Floor-Max weighs up to 40% less than comparable steel ventilators, making it easier to transport and reducing the risk of lifting injuries.

A clear choice for professionals who need reliable, efficient, and user-friendly ventilation.

MODEL

VAF-GULV MAX

Prod no.

VAF-GULV MAX

Capacity (m3/min)

staring.dk

min. 36 / med. 39 / max. 45

Rotations

1200 / 1300 / 1430

Size (mm)

490 x 500 x 510

Voltage Volts

1x230 V

Weight (kg.)

17,8

HIGH AIRFLOW DESPITE LOW POWER CONSUMPTION. For further info or placement of order! staring@staring.dk or +45 98 82 16 22

BLOWERS //

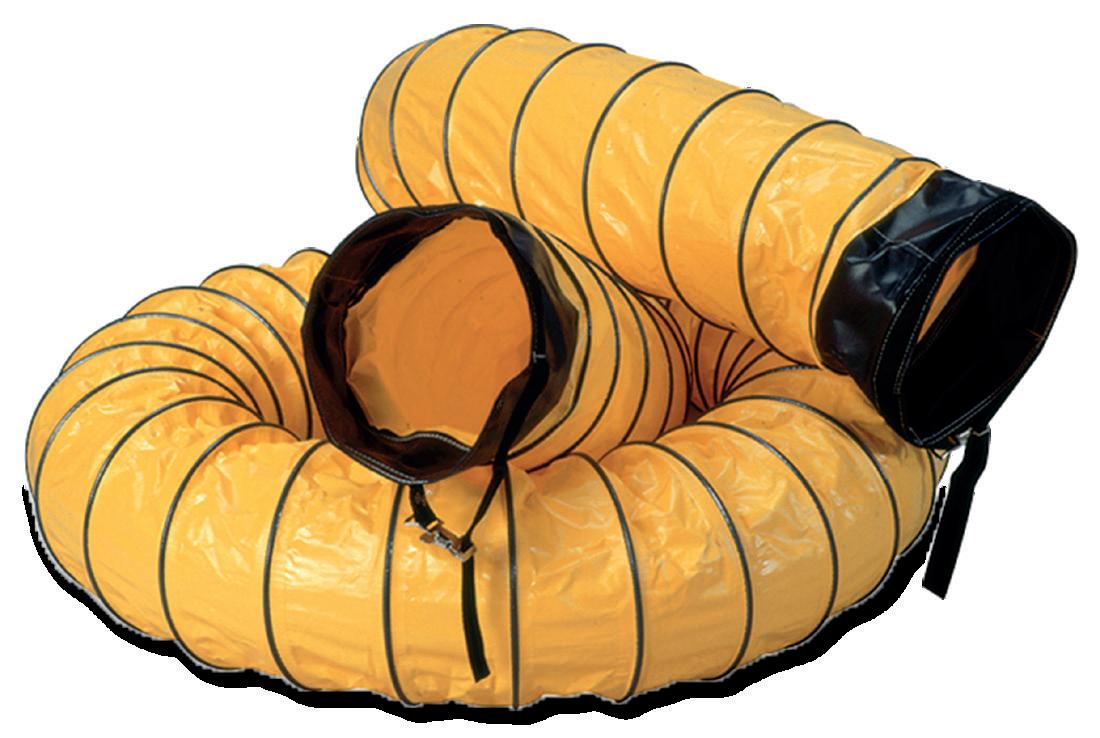

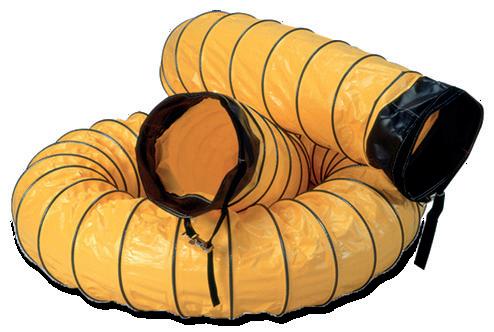

Accessories 1. Flexible hoses

FOR THE VAF SERIES 1. Flexible hoses

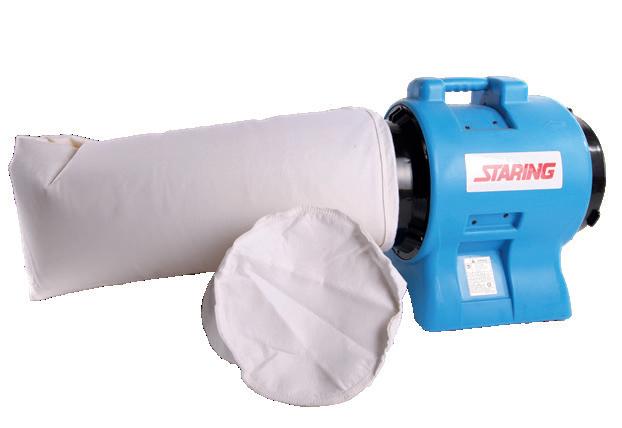

2. Filters

PRODUCT NR.

DIAMETER

LENGHT

VAF-100MM

100 mm

7,5 meter

VAF-203MM

200 mm

7,5 meter

VAF-305MM

305 mm

7,5 meter

VAF-305MM-15

305 mm

15,0 meter

VAF-305-01

305 mm

15,0 meter

VAF-405MM

405 mm

7,5 meter

353594807

570 mm

7,5 meter

PRODUCT NR.

DIAMETER

LENGHT

VAF-203MM FILTER

200 mm

3,5 meter

VAF-305MM FILTER

305 mm

3,5 meter

VAF-405MM FILTER

405 mm

3,5 meter

VAF-620MM FILTER

620 mm

3,5 meter

3. Disposable hoses 2. Filters

4. Distributor Kit

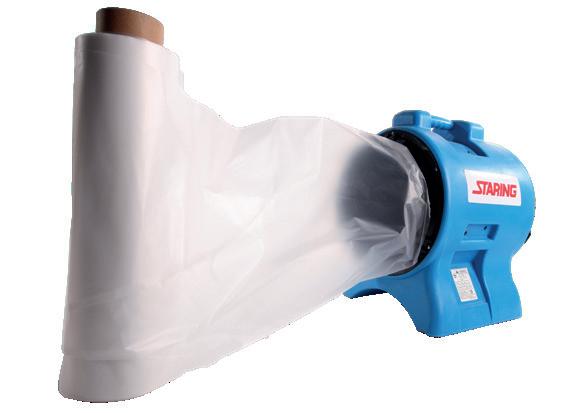

3. Disposable hoses - 100 m. rolls PRODUCT NR.

DIAMETER

LENGHT

VAF-ONE TIME 305

305 mm

100 meter

VAF-ONE TIME 405

405 mm

100 meter

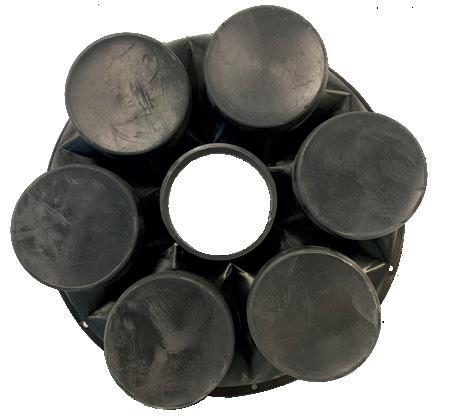

4. Distributor Kit (compatible only with VAF-300) PRODUCT NR. VAF-KIT 7 SL

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

BLOWERS //

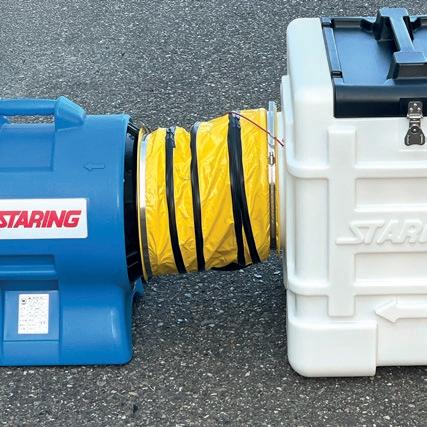

Filterbox

STAC-300 [ STAC-300 ] Filterbox features: • Compatible with VAF-305 flexhose • Can hold up to 3 filters • Mounted on the suction side but can also be connected on the blowing side!

Filterbox STAC-300 from Staring is your new best friend on the construction site. It is extremely lightweight and made of practical, impact-resistant white plastic.

You can connect the filter box to your blower with a 305 mm connection hose, creating the perfect system for quick and efficient air purification.

The STAC-300 comes with a connection hose, a HEPA 13 filter, and a pre-filter, making it ready to use upon delivery.

Performance test (m³/h) with filters: • Airflow when extracting through filter box with 2 filters ≈ 2700 m³/h • Airflow when blowing through filter box without HEPA filter ≈ 1800 m³/h • Airflow when blowing through filter box with 2 filters ≈ 1500 m³/h

MODEL

STAC-300

HEPA13

FORFILTER

Product no.

STAC-300

STAC-300-13

STAC-300-10

Size (mm)

570 x 610 x 610

463 x 463 x 63

455 x 455 x 20

Weight (kg.)

14,5 (with filters)

1,3

0,3

Air flow max. (m3)

staring.dk

When using the VAF-300 with two filters, the filter box moves up to 45 m³/min.

FITS PERFECTLY WITH VAF-300 AND CORRESPONDING FLEX-HOSE! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

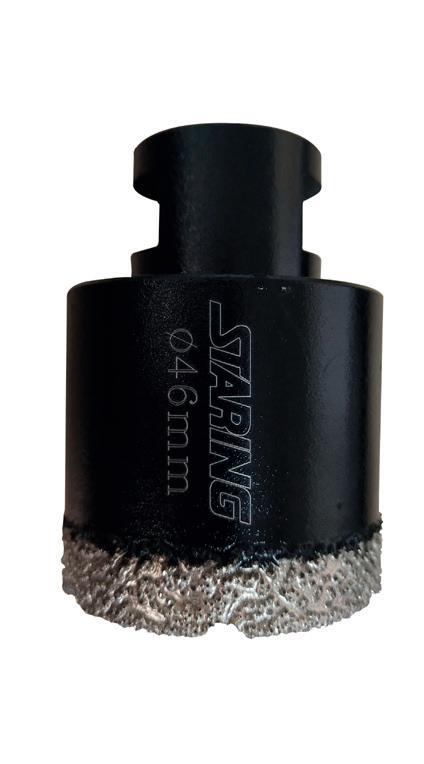

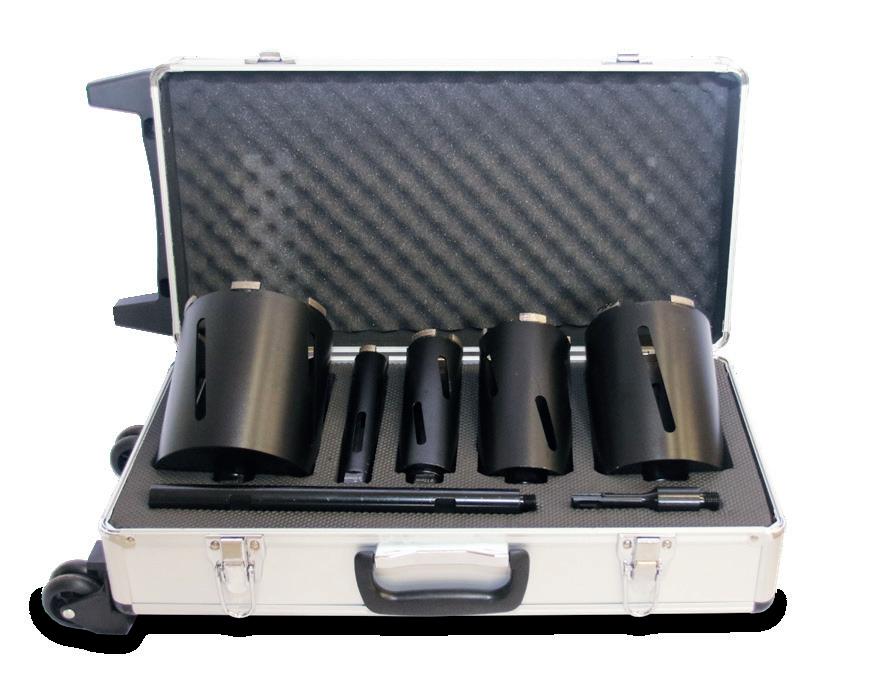

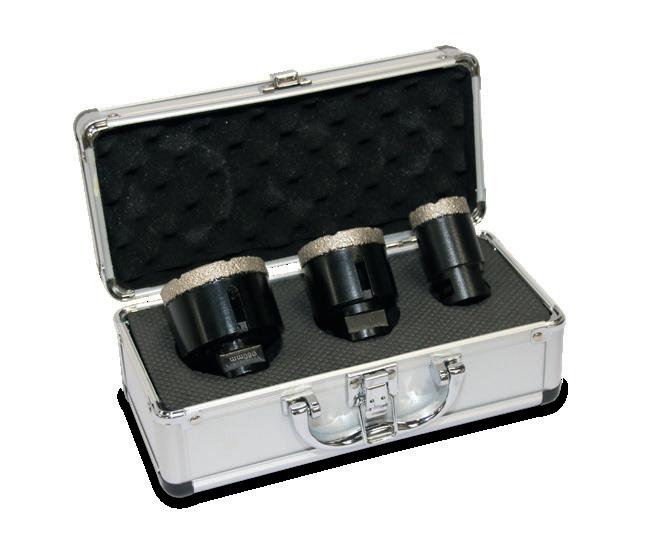

Core Drill Set Staring core drill set available in two variants: one for soft materials and one for reinforced concrete. Both sets include the five most common sizes for plumbing and general construction work.

Drill set: Supplied in an aluminum trolley containing:

The core bits produce fewer vibrations, providing greater working comfort.

Suitable for use on: • Brick • Limestone • Roof tiles • Sandstone • Granite • Hard stones • Reinforced concrete*

The core bits are standard dry drills but can also be used wet, which will extend the lifespan of both the drill and the segments.

• • • •

5 dry core bits in sizes: Ø 32-52-82-112-132 mm Center drill bit 200 mm extension Adapters for SDS connection

R STA IN

G

WORK HARD

CO

R

EI

N

D

E

N CF O R C E T RE

STD-014-320

The core bits are 150 mm deep with an M14 thread. For optimal performance and results, it is recommended to use a tool with at least 850W of power. The machine should also be capable of at least 3000 rpm and have variable speed control.

staring.dk

*Applies only to the Work Hard version.

STD-014-320WH

CORE DRILL SET SOFT MATERIALS

CORE DRILL SET REINFORCED CONCRETE

STD-014-320

STD-014-320WH

Weight

9,5 kg

9,5 kg

Height

600 mm

600 mm

Lenght

340 mm

340 mm

Width

200 mm

200 mm

MODEL Product no.

WITH DIAMOND PLATES FOR LONGER LIFESPAN! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

CONCRETE TOOLS //

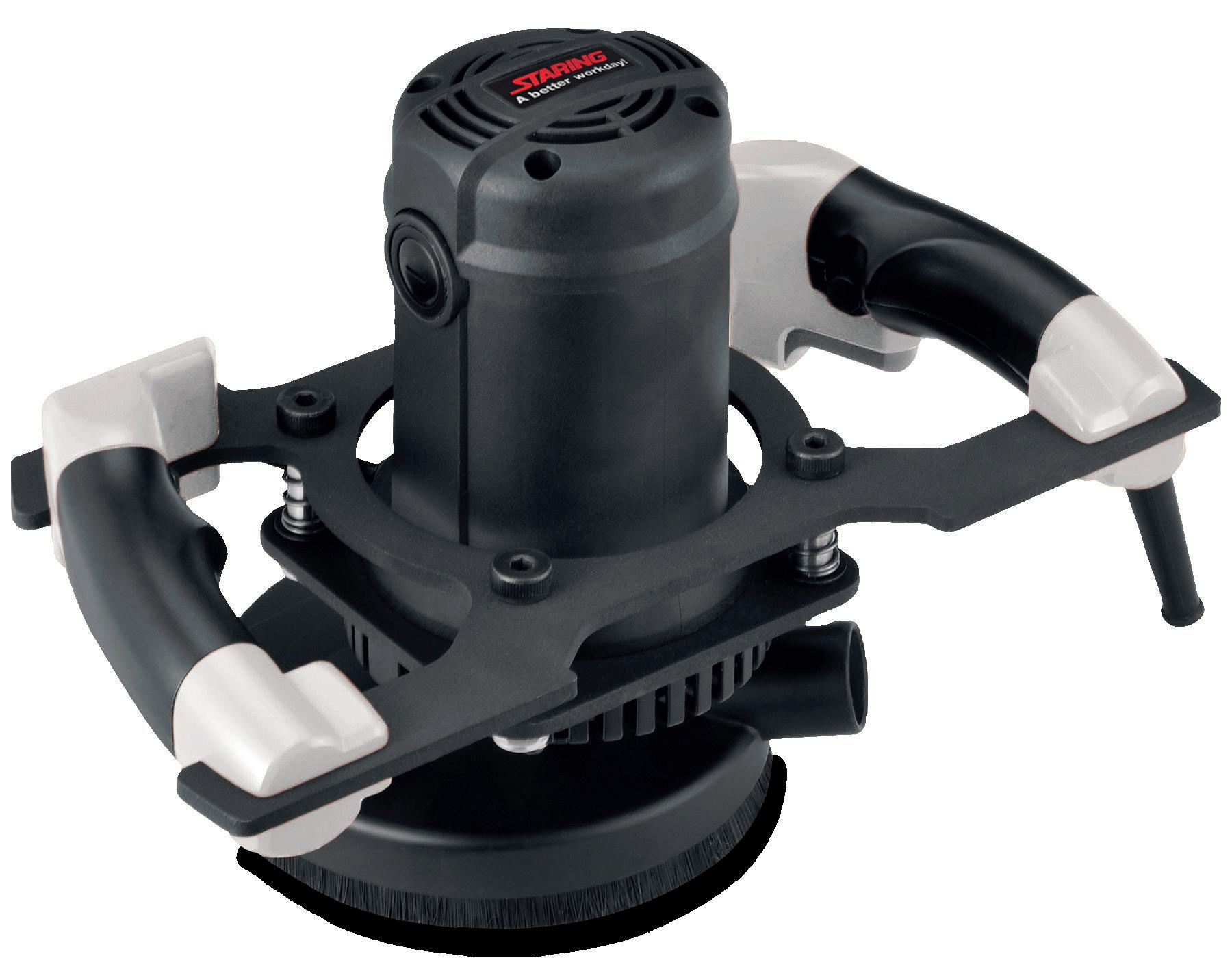

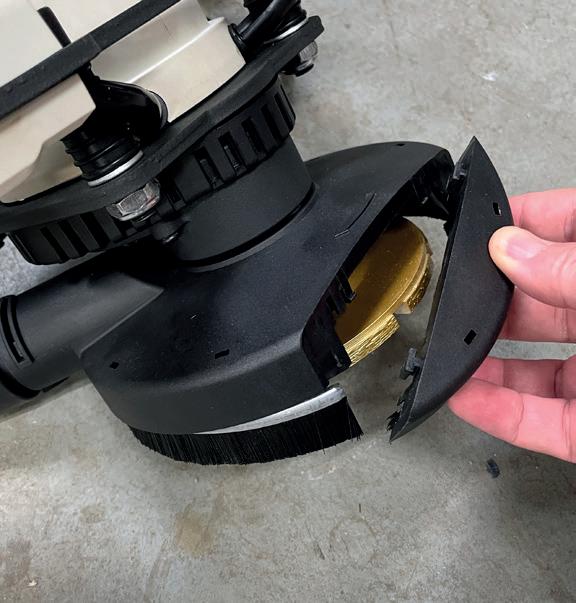

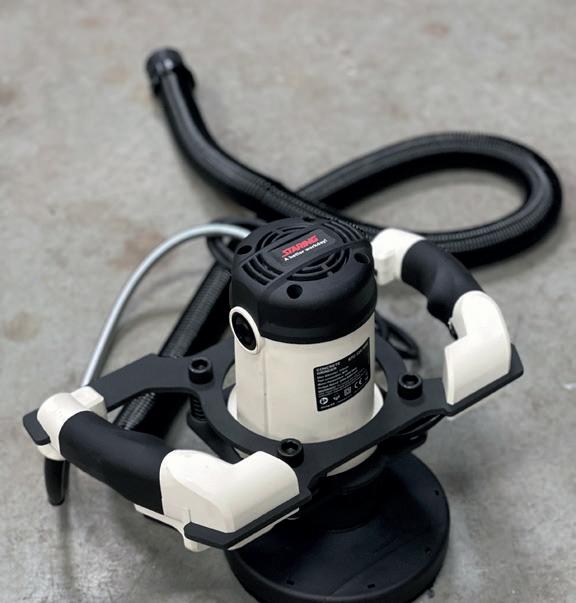

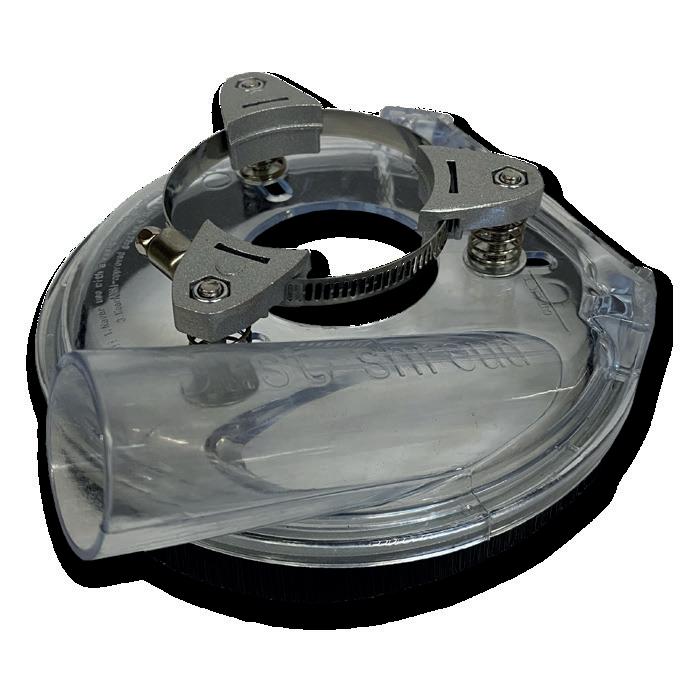

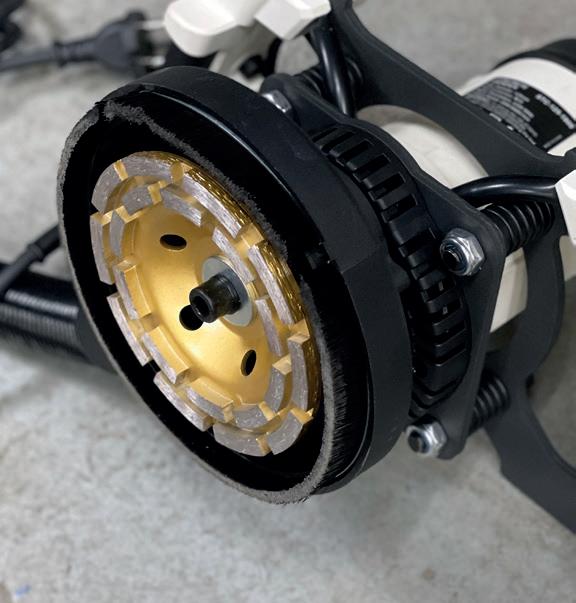

Concrete Grinder STC-125-1800 With a removable dust cover, allowing you to grind right up to the edge.

A highly efficient and vibration-dampened concrete grinder. The Staring Concrete Grinder 1800W is a powerful and versatile machine, ideal for edging, chamfering, and leveling uneven surfaces in concrete. The machine is designed with ergonomic parallel handles, offering optimal comfort and control during operation.

With a rotation speed of up to 8,400 RPM and a 125 mm grinding disc, this concrete grinder ensures efficient and precise grinding. The integrated dust extraction port enables effective dust control, creating a cleaner working environment. The grinder is equipped with soft start and variable speed, providing the user full control over the grinding process.

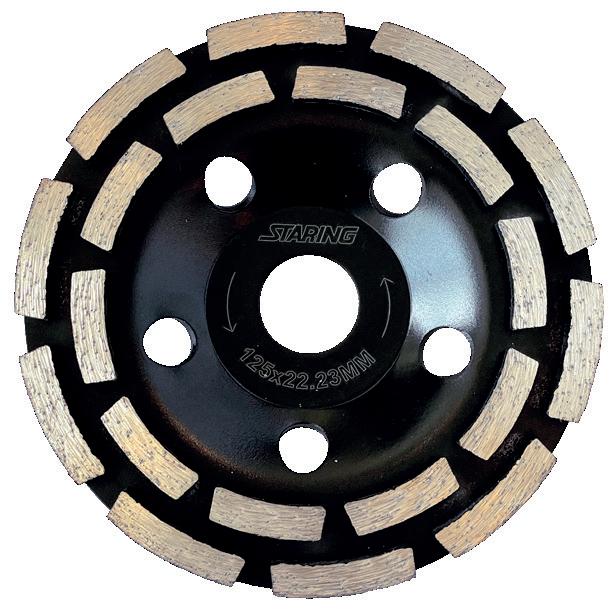

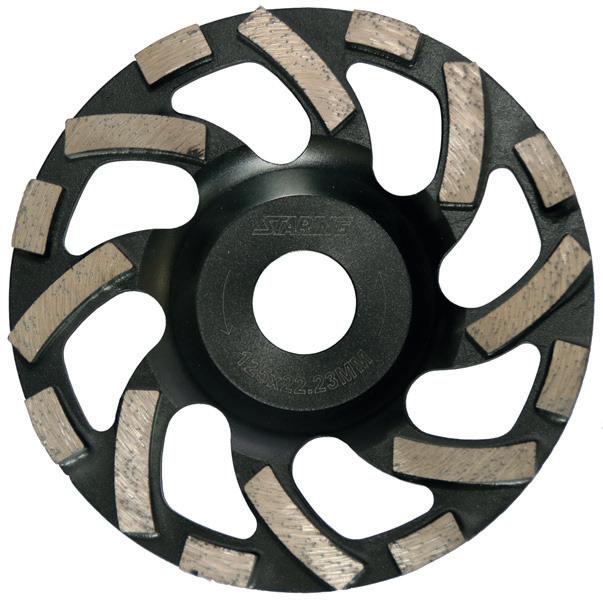

The machine comes with a cup wheel, ready for use right out of the box.

Comes with a cup stone wheel.

Vacuum cleaner connection.

MODEL Staring Product no.

Motor Size

staring.dk

STC-125-1800 STC-125-1800 1800 W

Speed

2000 - 8400 RPM

Weight

26/29.5 Kg

Volts

1 x 230 V

WITH SOFT START AND SHOCK ABSORPTION! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Flapdisc

WET AND DRY GRINDING Want to optimize your grinding work and achieve professional results with ease? Our flexible flap discs provide a versatile and efficient tool to complete your tasks quickly and precisely.

Why Choose Staring Flap Discs?: • Precise and Consistent Grinding and polishing • Perfect for tasks where attention to detail is essential.

• Durable Materials • Reduces the need for frequent replacements and ensures continuous efficiency.

• Available in 60#, 120#, 200#, and 400# Suitable for everything from rough grinding to fine polishing.

• Universal Compatibility • Fits most angle grinders and adapts to both small DIY tasks and larger professional projects.

• Minimizes Risk of Material Damage • Ensures smooth and trouble-free performance.

MODEL

60 Grit

120 Grit

200 Grit

400 Grit

Staring nr.

STD-125-060

STD-125-120

STD-125-200

STD-125-400

Hole (mm)

22,23

Size Diameter (mm)

125

WHETHER YOU’RE A PROFESSIONAL OR A DIY ENTHUSIAST

STD-125-060

STD-125-120

STD-125-200

STD-125-400

...OUR FLAP DISCS DELIVER STABILITY AND PRECISION EVERY TIME!

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond blades FOR CUTTING AND GRINDING

Here, you get a game-changer in your hands. This diamond blade from Staring can both cut and grind. With its impact-soldered diamond surface, the blade offers truly unique durability and cutting strength.

The blade is double-sided.

MODEL

Multifunctional blade for cutting and grinding.

STK-D-125-CG

STK-D-125-CG2

M14 (thread mounted)

22.23 mm centre hole (mounted with flange/lock nut)

Staring no.

Mounting Bore diameter Klingediameter Egnet til

STK-D-125-CG

WHETHER YOU’RE A PROFESSIONAL OR A DIY ENTHUSIAST...

OUR DIAMOND BLADES DELIVER BOTH STABILITY AND PRECISION!

125 mm Marble, Porcelain, Natural Stone, Ceramic Tiles

The M14 version mounts directly onto the angle grinder and allows fast and easy blade changes – ideal for professional users switching frequently between cutting and grinding tasks.

STK-D-125-CG2 The flat design with 22.23 mm centre hole provides better access close to edges and corners – ideal for precision work and finishing.

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Cup Wheel Staring Cup Wheels in diamond and carbide for rough processing of materials such as natural stone, concrete, and other stone-based building materials. Efficient grinding of uneven surfaces and removal of old coatings such as glue, paint, and epoxy. Due to their small size and the possibility of mounting them on a traditional angle grinder, they are also ideal for working both horizontally and vertically.

Diamond Cup Wheels can be used for both dry and wet grinding. There is no need for water supply during grinding, but like any other diamond products, the lifespan will be extended with regular cooling.

Dust shields can be mounted on angle grinders with an outlet for a vacuum cleaner hose to minimize the spread of grinding dust during operations.

MODEL

PCD 6x1/4”

PCD 3x3

Most Stones

Universal

Dust Shroud

Staring nr.

STD-125-006

STD-125-007

STD-125-002MS

STD-125-003MS

STD-125-099

Weight (kg)

0,4

0,3

0,2 125

Diameter (mm) Removal of adhesive and plaster from concrete and other hard surfaces

Application

STD-125-099

WITH DIAMOND SEGMENTS FOR LONGER SERVICE LIFE!

Removal of paint, glue, bitumen and other hard surfaces

Processing of concrete, natural stone and other stone-based building materials

Processing of concrete, natural stone and other stone-based building materials

Removes grinding dust during grinding. Mounted on angle grinder with outlet for vacuum hose.

STD-125-002MS

STD-125-003MS

STD-125-006

STD-125-007

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond blades DRY CUTTING [ AR - MU - ECO ]

Staring diamond blades are available with different edges and segment configurations to meet various requirements for materials, strength, and speed. They come with segmented or continuous edges.

There is no need for water during cutting, but like any other diamond products, their lifespan will be extended with regular cooling.

MODEL

Allround

Allround

Allround

Multi Use

Multi Use

Multi Use

Staring no.

STK-D-125AR

STK-D-230AR

STK-D-350AR

STK-D-125MU

STK-D-230MU

STK-D-350MU

STK-D-125ECO

STK-D-125ECO

STK-D-350ECO

Blade Diameter

125 mm

230 mm

230 mm

125 mm

230 mm

250 mm

125 mm

230 mm

250 mm

Hole Diameter

22,33 mm

22,33 mm

25,40 mm

22,33 mm

22,33 mm

25,40 mm

22,33 mm

22,33 mm

25,40 mm

Bricks

Bricks

Bricks

Bricks

Bricks

Bricks

Pavingstones

Pavingstones

Pavingstones

Concrete Brick

Concrete Brick

Concrete Brick

Hard-burnt

Hard-burnt

Hard-burnt

Reinforced concrete

Reinforced concrete

Reinforced concrete

Porcelain

Porcelain

Porcelain

Suitable for the following tiles and ceramics

Pavingstones Concrete

Pavingstones Concrete

Pavingstones Concrete

Economy Economy Economy

STK ALLROUND DRYseries Suitable for cuts in Concrete, Bricks, Pavers, and Pavement Tiles

STK MULTIUSE DRYseries Suitable for cuts in Bricks, Pavers, Pavement Tiles, and Reinforced Concrete

STK ECONOMY DRYseries Suitable for cuts in Concrete, Tegel, Hard-Burned Tiles, and Porcelain Tiles

staring.dk

DIAMOND BLADES FOR DRY CUTTING OF TILES! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Pipe cutting disc APPLICATION:

Cutting and chamfering in one operation.

• Cutting of pipes • Chamfering edges • Adjustment during installation • Precision work in hard materials

Staring pipe cutting disc is designed for fast and precise cutting of PVC pipes and hard materials. The robust construction and durable segments ensure high cutting performance and long service life – even in demanding applications.

FEATURES: • Cutting and chamfering in one operation • Fast and efficient cutting • Stable and controlled performance • Long service life • Robust segment design

OBS: Brug altid sikkerhedsbriller og høreværn under arbejde!

staring.dk

The disc allows you to combine cutting and chamfering in one operation, saving time and delivering a clean, finished result directly from the angle grinder.

MODEL

PIPE CUTTING DISC

Product no.

STK-D-125-PC

Blade diameter

125 mm

Hole diameter

22,23 mm

Suitable for the following materials:

Plastic / PVC

STARING PIPE CUTTING DISC – FOR USE WITH ANGLE GRINDERS!

For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond blades DRY CUTTING [ CF - RIL ]

Staring presents a wide range of diamond blades tailored to various material requirements for strength and speed through different edge and segment configurations.

Our blades are available with both segmented and continuous edges, particularly suitable for cutting cement joints and as groove cutters.

Water supply is not necessary during cutting, but as with other diamond products, the lifespan can be significantly extended with regular cooling.

MODEL

Cement Joints

Cement Joints

Groove Cut

Staring no.

STK-D-125-CF

STK-D-230-CF

STK-D-150-RIL

125 mm

230 mm

150 mm

Blade Diameter

22,3 mm

Hole Diameter Suitable for the following tiles and ceramics

Hard joints Mortar joints

Hard joints Mortar joints

Bricks Concrete

STK CEMENTFUGER DRYseries Suitable for cutting both hard joints and mortar joints.

STK RILLESKÆR DRYseries Suitable for cutting bricks and concrete.

staring.dk

STARING DIAMOND BLADES FOR EFFICIENT DRY CUTTING!

For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond blades DRY CUTTING [ MUPRO - AS ]

Staring introduces a diverse range of diamond blades with various edge and segment configurations to meet diverse requirements for materials, strength, and speed.

Our blades are available with both segmented and continuous edges.

Water supply is not required during cutting, but, like other diamond products, the lifespan can be significantly extended through regular cooling.

Enhance your cutting experience with our versatile and efficient selection of diamond blades.

MODEL

Multi Use PRO Multi Use PRO

Staring no.

Asphalt

Asphalt

Asphalt

Asphalt

STK-D-350-PRO

STK-D-400-PRO

STK-D-350-AS

STK-D-400-AS

STK-D-450-AS

STK-D-500-AS

350 mm

400 mm

350 mm

400 mm

450 mm

500 mm

Asphalt Concrete

Asphalt Concrete

Asphalt Concrete

Blade Diameter

25,4 mm

Hole Diameter

Suitable for the following tiles and ceramics

Bricks Paving stones Sidewalk tiles Reinforced concrete

Bricks Paving stones Sidewalk tiles Reinforced concrete

Asphalt Concrete

STK ASFALT DRYseries Primarily suitable for cutting asphalt and thin layers of concrete.

STK MULTI USE PRO DRYserien Primarily suitable for cutting bricks, paving stones, sidewalk tiles, and reinforced concrete.

staring.dk

STARING DIAMOND BLADES FOR EFFICIENT DRY CUTTING!

For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond blades DRY CUTTING [ WH - WF - UNI ]

Staring diamond blades are available with different edges and segment configurations to meet various requirements for materials, strength, and speed.

They come with segmented or continuous edges. There is no need for water supply during cutting, but like any other diamond products, the lifespan will be extended with regular cooling.

MODEL

Work Hard

Work Hard

Work Hard

Work Fast

Work Fast

Universal

Universal

Staring no.

STK-D-125-WH

STK-D-125-WH-10

STK-D-230-WH

STK-D-125-WF

STK-D-230-WF

STK-D-125-UNI

STK-D-230-UNI

125 mm

10X 125 mm

230 mm

125 mm

230 mm

125 mm

230 mm

Granite Rustic Hard-fired Porcelain

Floor Wall Porcelain

Floor Wall Porcelain

Blade Diameter

22,33 mm

Hole Diameter

Suitable for the following tiles and ceramics

Granite Rustic Hard-fired Porcelain

Granite Rustic Hard-fired Porcelain

Granite Rustic Hard-fired Porcelain

Granite Rustic Hard-fired Porcelain

STK WORK HARD DRYseries Suitable for cutting the following tiles: Granite, Rustic, Hard-burned, and Porcelain.

STK WORK FAST DRYseries Suitable for fast cutting in the following tiles: Granite, Rustic, Hard-burned, and Porcelain

STK UNIVERSAL DRYseries Suitable for cutting the following tiles: Floor, Wall, and Porcelain

staring.dk

DIAMOND BLADES FOR DRY CUTTING OF TILES! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond blades WET CUTTING [ UNI - SUPER ]

Staring diamond blades are available with different edges and segment configurations to meet various requirements for materials, strength, and speed.

They come with a continuous edge for cutting tiles and bricks on tile cutting machines with water cooling. Should only be used for wet cutting.

MODEL

Universal

Universal

Universal

Super Tough

Super Tough

Super Tough

Staring no.

STK-W-200-UNI

STK-W-250-UNI

STK-W-350-UNI

STK-W-200-ST

STK-W-250-ST

STK-W-350-ST

200 mm

250 mm

350 mm

200 mm

250 mm

350 mm

Granite Rustic Hard-burned Porcelai

Granite Rustic Hard-burned Porcelai

Granite Rustic Hard-burned Porcelai

Blade Diameter

25,4 mm

Hole Diameter

Suitable for the following tiles and ceramics

Floor Wall Porcelain

Floor Wall Porcelain

Floor Wall Porcelain

STK UNIVERSAL WETseries Suitable for cutting the following tiles: Floor, Wall, and Porcelain

STK SUPER TOUGH WETseries Suitable for cutting the following tiles: Granite, Rustic, Hard-burned, and Porcelain

staring.dk

DIAMOND BLADES FOR WET CUTTING OF TILES! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond Drills Staring diamond drills for dry cutting in tiles and ceramics. Drills easily through tiles, ceramics, and most other hard-fired materials.

Staring diamond drills can be supplied with a hexagonal (HEX) connection for a regular drill machine and with an M14 internal thread for use on an angle grinder. Additionally, there is an adapter that can convert M14 to HEX, allowing all diamond drills to be used with a drill machine. The diamond drills can be used with both the regular drilling function and the hammer function on the drill machine.

There is no need to add water during drilling, but like all other diamond products, the lifespan will be extended with regular cooling.

Application: Small drills can be used with a drill guide or as larger drills with the following method. Start by angling the drill diagonally towards the material to be drilled.

Once a pilot groove has been created, straighten the drill, and guide the machine in gentle circular motions.

The circular motion helps to remove drill dust, making drilling easier and reducing the working temperature. Small drills should be cooled in water after each hole, while larger drills do not require water cooling but can still benefit from it. Always use safety goggles and ear protection during work.

SINGLE DRILLS

DRILL SETS

M14 for Angle Grinder

M14 for Angle Grinder

SIZE (MM)

NUMBER

SIZE (MM)

NUMBER

6

STD-014-006

6-8-10-12 + ADAPTOR

STD-014-097

8

STD-014-008

35-50-60

STD-014-099

10

STD-014-010

20-35-43-50-55-60

STD-014-101

12

STD-014-012

6-8-10-35-50-60

STD-014-104

14

STD-014-014

16

STD-014-016

20

STD-014-020

28

STD-014-028

35

STD-014-035

43

STD-014-043

46

STD-014-046

50

STD-014-050

54

STD-014-054

55

STD-014-055

57

STD-014-057

60

STD-014-060

65

STD-014-065

68

STD-014-068

SINGLE DRILLS Hex for Drill

SIZE (MM)

NUMBER

6

STD-010-006

8

STD-010-008

10

STD-010-010

12

STD-010-012

6-8-10

STD-010-014

DRILL SETS Hex for Drill

SIZE (MM)

NUMBER

6-8-10

STD-010-098

ACCESSORIES PRODUCT

NUMBER

DRILLGUIDE

STD-001-002

DRILLADAPTOR M14/HEX

STD-001-001

DRILLADAPTOR M14/SDS

STD-001-003

COOLING PASTE 20 G.

STG-020-000

COOLING PASTE 50 G.

STG-050-000

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

DIAMOND TOOLS //

Diamond Milling Tools APPLICATIONS: • Chamfering edges • Enlarging existing holes • Starting new holes • Adjustment and finishing MATERIALS: • Porcelain • Ceramic tiles • Natural stone (granite, marble etc.)

FEATURES: • High diamond concentration for efficient material removal • Long service life – even in hard materials • Clean and consistent finish • Suitable for angle grinders • Stable and controlled operation

NOTE: Always use safety goggles and hearing protection during operation!

Precise material processing – directly on site.

Staring Diamond Milling Tools are designed for applications where precision and finish are critical. They are used for chamfering edges, starting holes, and enlarging or adjusting existing holes in hard materials.

With a high diamond concentration, you achieve long service life and a consistent, clean finish – even when working with porcelain and hard-fired ceramics.

STRAIGHT MILLING TOOLS – M14 For enlarging and adjusting existing holes and working along edges.

Size. (mm)

Product no.

5

STD-015-005

6

STD-015-006

8

STD-015-008

10

STD-015-010

20

STD-015-020

CONICAL MILLING TOOLS – M14 For starting new holes as well as precise enlargement and finishing.

Size. (mm)

Product no.

2-38

STD-015-238

20-48

STD-015-2048

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

SUCTION CUP //

Suction Cups STL-205-00 [ STL-205-00 ] STL-205-10 [ STL-205-10 ] STL-205-36 [ STL-205-36 ]

Staring Suction Cups for Demanding Tasks and Heavy Lifting Whether you’re working with large-format tiles, slabs, or similar materials, having a secure grip is essential. With Staring’s suction cups, you can confidently handle both smooth and rough surfaces.

Our suction cups come in three variants: a basic model, one with a manometer, and an electric, rechargeable version with a built-in battery offering up to 5 hours of operation.

All variants share the same key features: easy operation and a reliable grip, even for heavy lifting tasks!

STL-205-36

STL-205-00

As an additional noteworthy feature of the STL-205-36, it should be highlighted that it: • Automatically re-establishes vacuum if it drops during operation!

• Automatically creates a new vacuum when it comes into contact with a new tile/surface!

STL-205-10

WARNING!

R E

These can reduce suction power and prevent proper release from the object.

SUCTION CUP

C

A

• High heat, such as being mounted for extended periods in direct sunlight.

• Glue, solvents, or other harsh chemicals.

B L E!

Suction cups from Staring must NOT be exposed to the following during use:

HA

R G

E

MODEL

STL-205-00

STL-205-10

STL-205-36

Product no.

STL-205-00

STL-205-10

STL-205-36

Vertical Lift

128 kg

Horizontal Lift

158 kg Ø 205 mm

Diameter Vacuum-pump

Manuel

Manuel

Electric

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

ACCESSORIES //

Easy Hammer

Effective concrete remover.

Easy Hammer concrete remover is a chemical product designed for the removal of concrete from most surfaces. It does not damage rubber, glass, aluminum, finished painted, or unpainted surfaces.

Easy Hammer concrete remover is an effective and environmentally friendly chemical for the removal of concrete and cement from machinery, tools, and concrete trucks.

USE. Pre-treatment: The substrate should be dry to ensure the best penetration. ALWAYS test Easy Hammer on a very small area first. Wait and observe the effect before using it on larger or multiple surfaces. Always wash the object afterward with plenty of water and let it dry again to see the final result.

APPLICATION. Working temperature: min. 5°C - max. 40°C At lower temperatures, the effect is slower.

Avoid working in direct sunlight as it shortens the lifespan and reduces effectiveness. Let the concrete remover work until a white layer is left, then rinse with a high-pressure cleaner. Repeat the treatment if necessary.

NOTE: Concrete remover should not be used on marble and other calcareous products.

5 L.

10 L.

20 L.

200 L. BARREL

1000 L. BARREL

5L. SPRAY

BARRELPUMP

St. varenr.

698000500

698001000

698002000

698020000

698100000

3237P

698020010

Weight (kg)

5,75

10,9

22,7

225

1143

1,55

1,20

Height (mm)

235

380

380

910

1200

1200

530

Lenght (mm)

190

220

260

585

1200

235

105

Widht (mm)

130

160

290

585

1000

195

255

Accessories

5 L. spray

5 L. spray

5 L. spray

Barrelpump 5 L. spray

Barrelpump 5 L. spray

–

–

TYPE:

UFI Code GEL

SJ40-902U-K00H-WREK

UFI Code FOAM

8G40-S0DF-9001-7DUH

AREAS OF APPLICATION. Easy Hammer concrete remover can be used on almost all surfaces except marble and other calcareous products. EASY HAMMER may cause discoloration on the surface of electro-galvanized products. It is essential always to have conducted a small test piece first, regardless of the material.

Gel: Used concentrated. Applied with a spray.

staring.dk For further info or placement of order! staring@staring.dk or +45 98 82 16 22

SILOS //

Fiberglass Silo 1,2 m3

Silo System for Filling from Big Bags The system is designed for construction tasks where bag filling is too slow and often too costly, and where larger silos might be excessive, both in volume and physically.

The silo is delivered as standard with a vibrator motor to prevent bridging, a sliding gate, a grid for collecting larger lumps, forklift pockets, height-adjustable legs, and more.

Our 1.2 m³ Fiberglass Silo comes with: • Galvanized adjustable telescopic legs • Adjustable • Forklift pockets for lifting • Sealed dustproof lid • Lifting lugs • Ø250mm butterfly valve Silo Specifications:

NOTE: ALL SILO SOLUTIONS FROM STARING CAN BE CUSTOMIZED TO MEET SPECIFIC NEEDS AND REQUIREMENTS!

• Approx. capacity: 1.2 m³ • Weight without material: 500 kg • Minimum height: 2530 mm • Maximum height: 3390 mm • Legs: 3 height-adjustable legs • Length/width: 1500 x 1500 mm • Screw conveyor length: As desired • Height under screw conveyor: Variable

Flow Mixer Ø114 x 600 mm

staring.dk

SILOS FROM STARING FOR A BETTER WORKFLOW! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

SILOS //

Fiberglass Silo 1,8 m3

Silo System for Filling from Big Bags The system is designed for construction tasks where bag filling is too slow and often too costly, and where larger silos might be excessive in both volume and physical size.

The silo is delivered as standard with a vibrator motor to prevent bridging, a sliding gate, a grid for collecting larger lumps, forklift pockets, height-adjustable legs, and more.

Our 1.8 m³ Fiberglass Silo comes with: • Galvanized adjustable telescopic legs • Adjustable • Forklift pockets for lifting • Sealed dustproof lid • Lifting lugs • Ø250mm butterfly valve Silo Specifications:

NOTE: ALL SILO SOLUTIONS FROM STARING CAN BE CUSTOMIZED TO MEET SPECIFIC NEEDS AND REQUIREMENTS!

• Approx. capacity: 1.8 m³ • Weight without material: 600 kg • Minimum height: 3190 mm • Maximum height: 3990 mm • Legs: 3 height-adjustable legs • Length/width: 1500 x 1500 mm • Screw conveyor length: As desired • Height under screw conveyor: Variable

Flow Mixer Ø114 x 600 mm

staring.dk

SILOS FROM STARING FOR A BETTER WORKFLOW! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

SILOS //

Piccolo Silo 1,2 m3

The Piccolo silo from is the smallest silo in our standard program.

The silo has a capacity of 1.2 m³. It is delivered with a flange that fits a butterfly valve or can be connected directly to a screw conveyor/ mixer. The silo is designed for filling from Big Bags with a ”nose” (spout). However, it can be adapted for flat-bottomed Big Bags but requires an additional attachment box.

Our 1.2 m³ Piccolo Silo comes with: • Galvanized adjustable telescopic legs • Forklift pockets for lifting with a truck • Lifting lugs • Sealed dustproof lid • 1” angled pipe for air venting • Ø250mm butterfly valve • Vibrator Silo Specifications:

NOTE: ALL SILO SOLUTIONS FROM STARING CAN BE CUSTOMIZED TO MEET SPECIFIC NEEDS AND REQUIREMENTS!

• Approx. capacity: 1.2 m³ • Weight without material: 500 kg • Minimum height: 2530 mm • Maximum height: 3390 mm • Legs: 2 height-adjustable legs • Length/width: 1500 x 1500 mm • Screw conveyor length: As desired • Height under screw conveyor: Variable

Flow Mixer Ø114 x 600 mm

staring.dk

SILOS FROM STARING FOR A BETTER WORKFLOW! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

SILOS //

Piccolo Silo 1,8 m3

The Piccolo silo from is the smallest silo in our standard program.

The silo has a capacity of 1.8 m³. It is delivered with a flange that fits a butterfly valve or can be connected directly to a screw conveyor/ mixer. The silo is designed for filling from Big Bags with a ”nose” (spout).

However, it can be made to accommodate flat-bottomed Big Bags but requires an additional attachment box.

Our 1.8 m³ Piccolo Silo comes with: • Galvanized adjustable telescopic legs • Forklift pockets for lifting with a truck • Lifting lugs • Sealed dustproof lid • 1” angled pipe for air venting • Ø250mm butterfly valve • Vibrator Silo Specifications:

NOTE: ALL SILO SOLUTIONS FROM STARING CAN BE CUSTOMIZED TO MEET SPECIFIC NEEDS AND REQUIREMENTS!

• Approx. capacity: 1.8 m³ • Weight without material: 500 kg • Minimum height: 2530 mm • Maximum height: 3390 mm • Legs: 2 height-adjustable legs • Length/width: 1500 x 1500 mm • Screw conveyor length: As desired • Height under screw conveyor: Variable

Flow Mixer Ø114 x 600 mm

staring.dk

SILOS FROM STARING FOR A BETTER WORKFLOW! For further info or placement of order! staring@staring.dk or +45 98 82 16 22

A better workday! staring.dk

Contact us for more information and prices.

MIXERS PUMPS DEHUMIDIFIERS VENTILATION DIAMOND TOOLS - and much more at staring.dk

Contact product advisor or salesperson.

staring.dk/en/employees

Staring A/S staring.dk

Starengvej 9-11 DK-9700 Brønderslev Tlf.: +45 9882 1622 staring@staring.dk

Download logo, images, and much more.

staring.dk/download

CVR/VAT. no. DK 2767 2701 Sparekassen Danmark: 9070 1620411589 IBAN no.: DK 7890701620411589 Swift no.: VRSPDK22
