NIMS HOSPITAL JAIPUR CASE STUDY

LIVE CASE STUDY 01

NATIONAL INSTITUTE OF MEDICAL SCIENCES(NIMS), JAIPUR

DEPARTMENTS

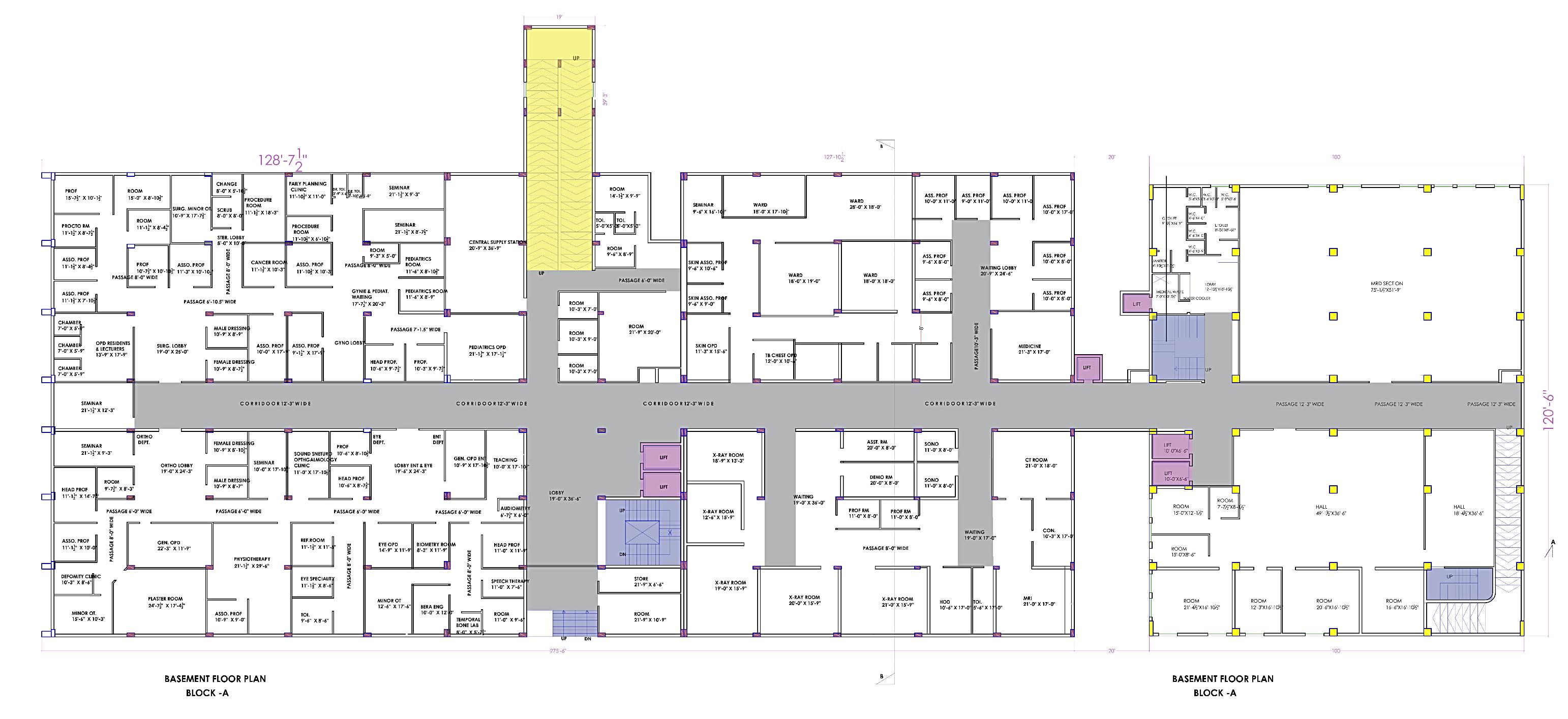

BASEMENT FLOOR PLAN

― GENERAL MEDICINE ― PSYCHIATRY ― RESPIRATORY MEDICINE ― DERMATOLOGY ― PAEDIATRICS ― ANESTHESIOLOGY ― RADIO DIAGNOSIS ― GENERAL SURGERY ― ORTHOPEDICS ― OTORHINOLARYNGOLOGY ― OBSTETRICS & GYNECOLOGY ― OPHTHALMOLOGY ― CARDIOLOGY ― MEDICAL GASTROLOGY ― NEURO SURGERY ― UROLOGY ― NEPHROLOGY ― SURGICAL ONCOLOGY ― SURGICAL GASTROENTEROLOGY ― ENDOCRINOLOGY

BASEMENT FLOOR ― BASEMENT CONSISTS MOST OF THE GENERAL OPD’S. AND OPRTHOPEDICS OPD, GENERAL SERGERY OPD, GYNECOLOGY OPD, NEONQTOLOGY OPD, ENT OPD, OPTHAMOLOGY OPD, PHYSIOTHERAPY OPD, PSCHIATRY OPD, RESPIRATORY MEDICINE OPD, SKIN AND V.D OPD. ― BASEMENT FLOOR ALSO CONSISTS THE SAMPLE COLLECTION ROOM ― X-RAY ROOM, USG ― CT, MRI SCAN ― MRD ― THE WIDTH OF THE CORRIDOR IS 3.73 METERS CERAMIC TILES ARE USED INSIDE THE HOSPITAL BASEMENT FLOOR ALSO CONSISTS THE MEDICAL RECORDS DEPARTMENT.

X-RAY ROOM

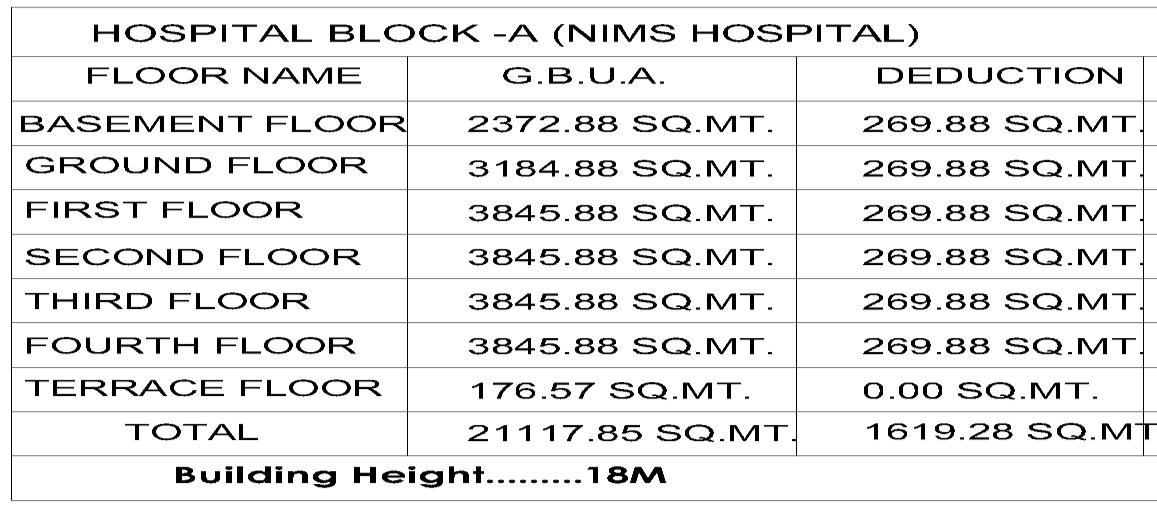

AREA STATEMENT

GROUND FLOOR

LOCATION – JAIPUR-DELHI HIGHWAY NH11C, SHOBHA NAGAR, JAIPUR, RJ.(303121) CLIENT – PROF. DR. BALVIR SINGH TOMAR ARCHITECT- AR. SHANTANU GARG, S.G.D., NAV MANN ARCHITECTURE TYPE -- MODERN HOSPITAL DESIGN EASTABLISHMENT YEAR- 2000 COMPLETION YEAR- 2008 IT IS EASILY ACCESIBLE BY JAIPUR-DELHI NATIONAL HIGHWAY. IT IS A SUPERSPECIALITY HOSPITAL.

GROUND FLOOR PLAN RED TRIAGE YELLOW TRIAGE GREEN TRIAGE PHARMACY RECEPTION LIFTS STAIRCASE

NEARBY SERVICES

EMERGENCY ENTRY

― NEAREST POLICE STATION CHANDWAJI POLICE STATION – 3.3 KM. ― NEAREST FIRE SERVICE SHAHPURA FIRE STATION JAIPUR – 23 KM. ― NEAREST BANK ICICI BANK – 200 METERS. ― NEAREST HOSPITALS – PHC ACHROL– 10KM

CORIDOORS RAMP

CONNECTIVITY ― DISTANCE FROM NH11C– 100 METERS. ― DISTANCE FROM JAIPUR - 35 KM. ― DISTANCE FROM SINDHI CAMP - 40 KM. ― DISTANCE FROM CHANDWAJI BUS STAND- 3.6 KM ― DISTANCE FROM ACHROL BUS STAND- 9 KM ATTRACTIONS ― LEE GABRIEL MULTICUISINE RESTRAUNT ,JAIPUR – 500 METERS ― EXPRESS MALL – 200 METERS ― SAB KI KHATIR RESTRAUNT– 200 METERS ― MOTO SPORT PARK– 7KM.

― MAIN LOBBY ― EMERGENCY LOBBY ― PHARMACY ― GENERAL OPD’s ― GROUND FLOOR ALSO CONSISTS MICU,SICU,BICU AND OT’S FOR CRITICAL CASES ALONG WITH CENTRAL LABORATORY ― THE SEVERITY OF A EMERGENCY CASE IS DEVIDED IN TO 3 CATEGORIES OR TRIAGESSRED,YELLOW AND GREEN WITH RED BEING MOST CRITICAL AND GREEN BEING LEAST CRITICAL CASE. ― THE WIDTH OF THE EMERGENCY CORRIDOR IS 17’3” OR 5257.8 MM AND OF OPD CORRIDOR IS 3.73 METERS ― CERAMIC TILES ARE USED INSIDE THE HOSPITAL ― GROUND FLOOR ALSO CONTAINS THE BHAMASHAH OFFICE, PHARMACY , CANTEEN AND OPTICAL SHOP

MRI SCAN ROOM

RADIOLOGY AND IMAGING DEPARTMENT

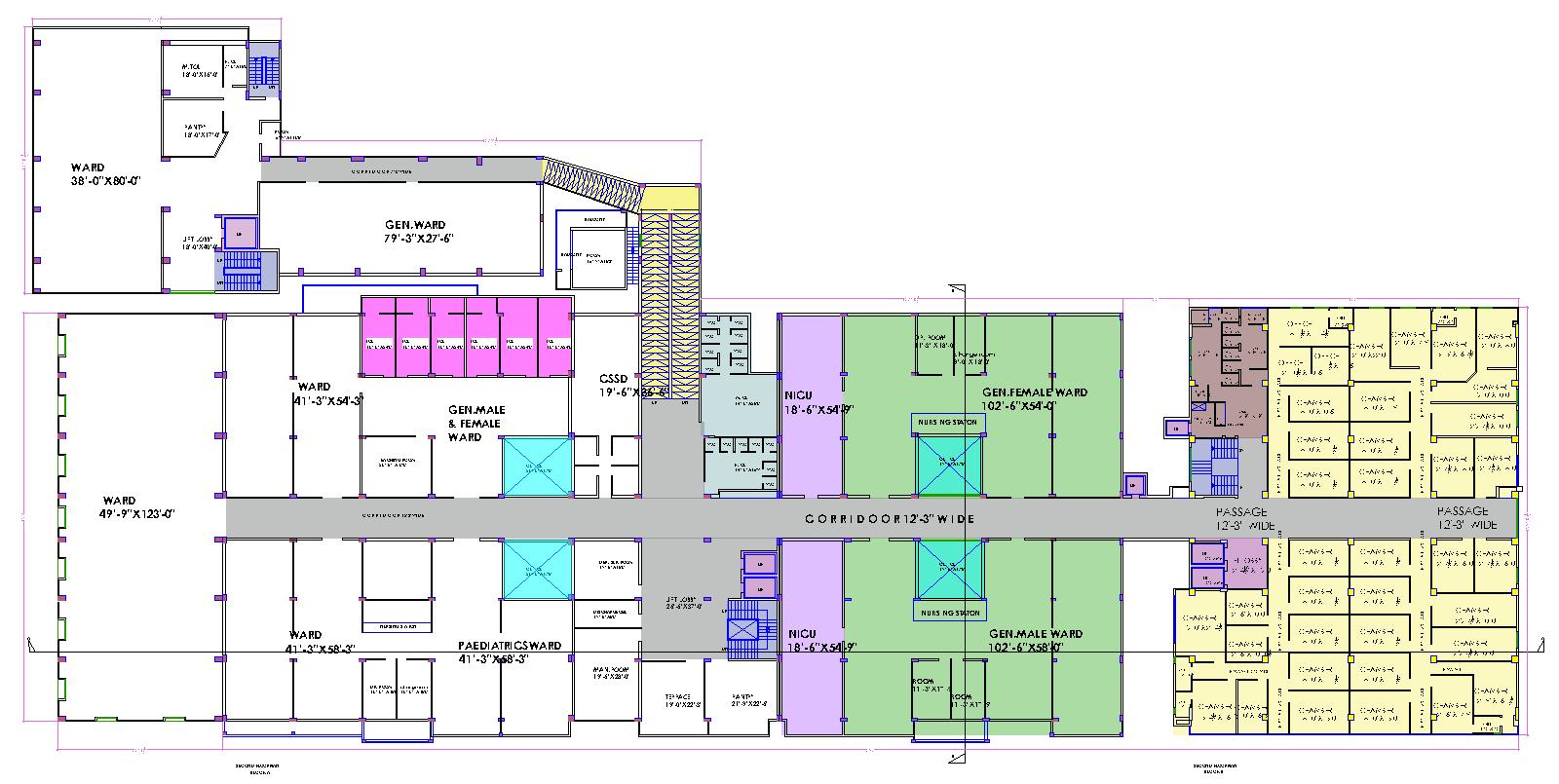

FIRST FLOOR PLAN RAMP LIFTS STAIRCASE CORIDOORS

EXPRESS MALL

SERVICES ― 24*7 AMBULANCE SERVICES ― EMERGENCY SERVICES ― OPD/IPD ― DIAGNOSTIC/ INVESTIGATION SERVICES ― LAUNDRY/ CS9D (IHBT) ― BIO MEDICAL WASTE MANAGEMENT

OPEN TO SKY

LG RESTRAUNT

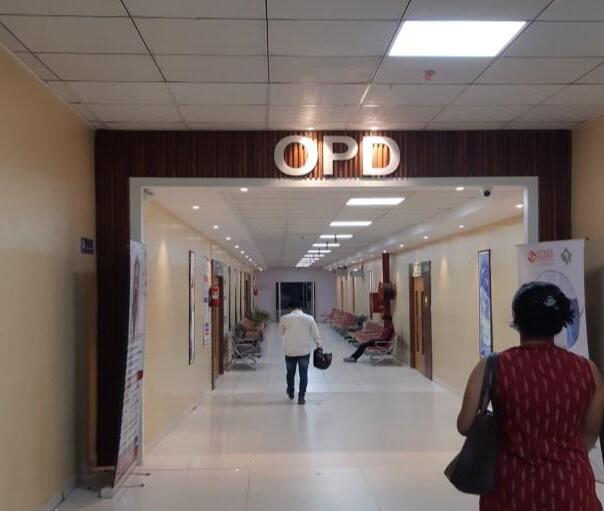

OPD LOBBY

FIRST FLOOR: FIRST FLOOR CONSISTS OF― PICU, NICU & CSSD ― GENERAL WARDS ― CARDIAC OPD ― UROLOGY OPD ― NEURO SURGERY OPD ― IVF ― CCU ― ECHO TMT ROOM ― MALE AND FEMALE CARDIAC WARD ― MALE AND FEMALE UROLOGY WARD

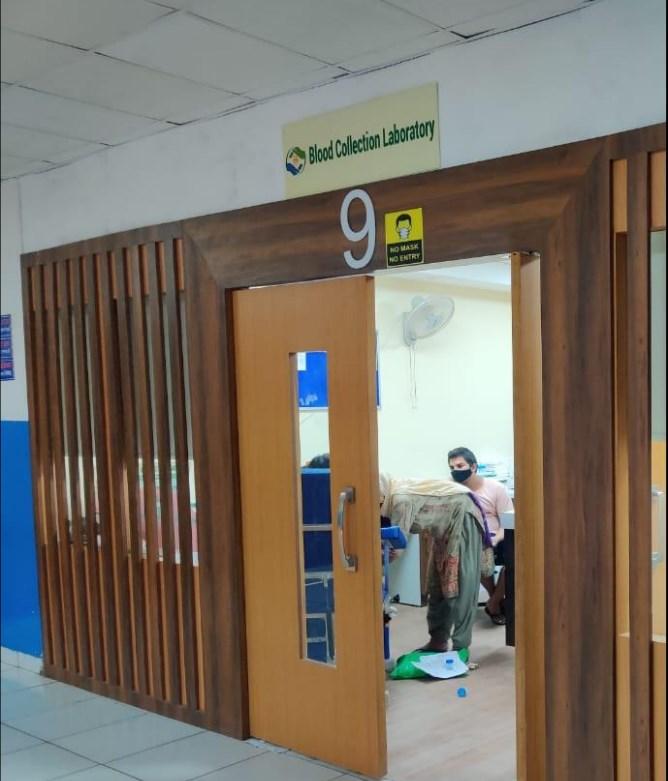

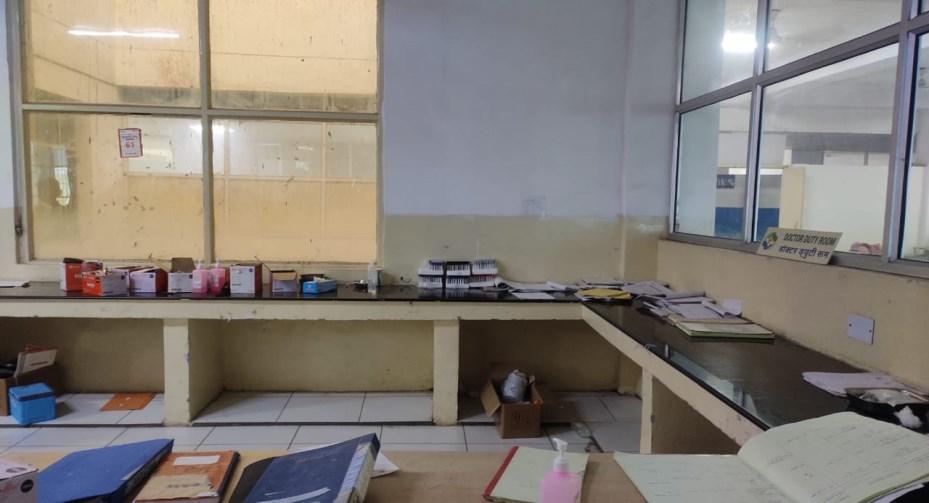

BLOOD COLLECTION LAB

MULTISPECIALITY HOSPITAL, JAIPUR

B.ARCH 2022-2023 ADV. ARCH. DESIGN III

SUBMITTED TO: AR. OP. GUPTA, AR. AKSHITA JAIN SUBMITTED BY: JANGID SONU S. SEMESTER 9TH NSAP

03

LIVE CASE STUDY 01

NATIONAL INSTITUTE OF MEDICAL SCIENCES(NIMS), JAIPUR

SECOND FLOOR: BLOCK A ― RICU ― TB CHEST WARD ― ENT WARD ― SKIN WARD ― FEMALE MEDICINE WARD ― BIOMEDICAL ENGINEERING DEPARTMENT ― PRO VICE CHANCELLOR OFFICE BLOCK B ― MALE MEDICINE WARD ― ACADEMIC BLOCK ― HUMAN RESOURCES OFFICE ― LIVER OPD ― CAO OFFICE AND ― NURSING OFFICE

FIFTH FLOOR ― OPERATION THEATRES- NEURO SURGERY ― N.I.C.U, P.I.C.U, I.C.U, T.I.C.U. ― LIVER TRANSPLANT UNIT

SECOND FLOOR PLAN RAMP LIFTS

SIXTH FLOOR

STAIRCASE

― OPERATIONS THEATRE WING ― ICU’s ― COSULTANTS ROOMS ― PEHRO UNIT ― WARDS

CORIDOORS OPEN TO SKY

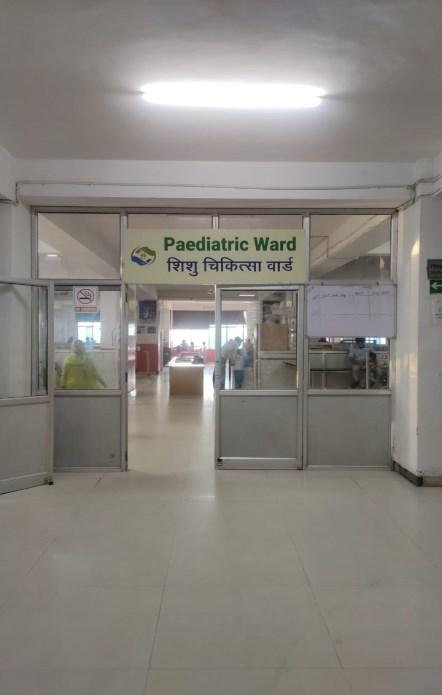

PAEDIATRIC WARD

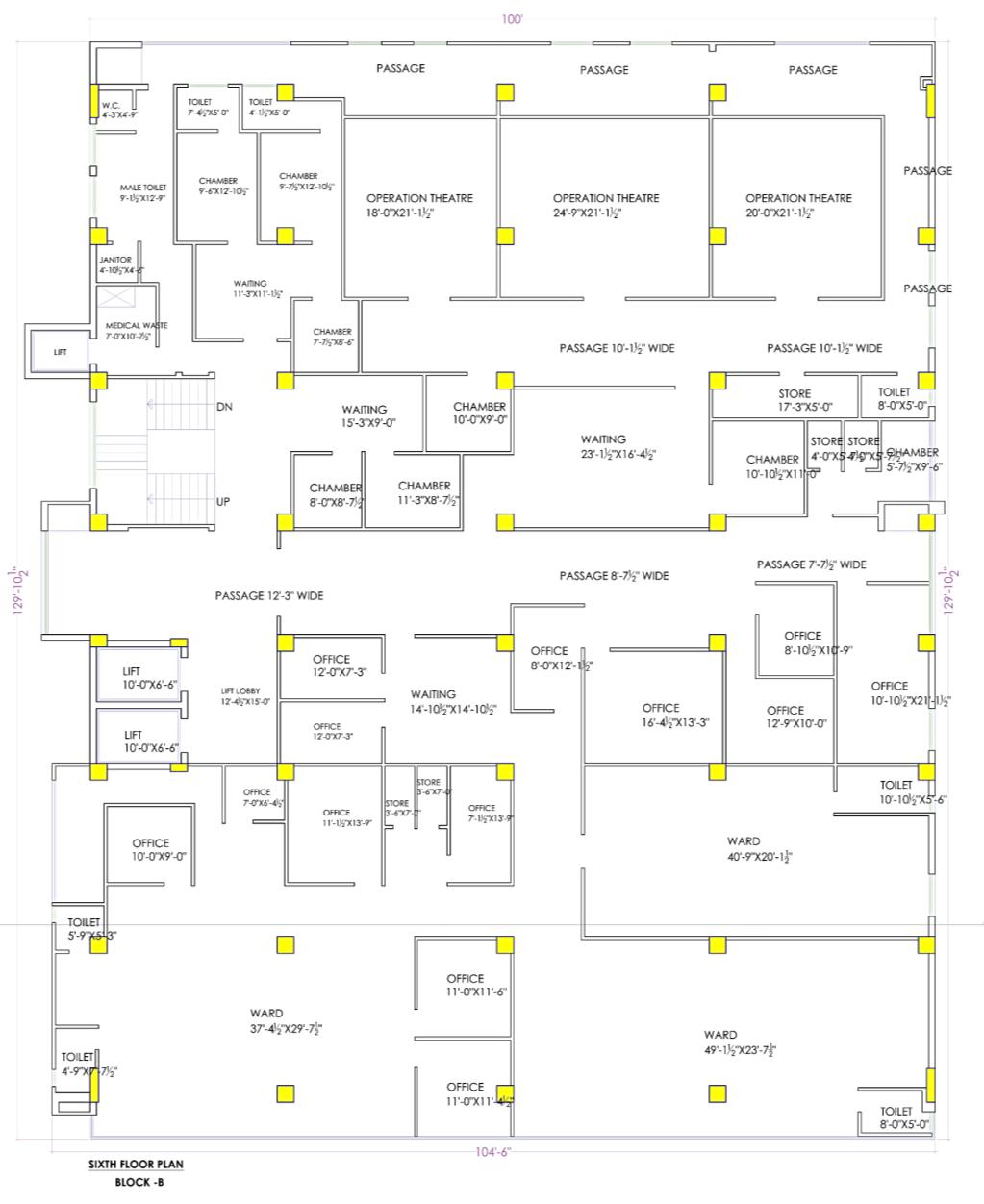

SIXTH FLOOR PLAN

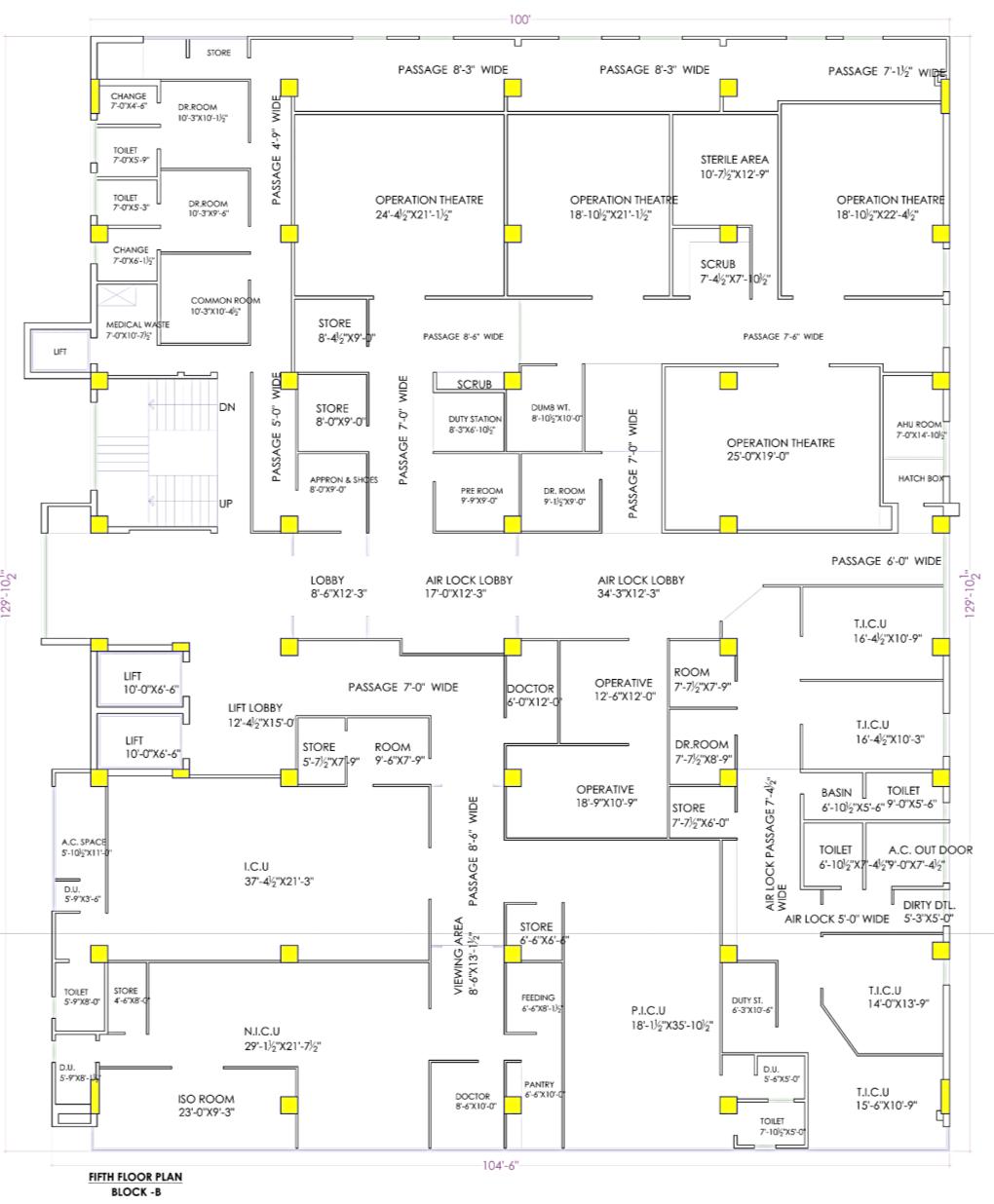

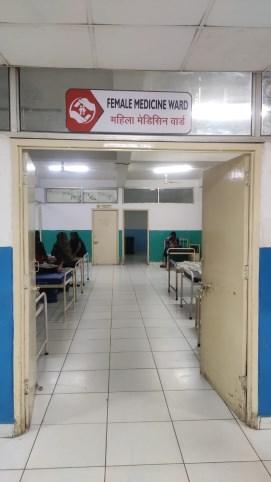

FIFTH FLOOR PLAN FEMALE WARD

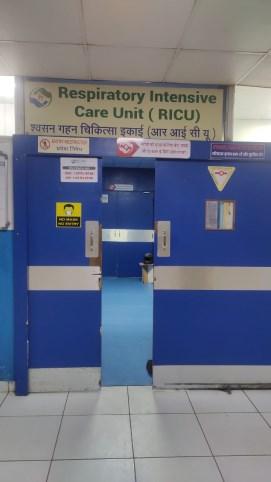

RICU

PAEDIATRIC WARD

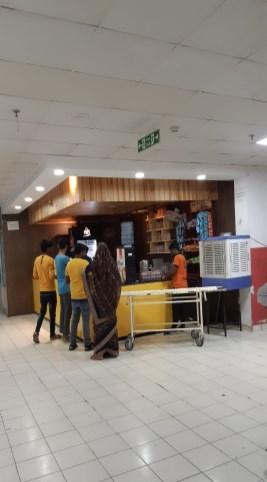

CANTEEN

CORIDOOR

SEVENTH FLOOR

THIRD FLOOR BLOCK A ― MALE & FEMALE SURGERY WARD ― CENTRAL STORE ROOM ― MUSEUMS ― OPTHAL WARD ― CANTEEN BLOCK B ― PAEDIATRIC WARD ― NURSING STATIONS AND ― MALE ORTHO WARD

― DOCTORS OFFICES ― SUPERSPECIALITY WARDS ― NEURO WARD ― ICU’s ― LIBRARY ― MUSEUM

THIRD FLOOR PLAN RAMP LIFTS STAIRCASE CORIDOORS

EIGHTH FLOOR

OPEN TO SKY

― SUPER DELUXE ROOMS ― DOC. DUTY ROOM ― NURSING STATION

NURISING STATION

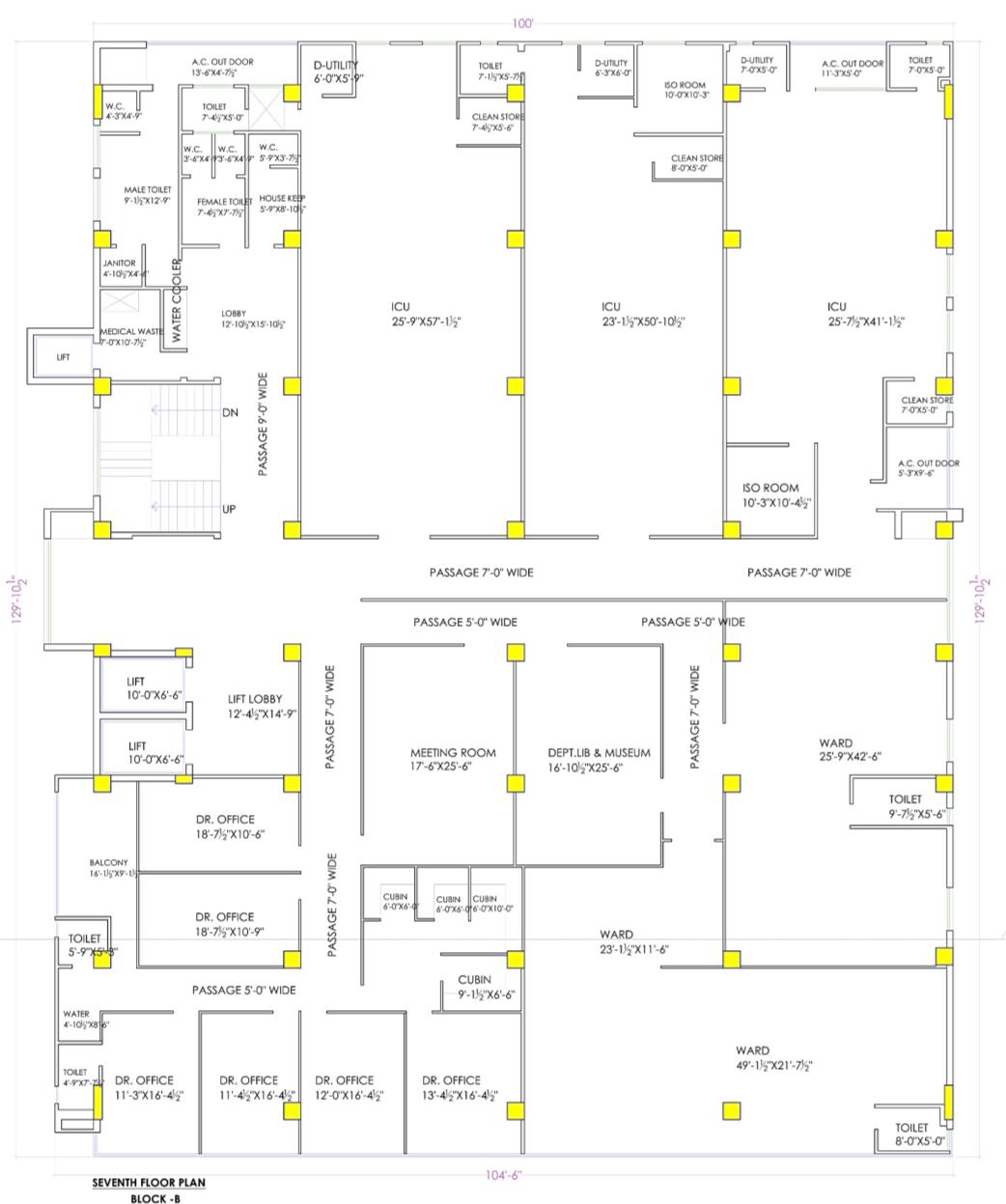

SEVENTH FLOOR PLAN

INFERENCES

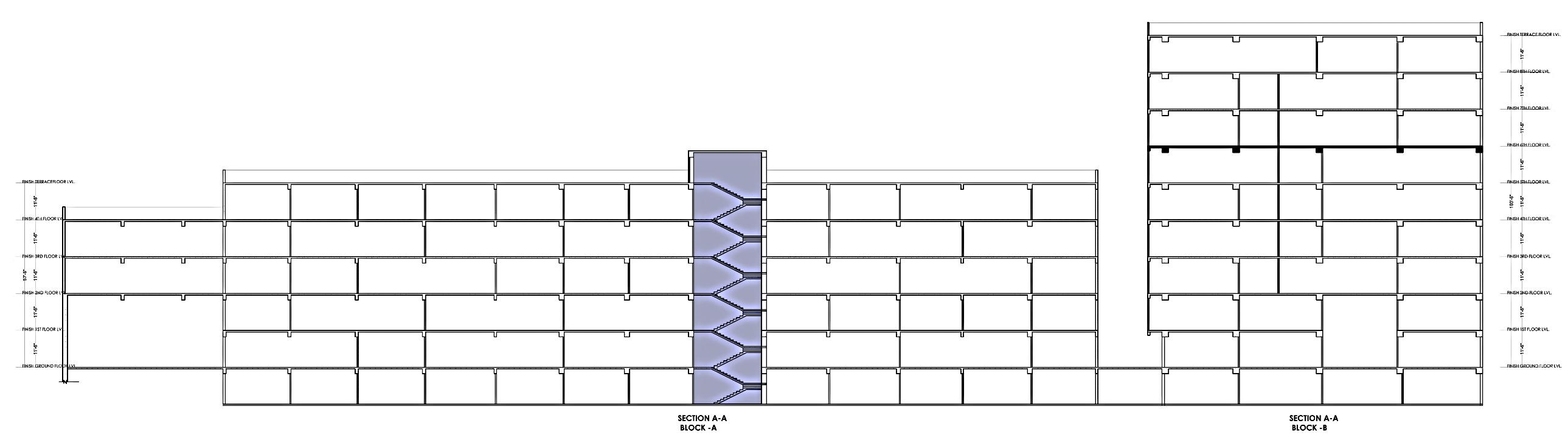

BLOCK A & B SECTION A-A

POSITIVE INFRENCES ― THE TRIAGE AND FLOW MANAGEMENT OF THE EMERGENCY AREA IS VERY GOOD. ― VARIOUS SEMINAR ROOMS AND COUNSELLING ROOMS ARE PROVIDED FOR STUDENTS. ― FIRE SAFETY EQUIPMENTS AND SERVICES PROVIDED AT EVERY FLOOR (WITHIN 30MTS) ― WELL SPACED CORIDOORS FOR CIRCULATION (12’) ARE PROVIDED. ― VARIOUS SAFETY MEASURE HAS BEN TAKEN LIKE USE OF SMOKE DETECTORS AND SPRIKLERS ― USE OF FIRE EXTINGUISHERS ― WATER SPRINKLER POINTS IN EVERY 3 METERS

MUSEUM

FOURTH FLOOR BLOCK A − CARDIAC OPD − UROLOGY OPD − NEURO SURGERY OPD − IVF − CCU − ECHO TMT ROOM − MALE AND FEMALE CARDIAC WARD − MALE AND FEMALE UROLOGY WARD BLOCK B − ENDOSCOPY − DELUXE ROOM − POST OPERATIVE ORTHO WARD − PLASTIC SURGERY OPD − OPD ONCOLOGY

FOURTH FLOOR PLAN RAMP LIFTS STAIRCASE CORIDOORS OPEN TO SKY

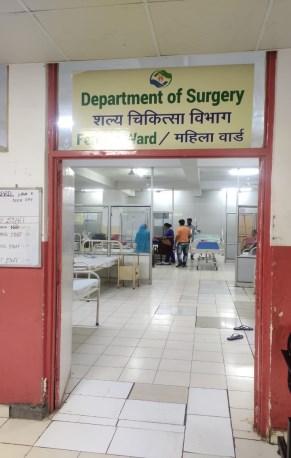

FEM. SURGERY DEPT.

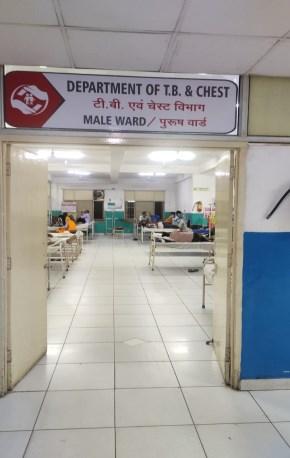

T.B. & CHEST DEPT.

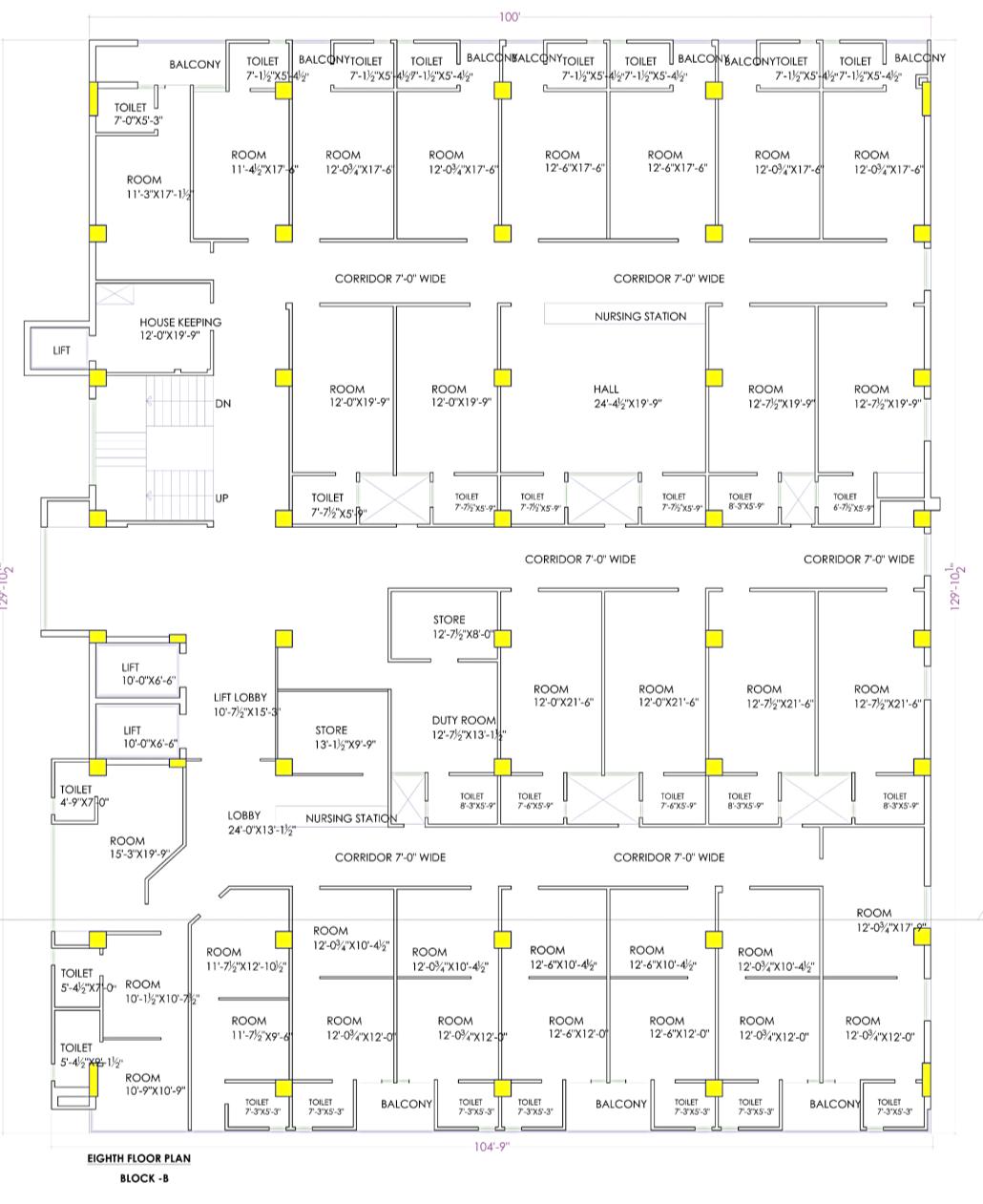

EIGHTH FLOOR PLAN

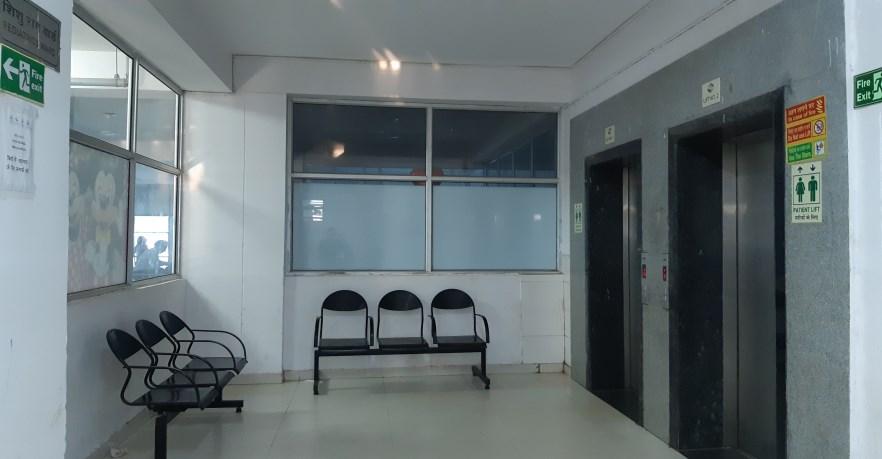

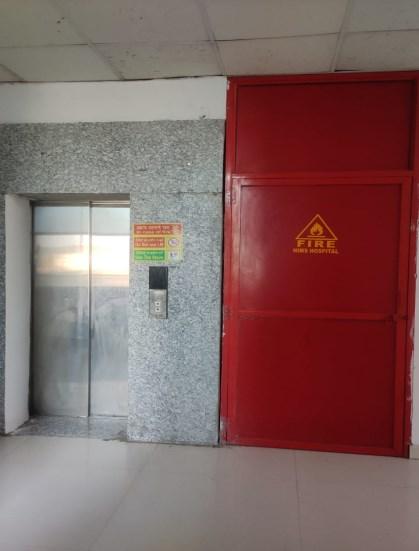

LIFT LOBBY

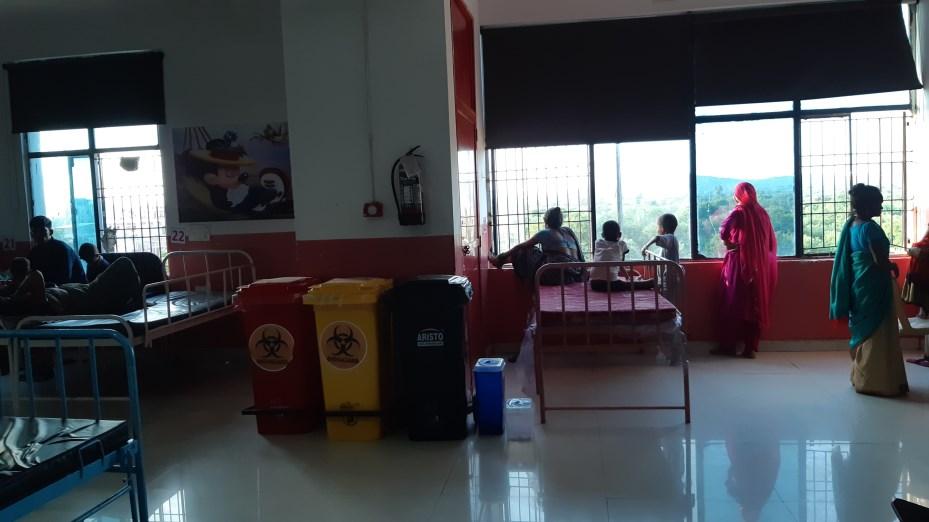

COLOR CODED DUSTBINS

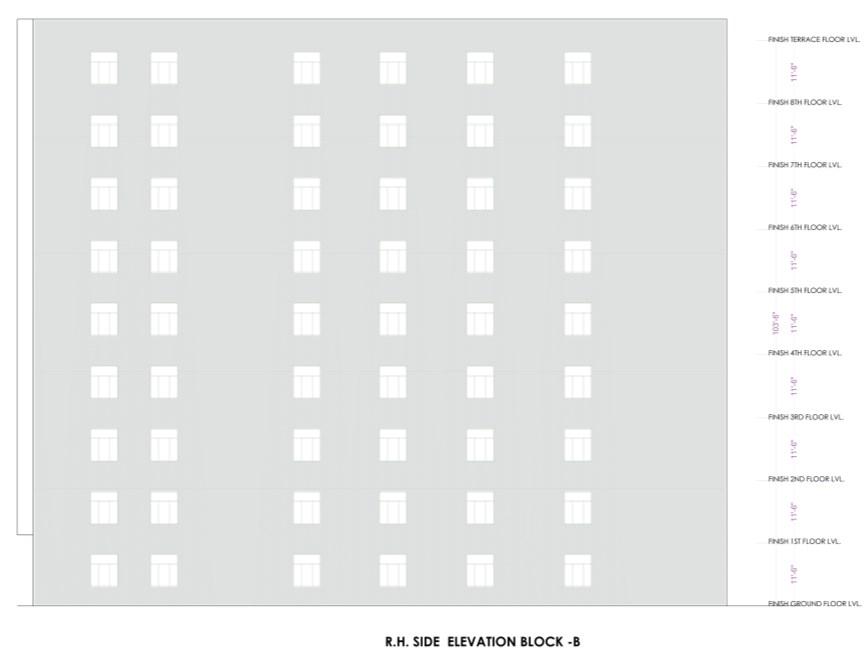

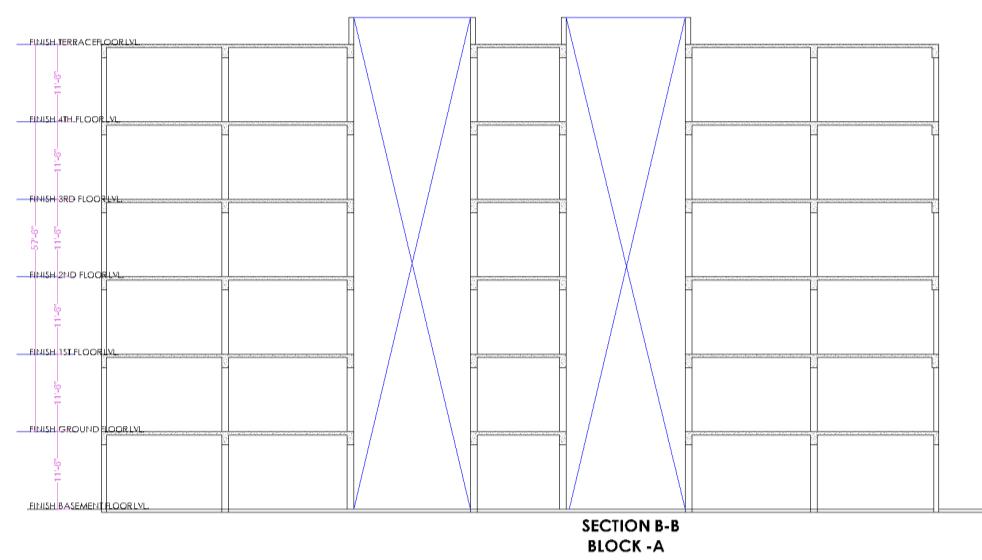

BLOCK A SECTION B-B R.H. SIDE ELEVATION OF BLOCK B

NEGATIVE INFRENCES ― LACK OF CLEANLINESS AT SOME SPACES. ― INTERNAL RAMPS WERE NOT IN PROPORTION. ― LACK OF HYGIENE MAINTAINANCE IN TOILET AREAS.

ANALYSIS -

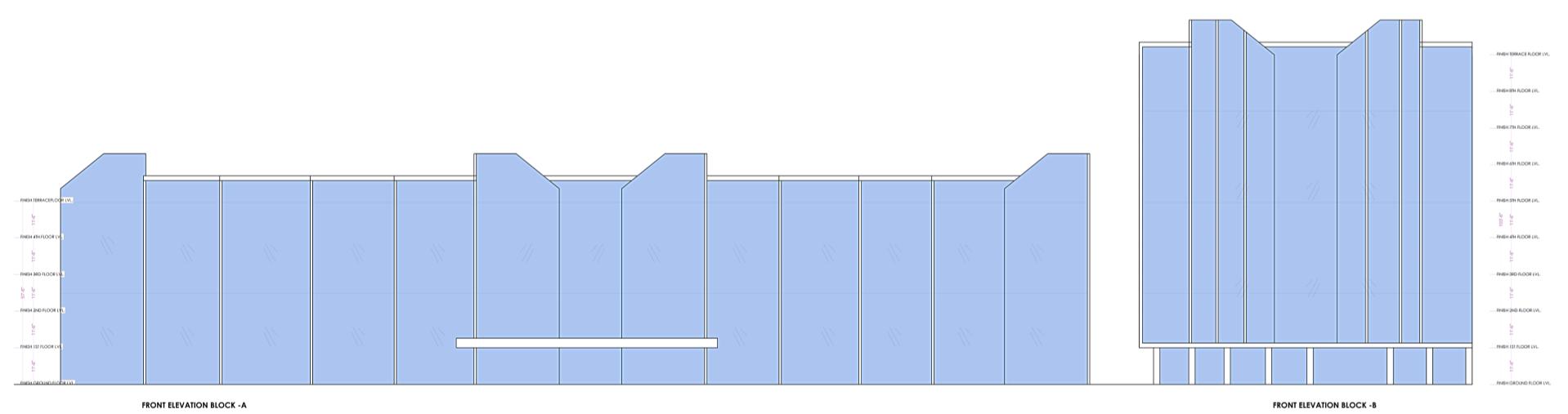

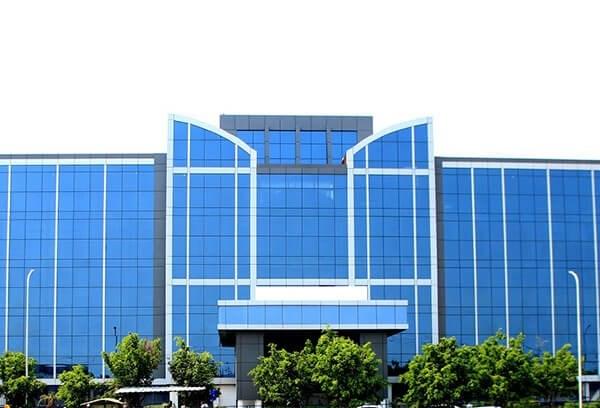

FRONT ELEVATION

-

MULTISPECIALITY HOSPITAL, JAIPUR

B.ARCH 2022-2023 ADV. ARCH. DESIGN III

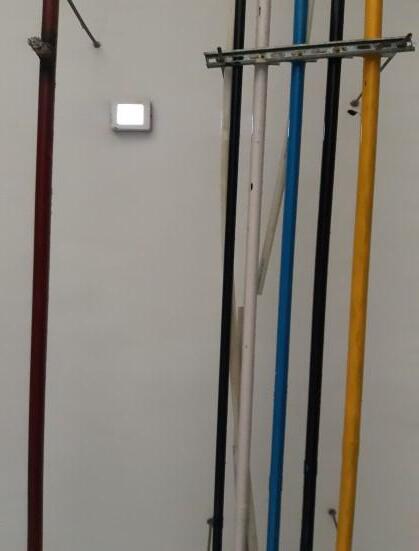

THE HOSPITAL HAS OXYGEN CONCENTRATORS TO FULLFILL THERE NEED OF OXYGEN IN NETWEEN THIS COVID PENDAMIC SURFACE PARKING ALLOTTED FOR LARGE NO. OF PATIENTS 24*7 AMBULANCE IS AVAILED FOR PUBLIC. SURFACE PARKING ALLOTTED FOR LARGE NO. OF PATIENTS

SUBMITTED TO: AR. OP. GUPTA, AR. AKSHITA JAIN SUBMITTED BY: JANGID SONU S. SEMESTER 9TH NSAP

04
