FORTIS MEMORIAL RESEARCH INSTITUTE CASE STUDY

LITRETURE CASE STUDY

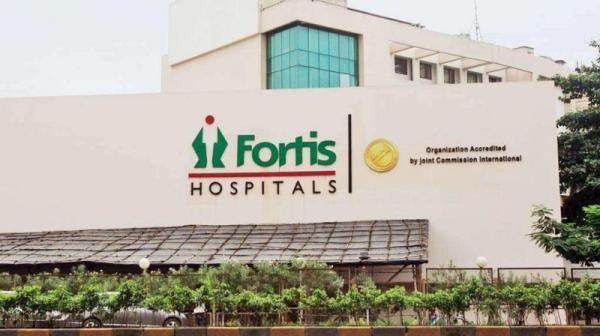

FORTIS MEMORIAL RESEARCH INSTITUTE, GURGAON

NEIGHBOURHOOD CONTEXT

Amity School

BASEMENT FLOOR

Fortis Hospital

Oyester Park

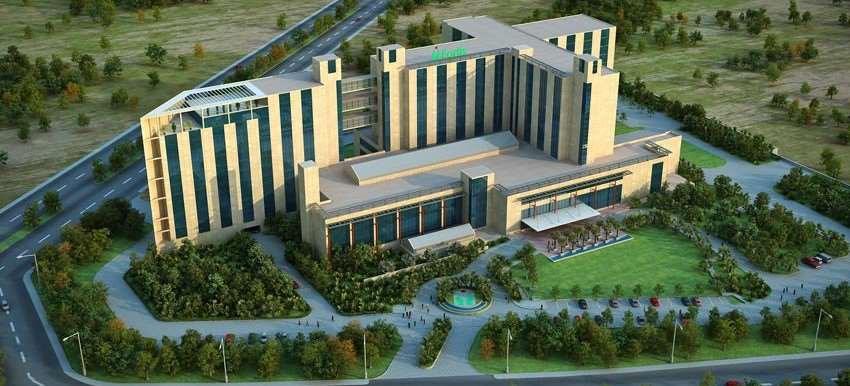

FORTIS MEMORIAL RESEARCH INSTITUTE LOCATION: SECTOR 44, GURGAON SITE AREA: 43,303 SQ. M. BUILT – UP AREA: 65,961 SQ.M. FAR: 1.52 AIR-CONDITIONED AREA : 26,254 M2 NON-AIR-CONDITIONED AREA : 44,612 M2 ENERGY CONSUMPTION REDUCTION : 33% REDUCTION IN ENERGY CONSUMPTION COMPARED TO TERI GRIHA BENCHMARK EPI : 154 KWH/M2 /YEAR RENEWABLE ENERGY INSTALLED ON SITE : RATED CAPACITY OF SOLAR PV INSTALLED ON SITE IS 25 KWP TERI GRIHA FINAL RATING : 4 STARS PRINCIPAL ARCHITECT: AR. RAJINDER KUMAR, RAJINDER KUMAR ASSOCIATES, NEW DELHI AREA SUMMARY- PHASE I ▪ TOTAL PLOT AREA- 10.7 ACRES ▪ GENERAL CARE BEDS- 250 NOS. ▪ INTENSIVE CARE BEDS- 100 NOS. ▪ OPD CHAMBERS- 80 NOS. ▪ TOTAL BEDS IN PHASE II – 320 NOS.(FUTURE BEDS) ▪ TOTAL NO. OF BEDS- 680 NOS. ▪ FORTIS MEMORIAL RESEARCH INSTITUTE, GURGAON (FMRI) IS A FLAGSHIP HOSPITAL OF THE FORTIS HEALTHCARE LIMITED. ▪ FMRI IS A MULTI SUPER- SPECIALTY, HOSPITAL. ▪ FMRI IS A SET ON AN 11 –ACRE CAMPUS. ▪ IT HAS 430 FUNCTIONAL BEDS ▪ FMRI IS ACCESSIBLE EASILY BY ROAD, IT CAN ALSO BE REACHED USING DELHI METRO, AS THE HOSPITAL IS LOCATED OPPOSITE TO THE HUDA CITY METRO STATION APPROACHES TO THE HOSPITAL: • NEAREST GURGAON BUS STAND: GURGAON BUS STAND 6.6 KM VIA MEHRAULI –GURGAON ROAD • NEAREST METRO STATION: HUDA CITY CENTER 400 M VIA SECTOR ROAD • NEAREST RAILWAY STATION: GURGAON RAILWAY STATION 9.7 KM • NEAREST BUS STOP: HUDA CITY CENTER BUS STOP 120 M • NEAREST AIRPORT:INDIRA GANDHI INTERNATIONAL AIRPORT 17 KM 30 MIN TERI GRIHA RATING ▪ AIR- CONDITIONED AREA : 26,254 SQ.MT ▪ NON- AIR- CONDITIONED AREA : 44,612 SQ.MT ▪ ENERGY CONSUMPTION REDUCTION : 33% REDUCTION IN ENERGY CONSUMPTION COMPARED TO TERI GRIHA BENCHMARK ▪ EPI : 154 KWH/ SQ.MT. /YEAR ▪ TERI GRIHA PROVISIONAL RATING : 4 STARS

FACILITIES

UPPER GROUND FLOOR

LINAC (RADIATION THERAPY)

FOOD COURT

MRI ROOM IN THE HOSPITAL

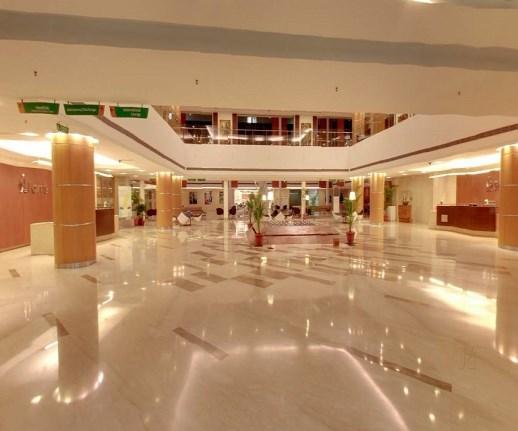

ATRIUM

Metro station L.T. PANEL ROOM

Vivanta

CENTER OF EXCELLENCE (DEPARTMENTS) ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪ ▪

ONCOLOGY TRAUMA PAEDIATRIC ONCOLOGY COSMETOLOGY GI AND RENAL ORTHOPAEDICS OPHTHALMOLOGY DENTAL SCIENCE INVASIVE CARDIOLOGY NEONATOLOGY GASTROENTEROLOGY AND HEPATOBILIARY SCIENCES ENT RHEUMATOLOGY RADIOLOGY LIVER TRANSPLANT, HEPATO PANCREATO

TOTAL PARKING IN THE BASEMENT ▪ 280 CARS PARKING ▪ 51 TWO WHEELER PARKING ▪ THE BASEMENT IS USED FOR ENGINEERING SERVICES PLANT ROOM LIKE HVAC, LT PANEL ROOM, DG ROOM, PUMP ROOMS ETC. ▪ IT IS ALSO USED FOR RADIATION THERAPY USED IN ONCOLOGY TREATMENT ▪ AND FOR PARKING AND HR DEPARTMENT AND STAFF AREAS. ▪ ADMIN AREA ▪ SERVICE YARD ▪ MECHANICAL THERAPY ▪ RADIATION THERAPY ▪ LIFTS AND SERVICES

SHOPS

D.G. ROOM

RECEPTION

TOTAL AREA OF LOWER GROUND FLOOR – 7864.890 SQ.M. UPPER GROUND FLOOR IS USED FOR▪ MATERNITY WARD ▪ SPA ▪ KITCHEN ▪ FOOD COURT ▪ FINANCE DEPARTMENT ▪ SHOP ARCADE ▪ HEALTH CHECK-UP AREA

FORTIFLEX IN THE HOSPITAL

FIRST FLOOR

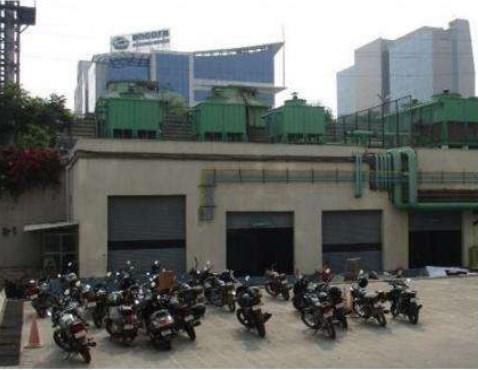

HVAC PLANT ROOM

LINAC (RADIATION THERAPY) AUDITORIUM

MAMMA- MIA

SITE PLAN SERVICE ENTRY EMERGENCY MAIN OPD PARKING(36 CARS) DROP OFF PARKING RAMP

EMERGENCY PARKING (36 CARS)

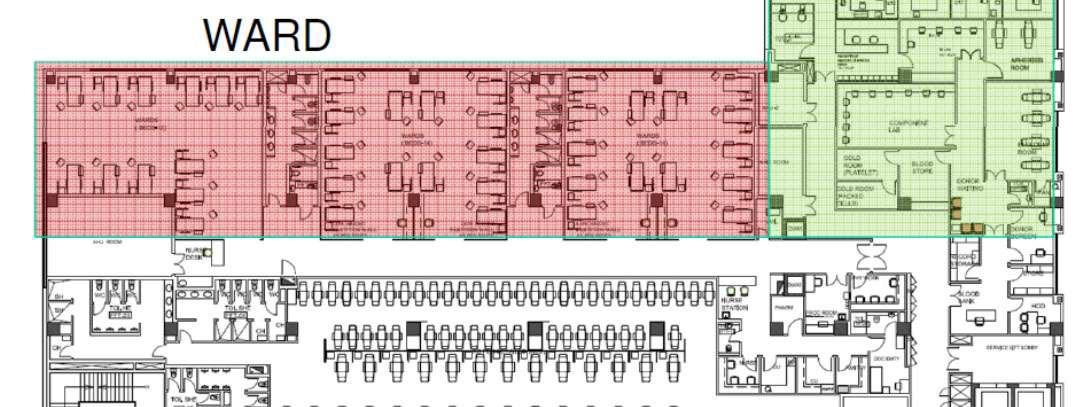

WARD

TOTAL AREA OF FIRST FLOOR – 6828.190 SQ.M FIRST FLOOR IS USED FOR – ▪ MATERNITY SURGICAL & LDR ▪ CHEMO AND DIALYSIS ▪ AUDITORIUM ▪ GENERAL WARDS ▪ BLOOD BANK/LAB

LOWER GROUND FLOOR WARD

SECOND FLOOR

LAUNDRY ROOM

MATERNITY ENTRY

TUMMY-LUCK (MULTI- CUISINE RESTAURANT)

CRECHE PLAYROOM

OPERATION THEATRE

MATERNITY WARD DROP OFF POINT

LOWER GROUND FLOOR

TOTAL NO. OF ENTRY/EXIT IN THE BUILDING▪ ▪ ▪ ▪ ▪

OPD ENTRY- AT LOWER GROUND FLOOR TO THE OPD MAIN ENTRY- AT UPPER GROUND FLOOR EMERGENCY ENTRY- AT LOWER GROUND FLOOR SERVICE ENTRY- AT UPPER GROUND FLOOR ONCOLOGY OPD ENTRY- AT UPPER GROUND FLOOR

TOTAL NO. OF ENTRY/EXIT IN THE SITE▪ ▪ ▪ ▪

OPD ENTRY- AT LOWER GROUND FLOOR MATERNITY ENTRY- AT UPPER GROUND FLOOR EMERGENCY ENTRY- AT LOWER GROUND FLOOR SERVICE ENTRY- AT UPPER GROUND FLOOR

MULTISPECIALITY HOSPITAL, JAIPUR

HEALTH 4 U

TOTAL AREA OF LOWER GROUND FLOOR – 7864.890 SQ.M. LOWER GROUND FLOOR IS USED FOR ▪ OPD ▪ ONCOLOGY OPD ▪ LAUNDRY ▪ CSSD ▪ RADIOLOGY ▪ EMERGENCY ▪ PHYSIOTHERAPY DEPARTMENT

CATH LABS PHYSIOTHERAPHY

TOTAL SITE AREA OF SECOND FLOOR - 6828.190 SQ.M. FIRST FLOOR IS USED FOR▪ SURGICAL SUITE ▪ ICU & CATH LABS R AND R LOUGE

OPD

B.ARCH 2022-2023 ADV. ARCH. DESIGN III

SUBMITTED TO: AR. OP. GUPTA, AR. AKSHITA JAIN SUBMITTED BY: JANGID SONU S. SEMESTER 9TH NSAP

01

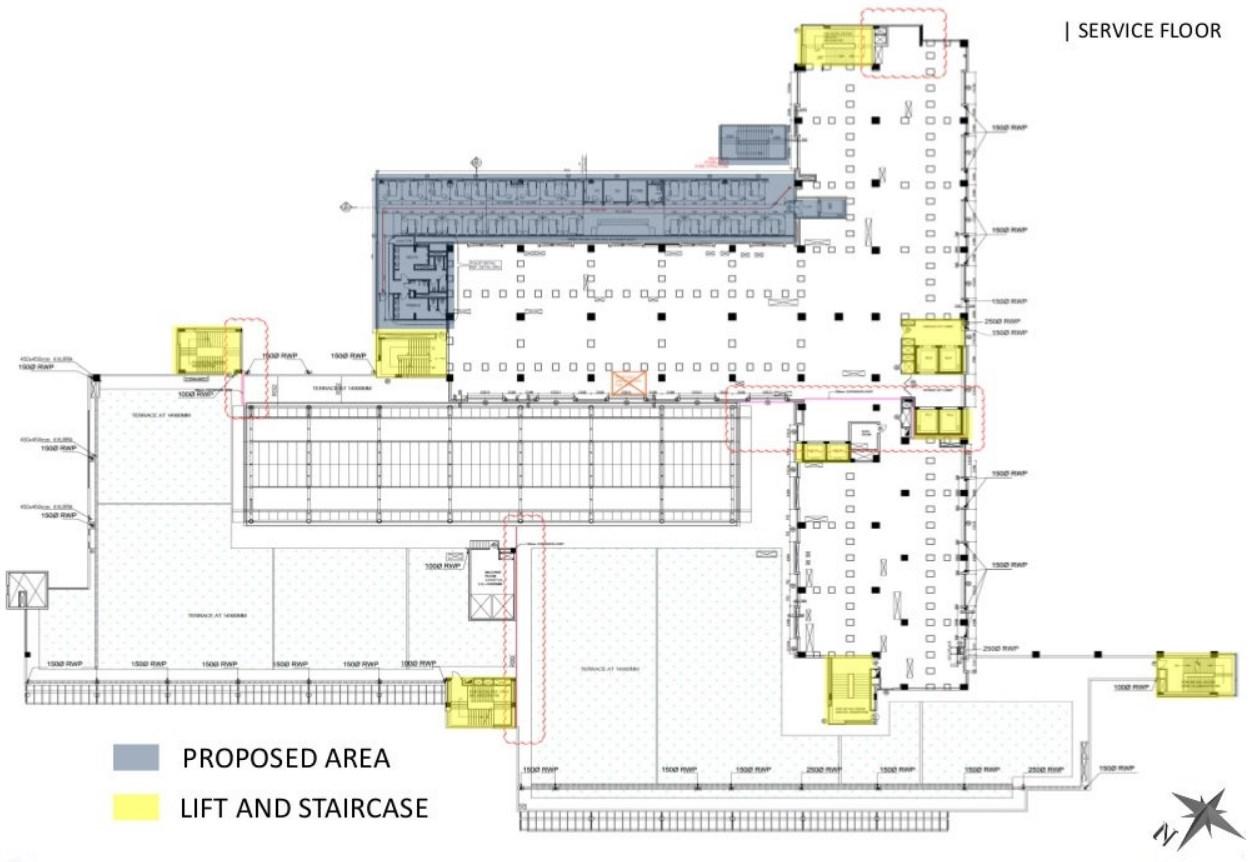

LITRETURE CASE STUDY SERVICE FLOOR

FORTIS MEMORIAL RESEARCH INSTITUTE, GURGAON STRATEGIES ADOPTED FOR THE NATURAL ENVIRONMENT DESIGN METHOD AND EVALUATION

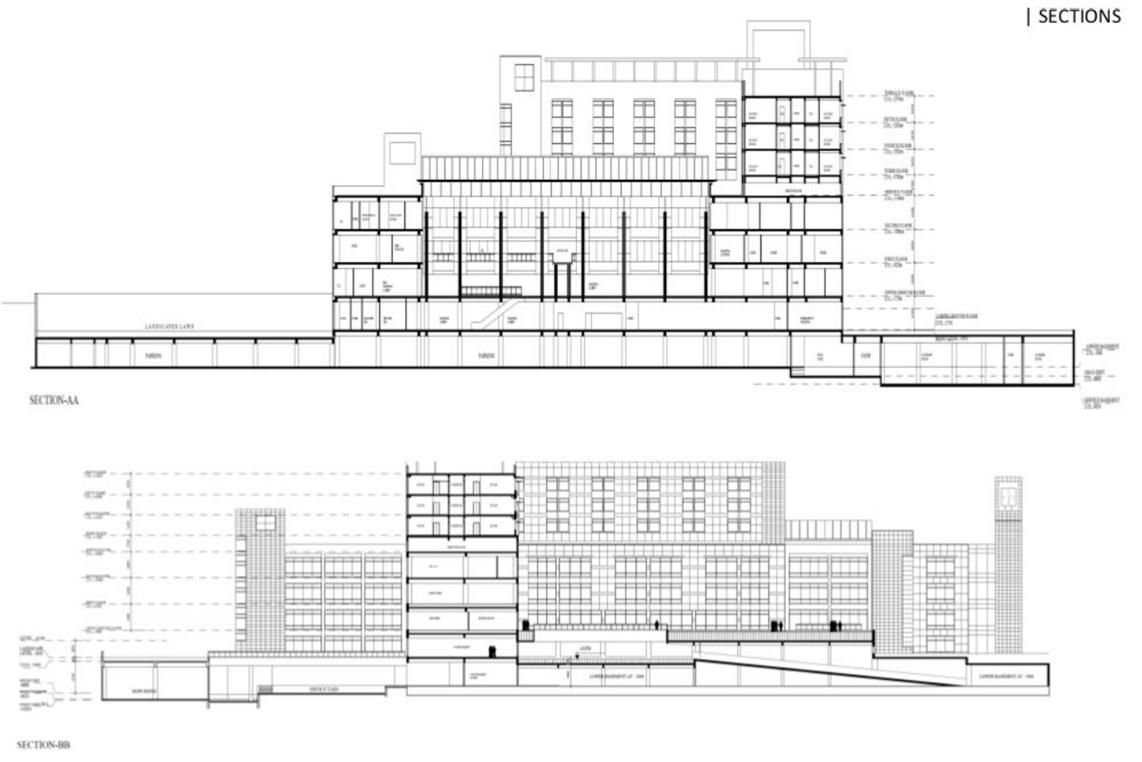

SECTIONS

SUSTAINABLE SITE PLANNING: ▪ TOP SOIL FROM THE SITE, WHICH WAS NOT VERY FERTILE WAS STACKED, PRESERVED, MADE FERTILE WITH THE ADDITION OF MANURE AND RE-LAID ON THE LANDSCAPE AREAS. ▪ CONSOLIDATION OF ALL SITE SERVICES ALONG THE TRANSPORTATION CORRIDORS MINIMIZES THE SITE DISTURBANCES. ▪ SURFACE PARKING IS PROVIDED WITH 100% GRASS PAVERS REDUCE THE HEAT ISLAND EFFECT ON SITE. ▪ SUFFICIENT PLANTATION DONE AT THE SITE REDUCES THE NOISE LEVELS CONSIDERABLY AND ENHANCES EXTERIOR ENVIRONMENTAL QUALITY

R & R LOUNGE

REDUCTION IN WATER CONSUMPTION (COMPARED TO TERI GRIHA BENCHMARK): ▪ LOW FLOW PLUMBING FIXTURES USED TO MINIMIZE THE BUILDING WATER CONSUMPTION REDUCTION BY 63%.

▪ DRIP IRRIGATION SYSTEM ADOPTED ON THE SITE ALONG WITH NATIVE PLANT SPECIES TO CUT SHORT THE LANDSCAPE WATER CONSUMPTION BY 50%.

▪ 100% TREATED WATER FROM SEWAGE TREATMENT PLANT IS REUSED FOR COOLING TOWERS AND IRRIGATION PURPOSES.

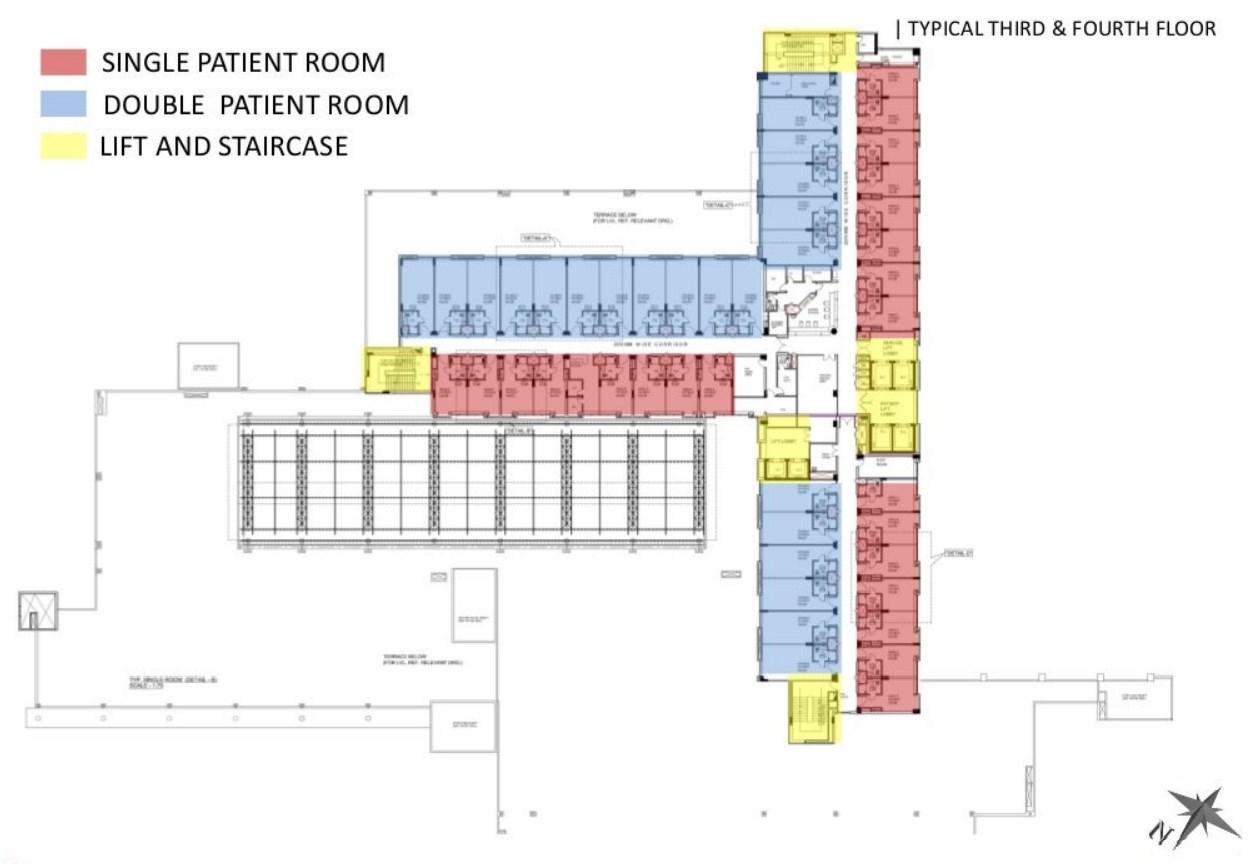

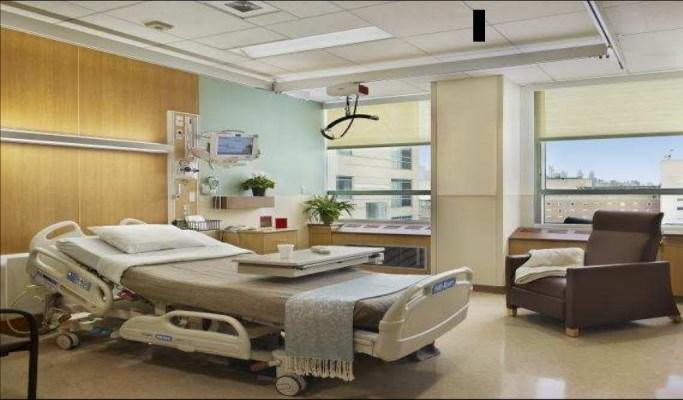

THIRD AND FOURTH FLOOR SINGLE PATIENT ROOM

PNEUMATIC CONTROL SYSTEM

DOUBLE PATIENT ROOM

WAY FINDING ▪ MODULAR PLANNING OF CLINICAL FLOORS TO OPTIMIZES FLEXIBILITY AND IMPROVES WAY FINDING. ▪ CLEAR ORGANIZATION AND SIMPLE CIRCULATION SYSTEM WITHIN MEDICAL AREAS EASES PATIENT AND STAFF USE. ▪ FLEXIBLE FLOOR PLATES PROVIDE SHARED PRACTICE SPACE, SYSTEMS, AND AMENITIES FOR VARIOUS CLINICAL MODULES AND SUB-SPECIALTIES. ▪ WARD LAYOUTS IN OLDER HOSPITALS GENERALLY PROVIDE LONG CORRIDORS ORGANIZED AROUND A CENTRAL NURSING STATION, WHERE MEDICATION AND CHARTS ARE LOCATED. RESEARCH HAS SHOWN THAT NURSES ▪ SPEND MUCH OF THEIR TIME WALKING UP AND DOWN HALLS INCREASING FATIGUE AND STRESS AND SHARPLY CUTTING THE TIME AVAILABLE FOR OBSERVING PATIENTS AND DELIVERING DIRECT CARE. ▪ COMMON CONSOLE FOR CATH LABS , MRI, X-RAY , AND ICT DECREASES THE CIRCULATION PATTERN PROVES EFFICIENT FOR PATIENT AND STAFF.

REDUCTION IN ENERGY CONSUMPTION (COMPARED TO TERI GRIHA BENCHMARK) WHILE MAINTAINING OCCUPANT COMFORT:

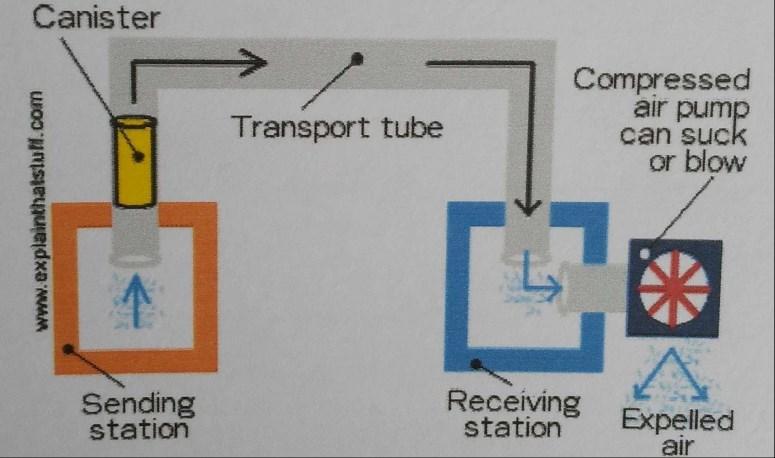

▪ PNEUMATIC TUBES (OR CAPSULE PIPELINES; ALSO KNOWN AS PNEUMATIC TUBES TRANSPORT OR PTT) ARE SYSTEMS THAT PROPEL CYLINDRICAL AIR OR

BY PARTIAL VACUUM. ▪ THEY ARE USED FOR TRANSPORTING SOLID OBJECTS, AS OPPOSED TO CONVENTIONAL PIPELINES, WHICH TRANSPORT FLUIDS.

▪ FOR ACHIEVING VISUAL COMFORT – INGRESS OF DAYLIGHT IN PATIENT AREAS &WAITING AREAS. – LANDSCAPE IN SYNC WITH THE ARCHITECTURAL SPACES TO PROVIDE VISUAL COMFORT. ▪ FOR ACHIEVING THERMAL COMFORT – USE OF AAC BLOCKS, DOUBLE GLAZING & ROOF INSULATION.

SIMPLE CIRCULATION SYSTEM

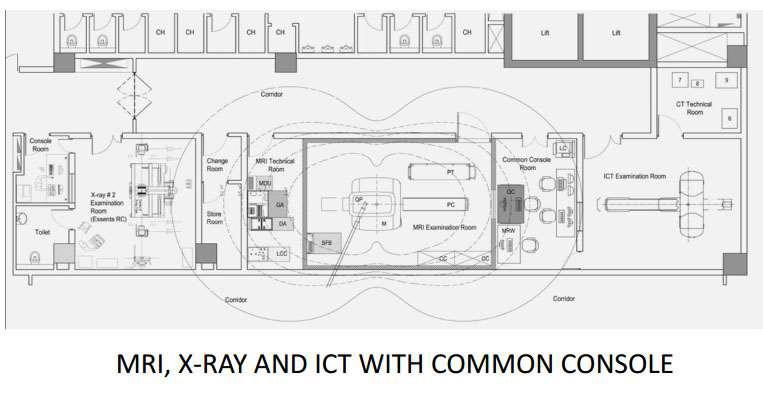

MRI, X-RAY AND ICT WITH COMMON CONSOLE

RENEWABLE ENERGY TECHNOLOGIES INSTALLED ON SITE:

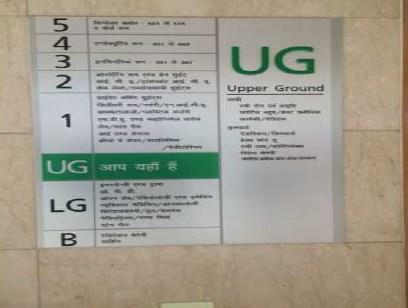

DIRECTION SIGAGE BOARDS EASE PATIENT USE.

▪ SOLAR PHOTOVOLTAIC PANELS FOR 25 KWP ARE INSTALLED AT SITE. ▪ SOLAR WATER HEATERS FOR 8000 LITERS ARE ALSO INSTALLED TO MEET THE SURPLUS HOT WATER REQUIREMENT AFTER HEAT RECOVERY SYSTEM. THIRD AND FOURTH FLOOR ARE USED FOR▪ SINGLE PATIENT ROOM ▪ DOUBLE PATIENT ROOM ▪ TOTAL AREA OF THIRD AND FOURTH FLOOR1944 SQ.M. ▪ TOTAL NO. OF BEDS ON BOTH FLOOR – 140

FIFTH FLOOR

USE OF LOW ENERGY MATERIALS:

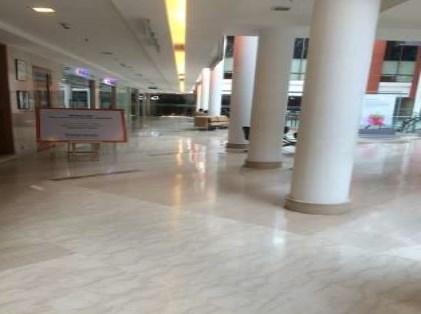

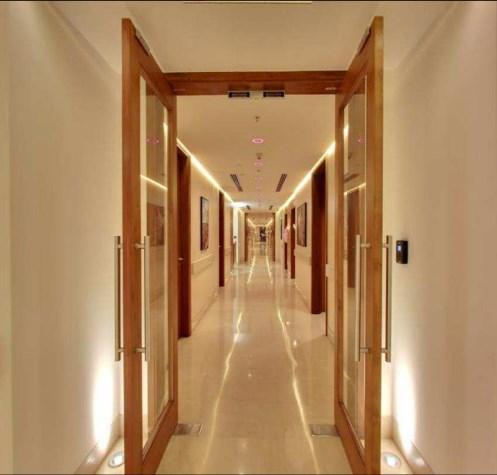

CORRIDORS

▪ AUTOCLAVED AERATED CONCRETE BLOCKS ARE USED FOR THE CONSTRUCTION OF THE HOSPITAL BUILDING. ▪ CEMENT WITH SUFFICIENT PERCENTAGE OF FLY ASH HAD BEEN USED FOR THE CONSTRUCTION. ▪ LOW EMBODIED ENERGY CONSTRUCTION MATERIALS AND FINISHES HAVE BEEN USED IN THE HOSPITAL INTERIORS

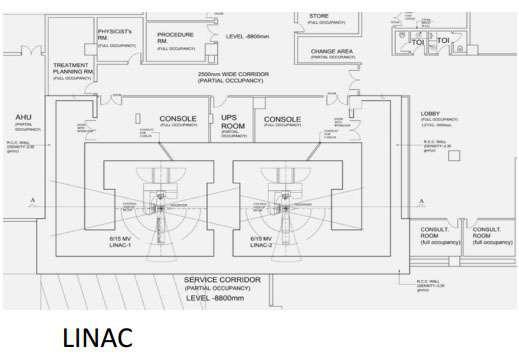

LINAC

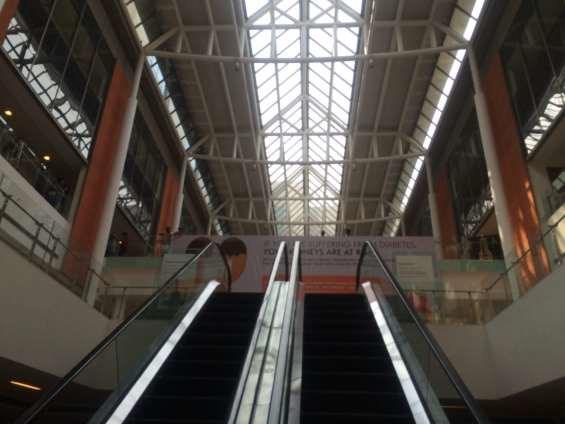

ESCELATORS FOR EASE AND FAST MOVEMENT FOR BOTH VISITORS AND STAFF.

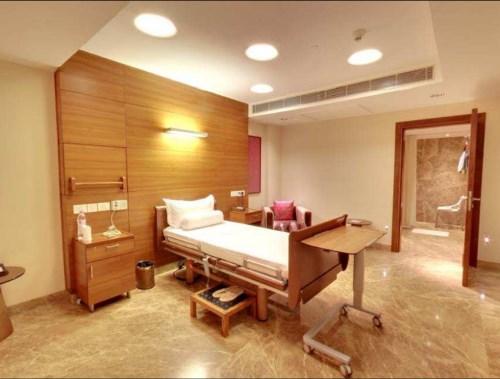

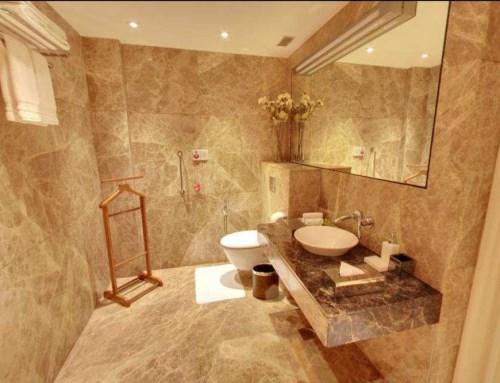

PRESIDENTIAL SUITE

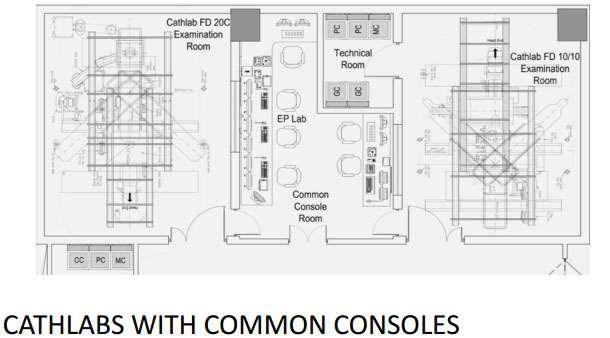

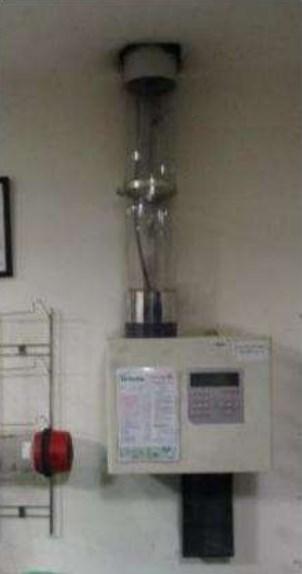

SENDING STATION CATH LABS WITH COMMON CONSOLES

▪ ALL MAJOR AREAS IN THE HOSPITAL WILL HAVE NATURAL LIGHT FOR HEALTHY AND SUSTAINABLE ENVIRONMENT. SKYLIGHT AT THE ROOF TRANSMITTING NATURAL LIGHT INTO THE MOST COMMON & WAITING AREAS. ▪ WHILE ENTERING THE CENTRAL COURTYARD WE SEE A WHITE SCULPTURE TITLED LOVEABLE CURIOUS CHILD A BABY WITH A STETHOSCOPE PLUGGED INTO THE GROUND, CREATES A LANDMARK OF THE HOSPITAL BUILDING. AROUND THIS SCULPTURE MANY PEOPLE TAKE SELFIE AND SIT TOGETHER, SEEMS TO BE AN VITAL PART OF THE HOSPITAL SOCIAL SPACE.

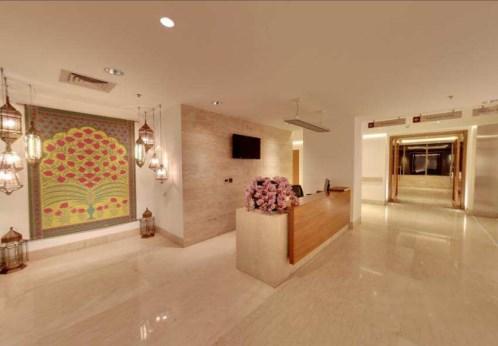

FIFTH FLOOR LOBBY

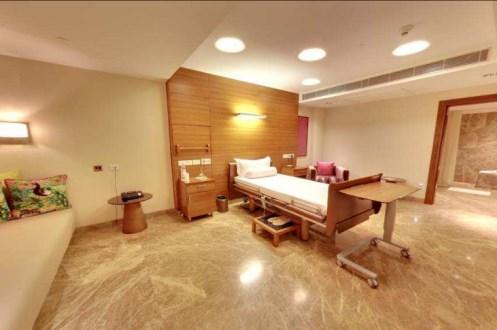

PRESIDENTIAL SUITE

RECEIVING STATION

PNEUMATIC CONTROL SYSTEM

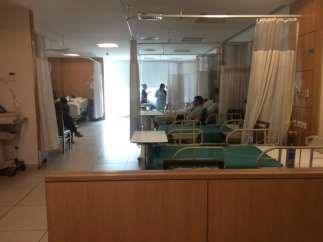

VIEW OF THE NIGHTINGALE WARD. (LESS CORRIDOR SPACE USED IN PLANNING OF WARD MAKE IT EFFICIENT FOR STAFF AND PATIENCE).

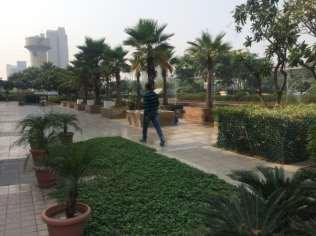

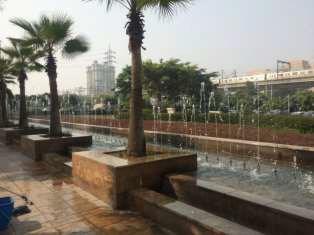

EXTERIOR LANDSCAPING

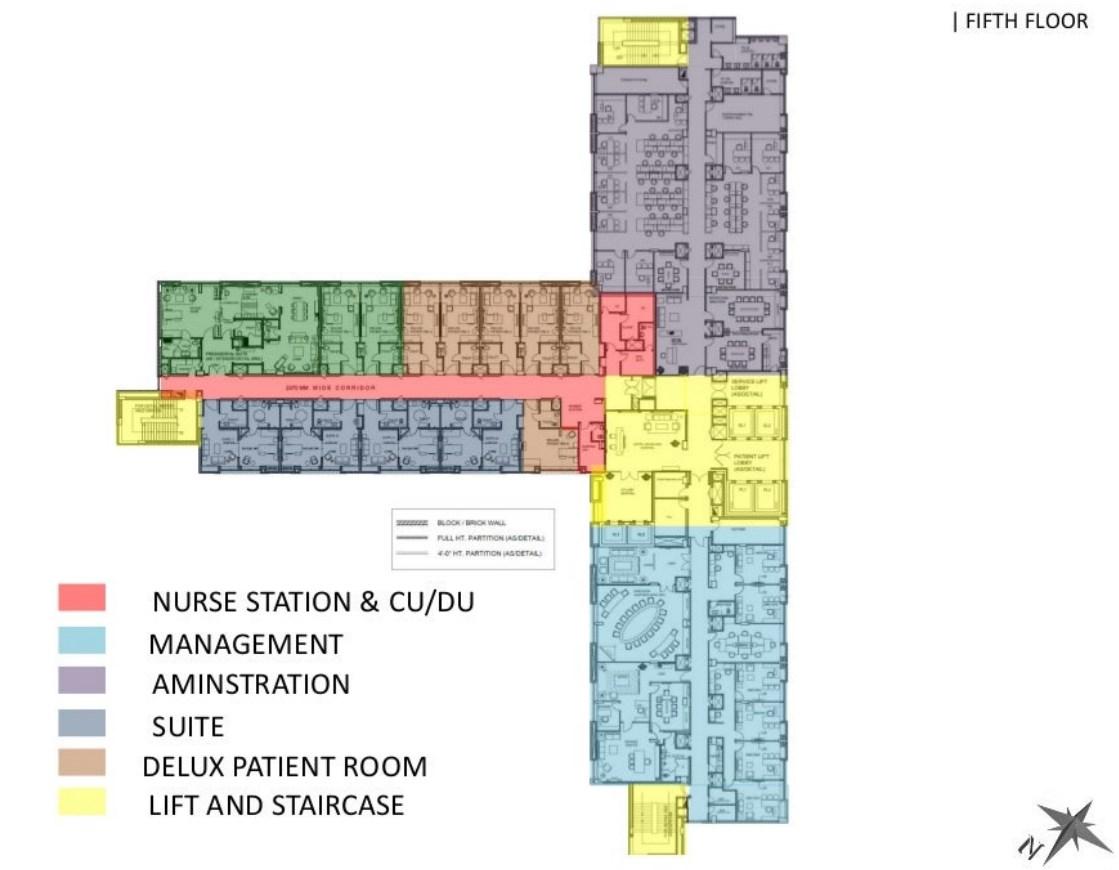

FIFTH FLOOR IS USED FOR PRESIDENTIAL, SUITES, AND DELUXE ROOMS FOR PATIENTS. ▪ Total area of Fifth floor- 1808 SQ.M.

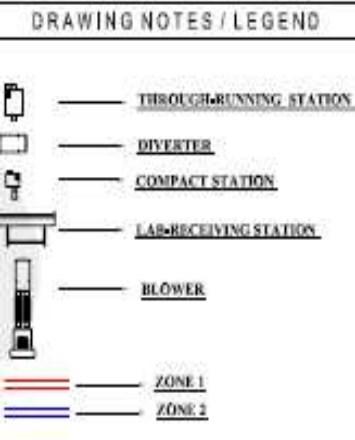

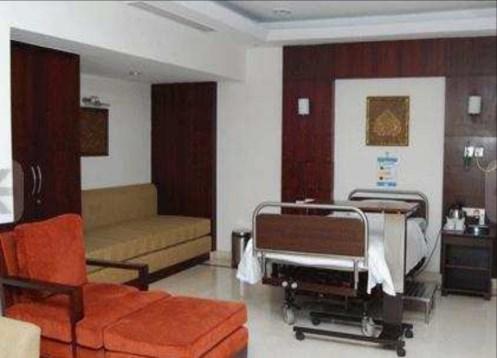

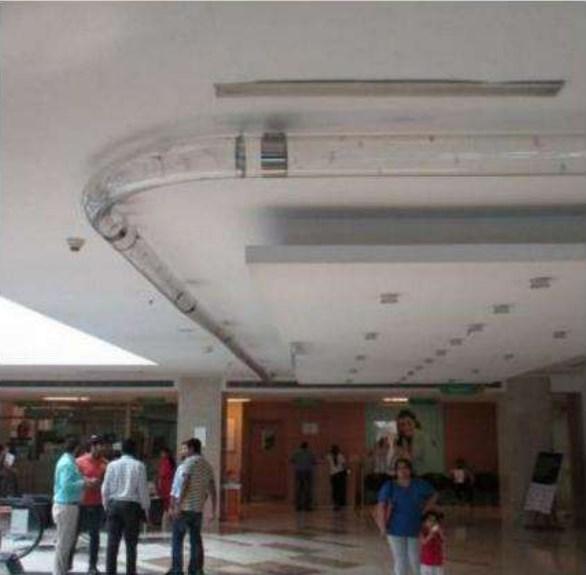

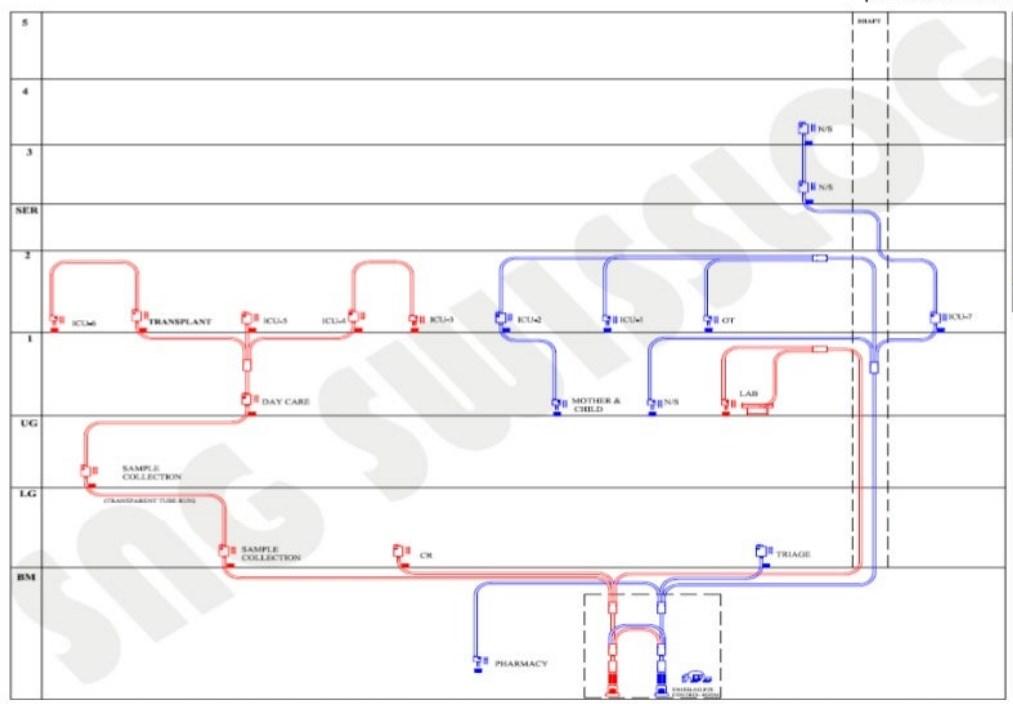

DELUXE WARD PNEUMATIC TUBE SYSTEM IN THE HOSPITAL

▪

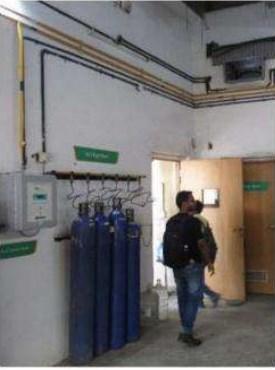

GAS STORAGE AND SUPPLY ROOM OF THE HOSPITAL

MULTISPECIALITY HOSPITAL, JAIPUR

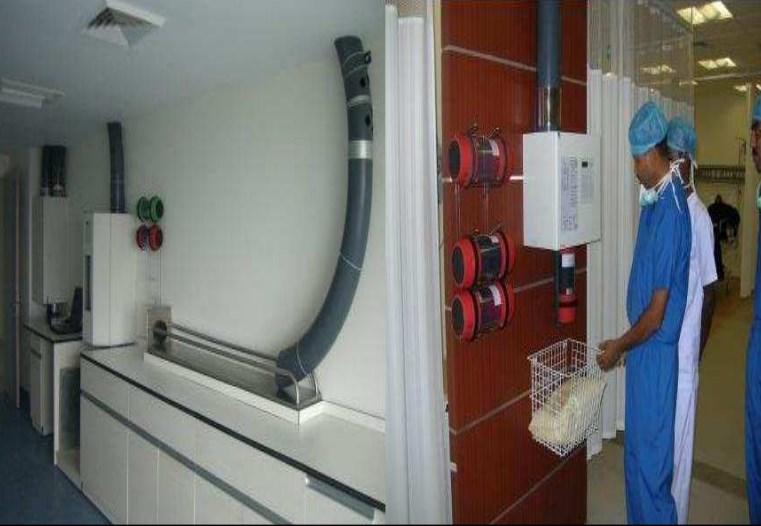

A PNEUMATIC TUBE SYSTEM IS INSTALLED IN THE BUILDING WHICH IS USED FOR EASY AND QUICK TRANSPORTATION OF MEDICINES FROM PHARMACY TO PATIENTS ROOM AND FOR COLLECTING SAMPLES AND SENDING THEM TO TESTING LABS.

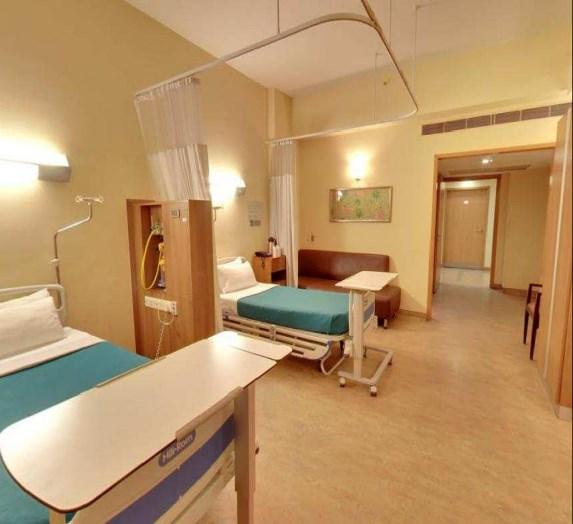

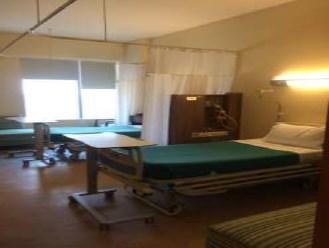

DOUBLE OCCUPANCY ROOM

B.ARCH 2022-2023 ADV. ARCH. DESIGN III

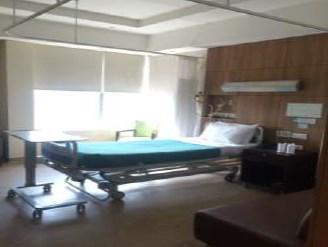

SINGLE OCCUPANCY ROOM

LANDSCAPING AT THE PORCH

SUBMITTED TO: AR. OP. GUPTA, AR. AKSHITA JAIN SUBMITTED BY: JANGID SONU S. SEMESTER 9TH NSAP
