BA Group Australia - TeeJet Parts List September 2024

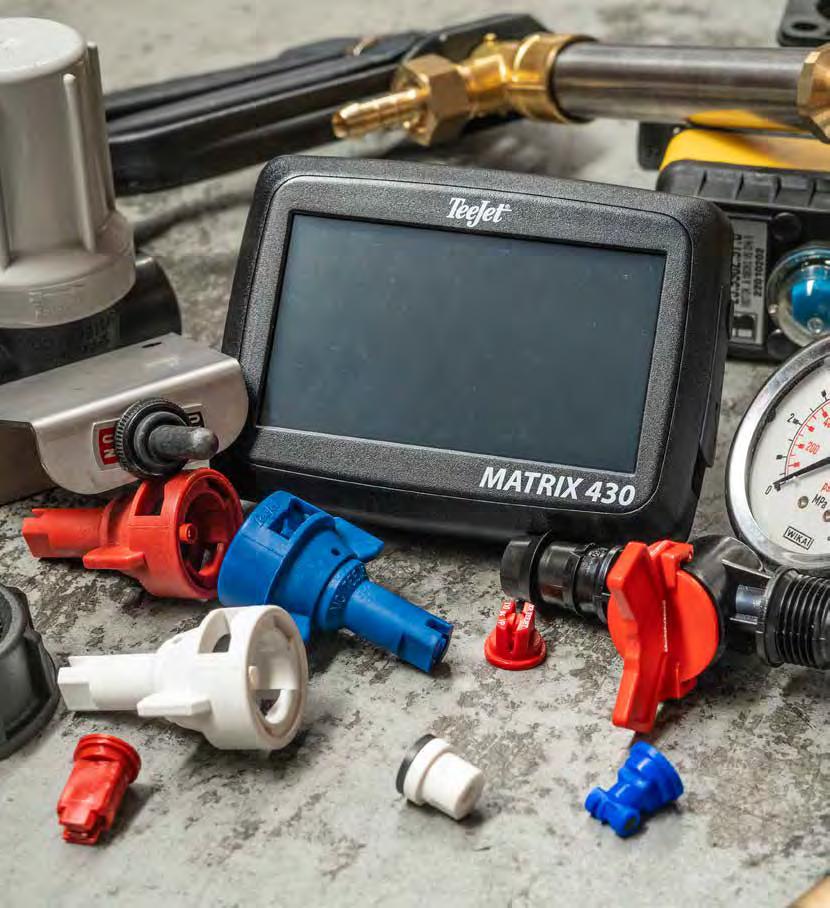

TEEJET MATRIX 430
Are you wasting chemical and fertiliser with your old foam marker? Upgrade now to a matrix pro GPS and stay on track!
STANDARD FEATURES:
Easy to install
Spray or spread
Simple job mode
Proof of placement
High resolution touch screen
Glonass receiver for improved performance
Matrix 430 Console, ram mount, wiring loom and antenna 45-05970
Status detect cable (Speed and coverage switch harness)
GPS Patch Antenna with Cable
RXA 30 GPS Antenna with 20ft Cable
1" RAM Mount Ball to suit Matrix 430
FOAM MARKER
Double sided foam marker will help you avoid costly overspray and resprays of missed areas.
Foam marker is supplied in a convenient kit consisting of compressor, concentrate tank, mounting brackets, switch box, wiring loom and hose kit to suit up to 18 metre booms.
Double Sided Foam Marker
TEEJET RXA30 GPS ANTENNA
GPS PATCH ANTENNA
MATRIX 430 GPS
TEEJET 845E CORE KITS & ACCESSORIES
The 845E Sprayer Control is designed with simplicity in mind. Set your target application rate and the VisFlo display on the 845 helps select the right TeeJet tip for the application. Once spraying, the large display shows application rate, volume sprayed, system pressure, sprayer speed and area covered.
845E CONTROL KIT WITH TEEJET 430 VALVE MANIFOLD
BA’s 845E Spray Controller Kits come completely assembled and ready to retrofit your sprayer. Kits available in 3 and 5 valve manifolds including bypass regulating valve, 801A TeeJet flowmeter, pressure relief valve, 8 metre wiring harness.
Note: Kits fitted standard with 1” BSP female inlet, 1/2” hose barbs outlets and two 1” hose barb return lines, unless otherwise specified.
GOYEN 12 & 24 VOLT SOLENOIDS
GOYEN 12 & 24 Volt solenoids are an economic reliable 12-Volt solenoid. Ideal for fence line nozzles and small booms. Multiple sizes and configurations available.
*NOTE: A single plug is required with all 3-way valve banks + LARGE QUICK CONNECT (LQC) FITTING FOR INLET & GAUGE PORT C/W STAINLESS U-CLIP & O’RING PORT:
LQC X HOSE BARB FITTINGS:
58456-1000 E $47.37 LQC x 1”HB Straight Kit
58456-1250 E $47.37 LQC x 1-1/4”HB Straight Kit
58456-1500 E $47.37 LQC x 1-1/2”HB Straight Kit
LQC X 90 DEGREE ELBOW HOSE BARB FITTINGS:
58456-90-1000 E $47.37 LQC x 1”HB 90 Degree Kit
LQC X BSP FEMALE THREAD:
B58456-3/4 E $47.37 LQC x ¾”F BSP
B58456-1
$47.37 LQC x 1”F BSP
B58456-1-1/4 E $47.37 LQC x 1-1/4”F BSP
B58456-1-1/2 E $47.37 LQC x 1-1/2”F BSP
B58456-1/4” E $47.37 LQC x ¼”F BSP -GAUGE PORT*
*NOTE: Gauge Port is Recommended for the end of the valve manifold
LQC X CAP/PLUG: 58456-C
x CAP + ELECTRICAL PLUGS & MOTORS: ECS0033
$47.37
QUICK CONNECT (QC) FITTINGS:
LARGE QUICK CONNECT (LQC) FITTINGS:
CP98498-SS 430 Stainless Steel Accessories mounting bracket, order as required. EC MOTOR VALVE WIRING:
AB98499-KIT
430 kit, includes O’ring, Nuts, 4 x Bolts & 4 x Washers. Order as required.
Plug only, 430 Valves 58480EC-05
58445
Plug with 50cm lead
$12.08
$43.82
MINI DIN PLUG FOR 430 VALVES:
122 SERIES LINE STRAINER: DESCRIPTION
122 Filter Screen, Brown/Red CP23174-1-304SS
122 Filter Screen, Red CP23174-2-304SS
122 Filter Screen, Blue CP45102-3-SSPP
122 Filter Screen, Yellow CP45102-4-SSPP
122 Filter Screen, Green CP45102-5-SSPP
*Please specify mesh size when ordering
126 SERIES FLUSH-OUT STRAINER, 3/4 & 1:
126ML Poly c/w flushing cap
*Please specify mesh size when ordering
126
SERIES FLUSH-OUT LINE STRAINER, 1-1/4 & 1-1/2:
*Please specify mesh size when ordering
CP16903-*-SSPP
*See above for screens
CP15941-*-SSPP
*See page 55 for screens
* Please specify required mesh size

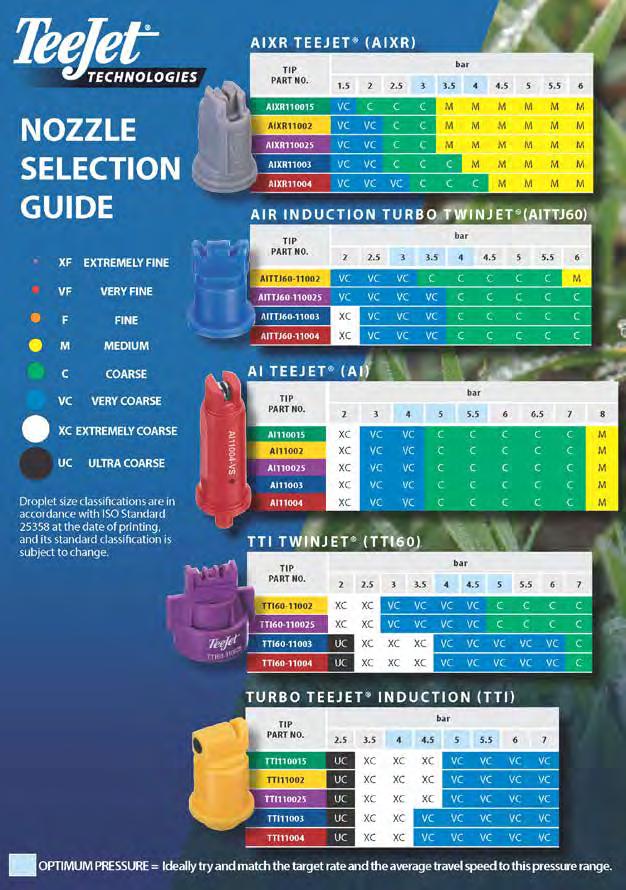

TEEJET DROP SIZE CLASSIFICATION
TEEJET NOZZLE SELECTION
Spray nozzles can have a big impact on crop yield, plant health, efficiency of pest control and of course, profitability.
Nozzles are precision-engineered for specific applications so it is essential to use the ones best suited for your operations.

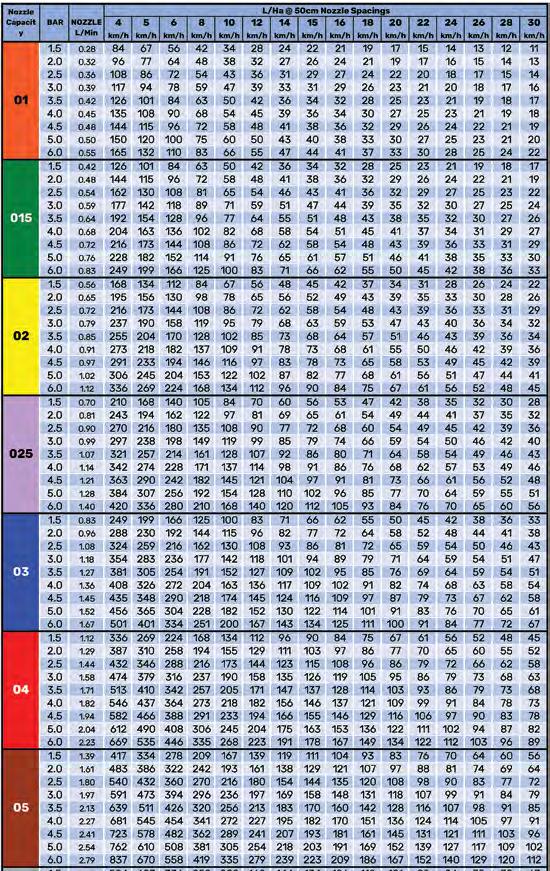

CALIBRATION FORMULA & CONVERSIONS
FLOW RATE:
L/HA x KM/H x W (m) 600 = L/MIN
APPLICATION RATE:
L/MIN x 600 KM/H x W (m) = L/HA
Distance (m) x 3.6
Time (sec) = Travel Speed (KM/H)
TRAVEL SPEED: PRESSURE: 100 KPA = 1 BAR = 14.5 PSI AREA: 10,000m2 = 1 HA 1 HA = 2.47 AC 1 AC = 0.40 HA
CONVERSION:

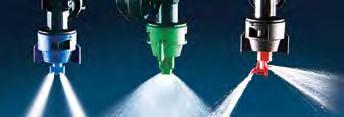

TEEJET SPRAY TIPS & NOZZLES
AIR INDUCTION FLAT FAN NOZZLES:
AIXR TEEJET
Air Induction XR Flat Spray Tips (Tapered Flat Spray)
VisiFlo Colour Coded
AI TEEJET
Air Induction Spray Tips (Tapered Flat Fan Spray)
VisiFlo Colour Coded
AIC TEEJET
Air Induction Spray Tips (Tapered Flat Fan Spray)
VisiFlo Colour Coded
015-06 UHMWPE-Polymer AIXR110*VP
015-08Stainless Steel/Polymer AI1100*-VS
015-15Polymer Ceramic/Polymer
AIR INDUCTED NOZZLES RECOMMENDED FOR 2,4-D APPLICATIONS:
TTI TWINJET
Air Induction Twin Flat Spray Tips (Tapered Flat Fan Spray)
VisiFlo Colour Coded
TURBO TEEJET INDUCTION
Air Induction Spray Tips (Tapered Flat Fan Spray)
VisiFlo Colour Coded
ACCUPULSE TWINJET
Specifically for use with PWM sprayer controls, offering maximum drift control
AIC110*-VP AIC110025-VK
02-08Polymer TTI60-110*VP
015-06 08-10 Polymer
015-06 08-12 Polymer
DRIFT REDUCTION FLAT FAN NOZZLES:
DG TEEJET
Drift Guard Spray Tips (Tapered Flat Fan)
VisiFlo Colour Coded
TURBO TEEJET
Spray Tips (Tapered Flat Fan Spray)
VisiFlo Colour Coded
TTI110*-VP LARGE SIZES
APTJ-110*VP
015-05 Stainless Steel/Polymer DG80*VS DG110*VP
$36.66
$28.80 $33.71
$28.80
01-08Polymer TT110*-VP
STANDARD FLAT FAN NOZZLES: 01-08
XR TEEJET
Extended Range Tips (Tapered Flat Fan Spray)
VisiFlo Colour Coded
XRC TEEJET
Extended Range Spray Tips (Tapered Flat Fan Spray)
Push to Connect QJ Body & Cap, 1/4” , 2 PSI check valve
$24.88
$16.03
$49.19
CP8027
TEEJET BOOM COMPONENTS
TEEJET HOSE SHANK BODY ASSEMBLIES:
6471B-400TD
TeeJet Nozzle Body Assembly, Brass
TeeJet Nozzle Body Assembly, Brass 6472B-400TD
TeeJet Nozzle Body Assembly, Nylon 8120-NYB-540TD, -406TD
TeeJet Nozzle Body Assembly, Nylon 8121-NYB-540TD, -406TD
TeeJet Nozzle Body Assembly, Brass 9191B-531TD
TeeJet Nozzle Body Assembly, Brass 9192B-531TD
25755-1/2T-NYB, -3/4T-NYB, -1T-NYB
TEEJET SPLIT-EYELET BODY ASSEMBLIES: with Nylon Clamp and Body
with Brass Body 7421-1/2T, -3/4T, -1T
with Nylon Body 7421-1/2T-NYB, -3/4T-NYB
with Nylon Body 7421-1T-NYB
with Brass Body 7421-1/2TD, -3/4TD, -1TD
VARI-SPACING TEEJET CLAMP ASSEMBLIES:
OUR LOCATIONS

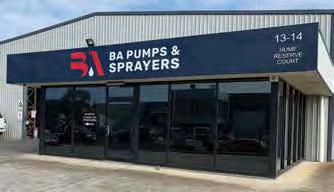

HEAD OFFICE
