• 4 Chain curtain front protection and 2 chain curtain rear protection

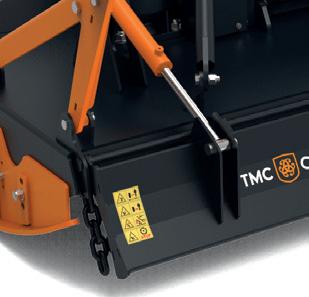

• Hydraulic hood to improve material flow / mulch
Working width / Total width
Required input power
Maximum power
Gearbox input speed
Rotor diameter
No. of hammers (& type)
Linkage category
PTO shaft Bondioli SH Type
Weight
1,531 kg

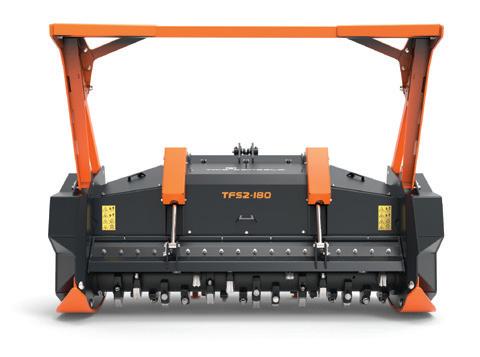

17355 TFS2-180 forestry mulcher. £24,650
Delivery is extra, please ask for details.
Working width : 2.25m x5+ x5

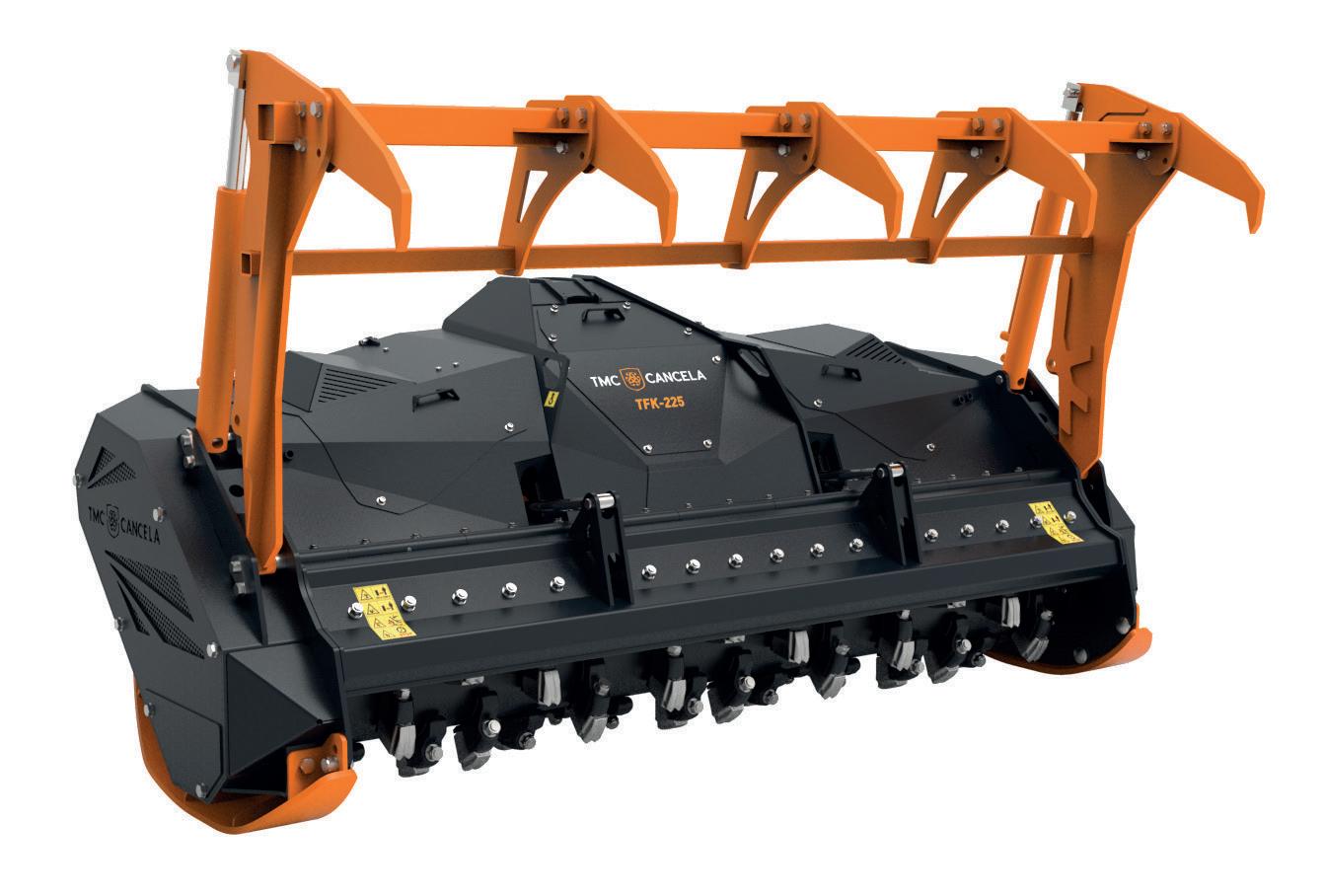

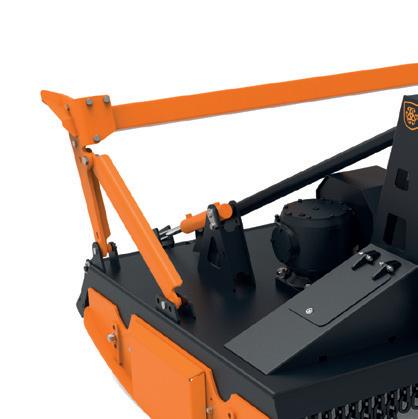

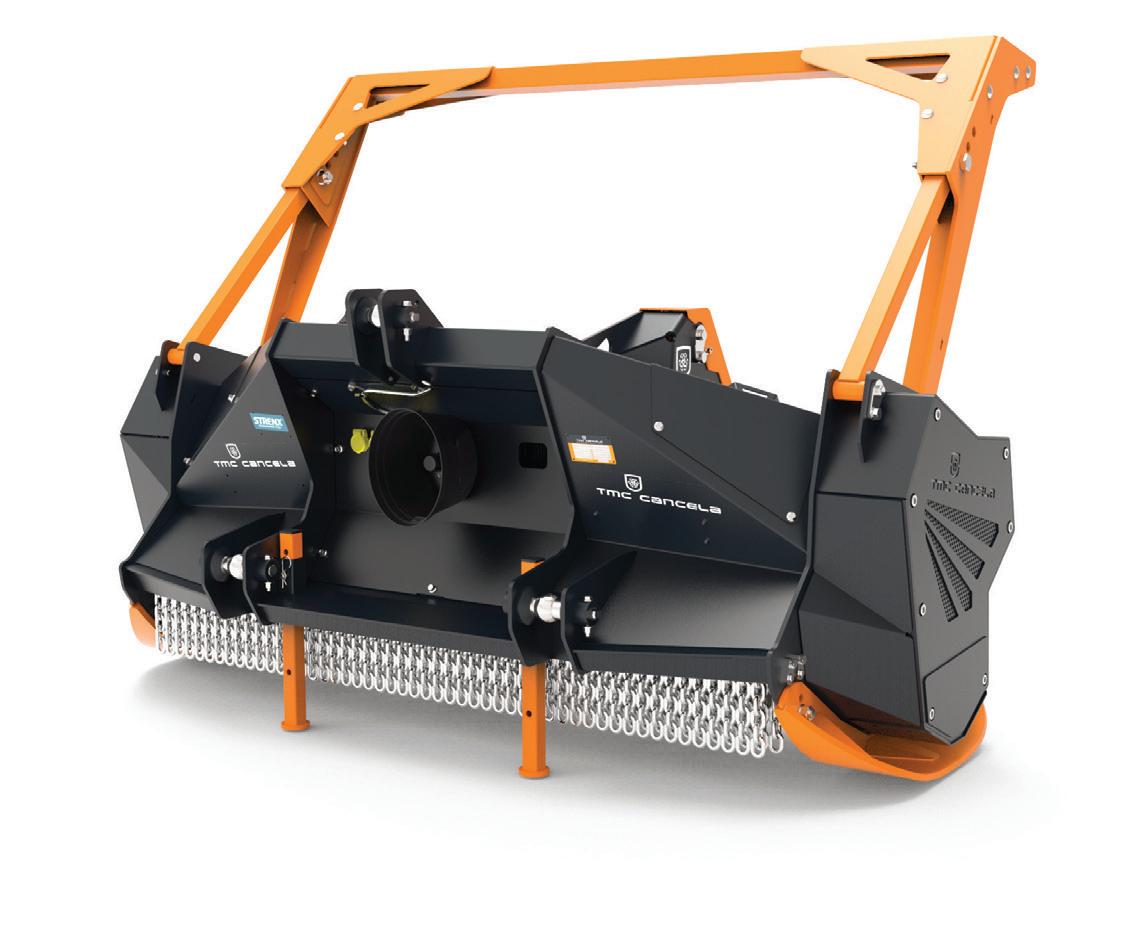

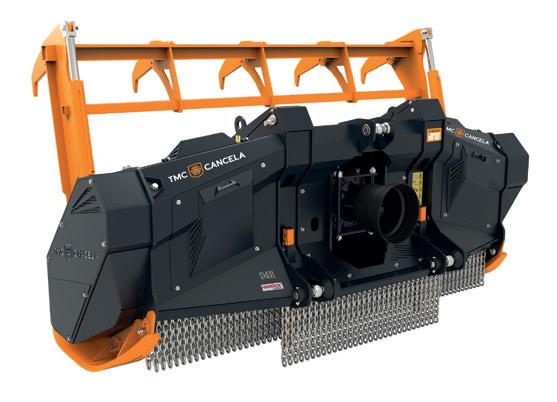

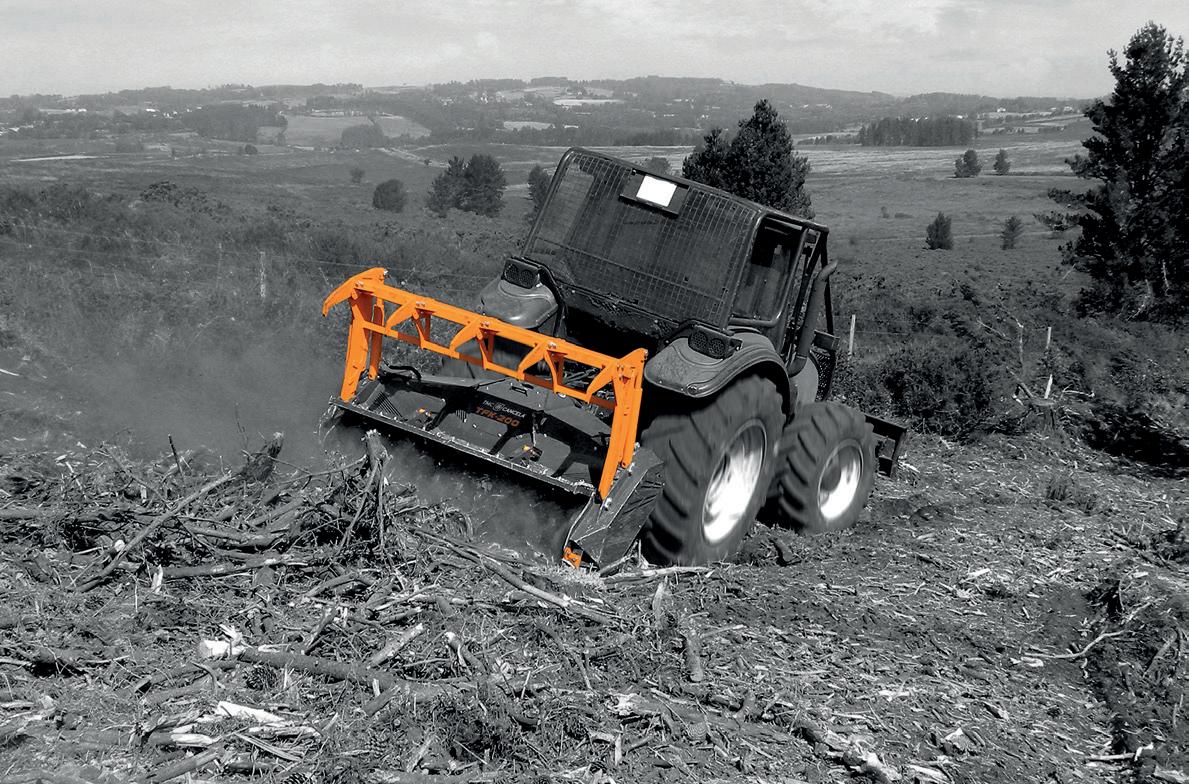

TMC CANCELA TFK-225 FORESTRY MULCHER
c/w HYDRAULIC PUSH FRAME
• Multi-purpose mulching teeth with carbide tip
• 4 Chain curtain for front protection, plus 2 chain curtain extra centre protection
• Hydraulic hood to improve material flow and mulch
Working width / Total width . . 2.25m / 2.71m
Required input power 145cv
Maximum power
180cv
Gearbox input speed 1,000 rpm
Rotor diameter
455mm
No. of hammers (& type) 54+2 (F19+F20)
Linkage category
Cat.2
PTO shaft Bondioli SH Type
Weight
1,625 kg
17362 TFK-225 forestry mulcher. £35,050
Delivery is extra, please ask for details.
Rotor dia 455mm see MULCHER IN ACTION…
Material up to 325mm
Working width : 2.25m
x6+ x6

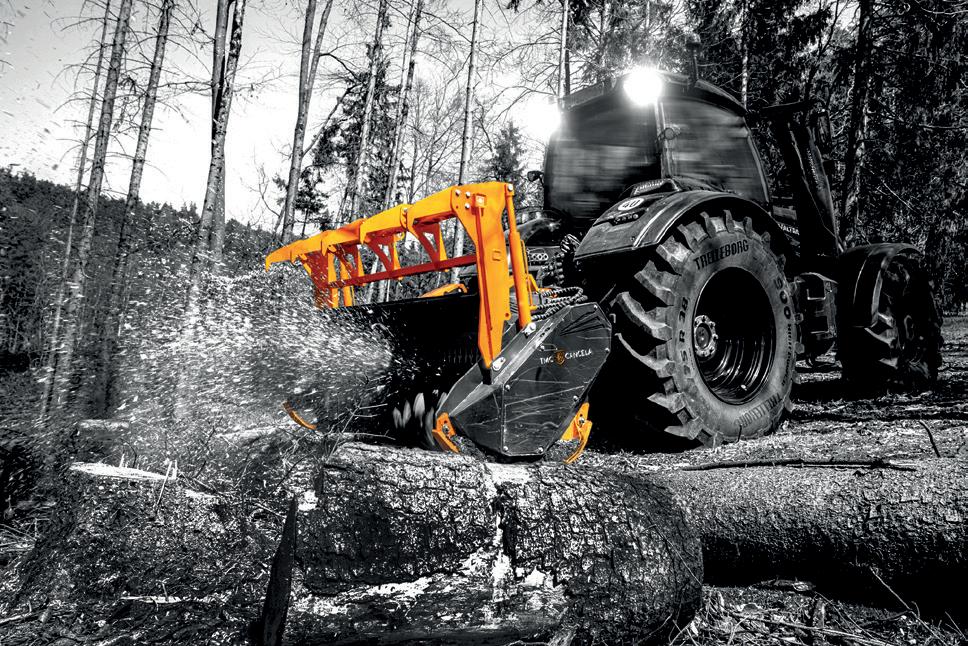

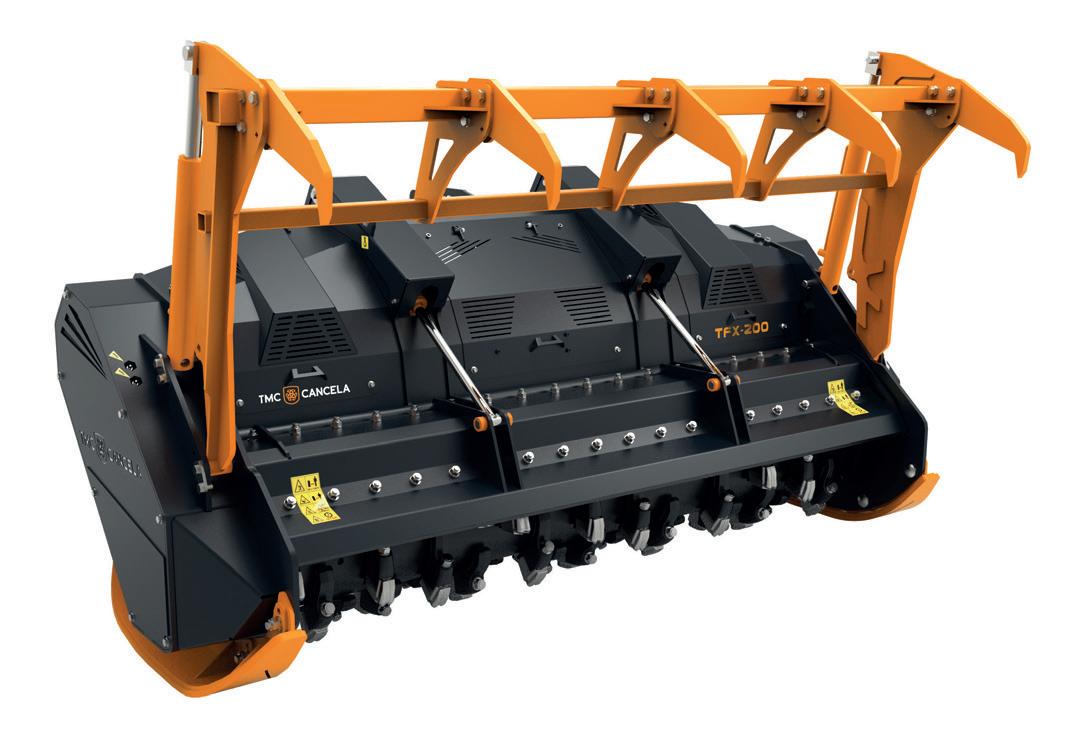

TMC CANCELA TFX-225 FORESTRY MULCHER
c/w HYDRAULIC PUSH FRAME
• Multi-purpose mulching teeth with carbide tip
• 4 Chain curtain for front protection, plus 2 chain curtain extra centre protection
• Hydraulic hood to improve material flow and mulch
Working width / Total width . . 2.25m / 2.74m
Required input power 160cv
Maximum power
250cv
Gearbox input speed 1,000 rpm
Rotor diameter
508mm
No. of hammers (& type) 54+2 (F19 + F20)
Linkage category
Cat.3, fast coupling
PTO shaft Bondioli SH Type
17364 TFX-225 forestry mulcher. £40,680
Delivery is extra, please ask for details.
Rotor dia 508mm
Material up to 375mm
MULCHERS
scan BELOW
17362
TFK-225 forestry mulcher
c/w hydraulic push frame .

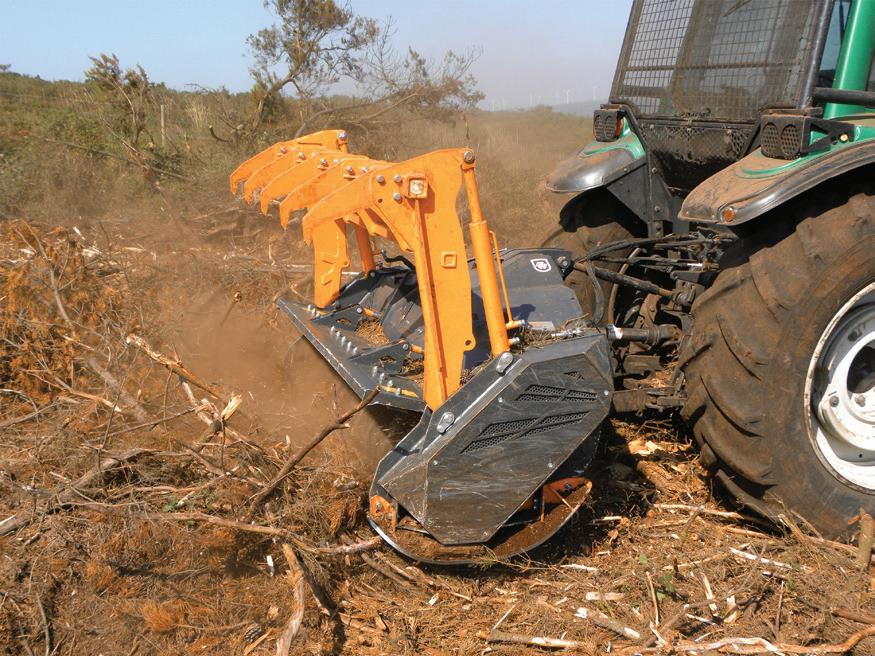

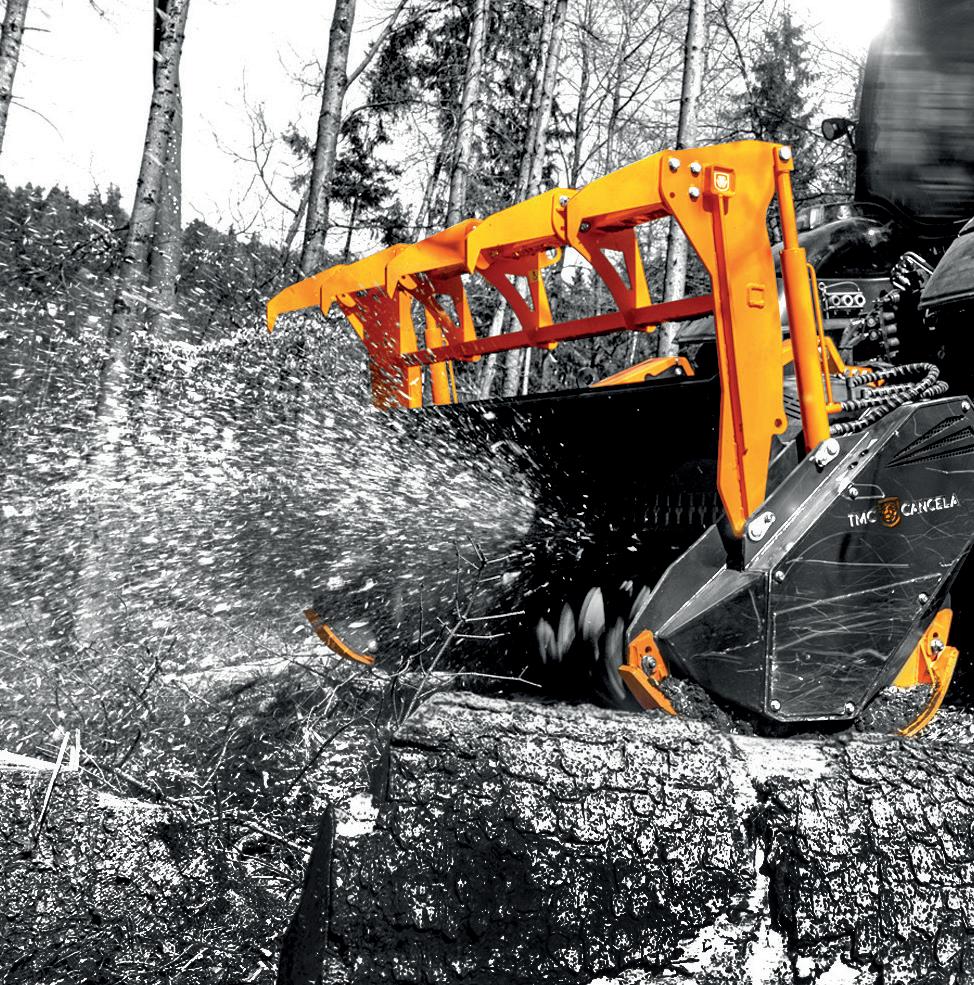

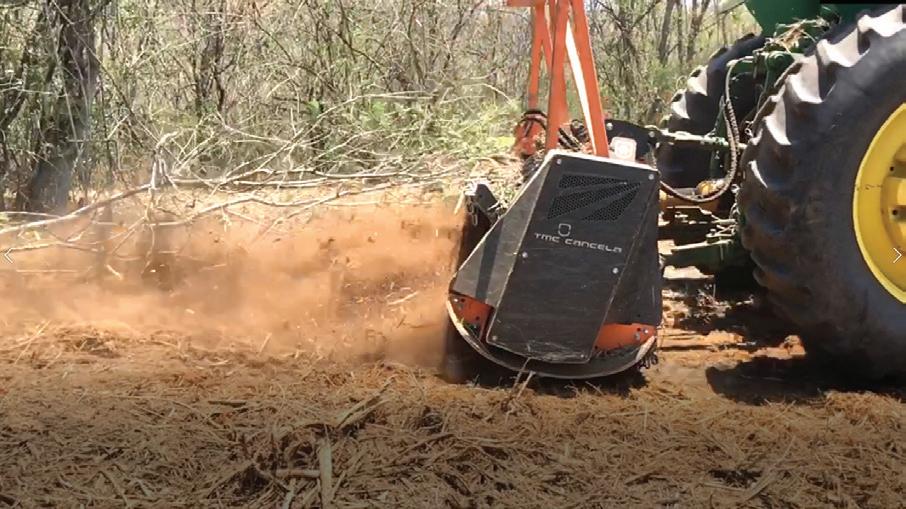

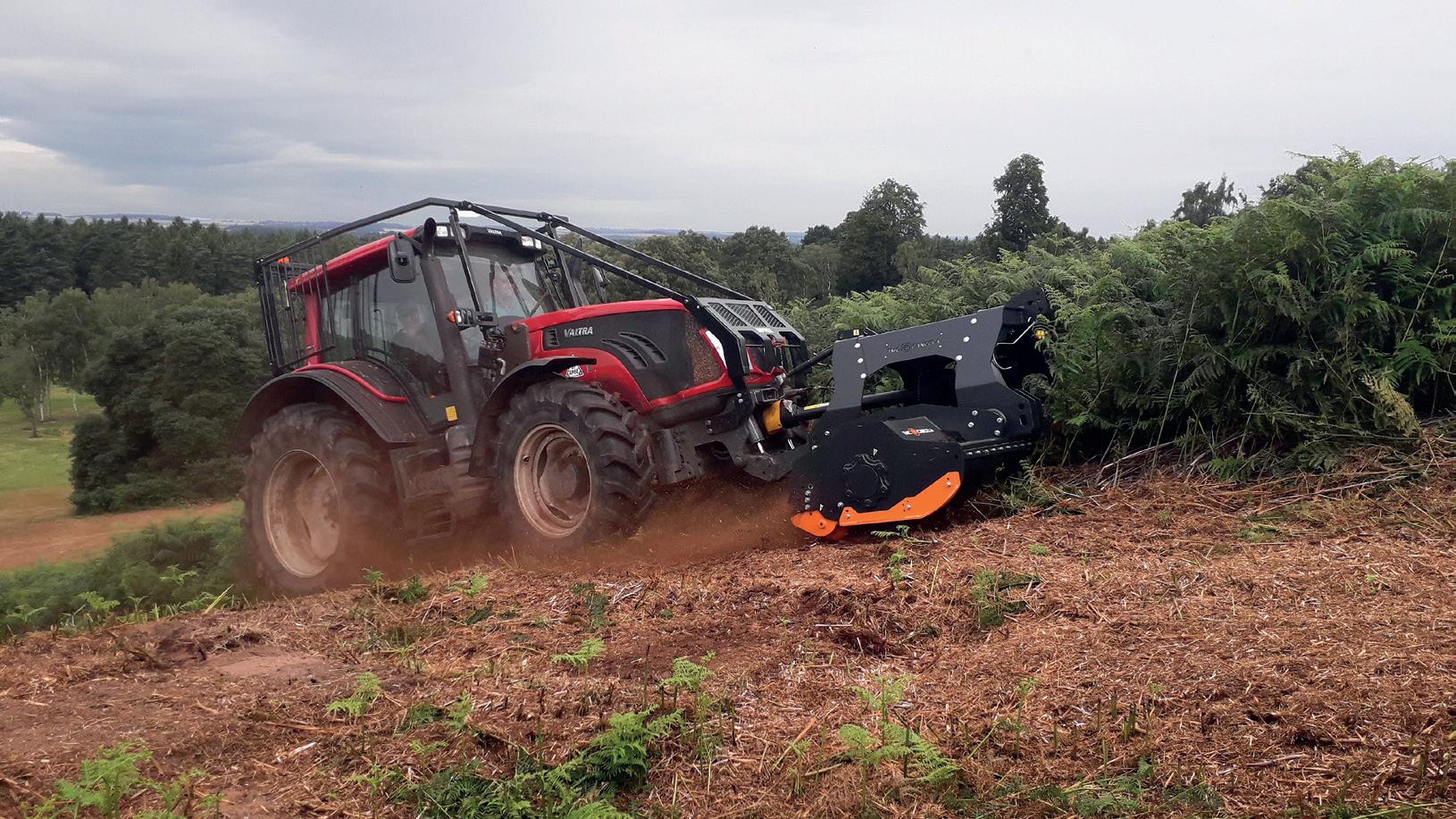

MULCHERS
IN ACTION
scan BELOW

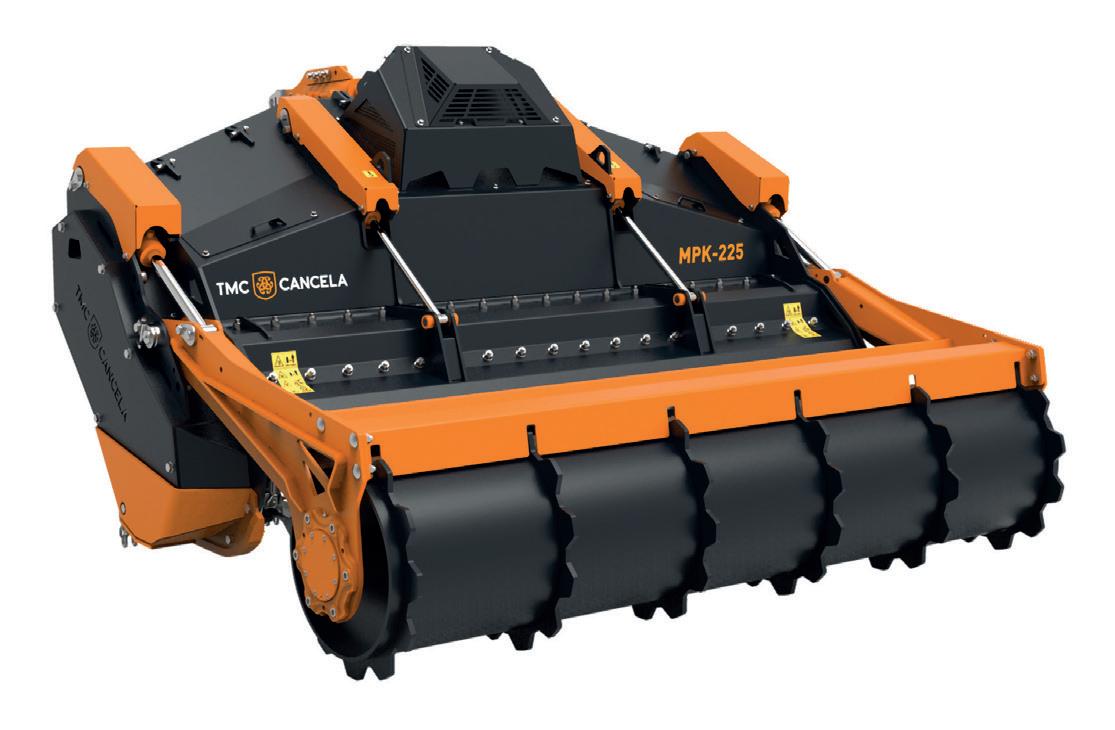

17370
MPK-225 forestry mulcher tiller
c/w large dia rear roller .
Working
Hydraulic top-link system provides permanent alignment to gearbox and PTO

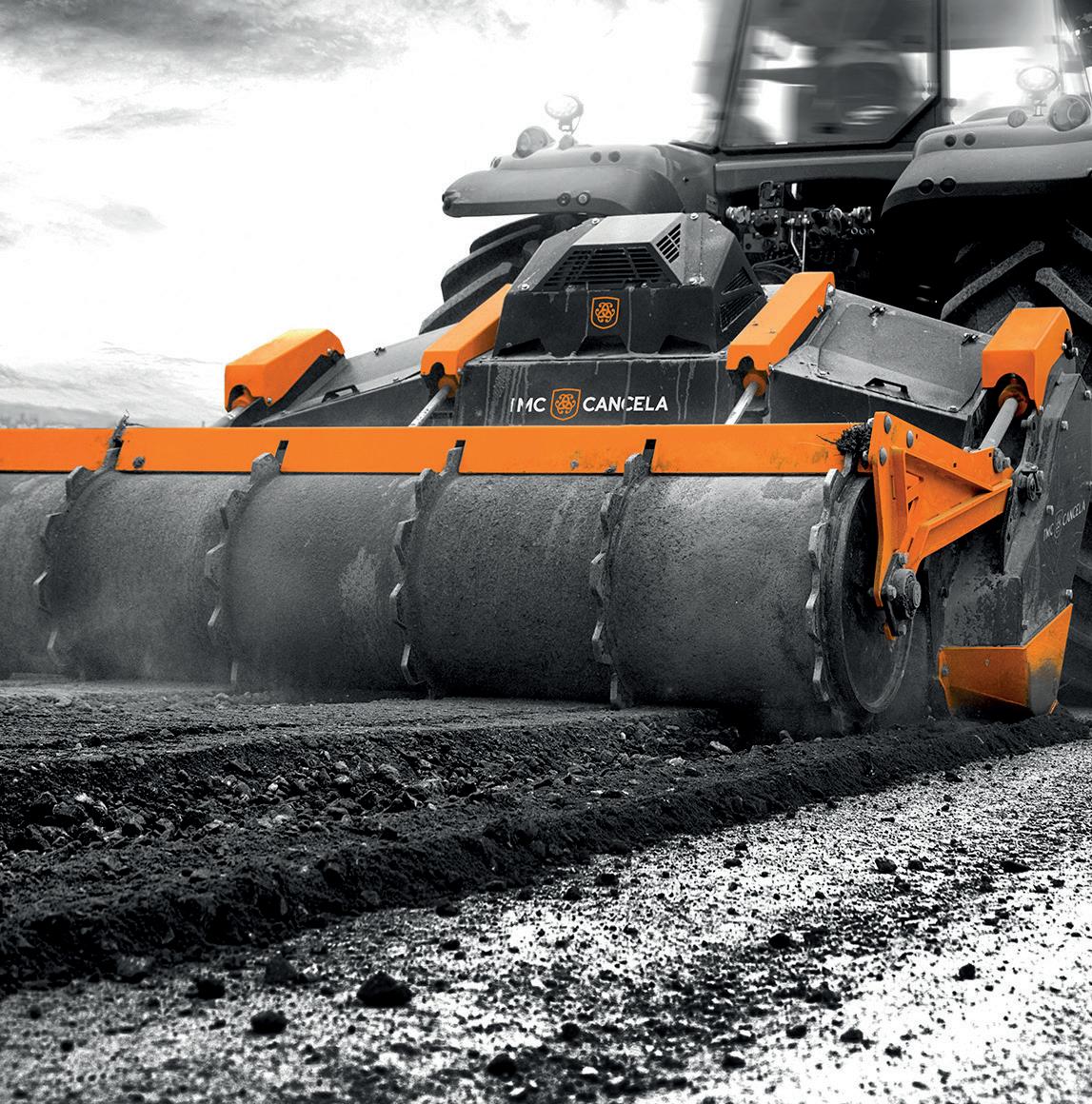

MULCHER TILLER

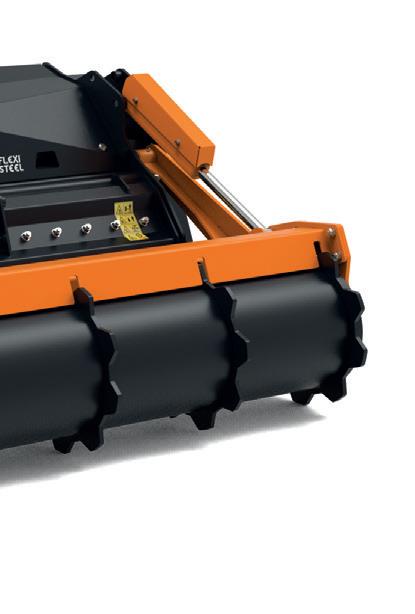

Large diameter rear roller for depth control & consolidation
MPS RANGE

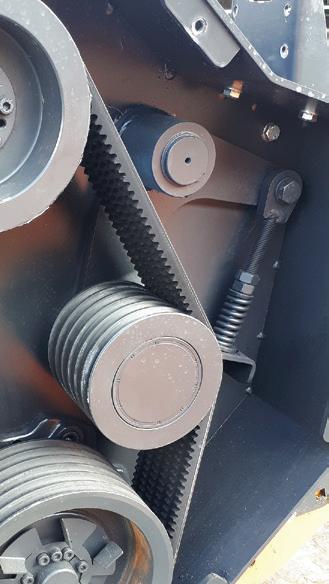

x6+ x6 XPB BELTS

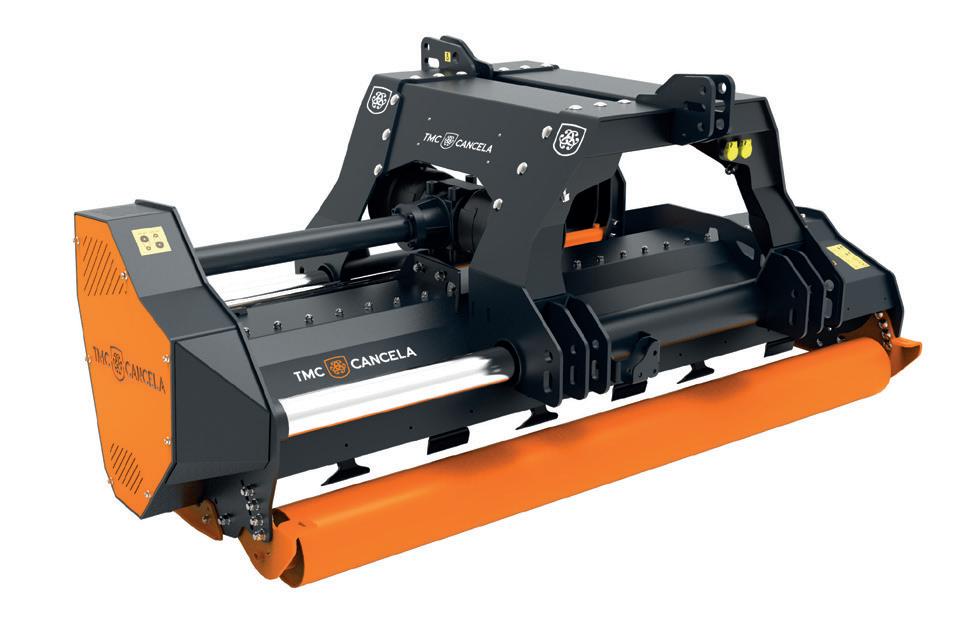

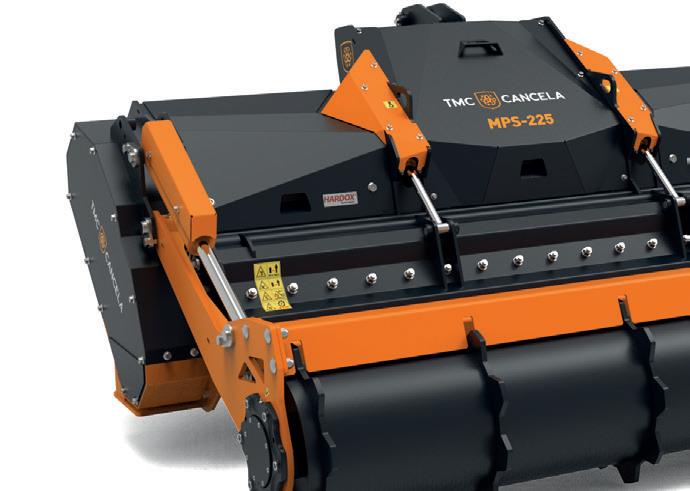

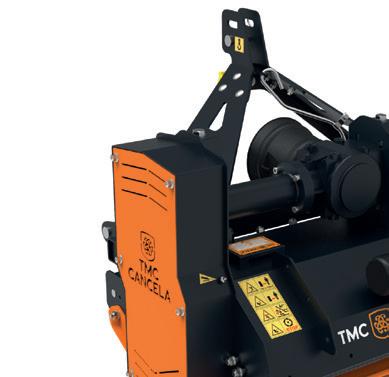

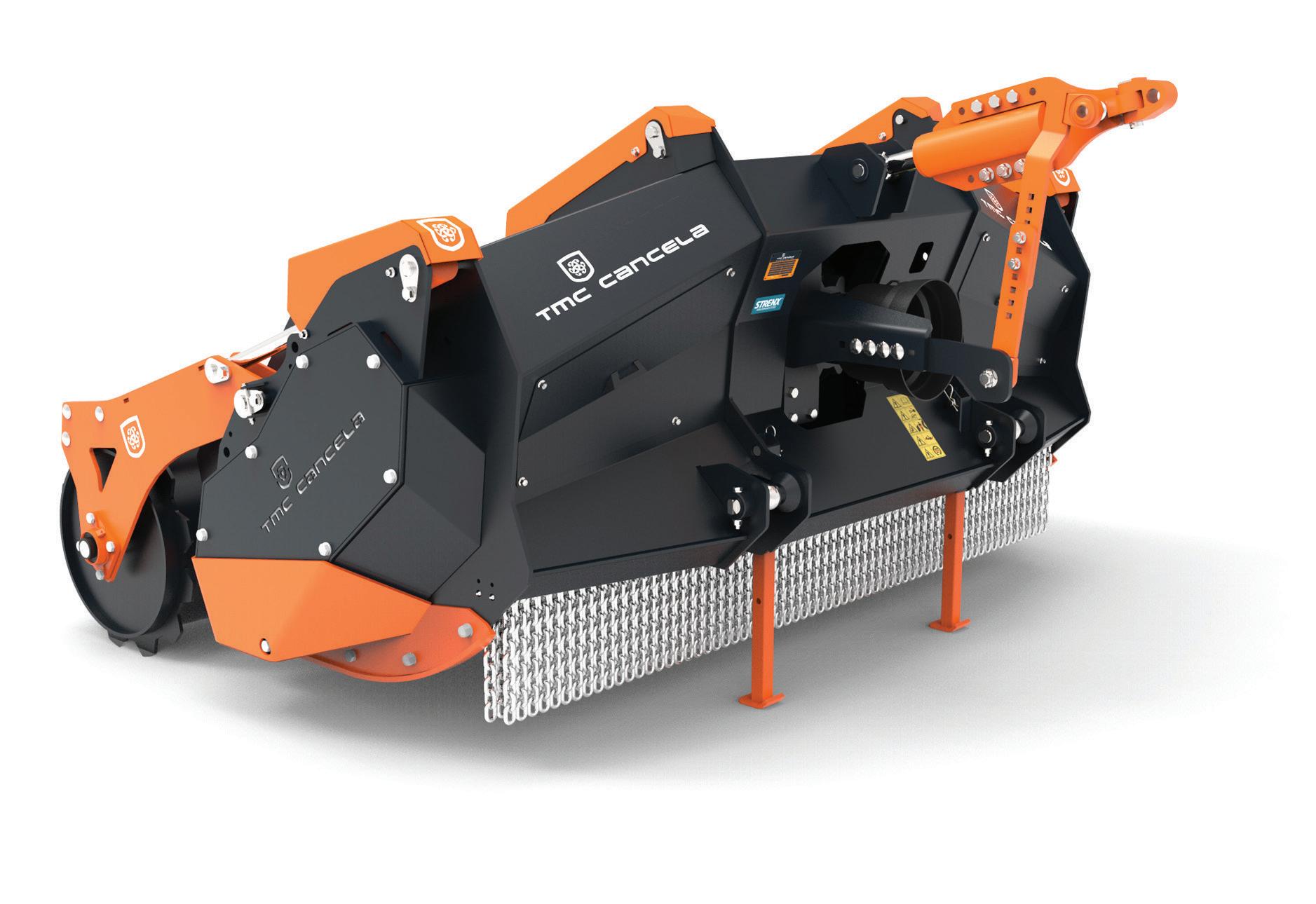

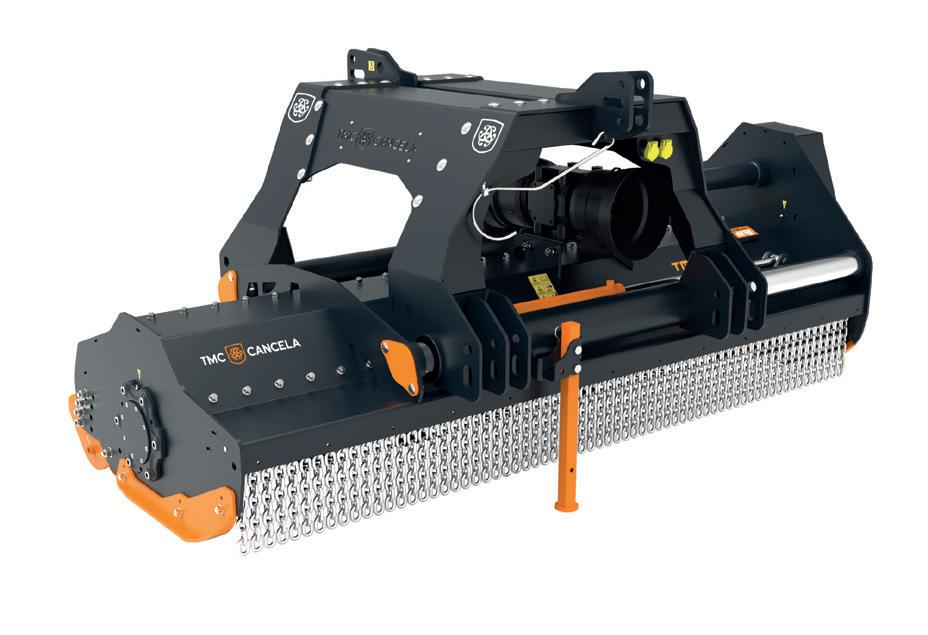

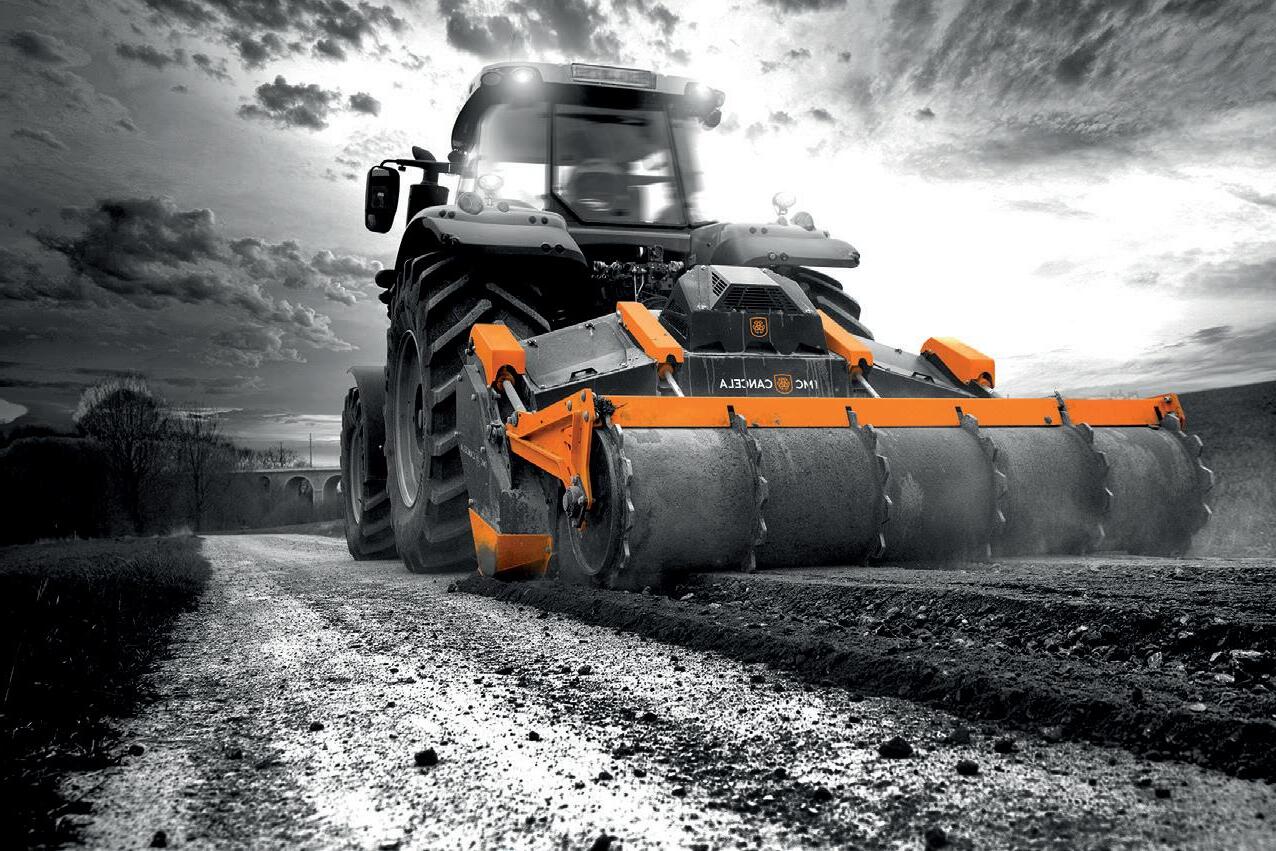

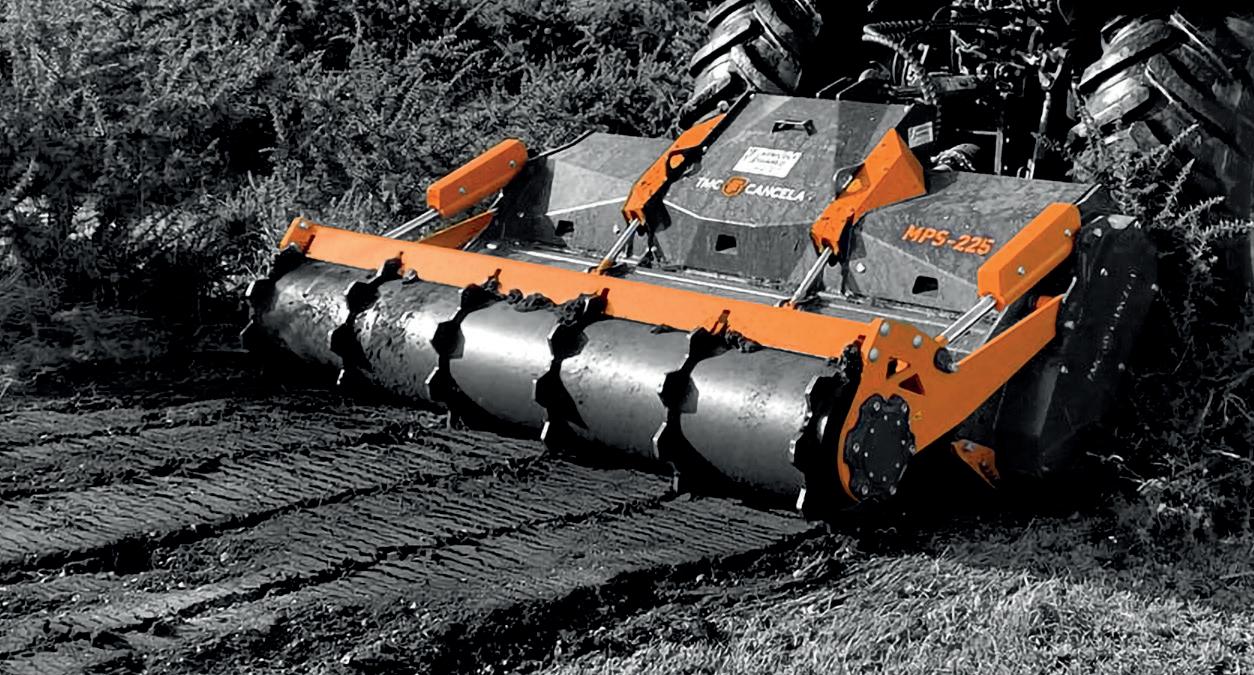

TMC CANCELA MPS
FORESTRY MULCHER TILLER
c/w REAR ROLLER
• Body frame made of high-strength steel
• Protection by two chain curtains to front
• Hydraulic hood with ‘Superfinish’ system
• Reinforced gearbox, input to 540 (for tilling), 1,000 rpm (for mulching) and 1 ¾” Z6
Required input power 120 – 180 hp max.
Working widths . .
1.80m – 2.50m
Hammers with 2 carbide tips F19 + 2x F20
Maximum working depth .
. 150mm
Maximum material cutting dia . 350mm
4 Models
Working widths : 1.8 to 2.5m
Rotor dia . 475mm
Material up to 350mm
Depth up to 150mm
The MPS mulcher is the ultimate tool for the creation of farmable agricultural land or regeneration of forestry land at the lowest cost . Capable of milling stumps, stones and roots as well as surface debris .
Hammer options available F25 + F20 / F45+F20 / F23
Four models available to order: MPS-180, MPS-200, MPS-225, MPS-250
£POA – Please ask for details.

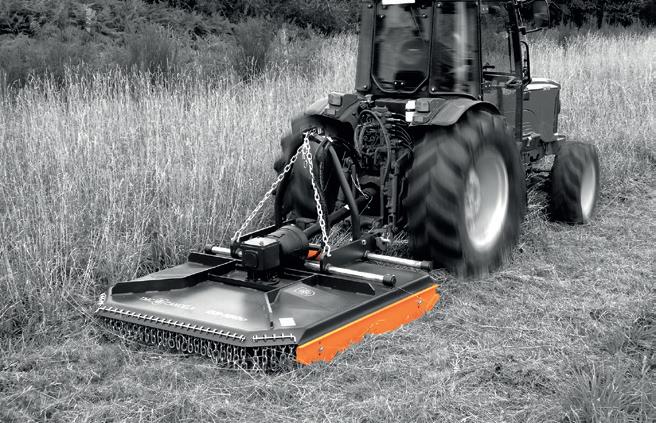

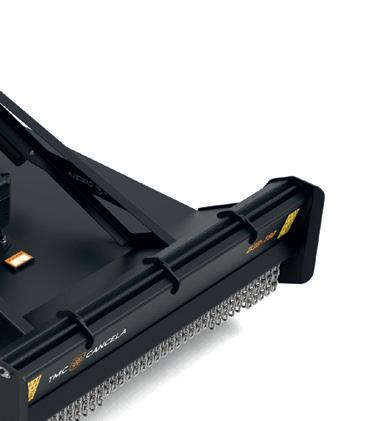

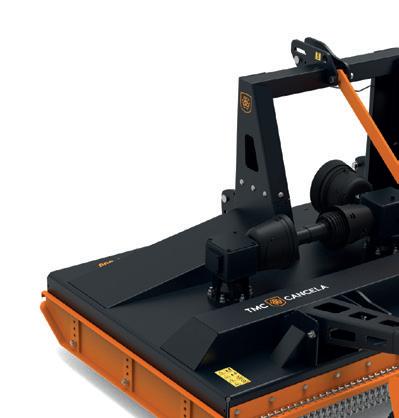

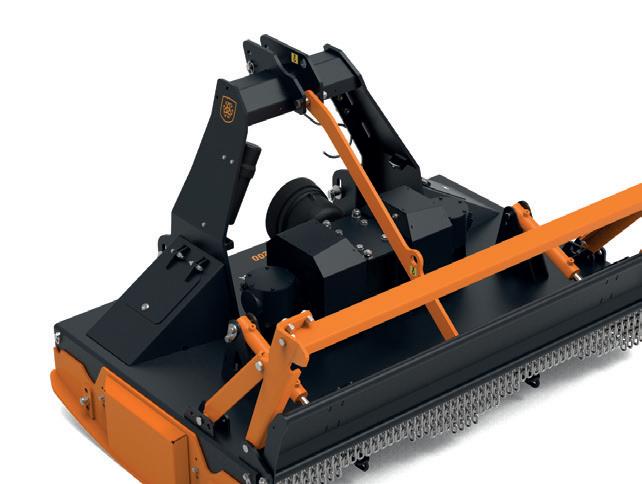

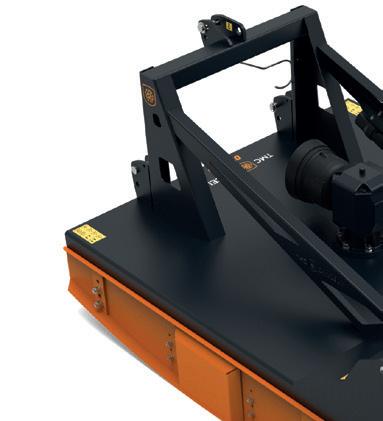

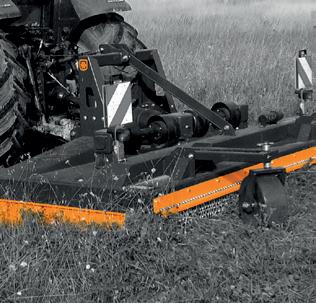

ROTARY BRUSH CUTTERS
R3 RANGE
R3 & R4 double rotor mulchers are robust, powerful machines for demanding forestry work .
TMC CANCELA R3
ROTARY BRUSH CUTTERS
3 Models
• Body with internal reinforcements
• Chain protection front and rear
Working widths : 1.8 to 2m
• Adjustable height rounded skids, ‘Widest’ system
• Hydraulic rear hood, mechanical rear push frame
Required input power . .
. . . 70 – 95 hp max.
Gearbox input speed 540 rpm
Working widths .
. 1.80m – 2.00m
No . of rotors 2
Fitted with RV07 Chains
Three models available to order: R3-180, R3-190, R3-200
£POA – Please ask for details.
R4 RANGE

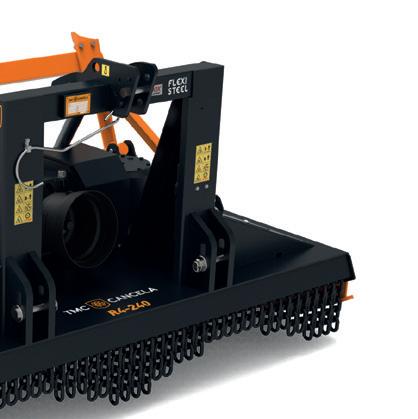

TMC CANCELA R4 ROTARY BRUSH CUTTERS
• Body with internal reinforcements
• Chain protection front and rear
• Adjustable height rounded skids, ‘Widest’ system
• Hydraulic rear hood, mechanical rear push frame
Required input power .
Working widths . . . .
. 85 –110 / 120 –250 hp max.
Gearbox input speed 540 rpm
. . 1.60m – 2.00m
No . of rotors 2
Fitted with RV09 Chains, RV07 chain option available
Four models available to order: R4-205, R4-220 / R4-240, R4-260
£POA – Please ask for details.
4 Models
Working widths : 1.6 to 2m
TLE-125, TLE-150
FOR REMOTE CONTROL UNITS

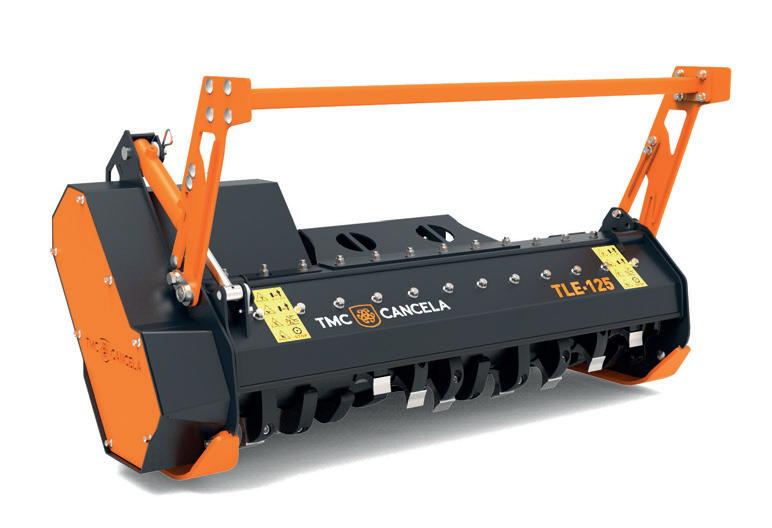

TMC CANCELA TLE-125, TLE-150 HYDRAULIC MULCHERS
• Universal coupling plate
Working width / total width
Recommended flow range
1.25 / 1.5m
1.5 / 1.77m
Pressure range, min–max 200–280 bar 200 –280 bar
. 60–120 ltr/min
. 70 –120 ltr/min
No. of hammers (& type) 32 (F08) 36+2 (F08+F038)
Weight
480 kg
17367 TLE-125 hydraulic mulcher.* £12,590
17363 TLE-150 hydraulic mulcher.* £12,775
Delivery is extra, please ask for details. x4 BELTS
TWF-180
580 kg
FOR SKID STEER LOADERS x6 BELTS *Hydraulic hoses & connectors to carrier not included

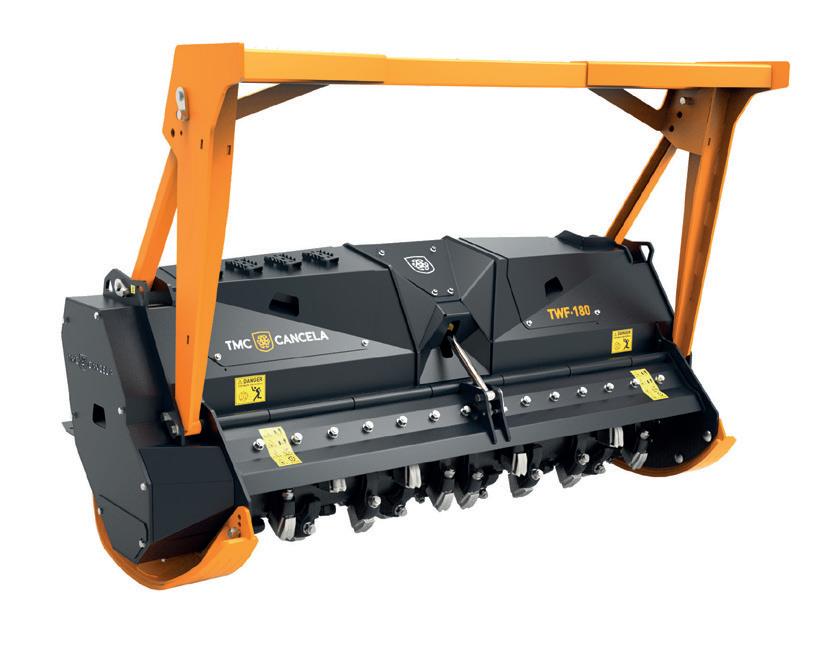

TMC CANCELA TWF-180 HYDRAULIC MULCHER
• Universal coupling plate
• Centralised hydraulic connections* and greasing points plus clearly visible pressure gauge
Working width / total width
Working width : 1.8m
. 1.80m / 2.17m
Pressure range, min–max 220–380 bar
Recommended flow range .
. . 180–200 ltr/min
No. of hammers (& type) 42+2 (F19+F20)
Coupling
Universal plate
Weight 1,268 kg
17390 TWF-180 hydraulic mulcher.* £24,800
Delivery is extra, please ask for details.
hoses & connectors
HYDRAULIC MULCHERS
NEW
TLP RANGE FOR REMOTE CONTROL UNITS
2 Models
Working widths : 1.2 to 1.4m
x4 BELTS

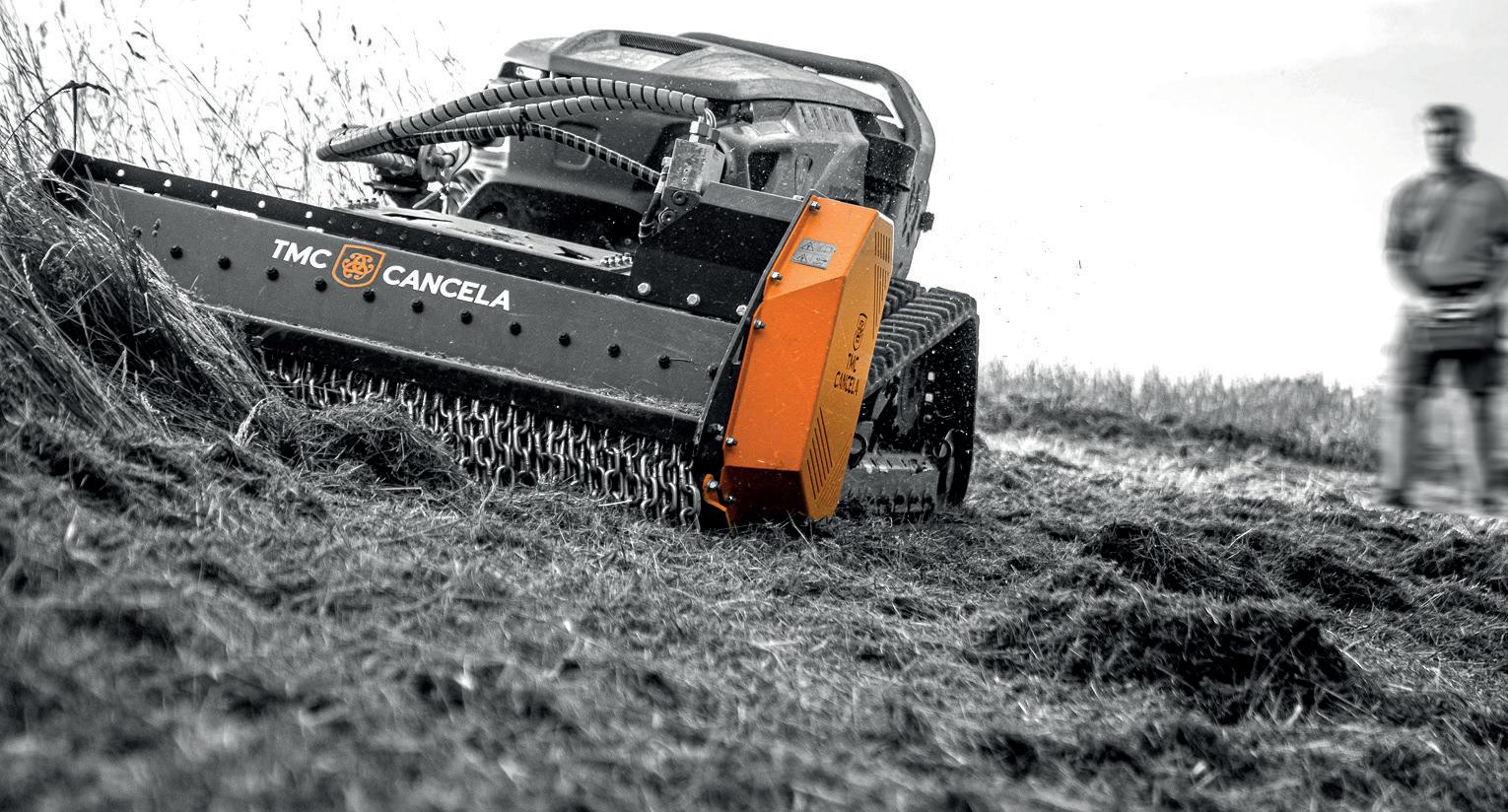

TMC CANCELA TLP
HYDRAULIC MULCHERS
• For remote controlled vehicles
• Body built in high strength steel
• Protection by metallic plates to front
Floating hammers
• Hydraulic piston motor with fixed displacement (28 cc) Bosch Rexroth with anti-cavitation valve
• Base flange for coupling to the remote controlled carrier
The TLE mulcher is a robust, compact unit for attachment to remotecontrolled vehicles, offering manoeuvrability and efficient mulching in difficult to access areas .
*Hydraulic hoses & connectors to carrier not included .
**Maximum pressure for 28cc & 32cc fixed displacement motors
HYDRAULIC MULCHERS
THA RANGE
FOR 1.5 – 3.5 TONNE EXCAVATORS
3 Models
Working widths : 0.5 to 0.9m
TMC CANCELA THA HYDRAULIC MULCHERS
• Body built in high strength steel
• Front protection plates, rear protection rubber
Rotor dia . 335mm x2 BELTS
Working widths .
. 0.50m – 0.90m
Excavator weight, min–max 1.5 – 3.5 tn
Pressure range, min–max . . . . 150 –180 bar
Recommended flow range 20/25/30 – 50 ltr/min
Floating hammers .
. A01 (17271)
Three models available to order: THA-050, THA-070, THA-090
£POA – Please ask for details.

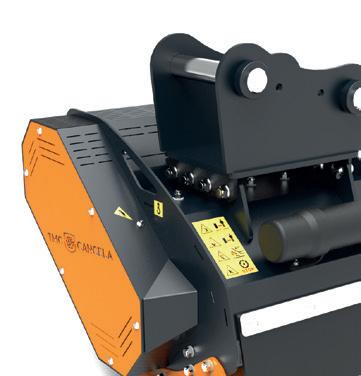

THQ
FOR 2 – 4 TONNE EXCAVATORS
Material up to 25mm
* Note: - Custom excavator brackets available separately as a special order . - Hydraulic hoses & connectors to excavator not included.
TMC CANCELA THQ HYDRAULIC MULCHERS
• Body built in high strength steel
• Rotor with fixed hammers F09 in helical position with ‘P-CUT’ depth limiters
Working widths .
. 0.50m – 0.75m
Excavator weight, min–max 2 – 4 tn
Pressure range, min–max . . . . 180 – 250 bar
Recommended flow range 35 – 60 ltr/min
Fixed hammers
Two models available to order: THQ-050, THQ-075
F09 + F39 side
£POA – Please ask for details.
orking widths : 0.5 to 0.75m Models
Rotor dia . 325mm
Illustrated with OPTIONAL excavator bracket
Material up to 90mm
* Note: - Custom excavator brackets available separately as a special order . - Hydraulic hoses & connectors to excavator not included.
THI RANGE
FOR 4 – 8 TONNE EXCAVATORS
TMC CANCELA THI HYDRAULIC MULCHERS
• Rotor with fixed hammers F09 & ‘P-CUT’ limiters
• Hydraulic hood with replaceable counterblades
• Centralised hydraulic outputs and grease points
Working widths
0.75m –1.25m
Excavator weight, min–max . . 4 – 8 tn
Pressure range, min–max 180 – 280 bar
Recommended flow range . . . 35/45/55 –100 ltr/min
Fixed hammers F09 + F39 side
Three models available to order: THI-075, THI-100, THI-125
£POA – Please ask for details.
x4 BELTS x4 BELTS
THE FOR 5 – 12 TONNE EXCAVATORS

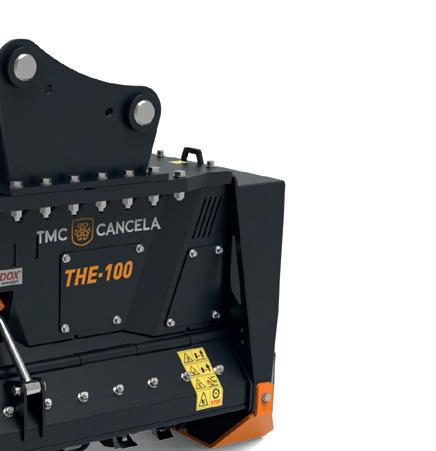

TMC CANCELA THE HYDRAULIC MULCHERS
• Rotor with fixed hammers F09 & ‘P-CUT’ limiters
• Hydraulic hood with replaceable counterblades
• Centralised hydraulic outputs and grease points
Working widths . . .
. 0.75m –1.25m
Excavator weight, min–max 5 –12 tn
Pressure range, min–max . . . . 180 – 280 bar
Fixed hammers . . . .
. . . . . . . . F09 + F39 side
Three models available to order: THE-075, THE-100, THE-125
£POA – Please ask for details.
Recommended flow range 60/75/90 –160 ltr/min
Models
orking widths : 0.75 to 1.25m
Illustrated with OPTIONAL excavator bracket
Rotor dia . 325mm
Material up to 120mm
* Note: - Custom excavator brackets available separately as a special order .
- Hydraulic hoses & connectors to excavator not included.
3
Working widths : 0.75 to 1.25m
Illustrated with OPTIONAL excavator bracket
Rotor dia . 325mm
Material up to 130mm
* Note: - Custom excavator brackets available separately as a special order .
- Hydraulic hoses & connectors to excavator not included.
FOR 10 –16 TONNE EXCAVATORS x5
Working width : 1.25m
Illustrated with OPTIONAL excavator bracket
Rotor dia . 375mm
Material up to 170mm

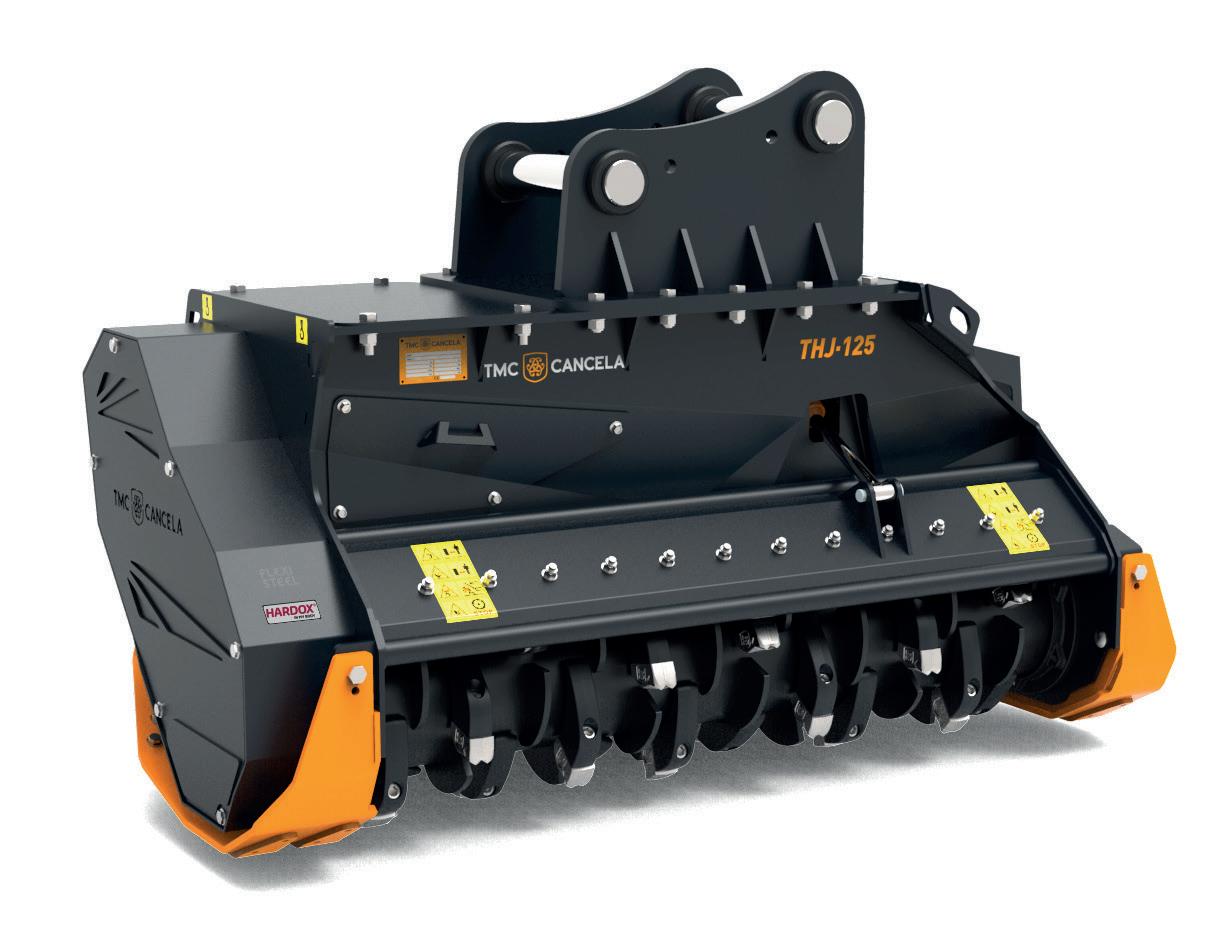

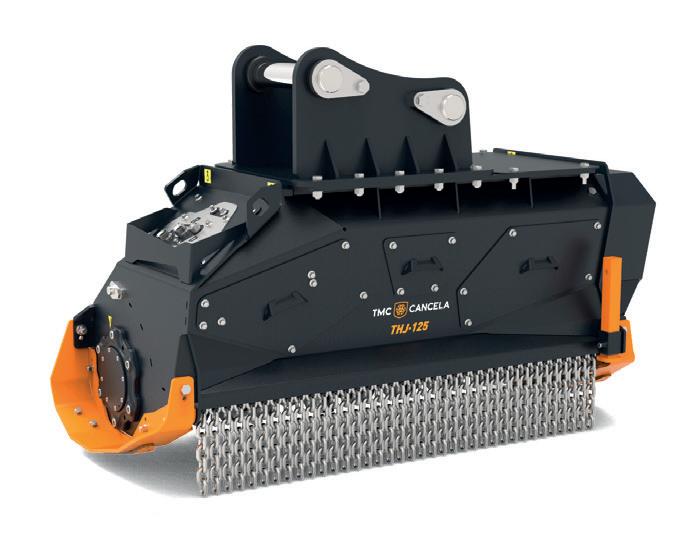

TMC CANCELA THJ-125 HYDRAULIC MULCHER
• Rotor with fixed hammers in a helical layout
• Hydraulic hood with replaceable counterblades
• Adjustable side skids with replaceable soles
• Double Chain curtain for front protection
• Centralised hydraulic outputs and grease points
Working width / Total width . . 1.25m / 1.62m
Excavator weight, min–max . . 10 –16 tn
Pressure range, min–max 280 –380 bar
Recommended flow range . . . 105 –170 ltr/min.
No. of hammers (& type) 30+2 (F09+F39)
Weight
755kg
17366 THJ-125 hydraulic mulcher.* £17,100
Delivery is extra, please ask for details.
* Note: - Custom excavator brackets available separately as a special order . - Hydraulic hoses & connectors to excavator not included.
Working width : 1.25m

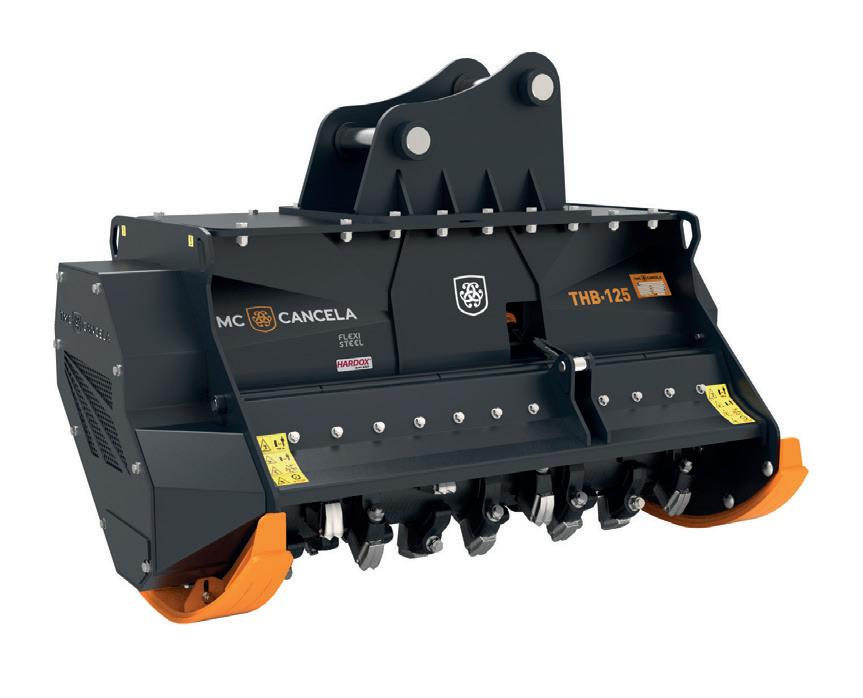

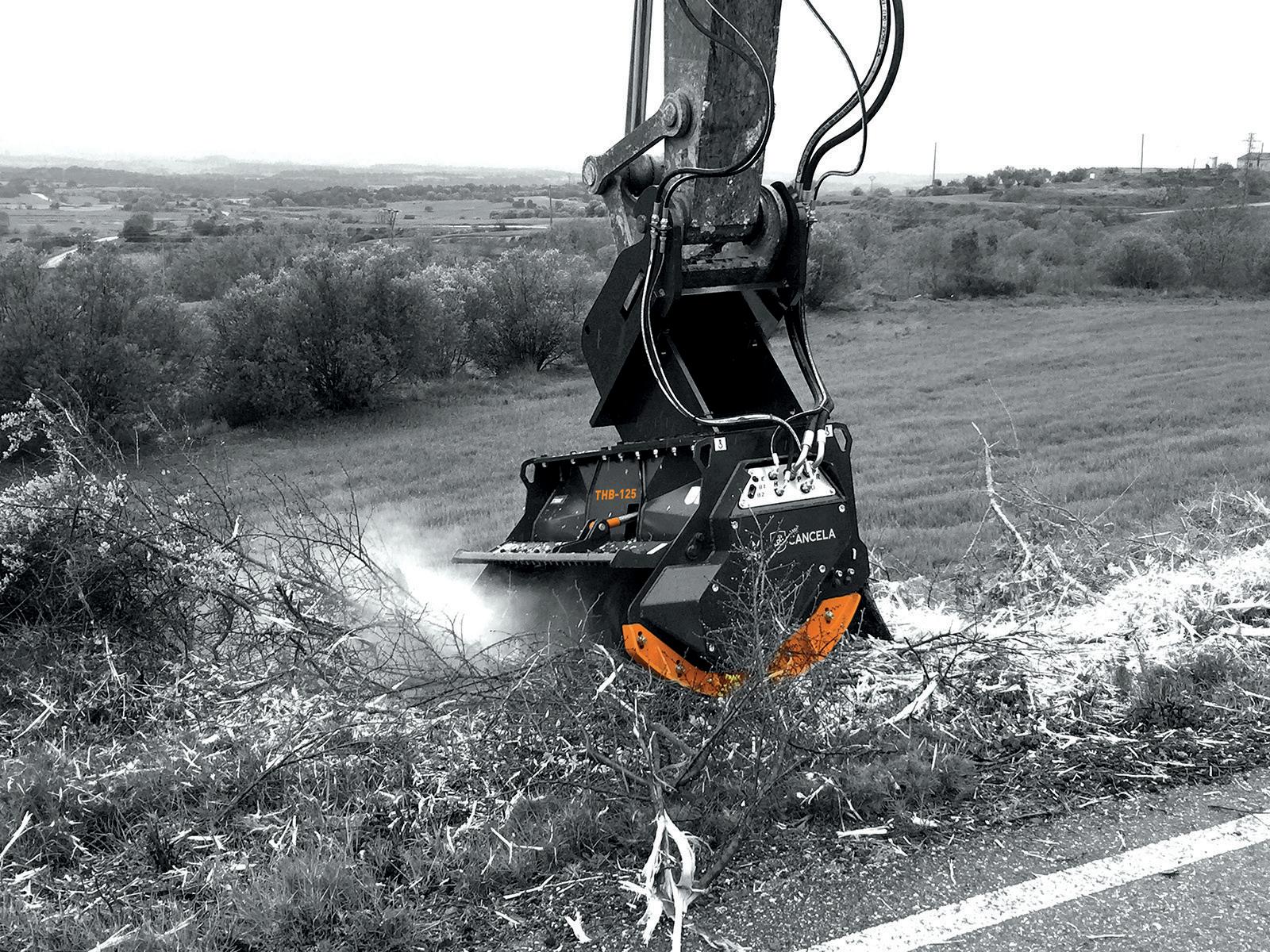

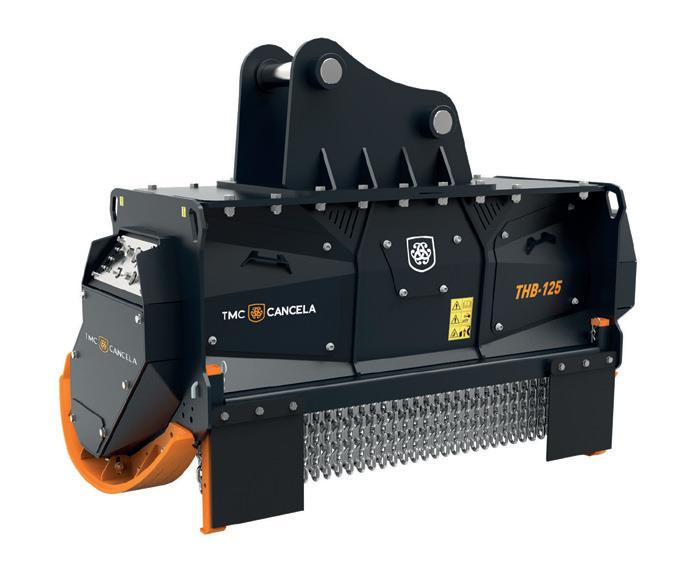

TMC CANCELA THB-125 HYDRAULIC MULCHER
• Rotor with fixed hammers in a helical layout
• Hydraulic hood with replaceable counterblades
• Bolted side skids with 3 height positions
• 4 Chain curtain and side rubbers for front protection
• Centralised hydraulic outputs and grease points
Working width / total width . . . 1.25m / 1.62m
Excavator weight, min–max . . 12–20 tn
Pressure range, min–max 180–280 / 300 bar**
Recommended flow range . . . 115–170 ltr/min
No. of hammers (& type) 28+2 (F19+F20)
Weight
17384 THB-125 hydraulic mulcher.* £23,270
Delivery is extra, please ask for details. x6 BELTS
Rotor dia . 413mm
Material up to 200mm
. 1,050 kg
* Note:
- Custom excavator bracket is available separately, as a special order, please call to discuss your requirements
- Hydraulic hoses, connectors to excavator not included.
** Max . pressure for motors with fixed displacement

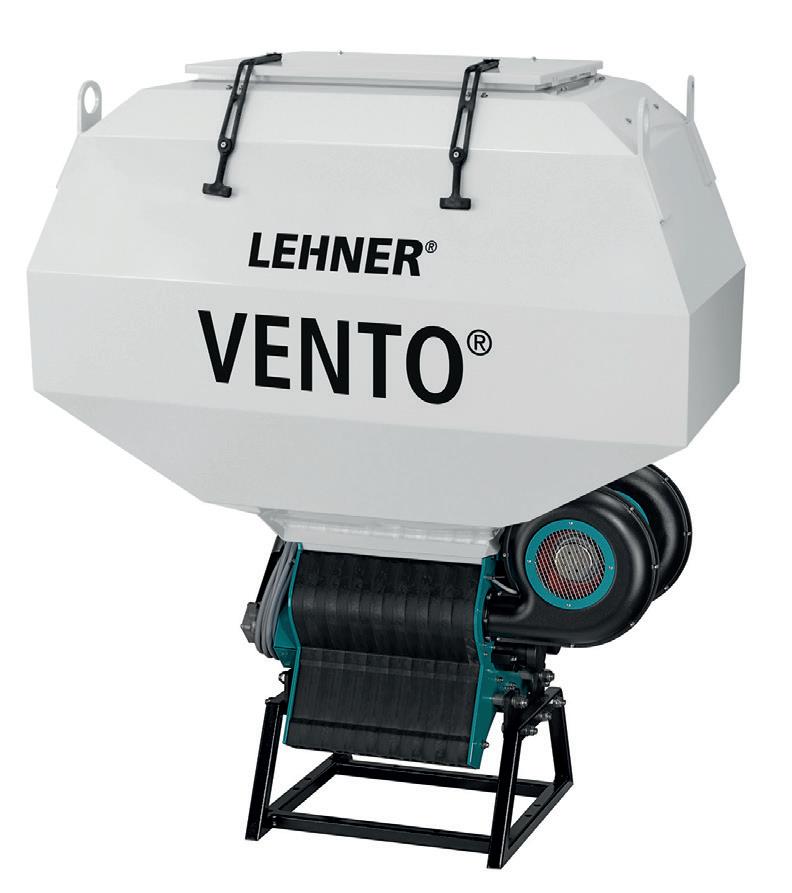

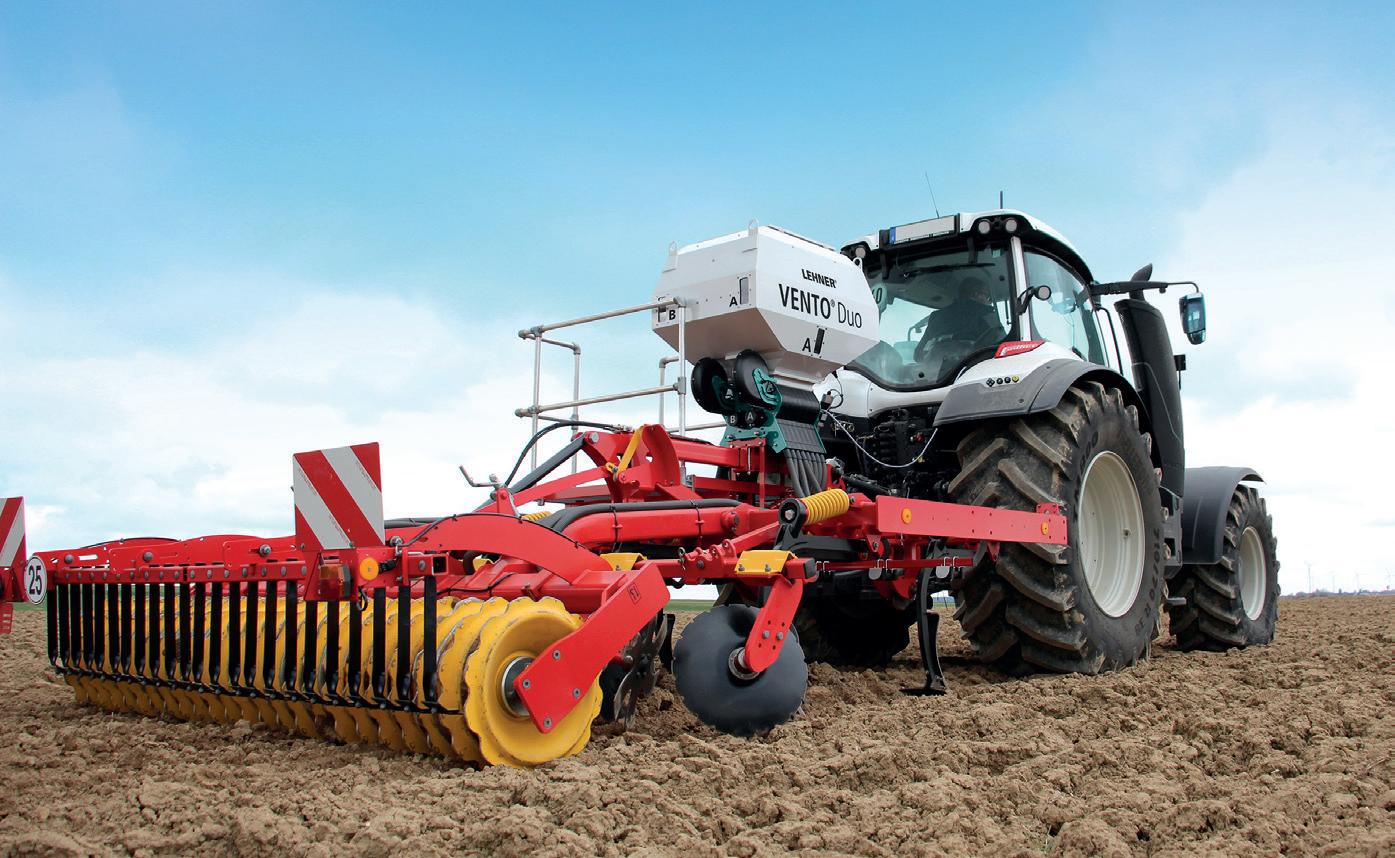

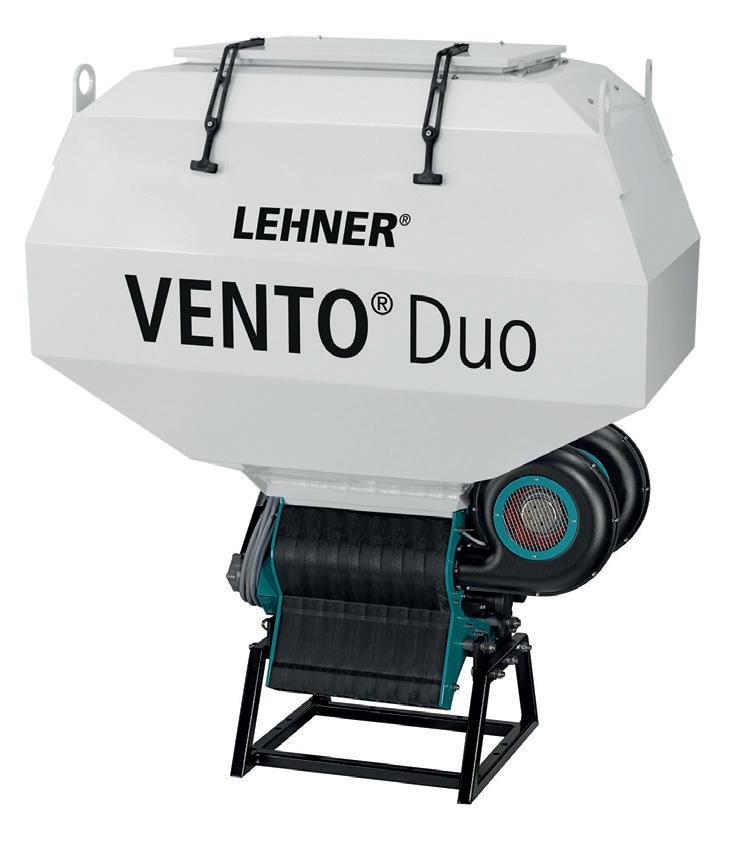

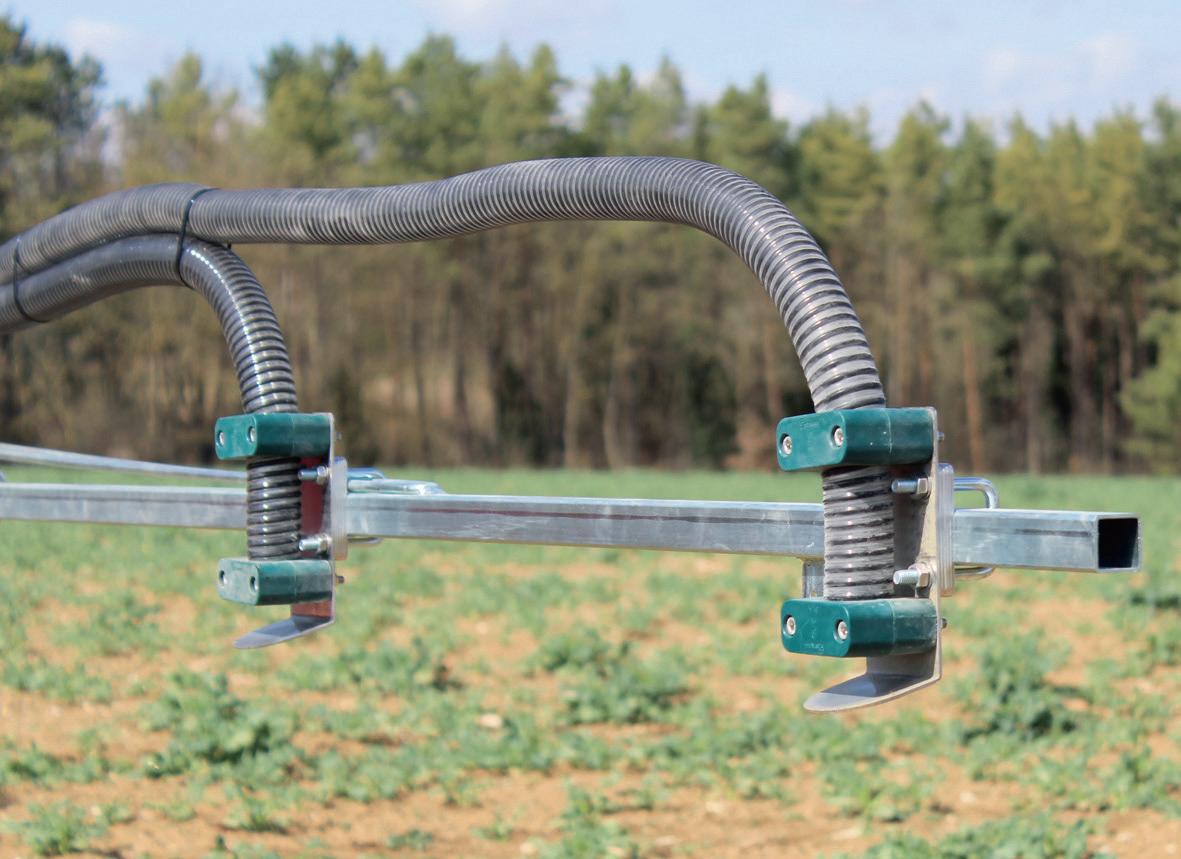

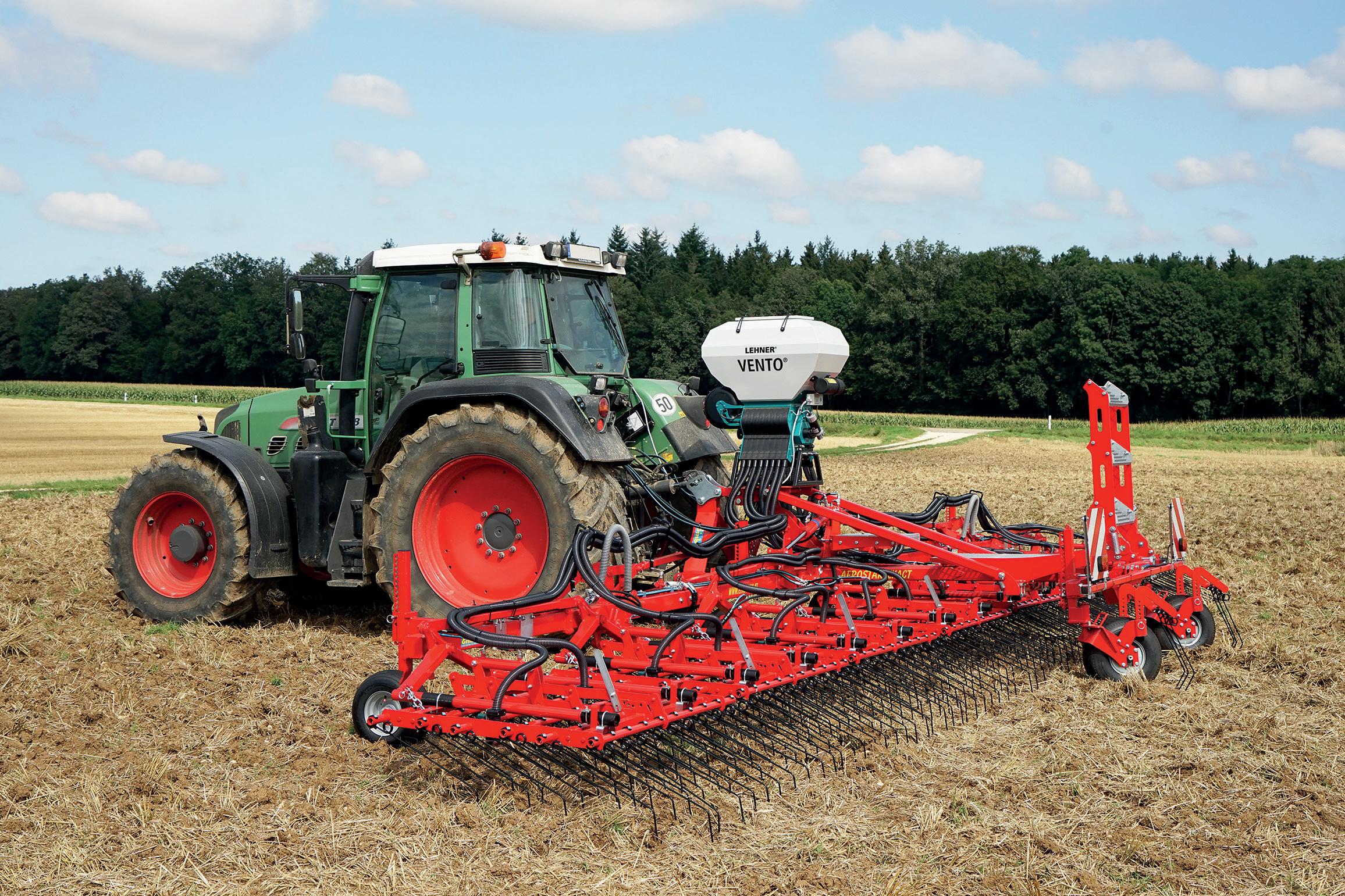

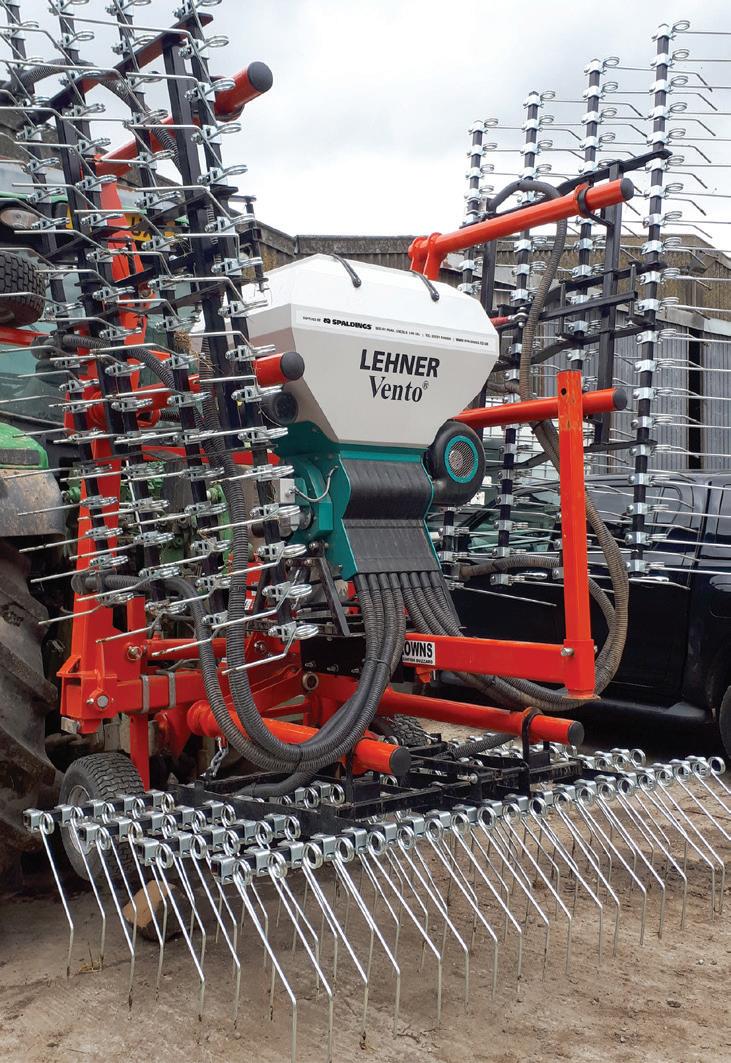

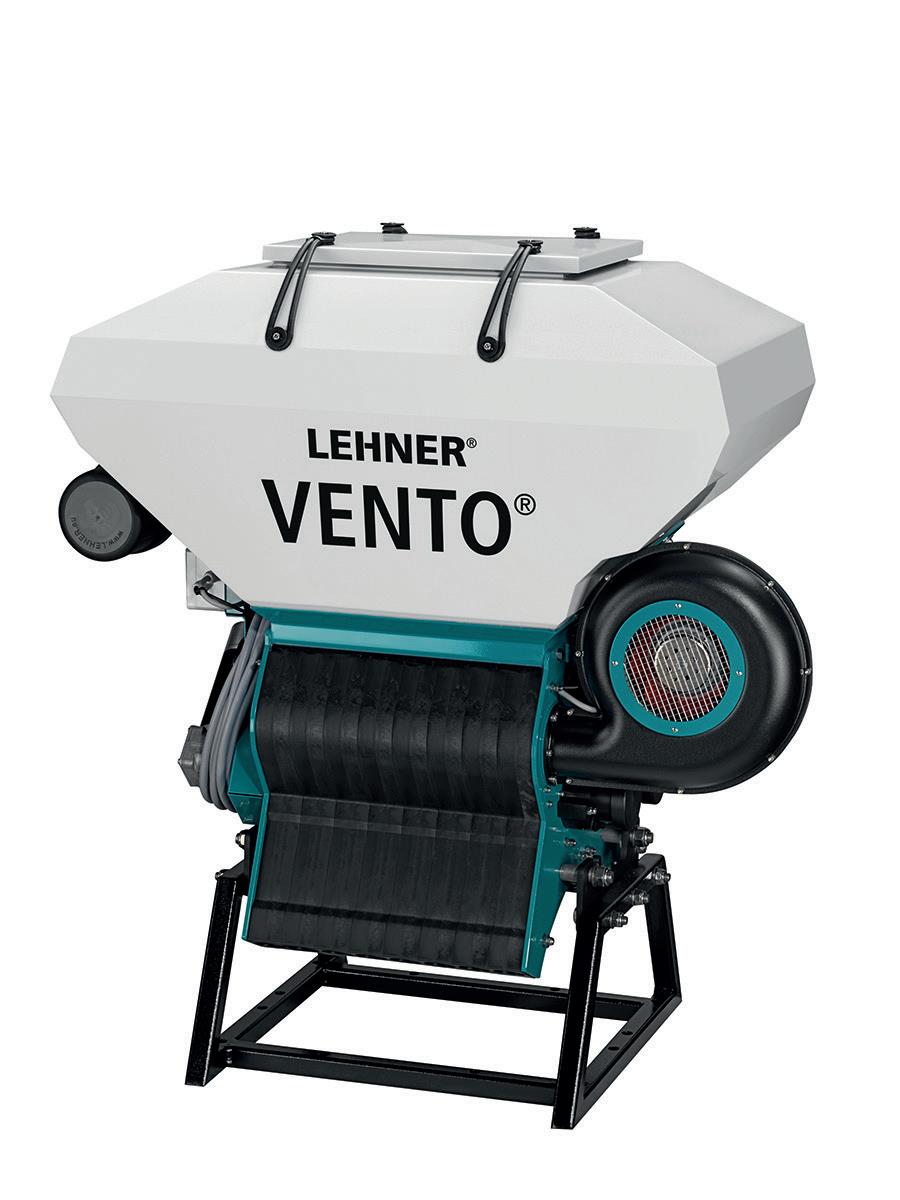

VENTO PNEUMATIC SPREADER LEHNER®
VENTO BROADCASTER

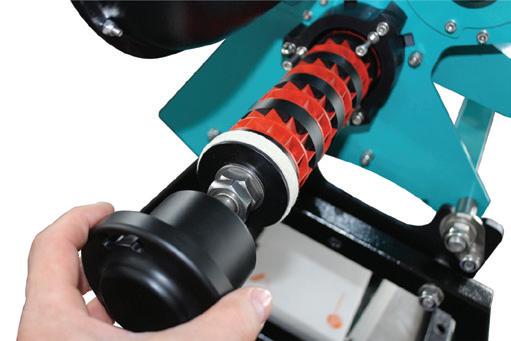

Pneumatic hose spreader can apply all types of seed, grasses, slug pellets and granular materials. Available with the choice of 8 or 16 outlets providing a working width of 6 or 12m.
• 7-pin data socket with optional cable for direct feed from the tractor, giving forward speed and hydraulic headland control

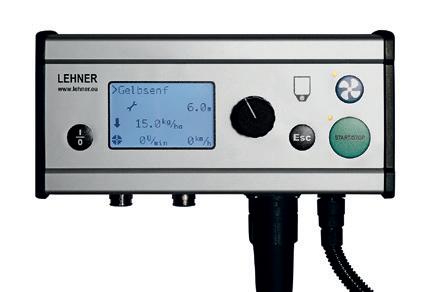

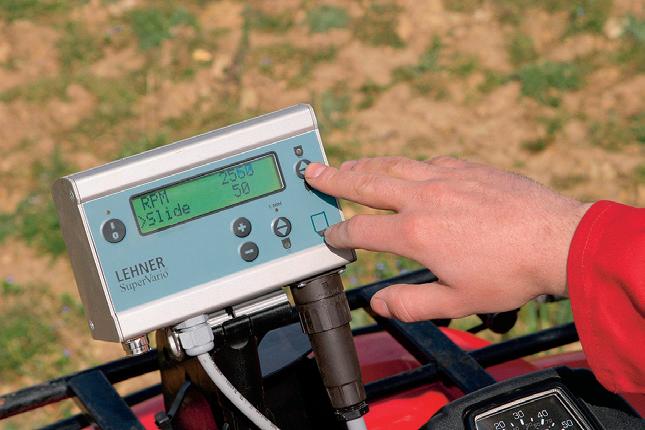

• Control panel with 3.3 inch graphic display
with either 8 or 16 outlet plates with mounting brackets plus Lehner ‘Superflex’ hose.
Hose outlets: 8 8 16
Dimensions (L x W x H) mm: 919 x 527 x 1009 947 x 570 x 1199
No of fans / spread width: 1x / up to 6m 1x / up to 6m 2x / up to 12m
• Robust steel frame with drill holes for ease of mount
• Stainless steel slide and spreading disc for long life
Suitable for spreading:
Slug pellets, oil seed rape, grain, grass seed, stubble turnips, clover, mustard, game feed etc.
Maximum spread:
Slug pellets
up to 24m
Grain / medium sized seed up to 18m
Grass seed
Dimensions
up to 6m
560 x 485 x 920 mm.
Hopper capacity 110 ltr.
Weight
25 kg.
16184 12v Broadcaster c/w standard control panel . £1,890
13384 12v Broadcaster c/w auto-dosing system . £2,730
Delivery is extra, please ask for details.
LEHNER Smartphone APP…
Broadcaster settings are available offline on your device providing simple step-by-step instructions .

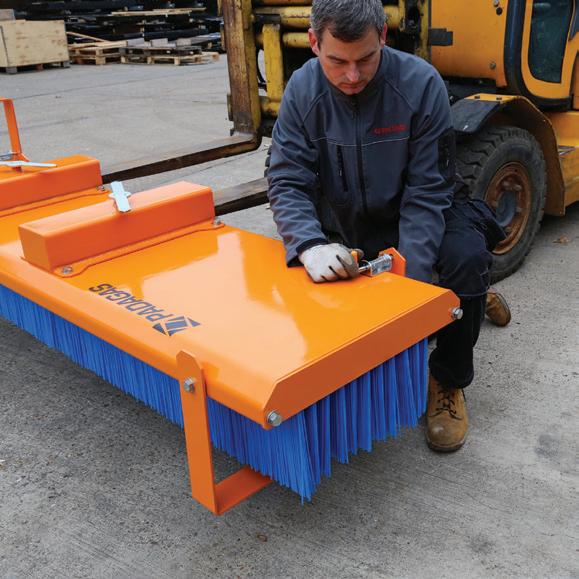

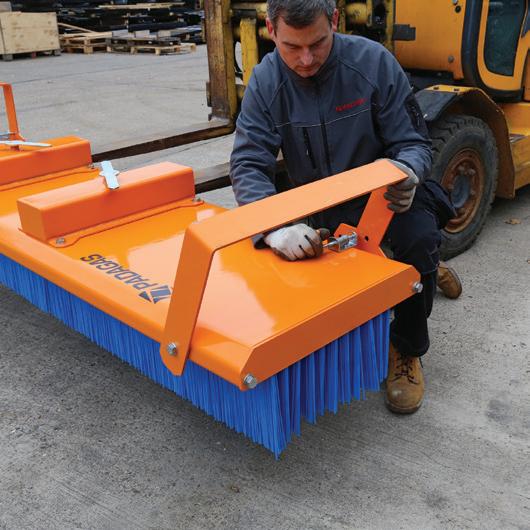

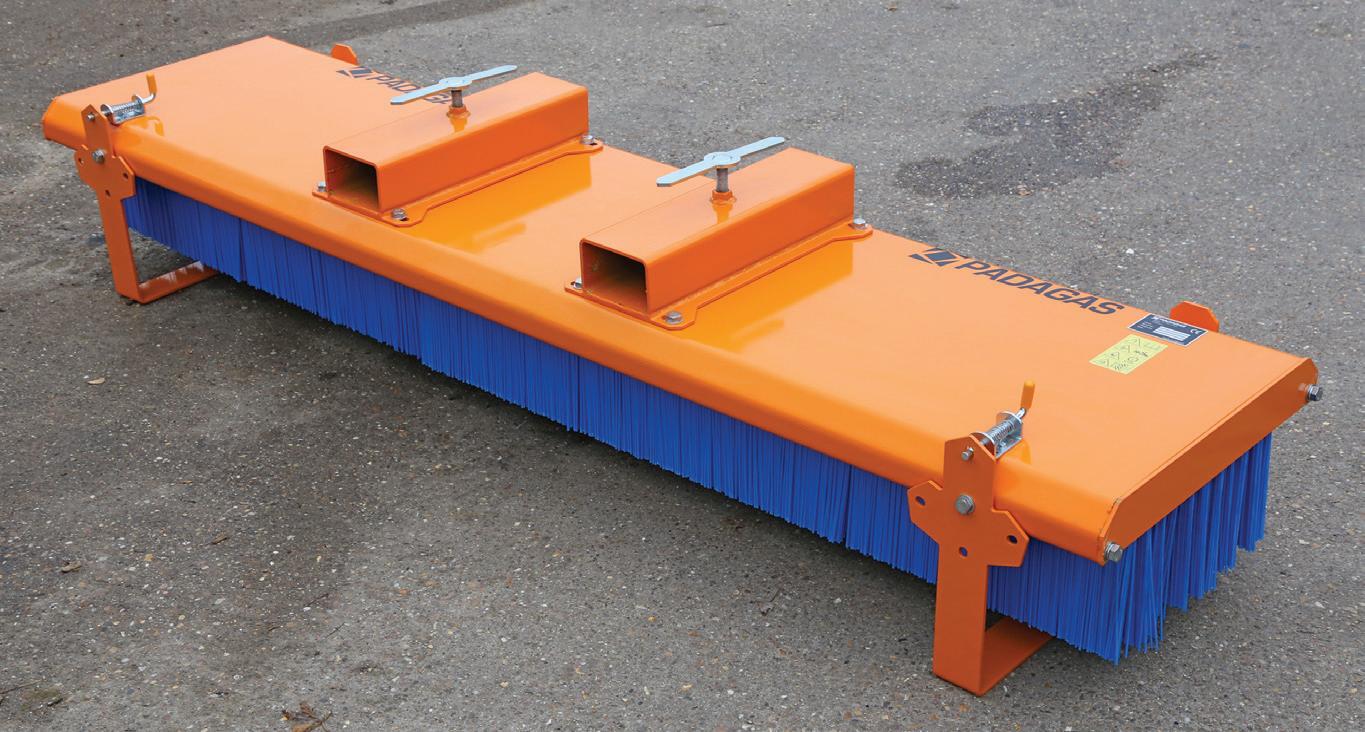

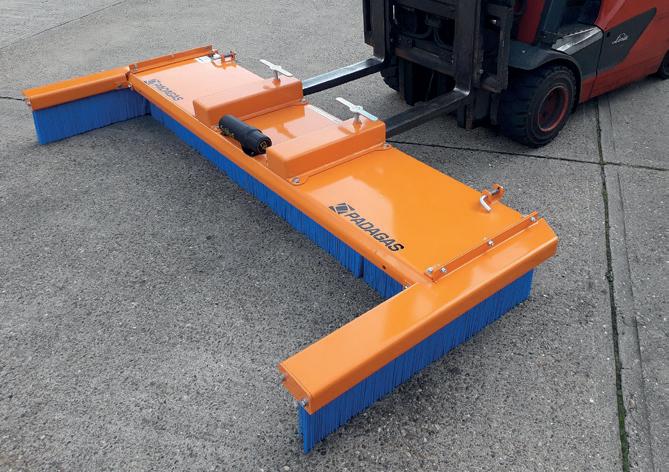

2.4m PUSH-BROOM FORK TINE MOUNTED SWEEPER
With integral parking stands to protect bristles when not in use!
Working width : 2.4m
PADAGAS 2.4 m PUSH-BROOM c/w FORKLIFT TINE POCKETS
Versatile and effective Spaldings Push-Broom provides superior sweeping for farm applications. Ideal for clearing water, snow, gravel, muck, slurry, mud and general debris . Fitted with 11 rows of bristles as standard for maximum sweeping power in the most demanding applications
• Fork mounted with securing bolts
• Maintenance free – no moving parts, chains, belts or motors to breakdown or replace
• Very effective in grainstores and won’t damage wooden floors and slats
• Creates a ‘squeegee’ type action on wet surfaces
Total width
2,490mm Working width
. 2,450mm
Weight 254kg
15380 2.4m Push-broom. £1,690 15383 Side brush kit £250 for push broom 15380.
Delivery is extra, please ask for details.
Side brush kit .

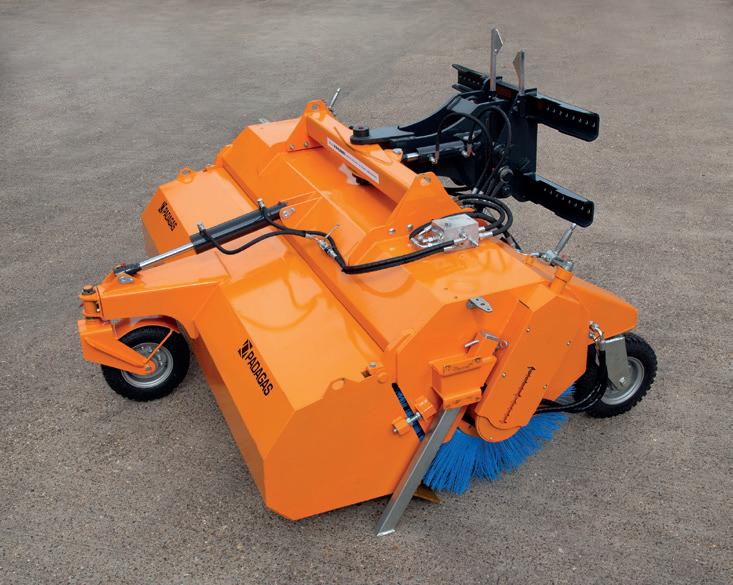

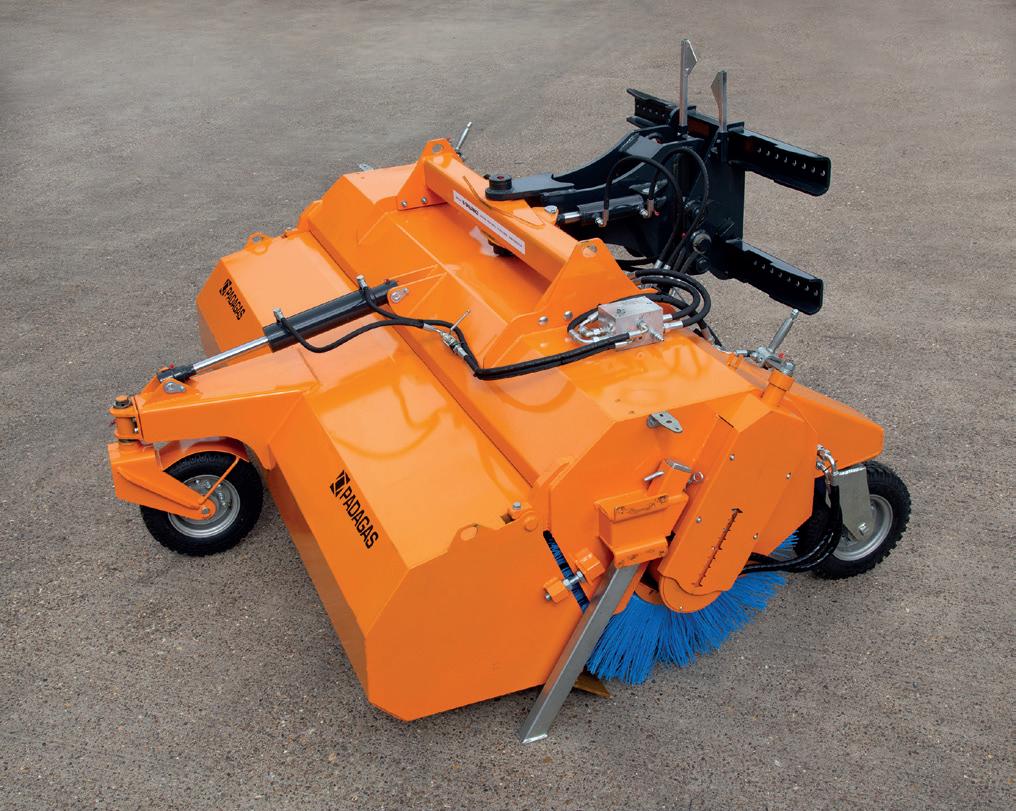

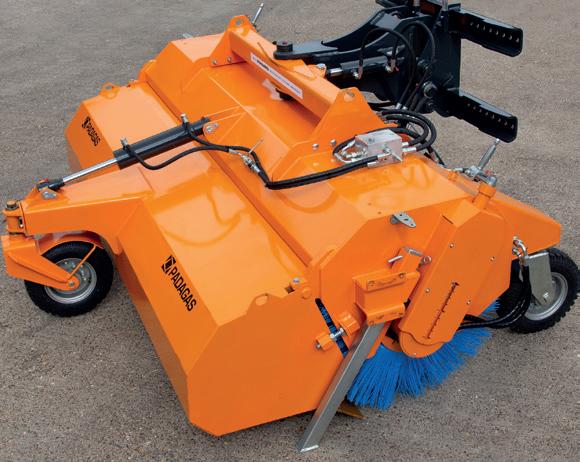

SWEEPER COLLECTORS
PROFI H-2501
Rotary Sweeper (15362) with Universal Headstock allowing a choice of bolt-on mount options or fork tine brackets
PADAGAS PROFI H-2501 2.25 m SWEEPER c/w COLLECTION
Drive
2x hydraulic motors
15362 Profi H-2501 2.25m Rotary Sweeper.*
£8,360
Delivery is extra, please ask for details.
KS-250
B rush : 600mm
.
width : 2.25m Working width : 2.3m
* Requires bolt-on hitch bracket kit and angle adjustment kit to suit your application

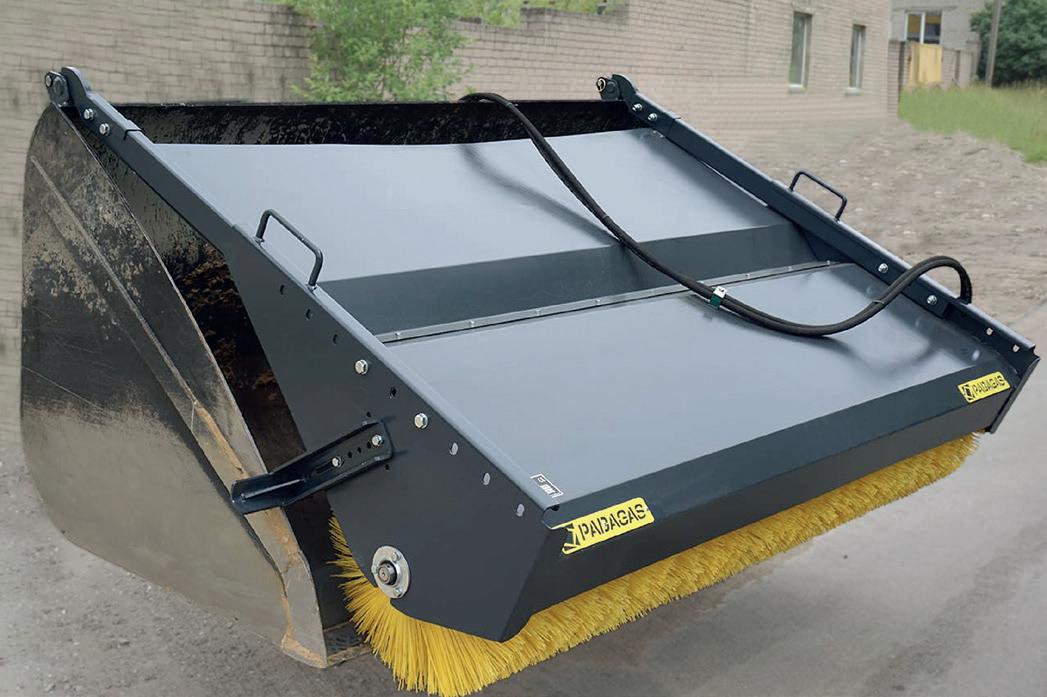

PADAGAS KS-250 BUCKET MOUNTED ROTARY SWEEPER Total width / Working width
• Simple attachment to loader bucket
. 2,733mm / 2,306mm
1x hydraulic motor
15366 KS-250 2.3m bucket sweeper.
£2,690
Delivery is extra, please ask for details.

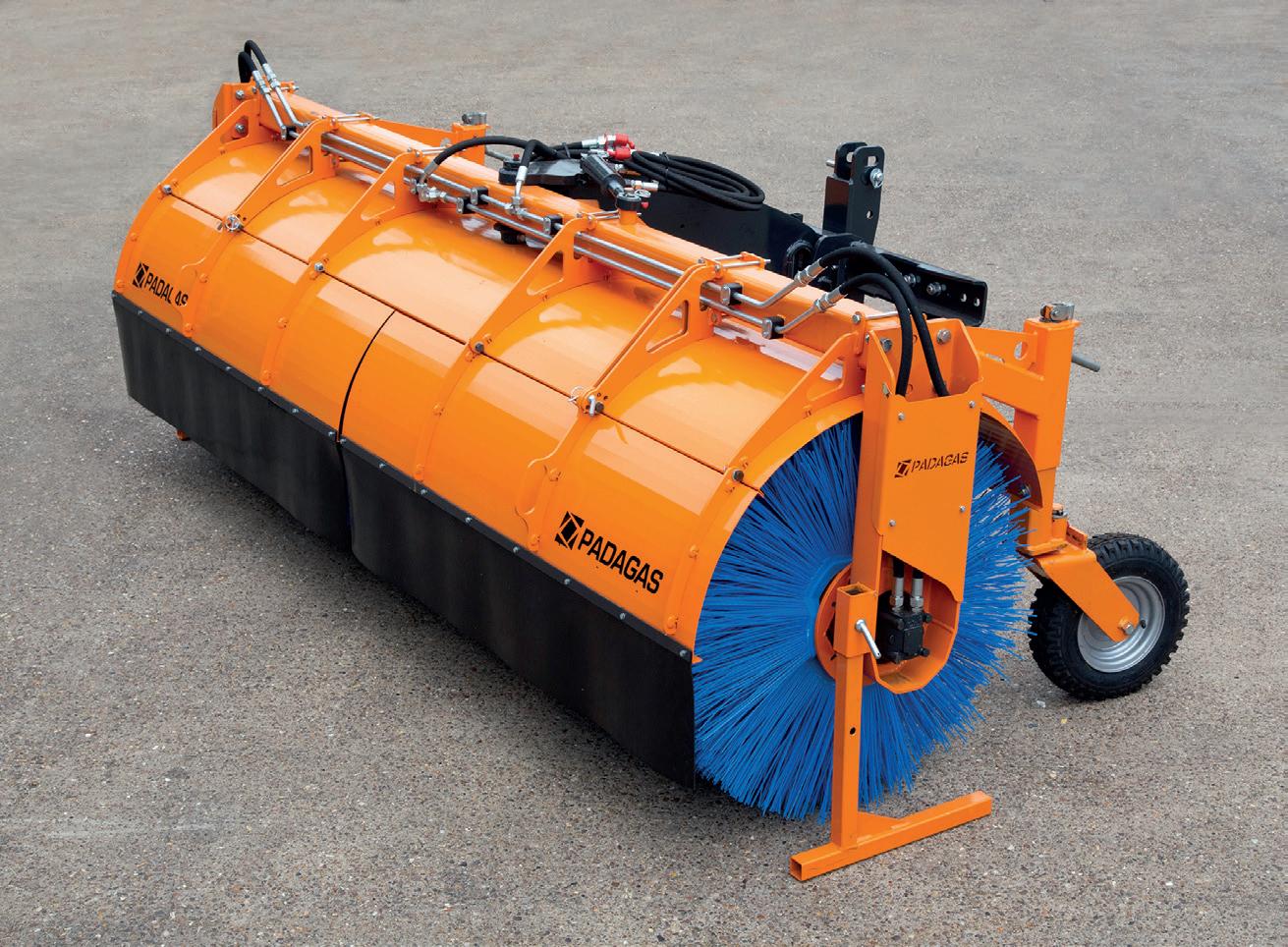

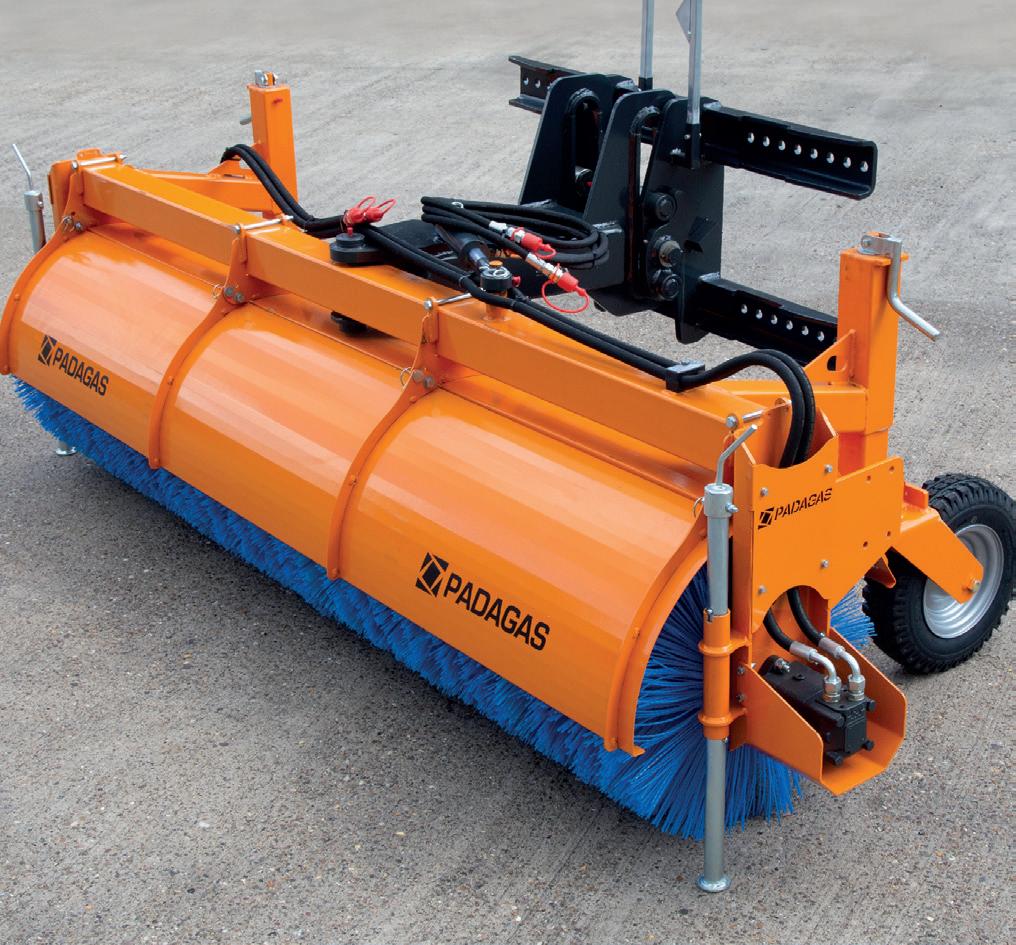

2.5 m ROTARY SWEEPER
PI-25
Rotary Sweepers with Universal Headstock allowing a choice of bolt-on mount options or fork tine brackets .
B rush : 600mm dia . Working width : 2.5m
PADAGAS PI-25
2.5 m ROTARY SWEEPER
• Hydraulic sweeper, 2.5m working width
• With 600mm brush diameter
• Robust support wheels and parking legs
• Floating linkage to follow contours of the ground
• Bolt-on mounting options to suit application
• Can be mechanically angled 25°
Total width .
2,776mm
Working width 2,447mm
Working width angled
2,235mm
Mechanical angling 25°
Weight with bracket
. . 500kg
Brush dia. / no. of sections 600mm / x 54 sections
Drive
Rotary Sweepers manufactured with a FLOATING HEAD to follow ground contours
1x hydraulic motor
Required oil flow at 160 bar . . 45 ltr/min
15359 PI-25 2.5m Rotary Sweeper.* £3,590
Delivery is extra, please ask for details.
* Requires bolt-on hitch bracket kit and angle adjustment kit to suit your application .
SHARK-250H, 300H
2.5 m, 2.9m HEAVY DUTY ROTARY SWEEPER B rush : 915mm dia
(15364) 2.9m (15365)
PADAGAS SHARK-250H
2.5 m HEAVY DUTY ROTARY SWEEPER
Total width 2,820mm Working width 2,460mm
Weight with bracket
. 565kg
Hydraulic angling 25°
Brush dia. / no. of sections .
. 915mm / x 34 sections
Drive 2x hydraulic motors
Required oil flow at 160 bar . . 70 ltr/min 15364 Shark-250H 2.5m sweeper.* £4,950
Delivery is extra, please ask for details.
PADAGAS SHARK-300H
2.9 m HEAVY DUTY ROTARY SWEEPER
Total width
. 3,320mm
Working width 2,960mm
Weight with bracket
604kg
Hydraulic angling 25°
Brush dia. / no. of sections .
. 915mm / x 41 sections
Drive 2x hydraulic motors
Required oil flow at 160 bar . . 70 ltr/min 15365 Shark-300H 2.9m sweeper.* £5,420
Delivery is extra, please ask for details.
SHARK Features:
• E XTRA large 915mm brush dia.
• Floating linkage to follow ground contours
• 25° Hydraulic angling to left or right
OPTIONAL
for Rotary sweepers:
- Mounting brackets for handler, 3-point linkage or fork tines
- Angle adjustment kits +
* Require bolt-on hitch bracket kit and angle adjustment kit to suit your application
