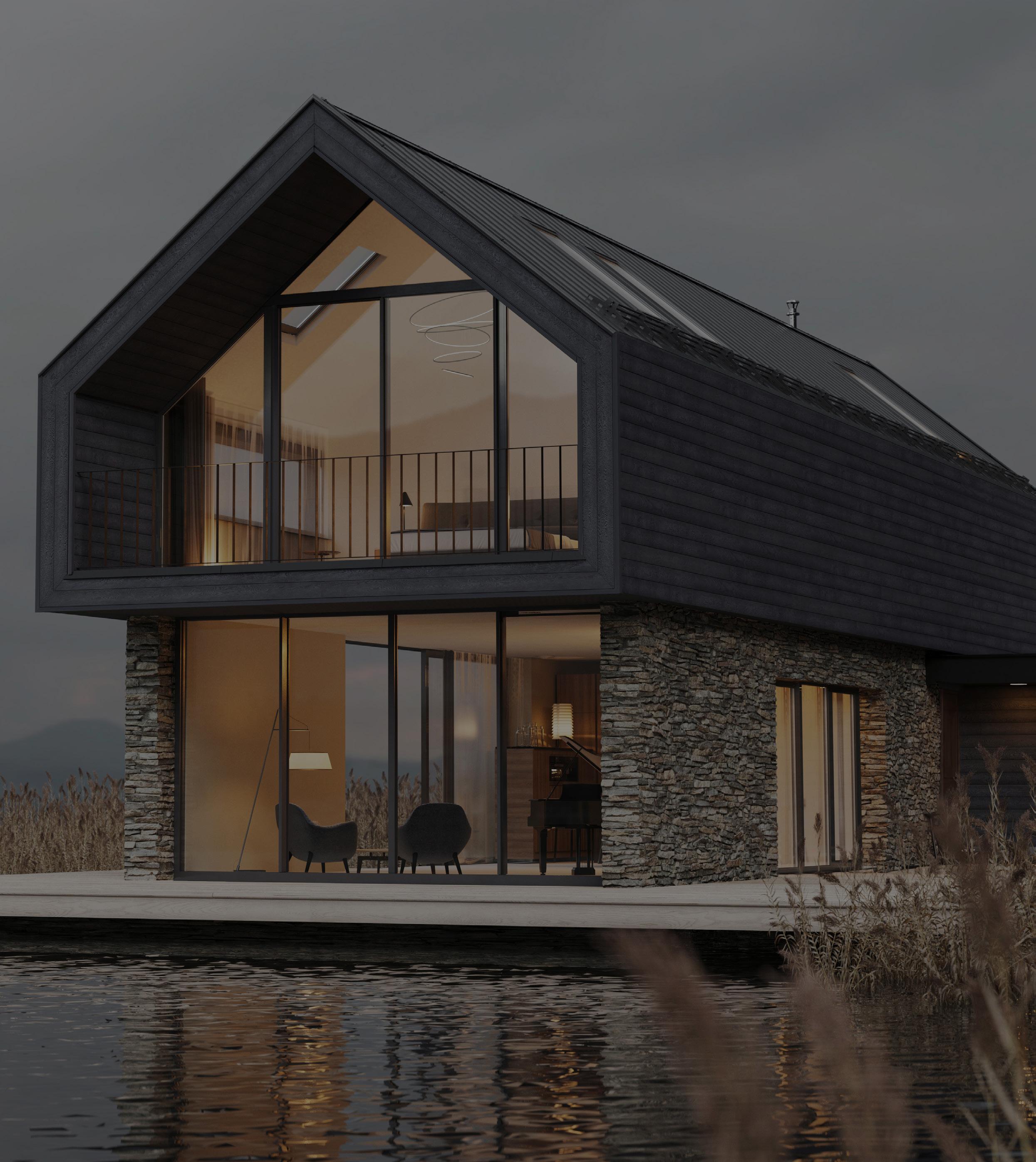

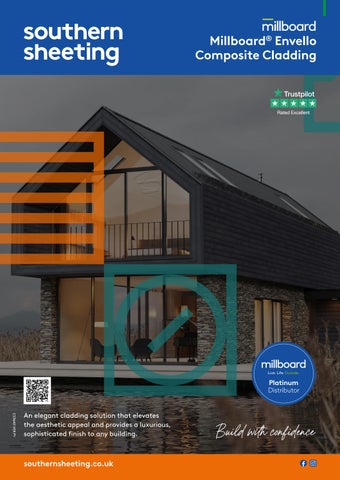

An elegant cladding solution that elevates the aesthetic appeal and provides a luxurious, sophisticated finish to any building.
Introducing Millboard®
Envello cladding products
Millboard® Envello Cladding is a polyurethane composite cladding system that replicates the look and feel of real wood, providing a lightweight alternative to fibre cement weatherboards that is versatile, durable and requires less maintenance than traditional timber cladding.
Envello Cladding is comprised of a 100% wood free polyurethane composite to ensure there is almost no material expansion, meaning there is no need to leave unsightly gaps between planks when installing.

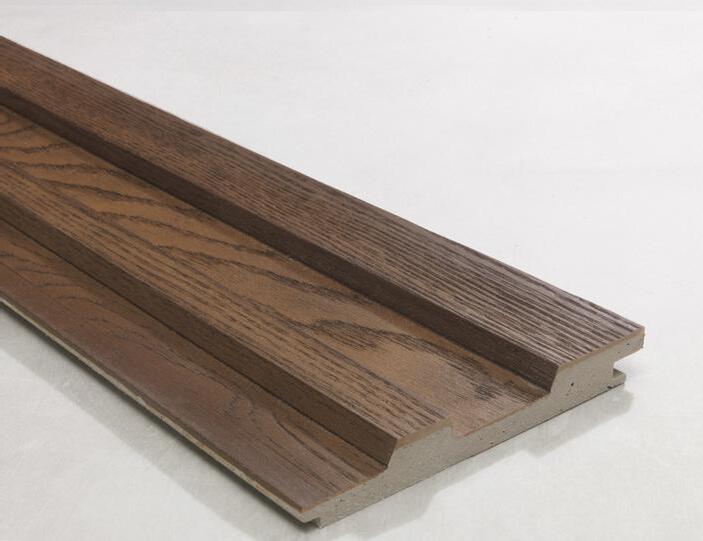

Millboard® Envello Board and Batten
Codes: MC1EBB3.6-** / MC5EBB3.6-**
Dimensions: 3600mm x 200mm x 26mm
Weight per board: 7.8kg
Boards per m2: 1.53
Visible surface: 181mm (19mm overlap)
Colours: 8 colours available (2 from stock)
Appearance: Individual timber board and battens
Fire Rating: Euroclass D
Minimum fixings per board: 10

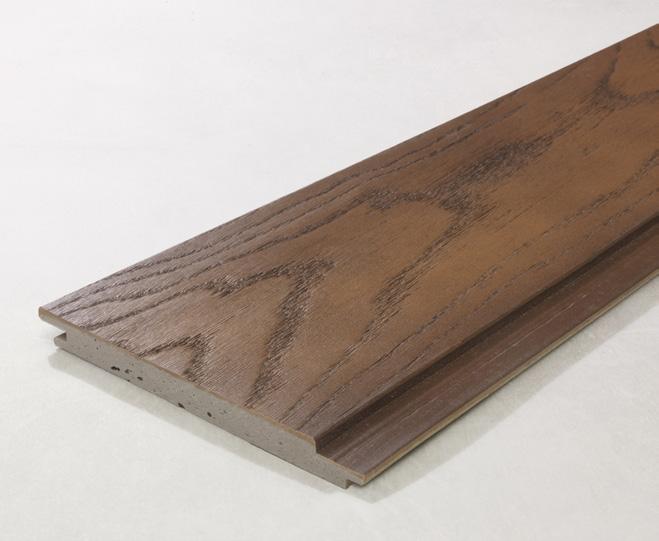

Millboard® Envello Shadow Line+
Codes: MC1ESL3.6-** / MC5ESL3.6-**
Dimensions: 3600mm x 200mm x 18mm
Weight per board: 8.3kg
Boards per m2: 1.53
Visible surface: 181mm (19mm overlap)
Colours: 9 colours available (3 from stock)
Appearance: Flushed woodgrain tongue and groove boards
Fire Rating: Euroclass D
Minimum fixings per board: 10
Colours
Colours

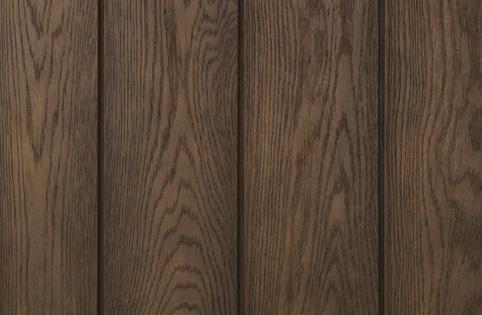

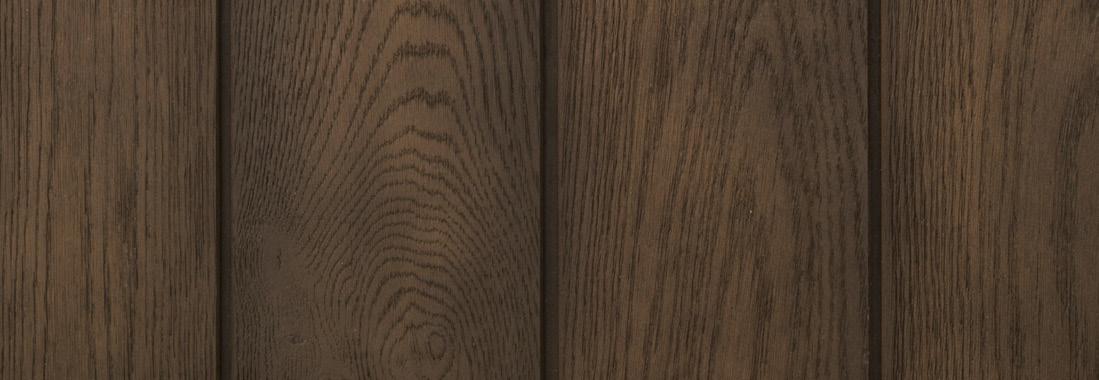

Shadow Line in Antique Oak (AO)
Colours and textures
Millboard® Envello Cladding is available in a range of colours and is hand finished in a UV stable dual-tone Lastane® surface that is resistant to scratching, impact and moisture.
Envello Shadow Line+ and Board and Batten+ are wood-free solid board cladding systems. Every board is moulded from a real oak master that replicates the look of smooth timber, with a detailed grain finish. Both cladding systems can be installed horizontally or vertically.

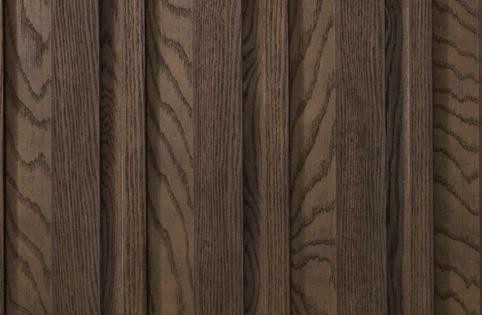

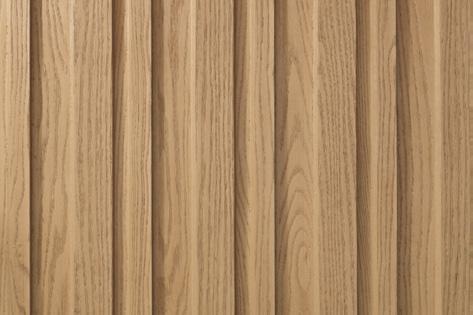

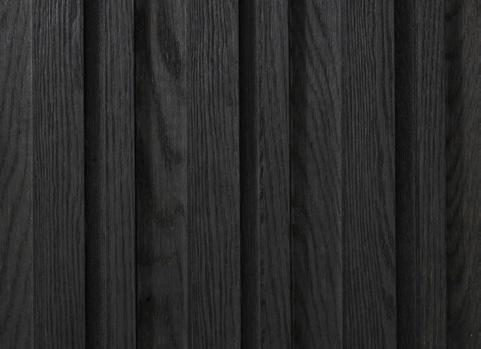

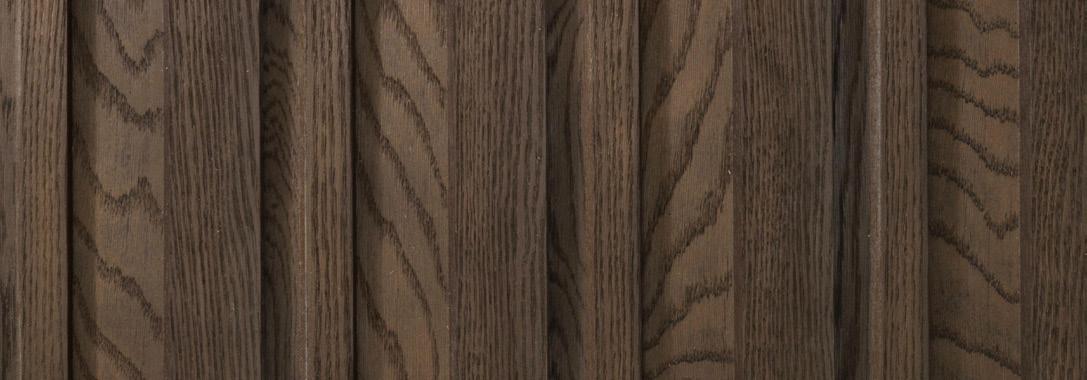

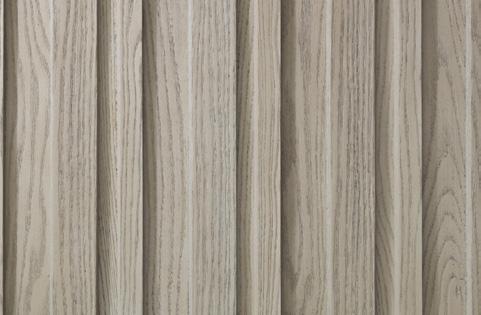

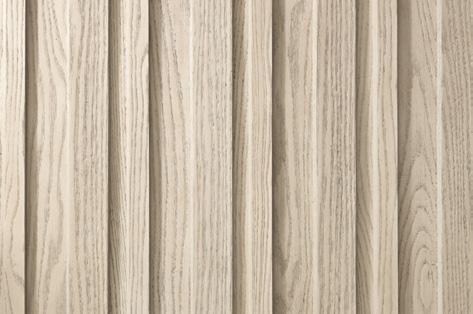

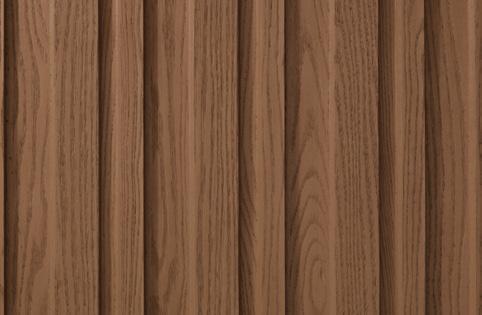

Board and Batten+
Available in 8 colours
Please note this chart is to be used as a colour reference guide only.
Printer or screen display setting can vary and so we recommend choosing a colour based on a physical sample piece.

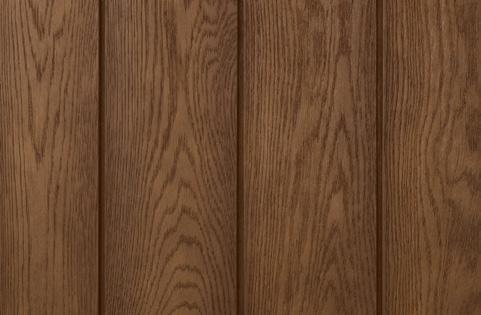

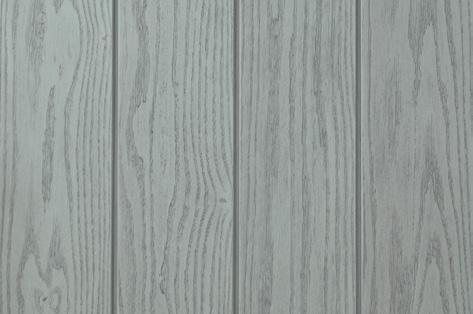

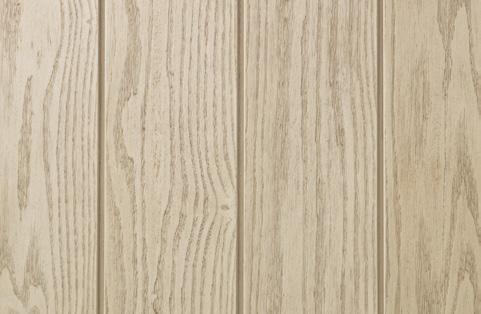

Shadow Line+
Available in 9 colours
From stock
Burnt Cedar ●
Coppered Oak
Burnt Cedar ● BC Coppered Oak
Golden Oak ● GO Jarrah

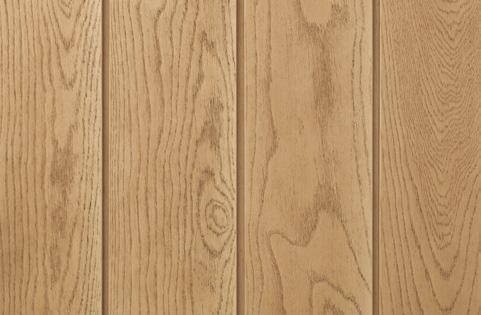

Golden Oak
Oak

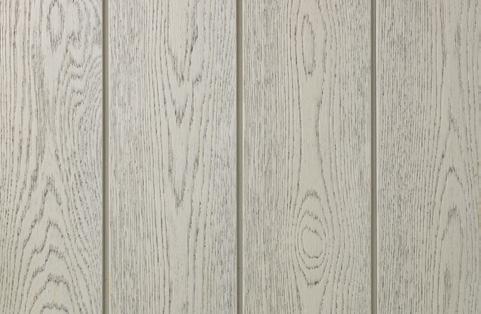

Limed

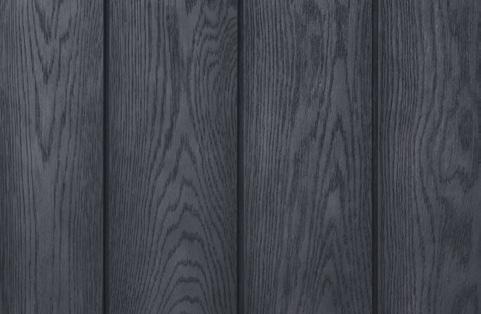

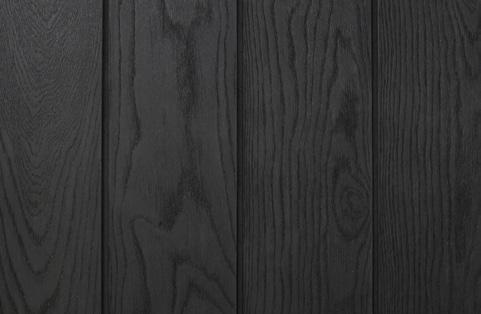

Anthracite
Anthracite

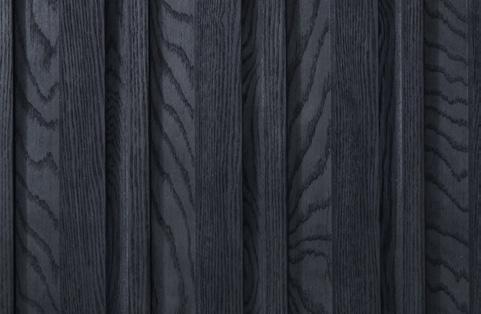

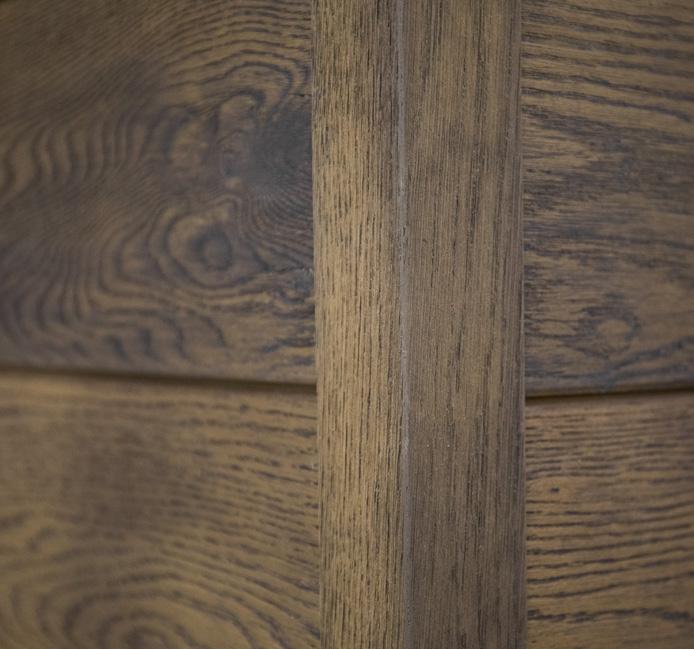

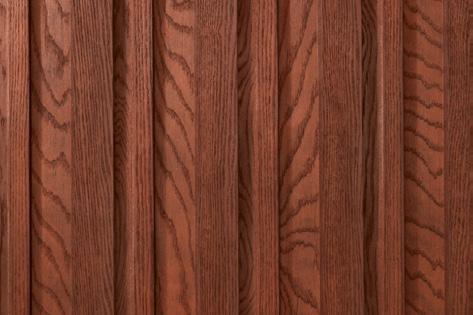

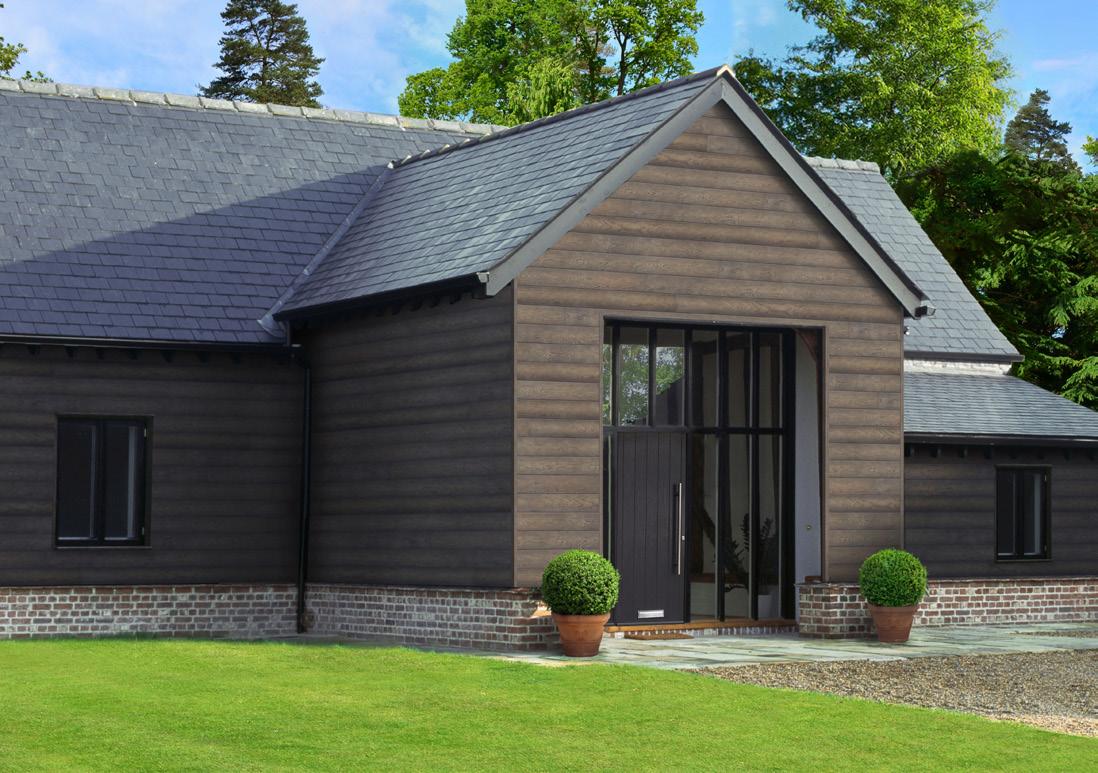

Board and Batten in Coppered Oak (CO)
Finishing touches
Add the finishing touch to your project with the range of Millboard® trims and accessories.
Accentuate corners, columns, doors, windows and more with our complementary trims, reveals, fixings and touch up coatings.
Millboard® Envello trims

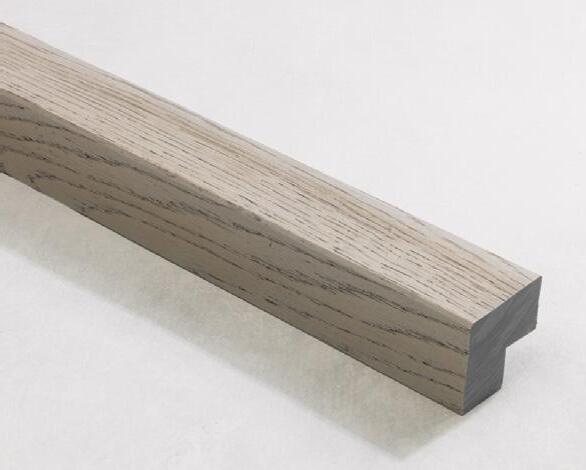

Shadow Line+ external corner
Code: MC1ESLEC-**
Width: 50mm
Depth: 50mm
Length: 3050mm
Weight: 7.1kg
Used to finish the external corner of a building.
Code: MC1ESLIC-**
Width: 38mm
Depth: 38mm
Length: 3050mm
Weight: 4.1kg
Used to finish the internal corner of a building.
Code: MC1ERB-**
Width: 146mm
Depth: 16mm
Length: 3600mm
Weight: 6.4kg

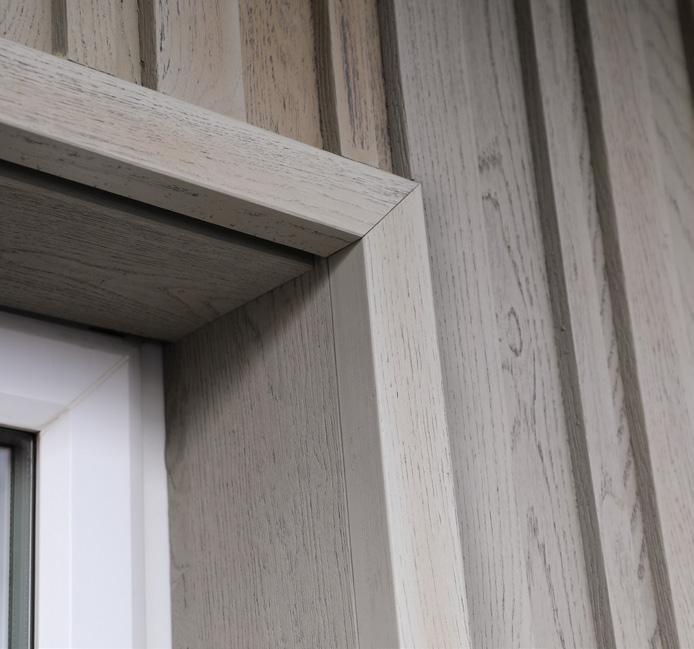

Used for window and door jams and can also work as a fascia board when necessary.

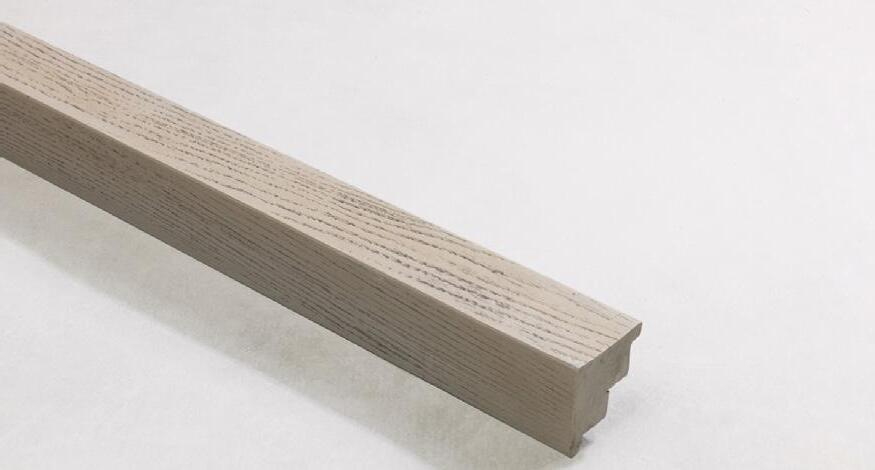

Shadow Line+ internal corner

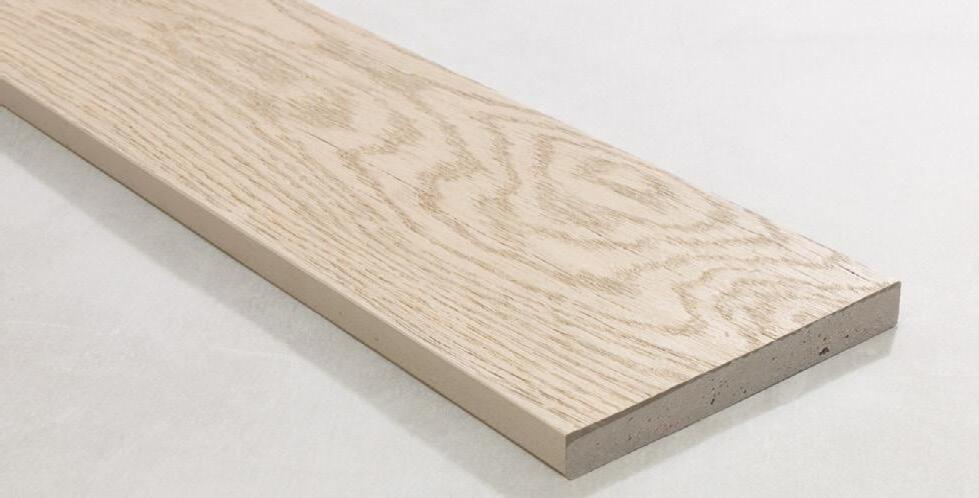

Envello reveal board
Millboard® Envello trims

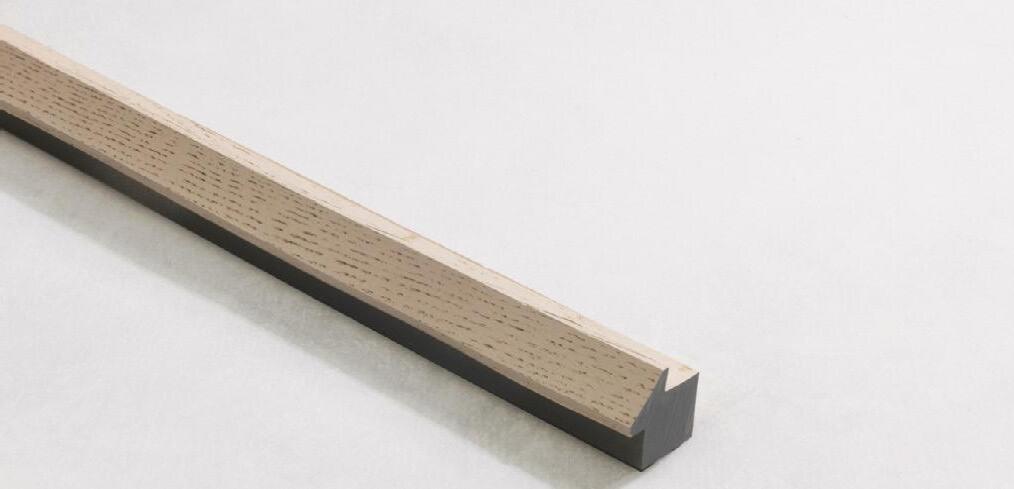

Board and Batten+ square corner
Code: MC1EBBEC-** / MC5EBBEC-**
Width: 50mm
Depth: 50mm
Length: 3050mm
Colours: 2 colours from stock (other colours available to order)
Used to finish the external corner of a building, fixed with perforated closure and 20mm fixings.
Code: MC1VSTART
Width: 25mm
Depth: 13mm
Length: 2500mm
Used to start the cladding at the first run, when the cladding is vertically installed. Fixed with a perforated closure and 20mm fixings.
Code: MC1HSTART
Width: 25mm
Depth: 50mm
Length: 2500mm
Used to start the cladding at the first run, when the cladding is horizontally fitted. Fixed with perforated closure and 20mm fixings.
Code:MC1EPC
Width: 25mm
Depth: 50mm
Length: 3000mm
Used to stop insects or rodents accessing the ventilated cavity behind the boards while still allowing for airflow. Fixed at the bottom of the cladding with starter trim and on its own at the top, as well as with corner profiles. Fixed with 20mm fixings.

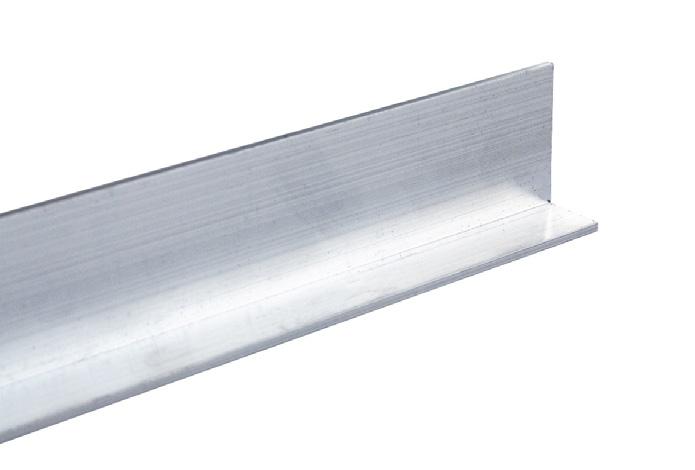

Vertical starter trim

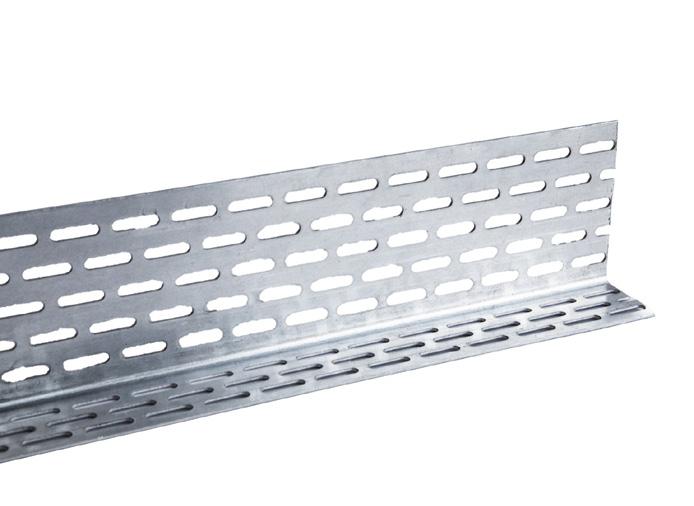

Perforated closure trim
Horizontal starter trim
Millboard® Envello fixings and
accessories

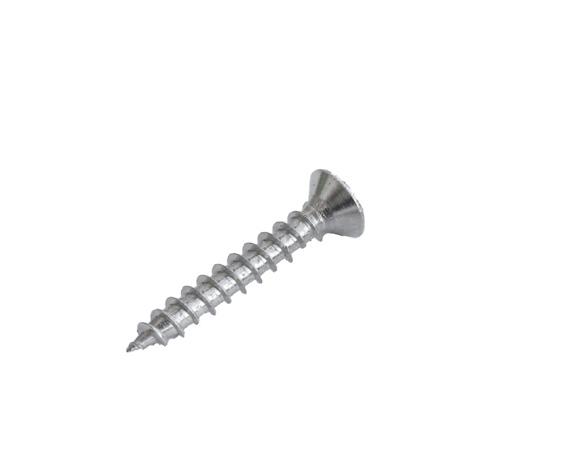

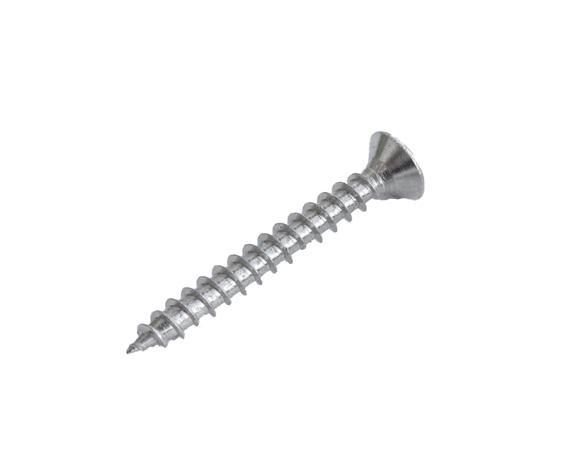

Cladding board fixings
Cladding accessories fixings
Code:MC1SCREWSS-30
Size: 3.5mm x 30mm
Quantity: 250 per box
Used to fix cladding boards onto timber or composite battens through the tongue on the board.
Code: MC1SCREWSS-20
Size: 3.5mm x 20mm
Quantity: 250 per box
Used to fix corner profiles, starter trims and perforated closures.
Code: MC1SCREW-**
Size: 3.5mm x 30mm
Quantity: 250 per box
Colours: 3 colours from stock (other colours available to order)
Designed to be used through the face of Shadow Line+ cladding boards and reveal boards when fixing through the tongue of the board isn’t possible.

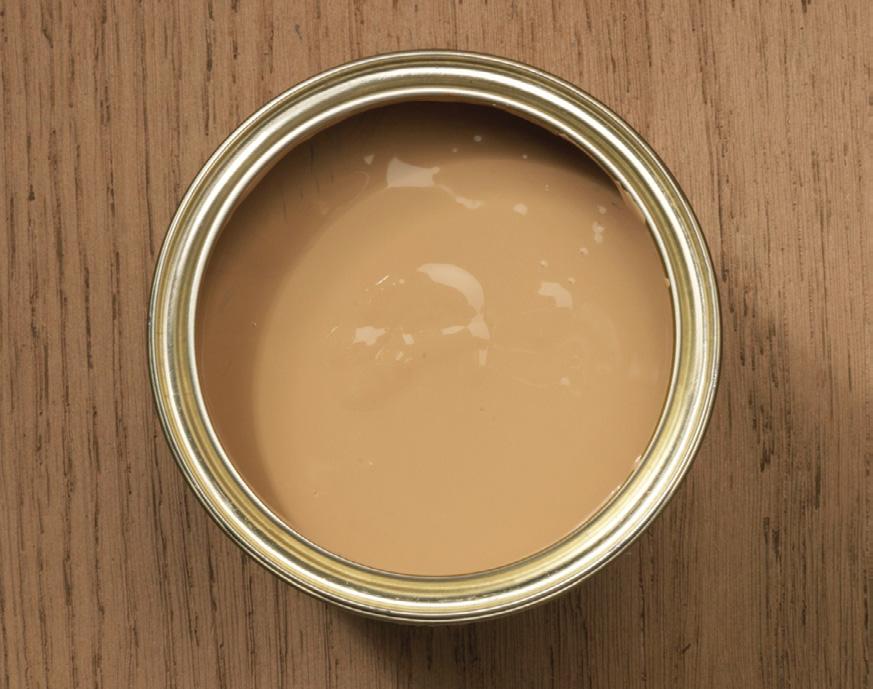

Code: MC1TOUCH-**
Size: 500ml tin
Colours: 3 colours from stock (other colours available to order)
Perfect for blending in cut ends.
Touch up coating

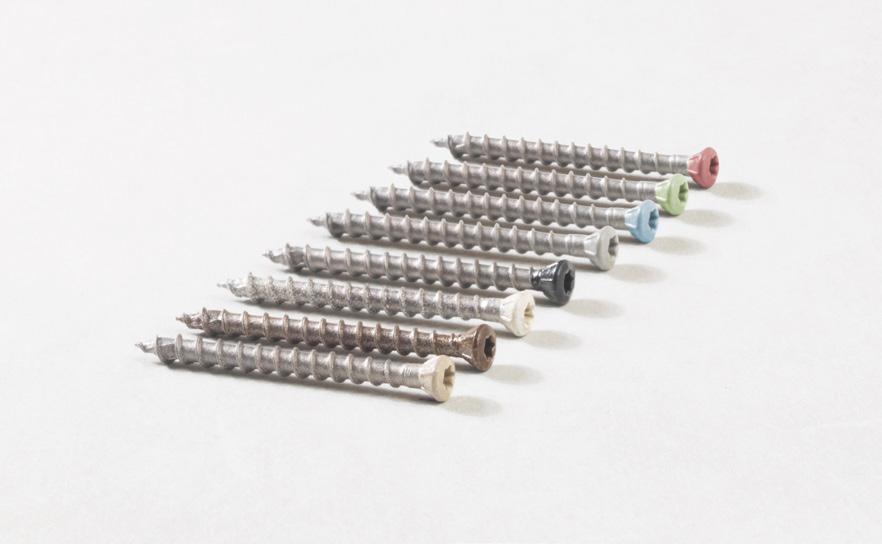

Envello coloured head screws
Millboard® Envello Décor
The first purpose-made premium cladding trim on the market that enhances the visual appeal and structural durability of any cladded exterior by providing structural reinforcement, allowing for wider batten spacing during installation and increased fire rating for the completed cladding system.

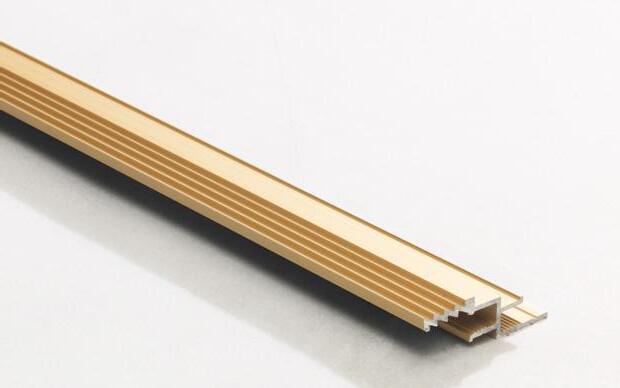

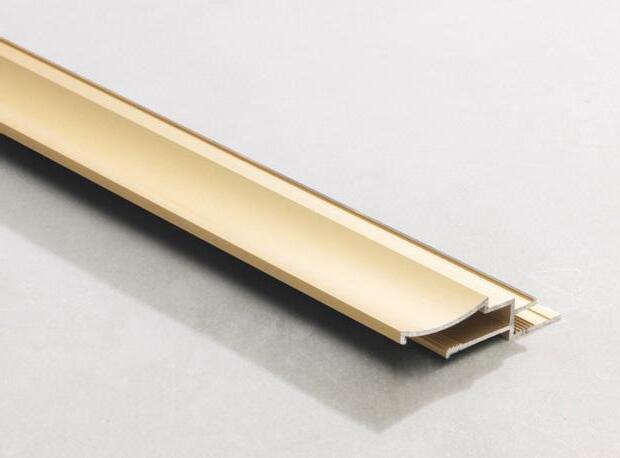

Envello Décor curve
Envello Décor shutter
Widths available
Décor Curve 47mm x 16mm x 3600mm
Décor Curve 60mm x 16mm x 3600mm
Colours: Bronze, Carbon, Gold
Code
MC5ESLDC-47
MC5ESLDC-60
Widths available
Décor Shutter 47mm x 16mm x 3600mm
Décor Shutter 61mm x 16mm x 3600mm
Colours: Bronze, Carbon, Gold
Code
MC5ESLDS-47
MC5ESLDS-61

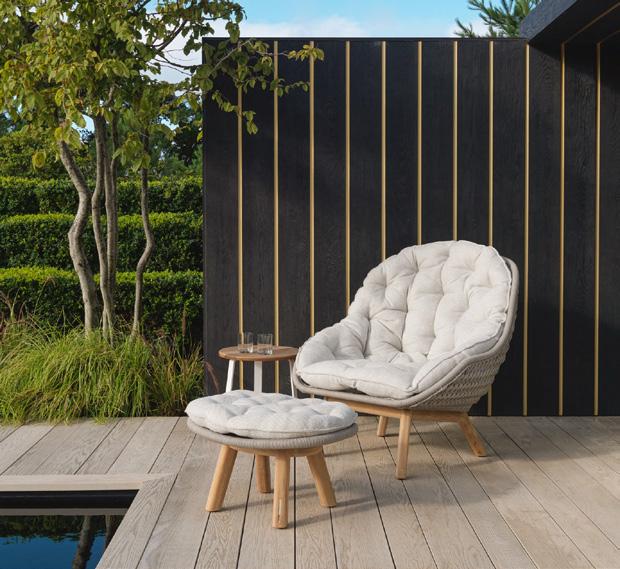

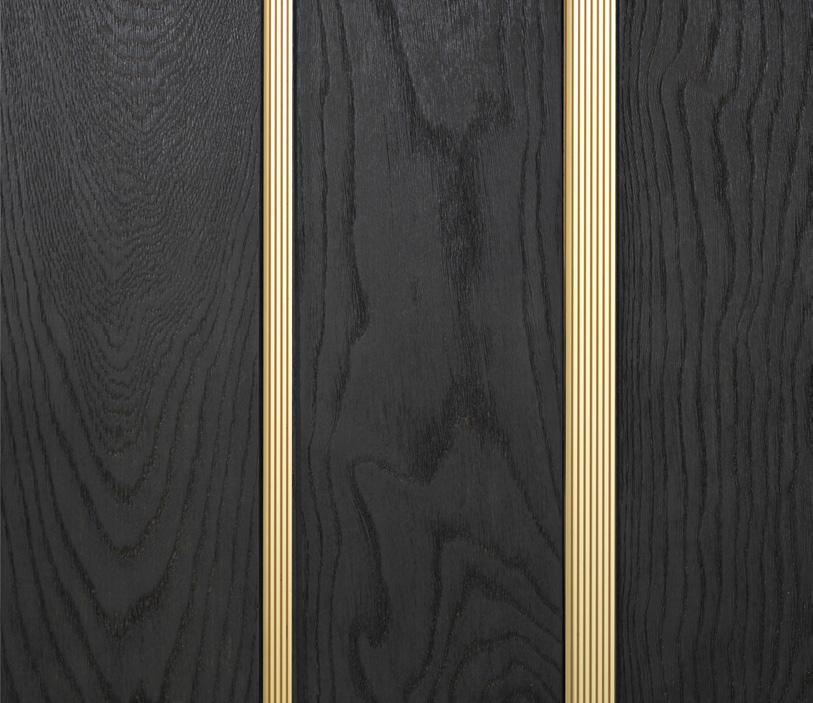

Gold Shutter on Burnt Cedar
KEY FEATURES:
• Life-like timber finish
• Low maintenance
• Lightweight
• Easy to cut with hand or power tools
• Simple installation
• Minimal thermal expansion and contraction
• UV stability
• Moisture resistant
• 100% wood free
Can’t decide on a colour or finish?
We have samples available. Speak to our friendly team or order online from southernsheeting.co.uk
