Product Catalogue Wire & Strands

WIRE & STRANDS

DRAWN COPPER WIRE Single Wire Multi Wire Bunches & Strands Welding Wire

ELCOWIRE.COM

1

ELCOWIRE SUSTAINABLE COPPER PRODUCTS Elcowire is a sustainable partner for companies that are key to the ongoing energy transition and electrification of our society.

With an annual capacity of 300 000 tons Elcowire is one of the largest manufacturers in Europe of copper wire rod, wires, stranded conductors, profiles and overhead catenary systems made from copper, copper alloys and aluminium.

Elcowire can offer Low-carbon Copper, standard materials and customized solutions aiming to support our customers in meeting their specific targets.

Our high quality products offer a range of benefits, such as reduced energy loss, increased efficiency, enhanced reliability, longer lifespan and recyclability. These benefits make Elcowire an excellent choice that meets the energy needs of the society while minimizing environmental impact.

As of today, we offer products less than half of the global average CO2 emissions, as confirmed by the International Copper Association (ICA), and we also see a large potential both in terms of improved efficiency in the processes and the increased use of renewable energy sources such as solar, wind and hydropower capacity.

Business Unit Wire & Strands offer bare and tin plated drawn copper wire products of a wide range in terms of dimensions, constructions and qualities depending on the need and specification from the next user in the value chain – all made with our own copper wire rod and our passion. With two production facilities (Germany and Sweden) we are certain to offer our customers a reliable supply chain.

The copper business is not just about the products at Elcowire. Our dedicated colleagues are like family, and many of Elcowire's staff is second or third generation. Every day, we strive to adopt more environmentally sustainable workplace practices, to fulfill corporate social responsibility, and because sustainability makes business sense in terms of improved employee health and well-being.

The tradition of more than 200 years of knowledge is a torch that gets passed down from one generation to the next and we wish you will join us on our continuing journey to reach net zero carbon emission.

Let us get ready for the most sustainable solutions. elcowire.com

2

ELCOWIRE.COM

CONTENT Company overview

4-5

The Core component Products for specific purposes

6-7

Single wire & Multi Wire Technical descriptions Overview Packaging

8-9

Bunches & Strands Technical descriptions Overview Packaging

10-13

Terms of turns

14-15

ELCOWIRE.COM ELCOWIRE.COM

Welding Wire Technical descriptions Overview Packaging

16-17

Customer Relationship - Contact us

18-20

21 Our Commitments: Sustainable Performance Copper alternatives: Standard, Low-carbon & Recycled Copper Customer Relationship

22

Our five Business Units

23

3

COMPANY OVERVIEW Elcowire contributes to the global transition to renewable energy as a supplier of copper wire rod, wires, stranded conductors, profiles and overhead contact line systems made of copper, copper alloys and aluminium.

We are a Swedish company with operations in Helsingborg, Sweden and Hettstedt, Germany with approx. 425 employees and an annual production of about 300.000 MT. Elcowire‘s five Business Units: Rod, Wire & Strands, High Voltage, Rail and Specials, are served from three Elcowire production sites, benefitting from many years of experience, a wide range of technologies, capacity, flexibility and a reliable supply chain.

From electric vehicles to power transmission within and between countries, above and below ground, our solutions enable the efficient transport of energy. In short: everything related to electrification.

ELCOWIRE AB HELSINGBORG

ELCOWIRE GMBH HETTSTEDT

ELCOWIRE RAIL GMBH HETTSTEDT

4 4

ELCOWIRE.COM ELCOWIRE.COM

COMPANY OVERVIEW

With three production sites we can offer flexibility and a reliable supply chain.

SWEDEN Elcowire AB in Helsingborg serves North European market with Rod and has an annual capacity of 150.000 MT. Helsingborg also specializes in production of Profiles (extrusion process) and with an annual capacity of more than 50.000 MT we serve the whole European market.

GERMANY Elcowire GmbH in Hettstedt serves Central, East and South European market with Rod and has an annual capacity of 150.000 MT. Hettstedt also specializes in production of drawn wire, bunches and strands and have an annual capacity of more than 30.000 MT which are delivered in Europe, Middle East and Africa.

Elcowire Rail GmbH serves the worldwide market for overhead contact lines, offering a wide range of standards and customized solutions. Contact wires, dropper wires, catenary wires from Hettstedt are in commercial service around the world.

Technologies with sustainable solutions, such as our contact and messenger wire “Valthermo” has a 70-year lifespan, (to compare with pure copper with a lifespan of 25 years).

ELCOWIRE.COM ELCOWIRE.COM

55

THE CORE COMPONENT AS ONE OF THE LEADING EUROPEAN SUPPLIERS OF COPPER PRODUCTS, ELCOWIRE IS COMMITTED TO SUSTAINABLE COPPER SOURCING. OUR CUSTOMERS

MATERIAL

MINING

Elcowire is working with Smelters are powered by the eco-friendliest mines electricity from renewain the world, together we ble sources, mainly hydro are finding solutions to power. minimize the climate Excess heat from smelting impact of our supply chain. process is transferred to the cities´ heating system Our contact wires power electrified trucks at the mine, as well as the trains that deliver copper to our production sites.

URBAN MINING

ELCOWIRE OPERATIONS

Our lean manufacturing We produce and deliver takes in account the sustainable products with use of renewable energy high quality and low CO2sources, low waste and footprint to our customers, negligible use of chemicals. and when the final application needs to be replaced, the copper is returned to a recycling process and reused in our copper production: A new product with high quality and low CO2footprint is produced and delivered to our customers.

Producing new products from existing copper products in applications that needs to be replaced, instead of taking raw material from the mine, is what we call: Urban mining.

With the input of conducting material, delivered from Elcowire, our customers produce their own products with an already significantly lower CO2- footprint

ELECTRIFICATION

WITH SUSTAINABLE SOLUTIONS

LOW-CARBON COPPER

with less than 50% CO2

We ensure the loop continues to go around and around and around...

6

ELCOWIRE.COM

SUSTAINABLE PRODUCTS FOR SPECIFIC PURPOSES WE ARE DEVELOPING ADVANCED TECHNOLOGIES TO PROVIDE OUTSTANDING ENERGY SAVING PRODUCTS WITH MAXIMUM USEFUL LIFE TO ENABLE SUSTAINABLE SOLUTIONS – TAILOR-MADE TO OUR CUSTOMERS' NEEDS. ELCOWIRE CAN OFFER STANDARD MATERIALS, LOWCARBON COPPER, RECYCLED COPPER AND CUSTOMIZED SOLUTIONS AIMING TO SUPPORT OUR CUSTOMERS IN MEETING THEIR SPECIFIC PURPOSES.

TECHNICAL KNOW HOW Elcowire’s drawn wire products are made of Elcowire’s own copper wire rod and comply with the highest quality requirements. We have a completely integrated and closed cycle which we keep in our hands, starting with the production of our own wire rod and with good quality wire rod we produce outstanding product variety of drawn wires, with excellent drawability, conductivity, product flexibility and surface.

Our upstream technologies to produce wire rod guarantee that every application receives exactly the right material.

This sets a high standard in the market.

Elcowire sells semi-finished wire products at every level of finish. That allows our customers to conduct their own business flexibly and in their own way, thereby gaining a competitive advantage.

Based on the experience of 200 years we manufacture bare and tinned wires in different shapes. Starting from a single wire, drawing up to 16 multiwires simultaneously we continue to produce bunches and strands followed by testing, packaging and transportation.

All our drawn wire products are supplied in specially made, standard-compliant and secure packaging. Our packaging solutions guarantee retention of shape ensuring that product’s properties are preserved to the outmost after leaving the factory and during the utilization of our products in the customer’s downstream process.

We produce our drawn wires in pure copper and alloys according to European and international standards or to the specifications defined by our customers. And it’s a part of our mission to support our customers to develop new specifications and to optimize existing products. In that way we create significant opportunities to make products with outstanding characteristics made for specific purposes and targets.

QUALITY Today we are a leading supplier in Europe, in the aspect of drawing, tinning, bunching and stranding. We installed all the test equipment and procedures needed to check fulfilment of the requirements of common wire standards like EN 13602 and individual customer's specifications.

Our activities, our business processes and structures are based on well-established management systems for quality ISO 9001:2015, environment ISO 14001:2015 and energy ISO 50001:2018 and we also meet the high requirements set by the automotive quality standard IATF 16949.

LOW-CARBON COPPER Half of the carbon emissions over its production processes, compared to the global average footprint for standard copper.

Low-carbon Copper is made possible through production that has undergone a substantial transformation due to electrification and automation of various stages of the process.

The Low-carbon Copper has also been made possible by a very efficient ore concentration process and a world-class green energy mix. The result is copper wire that has a low impact on nature and the climate.

The significantly lower CO2 emissions of the Low-carbon Copper are verified through several validation processes.

The reporting protocol that is used for verification is the Greenhouse Gas Protocol – Product Life Cycle Accounting and Reporting Standard.

The product is also validated and reviewed against the general principles in ISO 14064-3 Standard.

Environmental declarations

Environmental declarations have been developed for Elcowire’s products, including Low-carbon Copper.

Our footprint is verified through mass balance-based self-declarations for Low-carbon Copper Wire Rod and Low-carbon Copper Profiles, as per the framework in ISO 14021.

This is a first important milestone for Elcowire and the next step is to perform calculations of the carbon footprint for drawn wire products.

Elcowire aims to be a sustainability leader in its business, and therefore the carbon footprint is strategically important.

For more information, please visit our website; elcowire.com

ELCOWIRE.COM

7

SINGLE WIRE

MULTI WIRE

TECHNICAL DESCRIPTION THIS IS WERE WE'RE IN OUR ELEMENT.

By element we don’t mean water, fire, air or earth. Our element is copper. In Elcowire we draw copper wires in a range of diameters between 0,05 mm and 4,6 mm, with bare and tinned surfaces designed for applications requiring an excellent processability with regard to drawability and wire surface.

Delivered at an outstanding high service level our single wires and multi wires create the base for applications of our customers as well as for the downstream process in Elcowire’s manufacturing of bunches and strands.

SINGLE WIRE BARE AND TINNED Round drawn copper wire compliant with EN 13602, as well as individual customer specifications; Surface bare or tinned; wire diameter for tinned wires 0,3 mm to 2,8 mm; total tin coating on pre-drawn wires between 2,5 µm and 13 µm; total tin coating on finished wires min.0,8 µm; hard drawn or soft annealed test certificate 3.1 according to EN 10204 with mechanical values (chemical values on request) WIRE DIAMETER (IN MM) PACKAGING

MEDIUM SIZED WIRE

ROD BREAK DOWN WIRE 4,6 - 2,8

2,8 - 1,5

1,5 - 1,0

1,0 - 0,8

0,8 - 0,3

Barrels Coil Reel - flange diameter (in mm) 1000 800 630 560 450 400

MULTI WIRE BARE AND TINNED Round drawn copper wire compliant with EN 13602, as well as individual customer specifications; Surface bare or tinned; Total tin coating: 0,05 mm to 0,14 mm min.0,4 µm >0,14 mm to 0,29 mm min.0,6 µm >0,29 mm min.0,8 µm REEL - FLANGE DIAMETER (IN MM)

Soft annealed: wire bundles consisting of 5 to 16 ends; dynamically or statically spooled depending on wire diameter test certificate 3.1 according to EN 10204 with mechanical values (chemical values on request WIRE (DIAMETER IN MM)

0,50 - 0,15

0,15 - 0,10

0,07 - 0,05

630 560 450 400 315 8MM 250 8

ELCOWIRE.COM ELCOWIRE.COM

SINGLE WIRE

MULTI WIRE

OVERVIEW PACKAGING DELIVERY All of our products come in specially made or standard-compliant, secure packaging. Our packaging guarantees retention of shape, ensuring that a product's properties are preserved to the utmost after leaving the factory. Sea-worthy packaging is also standard for our overseas clients. We can also assess individual PACKAGE SPECIFICATIONS - Mini barrel / E 500, max. capacity 300 kg filling weight - Cardboard octabin type N, max. capacity 1200 kg filling weight - Cardboard octabin type J, max. capacity 1700 kg filling weight - Cardboard octabin type SNXXL, max. capacity 1700 kg filling weight - Cardboard octabin type SXXL / Oct 1200, max capacity 2300 kg filling weight

SOME EXAMPLES OF PACKAGING

COILS

OCTABIN J OCTABIN SXXL OCT 1200

S 1000 S 800

DIN 630 DIN 560

ELCOWIRE.COM ELCOWIRE.COM

OCTABIN N OCTABIN SNXXL

MINI BARREL E 500

DIN 450 DIN 400 DIN 315 DIN 250 9

BUNCHES

STRANDS

BUNCHED & STRANDED WIRE BARE AND TINNED HOT WIRED - TO A SUSTAINABLE FUTURE Real-time communication, e-mobility, green energy transition for a more sustainable living together - none of these trends can be reality without copper, particularly without our bunches, strands and ropes. 7 – 19 – 37 – 61 is the code for flexibility.

Elcowire manufactures copper bunches, strands and ropes in a cross section range between 0,05 mm² and 1000 mm² with bare or tinned surface.

Our optimised conductors with high conductivity and outstanding surface quality are made precisely for our customers’ specific needs for applications which require high flexibility.

10

ELCOWIRE.COM ELCOWIRE.COM

BUNCHES

STRANDS

TECHNICAL DESCRIPTION

STANDARD ANDAND SET-UPS IN DIN EN 60228 / VDE 0295 CATEGORIES 5 AND STANDARD SET-UPS IN DIN EN 60228 / VDE 0295 CLASS 2, 2, 5 AND 6 6 CROSS SECTION MM² CROSS-SECTION ININ MM²

CLASS CLASS 22

CLASS CLASS 55

CLASS CLASS 66

0,14

-

-

18 x 0,10

0,25

-

14 x 0,15

32 x 0,10

0,34

-

19 x 0,15

42 x 0,10

0,38

-

12 x 0,20

21 x 0,15

0,5

7 x 0,30

16 x 0,20

28 x 0,15

0,75

7 x 0,37

24 x 0,20

42 x 0,15

1

7 x 0,43

32 x 0,20

56 x 0,15

1,5

7 x 0,52

30 x 0,25

84 x 0,15

2,5

7 x 0,67

50 x 0,25

140 x 0,15

4

7 x 0,85

56 x 0,30

224 x 0,15

6

7 x 1,05

84 x 0,30

196 x 0,20

10

7 x 1,35

80 x 0,40

322 x 0,20

16

7 x 1,70

128 x 0,40

525 x 0,20

25

7 x 2,13

196 x 0,40

798 x 0,20

35

7 x 2,52

280 x 0,40

1120 x 0,20

50

19 x 1,83

399 x 0,40

672 x 0,30

70

19 x 2,17

356 x 0,50

988 x 0,30

95

19 x 2,52

475 x 0,50

1330 x 0,30

120

37 x 2,03

608 x 0,50

1691 x 0,30

150

37 x 2,27

760 x 0,50

2072 x 0,30

185

37 x 2,52

950 x 0,50

1480 x 0,40

240

61 x 2,24

1221 x 0,50

1924 x 0,40

300

61 x 2,50

1480 x 0,50

2405 x 0,40

400

61 x 2,89

1998 x 0,50

3182 x 0,40

500

61 x 3,23

2562 x 0,50

3965 x 0,40

Samples of norm DIN EN 60228, or alternatively customized constructions bare or tinned.

ELCOWIRE.COM ELCOWIRE.COM

1111

BUNCHES

STRANDS

TECHNICAL DESCRIPTION Bunches, strands and ropes made of round drawn copper wires compliant with EN 60288 (VDE0295), as well as individual customer specifications; Surface bare or tinned; wire diameter in tinned bunches, strands and ropes 0,05 mm to 2,8 mm; total tin coating for wire diameters: 0,05 mm to 0,14 mm min.0,4 µm >0,14 mm to 0,29 mm min.0,6 µm >0,29 mm min.0,8 µm Soft annealed, hard drawn on request; cross section 0,05 mm² to 1.000 mm²; delivery of compacted ropes on request test certificate 3.1 according to EN 10204 with mechanical values (chemical values on request)

BUNCHES, BARE AND TINNED REEL- FLANGE DIAMETER REEL FLANGE DIAMETER (IN (INMM) MM)

1000 800 630 560 450 400

CROSS-SECTION CROSS SECTIONIN INMM² MM² 25 - 6

6 - 2,5

2,5 - 0,5

0,5 - 0,05

STRANDS & ROPES, BARE AND TINNED REEL FLANGE FLANGEDIAMETER DIAMETER REEL(IN MM) (IN MM)

2000 1400 1250 1000 800

12

CROSS SECTIONIN INMM² MM² CROSS-SECTION

1000 - 630

630 - 400

400 - 120

120 - 25

ELCOWIRE.COM ELCOWIRE.COM

BUNCHES

STRANDS

OVERVIEW PACKAGING PACKAGE SPECIFICATIONS DELIVERY All of our products come in specially made or standardcompliant, secure packaging.

Our packaging guarantees retention of shape, ensuring that a product's properties are preserved to the utmost after leaving the factory.

We also offer sea-worthy packaging where required, or specific packaging as per your technical drawings.

We supply in all standard sizes and, on request, in SOME EXAMPLES OF PACKAGING STRANDED WIRE:

S 2000 S 1400 S 1250

S 1000 S 800

DIN 630 DIN 560

PLAIN WIRE ROPE AND STRANDED WIRE & ROPE:

WOODEN DRUM K 6 - K 26 H 800 - H 2400

ELCOWIRE.COM

K6-K9

13

TERMS OF

TURNS

TERMS OF TURNS PACKAGE SPECIFICATIONS

CONCENTRIC STRANDED WIRE

The direction in which stranded wire and wire rope is twisted is indicated by the letters S and Z. Regardless of which side you look at it from , the direction i salways the same: S= left twist, Z= right twist.

The strands of concentrically structured stranded wire have a precisely defined position around the core of the wire. That ensures an absolutely regular structure.

Concentric stranded wire:

7-strand

LAY LENGTH The lay length is the length along the axis of a cable which an element of the wire needs to twist one whole time around that axis. It is defined either in mm or as a multiple of the diameter of the stranded wire.

19-strand

37-strand

For concentric stranded wire with more than seven strands we different between four different types in terms of lay length:

Unilay:

True concentric:

Unilay concentric: same lay direction same lay length

Equilay concentric: changing lay direction same lay length

Unidirectional concentric: same lay direction different lay length

Conventional concentric: changing lay direction different lay length

STRANDED WIRE We supply bunched stranded wires and concentric stranded wire: soft annealed bare or tinned using pure tin in lay direction S or Z.

BUNCHED STRANDED WIRES Numerous strands or bundles of wires are bunched together. The strands within the wire do not have any particular order; their position in relation to one another changes constantly along the length of the wire.

14

ELCOWIRE.COM ELCOWIRE.COM

TERMS OF

WIRE ROPE: Wire rope is either flexible or rigid. it is available bare or tinned (using pure tin), wound in lay direction S or Z, sealed or unsealed, soft or

STRUCTURES:

TURNS

Lay directions can also oppose, e.g. Equal lay rope in Z throughout.

Equal lay:

7-strand= 1 + 6 19-strand= 1 + 6+ 12 37 strand= 1 + 6 + 12 + 18 61 strand= 1 + 6 + 12 + 18 + 24

STRANDED WIRE ROPEL This is wire rope with a symmetrical structure consisting of and wound using pre-stranded wires. The following variations of this type of stranding are available.

Reverse lay:

EQUAL LAY ROPE: The lay direction of the pre-stranded wire and the rope itself are the same. The diameter of wire ropes made this way is smaller than rever-

REVERSE LAY ROPE: The lay direction of the pre-stranded wires is the same as their position and it changes from layer to layer.

Cross lay:

CROSS LAY ROPE: The lay direction of the pre-stranded wires is counter to their position and changes from layer to layer.

LAYING TYPE Equal lay: Strand: Wire rope: Reverse lay: Strand: Wire rope: Cross lay: Strand: Wire rope:

ELCOWIRE.COM ELCOWIRE.COM

CORE 1

1ST LAYER 6

2ND LAYER 12

3RD LAYER 18

4TH LAYER 24

S -

S S

S S

S S

S S

Z -

S S

Z Z

S S

Z Z

Z -

S Z

Z S

S Z

Z S

15 15

WELDING

WIRE

WELDING WIRE WELDING WIRE MADE OF CU-ETP OR CU-OF ACCORDING TO DIN EN 13602

TIN, CAN AND VENTILATION DUCT FIRMLY WELDED WITH ELCOWIRE

In many regions of the world packaging made of metal is common.

Fruit, vegetable and edible oil can be better protected from light and temperature in tins and cans for a long time.

Flammable substances such as paints, varnishes and technical oils can be stored safely in Canisters and aerosol cans.

A can is the perfect sustainable packaging.

16 16

Air ventilations systems define the future standard in modern buildings. They create a healthy environment for the people living and working inside there.

And they support to reduce the consumption of energy in those buildings.

Copper welding wire is indispensable for the production of cans and ventilation ducts.

The high quality of our welding wire, its oustanding conductivity and circularity as well as its stable mechanical properties allow to make these products with a high processing speed above the common state of the art level. And after its utilisation the wire starts a second career in the recycling process.

It is a sustainable product for sustainable applications.

ELCOWIRE.COM ELCOWIRE.COM

WELDING

WIRE

TECHNICAL DESCRIPTION MATERIAL PROPERTIES PROPERTIES CHARACTERISTICS Round wire nominal-Ø Cross section approx.

Weight (density 8.9 kg/dm³) Ø-Tolerance Specific resistance 20°C max.

Conductivity min.

Yield strength. Rp 0.2 Tensile strength. Rm Elongation at break. A

UNITS UNITS mm mm² kg/km mm Ω*mm²/m MS/m N/mm² N/mm² %

1,24 1,21 10,7

1,38 1,5 13,3

1,5 1,77 15,7

DIAMETERS DIAMETERS 1,6 1,8 2,01 2,54 17,9 22,6 0 / – 0.04 0,02 57,5 min. 180 245 – 285 22-28

2 3,14 28

2,26 4,00 35,82

2,5 4,91 43,7

Suitable for can welding and stitch welding machines.

OVERVIEW PACKAGING PACKAGE SPECIFICATIONS

CARDBOARD

FILLING WEIGHT

HEIGHT

WIDTH

PALLET DIMENSIONS

BARREL TYPE

max. (in kg)

(in mm)

(in mm)

L x W x H (in mm)

Mini / E500

max. 300

800

Ø 500

1020 x 1020 x 140 (4 barrels)

N

max. 1,200

900

890

890 x 890 x 140

J

max. 1,700

1200

890

890 x 890 x 140

SNXXL

max. 1,700

910

1090

1100 x 1100 x 140

SXXL / Oct1200

max. 2,300

1200

1090

1100 x 1100 x 140

ELCOWIRE.COM

17

CUSTOMER

RELATIONSHIP

SUSTAINABLE RELATIONSHIP WITH OUR CUSTOMERS

The Group has expanded and this has added production capacity, but perhaps even more importantly, sales capacity, technical competence and experience.

Capacity is important, but even more so is the knowledge of our Elcowire colleagues.

18

ELCOWIRE.COM

CONTACT

MANAGEMENT WIRE & STRANDS

US

”

With sustainability in mind, combined with wide technical knowledge and experience in establishing new areas of operation and business, we are looking forward to give you answers to your questions...

ELCOWIRE TEAM

STEPHAN BRAUCKMANN Head of BU Wire & Strands Language: German & English stephan.brauckmann@elcowire.com Mobile + 49 (0)151 16 10 13 80

SALES & APPLICATIONS WIRE & STRANDS

CHRISTOPH BUSCH Key Account Manager

DENNY KOLBE Sales Manager

KRZYSZTOF KOENIG Regional Sales Manager - Eastern Europe

Language: German, English & French

Language: German, English

Markets: Poland, Czech Republic, Slovakia Language: German, Polish & English

christoph.busch@elcowire.com Mobile +49 (0)151 16 10 13 47

denny.kolbe@elcowire.com Mobile +49(0)160 96 32 89 32

WALID TOUZI Sales Manager

CALLE CROONA Sales Manager

TONY HILL Application Engineer

Markets: Africa, Middle East Language: Arabic, English & French

Markets: Sweden, Denmark, Norway & Finland Language: Swedish & English

Language: Swedish & English

walid.touzi@elcowire.com Mobile +216 24 32 69 90

calle.croona@elcowire.com Mobile +46 (0)705 30 06 96

ELCOWIRE.COM

krzysztof.koenig@elcowire.com Mobile +48 (0)790 89 03 50

tony.hill@elcowire.com Mobile +46 (0)703 19 53 66

FRANZISKA WEDLER Teamleader Customer Service Hettstedt Language: German & English franziska.wedler@elcowire.com Mobile + 49 (0) 3476 89 25 26

19

CONTACT

US

CUSTOMER SERVICE CENTER WIRE & STRANDS

ANIKA BENDEL Hettstedt

SABRINA GROSSMANN Hettstedt

KERSTIN RIEGLER Hettstedt

Language: German & English

Language: German, English & French

Language: German

anika.bendel@elcowire.com Mobile +49 (0)151 16 10 12 97

sabrina.grossmann@elcowire.com Mobile +49 (0)3476 89 23 60

kerstin.riegler@elcowire.com Mobile +49 (0)3476 89 30 31

MANUEL LANGER Hettstedt

MICHAEL CONRAD Hettstedt

KAREN CARLSTRÖM Helsingborg

Language: German & English

Language: German & English

Language: English & Swedish

manuel.langer@elcowire.com Mobile +49 (0)3476 89 21 42

michael.conrad@elcowire.com Mobile +49 (0)3476 89 22 68

karen.carlstrom@elcowire.com@ Mobile +46 (0)790 89 03 50

ÅSA BIRGANDER Helsingborg

LOUISE OLSSON Helsingborg

DÖRTE LÛTHJE-FRISTEDT Helsingborg

ISABELLE PERSSON Helsingborg

Language: Swedish & English

Language: Swedish & English

asa.birgander@elcowire.com Mobile +46 (0)791 429 157

louise.olsson@elcowire.com Mobile +46(0)42 19 53 15

Language: German, Swedish & English

Language: German, Swedish, English & French

dorte.fristedt@elcowire.com Mobile +46 (0)42 19 53 42

isabelle.persson@elcowire.com Mobile +46 (0)42 19 53 40

20 20

ELCOWIRE.COM

OUR

COMMITMENTS

COPPER ALTERNATIVES OUR SOLUTIONS ARE AN ESSENTIAL COMPONENT IN THE ELECTRICAL AND INFRASTRUCTURE INDUSTRIES. WITH RESPECT FOR THE ENVIRONMENT AND FUTURE GENERATIONS, WE ARE DEVELOPING ADVANCED TECHNOLOGIES TO PROVIDE YOU WITH OUTSTANDING ENERGY-SAVING PRODUCTS WITH MAXIMUM CIRCULARITY.

STANDARD COPPER

Our copper is responsible sourced to prevent abuses of human rights, avoid contributing to conflicts, as well as safeguarding health and safety of miners in the supply chain.

Our cathodes are LME Grade A and in accordance with the standard ASTM B115, or EN 1978.

LOW-CARBON COPPER The Low-carbon Copper has less than half of the CO2 emissions per kg copper compared to standard copper. The reduced CO2 emissions of our Low-carbon Copper have been validated scientifically and will play an important role in the transition, to achieve the goal of net-zero CO2 emission by 2050 set by the EU. The carbon emissions reduction by using Low-carbon Copper is based on using copper mines with electrified production, Elcowire's lean prodution methods, very efficient ore concentration process and a world-class green energy mix.

Elcowire sets the example by producing semi-fiished and finished products that have a low impact on nature and climate.

RECYCLED COPPER One of the most significant benefits of copper is its recyclability. Copper is a highly sought-after material in the recycling industry because it can be recycled over and over again without losing its quality or purity. This means that copper can be reused in new products, reducing the need for mining and extraction of new copper ore. Recycling copper also reduces energy consumption and greenhouse gas emissions associated with copper production, making it an environmentally friendly choice. Elcowire's waste management and processing of materials are focused on going from linear flows to circular flows, supporting the core of a circular economy.

Metals are extracted with lowest possible impact from suppliers' mines

Mines

End-of-Life materials can be sent back to smelters to be refined in several process steps

Suppliers (smelters) Cathods (raw material) manufacturing

End-of-Life copper can be sent back to Elcowire to be recycled Internal metal scrap is recycled

Process scrap from customers can be recycled at Elcowire

Elcowire Customers - Wire, rod and conductor - Cable and other copper based material manufacturing soluctions manufacturing

End-of-Life - At the material end-of-life there are several possibilities for the material to get a new life

Elcowire's circularity process enables our customers to reduce their CO2 emissions.

ELCOWIRE.COM

21

CUSTOMER RELATIONSHIP

SOMETIMES INVISIBLE, YET ALWAYS PRESENT

Business Unit

WIRE & STRANDS

WITH SUSTAINABLE SOLUTIONS

22

ELCOWIRE.COM

COMPANY OVERVIEW

ELCOWIRE GROUP OUR BUSINESS UNITS

ROD

WIRE & STRANDS

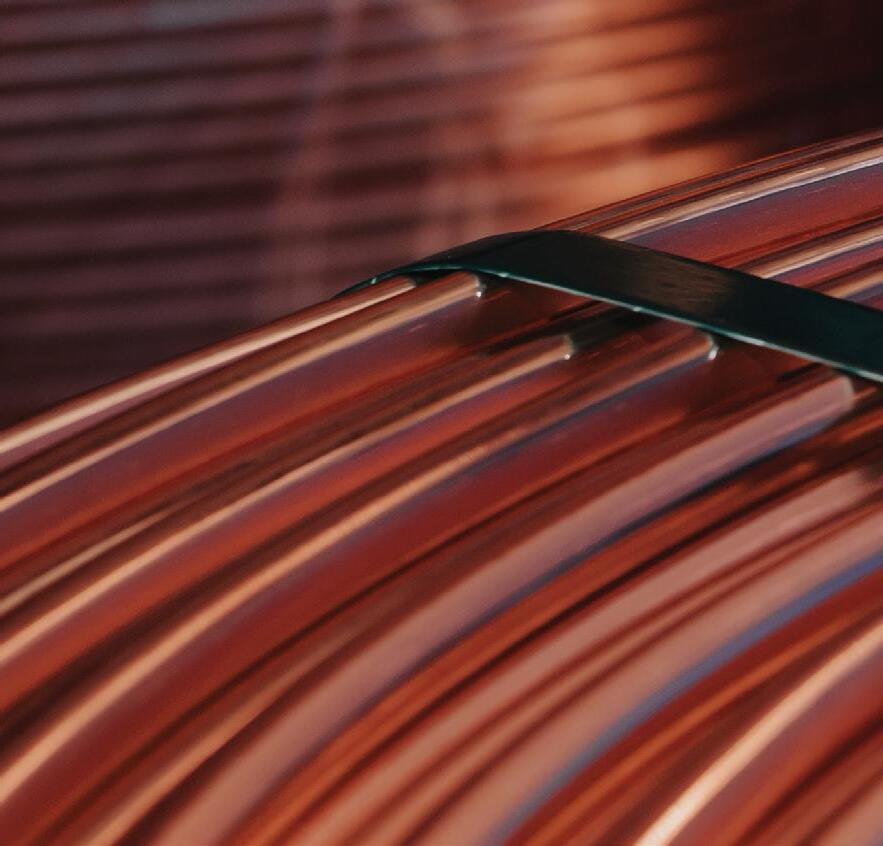

BU Rod has an annual production capacity of 300 000 tons of pure and silver, tin- and magnesium-alloyed copper wire rod.

BU Rod is one of the largest manufacturers in Europe with continuous cast and upcast in rod dimensions 8–30 mm.

Our drawn wire products cover a diameter range between 4,6 mm and 0,05 mm. They are made from Elcowire continuous cast wire rod.

BU Wire & Strands manufactures our wires in compliance with European and international standards.

PRODUCT CATALOGUE Overhead Contact Line Systems Profiles

HIGH VOLTAGE BU High wires Voltage’s conductor materials are being Center

C

BU High materialsoff areshore being used inVoltage’s cables interconnections, Round wires forconductor used cablesunderground for interconnections, offand shore wind windinparks, power links other parks, underground power links and other applicaapplications. tions.

BU High Voltage offers our extensive knowledge BU High Voltage offers to our extensive knowledge and products primarily manufactures of high and products primarily manufactures voltage and extra highto voltage cables. of high voltage and extra high voltage cables.

RAIL BU Rail serves the worldwide market for overhead conductor material, including catenary and contact wires, feeder, stitch, jumper and earthing wires.

Our products are suitable for all speeds of operation and support sustainability in railway design.

HIGH VOLTAGE

ELCOWIRE GROUP

SPECIALS BU Specials is a leading provider of drawn and extruded profiles used in various applications for energy transmission.

BU Specials is supporting our customers to build up renewable energy transmission systems.

ELCOWIRE.COM ELCOWIRE.COM

Centre eller center wires?

With an annual production of 300 000 MT Elcowire is one of the largest manufacturers in Europe of copper wire rod, wires, stranded conductors, profiles and overhead catenary systems made from copper, copper alloys and aluminium.

23

TRUST. RESPONSIBILITY. RESPECT. PASSION. CONTACT Elcowire Group AB Elektrogatan 20, 251 09 Helsingborg, Sweden

V.1.26 © 2026, Elcowire Group AB

Elcowire Group | LinkedIn elcowire.com

Elcowire takes no responsibility for the information being correct, complete or current.
