SOFÍA LANKINEN Architect

PORTFOLIO

Selected Projects Professional Architecture

01

Wai Sustainable Health Clinic (445 m2) Offices (425 m2) Motorcycle showroom (225 m2) Royal & Sun Alliance Group Offices (9,562 m2) Pinho Offices & Factory (2,150 m2) MetLife USA Offices (5,320 m2)

Competitions

02

Architecture Competition Contest of Sustainable Design

Other Collaborations

03

WAI CLINIC sustainable health clinic Location: Wai Community, Sierra Leone Area: 445 m2 Completion: Ongoing Being located in a remote, traditional community, the clinic aims to be sustainable, self-sufficient, and to be carried out with local workmanship and materials. For these purposes, an understanding of the local traditions and ways of living was mandatory for the design.

The passive and sustainable strategies include natural ventilation, rainwater harvesting, composting toilets, and solar photovoltaic panels for electrical power.

This dedicated facility will address the numerous health challenges the community goes through daily since the destruction of their clinic during the civil war.

Role: On-site architect Design Development & Construction Documentation.

Providing input based on local research.

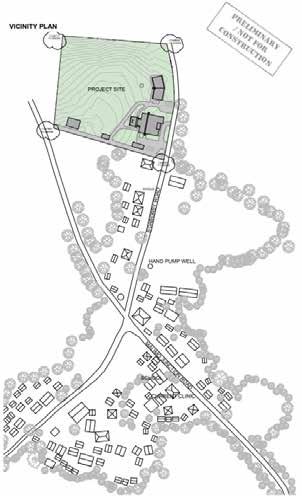

3D Image (work by others), Vicinity Plan 2

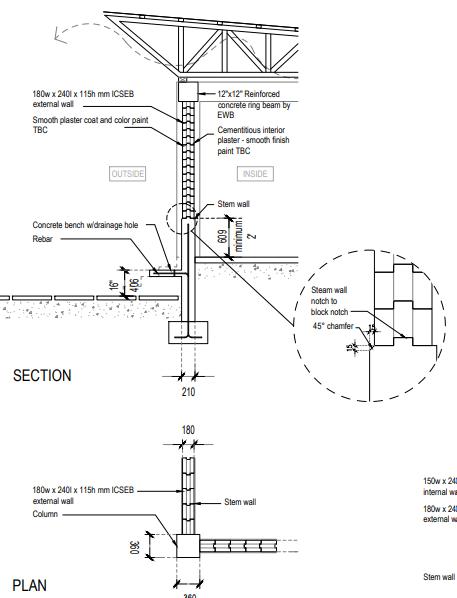

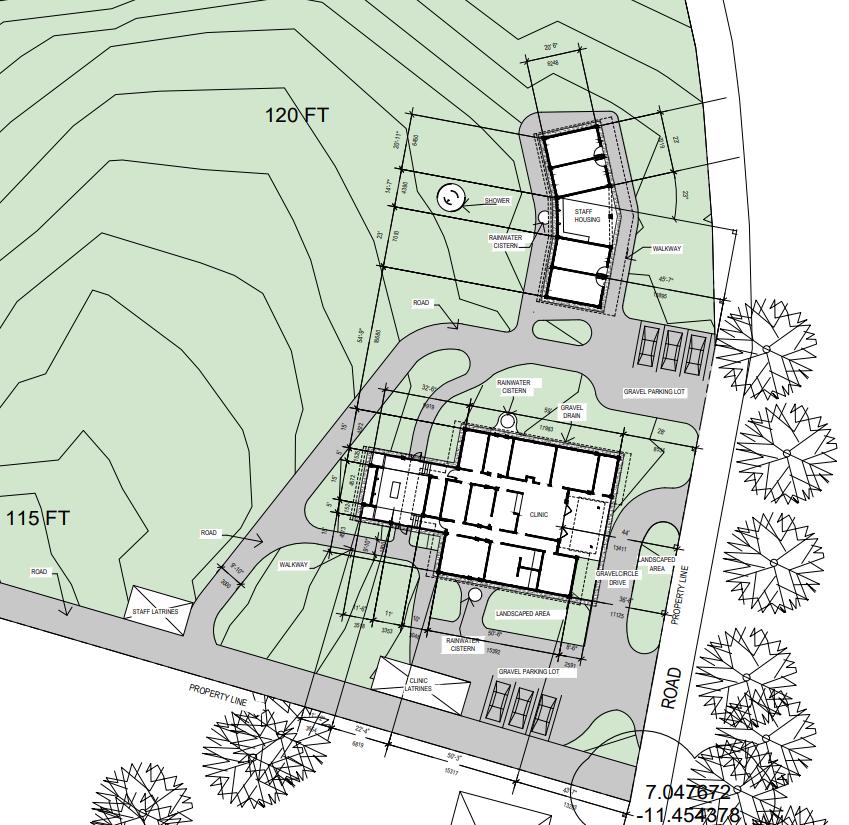

1:100 Section, Site Plan

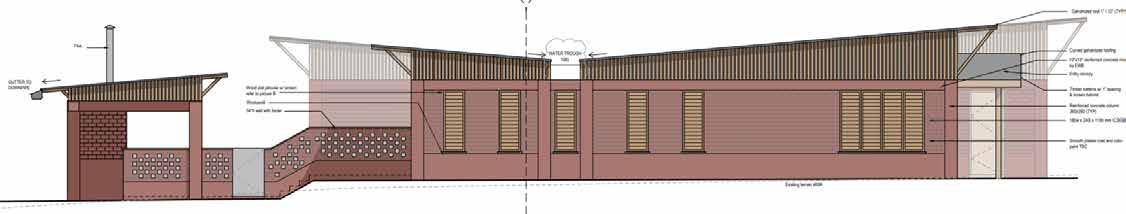

1:100 elevation, 1:50 details 3

Offices LEED Gold certified Location: Freetown, Sierra Leone Area: 425 m2 Completion: Finished Meditation

Yoga

Store

Store

IT Store

UP

Corridor

PABX

This office refurbishment project aimed to convert a large storage area into an attractive and functional space, incorporating several elements of the building’s current LEED Gold certification.

The design prioritized energy efficiency and employee well-being by including key features such as biophilic elements and new windows that provided natural light, improved air quality and reduced stress levels. The renovation also included new dedicated spaces for wellness, including a prayer room and a yoga studio where employees could practice spirituality and mindfulness.

Additionally, the project introduced new hot-desking and sitting areas, providing employees with the flexibility to work in different spaces and enhance their creativity.

All lighting systems were energy-efficient, and HVAC systems were equipped with automation controls.

Visiting Mission Office

Office

Corridor

Corridor

Office

Office

Office

Office

Duct Access Office

Exit

Hot desking

UP

Role: Project Lead Schematic Design, Design Development, Construction Documentation & Specifications.

1:100 Floor Plan 4

Enclosed offices

Hot-desking

Visiting Mission / Meeting Room Prayer Room Yoga Studio Storage

rea

er ay

room

pr

ga

ga tin

sit

d

king es

yo

ho t-

Sitting Area

Isometric view, interior visualisations 5

RSA GROUP ET STRE LEY T MO S

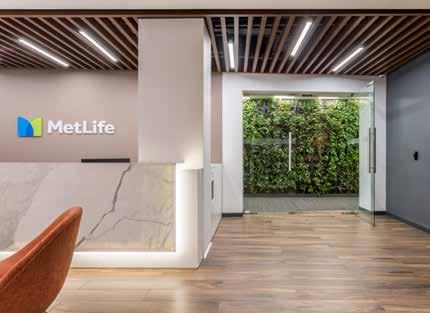

The purpose of the design was to make the building more attractive and flexible, bringing it up to current marketable aesthetic.

The construction of a new entrance at the commercially growing Fountain St. played a big role in this refurbishment.

The existing sterile atrium was enlarged and brought up to use as a winter garden, which was key to the building’s modernization. At ground level, the external loggia and entrance hall were unified to make a bigger reception space where workers could feel welcome. Basements 1 and 2 were reconfigured to provide greater staff facilities - cycle storage, EV charging at the parking area, gym, changing/ shower rooms and a drying room.

Throughout the project, we worked together with the engineers and the client’s sustainability team to achieve BREEAM certification.

WES

Location: Manchester, UK Area: 9.562 m2 Completion: Finished

FOUNTAIN STREET

cat a office fit-out / amenities

YORK STREET

Role: Project Lead Design and coordination of the project from RIBA Stage 1 to 4.

Photograph of completed project, 1:100 G Floor Plan 6

1:50 Atrium & Winter Garden section

Sketches of inner spaces 7

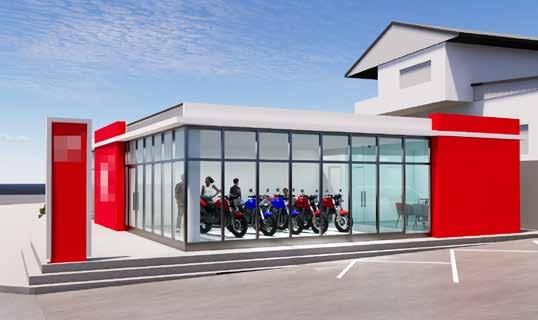

Showroom motorcycle showroom + printing facotry w/shop Location: Freetown, Sierra Leone Area: 225 m2 Completion: Ongoing Located within a portion of an existing plot, the design proposed for a new motorcycle showroom and a printing factory with a front shop, focuses on prioritizing street-level access and visibility, aiming to take advantage of this prime commercial location for revenue generation.

This new building has storefronts facing the street, and a contemporary look with a mix of glass and alucobond, attracting customers.

The design puts special attention in the existing house, making sure not to block its exceptional views.

Role: On-site Project Lead Schematic Design & Design Development

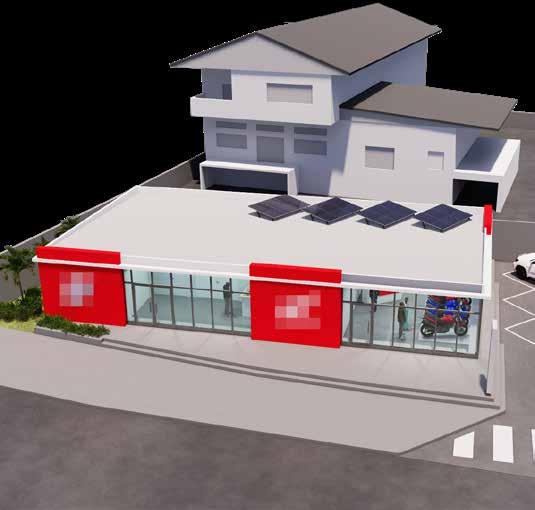

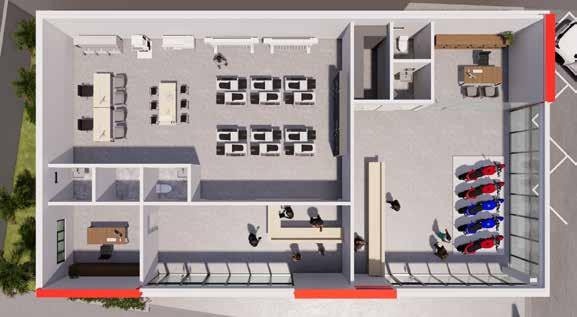

axonometric view 8

existing gutter

existing gutter

private restroom 2.60m2

guillotine

wire stitching book binding

plotter 1

plotter 2 solar

6 copiers/printers

office 15.75m2 client's restroom 2.60m2

rack

folding / cutting table

spare parts storage 5.30m2

6 copiers/printers

staff restroom 2.90m2

office 14m2

client's restroom 2.90m2

Printing Shop 31.50m2

parking area

Printing Factory 92.80m2

counter

counter

private restroom 2.90m2

Motorbike Showroom 64m2

PILE

Wilkingson Road

1:100 Floor Plan, 3D images 9

PINHO cat b office fit-out / showroom / factory Location: Buenos Aires, Argentina Area: 2.150 m2 Completion: 2021 The project was developed in an existing double-height parabolic building used as a factory. Everything was designed with a strong industrial stamp and provided a warm environment for customers and employees.

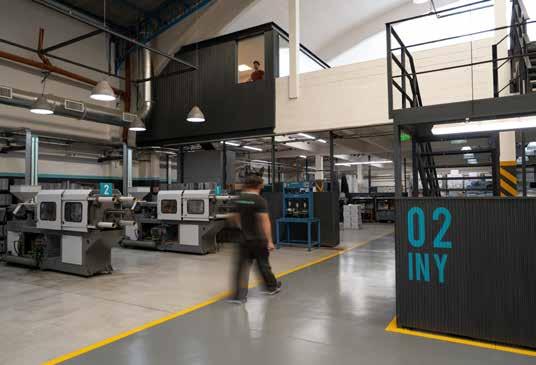

The different spaces of the factory were organised on the lower level, while the administrative and commercial areas coexisted on the upper floor.

The heart of the project was its sales and exhibition hall, which overlooked the production area through the “Pullman”, a terrace that achieved views of the entire complex.

A set of skylights was design to provide natural light.

Role: Project Lead Survey, Schematic Design, Design Development & Construction Documentation

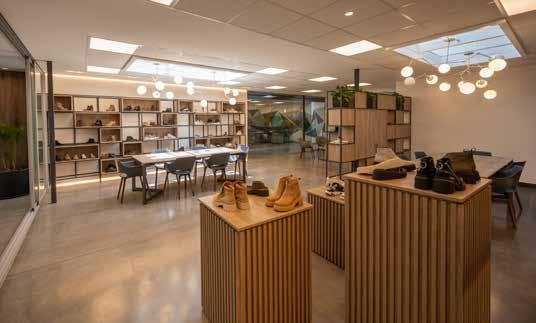

Photographs of completed project 10

DET. 10 Showroom

DET. 10

0,120,09 0,02 0,12 0,02

Showroom

NL

0,55

0,15

0,55

0,15

0,06

E.M

E.M

NV

+5.31

0,02

NCT

0,09

0,06

+5.97

NCT

0,02

+6.85 NCT NCT

SM05

+6.60

NV

+3.31 NPT

GR11

NPT

GR11

pin

iny

DET.04 DET.04

+0.00 0,12 0,02

NPT

0,12 0,02

Drywall + cladding Drywall + cladding

NCT

NCT

CORTE H-H

E.M

L.M

E.M

DEP. RES. ESP. 006

40a TV 55"

ACCESO 011

DEP. AC. 006

30

M

V V

F

CV

h.1,40

SECTOR EXPANSIÓN/ RACK INSUMOS 003

F

SECTOR INSUMOS PLUMA 004 h.1,80

AREA DE TRABAJO

MO

TRABAJO

MO

SECTOR INSUMOS 002 AREA DE

M

M

M

BI

IL

2PUESTOS

T

44

h.2,80

ha.1,71 hb.2,35

IR

ME

ME

h.3,77

B

±0.00

BASTIDOR

NPT

M

SECTOR INYECTORAS 001

PLAYÓN CARGA/DESCARGA 014 SECTOR DE ACOPIO 013

01

02

03

04

05

06

07

08

09

10

TV 55"

DET.05 DET.05 DET.05 Junction with corridor roof Junction Junctionwith withcorridor corridorroof roof

B

IR

41

NPT

TV 55"

T

ESCALERA B 41 012

NPT

8 PUESTOS

M

ACCESO PEATONAL DE PERSONAL 015

NPT

M

10 PUESTOS

ME

M

ha.1,71 hb.2,35

41

-0.30

M

M

CI

M

In.V TB

M

ESTACIONAMIENTO 007

ESPERA30 010

CI

D

BI

M

CI

M

TOILETTE 008

ESCALERA A 009

M

E.M

h.2,80

CAMARA EDENOR 020

CI CI

CINTA

R

T

44

P

h.3,13

ha.1,65 hb.2,90

DEP INF 017

IC

IC

h.1,75

IR

IC

h.1,75

h.3,77

ha.2,11

B CINTA

NCT NCT NCT

M

10 PUESTOS

h.1,75

F

h.1,90 h.c/motor 3,00

CA

0,12 0,02 0,12 0,02

TV 55"

0,08

TV 55"

41

0,08 0,08

h. 0,45

R

h.1,36

M

SECTOR EXPEDICIÓN 019 32 PALLETS EN RACKS

SECTOR PINTURA 016

h.1,36

P

M

TV 55"

M

R

41 41

SECTOR ARMADO DE PEDIDOS 018 11 POSICIONES

0,12 0,02

M

M

h.3,13

CI

M

M

M

M

M

M

M

M

E.M

E.M E.M

L.M

1:50 Section. 1:100 G Floor Plan

1:10 Construction Details 11

L.O.

380 PRINTER STATION 4

303 WORKSTATIONS

LOCKERS

WRITABLE SURFACE

METLIFE USA

LOCKERS

301 WORKSTATIONS

306 Ladies' WC

LOCKERS

LOCKERS

304 CORRIDOR

308 Men's WC 305 DTC

311 Meeting Booth

310

309 Director LOCKERS

Large Meeting Room (14p)

318 Club/Pantry Area 1 319 Club/Pantry Area 2

312 Meeting Booth 315 Men's WC

314 Ladies' WC

office refurbishment / listed building

321 Open Meeting 2

313 Meeting Booth

323 STORAGE 1

LOCKERS

322 Director

316 Mother´s Room

324 PRINTER STATION 1

327 Director

317 Handicap's WC

SNACKS

325 CORRIDOR 320 Club/Pantry Area 3 WRITABLE SURFACE

383 Phone Booth

329 Medium Meeting (8p)

330 Medium Meeting (8p)

LOCKERS

328 Phone Booth

332 AGORA

LOCKERS

LOCKERS

331 Double Meeting Booth

345 Meeting Booth

LOCKERS

356 STORAGE 2

352 Digitalization

349 Training/Meeting Room (18p)

347 CORRIDOR

346 Meeting Booth

341 CORRIDOR

350 Collaboration Room

351 CORRIDOR

348 Creative Meeting (8p)

359 STORAGE 3

358 PRINTER STATION 3

357 PRINTER STATION 2

353 Small Meeting (6p)

GREENWALL

342 Director

338 Phone Booths

344 Small Meeting (6p)

335 Filing

336 CORRIDOR

CORRIDOR

343 Small Meeting (6p)

334 Waiting Area

333 Post Office

339 CORRIDOR

355 Director

368 Reception

LOCKERS

360 Director

FILING

372 Open Meeting 3

FILING

LOCKERS

L.O.

re

37 iv 0 e (1 M 2p ee ) tin

at

g

COLOR GLASS SEPARATION

WA LL E ITA BL WR

C

364 Director

365 Director

367 Standing Meeting

366 Director

FILING

FILING

FILING

FILING

375 Open Meeting 5

FILING

LOCKERS

COLOR GLASS SEPARATION

FILING

371 WORKSTATIONS

381 Open Meeting 5

.

363 Director

Country Manager

369 CORRIDOR FILING

L.O

362

361 Director

METLIFE LOGO

LOCKERS

354 WORKSTATIONS

LOCKERS

LOCKERS

LOCKERS

377 WORKSTATIONS

374 WORKSTATIONS

373 Open Meeting 4

LOCKERS

LOCKERS

LOCKERS

LOCKERS

LOCKERS

LOCKERS

LOCKERS

LOCKERS

LOCKERS

LOCKERS

LOCKERS

ITA BL

E

WA LL

LOCKERS

WR

376 Phone Booths

382 PRINTER STATION 5

L.O.

L.O.

Perón

L.O.

Calle Tte. Gral. Juan Domingo

Heladera 68x67cm h.171,5cm

banco olimpico c/barra y discos

602 Mother´s Wellness´ Room

SHOWERS

cinta pelotas

bici horizontal cinta

Microondas 52x51cm h.33,5cm

Heladera 68x67cm h.171,5cm

618 Handicap's WC

615 Men's WC

611 Club/Pantry Area 2

616 FILING

605 Ladies' WC

RES

614 Club/Pantry Area 3

608 CORRIDOR 626 Meeting Booth (4p)

628 Meeting Booth (4p)

627 Meeting Booth (4p)

COLOR

B&N

B&N

629 Meeting Booth (4p)

B&N

625 Meeting Booth (4p)

630 Printer Station 3

634 AUDITORIUM

ACOUSTIC PANEL

LOCKERS

623 Printer Station 1

617 Auditorium Storage 1

612 CORRIDOR

624 Phone Booth

WHITEBOARD

LOCKERS

WHITEBOARD

Sistema Decibel® 7600 Multidireccional ACOUSTIC PANEL ACOUSTIC PANEL

633 CORRIDOR

LOCKERS

621 WORKSTATIONS

639 CORRIDOR

632 Sales Tables

WHITEBOARD WHITEBOARD

LOCKERS

637 Common Corridor

ACOUSTIC PANEL

642 643 Customer Customer Support 1 Support 2

WHITEBOARD

NOTA: LA MEDIDA EXACTA SE VERIFICARA CON PROVEEDOR (FAUNA)

650

654 Reception 651 Director 652 Sales Supervisors

657 CORRIDOR

LOCKERS

667 Printer Station 4

666 Call Center

B&N

662 WORKSTATIONS

LOCKERS

LOCKERS

659 WORKSTATIONS

L.O.

658 Creative Meeting (10p)

664 Director

660 Open Meeting 3

LOCKERS

663 Huddle Room

L.O

LOCKERS

LOCKERS

655 Open Meeting 1

.

653 Medium Meeting (8p)

LOCKERS

Small Meeting (6p)

METLIFE LOGO

649 Small Meeting (6p) Printer Station 2

B&N

647 Huddle Room (5p)

B&N

646 Director

COLOR

641 Phone Booth

645 Director

644 Auditorium Storage 2

GREENWALL

LOCKERS

ACOUSTIC PANEL

Role: Project Co-Lead Design Development, Construction Documentation & Site overseeing supporting the Construction Manager

619 WC Corridor

CATERING

604 GYM ACCESS CORRIDOR

bici spinning

ESPALDA

Calle Florida

620 Ladies' WC

613 TECHNICAL ROOM

601 GYM

bici spinning

elíptico

T.T 50lts. Ø45cm h.60cm

609 IDF

bici horizontal elíptico

colchonetas

Microondas 52x51cm h.33,5cm

610 Club/Pantry Area 1 603 Men's WC

banco multiajustable

CATERING

cinta

SNACKS

cinta

Tabique h: 98cm

Rack mancuernas

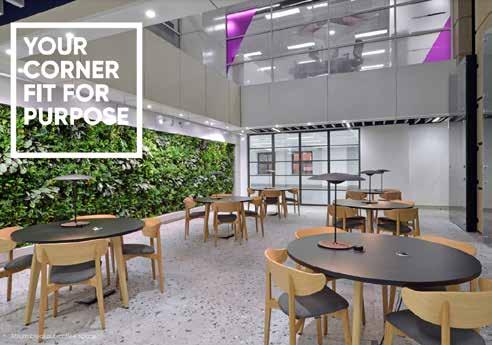

The concept for this project was to achieve an inner urban layout where different spaces would lead to the interaction and socialisation of the employees.

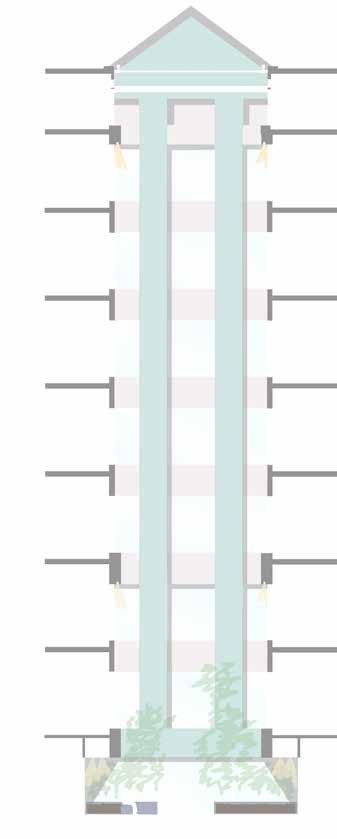

Each floor had a core space, protagonist of the design.

On the 3rd floor, the “Agora”. A ludic, playful open seating space, where informal gatherings could be carried out.

On the 6th floor, a green open courtyard which became available thanks to the modernization of the HVAC system.

This project involved an international work team and the collaboration of acoustics, lighting, and M&E consultants.

Sustainability is present through biophilia, automation controls and a new HVAC system that optimises energy consumption.

337 Common Corridor

TACKABLE WALL

326 WORKSTATIONS

Calle Florida

Location: Gath & Chaves building, Buenos Aires, Arg. Area: 5.320 m2 Completion: 2021

307 WC CORRIDOR

378 TECHNICAL ROOM

302 Open Meeting 1

665 Huddle Room (5p) 661 Open Meeting 4

L.O.

L.O.

Calle Tte. Gral. Juan Domingo

Perón

1:100 Floor Plans 12

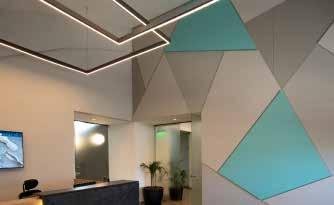

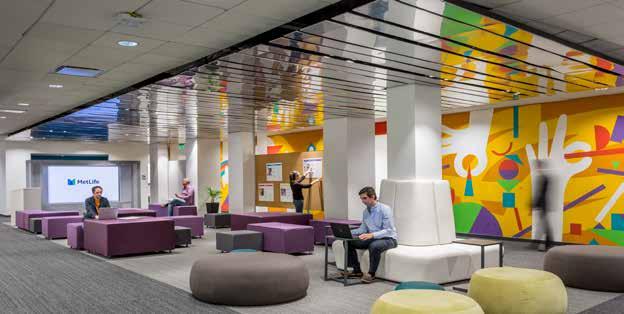

Photographs of completed project

Mood Boards 13

MUSEUM Architecture Competition Location: Valparaiso, Chile Year: 2019 The city of Valparaíso sits on numerous hills and ravines.

These create connection and integration problems, especially at the highest levels.

The proposal for the Museum of Contemporary Art responds to this issue and acts as an urban link connecting the high with the low. This urban piece, located at the bottom of the ravine, can be crossed entirely through a linear ramp.

The inner space receives natural light from above through skylights, creating an ideal diffuse lighting for an art museum.

In terms of materiality, since Valparaíso is a seismic zone, the building was designed in reinforced concrete with a structural system of few load-bearing partitions.

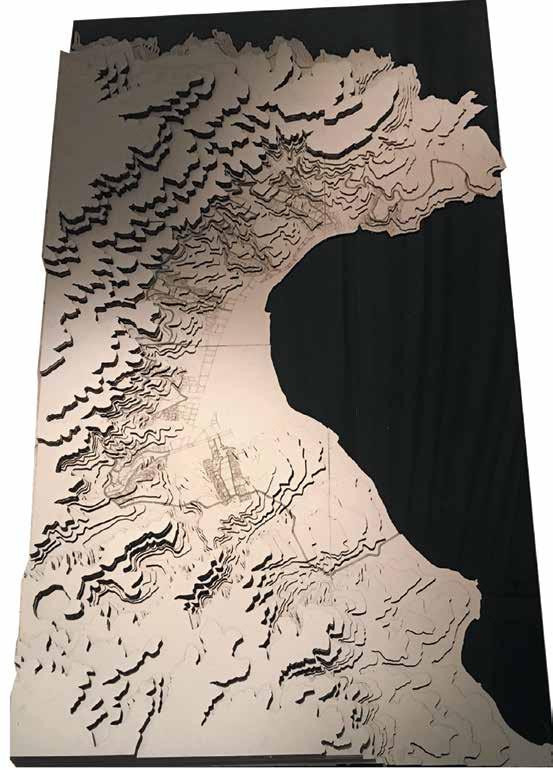

Physical model - topographic studies 14

4 4

4

2 2

2

3 5 3 5

3 5

6

1 12 1 1214 15 1416 1517 16 17 1 12

6

6

14 15 16 17

AZOTEA INACCESIBLE -2,50 AZOTEA INACCESIBLE -2,50

AZOTEA INACCESIBLE -2,50

13 13 7 7 8 8 13 10 710 11 811

1819 18 2019 20

9 18 19 9 20

9

10 11

SALAS ARTES VISUALES -9,50 ARTES VISUALES SALAS -9,50

AZOTEA INACCESIBLE +2,00 NIVEL VEREDA ±0,00

NIVEL VEREDA ±0,00

S1 Aud.

ACCESO -5,00

SALAS ARTES VISUALES -9,50

S2 Aud.

S1 Aud.

ACCESO -5,00

S2 Aud.

CONSERVACIÓN

CONSERVACIÓN

AZOTEA INACCESIBLE -2,50

AZOTEA INACCESIBLE +2,00 SALAS AUDIOVISUALES -5,00

S3

CONSERVACIÓN SALAS AUDIOVISUALES -9,50 -5,00

S4

S3

CONSERVACIÓN -9,50

S4

CONSERVACIÓN

AZOTEA INACCESIBLE -7,00

AZOTEA INACCESIBLE -2,50

SALAS ARTES VISUALES -9,50

S5

CONSERVACIÓN SALAS ARTES VISUALES -14,00 -9,50

MANTENIMIENTO /

CONSERVACIÓN

S6

S5

MICROCINE

SALA DE MÁQUINAS

CONSERVACIÓN -14,00

MANTENIMIENTO /

S6

MICROCINE

SALA DE MÁQUINAS

AZOTEA INACCESIBLE -11,50

AZOTEA INACCESIBLE -7,00

SALAS ARTES VISUALES -14,00

AZOTEA INACCESIBLE -11,50 MATENIMIENTO SALA DE MÁQUINAS MICROCINE SALAS ARTES VISUALES -18,50 -14,00

ACCESO -18,50

MATENIMIENTO SALA DE MÁQUINAS MICROCINE -18,50

ACCESO -18,50

21 22 21 23 22 24 23 24 21 22 23 24 25 25 26 2726 27 28 2825 29 26 29 27

Y1

Y2

Y1

Y4

Y3

Y2 PRESIDENTE

Y5

Y4

Y3

Y7

Y6

Y5

Y8

Y7

Y6

Y10

Y9

Y8

C

Y11

Y10

Y9

Y12

C

Y11

CONFERENCIAS

Y13

Y12

Y14

Y13

Y15

Y14

D

Y16

Y15

Y17

D

Y16

Y18

Y17

Y19

Y18

Y20

Y19

Y21

Y20

Y22

Y21

Y23

Y22

Y24

Y23

Y25

Y24

E

Y26

Y25 VESTUARUARIO

Y27

E

Y26

DEPÓSITO

Y28

Y27

Y28

COCINA OFFICE

SECRETARIA

28

DEPÓSITO BIBLIOTECA / MEDIATÉCA

PRESIDENTE

VESTUARUARIO

CONFERENCIAS

ADMINISTRACIÓN

SANITARIOS

DEPÓSITO

SANITARIOS

SALA DE CONSULTA

COCINA BAR / CAFETERÍA

OFFICE

S1 Aud.

SECRETARIA

29

ADMINISTRACIÓN HALL

A

CONSERVACIÓN -14,00 CONSERVACIÓN -14,00

S3

S4

S5

S6

SANITARIOS

S1 Aud.

TIENDA Y PUBLICACIONES

HALL PÚBLICO

DEPÓSITO BIBLIOTECA / MEDIATÉCA

SANITARIOS

PÚBLICO

A

S2 Aud.

ESPACIO EDUCATIVO

S2 Aud.

S3

S4

S5

S6

SALA DE CONSULTA

BAR / CAFETERÍA

A

ESPACIO EDUCATIVO

HALL PÚBLICO A

HALL PÚBLICO

TIENDA Y PUBLICACIONES

B

B

B

B Y1

CONSERVACIÓN -14,00

Detail section

Y3

Y2

Y1

Y2

Y5

Y4

Y3

Y4

Y6

Y5

Y9

Y8

Y7

Y6

Y7

Y8

Y10

Y9

C

Y11

Y10

Y11

Y13

Y12

C

Y12

Y15

Y14

Y13

Y14

D

Y16

Y15

Y16

Y18

Y17

D

Y17

Y19

Y18

Y20

Y19

Y21

Y20

Y23

Y22

Y21

Y22

Y24

E

Y26

Y25

Y24

Y23

Y25

Y26

Y28

Y27

E

Y27

Y28

Visualisation, 1:100 G floor plan and section 15

PalletPitre 2nd place 11th International Contest of Sustainable Design ”Solutions for Social Housing” by Fundación Vivienda Digna 2018

The contest premise was to design a functional object for low-income homes.

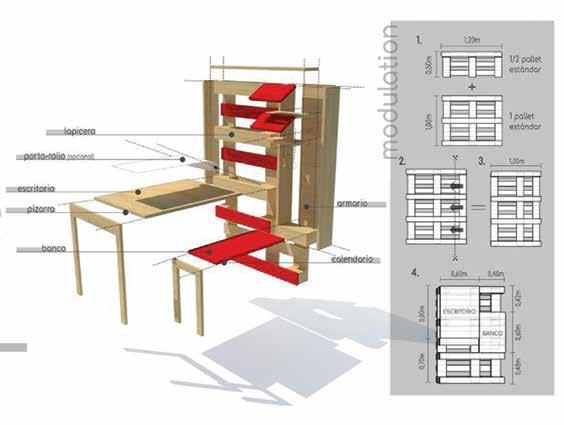

PalletPitre offers the youngest of the family a space of their own to study, have fun, and create while saving on space and materials. It works as desk, blackboard, library, and wardrobe. And, being made of pallets, it is affordable and cares for the environment.

16

Collaborations

Holiday house in Jose IIgnacio, Uurguay, 2016

Holiday house in Miramar, Argentina, 2013 17

THANK YOU
