Truck Configuration

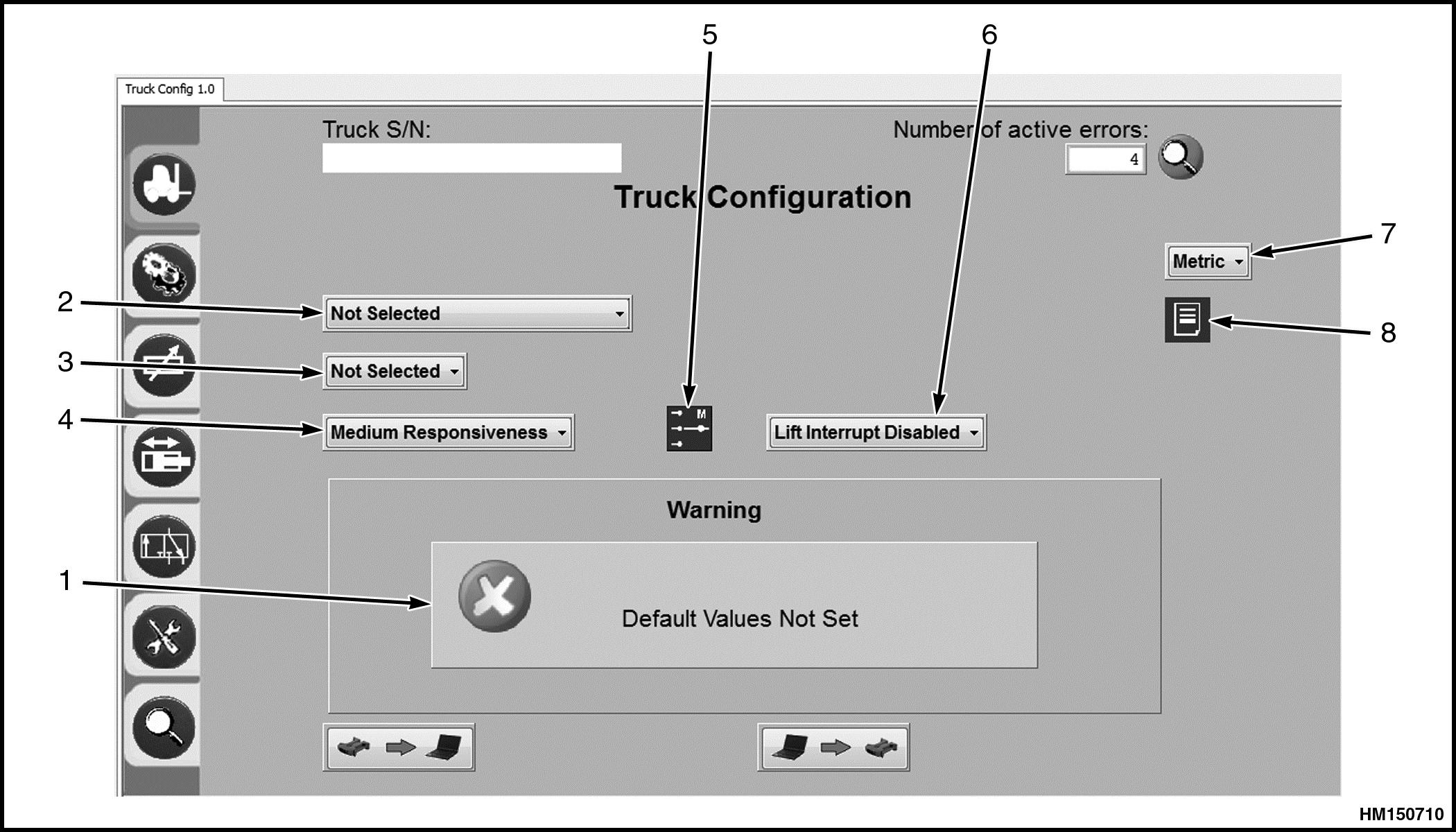

The Truck Configuration screen is used to setup the truck’s controls and front-end. Figure 10 shows the screen when the configuration of the HCU has not yet been completed. This may occur when a new HCU is installed. As long as the warning (1) is displayed, the truck’s hydraulic system will not be operational.

1. WARNING, TRUCK CONFIGURATION NOT COMPLETED 2. CONTROLS SELECTION 3. FRONT-END SELECTION 4. RESPONSIVENESS SELECTION 5. LINK TO RESPONSIVENESS SETTINGS 6. INTERRUPT SELECTION 7. UNITS SELECTION 8. LINK TO ALL PARAMETER SCREEN

Figure 10. Truck Configuration Screen (Not Configured)
