Disassemble

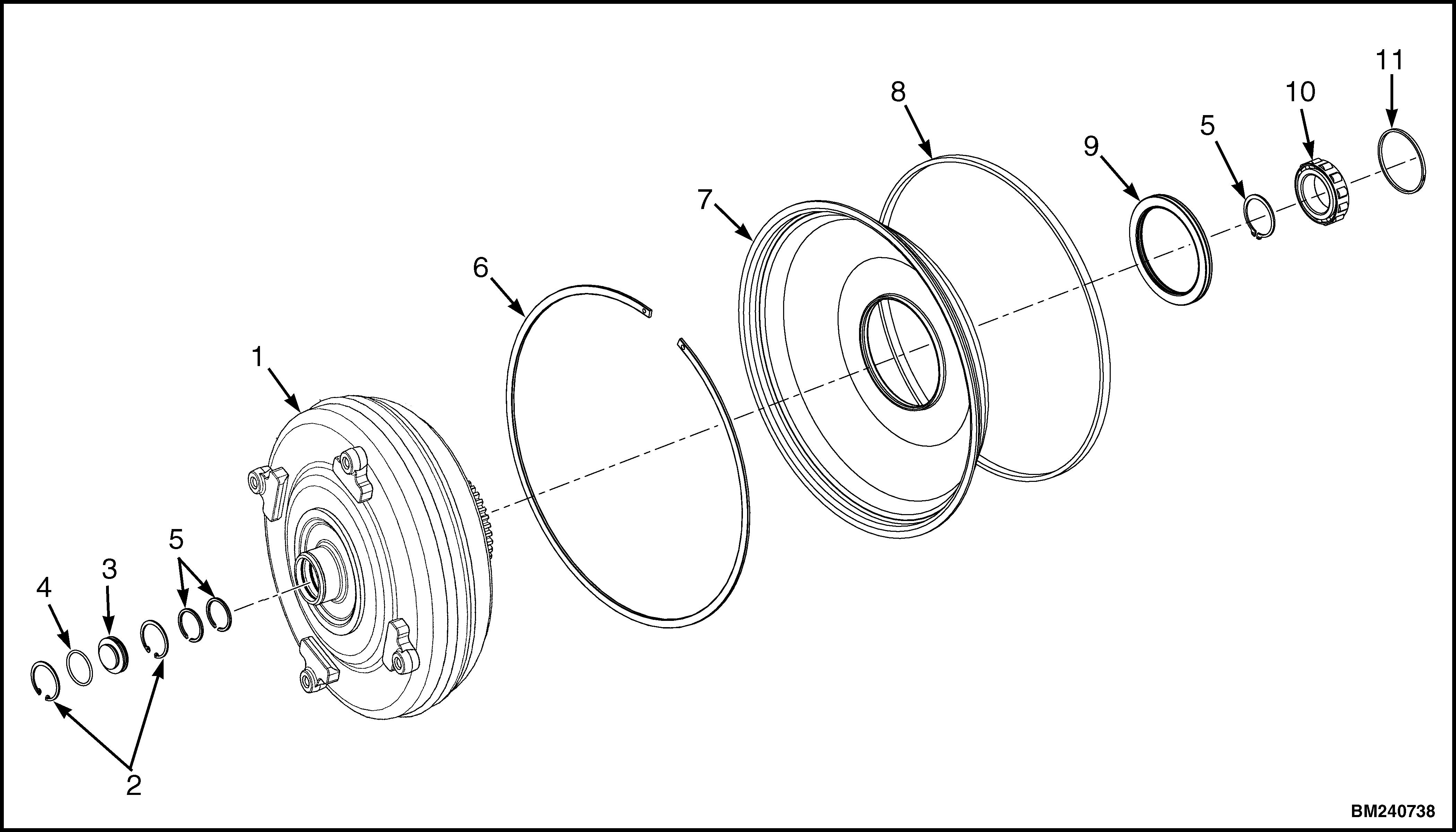

1. TORQUE CONVERTER ASSEMBLY 2. INTERNAL SNAP RING 3. PLUG 4. O-RING 5. EXTERNAL SNAP RING 6. SNAP RING 7. OIL BAFFLE 8. SEALING RING 9. SEAL (OIL BAFFLE) 10. BEARING 11. PISTON RING

DISASSEMBLE

Figure 1. Torque Converter Assembly

Refer to Figure 2 and Figure 3.

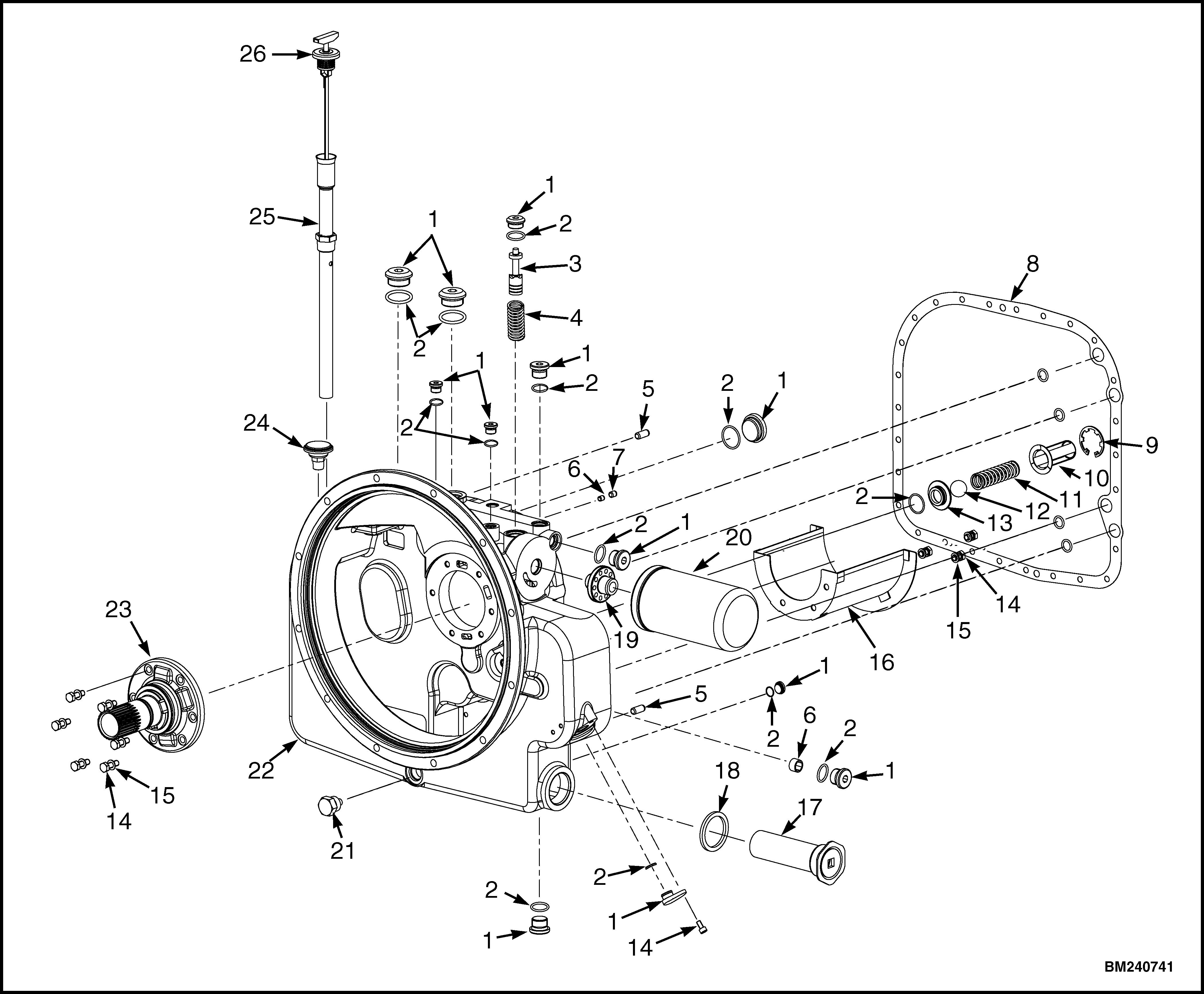

NOTE: TORQUE CONVERTER HOUSING FOR LIFT TRUCKS MANUFACTURED BEFORE JUNE 2009 SHOWN. 1. PLUG 2. O-RING 3. REGULATOR SPOOL 4. REGULATOR SPRING 5. DOWEL PIN 6. RESTRICTION PLUG 7. EXPANSION PLUG 8. GASKET (CONVERTER

HOUSING TO

TRANSMISSION CASE) 9. SNAP RING 10. RETAINER (SAFETY VALVE) 11. SPRING (SAFETY VALVE) 12. BALL 13. SPACER 14. SCREW 15. LOCKWASHER 16. OIL BAFFLE 17. SUCTION SCREEN 18. GASKET 19. ADAPTER (FILTER) 20. OIL FILTER 21. DRAIN PLUG 22. TORQUE CONVERTER HOUSING 23. STATOR SUPPORT 24. AIR BREATHER 25. TUBE (DIPSTICK) 26. DIPSTICK

Figure 2. Torque Converter Housing

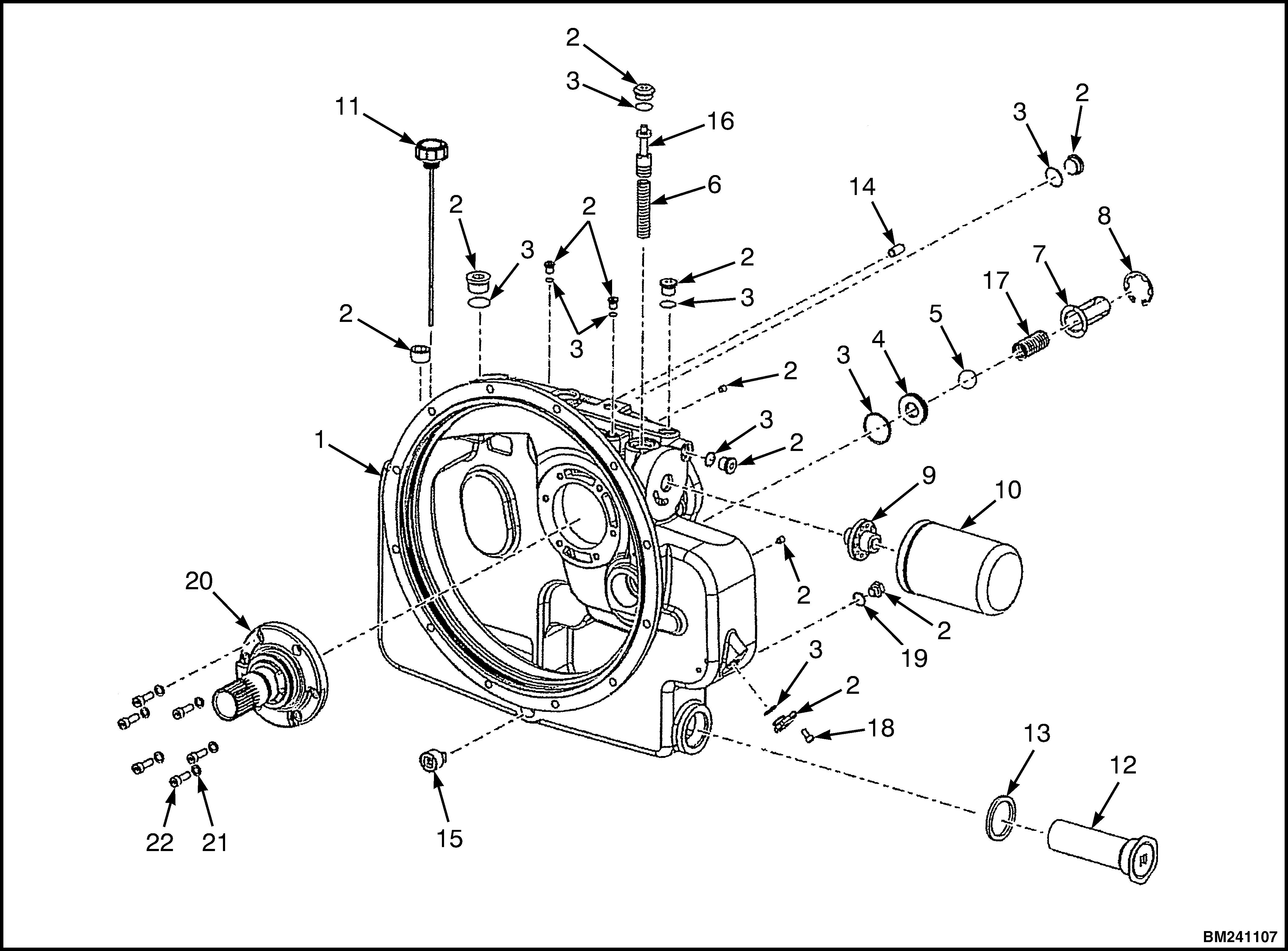

NOTE: TORQUE CONVERTER HOUSING FOR LIFT TRUCKS MANUFACTURED AFTER JUNE 2009 SHOWN. 1. TORQUE CONVERTER HOUSING 2. PLUG 3. O-RING 4. SPACER 5. BALL 6. REGULATOR SPRING 7. RETAINER (SAFETY VALVE) 8. SNAP RING 9. ADAPTER (FILTER) 10. OIL FILTER 11. DIPSTICK TUBE AND BREATHER 12. SUCTION SCREEN 13. GASKET 14. DOWEL PIN 15. DRAIN PLUG 16. REGULATOR SPOOL 17. SAFETY SPRING 18. CAPSCREW 19. WASHER 20. STATOR SUPPORT 21. LOCKWASHER 22. SCREW

Figure 3. Torque Converter Housing
