Install

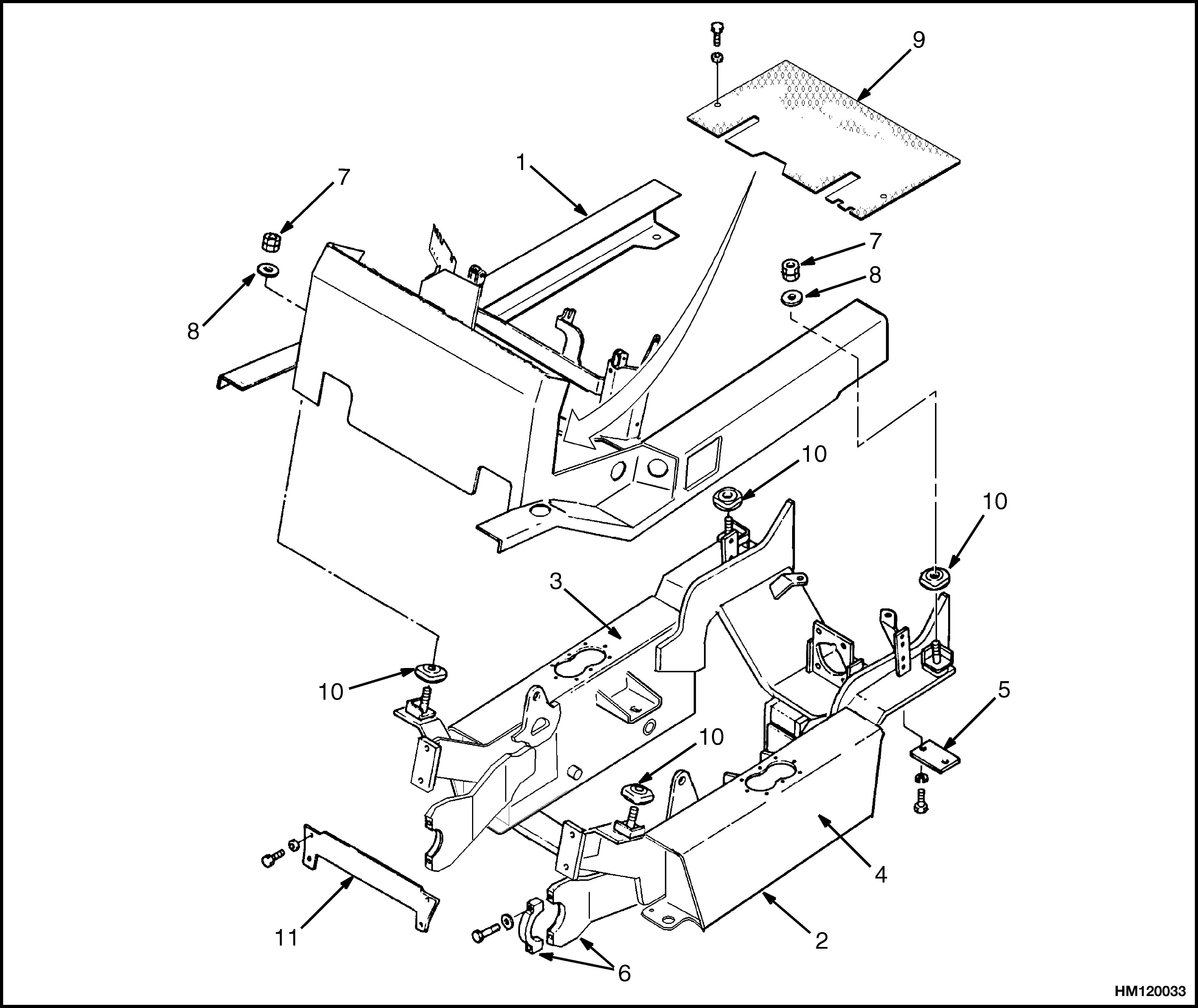

1.OPERATORMODULE 2.FRAME 3.HYDRAULICTANK 4.FUELTANK 5.STEERINGAXLEMOUNT 6.DRIVEAXLEMOUNT 7.LOCKNUTASSEMBLY 8.WASHER 9.FLOORPLATE 10.RUBBERMOUNT 11.PLATE
Figure1. FrameandOperatorModule
Advertisement
INSTALL
1. Makesurerubbermountsareproperlyinstalled inframe. SeeFigure1. ThreemountswithUP on one side are installed at left rear, left front, and rightfront positions of module. Makesure UPfacesupward. SeeFigure2. Onemountthat doesnothaveanymarking is installed at right rearpostionofmodule.
2. Connectliftingdevicetooverheadguard. Overhead guard and module weigh approximately 385kg(850lb). Liftoperatormoduleontoframe.
