Ultimate EV Workshop Kit
High Voltage Testing:
Measure up to 750V in both AC and DC
Electrical Safety Locks:
Ideal for securing valuable items or as a safety lockout on high voltage areas to prevent non-approved interaction
Insulated Cable End Shrouds: Keeps cable ends insulated and protects cable terminal ends during component replacement
Insulated Tools:
Ensures the highest level of safety available while working with EV batteries and circuitry

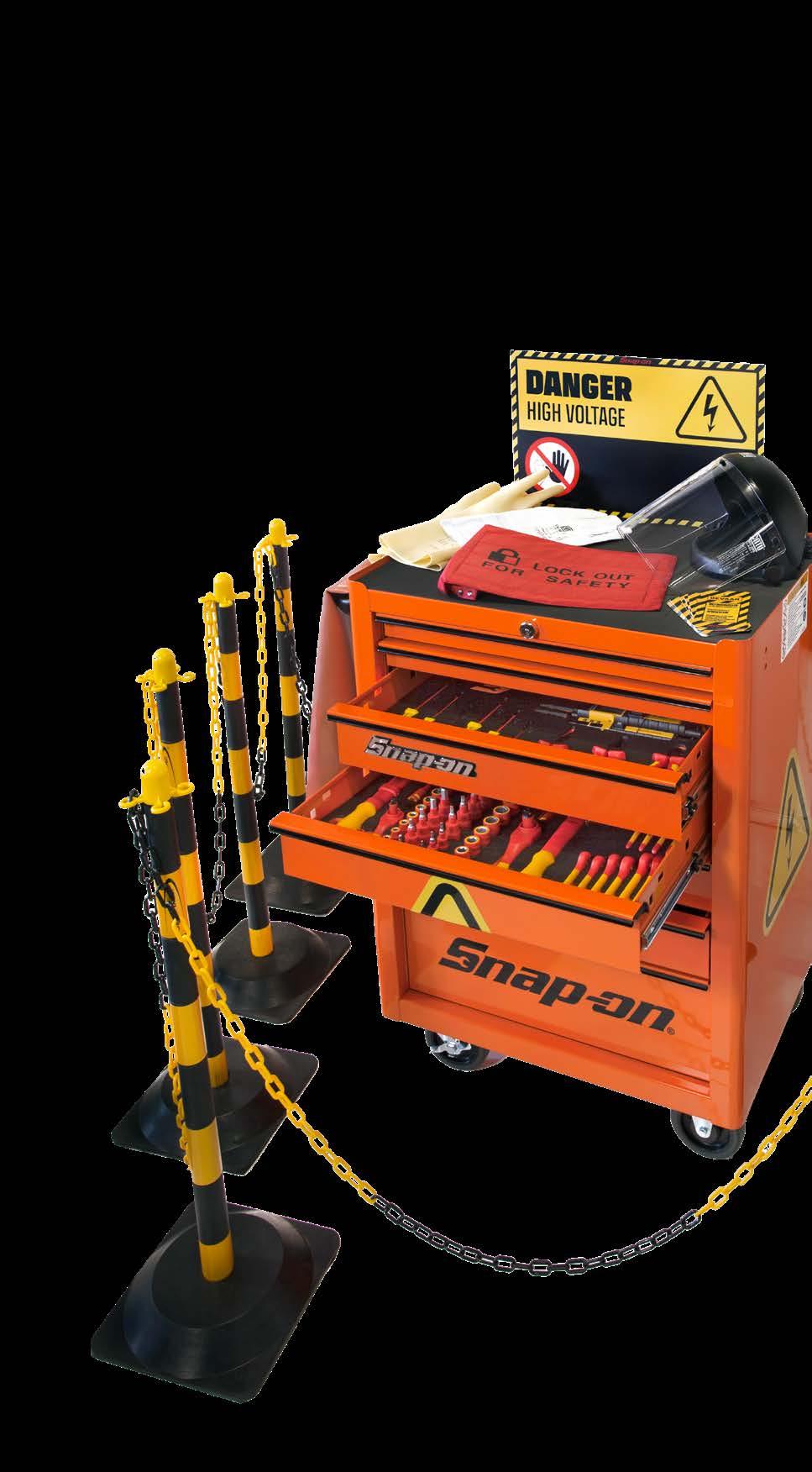

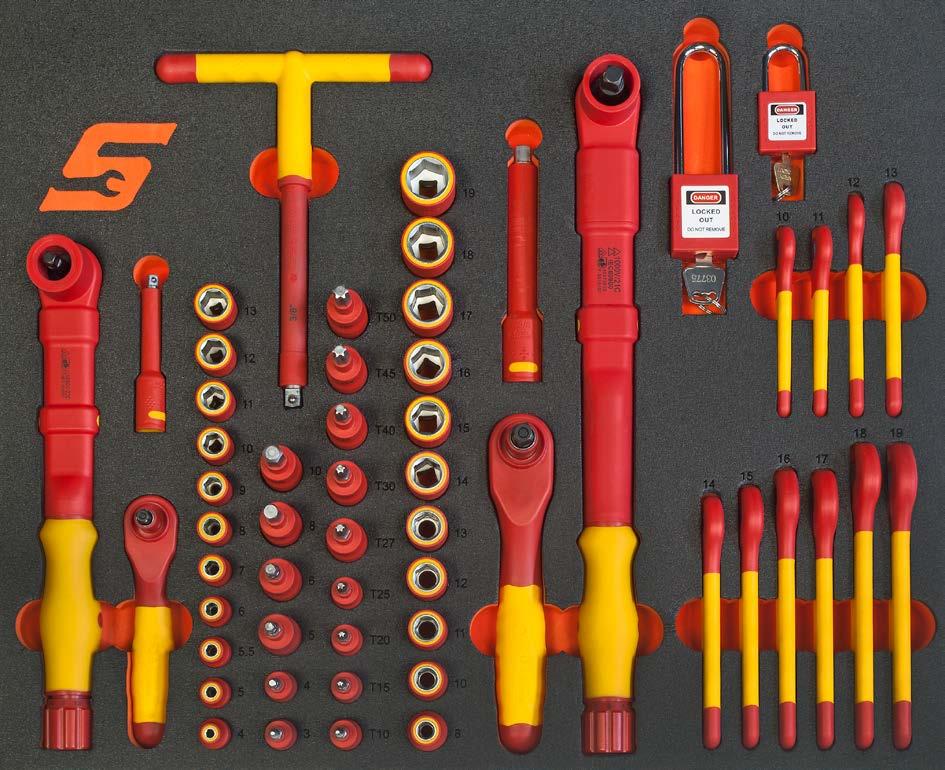

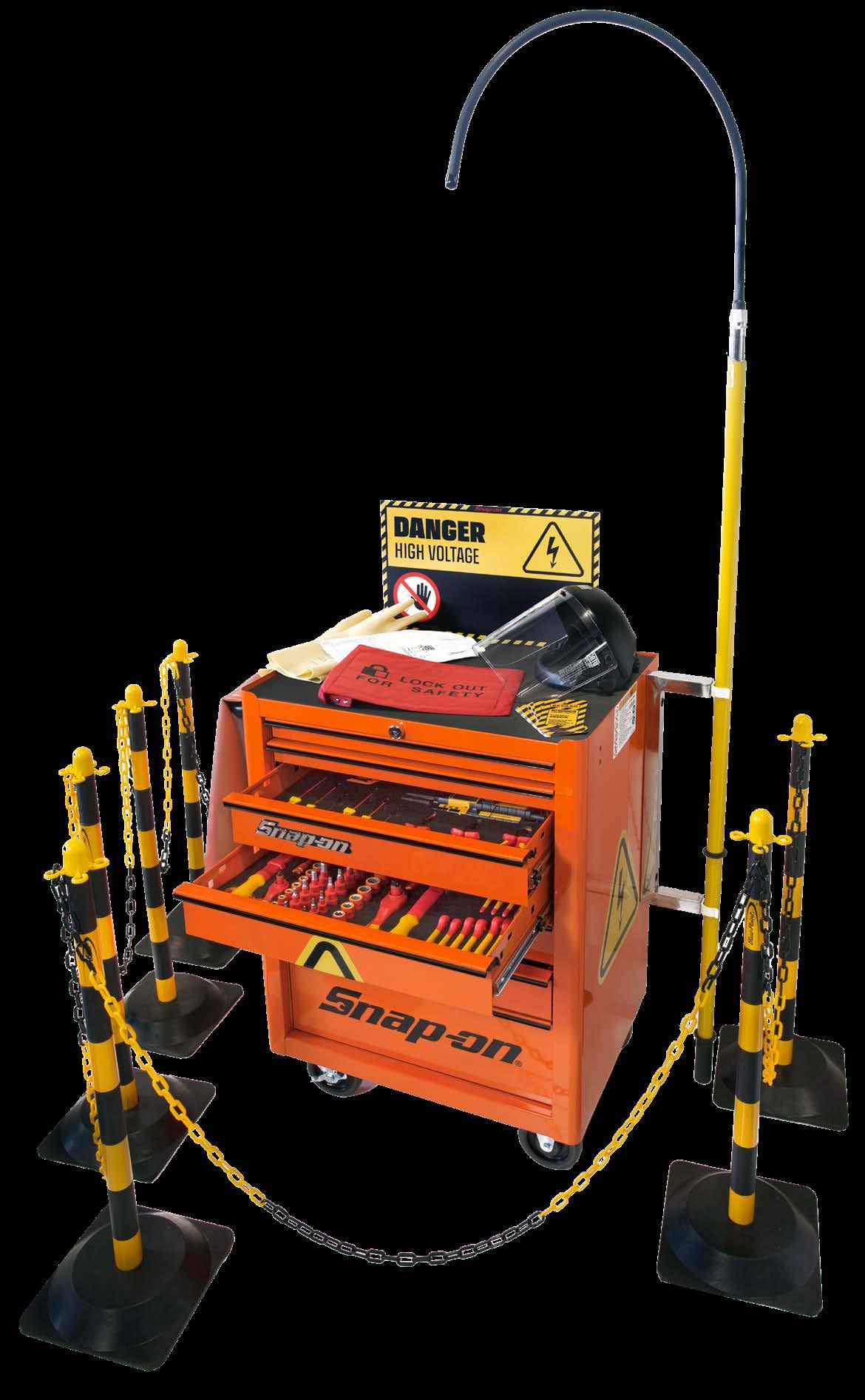

Snap-on® Ultimate EV Kit
SETEV090-U
• This well-balanced set for working safely on Electric and Hybrid vehicles is supplied in a Heritage Roll Cab and Tool Control System
• This set consists of 1/4" and 3/8" insulated BluePoint® tools, including 2 torque wrenches and Personal Protective Equipment (PPE) according to the IEC 60900 guidelines
Top Drawer Foam
• 1/4" & 3/8" Ratchets

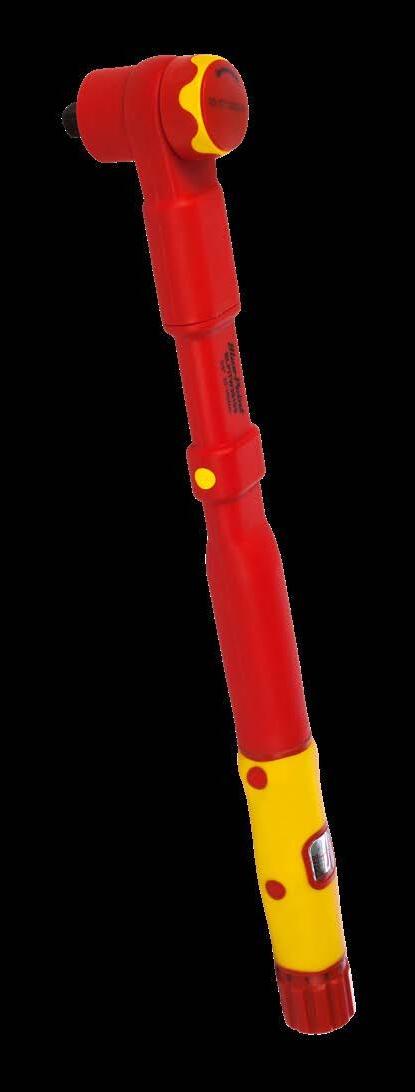

• 1/4" & 3/8" Torque Wrenches
• 1/4" 76mm & 3/8" 127mm extensions
• 1/4" 6-point sockets 4–13mm
• 3/8" 6-point sockets 8, 10-19mm
• 1/4" & 3/8" Torx® sockets T10–T50
• 3/8" T-Handle
• Combination wrenches 10-19mm
• Small & Large safety locks

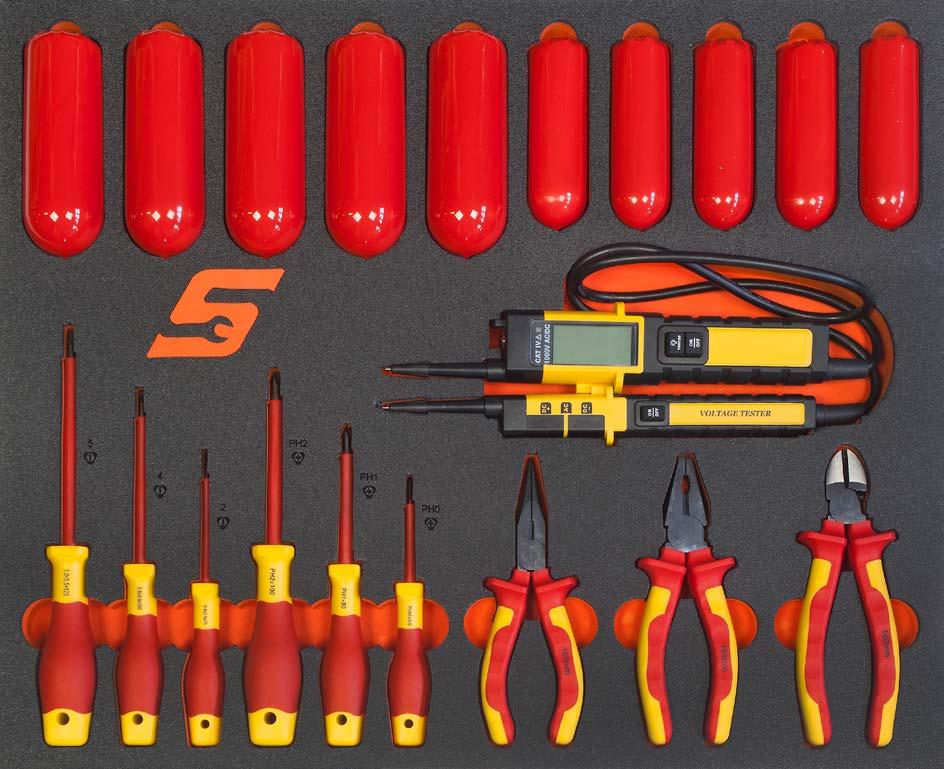

Second Drawer Foam
• High-Voltage tester
• Insulated cable ends 5x 30mm & 5x 40mm
• Needle Nose, Combination and Side Cutter Pliers
• 6 Piece Screwdriver set, 3x Philips, 3x flat blades
WRENCH

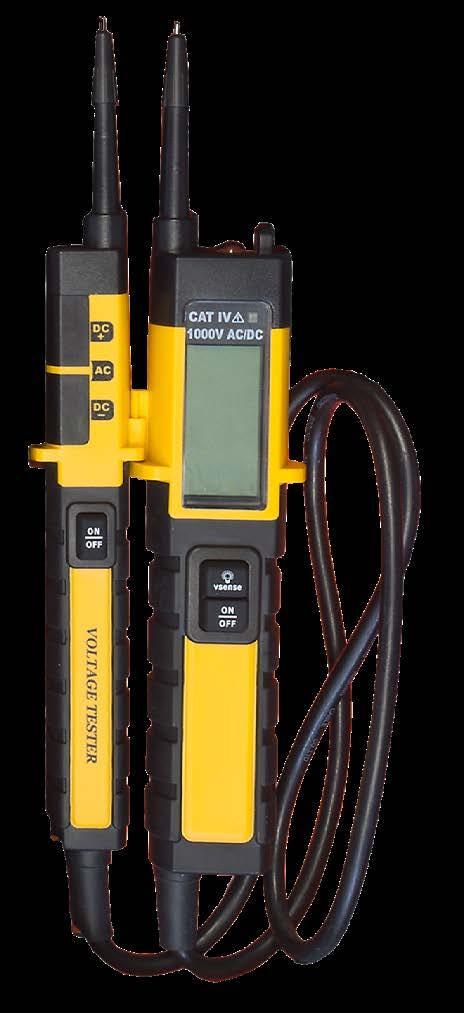

HIGH VOLTAGE TESTER
Key Coding: Seamlessly supports key coding power requirements
Remapping & ECU Programming: Provides reliable power for critical updates and programming tasks
Software Updates: Keeps vehicle software up-to-date with continuous power.
Key-on and Engine-off (KOEO) Battery Support: Ensures consistent battery support during KOEO operations, preventing power interruptions 6, 8, 12V Advanced Battery System Tester with Printer EECS800

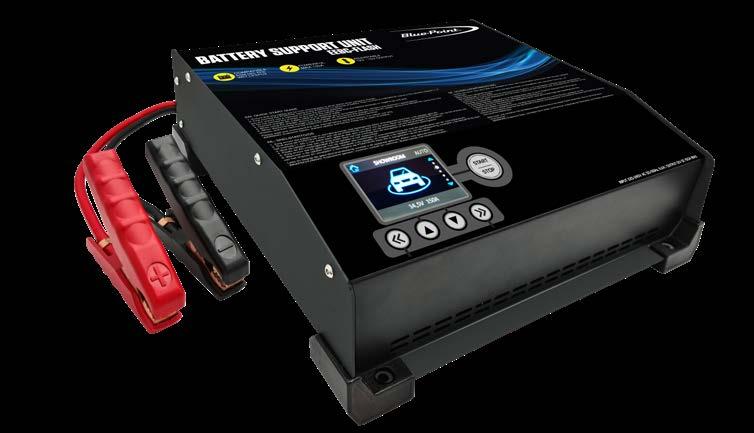

Blue-Point® 100A FLASH 10/40/60A Charge 12V EEBC-FLASHUK
• Charge: Quickly and efficiently charge your batteries, ensuring they are always ready for use
• Test: Accurately test battery health and performance, helping you diagnose issues before they become major problems
• Diagnostic: Perfect for in-depth vehicle diagnostics, supporting key coding, remapping, and ECU & module programming
• Showroom: Ideal for maintaining battery health during display or demonstration, ensuring vehicles are always ready for presentation. Plus its design and size make this an ideal product that can hide away out of sight
Blue-Point® 12/24V Trolley Battery
• Test 6, 8 and 12V batteries from 100-3,000 CCA
• Test regular lead acid, AGM, AGM spiral, enhanced-flooded, gel and pure lead batteries
• One-step (10 second), 12 and 24V starting and charging system test
• Test automotive, powersport, marine, lawn and garden, Group 31 and heavy-duty batteries
• VIN scan to pre-populate vehicle ID and battery information for quick battery verification and faster battery diagnosis
• Customised test results can be emailed through Wi-Fi® connection along with wireless software updates
Power Tools

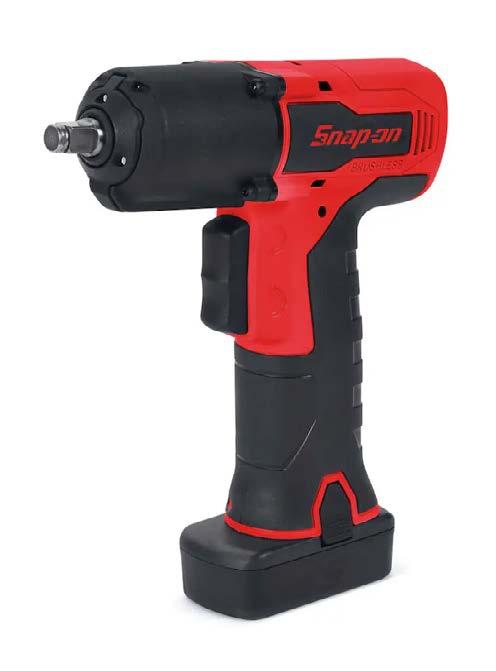

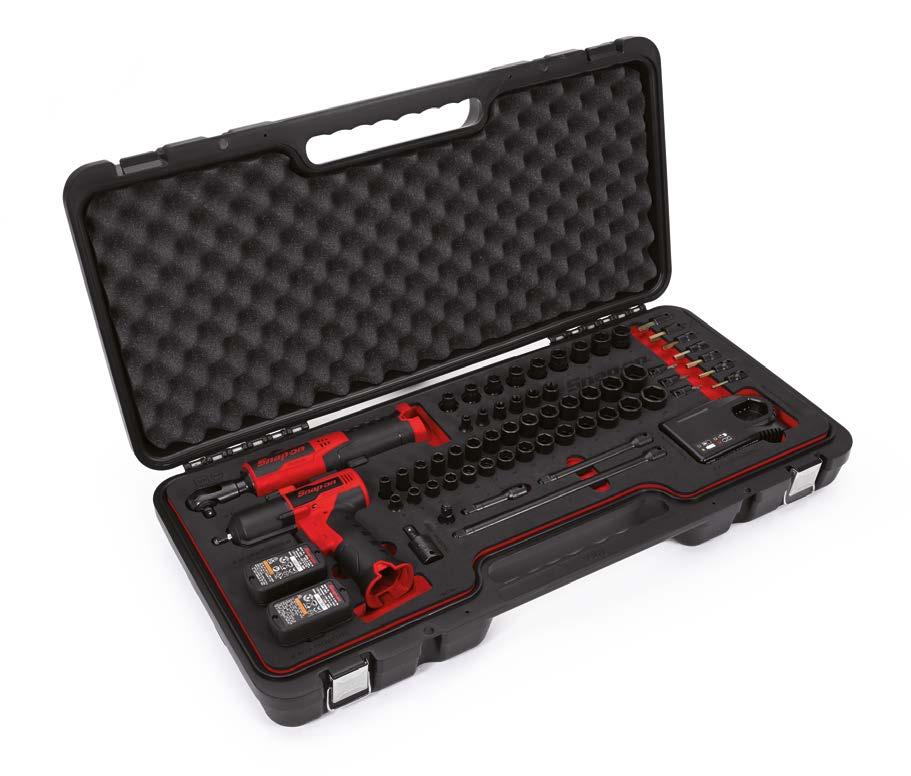

14.4V 3/8" Drive MicroLithium Cordless Impact Wrench (Red) CT861W1
• 305Nm of bolt breakaway torque and 203Nm of torque output
• Variable-speed toggle-style trigger for precise tool control
• Tri-beam LED headlight illuminates work area
• Brushless motor means superior durability, longer tool life and maximum run time
• Glass-filled nylon housing for durability
• Built-in fuel gauge indicates battery state of charge

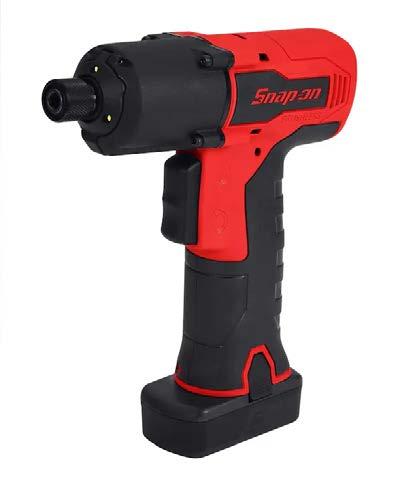

14.4V 1/4" Hex MicroLithium Quick-Change Cordless Impact Driver (Red) CTQ861W1
• Quick change 1/4" hex impact driver handles a wide variety of jobs and accessories
• 136Nm of torque output provides plenty of torque to bust stubborn fasteners loose
• Variable-speed toggle-style trigger allows precise speed control for each application
• Tri-beam headlight illuminates the work area
• On board fuel gauge indicates battery state of charge
• Cushion grip handle provides positive tool control with less user fatigue
•

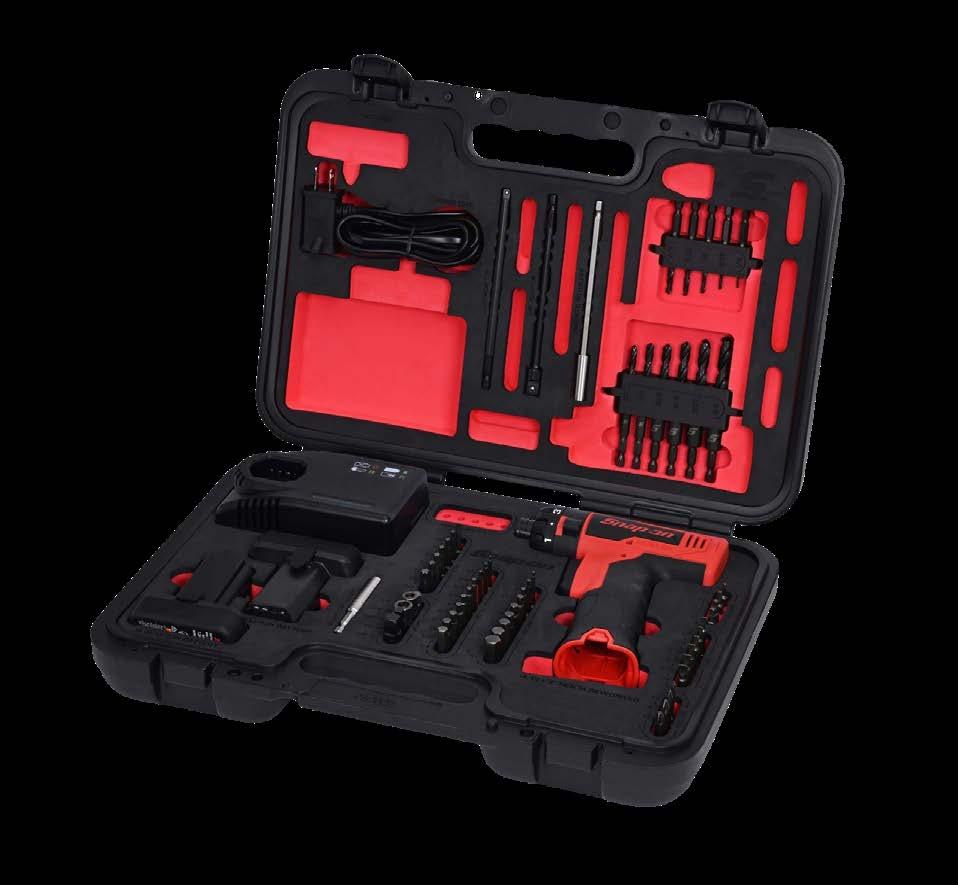

14.4V 1/4" Hex MicroLithium Cordless Toggle Screwdriver Kit CTS861U2GNG
Kit Includes- Cordless Screwdriver CTS861
• 22Nm of torque output
• Two-speed gearbox: 450/1,550 RPM
• Brushless motor for longer run time and durability
• 34Nm manual spindle lock
• Nine-position clutch allows user to dial in the proper torque PLUS
• 2 batteries

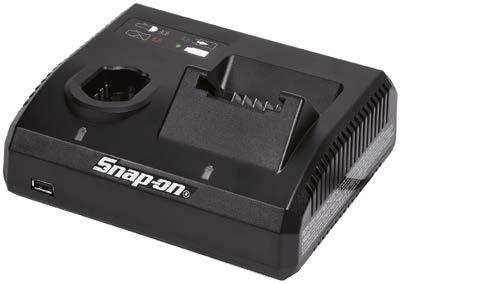

• Charger
• Drills
• Nutdrivers
• Philips screwdriver bits
• Hex screwdriver bits
• Torx screwdriver bits
• Extensions, power adapters, bit holders

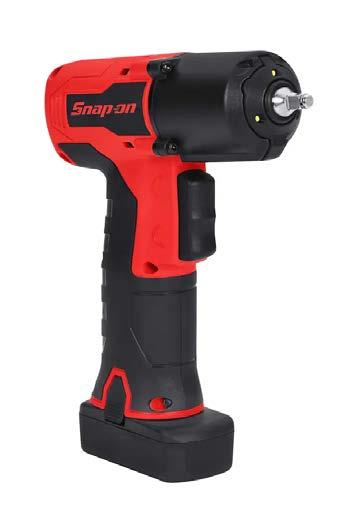

14.4V 1/4" Drive MicroLithium Cordless Impact Wrench (Red)
CT825W1
• 135Nm of bolt breakaway torque and 95Nm of torque output
• Variable-speed standard-style trigger for precise control
• Tri-beam headlight illuminates the work area
• Built-in brake prevents the tool from throwing fasteners and sockets
• Over current and thermal protection of the motor prevents tool from overheating
• Under voltage protection will not overdraw the battery

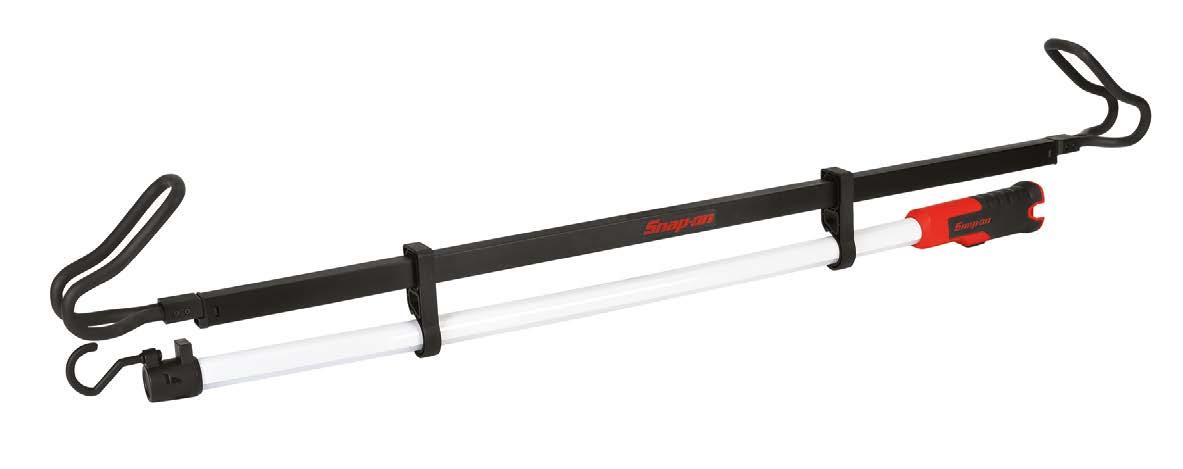

14.4V 1,000 Lumen Underhood Light (Tool Only) (Red) CTLUH861
• Ultra-bright 1,000 lm output
• 4-hour run time; ideal for underhood, undercarriage and over-dash applications
• Expandable 81" clamp to position light at work area
• High-impact plastic light tube and housing
• 10-minute low battery indicator

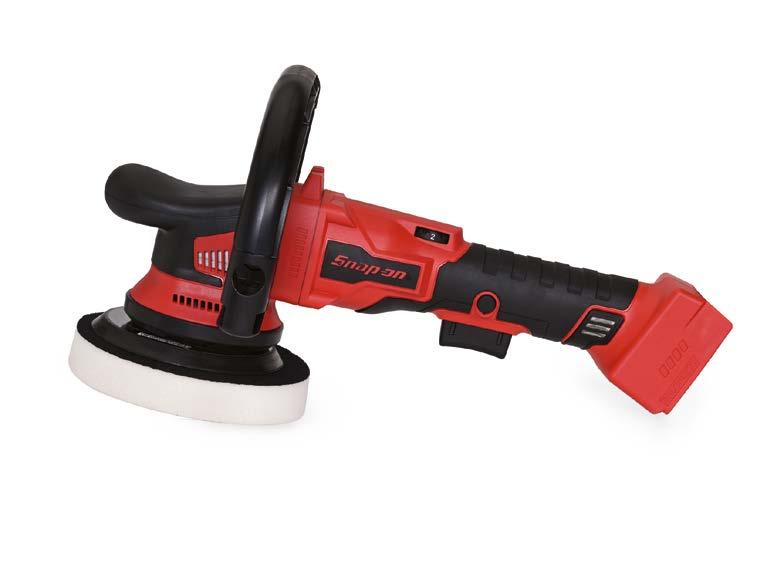

• Soft start prevents polishing material from spinning all over the shop
• Locking trigger allows for continuous operation
• Removable screen keeps debris out of the motor
• Includes 5" polishing pad

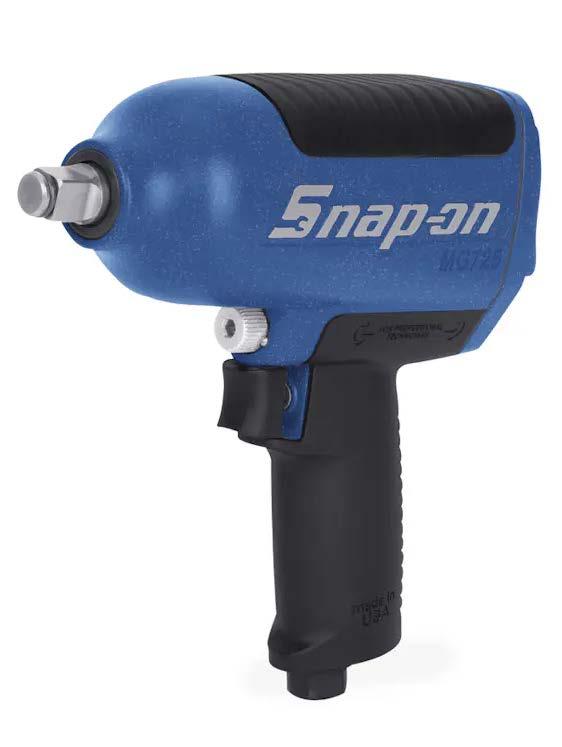

1/2" Drive Heavy-Duty Air Impact Wrench (Power Blue) MG725AMB
• 1,613Nm of bolt breakaway torque and 1,098Nm of working torque
• Twin hammer impact mechanism is durable and hard hitting
• Anvil stops with release of the trigger to prevent throwing fasteners
• Faster motor start-up and greater performance with more torque than previous model
• Balanced for superior control and less user fatigue
• Patented cushion-grip handle reduces vibration
• Patented cushion-grip tip valve trigger provides comfort and greater tool control
• Easy turn regulator for convenient speed control
• Weighs 2.2kg
3/8" Drive Long-Neck Air Ratchet (Red)
1,830Nm of bolt breakaway torque and 1,695Nm of working torque
Six-vane rotor for faster motor start-ups Twin-hammer impact mechanism and sealedin oil bath lubrication provide durability and a Lightweight one-piece housing cuts tool weight to a mere 8.1lb for superior control and less Anvil stops when trigger is released to avoid throwing fasteners
Needle Scaler (Blue-Point®)
AT1212A
• Mini size for access in confined areas
• (12) high-tension steel needles conform to any irregular surface for cleaning crevices
PTR838
• Long neck ratchet with extra-long reach for those hard-to-reach fasteners
• Soft grip handle provides increased comfort and insulation from the cold while reducing vibration

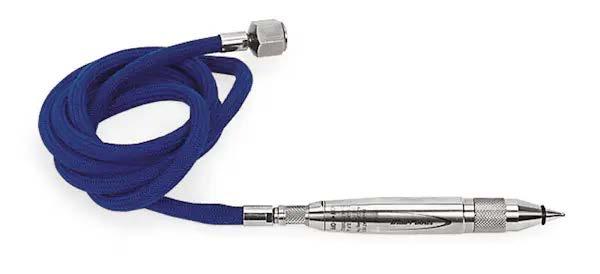

Engraving Pen (Blue-Point®) AT187
• Marks tools and other objects to prevent theft
• Used on hardened-steel plate (up to HRC55), metals, glass, stone, ceramic, plastics and more

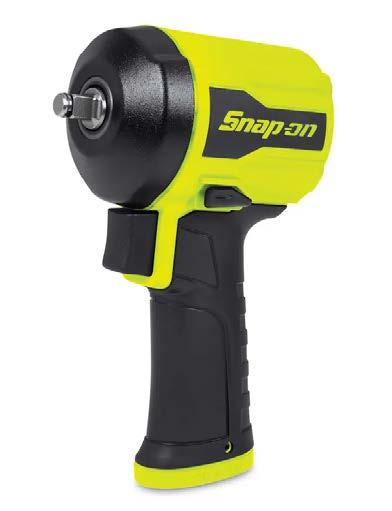

3/8" Drive Stubby Air Impact Wrench PT338HV/ G
• 950Nm of bolt breakaway torque and 678Nm of torque output
• Compact

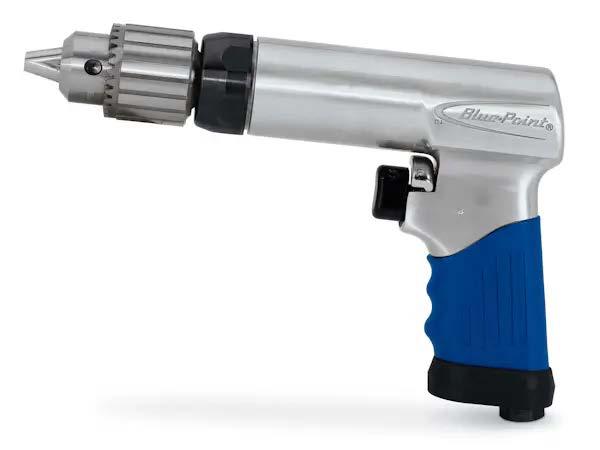

1/2" Reversible Drill (Blue-Point®) AT5000
• Convenient one-handed forward/reverse operation
• Variable-speed trigger
• Exhaust is released through the bottom of the handle, away from the work area

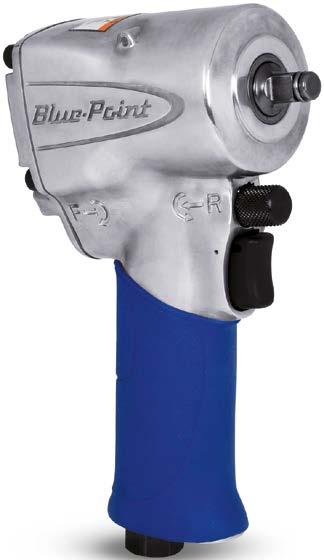

1/2" Drive Compact Impact Wrench (Blue-Point®) AT2550
• 406Nm of torque
• Jumbo hammer mechanism
• Thumb-operated forward/reverse lever
• Three forward speeds and one reverse speed
• Exhaust is released through the bottom of the handle, away from the work area
• One year limited warranty
1/2" Drive Tight-Access Impact Wrench (Blue-Point®) AT5500T
• 550 ft-lb of torque, 9,000 RPM, 1,200 BPM
• Compact and lightweight for reduced user fatigue
Which Compressor's RightYou?For
REQUIREMENT GUIDE
Tools FAD/CFM PSI
1/2" Impact Wrench 4-6 70-90
1" Impact Wrench 14 70-90
3/8" Ratchet Wrench 2-5 70-90
1/2" Ratchet Wrench 2-5 70-90
3/8" Drill 5 70-90
1/2" Drill 12

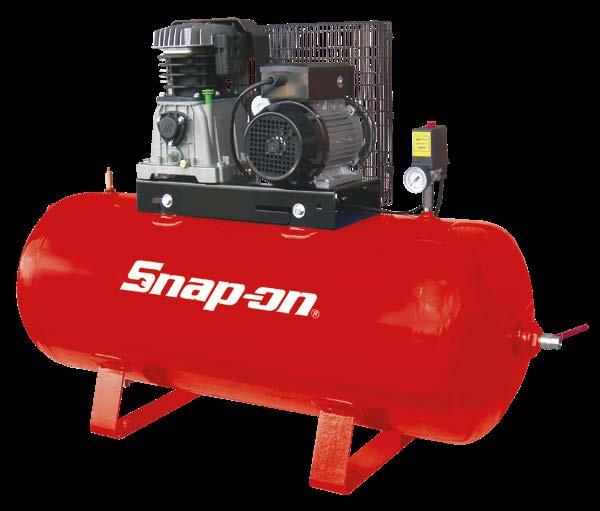

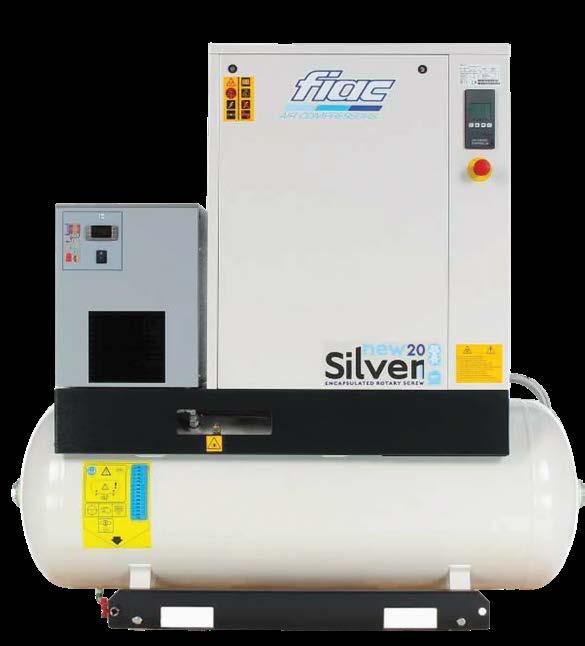

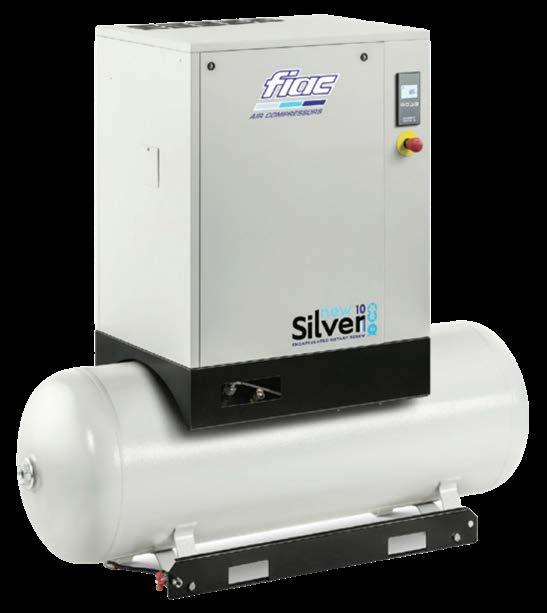

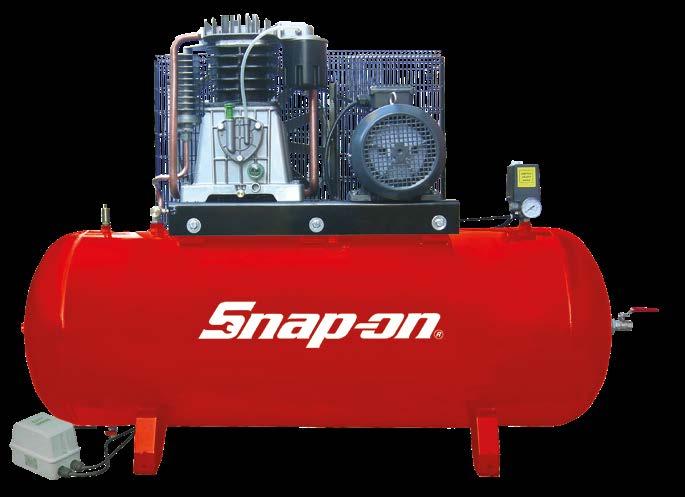

THE RIGHT COMPRESSOR
Three phase compressors are more efficient producers of compressed air than single phase equivalent units, so where a three phase supply is available the best option is the three phase compressor.
Single phase compressors up to 2.5HP can operate from a 230V 13A power supply. Wherever possible choose a larger compressor than you require at present to allow expansion. Compressors with cast iron cylinders running slow, offer a much extended service life.
BODYSHOP: using the air equipment consumption guide, add all the equipment consumptions together and divide by two, the resulting figure is the minimum free air you require.
WORKSHOP: using the air equipment consumption guide, add all the equipment consumptions together and divide by three, the resulting figure is the minimum free air you require.
COST OF AIR LEAKS
Hissing Sid is at work in most companies you visit. Hissing Sid is a length of air hose which has become the family ‘air’ loom. It must be, because this hose is costing its owner a small fortune and yet to suggest replacement would be a cardinal sin. So what does Hissing Sid cost to run?
A 0.75mm hole in your air hose is leaking 1.6CFM or 300W of energy!
Wheel Service

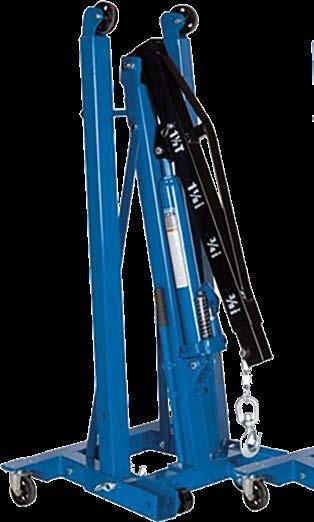

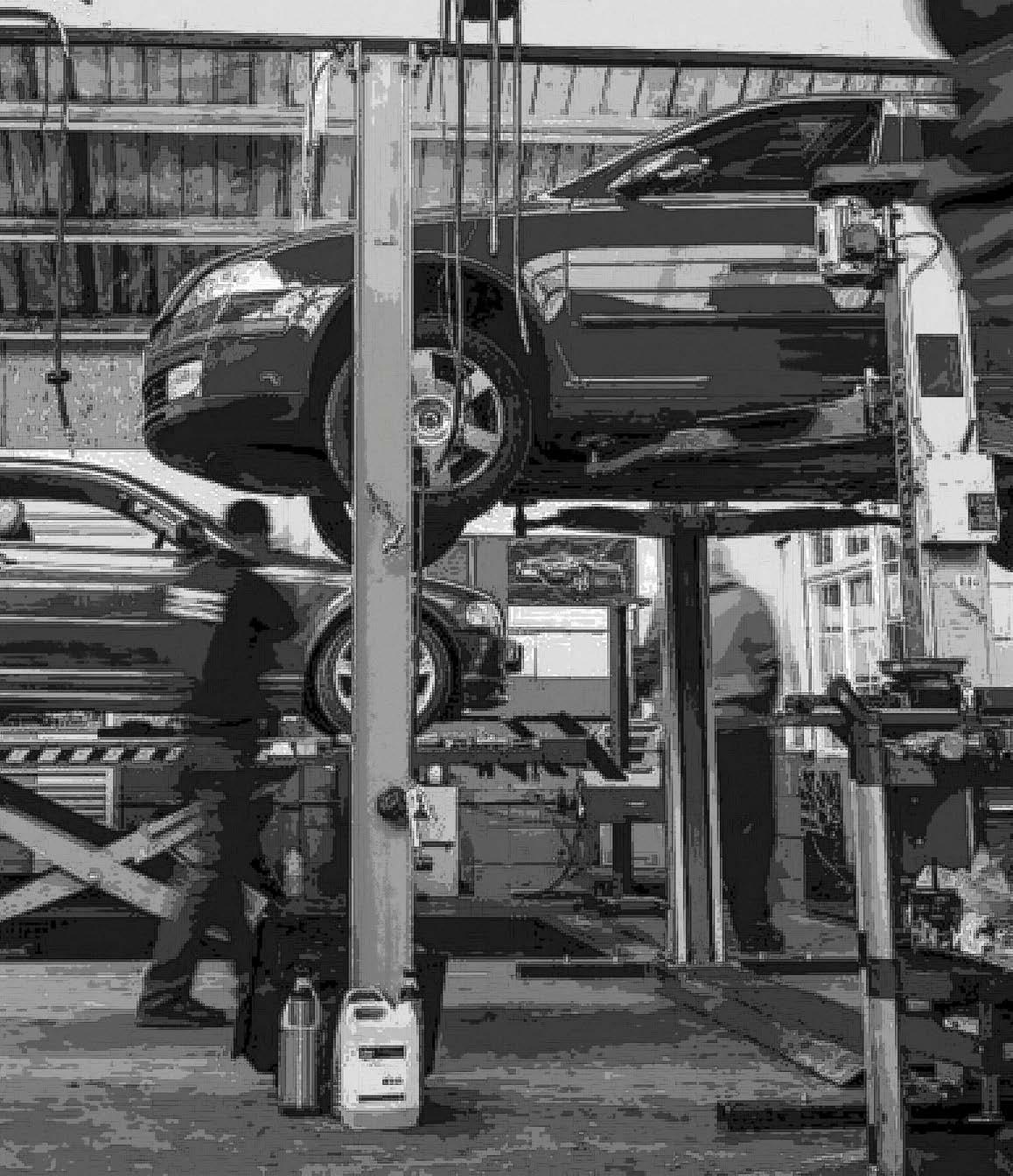

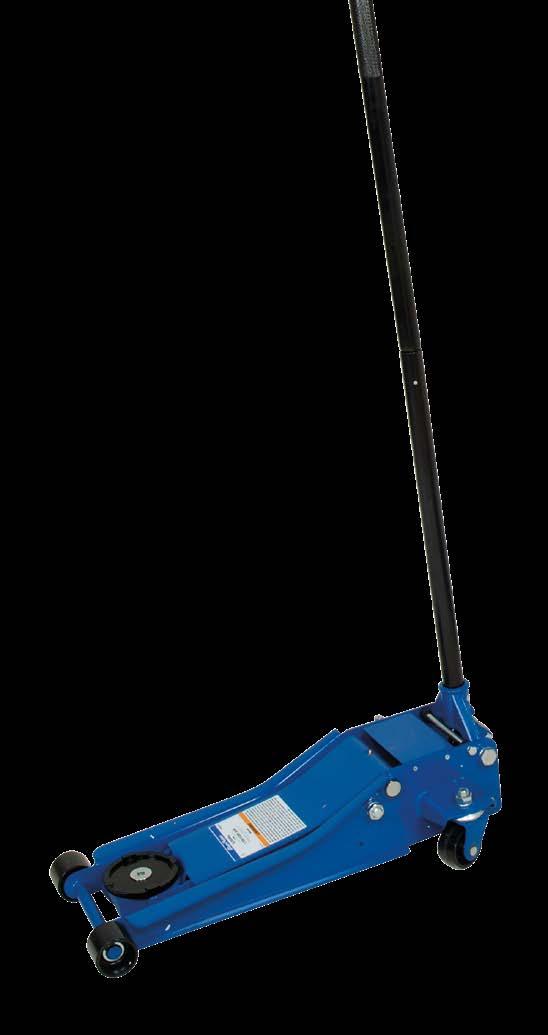

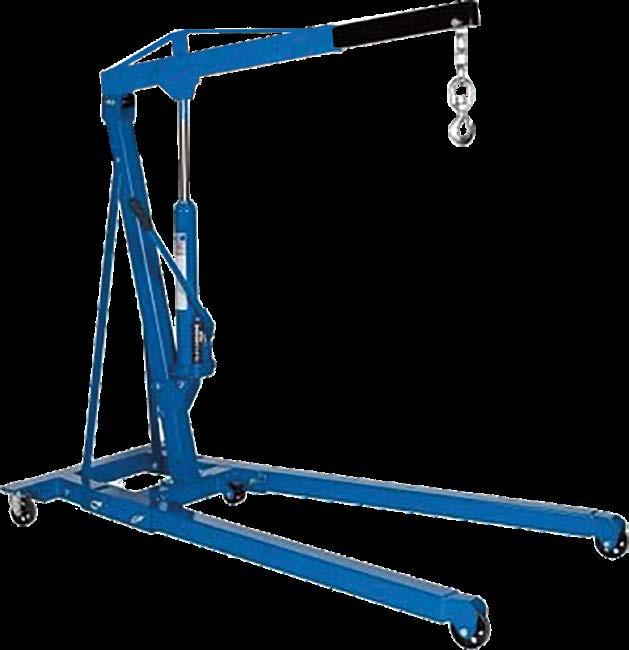

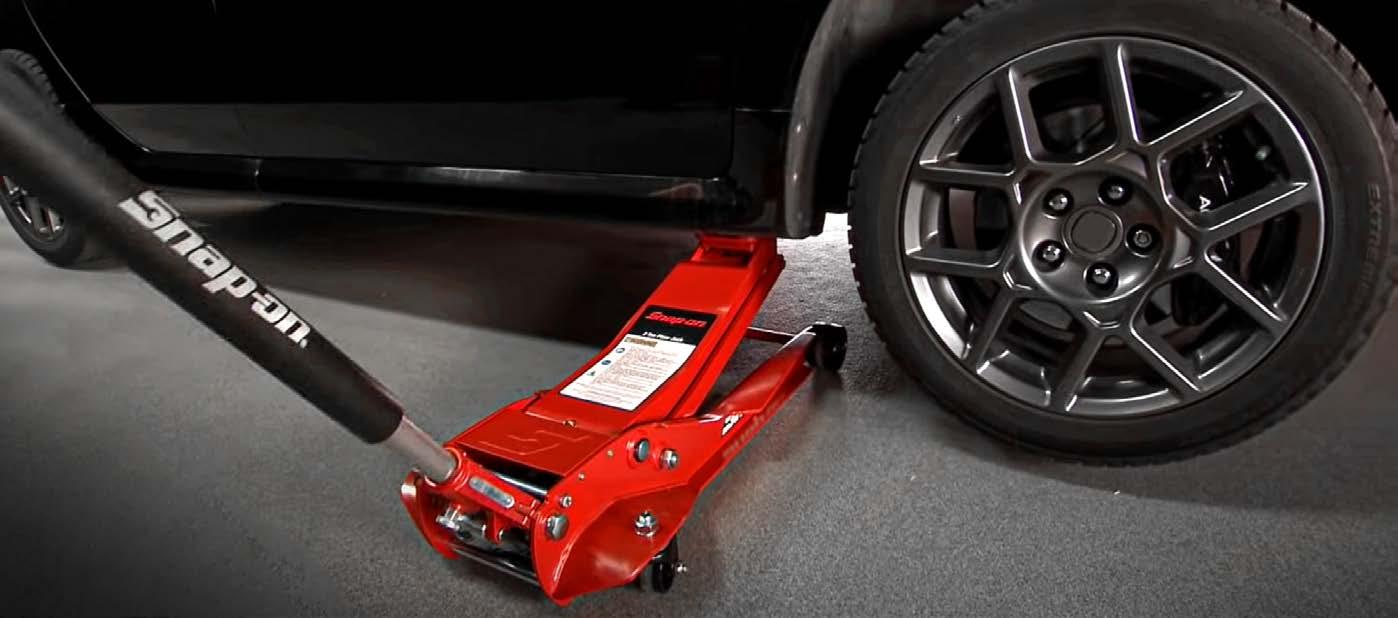

HEAVY LIFTING
DAY IN, DAY OUT

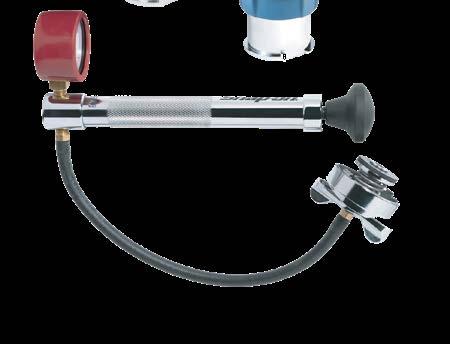

Cooling System Tester ITCCST-CV

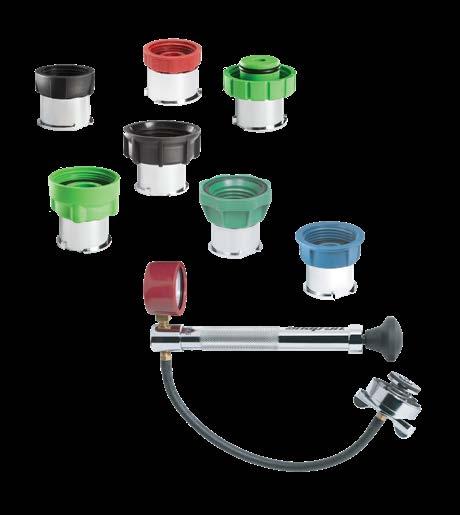

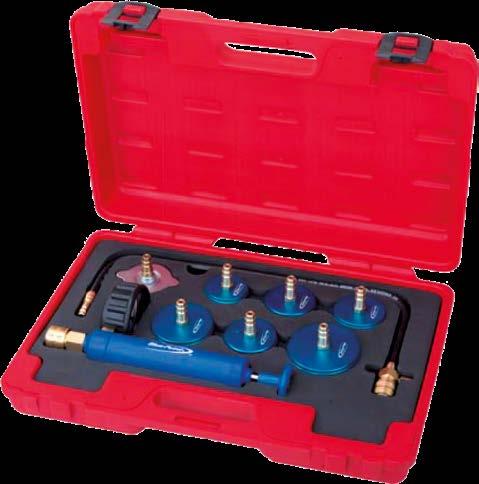

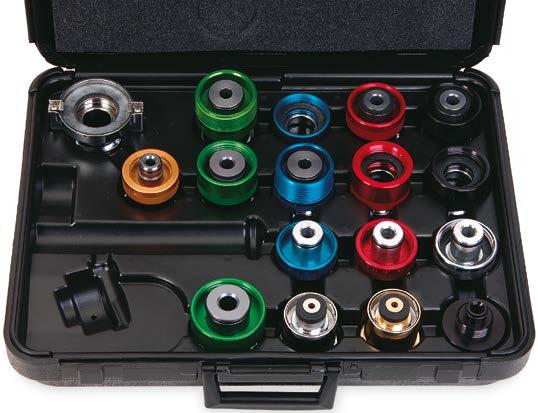

17pc Master Adaptor Set With Pump SVTA1700-EUR
• Set contains 17 adaptors in a plastic case, including: SVT262-28A, TAI 6B, TA18B, TA31A, TA34A, TA36GM, TA38C, TA41, TA44, TA46, TA48, TA52, TA56, TA58, TA86, TAB, TA345A, and TA445

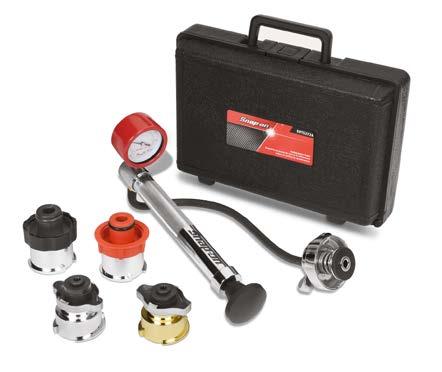

SVTS272A-EUR
• Pressure test radiator and cooling systems of cars &
trucks for leaks with the four most common adaptors included
• Tester achieves the required 35 PSI with fewer pumps Blue-Point@ 1/2"

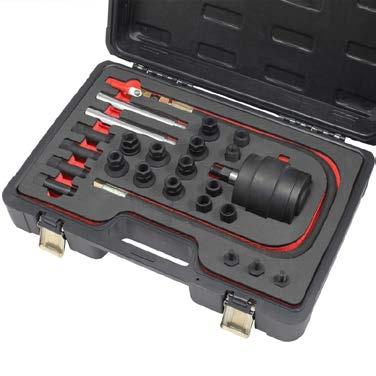

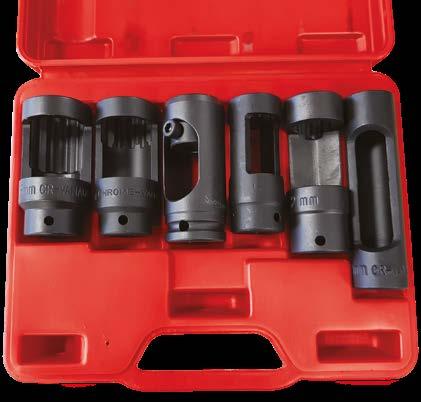

• Open-sided, 1/2"drive sockets for injector removal and installation
• Set includes 12pt 21, 22, 27 and 28mm and 6pt 22 and 28mm
• Designed for
• Tester
• Includes TAB10022/ 10025/ 10027/ 10084/ 10054/ 10102

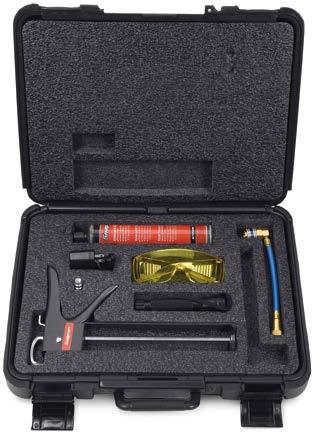

R12/R134a UV Leak
Detection Kit
ACTUVKITD
Includes (1) 8 oz dye cartridge, (1) RI 2 injection gun adaptor, (1) R134a injection gun adaptor, (1) pair of UV enhancing glasses, (1) injector and (1) rechargeable true UV light
• Takes less than 30 seconds to pump up to required pressure
• Quickly identifies leaks in the cooling system

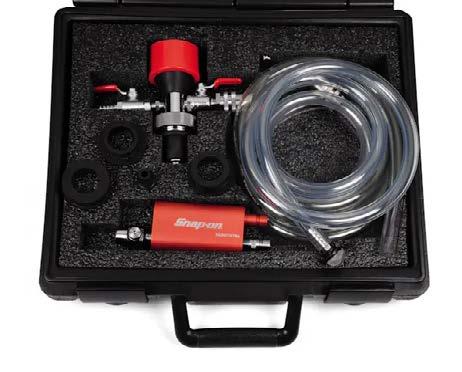

Cooling Refill / Retention Tool
RADKITULTRA
• Performs both "Coolant Refill" and "Retention", saving significant time on coolant jobs
• Easy to change from “Refill” to “Retention” so there is no need for two tools, like many competitive products
- Delphi - DensoSiemens AST6260
• Easy removal of seized injectors
• Uses air vibratory hammer action

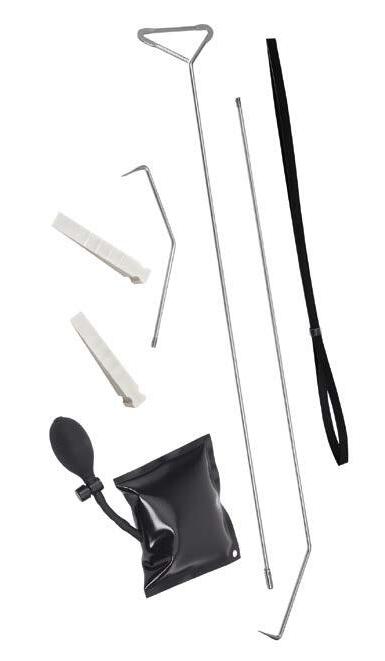

• Includes three-piece door unlocking tool that screws together with a connector sleeve for easy assembly and storage, plus two

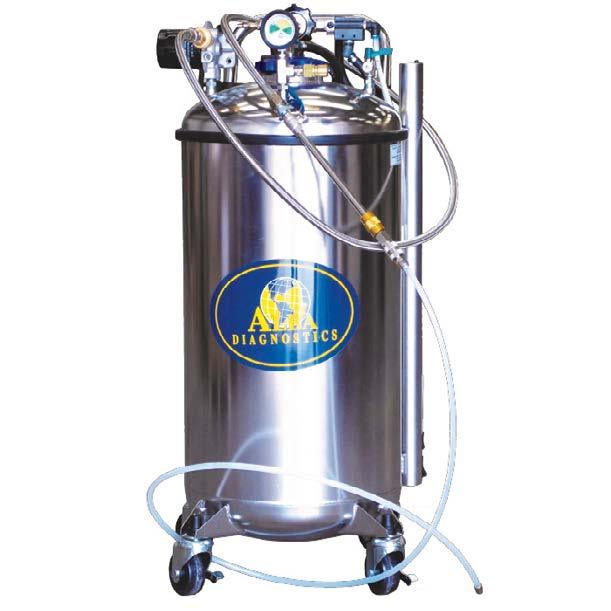

Heavy Duty Workshop
•
steel construction with venturi type suction system Suitable for petrol or diesel fuel extraction Unique fume extraction system for added safety –draws out residual fuel vapour & recycles it through the fuel extraction system
construction and agricultural machinery
• Fits wet sleeves and cylinder liners from 3-6" in diameter and 7-12" long
Also suitable for fuel extraction via fuel inlet pipes, on both injection & carburettor engines The Snap-on CJWSP is engineered for technicians who need consistent results across a wide range of wet sleeve sizes. Its independently adjustable bridge allows precise setup in tight or awkward configurations, helping reduce stress on critical components during removal. With durable construction and corrosion resistance built in, it’s a dependable addition to any serious workshop.
Welding That Works For You!
EPIQ STRENGTH

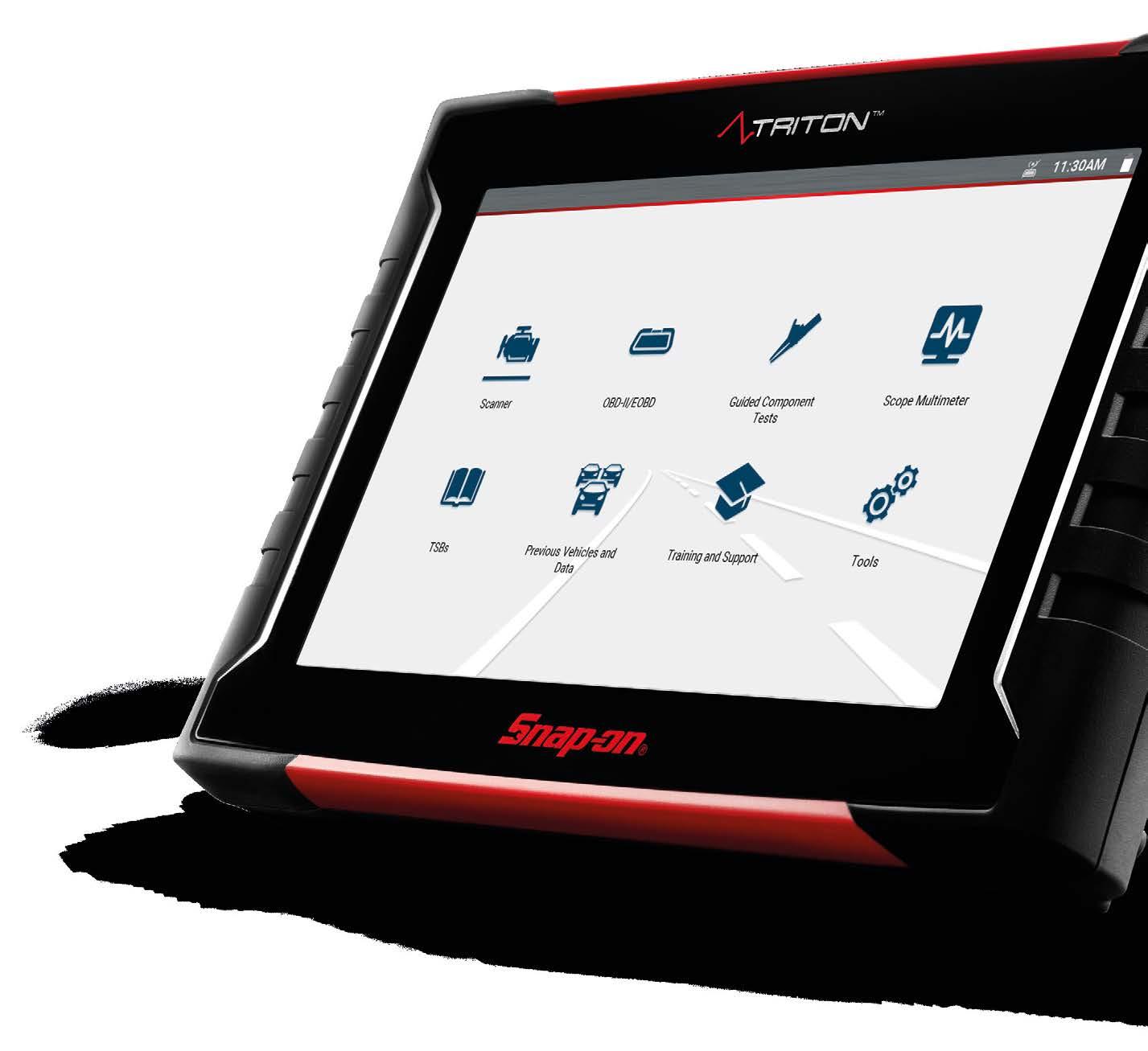

Ensuring your Diagnostic platform has access to the latest software available ensures you have access to what you need to keep you productive in the bay.
Our software offers more vehicle coverage than any other tool in the industry, along with unmatched breadth and depth in manufacturer-level capabilities for the codes, data, and tests you need.
Our vehicle and system coverage is constantly evolving, to keep pace with manufacturer and industry changes. Consistent navigation and terminology across all makes, advanced data graphing capabilities, and fast access to the most frequently used specifications and capacities means with current software you’re always ready.
WHAT YOU GET WHEN YOU STAY CURRENT AND CONNECTED
SECURE GATEWAY ACCESS
With current software on your Snap-on diagnostic platform you get continuous access to manufacturers with Secure gateways - including 1Chrysler®, 1Dodge®, 1Jeep®, Volkswagen®, Audi®, 1Mercedes-Benz®, 1Nissan®, Volvo®, Ford®, Hyundai®, Kia®
SURETRACK® TOP REPAIRS GRAPH4
Provides a graph by mileage of the parts and procedures used to fix the selected code or symptom, letting you see what has worked for others in that specific situation.
REAL FIXES
Shows you what’s worked for other technicians, who have seen — and solved — the same vehicle issue
TECHNICAL BULLETINS3
Gives you up-to-date, one-click access to relevant vehicle and code-specific OEM recalls, campaigns and bulletins.
SMART DATA3
Delivers a code-based data list, highlighting PIDs that are out of expected range — with all the data recorded, all of the time.
FUNCTIONAL TESTS AND RESETS
Supplies a pre-filtered3 list of functional tests and resets, letting you quickly test, verify and reset component operation.
GUIDED COMPONENT TESTS5
Vehicle-specific procedures for millions of components to verify the fix. See step by step where to hook up, how to hook up, known good waveforms and more.
COMPLETE CODE SCAN
Pre- and post-scan functions quickly identify all codes for every system. Reports are automatically saved to the Snap-on® Cloud and can be easily shared with customers.
SERVICE RESETS AND RELEARNS
Snap-on organizes tests and relearns by common repair procedure across all makes. Plus, a related repairs graph highlights other fixes that should be considered. OEM technical bulletins are also provided.
2.5x more likely if you are at or over the age of 50
more likely to get it if your father or brother has had it
6.5x black men will get prostate cancer in their lifetime 1 in 4
Don't Wait, Check
Prostate cancer is the most common cancer in men, yet early detection saves lives. As a brand deeply connected to industries traditionally dominated by men, Snap-on knows how vital it is to break down barriers and talk about men’s health.
At Snap-on, we don’t just build tools—we help build better lives. By standing with Prostate Cancer UK, we’re committed to helping save lives, drive conversations, and wrench change.
If you can, why not give a donation, simply scan the Drop a Donation QR code Together, we can ensure no man is left in the dark when it comes to his health
